Services for Science v2 (APAN26)
- 1. Ian Foster Computation Institute ArgonneNational Lab & University of Chicago Services for Science
- 2. 2 Thanks! DOE Office ofScience NSF Office of Cyberinfrastructure National Institutes of Health Colleagues at Argonne, U.Chicago, USC/ISI, OSU, Manchester, and elsewhere
- 3.
- 4.
- 5. 5 Scientific Communication, ~2000 DataArchivesData Archives User Analysis toolsAnalysis tools Gateway Figure: S. G. Djorgovski Discovery toolsDiscovery tools Service-Oriented Science
- 6. 6 Application Scenario Location A Microarray,Protein, Image data Location B Microarray, Protein, Image data Location C Microarray, Protein, Image data Location C Image Analysis Location D Image Analysis Microarray and protein databases at other institutions Different database systems, data representations, security Different program invocation, remote access, data transfer
- 7. 7 caBIG: sharing ofinfrastructure, applications, and data. Data Integration! Services & Cancer Biology Globus
- 8. 8 Service-Oriented Science People createservices (data, code, instr.) … which I discover (& decide whether to use) … & compose to create a new function ... & then publish as a new service. I find “someone else” to host services, so I don’t have to become an expert in operating services & computers! I hope that this “someone else” can manage security, reliability, scalability, … !! “Service-Oriented Science”, Science, 2005
- 9. 9 Creating Services People createservices (data, code, instr.) … which I discover (& decide whether to use) … & compose to create a new function ... & then publish as a new service. I find “someone else” to host services, so I don’t have to become an expert in operating services & computers! I hope that this “someone else” can manage security, reliability, scalability, … !! “Service-Oriented Science”, Science, 2005
- 10. 10 Anatomy of aService op1 opN (meta)data Implementation(s) Clients Registry Management Clients … Service Service Attribute Authority Attribute Authority Persistence
- 11. 11 Creating Services (~2005) “Thisfull-day tutorial provides an introduction to programming Java services with the latest version of the Globus Toolkit version 4 (GT4). The tutorial teaches how to build a Java Service that makes use of GT4 mechanisms for state management, security, registry and related topics.”

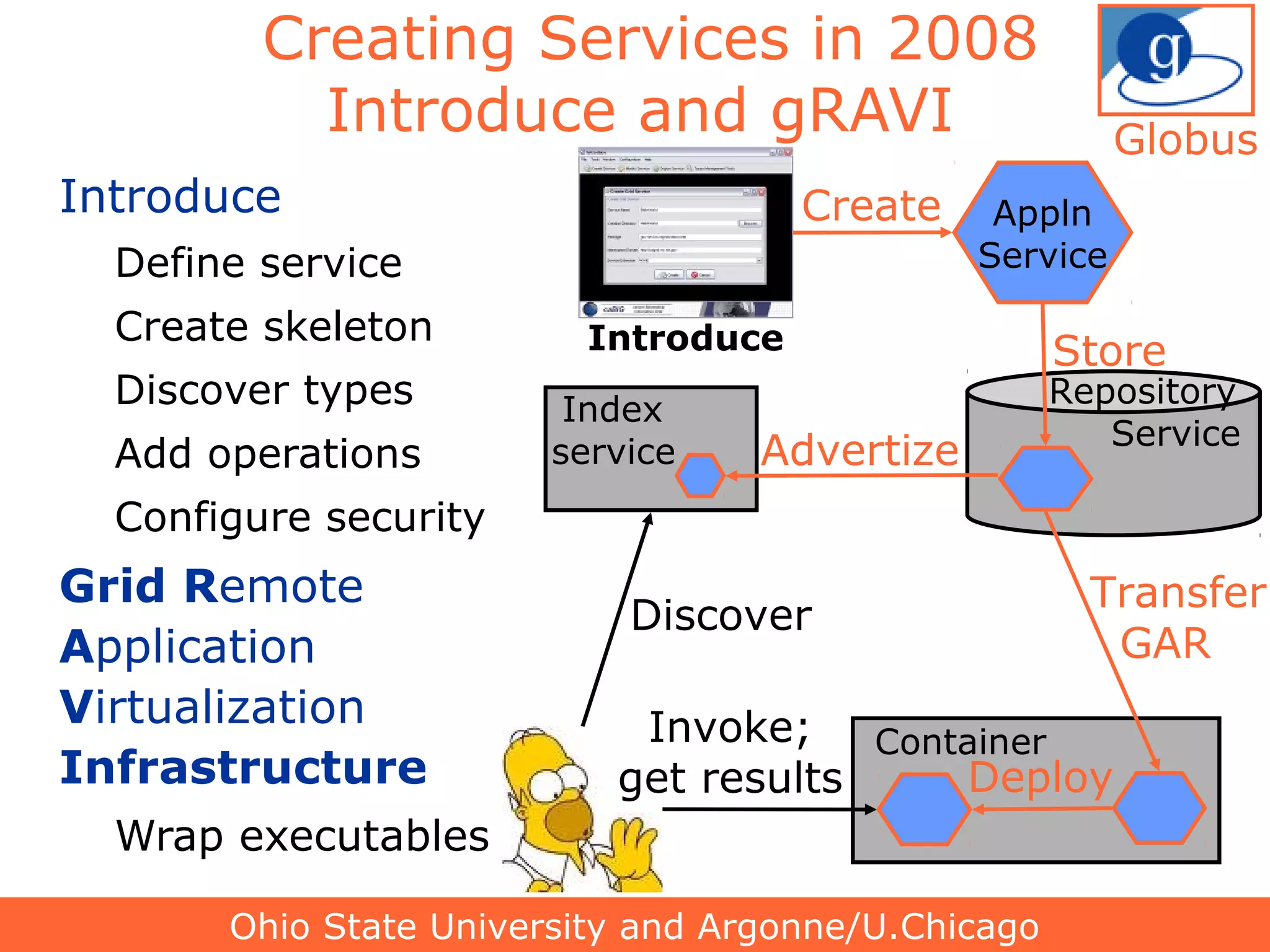

- 12. 12 Appln Service Create Index service Store Repository Service Advertize Discover Invoke; get results Introduce Container Transfer GAR Deploy Ohio StateUniversity and Argonne/U.Chicago Creating Services in 2008 Introduce and gRAVI Introduce Define service Create skeleton Discover types Add operations Configure security Grid Remote Application Virtualization Infrastructure Wrap executables Globus

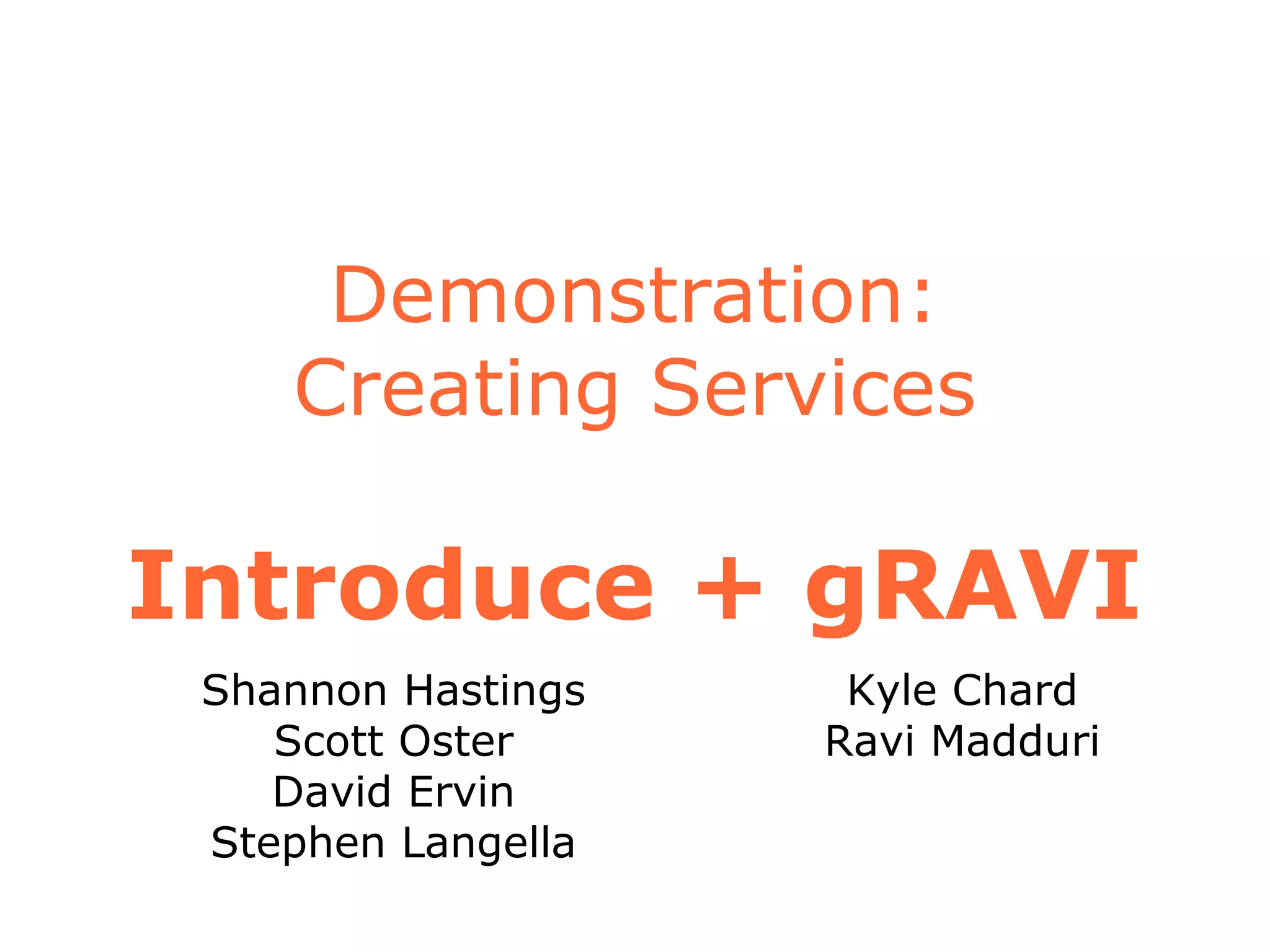

- 13. Demonstration: Creating Services Introduce +gRAVI Shannon Hastings Scott Oster David Ervin Stephen Langella Kyle Chard Ravi Madduri

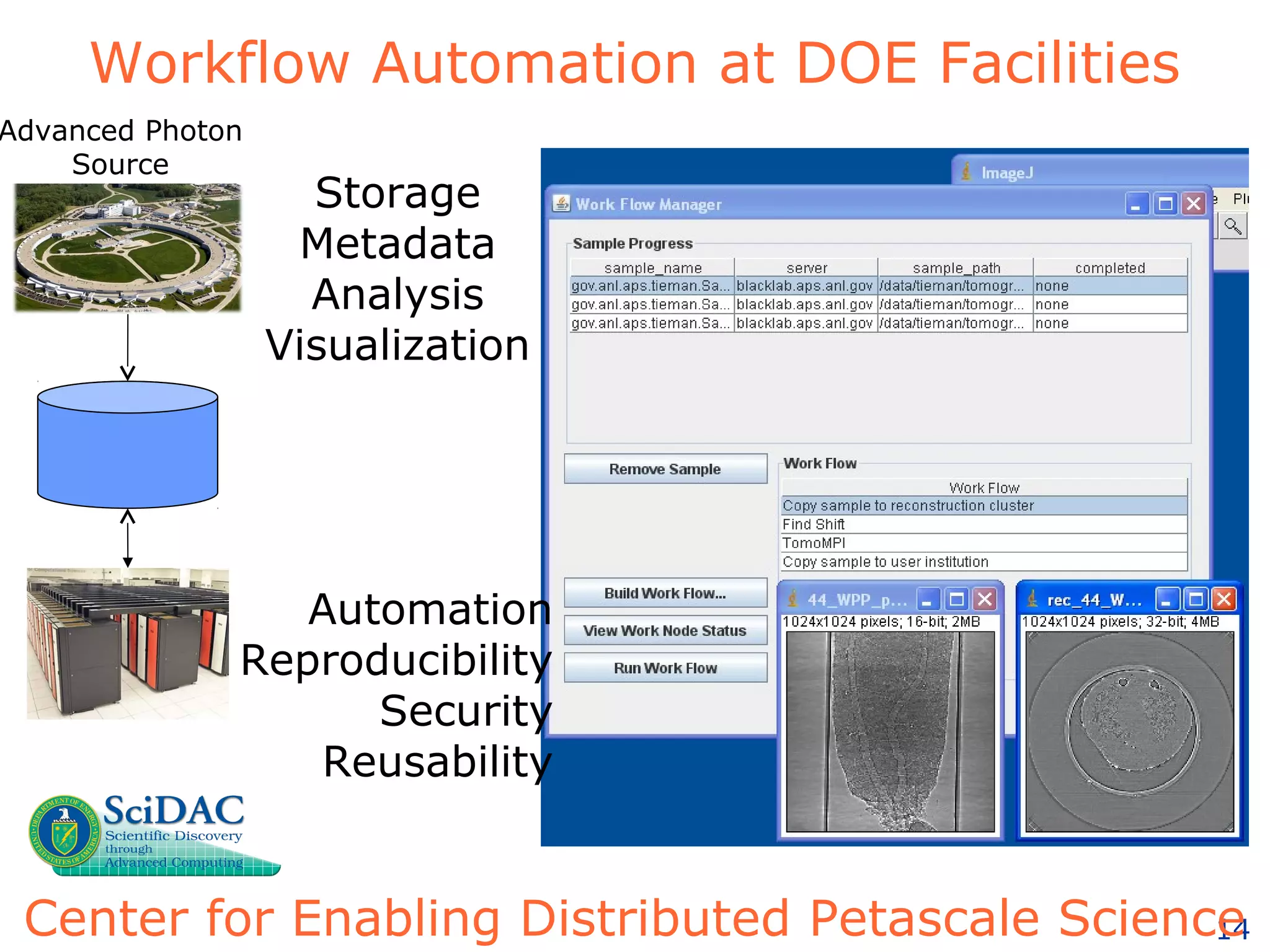

- 14. 14Center for EnablingDistributed Petascale Science Workflow Automation at DOE Facilities Automation Reproducibility Security Reusability Storage Metadata Analysis Visualization Advanced Photon Source
- 15. 15 Discovering Services People createservices (data or functions) … which I discover (& decide whether to use) … & compose to create a new function ... & then publish as a new service. I find “someone else” to host services, so I don’t have to become an expert in operating services & computers! I hope that this “someone else” can manage security, reliability, scalability, … !! “Service-Oriented Science”, Science, 2005
- 16. 16 The ultimatearbiter? Types, ontologies Can I use it? Billions of services Discovering Services Assume success Syntax, semantics Permissions Reputation A B

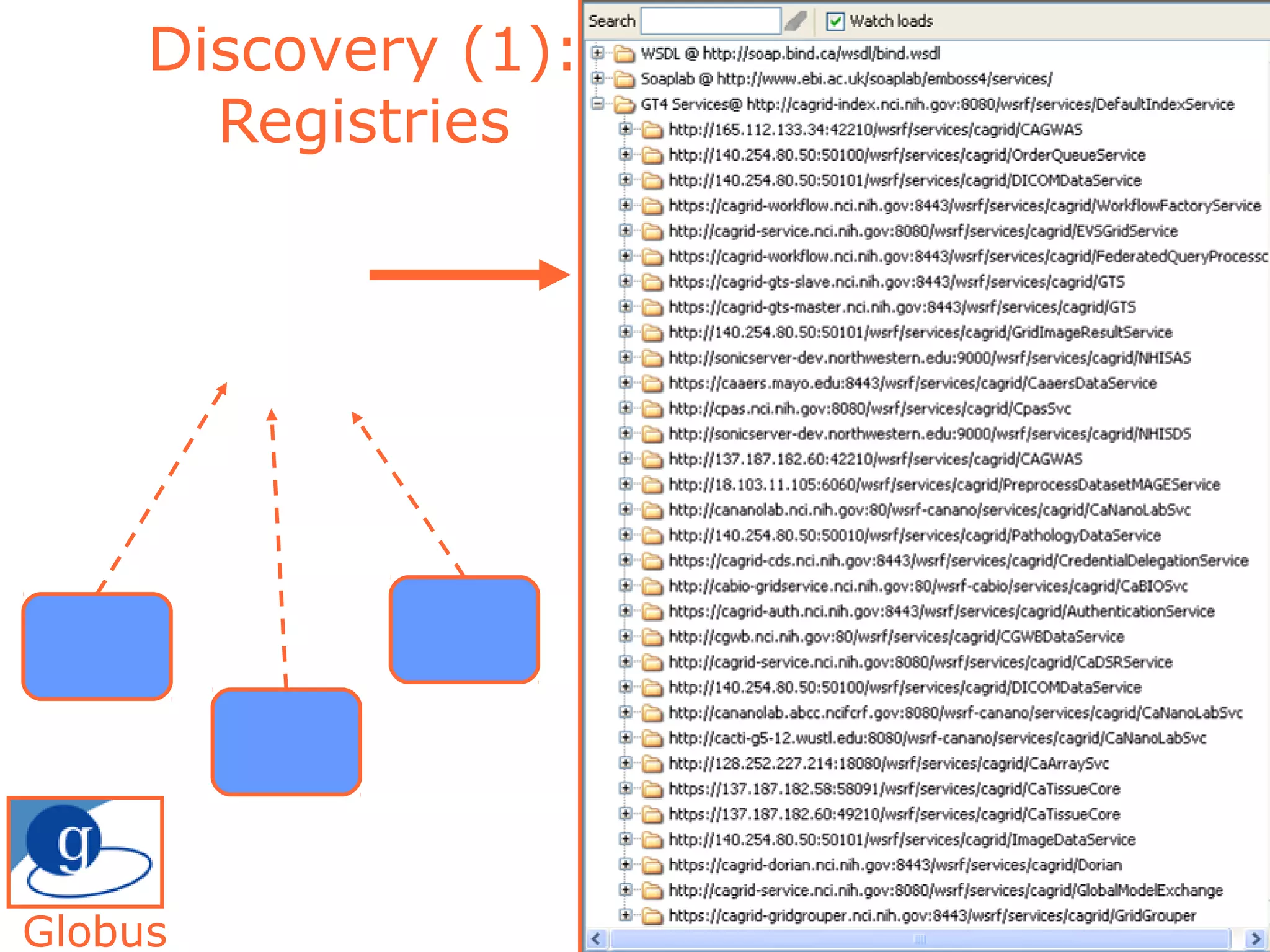

- 17.
- 18. 18 Discovery (2): Standardized Vocabularies CoreServices Grid Service Uses Terminology Described In Cancer Data Standards Repository Enterprise Vocabulary Services References Objects Defined in Service Metadata Publishes Subscribes to and Aggregates Queries Service Metadata Aggregated In Registers To Discovery Client API Index Service Globus
- 19.
- 20. 20 Discovery (3): Tagging &Social Networking GLOSS: Generalized Labels Over Scientific data Sources (Foster, Nestorov)
- 21. 21 Discovery (3): Tagging &Social Networking David de Roure, Carole Goble, et al.

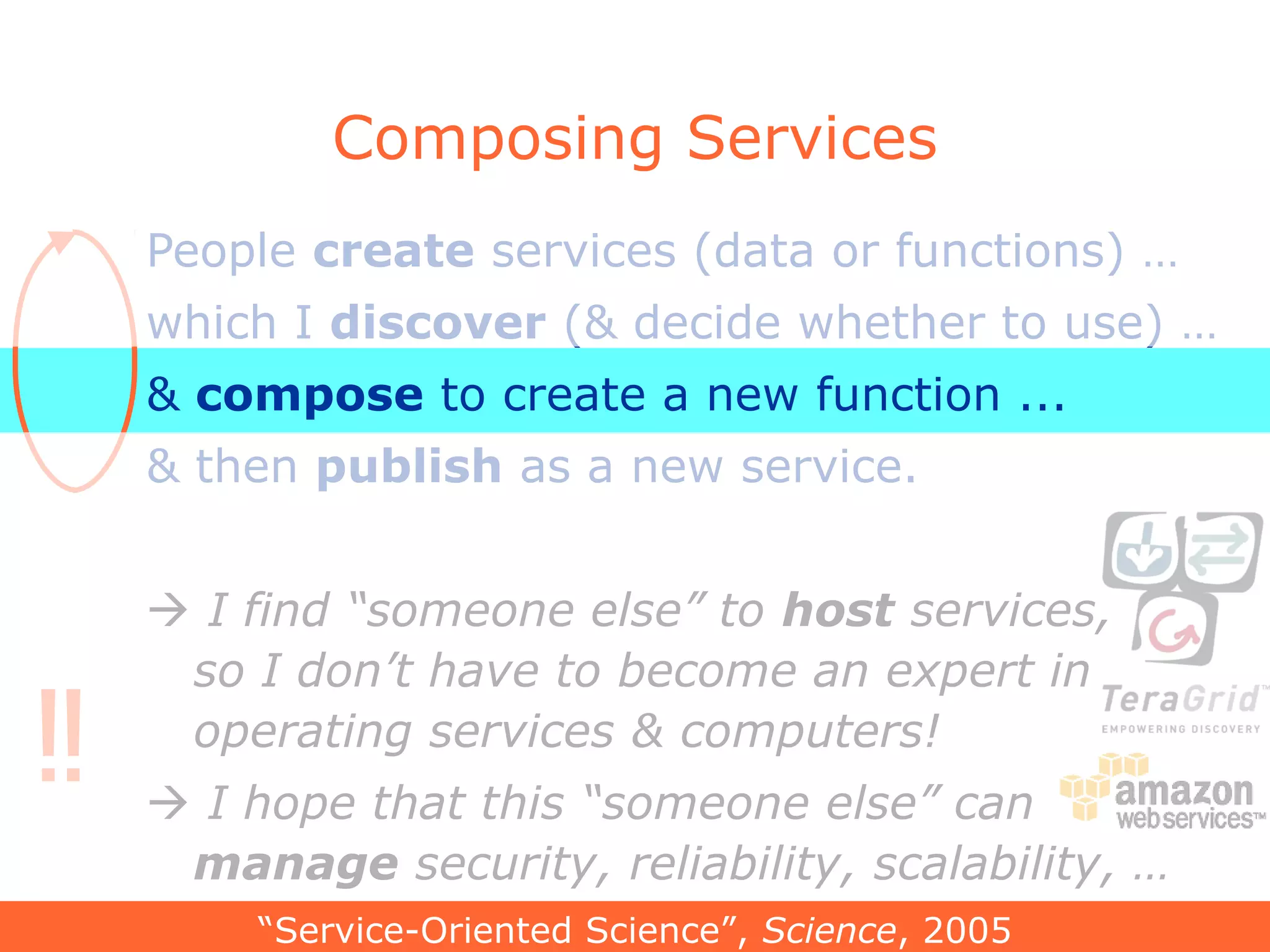

- 22. 22 Composing Services People createservices (data or functions) … which I discover (& decide whether to use) … & compose to create a new function ... & then publish as a new service. I find “someone else” to host services, so I don’t have to become an expert in operating services & computers! I hope that this “someone else” can manage security, reliability, scalability, … !! “Service-Oriented Science”, Science, 2005

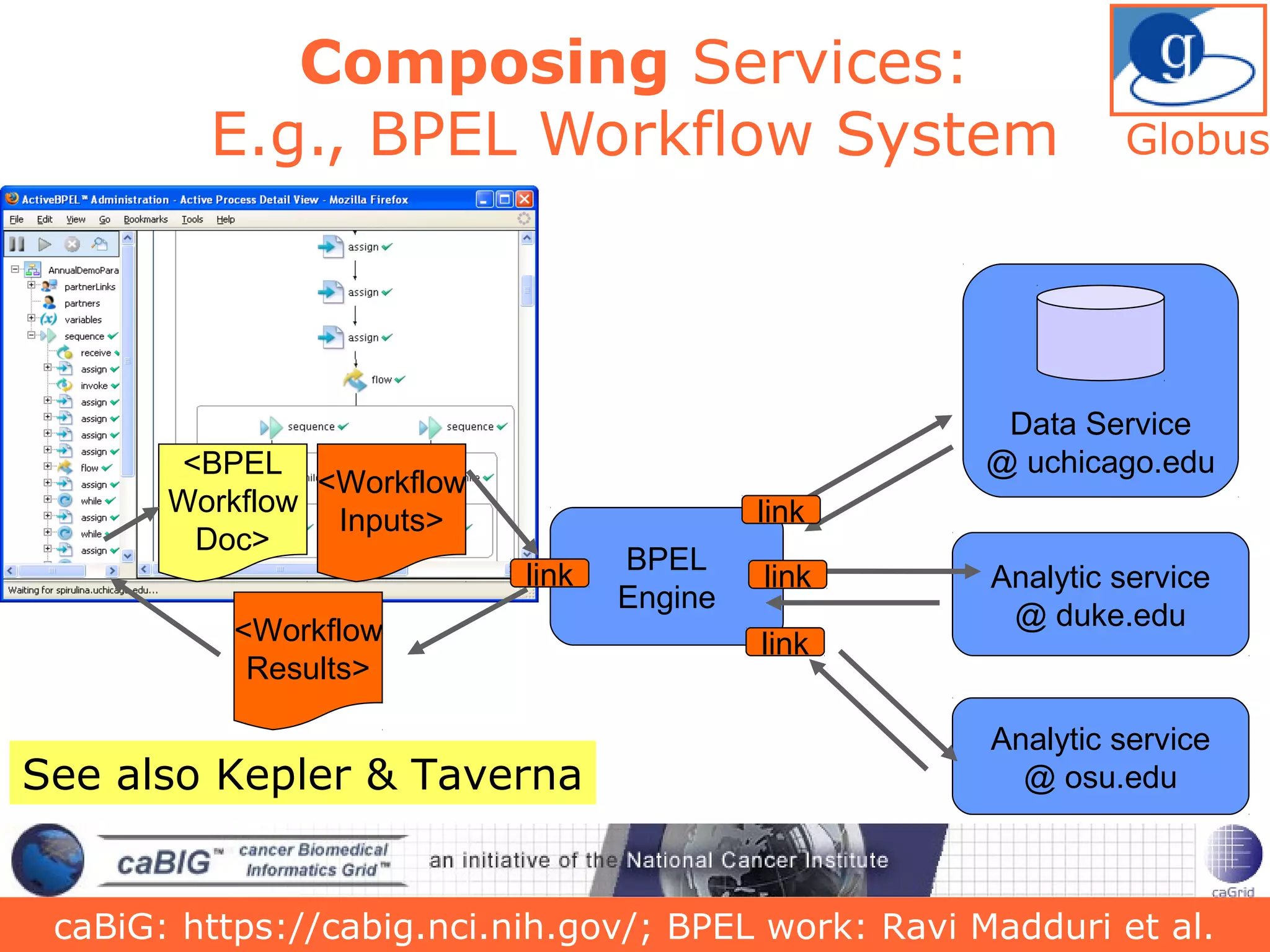

- 23. 23 Composing Services: E.g., BPELWorkflow System Data Service @ uchicago.edu Analytic service @ osu.edu Analytic service @ duke.edu <BPEL Workflow Doc> <Workflow Inputs> <Workflow Results> BPEL Engine link caBiG: https://cabig.nci.nih.gov/; BPEL work: Ravi Madduri et al. link link link See also Kepler & Taverna Globus
- 24. 24 Composing Services: Taverna caGrid Scavengerwith semantic/metadata- based caGrid service query A sample caGrid workflow Globus
- 25.
- 26. Demonstration: Composing Services Taverna +GT4 Taverna team Wei Tan Ravi Madduri
- 27. 27 Publishing Services People createservices (data or functions) … which I discover (& decide whether to use) … & compose to create a new function ... & then publish as a new service. I find “someone else” to host services, so I don’t have to become an expert in operating services & computers! I hope that this “someone else” can manage security, reliability, scalability, … !! “Service-Oriented Science”, Science, 2005
- 28. 28 Publishing Services Description Syntax, semantics State Availability, load, … Policies Who, what, when, … Hosting Location, scalability, …

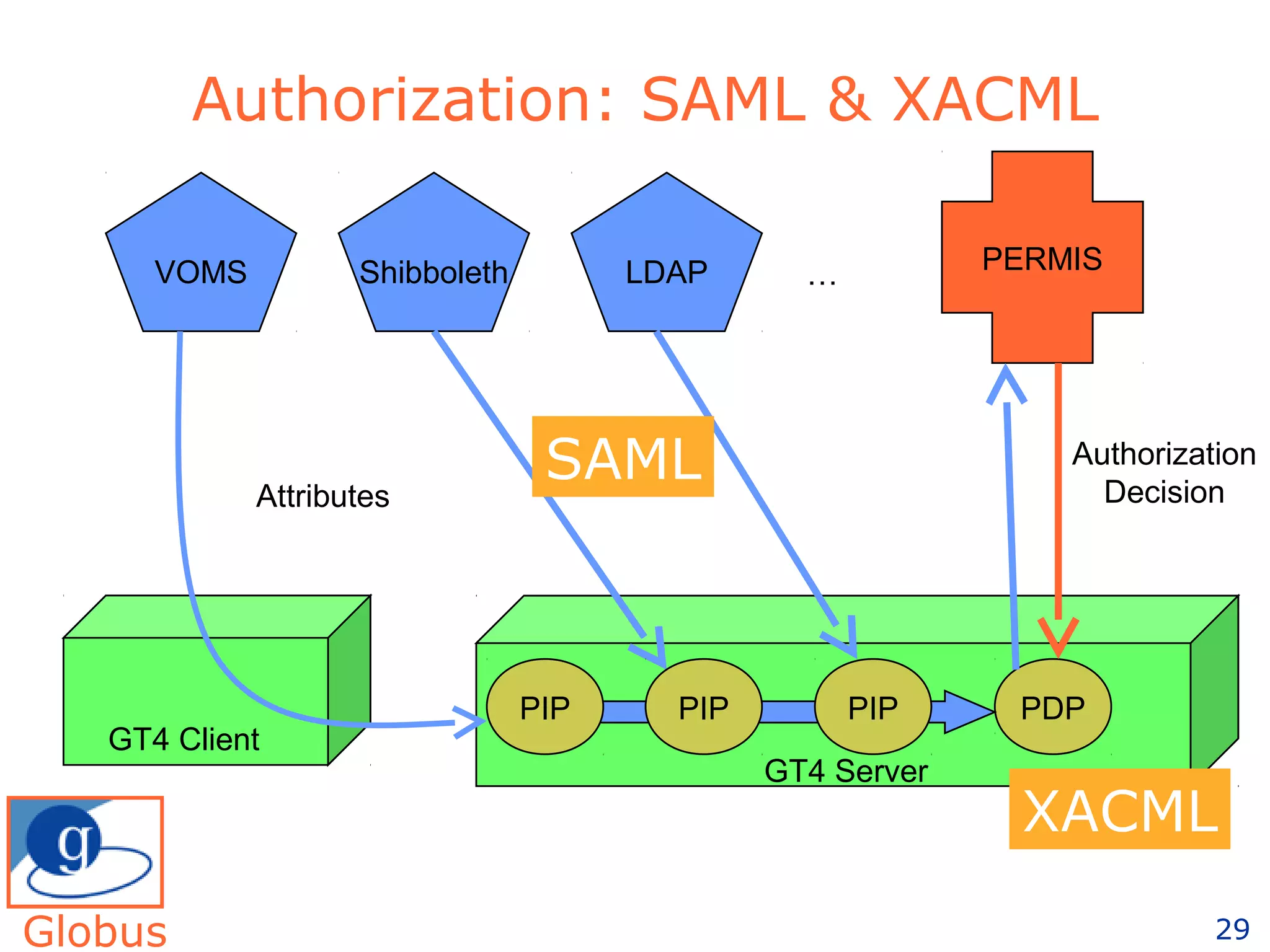

- 29. 29 Authorization: SAML &XACML VOMS Shibboleth LDAP PERMIS… GT4 Client GT4 Server PDP Attributes Authorization Decision PIP PIP PIP SAML XACML Globus
- 30. 30 Hosting Services People createservices (data or functions) … which I discover (& decide whether to use) … & compose to create a new function ... & then publish as a new service. I find “someone else” to host services, so I don’t have to become an expert in operating services & computers! I hope that this “someone else” can manage security, reliability, scalability, … !! “Service-Oriented Science”, Science, 2005
- 31. 31 The Two Dimensions ofService-Oriented Science Decompose across network Clients integrate dynamically Select & compose services Select “best of breed” providers Publish result as new services Decouple resource & service providers Function Resource Data Archives Analysis tools Discovery toolsUsers Fig: S. G. Djorgovski
- 32.
- 33. 33 Putting It Togetherfor the Example Scenario Location A Microarray, Protein, Image data Location B Microarray, Protein, Image data Location C Microarray, Protein, Image data Location C Image Analysis Location D Image Analysis caGrid Service Interfaces caGrid Environ- ment Registered Object Definitions Advertise- ment Log on, Grid credentials Query and Analysis Workflow Discovery Microarray & protein databases at other institutions
- 34. 34 Lessons Learned A convenienthigher-level abstraction Suitable for a subset of scientific use cases Infrastructure need to be sustainable Integrates well with hospital/cancer center/experimental facility IT infrastructure Workflows are attractive to users Scalability and provenance are important No vendor lock-in (if you are careful) User experience remains ambiguous Early adopters are enthusiastic (50+ services)
- 35. 35 Services for Science Anew approach to communicating A (not-so new) approach to structuring systems They’re real Excellent infrastructure and tools (Globus, Introduce, gRAVI, Taverna, Swift, etc., etc.) Substantial numbers of services out there They’re challenging Sociology: incentives, rewards Infrastructure: hosting Provenance: justifying “results” Scaling: services, requests
Editor's Notes
- #8 I would mention data integration here: integration of different data types: tissue, (pre)clinical, genomics, proteomics….
- #15 Developer benefits: Developers spend time developing scientific applications instead of rewriting code to turn into services. Developer time spared through code reuse—legacy apps are wrappered into services instead of rewritten as services Learning gRavi easier than learning service development—especially marshaling of security resources! Traditional applications are not secure and can not provide an audit trail Scientific benefits: Scientists spend time developing workflows rather than moving data from application to application Scientists interact with GUI to focus on scientific process not how to run applications. Services provide easy access to all scientific tools in one integrated GUI. Access to grid resources promotes cross disciplinary collaboration as it becomes easier to share data and applications across institutional boundaries
- #17 Use funnel animation?
- #25 The GT4 plug-in support semantic based service query. Users can input multiple (up to three, in current scenario three is enough. We can add more in our program upon request) service query criteria and input the corresponding value. We can combine multiple criteria. The initial GUI only shows one query criteria, but more can be added by clicking “Add Service Query” button. For example, we can query the caGrid services whose “Research Center” name is “Ohio State University”, with Service Name “DICOMDataService”, and has operation “PullOp”.
