This document provides an outline for a course on sequence stratigraphy. It covers key concepts in stratigraphy including sedimentary depositional environments, facies analysis, sequence stratigraphy principles, and causes of sea level change. Common siliciclastic and carbonate stratigraphic successions are examined. The role of base level and relative sea level changes in controlling sediment accumulation and sequence boundaries is discussed.
Sequence stratigraphy concepts and depositional environments
1. @Hassan Z. Harraz 2019
Sequence stratigraphy
Prof. Dr. Hassan Z. Harraz
Geology Department, Faculty of Science, Tanta University
hharraz2006@yahoo.com
Spring 2019

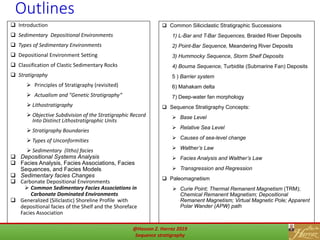

2. Outlines
Introduction
Sedimentary Depositional Environments
Types of Sedimentary Environments
Depositional Environment Setting
Classification of Clastic Sedimentary Rocks
Stratigraphy
Principles of Stratigraphy (revisited)
Actualism and "Genetic Stratigraphy“
Lithostratigraphy
Objective Subdivision of the Stratigraphic Record
Into Distinct Lithostratigraphic Units
Stratigraphy Boundaries
Types of Unconformities
Sedimentary (litho) facies
Depositional Systems Analysis
Facies Analysis, Facies Associations, Facies
Sequences, and Facies Models
Sedimentary facies Changes
Carbonate Depositional Environments
Common Sedimentary Facies Associations in
Carbonate Dominated Environments
Generalized (Siliclastic) Shoreline Profile with
depositional facies of the Shelf and the Shoreface
Facies Association
2
Common Siliciclastic Stratigraphic Successions
1) L-Bar and T-Bar Sequences, Braided River Deposits
2) Point-Bar Sequence, Meandering River Deposits

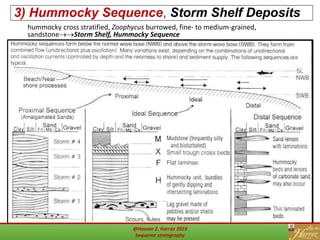

3) Hummocky Sequence, Storm Shelf Deposits

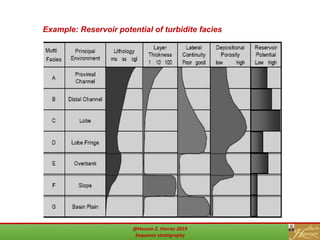

4) Bouma Sequence, Turbidite (Submarine Fan) Deposits

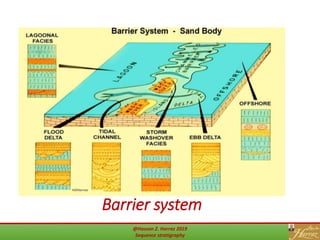

5 ) Barrier system
6) Mahakam delta

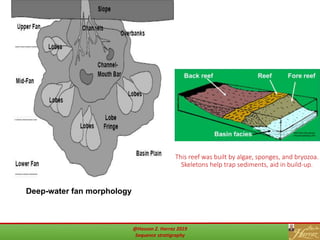

7) Deep-water fan morphology

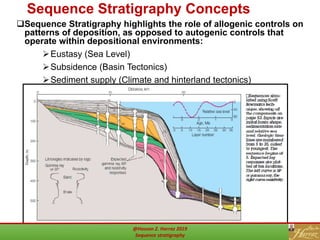

Sequence Stratigraphy Concepts:

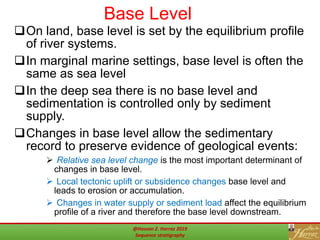

Base Level
Relative Sea Level

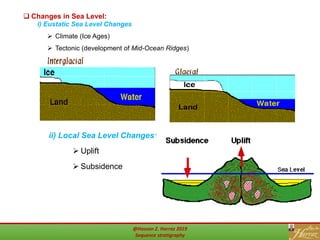

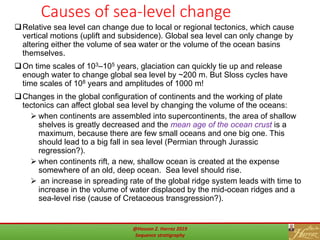

Causes of sea-level change
Walther’s Law

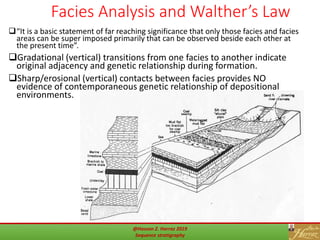

Facies Analysis and Walther’s Law

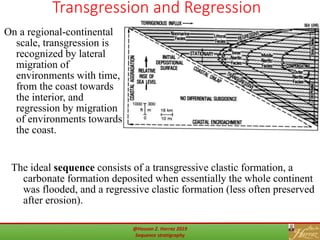

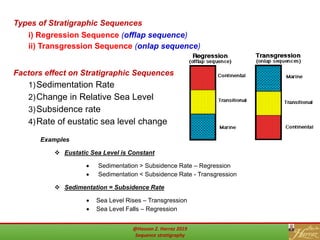

Transgression and Regression

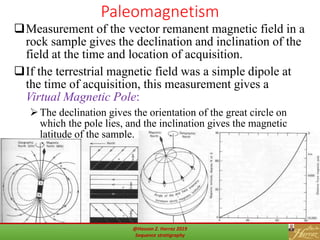

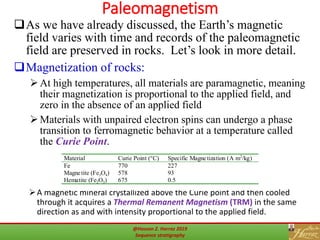

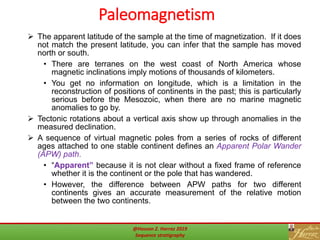

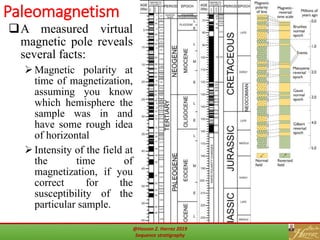

Paleomagnetism
Curie Point; Thermal Remanent Magnetism (TRM);
Chemical Remanent Magnetism; Depositional
Remanent Magnetism; Virtual Magnetic Pole; Apparent
Polar Wander (APW) path
@Hassan Z. Harraz 2019
Sequence stratigraphy
3. Fig 1: Major clastic sedimentary environments (bright-gray). The three major depositional
environments (Level 1) are continental (non-marine), mixed (marine to non-marine or coastal
setting), and marine (submarine). Each of these deposits has a characteristic set of processes
and resulting deposits which form different reservoir types.
3
• Physical
• Biological
• Chemical
Sedimentary Depositional Environments
@Hassan Z. Harraz 2019
Sequence stratigraphy

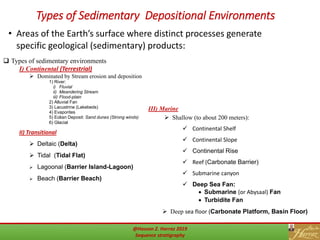

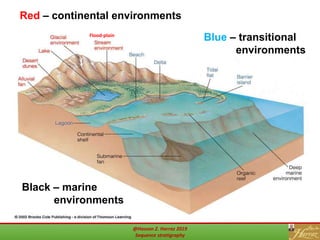

4. Types of Sedimentary Depositional Environments
Types of sedimentary environments
I) Continental (Terrestrial)
Dominated by Stream erosion and deposition
1) River:
i) Fluvial
ii) Meandering Stream
iii) Flood-plain
2) Alluvial Fan
3) Lacustrine (Lakebeds)
4) Evaporites
5) Eolian Deposit: Sand dunes (Strong winds)
6) Glacial
II) Transitional
Deltaic (Delta)
Tidal (Tidal Flat)
Lagoonal (Barrier Island-Lagoon)
Beach (Barrier Beach)
III) Marine
Shallow (to about 200 meters):
Continental Shelf
Continental Slope
Continental Rise
Reef (Carbonate Barrier)
Submarine canyon
Deep Sea Fan:
Submarine (or Abysaal) Fan
Turbidite Fan
Deep sea floor (Carbonate Platform, Basin Floor)
• Areas of the Earth’s surface where distinct processes generate
specific geological (sedimentary) products:
@Hassan Z. Harraz 2019
Sequence stratigraphy

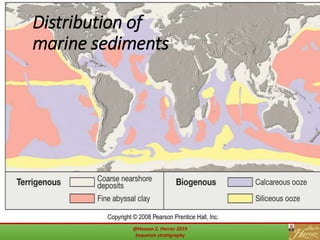

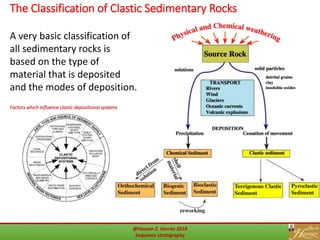

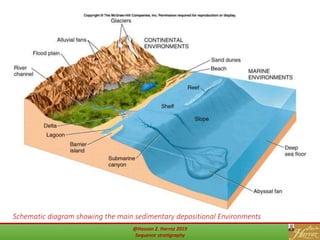

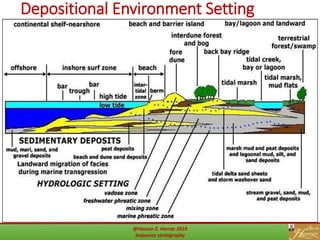

9. A very basic classification of
all sedimentary rocks is
based on the type of
material that is deposited
and the modes of deposition.
The Classification of Clastic Sedimentary Rocks
Factors which influence clastic depositional systems
@Hassan Z. Harraz 2019
Sequence stratigraphy

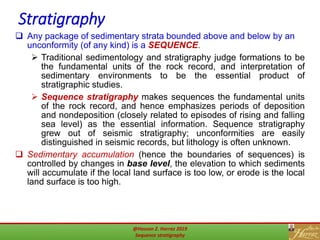

10. Stratigraphy
10
Any package of sedimentary strata bounded above and below by an
unconformity (of any kind) is a SEQUENCE.
Traditional sedimentology and stratigraphy judge formations to be
the fundamental units of the rock record, and interpretation of
sedimentary environments to be the essential product of
stratigraphic studies.
Sequence stratigraphy makes sequences the fundamental units
of the rock record, and hence emphasizes periods of deposition
and nondeposition (closely related to episodes of rising and falling
sea level) as the essential information. Sequence stratigraphy
grew out of seismic stratigraphy; unconformities are easily
distinguished in seismic records, but lithology is often unknown.
Sedimentary accumulation (hence the boundaries of sequences) is
controlled by changes in base level, the elevation to which sediments
will accumulate if the local land surface is too low, or erode is the local
land surface is too high.
@Hassan Z. Harraz 2019
Sequence stratigraphy

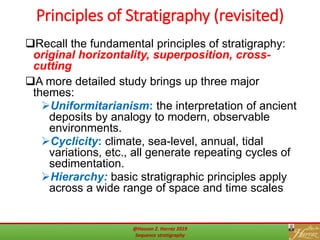

11. Principles of Stratigraphy (revisited)
Recall the fundamental principles of stratigraphy:
original horizontality, superposition, cross-
cutting
A more detailed study brings up three major
themes:
Uniformitarianism: the interpretation of ancient
deposits by analogy to modern, observable
environments.
Cyclicity: climate, sea-level, annual, tidal
variations, etc., all generate repeating cycles of
sedimentation.
Hierarchy: basic stratigraphic principles apply
across a wide range of space and time scales
11@Hassan Z. Harraz 2019
Sequence stratigraphy
12. 12

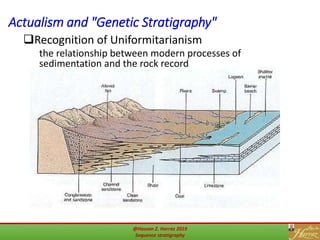

Actualism and "Genetic Stratigraphy"
Recognition of Uniformitarianism
the relationship between modern processes of
sedimentation and the rock record
@Hassan Z. Harraz 2019
Sequence stratigraphy
13. 13

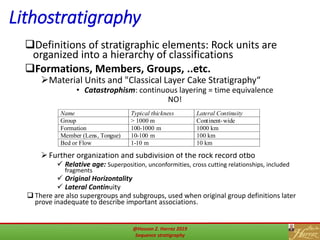

Lithostratigraphy
Definitions of stratigraphic elements: Rock units are
organized into a hierarchy of classifications
Formations, Members, Groups, ..etc.
Material Units and "Classical Layer Cake Stratigraphy“
• Catastrophism: continuous layering = time equivalence
NO!
Further organization and subdivision of the rock record otbo
Relative age: Superposition, unconformities, cross cutting relationships, included
fragments
Original Horizontality
Lateral Continuity
There are also supergroups and subgroups, used when original group definitions later
prove inadequate to describe important associations.
Name Typical thickness Lateral Continuity
Group > 1000 m Continent-wide
Formation 100-1000 m 1000 km
Member (Lens, Tongue) 10-100 m 100 km
Bed or Flow 1-10 m 10 km
@Hassan Z. Harraz 2019
Sequence stratigraphy

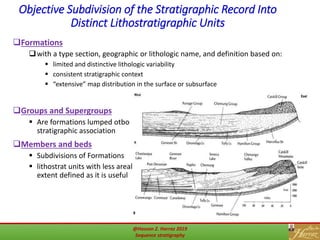

14. 14
Objective Subdivision of the Stratigraphic Record Into
Distinct Lithostratigraphic Units
Formations
with a type section, geographic or lithologic name, and definition based on:
limited and distinctive lithologic variability
consistent stratigraphic context
“extensive” map distribution in the surface or subsurface
Groups and Supergroups
Are formations lumped otbo
stratigraphic association
Members and beds
Subdivisions of Formations
lithostrat units with less areal
extent defined as it is useful
@Hassan Z. Harraz 2019
Sequence stratigraphy

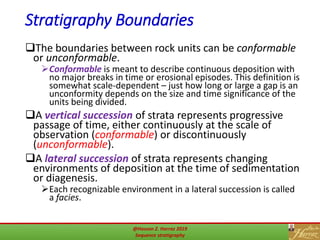

15. Stratigraphy Boundaries
The boundaries between rock units can be conformable
or unconformable.
Conformable is meant to describe continuous deposition with
no major breaks in time or erosional episodes. This definition is
somewhat scale-dependent – just how long or large a gap is an
unconformity depends on the size and time significance of the
units being divided.
A vertical succession of strata represents progressive
passage of time, either continuously at the scale of
observation (conformable) or discontinuously
(unconformable).
A lateral succession of strata represents changing
environments of deposition at the time of sedimentation
or diagenesis.
Each recognizable environment in a lateral succession is called
a facies.
15@Hassan Z. Harraz 2019
Sequence stratigraphy

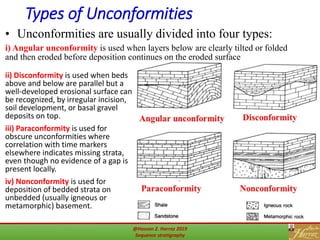

16. Types of Unconformities
ii) Disconformity is used when beds
above and below are parallel but a
well-developed erosional surface can
be recognized, by irregular incision,
soil development, or basal gravel
deposits on top.
iii) Paraconformity is used for
obscure unconformities where
correlation with time markers
elsewhere indicates missing strata,
even though no evidence of a gap is
present locally.
iv) Nonconformity is used for
deposition of bedded strata on
unbedded (usually igneous or
metamorphic) basement.
16
• Unconformities are usually divided into four types:
i) Angular unconformity is used when layers below are clearly tilted or folded
and then eroded before deposition continues on the eroded surface
@Hassan Z. Harraz 2019
Sequence stratigraphy
17. 17

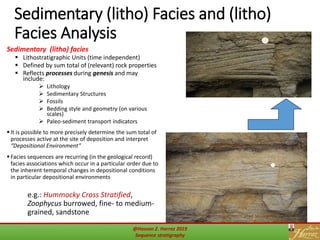

Sedimentary (litho) Facies and (litho)
Facies Analysis
Sedimentary (litho) facies
Lithostratigraphic Units (time independent)
Defined by sum total of (relevant) rock properties
Reflects processes during genesis and may
include:
Lithology
Sedimentary Structures
Fossils
Bedding style and geometry (on various
scales)
Paleo-sediment transport indicators
It is possible to more precisely determine the sum total of
processes active at the site of deposition and interpret
“Depositional Environment”
Facies sequences are recurring (in the geological record)
facies associations which occur in a particular order due to
the inherent temporal changes in depositional conditions
in particular depositional environments
e.g.: Hummocky Cross Stratified,
Zoophycus burrowed, fine- to medium-
grained, sandstone
@Hassan Z. Harraz 2019
Sequence stratigraphy
18. 18

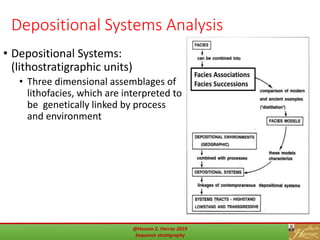

Depositional Systems Analysis
• Depositional Systems:
(lithostratigraphic units)
• Three dimensional assemblages of
lithofacies, which are interpreted to
be genetically linked by process
and environment
@Hassan Z. Harraz 2019
Sequence stratigraphy

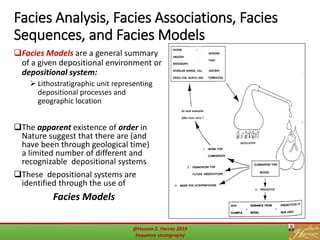

19. 19
Facies Analysis, Facies Associations, Facies
Sequences, and Facies Models
Facies Models are a general summary
of a given depositional environment or
depositional system:
Lithostratigraphic unit representing
depositional processes and
geographic location
The apparent existence of order in
Nature suggest that there are (and
have been through geological time)
a limited number of different and
recognizable depositional systems
These depositional systems are
identified through the use of
Facies Models
@Hassan Z. Harraz 2019
Sequence stratigraphy

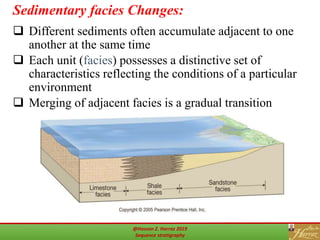

20. Sedimentary facies Changes:
Different sediments often accumulate adjacent to one
another at the same time
Each unit (facies) possesses a distinctive set of
characteristics reflecting the conditions of a particular
environment
Merging of adjacent facies is a gradual transition
@Hassan Z. Harraz 2019
Sequence stratigraphy
21. 21

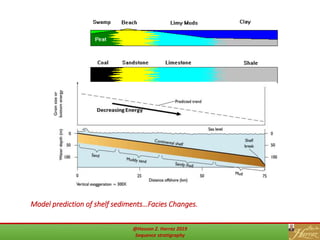

Model prediction of shelf sediments…Facies Changes.
@Hassan Z. Harraz 2019
Sequence stratigraphy

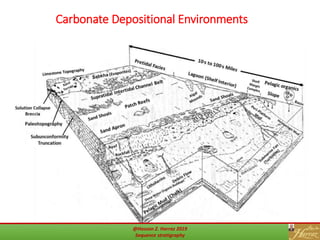

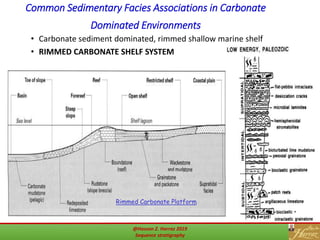

23. Common Sedimentary Facies Associations in Carbonate
Dominated Environments
• Carbonate sediment dominated, rimmed shallow marine shelf
• RIMMED CARBONATE SHELF SYSTEM
23
Rimmed Carbonate Platform
23@Hassan Z. Harraz 2019
Sequence stratigraphy

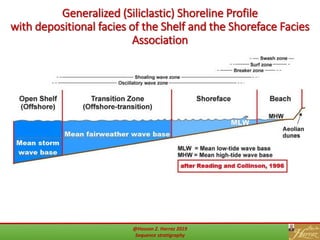

24. Generalized (Siliclastic) Shoreline Profile
with depositional facies of the Shelf and the Shoreface Facies
Association
24@Hassan Z. Harraz 2019
Sequence stratigraphy
25. 25

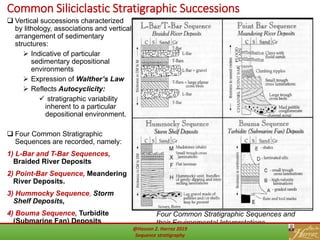

Common Siliciclastic Stratigraphic Successions
Vertical successions characterized
by lithology, associations and vertical
arrangement of sedimentary
structures:
Indicative of particular
sedimentary depositional
environments
Expression of Walther’s Law
Reflects Autocyclicity:
stratigraphic variability
inherent to a particular
depositional environment.
Four Common Stratigraphic
Sequences are recorded, namely:
1) L-Bar and T-Bar Sequences,
Braided River Deposits
2) Point-Bar Sequence, Meandering
River Deposits.
3) Hummocky Sequence, Storm
Shelf Deposits,
4) Bouma Sequence, Turbidite
(Submarine Fan) Deposits
Four Common Stratigraphic Sequences and
their Environmental Interpretations
@Hassan Z. Harraz 2019
Sequence stratigraphy
26. 26
1) L-Bar and T-Bar Sequences, Braided River Deposits
• High gradient, low sinuosity, sand and gravel dominatedBraided River System
@Hassan Z. Harraz 2019
Sequence stratigraphy
27. 27
2) Point-Bar Sequence, Meandering River Deposits
Low Gradient, high sinuosity, mud to sand dominatedMeandering River System
@Hassan Z. Harraz 2019
Sequence stratigraphy

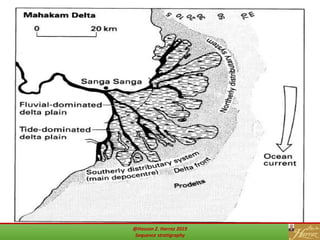

32. This reef was built by algae, sponges, and bryozoa.
Skeletons help trap sediments, aid in build-up.
Deep-water fan morphology
@Hassan Z. Harraz 2019
Sequence stratigraphy

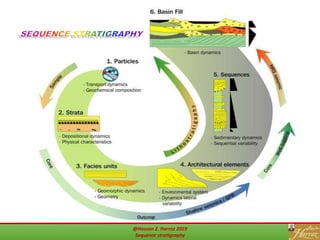

35. Components of Sequences
Components of sequences, their log responses, and predicted and observed seismic reflection
pattern 35@Hassan Z. Harraz 2019
Sequence stratigraphy
36. Sequence Stratigraphy Concepts
Sequence Stratigraphy highlights the role of allogenic controls on
patterns of deposition, as opposed to autogenic controls that
operate within depositional environments:
Eustasy (Sea Level)
Subsidence (Basin Tectonics)
Sediment supply (Climate and hinterland tectonics)
36@Hassan Z. Harraz 2019
Sequence stratigraphy

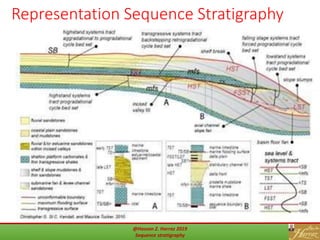

38. Base Level
38
On land, base level is set by the equilibrium profile
of river systems.
In marginal marine settings, base level is often the
same as sea level
In the deep sea there is no base level and
sedimentation is controlled only by sediment
supply.
Changes in base level allow the sedimentary
record to preserve evidence of geological events:
Relative sea level change is the most important determinant of
changes in base level.
Local tectonic uplift or subsidence changes base level and
leads to erosion or accumulation.
Changes in water supply or sediment load affect the equilibrium
profile of a river and therefore the base level downstream.
@Hassan Z. Harraz 2019
Sequence stratigraphy
39. Changes in Sea Level:
i) Eustatic Sea Level Changes
Climate (Ice Ages)
Tectonic (development of Mid-Ocean Ridges)
39
ii) Local Sea Level Changes:
Uplift
Subsidence
@Hassan Z. Harraz 2019
Sequence stratigraphy

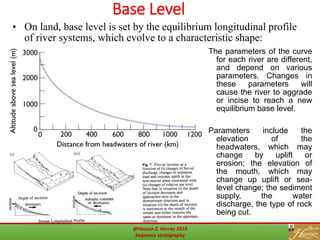

40. Base Level
40
The parameters of the curve
for each river are different,
and depend on various
parameters. Changes in
these parameters will
cause the river to aggrade
or incise to reach a new
equilibrium base level.
Parameters include the
elevation of the
headwaters, which may
change by uplift or
erosion; the elevation of
the mouth, which may
change up uplift or sea-
level change; the sediment
supply, the water
discharge, the type of rock
being cut.
• On land, base level is set by the equilibrium longitudinal profile
of river systems, which evolve to a characteristic shape:
@Hassan Z. Harraz 2019
Sequence stratigraphy

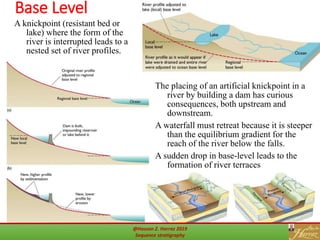

41. Base Level
41
The placing of an artificial knickpoint in a
river by building a dam has curious
consequences, both upstream and
downstream.
A waterfall must retreat because it is steeper
than the equilibrium gradient for the
reach of the river below the falls.
A sudden drop in base-level leads to the
formation of river terraces
A knickpoint (resistant bed or
lake) where the form of the
river is interrupted leads to a
nested set of river profiles.
@Hassan Z. Harraz 2019
Sequence stratigraphy
42. Relative Sea Level
42
Relative sea level is the depth of water relative to the
local land surface.
Relative sea level can change due to local vertical tectonic motions or due
to eustatic sea level variations (i.e. global changes in the volume of ocean
water or of the ocean basins).
In both sequence and traditional stratigraphy, the critical events
that determine the locations of environments and unconformities
are transgressions and regressions.
A transgression is a landward shift in the coastline, and hence
a landward shift in all marginal marine environments. A
regression is a seaward shift in the coastline.
A drop in relative sea level always causes a regression. A transgression
hence requires rising relative sea level. However, rising sea-level can
result in transgression, stationary shorelines, or regression depending on
sediment supply.
This asymmetry results because sediment flux from land is always positive,
and because transgression during sea-level fall would create unstable, over-
steepened long-valley profiles.
@Hassan Z. Harraz 2019
Sequence stratigraphy

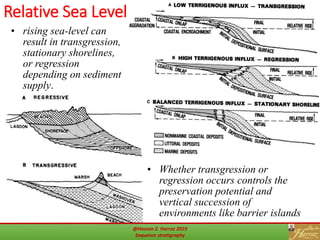

44. Relative Sea Level
44
• Whether transgression or
regression occurs controls the
preservation potential and
vertical succession of
environments like barrier islands
• rising sea-level can
result in transgression,
stationary shorelines,
or regression
depending on sediment
supply.
@Hassan Z. Harraz 2019
Sequence stratigraphy
45. 45
Causes of sea-level change
Relative sea level can change due to local or regional tectonics, which cause
vertical motions (uplift and subsidence). Global sea level can only change by
altering either the volume of sea water or the volume of the ocean basins
themselves.
On time scales of 103–105 years, glaciation can quickly tie up and release
enough water to change global sea level by ~200 m. But Sloss cycles have
time scales of 108 years and amplitudes of 1000 m!
Changes in the global configuration of continents and the working of plate
tectonics can affect global sea level by changing the volume of the oceans:
when continents are assembled into supercontinents, the area of shallow
shelves is greatly decreased and the mean age of the ocean crust is a
maximum, because there are few small oceans and one big one. This
should lead to a big fall in sea level (Permian through Jurassic
regression?).
when continents rift, a new, shallow ocean is created at the expense
somewhere of an old, deep ocean. Sea level should rise.
an increase in spreading rate of the global ridge system leads with time to
increase in the volume of water displaced by the mid-ocean ridges and a
sea-level rise (cause of Cretaceous transgression?).
@Hassan Z. Harraz 2019
Sequence stratigraphy
46. Walther’s Law
46
We are now ready to state the third fundamental tenet of
traditional stratigraphy, lateral continuity, which is
expressed by Walther’s Law:
In a conformable vertical succession, only those facies that can
be observed laterally adjacent to one another can be
superimposed vertically.
That is, if the lateral shifting of sedimentary environments is
controlled by continuous changes in base-level, each point
accumulating sediments vertically passes through all
intermediate environments continuously.
Thus, e.g., deep-sea sediments directly overlying a terrestrial
flood-plain facies demands an unconformity in between.
Consider again the vertical succession of beach facies, which maps the
lateral succession of beach facies onto a single point as the beach
progrades outwards during a regressive relative sea-level rise.
@Hassan Z. Harraz 2019
Sequence stratigraphy
47. 47
Facies Analysis and Walther’s Law
“It is a basic statement of far reaching significance that only those facies and facies
areas can be super imposed primarily that can be observed beside each other at
the present time”.
Gradational (vertical) transitions from one facies to another indicate
original adjacency and genetic relationship during formation.
Sharp/erosional (vertical) contacts between facies provides NO
evidence of contemporaneous genetic relationship of depositional
environments.
@Hassan Z. Harraz 2019
Sequence stratigraphy

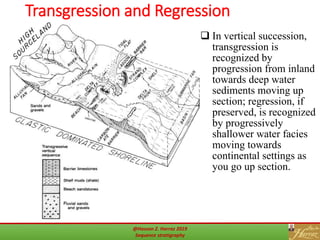

48. Transgression and Regression
48
In vertical succession,
transgression is
recognized by
progression from inland
towards deep water
sediments moving up
section; regression, if
preserved, is recognized
by progressively
shallower water facies
moving towards
continental settings as
you go up section.
@Hassan Z. Harraz 2019
Sequence stratigraphy
49. Transgression and Regression
49
The ideal sequence consists of a transgressive clastic formation, a
carbonate formation deposited when essentially the whole continent
was flooded, and a regressive clastic formation (less often preserved
after erosion).
On a regional-continental
scale, transgression is
recognized by lateral
migration of
environments with time,
from the coast towards
the interior, and
regression by migration
of environments towards
the coast.
@Hassan Z. Harraz 2019
Sequence stratigraphy
50. Paleomagnetism
50
A magnetic mineral crystallized above the Curie point and then cooled
through it acquires a Thermal Remanent Magnetism (TRM) in the same
direction as and with intensity proportional to the applied field.
As we have already discussed, the Earth’s magnetic
field varies with time and records of the paleomagnetic
field are preserved in rocks. Let’s look in more detail.
Magnetization of rocks:
At high temperatures, all materials are paramagnetic, meaning
their magnetization is proportional to the applied field, and
zero in the absence of an applied field
Materials with unpaired electron spins can undergo a phase
transition to ferromagnetic behavior at a temperature called
the Curie Point.
Material Curie Point (°C) Specific Magnetization (A m2
/kg)
Fe 770 227
Magnetite (Fe3O4) 578 93
Hematite (Fe2O3) 675 0.5
@Hassan Z. Harraz 2019
Sequence stratigraphy

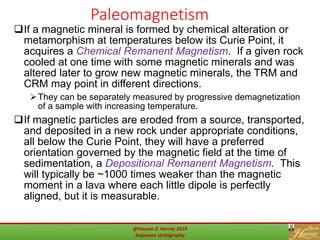

51. Paleomagnetism
51
If a magnetic mineral is formed by chemical alteration or
metamorphism at temperatures below its Curie Point, it
acquires a Chemical Remanent Magnetism. If a given rock
cooled at one time with some magnetic minerals and was
altered later to grow new magnetic minerals, the TRM and
CRM may point in different directions.
They can be separately measured by progressive demagnetization
of a sample with increasing temperature.
If magnetic particles are eroded from a source, transported,
and deposited in a new rock under appropriate conditions,
all below the Curie Point, they will have a preferred
orientation governed by the magnetic field at the time of
sedimentation, a Depositional Remanent Magnetism. This
will typically be ~1000 times weaker than the magnetic
moment in a lava where each little dipole is perfectly
aligned, but it is measurable.
@Hassan Z. Harraz 2019
Sequence stratigraphy
52. Paleomagnetism
52
Measurement of the vector remanent magnetic field in a
rock sample gives the declination and inclination of the
field at the time and location of acquisition.
If the terrestrial magnetic field was a simple dipole at
the time of acquisition, this measurement gives a
Virtual Magnetic Pole:
The declination gives the orientation of the great circle on
which the pole lies, and the inclination gives the magnetic
latitude of the sample.
@Hassan Z. Harraz 2019
Sequence stratigraphy
53. 53
Paleomagnetism
A measured virtual
magnetic pole reveals
several facts:
Magnetic polarity at
time of magnetization,
assuming you know
which hemisphere the
sample was in and
have some rough idea
of horizontal
Intensity of the field at
the time of
magnetization, if you
correct for the
susceptibility of the
particular sample.
@Hassan Z. Harraz 2019
Sequence stratigraphy
54. Paleomagnetism
54
The apparent latitude of the sample at the time of magnetization. If it does
not match the present latitude, you can infer that the sample has moved
north or south.
• There are terranes on the west coast of North America whose
magnetic inclinations imply motions of thousands of kilometers.
• You get no information on longitude, which is a limitation in the
reconstruction of positions of continents in the past; this is particularly
serious before the Mesozoic, when there are no marine magnetic
anomalies to go by.
Tectonic rotations about a vertical axis show up through anomalies in the
measured declination.
A sequence of virtual magnetic poles from a series of rocks of different
ages attached to one stable continent defines an Apparent Polar Wander
(APW) path.
• “Apparent” because it is not clear without a fixed frame of reference
whether it is the continent or the pole that has wandered.
• However, the difference between APW paths for two different
continents gives an accurate measurement of the relative motion
between the two continents.
@Hassan Z. Harraz 2019
Sequence stratigraphy
