This document describes the features and functions of a smart pen. It has special paper with invisible dots that the pen detects to synchronize audio recordings with written notes. The pen has a microphone, infrared camera, OLED display and internal flash memory. It works by recording audio and matching it to notes written on dot paper. The smart pen is useful for students and professionals as it allows combining notes, audio recordings and drawings into synchronized files.

1. SMART PEN
PRESENTED BY
KALYANI.R(3SL09IS004)

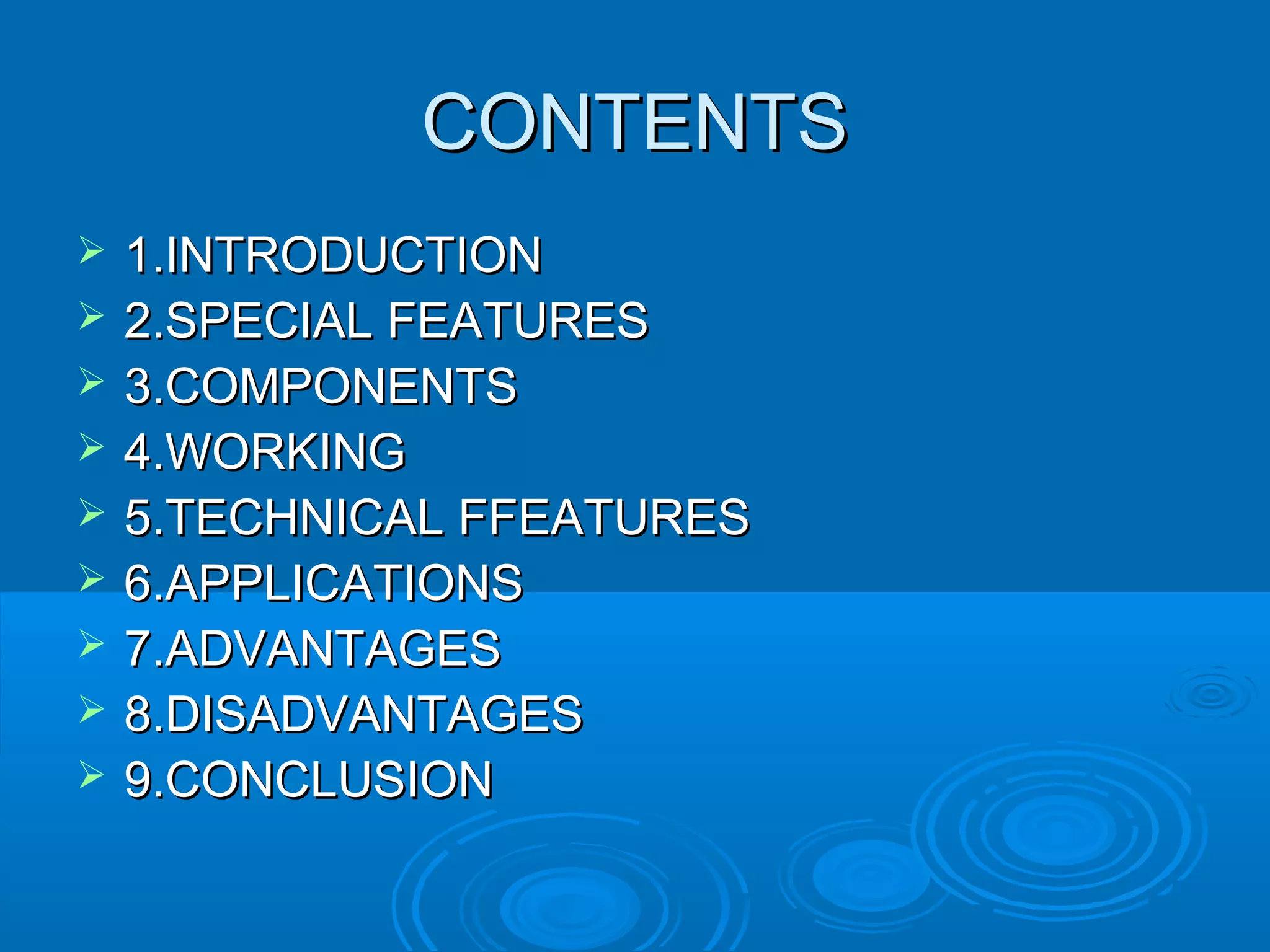

2. CONTENTS
 1.INTRODUCTION
 2.SPECIAL FEATURES
 3.COMPONENTS
 4.WORKING
 5.TECHNICAL FFEATURES
 6.APPLICATIONS
 7.ADVANTAGES
 8.DISADVANTAGES
 9.CONCLUSION

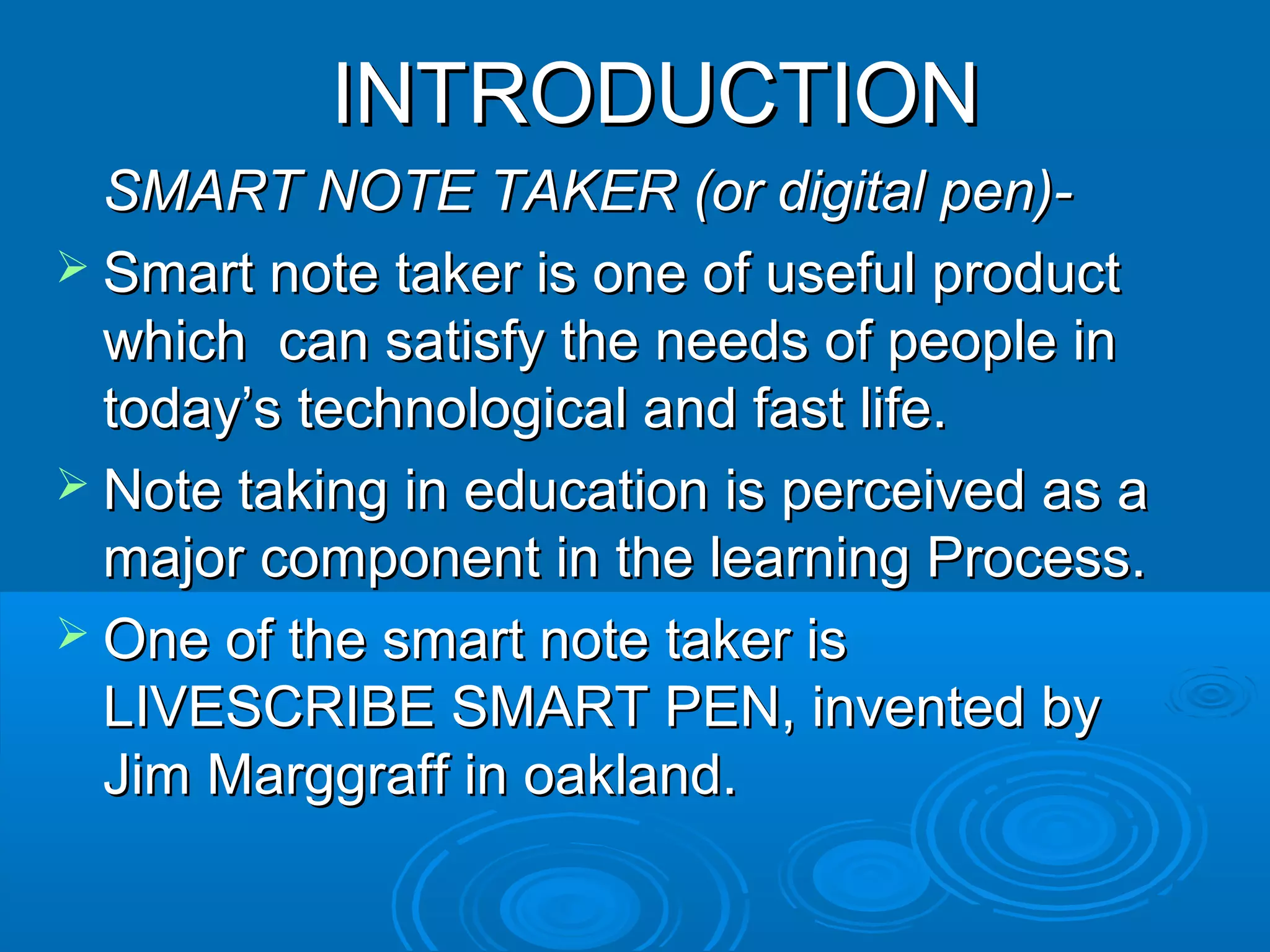

3. INTRODUCTION
SMART NOTE TAKER (or digital pen)-
 Smart note taker is one of useful product
which can satisfy the needs of people in
today’s technological and fast life.
 Note taking in education is perceived as a
major component in the learning Process.
 One of the smart note taker is
LIVESCRIBE SMART PEN, invented by
Jim Marggraff in oakland.

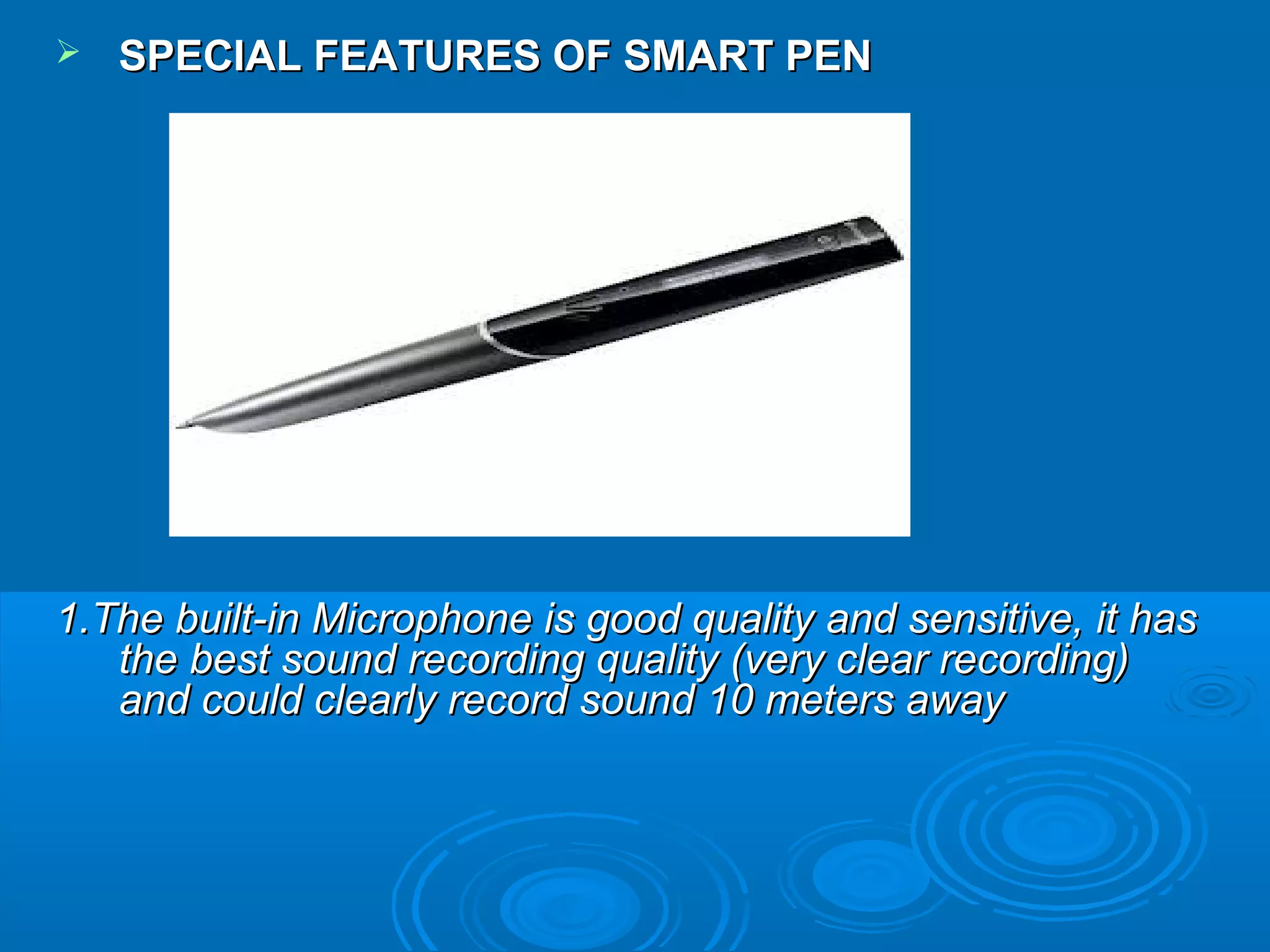

4.  SPECIAL FEATURES OF SMART PEN
1.The built-in Microphone is good quality and sensitive, it has
the best sound recording quality (very clear recording)
and could clearly record sound 10 meters away

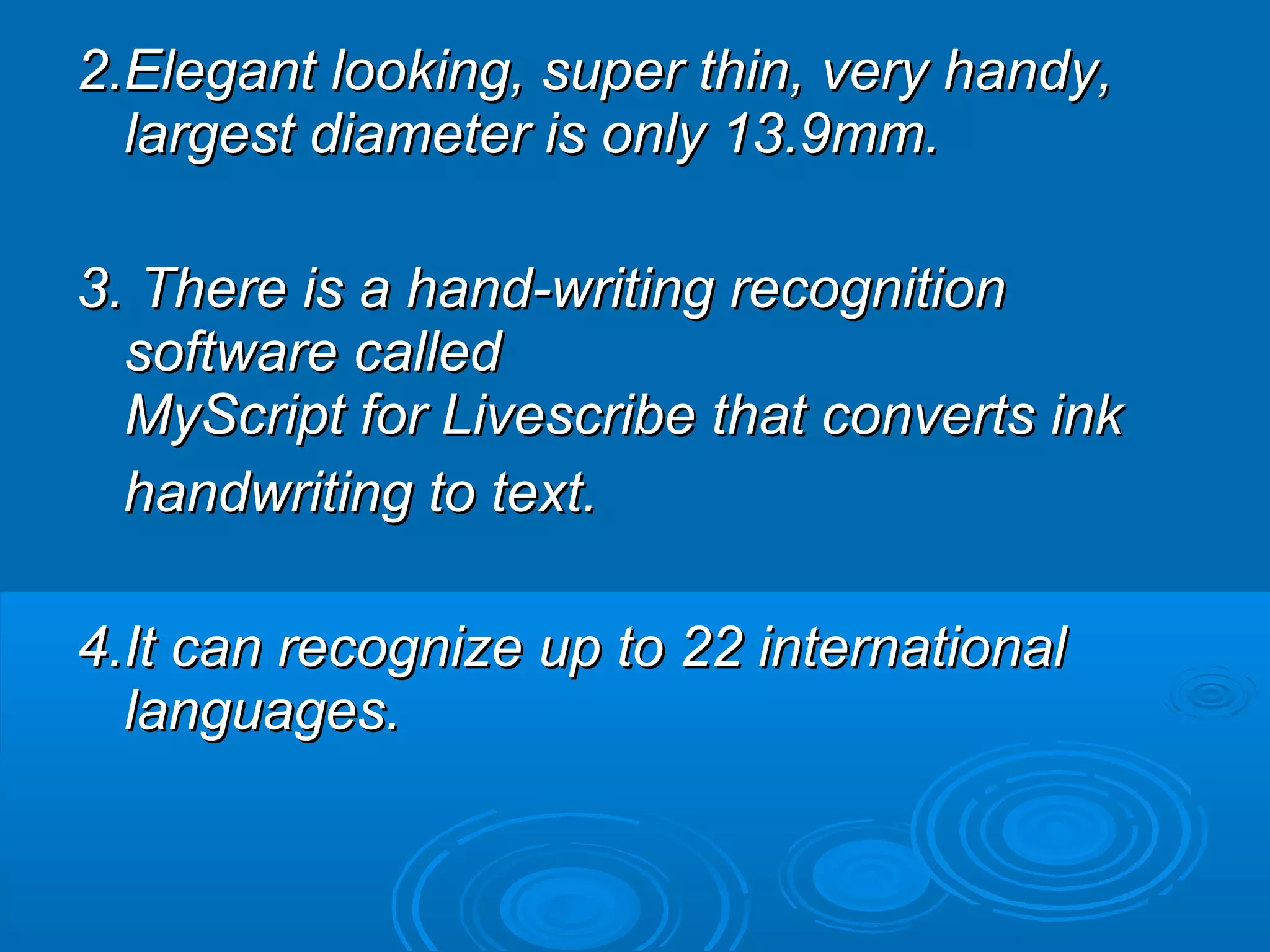

5. 2.Elegant looking, super thin, very handy,
largest diameter is only 13.9mm.
3. There is a hand-writing recognition
software called
MyScript for Livescribe that converts ink
handwriting to text.
4.It can recognize up to 22 international
languages.

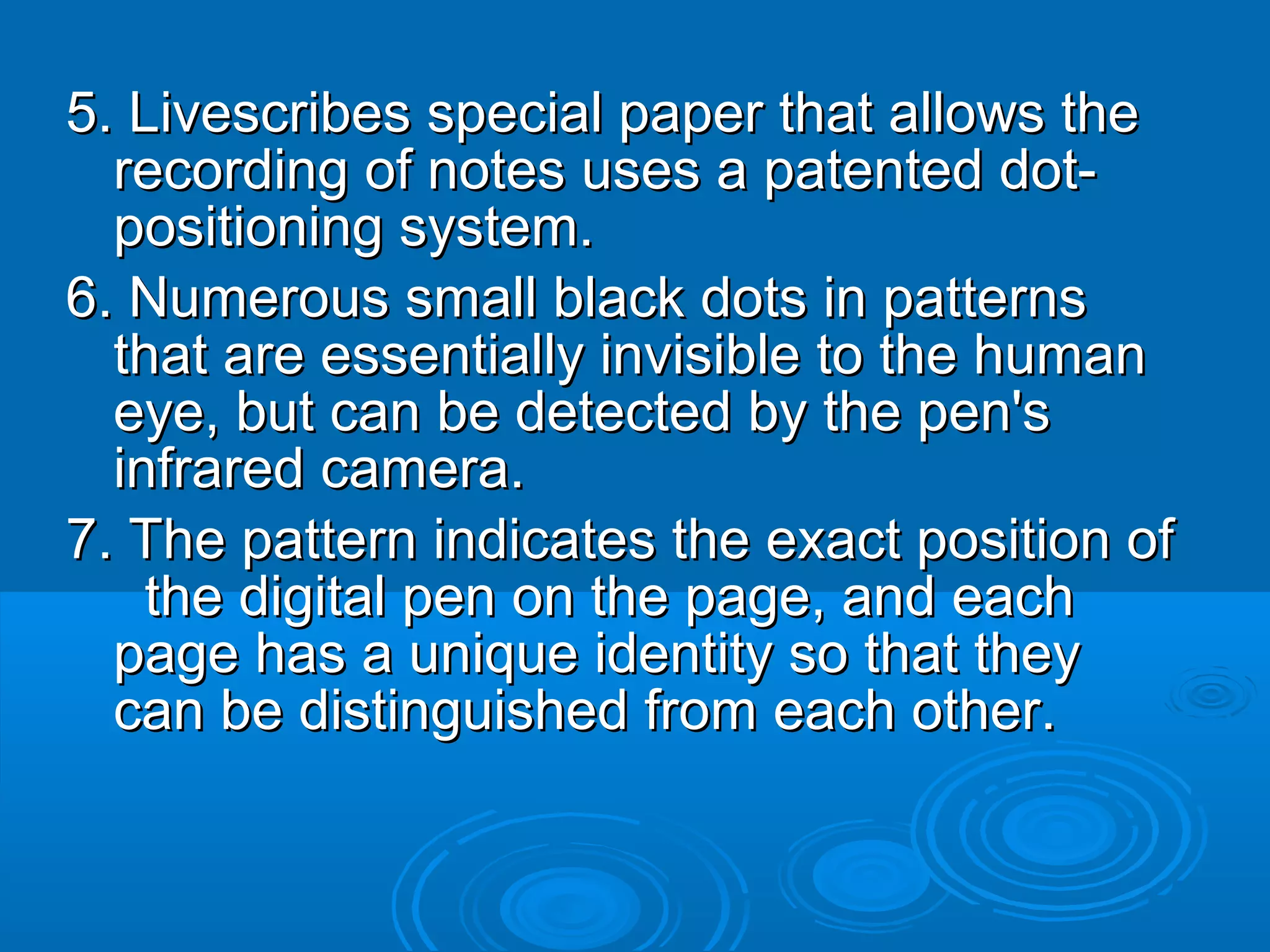

6. 5. Livescribes special paper that allows the
recording of notes uses a patented dot-
positioning system.
6. Numerous small black dots in patterns
that are essentially invisible to the human
eye, but can be detected by the pen's
infrared camera.
7. The pattern indicates the exact position of
the digital pen on the page, and each
page has a unique identity so that they
can be distinguished from each other.

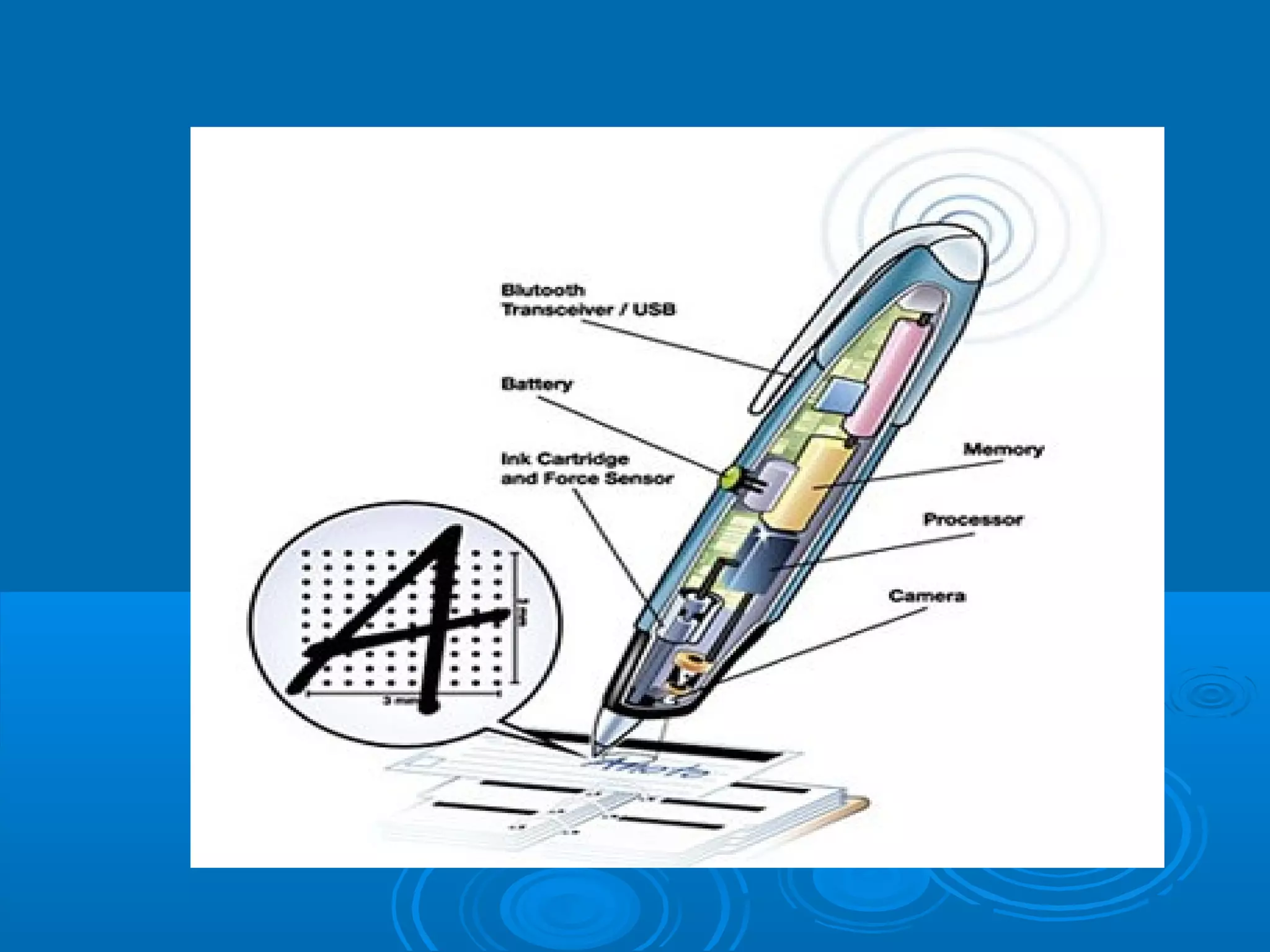

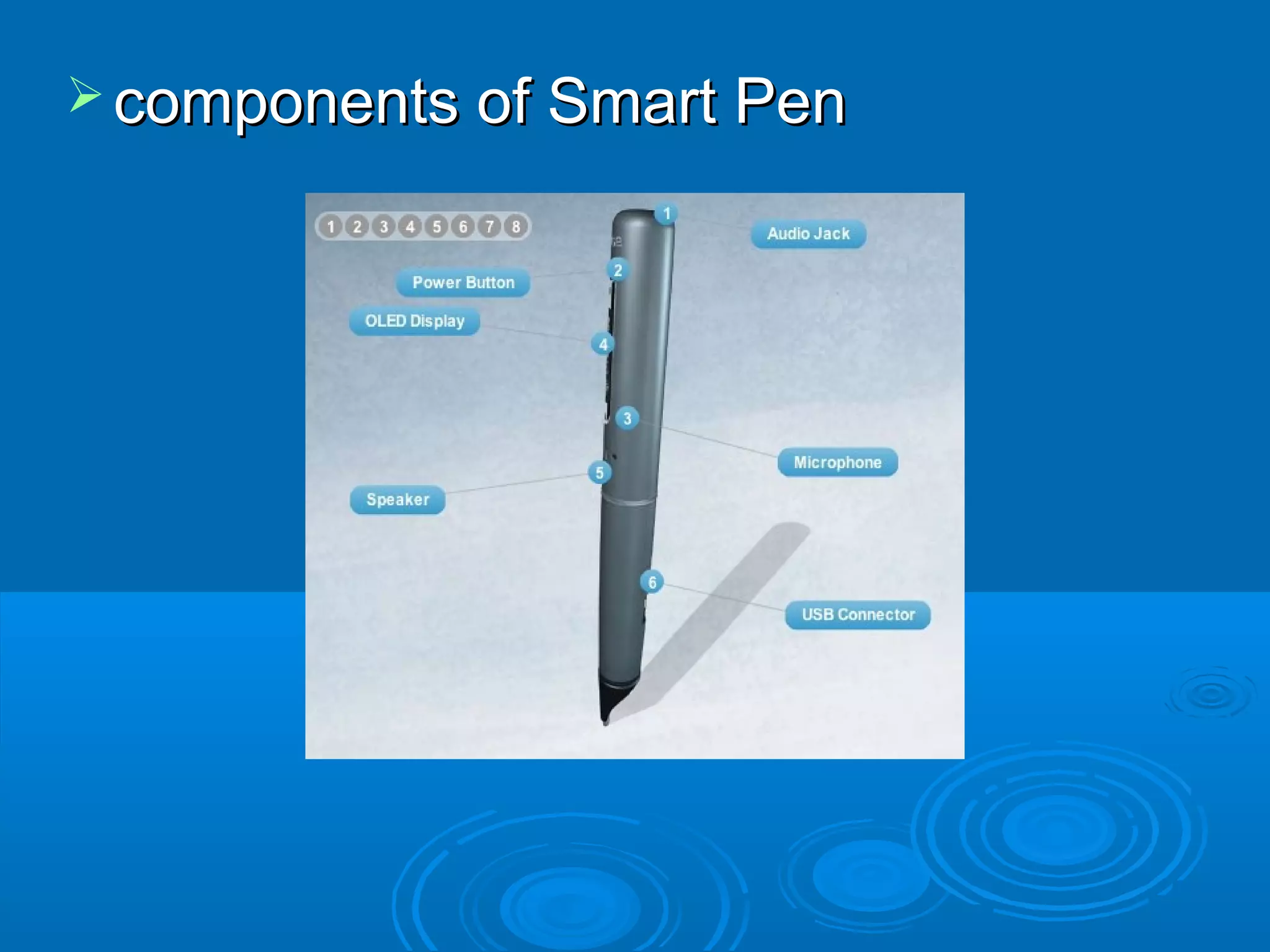

7.  components of Smart Pen

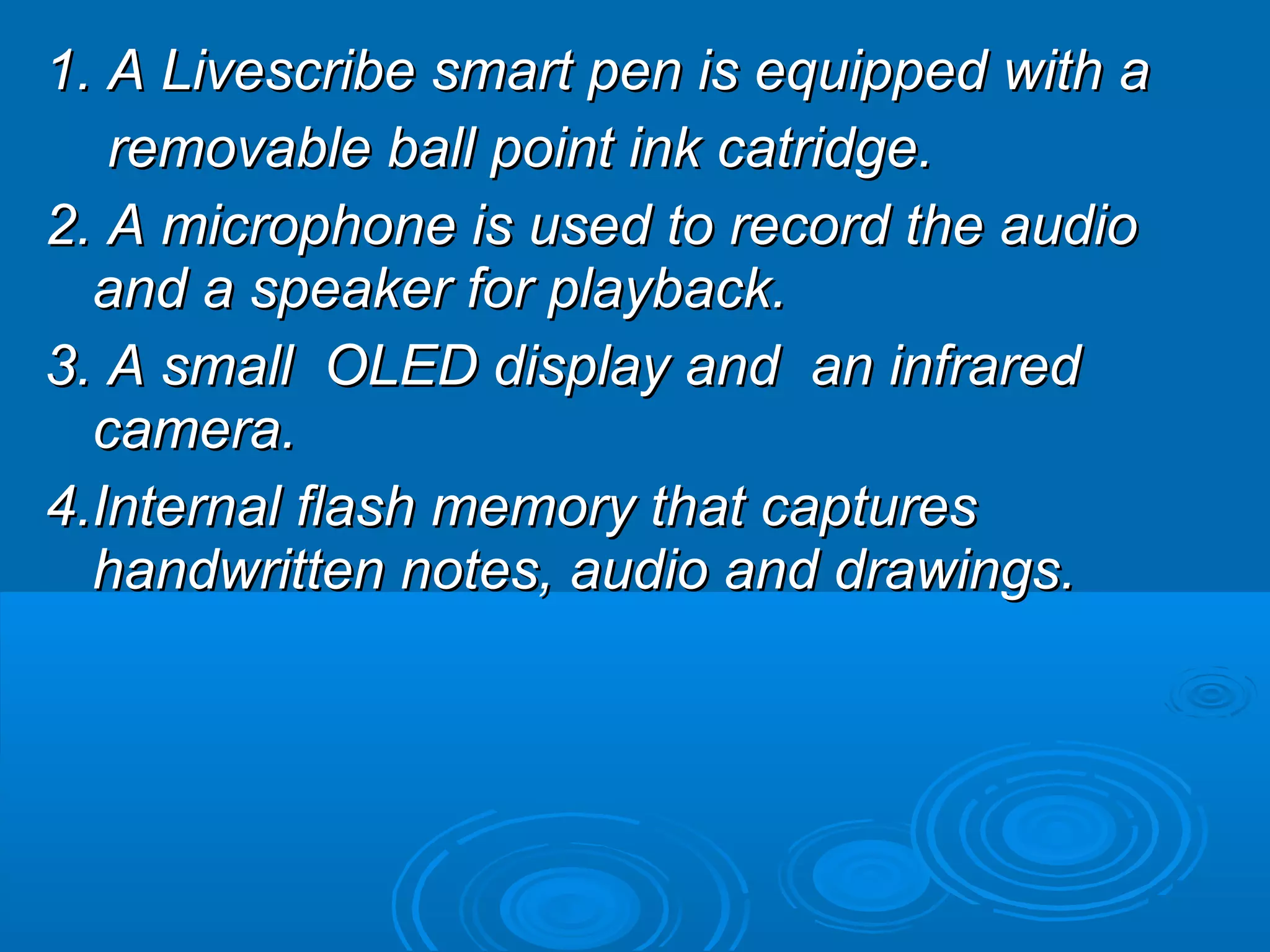

9. 1. A Livescribe smart pen is equipped with a
removable ball point ink catridge.
2. A microphone is used to record the audio
and a speaker for playback.
3. A small OLED display and an infrared
camera.
4.Internal flash memory that captures
handwritten notes, audio and drawings.

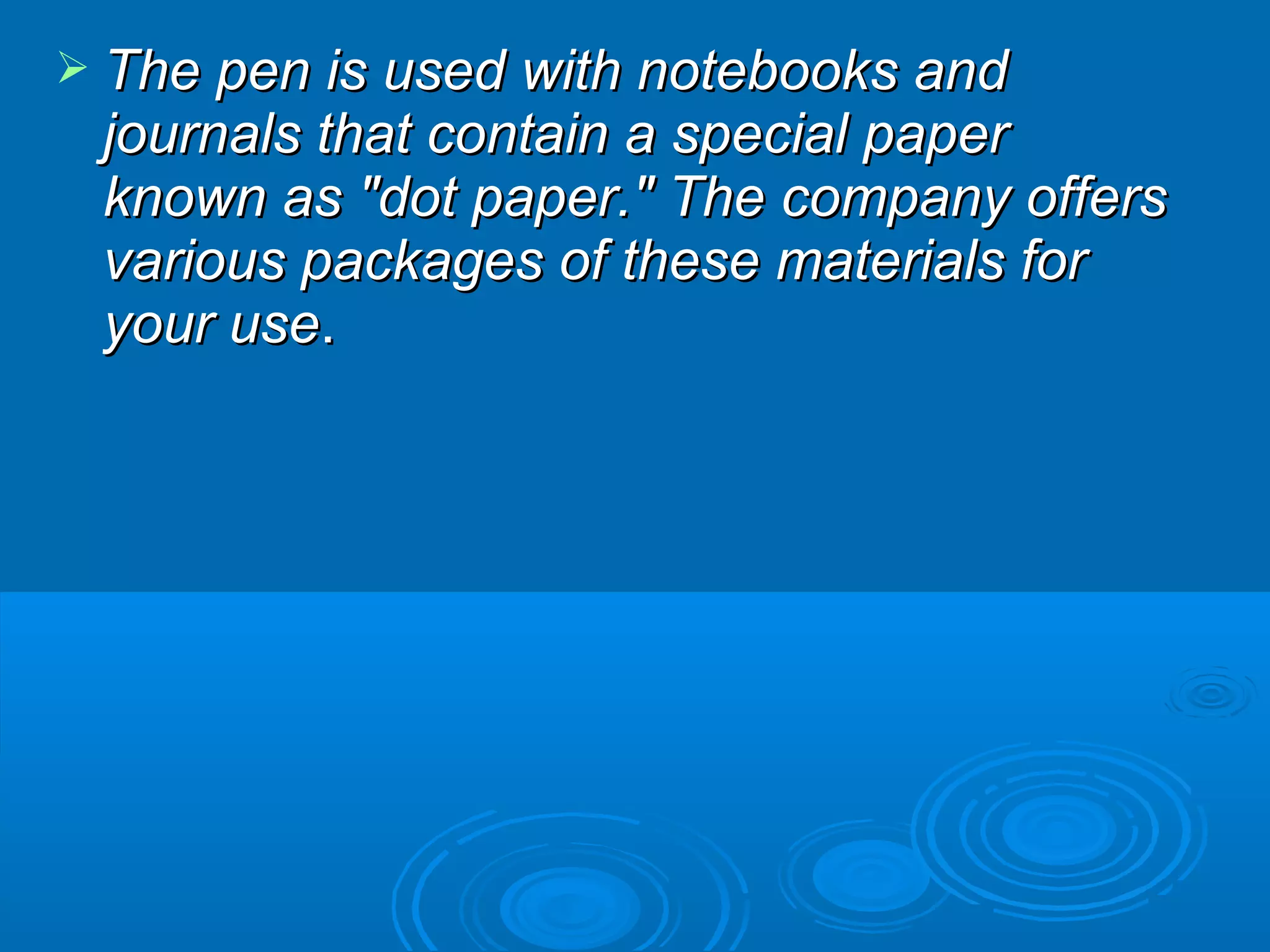

10.  The pen is used with notebooks and
journals that contain a special paper
known as "dot paper." The company offers
various packages of these materials for
your use.

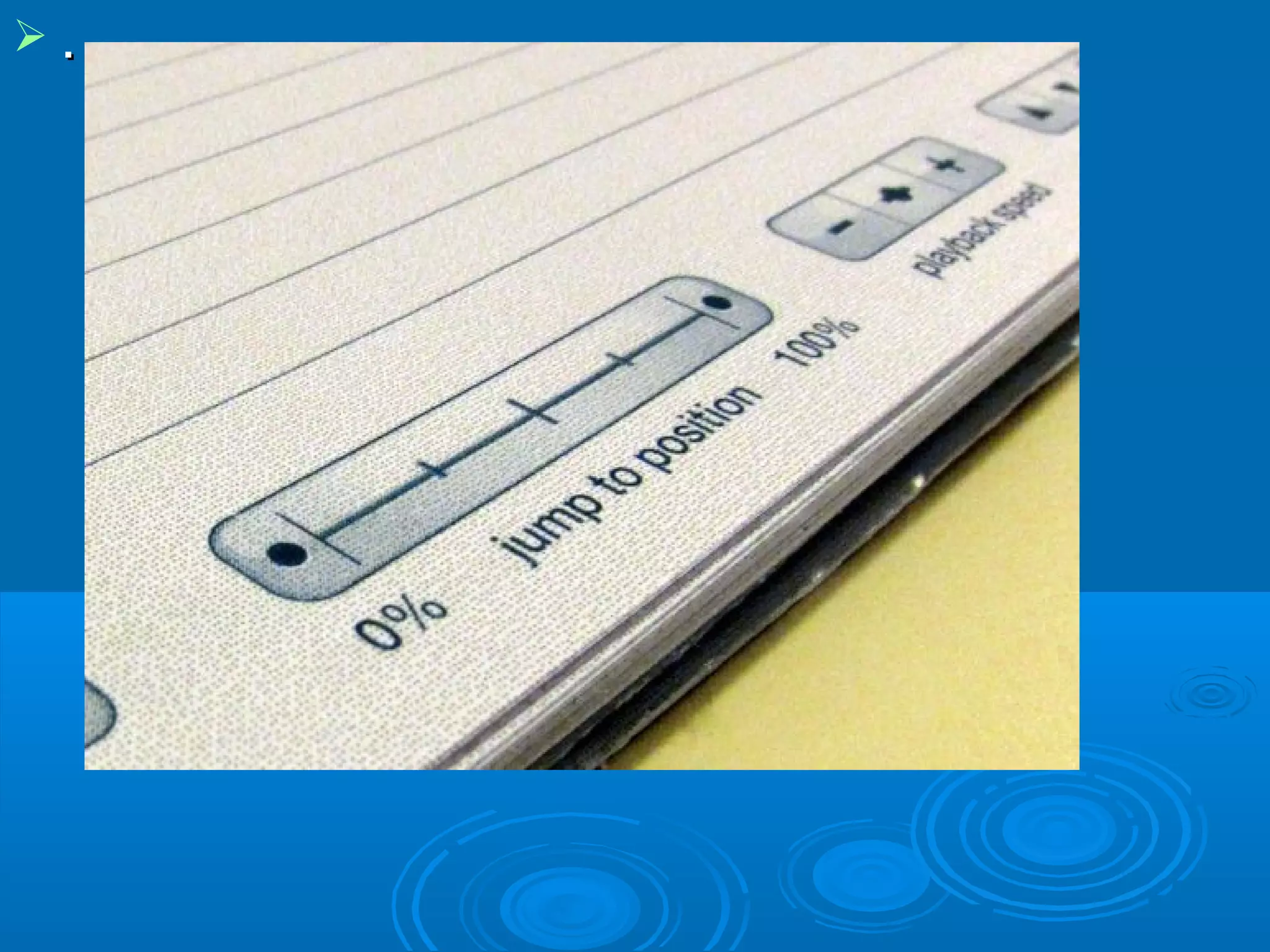

11. .

12.  Working:
 The association between the pen and the
paper also deals with the pen's ability to
record audio with what you have written
on the paper.

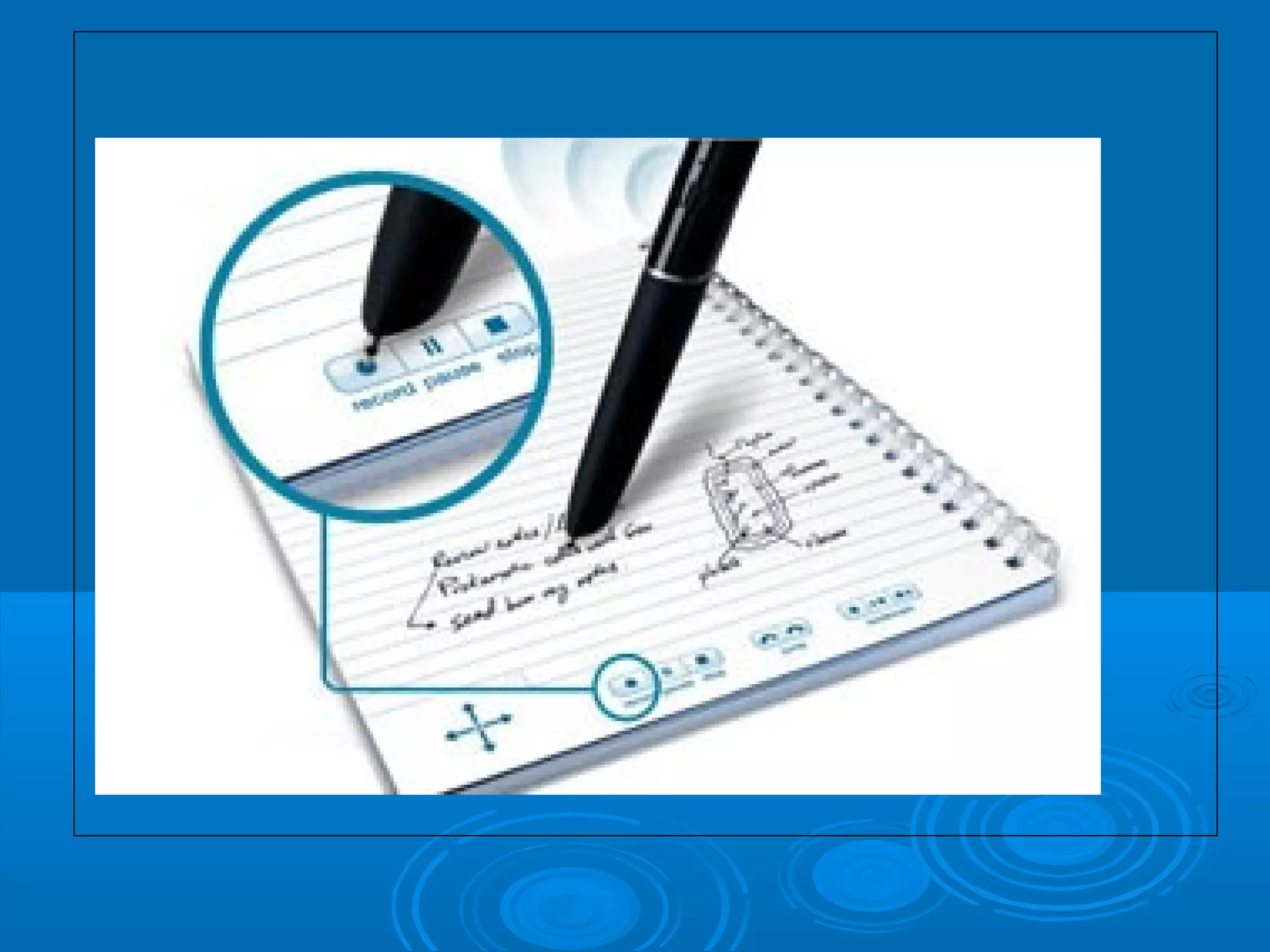

 This process is called 'Paper Replay' and
is initiated by using the recording controls
on the bottom of each page.

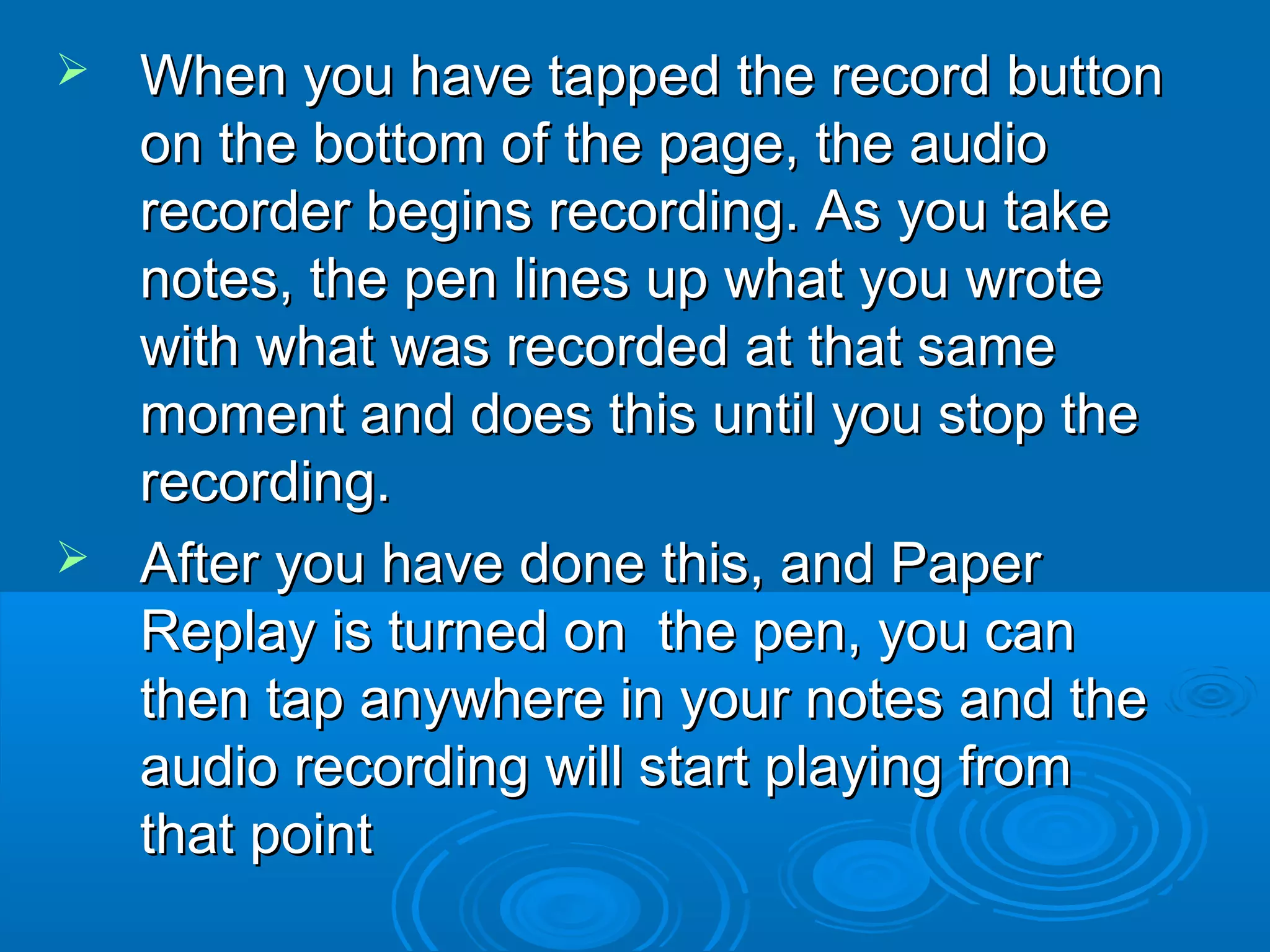

13.  When you have tapped the record button
on the bottom of the page, the audio
recorder begins recording. As you take
notes, the pen lines up what you wrote
with what was recorded at that same
moment and does this until you stop the
recording.
 After you have done this, and Paper
Replay is turned on the pen, you can
then tap anywhere in your notes and the
audio recording will start playing from
that point

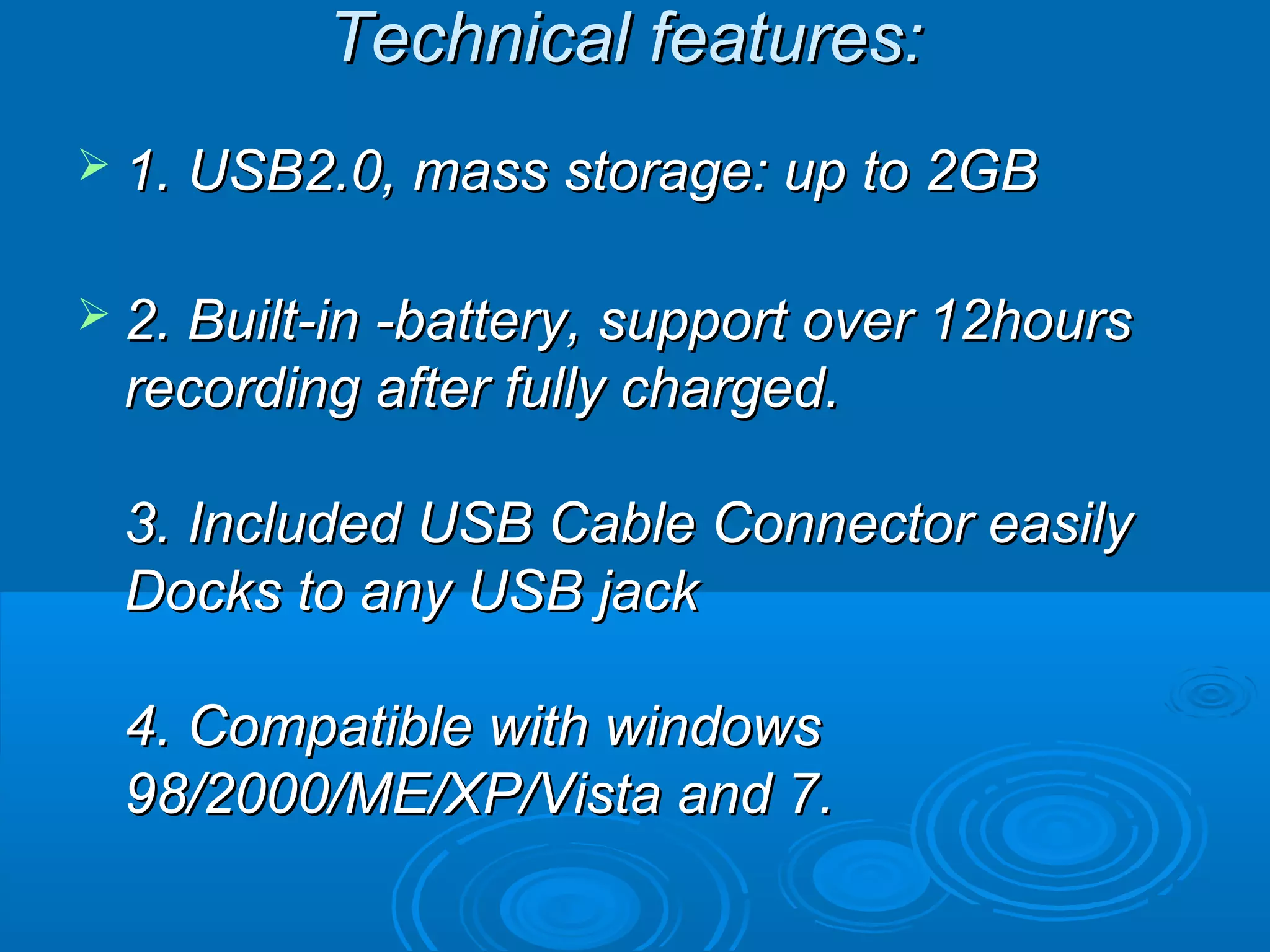

16. Technical features:
 1. USB2.0, mass storage: up to 2GB
 2. Built-in -battery, support over 12hours
recording after fully charged.
3. Included USB Cable Connector easily
Docks to any USB jack
4. Compatible with windows
98/2000/ME/XP/Vista and 7.

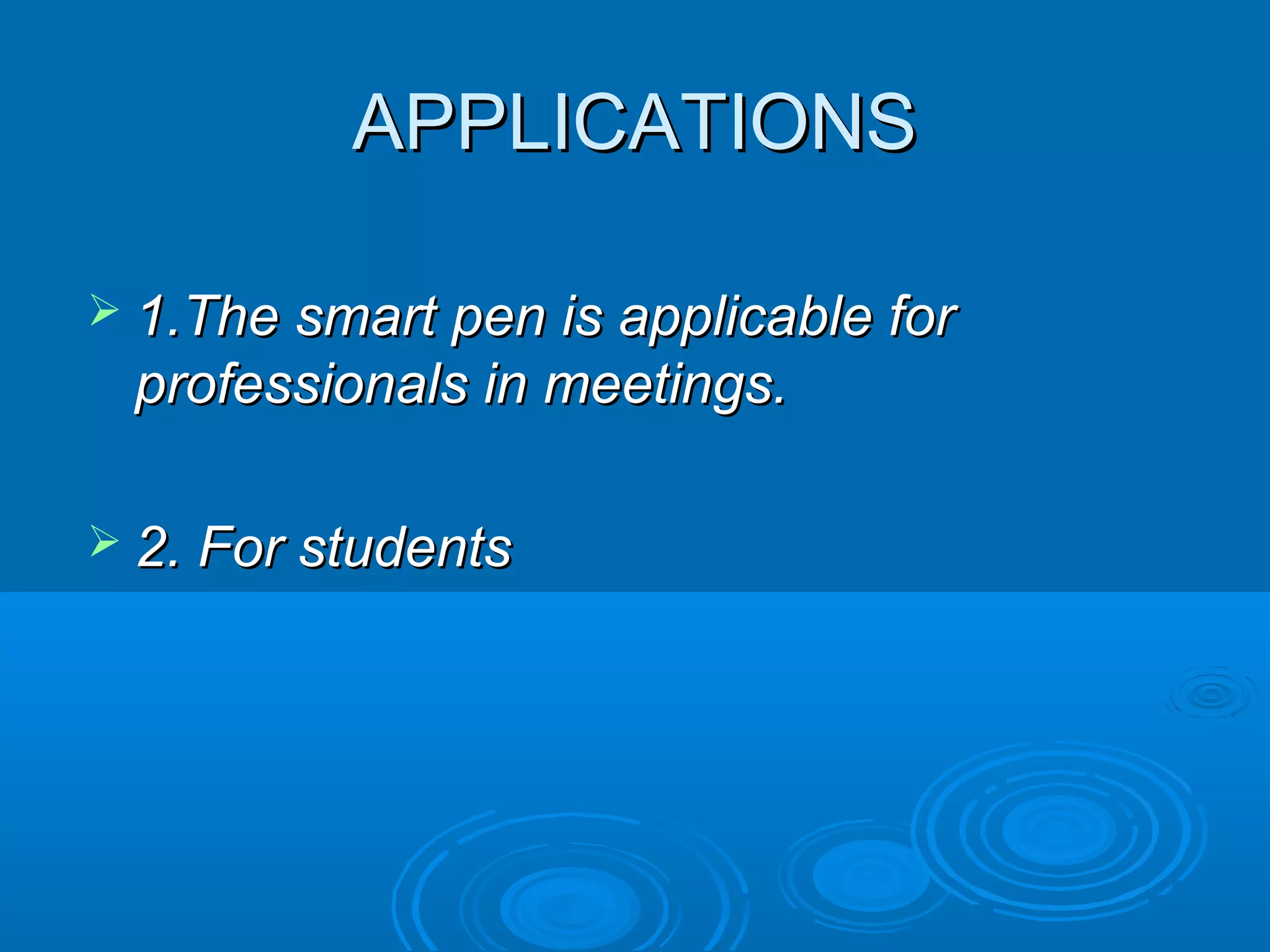

17. APPLICATIONS
 1.The smart pen is applicable for
professionals in meetings.
 2. For students

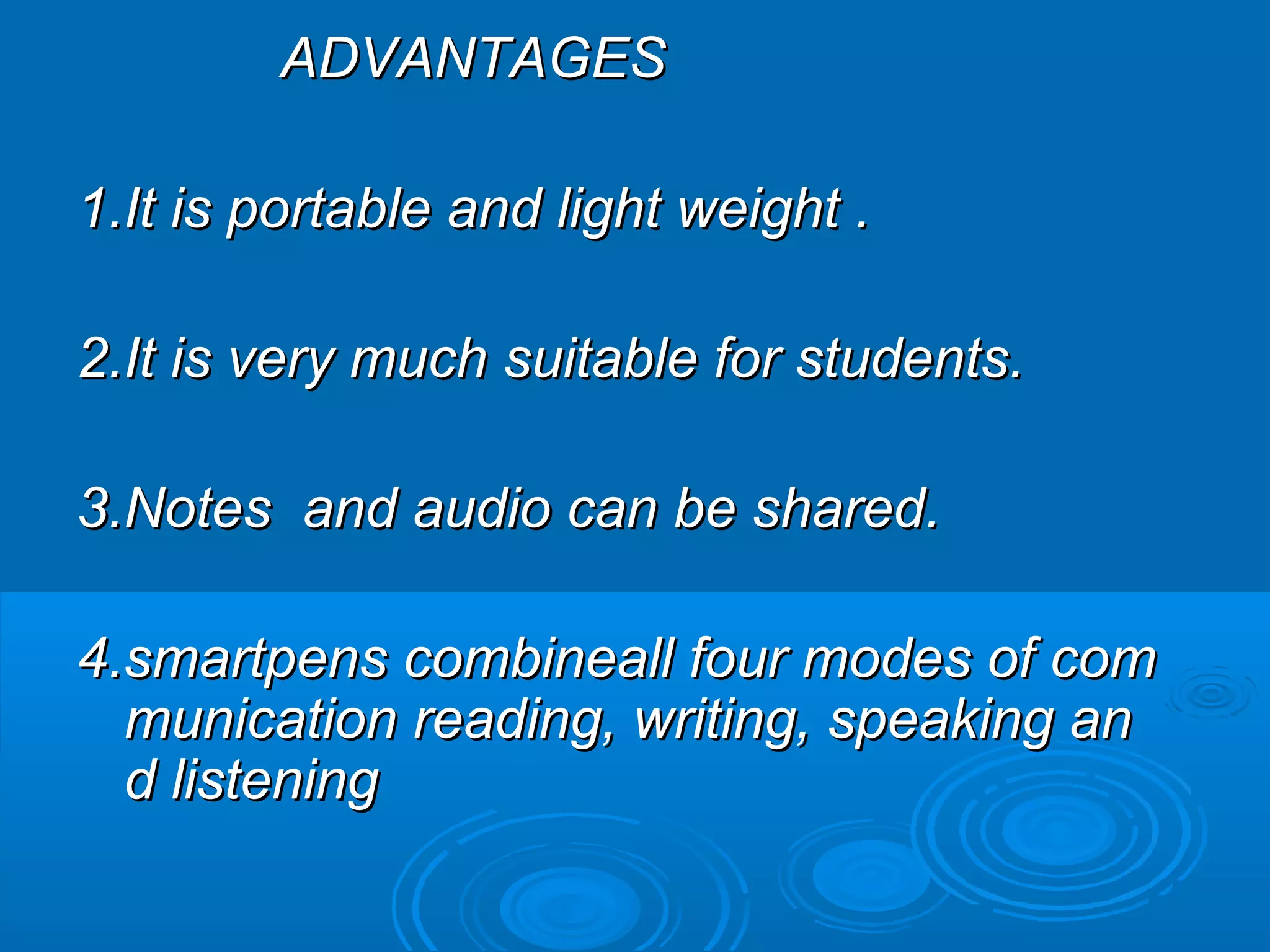

18. ADVANTAGES
1.It is portable and light weight .
2.It is very much suitable for students.
3.Notes and audio can be shared.
4.smartpens combineall four modes of com
munication reading, writing, speaking an
d listening

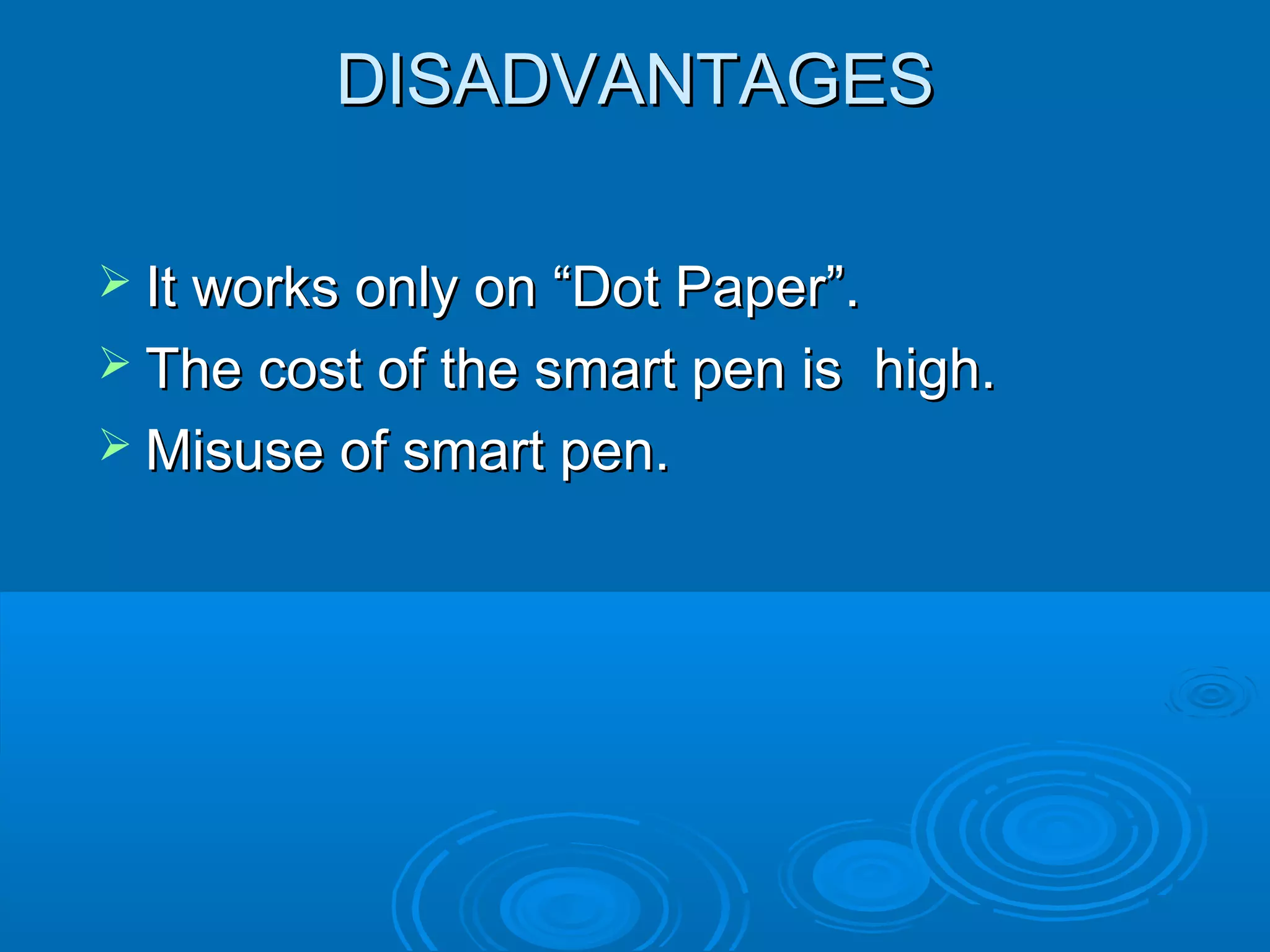

19. DISADVANTAGES
 It works only on “Dot Paper”.
 The cost of the smart pen is high.
 Misuse of smart pen.

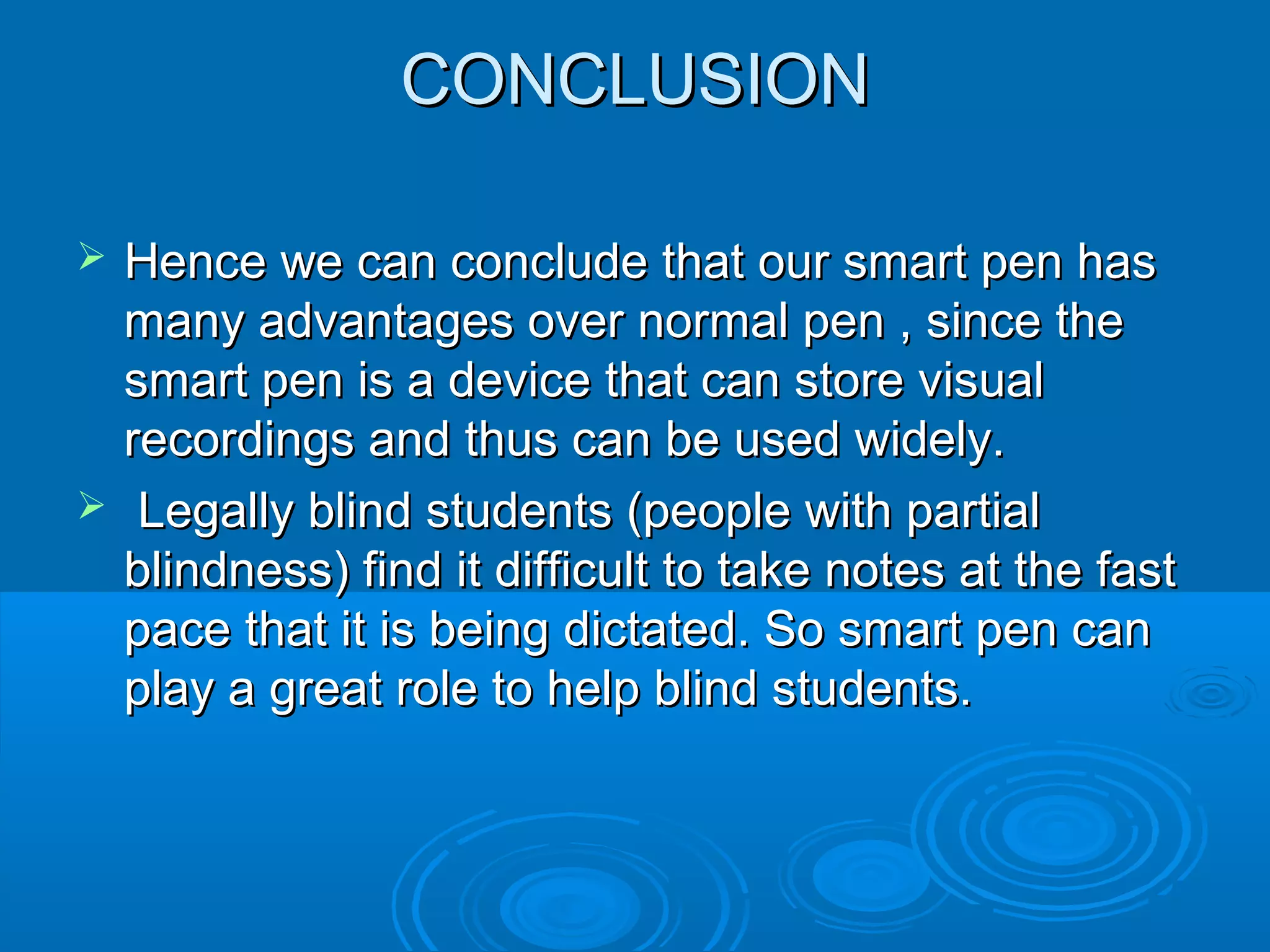

20. CONCLUSION
 Hence we can conclude that our smart pen has
many advantages over normal pen , since the
smart pen is a device that can store visual
recordings and thus can be used widely.
 Legally blind students (people with partial
blindness) find it difficult to take notes at the fast
pace that it is being dictated. So smart pen can
play a great role to help blind students.

21.  THANK YOU
