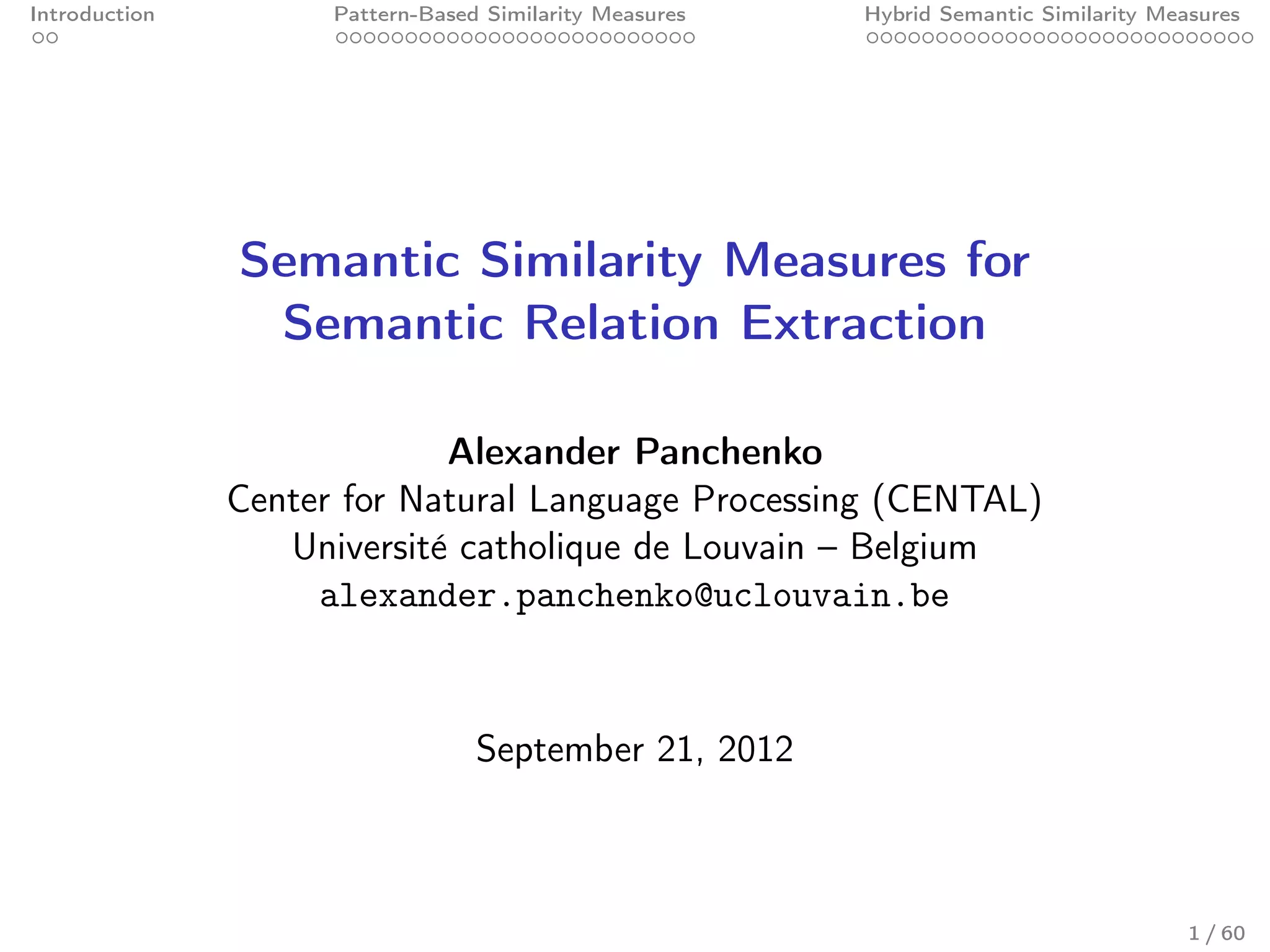

Semantic Similarity Measures for
Semantic Relation Extraction

Alexander Panchenko
Center for Natural Language Processing (CENTAL)
Universit´ catholique de Louvain – Belgium
e
alexander.panchenko@uclouvain.be

September 21, 2012

1 / 60

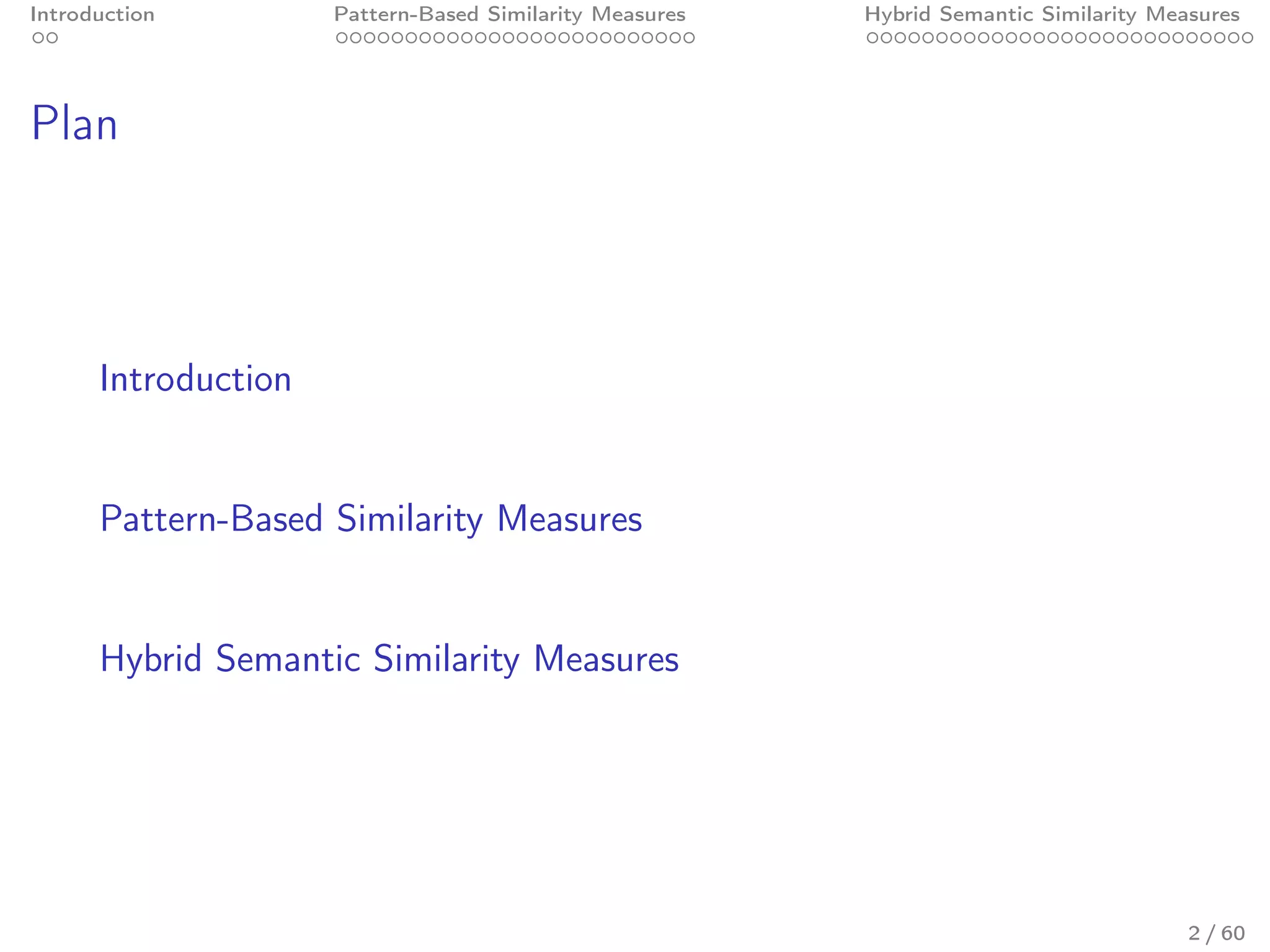

Plan

Introduction

Pattern-Based Similarity Measures

Hybrid Semantic Similarity Measures

2 / 60


Semantic Similarity Measures

1. A similarity measure sij = sim(ci , cj ) → [0, 1]
• ci , cj – terms
• sij – high for semantic relations ci , cj
• synonyms, hyponyms, co-hyponyms
• sij – low for other pairs ci , cj
2. Semantic similarity measures are useful for NLP/IR:
• WSD (Patwardhan et al., 2003)
• Query Expansion (Hsu et al., 2006)
• QA (Sun et al., 2005)
• Text Categorization (Tikk et al, 2003)
• ˇ
Text Similarity (Saric et al., 2012)

3 / 60


State of the Art
• WordNet-based measures
• WuPalmer (1994), LeacockChodorow (1998), Resnik (1995)
• rely on manually crafted resources
• highest precision, limited coverage
• Dictionary-based measures
• ExtendedLesk (Banerjee and Pedersen, 2003), GlossVectors
(Patward han and Pedersen, 2006) and WiktionaryOverlap
(Zesch et al., 2008)
• rely on manually crafted resources
• high precision, limited coverage
• Corpus-based measures
• ContextWindow (Van de Cruys, 2010), SyntacticContext (Lin,
1998), LSA (Landauer et al., 1998)
• no semantic resources are needed
• low precision, high recall
• Combined e.g. WikiRelate! (Strube and Ponzetto, 2006) . . .
4 / 60


Introduction

Plan

Introduction
Introduction
Lexico-Syntactic Patterns
Results
Conclusion
Introduction
Features: Single Similarity Measures
Hybrid Similarity Measures
Results
Conclusion

5 / 60


Introduction

Reference Paper

• Panchenko A., Morozova O., Naets H. “A Semantic
Similarity Measure Based on Lexico-Syntactic Patterns”.
In Proceedings of KONVENS 2012, pp.174–178, 2012

6 / 60


Introduction

Try a Demo
• http://serelex.cental.be/

7 / 60



Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

8 / 60



General architecture

• 6 classical Hearst (1992) patterns
• 12 further patterns
• extracting hypernyms, co-hyponyms and synonyms

9 / 60



The main transducer

• A cascade of FSTs
• Unitex

10 / 60



The 2nd pattern

• Allow for language variation, preserving precision
• Compare to surface-based patterns (Bollegala et al., 2007)

11 / 60



Explicit extraction rules
• positive/negative contexts,
• dictionaries,
• insertions of adjectives, . . .

12 / 60



Patterns are applied to corpora

• No preprocessing is needed
• 250Mb blocks
• 1 block ≈ 1 hour @ Intel i5 M520@2.40GHz

13 / 60



Patterns extract concordances

• such diverse {[occupations]} as {[doctors]},
{[engineers]} and {[scientists]}[PATTERN=1]
• such {non-alcoholic [sodas]} as {[root beer]} and
{[cream soda]}[PATTERN=1]
• {traditional[food]}, such as
{[sandwich]},{[burger]}, and {[fry]}[PATTERN=2]
Number of concordances:
• WaCypedia – 1.196.468
• ukWaC – 2.227.025
• WaCypedia+ukWaC – 3.423.493

14 / 60



Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

15 / 60



General procedure

16 / 60



Reranking

• Efreq. No re-ranking.

sij = eij
sij – semantic similarity between terms ci , cj ∈ C
eij – frequency of co-occurrence of ci and cj in concordances K
• Efreq-Rfreq. Penalizes terms strongly related to many words.

2 · α · eij
sij = ,
ei∗ + e∗j

ei∗ – a number of concordances containing word ci
α – an expected number of semantically related words per term

17 / 60



Reranking

• Efreq-Rnum. Penalizes terms strongly related to many words:

2 · µb · eij
sij = ,
bi∗ + b∗j
bi∗ = j:eij ≥β 1 – number of extractions with a frequency ≥ β
1 |C |
µb = |C | i=1 bi∗ – an average number of relations per term
• Efreq-Cfreq. Penalizes relations to general words e.g. “item”.

P(ci , cj )
sij =
P(ci )P(cj )
eij
P(ci , cj ) = eij – extraction probability of the pair ci , cj
ij

P(ci ) = fi fi – probability of the word ci
i
fi – frequency of ci in the corpus
18 / 60



Reranking

• Efreq-Rnum-Cfreq-Pnum. Combines previous formulas +
pattern redundancy.

√ 2 · µb P(ci , cj )
sij = pij · · .
bi∗ + b∗j P(ci )P(cj )
pij = 1, 18 – number of patterns extracted the relation ci , cj

19 / 60


Results

Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

20 / 60


Results

Correlation with Human Judgements
term, ci term, cj judgement, s sim, s judgement, r sim, ˆr
tiger cat 7.35 0.85 1 3
book paper 7.46 0.95 2 2
computer keyboard 7.62 0.81 3 1
... ... ... ... ... ...
possibility girl 1.94 0.25 64 65
sugar approach 0.88 0.05 65 23

Data:
• WordSim353 – 353 term pairs (Finkelstein, 2002)
• MC – 30 term pairs (Miller Charles, 1991)
• RG – 65 term pairs (Rubenstein Goodenough, 1965)
Criteria:
s
cov (s,ˆ)
• Pearson correlation: ρ = s
σ(s)σ(ˆ)
r
cov (r,ˆ)
• Spearman’s correlation: r = σ(r)σ(ˆ) r
21 / 60


Results

Correlation with Human Judgements

22 / 60


Results

Semantic Relation Ranking
term, ci term, cj relation type, t
judge adjudicate syn
judge arbitrate syn
judge chancellor syn
... ... ...
judge pc random
judge fare random
judge lemon random

• BLESS (Baroni and Lenci, 2011)
• 26554 relations
• hyperonyms, co-hypernyms, meronyms, associations,
attributes, random relations
• SN (Panchenko and Morozova, 2012)
• 14682 relations
• synonyms, co-hyponyms, hyponyms, random relations
• |Rrandom | ≈ 0.5
|R|
23 / 60


Results


• Based on the number of correctly ranked relations.
• R – all non-random relations
ˆ
• R(k) – top k% relations of targets

Criteria
ˆ
• Precision: P(k) = |R∩R(k)| ,
ˆ |R(k)|
ˆ
• Recall: R(k) = |R∩R(k)| ,
|R|

• We use P(10), P(20), P(50), R(50).

24 / 60


Results

1
• Precision P(50%) = 7 ≈ 0.86

term, ci term, cj relation type sij
aficionado enthusiast syn 0.07197
aficionado fan syn 0.05195
aficionado admirer syn 0.01964
aficionado addict syn 0.01326
aficionado devotee syn 0.01163
aficionado foundling random 0.00777
aficionado fanatic syn 0.00414
aficionado adherent syn 0.00353
aficionado capital random 0.00232
aficionado statute random 0.00029
aficionado blot random 0.00025
aficionado meddler random 0.00005
aficionado enlargement random 0.00003
aficionado bawdyhouse random 0.00000

25 / 60


Results


26 / 60


Results


Figure: Precision-Recall graphs calculated on the BLESS dataset: (a)
PatternSim measures; (b) the best PatternSim measure versus baselines.

27 / 60


Results

Semantic Relation Extraction

Figure: Semantic relation extraction: precision at k.

• 49 words – vocabulary of the RG dataset
• three annotators, binary annotations
28 / 60


Conclusion

Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

29 / 60


Conclusion

Conclusion

• We presented a similarity measure based on manually-crafted
lexico-syntactic patterns.
• The measure provides results comparable to the baselines
and does not require semantic resources.
• Future work – using a supervised model to
• combine diﬀerent factors;
• tune the meta-parameters.

Data: http://cental.fltr.ucl.ac.be/team/~panchenko/sim-eval/
Code: http://github.com/cental/patternsim/
Demo: http://serelex.cental.be/

30 / 60


Introduction

Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

31 / 60


Introduction

Reference Paper

• Panchenko A. Morozova O. “A Study of Hybrid Similarity
Measures for Semantic Relation Extraction”. In
Proceedings of Workshop of Innovative Hybrid Approaches to
the Processing of Textual Data Workshop, EACL 2012,
pp.10-18, 2012

32 / 60


Introduction

The State of Art

• A multitude of complimentary measures were proposed to
extract synonyms, hypernyms, and co-hyponyms
• Most of them are based on one of the 5 key approaches:
1. distributional analysis (Lin, 1998b)
2. web as a corpus (Cilibrasi and Vitanyi, 2007)
3. lexico-syntactic patterns (Bollegala et al., 2007)
4. semantic networks (Resnik, 1995)
5. deﬁnitions of dictionaries or encyclopedias (Zesch et al., 2008a)

33 / 60


Introduction

The State of Art

• A multitude of complimentary measures were proposed to
extract synonyms, hypernyms, and co-hyponyms
• Most of them are based on one of the 5 key approaches:
1. distributional analysis (Lin, 1998b)
2. web as a corpus (Cilibrasi and Vitanyi, 2007)
3. lexico-syntactic patterns (Bollegala et al., 2007)
4. semantic networks (Resnik, 1995)
5. deﬁnitions of dictionaries or encyclopedias (Zesch et al., 2008a)
• Some attempts were made to combine measures (Curran,
2002; Cederberg and Widdows, 2003; Mihalcea et al., 2006;
Agirre et al., 2009; Yang and Callan, 2009)
• However, most studies are still not taking into account all 5
existing extraction approaches.

34 / 60


Introduction

Contributions

• A systematic analysis of
• 16 baseline similarity measures of 5 key extraction principles
• their combinations with 8 fusion methods
• Hybrid similarity measures based on all the 5 extraction
approaches:
1. distributional analysis
2. Web as a corpus
3. lexico-syntactic patterns
4. semantic networks
5. deﬁnitions of dictionaries or encyclopedias

35 / 60


Introduction

Single and Hybrid Similarity Measures

• 16 single measures
• 5 measures based on a semantic network
• 3 web-based measures
• 5 corpus-based measures
• 2 distributional
• 1 lexico-syntactic patterns
• 2 other co-occurence based
• 3 deﬁnition-based measures
• 64 hybrid measures
• 8 combination methods
• 8 measure sets obtained with 3 measure selection techniques

36 / 60



Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

37 / 60



Measures Based on a Semantic Network

1. Wu and Palmer (1994)
2. Leacock and Chodorow (1998)
3. Resnik (1995)
4. Jiang and Conrath (1997)
5. Lin (1998)
Data:
• WordNet 3.0
• SemCor corpus
Variables:
• Lengths of the shortest paths between terms in the network
• Probability of terms derived from a corpus
Coverage: 155.287 English terms encoded in WordNet 3.0.
38 / 60



Web-based Measures

Normalized Google Distance (NGD) (Cilibrasi and Vitanyi, 2007)
6. NGD-Yahoo!
7. NGD-Bing
8. NGD-Google over wikipedia.org domain
Data: number of times the terms co-occur in the documents as
indexed by an IR system.
Variables:
• number of hits returned by query ”ci ”
• number of hits returned by query ”ci AND cj

Coverage: huge vocabulary in dozens of languages.

39 / 60



Corpus-based Measures

9. Bag-of-word Distributional Analysis (BDA) (Sahlgren, 2006)
10. Syntactic Distributional Analysis (SDA) (Curran, 2003)
Data: WaCkypedia (800M tokens) and PukWaC (2000M tokens)
corpora (Baroni et al., 2009)
Variables:
• feature vector based on the context window
• feature vector based on the syntactic context
Coverage: word should occur in the corpora.

40 / 60




11. A measure based on lexico-syntactic patterns
Data: WaCkypedia corpus (800M tokens)
Method:
• 10 patterns for hypernymy extraction: 6 Hearst (1992)
patterns + 4 other patterns
• such diverse {[occupations]} as {[doctors]},
{[engineers]} and {[scientists]}[PATTERN=1]
• Efreq: semantic similarity sij between terms ci , cj ∈ C – the
number of term co-occurences in the same concordance nij :
nij
sim(ci , cj ) = sij = .
maxij (nij )

41 / 60




12. Latent Semantic Analysis (LSA) on TASA corpus
(Landauer and Dumais, 1997)
13. NGD on Factiva corpus (Veksler et al., 2008)

42 / 60



Deﬁnition-based Measures

14. Extended Lesk (Banerjee and Pedersen, 2003)
15. GlossVectors (Patwardhan and Pedersen, 2006)
Data: WordNet glosses.
Variables:
• bag-of-words vector of a term ci derived from the glosses
• relation between words (ci , cj ) in the network
Coverage: 117.659 glosses encoded in WordNet 3.0

43 / 60



Definition-based Measures

16. WktWiki – BDA on definitions of Wiktionary and Wikipedia 1

Data: Wikipedia abstracts, Wiktionary.
Method:
• Definition = abstract of Wikipedia article with title ”ci ” +
glosses, examples, quotations, related words, categories from
Wiktionary for ci
• Represent a definition as a bag-of-words vector
• Calculate similarities with cosine
• Update similarities according to relations in the Wiktionary.
Coverage: Wiktionary: 536.594 glosses, Wikipedia: 3.8M articles

1
The method stems from the work of Zesch et al. (2008)
44 / 60



Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

45 / 60



Combination Methods

• A goal of a combination method is to produce “better”
similarity scores than the scores of single measures.
• A combination method takes as an input {S1 , . . . , SK }
produced by K single measures and outputs Scmb .
k
• sij ∈ Sk is a pairwise similarity score of terms ci and cj
produced by k-th measure.
• We tested 8 combination methods.

46 / 60



Combination Methods
1. Mean. A mean of K pairwise similarity scores:
K
1 cmb 1 k
Scmb = Sk ⇔ sij = sij .
K K
k=1 k=1,K
2. Mean-Nnz. A mean of scores having non-zero value:
cmb 1 k
sij = k > 0, k = 1, K |
sij .
|k : sij k=1,K

3. Mean-Zscore. A mean of scores transformed into Z-scores:
K
1 S k − µk
Scmb = ,
K σk
k=1
where µk and σk are a mean and a standard deviation of the
scores of the k-th measure (Sk ).
47 / 60



Combination Methods

4. Median. A median of K pairwise similarities:
cmb 1 K
sij = median(sij , . . . , sij ).

5. Max. A maximum of K pairwise similarities:
cmb 1 K
sij = max(sij , . . . , sij ).

6. RankFusion. A mean of scores converted to ranks:

cmb 1 k
sij = rij ,
K
k=1,K

k k
where rij is the rank corresponding to the similarity score sij .

48 / 60



Combination Methods

7. RelationFusion.
• Unions the top relations found by each measure separately.
• A relation extracted by several measures has more weight.
• See (Panchenko and Morozova, 2012) for details.

49 / 60



Combination Methods
8. Logit. A supervised combination of similarity measures
• Training a binary classiﬁer (a Logistic Regression) on a set of
manually constructed semantic relations R (BLESS or SN)
• Positive training examples are “meaningful” relations
(synonyms, hyponyms, co-hyponyms, associations)
• Negative training examples are pairs of semantically
unrelated words (generated randomly and veriﬁed manually).
• A relation ci , t, cj ∈ R is represented with an N-dimensional
1 N
vector of pairwise similarities: xij = (sij , . . . , sij ).
• Category yij :
0 if ci , t, cj is a random relation
yij =
1 otherwise
• Using the model (w1 , . . . , wK ) to combine measures:
K
cmb 1 k
sij = , z = w0 + wk sij ,
1 + e −z
k=1
50 / 60



Measure Selection

A problem
Number of ways to choose which of 16 single measures to combine:

216 = 65.535

• Expert choice of measures – 5, 9 and 15 measures
• Forward Stepwise Procedure – 7, 8a, 8b, 10 measures
• Analysis of LR weights – 12 measures

51 / 60



Measure Selection

A problem
Number of ways to choose which of 16 single measures to combine:

216 = 65.535

• Expert choice of measures – 5, 9 and 15 measures
• Forward Stepwise Procedure – 7, 8a, 8b, 10 measures
• Analysis of LR weights – 12 measures
• The best predictors: C-BDA, C-SDA, C-LSA-Tasa,
D-WktWiki, D-GlossVectors, D-ExtendedLesk.

52 / 60


Results

Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

53 / 60


Results

Single Similarity Measures

Figure: Performance of 16 single similarity measures on human
judgement datasets (MC, RG, WordSim353). The best scores in a
group are in bold.

54 / 60


Results

Single Similarity Measures

Figure: Performance of 16 single similarity measures on human
judgement datasets (MC, RG, WordSim353) and semantic relation
datasets (BLESS and SN). The best scores in a group are in bold.

55 / 60


Results


Figure: Performance of 16 single and 8 hybrid similarity measures on
human judgements datasets (MC, RG, WordSim353) and semantic
relation datasets (BLESS and SN). The best scores in a group
(single/hybrid) are in bold; the very best scores are in grey.
56 / 60


Results


Figure: Precision-Recall graphs calculated on the BLESS dataset of (a)
16 single measures and the best hybrid measure H-Logit-E15; (b) 8
hybrid measures.

57 / 60


Conclusion

Plan

Introduction
Introduction
Results
Conclusion
Introduction
Results
Conclusion

58 / 60


Conclusion

Conclusion:

• We have undertaken a study of 16 baseline measures, 8
combination methods, and 3 measure selection techniques.
• The proposed hybrid measures:
• use all 5 main types of baseline measures;
• outperform the single measures on all datasets.
• The best results were provided by
• a combination of 15 corpus-, web-, network-, and
deﬁnition-based measures
• with Logistic Regression
• ρ = 0.870, P(20) = 0.987, R(50) = 0.814.

59 / 60


Conclusion

Thank you! Questions?

60 / 60

Semantic Similarity Measures for Semantic Relation Extraction

More Related Content

What's hot

Viewers also liked

Similar to Semantic Similarity Measures for Semantic Relation Extraction

More from Alexander Panchenko

Recently uploaded

Semantic Similarity Measures for Semantic Relation Extraction
