A Seminar Report ON Secure Network

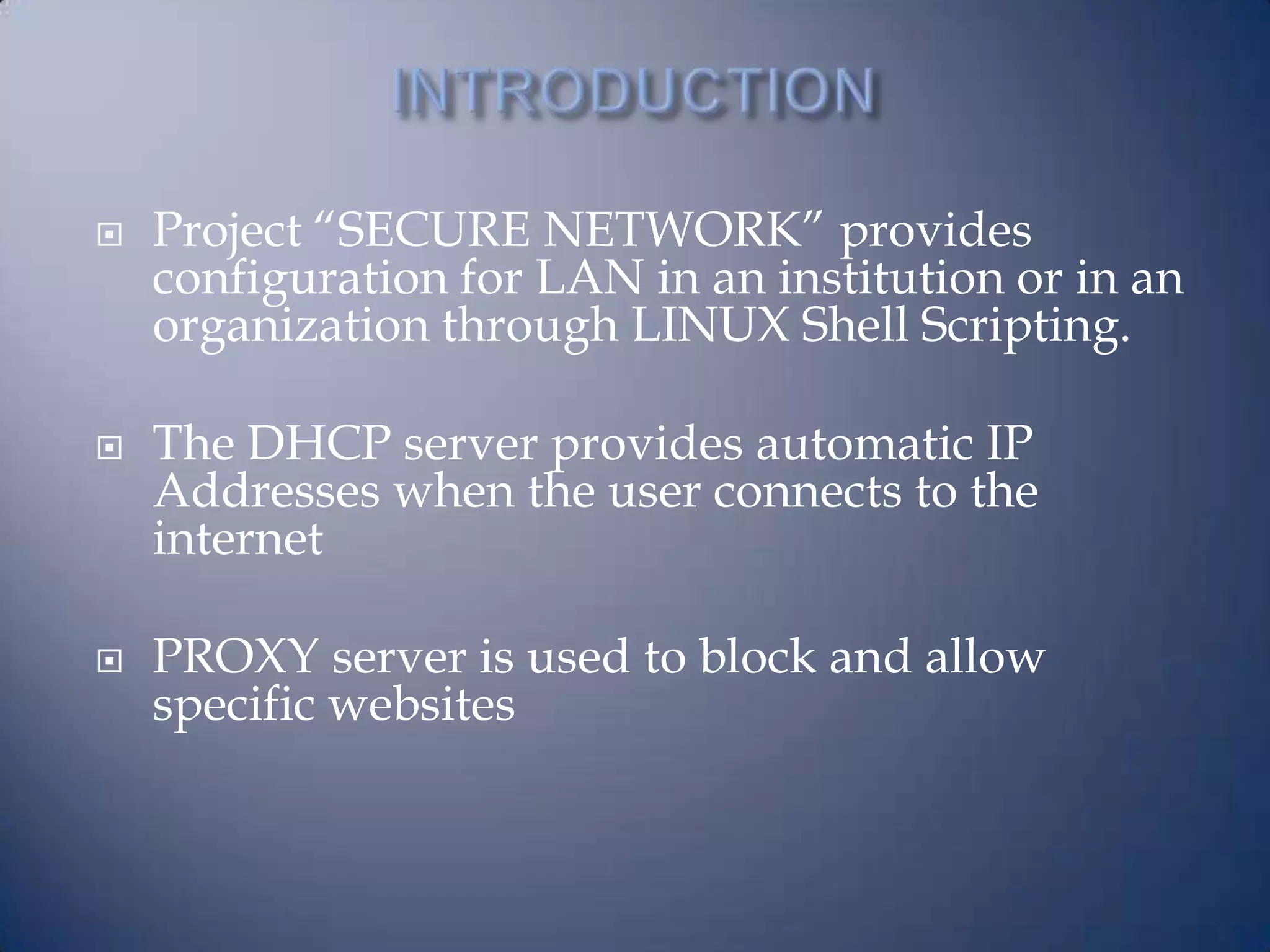

INTRODUCTION  Project “SECURE NETWORK” provides configuration for LAN in an institution or in an organization through LINUX Shell Scripting.  The DHCP server provides automatic IP Addresses when the user connects to the internet  PROXY server is used to block and allow specific websites
OBJECTIVE To automate the whole process of internet configuration Whole process is secured and user friendlyand this is done with the help of dialog boxes.  Logs for daily monitoring of web sites accessed by users are maintained Manage user feature is done by Mac Address binding.
Linux Officially introduced only in 1991 by its famed creator Linux Torvalds Linux is a kernel. Open Source:  source code of the software is made freely available
Why Linux is better than other operating system Security Scalability Not Single Source Software  Rate of Advancement  Support Reliability Cost
Linux Server and Network Security Threats Server can be used as a base from which attacks on other systems can be launched.  E-mail server could be used as a by spammers. DoS(Denial of Service) attacks which renders servers Credit card numbers or account numbers and passwords can be targets
 SHELL SCRIPTING Shell Script is series of command written in plain text file.
Why to Write Shell Script ? Shell script can take input from user, file and output them on screen. Useful to create our own commands. Save lots of time. To automate some task of day today life. System Administration part can be also automated
DHCP Server in a Network
DHCP Service Profile Package: dhcp Daemon: /usr/sbin/dhcpd Script: /etc/init.d/dhcpd Ports: 67 & 68 Configuration file: /etc/dhcpd.conf
Assignment Conditions IP addresses can be reserved for clients based on MAC addresses and host names For security, the lease of IP addresses can be restricted to clients with known MAC addresses
IP Address Assignment In most cases, the IP address is automatically renewed when a clients logs into a network The IP address assigned is taken from a pool of IP addresses defined as the scope of IP addresses available for assignment  A user can manually release and renew an IP address by typing the commands     "ipconfig /release", followed by    "ipconfig /renew" in the command prompt
Proxy Service Profile Package: squid Daemon: /usr/sbin/squid Script: /etc/init.d/squid Ports: 3128 Configuration file: /etc/squid/squid.conf
Proxy Server To provide indirect Internet access. Firewall Machine. Allow to see who is accessing.
GATEWAY A network point that acts as an entrance to another network Also a proxy server and a firewall server Work on all seven OSI layers Implement in Hardware &  Software
THANKS
