Sawant High Vac, established over 20 years ago in the vacuum industry, offers a variety of vacuum pumps and complete systems, focusing on quality and customer satisfaction. Their product range includes oil-sealed rotary high vacuum pumps, diaphragm vacuum pumps, and water ring vacuum pumps, all designed for efficiency and ease of maintenance. They also provide repair services and system consulting, ensuring comprehensive support for their clients' vacuum needs.

1. “SAWANT HIGH VAC” established with an experience of
more than 20 years in Vacuum Industries. Our highly motivated
team of professionals sharply focuses on providing the finest
service to our customers. Our product range is manufactured
with latest technology and goes through strict quality
supervision. With passions & dedication we work towards
customer’s satisfaction.
Customers are always looking for one stop solution provider for
all range, so we are dedicated to supply not JUST Vacuum
Pump but the complete system and repair service too. Different
technology from different people can miss something for final
result. We understand our client & their requirement best so we
provide complete system in many cases. Even we can consult
for same if in need.

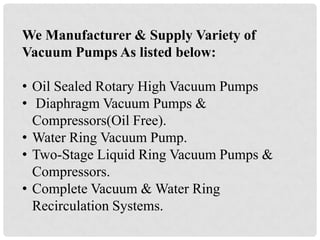

2. We Manufacturer & Supply Variety of
Vacuum Pumps As listed below:
• Oil Sealed Rotary High Vacuum Pumps
• Diaphragm Vacuum Pumps &
Compressors(Oil Free).
• Water Ring Vacuum Pump.
• Two-Stage Liquid Ring Vacuum Pumps &
Compressors.
• Complete Vacuum & Water Ring
Recirculation Systems.

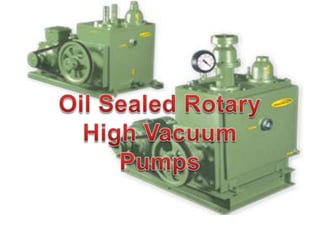

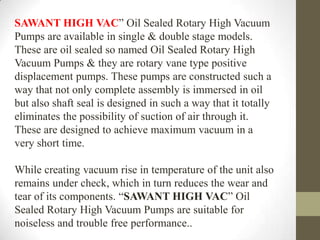

4. SAWANT HIGH VAC” Oil Sealed Rotary High Vacuum
Pumps are available in single & double stage models.
These are oil sealed so named Oil Sealed Rotary High
Vacuum Pumps & they are rotary vane type positive
displacement pumps. These pumps are constructed such a
way that not only complete assembly is immersed in oil
but also shaft seal is designed in such a way that it totally
eliminates the possibility of suction of air through it.
These are designed to achieve maximum vacuum in a
very short time.
While creating vacuum rise in temperature of the unit also
remains under check, which in turn reduces the wear and
tear of its components. “SAWANT HIGH VAC” Oil
Sealed Rotary High Vacuum Pumps are suitable for
noiseless and trouble free performance..

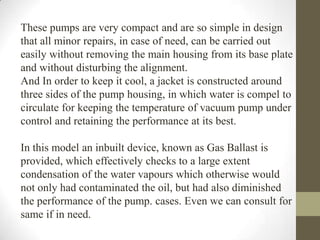

5. These pumps are very compact and are so simple in design
that all minor repairs, in case of need, can be carried out
easily without removing the main housing from its base plate
and without disturbing the alignment.
And In order to keep it cool, a jacket is constructed around
three sides of the pump housing, in which water is compel to
circulate for keeping the temperature of vacuum pump under
control and retaining the performance at its best.
In this model an inbuilt device, known as Gas Ballast is
provided, which effectively checks to a large extent
condensation of the water vapours which otherwise would
not only had contaminated the oil, but had also diminished
the performance of the pump. cases. Even we can consult for
same if in need.

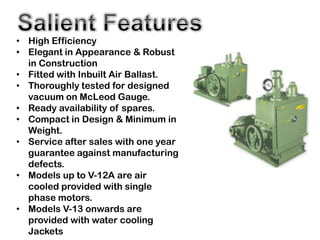

6. • High Efficiency
• Elegant in Appearance & Robust
in Construction
• Fitted with Inbuilt Air Ballast.
• Thoroughly tested for designed
vacuum on McLeod Gauge.
• Ready availability of spares.
• Compact in Design & Minimum in
Weight.
• Service after sales with one year
guarantee against manufacturing
defects.
• Models up to V-12A are air
cooled provided with single
phase motors.
• Models V-13 onwards are
provided with water cooling
Jackets

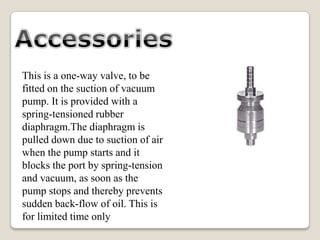

7. This is a one-way valve, to be
fitted on the suction of vacuum
pump. It is provided with a
spring-tensioned rubber
diaphragm.The diaphragm is
pulled down due to suction of air
when the pump starts and it
blocks the port by spring-tension
and vacuum, as soon as the
pump stops and thereby prevents
sudden back-flow of oil. This is
for limited time only

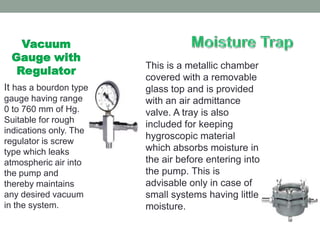

8. Vacuum
Gauge with
This is a metallic chamber
Regulator
covered with a removable
It has a bourdon type glass top and is provided
gauge having range with an air admittance
0 to 760 mm of Hg. valve. A tray is also
Suitable for rough
included for keeping
indications only. The
hygroscopic material
regulator is screw
type which leaks which absorbs moisture in
atmospheric air into the air before entering into
the pump and the pump. This is
thereby maintains advisable only in case of
any desired vacuum small systems having little
in the system. moisture.

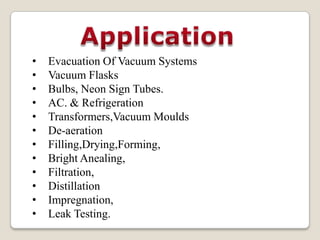

9. • Evacuation Of Vacuum Systems
• Vacuum Flasks
• Bulbs, Neon Sign Tubes.
• AC. & Refrigeration
• Transformers,Vacuum Moulds
• De-aeration
• Filling,Drying,Forming,
• Bright Anealing,
• Filtration,
• Distillation
• Impregnation,
• Leak Testing.

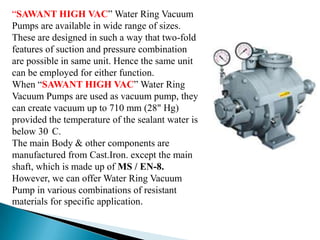

11. “SAWANT HIGH VAC” Water Ring Vacuum
Pumps are available in wide range of sizes.
These are designed in such a way that two-fold
features of suction and pressure combination
are possible in same unit. Hence the same unit
can be employed for either function.
When “SAWANT HIGH VAC” Water Ring
Vacuum Pumps are used as vacuum pump, they
can create vacuum up to 710 mm (28" Hg)
provided the temperature of the sealant water is
below 30 C.
The main Body & other components are
manufactured from Cast.Iron. except the main
shaft, which is made up of MS / EN-8.
However, we can offer Water Ring Vacuum
Pump in various combinations of resistant
materials for specific application.

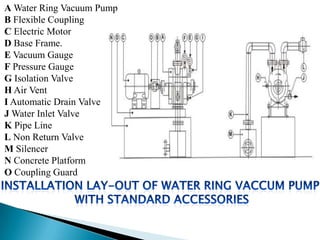

12. A Water Ring Vacuum Pump
B Flexible Coupling
C Electric Motor
D Base Frame.
E Vacuum Gauge
F Pressure Gauge
G Isolation Valve
H Air Vent
I Automatic Drain Valve
J Water Inlet Valve
K Pipe Line
L Non Return Valve
M Silencer
N Concrete Platform
O Coupling Guard

13.  Distillation
 Filtration
 Vacuum Drying
 Water Extraction from paper and cloth
 Evaporation & Crystallization
 Sizing for PVC Pipes
 Priming of Centrifugal Pumps
 Extruders
 Sterilizers.

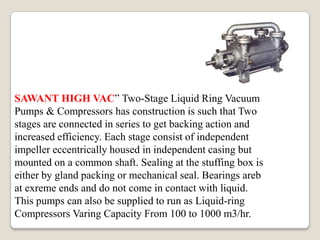

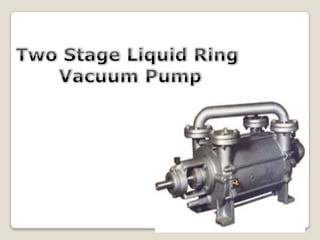

15. SAWANT HIGH VAC” Two-Stage Liquid Ring Vacuum
Pumps & Compressors has construction is such that Two
stages are connected in series to get backing action and
increased efficiency. Each stage consist of independent
impeller eccentrically housed in independent casing but
mounted on a common shaft. Sealing at the stuffing box is
either by gland packing or mechanical seal. Bearings areb
at exreme ends and do not come in contact with liquid.
This pumps can also be supplied to run as Liquid-ring
Compressors Varing Capacity From 100 to 1000 m3/hr.

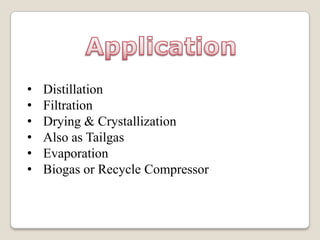

16. • Distillation
• Filtration
• Drying & Crystallization
• Also as Tailgas
• Evaporation
• Biogas or Recycle Compressor

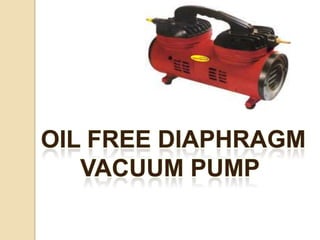

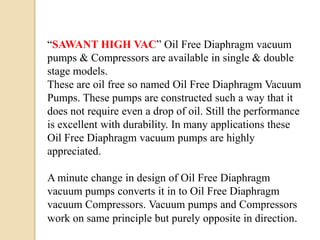

18. “SAWANT HIGH VAC” Oil Free Diaphragm vacuum
pumps & Compressors are available in single & double
stage models.
These are oil free so named Oil Free Diaphragm Vacuum
Pumps. These pumps are constructed such a way that it
does not require even a drop of oil. Still the performance
is excellent with durability. In many applications these
Oil Free Diaphragm vacuum pumps are highly
appreciated.
A minute change in design of Oil Free Diaphragm
vacuum pumps converts it in to Oil Free Diaphragm
vacuum Compressors. Vacuum pumps and Compressors
work on same principle but purely opposite in direction.

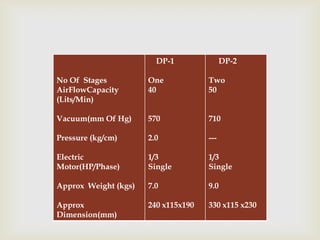

19. DP-1 DP-2
No Of Stages One Two
AirFlowCapacity 40 50
(Lits/Min)
Vacuum(mm Of Hg) 570 710
Pressure (kg/cm) 2.0 ---
Electric 1/3 1/3
Motor(HP/Phase) Single Single
Approx Weight (kgs) 7.0 9.0
Approx 240 x115x190 330 x115 x230
Dimension(mm)

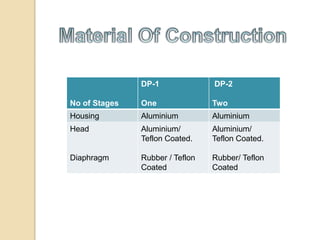

20. DP-1 DP-2
No of Stages One Two
Housing Aluminium Aluminium
Head Aluminium/ Aluminium/
Teflon Coated. Teflon Coated.
Diaphragm Rubber / Teflon Rubber/ Teflon
Coated Coated

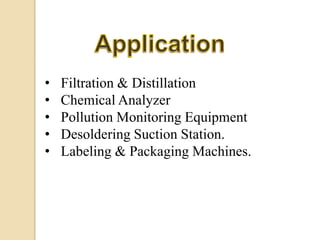

21. • Filtration & Distillation
• Chemical Analyzer
• Pollution Monitoring Equipment
• Desoldering Suction Station.
• Labeling & Packaging Machines.

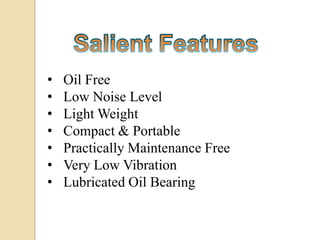

22. • Oil Free
• Low Noise Level
• Light Weight
• Compact & Portable
• Practically Maintenance Free
• Very Low Vibration
• Lubricated Oil Bearing

23. We at “SAWANT HIGH VAC” believe in to be one stop solution
provider for all range, so we are dedicated to supply not JUST
Vacuum Pump but the complete system. Different technology
from different people can miss something for final result. We
understand our client & their requirement best so we provide
complete system in many cases. Even we can consult for same if
in need.

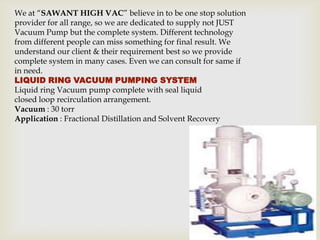

LIQUID RING VACUUM PUMPING SYSTEM
Liquid ring Vacuum pump complete with seal liquid
closed loop recirculation arrangement.
Vacuum : 30 torr
Application : Fractional Distillation and Solvent Recovery

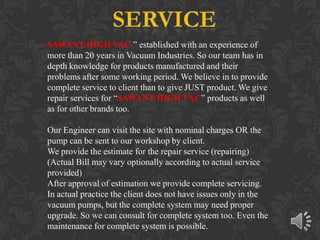

28. SAWANT HIGH VAC ” established with an experience of
more than 20 years in Vacuum Industries. So our team has in
depth knowledge for products manufactured and their
problems after some working period. We believe in to provide
complete service to client than to give JUST product. We give
repair services for “SAWANT HIGH VAC” products as well
as for other brands too.
Our Engineer can visit the site with nominal charges OR the
pump can be sent to our workshop by client.
We provide the estimate for the repair service (repairing)
(Actual Bill may vary optionally according to actual service
provided)
After approval of estimation we provide complete servicing.
In actual practice the client does not have issues only in the
vacuum pumps, but the complete system may need proper
upgrade. So we can consult for complete system too. Even the
maintenance for complete system is possible.
