1. AIR
POLLUTION
CONTROL
CAPABILITIES
SERIES

2. Air Division info@tseco.in
Everyday industries across the globe releases enormous amount of
gaseous fumes enough to pollute our environment in absence of
inefficiently designed APCM systems.
TSE Two Square Ecotechnologies is an Indian origin EPC company
providing sustainable and economical environment solutions to an array
of industrial sectors for emission control, plant air management and
handling for different industrial applications efficiently.
Ever since its inception, TSE Air division has been engaged in designing
and manufacturing of APCM systems with different configurations for
various applications.
The key to our success in client satisfaction has been quest of quality in
every product or system that bears the TSE name. This quest of quality is
primarily important in APC systems - where tending to application
engineering, design details and fabrication quality justifies the difference
between outstanding performance and fare, high maintenance service.
Be it process applications like furnaces, electroplating, kilns and mills, or
material handling venting solutions to different types of industrial
processes.
TSE has, over the years, has been analyzing and understanding the Indian
industrial environment and progressively building sustainable solutions.
Our success lies in a strong time of dedicated engineers and professionals
implementing in house application engineering.
TSE Air Solutions Functions
 Dust extraction and collection Systems
 Fume Extraction and Scrubbing Systems
 Pressurization and Ventilation Systems
 Renovation and uplifting for emission norms and capacity
building
 HVAC Systems
 Heavy Duty Air Blowers
 ID Fans
 Axial Flow Fans
APCM Solutions for Industrial Applications

3. Air Division info@tseco.in

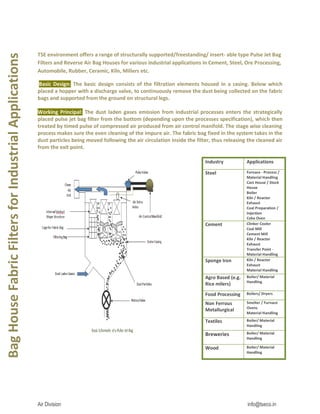

TSE environment offers a range of structurally supported/freestanding/ insert- able type Pulse Jet Bag
Filters and Reverse Air Bag Houses for various industrial applications in Cement, Steel, Ore Processing,
Automobile, Rubber, Ceramic, Kiln, Millers etc.
Basic Design: The basic design consists of the filtration elements housed in a casing. Below which
placed a hopper with a discharge valve, to continuously remove the dust being collected on the fabric
bags and supported from the ground on structural legs.
Working Principal: The dust laden gases emission from industrial processes enters the strategically
placed pulse jet bag filter from the bottom (depending upon the processes specification), which then
treated by timed pulse of compressed air produced from air control manifold. The stage wise cleaning
process makes sure the even cleaning of the impure air. The fabric bag fixed in the system takes in the
dust particles being moved following the air circulation inside the filter, thus releasing the cleaned air
from the exit point.
Industry Applications
Steel Furnace - Process /
Material Handling
Cast House / Stock
House
Boiler
Kiln / Reactor
Exhaust
Coal Preparation /
Injection
Coke Oven
Cement Clinker Cooler
Coal Mill
Cement Mill
Kiln / Reactor
Exhaust
Transfer Point -
Material Handling
Sponge Iron Kiln / Reactor
Exhaust
Material Handling
Agro Based (e.g.
Rice milers)
Boiler/ Material
Handling
Food Processing Boilers/ Dryers
Non Ferrous
Metallurgical
Smelter / Furnace
Ovens
Material Handling
Textiles Boiler/ Material
Handling
Breweries Boiler/ Material
Handling
Wood Boiler/ Material
Handling
Bag
House
Fabric
Filters
for
Industrial
Applications

4. Air Division info@tseco.in

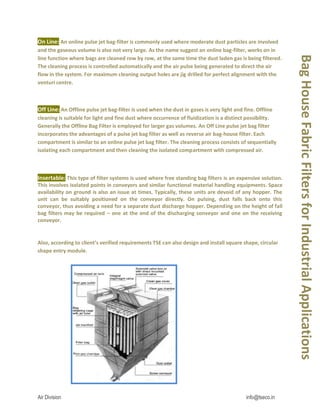

On Line: An online pulse jet bag-filter is commonly used where moderate dust particles are involved
and the gaseous volume is also not very large. As the name suggest an online bag-filter, works on in
line function where bags are cleaned row by row, at the same time the dust laden gas is being filtered.
The cleaning process is controlled automatically and the air pulse being generated to direct the air
flow in the system. For maximum cleaning output holes are jig drilled for perfect alignment with the
venturi centre.
Off Line: An Offline pulse jet bag-filter is used when the dust in gases is very light and fine. Offline
cleaning is suitable for light and fine dust where occurrence of fluidization is a distinct possibility.
Generally the Offline Bag Filter is employed for larger gas volumes. An Off Line pulse jet bag filter
incorporates the advantages of a pulse jet bag filter as well as reverse air bag-house filter. Each
compartment is similar to an online pulse jet bag filter. The cleaning process consists of sequentially
isolating each compartment and then cleaning the isolated compartment with compressed air.
Insertable: This type of filter systems is used where free standing bag filters is an expensive solution.
This involves isolated points in conveyors and similar functional material handling equipments. Space
availability on ground is also an issue at times. Typically, these units are devoid of any hopper. The
unit can be suitably positioned on the conveyor directly. On pulsing, dust falls back onto this
conveyor, thus avoiding a need for a separate dust discharge hopper. Depending on the height of fall
bag filters may be required – one at the end of the discharging conveyor and one on the receiving
conveyor.
Also, according to client’s verified requirements TSE can also design and install square shape, circular
shape entry module.
Bag
House
Fabric
Filters
for
Industrial
Applications

5. Air Division info@tseco.in
TSE Pulse jet and reverse pulse jet bag filters
comes with class modular design made with high
end materials (SS/MS/FRP) according to the
clients tailored requirement.
 Filtration area 8 Sq. Mt. to 3000 Sq. Mt.
 Air Flow : As low as 2,000 CMF to
200,000 CMF
Client’s advantages
 Optimal design of the bag filter to meet
the clients requirement viz. square, modular,
& round shaped.
 Perfect gas cleaning solutions also on high
dust loading.
 High end material used for manufacturing
and fabrication depending upon the client’s
specification.
 Fast cleaning of fabric filters.
 Imported fabric material.
 Low cost operation.
 Better sustainability.
 Less space requirement.
 Fast processing & installations.
 Post sales supports at clients’ site.
Bag
House
Fabric
Filters
for
Industrial
Applications

6. Air Division info@tseco.in

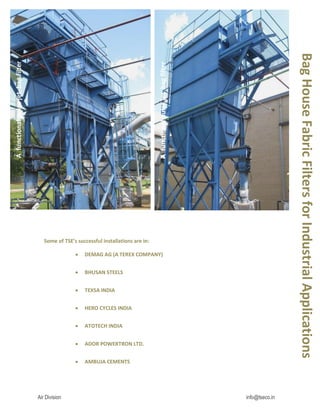

Some of TSE’s successful installations are in:
 DEMAG AG (A TEREX COMPANY)
 BHUSAN STEELS
 TEXSA INDIA
 HERO CYCLES INDIA
 ATOTECH INDIA
 ADOR POWERTRON LTD.
 AMBUJA CEMENTS
Bag
House
Fabric
Filters
for
Industrial
Applications
A
functional
pulse
jet
bag
filter
A
functional
pulse
jet
bag
filter

7. Air Division info@tseco.in
 VIRAJ PROFILES LTD.
Water & Waste Water Solutions
Air Pollution Control
New Energy Solutions
Waste & Soil Conservation solutions
Operation & Maintenance
Visit us
www.tseco.in
For technical knowhow
call: +91 920.405.7001 | mail: info@tseco.in
Off & Works: B-736, Jeevan Park, Near Badli Industrial Area,
New Delhi: 100042| T: 011.6459.2011 | Fax: 011.278.5155
Pan India Network: Ahemdabad Chennai Durgapur Jabalpur
Jaipur Jamshedpur Pune Rourkela
