SAP HANA Native Application Development

1© 2014 SAP AG or an SAP affiliate company. All rights reserved.
SAP HANA SPS 11 - What’s New?
SAP HANA Extended Application Services
SAP HANA Product Management December, 2015
(Delta from SPS 10 to SPS 11)

© 2015 SAP SE or an SAP affiliate company. All rights reserved. 2Public

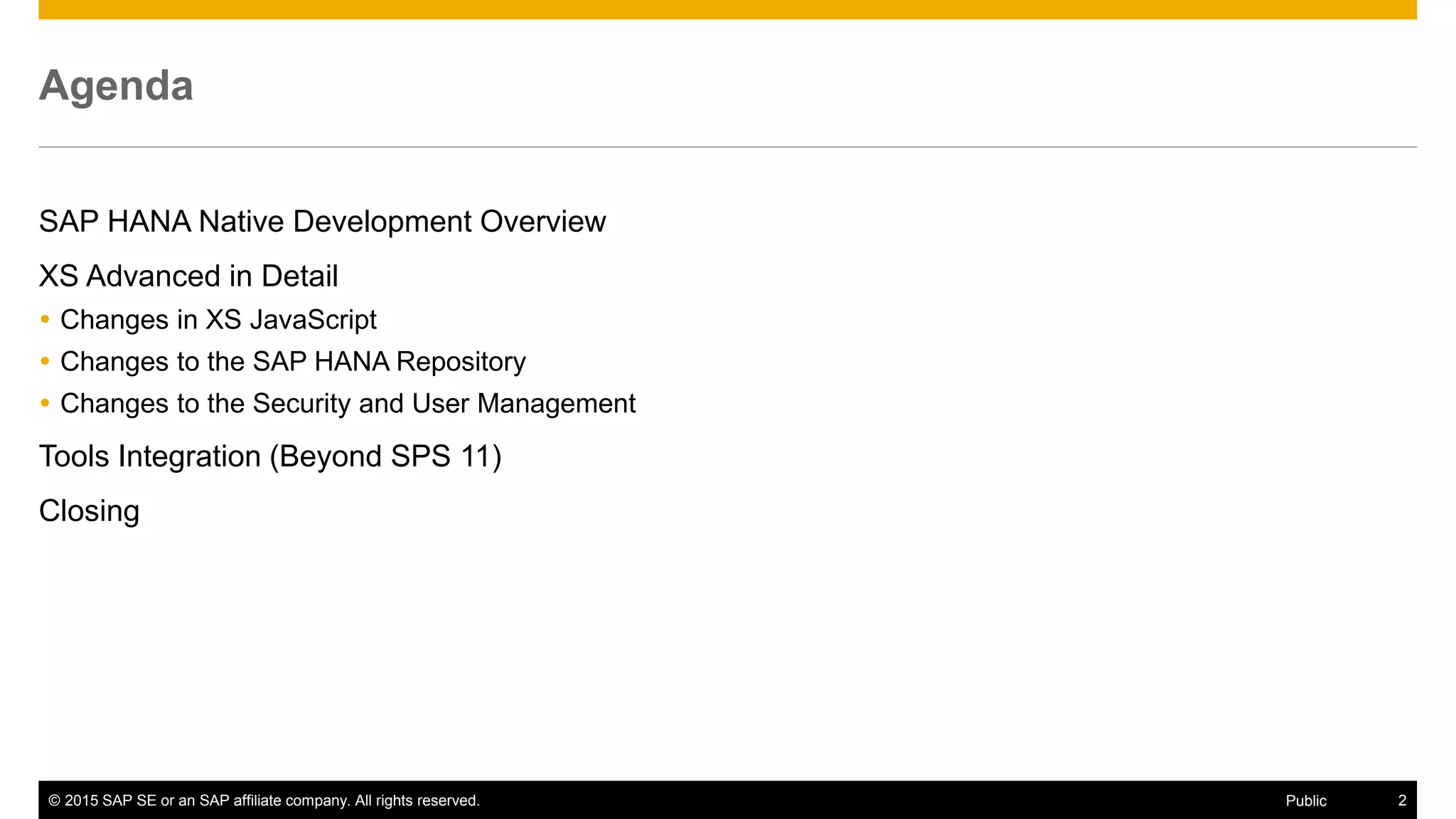

Agenda
SAP HANA Native Development Overview
XS Advanced in Detail
 Changes in XS JavaScript
 Changes to the SAP HANA Repository
 Changes to the Security and User Management
Tools Integration (Beyond SPS 11)
Closing

SAP HANA Extended
Application Services Overview

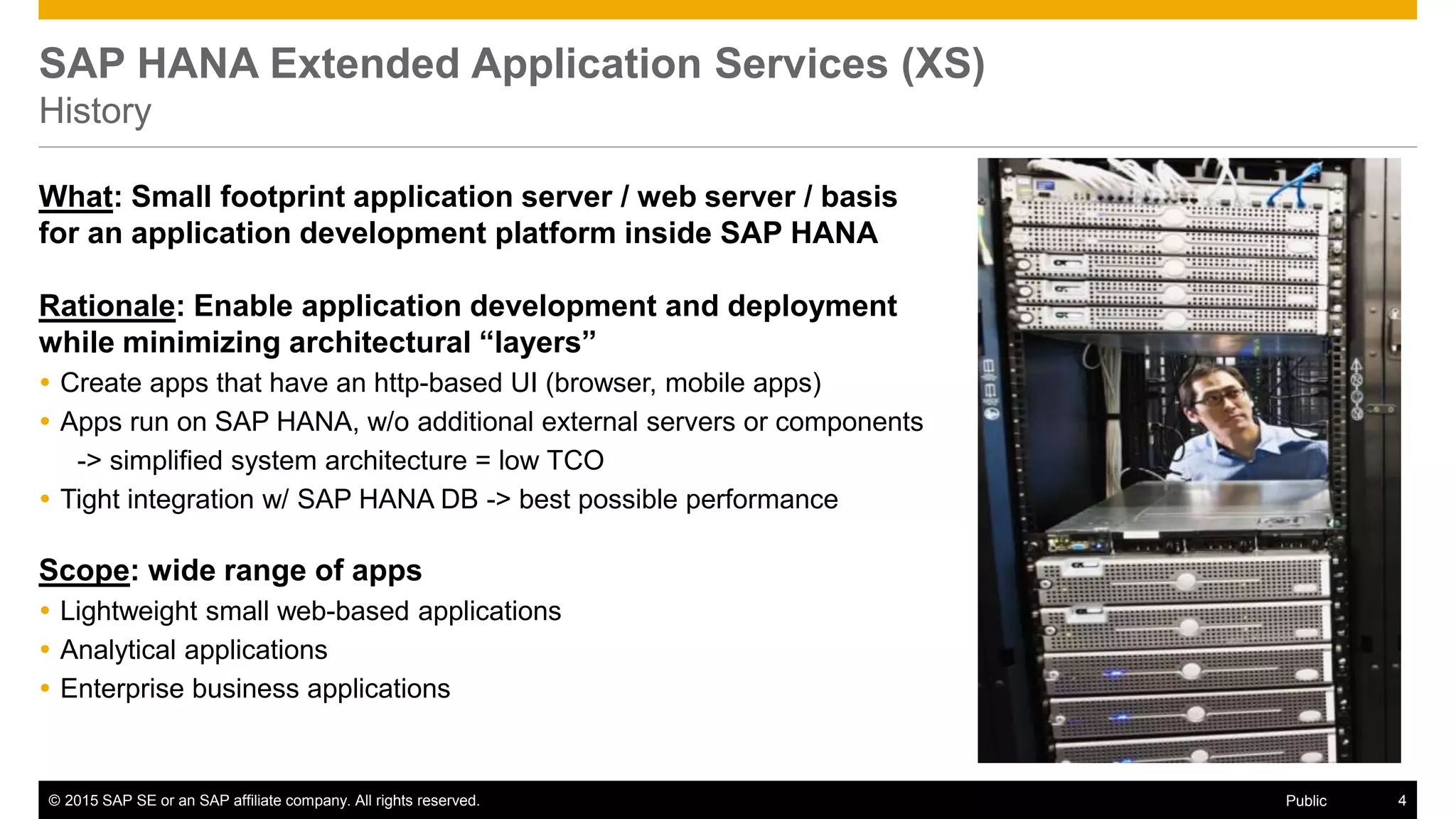

SAP HANA Extended Application Services (XS)
History
What: Small footprint application server / web server / basis
for an application development platform inside SAP HANA
Rationale: Enable application development and deployment
while minimizing architectural “layers”
 Create apps that have an http-based UI (browser, mobile apps)
 Apps run on SAP HANA, w/o additional external servers or components
-> simplified system architecture = low TCO
 Tight integration w/ SAP HANA DB -> best possible performance
Scope: wide range of apps
 Lightweight small web-based applications
 Analytical applications
 Enterprise business applications

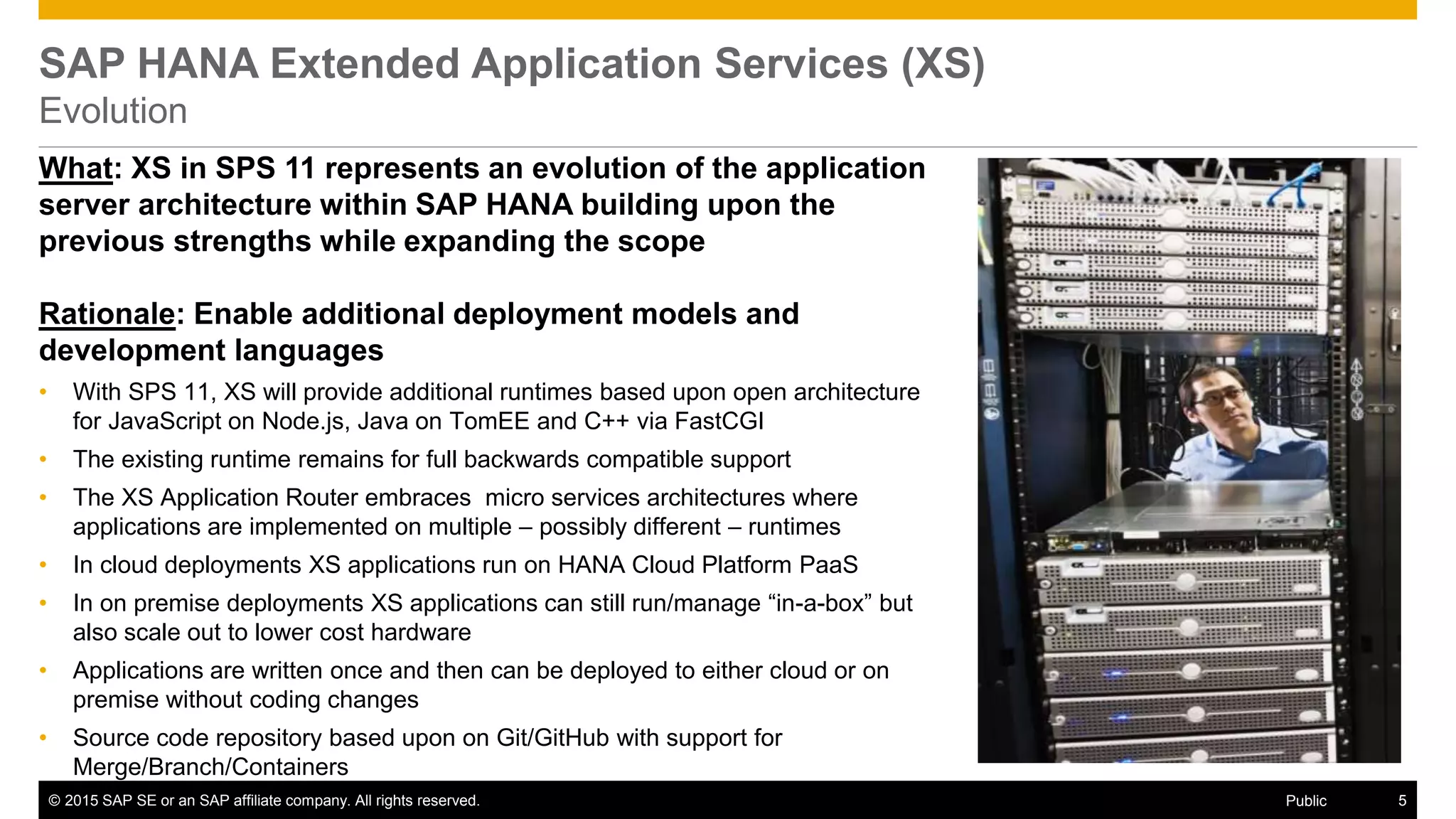

SAP HANA Extended Application Services (XS)
Evolution
What: XS in SPS 11 represents an evolution of the application
server architecture within SAP HANA building upon the
previous strengths while expanding the scope
Rationale: Enable additional deployment models and
development languages
• With SPS 11, XS will provide additional runtimes based upon open architecture
for JavaScript on Node.js, Java on TomEE and C++ via FastCGI
• The existing runtime remains for full backwards compatible support
• The XS Application Router embraces micro services architectures where
applications are implemented on multiple – possibly different – runtimes
• In cloud deployments XS applications run on HANA Cloud Platform PaaS
• In on premise deployments XS applications can still run/manage “in-a-box” but
also scale out to lower cost hardware
• Applications are written once and then can be deployed to either cloud or on
premise without coding changes
• Source code repository based upon on Git/GitHub with support for
Merge/Branch/Containers

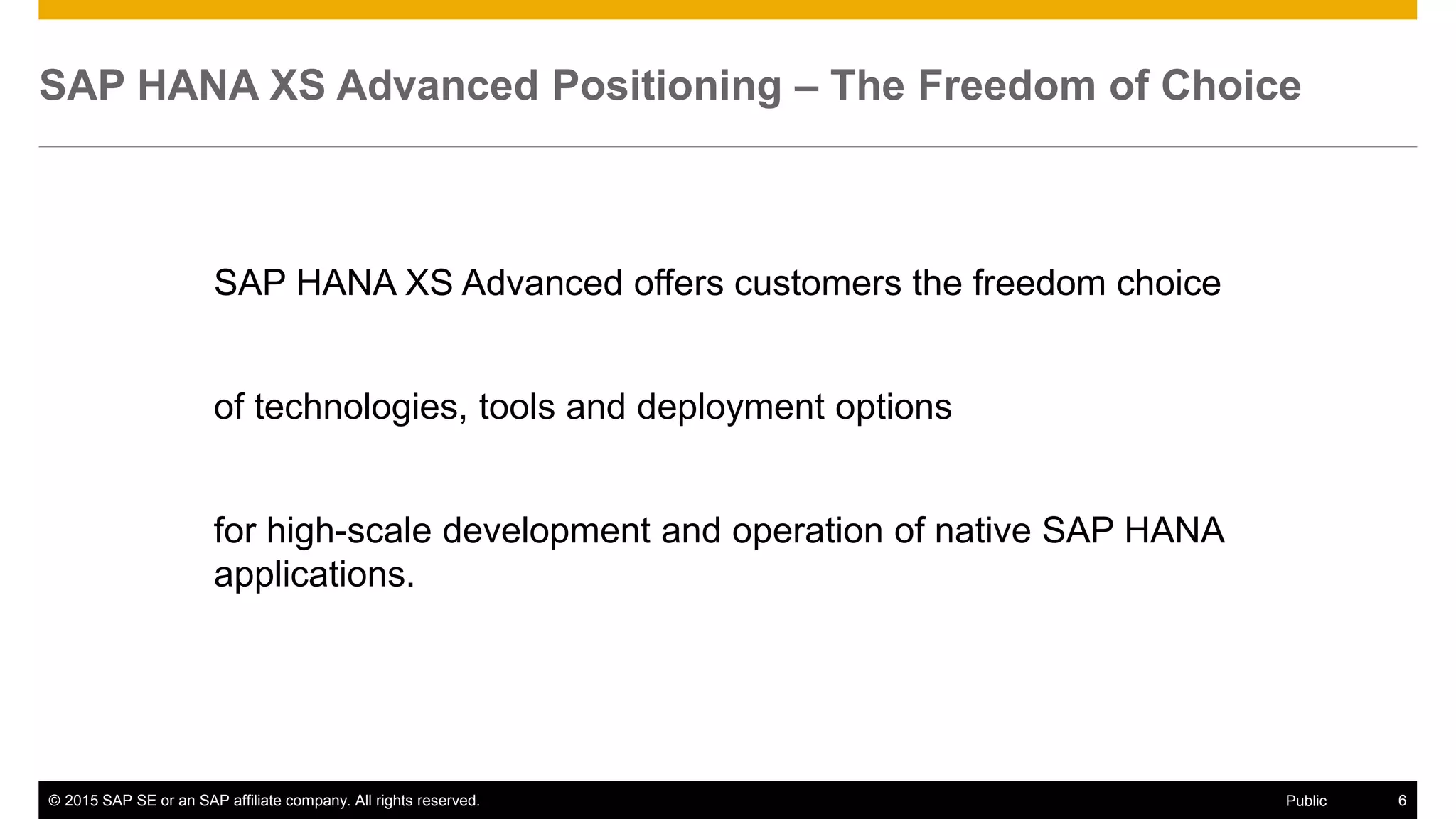

SAP HANA XS Advanced Positioning – The Freedom of Choice
SAP HANA XS Advanced offers customers the freedom choice
of technologies, tools and deployment options
for high-scale development and operation of native SAP HANA
applications.

HANA Database

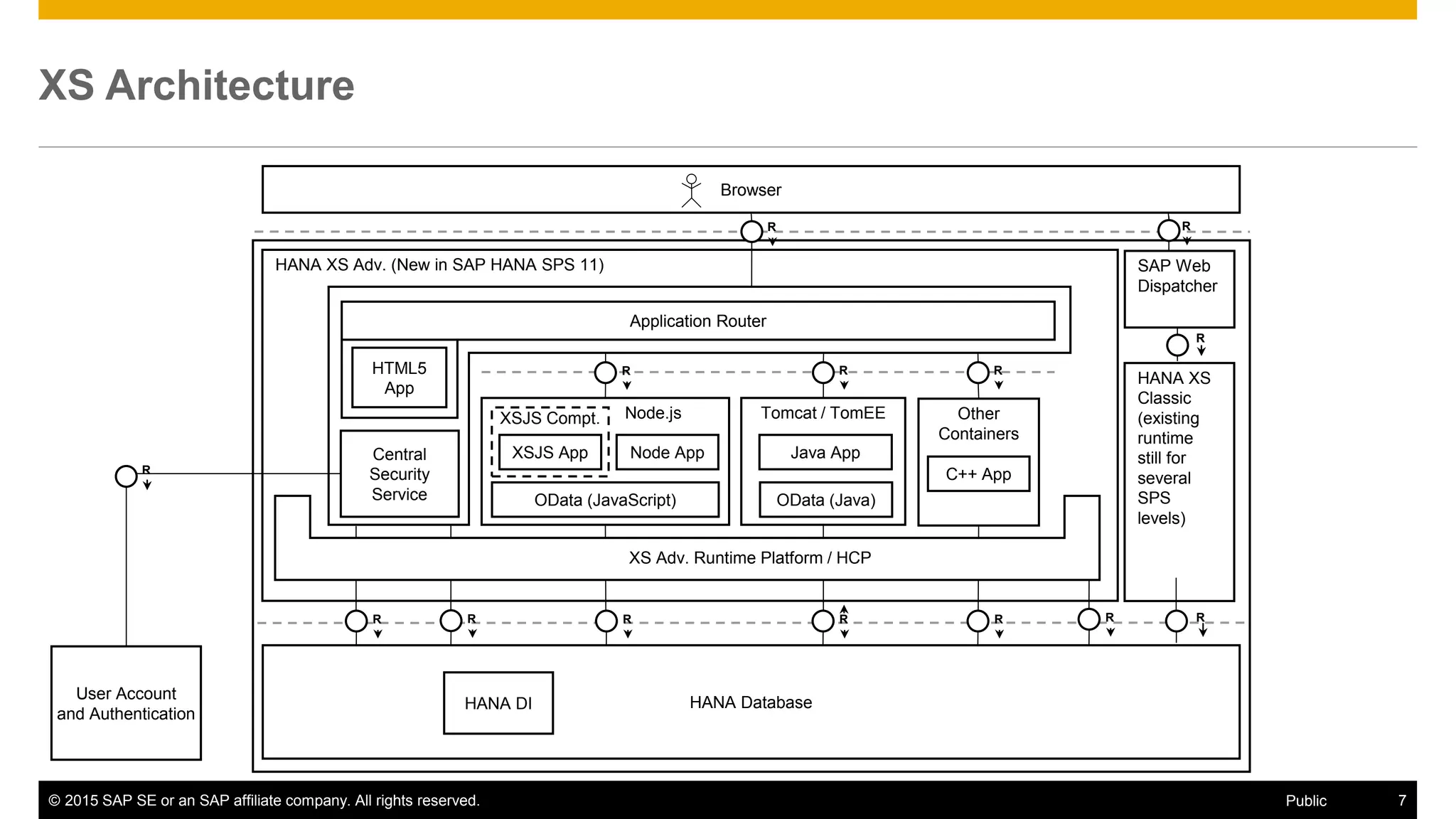

XS Architecture
HANA XS Adv. (New in SAP HANA SPS 11)
HANA Database
Tomcat / TomEE
OData (Java)
Other
Containers
C++ App
Node.jsXSJS Compt.
R R R
Browser
R
XSJS App
User Account
and Authentication
Java AppCentral
Security
Service
Node App
OData (JavaScript)
HANA DI
RR R R R R
XS Adv. Runtime Platform / HCP
HTML5
App
Application Router
HANA XS
Classic
(existing
runtime
still for
several
SPS
levels)
R
R
R
SAP Web
Dispatcher
R

SAP HANA Extended
Application Services In Detail

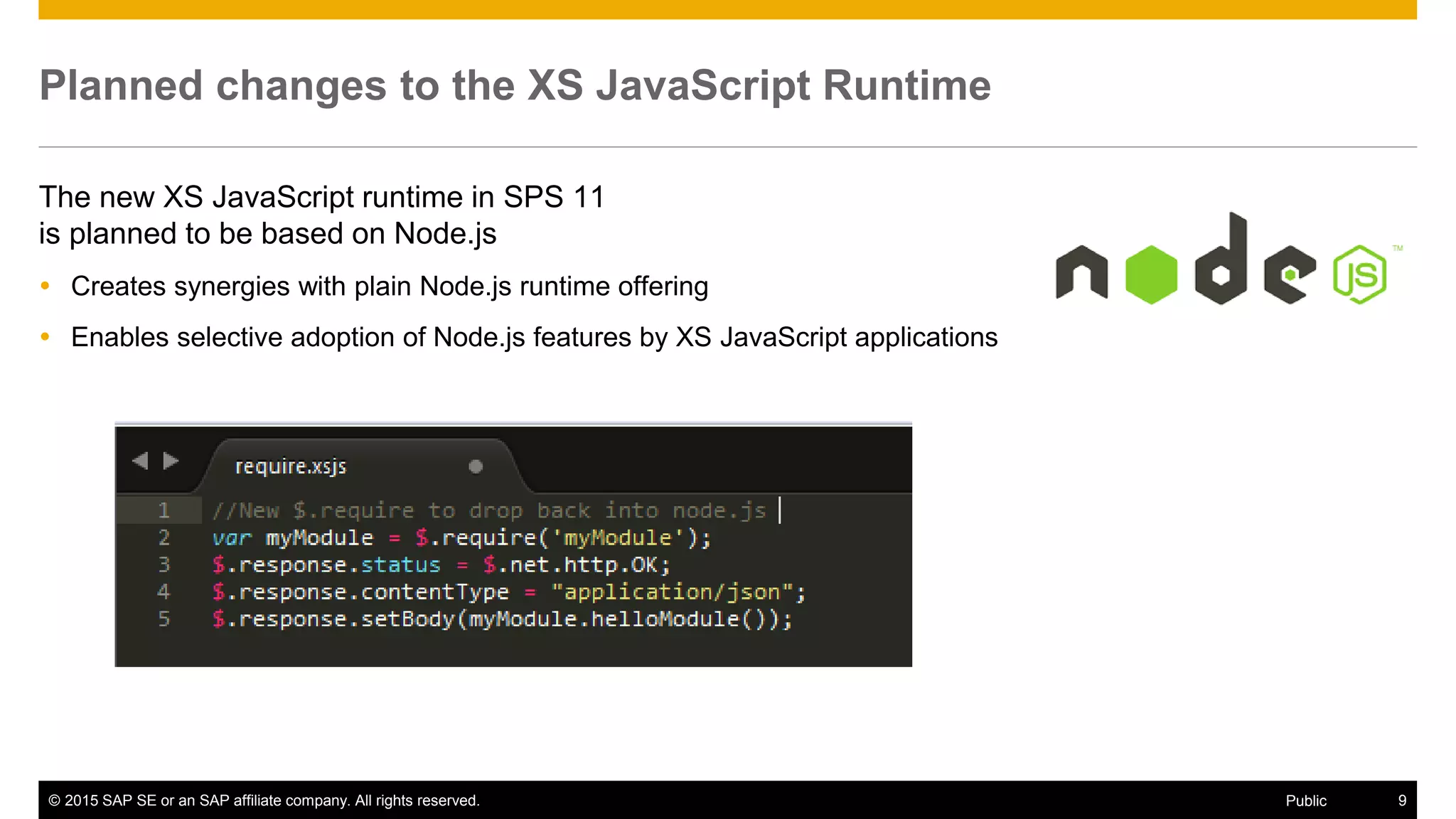

Planned changes to the XS JavaScript Runtime
The new XS JavaScript runtime in SPS 11
is planned to be based on Node.js
 Creates synergies with plain Node.js runtime offering
 Enables selective adoption of Node.js features by XS JavaScript applications

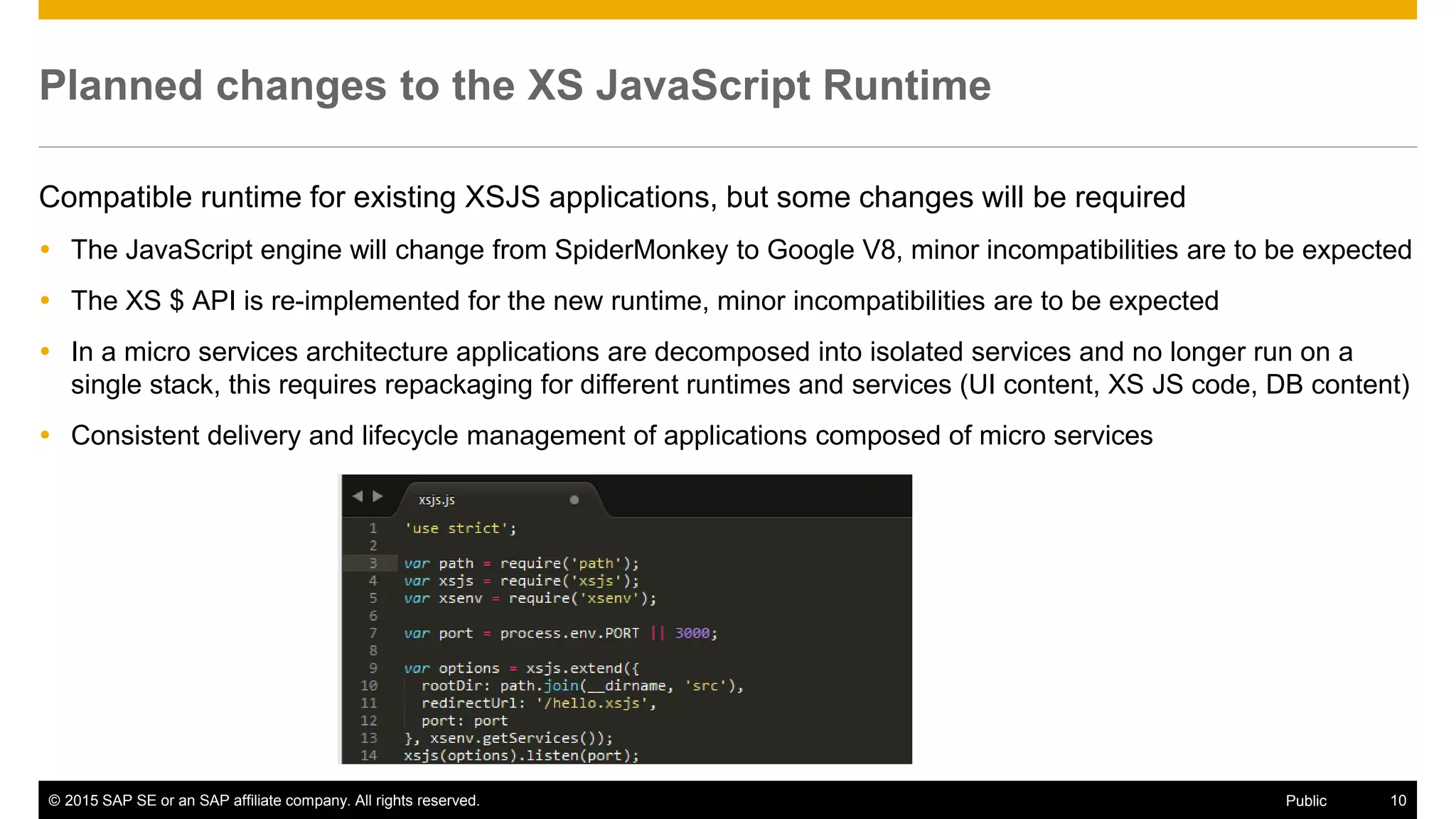

Compatible runtime for existing XSJS applications, but some changes will be required
 The JavaScript engine will change from SpiderMonkey to Google V8, minor incompatibilities are to be expected
 The XS $ API is re-implemented for the new runtime, minor incompatibilities are to be expected
 In a micro services architecture applications are decomposed into isolated services and no longer run on a
single stack, this requires repackaging for different runtimes and services (UI content, XS JS code, DB content)
 Consistent delivery and lifecycle management of applications composed of micro services

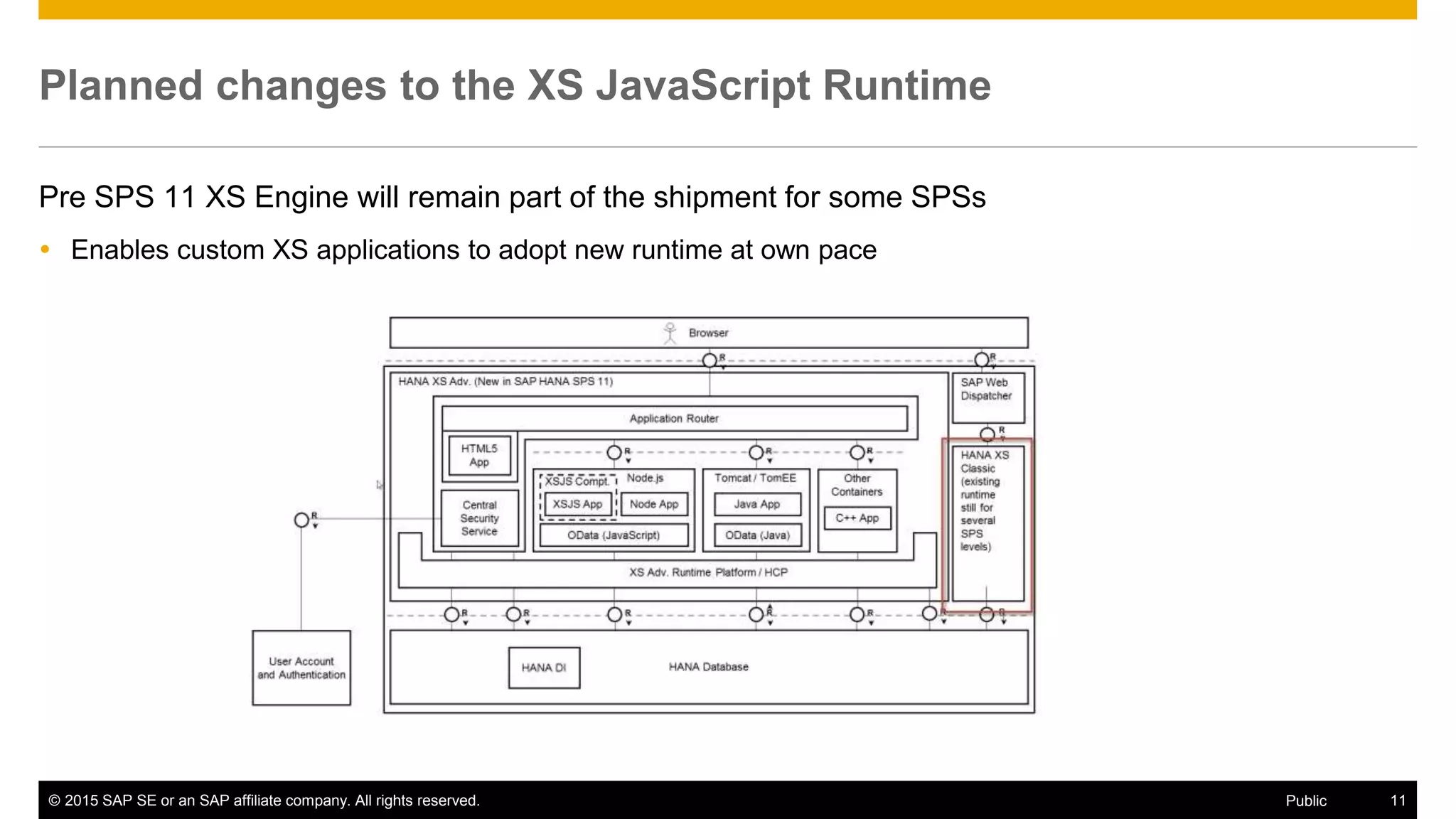

Pre SPS 11 XS Engine will remain part of the shipment for some SPSs
 Enables custom XS applications to adopt new runtime at own pace

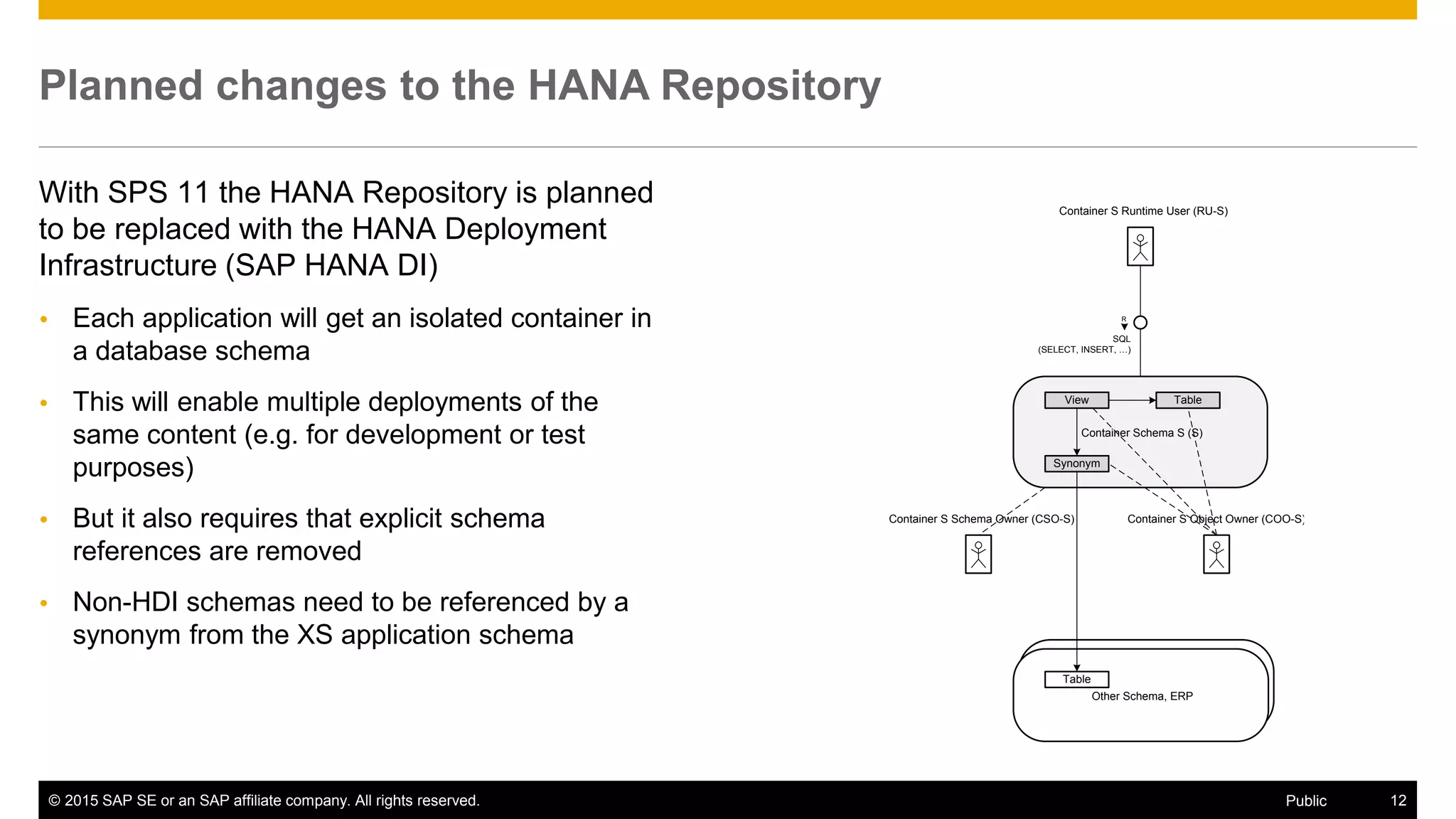

Planned changes to the HANA Repository
With SPS 11 the HANA Repository is planned
to be replaced with the HANA Deployment
Infrastructure (SAP HANA DI)
 Each application will get an isolated container in
a database schema
 This will enable multiple deployments of the
same content (e.g. for development or test
purposes)
 But it also requires that explicit schema
references are removed
 Non-HDI schemas need to be referenced by a
synonym from the XS application schema
Container Schema S (S)
Container S Schema Owner (CSO-S)
Container S Runtime User (RU-S)Container S Deploy User (DU-S)
HDI Metadata Schema 1
Other Schema, ERP
HANA DI Deployment API for S
(DA-S)
API Procedure
R
SQL
(CALL DA-S.WRITE(…),
CALL DA-S.MAKE(…), …)
R
SQL
(SELECT, INSERT, …)
View
Container S Object Owner (COO-S)
Table
Synonym
Table
HDI Metadata SchHANA DI Metadata
(MD-S)
Container S Metad
Container S Metadata Schema O

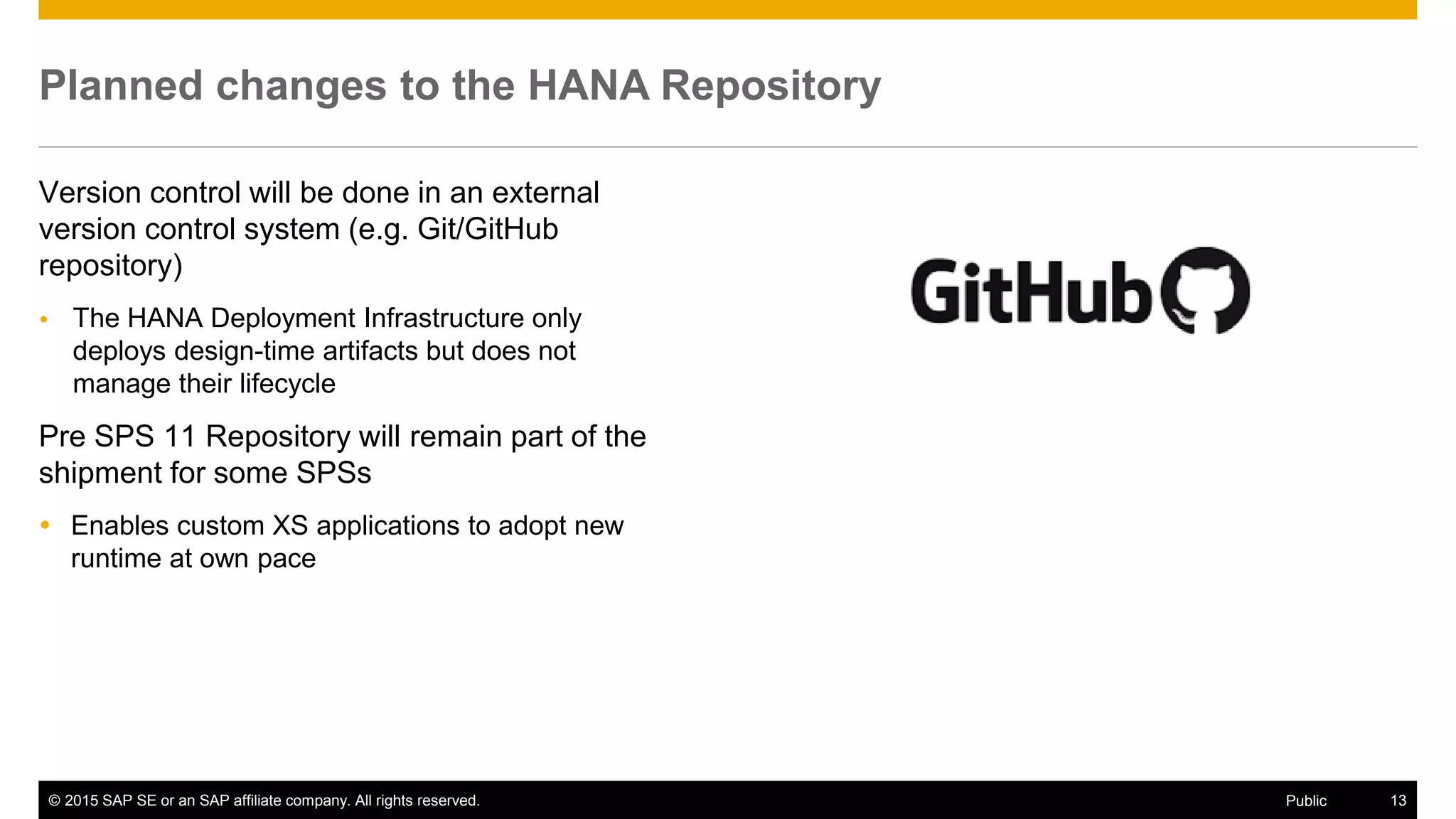

Planned changes to the HANA Repository
Version control will be done in an external
version control system (e.g. Git/GitHub
repository)
 The HANA Deployment Infrastructure only
deploys design-time artifacts but does not
manage their lifecycle
Pre SPS 11 Repository will remain part of the
shipment for some SPSs
 Enables custom XS applications to adopt new
runtime at own pace

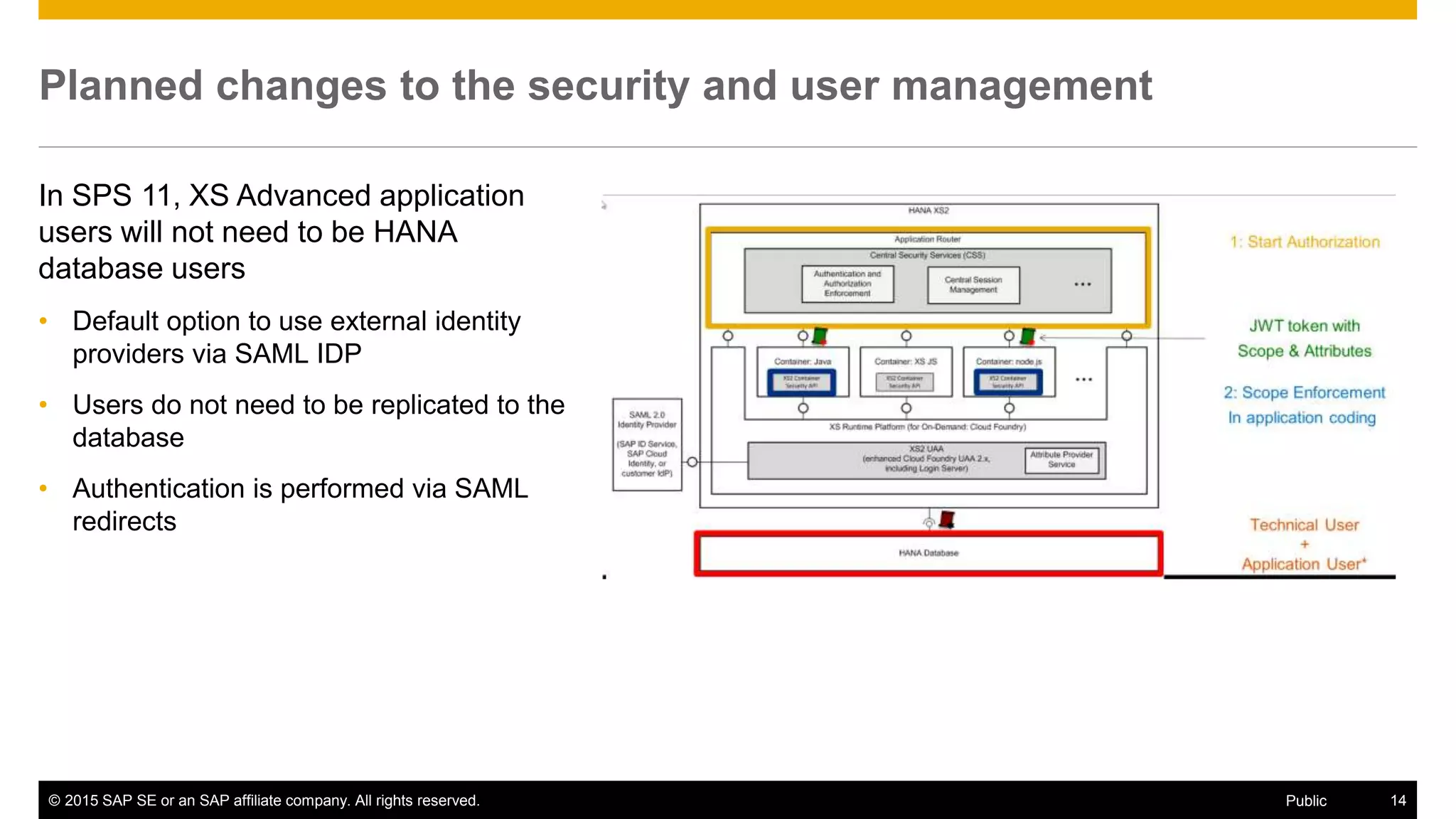

Planned changes to the security and user management
In SPS 11, XS Advanced application
users will not need to be HANA
database users
• Default option to use external identity
providers via SAML IDP
• Users do not need to be replicated to the
database
• Authentication is performed via SAML
redirects

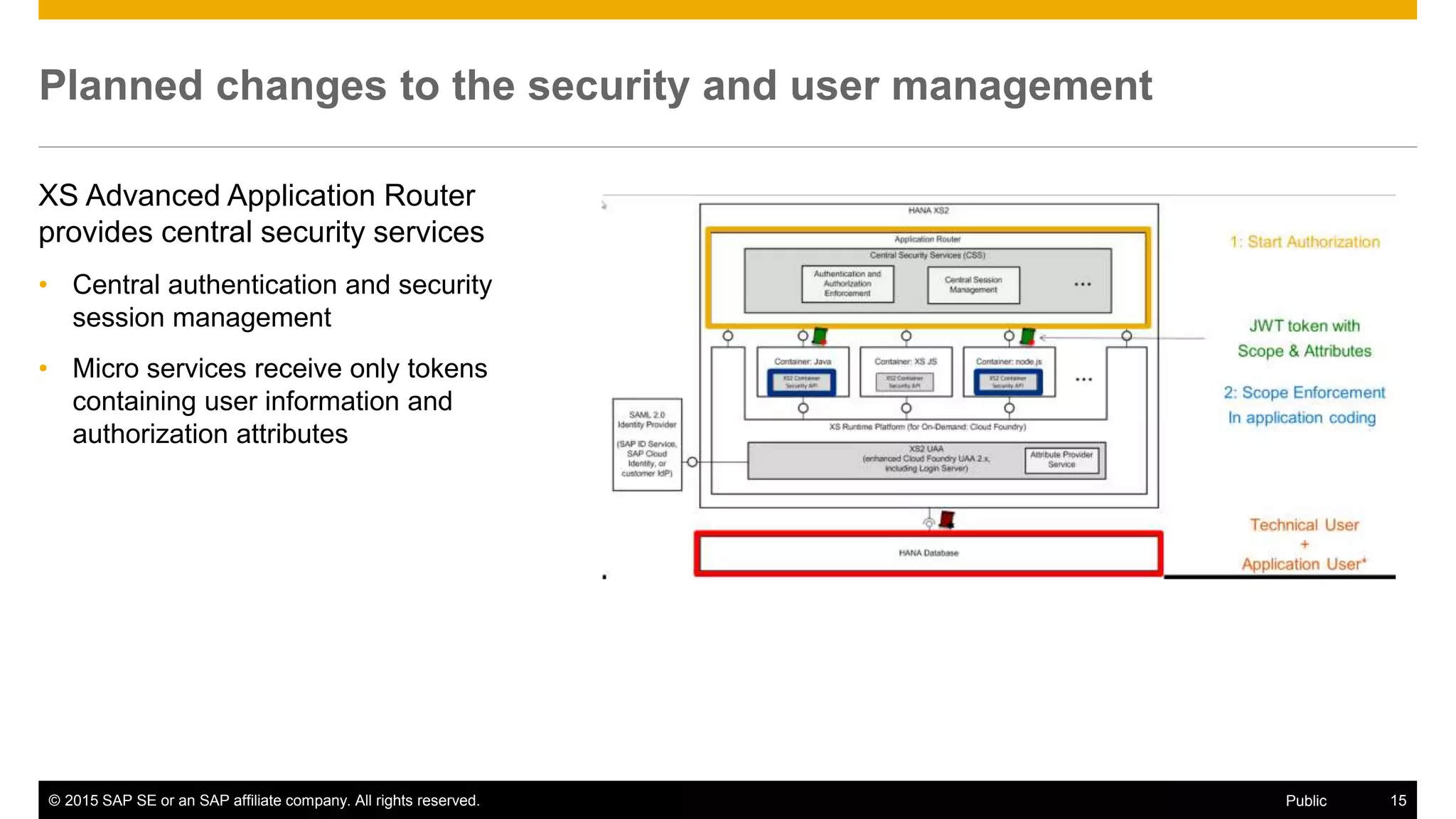

XS Advanced Application Router
provides central security services
• Central authentication and security
session management
• Micro services receive only tokens
containing user information and
authorization attributes

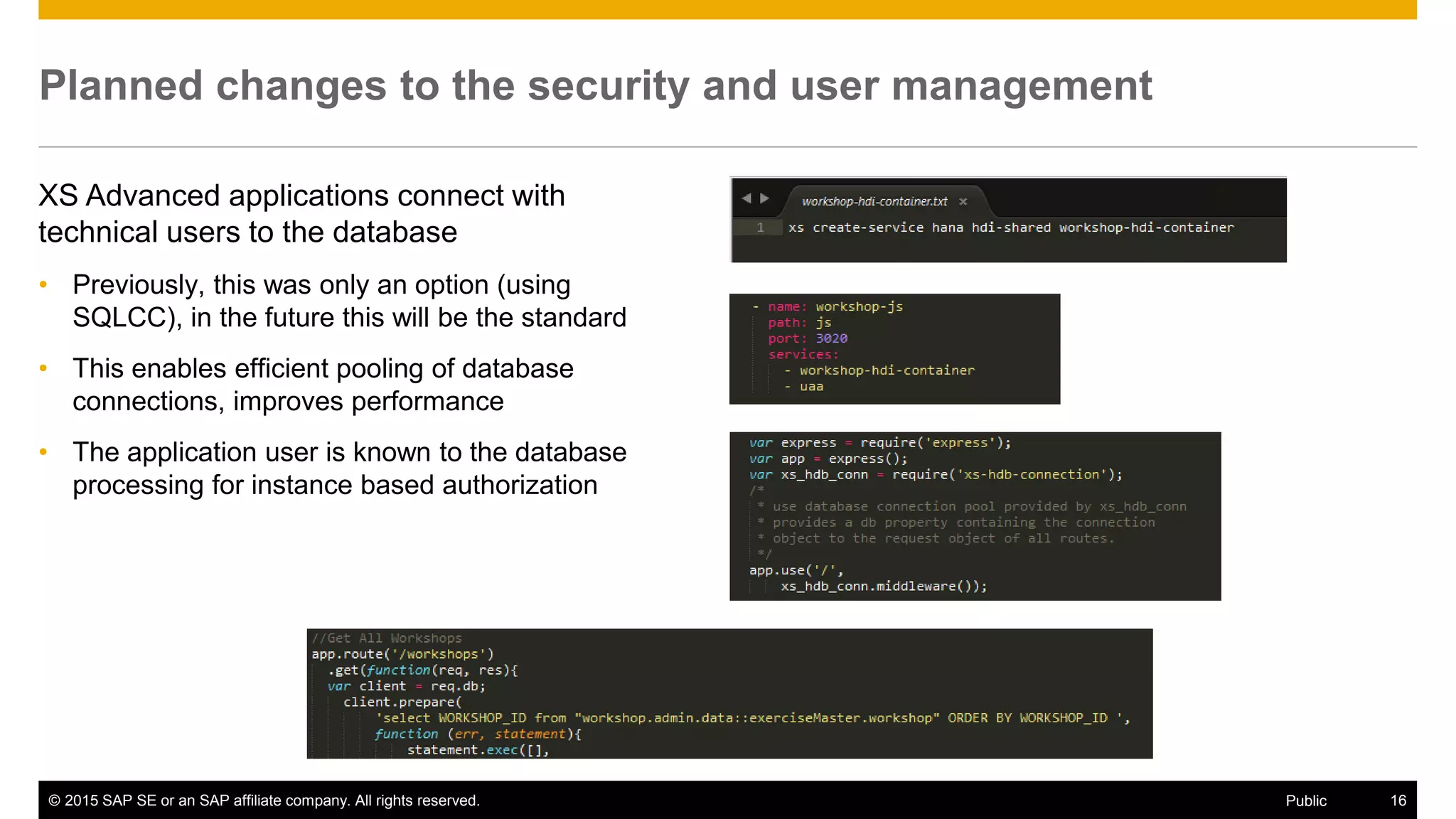

XS Advanced applications connect with
technical users to the database
• Previously, this was only an option (using
SQLCC), in the future this will be the standard
• This enables efficient pooling of database
connections, improves performance
• The application user is known to the database
processing for instance based authorization

DevX Vision
A comprehensive, inclusive and uniformly consistent experience,
for all members of the SAP developer ecosystem who seek to
build, extend and deploy SAP-based applications,
on-premise and in the cloud.
employees partners customers

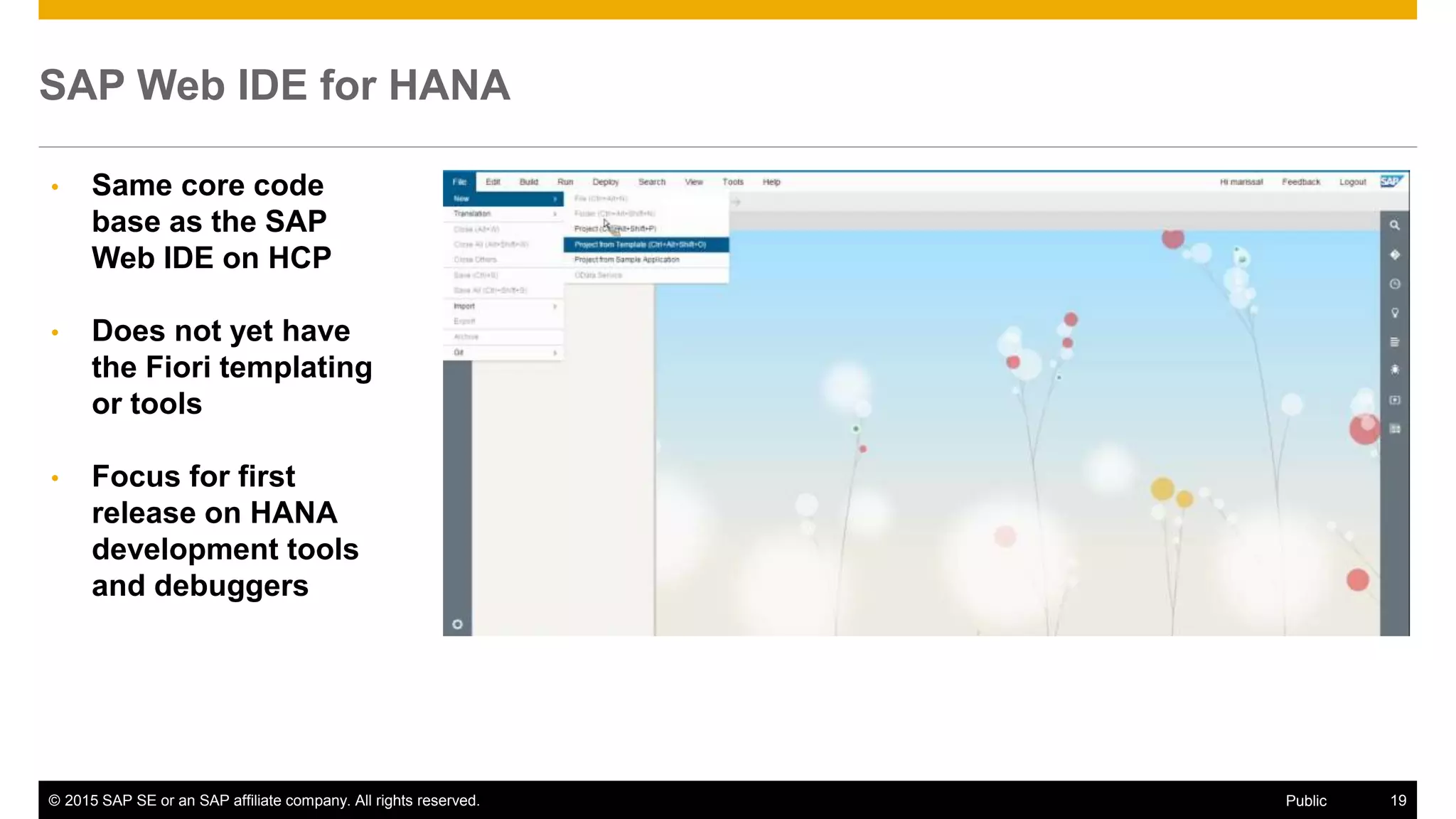

SAP Web IDE for HANA
• Same core code
base as the SAP
Web IDE on HCP
• Does not yet have
the Fiori templating
or tools
• Focus for first
release on HANA
development tools
and debuggers

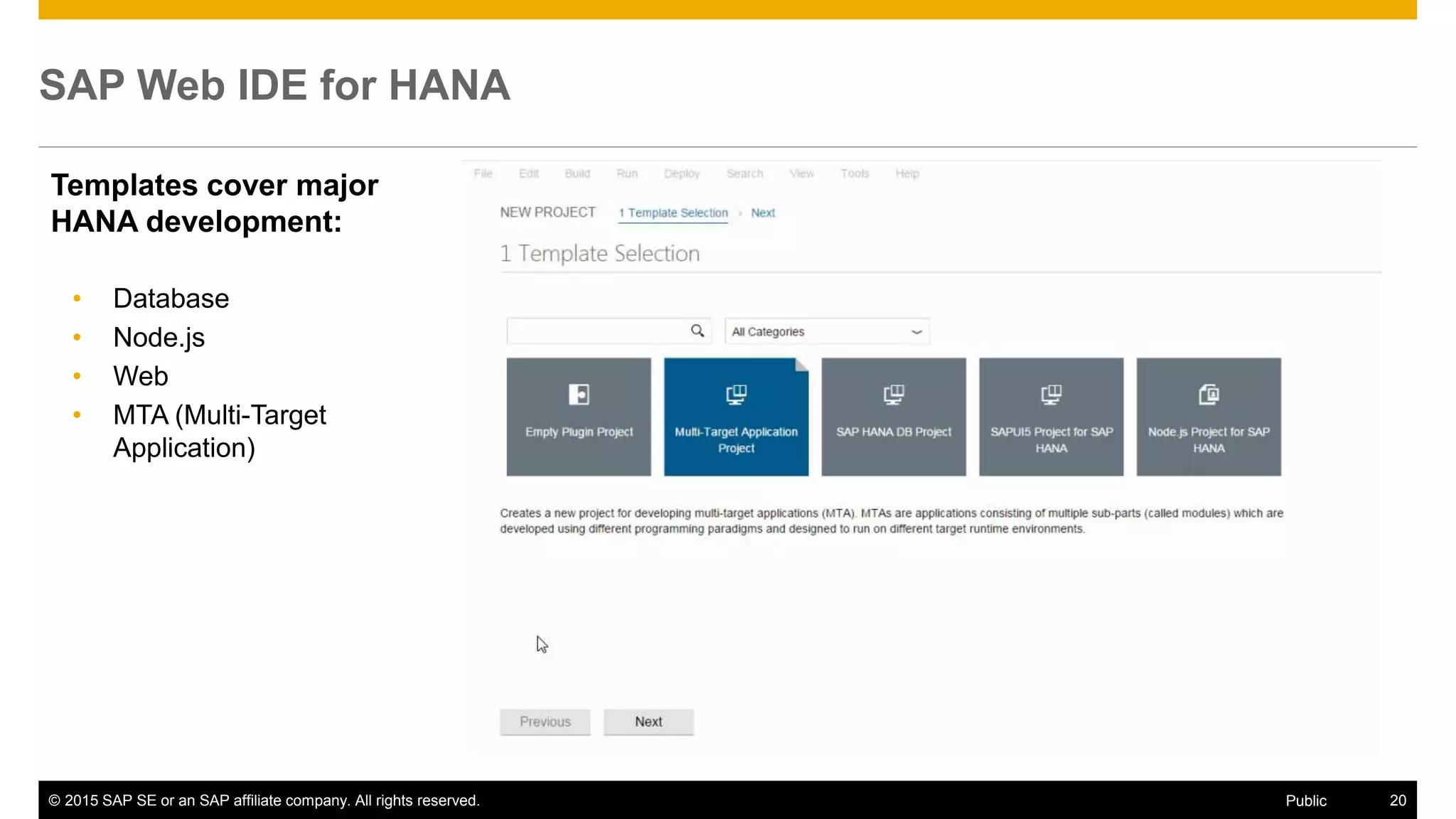

Templates cover major
HANA development:
• Database
• Node.js
• Web
• MTA (Multi-Target
Application)

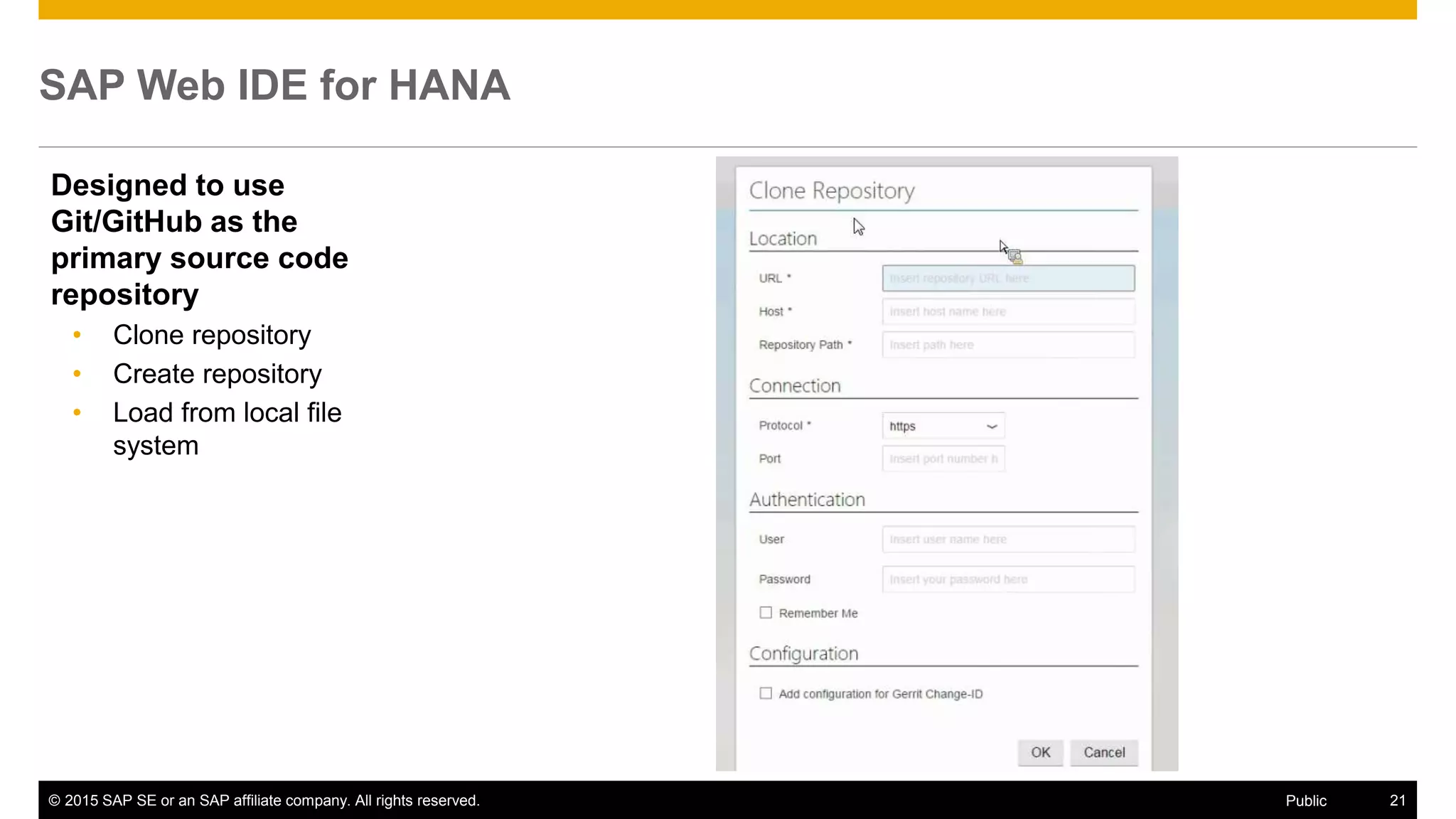

Designed to use
Git/GitHub as the
primary source code
repository
• Clone repository
• Create repository
• Load from local file
system

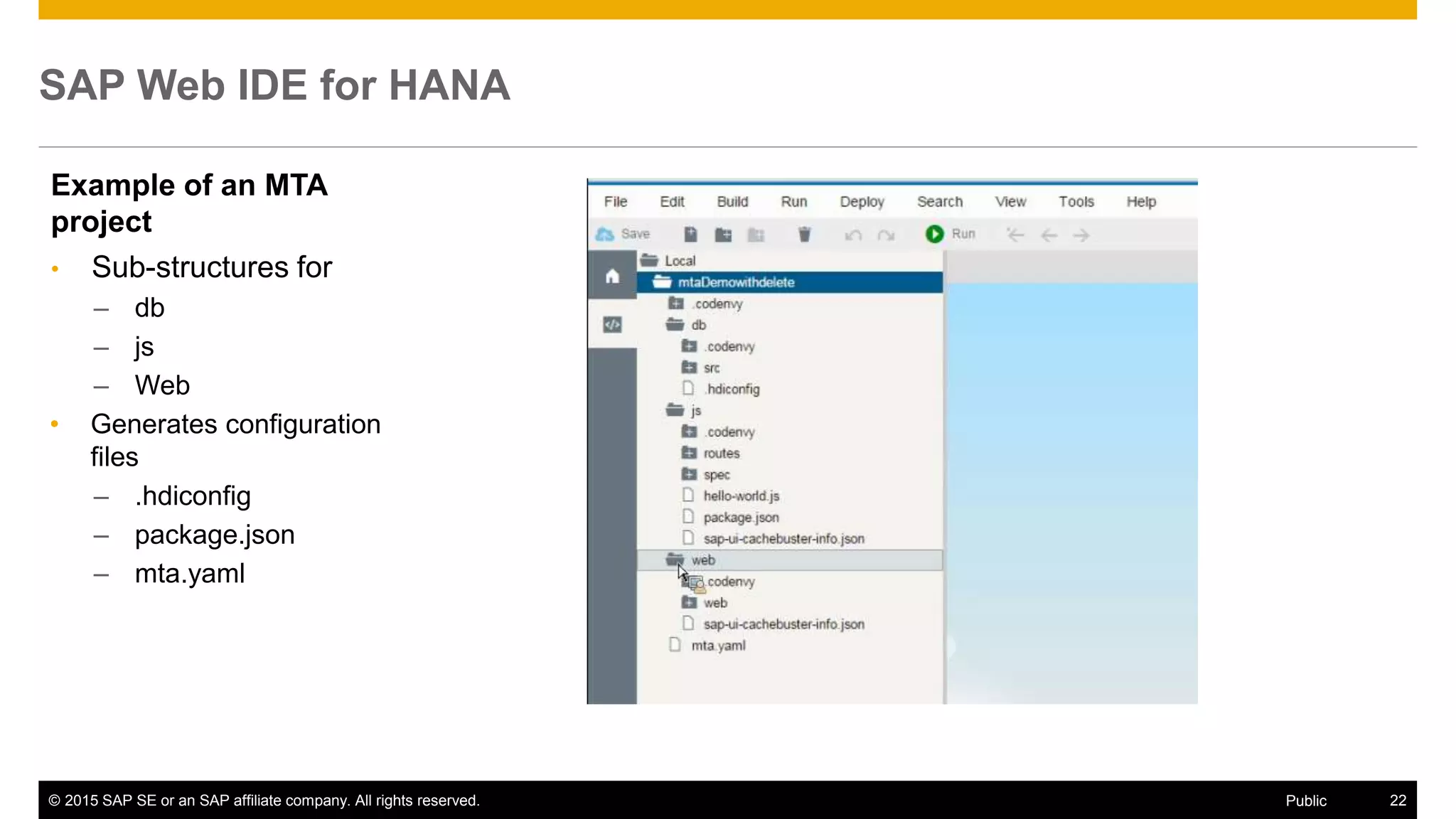

Example of an MTA
project
• Sub-structures for
– db
– js
– Web
• Generates configuration
files
– .hdiconfig
– package.json
– mta.yaml

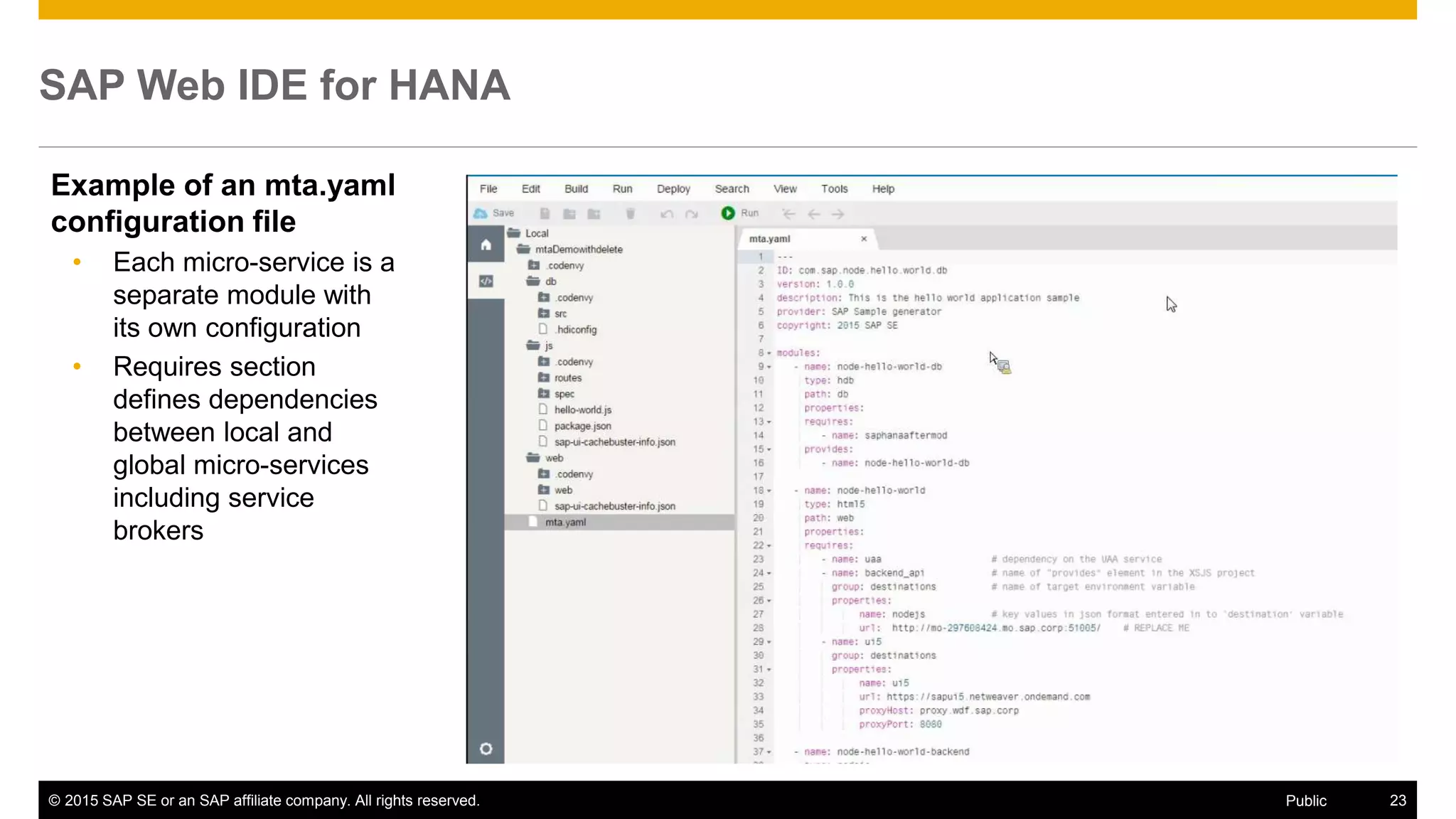

Example of an mta.yaml
configuration file
• Each micro-service is a
separate module with
its own configuration
• Requires section
defines dependencies
between local and
global micro-services
including service
brokers

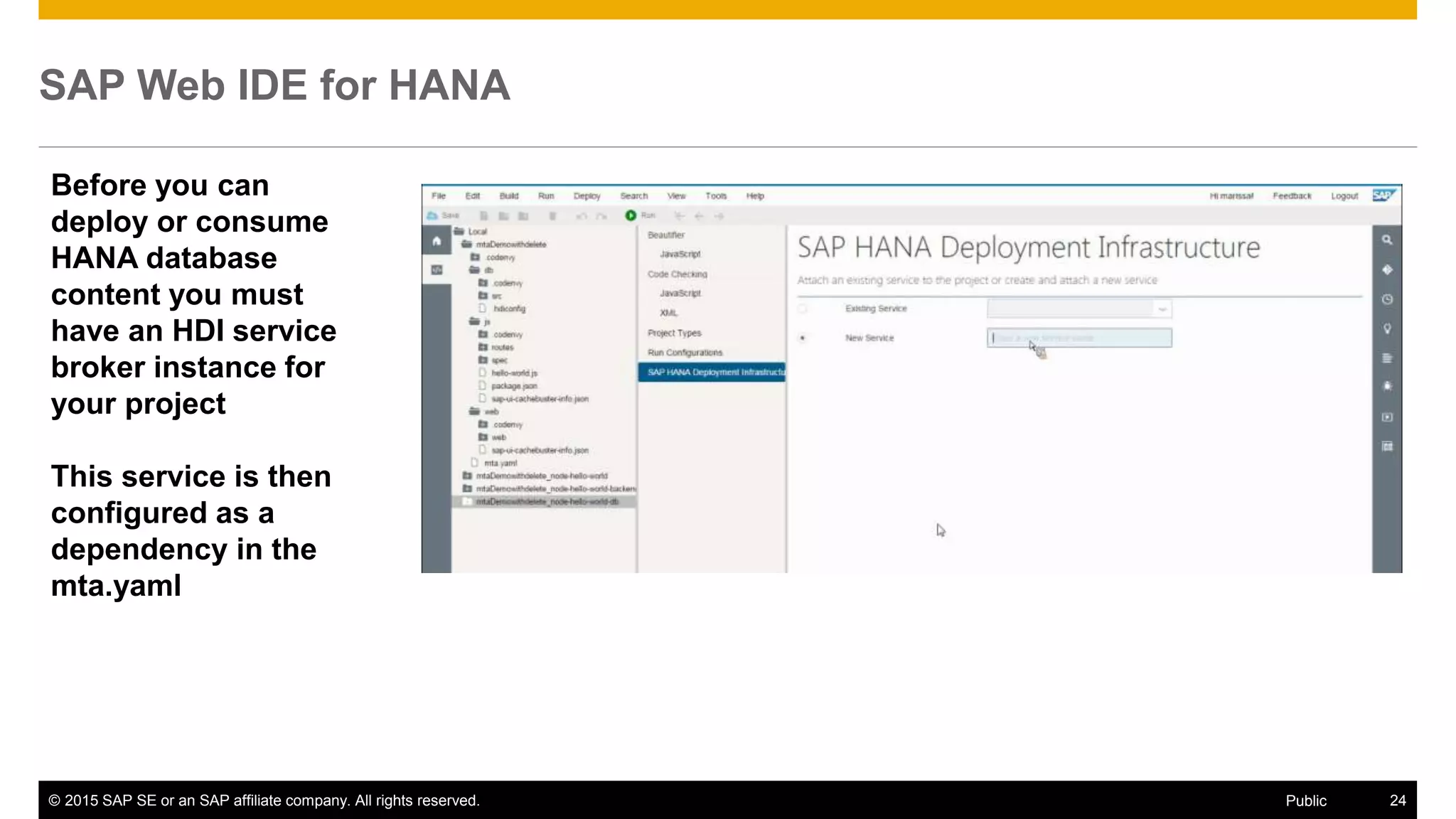

Before you can
deploy or consume
HANA database
content you must
have an HDI service
broker instance for
your project
This service is then
configured as a
dependency in the
mta.yaml

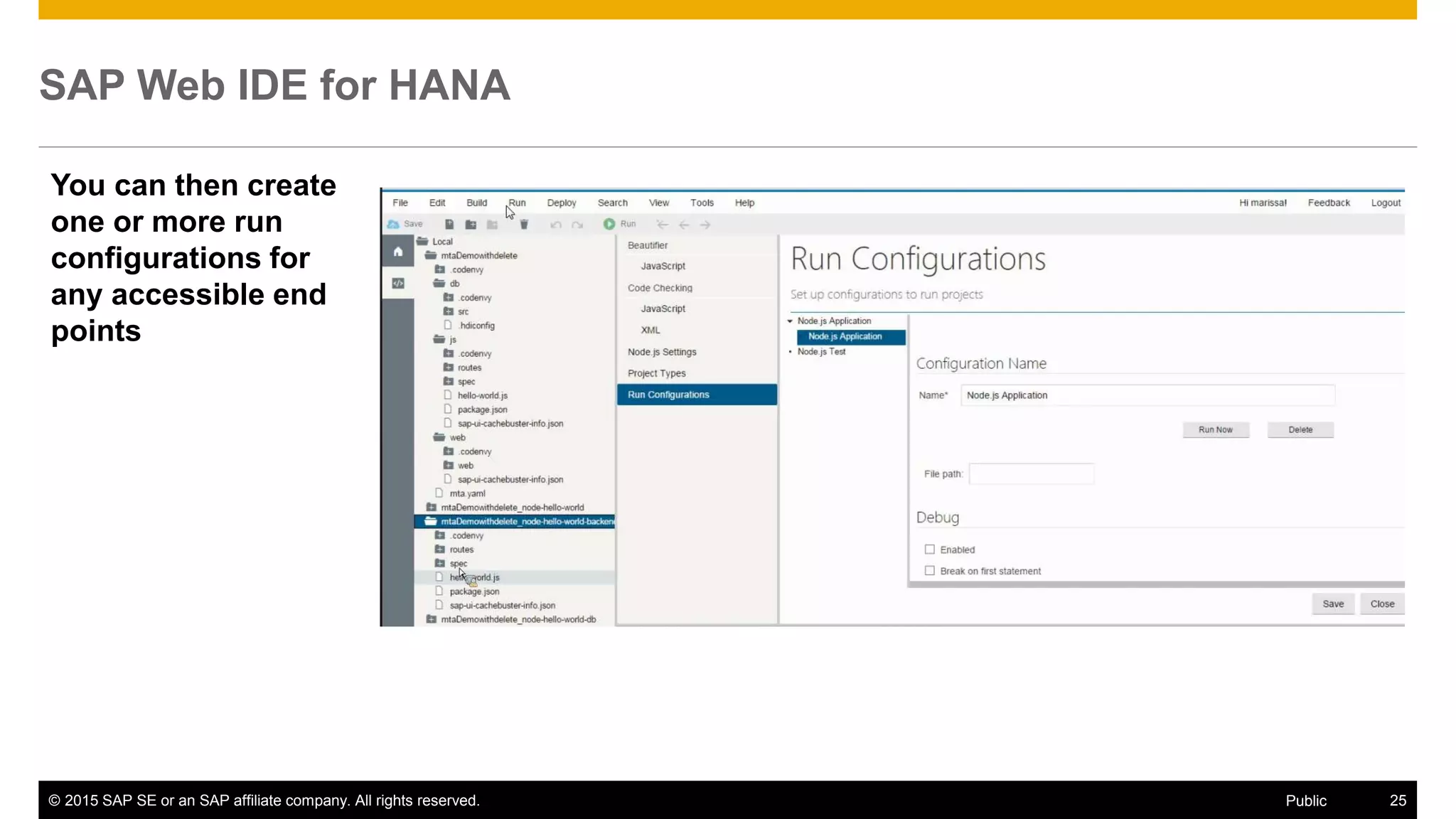

You can then create
one or more run
configurations for
any accessible end
points

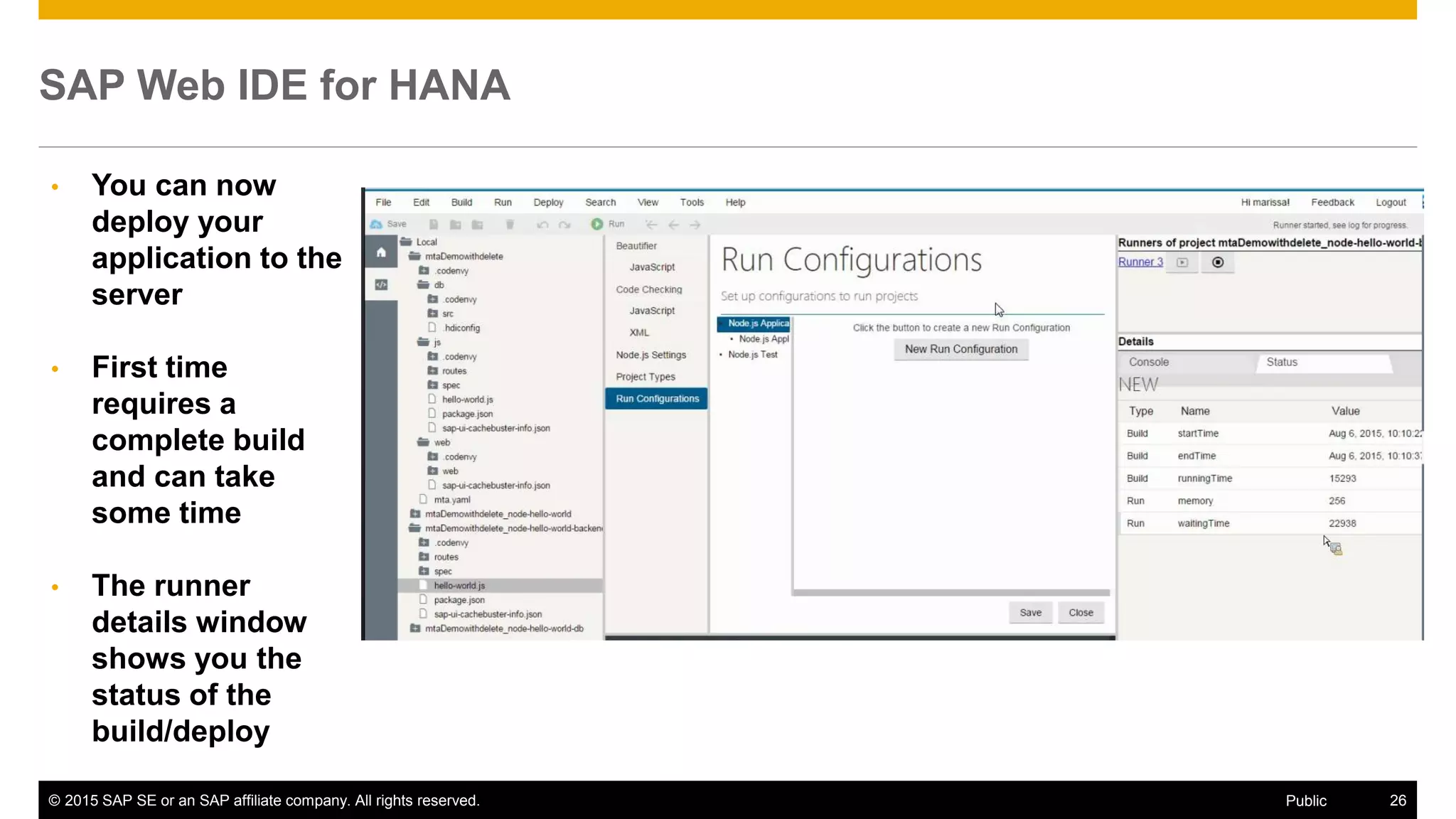

• You can now
deploy your
application to the
server
• First time
requires a
complete build
and can take
some time
• The runner
details window
shows you the
status of the
build/deploy

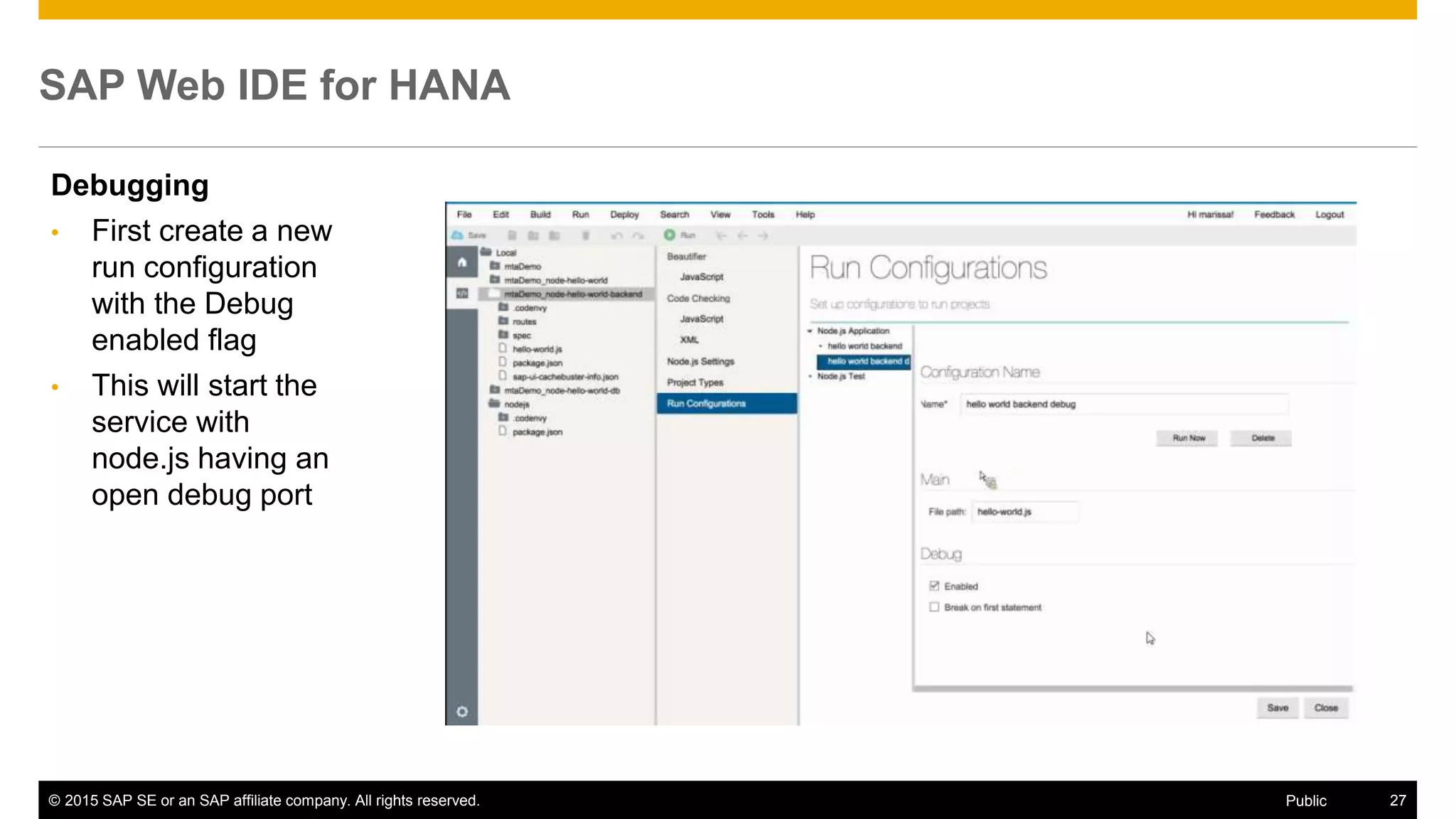

Debugging
• First create a new
run configuration
with the Debug
enabled flag
• This will start the
service with
node.js having an
open debug port

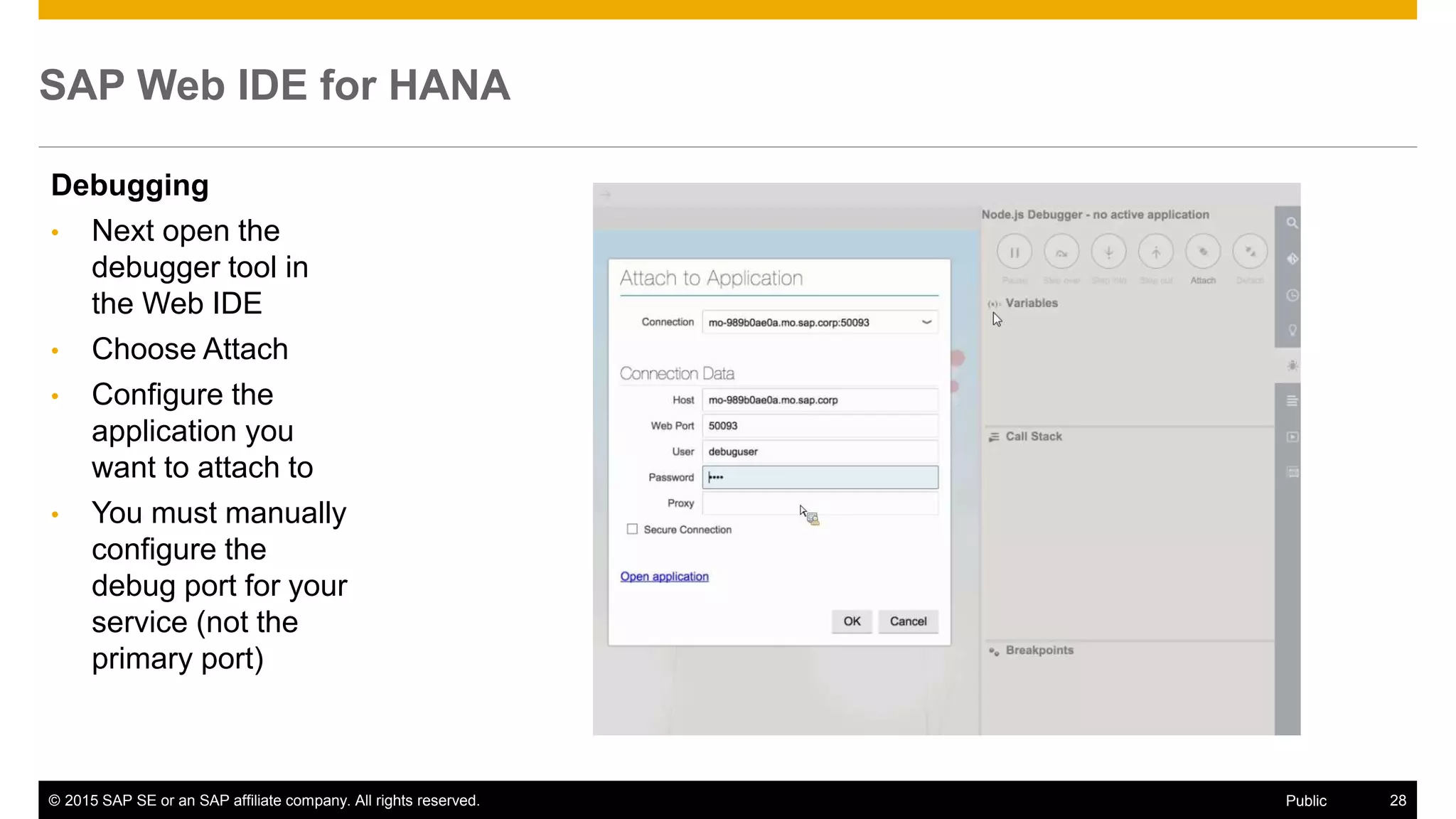

Debugging
• Next open the
debugger tool in
the Web IDE
• Choose Attach
• Configure the
application you
want to attach to
• You must manually
configure the
debug port for your
service (not the
primary port)

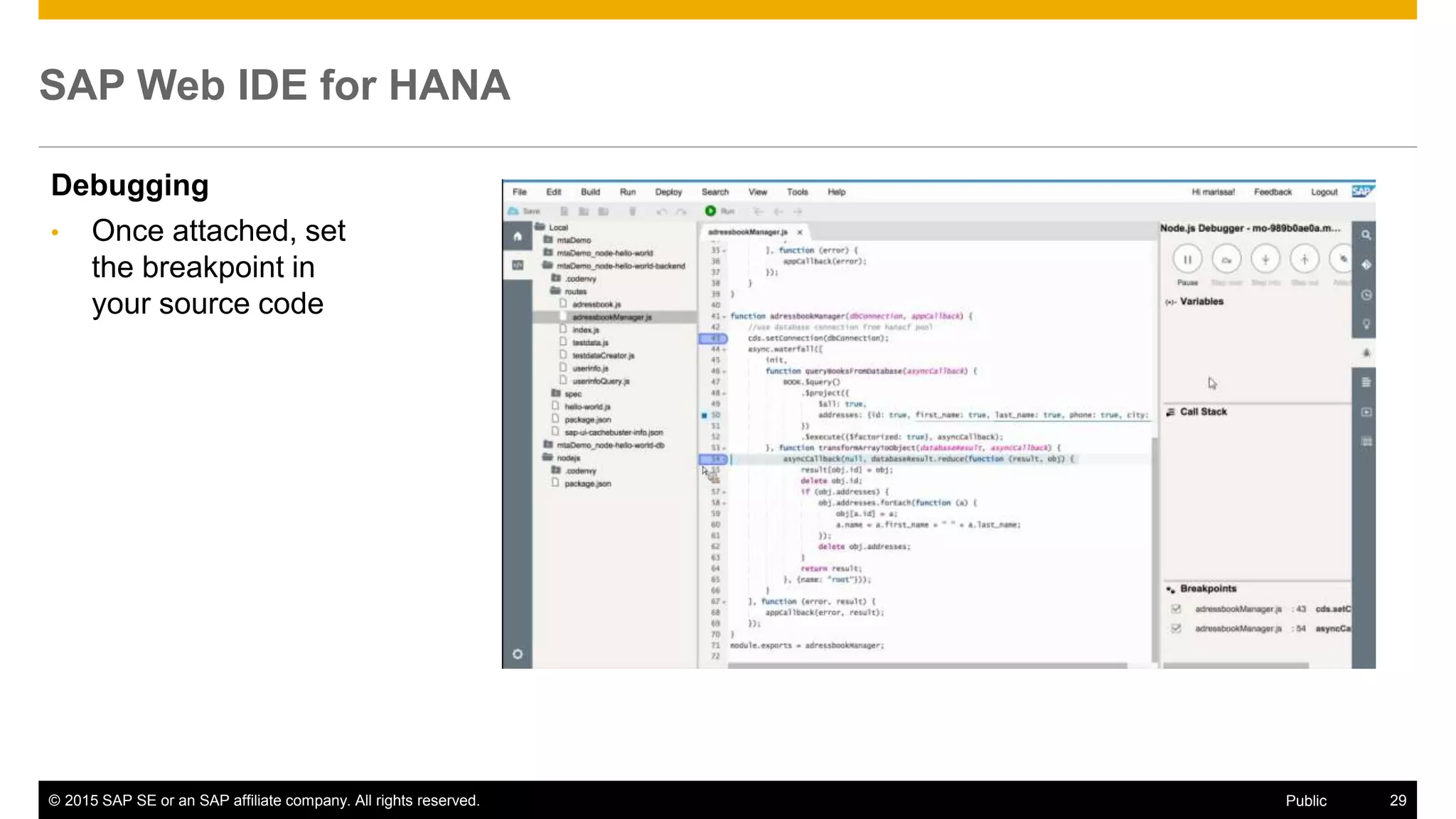

Debugging
• Once attached, set
the breakpoint in
your source code

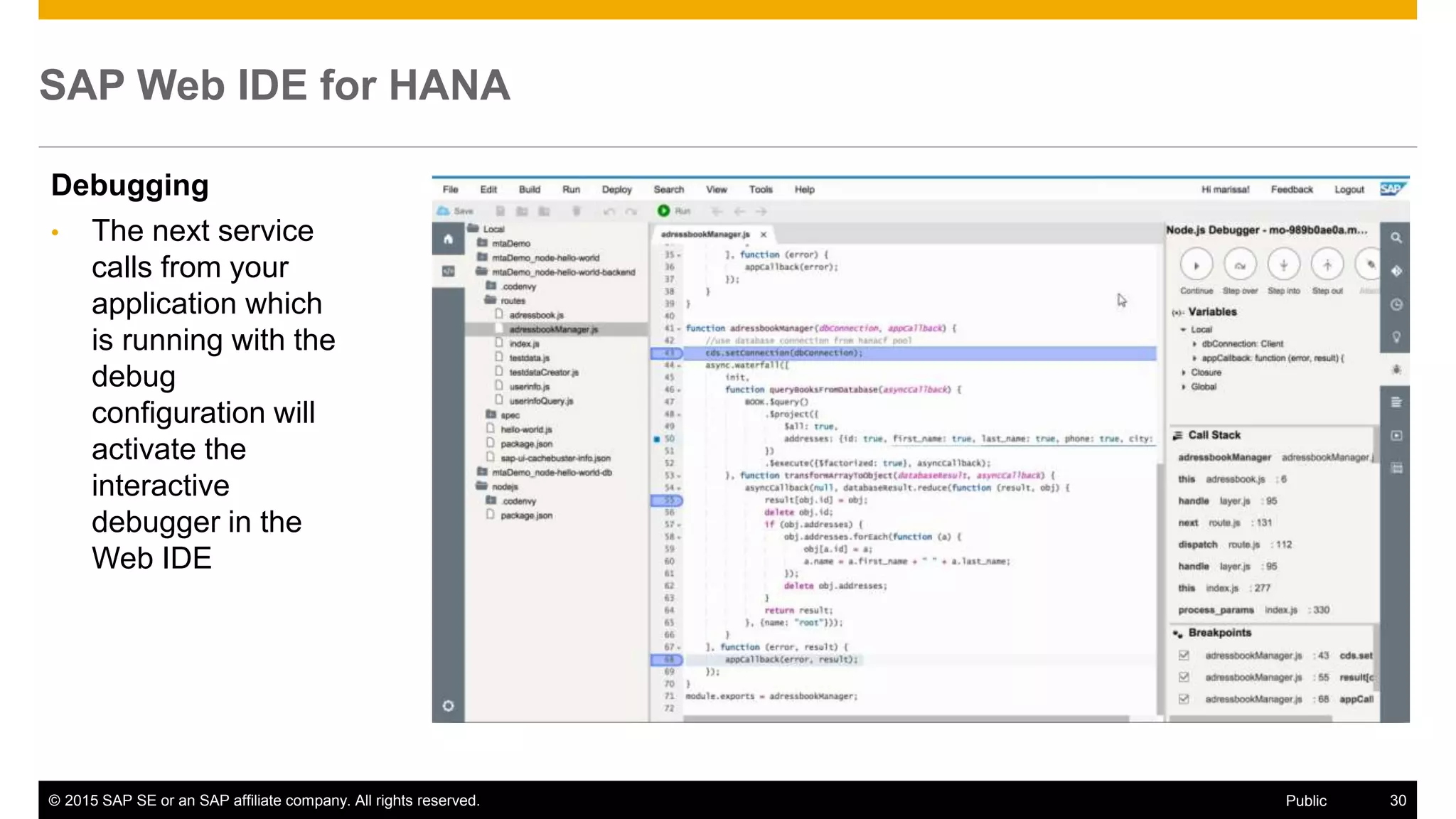

Debugging
• The next service
calls from your
application which
is running with the
debug
configuration will
activate the
interactive
debugger in the
Web IDE

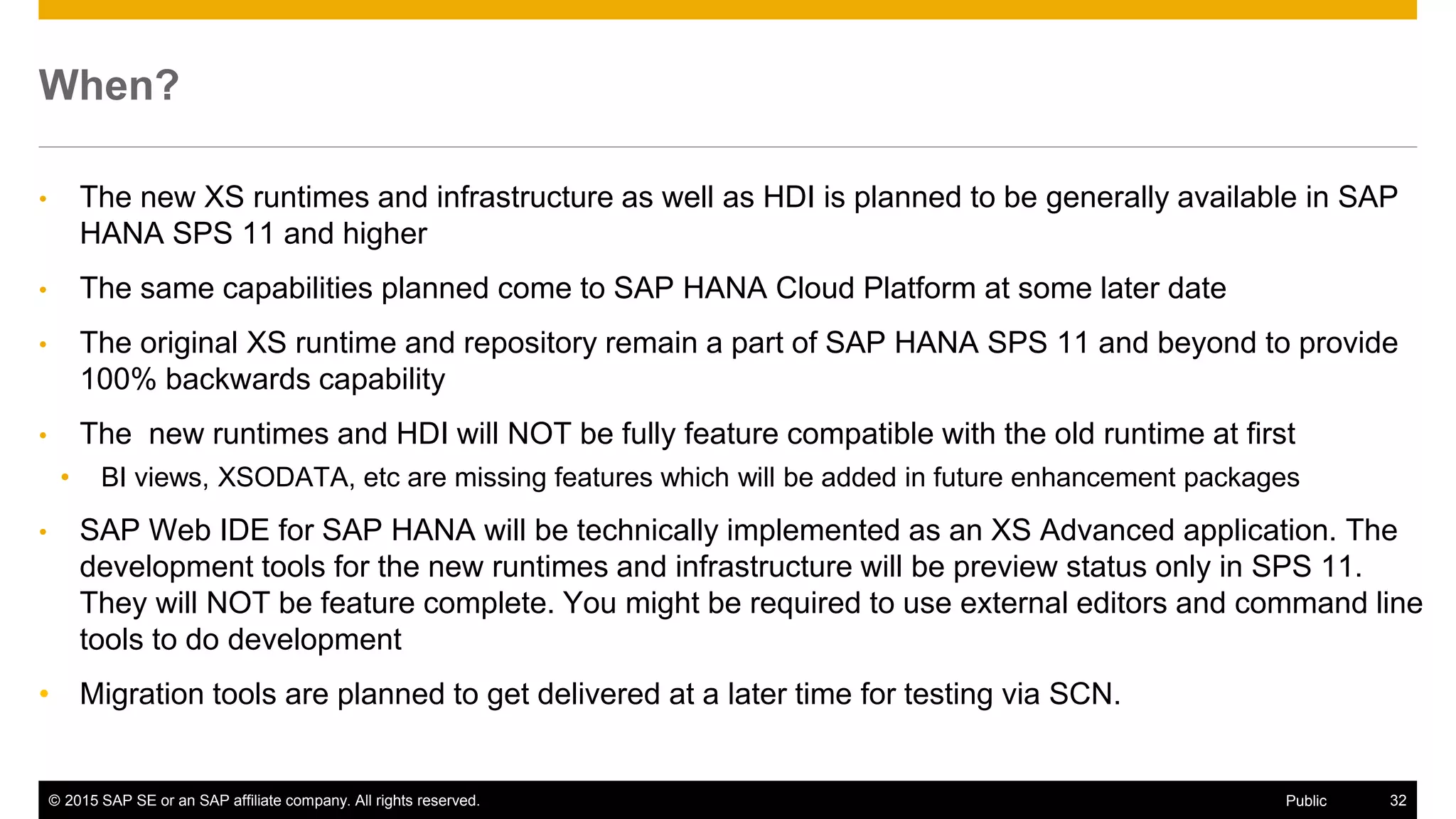

When?
• The new XS runtimes and infrastructure as well as HDI is planned to be generally available in SAP
HANA SPS 11 and higher
• The same capabilities planned come to SAP HANA Cloud Platform at some later date
• The original XS runtime and repository remain a part of SAP HANA SPS 11 and beyond to provide
100% backwards capability
• The new runtimes and HDI will NOT be fully feature compatible with the old runtime at first
• BI views, XSODATA, etc are missing features which will be added in future enhancement packages
• SAP Web IDE for SAP HANA will be technically implemented as an XS Advanced application. The
development tools for the new runtimes and infrastructure will be preview status only in SPS 11.
They will NOT be feature complete. You might be required to use external editors and command line
tools to do development
• Migration tools are planned to get delivered at a later time for testing via SCN.

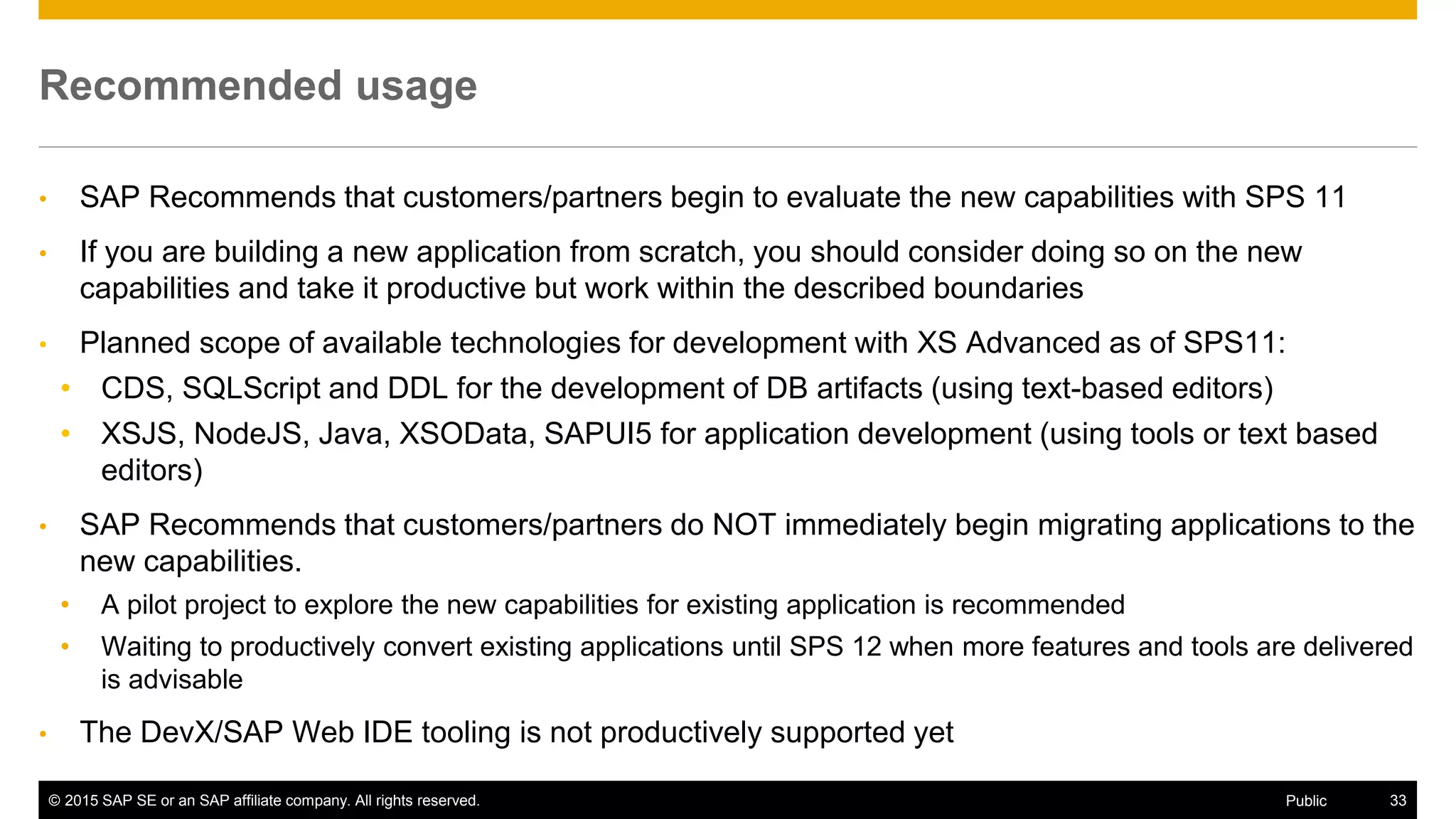

Recommended usage
• SAP Recommends that customers/partners begin to evaluate the new capabilities with SPS 11
• If you are building a new application from scratch, you should consider doing so on the new
capabilities and take it productive but work within the described boundaries
• Planned scope of available technologies for development with XS Advanced as of SPS11:
• CDS, SQLScript and DDL for the development of DB artifacts (using text-based editors)
• XSJS, NodeJS, Java, XSOData, SAPUI5 for application development (using tools or text based
editors)
• SAP Recommends that customers/partners do NOT immediately begin migrating applications to the
new capabilities.
• A pilot project to explore the new capabilities for existing application is recommended
• Waiting to productively convert existing applications until SPS 12 when more features and tools are delivered
is advisable
• The DevX/SAP Web IDE tooling is not productively supported yet

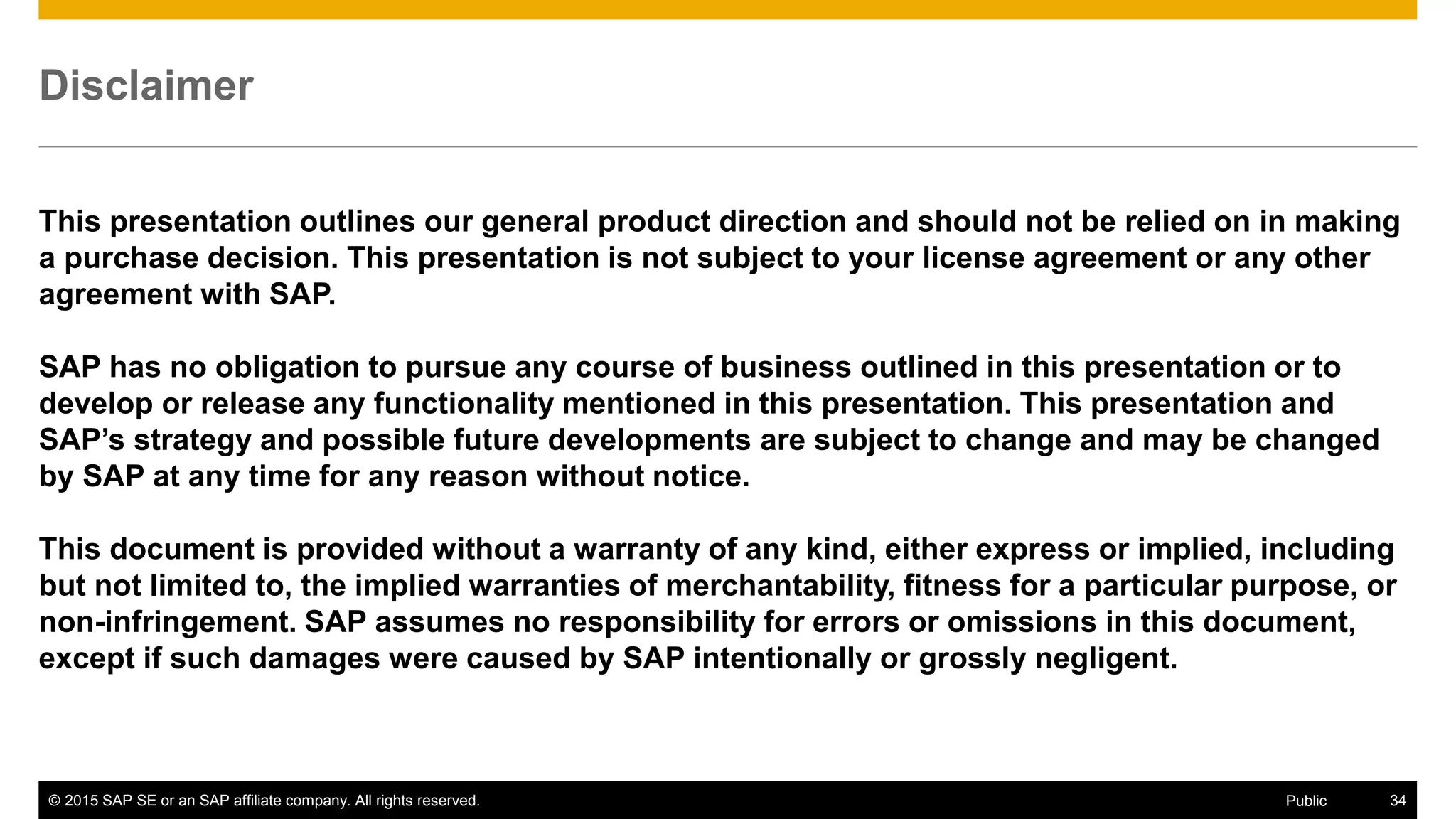

Disclaimer
This presentation outlines our general product direction and should not be relied on in making
a purchase decision. This presentation is not subject to your license agreement or any other
agreement with SAP.
SAP has no obligation to pursue any course of business outlined in this presentation or to
develop or release any functionality mentioned in this presentation. This presentation and
SAP’s strategy and possible future developments are subject to change and may be changed
by SAP at any time for any reason without notice.
This document is provided without a warranty of any kind, either express or implied, including
but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or
non-infringement. SAP assumes no responsibility for errors or omissions in this document,
except if such damages were caused by SAP intentionally or grossly negligent.
