1. 1© 2014 SAP AG or an SAP affiliate company. All rights reserved.
SAP HANA SPS 11 - What’s New?
SAP HANA Platform Lifecycle Management
SAP HANA Product Management December, 2015
(Delta from SPS 10 to SPS 11)

2. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 2Public

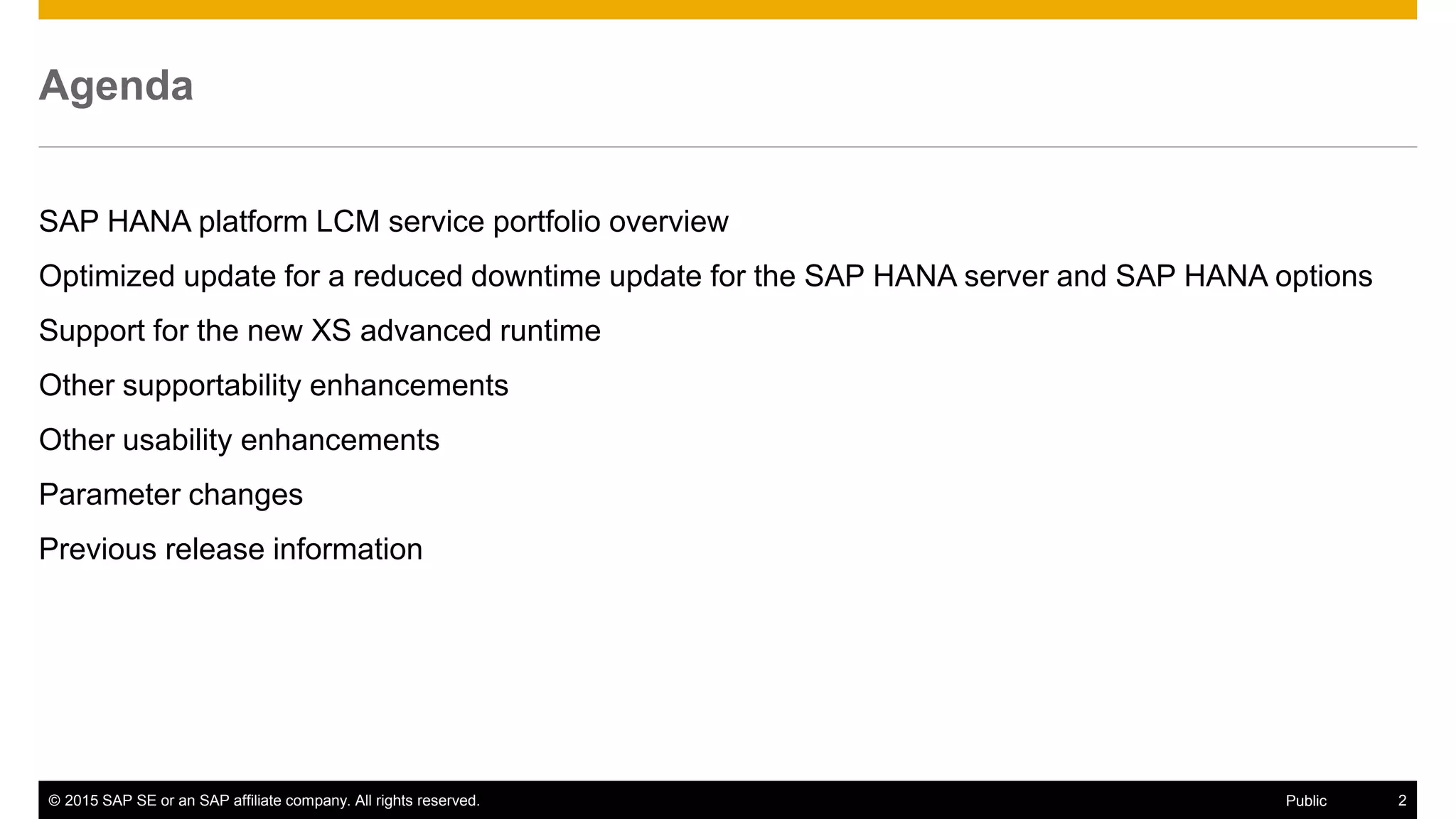

Agenda
SAP HANA platform LCM service portfolio overview
Optimized update for a reduced downtime update for the SAP HANA server and SAP HANA options
Support for the new XS advanced runtime
Other supportability enhancements
Other usability enhancements
Parameter changes
Previous release information

3. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 3Public

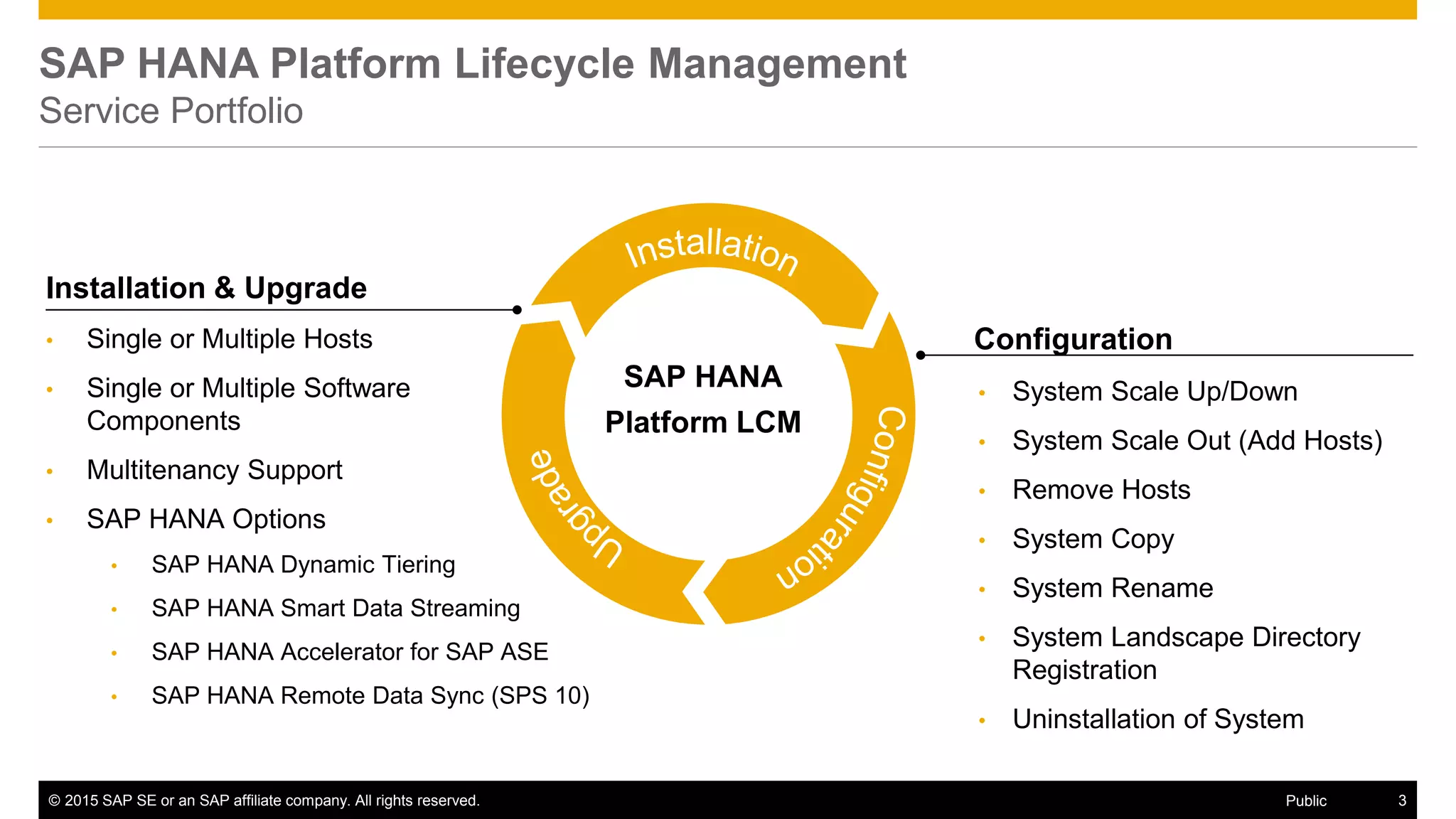

SAP HANA Platform Lifecycle Management
Service Portfolio
Installation & Upgrade
• Single or Multiple Hosts
• Single or Multiple Software
Components
• Multitenancy Support
• SAP HANA Options
• SAP HANA Dynamic Tiering
• SAP HANA Smart Data Streaming
• SAP HANA Accelerator for SAP ASE
• SAP HANA Remote Data Sync (SPS 10)
Configuration
• System Scale Up/Down
• System Scale Out (Add Hosts)
• Remove Hosts
• System Copy
• System Rename
• System Landscape Directory
Registration
• Uninstallation of System
SAP HANA
Platform LCM

4. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 4Public

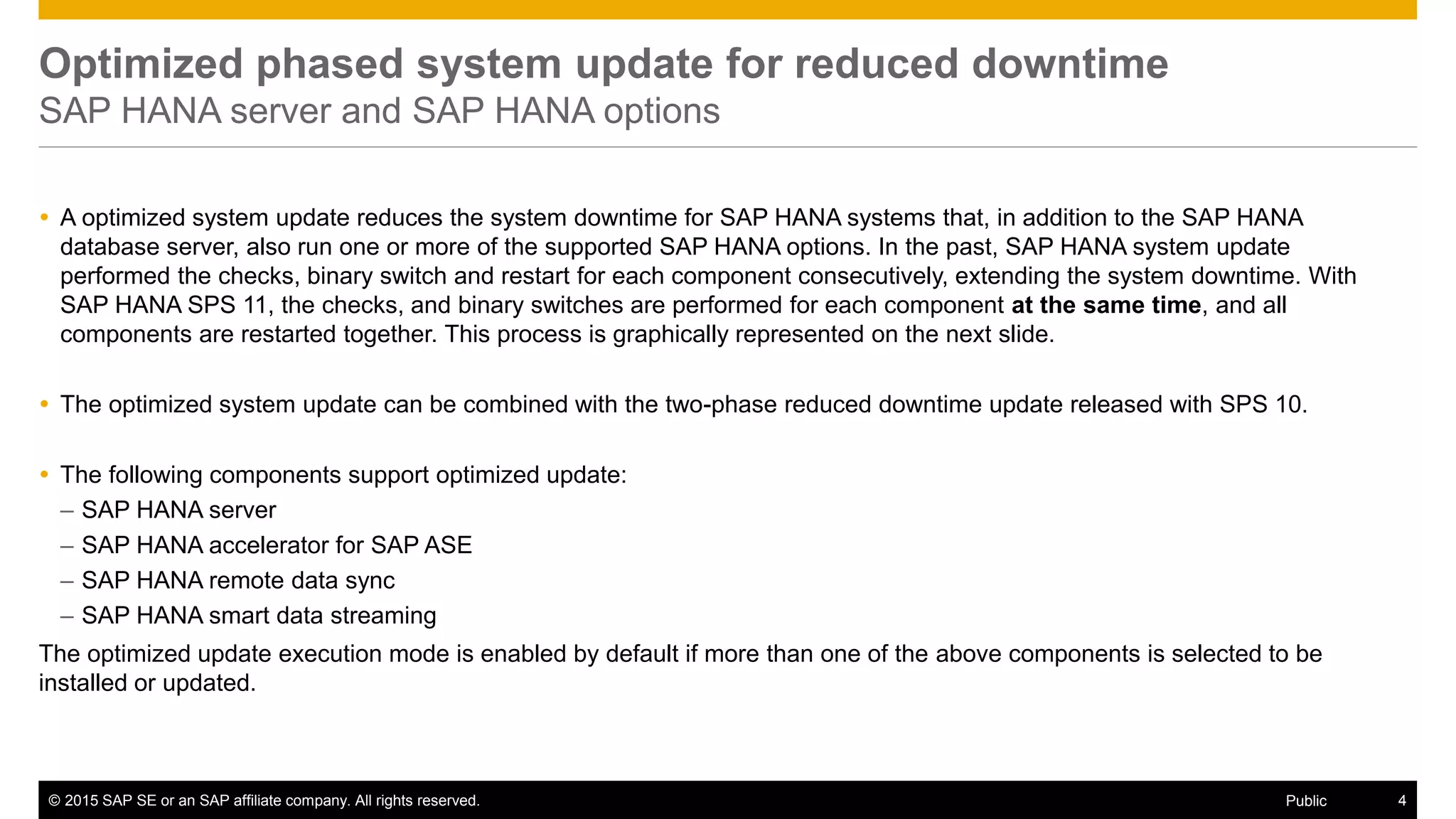

Optimized phased system update for reduced downtime
SAP HANA server and SAP HANA options
 A optimized system update reduces the system downtime for SAP HANA systems that, in addition to the SAP HANA
database server, also run one or more of the supported SAP HANA options. In the past, SAP HANA system update
performed the checks, binary switch and restart for each component consecutively, extending the system downtime. With
SAP HANA SPS 11, the checks, and binary switches are performed for each component at the same time, and all
components are restarted together. This process is graphically represented on the next slide.
 The optimized system update can be combined with the two-phase reduced downtime update released with SPS 10.
 The following components support optimized update:
– SAP HANA server
– SAP HANA accelerator for SAP ASE
– SAP HANA remote data sync
– SAP HANA smart data streaming
The optimized update execution mode is enabled by default if more than one of the above components is selected to be
installed or updated.

5. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 5Public

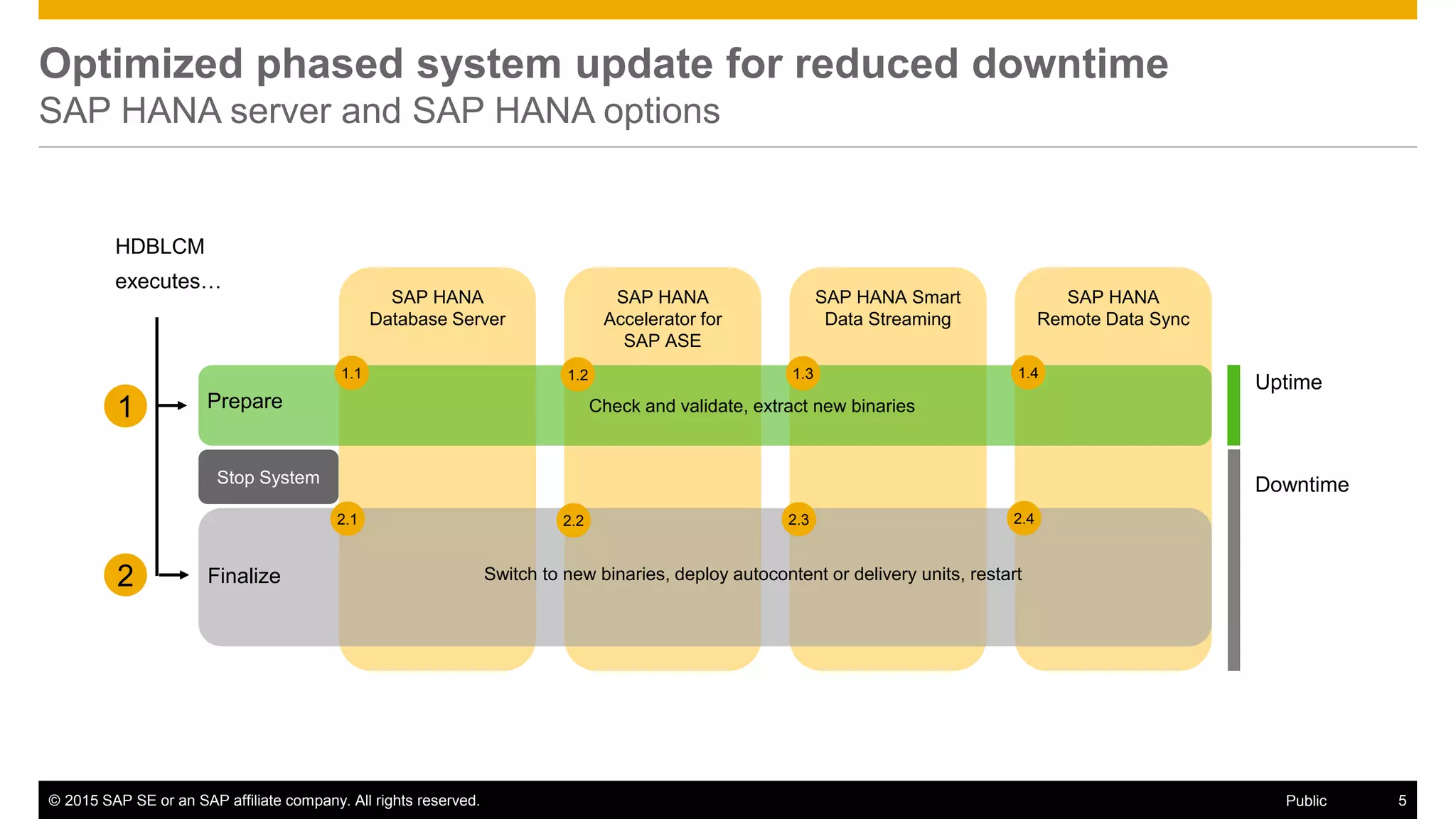

Optimized phased system update for reduced downtime
SAP HANA server and SAP HANA options
SAP HANA
Database Server
SAP HANA Smart
Data Streaming
SAP HANA
Accelerator for
SAP ASE
SAP HANA
Remote Data Sync
Prepare
Finalize
Stop System
HDBLCM
executes…
1
2
Check and validate, extract new binaries
Switch to new binaries, deploy autocontent or delivery units, restart
Uptime
Downtime
1.1 1.2 1.3 1.4
2.1 2.2 2.3 2.4

6. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 6Public

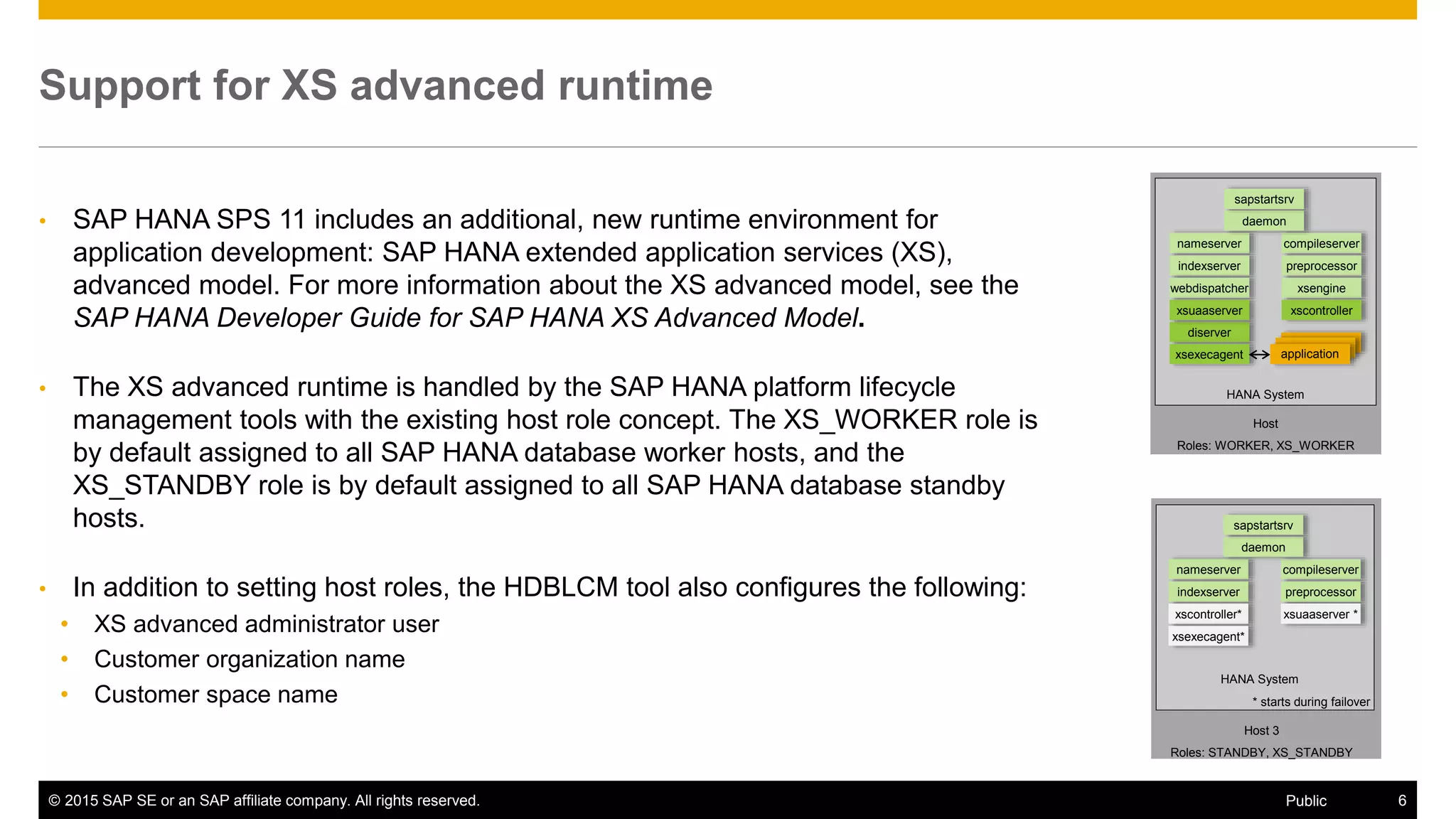

Support for XS advanced runtime
• SAP HANA SPS 11 includes an additional, new runtime environment for
application development: SAP HANA extended application services (XS),
advanced model. For more information about the XS advanced model, see the
SAP HANA Developer Guide for SAP HANA XS Advanced Model.
• The XS advanced runtime is handled by the SAP HANA platform lifecycle
management tools with the existing host role concept. The XS_WORKER role is
by default assigned to all SAP HANA database worker hosts, and the
XS_STANDBY role is by default assigned to all SAP HANA database standby
hosts.
• In addition to setting host roles, the HDBLCM tool also configures the following:
• XS advanced administrator user
• Customer organization name
• Customer space name
Host
Roles: WORKER, XS_WORKER
HANA System
nameserver
indexserver
compileserver
preprocessor
webdispatcher xsengine
daemon
sapstartsrv
diserver
xsuaaserver
applicationxsexecagent
xscontroller
Host 3
Roles: STANDBY, XS_STANDBY
HANA System
nameserver
indexserver
compileserver
preprocessor
daemon
sapstartsrv
xscontroller*
xsexecagent*
xsuaaserver *
* starts during failover

7. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 7Public

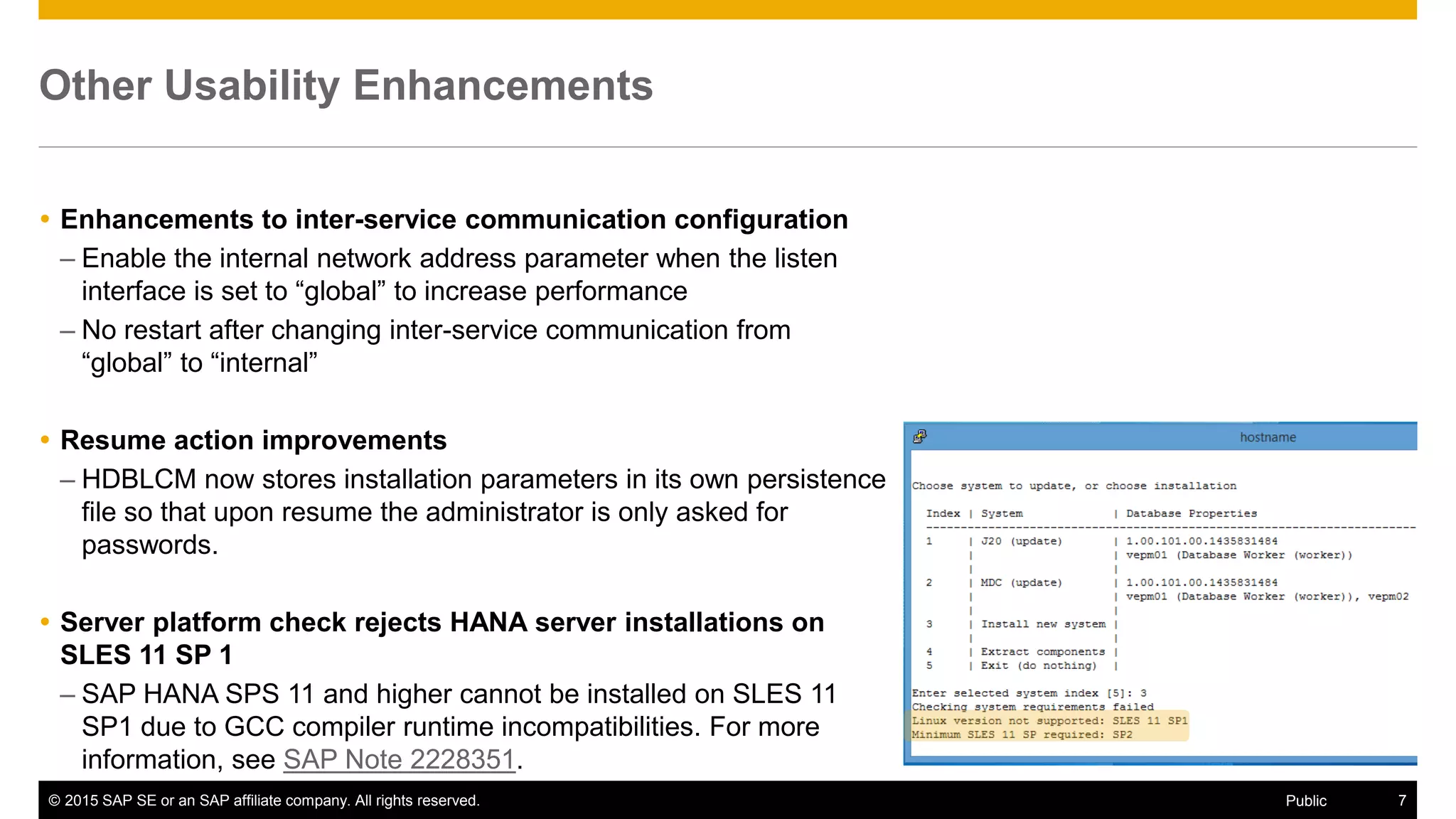

Other Usability Enhancements
 Enhancements to inter-service communication configuration
– Enable the internal network address parameter when the listen
interface is set to “global” to increase performance
– No restart after changing inter-service communication from
“global” to “internal”
 Resume action improvements
– HDBLCM now stores installation parameters in its own persistence
file so that upon resume the administrator is only asked for
passwords.
 Server platform check rejects HANA server installations on
SLES 11 SP 1
– SAP HANA SPS 11 and higher cannot be installed on SLES 11
SP1 due to GCC compiler runtime incompatibilities. For more
information, see SAP Note 2228351.

8. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 8Public

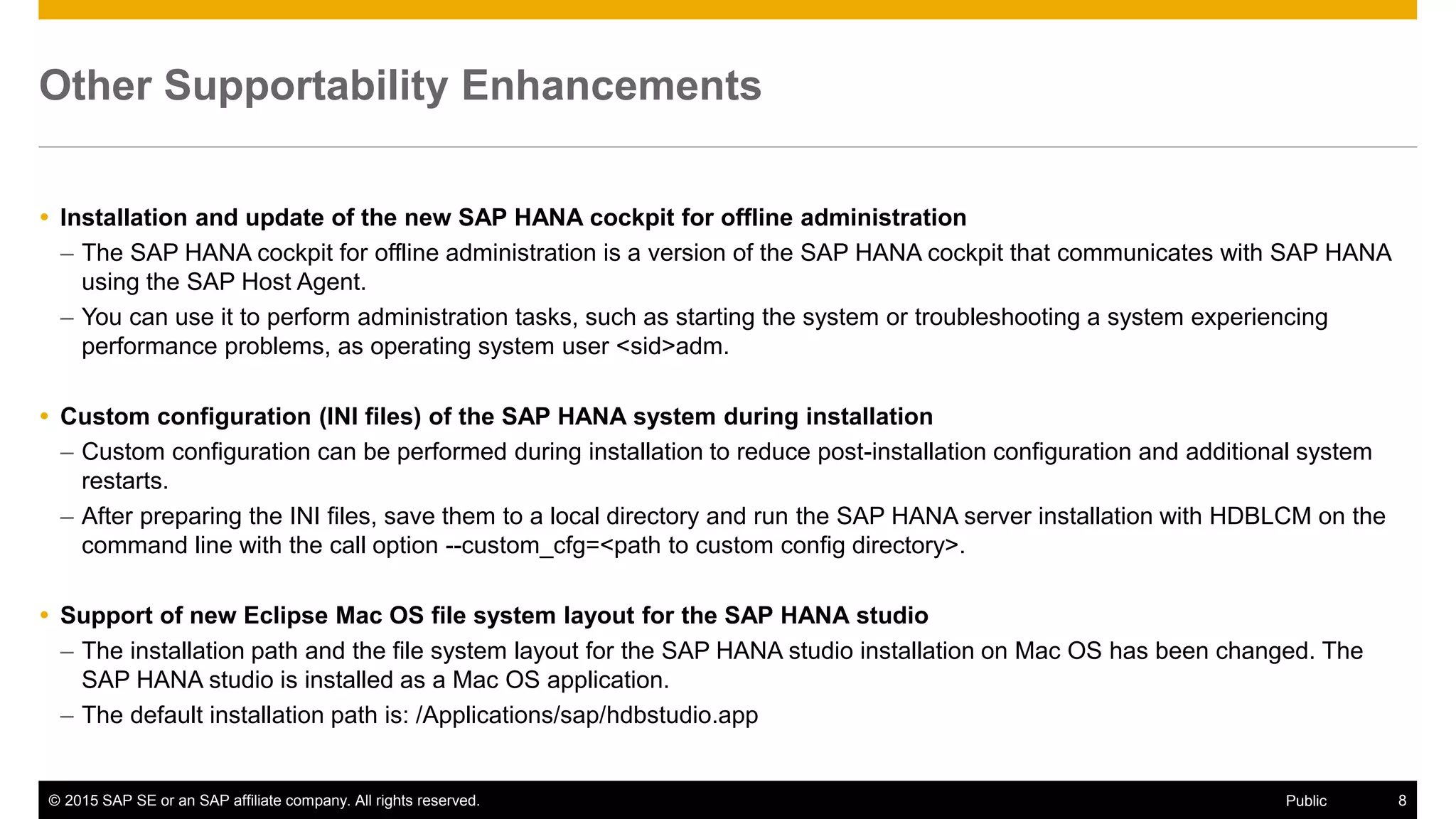

Other Supportability Enhancements
 Installation and update of the new SAP HANA cockpit for offline administration
– The SAP HANA cockpit for offline administration is a version of the SAP HANA cockpit that communicates with SAP HANA
using the SAP Host Agent.
– You can use it to perform administration tasks, such as starting the system or troubleshooting a system experiencing
performance problems, as operating system user <sid>adm.
 Custom configuration (INI files) of the SAP HANA system during installation
– Custom configuration can be performed during installation to reduce post-installation configuration and additional system
restarts.
– After preparing the INI files, save them to a local directory and run the SAP HANA server installation with HDBLCM on the
command line with the call option --custom_cfg=<path to custom config directory>.
 Support of new Eclipse Mac OS file system layout for the SAP HANA studio
– The installation path and the file system layout for the SAP HANA studio installation on Mac OS has been changed. The
SAP HANA studio is installed as a Mac OS application.
– The default installation path is: /Applications/sap/hdbstudio.app

9. Parameter Changes

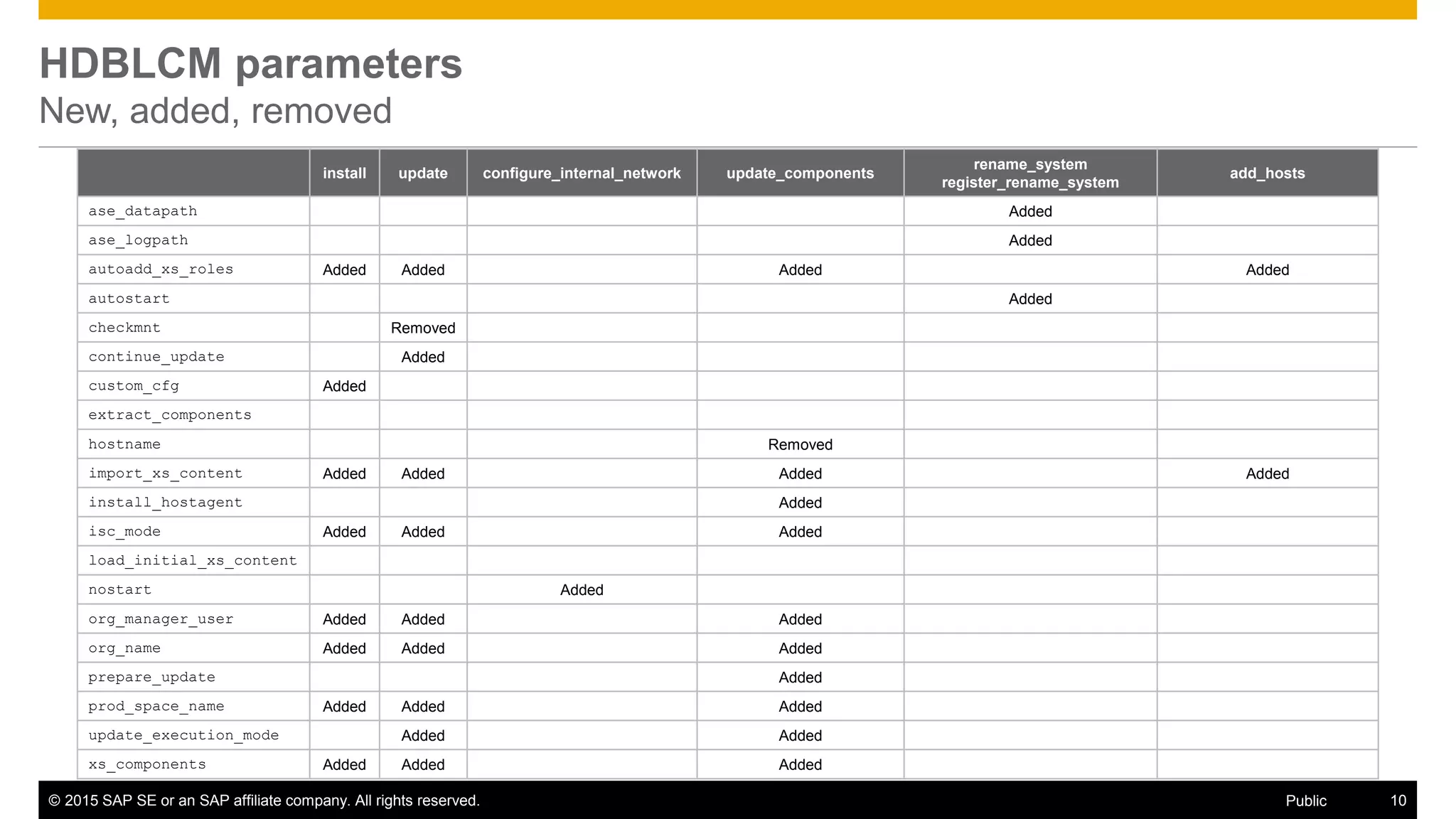

10. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 10Public
install update configure_internal_network update_components
rename_system
register_rename_system
add_hosts
ase_datapath Added
ase_logpath Added
autoadd_xs_roles Added Added Added Added
autostart Added
checkmnt Removed
continue_update Added
custom_cfg Added
extract_components
hostname Removed
import_xs_content Added Added Added Added
install_hostagent Added
isc_mode Added Added Added
load_initial_xs_content
nostart Added
org_manager_user Added Added Added
org_name Added Added Added
prepare_update Added
prod_space_name Added Added Added
update_execution_mode Added Added
xs_components Added Added Added
HDBLCM parameters
New, added, removed

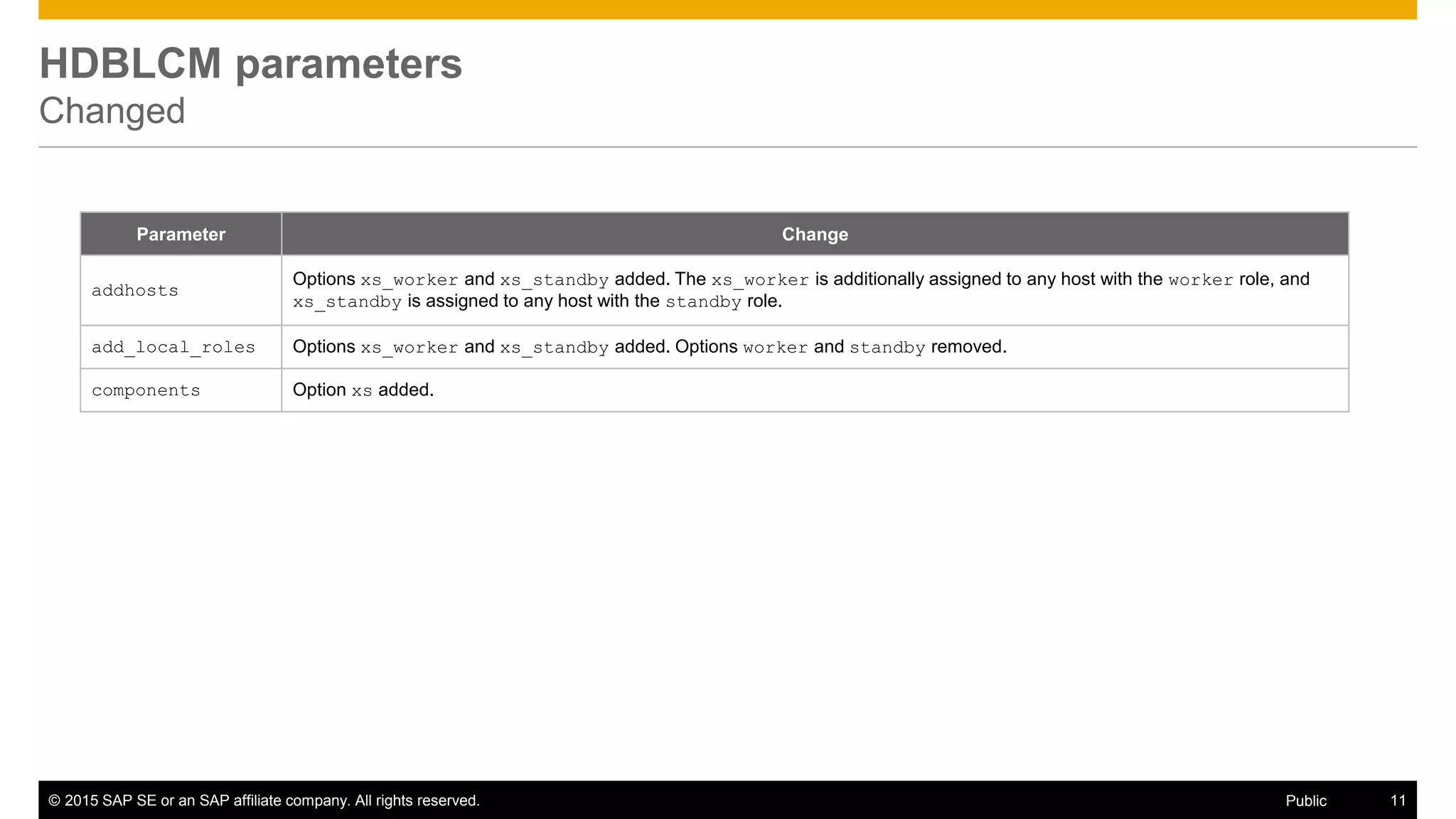

11. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 11Public
Parameter Change
addhosts
Options xs_worker and xs_standby added. The xs_worker is additionally assigned to any host with the worker role, and
xs_standby is assigned to any host with the standby role.
add_local_roles Options xs_worker and xs_standby added. Options worker and standby removed.
components Option xs added.
HDBLCM parameters
Changed

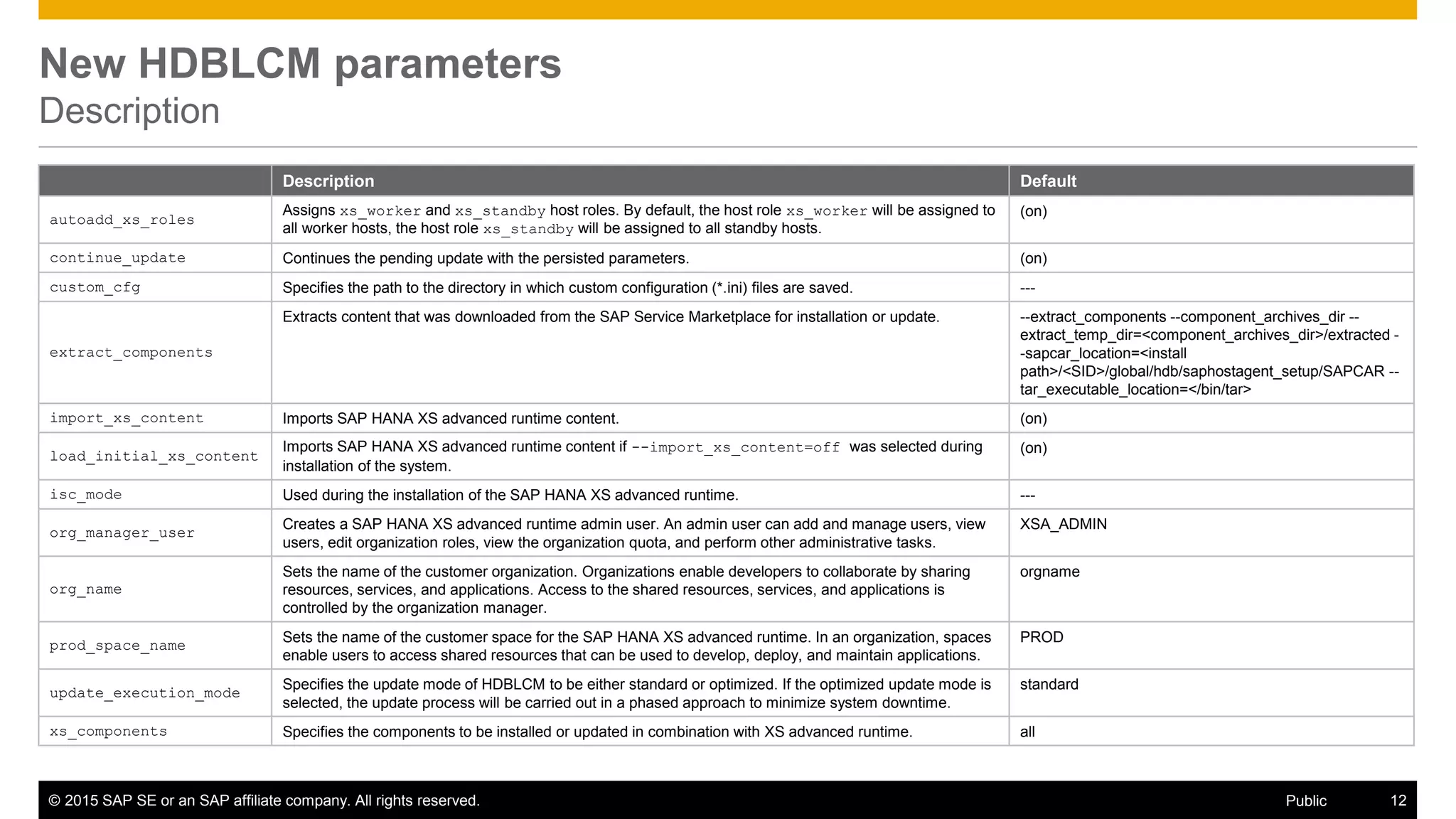

12. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 12Public
Description Default
autoadd_xs_roles
Assigns xs_worker and xs_standby host roles. By default, the host role xs_worker will be assigned to
all worker hosts, the host role xs_standby will be assigned to all standby hosts.
(on)
continue_update Continues the pending update with the persisted parameters. (on)
custom_cfg Specifies the path to the directory in which custom configuration (*.ini) files are saved. ---
extract_components
Extracts content that was downloaded from the SAP Service Marketplace for installation or update. --extract_components --component_archives_dir --
extract_temp_dir=<component_archives_dir>/extracted -
-sapcar_location=<install
path>/<SID>/global/hdb/saphostagent_setup/SAPCAR --
tar_executable_location=</bin/tar>
import_xs_content Imports SAP HANA XS advanced runtime content. (on)
load_initial_xs_content
Imports SAP HANA XS advanced runtime content if --import_xs_content=off was selected during
installation of the system.
(on)
isc_mode Used during the installation of the SAP HANA XS advanced runtime. ---
org_manager_user
Creates a SAP HANA XS advanced runtime admin user. An admin user can add and manage users, view
users, edit organization roles, view the organization quota, and perform other administrative tasks.
XSA_ADMIN
org_name
Sets the name of the customer organization. Organizations enable developers to collaborate by sharing
resources, services, and applications. Access to the shared resources, services, and applications is
controlled by the organization manager.
orgname
prod_space_name
Sets the name of the customer space for the SAP HANA XS advanced runtime. In an organization, spaces
enable users to access shared resources that can be used to develop, deploy, and maintain applications.
PROD
update_execution_mode
Specifies the update mode of HDBLCM to be either standard or optimized. If the optimized update mode is
selected, the update process will be carried out in a phased approach to minimize system downtime.
standard
xs_components Specifies the components to be installed or updated in combination with XS advanced runtime. all
New HDBLCM parameters
Description

13. Previous Releases

14. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 14Public

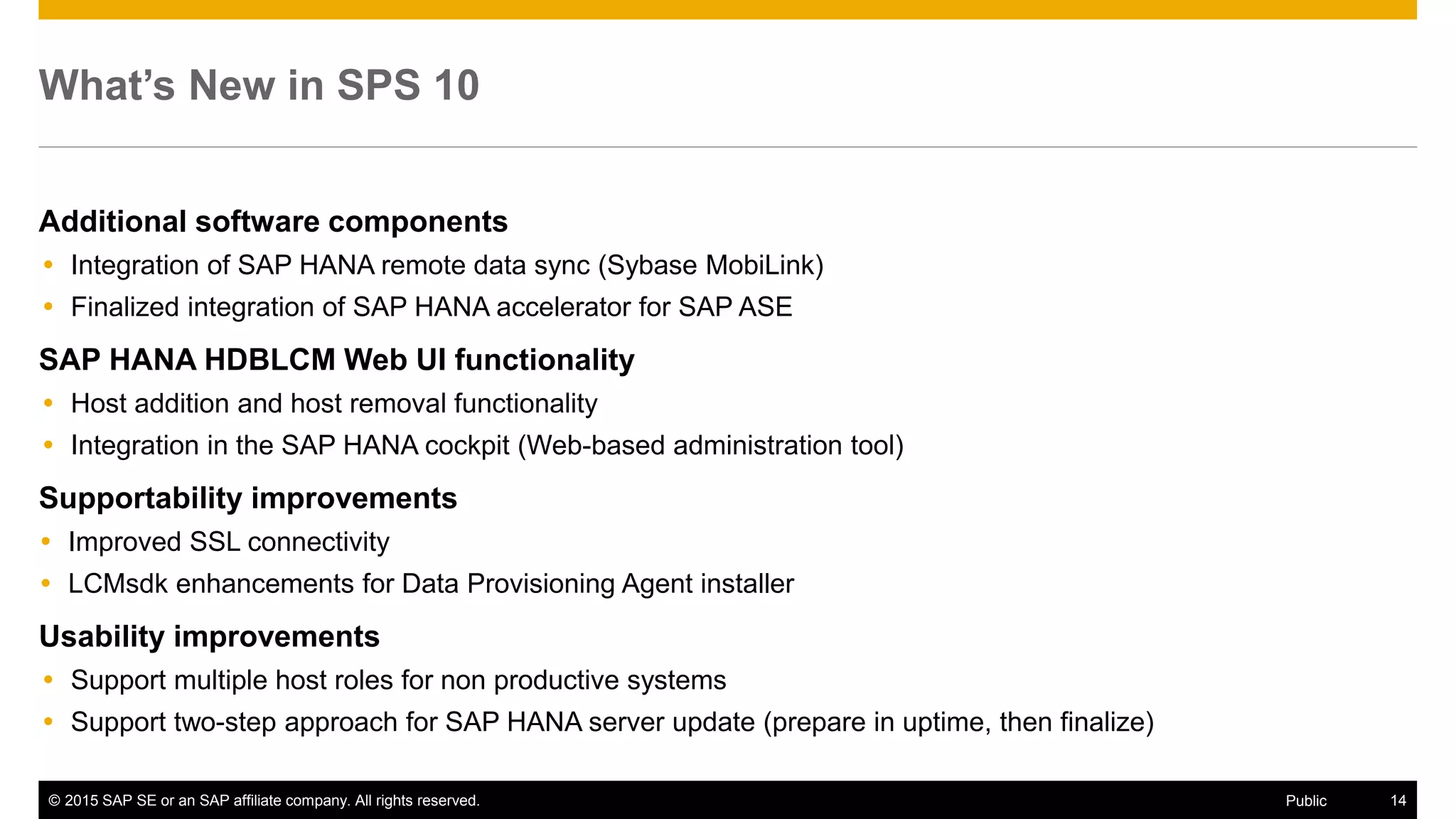

What’s New in SPS 10
Additional software components
 Integration of SAP HANA remote data sync (Sybase MobiLink)
 Finalized integration of SAP HANA accelerator for SAP ASE
SAP HANA HDBLCM Web UI functionality
 Host addition and host removal functionality
 Integration in the SAP HANA cockpit (Web-based administration tool)
Supportability improvements
 Improved SSL connectivity
 LCMsdk enhancements for Data Provisioning Agent installer
Usability improvements
 Support multiple host roles for non productive systems
 Support two-step approach for SAP HANA server update (prepare in uptime, then finalize)

15. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 15Public

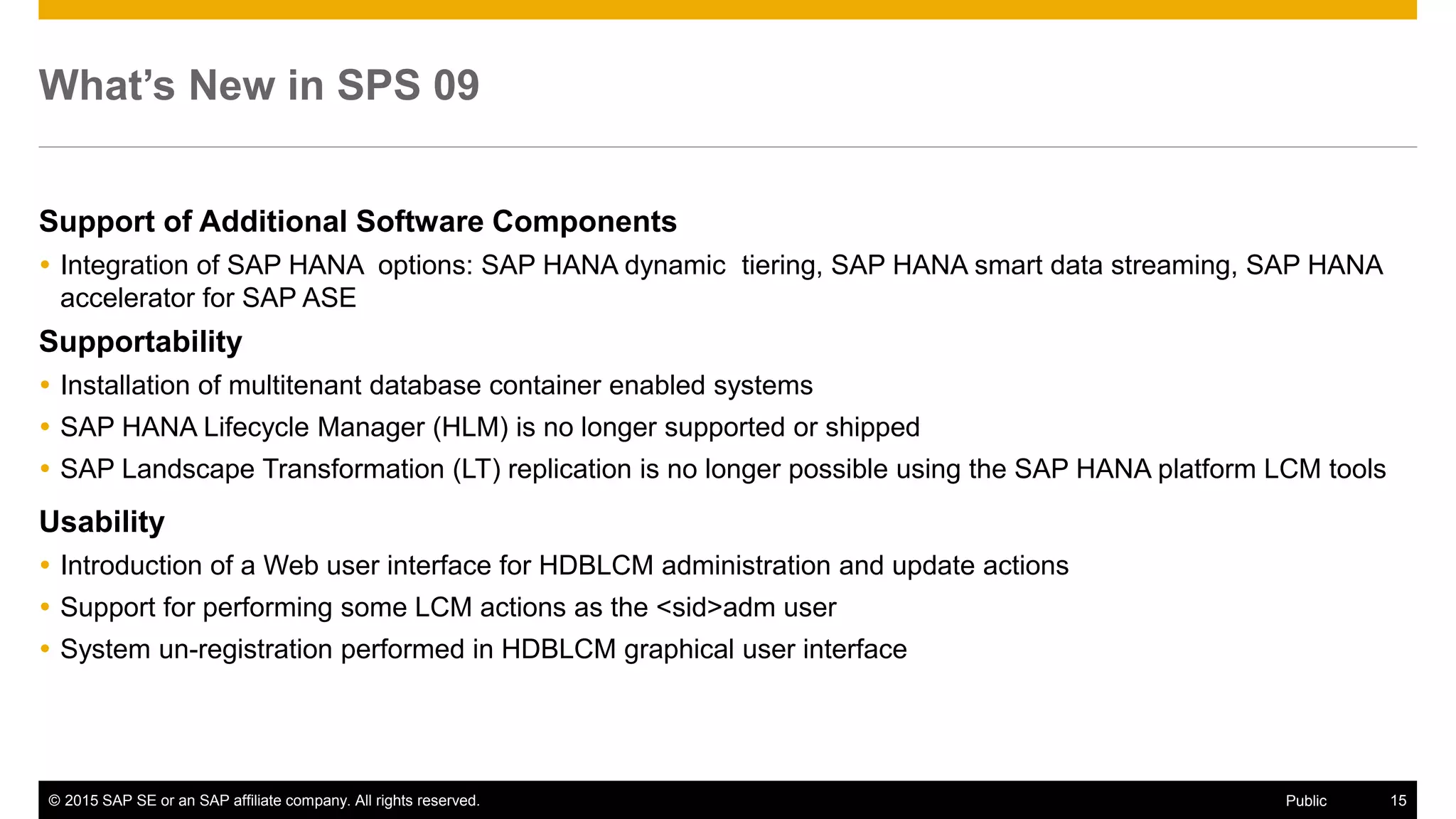

What’s New in SPS 09
Support of Additional Software Components
 Integration of SAP HANA options: SAP HANA dynamic tiering, SAP HANA smart data streaming, SAP HANA
accelerator for SAP ASE
Supportability
 Installation of multitenant database container enabled systems
 SAP HANA Lifecycle Manager (HLM) is no longer supported or shipped
 SAP Landscape Transformation (LT) replication is no longer possible using the SAP HANA platform LCM tools
Usability
 Introduction of a Web user interface for HDBLCM administration and update actions
 Support for performing some LCM actions as the <sid>adm user
 System un-registration performed in HDBLCM graphical user interface

16. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 16Public

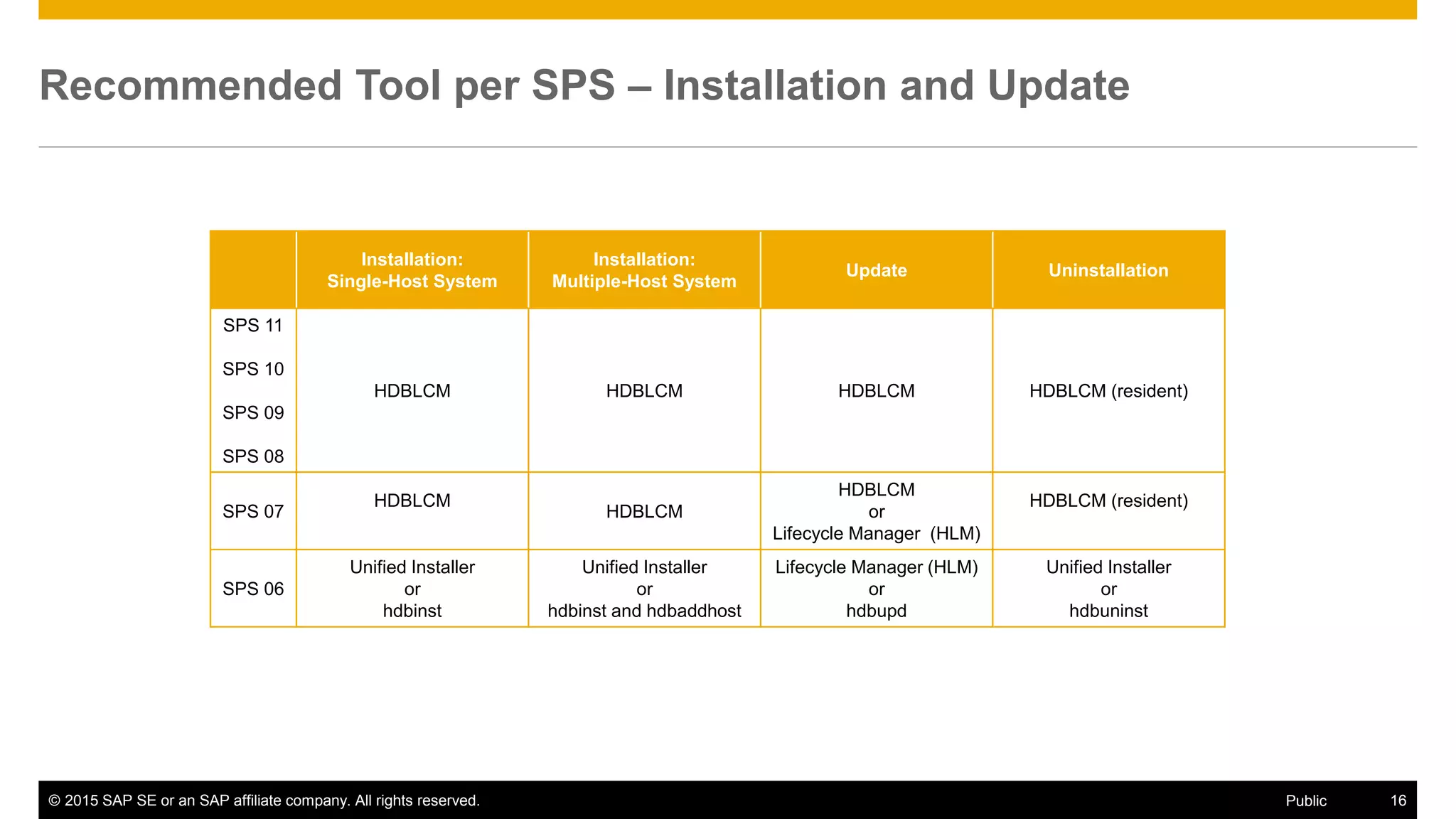

Recommended Tool per SPS – Installation and Update
Installation:
Single-Host System
Installation:
Multiple-Host System
Update Uninstallation
SPS 11
SPS 10
SPS 09
SPS 08
HDBLCM HDBLCM HDBLCM HDBLCM (resident)
SPS 07
HDBLCM
HDBLCM
HDBLCM
or
Lifecycle Manager (HLM)
HDBLCM (resident)
SPS 06
Unified Installer
or
hdbinst
Unified Installer
or
hdbinst and hdbaddhost
Lifecycle Manager (HLM)
or
hdbupd
Unified Installer
or
hdbuninst

17. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 17Public

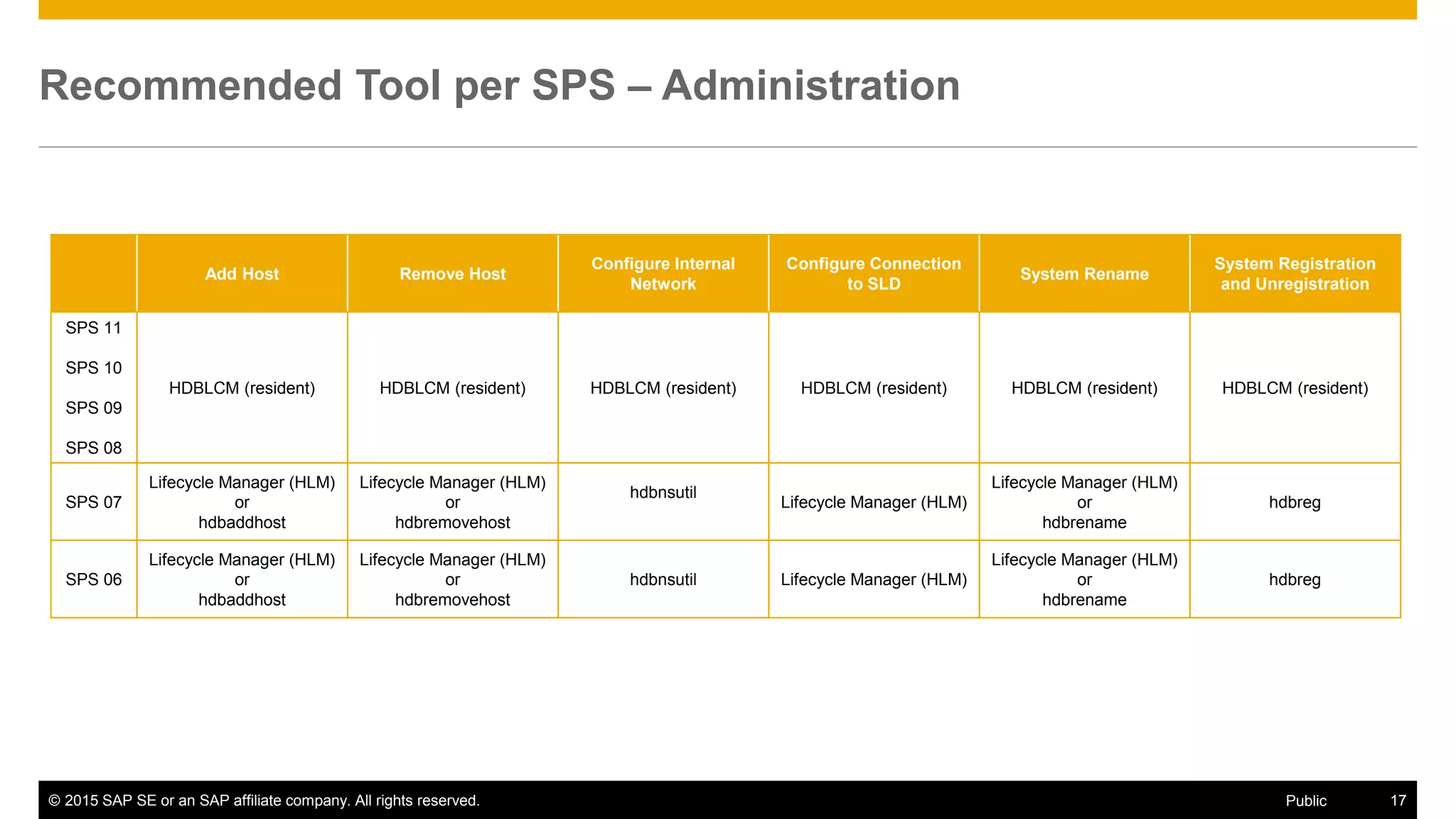

Recommended Tool per SPS – Administration
Add Host Remove Host
Configure Internal
Network
Configure Connection
to SLD
System Rename
System Registration
and Unregistration
SPS 11
SPS 10
SPS 09
SPS 08
HDBLCM (resident) HDBLCM (resident) HDBLCM (resident) HDBLCM (resident) HDBLCM (resident) HDBLCM (resident)
SPS 07
Lifecycle Manager (HLM)
or
hdbaddhost
Lifecycle Manager (HLM)
or
hdbremovehost
hdbnsutil
Lifecycle Manager (HLM)
Lifecycle Manager (HLM)
or
hdbrename
hdbreg
SPS 06
Lifecycle Manager (HLM)
or
hdbaddhost
Lifecycle Manager (HLM)
or
hdbremovehost
hdbnsutil Lifecycle Manager (HLM)
Lifecycle Manager (HLM)
or
hdbrename
hdbreg

18. More Information

19. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 19Public
SAP HANA Platform Lifecycle Management
More Information
 Documentation: SAP Help Portal
SAP HANA Installation and Update Guide
SAP HANA Administration Guide – Chapter 3: Lifecycle Management
SAP HANA Smart Data Streaming – Installation Guide
SAP HANA Dynamic Tiering – Installation Guide
SAP HANA Accelerator for SAP ASE – Installation Guide
SAP HANA Remote Data Sync – Installation Guide
 Training: HA200: SAP HANA - Operations & Administration
 Certification: SAP Training and Certification Shop
C_HANATEC151 – SAP HANA (Edition 2015)
E_HANAINS151 SAP Certified Technology Specialist (Edition 2015) – SAP HANA Installation
SAP Note Title
2078425 Troubleshooting note for SAP HANA Platform Management tool hdblcm
2082466 hdblcm SAP HANA – Troubleshooting
Further SAP notes are available on component HAN-DB-PLT, HAN-LM-INS, and HAN-LM-UPG

20. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 20Public
Further information can be found on
http://hana.sap.com/abouthana/hana-
technology/administration.html
Here you will find more information on:
• Monitoring and Troubleshooting
• Security
• Sizing
• SAP Platform LCM
• What‘s new slides
SAP HANA Platform Lifecycle Management
How To Stay Up-to-Date
SAP HANA space on SAP Community Network: http://scn.sap.com/community/hana-in-memory
In addition, you find SAP HANA documentation on SAP Help Portal knowledge center at http://help.sap.com/hana_platform.
• SAP HANA platform lcm related guides:
 SAP HANA Server Installation and Update Guide
• SAP HANA Administration Guide

21. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 21Public
SAP Education and Certification Opportunities
www.sap.com/education (HA200, C_HANATEC141, E_HANAINS141)
Watch SAP d-code Online
http://events.sap.com/teched/en/home
SAP Public Web
SAP HANA space on SAP community network
• http://scn.sap.com/community/hana-in-memory
Features of SAP HANA
• http://hana.sap.com/abouthana.html
SAP HANA guides
• http://help.sap.com/hana_platform
SAP HANA Platform Lifecycle Management
How To Stay Up-to-Date

22. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 22Public
Disclaimer
This presentation outlines our general product direction and should not be relied on in making
a purchase decision. This presentation is not subject to your license agreement or any other
agreement with SAP.
SAP has no obligation to pursue any course of business outlined in this presentation or to
develop or release any functionality mentioned in this presentation. This presentation and
SAP’s strategy and possible future developments are subject to change and may be changed
by SAP at any time for any reason without notice.
This document is provided without a warranty of any kind, either express or implied, including
but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or
non-infringement. SAP assumes no responsibility for errors or omissions in this document,
except if such damages were caused by SAP intentionally or grossly negligent.

23. © 2015 SAP SE or an SAP affiliate company. All rights reserved.
Thank you
Contact information
Stephanie Lewellen
SAP HANA Product Management
AskSAPHANA@sap.com

24. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 24Public
<Topic> - What’s New in SPS 10?
First level
Second level
 Third level

25. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 25Public
Insert page title
Subtitle
First level
Second level
 Third level

26. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 26Public
Insert page title
First level
Second level
 Third level

27. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 27Public
Insert page title
First level
Second level
 Third level

28. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 28Public
Insert page title
First level
Second level
 Third level

29. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 29Public
Insert page title
Headline here
Lorem ipsum dolor sit amet, consectetur
adipiscing elit. Maecenas pellentesque laoreet
urna molestie placerat ipsum.
Headline here
Lorem ipsum dolor sit amet, consectetur
adipiscing elit. Maecenas pellentesque laoreet
urna molestie placerat ipsum.
