Sanjar Akhmedov - Joining Infinity – Windowless Stream Processing with Flink

The document discusses challenges and implementations related to windowless stream processing using Flink, particularly in the context of scientific data sharing through ResearchGate. Key topics include the need for fault-tolerant processing, real-time updates, and complexities in joining distributed data sources. It outlines various data models and prototypes for managing and joining accounts and publications in a streaming environment, emphasizing the issues of data consistency and accuracy.

Data & Analytics◦
Related topics:
Apache Flink•

Embed presentation

Joining Infinity — Windowless Stream Processing with Flink Sanjar Akhmedov, Software Engineer, ResearchGate
It started when two researchers discovered first- hand that collaborating with a friend or colleague on the other side of the world was no easy task. There are many variations of passages of Lorem Ipsum ResearchGate is a social network for scientists.
Connect the world of science. Make research open to all.
Structured system There are many variations of passages of Lorem Ipsum We have, and are continuing to change how scientific knowledge is shared and discovered.
10,000,000 Members 102,000,000 Publications 30,000, Visitor

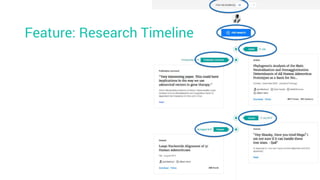

Feature: Research Timeline
Feature: Research Timeline

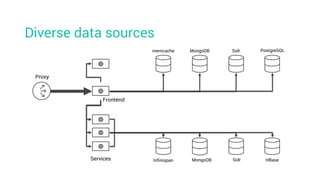

Diverse data sources Proxy Frontend Services memcache MongoDB Solr PostgreSQL Infinispan HBaseMongoDB Solr

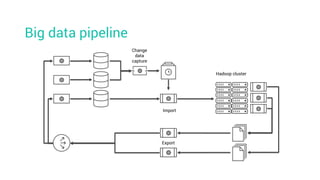

Big data pipeline Change data capture Import Hadoop cluster Export
Data Model Account Publication Claim 1 * Author Authorship 1*

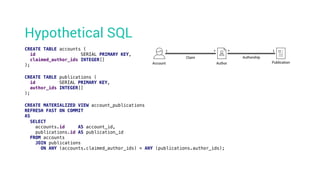

Hypothetical SQL Publication Authorship 1* CREATE TABLE publications ( id SERIAL PRIMARY KEY, author_ids INTEGER[] ); Account Claim 1 * Author CREATE TABLE accounts ( id SERIAL PRIMARY KEY, claimed_author_ids INTEGER[] ); CREATE MATERIALIZED VIEW account_publications REFRESH FAST ON COMMIT AS SELECT accounts.id AS account_id, publications.id AS publication_id FROM accounts JOIN publications ON ANY (accounts.claimed_author_ids) = ANY (publications.author_ids);
• Data sources are distributed across different DBs • Dataset doesn’t fit in memory on a single machine • Join process must be fault tolerant • Deploy changes fast • Up-to-date join result in near real-time • Join result must be accurate Challenges

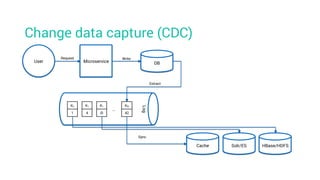

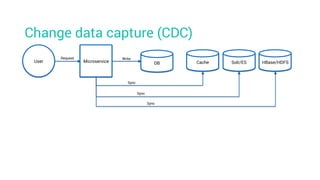

Change data capture (CDC) User Microservice DB Request Write Cache Sync Solr/ES Sync HBase/HDFS Sync

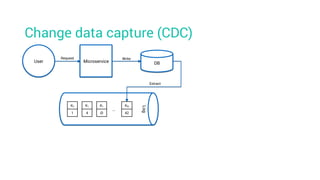

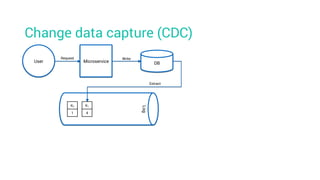

Change data capture (CDC) User Microservice DB Request Write Log K2 1 K1 4 Extract
Change data capture (CDC) User Microservice DB Request Write Log K2 1 K1 4 K1 Ø Extract
Change data capture (CDC) User Microservice DB Request Write Log K2 1 K1 4 K1 Ø KN 42 … Extract
Change data capture (CDC) User Microservice DB Cache Request Write Log K2 1 K1 4 K1 Ø KN 42 … Extract Sync
Change data capture (CDC) User Microservice DB Cache Request Write Log K2 1 K1 4 K1 Ø KN 42 … Extract Sync HBase/HDFSSolr/ES

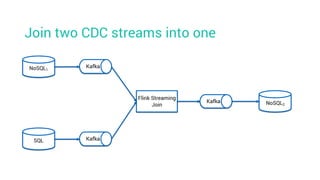

Join two CDC streams into one NoSQL1 SQL Kafka Kafka Flink Streaming Join Kafka NoSQL2
Flink job topology Accounts Stream Join(CoFlatMap) Account Publications Publications Stream … Author 2 Author 1 Author N

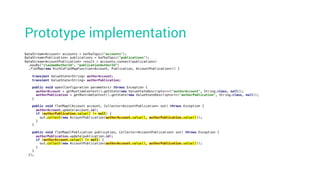

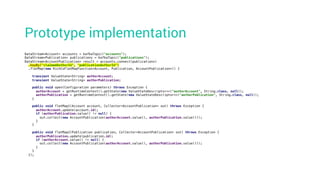

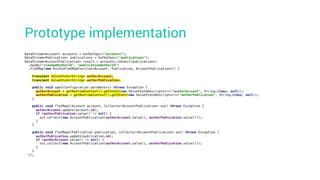

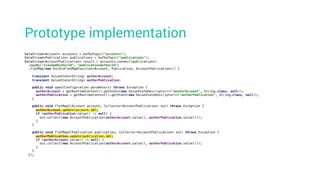

DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation
DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation
DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation
DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation
DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation
DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation
DataStream<Account> accounts = kafkaTopic("accounts"); DataStream<Publication> publications = kafkaTopic("publications"); DataStream<AccountPublication> result = accounts.connect(publications) .keyBy("claimedAuthorId", "publicationAuthorId") .flatMap(new RichCoFlatMapFunction<Account, Publication, AccountPublication>() { transient ValueState<String> authorAccount; transient ValueState<String> authorPublication; public void open(Configuration parameters) throws Exception { authorAccount = getRuntimeContext().getState(new ValueStateDescriptor<>("authorAccount", String.class, null)); authorPublication = getRuntimeContext().getState(new ValueStateDescriptor<>("authorPublication", String.class, null)); } public void flatMap1(Account account, Collector<AccountPublication> out) throws Exception { authorAccount.update(account.id); if (authorPublication.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } public void flatMap2(Publication publication, Collector<AccountPublication> out) throws Exception { authorPublication.update(publication.id); if (authorAccount.value() != null) { out.collect(new AccountPublication(authorAccount.value(), authorPublication.value())); } } }); Prototype implementation

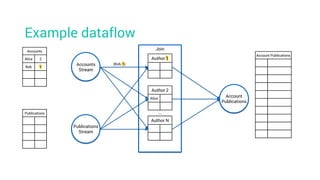

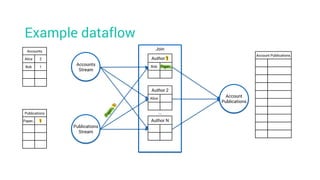

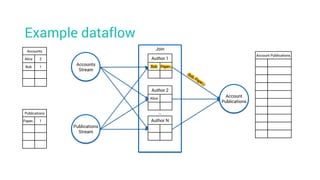

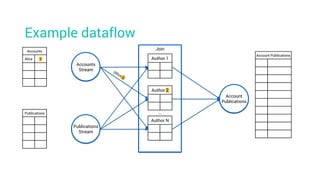

Example dataflow Account Publications Accounts Alice 2 Publications Accounts Stream Join Account Publications Publications Stream Author 1 Author 2 Author N …
Example dataflow Account Publications Accounts Alice 2 Publications Accounts Stream Join Account Publications Publications Stream Author 1 Author 2 Author N …
Example dataflow Account Publications Accounts Alice 2 Publications Accounts Stream Join Account Publications Publications Stream Author 1 Author 2 Alice Author N …
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Accounts Stream Join Account Publications Publications Stream Author 1 Author 2 Alice Author N …
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Accounts Stream Join Account Publications Publications Stream Author 1 Author 2 Alice Author N … (Bob, 1)
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Accounts Stream Join Account Publications Publications Stream Author 1 Bob Author 2 Alice Author N … (Bob, 1)
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Paper1 1 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Author 2 Alice Author N …
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Paper1 1 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Author 2 Alice Author N …
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Paper1 1 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Example dataflow Account Publications Accounts Alice 2 Bob 1 Publications Paper1 1 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Example dataflow Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …

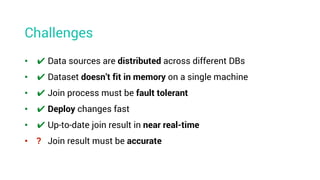

• ✔ Data sources are distributed across different DBs • ✔ Dataset doesn’t fit in memory on a single machine • ✔ Join process must be fault tolerant • ✔ Deploy changes fast • ✔ Up-to-date join result in near real-time • ? Join result must be accurate Challenges

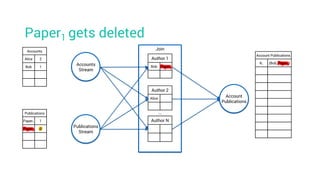

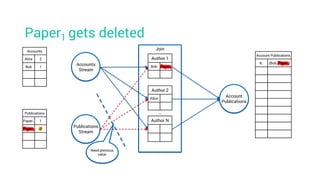

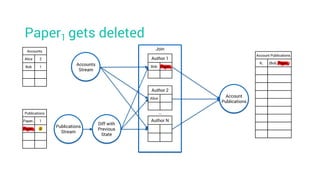

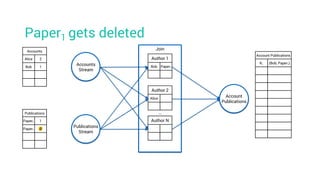

Paper1 gets deleted Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Paper1 gets deleted Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Paper1 gets deleted Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N … ?
Paper1 gets deleted Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N … Need previous value
Paper1 gets deleted Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Diff with Previous State Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Paper1 gets deleted Account Publications K1 (Bob, Paper1) K1 Ø Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Diff with Previous State Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Paper1 gets deleted Account Publications K1 (Bob, Paper1) K1 Ø Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 Ø Accounts Stream Join Account Publications Diff with Previous State Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N … Need K1 here, e.g. K1 = 𝒇(Bob, Paper1)

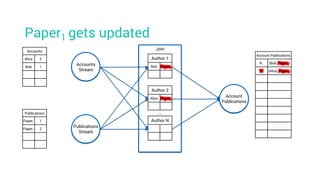

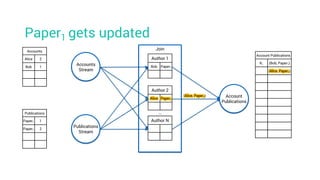

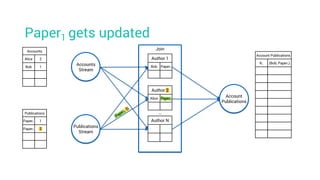

Paper1 gets updated Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 2 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Paper1 gets updated Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 2 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Author N …
Paper1 gets updated Account Publications K1 (Bob, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 2 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Paper1 Author N …
Paper1 gets updated Account Publications K1 (Bob, Paper1) (Alice, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 2 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Paper1 Author N … (Alice, Paper1)
Paper1 gets updated Account Publications K1 (Bob, Paper1) ?? (Alice, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 2 Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Paper1 Author N …

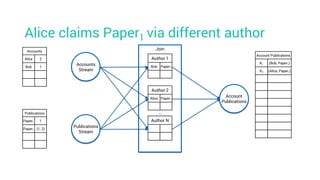

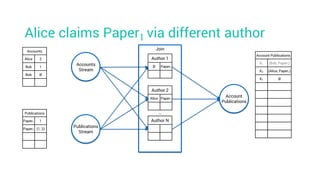

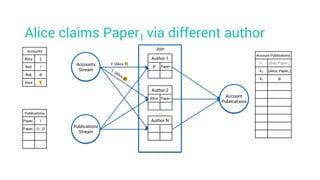

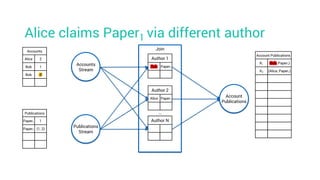

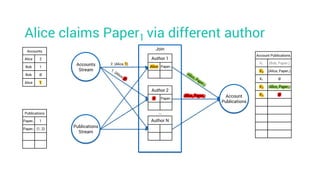

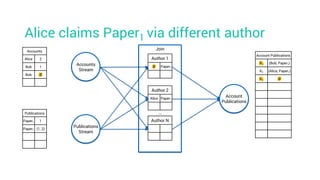

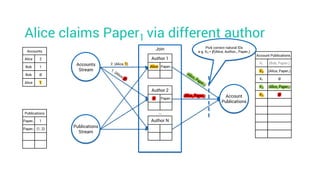

Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) Accounts Alice 2 Bob 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Paper1 Author N …
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) Accounts Alice 2 Bob 1 Bob Ø Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Paper1 Author N …
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) Accounts Alice 2 Bob 1 Bob Ø Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Bob Paper1 Author 2 Alice Paper1 Author N …
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø Accounts Alice 2 Bob 1 Bob Ø Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Ø Paper1 Author 2 Alice Paper1 Author N …
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø Accounts Alice 2 Bob 1 Bob Ø Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Ø Paper1 Author 2 Alice Paper1 Author N …
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø Accounts Alice 2 Bob 1 Bob Ø Alice 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Ø Paper1 Author 2 Alice Paper1 Author N …
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø Accounts Alice 2 Bob 1 Bob Ø Alice 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Ø Paper1 Author 2 Alice Paper1 Author N … 2. (Alice, 1)
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø Accounts Alice 2 Bob 1 Bob Ø Alice 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Alice Paper1 Author 2 Ø Paper1 Author N … 2. (Alice, 1)
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø Accounts Alice 2 Bob 1 Bob Ø Alice 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Alice Paper1 Author 2 Ø Paper1 Author N … 2. (Alice, 1) (Alice, Paper1)
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø K2 (Alice, Paper1) K2 Ø Accounts Alice 2 Bob 1 Bob Ø Alice 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Alice Paper1 Author 2 Ø Paper1 Author N … 2. (Alice, 1) (Alice, Paper1)
Alice claims Paper1 via different author Account Publications K1 (Bob, Paper1) K2 (Alice, Paper1) K1 Ø K3 (Alice, Paper1) K2 Ø Accounts Alice 2 Bob 1 Bob Ø Alice 1 Publications Paper1 1 Paper1 (1, 2) Accounts Stream Join Account Publications Publications Stream Author 1 Alice Paper1 Author 2 Ø Paper1 Author N … 2. (Alice, 1) (Alice, Paper1) Pick correct natural IDs e.g. K3 = 𝒇(Alice, Author1, Paper1)

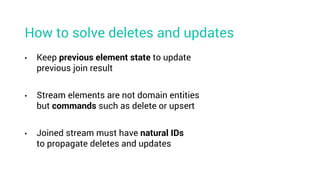

• Keep previous element state to update previous join result • Stream elements are not domain entities but commands such as delete or upsert • Joined stream must have natural IDs to propagate deletes and updates How to solve deletes and updates

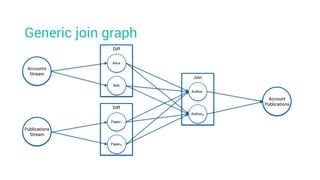

Generic join graph Account Publications Accounts Stream Publications Stream Diff Alice Bob … Diff Paper1 PaperN … Join Author1 AuthorM …
Generic join graph Operate on commands Account Publications Accounts Stream Publications Stream Diff Alice Bob … Diff Paper1 PaperN … Join Author1 AuthorM …

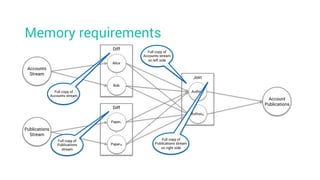

Memory requirements Account Publications Accounts Stream Publications Stream Diff Alice Bob … Diff Paper1 PaperN … Join Author1 AuthorM … Full copy of Accounts stream Full copy of Publications stream Full copy of Accounts stream on left side Full copy of Publications stream on right side

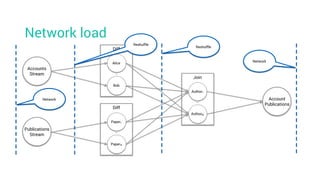

Network load Account Publications Accounts Stream Publications Stream Diff Alice Bob … Diff Paper1 PaperN … Join Author1 AuthorM … Reshuffle Reshuffle Network Network
• In addition to handling Kafka traffic we need to reshuffle all data twice over the network • We need to keep two full copies of each joined stream in memory Resource considerations
Questions We are hiring - www.researchgate.net/careers
