An emulator of the Atari 2600 game console was created entirely in Ruby using a test-driven approach. The emulator, called ruby2600, simulates the 6507 CPU, TIA graphics chip, and RIOT I/O chip in software through classes that represent each chip's functionality. Over 1,700 tests cover the CPU instruction set. The modular design allows each component to be developed and tested independently, and potential optimizations like JRuby were discussed to improve performance.

1. An Atari 2600 emulator
100% written in Ruby
(and RSpec!)
Carlos Duarte do Nascimento (Chester)
@chesterbr / http://chester.me

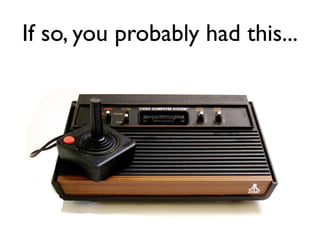

3. If so, you probably had this...

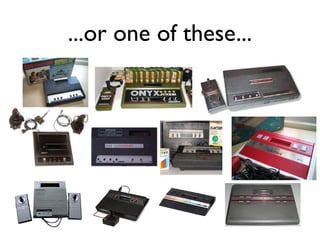

4. ...or one of these...

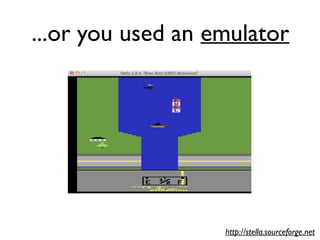

5. ...or you used an emulator
http://stella.sourceforge.net

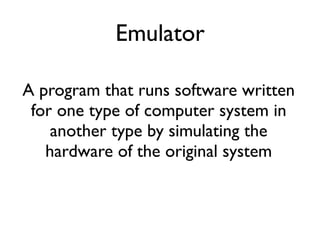

6. Emulator
A program that runs software written
for one type of computer system in
another type by simulating the
hardware of the original system

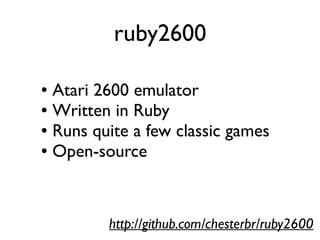

7. ruby2600
● Atari 2600 emulator
● Written in Ruby
● Runs quite a few classic games
● Open-source
http://github.com/chesterbr/ruby2600

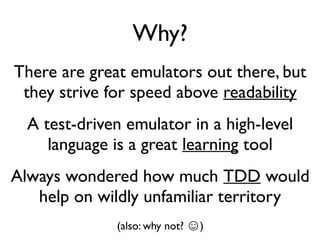

8. Why?
There are great emulators out there, but
they strive for speed above readability
A test-driven emulator in a high-level
language is a great learning tool
Always wondered how much TDD would
help on wildly unfamiliar territory
(also: why not? ☺)

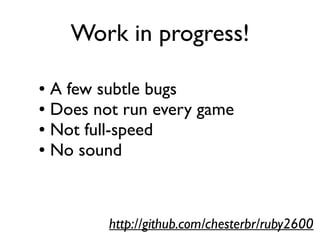

9. Work in progress!
● A few subtle bugs
● Does not run every game
● Not full-speed
● No sound
http://github.com/chesterbr/ruby2600

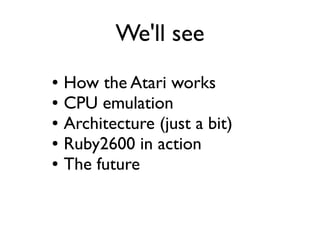

10. We'll see
● How the Atari works
● CPU emulation
● Architecture (just a bit)
● Ruby2600 in action
● The future

11. @chesterbr
http://chester.me
About me (Chester)
© Ila Fox - http://www.ilafox.com

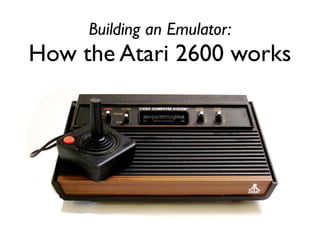

12. Building an Emulator:
How the Atari 2600 works

13. Let's peek inside...
(Atari 2600 Jr. printed circuit board)

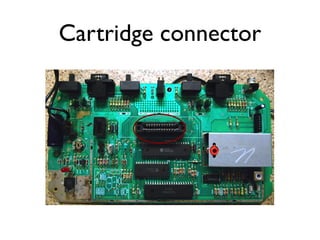

14. Cartridge connector

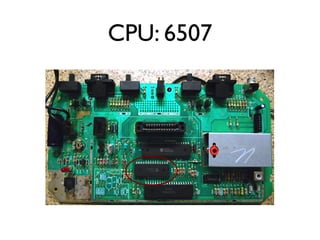

15. CPU: 6507

16. Video:TIA

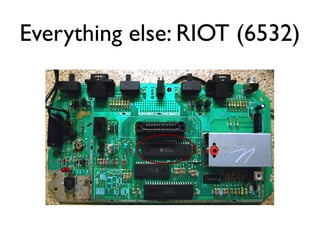

17. Everything else: RIOT (6532)

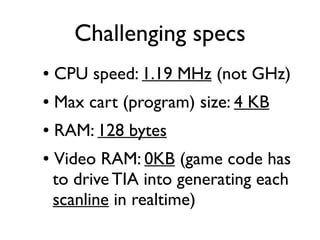

18. Challenging specs
● CPU speed: 1.19 MHz (not GHz)
● Max cart (program) size: 4 KB
● RAM: 128 bytes
● Video RAM: 0KB (game code has
to drive TIA into generating each
scanline in realtime)

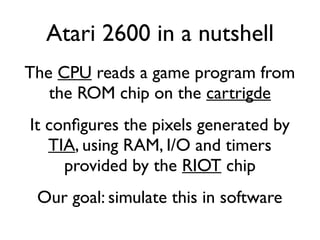

19. Atari 2600 in a nutshell
The CPU reads a game program from
the ROM chip on the cartrigde
It confgures the pixels generated by
TIA, using RAM, I/O and timers
provided by the RIOT chip
Our goal: simulate this in software

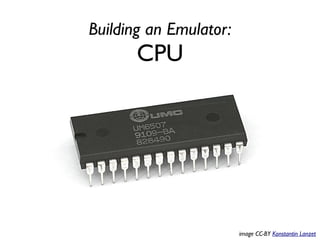

20. Building an Emulator:
CPU
image CC-BY Konstantin Lanzet

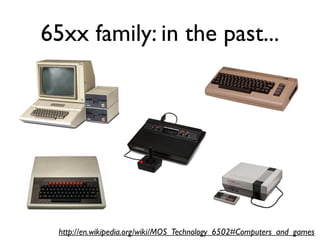

21. 65xx family: in the past...
http://en.wikipedia.org/wiki/MOS_Technology_6502#Computers_and_games

22. ...and in the future!
http://en.wikipedia.org/wiki/MOS_Technology_6502#In_popular_culture

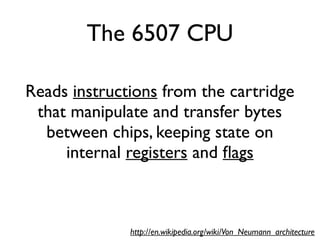

23. The 6507 CPU
Reads instructions from the cartridge
that manipulate and transfer bytes
between chips, keeping state on
internal registers and flags
http://en.wikipedia.org/wiki/Von_Neumann_architecture

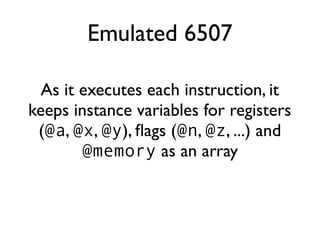

24. Emulated 6507
As it executes each instruction, it
keeps instance variables for registers
(@a, @x, @y), flags (@n, @z, ...) and
@memory as an array

25. CPU.rb
module Ruby2600
class CPU
attr_accessor :memory
attr_accessor :pc, :a, :x, :y, :s
# Flags (P register): nv--dizc
attr_accessor :n, :v, :d, :i, :z, :c
def step
...runs a instruction...
end
...

26. module Ruby2600
class CPU
attr_accessor :memory
attr_accessor :pc, :a, :x, :y, :s
# Flags (P register): nv--dizc
attr_accessor :n, :v, :d, :i, :z, :c
def step
...runs a instruction...
end
...
CPU.rb
TESTS FIRST!TESTS FIRST!

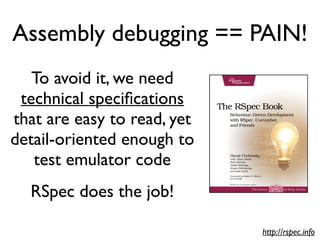

28. Assembly debugging == PAIN!
To avoid it, we need
technical specifcations
that are easy to read, yet
detail-oriented enough to
test emulator code
RSpec does the job!
http://rspec.info

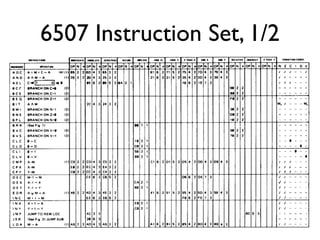

29. 6507 Instruction Set, 1/2

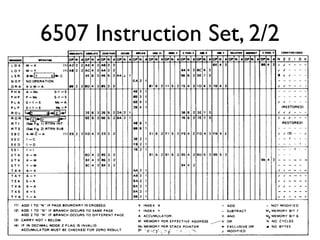

30. 6507 Instruction Set, 2/2

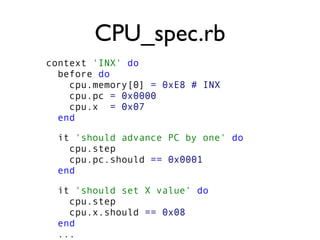

31. CPU_spec.rb
context 'INX' do
before do
cpu.memory[0] = 0xE8 # INX
cpu.pc = 0x0000
cpu.x = 0x07
end
it 'should advance PC by one' do
cpu.step
cpu.pc.should == 0x0001
end
it 'should set X value' do
cpu.step
cpu.x.should == 0x08
end
...

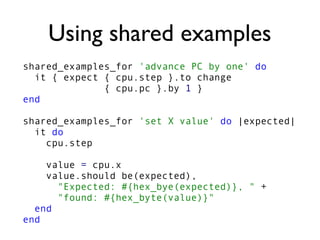

32. Using shared examples
shared_examples_for 'advance PC by one' do
it { expect { cpu.step }.to change
{ cpu.pc }.by 1 }
end
shared_examples_for 'set X value' do |expected|
it do
cpu.step
value = cpu.x
value.should be(expected),
"Expected: #{hex_bye(expected)}, " +
"found: #{hex_byte(value)}"
end
end

33. More syntactic sugar
1.upto 3 do |number|
shared_examples_for "advance PC by
#{number.humanize}" do
it { expect { cpu.step }.to change
{ cpu.pc }.by number }
end
end
RSpec.configure do |c|
c.alias_it_should_behave_like_to :it_should,
'should'
end

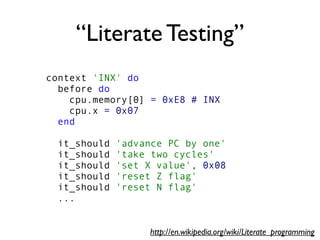

34. “Literate Testing”
context 'INX' do
before do
cpu.memory[0] = 0xE8 # INX
cpu.x = 0x07
end
it_should 'advance PC by one'
it_should 'take two cycles'
it_should 'set X value', 0x08
it_should 'reset Z flag'
it_should 'reset N flag'
...
http://en.wikipedia.org/wiki/Literate_programming

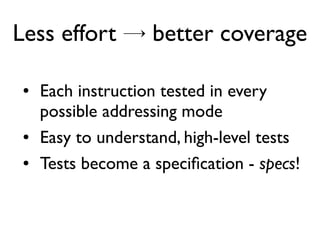

35. Less effort → better coverage
● Each instruction tested in every
possible addressing mode
● Easy to understand, high-level tests
● Tests become a specifcation - specs!

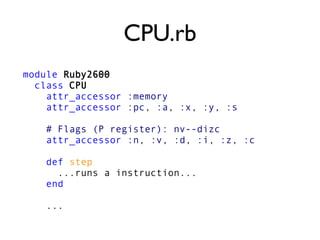

36. CPU.rb
module Ruby2600
class CPU
attr_accessor :memory
attr_accessor :pc, :a, :x, :y, :s
# Flags (P register): nv--dizc
attr_accessor :n, :v, :d, :i, :z, :c
def step
...runs a instruction...
end
...

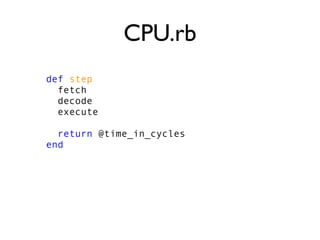

38. def step
fetch
decode
execute
return @time_in_cycles
end
CPU.rb

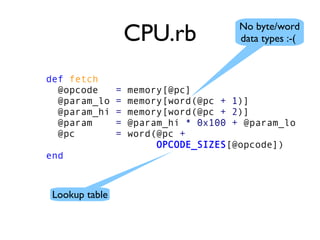

39. No byte/word
data types :-(CPU.rb
def fetch
@opcode = memory[@pc]
@param_lo = memory[word(@pc + 1)]
@param_hi = memory[word(@pc + 2)]
@param = @param_hi * 0x100 + @param_lo
@pc = word(@pc +
OPCODE_SIZES[@opcode])
end
Lookup table

40. more
lookup!
CPU.rb
def decode
if (@opcode & 0b11111) == BXX
@instruction = BXX
elsif (@opcode & 0b11111) == SCX
@instruction = SCX
else
@instruction_group = @opcode & 0b11
mode_in_group = (@opcode & 0b11100) >> 2
@addressing_mode = ADDRESSING[
@instruction_group][mode_in_group]
@instruction = @opcode & 0b11100011
end
@time_in_cycles = time_in_cycles
end

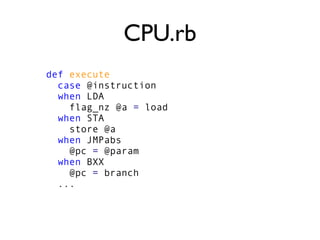

41. CPU.rb
def execute
case @instruction
when LDA
flag_nz @a = load
when STA
store @a
when JMPabs
@pc = @param
when BXX
@pc = branch
...

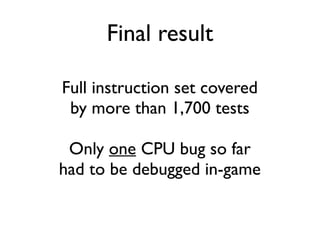

42. Final result
Full instruction set covered
by more than 1,700 tests
Only one CPU bug so far
had to be debugged in-game

43. Building an Emulator:Building an Emulator:
ArchitectureArchitecture
image CC-BYimage CC-BY Benjamin EshanBenjamin Eshan

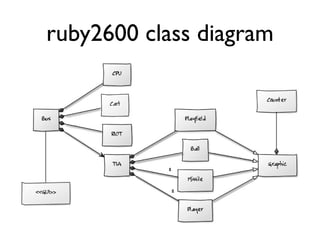

44. ruby2600 class diagram

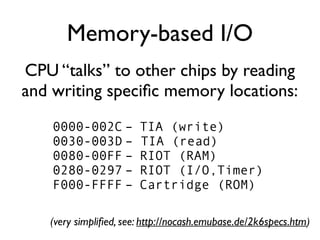

45. Memory-based I/O
CPU “talks” to other chips by reading
and writing specifc memory locations:
0000-002C – TIA (write)
0030-003D – TIA (read)
0080-00FF – RIOT (RAM)
0280-0297 – RIOT (I/O,Timer)
F000-FFFF – Cartridge (ROM)
(very simplified, see: http://nocash.emubase.de/2k6specs.htm)

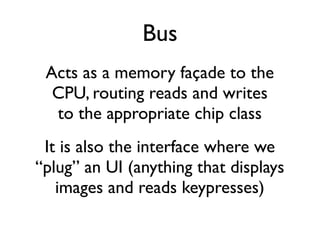

46. Bus
Acts as a memory façade to the
CPU, routing reads and writes
to the appropriate chip class
It is also the interface where we
“plug” an UI (anything that displays
images and reads keypresses)

47. ruby2600 class diagram

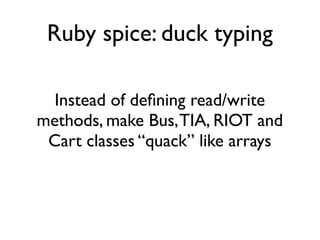

48. Ruby spice: duck typing
Instead of defning read/write
methods, make Bus,TIA, RIOT and
Cart classes “quack” like arrays

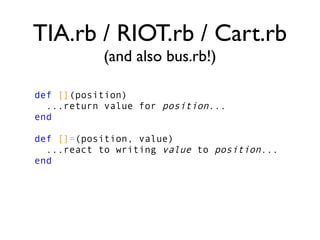

49. TIA.rb / RIOT.rb / Cart.rb
(and also bus.rb!)
def [](position)
...return value for position...
end
def []=(position, value)
...react to writing value to position...
end

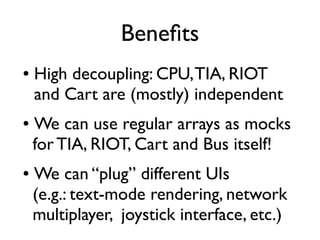

50. Benefts
● High decoupling: CPU,TIA, RIOT
and Cart are (mostly) independent
● We can use regular arrays as mocks
for TIA, RIOT, Cart and Bus itself!
● We can “plug” different UIs
(e.g.: text-mode rendering, network
multiplayer, joystick interface, etc.)

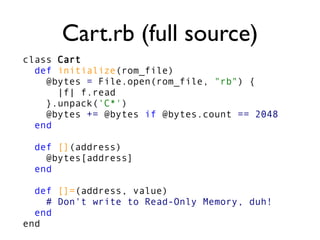

51. Cart.rb (full source)
class Cart
def initialize(rom_file)
@bytes = File.open(rom_file, "rb") {
|f| f.read
}.unpack('C*')
@bytes += @bytes if @bytes.count == 2048
end
def [](address)
@bytes[address]
end
def []=(address, value)
# Don't write to Read-Only Memory, duh!
end
end

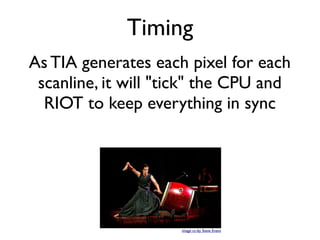

52. Timing
As TIA generates each pixel for each
scanline, it will "tick" the CPU and
RIOT to keep everything in sync
image cc-by Steve Evans

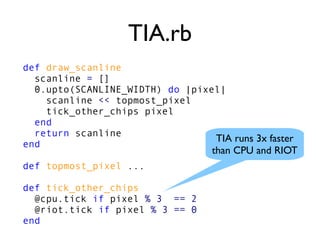

53. TIA.rb
def draw_scanline
scanline = []
0.upto(SCANLINE_WIDTH) do |pixel|
scanline << topmost_pixel
tick_other_chips pixel
end
return scanline
end
def topmost_pixel ...
def tick_other_chips
@cpu.tick if pixel % 3 == 2
@riot.tick if pixel % 3 == 0
end
TIA runs 3x faster
than CPU and RIOT

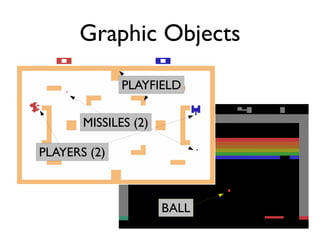

54. BALL
PLAYFIELD
PLAYERS (2)
MISSILES (2)
Graphic Objects

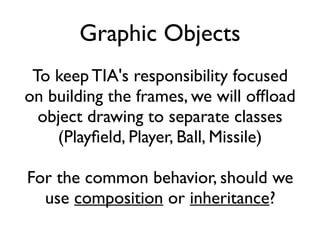

55. Graphic Objects
To keep TIA's responsibility focused
on building the frames, we will offload
object drawing to separate classes
(Playfeld, Player, Ball, Missile)
For the common behavior, should we
use composition or inheritance?

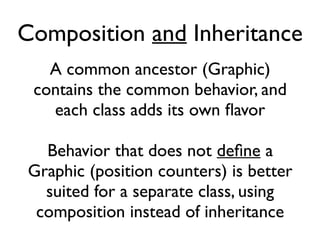

56. Composition and Inheritance
A common ancestor (Graphic)
contains the common behavior, and
each class adds its own flavor
Behavior that does not defne a
Graphic (position counters) is better
suited for a separate class, using
composition instead of inheritance

57. ruby2600 class diagram

58. Building an Emulator:
Let's run it!
reproduction:reproduction: Young FrankensteinYoung Frankenstein

60. Building an Emulator:
Speeding up
TBBT 1-06 "The Middle-Earth Paradigm", © 2007 Chuck Lorre Productions / WB Television

61. Knuth, Donald (December 1974).
"Structured Programmingwith go
to Statements",ACM Journal
Me and Prof. Knuth hanging out. We're, like, bros. Really.
"We should forget
about small
efficiencies, say
about 97% of the
time: premature
optimization is the
root of all evil"

62. Refactoring
Thanks to test coverage, we can safely
play around and refactor for speed
(while keeping it readable)

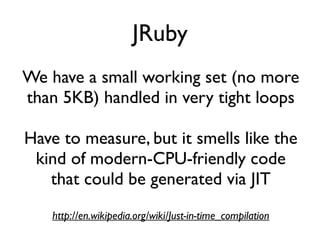

63. JRuby
We have a small working set (no more
than 5KB) handled in very tight loops
Have to measure, but it smells like the
kind of modern-CPU-friendly code
that could be generated via JIT
http://en.wikipedia.org/wiki/Just-in-time_compilation

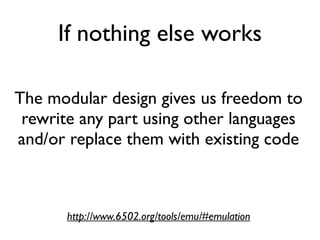

64. If nothing else works
The modular design gives us freedom to
rewrite any part using other languages
and/or replace them with existing code
http://www.6502.org/tools/emu/#emulation

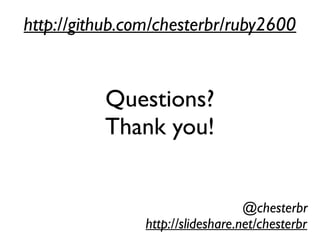

66. Questions?
