- 1. The Video GameR- Evolution Julio Seaman

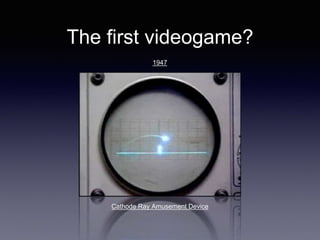

- 2. The first videogame? 1947 CathodeRay Amusement Device
- 3.

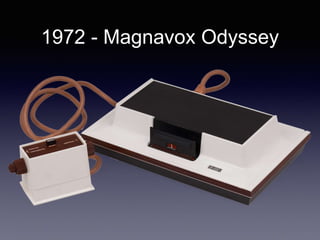

- 4. 1972 - MagnavoxOdyssey
- 5. 1972 - MagnavoxOdyssey
- 6.
- 7.

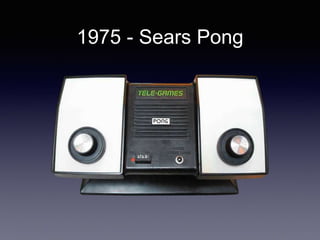

- 8. 1975 - SearsPong

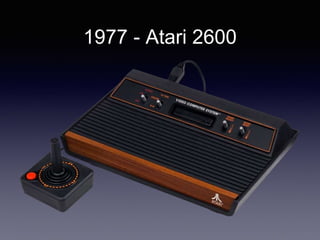

- 9. 1977 - Atari2600

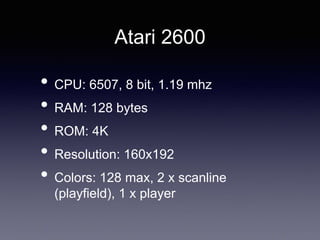

- 11. Atari 2600 • CPU:6507, 8 bit, 1.19 mhz • RAM: 128 bytes • ROM: 4K • Resolution: 160x192 • Colors: 128 max, 2 x scanline (playfield), 1 x player

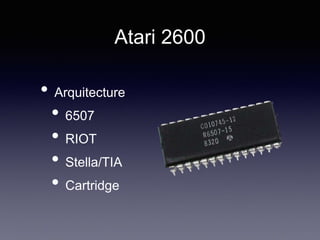

- 12. Atari 2600 • Arquitecture •6507 • RIOT • Stella/TIA • Cartridge
- 13. Atari 2600: UniversalPong Machine • Playfield • 2 Players • 2 Missiles • 1 ball
- 14. Atari 2600: ASM6502 • Read/Write • Register Transfer • Stack Operations • Logical Operations • Arithmetic Operations • Inc/Dec • Bit shifting • Jump! • Branching

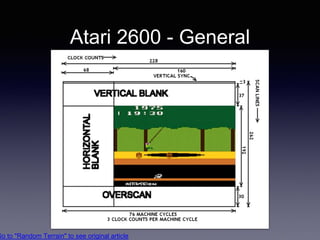

- 15. Atari 2600 -General Go to "Random Terrain" to see original article

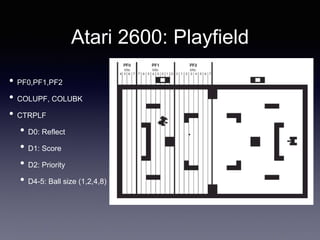

- 16. Atari 2600: Playfield •PF0,PF1,PF2 • COLUPF, COLUBK • CTRPLF • D0: Reflect • D1: Score • D2: Priority • D4-5: Ball size (1,2,4,8)

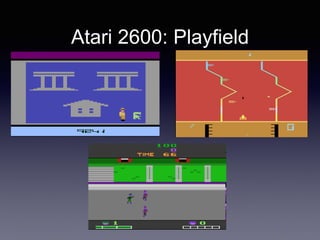

- 17.

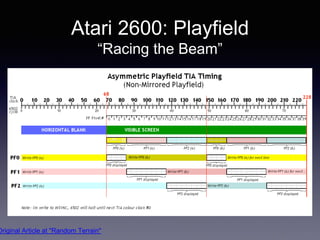

- 18. Atari 2600: Playfield “Racingthe Beam” Original Article at "Random Terrain"

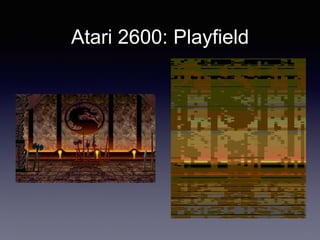

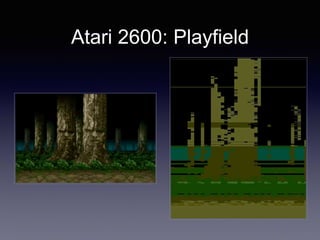

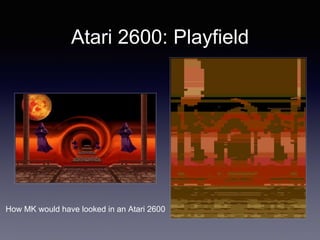

- 19. Atari 2600: Playfield HowMK would have looked in an Atari 2600
- 20.
- 21.
- 22.

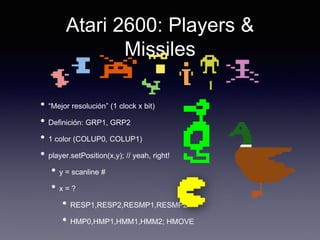

- 24. Atari 2600: Players& Missiles • “Mejor resolución” (1 clock x bit) • Definición: GRP1, GRP2 • 1 color (COLUP0, COLUP1) • player.setPosition(x,y); // yeah, right! • y = scanline # • x = ? • RESP1,RESP2,RESMP1,RESMP2 • HMP0,HMP1,HMM1,HMM2; HMOVE

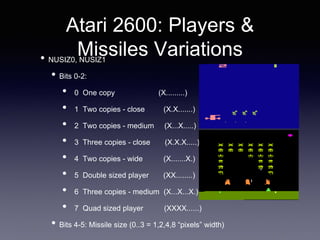

- 25. Atari 2600: Players& Missiles Variations• NUSIZ0, NUSIZ1 • Bits 0-2: • 0 One copy (X.........) • 1 Two copies - close (X.X.......) • 2 Two copies - medium (X...X.....) • 3 Three copies - close (X.X.X.....) • 4 Two copies - wide (X.......X.) • 5 Double sized player (XX........) • 6 Three copies - medium (X...X...X.) • 7 Quad sized player (XXXX......) • Bits 4-5: Missile size (0..3 = 1,2,4,8 “pixels” width)
- 26.
- 27.
- 28.
- 29.

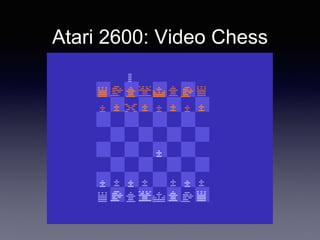

- 30. Atari 2600: VideoChess
- 31. Atari 2600: VideoChess “Venetian Blinds”
- 32. Atari 2600: Activision "Youare no more important to that game than the guy on the assembly line who puts it together." - Ray Kassar, Atari CEO
- 33.

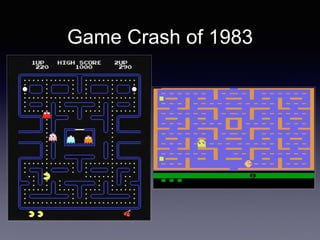

- 34. Game Crash of1983

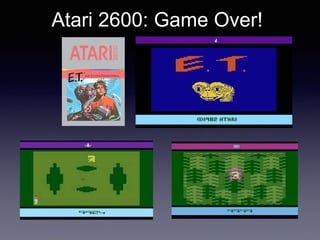

- 35. Atari 2600: GameOver!
- 36.

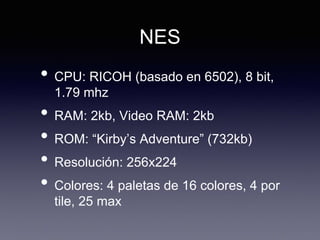

- 37. NES • CPU: RICOH(basado en 6502), 8 bit, 1.79 mhz • RAM: 2kb, Video RAM: 2kb • ROM: “Kirby’s Adventure” (732kb) • Resolución: 256x224 • Colores: 4 paletas de 16 colores, 4 por tile, 25 max

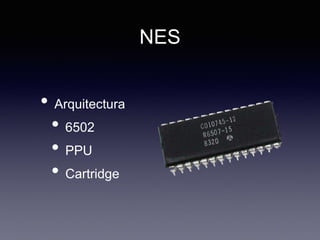

- 38. NES • Arquitectura • 6502 •PPU • Cartridge
- 39.

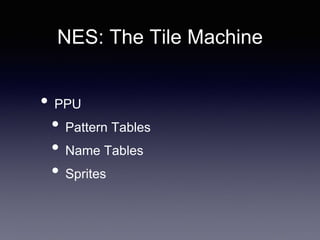

- 40. NES: The TileMachine • PPU • Pattern Tables • Name Tables • Sprites

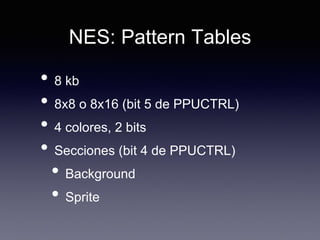

- 41. NES: Pattern Tables •8 kb • 8x8 o 8x16 (bit 5 de PPUCTRL) • 4 colores, 2 bits • Secciones (bit 4 de PPUCTRL) • Background • Sprite

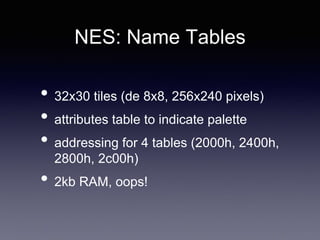

- 42. NES: Name Tables •32x30 tiles (de 8x8, 256x240 pixels) • attributes table to indicate palette • addressing for 4 tables (2000h, 2400h, 2800h, 2c00h) • 2kb RAM, oops!
- 43.

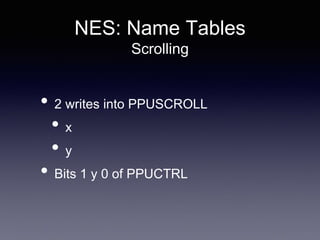

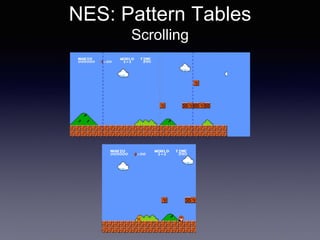

- 44. NES: Name Tables Scrolling •2 writes into PPUSCROLL • x • y • Bits 1 y 0 of PPUCTRL
- 45.

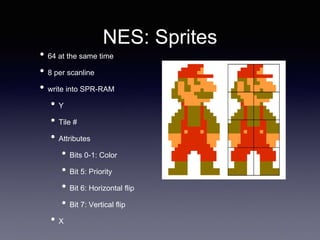

- 46. NES: Sprites • 64at the same time • 8 per scanline • write into SPR-RAM • Y • Tile # • Attributes • Bits 0-1: Color • Bit 5: Priority • Bit 6: Horizontal flip • Bit 7: Vertical flip • X

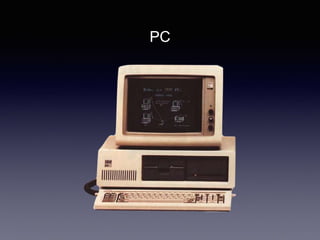

- 47.

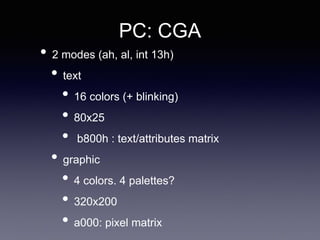

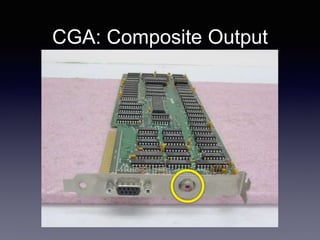

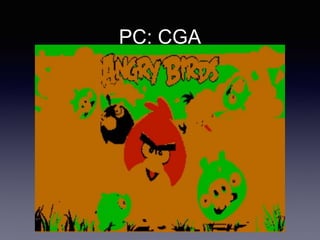

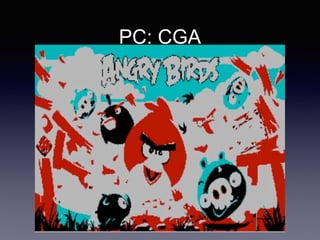

- 48. PC: CGA • 2modes (ah, al, int 13h) • text • 16 colors (+ blinking) • 80x25 • b800h : text/attributes matrix • graphic • 4 colors. 4 palettes? • 320x200 • a000: pixel matrix

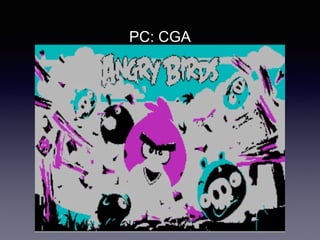

- 49.
- 50.
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.

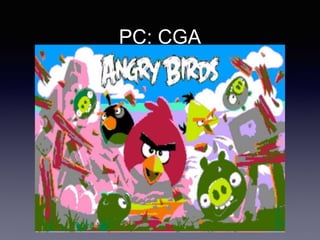

- 57.
- 58.
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.
