Rip version1 configuration on Cisco router
•Download as PPTX, PDF•
1 like•2,142 views

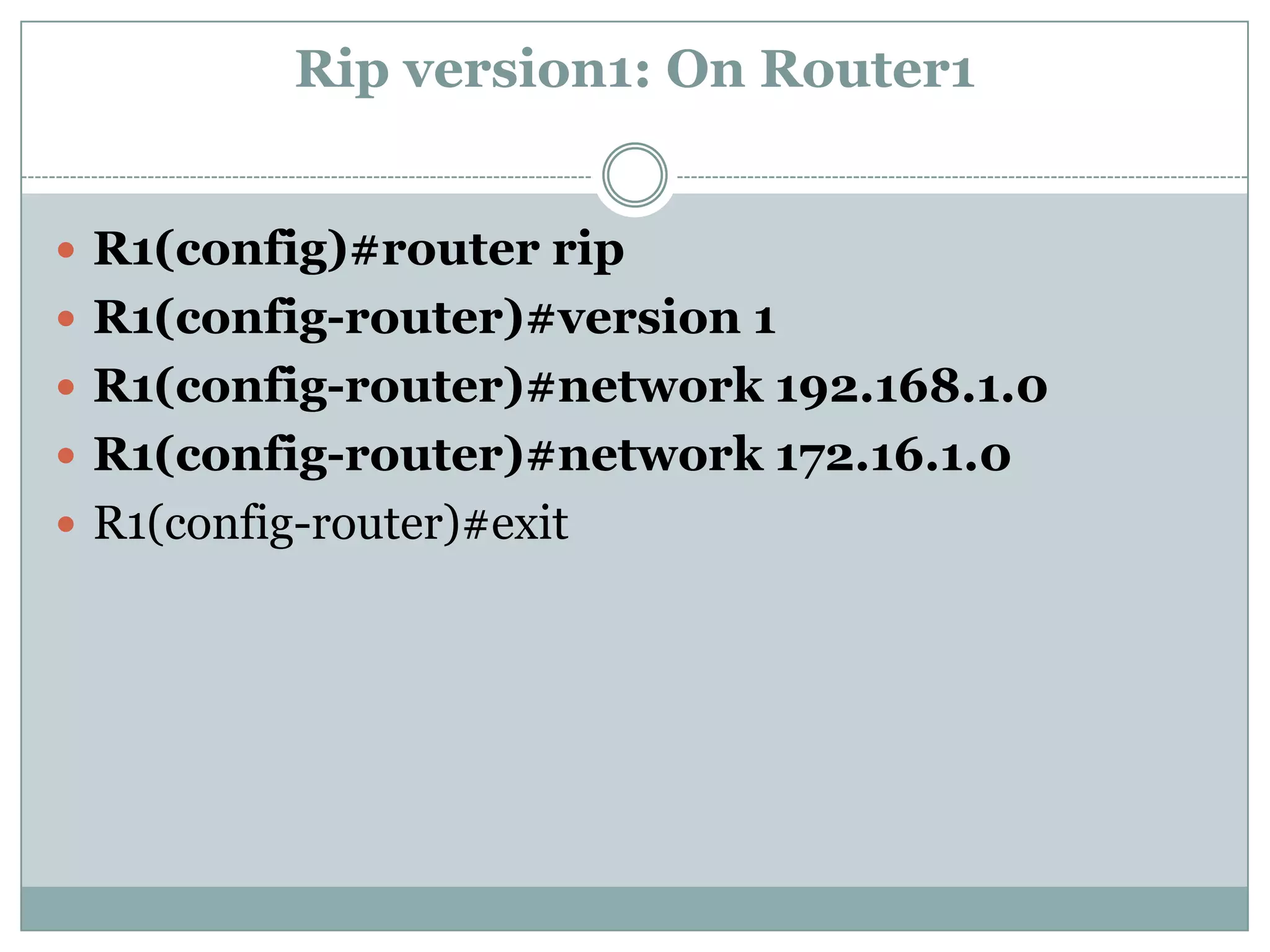

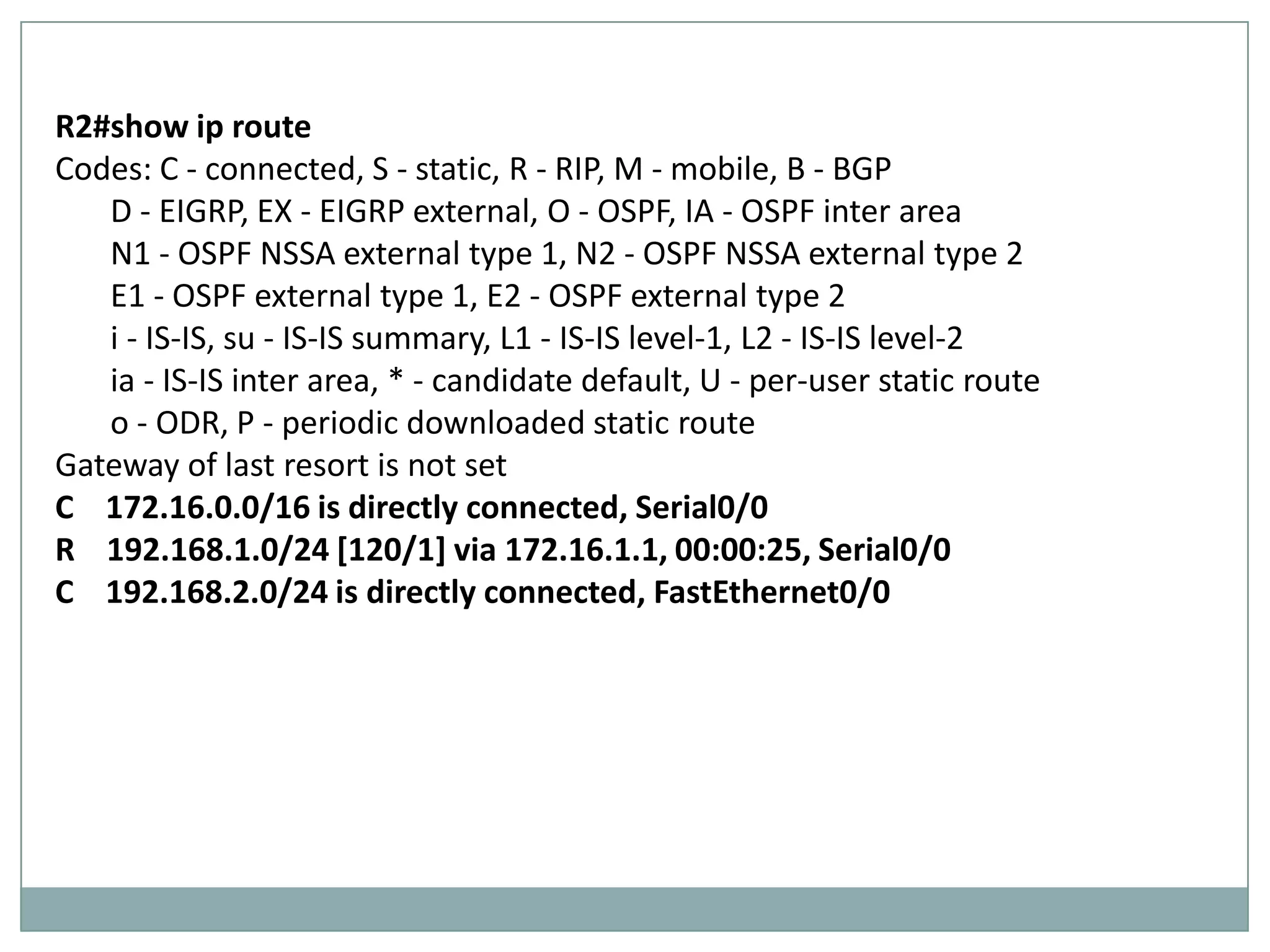

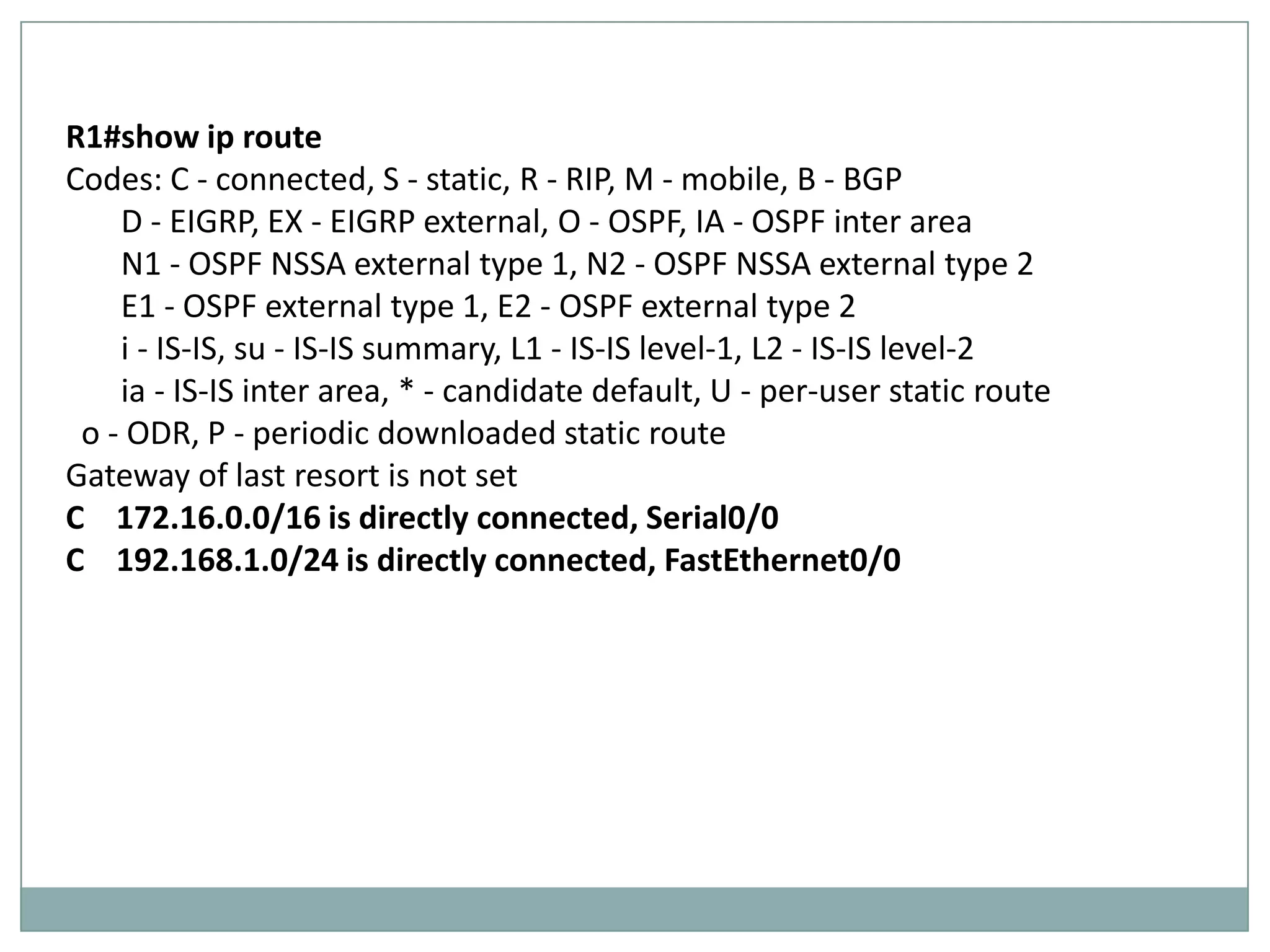

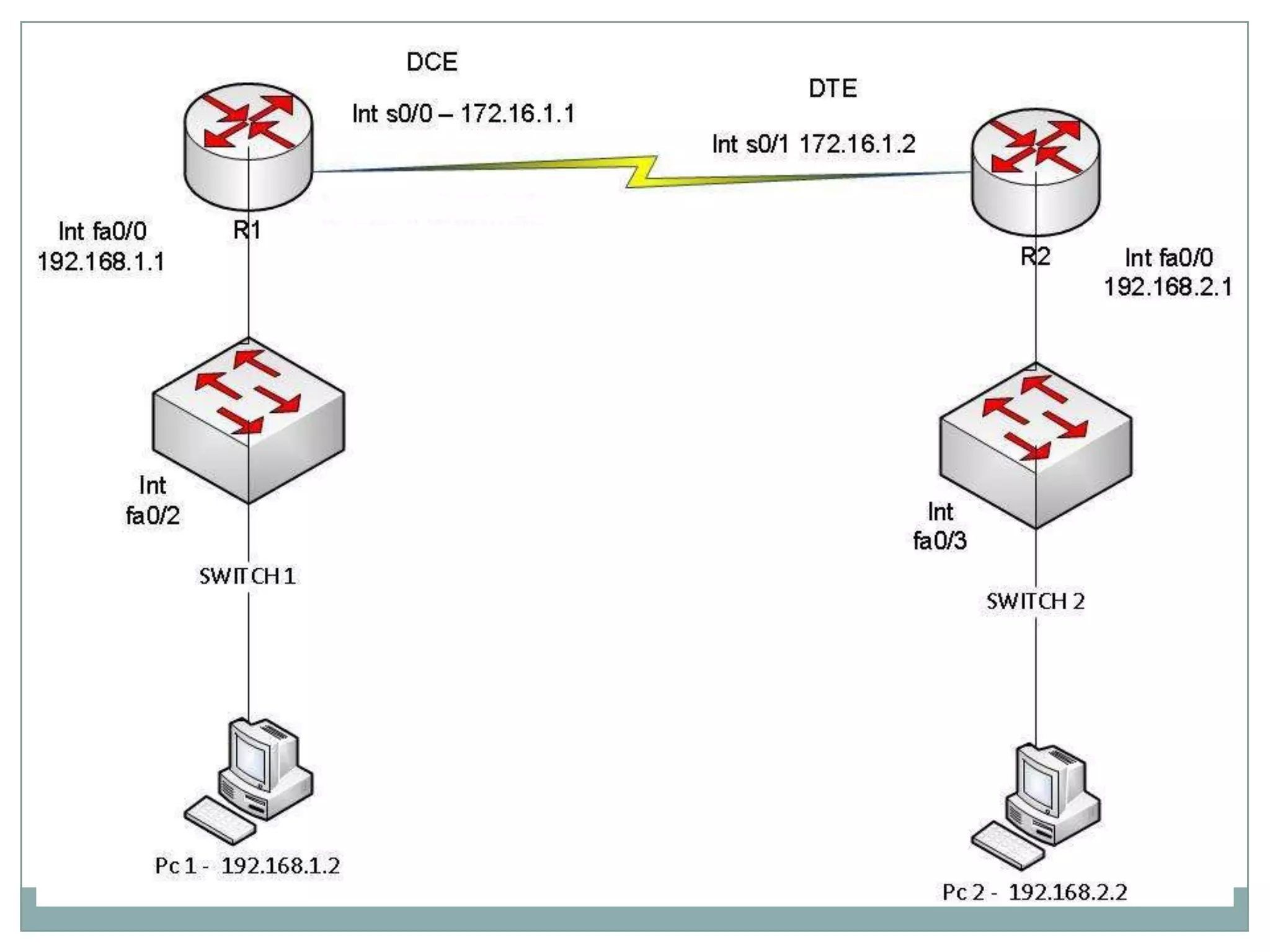

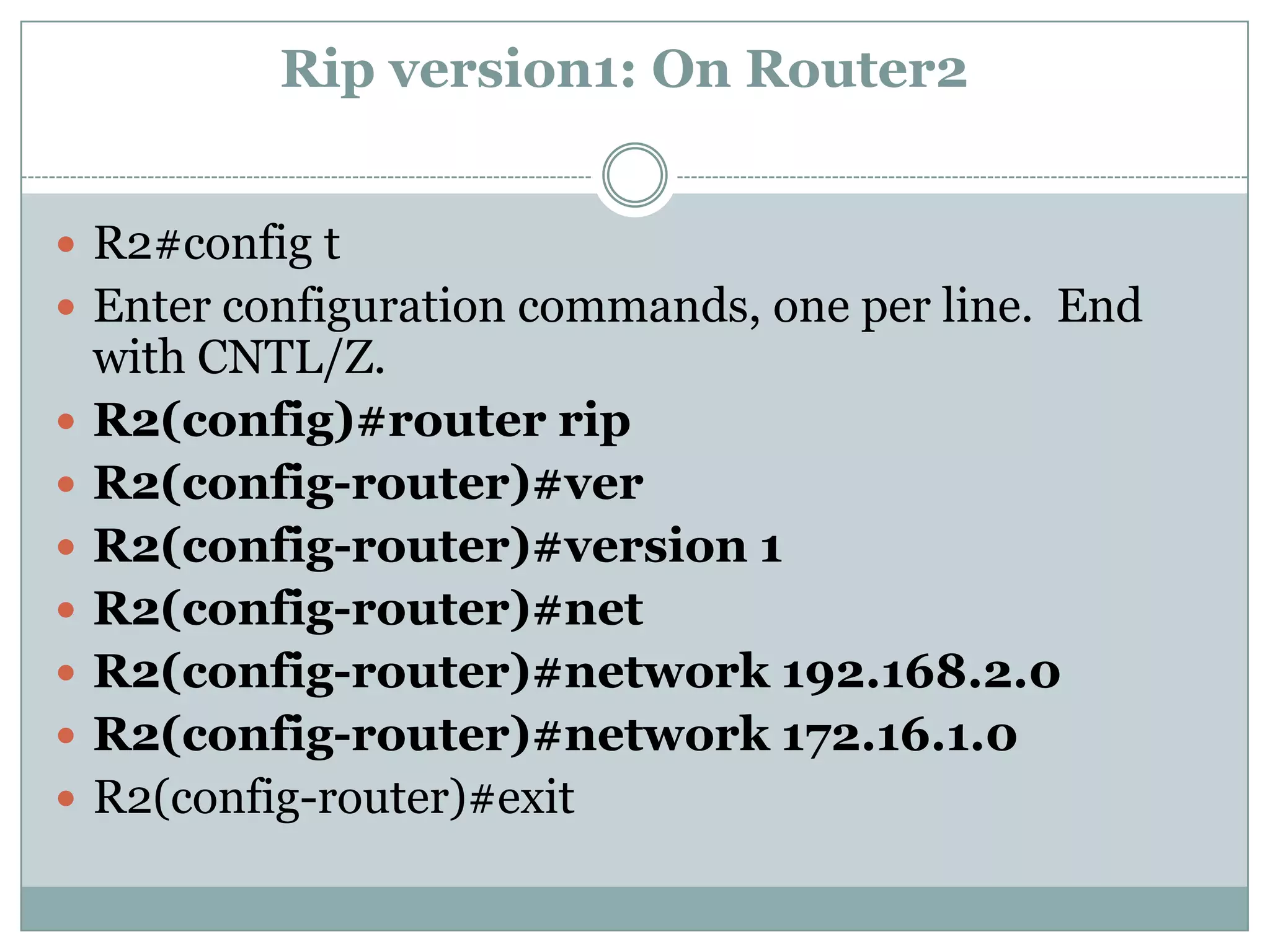

The document describes configuring RIP version 1 on routers R1 and R2. On R1, RIP is configured with version 1, and the 192.168.1.0 and 172.16.0 networks are included. R1's routing table shows the 192.168.1.0 and 172.16.0 networks as directly connected. On R2, RIP is also configured with version 1 and the 192.168.2.0 and 172.16.0 networks are included. R2's routing table shows the 192.168.2.0 network as directly connected and learns the 192.168.1.0 network from R1 through RIP.
