Rich faces

The document provides an overview of the RichFaces framework including: - What RichFaces is and its history - Installing and configuring RichFaces - Ajax action components like a4j:support, a4j:commandButton, a4j:poll - UI components like menus, calendar, trees - Examples of using various RichFaces components

Embed presentation

Downloaded 243 times
RichFaces

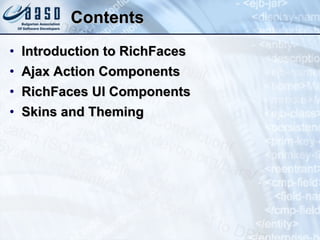

Contents Introduction to RichFaces Ajax Action Components RichFaces UI Components Skins and Theming
Installation (JBoss Tools) Get a clean copy of Eclipse for JavaEE developers (helios)(32bit only)+tomcat7+ppt Extract Go to Eclipse->Help->Install new software Location: http://download.jboss.org/jbosstools/updates/stable/helios/ Click ONLY ON “ Jboss Tools Richfaces ” Next -> Next -> Next ... Reboot Eclipse Extract tomcat somewhere close to eclipse Create workspace close to eclipse

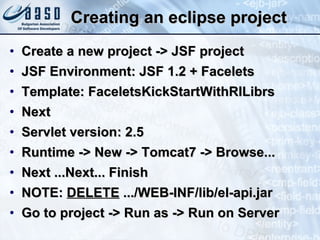

Creating an eclipse project Create a new project -> JSF project JSF Environment: JSF 1.2 + Facelets Template: FaceletsKickStartWithRILibrs Next Servlet version: 2.5 Runtime -> New -> Tomcat7 -> Browse... Next ...Next... Finish NOTE: DELETE .../WEB-INF/lib/el-api.jar Go to project -> Run as -> Run on Server

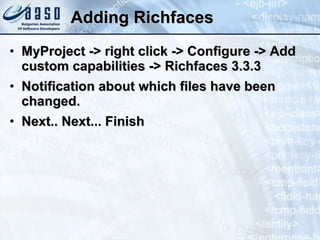

Adding Richfaces MyProject -> right click -> Configure -> Add custom capabilities -> Richfaces 3.3.3 Notification about which files have been changed. Next.. Next... Finish
Introduction to RichFaces
What is RichFaces A framework designed to add Ajax functionality in JSF solutions 100+ AJAX enabled JSF components in two libraries a4j: page centric AJAX controls rich: self contained, ready to use components Component Development Kit (CDK) Skinnability mechanism Dynamic resources handling

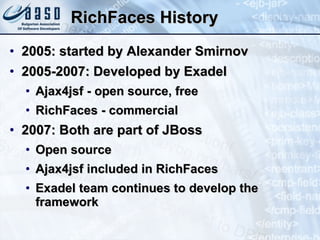

RichFaces History 2005: started by Alexander Smirnov 2005-2007: Developed by Exadel Ajax4jsf - open source, free RichFaces - commercial 2007: Both are part of JBoss Open source Ajax4jsf included in RichFaces Exadel team continues to develop the framework
Versions Just released – RichFaces 4 Final release end of March 2011 Previous stable version – RichFaces 3.3.3 * Note: RichFaces 3.3.3 has basic JSF 2.0 support Version JSF 1.1 JSF 1.2 JSF 2.0 RichFaces 3.1.x ● RichFaces 3.3.3* ● ● RichFaces 4 ●
Example <%@ taglib uri=&quot;https://ajax4jsf.dev.java.net/ajax&quot; prefix=&quot;a4j&quot;%> <%@ taglib uri=&quot;http://java.sun.com/jsf/html&quot; prefix=&quot;h&quot;%> <%@ taglib uri=&quot;http://java.sun.com/jsf/core&quot; prefix=&quot;f&quot;%> <html> <head> <title>Repeater </title> </head> <body> <f:view> <h:form> <h:inputText size=&quot;50&quot; value=&quot;#{bean.text}&quot; > <a4j:support event=&quot;onkeyup&quot; reRender=&quot;rep&quot;/> </h:inputText> <h:outputText value=&quot;#{bean.text}&quot; id=&quot; rep &quot;/> </h:form> </f:view> </body> </html>

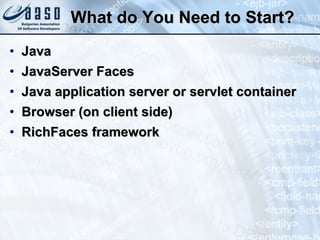

What do You Need to Start? Java JavaServer Faces Java application server or servlet container Browser (on client side) RichFaces framework
What do you get? Many ready to use components

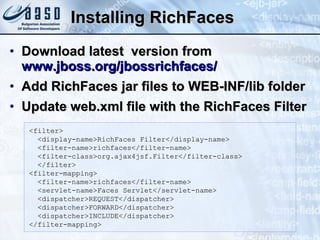

Installing RichFaces Download latest version from www.jboss.org/jbossrichfaces/ Add RichFaces jar files to WEB-INF/lib folder Update web.xml file with the RichFaces Filter <filter> <display-name>RichFaces Filter</display-name> <filter-name>richfaces</filter-name> <filter-class>org.ajax4jsf.Filter</filter-class> </filter> <filter-mapping> <filter-name>richfaces</filter-name> <servlet-name>Faces Servlet</servlet-name> <dispatcher>REQUEST</dispatcher> <dispatcher>FORWARD</dispatcher> <dispatcher>INCLUDE</dispatcher> </filter-mapping>
Page Setup Add RichFaces namespaces and taglibs in your XHTML and JSP pages. Facelets JSP xmlns:a4j=&quot;http://richfaces.org/a4j&quot; xmlns:rich=&quot;http://richfaces.org/rich&quot; <%@ taglib uri=&quot;http://richfaces.org/a4j&quot; prefix=&quot;a4j&quot;%> <%@ taglib uri=&quot;http://richfaces.org/rich&quot; prefix=&quot;rich&quot;%>
Ajax Action Components

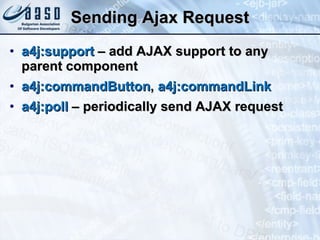

Sending Ajax Request a4j:support – add AJAX support to any parent component a4j:commandButton , a4j:commandLink a4j:poll – periodically send AJAX request

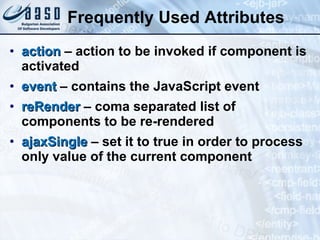

Frequently Used Attributes action – action to be invoked if component is activated event – contains the JavaScript event reRender – coma separated list of components to be re-rendered ajaxSingle – set it to true in order to process only value of the current component

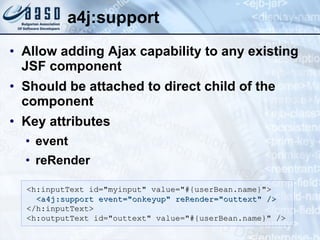

a4j:support Allow adding Ajax capability to any existing JSF component Should be attached to direct child of the component Key attributes event reRender <h:inputText id=&quot;myinput&quot; value=&quot;#{userBean.name}&quot;> <a4j:support event=&quot;onkeyup&quot; reRender=&quot;outtext&quot; /> </h:inputText> <h:outputText id=&quot;outtext&quot; value=&quot;#{userBean.name}&quot; />

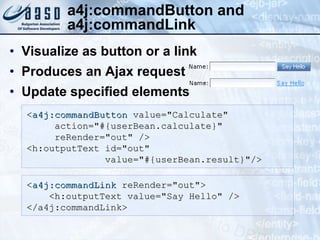

a4j:commandButton and a4j:commandLink Visualize as button or a link Produces an Ajax request Update specified elements < a4j:commandButton value=&quot; Calculate &quot; action=&quot;#{userBean. calculate }&quot; reRender=&quot; out &quot; /> <h:outputText id=&quot; out &quot; value=&quot;#{userBean. result }&quot;/> < a4j:commandLink  reRender=&quot;out&quot;>     <h:outputText value=&quot;Say Hello&quot; />  </a4j:commandLink>
a4j:poll Periodically sends AJAX request to server Poll server data Update the page interval – number of milliseconds between requests enabled – whether the component should send requests or not Component should be placed inside a form

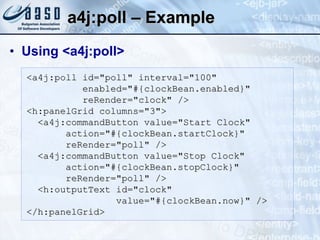

a4j:poll – Example Using <a4j:poll> <a4j:poll id=&quot;poll&quot; interval=&quot;100&quot; enabled=&quot;#{clockBean.enabled}&quot; reRender=&quot;clock&quot; /> <h:panelGrid columns=&quot;3&quot;> <a4j:commandButton value=&quot;Start Clock&quot; action=&quot;#{clockBean.startClock}&quot; reRender=&quot;poll&quot; /> <a4j:commandButton value=&quot;Stop Clock&quot; action=&quot;#{clockBean.stopClock}&quot; reRender=&quot;poll&quot; /> <h:outputText id=&quot;clock&quot; value=&quot;#{clockBean.now}&quot; /> </h:panelGrid>
RichFaces UI Components

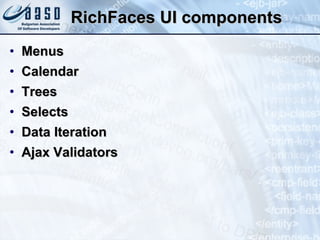

RichFaces UI components Menus Calendar Trees Selects Data Iteration Ajax Validators
Menus
Menus Menus available in RichFaces <rich:contextMenu> <rich:dropDownMenu> Related components <rich:menuItem> <rich:menuSeparator> <rich:menuGroup>

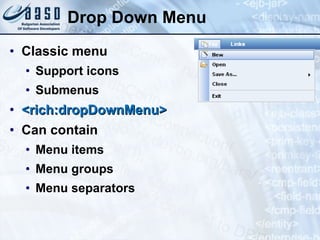

Drop Down Menu Classic menu Support icons Submenus <rich:dropDownMenu> Can contain Menu items Menu groups Menu separators

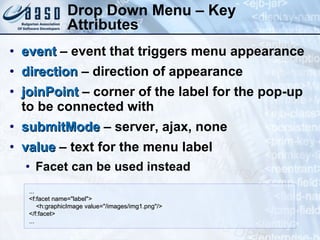

Drop Down Menu – Key Attributes event – event that triggers menu appearance direction – direction of appearance joinPoint – corner of the label for the pop-up to be connected with submitMode – server, ajax, none value – text for the menu label Facet can be used instead ... <f:facet name=&quot;label&quot;>     <h:graphicImage value=&quot;/images/img1.png&quot;/> </f:facet> ...

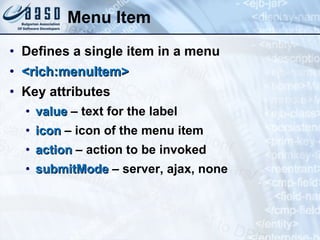

Menu Item Defines a single item in a menu <rich:menuItem> Key attributes value – text for the label icon – icon of the menu item action – action to be invoked submitMode – server, ajax, none
Menu Group & Menu Separator <rich:menuGroup> Label for secondary levels on the menu value – text for the label icon – icon of the group <rich:menuSeparator> Horizontal separator Can be placed between groups and items
Menu Components – Example Using menu components: ... <rich:dropDownMenu value=&quot;File&quot; direction=&quot;bottom-right&quot; jointPoint=&quot;bl&quot;>     <rich:menuItem submitMode=&quot;ajax&quot; value=&quot;New&quot; action=&quot;#{ddmenu.doNew}&quot;/>     <rich:menuItem   submitMode=&quot;ajax&quot;  value=&quot;Open&quot; action=&quot;#{ddmenu.doOpen}&quot;/>      <rich:menuGroup value=&quot;Save As...&quot;>         <rich:menuItem   submitMode=&quot;ajax&quot; value=&quot;Text File&quot;   action=&quot;#{ddmenu.doSaveText}&quot;/>          <rich:menuItem   submitMode=&quot;ajax&quot; value=&quot;PDF File&quot;   action=&quot;#{ddmenu.doSavePDF}&quot;/>     </rich:menuGroup>     <rich:menuItem  submitMode=&quot;ajax&quot; value=&quot;Close&quot; action=&quot;#{ddmenu.doClose}&quot;/>      <rich:menuSeparator id=&quot;menuSeparator11&quot;/>     <rich:menuItem  submitMode=&quot;ajax&quot; value=&quot;Exit&quot;  action=&quot;#{ddmenu.doExit}&quot;/> </rich:dropDownMenu> ...

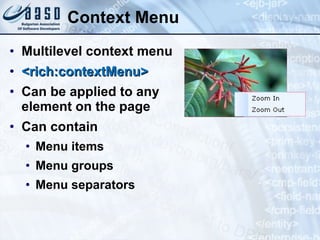

Context Menu Multilevel context menu <rich:contextMenu> Can be applied to any element on the page Can contain Menu items Menu groups Menu separators

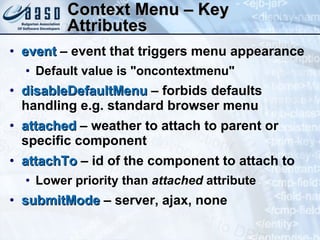

Context Menu – Key Attributes event – event that triggers menu appearance Default value is &quot;oncontextmenu&quot; disableDefaultMenu – forbids defaults handling e.g. standard browser menu attached – weather to attach to parent or specific component attachTo – id of the component to attach to Lower priority than attached attribute submitMode – server, ajax, none

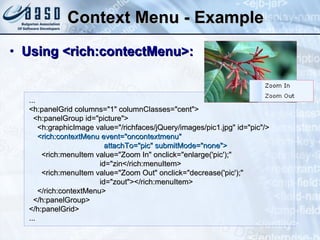

Context Menu - Example Using <rich:contectMenu>: ... <h:panelGrid columns=&quot;1&quot; columnClasses=&quot;cent&quot;> <h:panelGroup id=&quot;picture&quot;> <h:graphicImage value=&quot;/richfaces/jQuery/images/pic1.jpg&quot; id=&quot;pic&quot;/>   <rich:contextMenu event=&quot;oncontextmenu&quot;  attachTo=&quot;pic&quot; submitMode=&quot;none&quot;>      <rich:menuItem value=&quot;Zoom In&quot; onclick=&quot;enlarge('pic');&quot;  id=&quot;zin</rich:menuItem>       <rich:menuItem value=&quot;Zoom Out&quot; onclick=&quot;decrease('pic');&quot;  id=&quot;zout&quot;></rich:menuItem>     </rich:contextMenu> </h:panelGroup> </h:panelGrid> ...

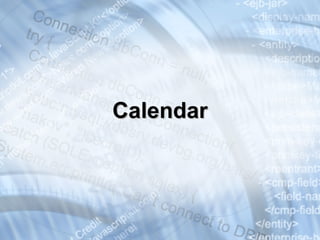

Calendar

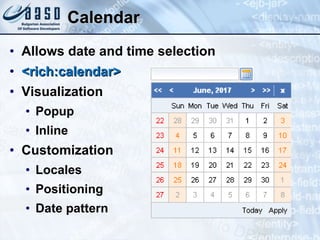

Calendar Allows date and time selection <rich:calendar> Visualization Popup Inline Customization Locales Positioning Date pattern

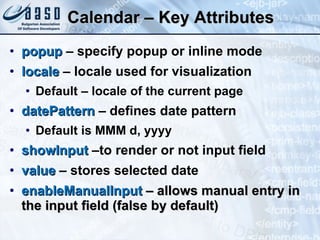

Calendar – Key Attributes popup – specify popup or inline mode locale – locale used for visualization Default – locale of the current page datePattern – defines date pattern Default is MMM d, yyyy showInput –to render or not input field value – stores selected date enableManualInput – allows manual entry in the input field (false by default)
Calendar – Example Using <rich:calendar>: ... <rich:calendar value=&quot;#{calendarBean.selectedDate}&quot; id=&quot;calendar&quot; locale=&quot;#{calendarBean.locale}&quot; popup=&quot;#{calendarBean.popup}&quot; datePattern=&quot;#{calendarBean.pattern}&quot; showApplyButton=&quot;#{calendarBean.showApply}&quot; cellWidth=&quot;24px&quot; cellHeight=&quot;22px&quot; style=&quot;width:200px&quot; disabled=&quot;#{calendarBean.disabled}&quot;> </rich:calendar> ...

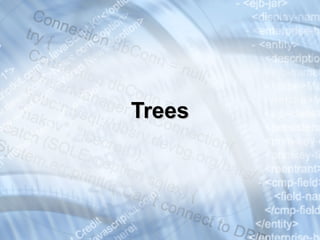

Trees

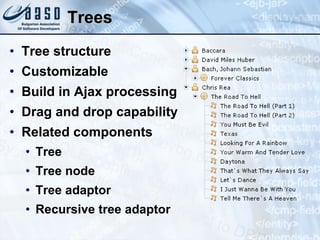

Trees Tree structure Customizable Build in Ajax processing Drag and drop capability Related components Tree Tree node Tree adaptor Recursive tree adaptor
Tree <rich:tree> Renders a tree control Using its immediate <rich:treeNode> children From a tree like data model org.richfaces.model.TreeNode javax.swing.tree.TreeNode Custom implementations

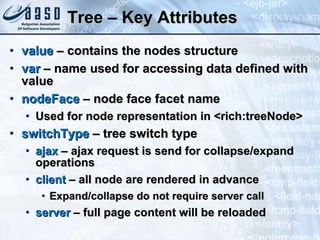

Tree – Key Attributes value – contains the nodes structure var – name used for accessing data defined with value nodeFace – node face facet name Used for node representation in <rich:treeNode> switchType – tree switch type ajax – ajax request is send for collapse/expand operations client – all node are rendered in advance Expand/collapse do not require server call server – full page content will be reloaded

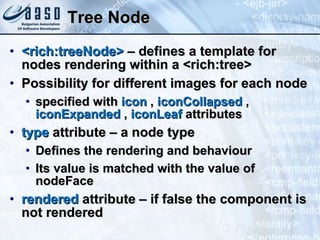

Tree Node <rich:treeNode> – defines a template for nodes rendering within a <rich:tree> Possibility for different images for each node specified with icon , iconCollapsed , iconExpanded , iconLeaf attributes type attribute – a node type Defines the rendering and behaviour Its value is matched with the value of nodeFace rendered attribute – if false the component is not rendered

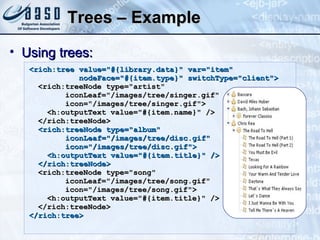

Trees – Example <rich:tree value=&quot;#{library.data}&quot; var=&quot;item&quot; nodeFace=&quot;#{item.type}&quot; switchType=&quot;client&quot;> <rich:treeNode type=&quot;artist&quot; iconLeaf=&quot;/images/tree/singer.gif&quot; icon=&quot;/images/tree/singer.gif&quot;> <h:outputText value=&quot;#{item.name}&quot; /> </rich:treeNode> <rich:treeNode type=&quot;album&quot; iconLeaf=&quot;/images/tree/disc.gif&quot; icon=&quot;/images/tree/disc.gif&quot;> <h:outputText value=&quot;#{item.title}&quot; /> </rich:treeNode> <rich:treeNode type=&quot;song&quot; iconLeaf=&quot;/images/tree/song.gif&quot; icon=&quot;/images/tree/song.gif&quot;> <h:outputText value=&quot;#{item.title}&quot; /> </rich:treeNode> </rich:tree> Using trees:

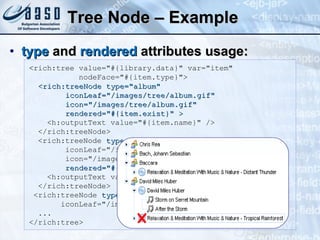

Tree Node – Example type and rendered attributes usage: < rich:tree value=&quot;#{library.data}&quot; var=&quot;item&quot; nodeFace=&quot;#{item.type}&quot;> <rich:treeNode type=&quot;album&quot; iconLeaf=&quot;/images/tree/album.gif&quot; icon=&quot;/images/tree/album.gif&quot; rendered=&quot;#{item.exist}&quot; > <h:outputText value=&quot;#{item.name}&quot; /> </rich:treeNode> <rich:treeNode type=&quot;album&quot; iconLeaf=&quot;/images/tree/album_absen.gif&quot; icon=&quot;/images/tree/album_absen.gif&quot;   rendered=&quot;#{not item.exist}&quot; > <h:outputText value=&quot;#{item.title}&quot; /> </rich:treeNode> <rich:treeNode type=&quot;song&quot; iconLeaf=&quot;/images/tree/song.gif&quot; ... </rich:tree>
Selects
Selects Implement user select functionality Components List shuttle Ordering list Pick list

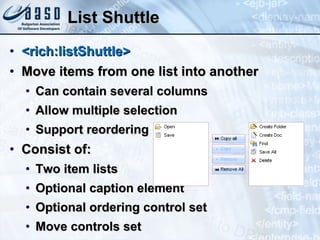

List Shuttle <rich:listShuttle> Move items from one list into another Can contain several columns Allow multiple selection Support reordering Consist of: Two item lists Optional caption element Optional ordering control set Move controls set
List Shuttle – Attributes sourceValue – list of items for the source list targetValue – list of items for the target list var – shared between both lists to define lists on the page (variable name to access values) sourceRequired , targetRequired – if it is required to have items in the source or target sourceSelection , targetSelection – store items selected in the lists converter – converts component data to a value that will be displayed
List Shuttle – Attributes (2) Define caption labels sourceCaptionLabel targetCaptionLabel Define control labels topControlLabel bottomControlLabel upControlLabel downControlLabel Define size listsHeight sourceListWidth targetListWidth

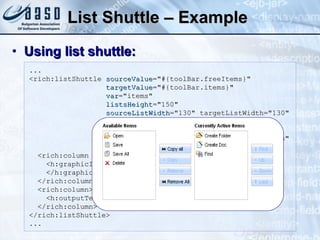

List Shuttle – Example Using list shuttle: ... <rich:listShuttle sourceValue =&quot;#{toolBar.freeItems}&quot; targetValue =&quot;#{toolBar.items}&quot; var =&quot;items&quot; listsHeight =&quot;150&quot; sourceListWidth =&quot;130&quot; targetListWidth=&quot;130&quot; sourceCaptionLabel =&quot;Available Items&quot; targetCaptionLabel =&quot;Currently Active Items&quot; converter =&quot;listShuttleconverter&quot;> <rich:column width=&quot;18&quot;> <h:graphicImage value=&quot;#{ items.iconURI }&quot;> </h:graphicImage> </rich:column> <rich:column> <h:outputText value=&quot;#{ items.label }&quot;></h:outputText> </rich:column> </rich:listShuttle> ...

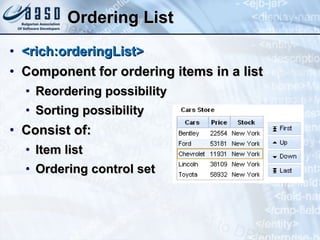

Ordering List <rich:orderingList> Component for ordering items in a list Reordering possibility Sorting possibility Consist of: Item list Ordering control set

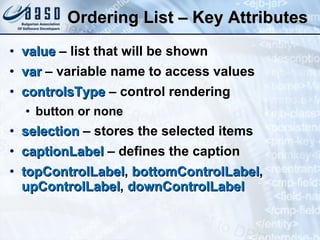

Ordering List – Key Attributes value – list that will be shown var – variable name to access values controlsType – control rendering button or none selection – stores the selected items captionLabel – defines the caption topControlLabel , bottomControlLabel , upControlLabel , downControlLabel

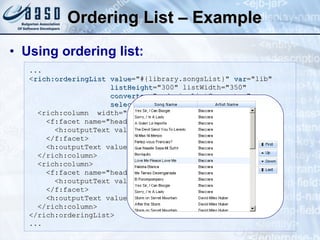

Ordering List – Example Using ordering list: ... < rich:orderingList value =&quot;#{library.songsList}&quot; var =&quot;lib&quot; listHeight =&quot;300&quot; listWidth=&quot;350&quot; converter =&quot;orderingListConverter&quot; selection =&quot;#{library.selectedSongsSet}&quot;> <rich:column width=&quot;180&quot;> <f:facet name=&quot;header&quot;> <h:outputText value=&quot;Song Name&quot; /> </f:facet> <h:outputText value=&quot;#{ lib.title }&quot; / > </rich:column> <rich:column> <f:facet name=&quot;header&quot;> <h:outputText value=&quot;Artist Name&quot; /> </f:facet> <h:outputText value=&quot;#{ lib.album.artist.name }&quot; / ><br/> </rich:column> </rich:orderingList> ...

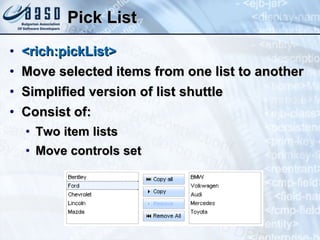

Pick List <rich:pickList> Move selected items from one list to another Simplified version of list shuttle Consist of: Two item lists Move controls set

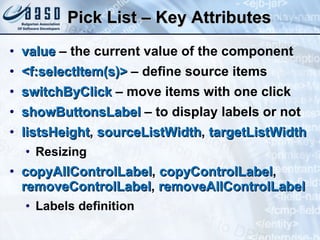

Pick List – Key Attributes value – the current value of the component <f:selectItem(s)> – define source items switchByClick – move items with one click showButtonsLabel – to display labels or not listsHeight , sourceListWidth , targetListWidth Resizing copyAllControlLabel , copyControlLabel , removeControlLabel , removeAllControlLabel Labels definition

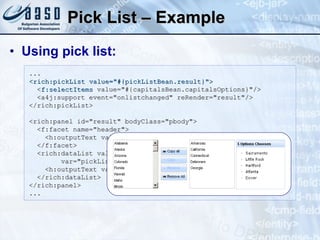

Pick List – Example Using pick list: ... <rich:pickList value=&quot;#{pickListBean.result}&quot;> < f:selectItems  value=&quot;#{capitalsBean.capitalsOptions}&quot;/>   <a4j:support event=&quot;onlistchanged&quot; reRender=&quot;result&quot;/> </rich:pickList>          <rich:panel id=&quot;result&quot; bodyClass=&quot;pbody&quot;> <f:facet name=&quot;header&quot;>    <h:outputText value=&quot;#{pickListBean.items} Options Choosen&quot; / >   </f:facet>   <rich:dataList value=&quot;#{pickListBean.result}&quot;  var=&quot;pickList&quot; rendered=&quot;#{pickListBean.items>0}&quot;>     <h:outputText value=&quot;#{pickList}&quot;/>   </rich:dataList>  </rich:panel> ...
Data Iteration

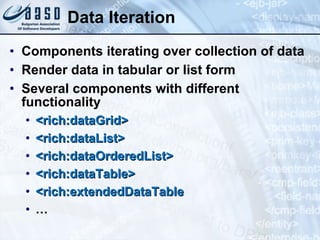

Data Iteration Components iterating over collection of data Render data in tabular or list form Several components with different functionality <rich:dataGrid> <rich:dataList> <rich:dataOrderedList> <rich:dataTable> <rich:extendedDataTable …

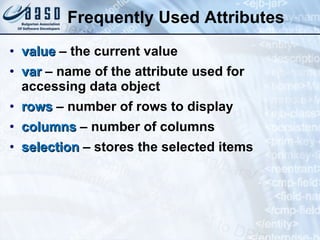

Frequently Used Attributes value – the current value var – name of the attribute used for accessing data object rows – number of rows to display columns – number of columns selection – stores the selected items

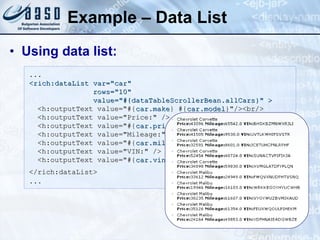

Example – Data List Using data list: ... <rich:dataList var=&quot;car&quot;  rows=&quot;10&quot; value=&quot;#{dataTableScrollerBean.allCars}&quot; > <h:outputText value=&quot;#{ car.make } #{ car.model }&quot;/><br/>   <h:outputText value=&quot;Price:&quot; />   <h:outputText value=&quot;#{ car.price } &quot; />   <h:outputText value=&quot;Mileage:&quot;/>   <h:outputText value=&quot;#{ car.mileage } &quot; />   <h:outputText value=&quot;VIN:&quot; />    <h:outputText value=&quot;#{ car.vin }&quot; /> </rich:dataList> ...

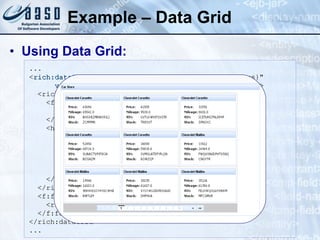

Example – Data Grid Using Data Grid: ... < rich:dataGrid   value =&quot;#{dataTableScrollerBean.allCars}&quot;  var=&quot;car&quot;   columns =&quot;3&quot;  elements =&quot;9&quot;  width =&quot;600px&quot;> <rich:panel bodyClass=&quot;pbody&quot;>    <f:facet name=&quot;header&quot;>      <h:outputText value=&quot;#{car.make} #{car.model}&quot; />     </f:facet>     <h:panelGrid columns=&quot;2&quot;>      <h:outputText value=&quot;Price:&quot; />       <h:outputText value=&quot;#{ car.price }&quot; />       <h:outputText value=&quot;Mileage:&quot; />       <h:outputText value=&quot;#{ car.mileage }&quot; /> ...      </h:panelGrid>   </rich:panel>   <f:facet name=&quot;footer&quot;>    <rich:datascroller></rich:datascroller>   </f:facet> </rich:dataGrid> ...

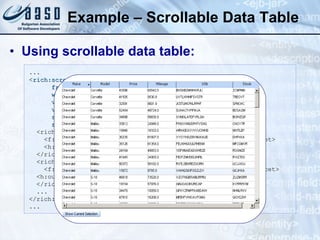

Example – Scrollable Data Table Using scrollable data table: ... < rich:scrollableDataTable   rowKeyVar =&quot;rkv&quot;  frozenColCount =&quot;1&quot;  height =&quot;400px&quot;         width =&quot;700px&quot;  id =&quot;carList&quot;  rows =&quot;40&quot;  columnClasses =&quot;col&quot;        value =&quot;#{dataTableScrollerBean.allCars}&quot; var =&quot;category&quot; sortMode=&quot;single&quot;        sortOrder =&quot;#{dataTableScrollerBean.order}&quot;        selection =&quot;#{dataTableScrollerBean.selection}&quot;> <rich:column id=&quot;make&quot;>    <f:facet name=&quot;header&quot;><h:outputText value=&quot;Make&quot; /></f:facet>     <h:outputText value=&quot;#{category.make}&quot; />   </rich:column>   <rich:column id=&quot;model&quot;>    <f:facet name=&quot;header&quot;><h:outputText value=&quot;Model&quot; /></f:facet>   <h:outputText value=&quot;#{category.model}&quot; />   </rich:column> ... </rich:scrollableDataTable>          ...
Ajax Validators

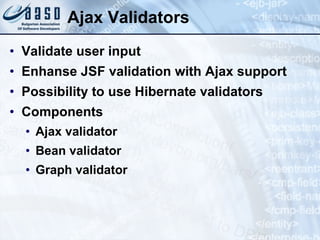

Ajax Validators Validate user input Enhanse JSF validation with Ajax support Possibility to use Hibernate validators Components Ajax validator Bean validator Graph validator

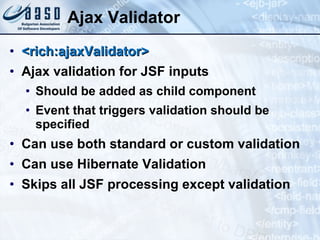

Ajax Validator <rich:ajaxValidator> Ajax validation for JSF inputs Should be added as child component Event that triggers validation should be specified Can use both standard or custom validation Can use Hibernate Validation Skips all JSF processing except validation

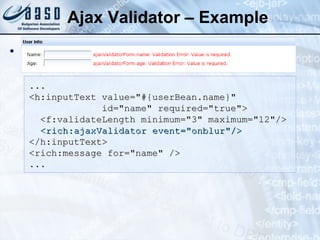

Ajax Validator – Example Using Ajax validator: ... <h:inputText value=&quot;#{userBean.name}&quot;  id=&quot;name&quot; required=&quot;true&quot;> <f:validateLength minimum=&quot;3&quot; maximum=&quot;12&quot;/>    <rich:ajaxValidator event=&quot;onblur&quot;/> </h:inputText> <rich:message for=&quot;name&quot; /> ...

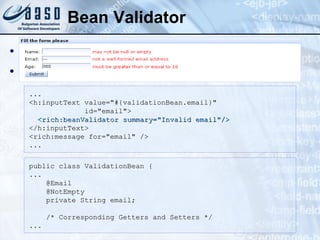

Bean Validator <rich:beanValidator> Validation using Hibernate constraints: ... <h:inputText value=&quot;#{validationBean.email}&quot;  id=&quot;email&quot;> <rich:beanValidator summary=&quot;Invalid email&quot;/> </h:inputText> <rich:message for=&quot;email&quot; /> ... public class ValidationBean { ...      @Email     @NotEmpty     private String email;      /* Corresponding Getters and Setters */ ...

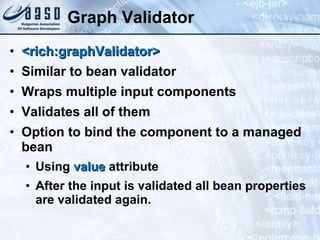

Graph Validator <rich:graphValidator> Similar to bean validator Wraps multiple input components Validates all of them Option to bind the component to a managed bean Using value attribute After the input is validated all bean properties are validated again.

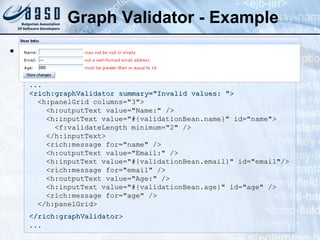

Graph Validator - Example Using graph validator: ... <rich:graphValidator summary=&quot;Invalid values: &quot;> <h:panelGrid columns=&quot;3&quot;>    <h:outputText value=&quot;Name:&quot; />    <h:inputText value=&quot;#{validationBean.name}&quot; id=&quot;name&quot;>      <f:validateLength minimum=&quot;2&quot; />     </h:inputText>     <rich:message for=&quot;name&quot; />     <h:outputText value=&quot;Email:&quot; />     <h:inputText value=&quot;#{validationBean.email}&quot; id=&quot;email&quot;/>     <rich:message for=&quot;email&quot; />     <h:outputText value=&quot;Age:&quot; />     <h:inputText value=&quot;#{validationBean.age}&quot; id=&quot;age&quot; />     <rich:message for=&quot;age&quot; />   </h:panelGrid> </rich:graphValidator> ...

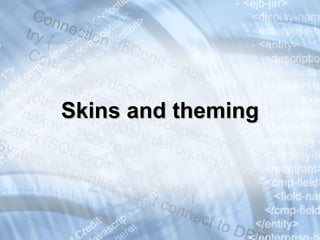

Skins and theming

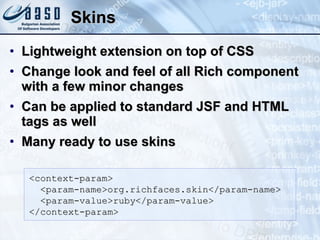

Skins Lightweight extension on top of CSS Change look and feel of all Rich component with a few minor changes Can be applied to standard JSF and HTML tags as well Many ready to use skins <context-param> <param-name>org.richfaces.skin</param-name> <param-value>ruby</param-value> </context-param>

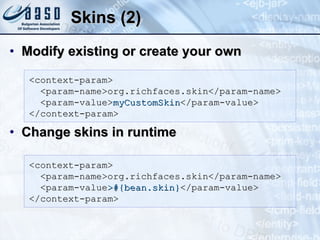

Skins (2) Modify existing or create your own Change skins in runtime <context-param> <param-name>org.richfaces.skin</param-name> <param-value> myCustomSkin </param-value> </context-param> <context-param> <param-name>org.richfaces.skin</param-name> <param-value >#{bean.skin} </param-value> </context-param>

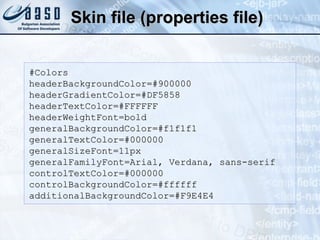

Skin file (properties file) #Colors headerBackgroundColor=#900000 headerGradientColor=#DF5858 headerTextColor=#FFFFFF headerWeightFont=bold generalBackgroundColor=#f1f1f1 generalTextColor=#000000 generalSizeFont=11px generalFamilyFont=Arial, Verdana, sans-serif controlTextColor=#000000 controlBackgroundColor=#ffffff additionalBackgroundColor=#F9E4E4
Creating a Custom Skin Define a skin property file You can use existing skin as a base File name should be in the format <skinName>.skin.properties Place it in the project's source directory Set the skin parameter in web.xml

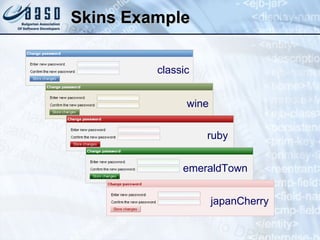

Skins Example classic wine ruby japanCherry emeraldTown

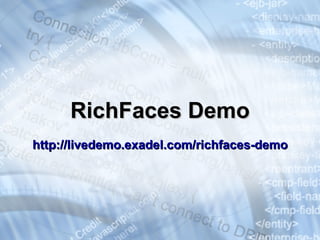

RichFaces Demo http://livedemo.exadel.com/richfaces-demo

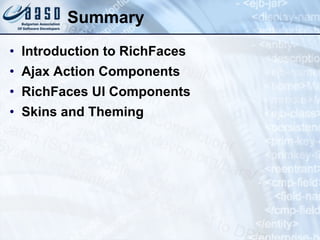

Summary Introduction to RichFaces Ajax Action Components RichFaces UI Components Skins and Theming
Questions ?

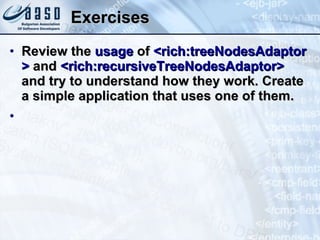

Exercises Review the usage of < rich:treeNodesAdaptor > and < rich:recursiveTreeNodesAdaptor > and try to understand how they work. Create a simple application that uses one of them.
References RichFaces 4.0 Developer Guide - http://www.jboss.org/richfaces/docs/4-0_guide RichFaces 3.3 Developer Guide - http://docs.jboss.org/richfaces/latest_3_3_X/en/devguide/html/ DZone Refcardz - JBoss RichFaces - http://refcardz.com/ RichFaces Live Demo http://livedemo.exadel.com/richfaces-demo
