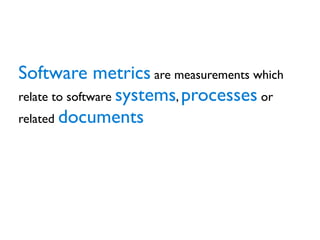

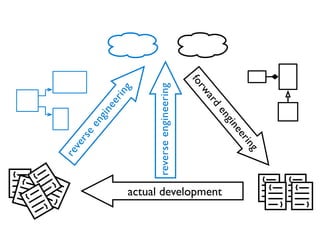

9. Software metrics are measurements which
relate to software systems, processes or
related documents

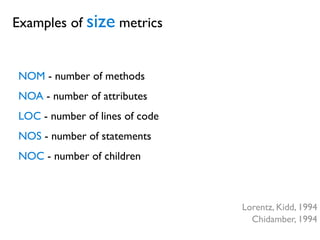

10. Examples of size metrics
NOM - number of methods
NOA - number of attributes
LOC - number of lines of code
NOS - number of statements
NOC - number of children
Lorentz, Kidd, 1994
Chidamber, 1994

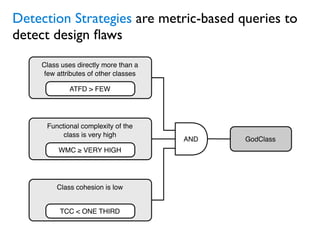

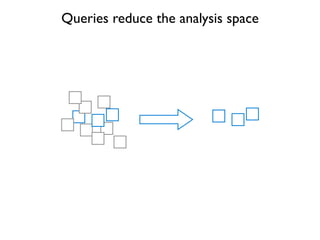

17. Detection Strategies are metric-based queries to
detect design flaws
Class uses directly more than a
few attributes of other classes
ATFD > FEW
Functional complexity of the
class is very high
AND GodClass
WMC ! VERY HIGH
Class cohesion is low
TCC < ONE THIRD

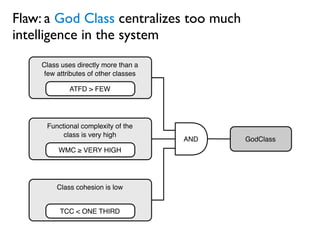

18. Flaw: a God Class centralizes too much
intelligence in the system
Class uses directly more than a
few attributes of other classes
ATFD > FEW
Functional complexity of the
class is very high
AND GodClass
WMC ! VERY HIGH
Class cohesion is low
TCC < ONE THIRD

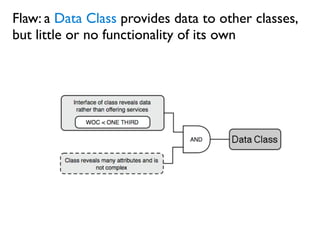

19. Flaw: a Data Class provides data to other classes,
but little or no functionality of its own

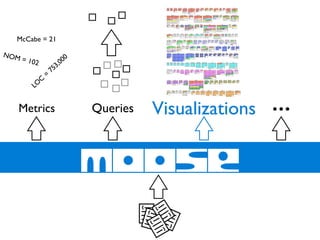

20. McCabe = 21
NOM 0
= 102
3 ,00
75
=
C
LO

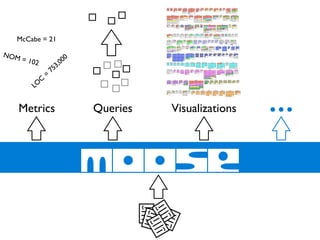

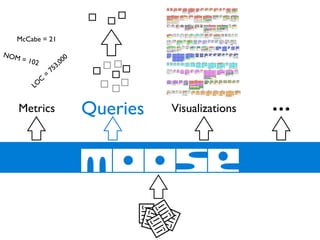

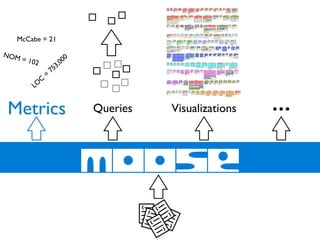

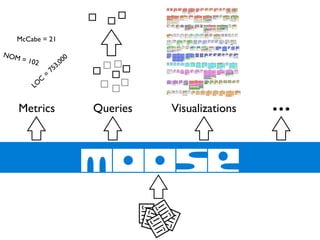

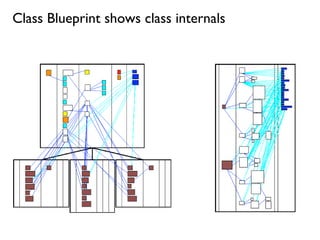

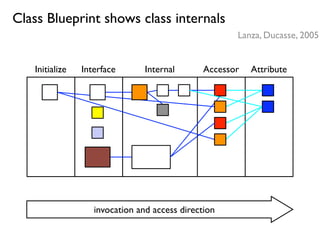

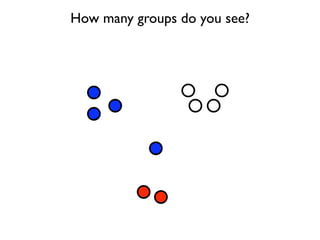

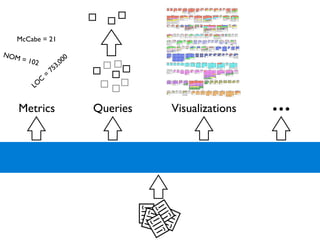

Metrics Queries Visualizations ...
{ {
{ {
}
}
}
} { }
21. McCabe = 21
NOM 0
= 102
3 ,00
75
=
C
LO
Metrics Queries Visualizations ...
{ {
{ {
}
}
}
} { }

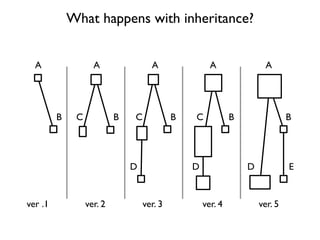

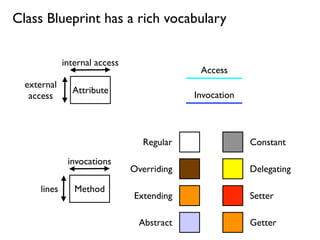

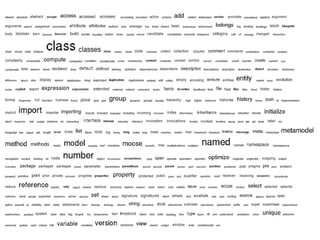

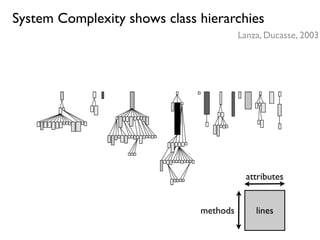

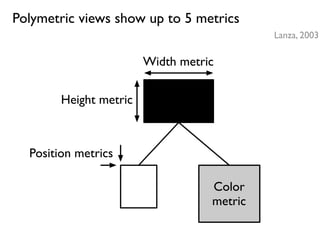

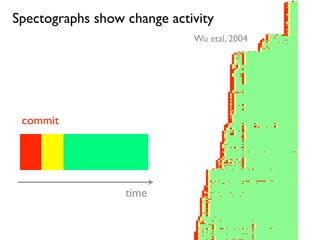

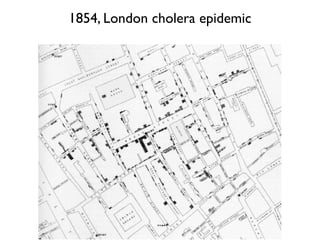

53. What happens with inheritance?
A A A A A
B C B C B C B B
D D D E
ver .1 ver. 2 ver. 3 ver. 4 ver. 5

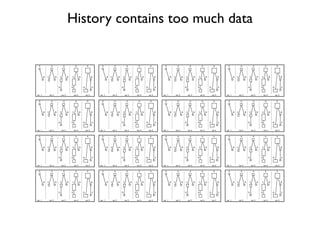

54. History contains too much data
A A A A A A A A A A A A A A A A A A A A
B C B C B C B B B C B C B C B B B C B C B C B B B C B C B C B B
D D D E D D D E D D D E D D D E
ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5
A A A A A A A A A A A A A A A A A A A A
B C B C B C B B B C B C B C B B B C B C B C B B B C B C B C B B
D D D E D D D E D D D E D D D E
ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5
A A A A A A A A A A A A A A A A A A A A
B C B C B C B B B C B C B C B B B C B C B C B B B C B C B C B B
D D D E D D D E D D D E D D D E
ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5
A A A A A A A A A A A A A A A A A A A A
B C B C B C B B B C B C B C B B B C B C B C B B B C B C B C B B
D D D E D D D E D D D E D D D E
ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5 ver .1 ver. 2 ver. 3 ver. 4 ver. 5
55. History contains too much data
A A A A A
B C B C B C B B
D D D E
ver .1 ver. 2 ver. 3 ver. 4 ver. 5
A is persistent, B is stable, C was removed, E is newborn ...

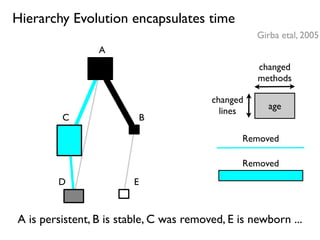

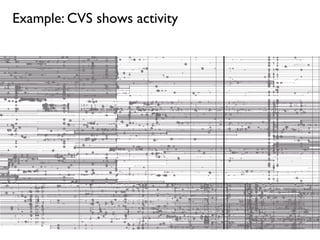

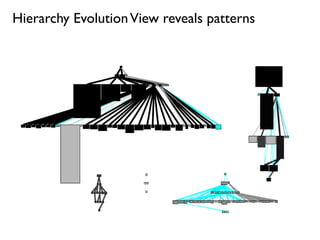

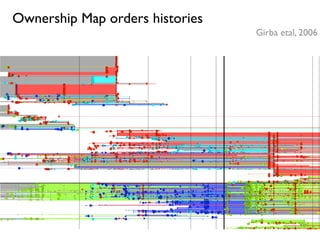

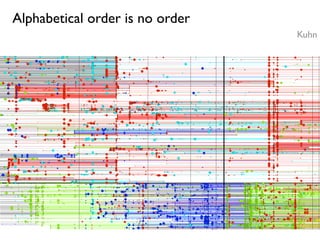

56. Hierarchy Evolution encapsulates time
Girba etal, 2005
A
changed
methods
changed
age
lines
C B
Removed
Removed
D E
A is persistent, B is stable, C was removed, E is newborn ...
