The document discusses reliability metrics for software systems, which assess the ability to perform intended functions without failure. Key metrics include Mean Time Between Failures (MTBF), failure rate, availability, Mean Time to Failure (MTTF), and Mean Time to Repair (MTTR), each providing insights into the reliability and stability of software. It outlines a process for developing and utilizing these metrics, including defining metrics, data collection, calculations, analysis, reporting, and continuous monitoring for improvement.

1. SQA
Reliability matrix

2. Reliability matrix
• Reliability metrics measure the ability of a software system to
perform its intended functions without failure over a specified period
of time. These metrics help assess the reliability and stability of the
software, identify areas for improvement, and make data-driven
decisions to enhance the software's reliability. Here are some
commonly used types of reliability metrics:

3. Reasons of using Reliability matrix
• 1. Mean Time Between Failures (MTBF): MTBF measures the average
time between two consecutive failures of the software system. It is
calculated by dividing the total operating time by the number of
failures. MTBF provides an estimate of the system's reliability and is
often used to predict the frequency of failures.
• 2. Failure Rate: Failure rate measures the number of failures that
occur per unit of time. It is usually expressed as failures per hour,
failures per million hours, or failures per billion instructions. Failure
rate helps in understanding the rate at which failures occur and can
be used to compare the reliability of different software systems.

4. Reasons of using Reliability matrix
• 3. Availability: Availability measures the proportion of time that the
software system is operational and able to perform its intended
functions. It is calculated by dividing the total uptime by the sum of
uptime and downtime. Availability metrics help assess the system's
ability to meet the expected service levels and minimize downtime.
• 4. Mean Time to Failure (MTTF): MTTF measures the average time
until the occurrence of the first failure. It is calculated by dividing the
total operating time by the number of failures. MTTF provides an
estimate of the system's reliability during normal operating
conditions.

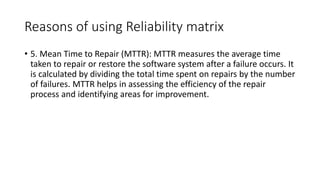

5. Reasons of using Reliability matrix
• 5. Mean Time to Repair (MTTR): MTTR measures the average time
taken to repair or restore the software system after a failure occurs. It
is calculated by dividing the total time spent on repairs by the number
of failures. MTTR helps in assessing the efficiency of the repair
process and identifying areas for improvement.

6. Process
• The process of reliability metrics involves the following steps:1. Define
Metrics: Determine the specific reliability metrics that are relevant to
your software system and align with your project goals. Identify the
metrics that will provide meaningful insights into the system's
reliability and meet the requirements of stakeholders.
• 2. Data Collection: Collect relevant data to calculate the reliability
metrics. This may include information on failures, uptime, downtime,
operating time, repair time, and other relevant parameters. Use
appropriate monitoring tools, logs, and reports to gather accurate
and reliable data.

7. Process
• 3. Calculation: Apply the appropriate formulas or calculations to
derive the values for each reliability metric. Use the collected data to
perform the calculations and ensure accuracy in the results.
• 4. Analysis and Interpretation: Analyze the calculated reliability
metrics to gain insights into the software system's reliability. Compare
the values against predefined targets or industry benchmarks to
understand the system's performance. Identify trends, patterns, or
areas of concern that require attention.

8. Process
• 5. Reporting and Communication: Prepare clear and concise reports
or dashboards to communicate the reliability metrics to stakeholders.
Present the findings, trends, and recommendations in a manner that
is easily understandable and actionable. Share the reports with
relevant teams and stakeholders to facilitate informed decision-
making and improvement efforts.
• 6. Continuous Monitoring and Improvement: Continuously monitor
and track the reliability metrics to identify changes or deviations over
time. Regularly assess the impact of improvement initiatives and track
the progress made in enhancing the software system's reliability.
Make adjustments to the metrics or measurement process as needed
to ensure ongoing relevance and accuracy.

9. • By implementing a robust process for reliability metrics, organizations
can gain insights into the software system's reliability, make informed
decisions, and drive continuous improvement efforts to enhance the
overall reliability and stability of the software.

10. Calculations
• The reliability metrics of software can be calculated using various
approaches. One commonly used metric is the Mean Time Between
Failures (MTBF), which represents the average time between two
consecutive failures. It can be calculated using the following
formula:MTBF = Total Operating Time / Number of FailuresAnother
commonly used metric is the Failure Rate (λ), which indicates the rate
at which failures occur. It can be calculated using the following
formula:λ = Number of Failures / Total Operating TimeBoth MTBF and
failure rate are commonly measured in hours. However, it's important
to note that these formulas provide a high-level overview and may
not capture the full complexity of software reliability. They are just
some of the many metrics used in the field.

11. Calculations
• To obtain accurate reliability metrics, it is recommended to track
software failures over a substantial period of time, collect data on the
total operating time, and continuously monitor and record any
failures that occur during that period.Additionally, other metrics such
as availability, mean time to failure (MTTF), mean time to repair
(MTTR), and others can also be used depending on the specific
context and requirements of the software.
