1. Block Diagram Reduction
Signal-Flow Graphs
Unit 4: Block Diagram Reduction
Engineering 5821:
Control Systems I
Faculty of Engineering & Applied Science
Memorial University of Newfoundland
February 15, 2010

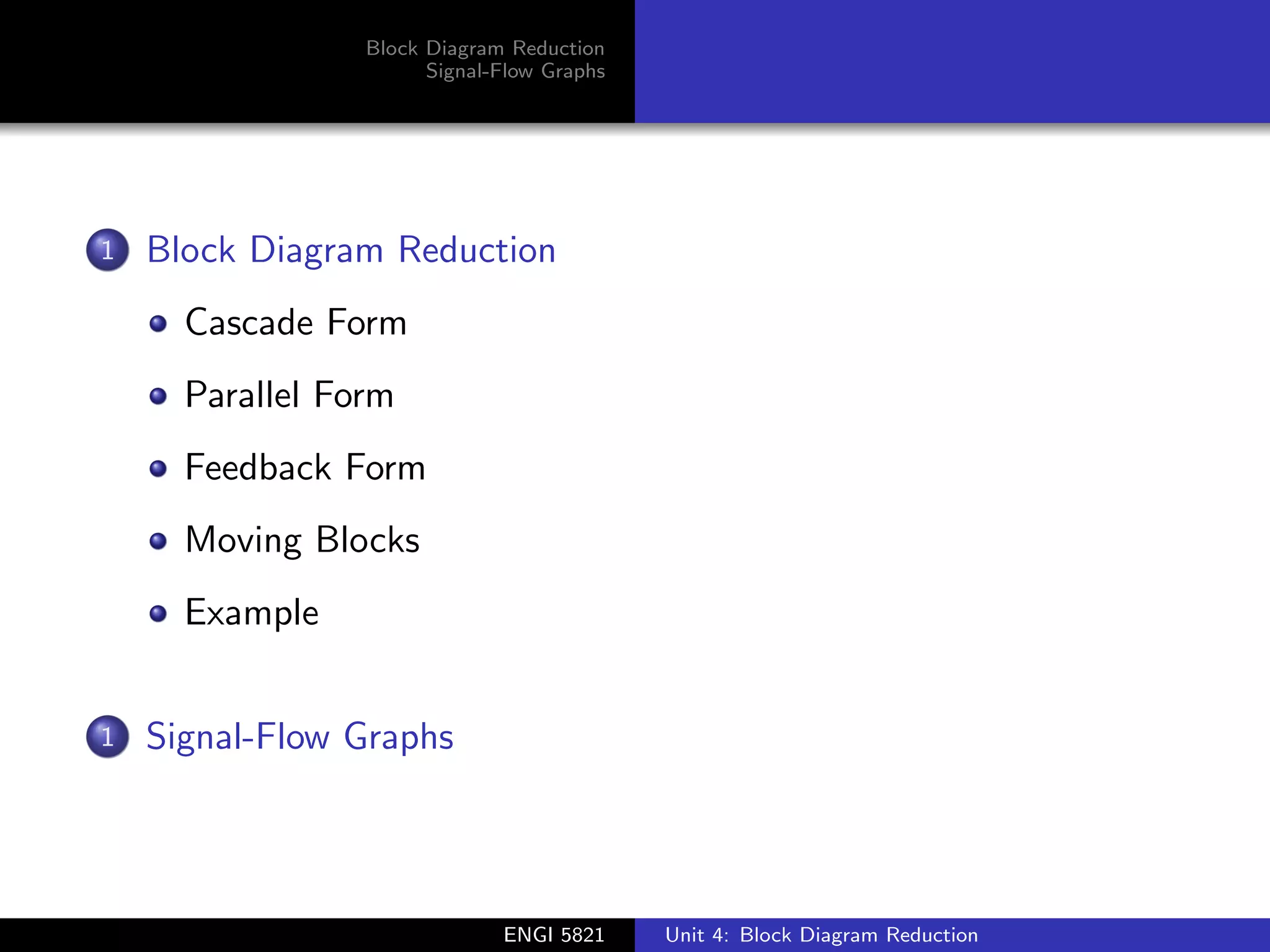

ENGI 5821 Unit 4: Block Diagram Reduction

2. Block Diagram Reduction
Signal-Flow Graphs
1 Block Diagram Reduction
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example
1 Signal-Flow Graphs
ENGI 5821 Unit 4: Block Diagram Reduction

3. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

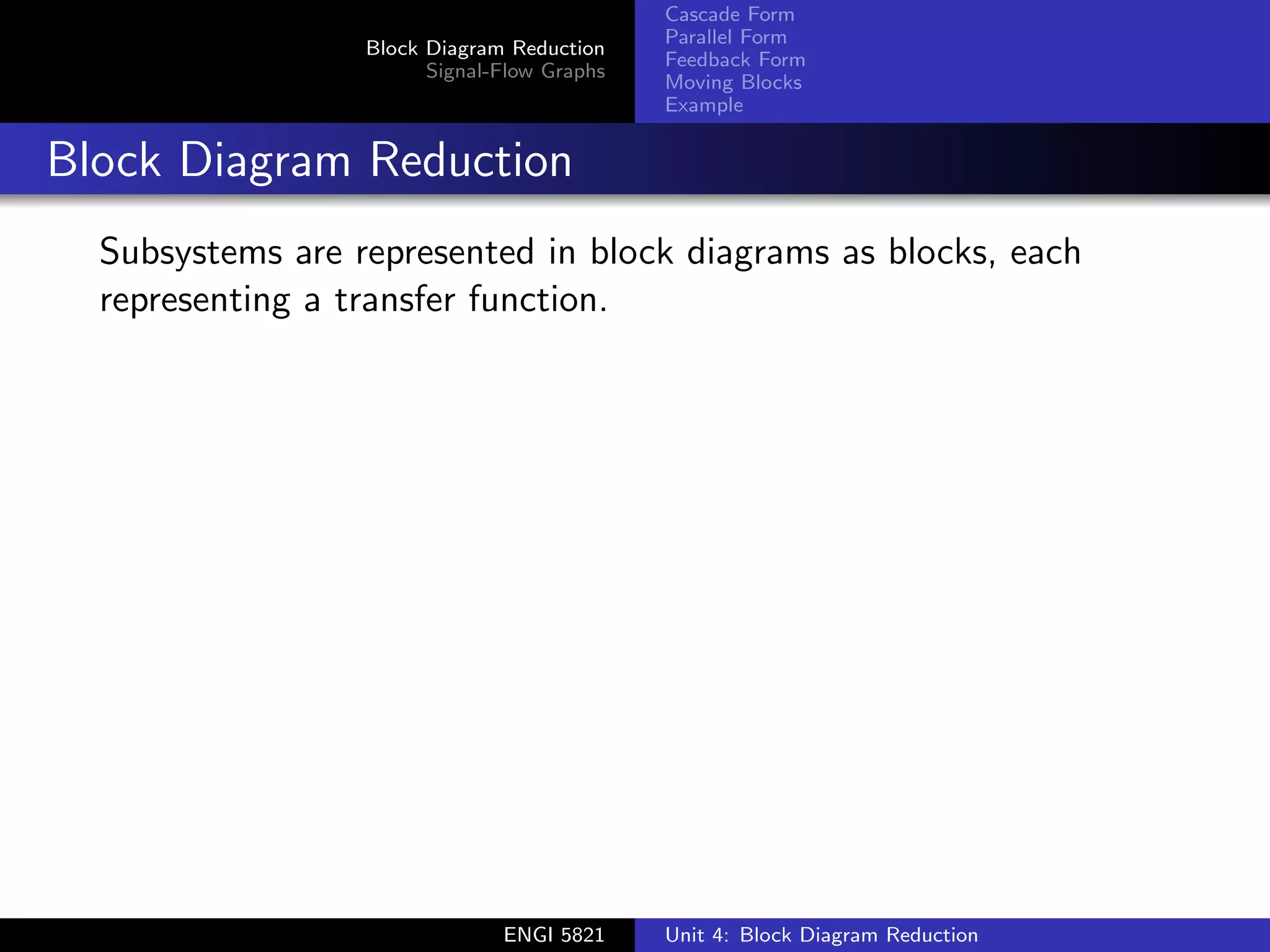

Block Diagram Reduction
Subsystems are represented in block diagrams as blocks, each
representing a transfer function.
ENGI 5821 Unit 4: Block Diagram Reduction

4. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

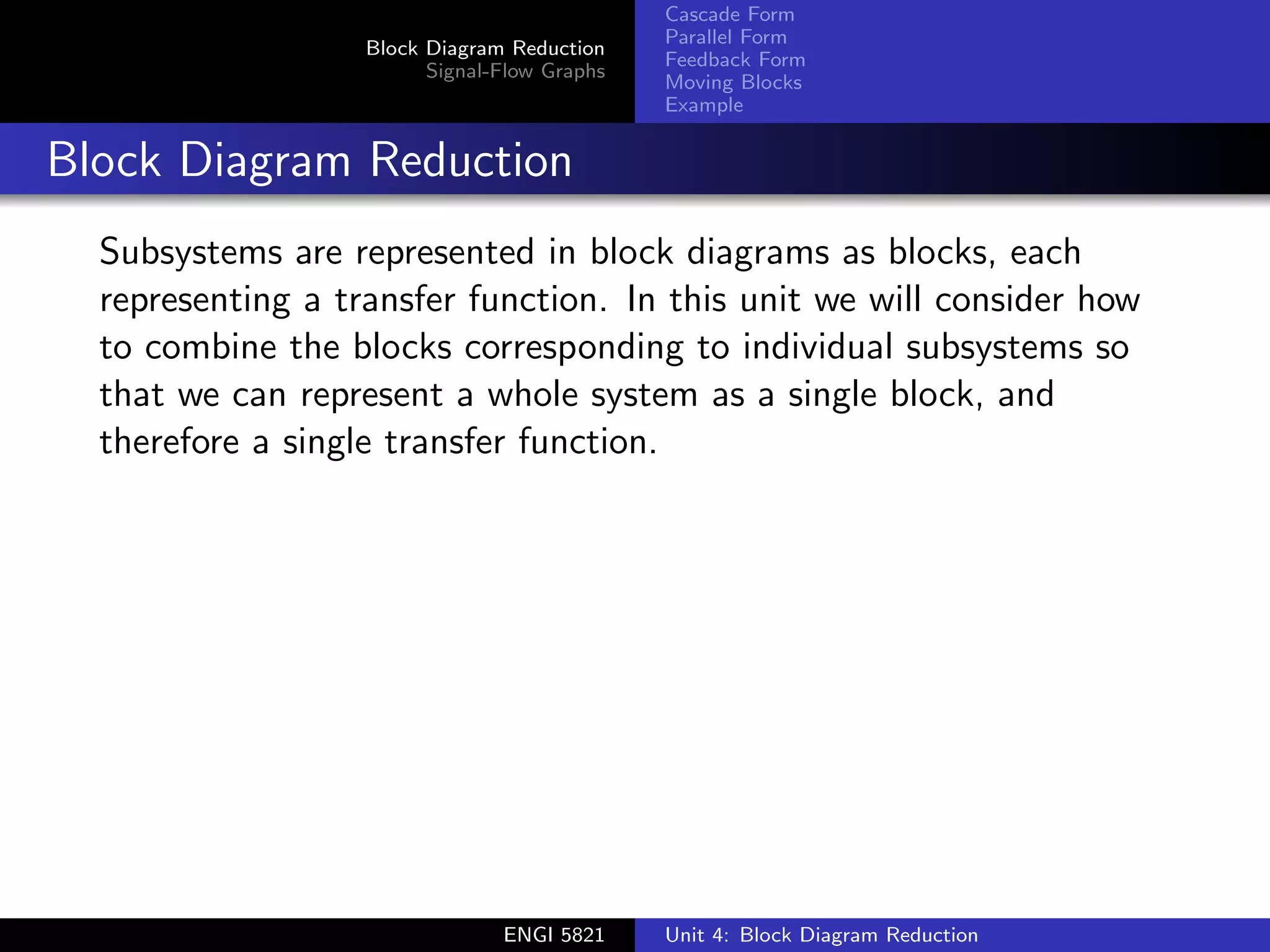

Block Diagram Reduction
Subsystems are represented in block diagrams as blocks, each
representing a transfer function. In this unit we will consider how
to combine the blocks corresponding to individual subsystems so
that we can represent a whole system as a single block, and
therefore a single transfer function.
ENGI 5821 Unit 4: Block Diagram Reduction

5. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

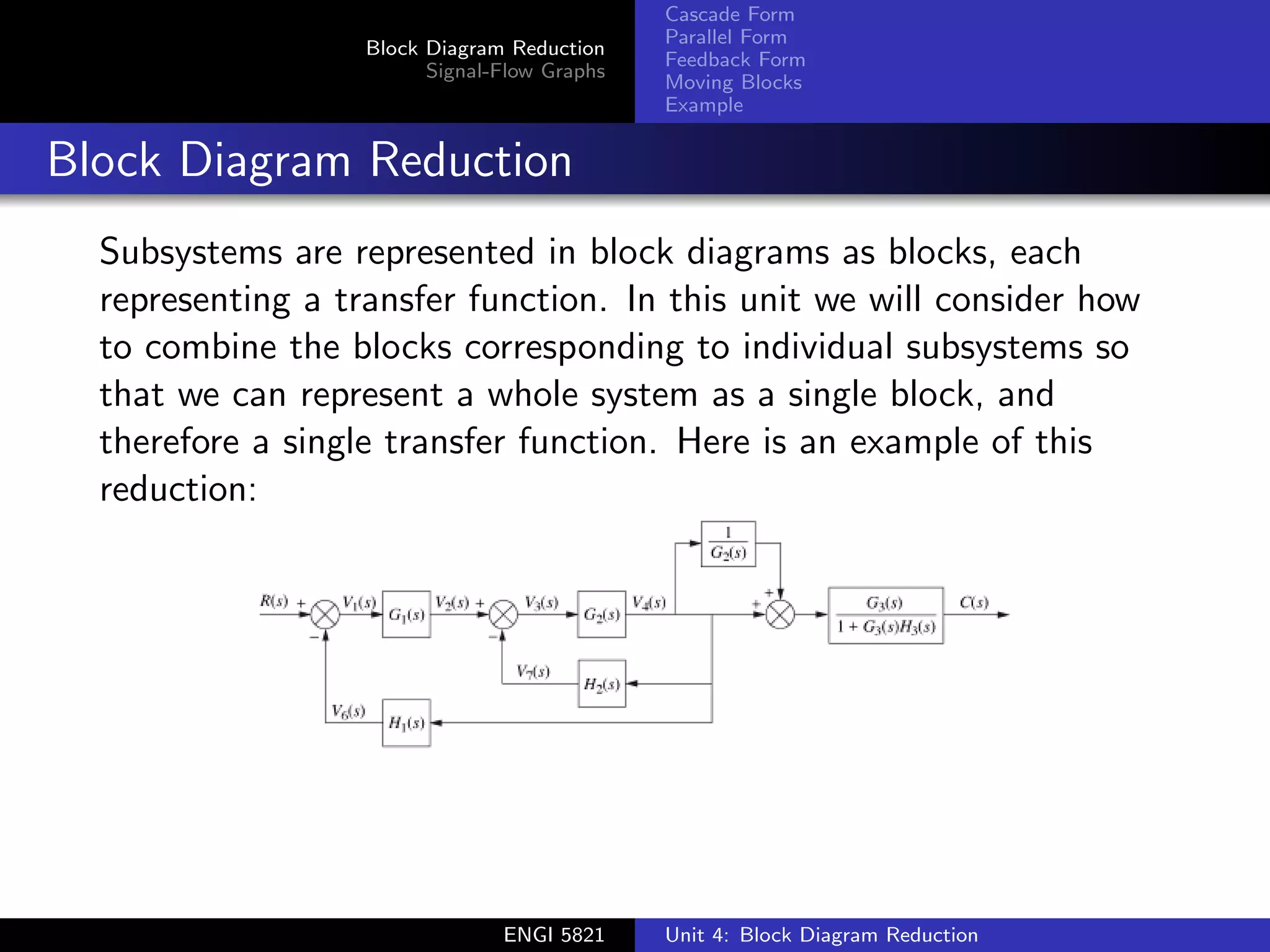

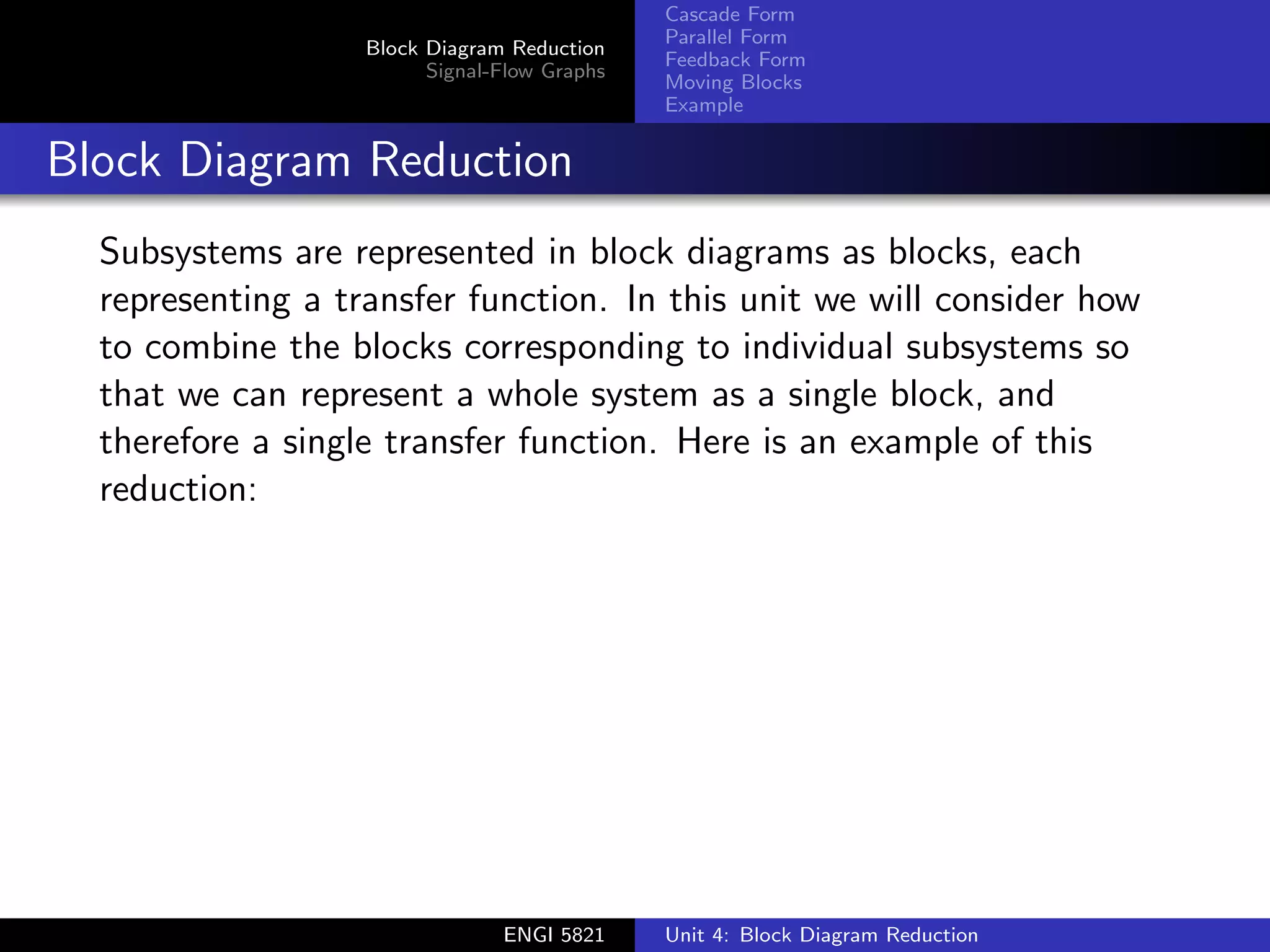

Block Diagram Reduction
Subsystems are represented in block diagrams as blocks, each
representing a transfer function. In this unit we will consider how
to combine the blocks corresponding to individual subsystems so
that we can represent a whole system as a single block, and
therefore a single transfer function. Here is an example of this
reduction:
ENGI 5821 Unit 4: Block Diagram Reduction

6. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example
Block Diagram Reduction
Subsystems are represented in block diagrams as blocks, each
representing a transfer function. In this unit we will consider how
to combine the blocks corresponding to individual subsystems so
that we can represent a whole system as a single block, and
therefore a single transfer function. Here is an example of this
reduction:
ENGI 5821 Unit 4: Block Diagram Reduction

7. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

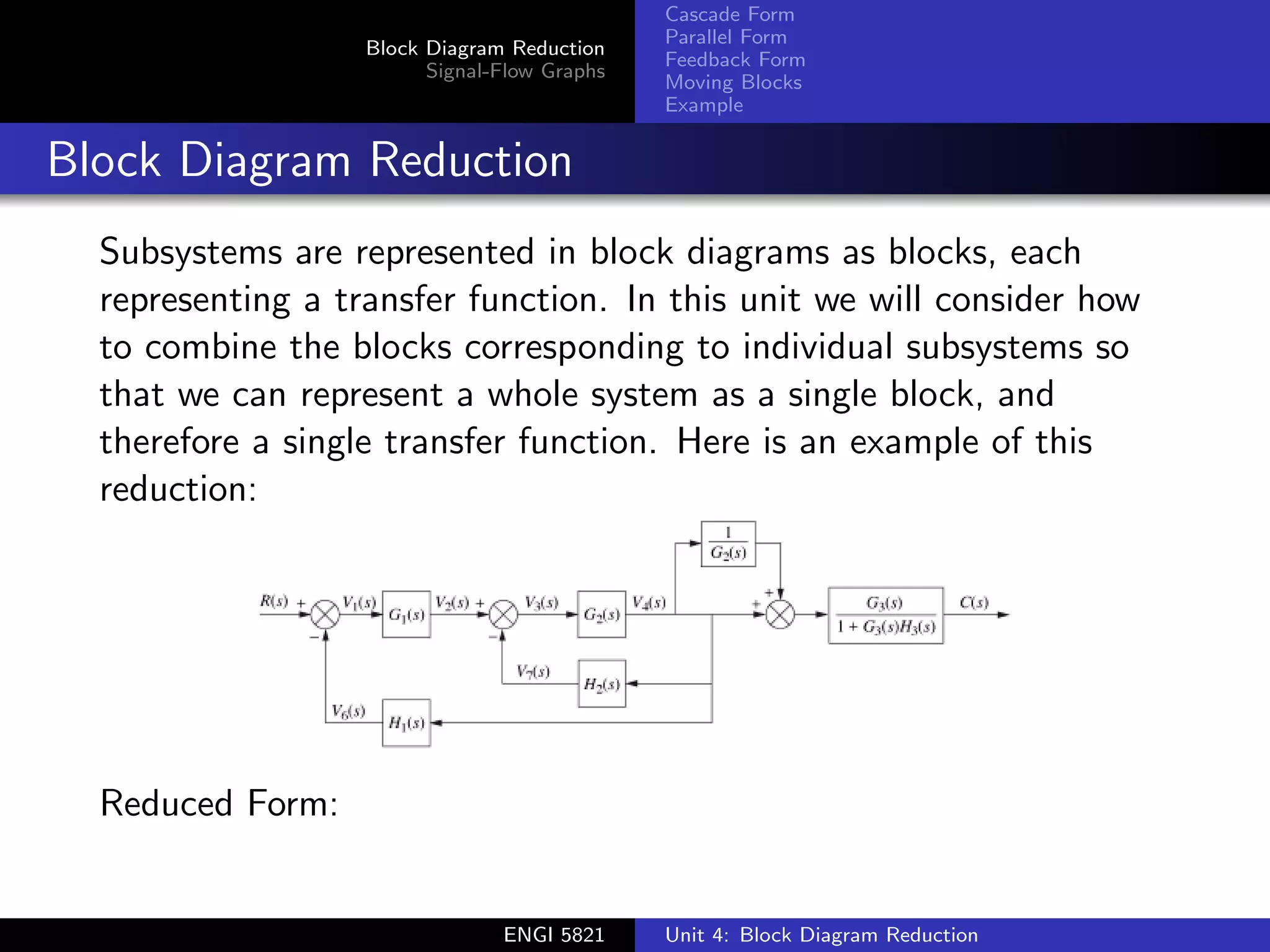

Block Diagram Reduction
Subsystems are represented in block diagrams as blocks, each
representing a transfer function. In this unit we will consider how
to combine the blocks corresponding to individual subsystems so
that we can represent a whole system as a single block, and
therefore a single transfer function. Here is an example of this
reduction:
Reduced Form:
ENGI 5821 Unit 4: Block Diagram Reduction

8. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

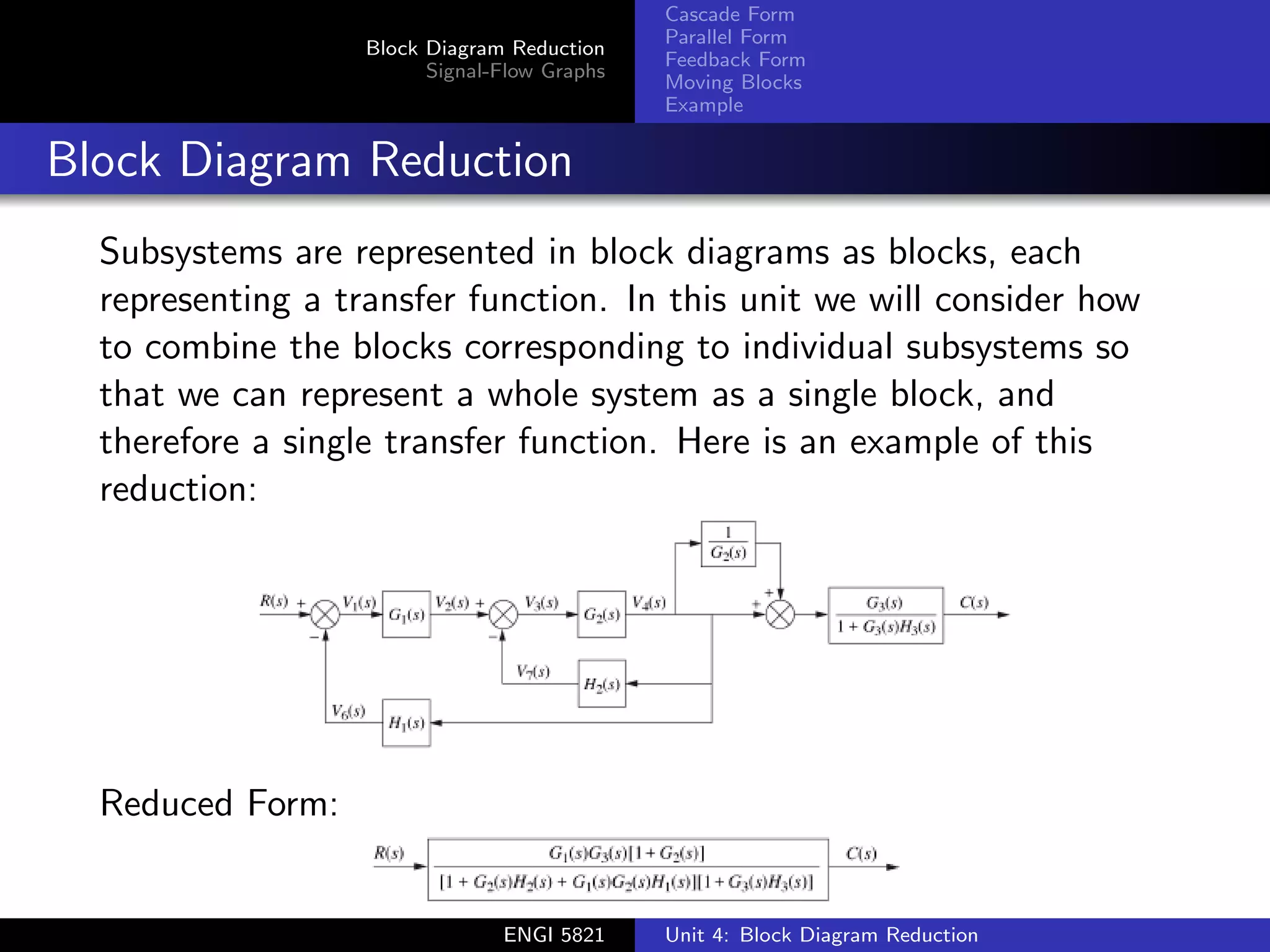

Block Diagram Reduction
Subsystems are represented in block diagrams as blocks, each
representing a transfer function. In this unit we will consider how
to combine the blocks corresponding to individual subsystems so
that we can represent a whole system as a single block, and
therefore a single transfer function. Here is an example of this
reduction:
Reduced Form:
ENGI 5821 Unit 4: Block Diagram Reduction

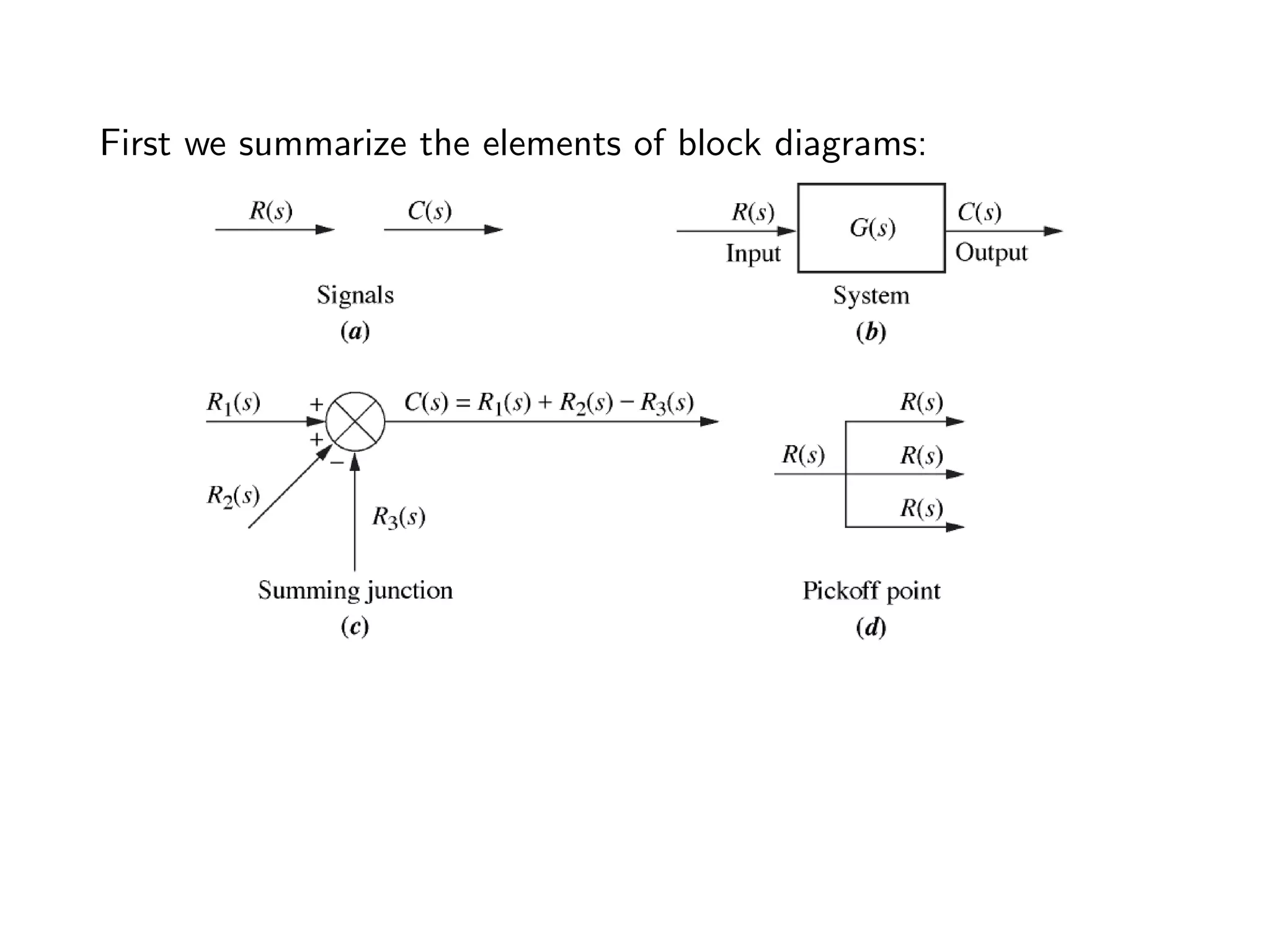

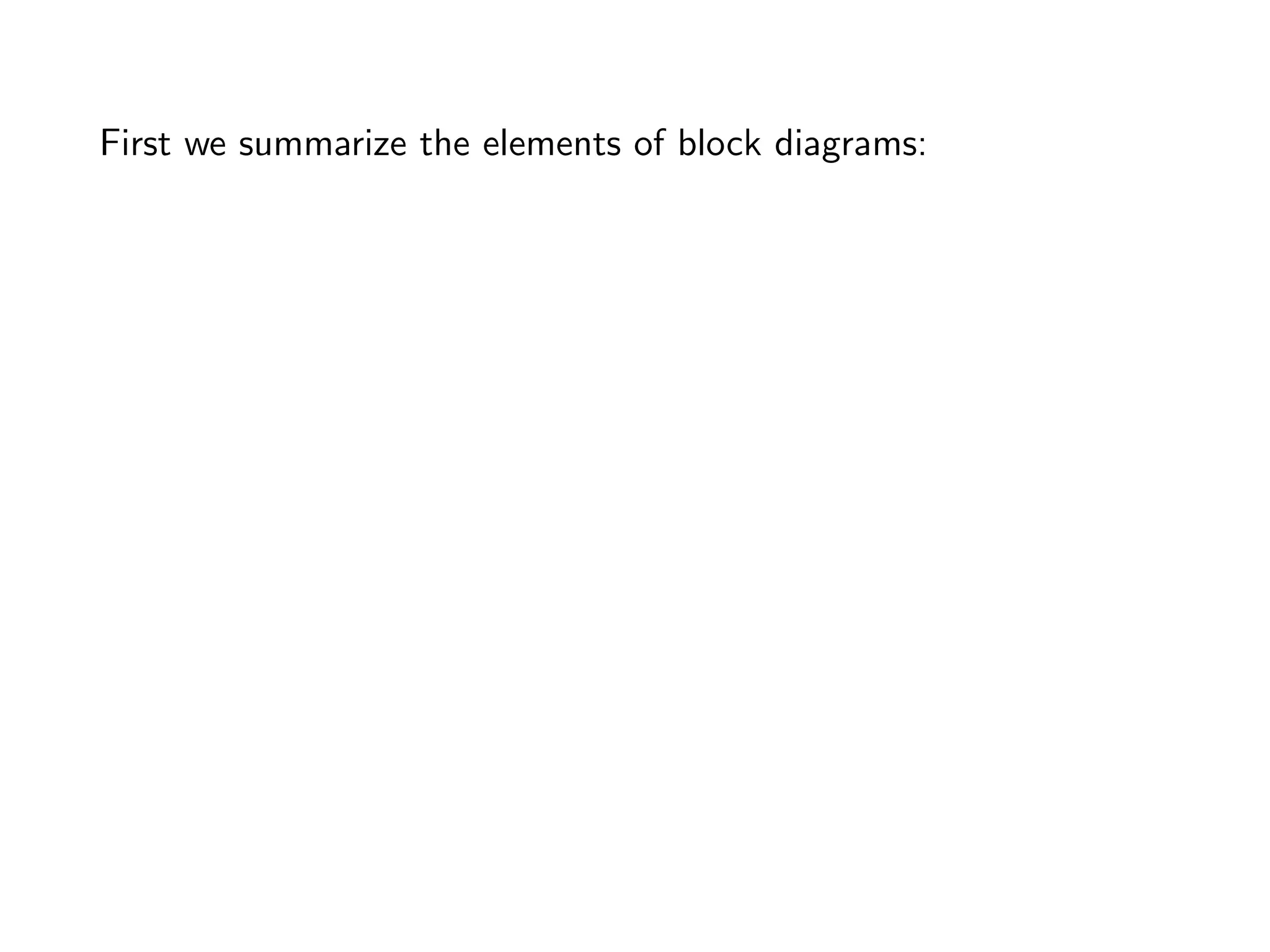

9. First we summarize the elements of block diagrams:

10. First we summarize the elements of block diagrams:

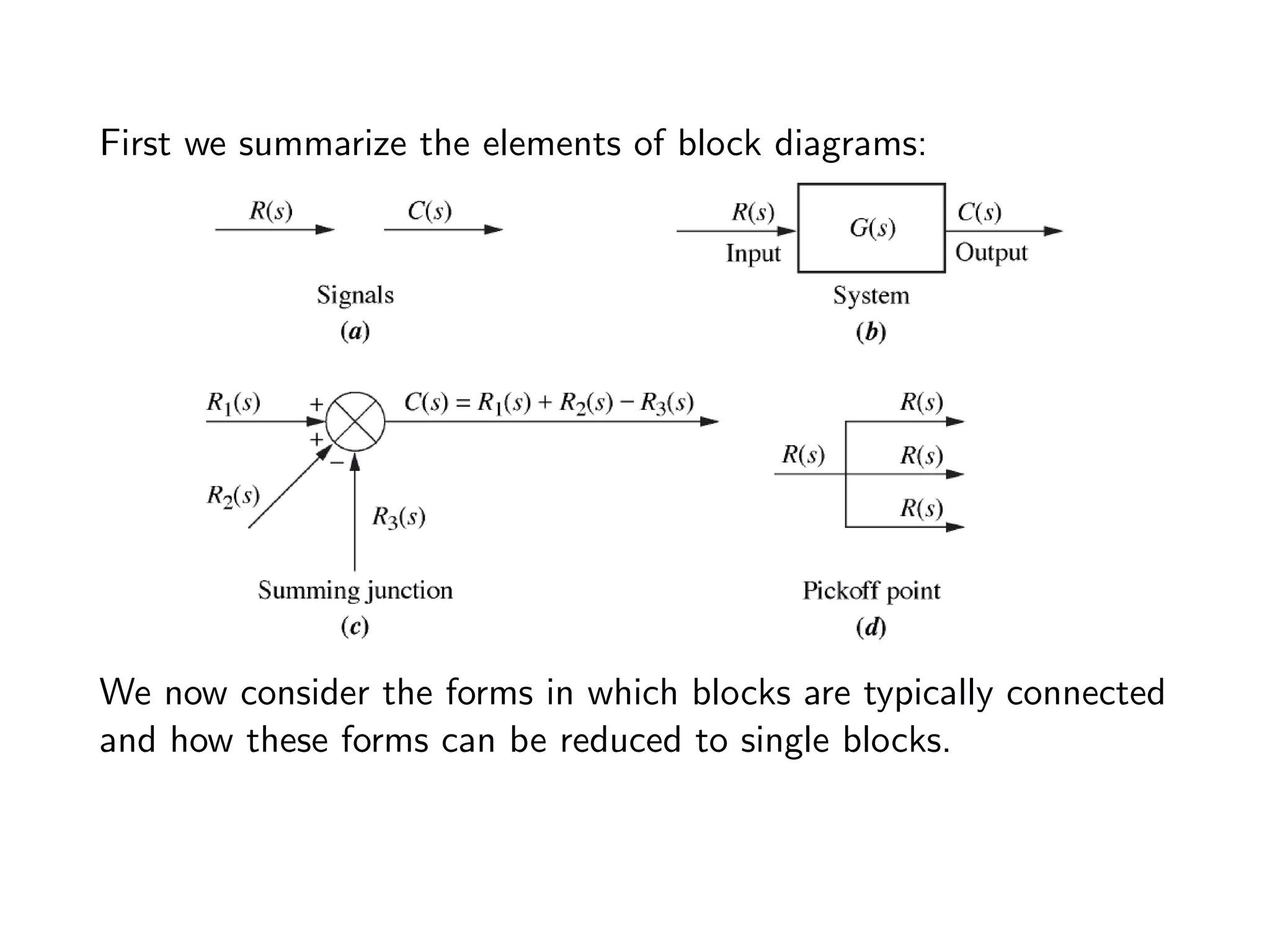

11. First we summarize the elements of block diagrams:
We now consider the forms in which blocks are typically connected
and how these forms can be reduced to single blocks.

12. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

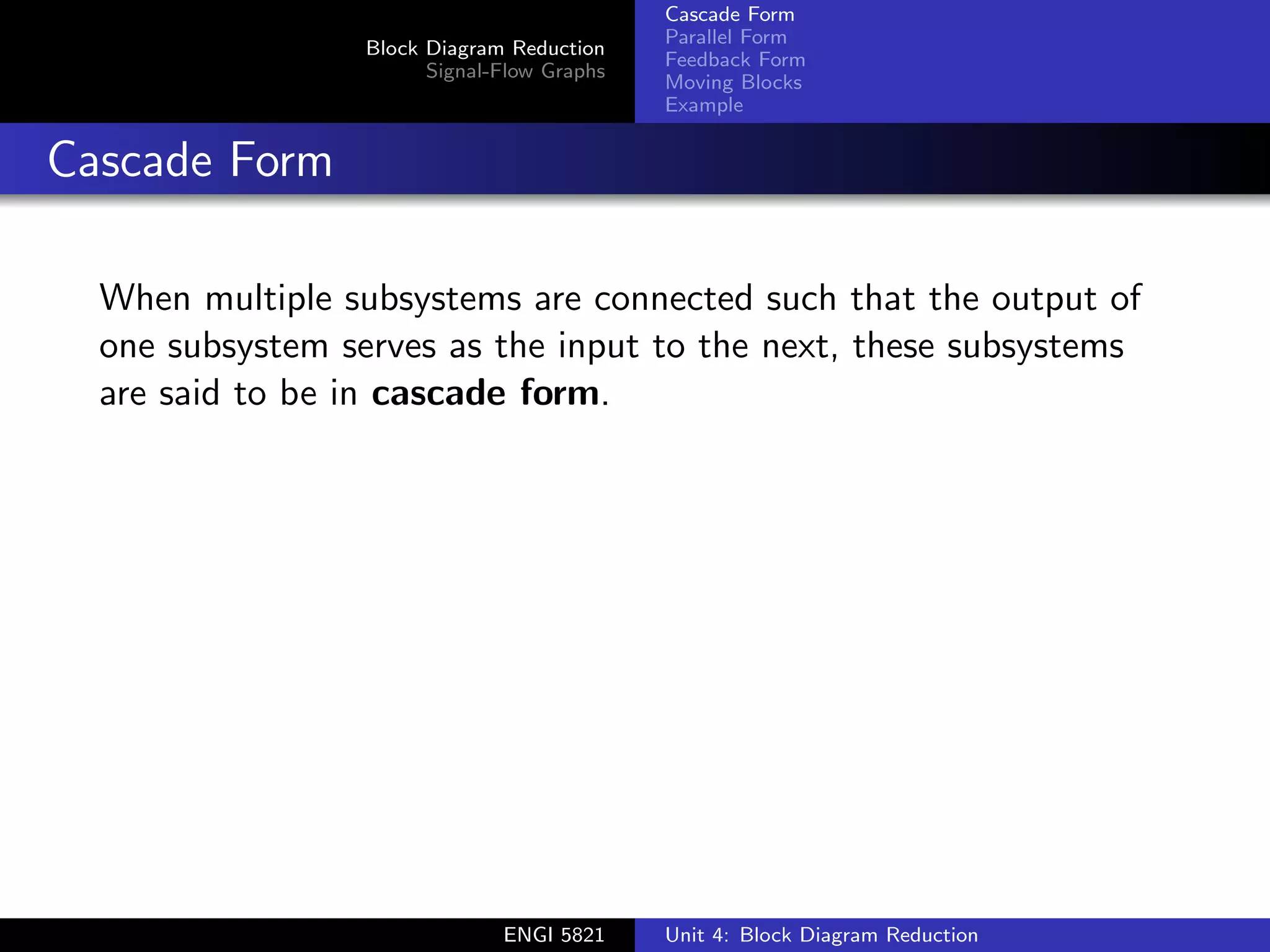

Cascade Form
When multiple subsystems are connected such that the output of
one subsystem serves as the input to the next, these subsystems
are said to be in cascade form.
ENGI 5821 Unit 4: Block Diagram Reduction

13. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example
Cascade Form
When multiple subsystems are connected such that the output of
one subsystem serves as the input to the next, these subsystems
are said to be in cascade form.
ENGI 5821 Unit 4: Block Diagram Reduction

14. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

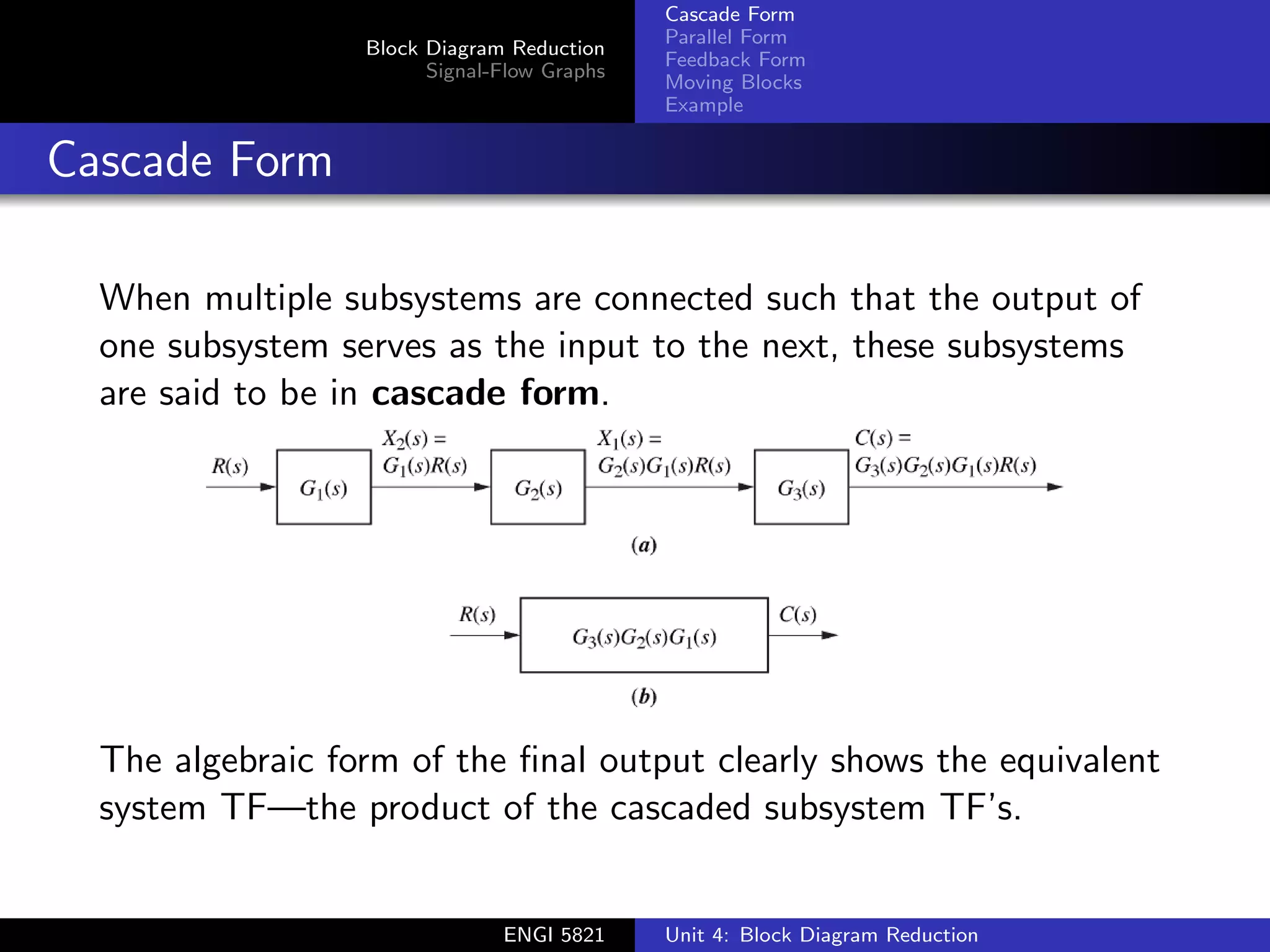

Cascade Form
When multiple subsystems are connected such that the output of
one subsystem serves as the input to the next, these subsystems
are said to be in cascade form.
The algebraic form of the final output clearly shows the equivalent
system TF—the product of the cascaded subsystem TF’s.
ENGI 5821 Unit 4: Block Diagram Reduction

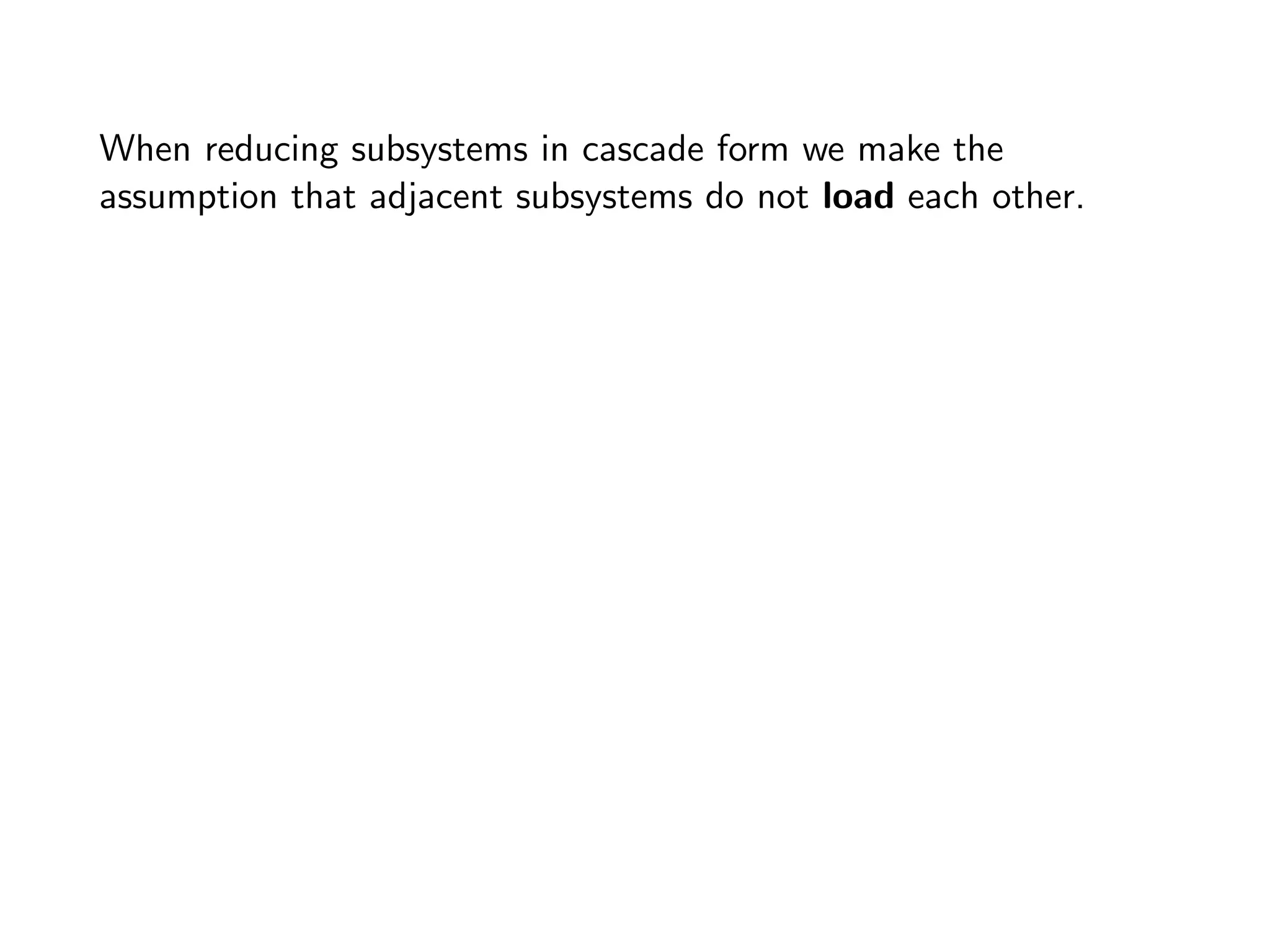

15. When reducing subsystems in cascade form we make the
assumption that adjacent subsystems do not load each other.

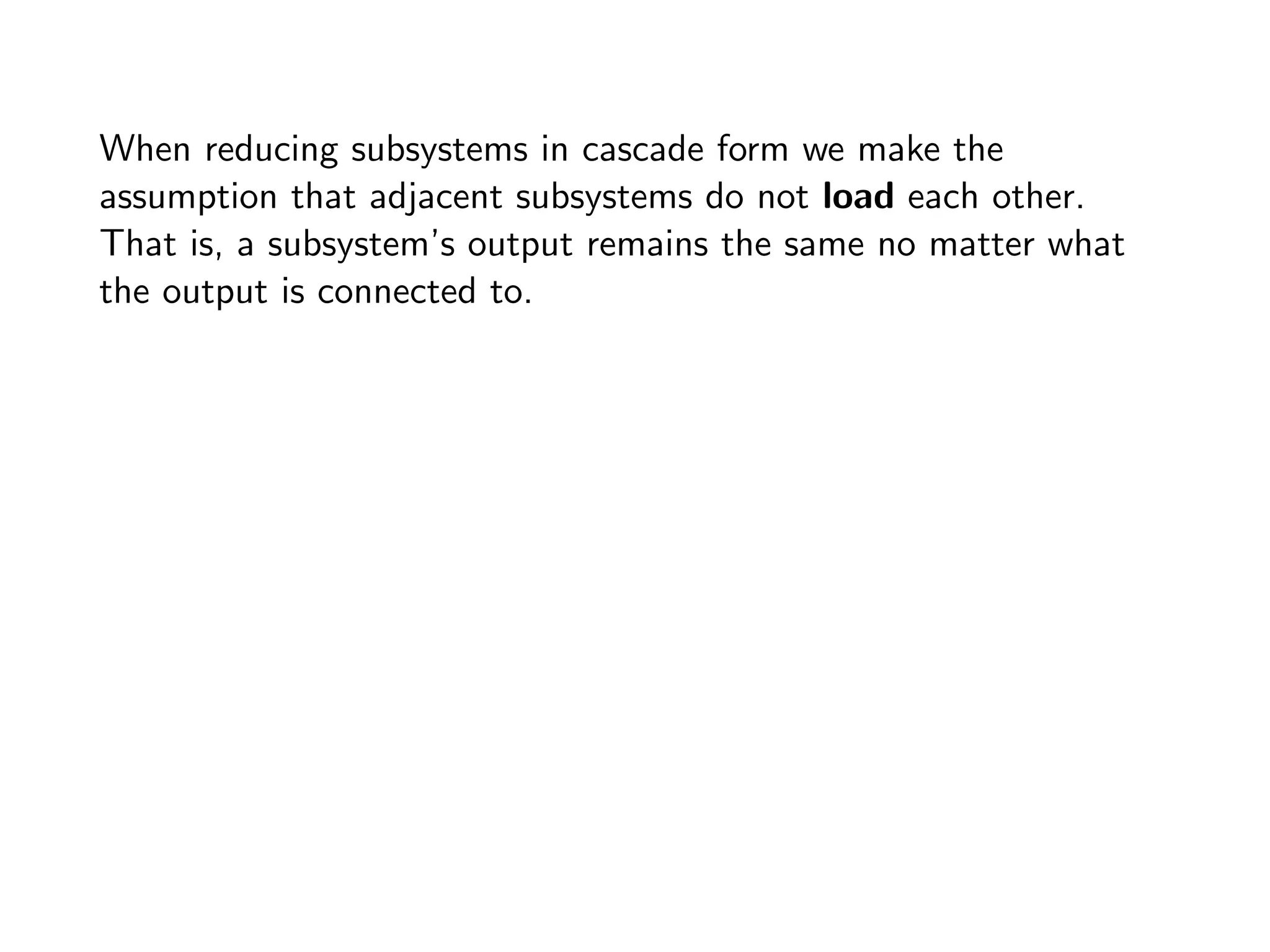

16. When reducing subsystems in cascade form we make the
assumption that adjacent subsystems do not load each other.
That is, a subsystem’s output remains the same no matter what
the output is connected to.

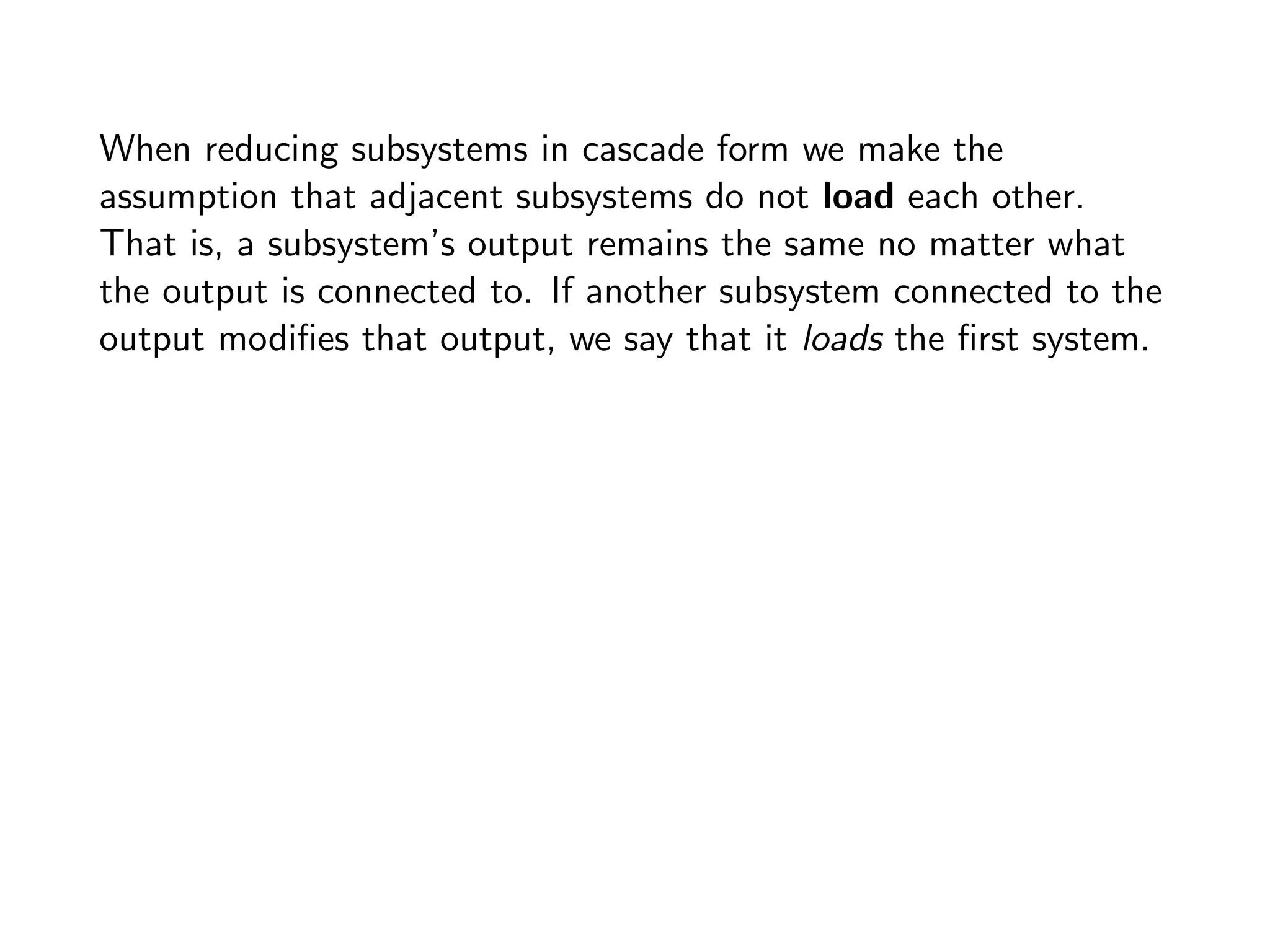

17. When reducing subsystems in cascade form we make the
assumption that adjacent subsystems do not load each other.
That is, a subsystem’s output remains the same no matter what
the output is connected to. If another subsystem connected to the
output modifies that output, we say that it loads the first system.

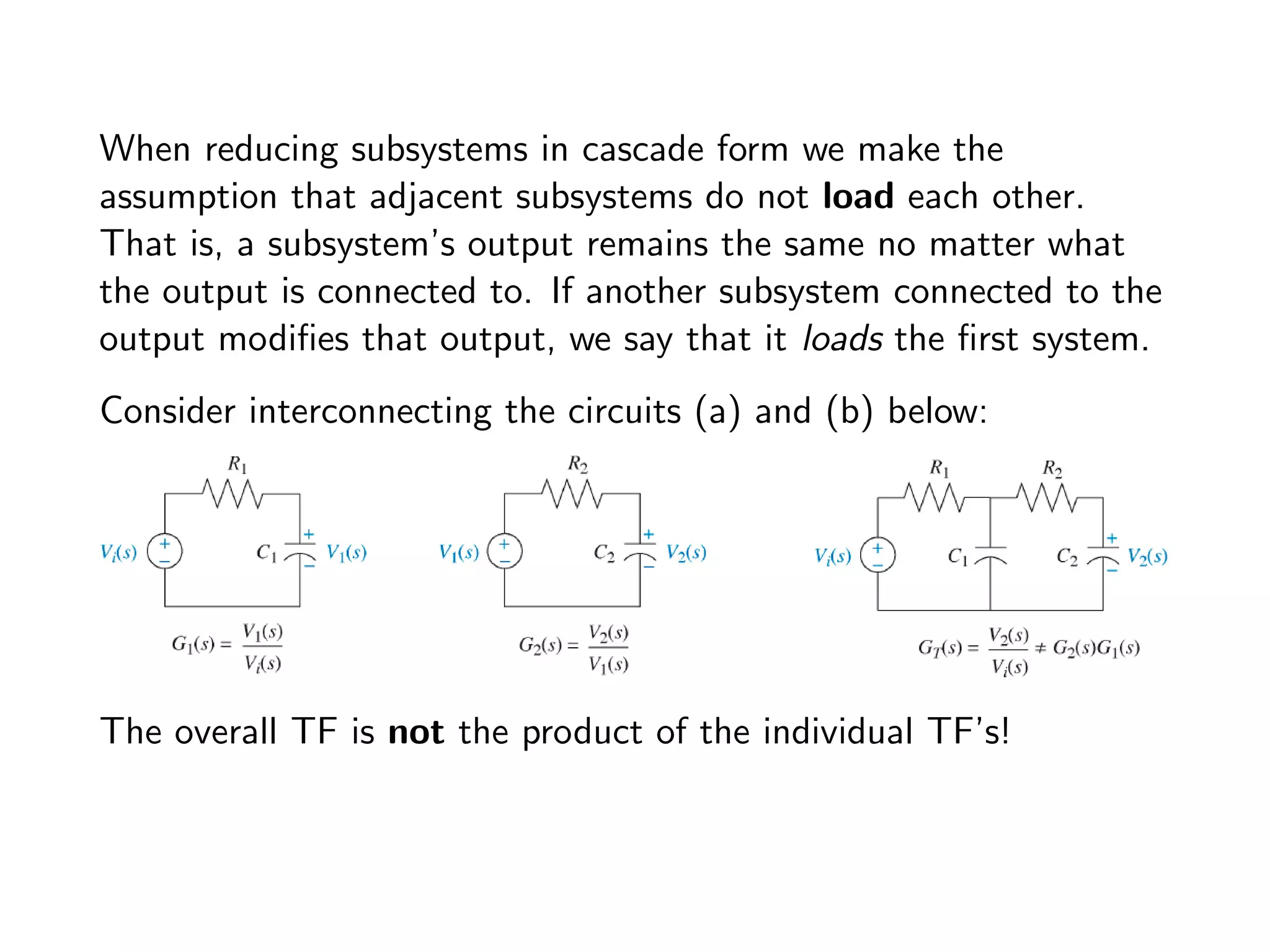

18. When reducing subsystems in cascade form we make the
assumption that adjacent subsystems do not load each other.
That is, a subsystem’s output remains the same no matter what
the output is connected to. If another subsystem connected to the
output modifies that output, we say that it loads the first system.

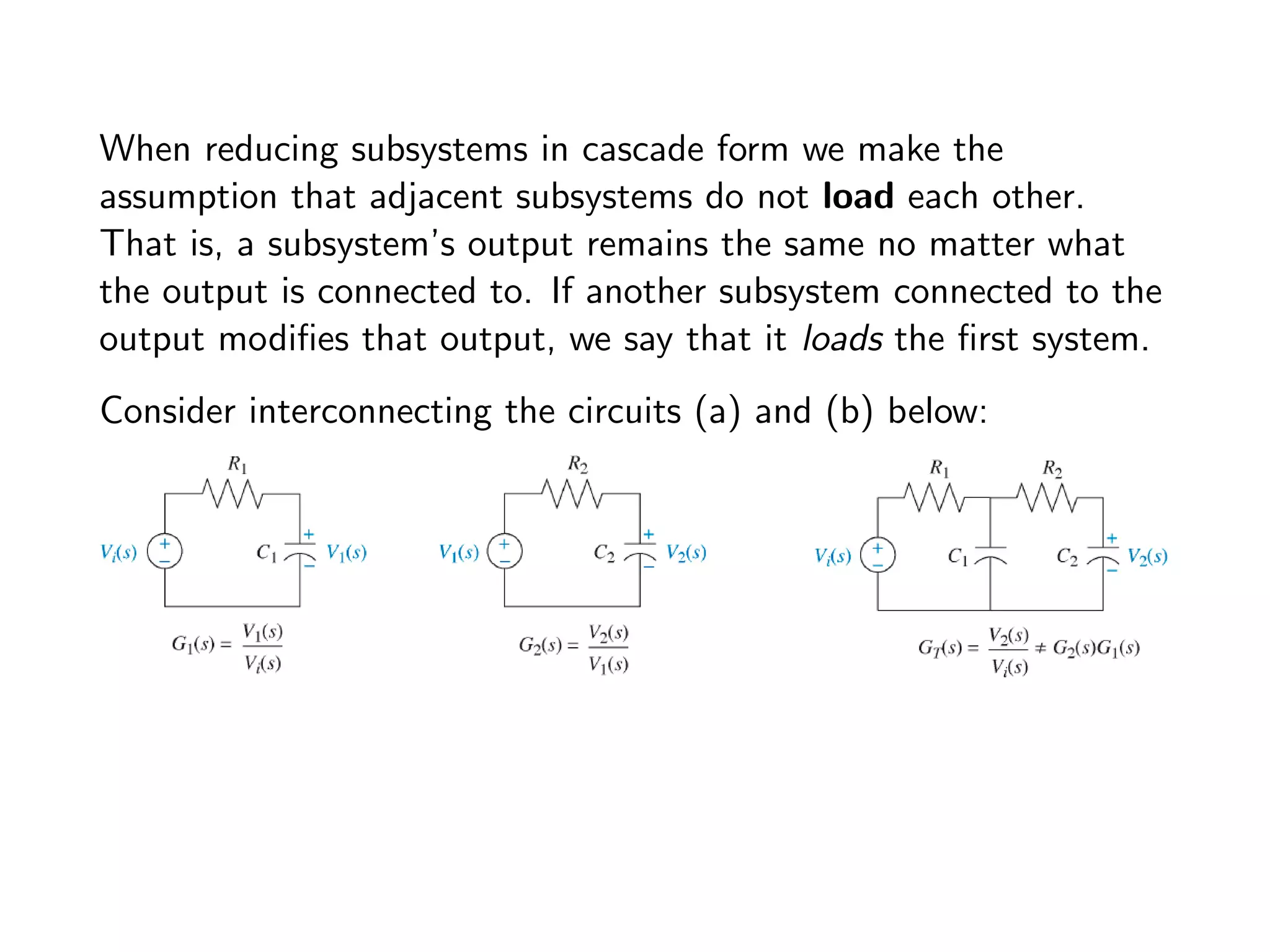

Consider interconnecting the circuits (a) and (b) below:

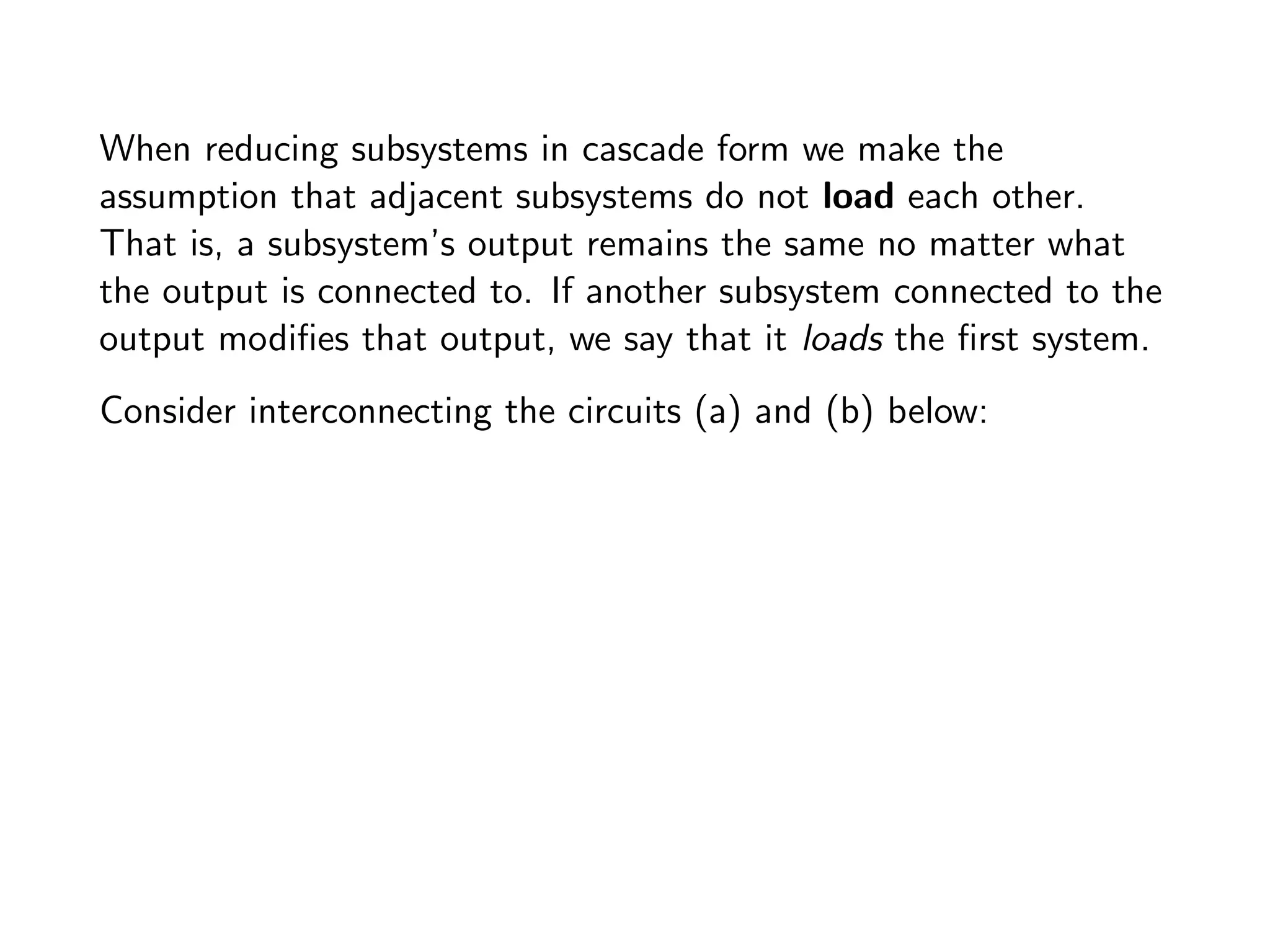

19. When reducing subsystems in cascade form we make the
assumption that adjacent subsystems do not load each other.
That is, a subsystem’s output remains the same no matter what
the output is connected to. If another subsystem connected to the
output modifies that output, we say that it loads the first system.
Consider interconnecting the circuits (a) and (b) below:

20. When reducing subsystems in cascade form we make the
assumption that adjacent subsystems do not load each other.
That is, a subsystem’s output remains the same no matter what
the output is connected to. If another subsystem connected to the
output modifies that output, we say that it loads the first system.
Consider interconnecting the circuits (a) and (b) below:
The overall TF is not the product of the individual TF’s!

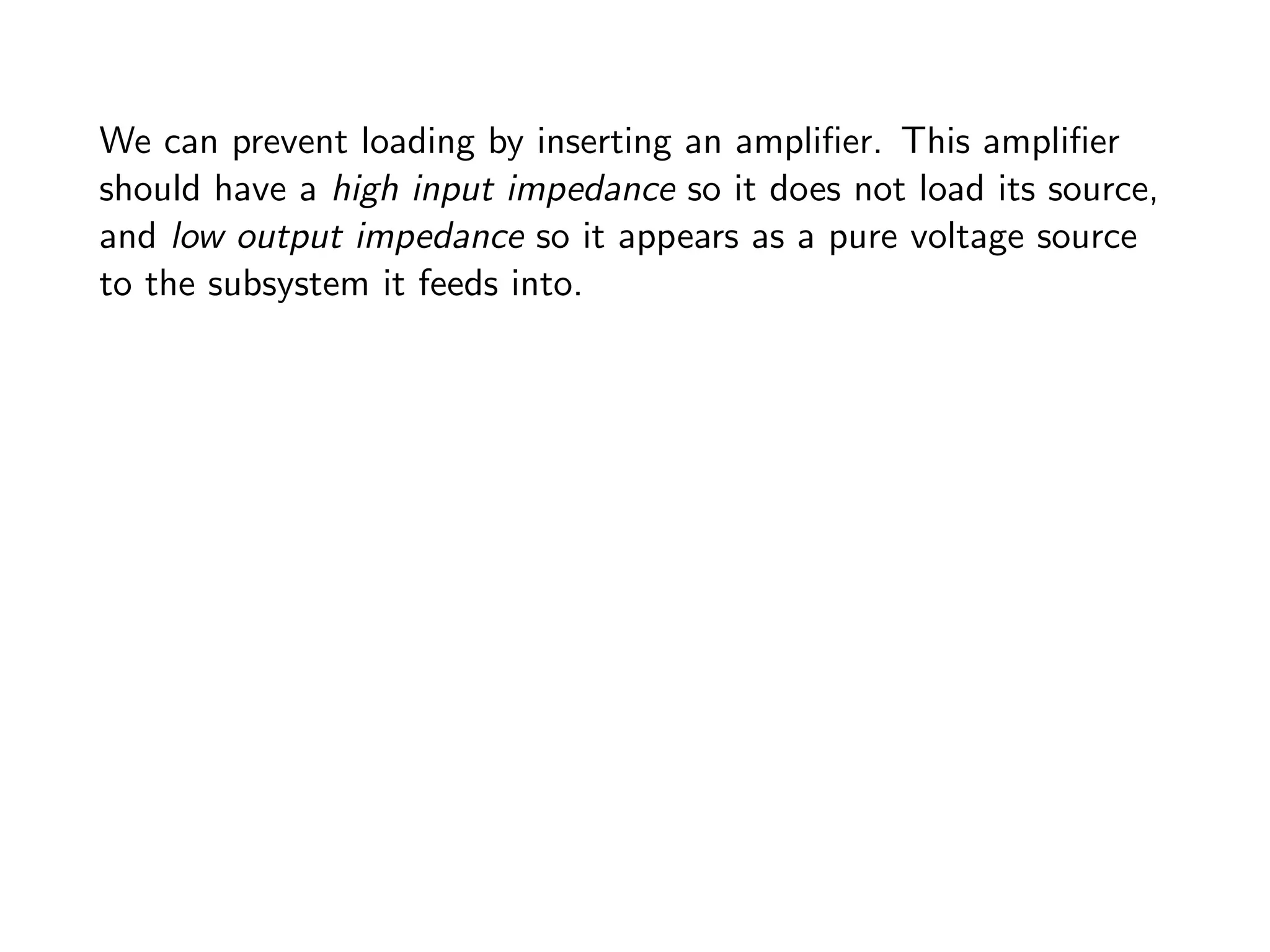

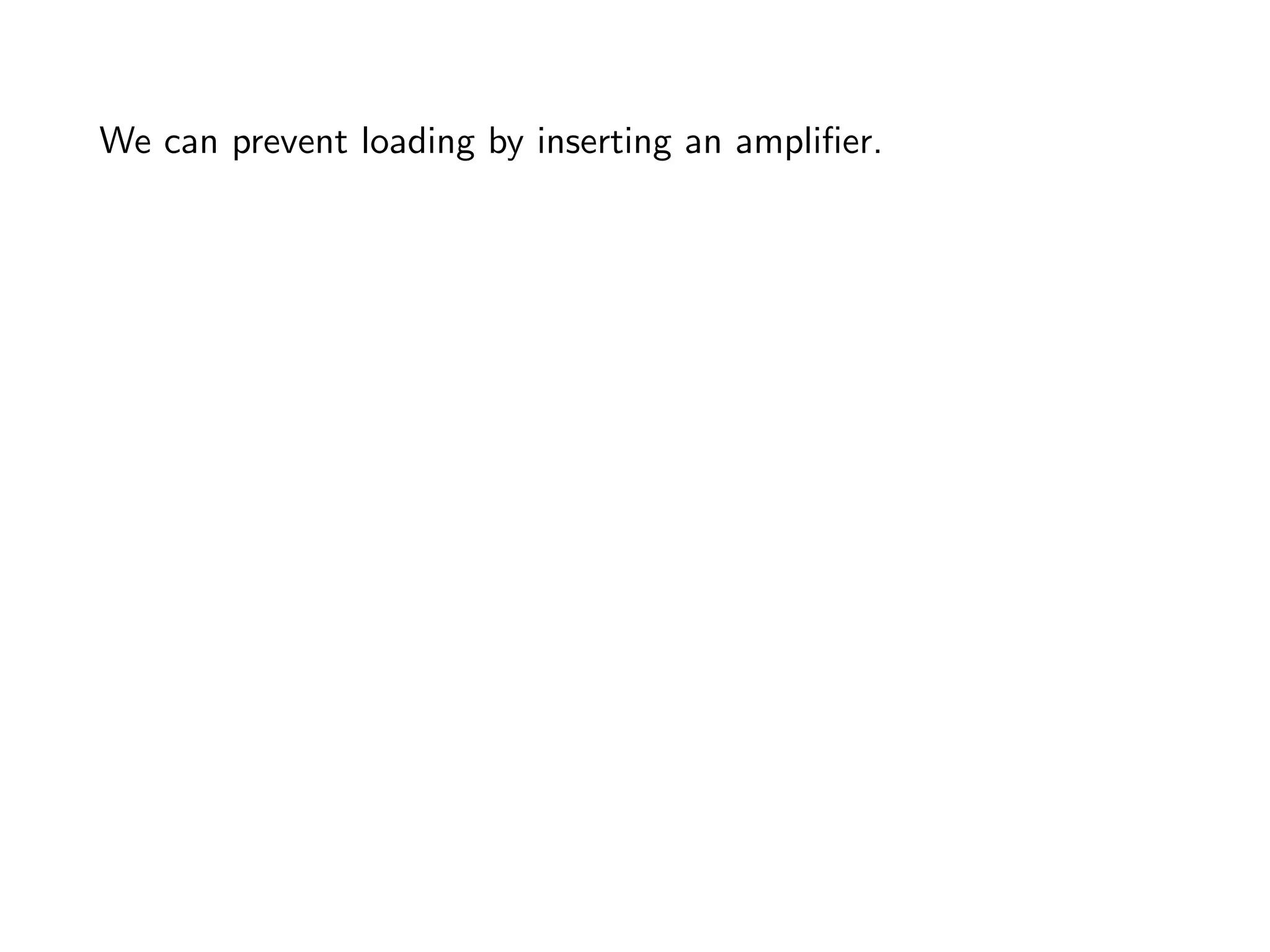

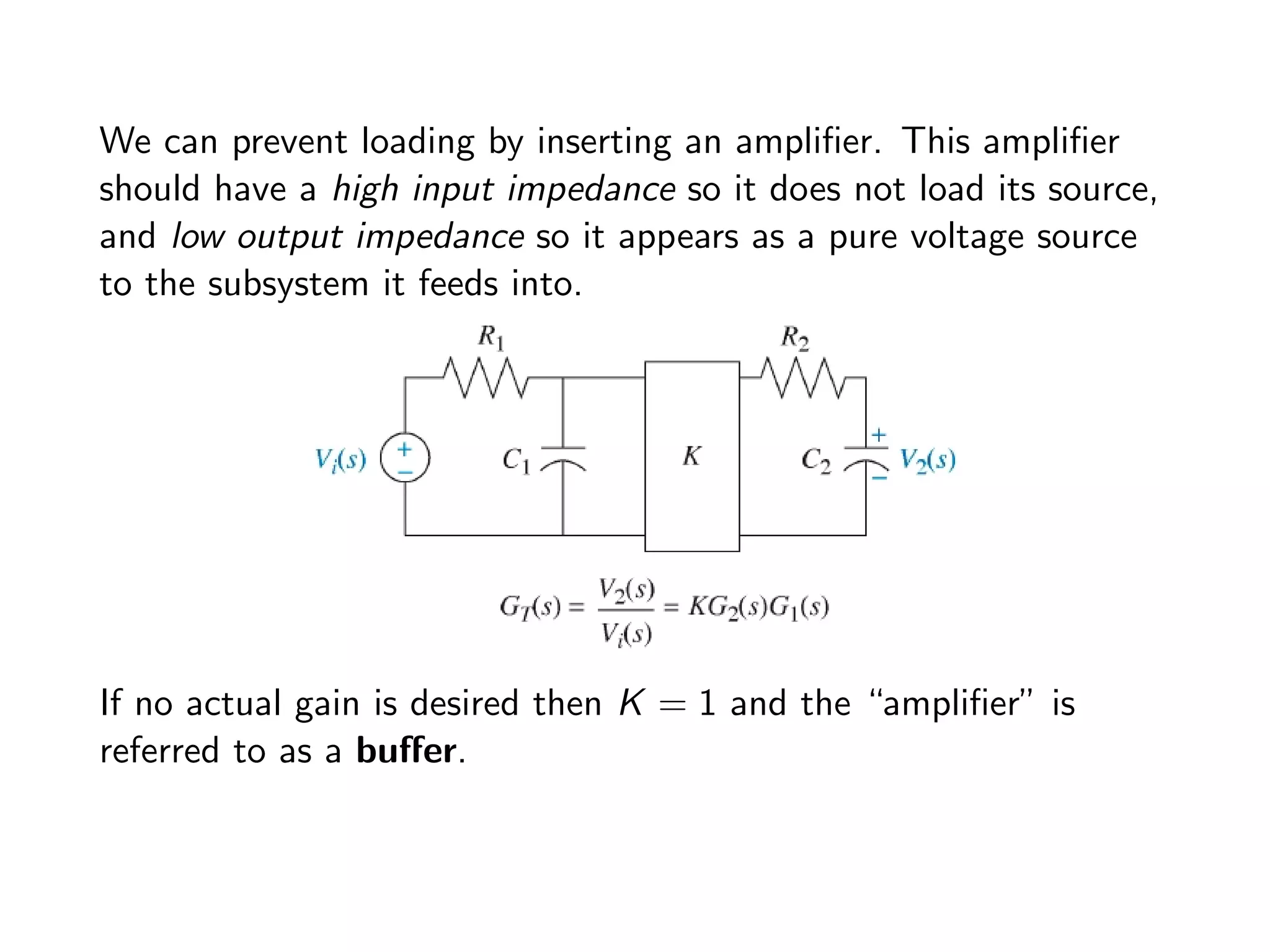

21. We can prevent loading by inserting an amplifier.

22. We can prevent loading by inserting an amplifier. This amplifier
should have a high input impedance so it does not load its source,
and low output impedance so it appears as a pure voltage source
to the subsystem it feeds into.

23. We can prevent loading by inserting an amplifier. This amplifier
should have a high input impedance so it does not load its source,
and low output impedance so it appears as a pure voltage source
to the subsystem it feeds into.
If no actual gain is desired then K = 1 and the “amplifier” is
referred to as a buffer.

24. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

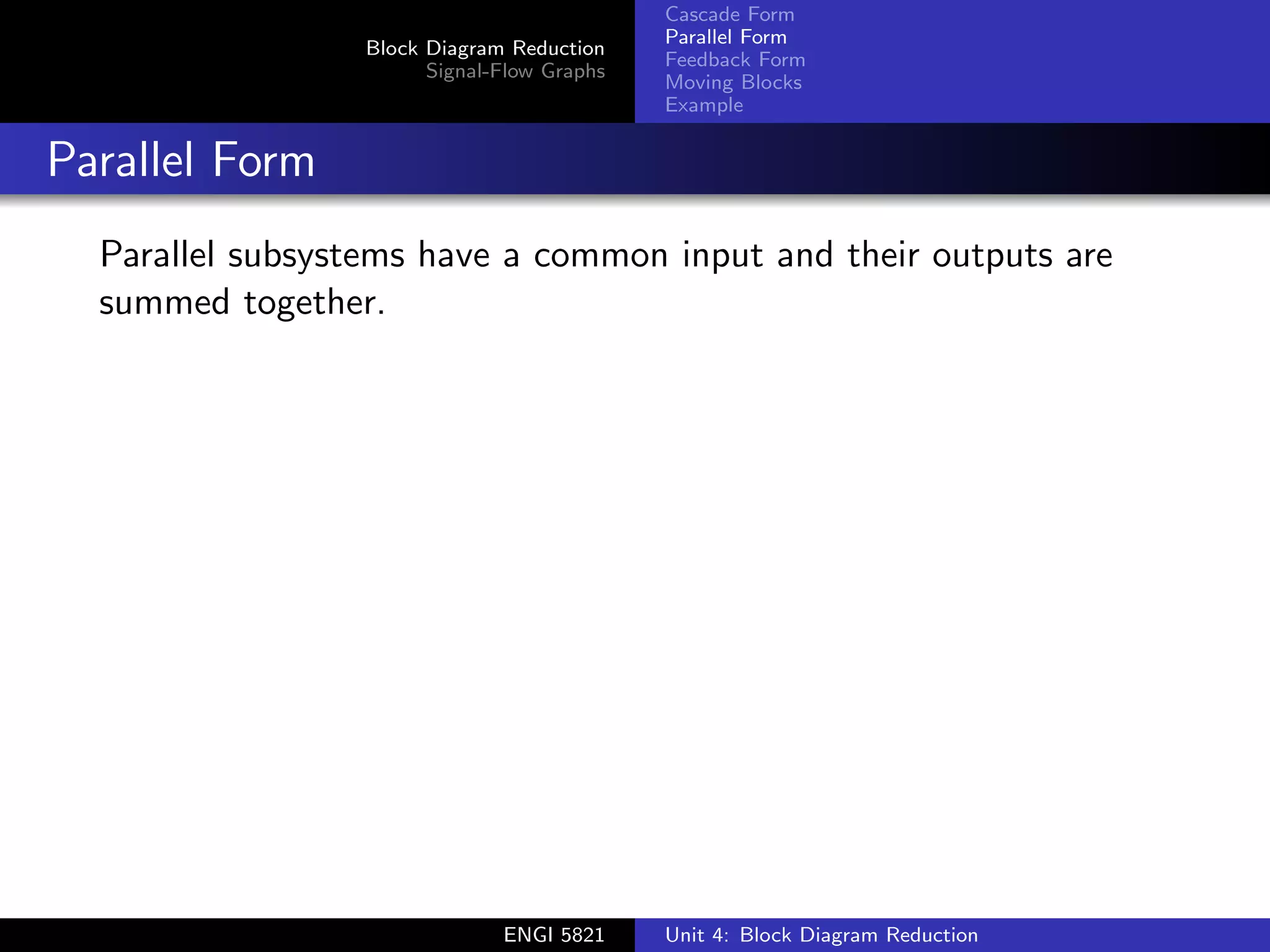

Parallel Form
Parallel subsystems have a common input and their outputs are
summed together.
ENGI 5821 Unit 4: Block Diagram Reduction

25. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example
Parallel Form
Parallel subsystems have a common input and their outputs are
summed together.
ENGI 5821 Unit 4: Block Diagram Reduction

26. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

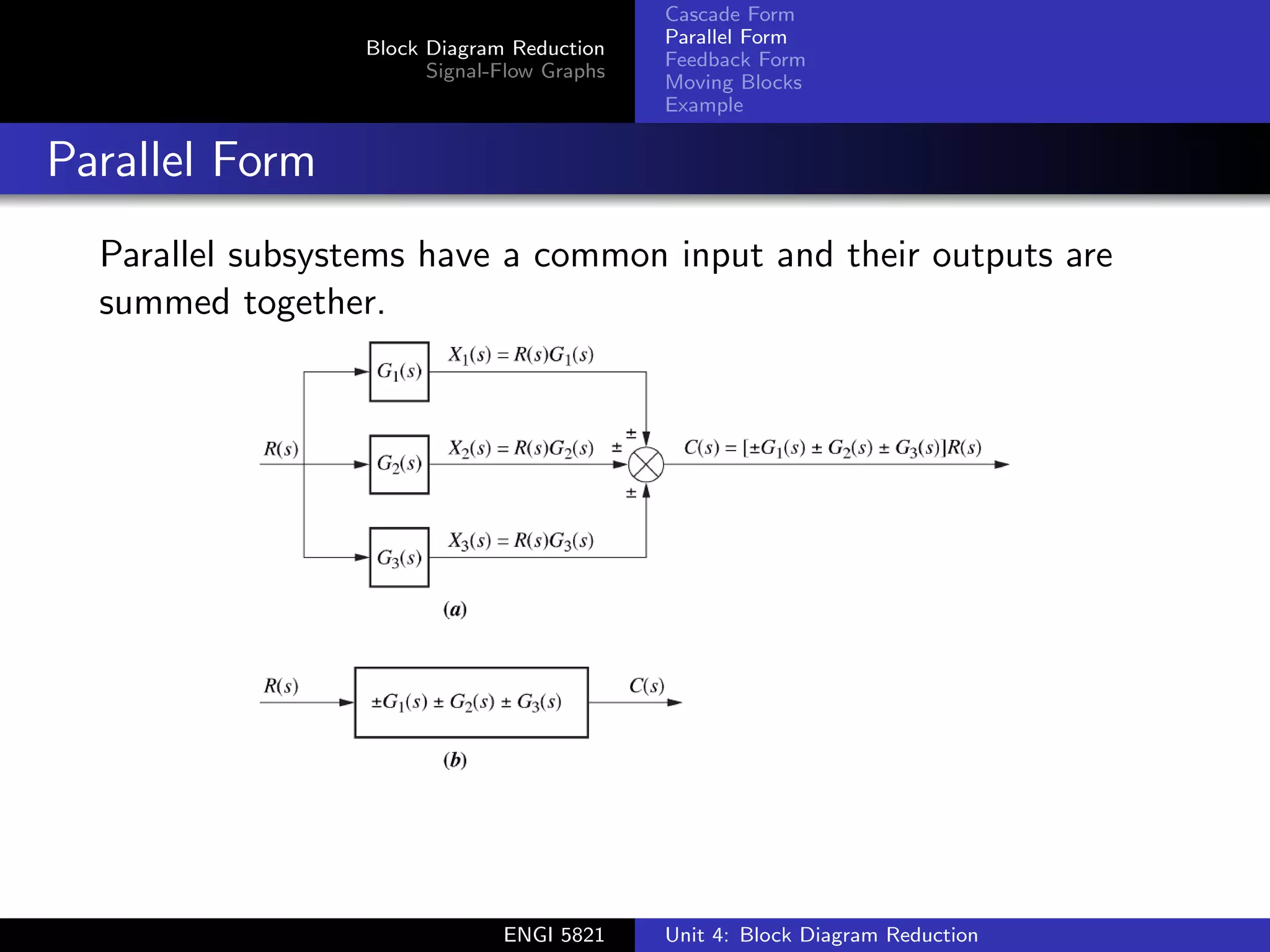

Parallel Form
Parallel subsystems have a common input and their outputs are
summed together.
The equivalent TF is the sum of parallel TF’s (with matched signs
at summing junction).
ENGI 5821 Unit 4: Block Diagram Reduction

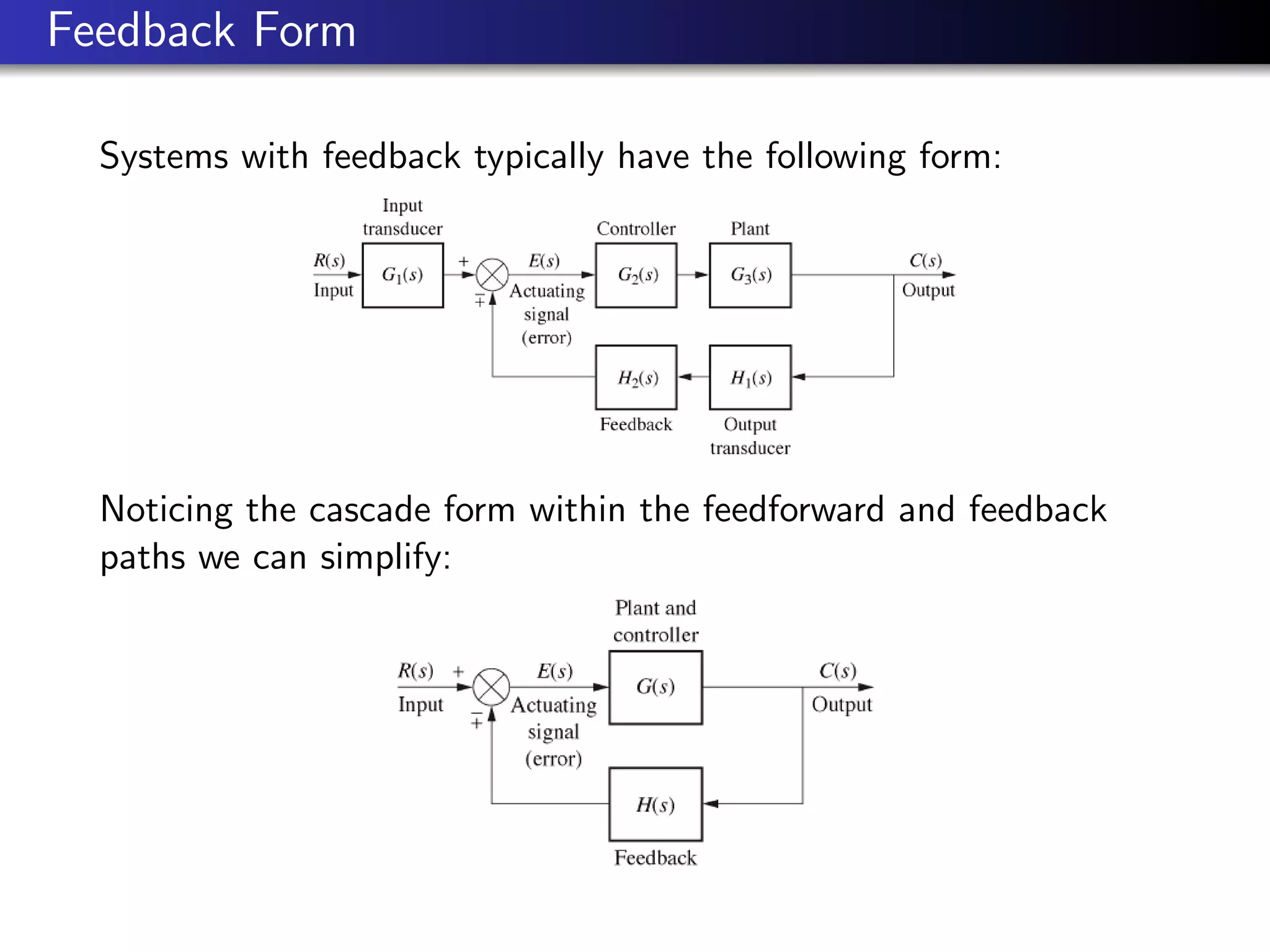

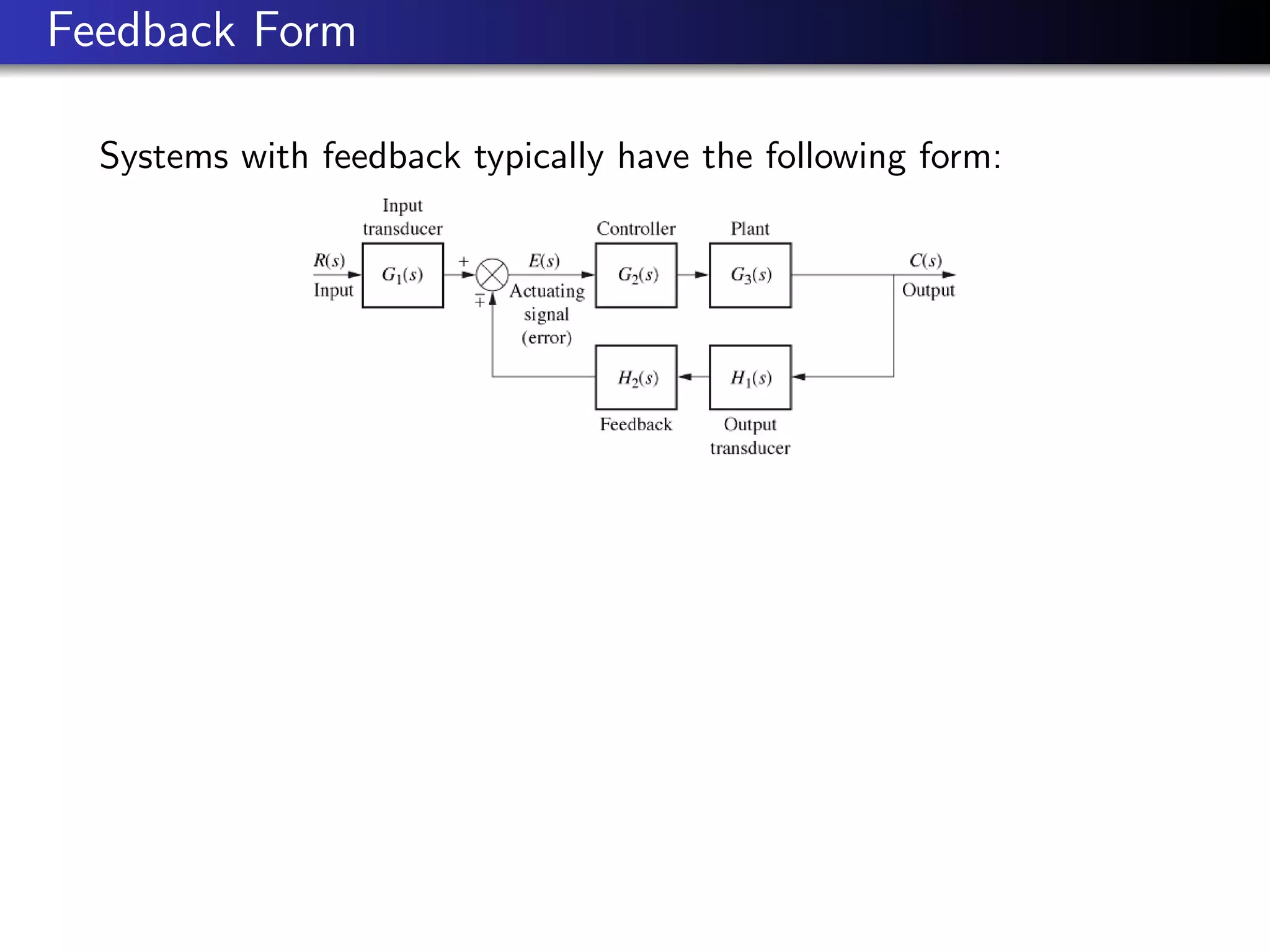

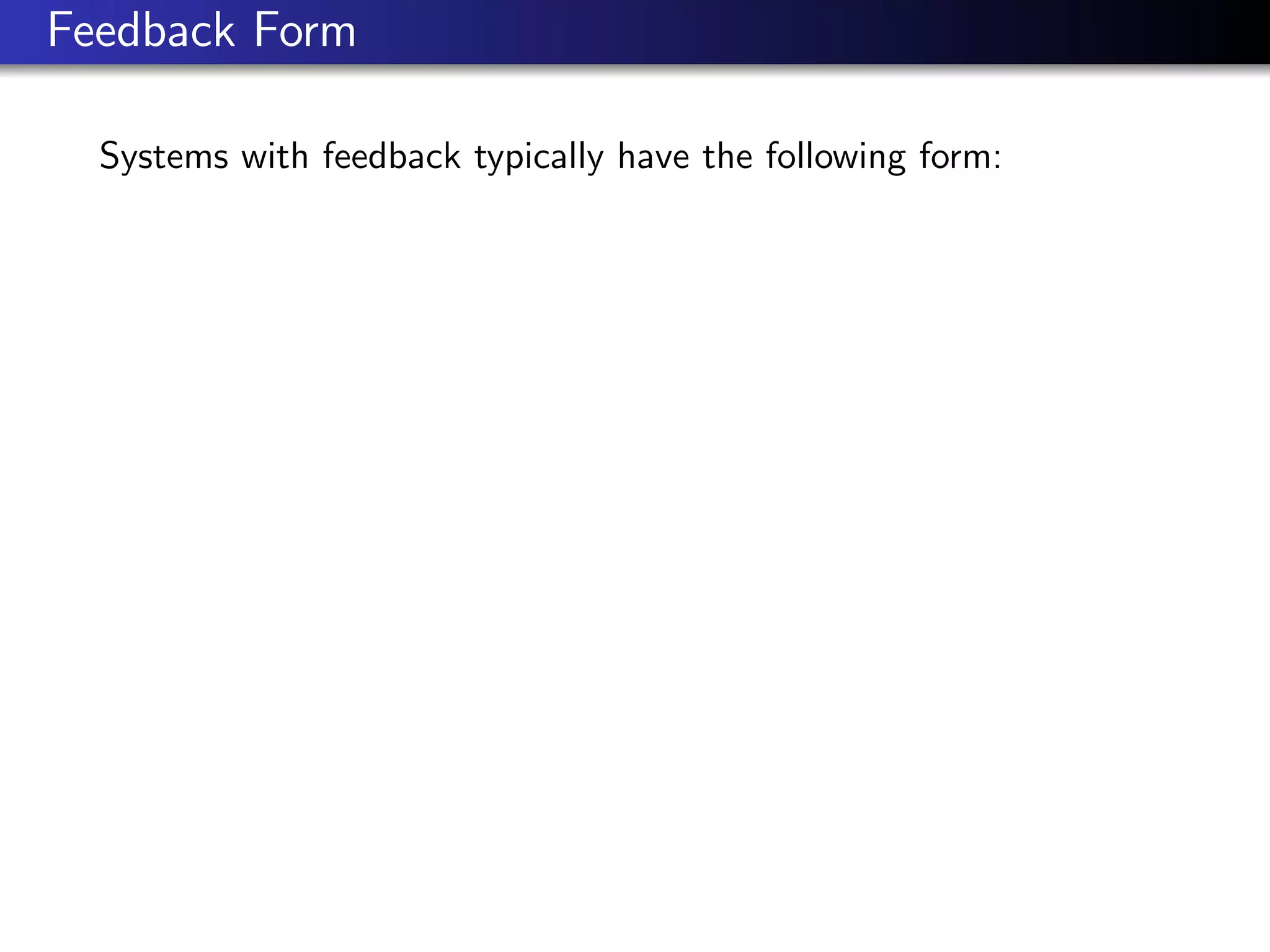

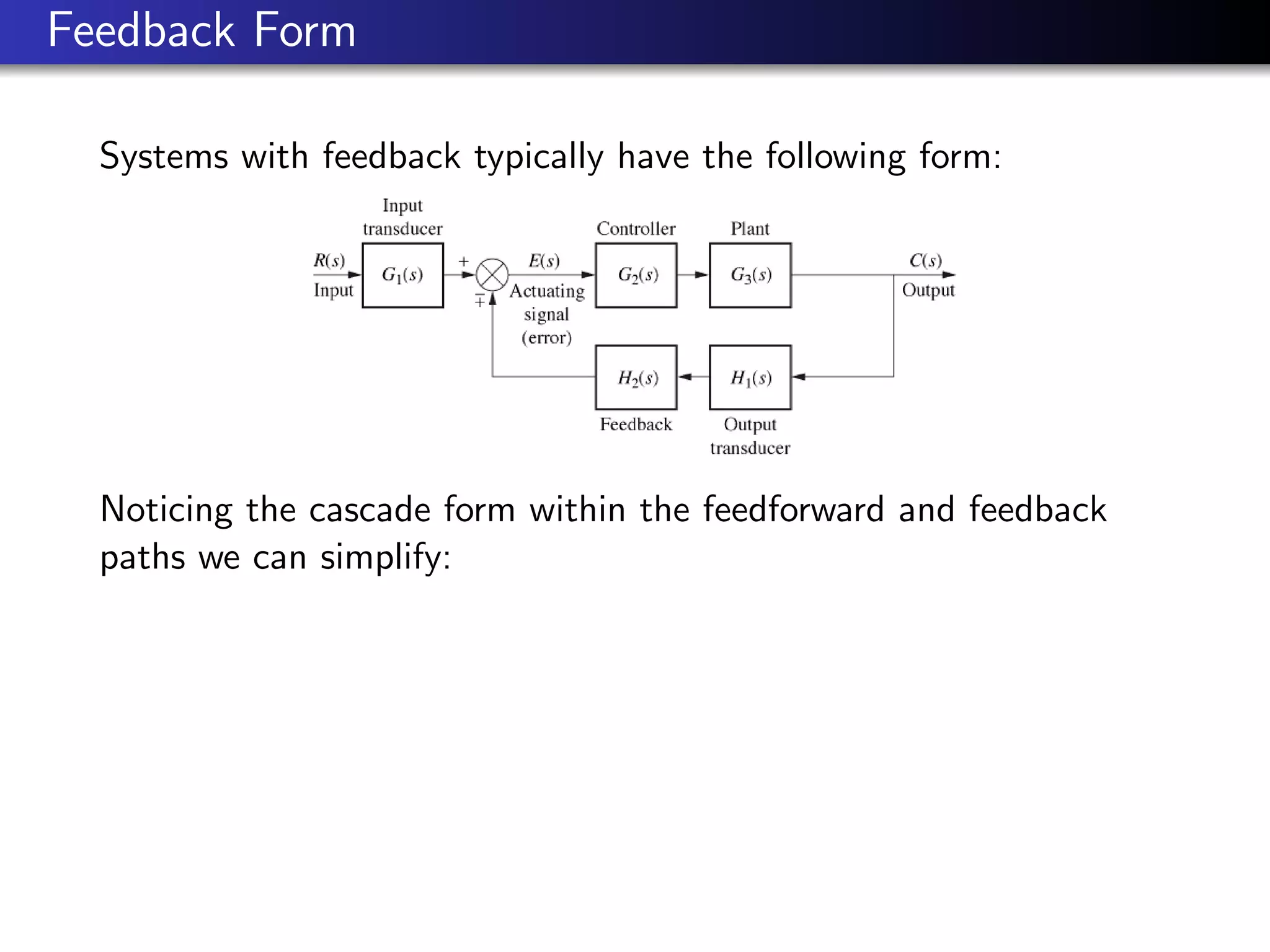

27. Feedback Form
Systems with feedback typically have the following form:

28. Feedback Form
Systems with feedback typically have the following form:

29. Feedback Form
Systems with feedback typically have the following form:
Noticing the cascade form within the feedforward and feedback
paths we can simplify:

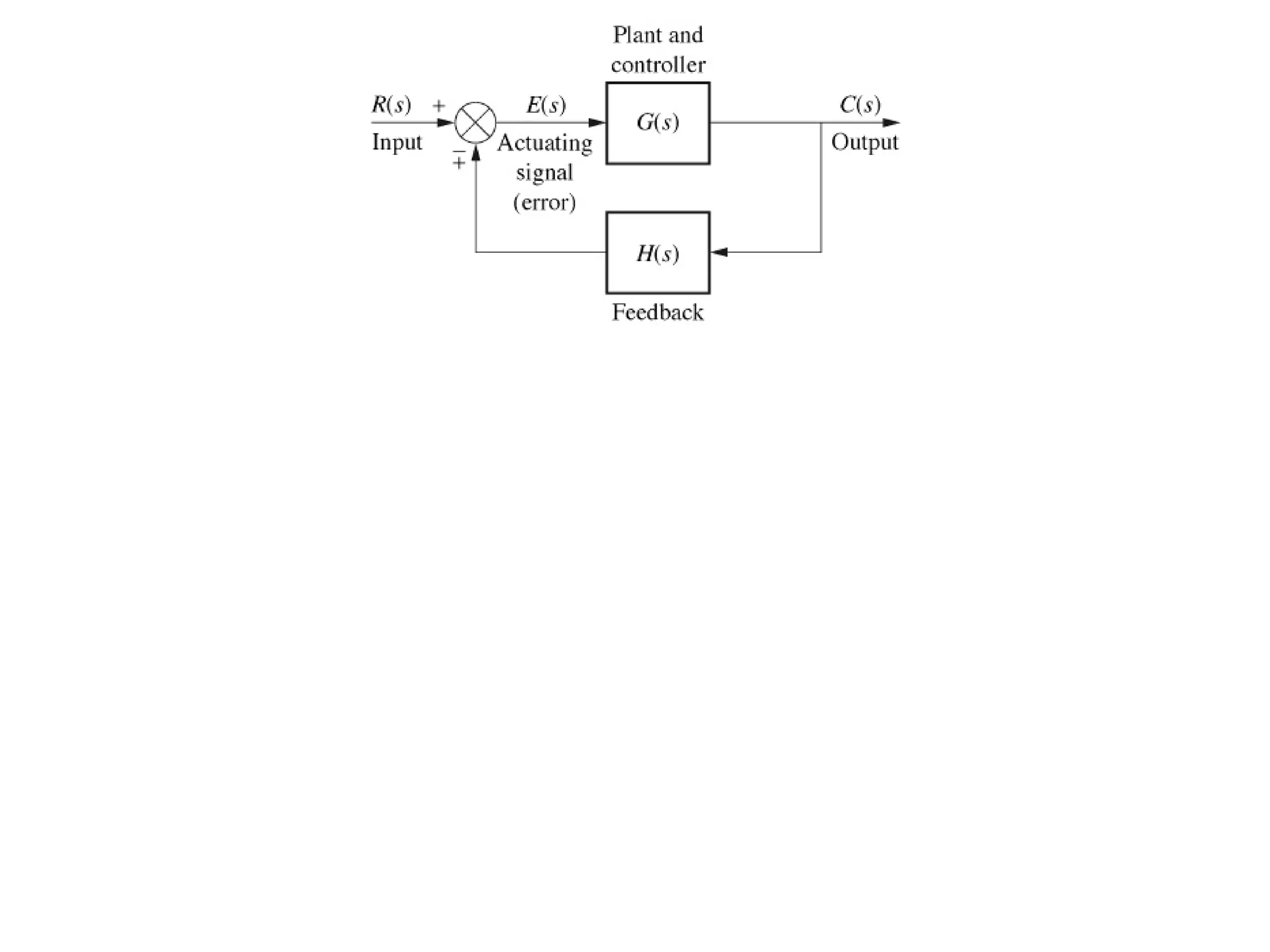

30. Feedback Form
Systems with feedback typically have the following form:
Noticing the cascade form within the feedforward and feedback
paths we can simplify:

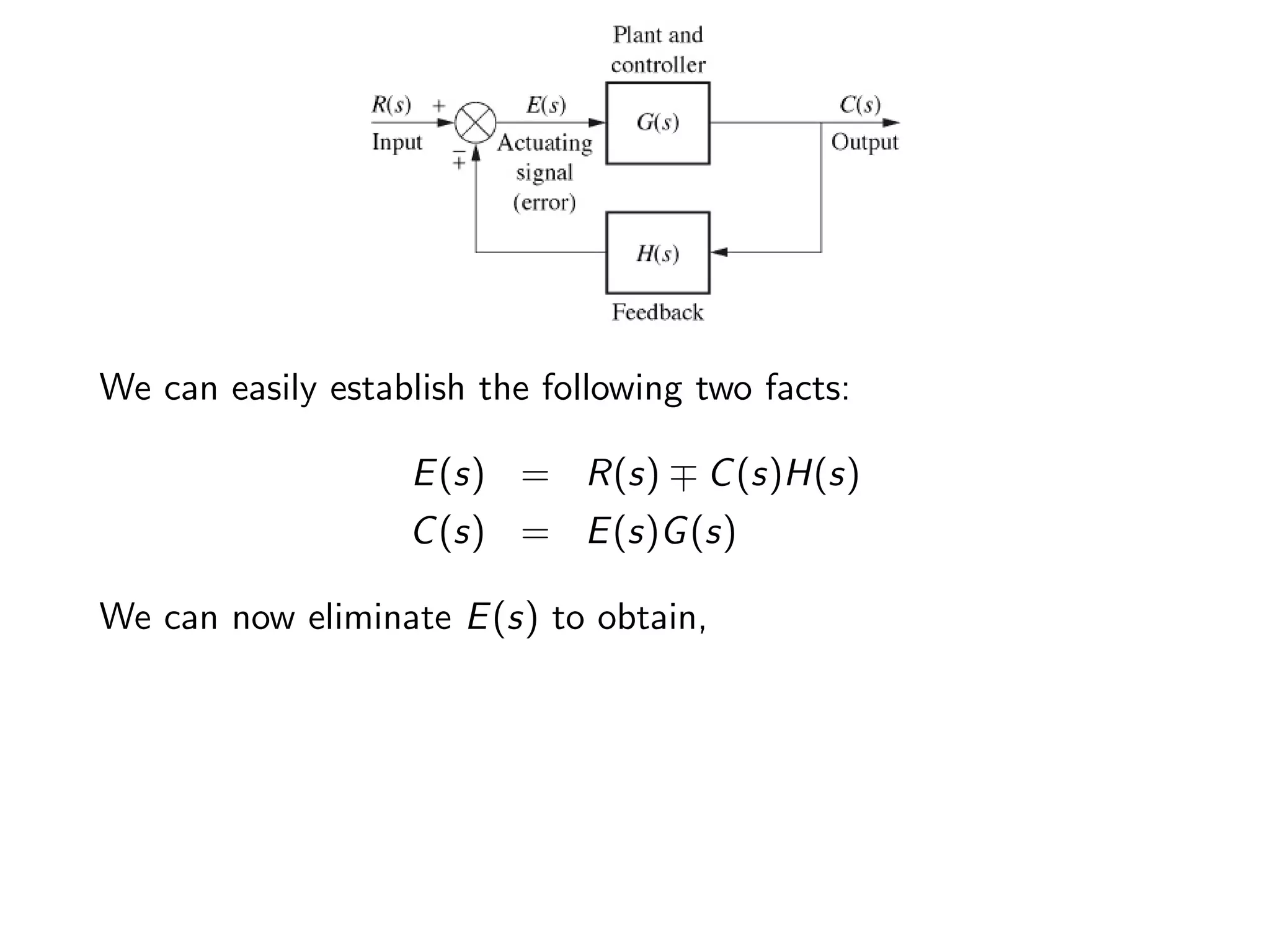

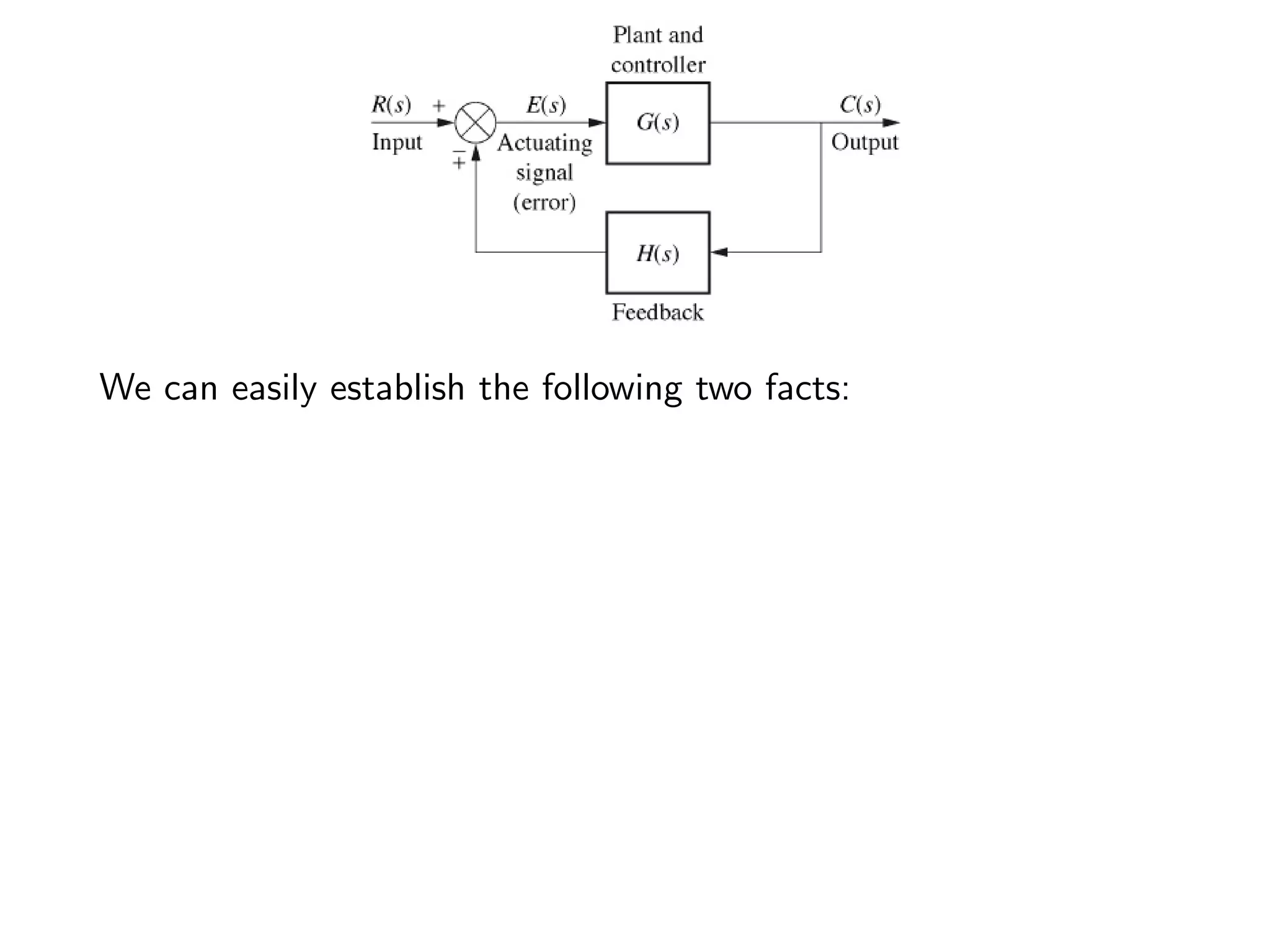

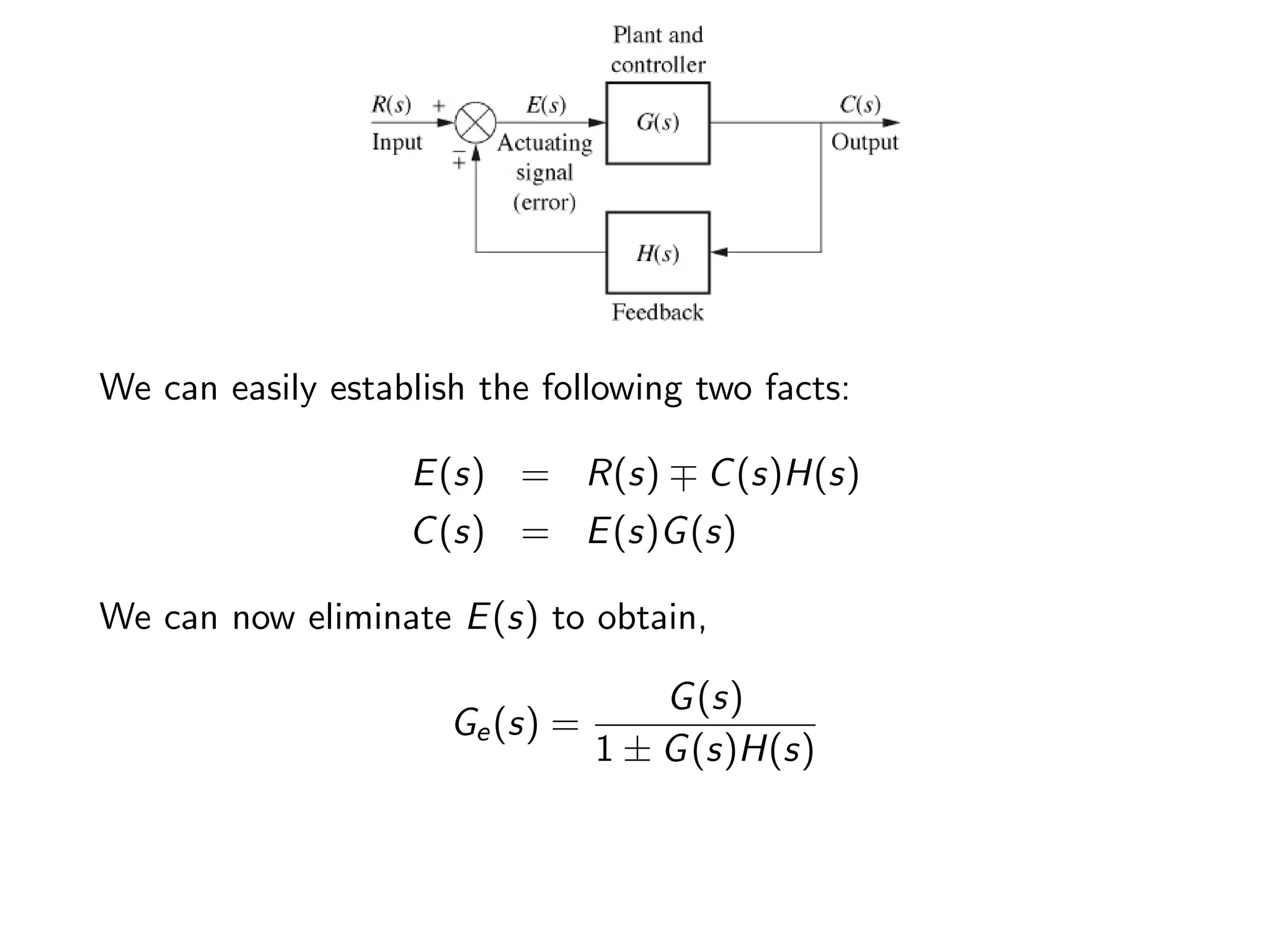

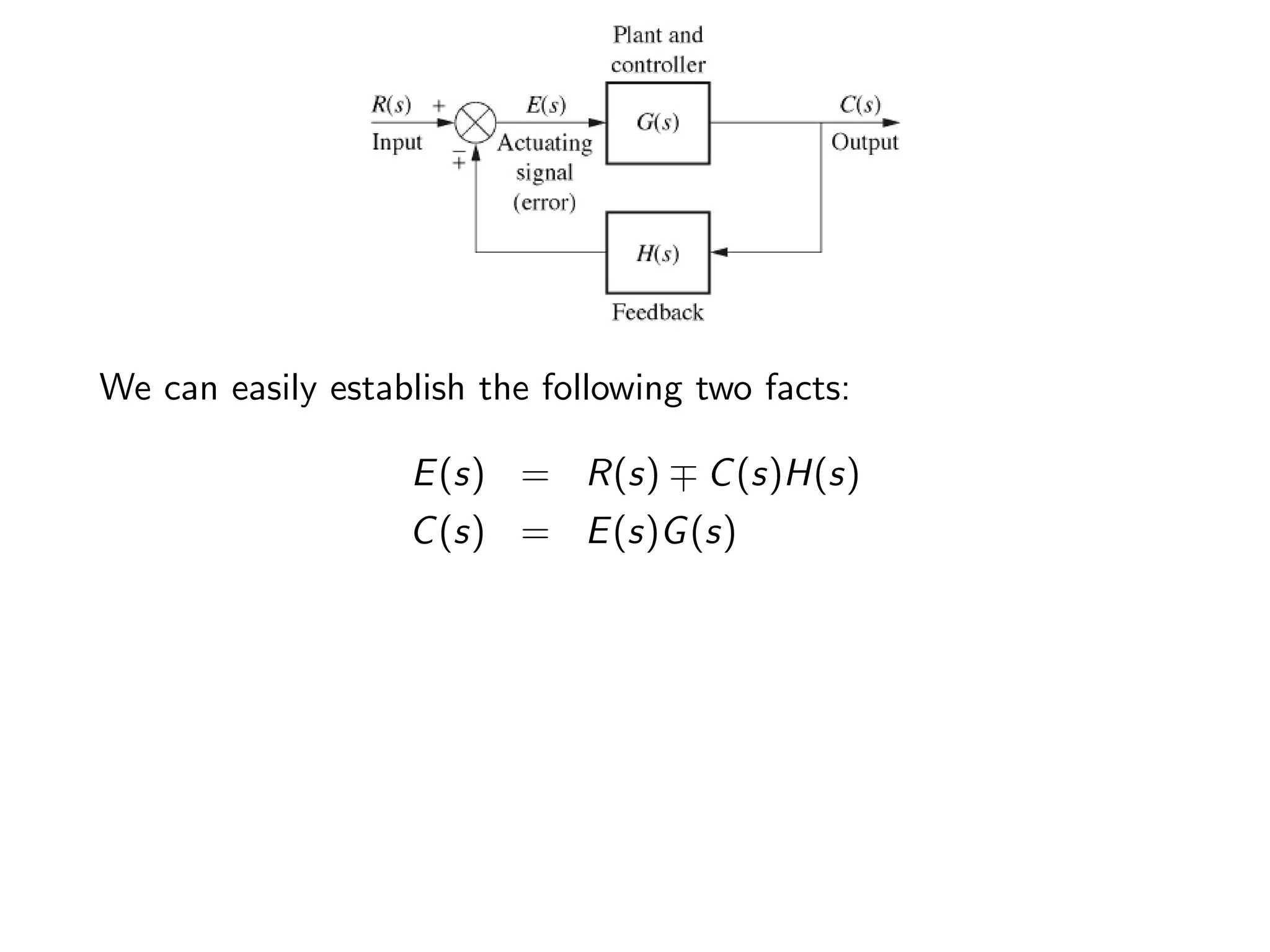

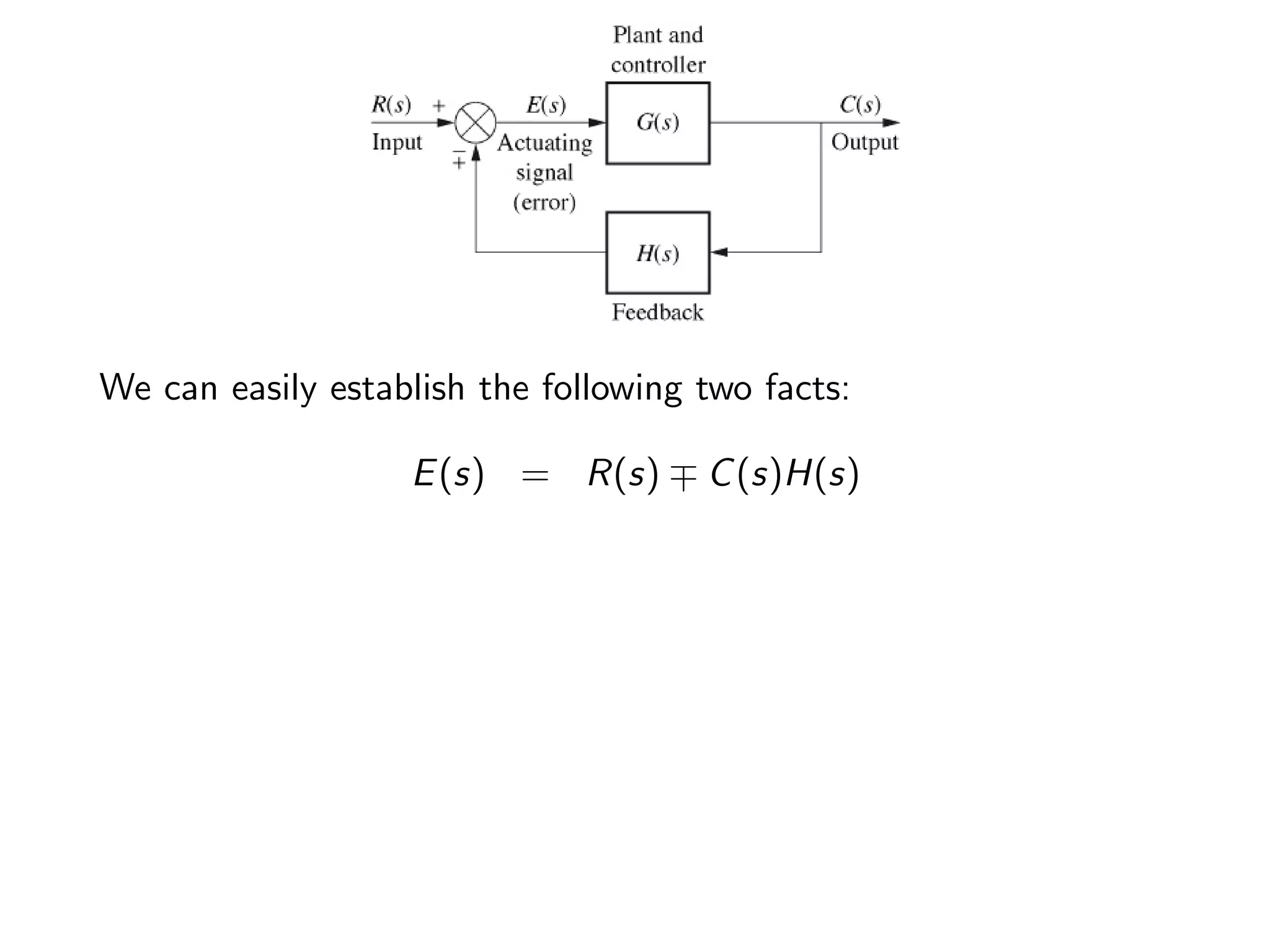

32. We can easily establish the following two facts:

33. We can easily establish the following two facts:
E(s) = R(s) ∓ C(s)H(s)

34. We can easily establish the following two facts:
E(s) = R(s) ∓ C(s)H(s)
C(s) = E(s)G(s)

35. We can easily establish the following two facts:
E(s) = R(s) ∓ C(s)H(s)
C(s) = E(s)G(s)
We can now eliminate E(s) to obtain,

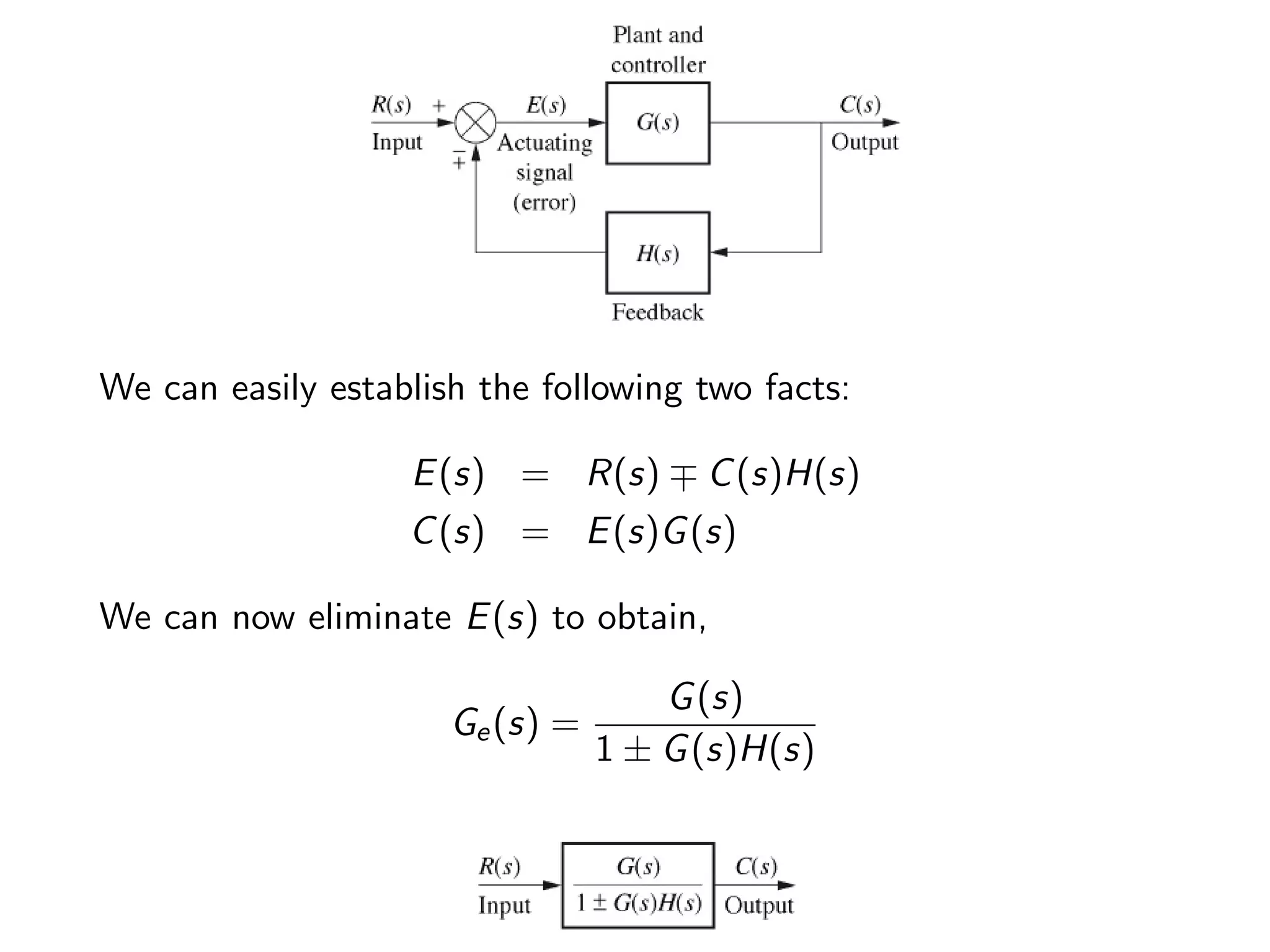

36. We can easily establish the following two facts:
E(s) = R(s) ∓ C(s)H(s)
C(s) = E(s)G(s)
We can now eliminate E(s) to obtain,
Ge(s) =
G(s)
1 ± G(s)H(s)

37. We can easily establish the following two facts:
E(s) = R(s) ∓ C(s)H(s)
C(s) = E(s)G(s)
We can now eliminate E(s) to obtain,
Ge(s) =
G(s)
1 ± G(s)H(s)

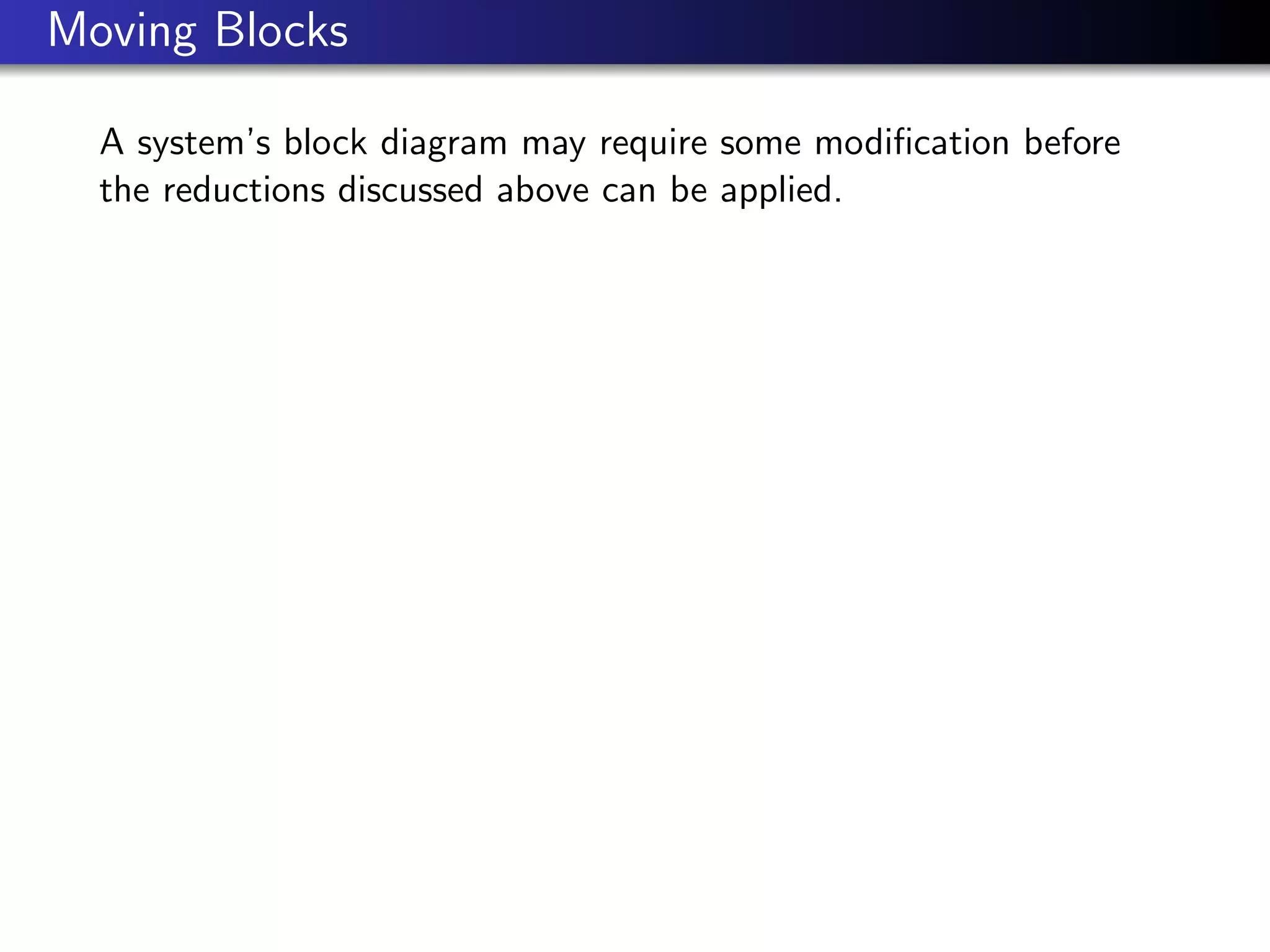

38. Moving Blocks
A system’s block diagram may require some modification before
the reductions discussed above can be applied.

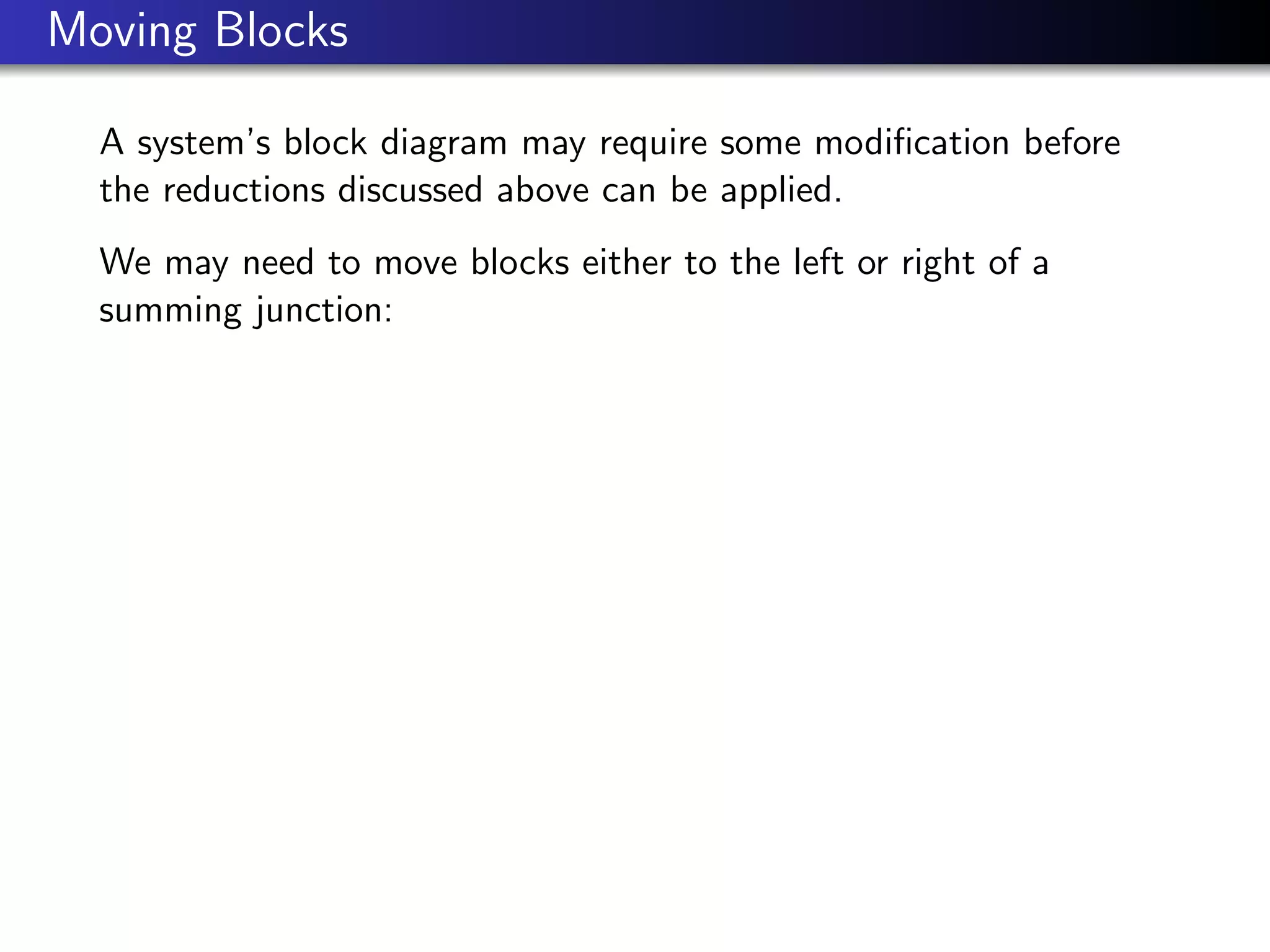

39. Moving Blocks
A system’s block diagram may require some modification before
the reductions discussed above can be applied.
We may need to move blocks either to the left or right of a
summing junction:

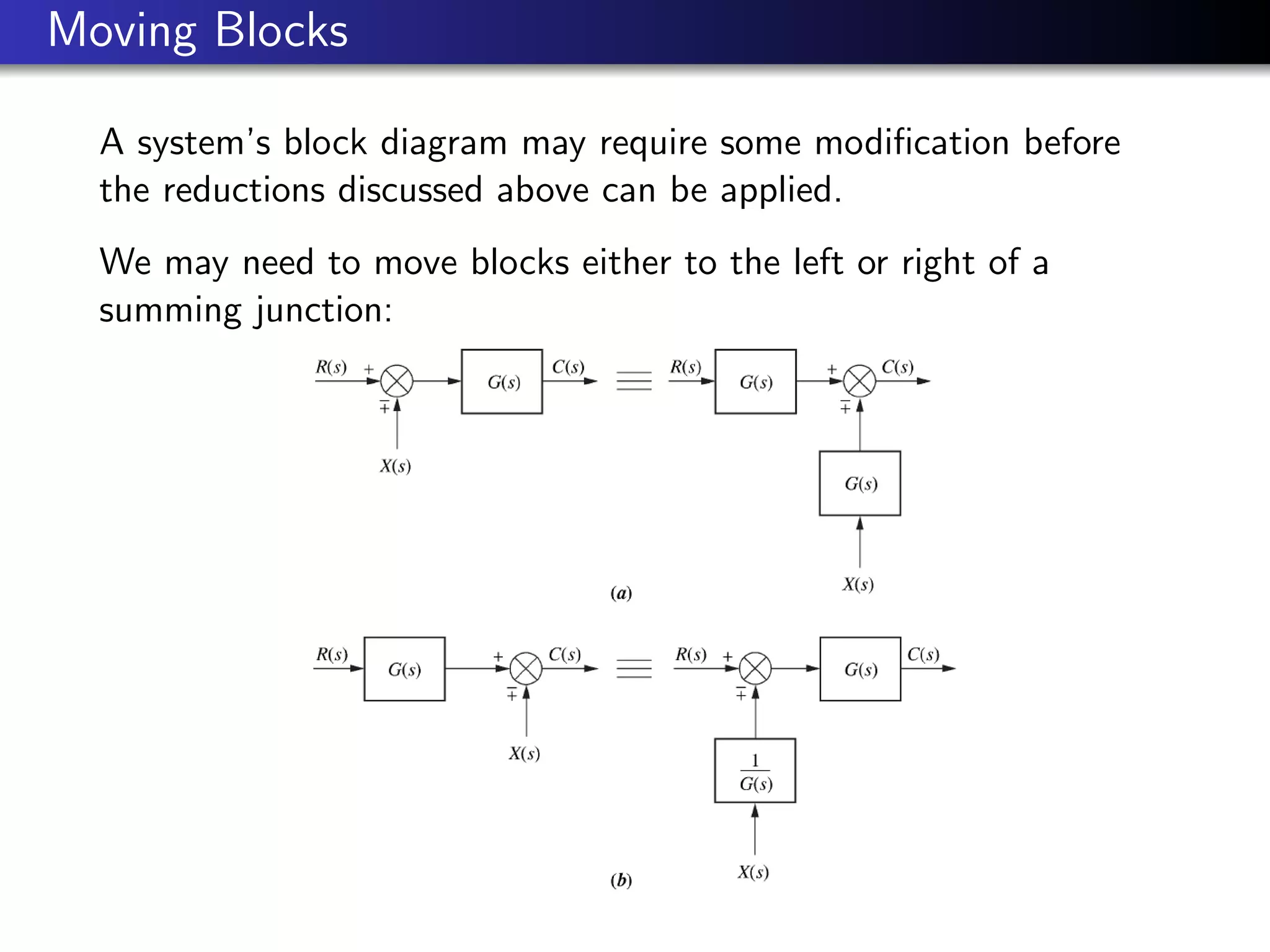

40. Moving Blocks
A system’s block diagram may require some modification before
the reductions discussed above can be applied.
We may need to move blocks either to the left or right of a
summing junction:

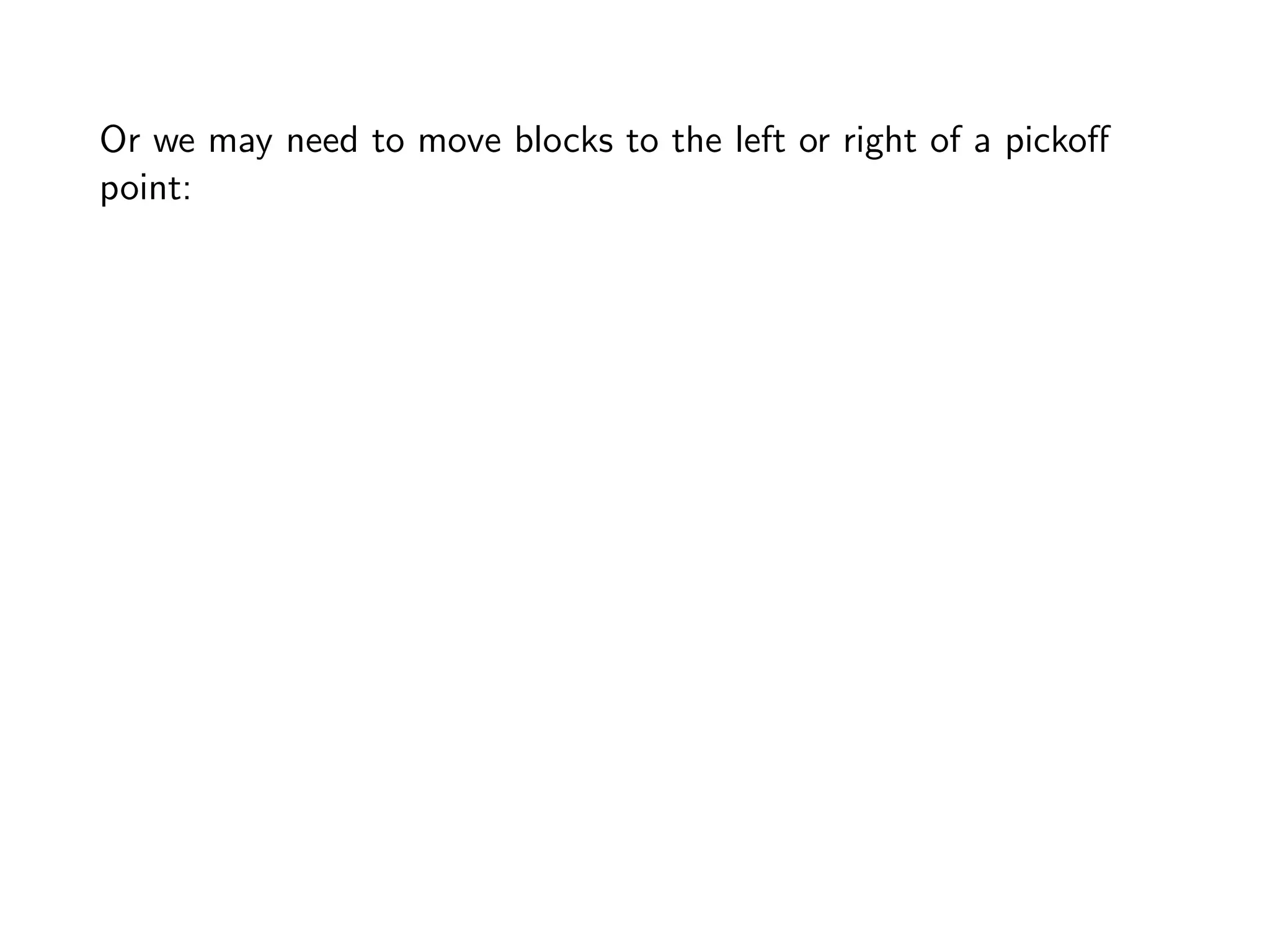

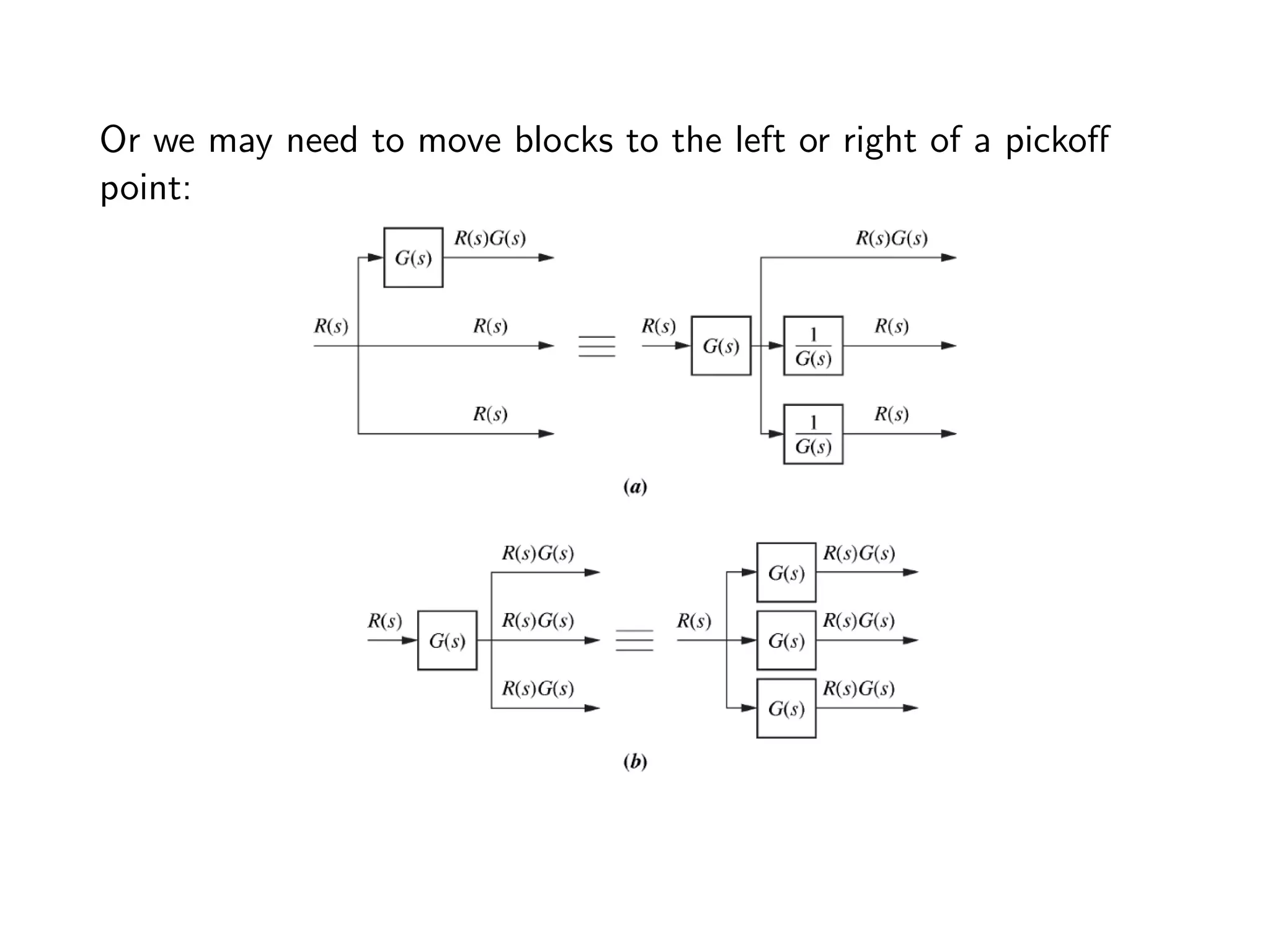

41. Or we may need to move blocks to the left or right of a pickoff
point:

42. Or we may need to move blocks to the left or right of a pickoff
point:

43. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

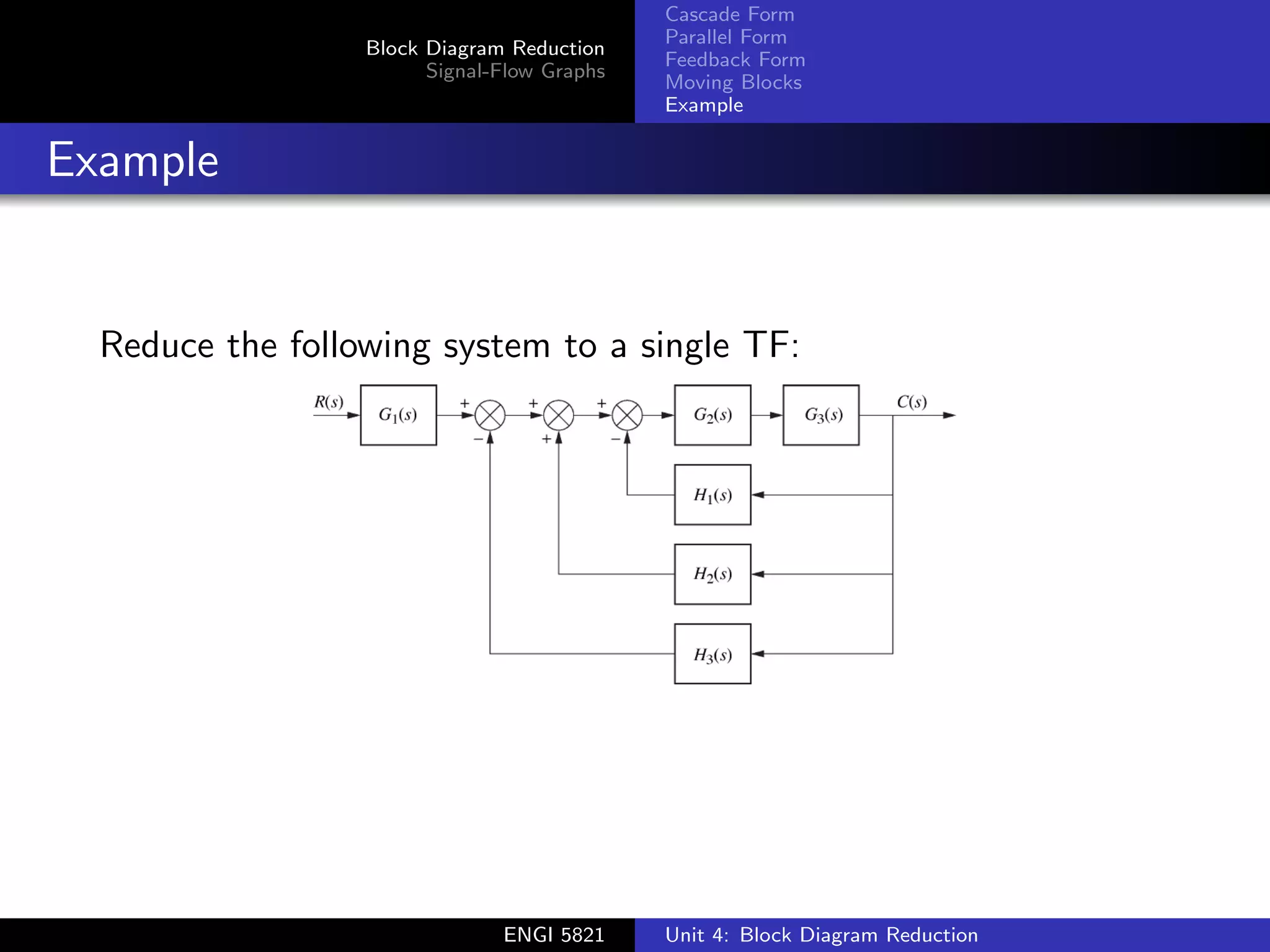

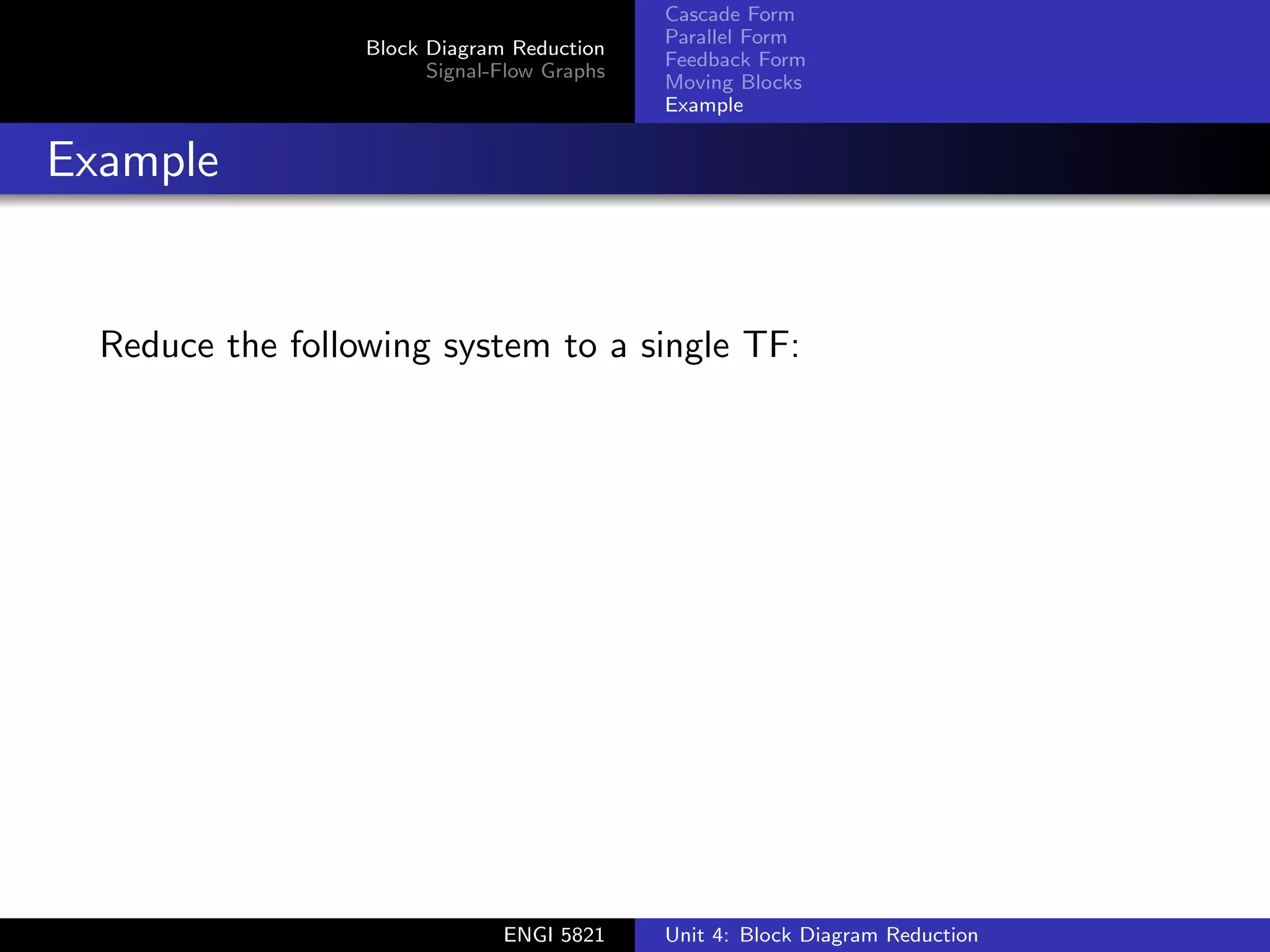

Example
Reduce the following system to a single TF:
ENGI 5821 Unit 4: Block Diagram Reduction

44. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example
Example
Reduce the following system to a single TF:
ENGI 5821 Unit 4: Block Diagram Reduction

45. Block Diagram Reduction
Signal-Flow Graphs
Cascade Form
Parallel Form
Feedback Form
Moving Blocks
Example

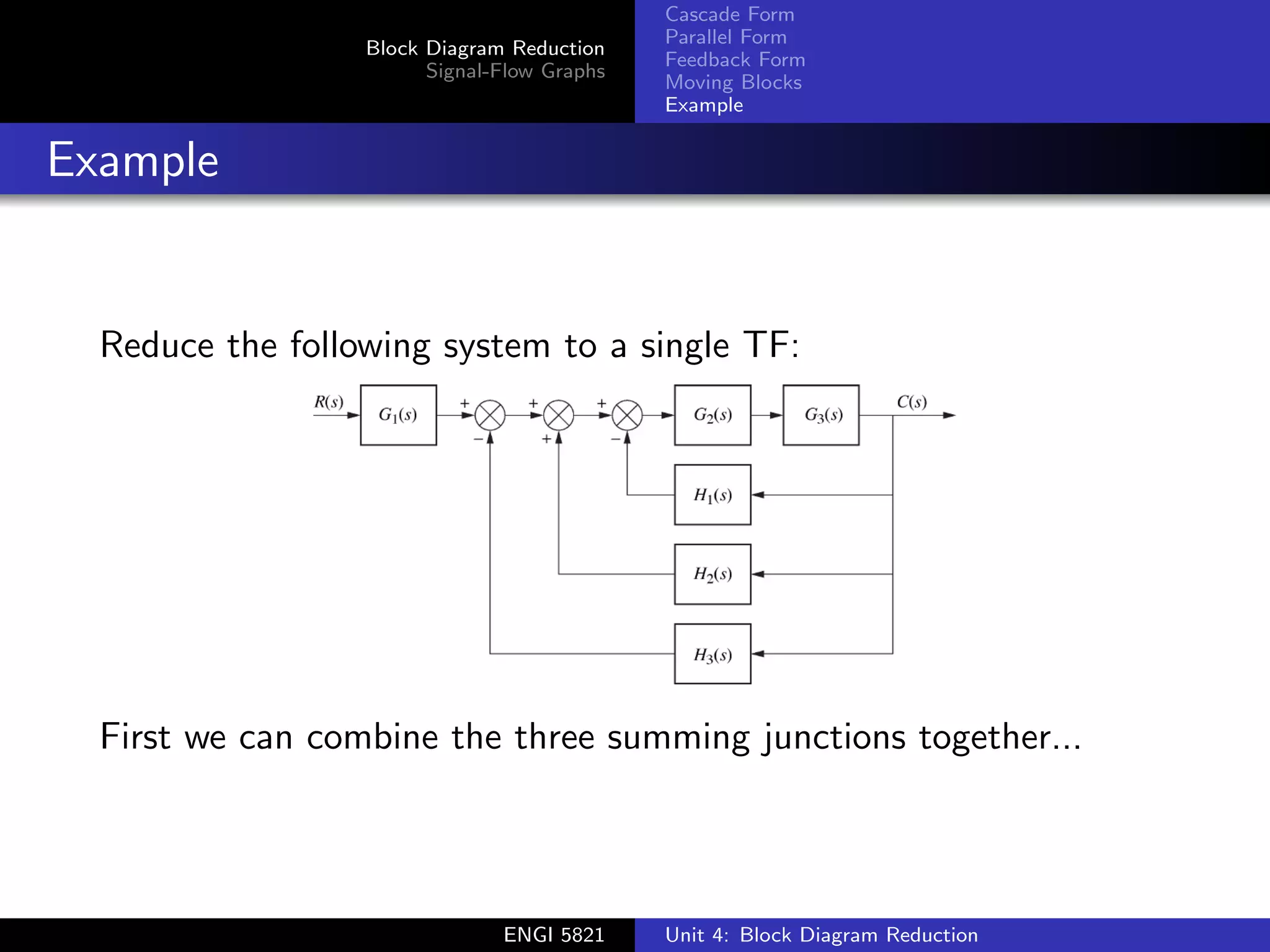

Example
Reduce the following system to a single TF:
First we can combine the three summing junctions together...
ENGI 5821 Unit 4: Block Diagram Reduction

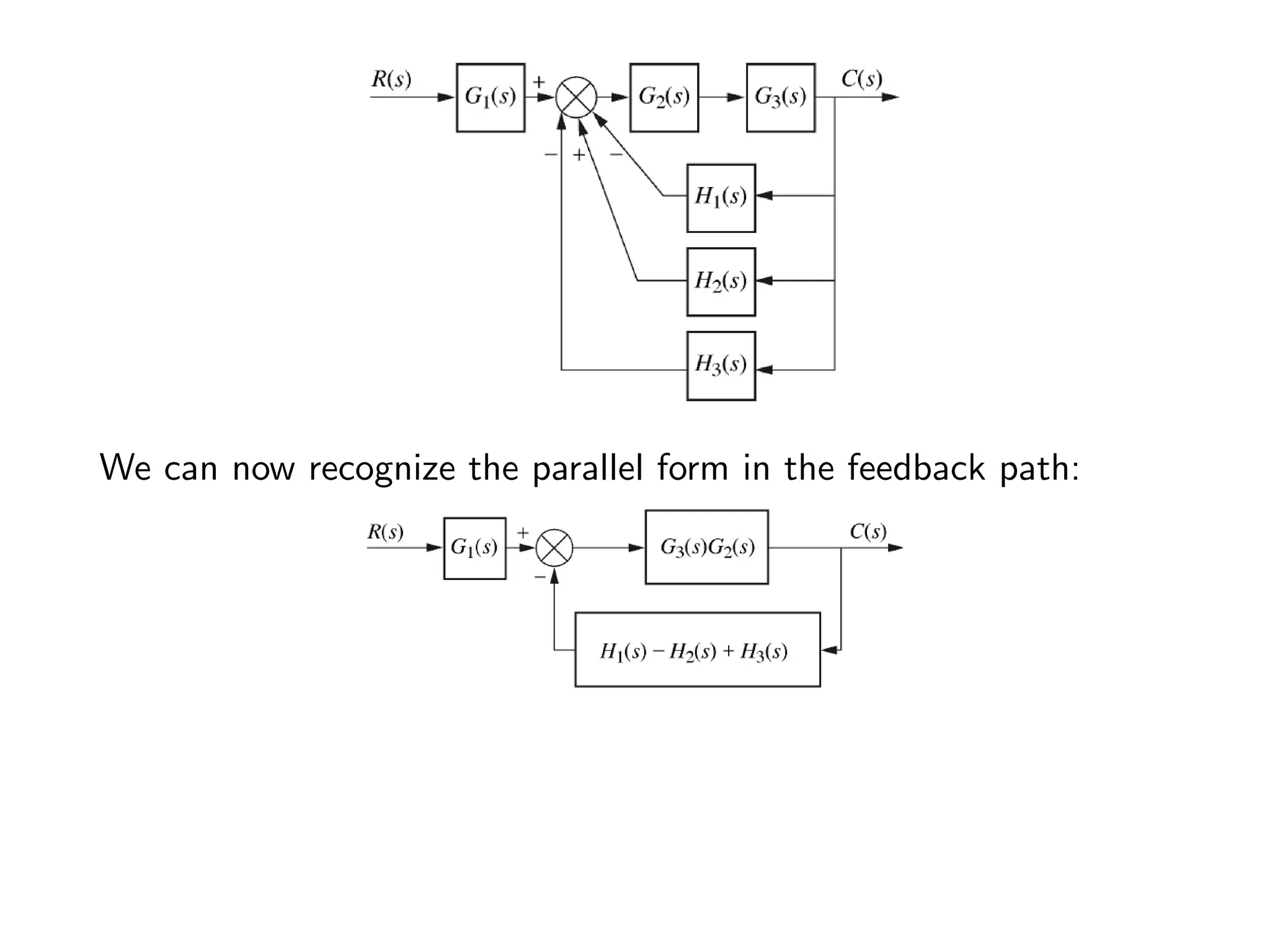

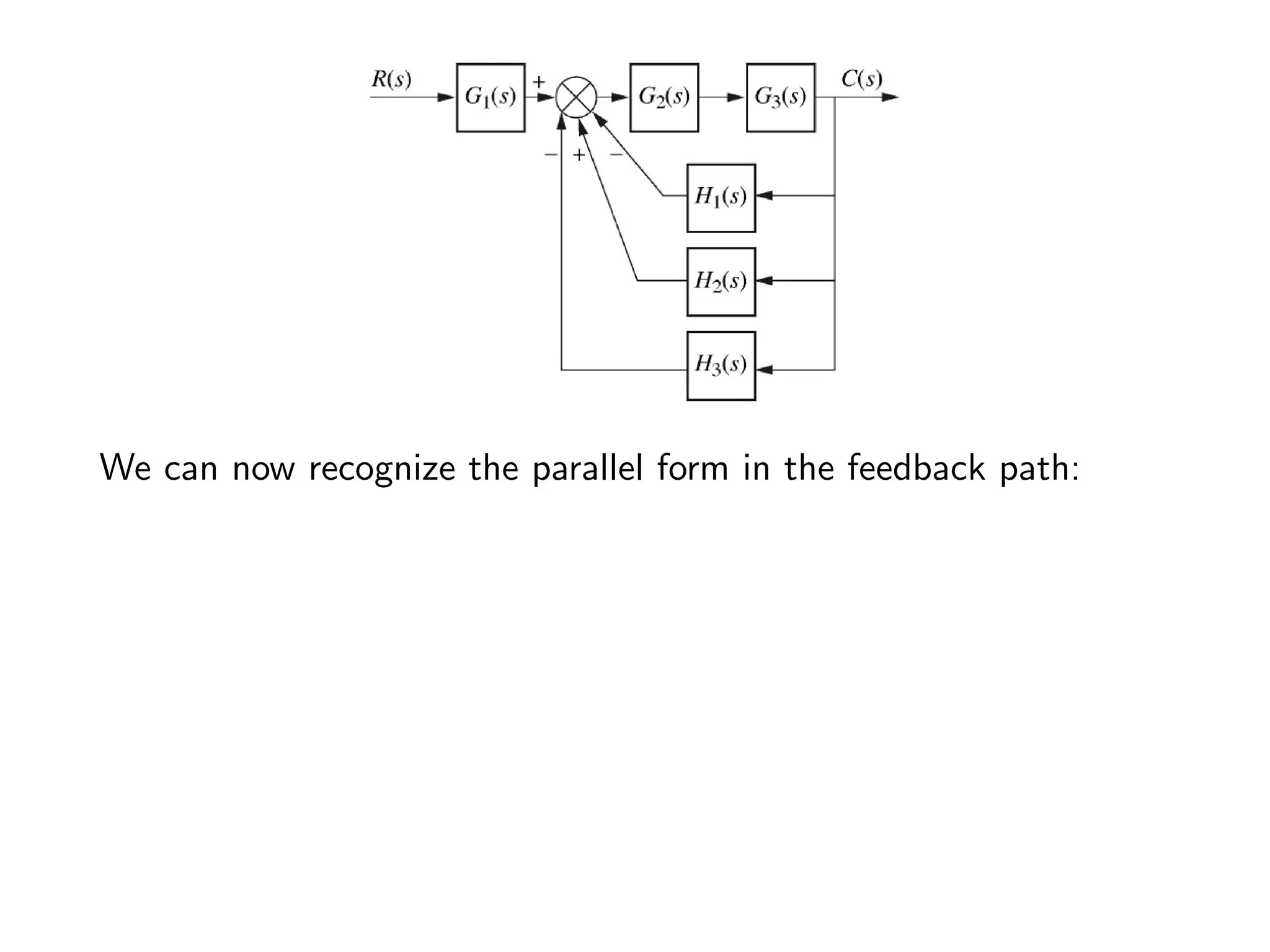

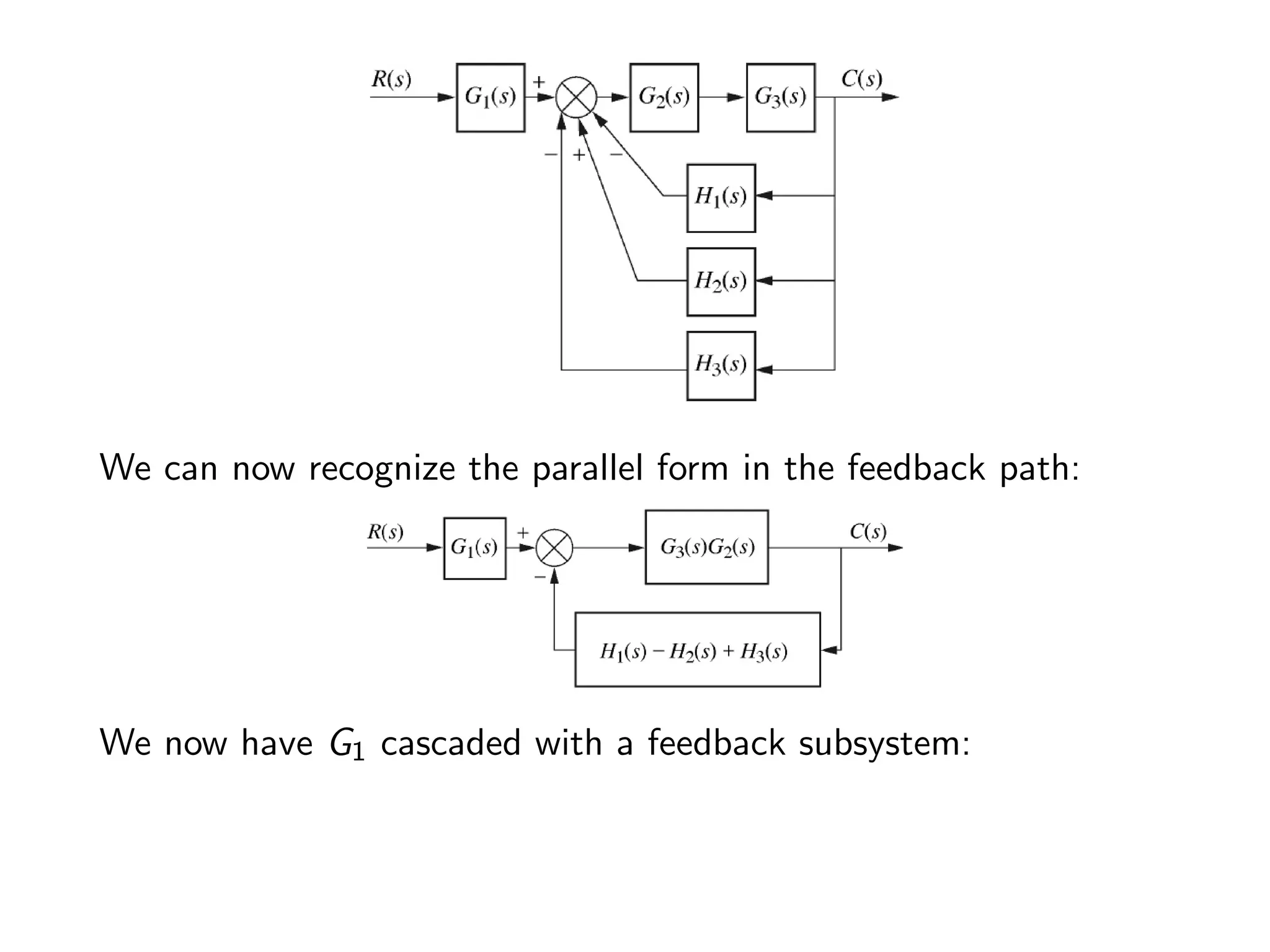

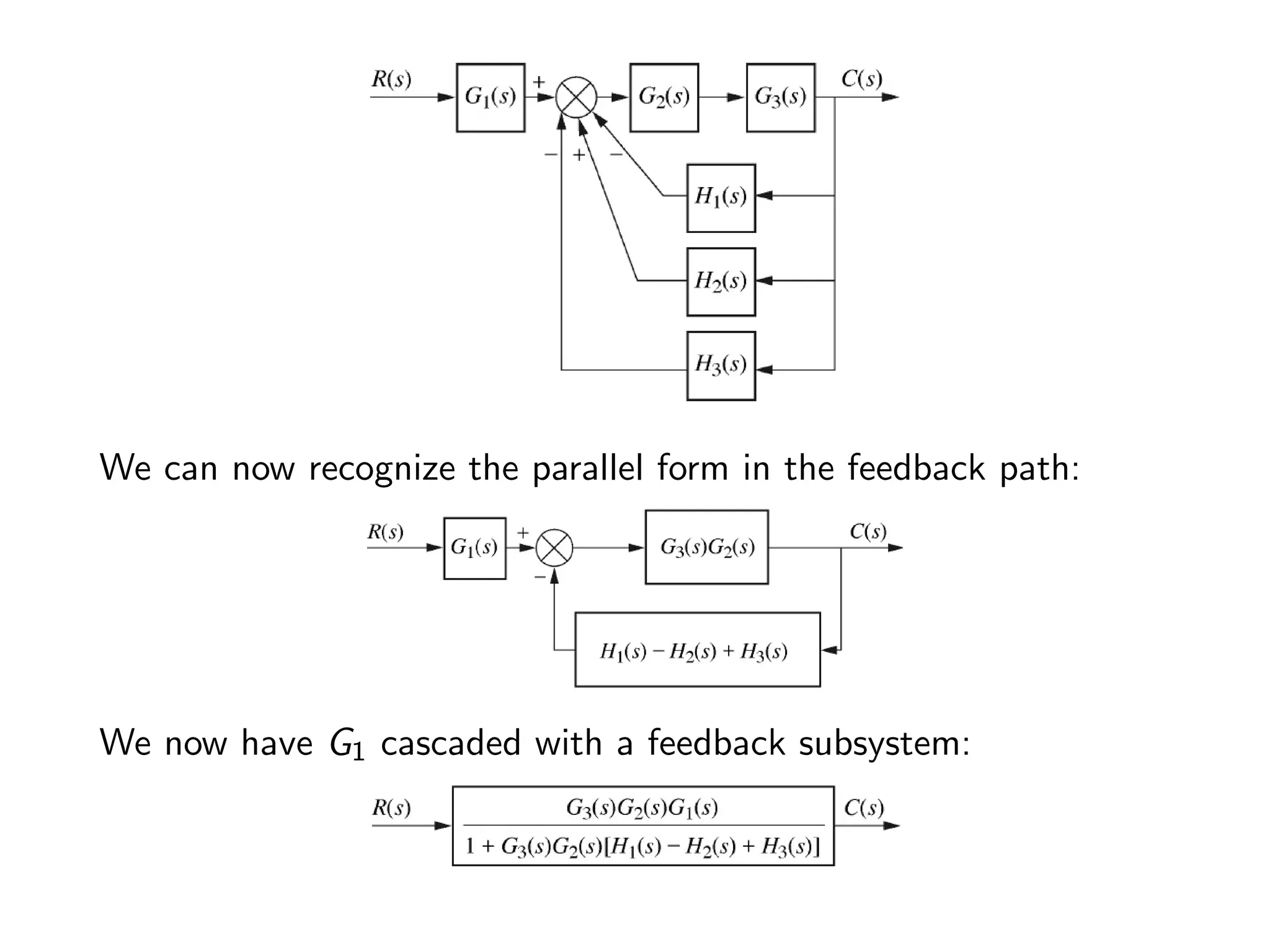

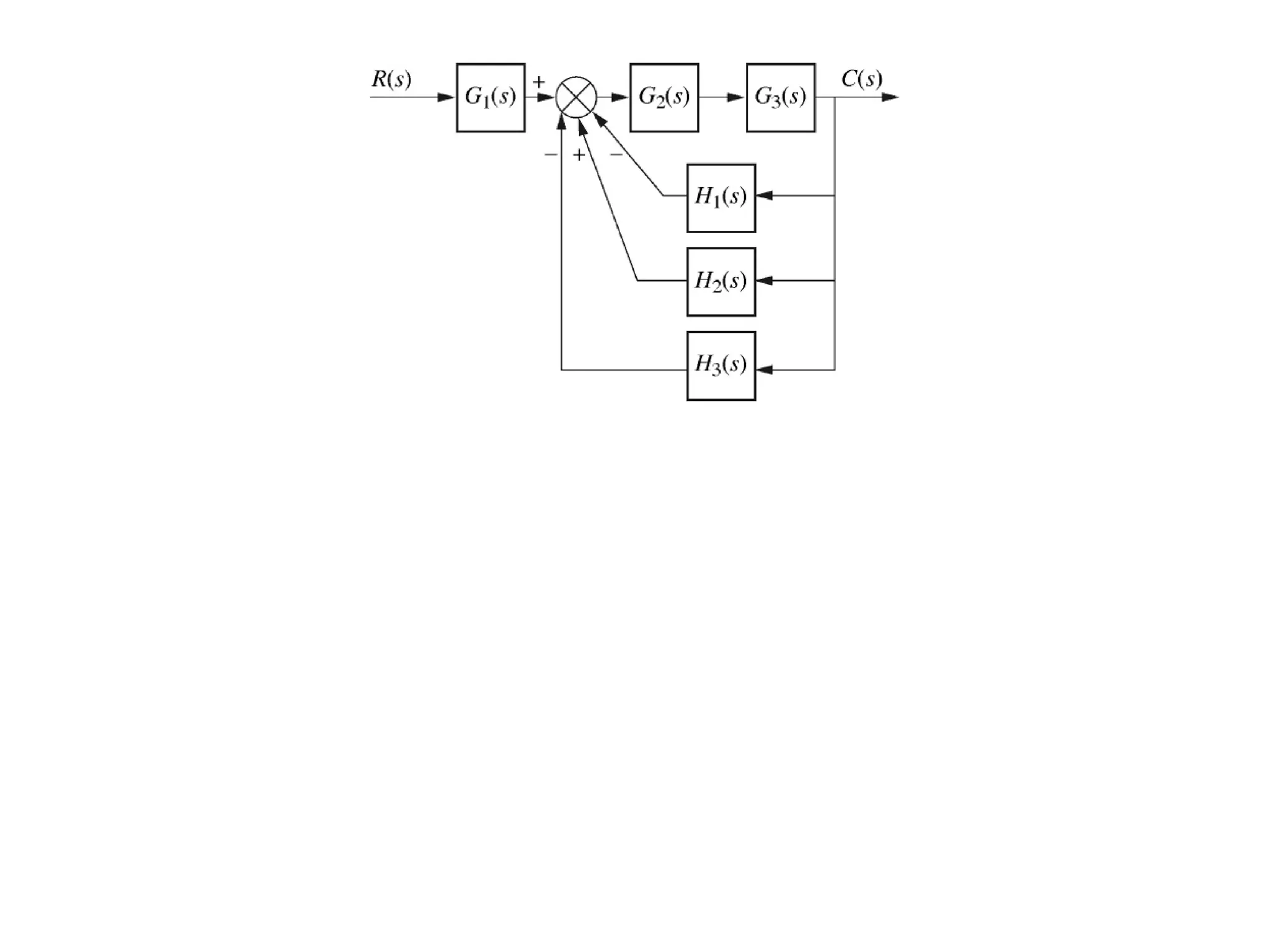

47. We can now recognize the parallel form in the feedback path:

48. We can now recognize the parallel form in the feedback path:

49. We can now recognize the parallel form in the feedback path:
We now have G1 cascaded with a feedback subsystem:

50. We can now recognize the parallel form in the feedback path:
We now have G1 cascaded with a feedback subsystem:

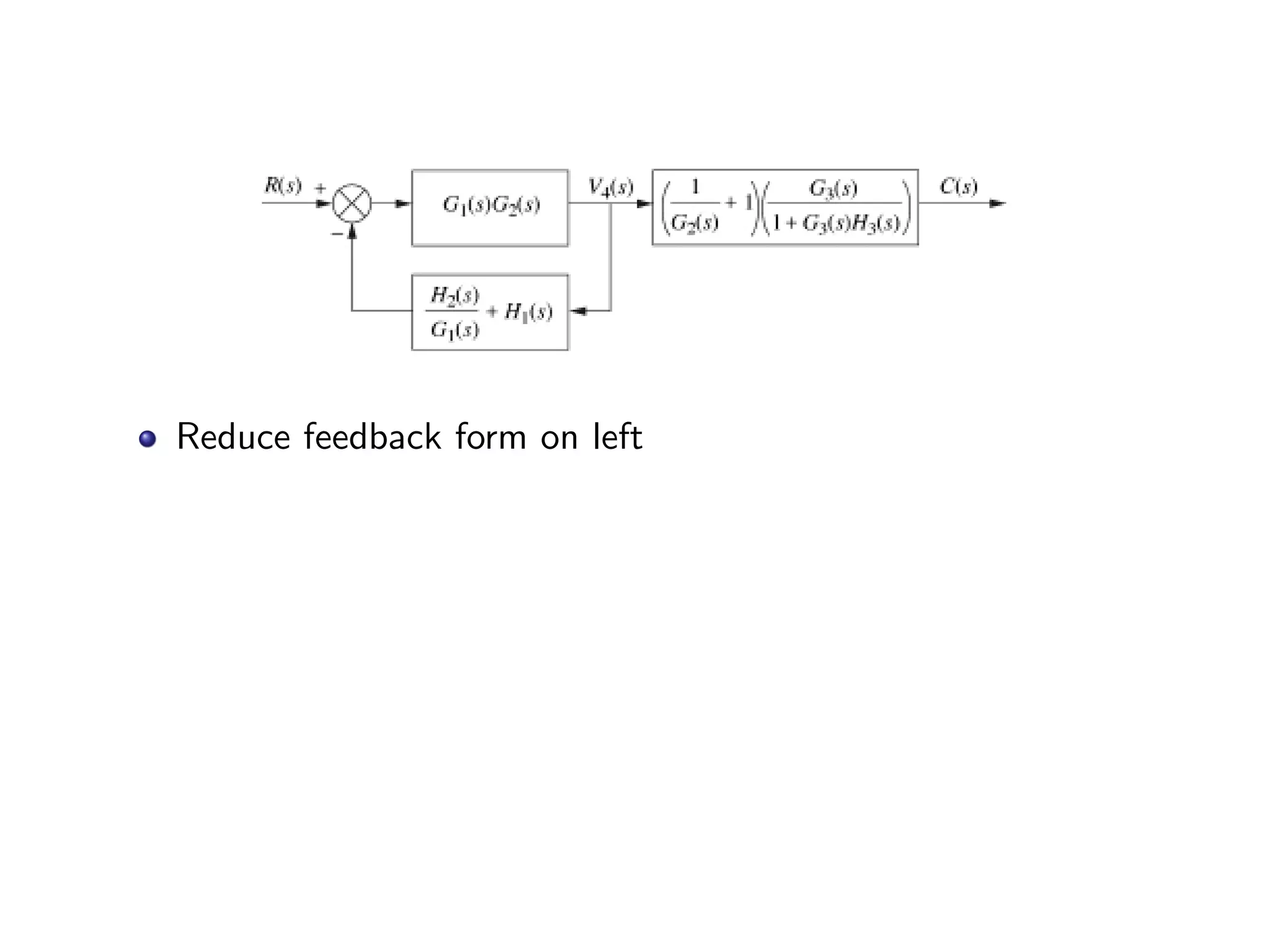

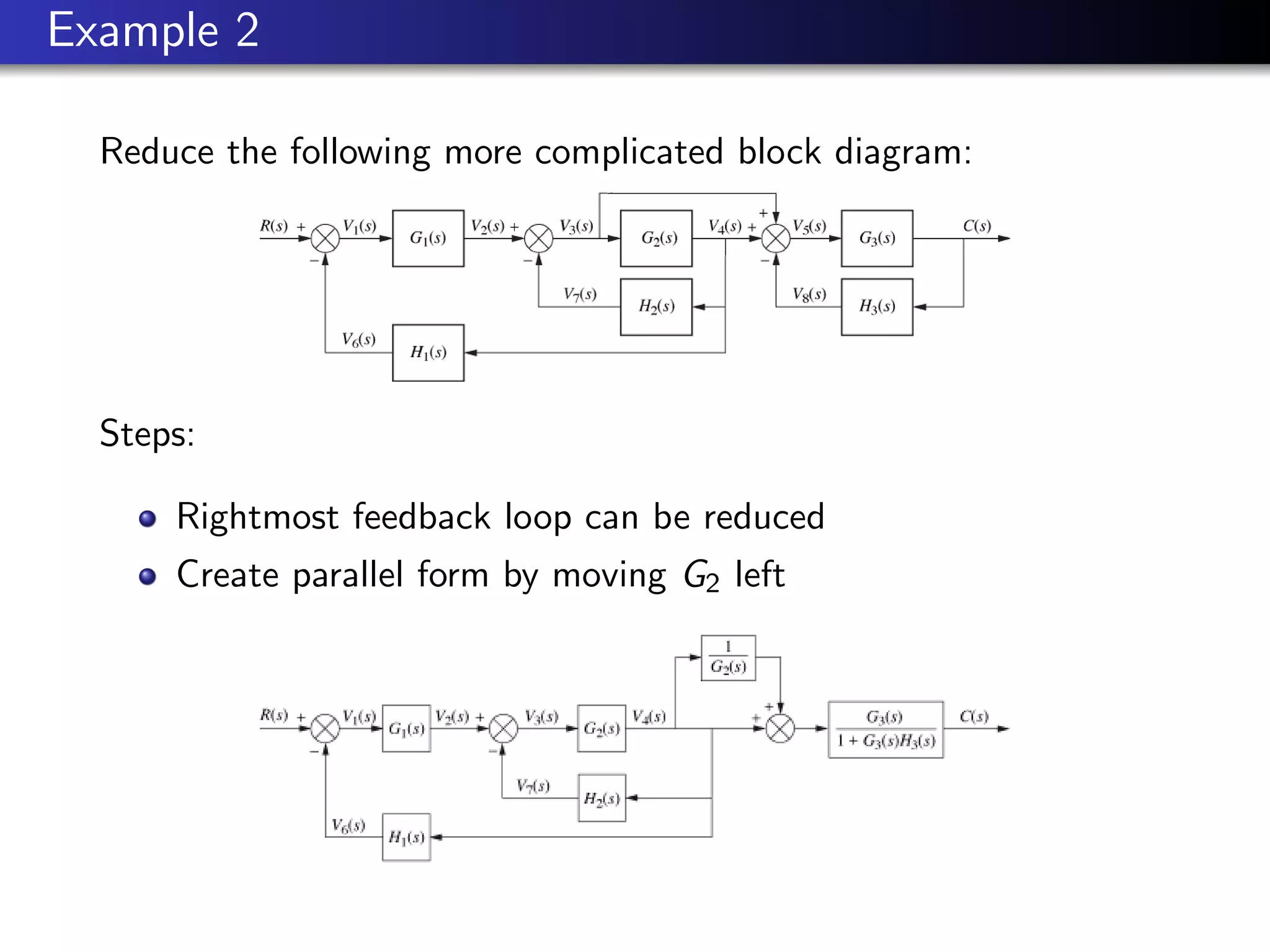

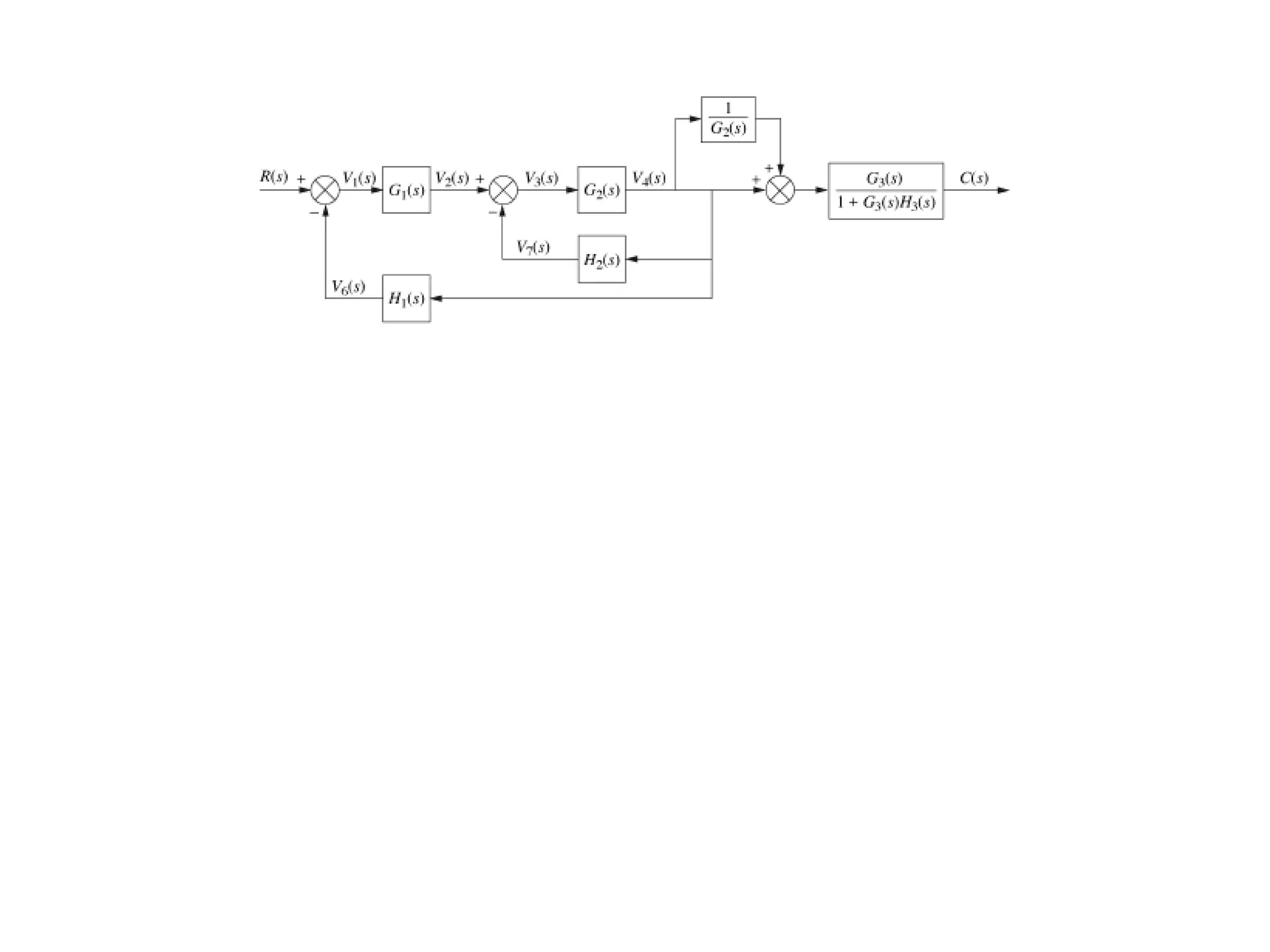

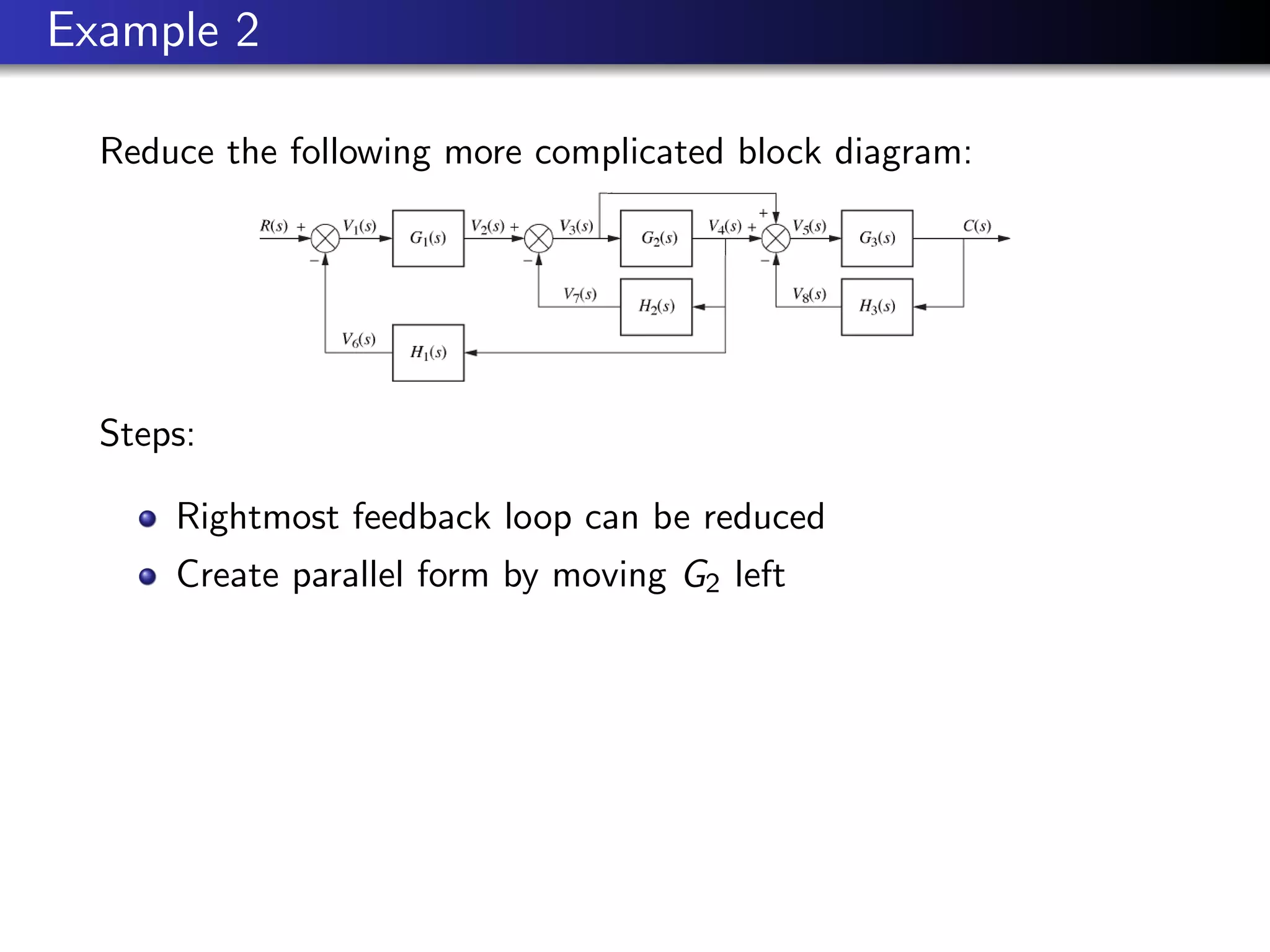

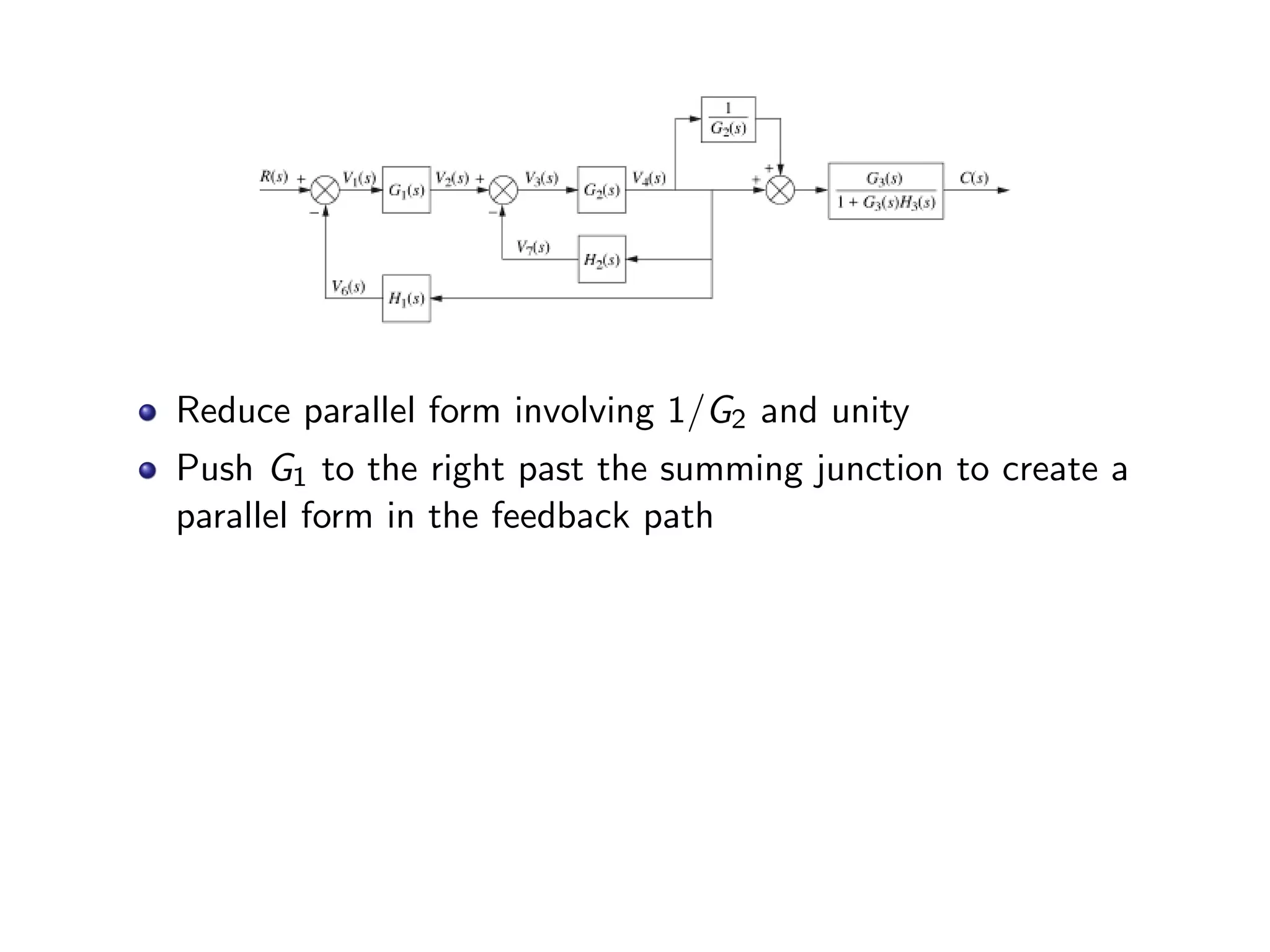

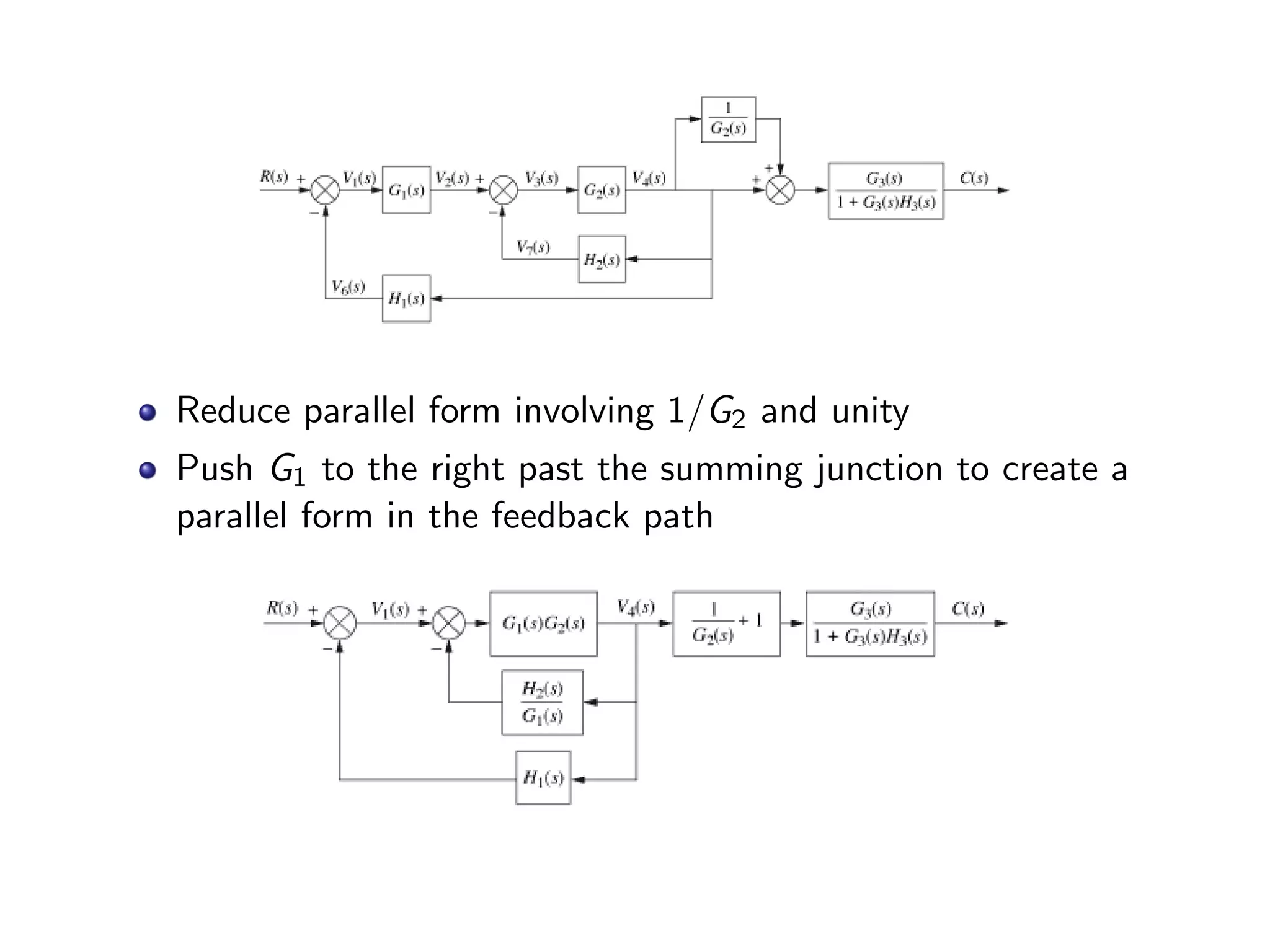

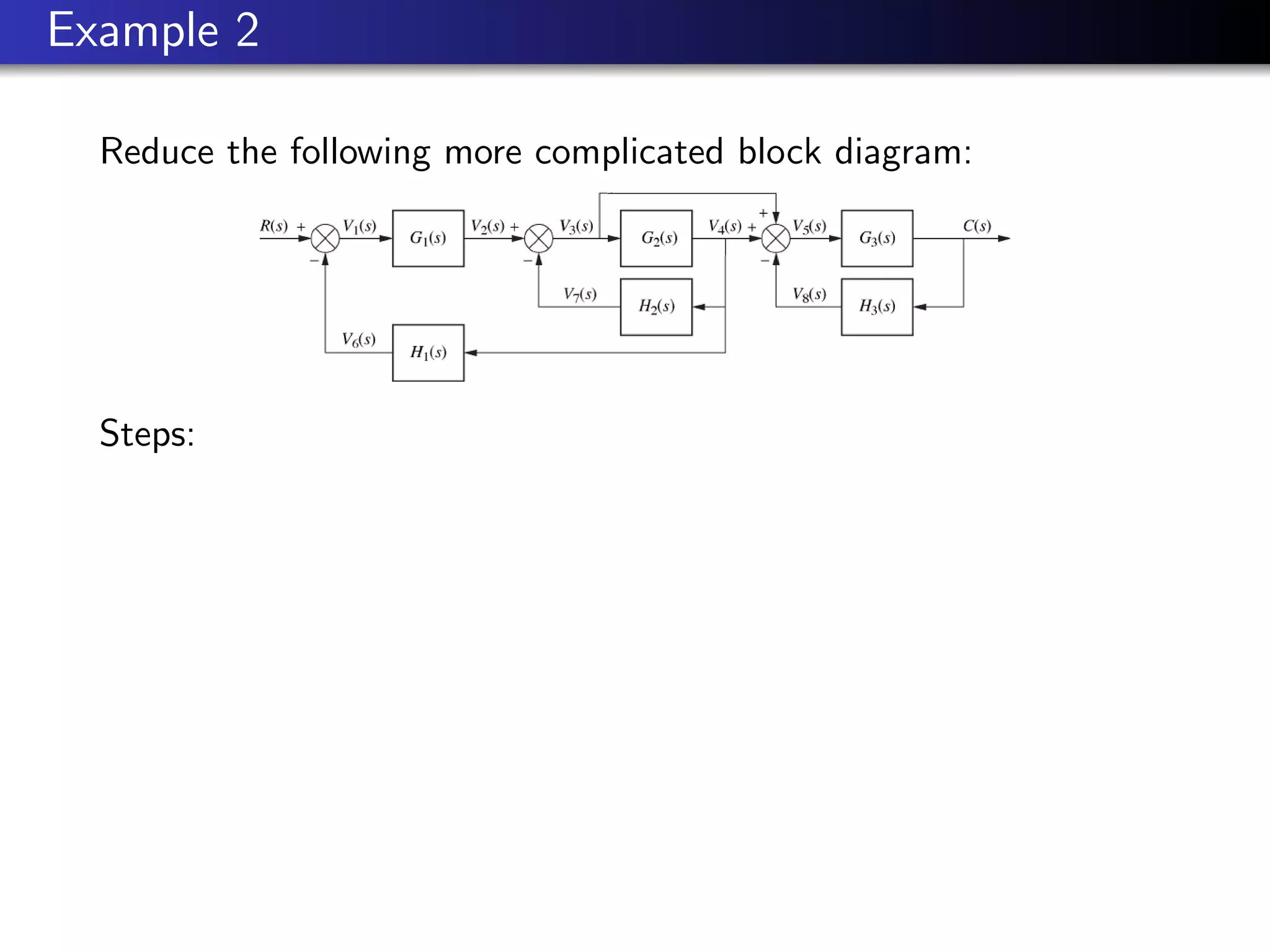

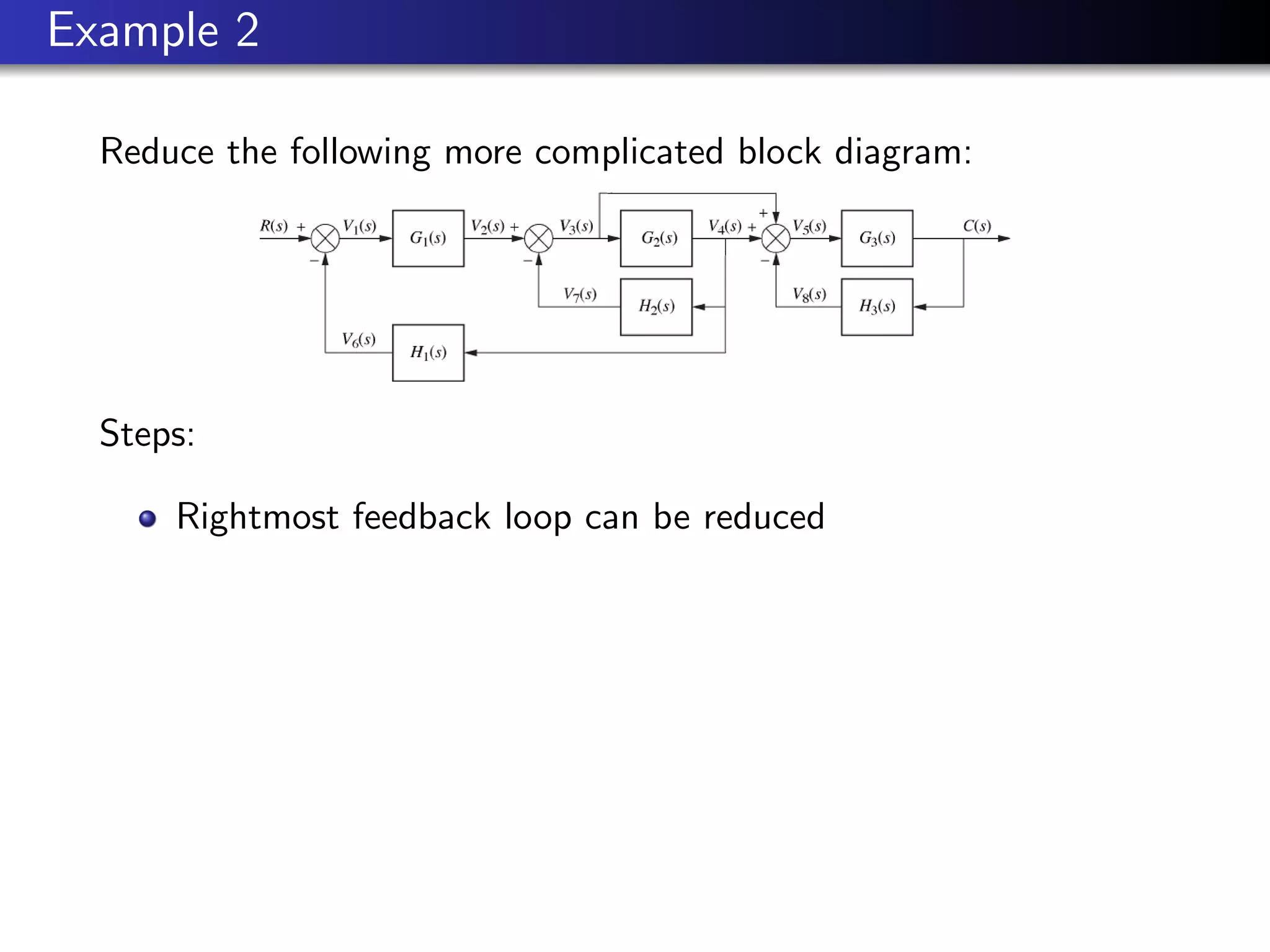

51. Example 2
Reduce the following more complicated block diagram:

52. Example 2
Reduce the following more complicated block diagram:

53. Example 2
Reduce the following more complicated block diagram:
Steps:

54. Example 2
Reduce the following more complicated block diagram:
Steps:
Rightmost feedback loop can be reduced

55. Example 2
Reduce the following more complicated block diagram:
Steps:
Rightmost feedback loop can be reduced
Create parallel form by moving G2 left

56. Example 2
Reduce the following more complicated block diagram:
Steps:
Rightmost feedback loop can be reduced
Create parallel form by moving G2 left

57. Example 2
Reduce the following more complicated block diagram:
Steps:
Rightmost feedback loop can be reduced
Create parallel form by moving G2 left

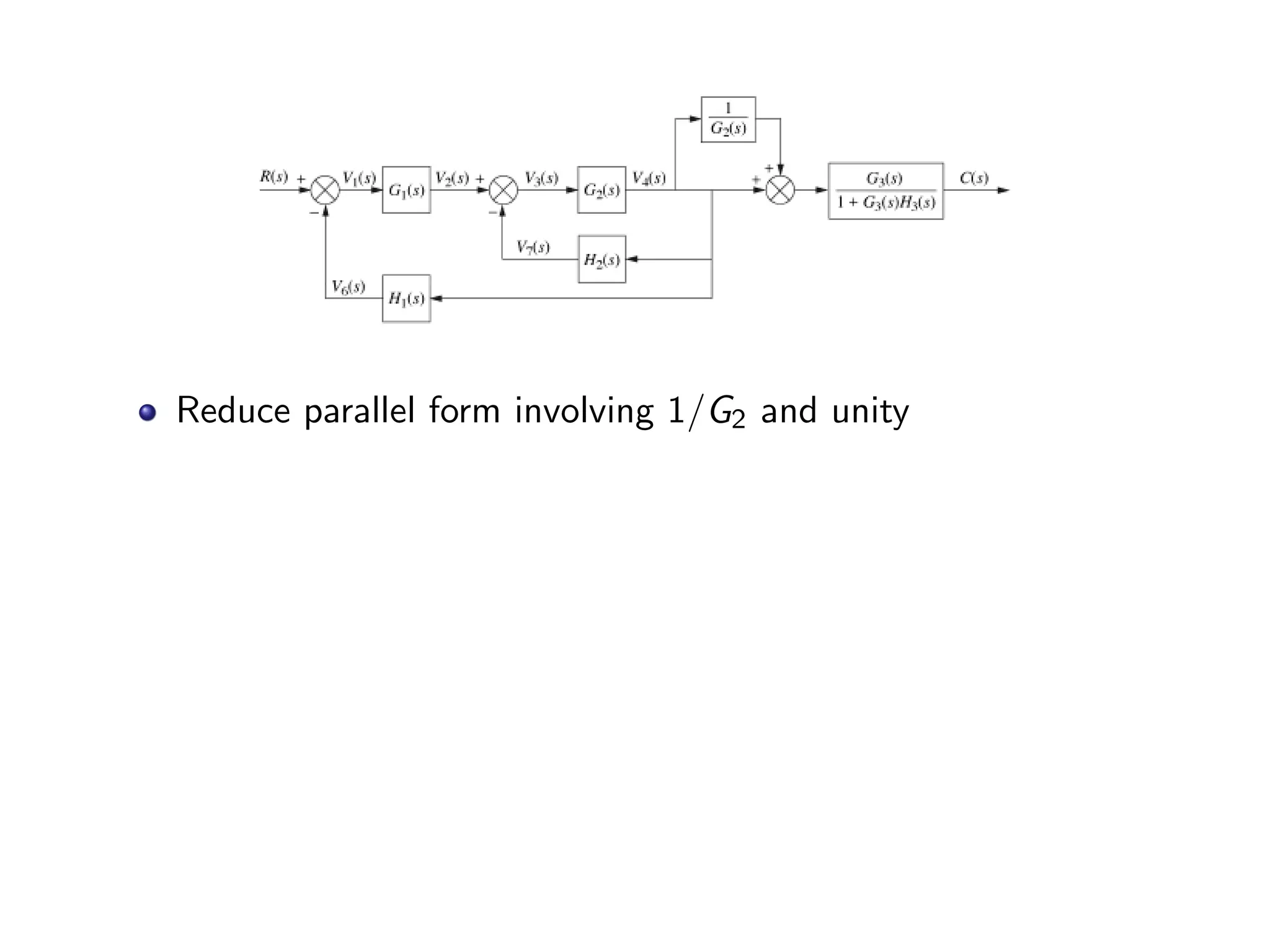

59. Reduce parallel form involving 1/G2 and unity

60. Reduce parallel form involving 1/G2 and unity
Push G1 to the right past the summing junction to create a
parallel form in the feedback path

61. Reduce parallel form involving 1/G2 and unity
Push G1 to the right past the summing junction to create a
parallel form in the feedback path

62. Reduce parallel form involving 1/G2 and unity
Push G1 to the right past the summing junction to create a
parallel form in the feedback path

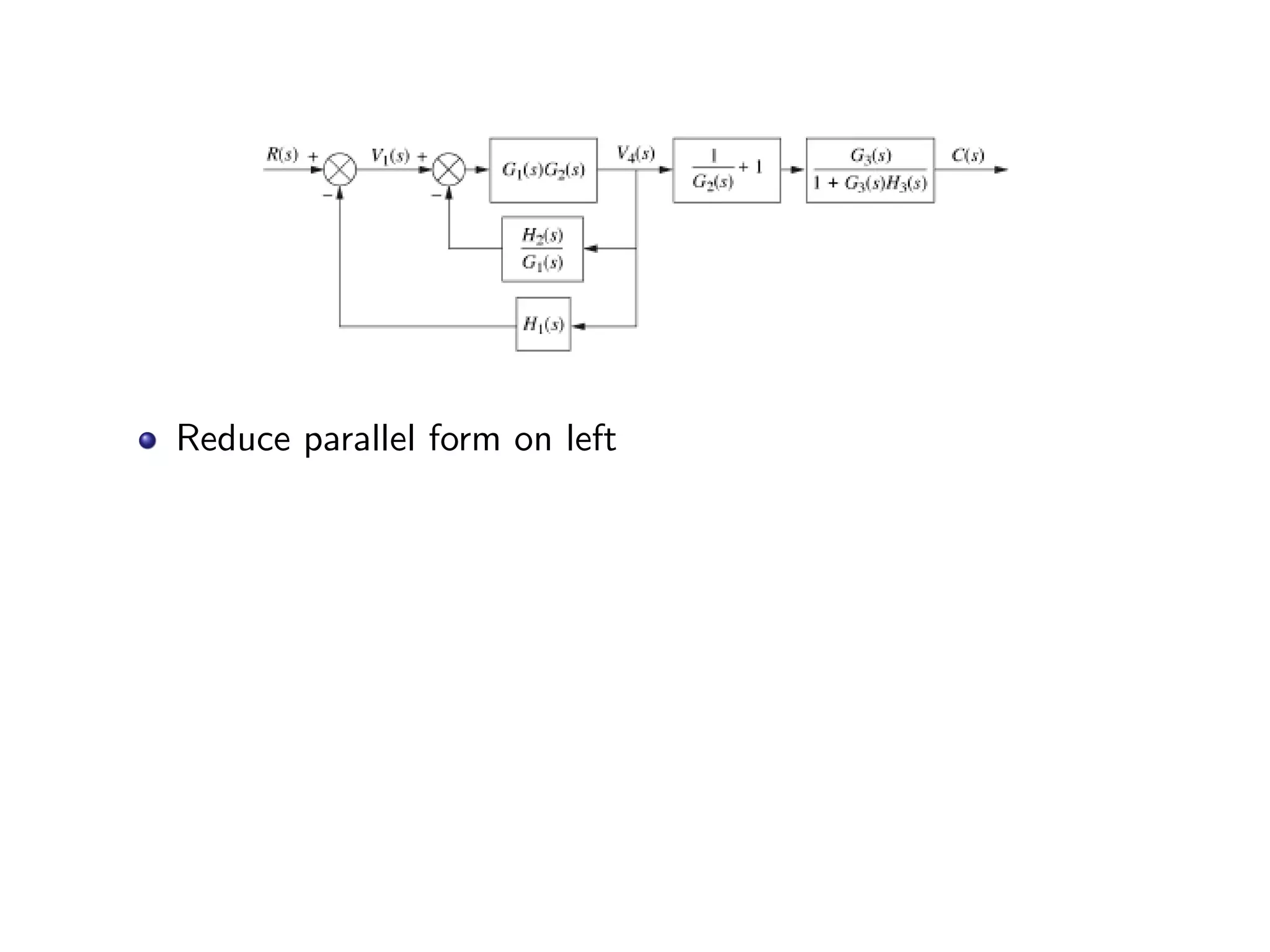

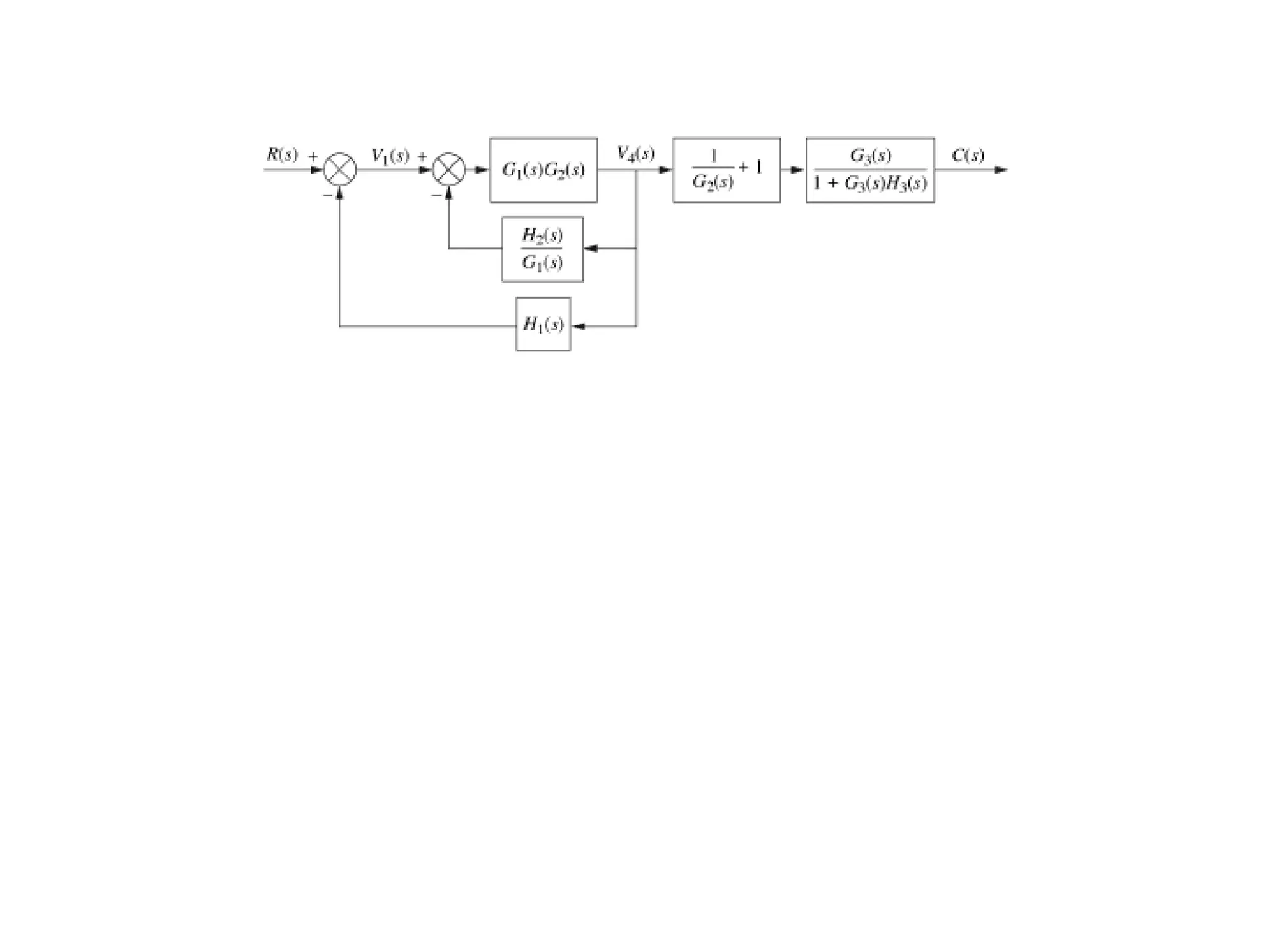

64. Reduce parallel form on left

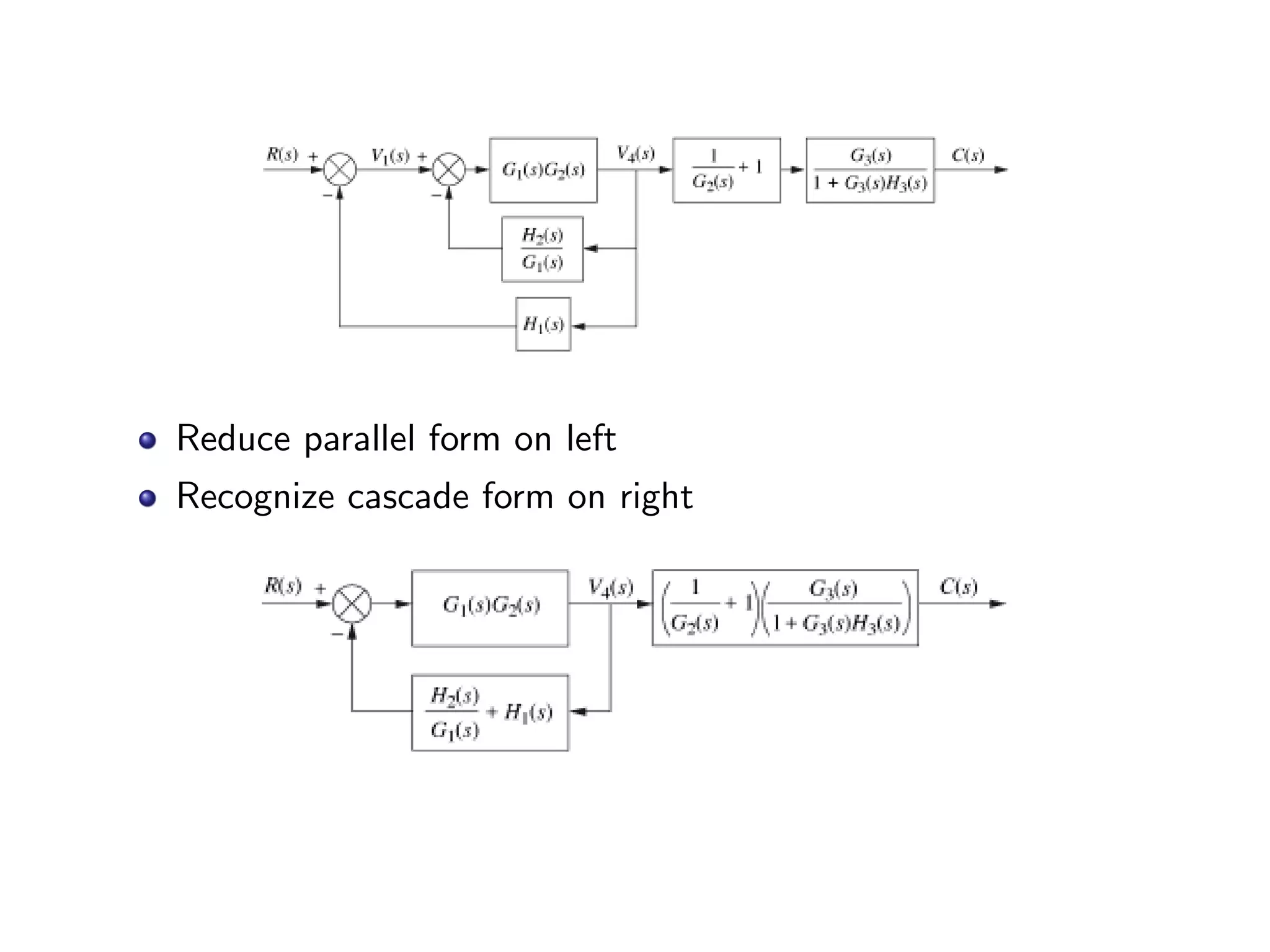

65. Reduce parallel form on left
Recognize cascade form on right

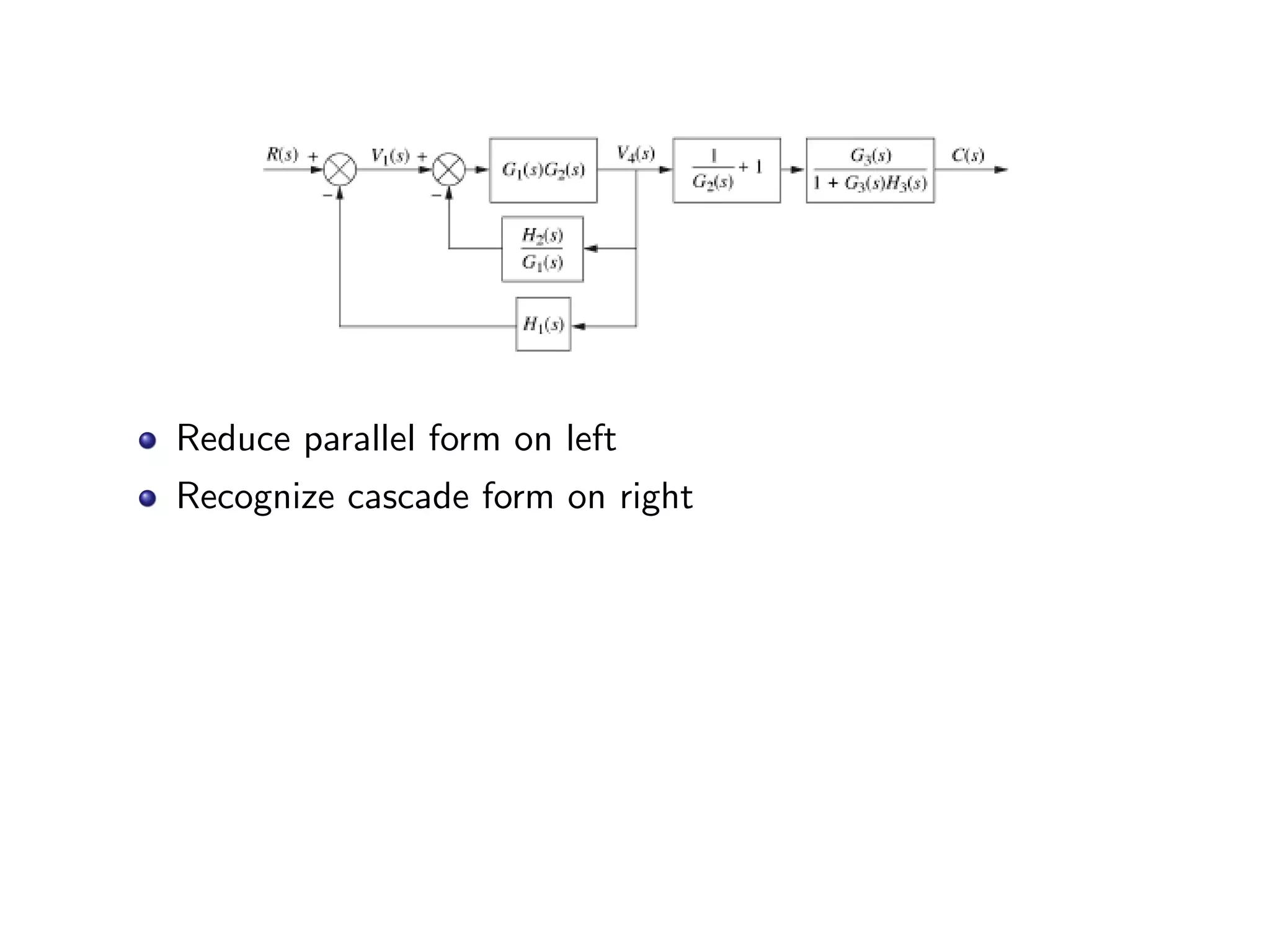

66. Reduce parallel form on left
Recognize cascade form on right

67. Reduce parallel form on left
Recognize cascade form on right

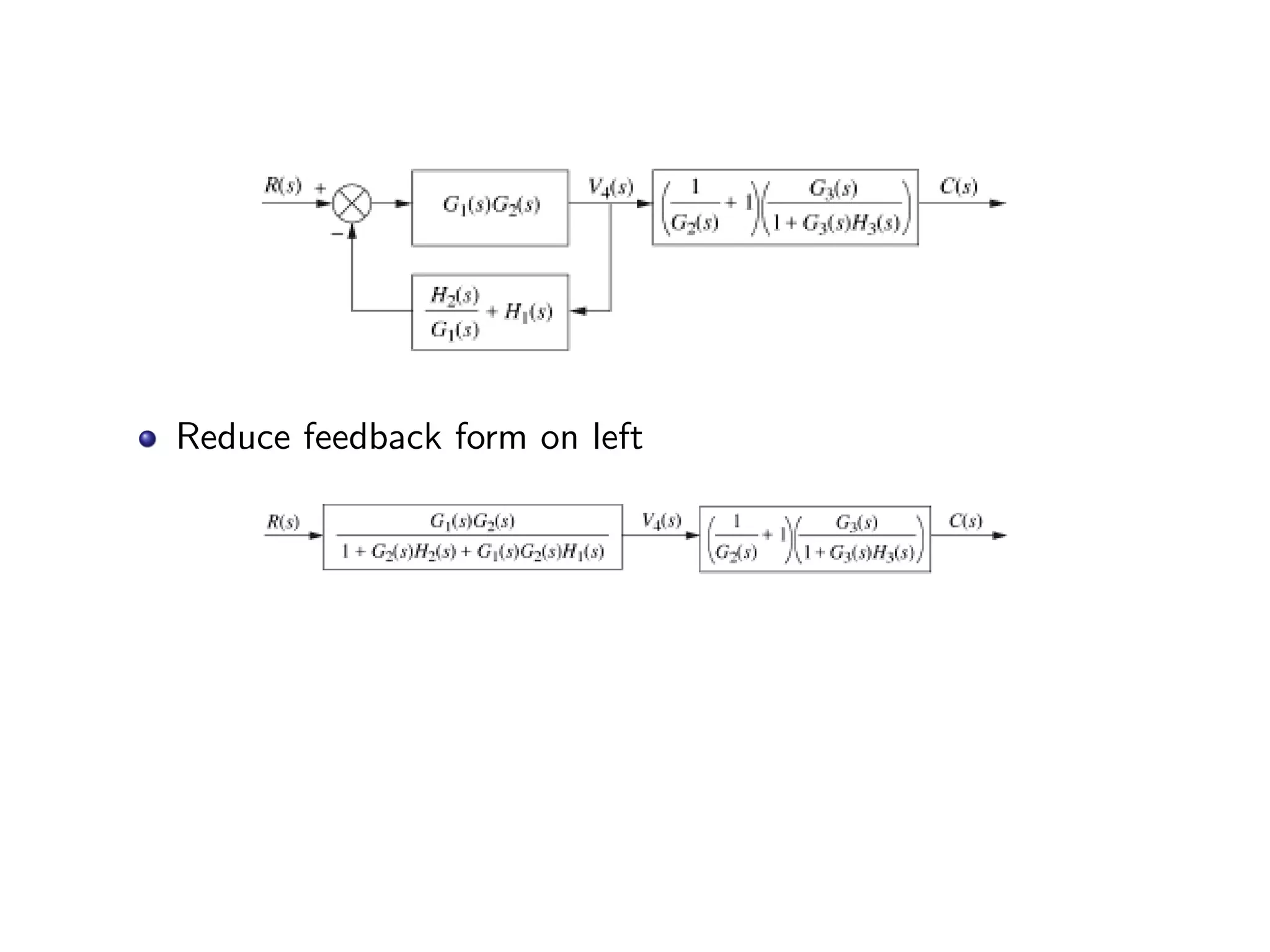

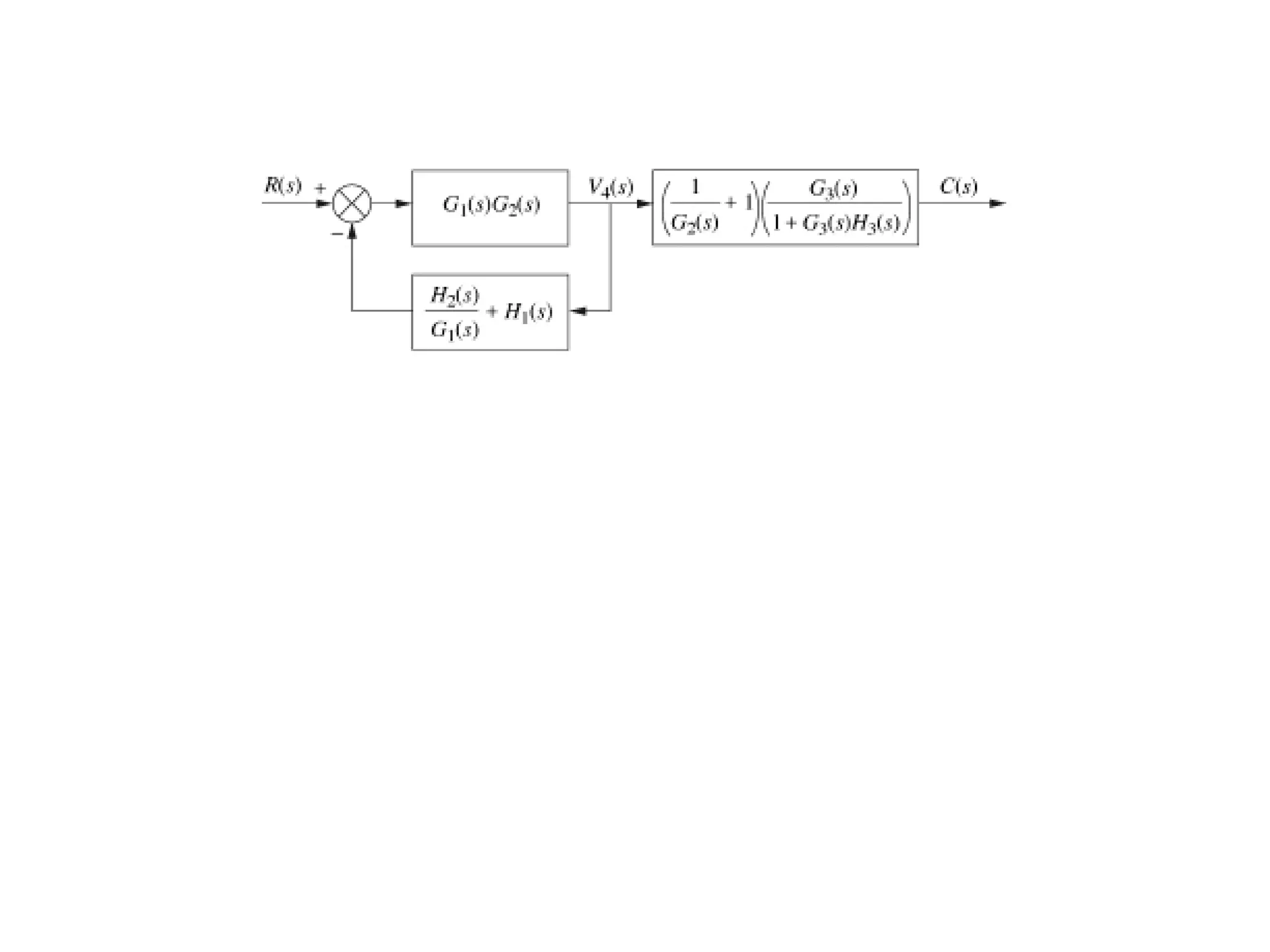

69. Reduce feedback form on left

70. Reduce feedback form on left

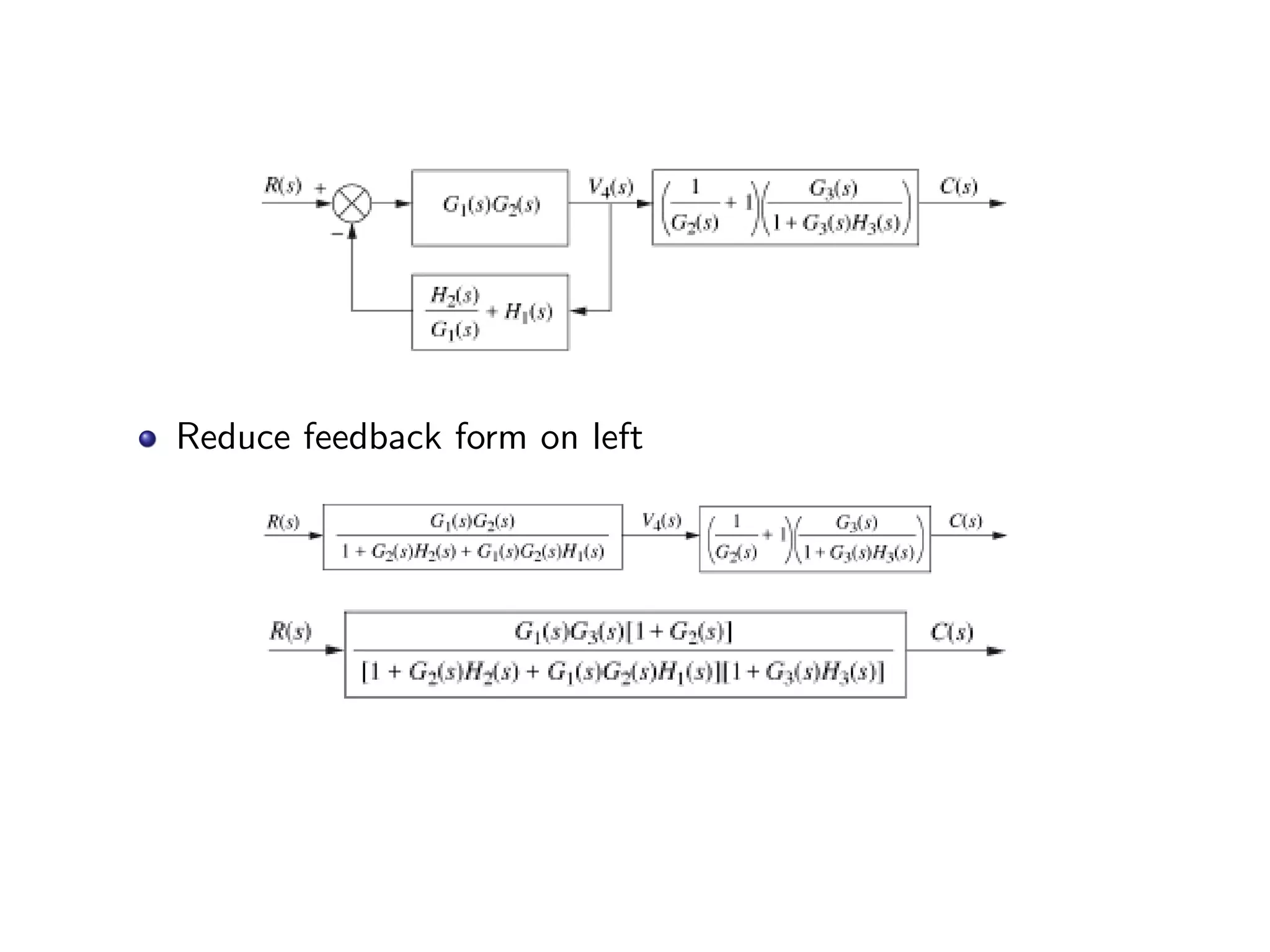

71. Reduce feedback form on left

72. Reduce feedback form on left

73. Reduce feedback form on left

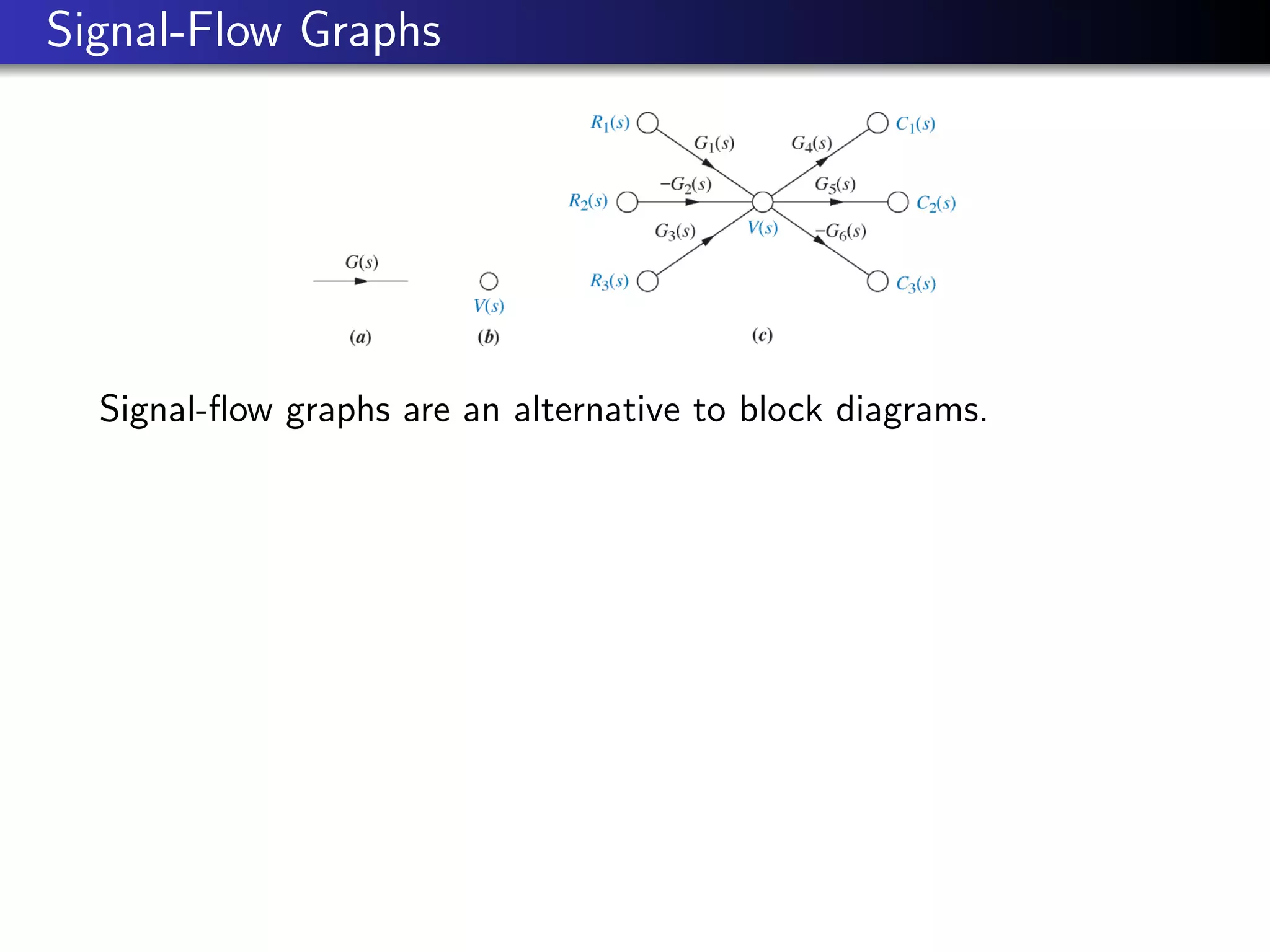

74. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams.

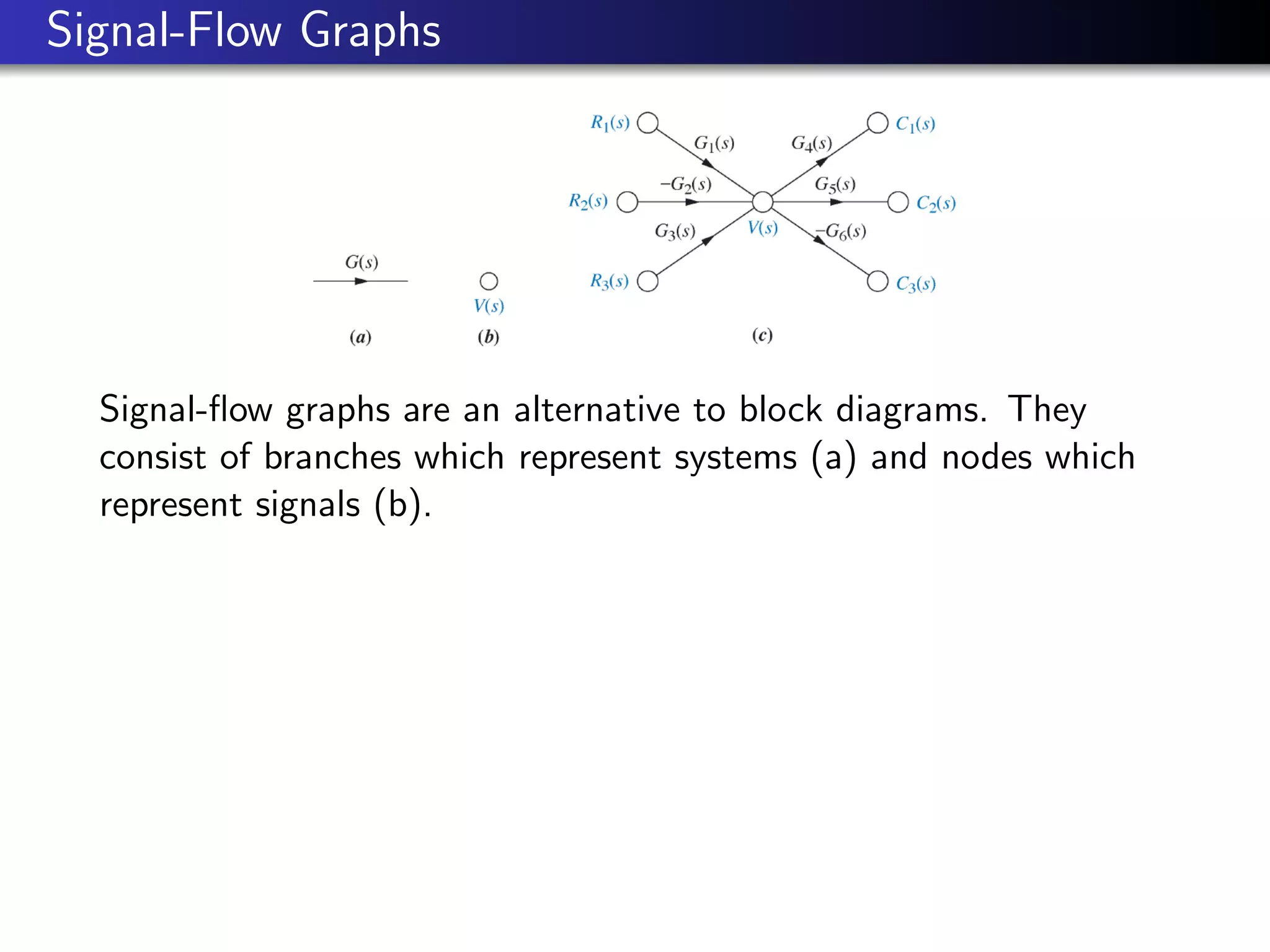

75. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams. They
consist of branches which represent systems (a) and nodes which
represent signals (b).

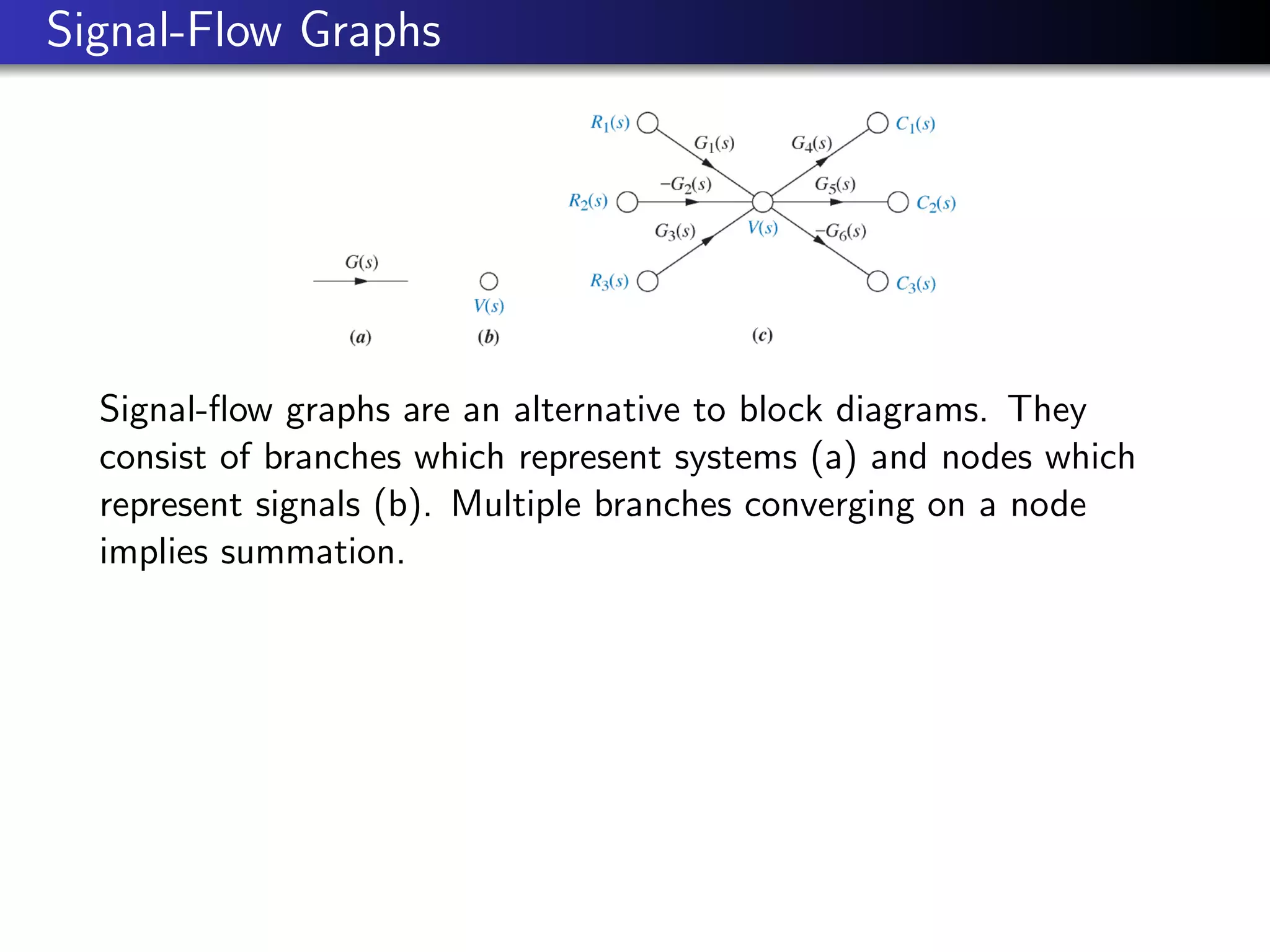

76. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams. They
consist of branches which represent systems (a) and nodes which
represent signals (b). Multiple branches converging on a node
implies summation.

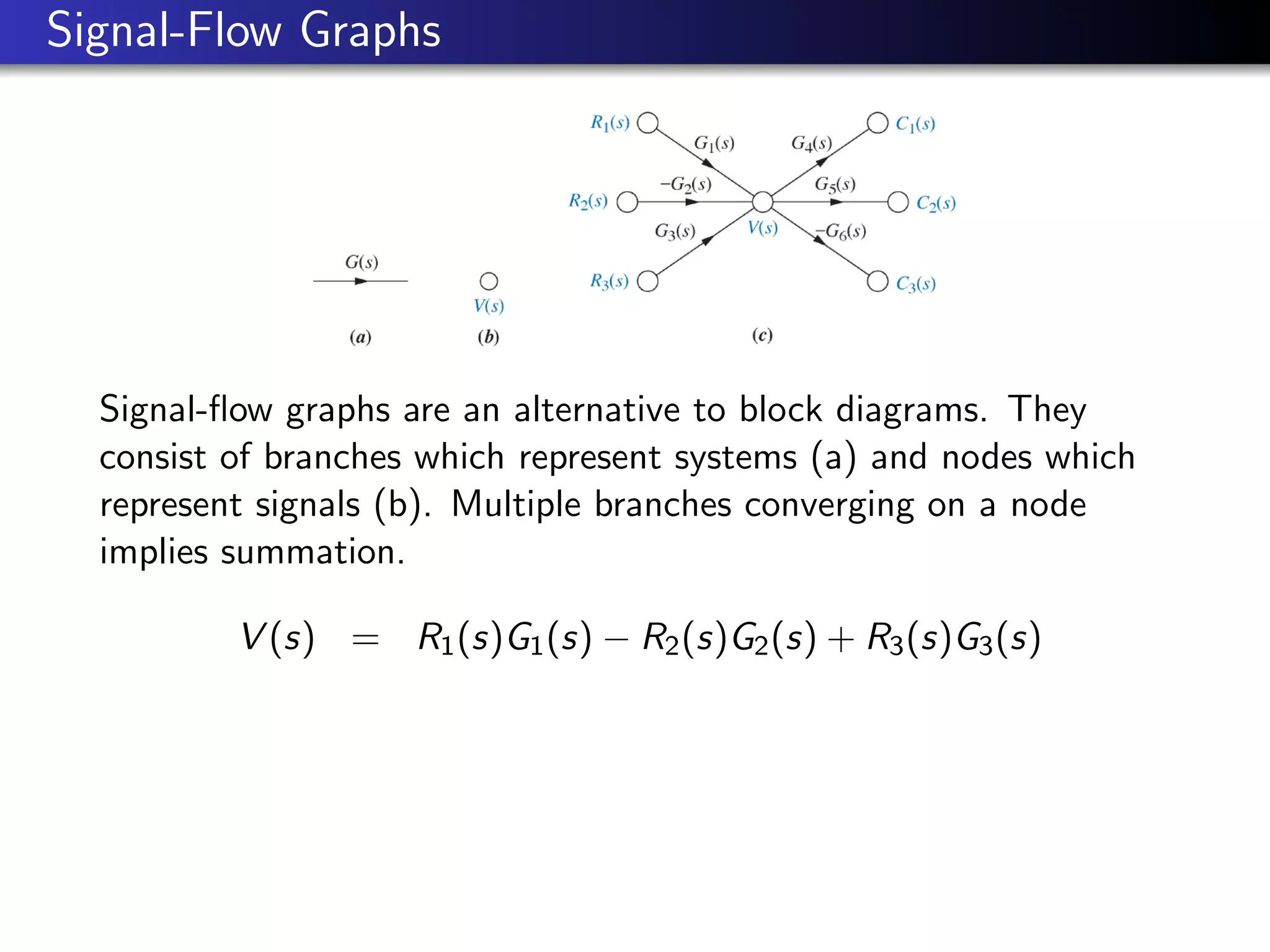

77. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams. They
consist of branches which represent systems (a) and nodes which
represent signals (b). Multiple branches converging on a node
implies summation.
V (s) = R1(s)G1(s) − R2(s)G2(s) + R3(s)G3(s)

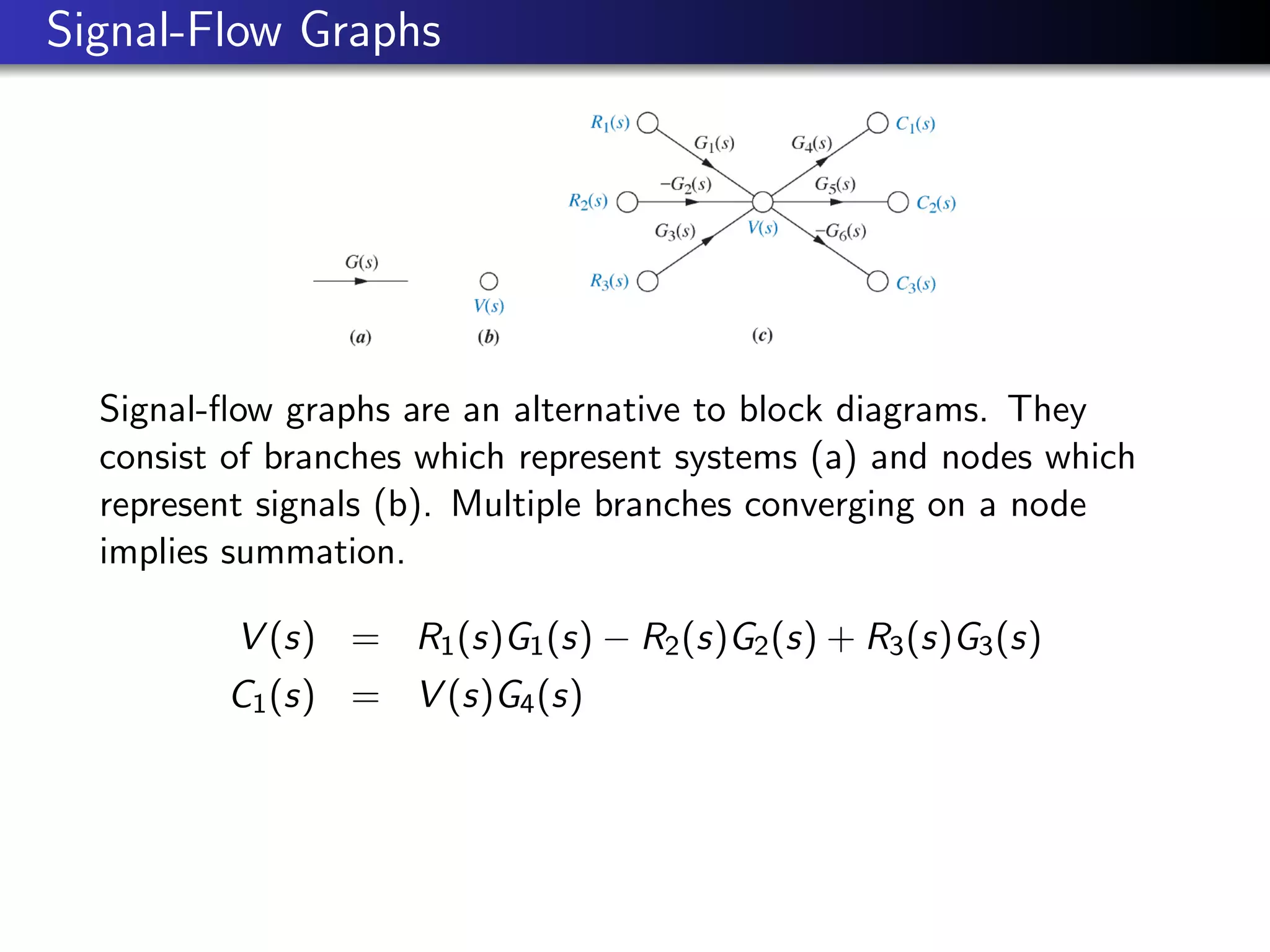

78. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams. They
consist of branches which represent systems (a) and nodes which
represent signals (b). Multiple branches converging on a node
implies summation.
V (s) = R1(s)G1(s) − R2(s)G2(s) + R3(s)G3(s)
C1(s) = V (s)G4(s)

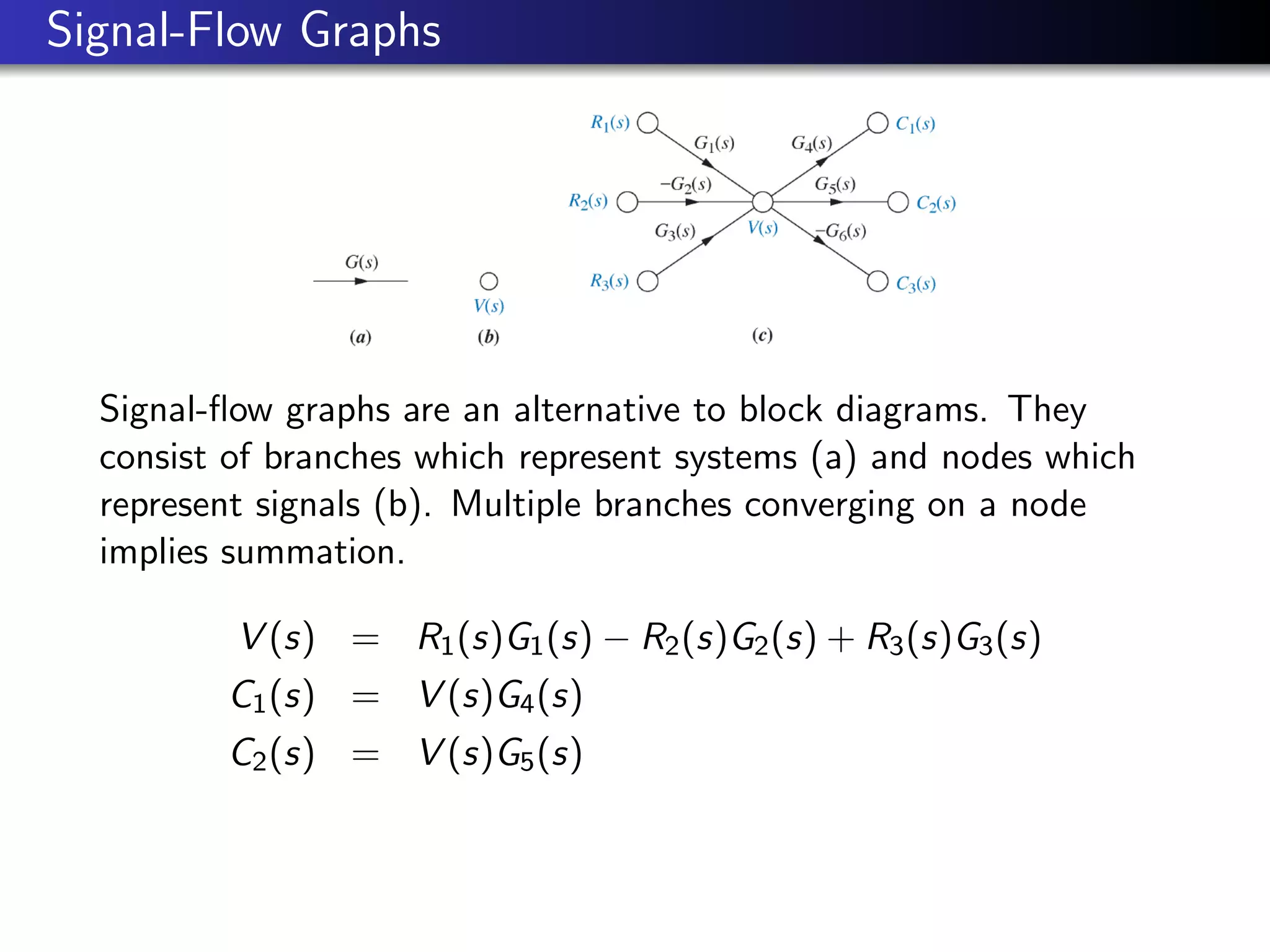

79. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams. They
consist of branches which represent systems (a) and nodes which
represent signals (b). Multiple branches converging on a node
implies summation.
V (s) = R1(s)G1(s) − R2(s)G2(s) + R3(s)G3(s)
C1(s) = V (s)G4(s)
C2(s) = V (s)G5(s)

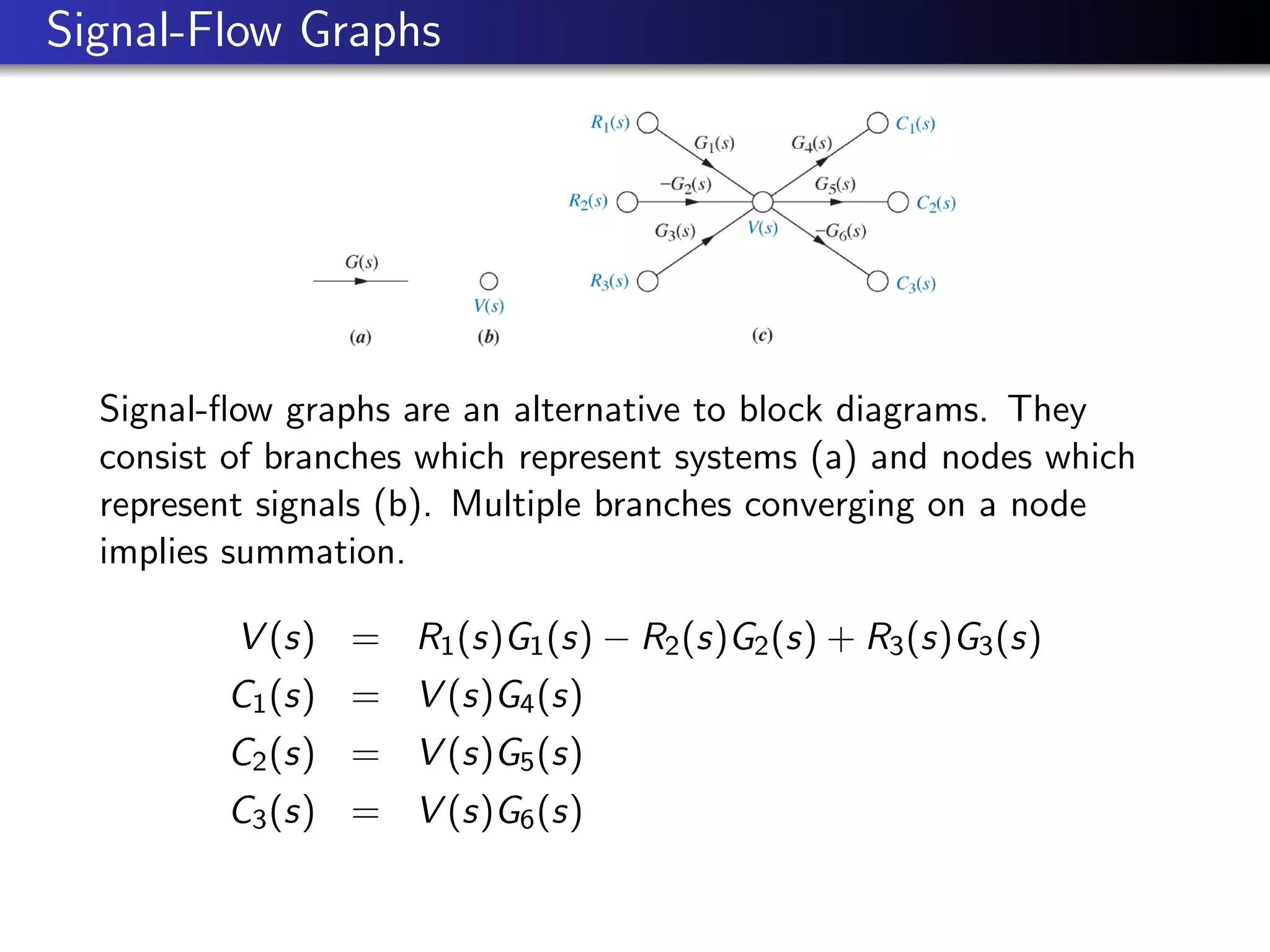

80. Signal-Flow Graphs
Signal-flow graphs are an alternative to block diagrams. They
consist of branches which represent systems (a) and nodes which
represent signals (b). Multiple branches converging on a node
implies summation.
V (s) = R1(s)G1(s) − R2(s)G2(s) + R3(s)G3(s)
C1(s) = V (s)G4(s)
C2(s) = V (s)G5(s)
C3(s) = V (s)G6(s)

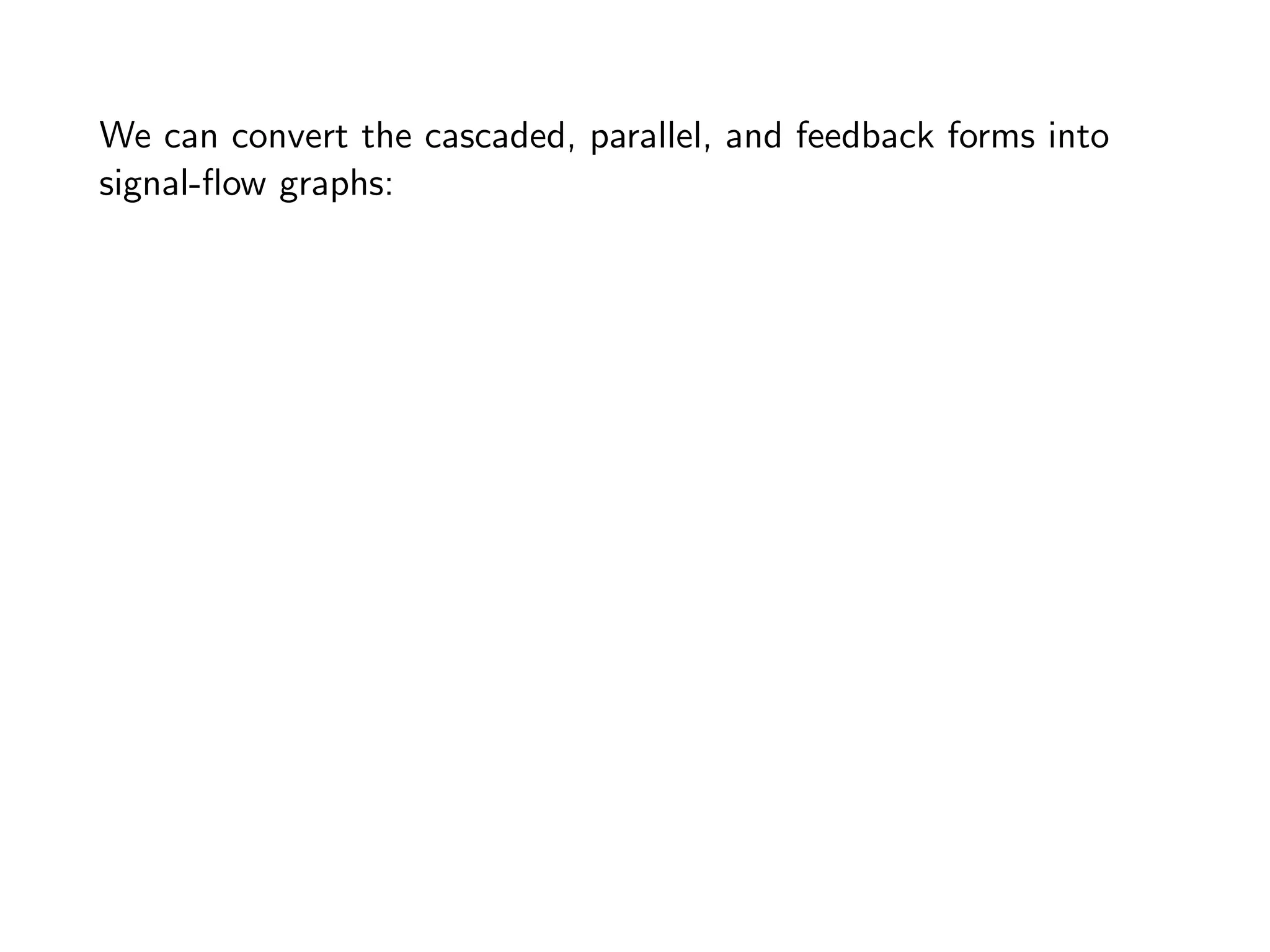

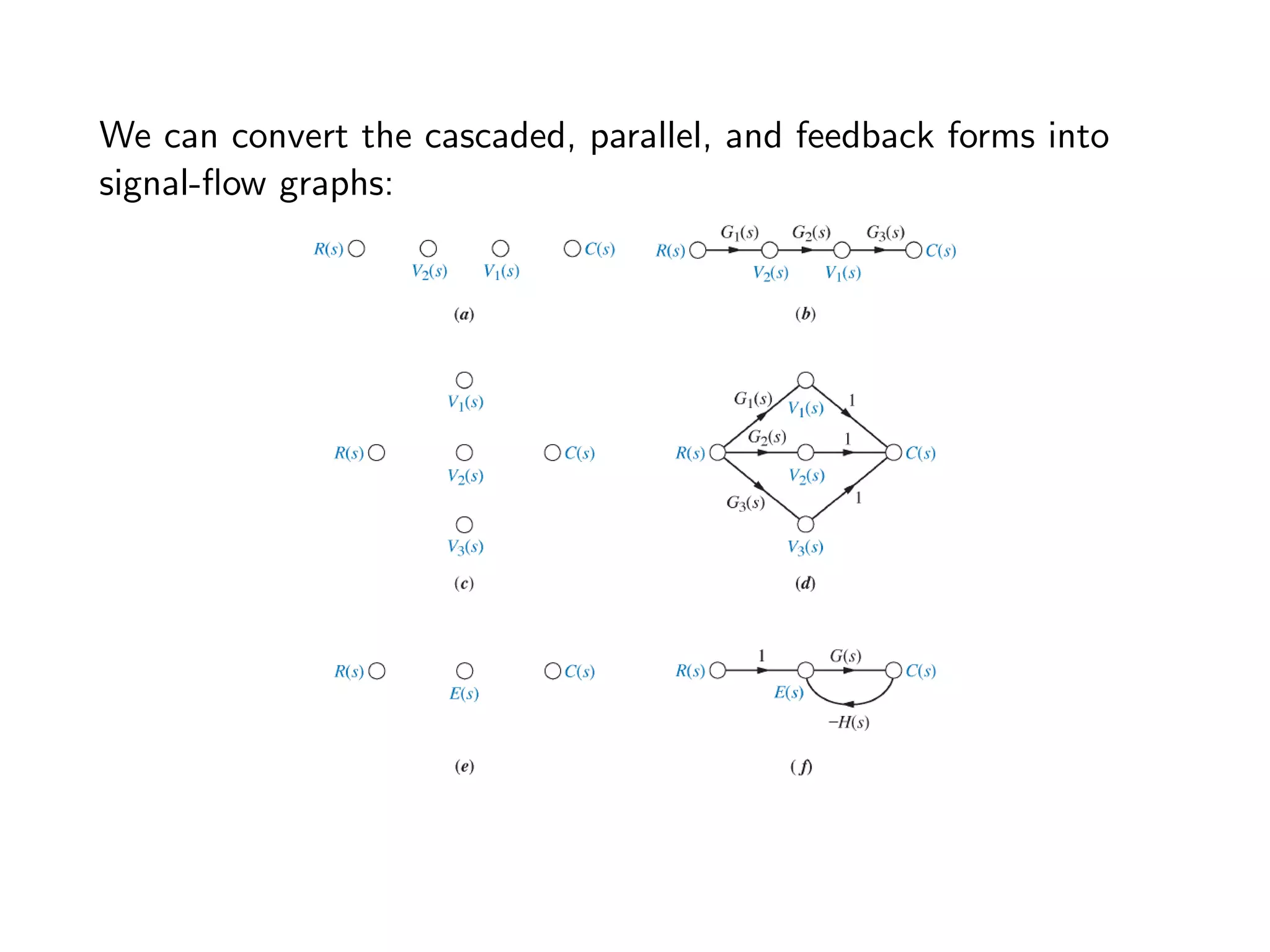

81. We can convert the cascaded, parallel, and feedback forms into
signal-flow graphs:

82. We can convert the cascaded, parallel, and feedback forms into
signal-flow graphs:

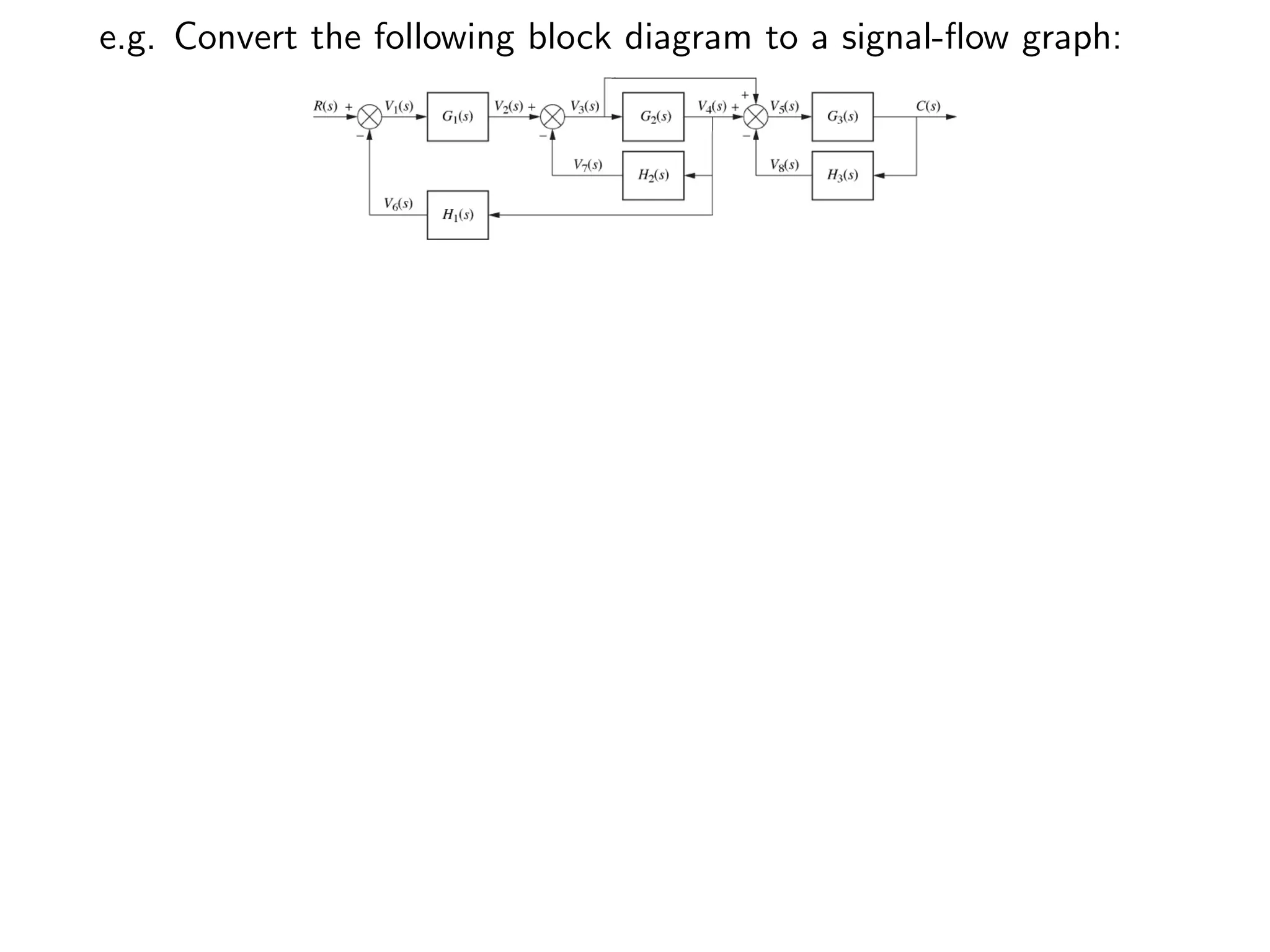

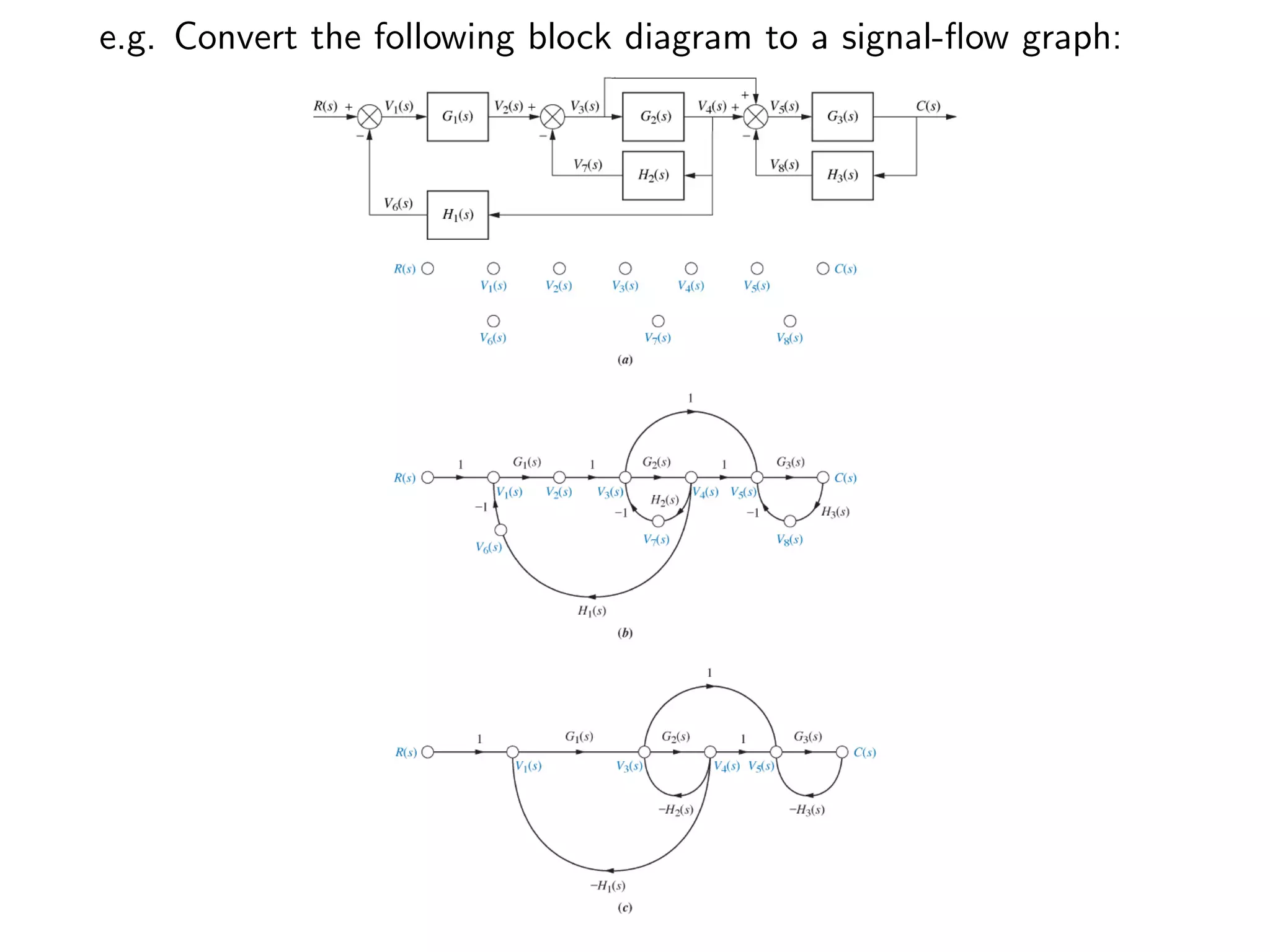

83. e.g. Convert the following block diagram to a signal-flow graph:

84. e.g. Convert the following block diagram to a signal-flow graph:

85. e.g. Convert the following block diagram to a signal-flow graph:
