1. Recommendation Engine with
In-Database Machine Learning
Changran Liu, Mingxi Wu

2. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

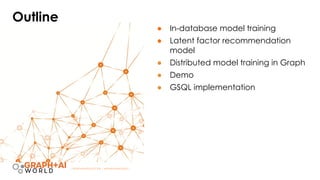

Outline
● In-database model training
● Latent factor recommendation
model
● Distributed model training in Graph
● Demo
● GSQL implementation

3. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

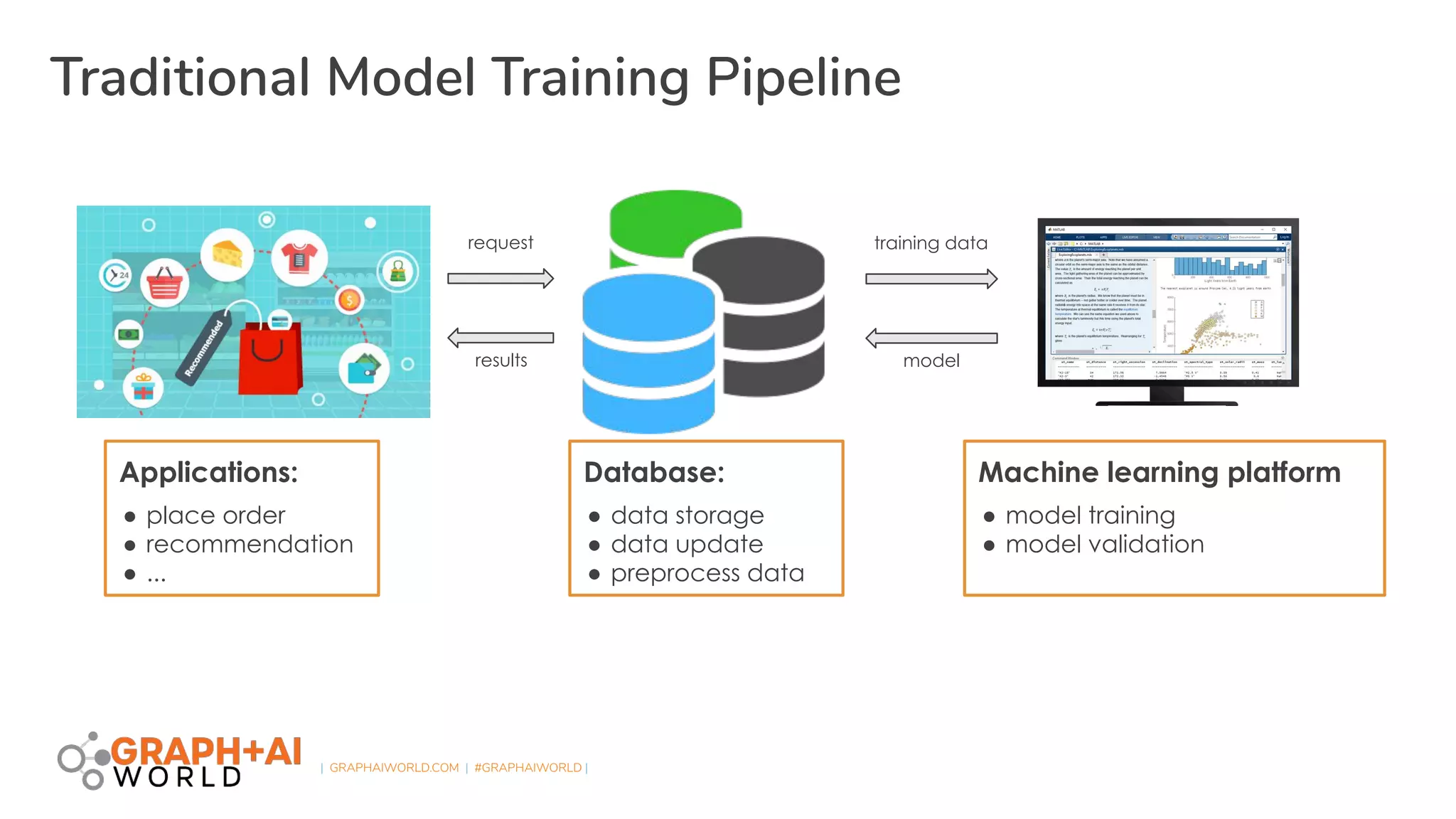

Traditional Model Training Pipeline
training data
model
request
results
Database:
● data storage
● data update
● preprocess data
Machine learning platform
● model training
● model validation
Applications:
● place order
● recommendation
● ...

4. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

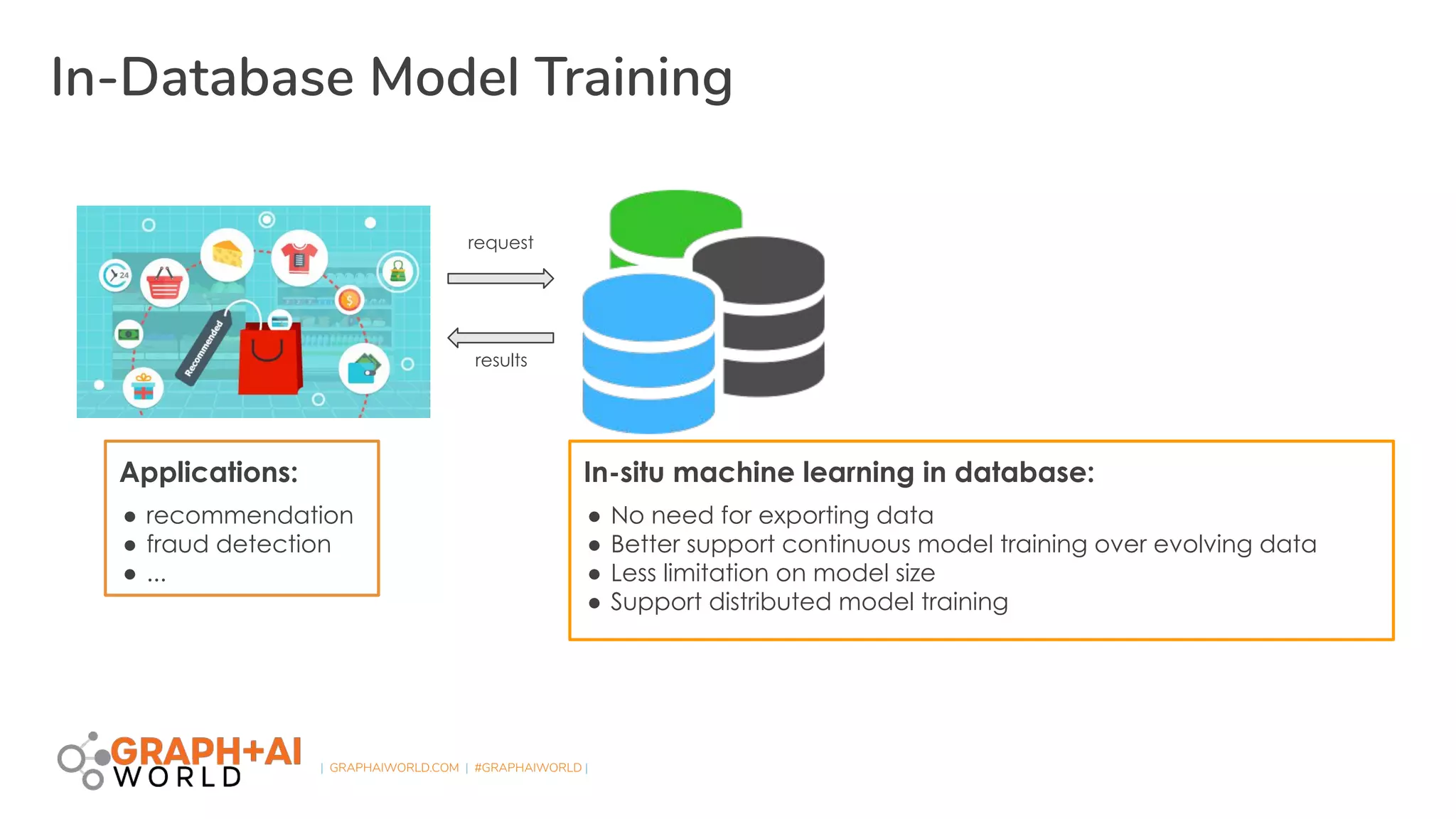

In-situ machine learning in database:
● No need for exporting data
● Better support continuous model training over evolving data
● Less limitation on model size
● Support distributed model training
In-Database Model Training
request
results
Applications:
● recommendation
● fraud detection
● ...

5. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

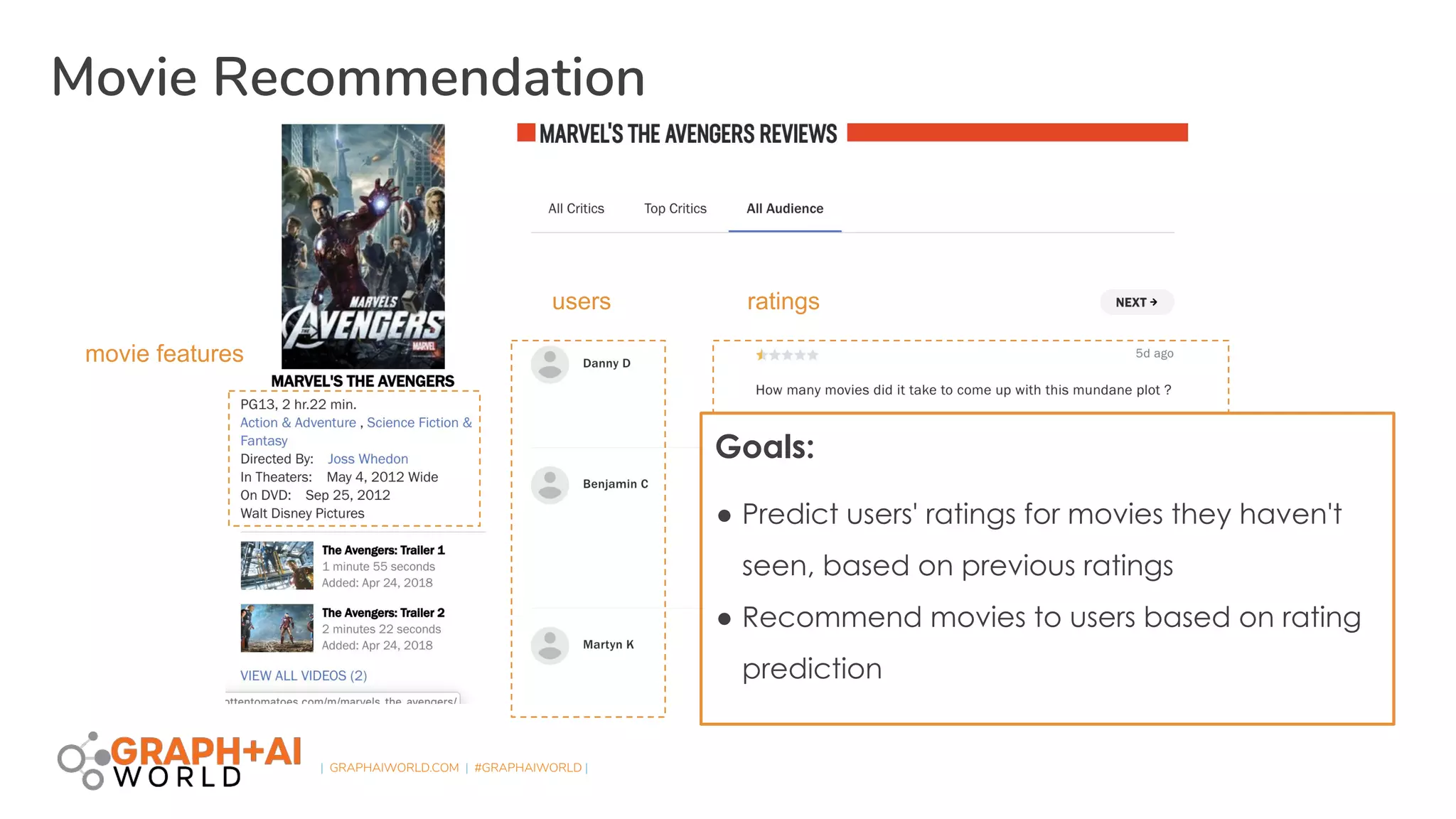

Movie Recommendation
movie features
users ratings
Goals:
● Predict users' ratings for movies they haven't
seen, based on previous ratings
● Recommend movies to users based on rating
prediction

6. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

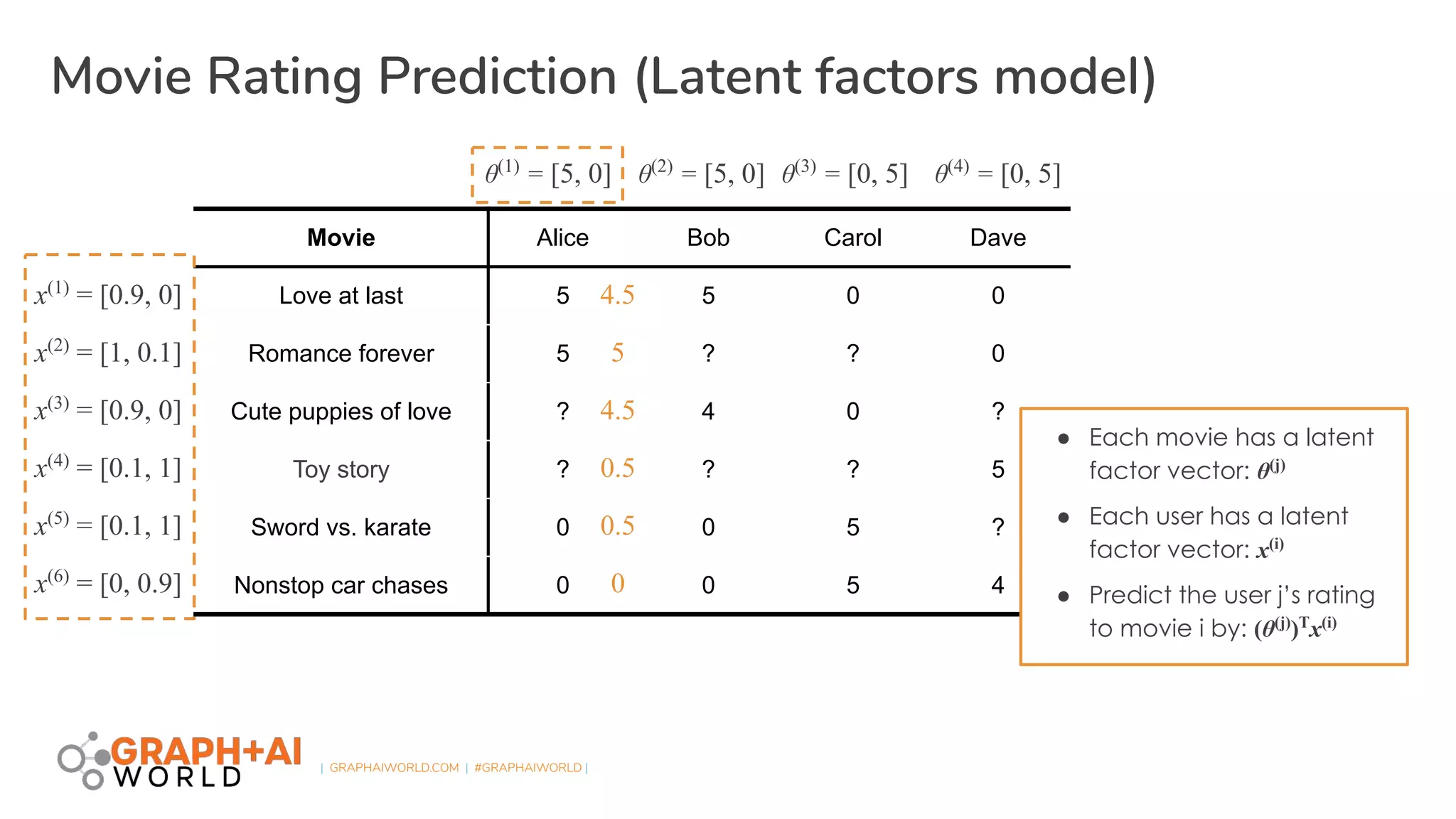

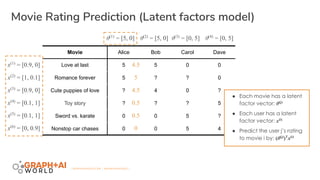

Movie Rating Prediction (Latent factors model)
Movie Alice Bob Carol Dave
Love at last 5 5 0 0
Romance forever 5 ? ? 0
Cute puppies of love ? 4 0 ?
Toy story ? ? ? 5
Sword vs. karate 0 0 5 ?
Nonstop car chases 0 0 5 4
● Each movie has a latent
factor vector: θ(j)
● Each user has a latent
factor vector: x(i)
● Predict the user j’s rating
to movie i by: (θ(j)
)T
x(i)
θ(1)
= [5, 0] θ(2)
= [5, 0] θ(3)
= [0, 5] θ(4)
= [0, 5]
x(1)
= [0.9, 0]
x(2)
= [1, 0.1]
x(3)
= [0.9, 0]
x(4)
= [0.1, 1]
x(5)
= [0.1, 1]
x(6)
= [0, 0.9]
4.5
5
4.5
0.5
0.5
0

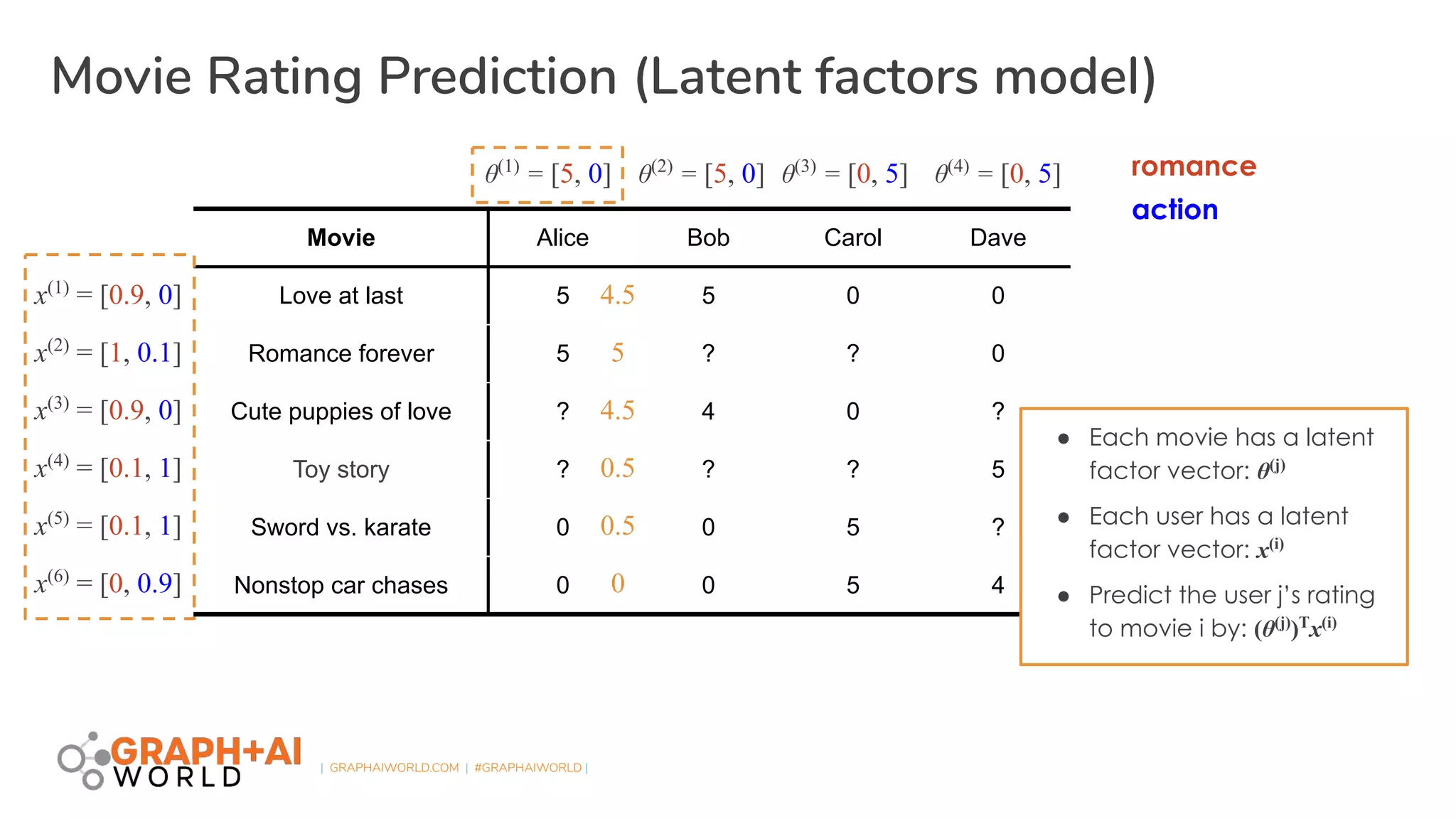

7. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

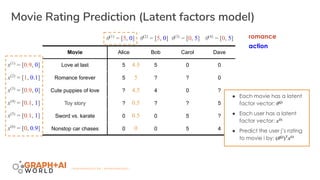

Movie Rating Prediction (Latent factors model)
Movie Alice Bob Carol Dave
Love at last 5 5 0 0
Romance forever 5 ? ? 0
Cute puppies of love ? 4 0 ?
Toy story ? ? ? 5
Sword vs. karate 0 0 5 ?
Nonstop car chases 0 0 5 4
θ(1)
= [5, 0]
● Each movie has a latent
factor vector: θ(j)
● Each user has a latent
factor vector: x(i)
● Predict the user j’s rating
to movie i by: (θ(j)
)T
x(i)
θ(2)
= [5, 0] θ(3)
= [0, 5] θ(4)
= [0, 5]
x(1)
= [0.9, 0]
x(2)
= [1, 0.1]
x(3)
= [0.9, 0]
x(4)
= [0.1, 1]
x(5)
= [0.1, 1]
x(6)
= [0, 0.9]
action
romance
4.5
5
4.5
0.5
0.5
0

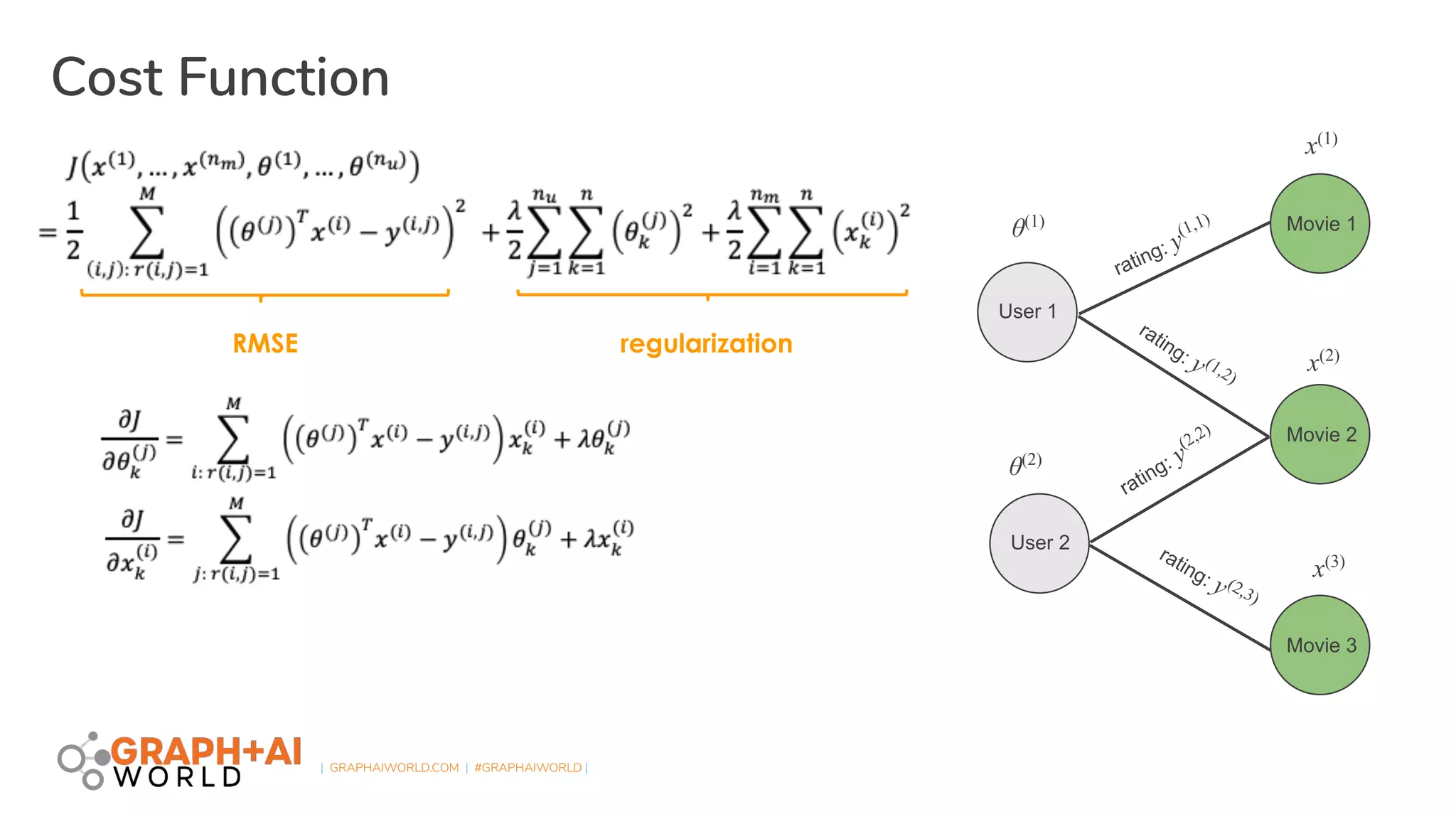

8. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
Cost Function
RMSE regularization
User 2
Movie 1
Movie 2
Movie 3
User 1
rating: y
(1,1)
rating: y (1,2)
rating: y
(2,2)
rating: y (2,3)
θ(1)
θ(2)
x(1)
x(2)
x(3)

9. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
Model Training in Graph
User 2
Movie 1
Movie 2
Movie 3
User 1
rating: y(1,1)
rating: y (1,2)
rating: y
(2,2)
rating: y(2,3)
θ(1)
θ(2)
x(1)
x(2)
x(3)
Phase 1:
● Collect x(i)
, y(i,j)
from the movies that each user
rated

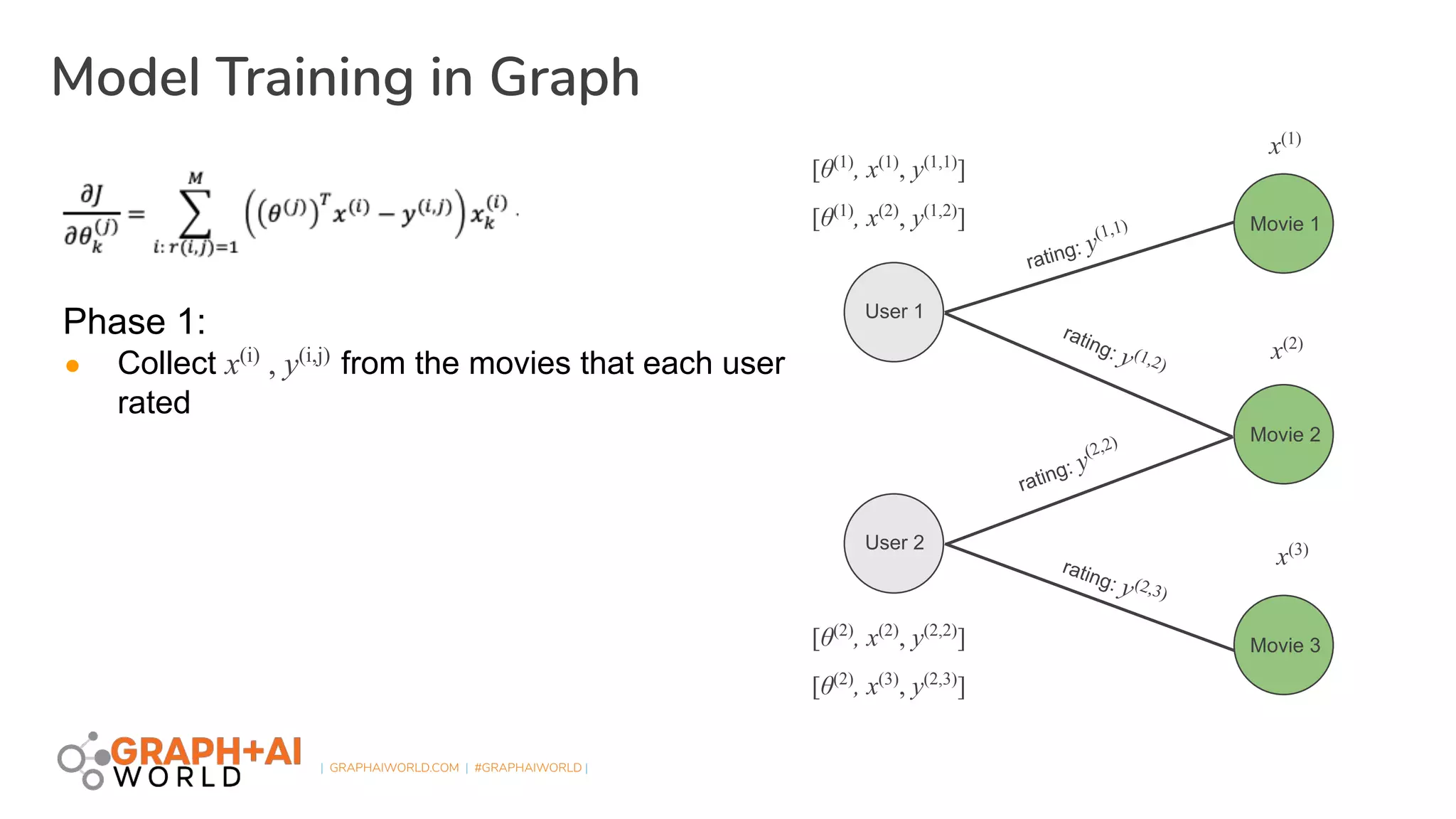

10. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
Model Training in Graph
User 2
Movie 1
Movie 2
Movie 3
User 1
rating: y(1,1)
rating: y (1,2)
rating: y
(2,2)
rating: y(2,3)
[θ(1)
, x(1)
, y(1,1)
]
[θ(1)
, x(2)
, y(1,2)
]
x(1)
x(2)
x(3)
[θ(2)
, x(2)
, y(2,2)
]
[θ(2)
, x(3)
, y(2,3)
]
Phase 1:
● Collect x(i)
, y(i,j)
from the movies that each user
rated

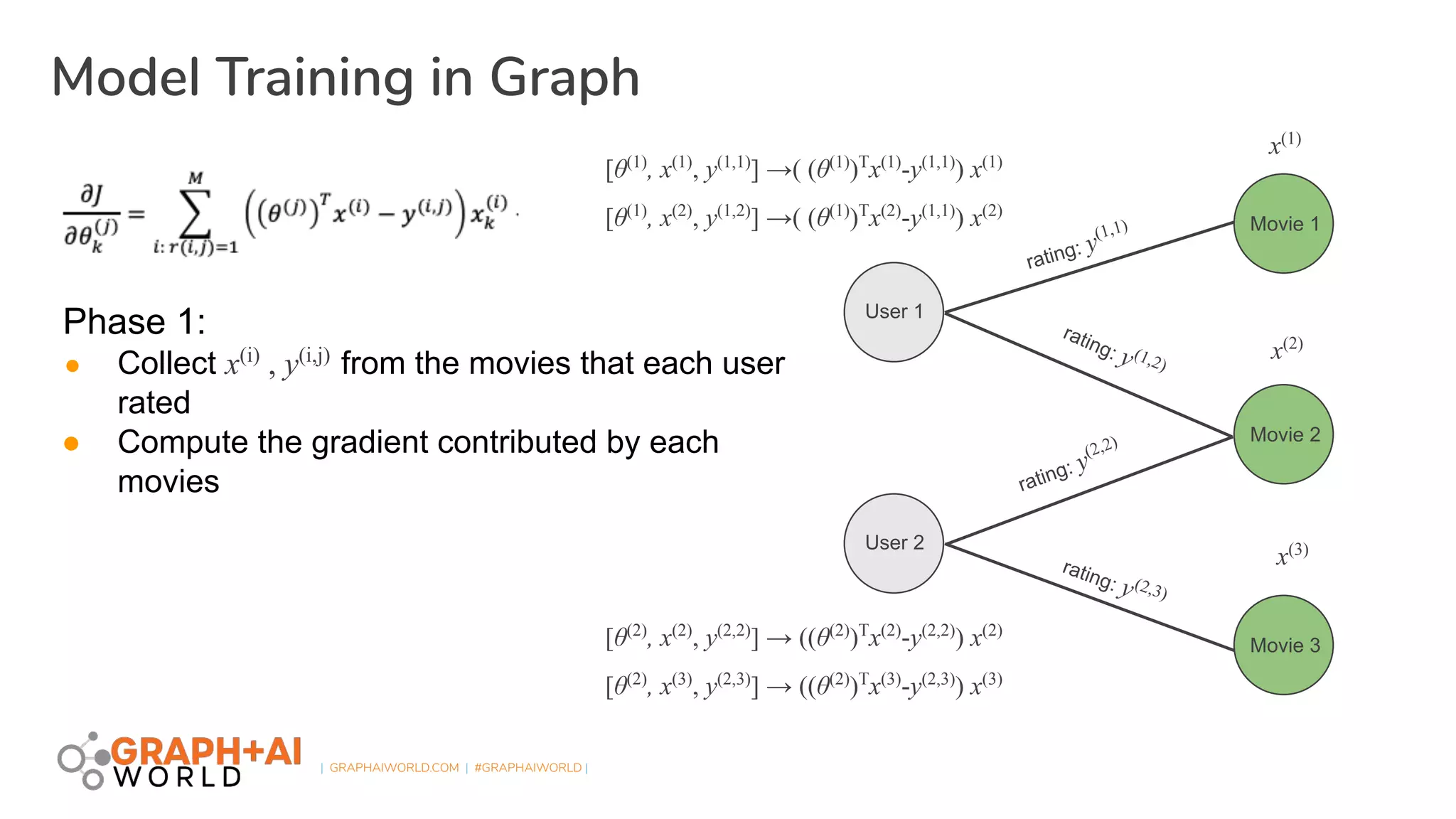

11. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
Model Training in Graph
User 2
Movie 1
Movie 2
Movie 3
User 1
rating: y(1,1)
rating: y (1,2)
rating: y
(2,2)
rating: y(2,3)
[θ(1)
, x(1)
, y(1,1)
] →( (θ(1)
)T
x(1)
-y(1,1)
) x(1)
[θ(1)
, x(2)
, y(1,2)
] →( (θ(1)
)T
x(2)
-y(1,1)
) x(2)
x(1)
x(2)
x(3)
[θ(2)
, x(2)
, y(2,2)
] → ((θ(2)
)T
x(2)
-y(2,2)
) x(2)
[θ(2)
, x(3)
, y(2,3)
] → ((θ(2)
)T
x(3)
-y(2,3)
) x(3)
Phase 1:
● Collect x(i)
, y(i,j)
from the movies that each user
rated
● Compute the gradient contributed by each
movies

12. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

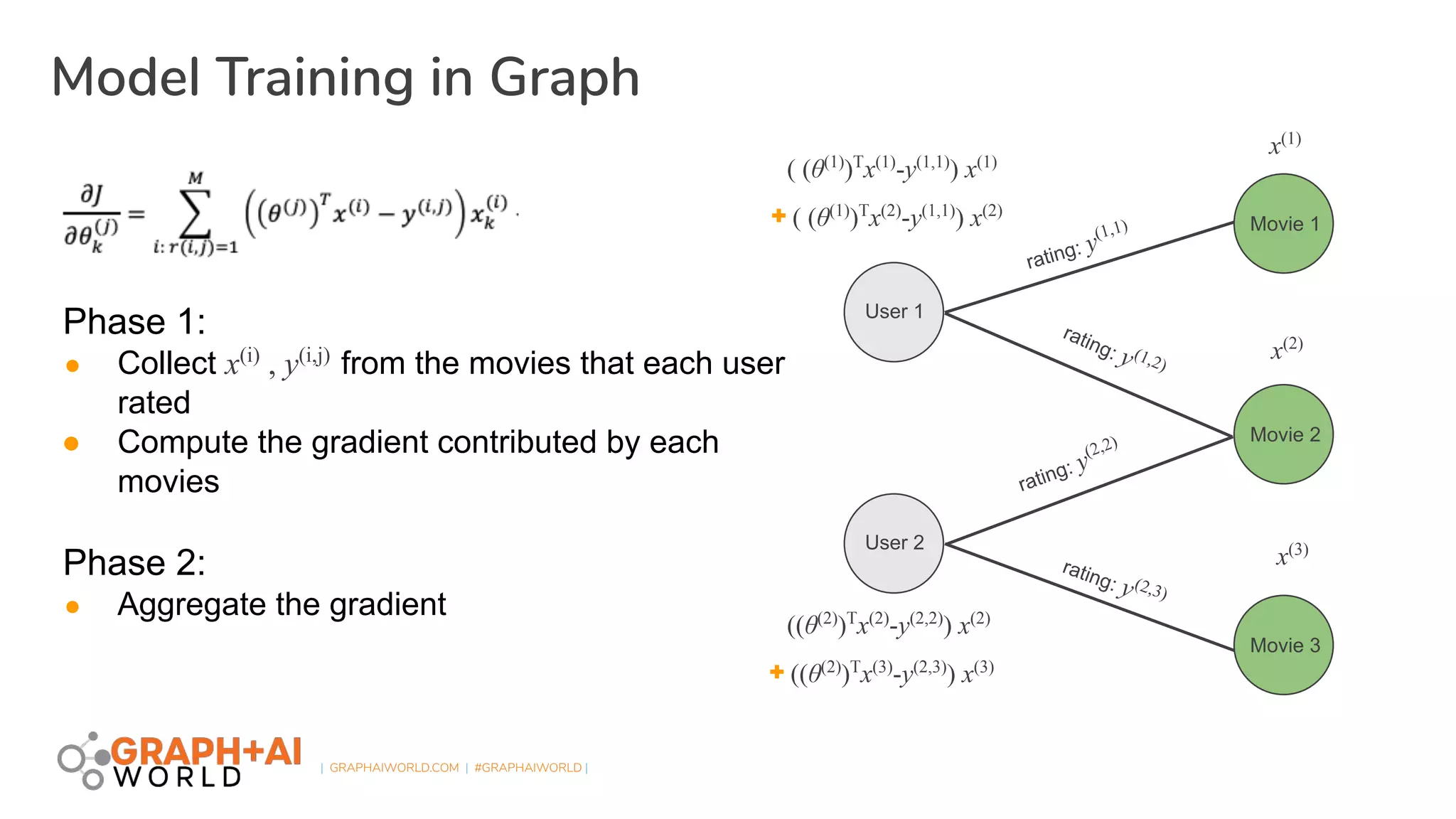

Model Training in Graph
User 2
Movie 1
Movie 2
Movie 3
User 1
rating: y(1,1)
rating: y (1,2)
rating: y
(2,2)
rating: y(2,3)
( (θ(1)
)T
x(1)
-y(1,1)
) x(1)
+ ( (θ(1)
)T
x(2)
-y(1,1)
) x(2)
x(1)
x(2)
x(3)
((θ(2)
)T
x(2)
-y(2,2)
) x(2)
+ ((θ(2)
)T
x(3)
-y(2,3)
) x(3)
Phase 1:
● Collect x(i)
, y(i,j)
from the movies that each user
rated
● Compute the gradient contributed by each
movies
Phase 2:
● Aggregate the gradient

13. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

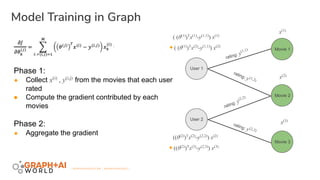

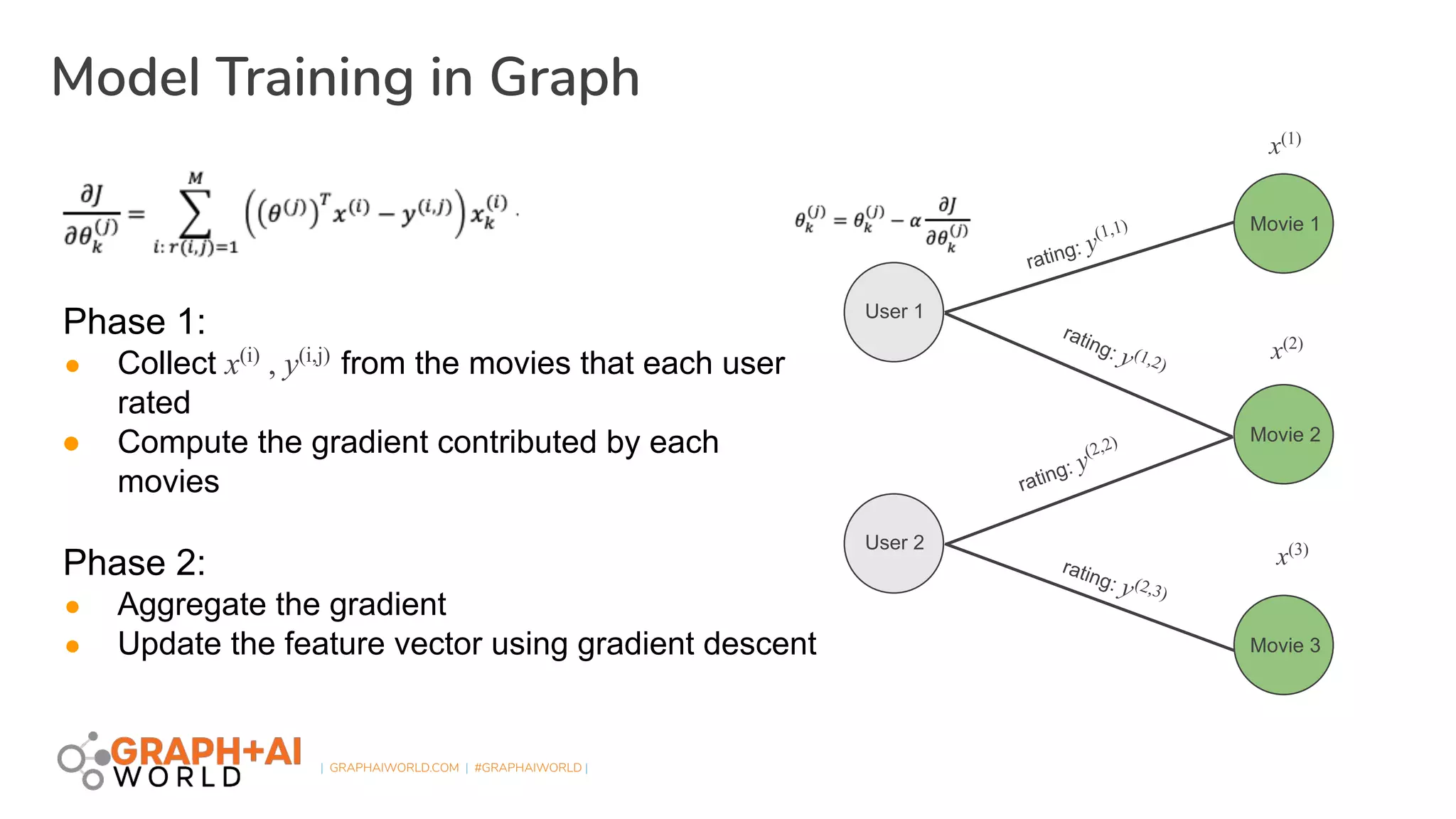

Model Training in Graph
User 2
Movie 1
Movie 2
Movie 3
User 1
rating: y(1,1)
rating: y (1,2)
rating: y
(2,2)
rating: y(2,3)
x(1)
x(2)
x(3)
Phase 1:
● Collect x(i)
, y(i,j)
from the movies that each user
rated
● Compute the gradient contributed by each
movies
Phase 2:
● Aggregate the gradient
● Update the feature vector using gradient descent

14. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

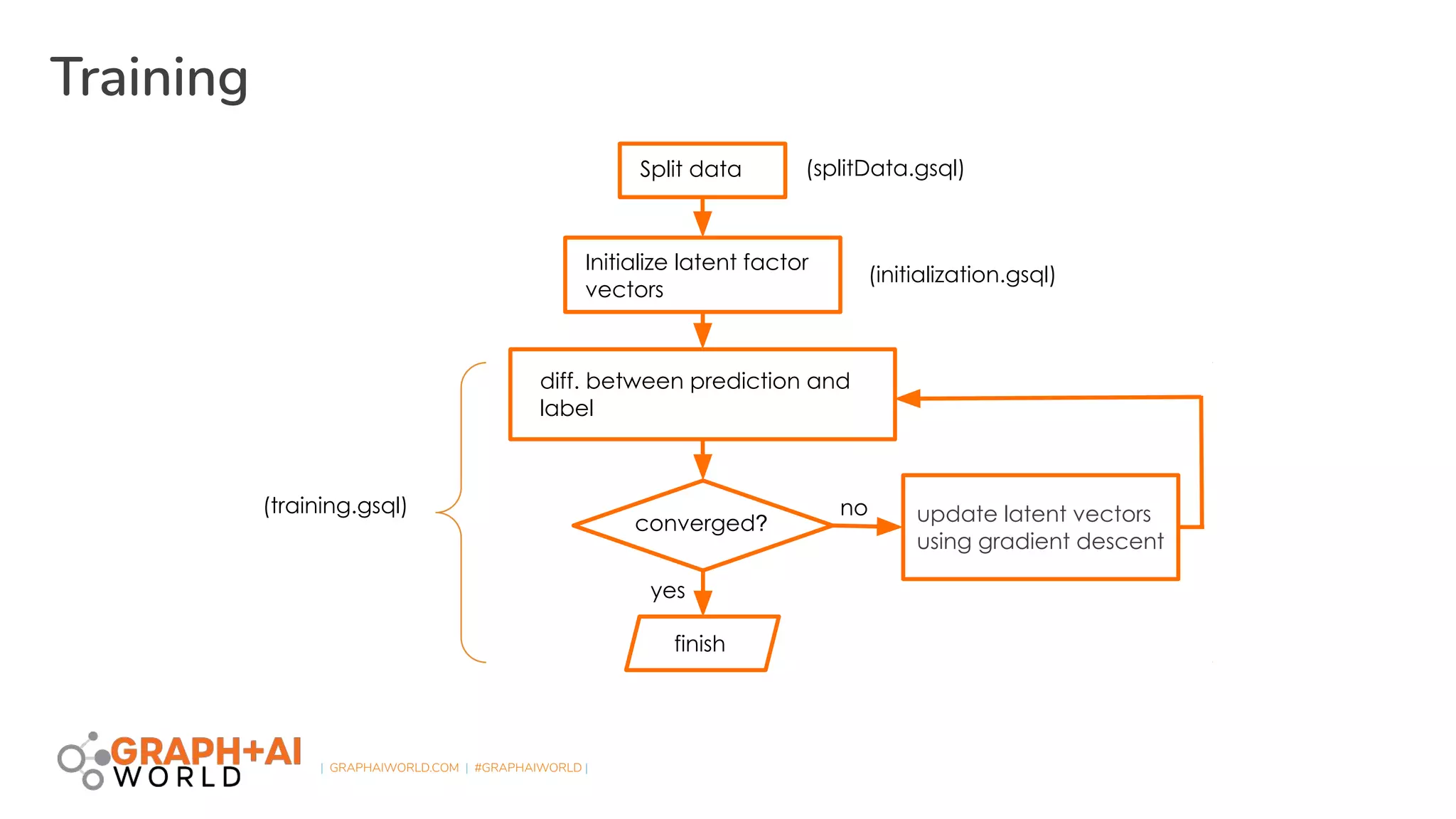

Training
Split data
Initialize latent factor
vectors
diff. between prediction and
label
converged?
no
finish
yes
update latent vectors
using gradient descent
(splitData.gsql)
(initialization.gsql)
(training.gsql)

15. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
Demo

16. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

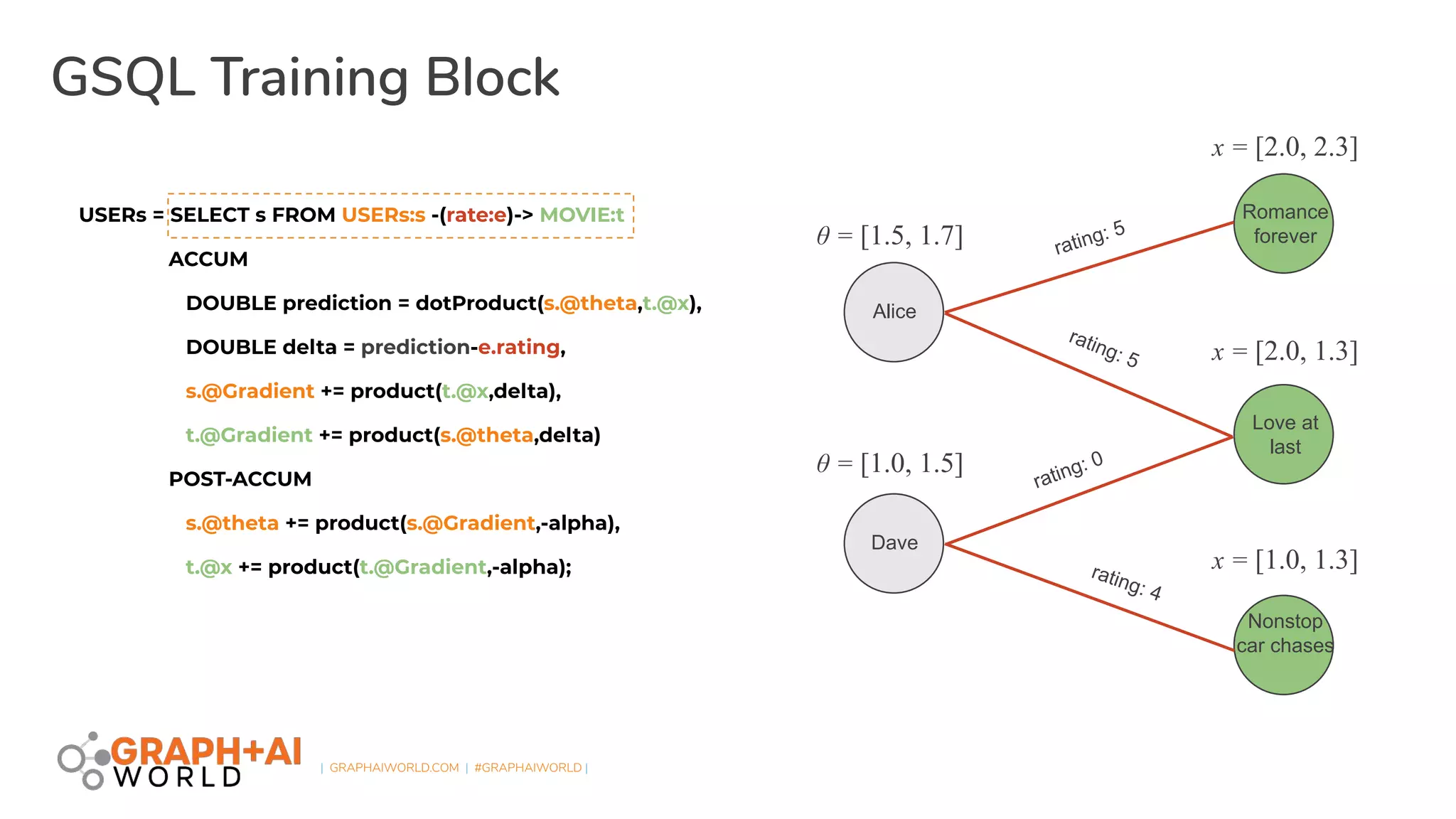

GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
rating: 5
rating: 5
rating: 0
rating: 4
θ = [1.5, 1.7]
θ = [1.0, 1.5]
x = [2.0, 2.3]
x = [2.0, 1.3]
x = [1.0, 1.3]

17. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
rating: 5
rating: 5
rating: 0
rating: 4
θ = [1.5, 1.7]
θ = [1.0, 1.5]
x = [2.0, 2.3]
x = [2.0, 1.3]
x = [1.0, 1.3]

18. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
rating: 5
rating: 5
rating: 0
rating: 4
θ = [1.5, 1.7]
θ = [1.0, 1.5]
x = [2.0, 2.3]
x = [2.0, 1.3]
x = [1.0, 1.3]
prediction: 6.9
prediction: 5.2
prediction: 4.0
prediction: 3.0

19. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
ẟ: 1.9
ẟ: 0.2
ẟ: 4.0
ẟ: -1.1
θ = [1.5, 1.7]
θ = [1.0, 1.5]
x = [2.0, 2.3]
x = [2.0, 1.3]
x = [1.0, 1.3]

20. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

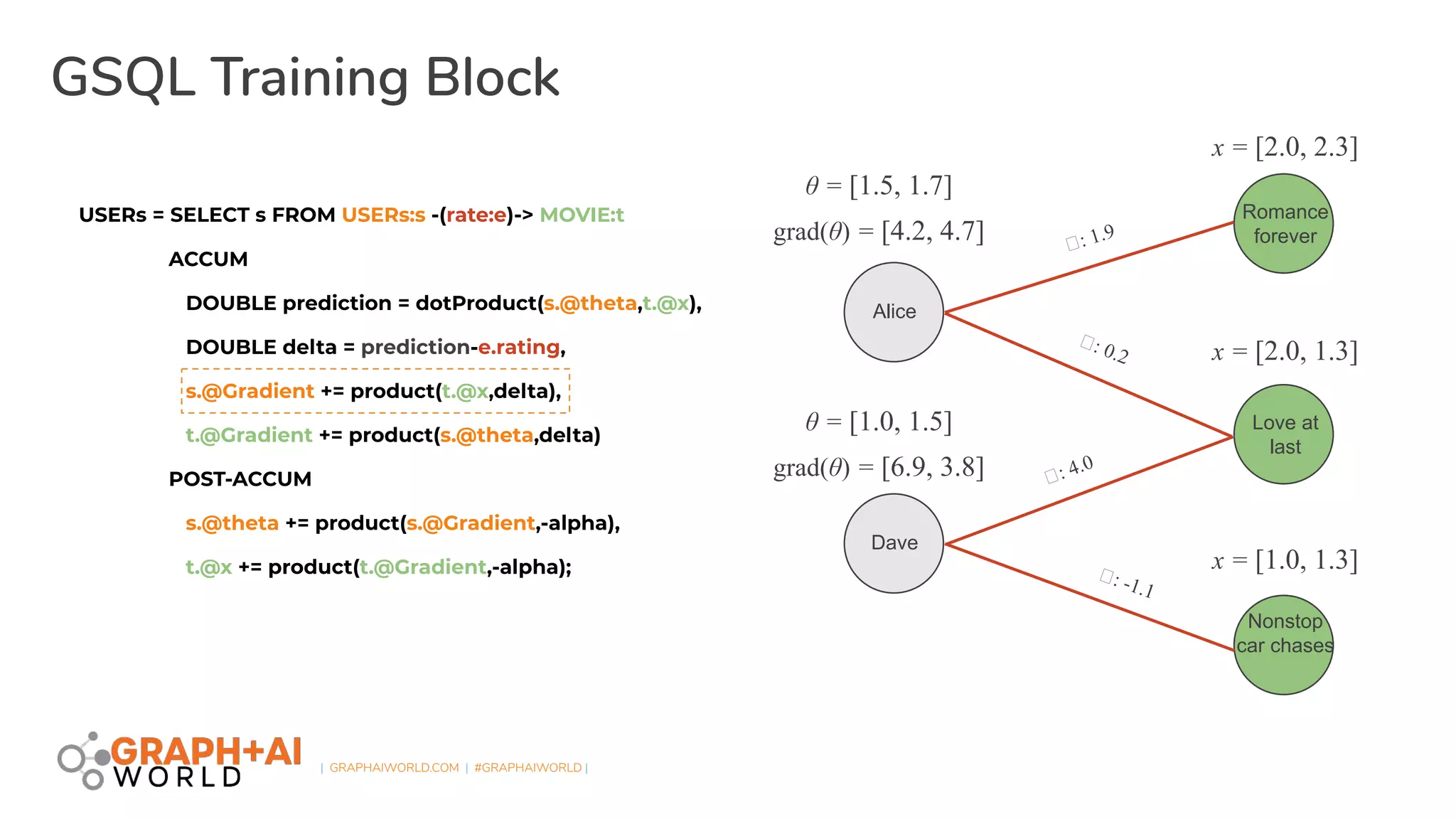

GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
ẟ: 1.9
ẟ: 0.2
ẟ: 4.0
ẟ: -1.1
θ = [1.5, 1.7]
grad(θ) = [4.2, 4.7]
θ = [1.0, 1.5]
grad(θ) = [6.9, 3.8]
x = [2.0, 2.3]
x = [2.0, 1.3]
x = [1.0, 1.3]

21. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
ẟ: 1.9
ẟ: 0.2
ẟ: 4.0
ẟ: -1.1
θ = [1.5, 1.7]
grad(θ) = [4.2, 4.7]
θ = [1.0, 1.5]
grad(θ) = [6.9, 3.8]
x = [2.0, 2.3]
grad(x) = [2.9, 3.2]
x = [2.0, 1.3]
grad(x) = [4.3, 6.3]
x = [1.0, 1.3]
grad(x) = [-1.1, -1.6]

22. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
ẟ: 1.9
ẟ: 0.2
ẟ: 4.0
ẟ: -1.1
θ = [1.5, 1.7]
θ’ = [1.46, 1.65]
θ = [1.0, 1.5]
θ’ = [0.93, 1.46]
x = [2.0, 2.3]
x’ = [1.97, 2.27]
x = [2.0, 1.3]
x’ = [1.96, 1.24]
x = [1.0, 1.3]
x’ = [1.01, 1.32]
* alpha = 0.01

23. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

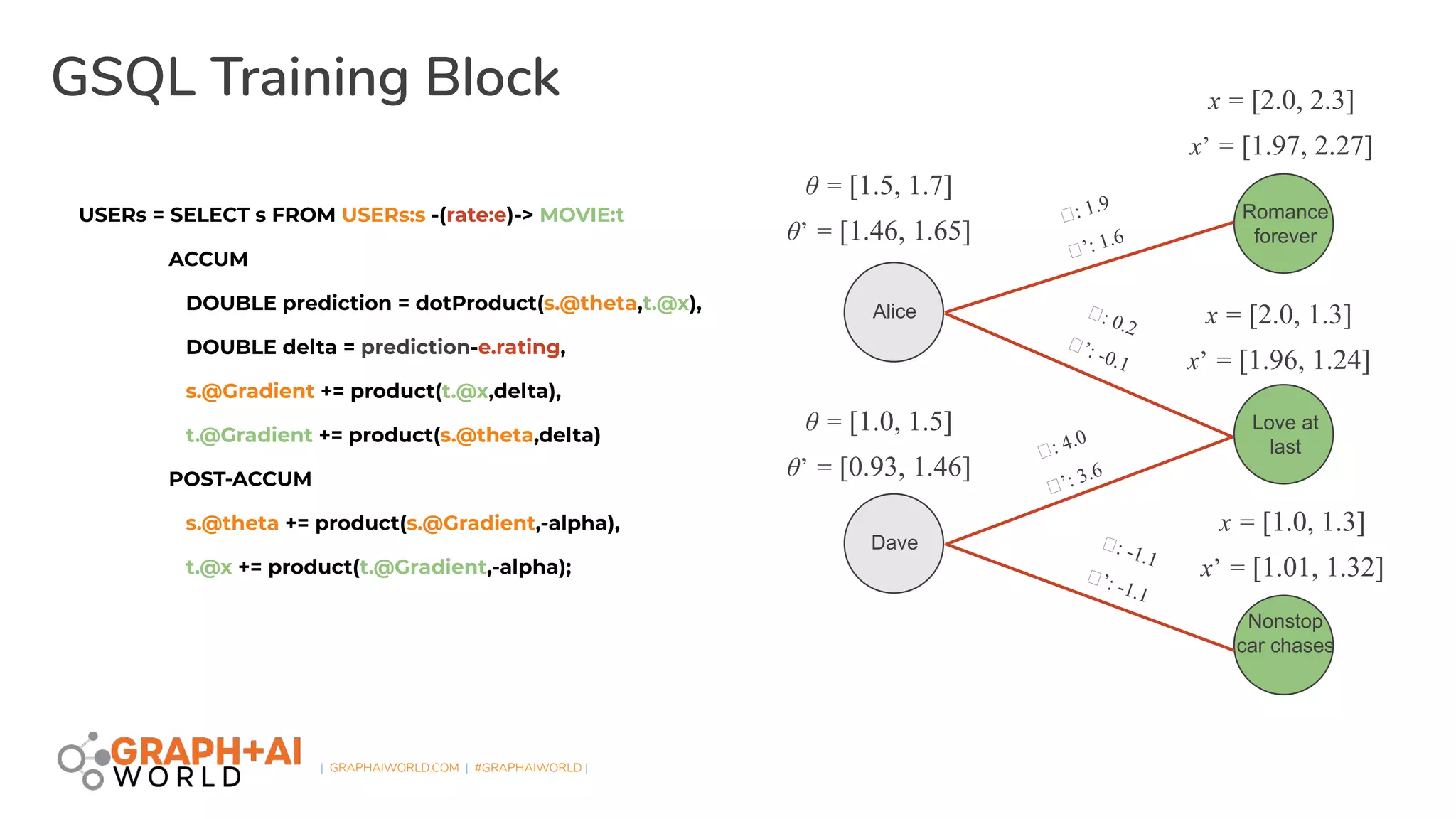

GSQL Training Block
USERs = SELECT s FROM USERs:s -(rate:e)-> MOVIE:t
ACCUM
DOUBLE prediction = dotProduct(s.@theta,t.@x),
DOUBLE delta = prediction-e.rating,
s.@Gradient += product(t.@x,delta),
t.@Gradient += product(s.@theta,delta)
POST-ACCUM
s.@theta += product(s.@Gradient,-alpha),
t.@x += product(t.@Gradient,-alpha);
Dave
Romance
forever
Love at
last
Nonstop
car chases
Alice
ẟ: 1.9
ẟ’: 1.6
ẟ: 0.2
ẟ’: -0.1
ẟ: 4.0
ẟ’: 3.6
ẟ: -1.1
ẟ’: -1.1
θ = [1.5, 1.7]
θ’ = [1.46, 1.65]
θ = [1.0, 1.5]
θ’ = [0.93, 1.46]
x = [2.0, 2.3]
x’ = [1.97, 2.27]
x = [2.0, 1.3]
x’ = [1.96, 1.24]
x = [1.0, 1.3]
x’ = [1.01, 1.32]

24. Q&A

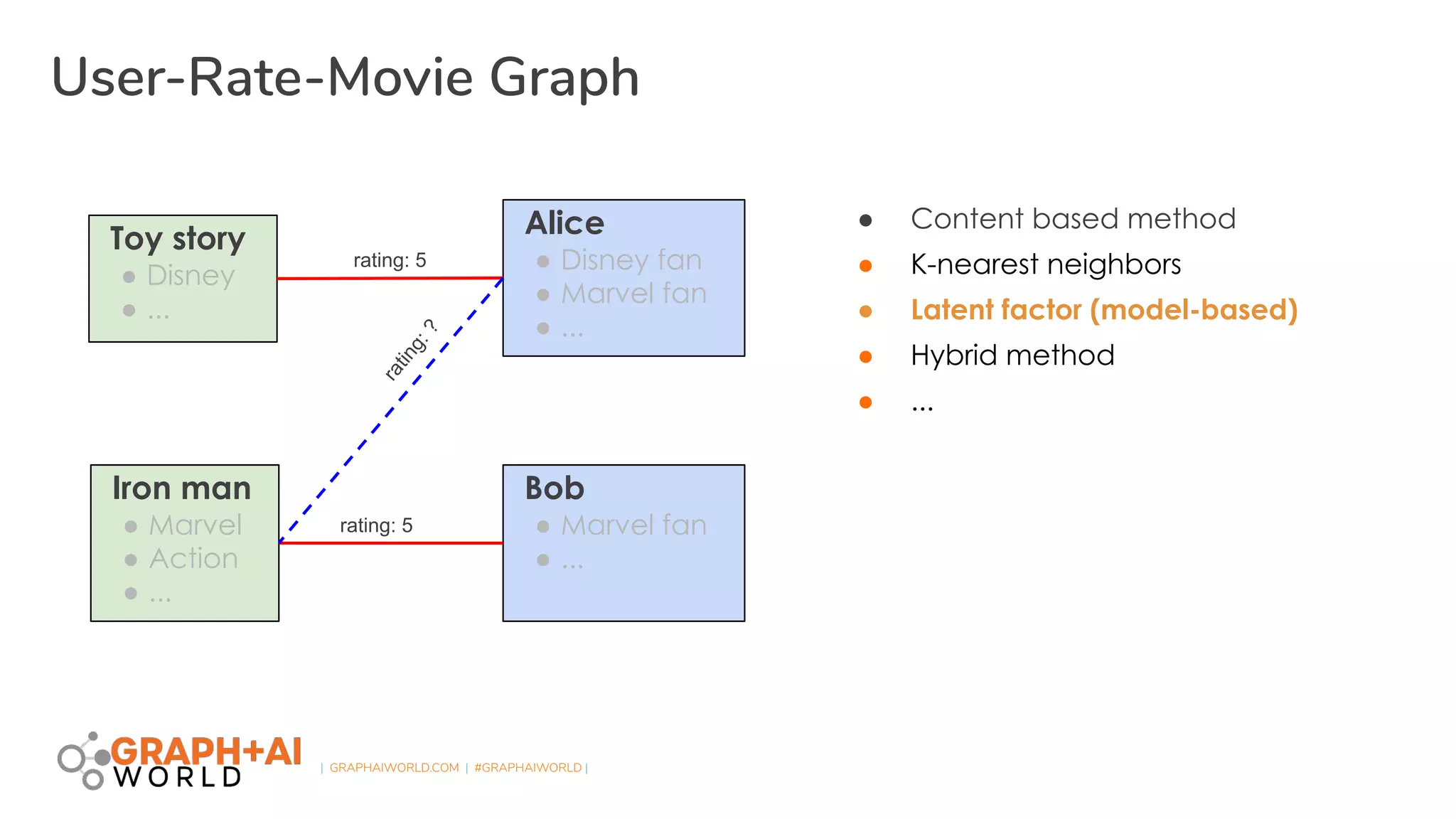

25. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |

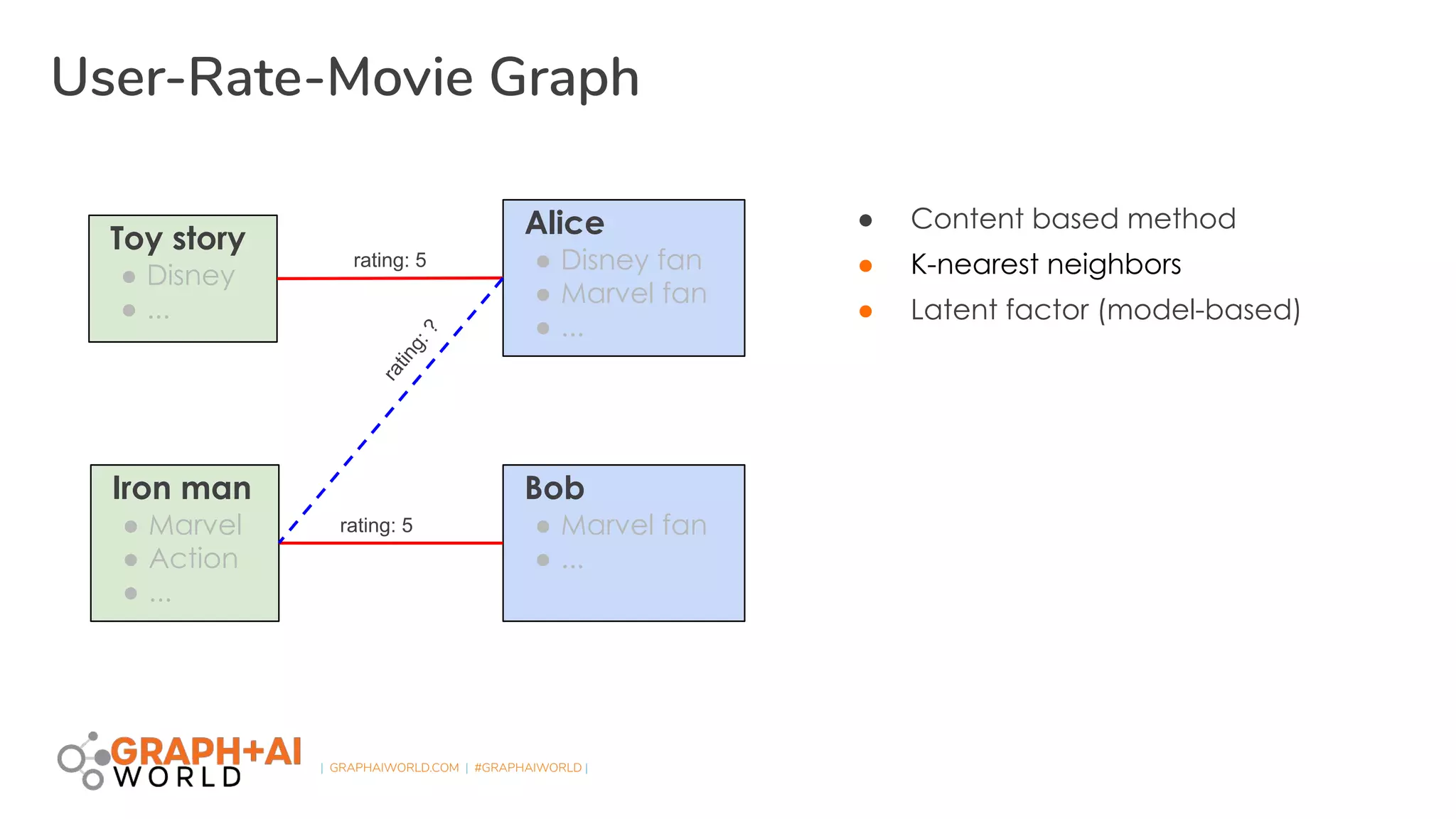

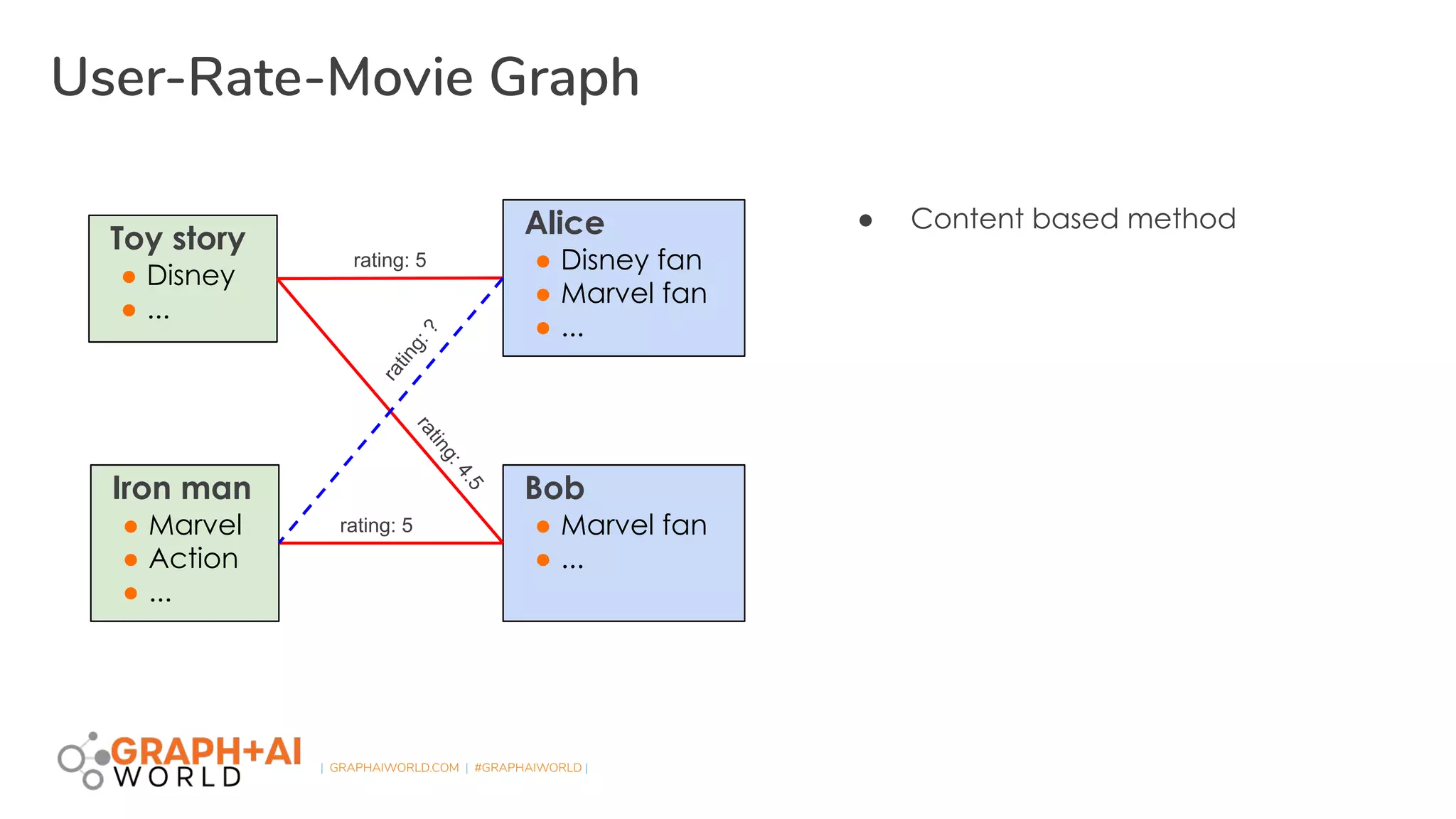

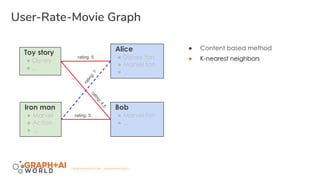

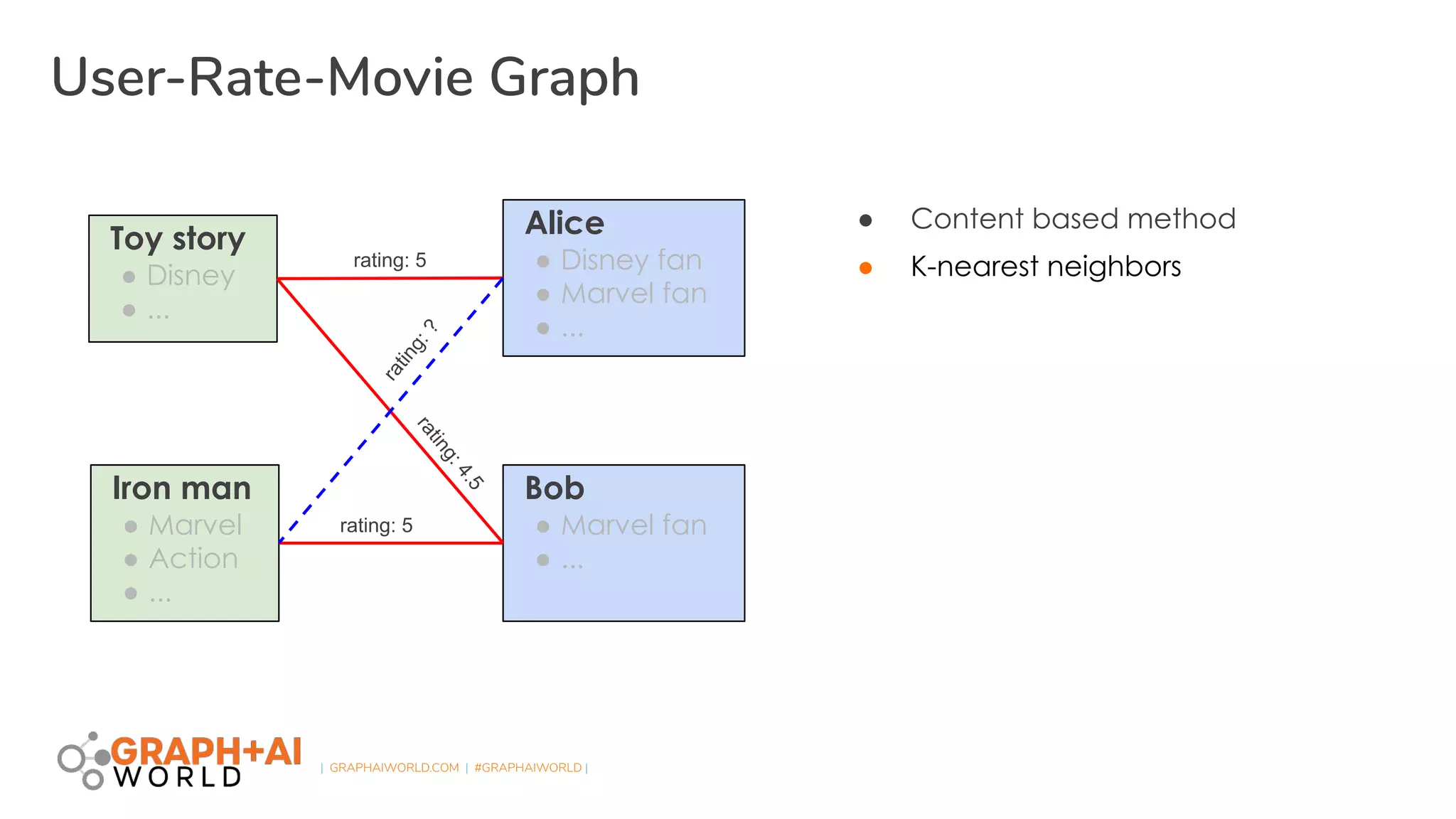

User-Rate-Movie Graph
● Content based method
Toy story
● Disney
● ...
Iron man
● Marvel
● Action
● ...
Alice
● Disney fan
● Marvel fan
● ...
Bob
● Marvel fan
● ...
rating: 5
rating: 5
rating:4.5
rating:?

26. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
User-Rate-Movie Graph
● Content based method
Toy story
● Disney
● ...
Iron man
● Marvel
● Action
● ...
Alice
● Disney fan
● Marvel fan
● ...
Bob
● Marvel fan
● ...
rating: 5
rating: 5
rating:4.5
rating:?
● K-nearest neighbors

27. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
User-Rate-Movie Graph
● Content based method
● K-nearest neighbors
Toy story
● Disney
● ...
Iron man
● Marvel
● Action
● ...
Alice
● Disney fan
● Marvel fan
● ...
Bob
● Marvel fan
● ...
rating: 5
rating: 5
rating:?
● Latent factor (model-based)

28. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
User-Rate-Movie Graph
● Content based method
● K-nearest neighbors
● Latent factor (model-based)
● Hybrid method
● ...
Toy story
● Disney
● ...
Iron man
● Marvel
● Action
● ...
Alice
● Disney fan
● Marvel fan
● ...
Bob
● Marvel fan
● ...
rating: 5
rating: 5
rating:?

29. | GRAPHAIWORLD.COM | #GRAPHAIWORLD |
User-Rate-Movie Graph
● Content based method
● K-nearest neighbors
● Latent factor (model-based)
● Hybrid method
● ...
Toy story
● Disney
● ...
Iron man
● Marvel
● Action
● ...
Alice
● Disney fan
● Marvel fan
● ...
Bob
● Marvel fan
● ...
rating: 5
rating: 5
rating:?
