  Clean, Learn and Visualisedata with R Barbara Fusinska @BasiaFusinska
• 2.
  About me Data ScienceFreelancer Machine Learning Programmer @BasiaFusinska BarbaraFusinska.com Barbara@Fusinska.com https://github.com/BasiaFusinska/RMachineLearning
• 3.

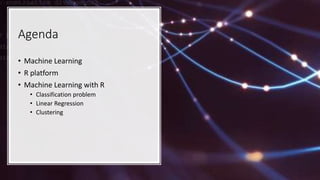

  Agenda • Machine Learning •R platform • Machine Learning with R • Classification problem • Linear Regression • Clustering
• 4.
  Machine Learning?
• 5.

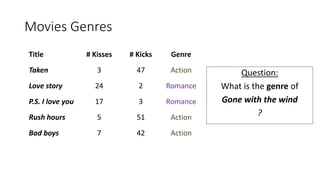

  Movies Genres Title #Kisses # Kicks Genre Taken 3 47 Action Love story 24 2 Romance P.S. I love you 17 3 Romance Rush hours 5 51 Action Bad boys 7 42 Action Question: What is the genre of Gone with the wind ?
• 6.

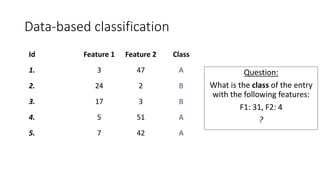

  Data-based classification Id Feature1 Feature 2 Class 1. 3 47 A 2. 24 2 B 3. 17 3 B 4. 5 51 A 5. 7 42 A Question: What is the class of the entry with the following features: F1: 31, F2: 4 ?
• 7.

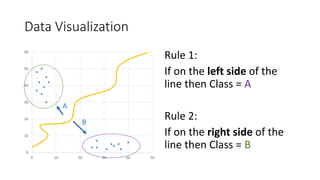

  Data Visualization 0 10 20 30 40 50 60 0 1020 30 40 50 Rule 1: If on the left side of the line then Class = A Rule 2: If on the right side of the line then Class = B A B
• 8.
  Chick sexing
• 9.
  Supervised learning • Classification, regression •Label, target value • Training & Validation phases
• 10.
  Unsupervised learning • Clustering, featureselection • Finding structure of data • Statistical values describing the data
• 11.
  R language
• 12.
  Why R? • RossIhaka & Robert Gentleman • Successor of S • Open source • Community driven • #1 for statistical computing • Exploratory Data Analysis • Machine Learning • Visualisation
• 13.

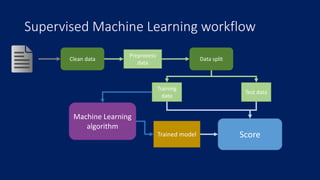

  Supervised Machine Learningworkflow Clean data Data split Machine Learning algorithm Trained model Score Preprocess data Training data Test data
• 14.

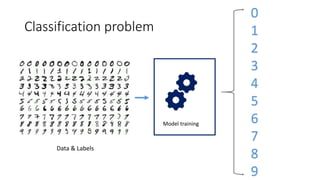

  Classification problem Model training Data& Labels 0 1 2 3 4 5 6 7 8 9
• 15.

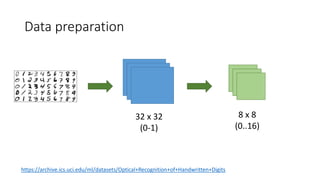

  Data preparation 32 x32 (0-1) 8 x 8 (0..16) https://archive.ics.uci.edu/ml/datasets/Optical+Recognition+of+Handwritten+Digits
• 16.

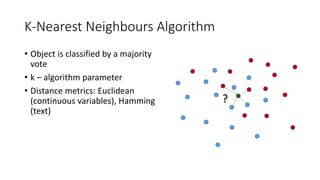

  K-Nearest Neighbours Algorithm •Object is classified by a majority vote • k – algorithm parameter • Distance metrics: Euclidean (continuous variables), Hamming (text) ?
• 17.

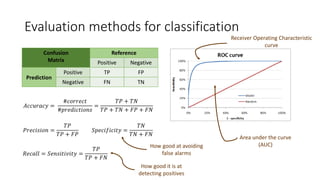

  Evaluation methods forclassification Confusion Matrix Reference Positive Negative Prediction Positive TP FP Negative FN TN Receiver Operating Characteristic curve Area under the curve (AUC) 𝐴𝑐𝑐𝑢𝑟𝑎𝑐𝑦 = #𝑐𝑜𝑟𝑟𝑒𝑐𝑡 #𝑝𝑟𝑒𝑑𝑖𝑐𝑡𝑖𝑜𝑛𝑠 = 𝑇𝑃 + 𝑇𝑁 𝑇𝑃 + 𝑇𝑁 + 𝐹𝑃 + 𝐹𝑁 𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 = 𝑇𝑃 𝑇𝑃 + 𝐹𝑃 𝑅𝑒𝑐𝑎𝑙𝑙 = 𝑆𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦 = 𝑇𝑃 𝑇𝑃 + 𝐹𝑁 𝑆𝑝𝑒𝑐𝑖𝑓𝑖𝑐𝑖𝑡𝑦 = 𝑇𝑁 𝑇𝑁 + 𝐹𝑁 How good at avoiding false alarms How good it is at detecting positives
• 18.
  # Read data trainingSet<- read.csv(trainingFile, header = FALSE) testSet <- read.csv(testFile, header = FALSE) trainingSet$V65 <- factor(trainingSet$V65) testSet$V65 <- factor(testSet$V65) # Classify library(caret) knn.fit <- knn3(V65 ~ ., data=trainingSet, k=5) # Predict new values pred.test <- predict(knn.fit, testSet[,1:64], type="class")
• 19.

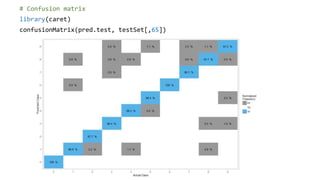

  # Confusion matrix library(caret) confusionMatrix(pred.test,testSet[,65])
• 20.
  Regression problem • Dependentvalue • Predicting the real value • Fitting the coefficients • Analytical solutions • Gradient descent
• 21.

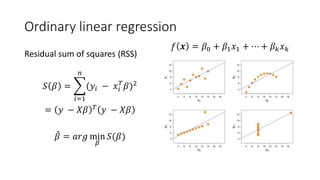

  Ordinary linear regression Residualsum of squares (RSS) 𝑆 𝛽 = 𝑖=1 𝑛 (𝑦𝑖 − 𝑥𝑖 𝑇 𝛽)2 = 𝑦 − 𝑋𝛽 𝑇 𝑦 − 𝑋𝛽 𝛽 = 𝑎𝑟𝑔 min 𝛽 𝑆(𝛽) 𝑓 𝒙 = 𝛽0 + 𝛽1 𝑥1 + ⋯ + 𝛽 𝑘 𝑥 𝑘
• 22.

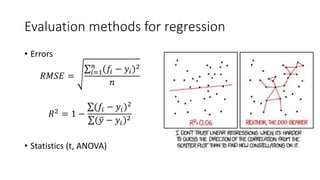

  Evaluation methods forregression • Errors 𝑅𝑀𝑆𝐸 = 𝑖=1 𝑛 (𝑓𝑖 − 𝑦𝑖)2 𝑛 𝑅2 = 1 − (𝑓𝑖 − 𝑦𝑖)2 ( 𝑦 − 𝑦𝑖)2 • Statistics (t, ANOVA)
• 23.

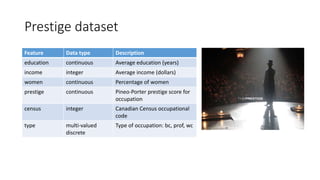

  Prestige dataset Feature Datatype Description education continuous Average education (years) income integer Average income (dollars) women continuous Percentage of women prestige continuous Pineo-Porter prestige score for occupation census integer Canadian Census occupational code type multi-valued discrete Type of occupation: bc, prof, wc
• 24.

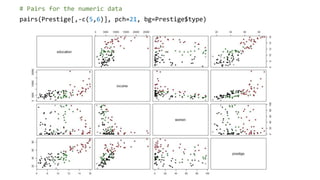

  # Pairs forthe numeric data pairs(Prestige[,-c(5,6)], pch=21, bg=Prestige$type)
• 25.

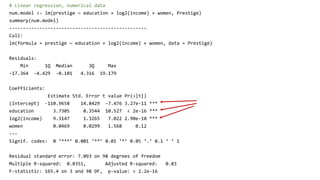

  # Linear regression,numerical data num.model <- lm(prestige ~ education + log2(income) + women, Prestige) summary(num.model) -------------------------------------------------- Call: lm(formula = prestige ~ education + log2(income) + women, data = Prestige) Residuals: Min 1Q Median 3Q Max -17.364 -4.429 -0.101 4.316 19.179 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -110.9658 14.8429 -7.476 3.27e-11 *** education 3.7305 0.3544 10.527 < 2e-16 *** log2(income) 9.3147 1.3265 7.022 2.90e-10 *** women 0.0469 0.0299 1.568 0.12 --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Residual standard error: 7.093 on 98 degrees of freedom Multiple R-squared: 0.8351, Adjusted R-squared: 0.83 F-statistic: 165.4 on 3 and 98 DF, p-value: < 2.2e-16
• 26.

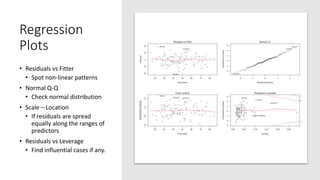

  Regression Plots • Residuals vsFitter • Spot non-linear patterns • Normal Q-Q • Check normal distribution • Scale – Location • If residuals are spread equally along the ranges of predictors • Residuals vs Leverage • Find influential cases if any.
• 27.
  Categorical data forregression • Categories: A, B, C are coded as dummy variables • In general if the variable has k categories it will be decoded into k-1 dummy variables Category V1 V2 A 0 0 B 1 0 C 0 1 𝑓 𝒙 = 𝛽0 + 𝛽1 𝑥1 + ⋯ + 𝛽𝑗 𝑥𝑗 + 𝛽𝑗+1 𝑣1 + ⋯ + 𝛽𝑗+𝑘−1 𝑣 𝑘
• 28.

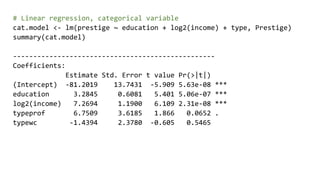

  # Linear regression,categorical variable cat.model <- lm(prestige ~ education + log2(income) + type, Prestige) summary(cat.model) -------------------------------------------------- Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -81.2019 13.7431 -5.909 5.63e-08 *** education 3.2845 0.6081 5.401 5.06e-07 *** log2(income) 7.2694 1.1900 6.109 2.31e-08 *** typeprof 6.7509 3.6185 1.866 0.0652 . typewc -1.4394 2.3780 -0.605 0.5465
• 29.

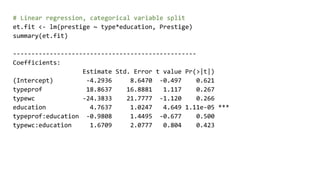

  # Linear regression,categorical variable split et.fit <- lm(prestige ~ type*education, Prestige) summary(et.fit) -------------------------------------------------- Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -4.2936 8.6470 -0.497 0.621 typeprof 18.8637 16.8881 1.117 0.267 typewc -24.3833 21.7777 -1.120 0.266 education 4.7637 1.0247 4.649 1.11e-05 *** typeprof:education -0.9808 1.4495 -0.677 0.500 typewc:education 1.6709 2.0777 0.804 0.423
• 30.

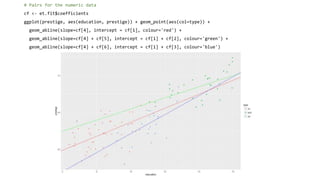

  # Pairs forthe numeric data cf <- et.fit$coefficients ggplot(prestige, aes(education, prestige)) + geom_point(aes(col=type)) + geom_abline(slope=cf[4], intercept = cf[1], colour='red') + geom_abline(slope=cf[4] + cf[5], intercept = cf[1] + cf[2], colour='green') + geom_abline(slope=cf[4] + cf[6], intercept = cf[1] + cf[3], colour='blue')
• 31.

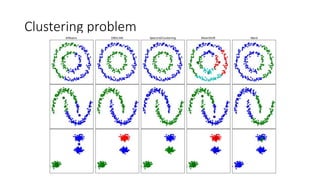

  Clustering problem
• 32.

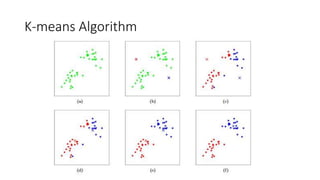

  K-means Algorithm
• 33.

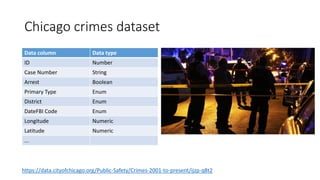

  Chicago crimes dataset Datacolumn Data type ID Number Case Number String Arrest Boolean Primary Type Enum District Enum DateFBI Code Enum Longitude Numeric Latitude Numeric ... https://data.cityofchicago.org/Public-Safety/Crimes-2001-to-present/ijzp-q8t2
• 34.

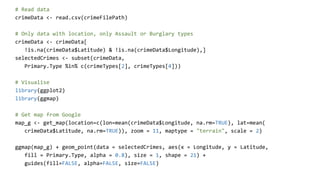

  # Read data crimeData<- read.csv(crimeFilePath) # Only data with location, only Assault or Burglary types crimeData <- crimeData[ !is.na(crimeData$Latitude) & !is.na(crimeData$Longitude),] selectedCrimes <- subset(crimeData, Primary.Type %in% c(crimeTypes[2], crimeTypes[4])) # Visualise library(ggplot2) library(ggmap) # Get map from Google map_g <- get_map(location=c(lon=mean(crimeData$Longitude, na.rm=TRUE), lat=mean( crimeData$Latitude, na.rm=TRUE)), zoom = 11, maptype = "terrain", scale = 2) ggmap(map_g) + geom_point(data = selectedCrimes, aes(x = Longitude, y = Latitude, fill = Primary.Type, alpha = 0.8), size = 1, shape = 21) + guides(fill=FALSE, alpha=FALSE, size=FALSE)
• 35.
  Assault & Burglary
• 36.

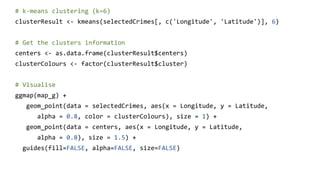

  # k-means clustering(k=6) clusterResult <- kmeans(selectedCrimes[, c('Longitude', 'Latitude')], 6) # Get the clusters information centers <- as.data.frame(clusterResult$centers) clusterColours <- factor(clusterResult$cluster) # Visualise ggmap(map_g) + geom_point(data = selectedCrimes, aes(x = Longitude, y = Latitude, alpha = 0.8, color = clusterColours), size = 1) + geom_point(data = centers, aes(x = Longitude, y = Latitude, alpha = 0.8), size = 1.5) + guides(fill=FALSE, alpha=FALSE, size=FALSE)
• 37.

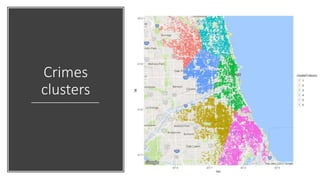

  Crimes clusters
• 39.
  Keep in touch BarbaraFusinska.com Barbara@Fusinska.com @BasiaFusinska https://github.com/BasiaFusinska/RMachineLearning
