1. Recent Progress
in RNN and NLP
Tohoku University
Inui and Okazaki Lab.
Sosuke Kobayashi
⼩林 颯介

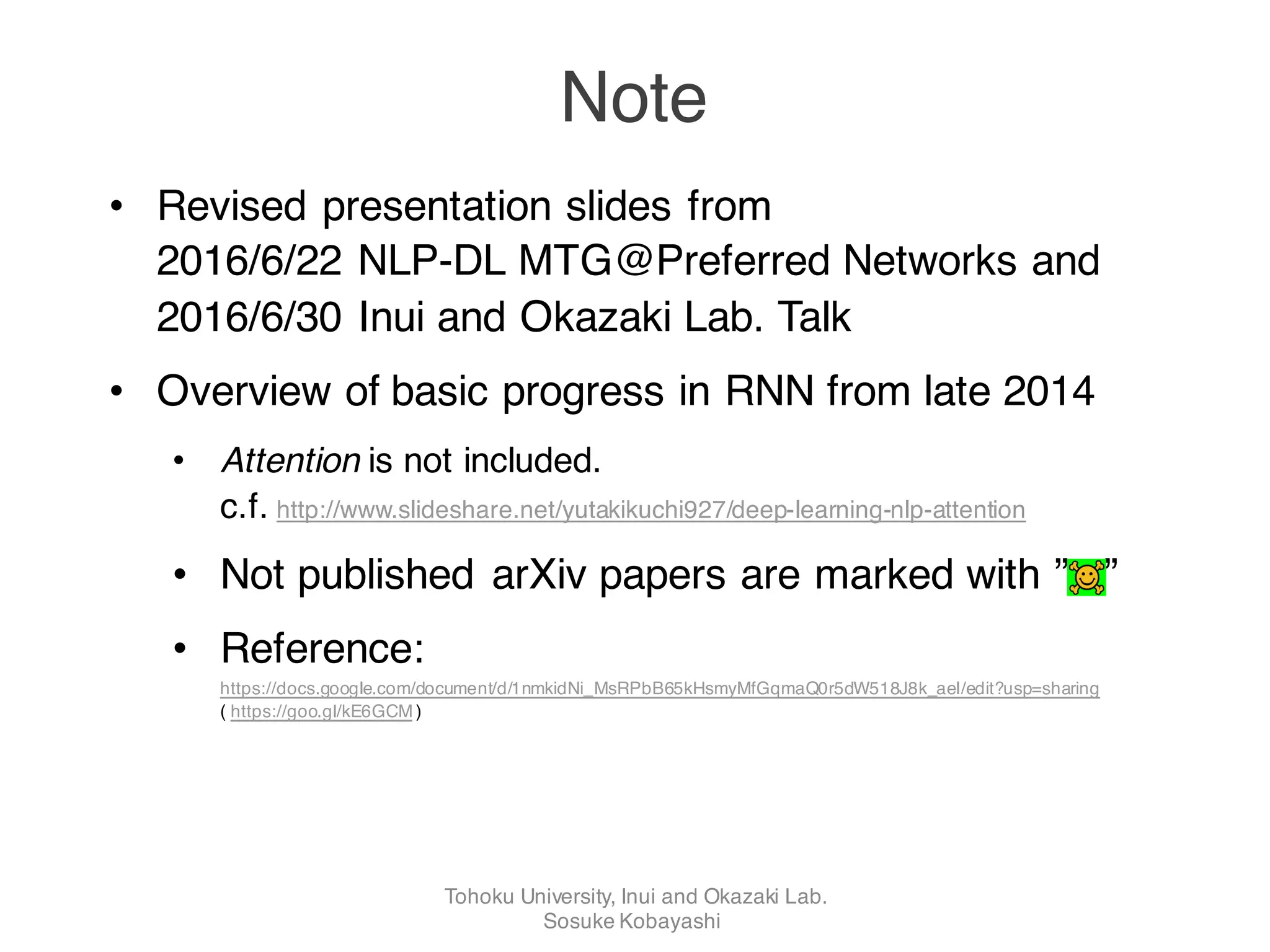

2. • Revised presentation slides from
2016/6/22 NLP-DL MTG@Preferred Networks and
2016/6/30 Inui and Okazaki Lab. Talk
• Overview of basic progress in RNN from late 2014
• Attention is not included.
c.f. http://www.slideshare.net/yutakikuchi927/deep-learning-nlp-attention
• Not published arXiv papers are marked with ” ”
• Reference:
https://docs.google.com/document/d/1nmkidNi_MsRPbB65kHsmyMfGqmaQ0r5dW518J8k_aeI/edit?usp=sharing
( https://goo.gl/kE6GCM )
Note
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

3. • Basic RNN
• RNN’s Unit
• Benchmarking various RNNs
• Connections in RNNs
• RNN and Tree
• Regularizations and Tricks for RNN’s Learning
• Decoding
Agenda
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

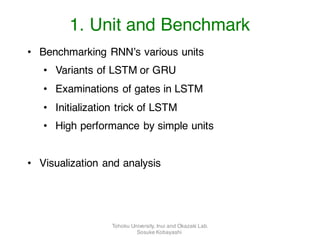

4. • Benchmarking RNN’s various units
• Variants of LSTM or GRU
• Examinations of gates in LSTM
• Initialization trick of LSTM
• High performance by simple units
• Visualization and analysis
1. Unit and Benchmark
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

5. LSTM and GRU
• LSTM [Hochreiter&Schmidhuber97] • GRU [Cho+14]
(Biases are omitted.)Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

6. • Search better unit structures from LSTM and GRU by
mutating computation graphs
• Arith.: Calculation with noise tokens
• XML: Character-based prediction of XML tags
• PTB: Language modeling
Discovered Units [Jozefowicz+15]
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

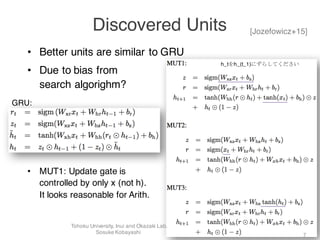

7. • Better units are similar to GRU
• Due to bias from
search algorighm?
• MUT1: Update gate is
controlled by only x (not h).
It looks reasonable for Arith.
h_tをh_(t_1)にずらしてください
7
[Jozefowicz+15]
GRU:
Discovered Units
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

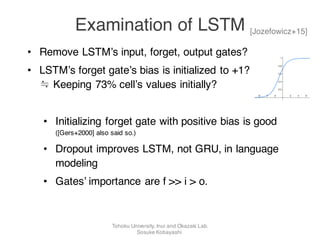

8. • Remove LSTM’s input, forget, output gates?
• LSTM’s forget gate’s bias is initialized to +1?
≒ Keeping 73% cell’s values initially?
• Initializing forget gate with positive bias is good
([Gers+2000] also said so.)
• Dropout improves LSTM, not GRU, in language
modeling
• Gates’ importance are f >> i > o.
Examination of LSTM [Jozefowicz+15]
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

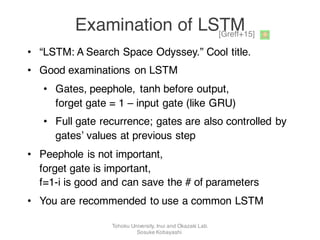

9. • “LSTM: A Search Space Odyssey.” Cool title.
• Good examinations on LSTM
• Gates, peephole, tanh before output,
forget gate = 1 – input gate (like GRU)
• Full gate recurrence; gates are also controlled by
gates’ values at previous step
• Peephole is not important,
forget gate is important,
f=1-i is good and can save the # of parameters
• You are recommended to use a common LSTM
[Greff+15]
Examination of LSTM
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

10. • Structurally Constrained Recurrent Network (SCRN)
[Mikolov+15]
• RNN with a simple cell
by weighted sum
• IRNN [Le+15]
• Simple RNN with
recurrent matrix initialized with identity matrix
and ReLU instead of tanh
• Effects of diagonal and orthogonal matrix in RNN
[Henaff+16]
Other Devised Units
Q is diagonal
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

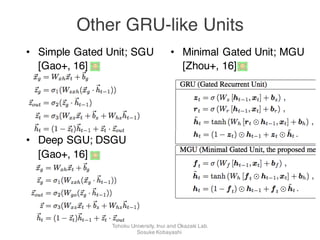

11. • Minimal Gated Unit; MGU
[Zhou+, 16]
Other GRU-like Units
• Simple Gated Unit; SGU
[Gao+, 16]
• Deep SGU; DSGU
[Gao+, 16]
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

12. • Multiplicative Integration [Wu+16]
• Improvements by using multiplication with addition in
RNN, changing
into
.
• Similarly in LSTM and GRU
• Improve performances of many tasks
• In the near future, this will get common ...?
Multiplicative Integration
resurgence of new structural designs for recurrent neural networks (RNNs)
esigns are derived from popular structures including vanilla RNNs, Long
works (LSTMs) [4] and Gated Recurrent Units (GRUs) [5]. Despite of their
ost of them share a common computational building block, described by the
(Wx + Uz + b), (1)
Rm
are state vectors coming from different information sources, W 2 Rd⇥n
e-to-state transition matrices, and b is a bias vector. This computational
a combinator for integrating information flow from the x and z by a sum
by a nonlinearity . We refer to it as the additive building block. Additive
ly implemented in various state computations in RNNs (e.g. hidden state
RNNs, gate/cell computations of LSTMs and GRUs.
an alternative design for constructing the computational building block by
of information integration. Specifically, instead of utilizing sum operation
e Hadamard product “ ” to fuse Wx and Uz:
(Wx Uz + b) (2)
ucture Description and Analysis
neral Formulation of Multiplicative Integration
idea behind Multiplicative Integration is to integrate different information flows Wx
adamard product “ ”. A more general formulation of Multiplicative Integration
e bias vectors 1 and 2 added to Wx and Uz:
((Wx + 1) (Uz + 2) + b)
1, 2 2 Rd
are bias vectors. Notice that such formulation contains the first order
itive building block, i.e., 1 Uht 1 + 2 Wxt. In order to make the Mult
on more flexible, we introduce another bias vector ↵ 2 Rd
to gate2
the term W
g the following formulation:
(↵ Wx Uz + 1 Uz + 2 Wx + b),
t the number of parameters of the Multiplicative Integration is about the same as t
building block, since the number of new parameters (↵, 1 and 2) are negligible c
number of parameters. Also, Multiplicative Integration can be easily extended to
Us3
, that adopt vanilla building blocks for computing gates and output states, wher
replace them with the Multiplicative Integration. More generally, in any kind of
information flows (k 2) are involved (e.g. RNN with multiple skip connect
dforward models like residual networks [12]), one can implement pairwise Mult
on for integrating all k information sources.Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

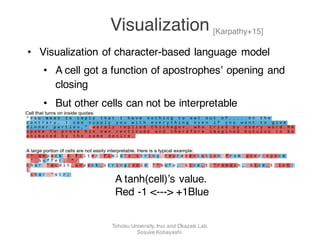

13. • Visualization of character-based language model
• A cell got a function of apostrophes’ opening and
closing
• But other cells can not be interpretable
Visualization
Figure 2: Several examples of cells with interpretable activa
A tanh(cell)’s value.
Red -1 <---> +1Blue
[Karpathy+15]
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

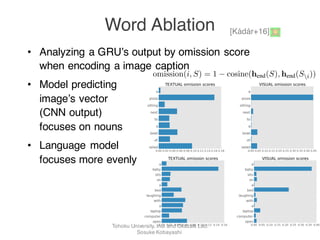

14. Word Ablation [Kádár+16]
• Analyzing a GRU’s output by omission score
when encoding a image caption
• Model predicting
image’s vector
(CNN output)
focuses on nouns
• Language model
focuses more evenly
omission(i, S) = 1 cosine(hend(S), hend(Si))
(12)
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

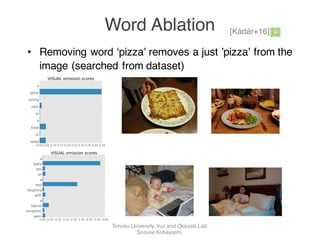

15. • Removing word ‘pizza’ removes a just ’pizza’ from the
image (searched from dataset)
Word Ablation [Kádár+16]
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

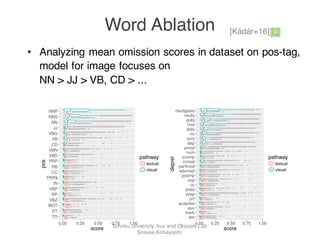

16. • Analyzing mean omission scores in dataset on pos-tag,
model for image focuses on
NN > JJ > VB, CD > ...
Word Ablation [Kádár+16]
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

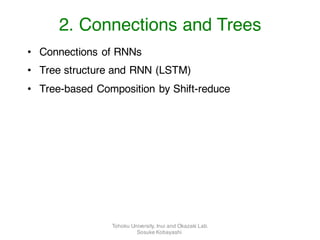

17. • Connections of RNNs
• Tree structure and RNN (LSTM)
• Tree-based Composition by Shift-reduce
2. Connections and Trees
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

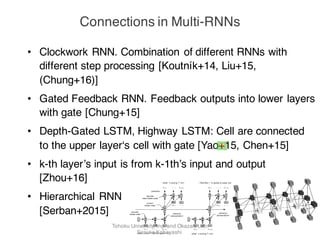

18. • Clockwork RNN. Combination of different RNNs with
different step processing [Koutník+14, Liu+15,
(Chung+16)]
• Gated Feedback RNN. Feedback outputs into lower layers
with gate [Chung+15]
• Depth-Gated LSTM, Highway LSTM: Cell are connected
to the upper layer‘s cell with gate [Yao+15, Chen+15]
• k-th layer’s input is from k-1th’s input and output
[Zhou+16]
• Hierarchical RNN
[Serban+2015]
Connections in Multi-RNNs
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

19. Pixel Recurrent Neu
x1
xi
xn
xn2
Figure 2. Left: To generate pixel xi one conditions on all the pre-
viously generated pixels left and above of xi. Center: Illustration
of a Row LSTM with a kernel of size 3. The dependency field of
the Row LSTM does not reach pixels further away on the sides
of the image. Right: Illustration of the two directions of the Di-
agonal BiLSTM. The dependency field of the Diagonal BiLSTM
covers the entire available context in the image.
Figure 3. In the Diagonal BiLSTM, to allow for parallelization
along the diagonals, the input map is skewed by offseting each
row by one position with respect to the previous row. When the
spatial layer is computed left to right and column by column, the
output map is shifted back into the original size. The convolution
uses a kernel of size 2 ⇥ 1.
(2015); Uria et al. (2014)). By contrast we model p(x) as
a discrete distribution, with every conditional distribution
3
T
th
tu
fo
x
p
d
la
T
in
T
a
c
L
th
tw
u
T
(s
re
in
la
T
th
s
h
Pixel Recurrent Neural Networks
x1
xi
xn
xn2
Figure 2. Left: To generate pixel xi one conditions on all the pre-
viously generated pixels left and above of xi. Center: Illustration
of a Row LSTM with a kernel of size 3. The dependency field of
the Row LSTM does not reach pixels further away on the sides
of the image. Right: Illustration of the two directions of the Di-
agonal BiLSTM. The dependency field of the Diagonal BiLSTM
covers the entire available context in the image.
3.1. Row LSTM
The Row LSTM is a unidirectiona
the image row by row from top to b
tures for a whole row at once; the
formed with a one-dimensional con
xi the layer captures a roughly triang
pixel as shown in Figure 2 (center).
dimensional convolution has size k
larger the value of k the broader the c
The weight sharing in the convoluti
invariance of the computed features
The computation proceeds as follow
an input-to-state component and a r
component that together determine th
LSTM core. To enhance parallelizat

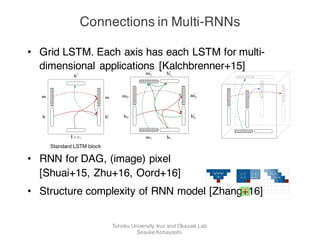

• Grid LSTM. Each axis has each LSTM for multi-
dimensional applications [Kalchbrenner+15]
• RNN for DAG, (image) pixel
[Shuai+15, Zhu+16, Oord+16]
• Structure complexity of RNN model [Zhang+16]
as a conference paper at ICLR 2016
2d Grid LSTM blockblock
m0
h0
h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM Block
cks form the standard LSTM and those that form Grid LSTM networks of N = 1, 2
ons. The dashed lines indicate identity transformations. The standard LSTM block
a memory vector in the vertical dimension; by contrast, the 2d Grid LSTM block has
ector m1 applied along the vertical dimension.
essfully train feed-forward networks with up to 900 layers of depth. Grid LSTM with
er review as a conference paper at ICLR 2016
2d Grid LSTM blockandard LSTM block
m0
h0
h0
I ⇤ xi h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM Block
re 1: Blocks form the standard LSTM and those that form Grid LSTM networks of N = 1, 2
3 dimensions. The dashed lines indicate identity transformations. The standard LSTM block
not have a memory vector in the vertical dimension; by contrast, the 2d Grid LSTM block has
memory vector m1 applied along the vertical dimension.
ed to successfully train feed-forward networks with up to 900 layers of depth. Grid LSTM with
review as a conference paper at ICLR 2016
2d Grid LSTM blockard LSTM block
m0
h0
h0
I ⇤ xi h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM Block
1: Blocks form the standard LSTM and those that form Grid LSTM networks of N = 1, 2
dimensions. The dashed lines indicate identity transformations. The standard LSTM block
ot have a memory vector in the vertical dimension; by contrast, the 2d Grid LSTM block has
mory vector m1 applied along the vertical dimension.
to successfully train feed-forward networks with up to 900 layers of depth. Grid LSTM with
conference paper at ICLR 2016
2d Grid LSTM block
m0
h0
h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM Block
orm the standard LSTM and those that form Grid LSTM networks of N = 1, 2
The dashed lines indicate identity transformations. The standard LSTM block
mory vector in the vertical dimension; by contrast, the 2d Grid LSTM block has
m1 applied along the vertical dimension.
ully train feed-forward networks with up to 900 layers of depth. Grid LSTM with
onference paper at ICLR 2016
2d Grid LSTM block
m0
h0
h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM Block
rm the standard LSTM and those that form Grid LSTM networks of N = 1, 2
The dashed lines indicate identity transformations. The standard LSTM block
mory vector in the vertical dimension; by contrast, the 2d Grid LSTM block has
m1 applied along the vertical dimension.
ly train feed-forward networks with up to 900 layers of depth. Grid LSTM with
review as a conference paper at ICLR 2016
2d Grid LSTM blockdard LSTM block
m0
h0
h0
I ⇤ xi h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM Block
e 1: Blocks form the standard LSTM and those that form Grid LSTM networks of N = 1, 2
dimensions. The dashed lines indicate identity transformations. The standard LSTM block
ot have a memory vector in the vertical dimension; by contrast, the 2d Grid LSTM block has
emory vector m1 applied along the vertical dimension.
d to successfully train feed-forward networks with up to 900 layers of depth. Grid LSTM with
Under review as a conference paper at ICLR 2016
2d Grid LSTM blockStandard LSTM block
m m0
h0
h
h0
I ⇤ xi h1
h2 h0
2
h0
1
m1
m0
1
m0
2m2
1d Grid LSTM Block 3d Grid LSTM
Figure 1: Blocks form the standard LSTM and those that form Grid LSTM networks o
and 3 dimensions. The dashed lines indicate identity transformations. The standard L
does not have a memory vector in the vertical dimension; by contrast, the 2d Grid LSTM
the memory vector m1 applied along the vertical dimension.
is used to successfully train feed-forward networks with up to 900 layers of depth. Grid L
two dimensions is analogous to the Stacked LSTM, but it adds cells along the depth dim
Connections in Multi-RNNs
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

20. • Tree-LSTM [Tai+15] Apply LSTM to follow directed edges
(child to parent) of tree structure. Most cited “Tree-LSTM”
• S-LSTM [Zhu+15] Add peephole and remove input x
• LSTM-RecursiveNN [Le+15] Control forget and input
gates with untied matrices of each cell and ouput (h).
Input gate is applied before tanh.
• Top-down TreeLSTM [Zhang+16]
Sentence generation from
root of dependency tree
Tree-LSTM
Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics
and the 7th International Joint Conference on Natural Language Processing, pages 1556–1566,
Beijing, China, July 26-31, 2015. c 2015 Association for Computational Linguistics
works, a type of recurrent neural net-
work with a more complex computational
unit, have obtained strong results on a va-
riety of sequence modeling tasks. The
only underlying LSTM structure that has
been explored so far is a linear chain.
However, natural language exhibits syn-
tactic properties that would naturally com-
bine words to phrases. We introduce the
Tree-LSTM, a generalization of LSTMs to
tree-structured network topologies. Tree-
LSTMs outperform all existing systems
and strong LSTM baselines on two tasks:
predicting the semantic relatedness of two
sentences (SemEval 2014, Task 1) and
sentiment classification (Stanford Senti-
ment Treebank).
1 Introduction
Most models for distributed representations of
phrases and sentences—that is, models where real-
valued vectors are used to represent meaning—fall
into one of three classes: bag-of-words models,
sequence models, and tree-structured models. In
bag-of-words models, phrase and sentence repre-
sentations are independent of word order; for ex-
ample, they can be generated by averaging con-
stituent word representations (Landauer and Du-
mais, 1997; Foltz et al., 1998). In contrast, se-
quence models construct sentence representations
as an order-sensitive function of the sequence of
tokens (Elman, 1990; Mikolov, 2012). Lastly,
tree-structured models compose each phrase and
sentence representation from its constituent sub-
phrases according to a given syntactic structure
over the sentence (Goller and Kuchler, 1996;
Socher et al., 2011).
x1
x2
x4 x5 x6
y1
y2 y3
y4 y6
Figure 1: Top: A chain-structured LSTM net-
work. Bottom: A tree-structured LSTM network
with arbitrary branching factor.
Order-insensitive models are insufficient to
fully capture the semantics of natural language
due to their inability to account for differences in
meaning as a result of differences in word order
or syntactic structure (e.g., “cats climb trees” vs.
“trees climb cats”). We therefore turn to order-
sensitive sequential or tree-structured models. In
particular, tree-structured models are a linguisti-
cally attractive option due to their relation to syn-
tactic interpretations of sentence structure. A nat-
ural question, then, is the following: to what ex-
tent (if at all) can we do better with tree-structured
models as opposed to sequential models for sen-
tence representation? In this paper, we work to-
wards addressing this question by directly com-
paring a type of sequential model that has recently
been used to achieve state-of-the-art results in sev-
eral NLP tasks against its tree-structured general-
ization.
Due to their capability for processing arbitrary-
length sequences, recurrent neural networks
1556
w0
w0w1w2
w4 w5 w6
w0 w4 w5
G
EN
-L
GEN-NX-LGEN-NX-L
G
EN
-R
GEN-NX-R GEN-NX-R
w1w2w3
LD LD
Figure 4: Generation of left and right dependents of node w0
according to LDTREELSTM.
by input gate it and how much of the earlier mem-
ory cell ˆcl
t0 will be forgotten is controlled by forget
gate ft. This process is computed as follows:
z,l ˆl 1 z,l ˆl
i
g
l
d
r
t
r
p
d
t
p
g
o
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

21. Figure 2: Attentional Encoder-Decoder model.
dj is calculated as the summation vector weighted
by ↵j(i):
dj =
nX
i=1
↵j(i)hi. (6)
To incorporate the attention mechanism into the
decoding process, the context vector is used for the
the j-th word prediction by putting an additional
hidden layer ˜sj:
˜s = tanh(W [s ; d ] + b ), (7)
Figure 3: Proposed model: Tree-to-sequence
tentional NMT model.
a sentence inherent in language. We propose
novel tree-based encoder in order to explicitly ta
the syntactic structure into consideration in t
NMT model. We focus on the phrase structure
a sentence and construct a sentence vector fro
phrase vectors in a bottom-up fashion. The se
tence vector in the tree-based encoder is the

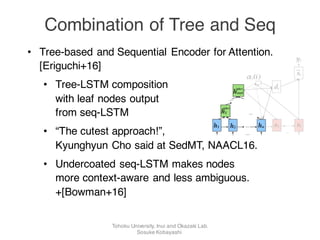

• Tree-based and Sequential Encoder for Attention.
[Eriguchi+16]
• Tree-LSTM composition
with leaf nodes output
from seq-LSTM
• “The cutest approach!”,
Kyunghyun Cho said at SedMT, NAACL16.
• Undercoated seq-LSTM makes nodes
more context-aware and less ambiguous.
+[Bowman+16]
Combination of Tree and Seq
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

22. The hungry cat
NP (VP(S
REDUCE
GENNT(NP)NT(VP)
…
cat hungry The
a<t
p(at)
ut
TtSt
Figure 5: Neural architecture for defining a distribution over at given representations of the stack (St), output buffer (Tt) and
history of actions (a<t). Details of the composition architecture of the NP, the action history LSTM, and the other elements of the
stack are not shown. This architecture corresponds to the generator state at line 7 of Figure 4.
of the forward and reverse LSTMs are concatenated,
passed through an affine transformation and a tanh
nonlinearity to become the subtree embedding.4 Be-
cause each of the child node embeddings (u, v, w in
Fig. 6) is computed similarly (if it corresponds to an
internal node), this composition function is a kind of
recursive neural network.
4.4 Discriminative Parsing Model
A discriminative parsing model can be obtained by
replacing the embedding of Tt at each time step with
an embedding of the input buffer Bt. To train this
model, the conditional likelihood of each sequence
of actions given the input string is maximized.5
5 Inference via Importance Sampling
• Generation by sequential actions from
{GEN(word), REDUCE, NT(non-terminal symbol)}.
Features for action decisions are LSTM’s outputs of (1)
terminals (2) stack (3) action history.
Recurrent Neural Network Grammars
ber of output nodes in a parse tree as a function of
the number of input words, stating the runtime com-
plexity of the parsing algorithm as a function of the
input size requires further assumptions. Assuming
our fixed constraint on maximum depth, it is linear.
3.5 Comparison to Other Models
Our generation algorithm algorithm differs from
previous stack-based parsing/generation algorithms
in two ways. First, it constructs rooted tree struc-
tures top down (rather than bottom up), and sec-
ond, the transition operators are capable of directly
generating arbitrary tree structures rather than, e.g.,
assuming binarized trees, as is the case in much
prior work that has used transition-based algorithms
to produce phrase-structure trees (Sagae and Lavie,
2005; Zhang and Clark, 2011; Zhu et al., 2013).
4 Generative Model
RNNGs use the generator transition set just pre-
sented to define a joint distribution on syntax trees
(y) and words (x). This distribution is defined as a
sequence model over generator transitions that is pa-
rameterized using a continuous space embedding of
the algorithm state at each time step (ut); i.e.,
p(x, y) =
|a(x,y)|
Y
t=1
p(at | a<t)
=
|a(x,y)|
Y
t=1
exp r>
at
ut + bat
P
a02AG(Tt,St,nt) exp r>
a0 ut + ba0
,
resentations of them we use recurrent neural net-
works to “encode” their contents (Cho et al., 2014).
Since the output buffer and history of actions are
only appended to and only contain symbols from a
finite alphabet, it is straightforward to apply a stan-
dard RNN encoding architecture. The stack (S) is
more complicated for two reasons. First, the ele-
ments of the stack are more complicated objects than
symbols from a discrete alphabet: open nontermi-
nals, terminals, and full trees, are all present on the
stack. Second, it is manipulated using both push and
pop operations. To efficiently obtain representations
of S under push and pop operations, we use stack
LSTMs (Dyer et al., 2015).
4.1 Syntactic Composition Function
When a REDUCE operation is executed, the parser
pops a sequence of completed subtrees and/or to-
kens (together with their vector embeddings) from
the stack and makes them children of the most recent
open nonterminal on the stack, “completing” the
constituent. To compute an embedding of this new
subtree, we use a composition function based on
bidirectional LSTMs, which is illustrated in Fig. 6.
NP
u v w
NP u v w NP
x
x
Figure 6: Syntactic composition function based on bidirec-
[Dyer+16]
Input: The hungry cat meows .
Stack Buffer Action
0 The | hungry | cat | meows | . NT(S)
1 (S The | hungry | cat | meows | . NT(NP)
2 (S | (NP The | hungry | cat | meows | . SHIFT
3 (S | (NP | The hungry | cat | meows | . SHIFT
4 (S | (NP | The | hungry cat | meows | . SHIFT
5 (S | (NP | The | hungry | cat meows | . REDUCE
6 (S | (NP The hungry cat) meows | . NT(VP)
7 (S | (NP The hungry cat) | (VP meows | . SHIFT
8 (S | (NP The hungry cat) | (VP meows . REDUCE
9 (S | (NP The hungry cat) | (VP meows) . SHIFT
10 (S | (NP The hungry cat) | (VP meows) | . REDUCE
11 (S (NP The hungry cat) (VP meows) .)
Figure 2: Top-down parsing example.
tackt Termst Open NTst Action Stackt+1 Termst+1 Open NTst+1
T n NT(X) S | (X T n + 1
T n GEN(x) S | x T | x n
| (X | ⌧1 | . . . | ⌧` T n REDUCE S | (X ⌧1 . . . ⌧`) T n 1
ure 3: Generator transitions. Symbols defined as in Fig. 1 with the addition of T representing the history of generated terminals.
Stack Terminals Action
0 NT(S)
1 (S NT(NP)
2 (S | (NP GEN(The)
3 (S | (NP | The The GEN(hungry)
4 (S | (NP | The | hungry The | hungry GEN(cat)
5 (S | (NP | The | hungry | cat The | hungry | cat REDUCE
6 (S | (NP The hungry cat) The | hungry | cat NT(VP)
7 (S | (NP The hungry cat) | (VP The | hungry | cat GEN(meows)
8 (S | (NP The hungry cat) | (VP meows The | hungry | cat | meows REDUCE
9 (S | (NP The hungry cat) | (VP meows) The | hungry | cat | meows GEN(.)
10 (S | (NP The hungry cat) | (VP meows) | . The | hungry | cat | meows | . REDUCE
11 (S (NP The hungry cat) (VP meows) .) The | hungry | cat | meows | .
• REDUCE action
weaves a new chunk
vector by bi-LSTM
and re-stacks it.
“NP→the→hungry→cat”
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

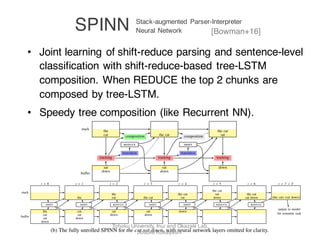

23. • Joint learning of shift-reduce parsing and sentence-level
classification with shift-reduce-based tree-LSTM
composition. When REDUCE the top 2 chunks are
composed by tree-LSTM.
• Speedy tree composition (like Recurrent NN).
SPINN [Bowman+16]
bu er
down
sat
stack
cat
the
composition
tracking
transition
down
sat
the cat composition
tracking
transition
down
sat
the cat
tracking
(a) The SPINN model unrolled for two transitions during the processing of the sentence the cat sat down. ‘Tracking’, ‘transition’,
and ‘composition’ are neural network layers. Gray arrows indicate connections which are blocked by a gating function.
bu er
stack
t = 0
down
sat
cat
the
t = 1
down
sat
cat
the
t = 2
down
sat
cat
the
t = 3
down
sat
the cat
t = 4
down
sat
the cat
t = 5
down
sat
the cat
t = 6
sat down
the cat
t = 7 = T
(the cat) (sat down)
output to model
for semantic task
bu er
down
sat
stack
cat
the
composition
tracking
transition
down
sat
the cat composition
tracking
transition
down
sat
the cat
tracking
(a) The SPINN model unrolled for two transitions during the processing of the sentence the cat sat down. ‘Tracking’, ‘transition’,
and ‘composition’ are neural network layers. Gray arrows indicate connections which are blocked by a gating function.
bu er
stack
t = 0
down
sat
cat
the
t = 1
down
sat
cat
the
t = 2
down
sat
cat
the
t = 3
down
sat
the cat
t = 4
down
sat
the cat
t = 5
down
sat
the cat
t = 6
sat down
the cat
t = 7 = T
(the cat) (sat down)
output to model
for semantic task
(b) The fully unrolled SPINN for the cat sat down, with neural network layers omitted for clarity.
Stack-augmented Parser-Interpreter
Neural Network
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

24. • Repeated attention with
LSTM captures
input vectors as a set
[Vinyals+15]
• (End-to-end) Memory Networks [Sukhbaatar+15]
Sentence encoding by weighted sum.
Earlier word(’s vector) has larger weights at smaller dims.
Later word(‘s vector) has larger weights at larger dims.
• e.g., When sentence length d is 10 and vector dimension J is 20,
value of 1st vec at 1st dim: (1-1/20)-(1/10)(1-2*1/20) = 0.86
value of 1st vec at 20th
dim: (1-20/20)-(1/10)(1-2*20/20) = 0.1
value of 10th
vec at 1st dim: (1-1/20)-(10/10)(1-2*1/20) = 0.05
value of 10th
vec at 20th
dim: (1-20/20)-(10/10)(1-2*20/20) = 1.0
(Encoders without C/RNN)
tor with the structure lkj = (1 j/J) (k/d)(1 2j/J) (assuming 1-based indexing),
ng the number of words in the sentence, and d is the dimension of the embedding. This
presentation, which we call position encoding (PE), means that the order of the words
mi. The same representation is used for questions, memory inputs and memory outputs.
Encoding: Many of the QA tasks require some notion of temporal context, i.e. in
ample of Section 2, the model needs to understand that Sam is in the bedroom after
simplistic nature of the QA language). The same representation is used for the
d answer a. Two versions of the data are used, one that has 1000 training problems
second larger one with 10,000 per task.
Details
wise stated, all experiments used a K = 3 hops model with the adjacent weight sharing
all tasks that output lists (i.e. the answers are multiple words), we take each possible
of possible outputs and record them as a separate answer vocabulary word.
presentation: In our experiments we explore two different representations for
s. The first is the bag-of-words (BoW) representation that takes the sentence
2, ..., xin}, embeds each word and sums the resulting vectors: e.g mi =
P
j Axij and
j. The input vector u representing the question is also embedded as a bag of words:
. This has the drawback that it cannot capture the order of the words in the sentence,
ortant for some tasks.
propose a second representation that encodes the position of words within the
s takes the form: mi =
P
j lj · Axij, where · is an element-wise multiplication. lj is a
4
4.2 ATTENTION MECHANISMS
Neural models with memories coupled to differentiable addressing mechanism have been success-
fully applied to handwriting generation and recognition (Graves, 2012), machine translation (Bah-
danau et al., 2015a), and more general computation machines (Graves et al., 2014; Weston et al.,
2015). Since we are interested in associative memories we employed a “content” based attention.
This has the property that the vector retrieved from our memory would not change if we randomly
shuffled the memory. This is crucial for proper treatment of the input set X as such. In particular,
our process block based on an attention mechanism uses the following:
qt = LSTM(q⇤
t 1) (3)
ei,t = f(mi, qt) (4)
ai,t =
exp(ei,t)
P
j exp(ej,t)
(5)
rt =
X
i
ai,tmi (6)
q⇤
t = [qt rt] (7)
Read
Process Write
Figure 1: The Read-Process-and-Write model.
where i indexes through each memory vector mi (typically equal to the cardinality of X), qt is
a query vector which allows us to read rt from the memories, f is a function that computes a
single scalar from mi and qt (e.g., a dot product), and LSTM is an LSTM which computes a
recurrent state but which takes no inputs. q⇤
t is the state which this LSTM evolves, and is formed
by concatenating the query qt with the resulting attention readout rt. t is the index which indicates
how many “processing steps” are being carried to compute the state to be fed to the decoder. Note
that permuting mi and mi0 has no effect on the read vector rt.
4.3 READ, PROCESS, WRITE
Our model, which naturally handles input sets, has three components (the exact equations and im-
plementation will be released in an appendix prior to publication):
• A reading block, which simply embeds each element xi 2 X using a small neural network
onto a memory vector mi (the same neural network is used for all i).
• A process block, which is an LSTM without inputs or outputs performing T steps of com-
putation over the memories mi. This LSTM keeps updating its state by reading mi repeat-
edly using the attention mechanism described in the previous section. At the end of this
block, its hidden state q⇤
T is an embedding which is permutation invariant to the inputs. See
eqs. (3)-(7) for more details.
4
fully applied to handwriting generation a
danau et al., 2015a), and more general c
2015). Since we are interested in associa
This has the property that the vector retri
shuffled the memory. This is crucial for
our process block based on an attention m
qt = LSTM(q⇤
t 1) (3)
ei,t = f(mi, qt) (4)
ai,t =
exp(ei,t)
P
j exp(ej,t)
(5)
rt =
X
i
ai,tmi (6)
q⇤
t = [qt rt] (7)
where i indexes through each memory v
a query vector which allows us to read
single scalar from mi and qt (e.g., a do
recurrent state but which takes no inputs
by concatenating the query qt with the re
how many “processing steps” are being c
that permuting mi and mi0 has no effect o
4.3 READ, PROCESS, WRITE
Our model, which naturally handles inpu
plementation will be released in an appen
• A reading block, which simply e
onto a memory vector mi (the sa
• A process block, which is an LS
putation over the memories mi.
edly using the attention mechan
block, its hidden state q⇤
T is an em
eqs. (3)-(7) for more details.
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

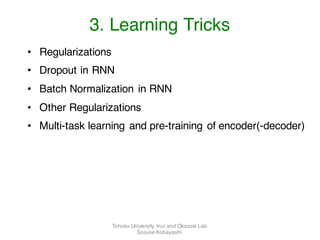

25. • Regularizations
• Dropout in RNN
• Batch Normalization in RNN
• Other Regularizations
• Multi-task learning and pre-training of encoder(-decoder)
3. Learning Tricks
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

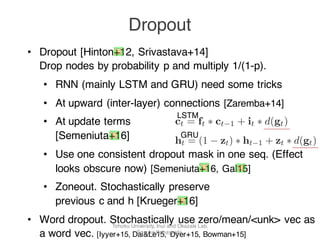

26. • Dropout [Hinton+12, Srivastava+14]
Drop nodes by probability p and multiply 1/(1-p).
• RNN (mainly LSTM and GRU) need some tricks
• At upward (inter-layer) connections [Zaremba+14]
• At update terms
[Semeniuta+16]
• Use one consistent dropout mask in one seq. (Effect
looks obscure now) [Semeniuta+16, Gal15]
• Zoneout. Stochastically preserve
previous c and h [Krueger+16]
• Word dropout. Stochastically use zero/mean/<unk> vec as
a word vec. [Iyyer+15, Dai&Le15, Dyer+15, Bowman+15]
Dropout
, d(ht−1)] + bh), (4)
function from Equation 2.
d-forward fully connected
is a significant difference:
ks every fully-connected
only once, while it is not
nt layer: each training ex-
mposed of a number of in-
ropout this results in hid-
on every step. This obser-
tion of how to sample the
re two options: sample it
sequence (per-sequence)
mask on every step (per-
wo strategies for sampling
etail in Section 3.4.
ht = ot ∗ f(ct),
where it, ft, ot are input, output and forget gate
step t; gt is the vector of cell updates and ct is
updated cell vector used to update the hidden s
ht; σ is the sigmoid function and ∗ is the elem
wise multiplication.
Our approach is to apply dropout to the cell
date vector ct as follows:
ct = ft ∗ ct−1 + it ∗ d(gt)
In contrast, Moon et al. (2015) propose to
ply dropout directly to the cell values and use
sequence sampling:
ct = d(ft ∗ ct−1 + it ∗ gt)
We will discuss the limitations of the appro
of Moon et al. (2015) in Section 3.4 and sup
Figure 1: Illustration of the three types
circles represent connections, hidden state
we apply dropout.
gt = f(Wg xt, rt ∗ ht−1 + bg)
ht = (1 − zt) ∗ ht−1 + zt ∗ gt
Similarly to the LSTMs, we propoose
dropout to the hidden state updates vector
ht = (1 − zt) ∗ ht−1 + zt ∗ d(gt)
To the best of our knowledge, this work is
to study the effect of recurrent dropout
networks.
3.4 Dropout and memory
Before going further with the explanatio
LSTM
GRU
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

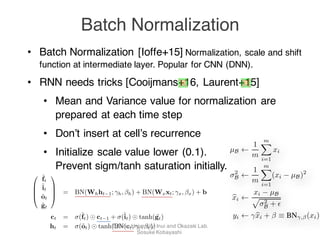

27. • Batch Normalization [Ioffe+15] Normalization, scale and shift
function at intermediate layer. Popular for CNN (DNN).
• RNN needs tricks [Cooijmans+16, Laurent+15]
• Mean and Variance value for normalization are
prepared at each time step
• Don’t insert at cell’s recurrence
• Initialize scale value lower (0.1).
Prevent sigm/tanh saturation initially.
Batch Normalization
hidden-to-hidden transformations. We introduce the batch-normalizing transform BN( · ; , )
the LSTM as follows:
0
B
B
@
˜ft
˜it
˜ot
˜gt
1
C
C
A = BN(Whht 1; h, h) + BN(Wxxt; x, x) + b (6)
ct = (˜ft) ct 1 + (˜it) tanh( ˜gt) (7)
ht = (˜ot) tanh(BN(ct; c, c)) (8)
network by discarding the absolute scale of activations.
We want to a preserve the information in the network, by
normalizing the activations in a training example relative
to the statistics of the entire training data.
3 Normalization via Mini-Batch
Statistics
Since the full whitening of each layer’s inputs is costly
and not everywhere differentiable, we make two neces-
sary simplifications. The first is that instead of whitening
the features in layer inputs and outputs jointly, we will
normalize each scalar feature independently, by making it
have the mean of zero and the variance of 1. For a layer
with d-dimensional input x = (x(1)
. . . x(d)
), we will nor-
malize each dimension
x(k)
=
x(k)
− E[x(k)
]
Var[x(k)]
where the expectation and variance are computed over the
training data set. As shown in (LeCun et al., 1998b), such
normalization speeds up convergence, even when the fea-
tures are not decorrelated.
Note that simply normalizing each input of a layer may
change what the layer can represent. For instance, nor-
B = {x1...
Let the normalized values be x1.
formations be y1...m. We refer to
BNγ,β : x1...m →
as the Batch Normalizing Trans
Transform in Algorithm 1. In the
added to the mini-batch variance
Input: Values of x over a mini-
Parameters to be learned
Output: {yi = BNγ,β(xi)}
µB ←
1
m
m
i=1
xi
σ2
B ←
1
m
m
i=1
(xi − µB)2
xi ←
xi − µB
σ2
B + ϵ
yi ← γxi + β ≡ BNγ,β(xi)
Algorithm 1: Batch Normalizi
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

28. • Norm-stabilizer [Krueger+15]
• Penalize the difference between the norms of hidden
vectors at successive time steps
• Temporal Coherence Loss [Jonschkowski&Brock15]
• Penalize the difference between the hidden vectors
at successive time steps.
Regularization for Successiveness
Overfitting in machine learning is addressed by restricting the space o
considered. This can be accomplished by reducing the number of par
with an inductive bias for simpler models, such as early stopping.
can be achieved by incorporating more sophisticated prior knowledg
activations on a reasonable path can be difficult, especially across lo
in mind, we devise a regularizer for the state representation learned
RNNs, that aims to encourage stability of the path taken through repr
we propose the following additional cost term for Recurrent Neural N
1
T
TX
t=1
(khtk2 kht 1k2)2
Where ht is the vector of hidden activations at time-step t, and is a h
amounts of regularization. We call this penalty the norm-stabilizer, as
norms of the hiddens to be stable (i.e. approximately constant acros
coherence” penalty of Jonschkowski & Brock (2015), our penalty
representation to remain constant, only its norm.
In the absence of inputs and nonlinearities, a constant norm would imp
to-hidden transition matrix for simple RNNs (SRNNs). However, in t
sition matrix, inputs and nonlinearities can still change the norm of
instability. This makes targeting the hidden activations directly a mo
ing norm stability. Stability becomes especially important when we
sequences at test time than those seen during training (the “training h
arXiv:1511.08400v
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

29. • Auto-(sentence-)encoder and language modeling as pre-
training for sentence classifications. (But, joint learning is
not good.) [Dai&Le15]
• Multi-task learning for encoder-decoder.
The coefficients of tasks’ losses are so important.
(Multi-language translation, parsing, image captioning,
auto-encoder, skip-thought vectors) [Luong+15]

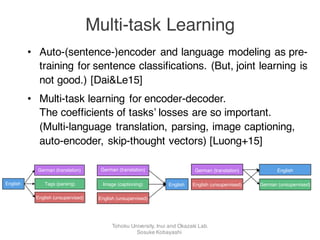

Multi-task Learning
nce paper at ICLR 2016
English (unsupervised)
German (translation)
Tags (parsing)English
y Setting – one encoder, multiple decoders. This scheme is useful for either
as in Dong et al. (2015) or between different tasks. Here, English and Ger-
of words in the respective languages. The α values give the proportions of
are allocated for the different tasks.
Published as a conference paper at ICLR 2016
English (unsupervised)
German (translation)
Tags (parsing)English
Figure 2: One-to-many Setting – one encoder, multiple decoders. This scheme is useful for either
multi-target translation as in Dong et al. (2015) or between different tasks. Here, English and Ger-
man imply sequences of words in the respective languages. The α values give the proportions of
parameter updates that are allocated for the different tasks.
for constituency parsing as used in (Vinyals et al., 2015a), (b) a sequence of German words for ma-
chine translation (Luong et al., 2015a), and (c) the same sequence of English words for autoencoders
or a related sequence of English words for the skip-thought objective (Kiros et al., 2015).
3.2 MANY-TO-ONE SETTING
This scheme is the opposite of the one-to-many setting. As illustrated in Figure 3, it consists of mul-
tiple encoders and one decoder. This is useful for tasks in which only the decoder can be shared, for
example, when our tasks include machine translation and image caption generation (Vinyals et al.,
2015b). In addition, from a machine translation perspective, this setting can benefit from a large
amount of monolingual data on the target side, which is a standard practice in machine translation
system and has also been explored for neural MT by Gulcehre et al. (2015).
English (unsupervised)
Image (captioning) English
German (translation)
Figure 3: Many-to-one setting – multiple encoders, one decoder. This scheme is handy for tasks in
which only the decoders can be shared.
3.3 MANY-TO-MANY SETTING
Lastly, as the name describes, this category is the most general one, consisting of multiple encoders
Published as a conference paper at ICLR 2016
German (translation)
English (unsupervised) German (unsupervised)
English
Figure 4: Many-to-many setting – multiple encoders, multiple decoders. We consider t
in a limited context of machine translation to utilize the large monolingual corpora i
source and the target languages. Here, we consider a single translation task and two un
autoencoder tasks.
consist of ordered sentences, e.g., paragraphs. Unfortunately, in many applications th
machine translation, we only have sentence-level data where the sentences are unordered.
that, we split each sentence into two halves; we then use one half to predict the other hal
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

30. • Lighten Calculation of Softmax output
• Copy mechanism
• Character-based
• Global Optimization of Decoding

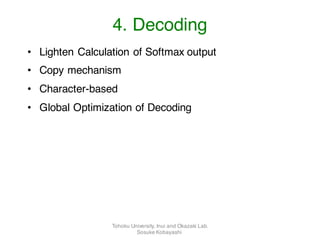

4. Decoding
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

31. • Softmax over large vocabulary (class) has large time
and space computational complexity.
Lighten (replace) it by
• Sampled Softmax
• Class-factored Softmax
• Hierarchical Softmax
• BlackOut
• Noise Constrastive Estimation; NCE
• Self-normalization
• Negative Sampling

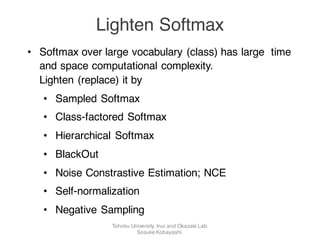

Lighten Softmax
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

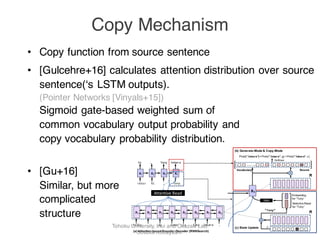

32. • Copy function from source sentence
• [Gulcehre+16] calculates attention distribution over source
sentence(‘s LSTM outputs).
(Pointer Networks [Vinyals+15])
Sigmoid gate-based weighted sum of
common vocabulary output probability and
copy vocabulary probability distribution.
• [Gu+16]
Similar, but more
complicated
structure
Copy Mechanism
hello , my name is Tony Jebara .
Attentive Read
hi , Tony Jebara
<eos> hi , Tony
h1 h2 h3 h4 h5
s1 s2 s3 s4
h6 h7 h8
“Tony”
DNN
Embedding
for “Tony”
Selective Read
for “Tony”
(a) Attention-based Encoder-Decoder (RNNSearch)
(c) State Update
s4
SourceVocabulary
Softmax
Prob(“Jebara”)=Prob(“Jebara”, g) +Prob(“Jebara”, c)
… ...
(b) Generate-Mode & Copy-Mode
!
M
M
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

33. forms and their meanings is non-trivial (de Saus-
sure, 1916). While some compositional relation-
ships exist, e.g., morphological processes such as
adding -ing or -ly to a stem have relatively reg-
ular effects, many words with lexical similarities
convey different meanings, such as, the word pairs
lesson () lessen and coarse () course.
3 C2W Model
Our compositional character to word (C2W)
model is based on bidirectional LSTMs (Graves
and Schmidhuber, 2005), which are able to
learn complex non-local dependencies in sequence
models. An illustration is shown in Figure 1. The
input of the C2W model (illustrated on bottom) is
a single word type w, and we wish to obtain is
a d-dimensional vector used to represent w. This
model shares the same input and output of a word
lookup table (illustrated on top), allowing it to eas-
ily replace then in any network.
As input, we define an alphabet of characters
C. For English, this vocabulary would contain an
entry for each uppercase and lowercase letter as
well as numbers and punctuation. The input word
w is decomposed into a sequence of characters
c1, . . . , cm, where m is the length of w. Each ci
cats
cat
cats
job
....
....
........
cats
c a t s
a
c
t
....
....
s
Character
Lookup
Table
Word
Lookup
Table
Bi-LSTM
embeddings
for word "cats"
embeddings
for word "cats"
• In/output chunk is a character, not a defined word
• Language model, various task’s input features,
machine translation’s decoding LM: [Sutskever+11, Graves13,
Ling+15a, Kim+15], MT: [Chung+16, Ling+15b,Costa-
jussa&Fonollosa16,Luong+16]
• Combination of words and characters
[Kang+11,Józefowicz+16,Miyamoto&Cho16]
• (Not only RNN composition,
but also CNN)
• Good in terms of morphology
and rare word problem

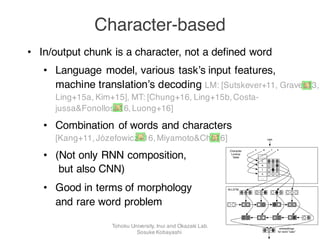

Character-based
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

34. Figure 1: Illustration of the Scheduled Sampling approach,
• Reinventing the wheel (of non-NN research)?
(Even so, these are useful and good next steps.)
• Use model’s prediction as next input in training (while
usually only true input is used) [Bengio+15]
• Similar to DAgger [Daumé III16; Blog]
• Use dynamic oracle [Daumé III16; Blog]
[Ballesteros+16,
Goldberg&Nivre13]

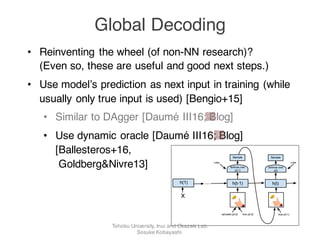

Global Decoding
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

35. • REINFORCE to optimize BLEU/ROUGE [Ranzato+15]
• Minimum Risk Training [Shen+15, Ayana+16]
• Optimization for beam search [Wiseman&Rush16]

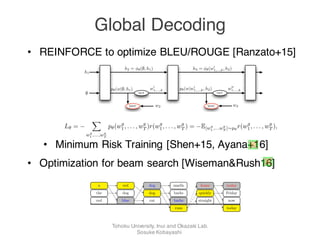

Global Decoding
In order to apply the REINFORCE algorithm (Williams, 1992; Zaremba & Sutskever, 2015) to the
problem of sequence generation we cast our problem in the reinforcement learning (RL) frame-
work (Sutton & Barto, 1988). Our generative model (the RNN) can be viewed as an agent, which
interacts with the external environment (the words and the context vector it sees as input at every
time step). The parameters of this agent defines a policy, whose execution results in the agent pick-
ing an action. In the sequence generation setting, an action refers to predicting the next word in
the sequence at each time step. After taking an action the agent updates its internal state (the hid-
den units of RNN). Once the agent has reached the end of a sequence, it observes a reward. We
can choose any reward function. Here, we use BLEU (Papineni et al., 2002) and ROUGE-2 (Lin
& Hovy, 2003) since these are the metrics we use at test time. BLEU is essentially a geometric
mean over n-gram precision scores as well as a brevity penalty (Liang et al., 2006); in this work, we
consider up to 4-grams. ROUGE-2 is instead recall over bi-grams. Like in imitation learning, we
have a training set of optimal sequences of actions. During training we choose actions according to
the current policy and only observe a reward at the end of the sequence (or after maximum sequence
length), by comparing the sequence of actions from the current policy against the optimal action
sequence. The goal of training is to find the parameters of the agent that maximize the expected
reward. We define our loss as the negative expected reward:
L✓ =
X
wg
1 ,...,wg
T
p✓(wg
1, . . . , wg
T )r(wg
1, . . . , wg
T ) = E[wg
1 ,...wg
T ]⇠p✓
r(wg
1, . . . , wg
T ), (9)
where wg
n is the word chosen by our model at the n-th time step, and r is the reward associated
with the generated sequence. In practice, we approximate this expectation with a single sample
from the distribution of actions implemented by the RNN (right hand side of the equation above
and Figure 9 of Supplementary Material). We refer the reader to prior work (Zaremba & Sutskever,
2015; Williams, 1992) for the full derivation of the gradients. Here, we directly report the partial
derivatives and their interpretation. The derivatives w.r.t. parameters are:
@L✓
@✓
=
X
t
@L✓
@ot
@ot
@✓
(10)
6
Published as a conference paper at ICLR 2016
h2 = ✓( , h1)
p✓(w| , h1)
XENT
h1
w2 w3XENT
top-k
w0
1,...,k p✓(w|w0
1,...,k, h2) w00
1,...,k
h3 = ✓(w0
1,...,k, h2)
top-k
Figure 3: Illustration of the End-to-End BackProp method. The first steps of the unrolled sequence
(here just the first step) are exactly the same as in a regular RNN trained with cross-entropy. How-
ever, in the remaining steps the input to each module is a sparse vector whose non-zero entries are
the k largest probabilities of the distribution predicted at the previous time step. Errors are back-
propagated through these inputs as well.
While this algorithm is a simple way to expose the model to its own predictions, the loss function
optimized is still XENT at each time step. There is no explicit supervision at the sequence level
while training the model.
3.2 SEQUENCE LEVEL TRAINING
We now introduce a novel algorithm for sequence level training, which we call Mixed Incremental
Cross-Entropy Reinforce (MIXER). The proposed method avoids the exposure bias problem, and
oss L using a two-step pro-
ass, we compute candidate
n violations (sequences with
backward pass, we back-
ugh the seq2seq RNNs. Un-
ining, the first-step requires
case beam search) to find
Time Step
a red dog smells home today
the dog dog barks quickly Friday
red blue cat barks straight now
runs today
a red dog runs quickly today
blue dog barks home today
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi

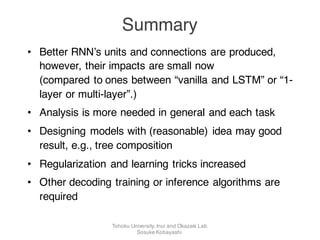

36. • Better RNN’s units and connections are produced,
however, their impacts are small now
(compared to ones between “vanilla and LSTM” or “1-
layer or multi-layer”.)
• Analysis is more needed in general and each task
• Designing models with (reasonable) idea may good
result, e.g., tree composition
• Regularization and learning tricks increased
• Other decoding training or inference algorithms are
required
Summary
Tohoku University, Inui and Okazaki Lab.
Sosuke Kobayashi
