This document outlines the steps to build a stock tracking mobile app using React Native. It describes initializing the project, building the UI with split header and footer sections, creating reusable StockButton components, fetching stock data from the Google Finance API, and handling state updates on button presses. Key aspects covered include using props for communication between parent and child components, chaining promises with .then and error handling with .catch, and conditionally updating the display with red or green text based on stock changes. The homework is to expand the app to fetch and display data for 5 US tech company stocks.

1. Kobkrit Viriyayudhakorn, Ph.D.
CEO of iApp Technology Limited.
kobkrit@gmail.com
http://www.kobkrit.com

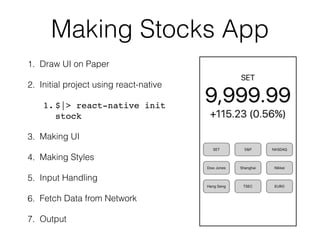

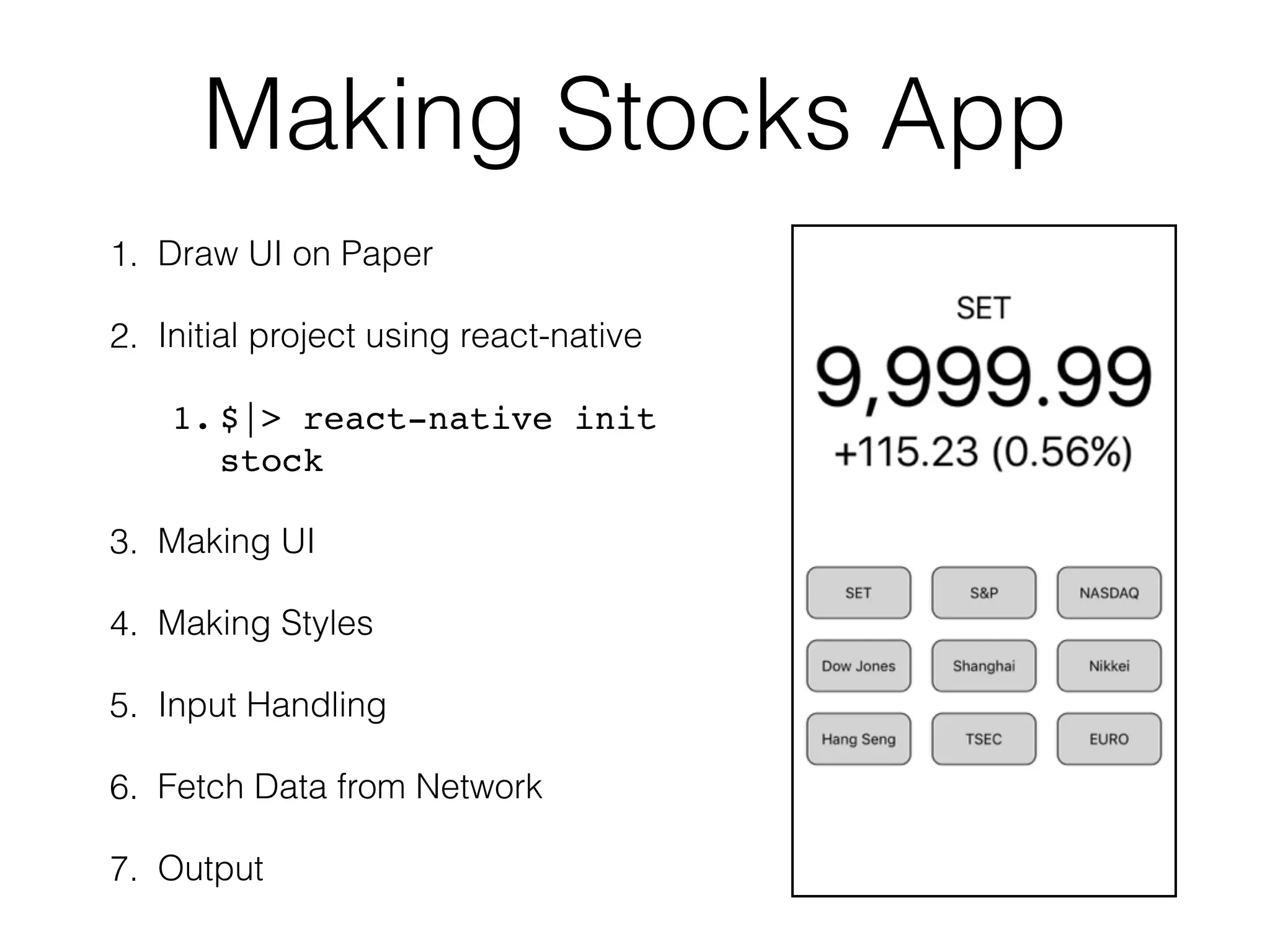

2. Making Stocks App
1. Draw UI on Paper
2. Initial project using react-native
1. $|> react-native init
stock
3. Making UI
4. Making Styles
5. Input Handling
6. Fetch Data from Network
7. Output

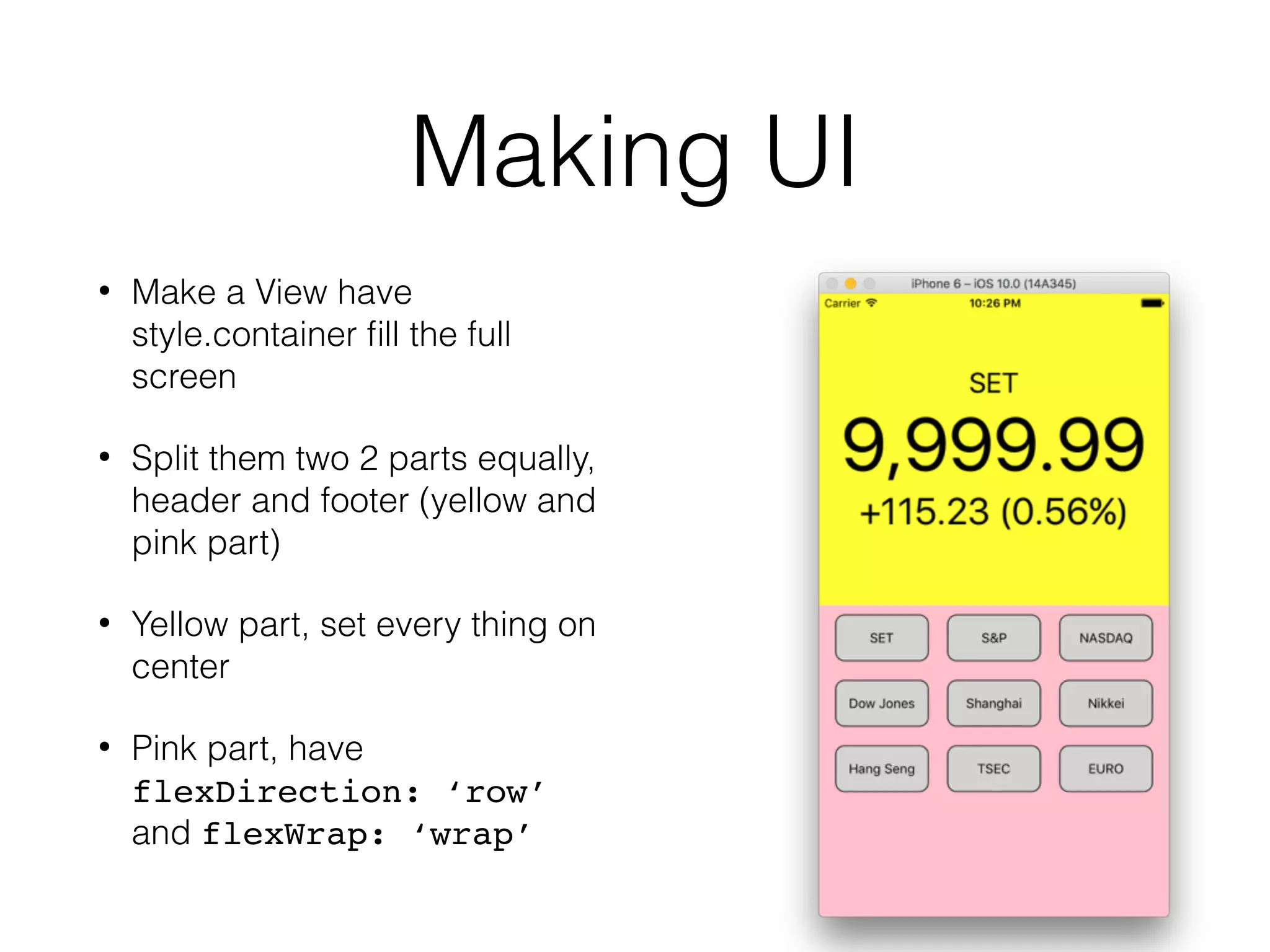

3. Making UI
• Make a View have
style.container fill the full
screen
• Split them two 2 parts equally,
header and footer (yellow and
pink part)
• Yellow part, set every thing on
center
• Pink part, have
flexDirection: ‘row’
and flexWrap: ‘wrap’

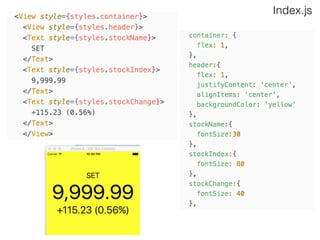

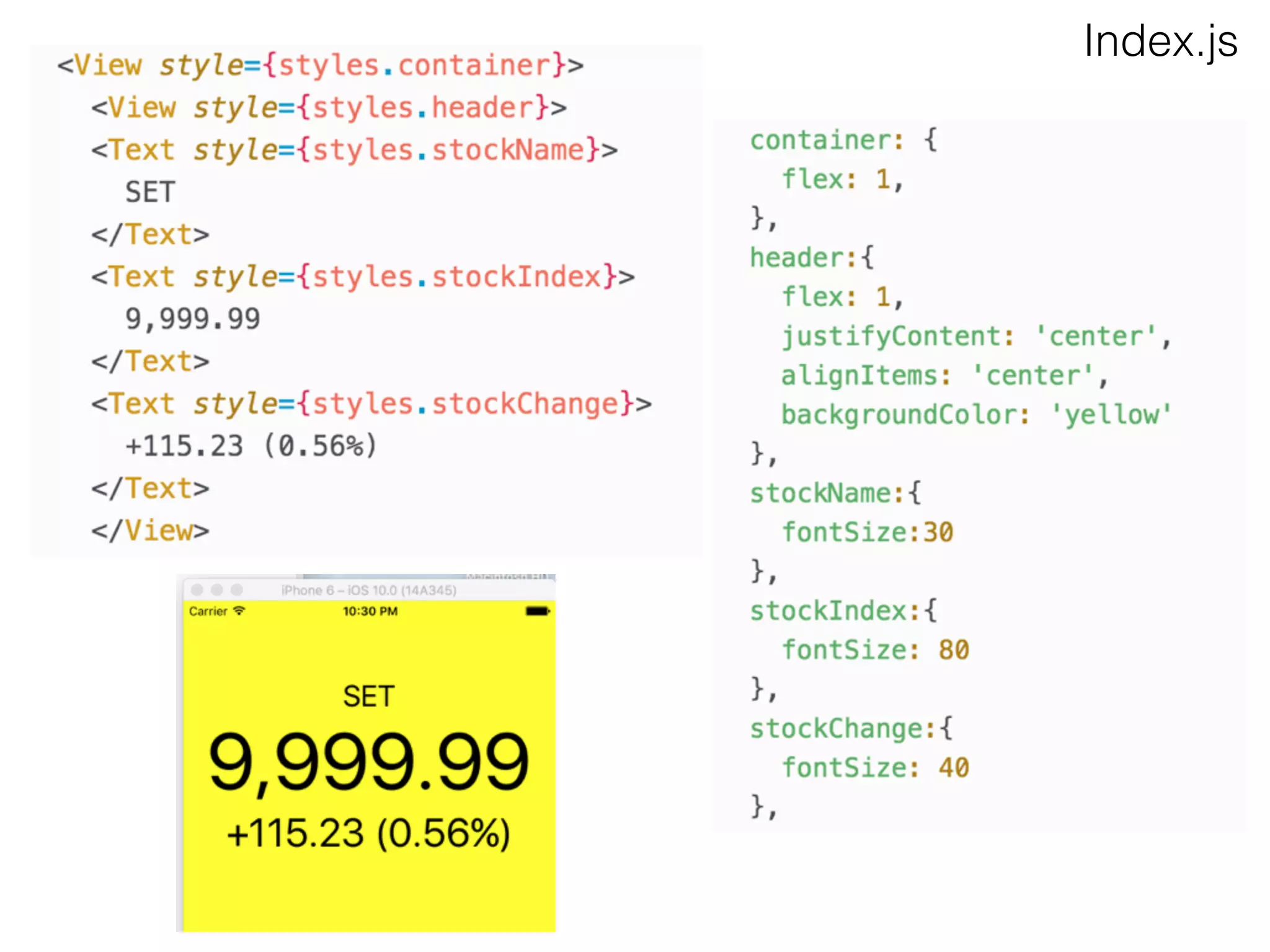

4. Index.js

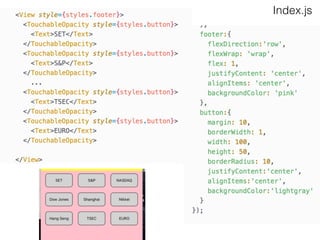

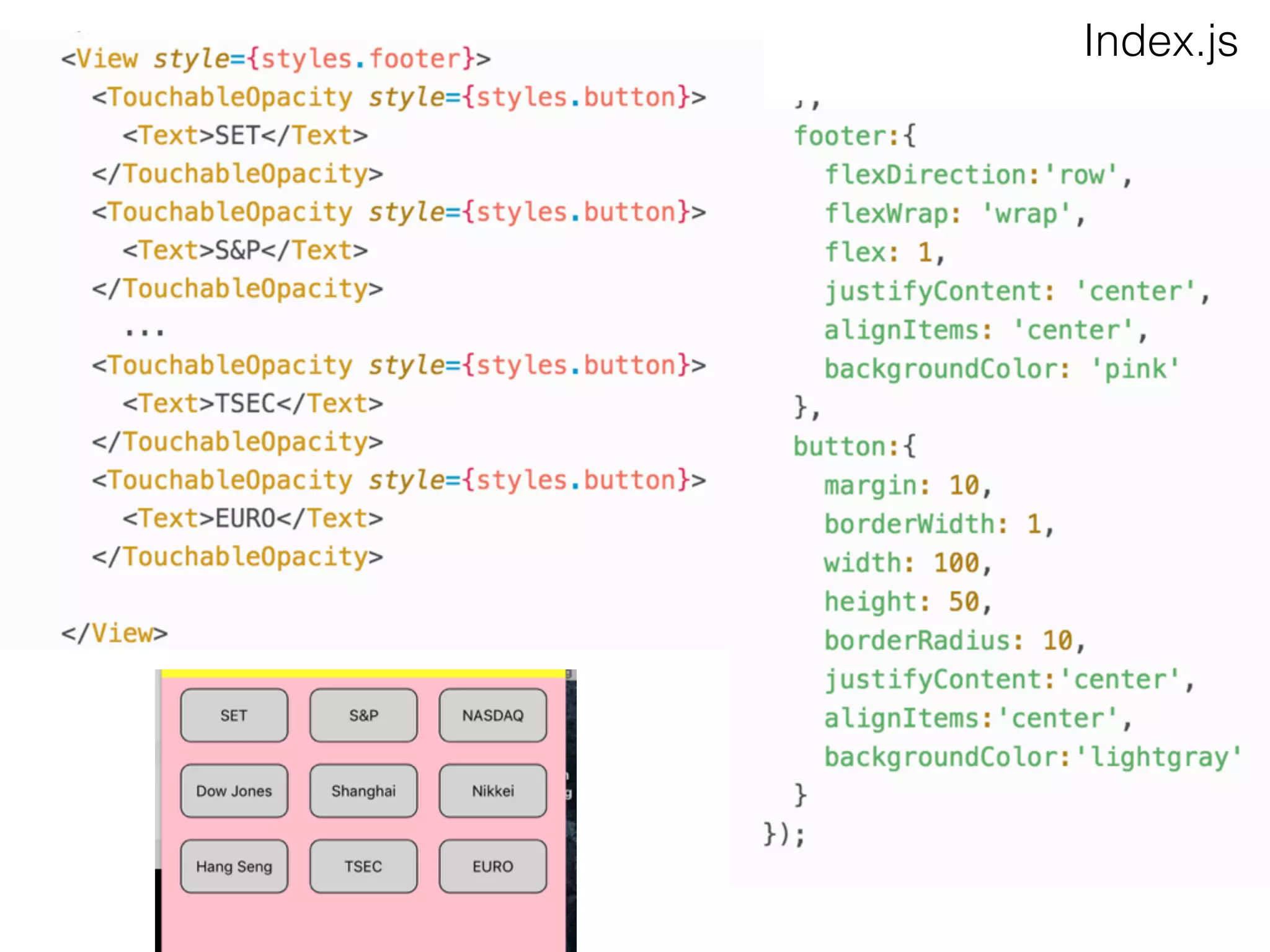

5. Index.js

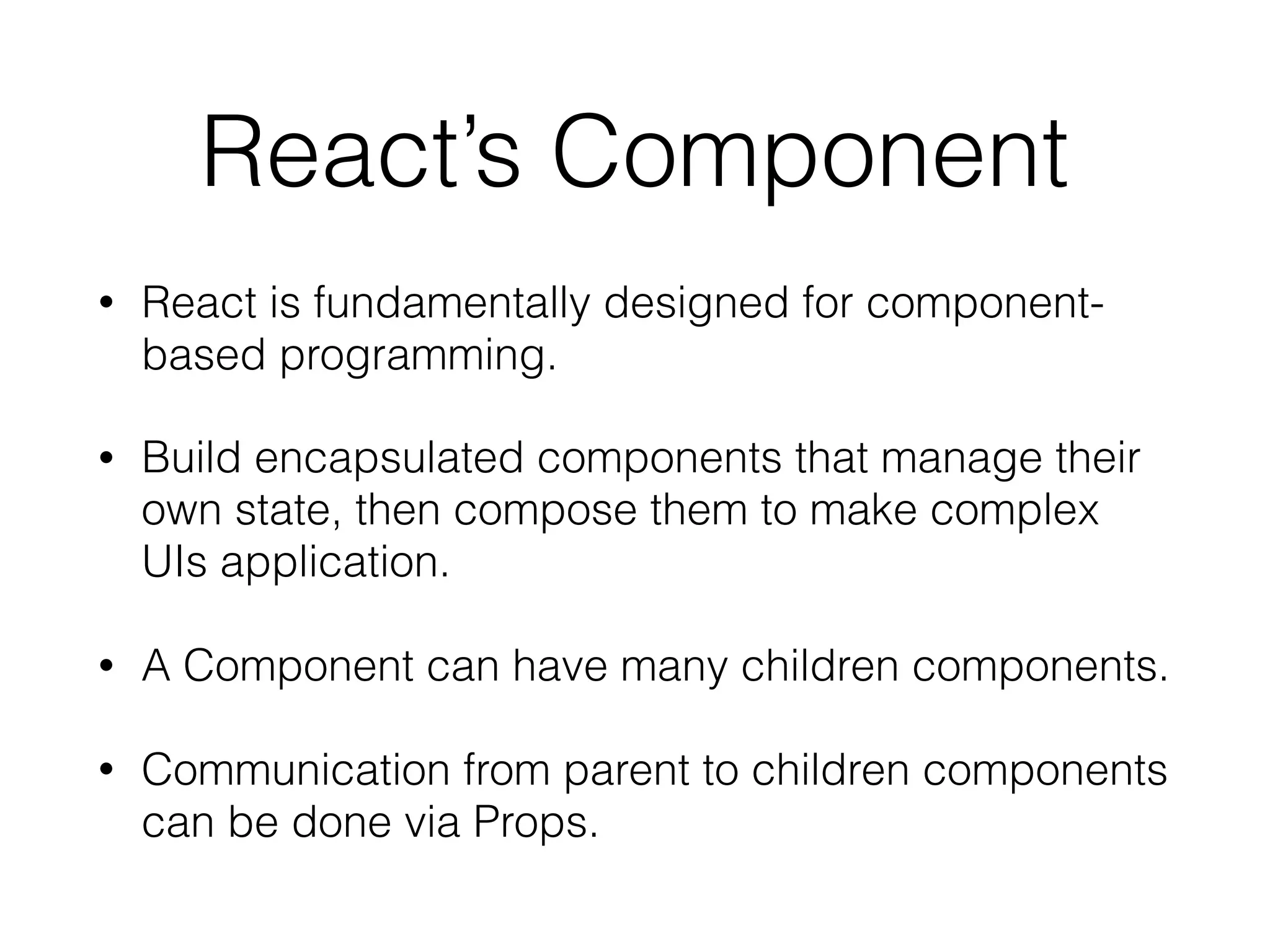

6. React’s Component
• React is fundamentally designed for component-
based programming.
• Build encapsulated components that manage their
own state, then compose them to make complex
UIs application.
• A Component can have many children components.
• Communication from parent to children components
can be done via Props.

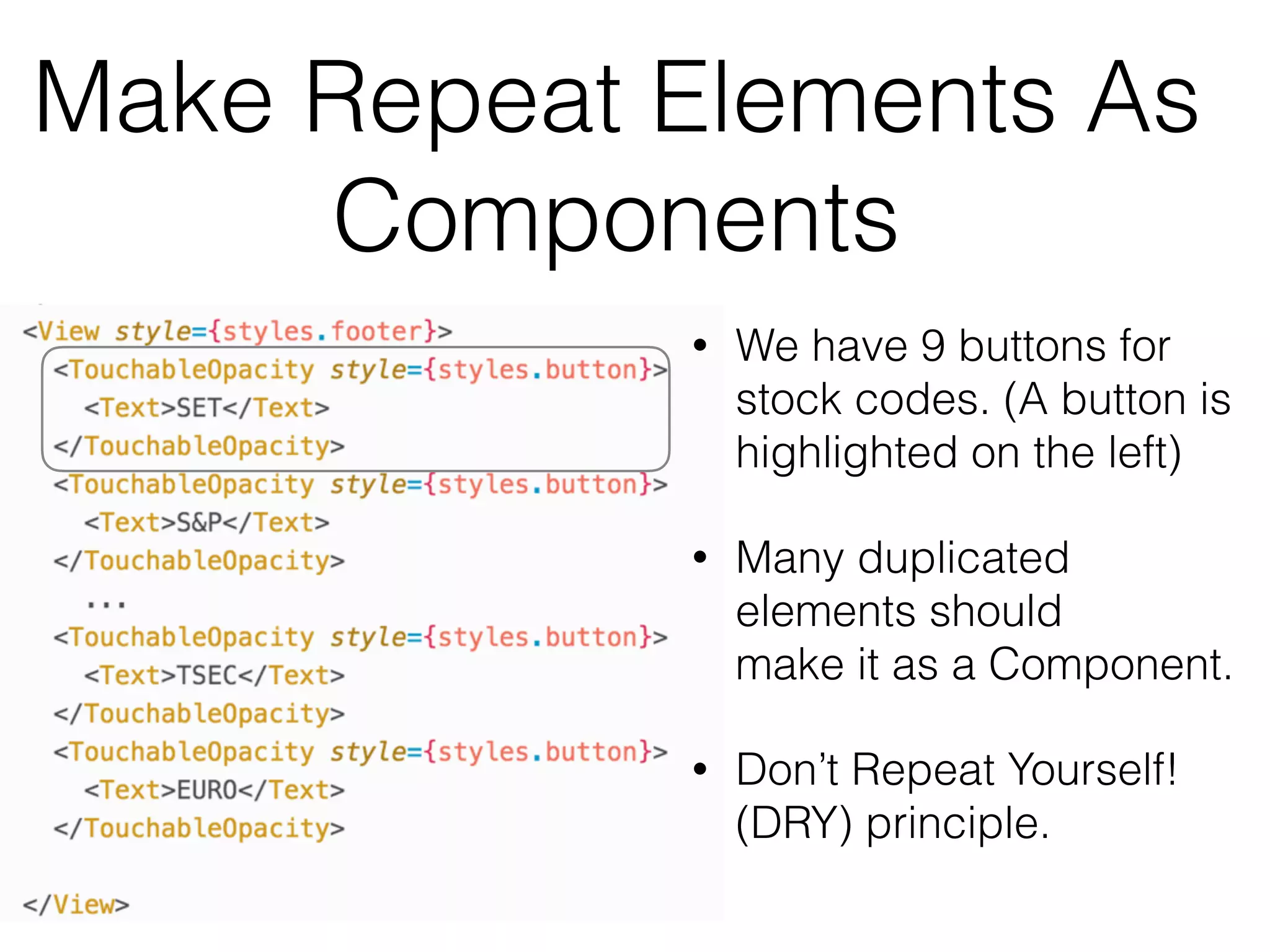

7. • We have 9 buttons for
stock codes. (A button is
highlighted on the left)
• Many duplicated
elements should
make it as a Component.
• Don’t Repeat Yourself!
(DRY) principle.
Make Repeat Elements As
Components

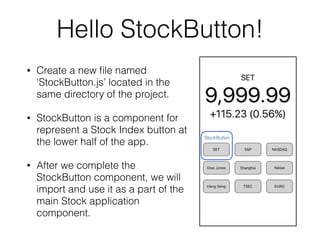

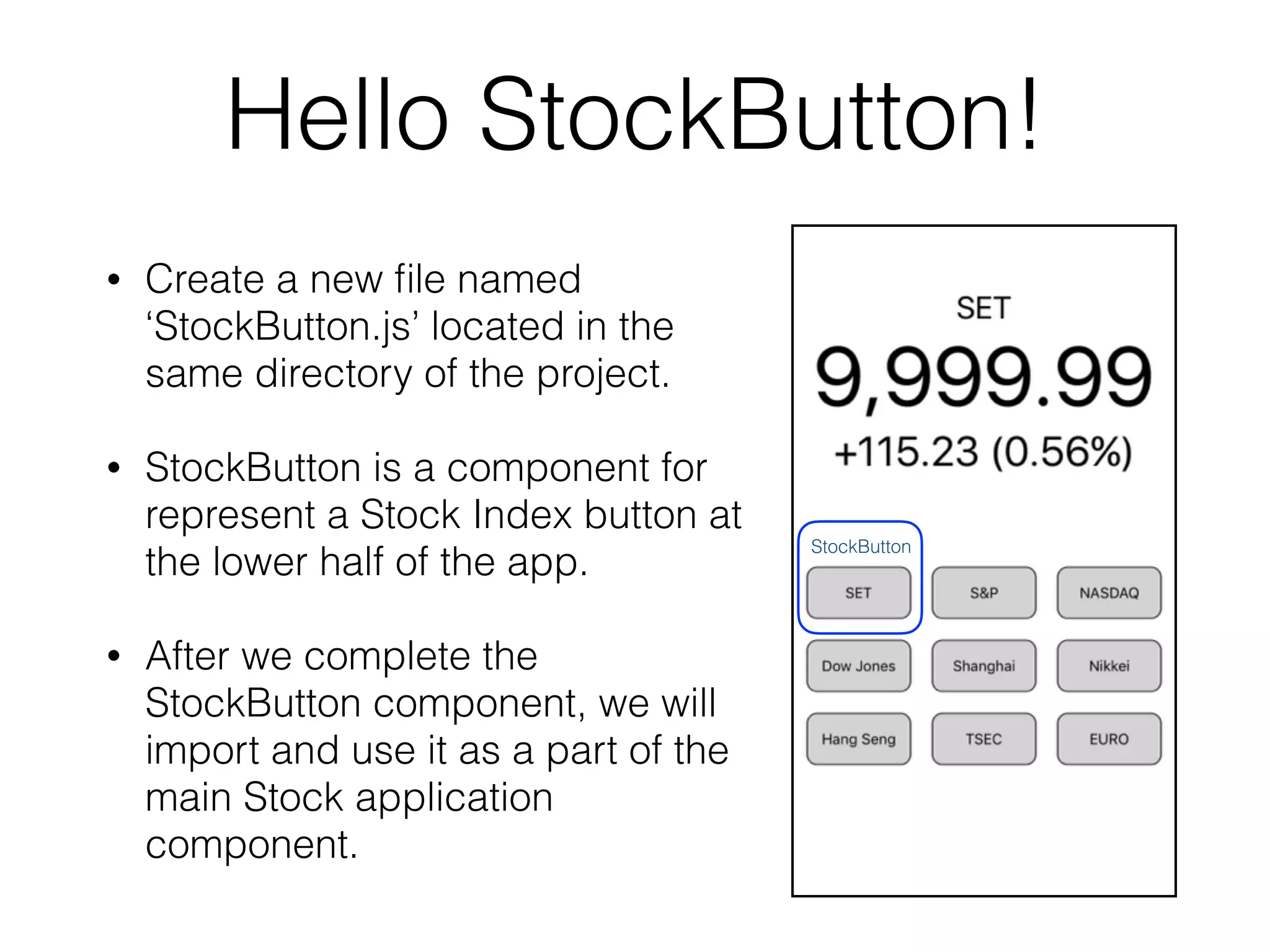

8. Hello StockButton!
• Create a new file named
‘StockButton.js’ located in the
same directory of the project.
• StockButton is a component for
represent a Stock Index button at
the lower half of the app.
• After we complete the
StockButton component, we will
import and use it as a part of the
main Stock application
component.
StockButton

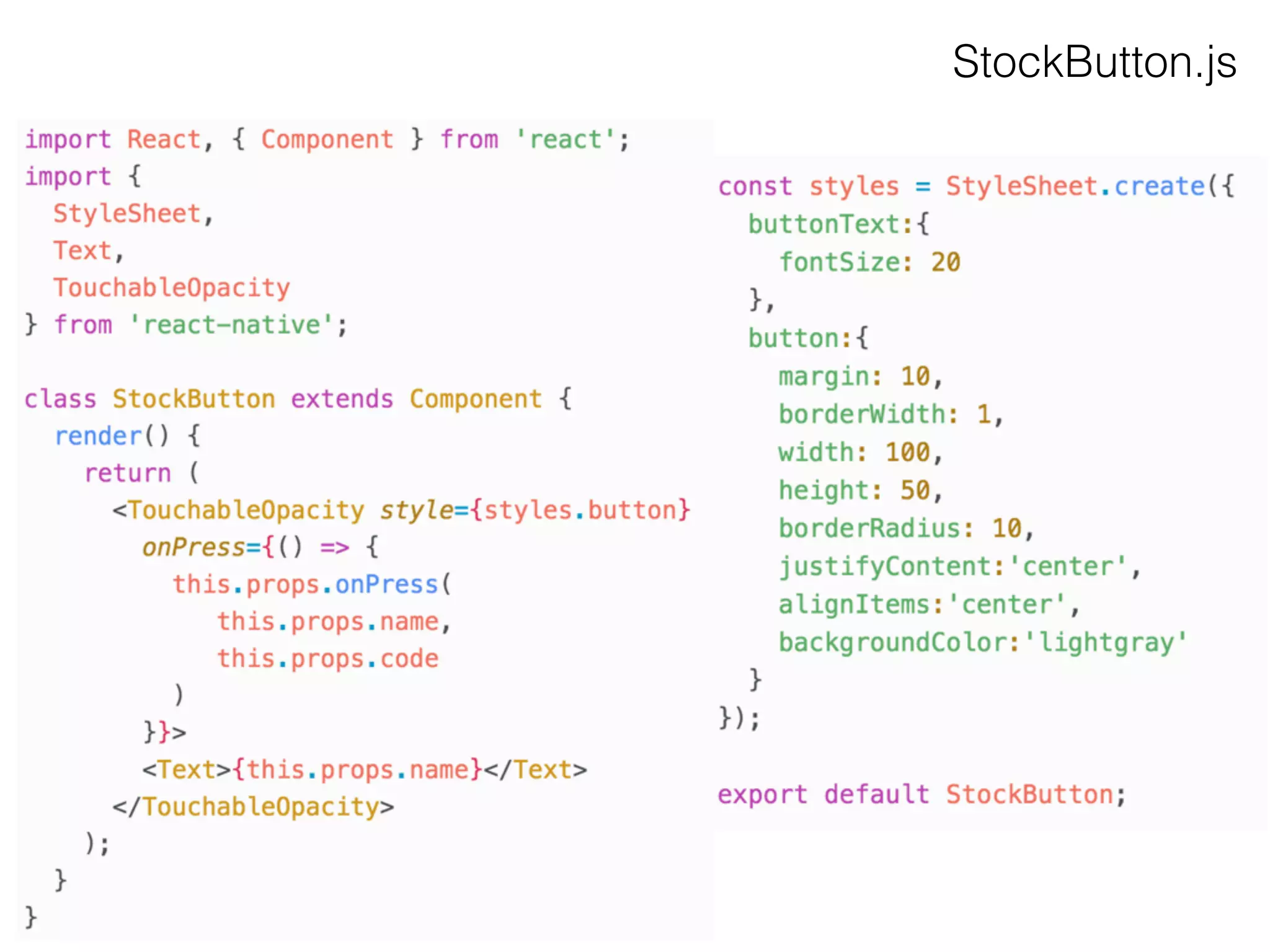

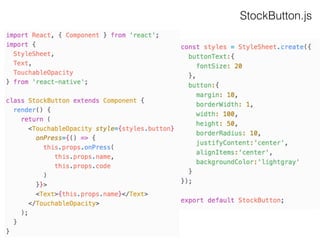

9. StockButton.js

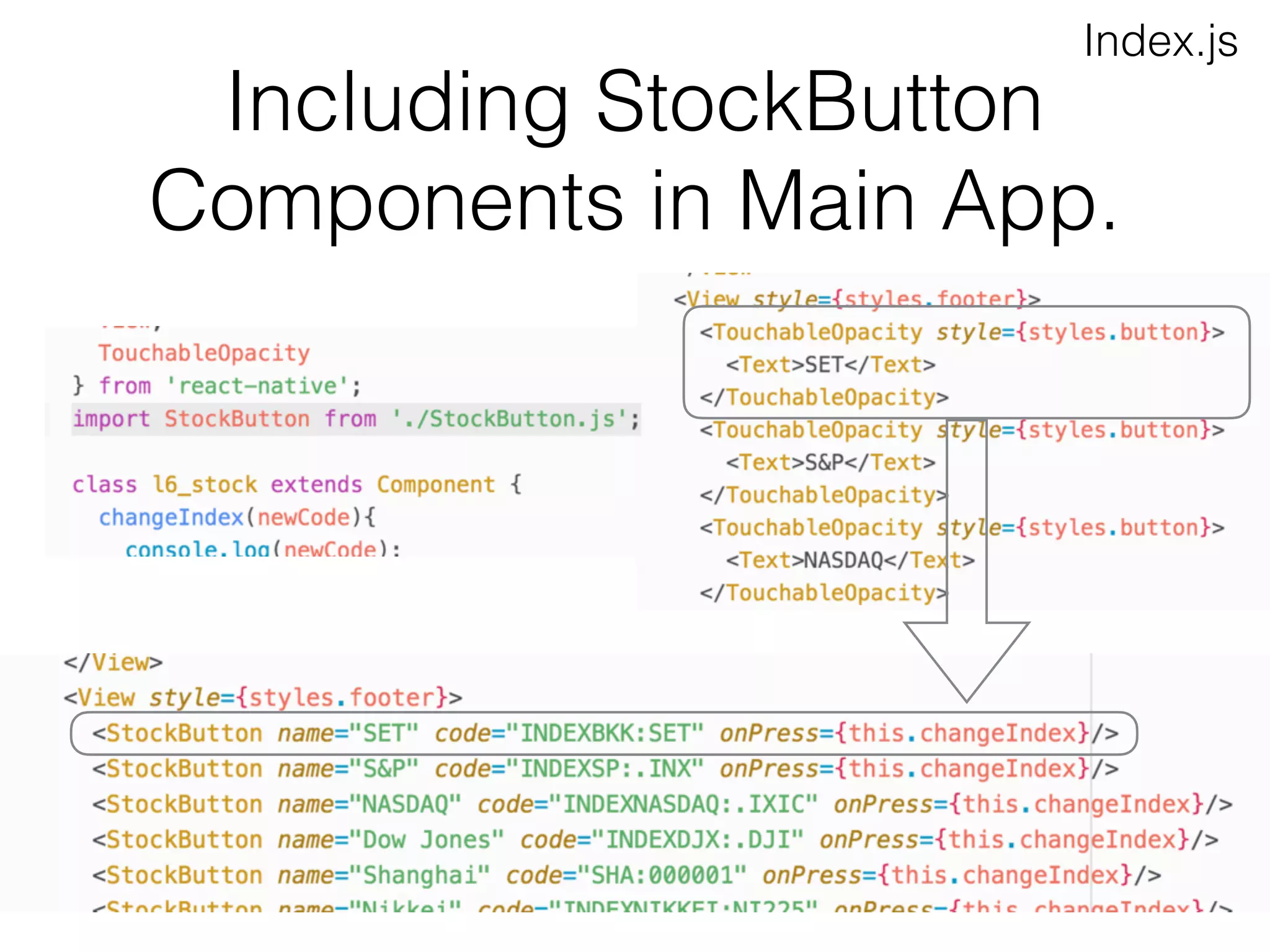

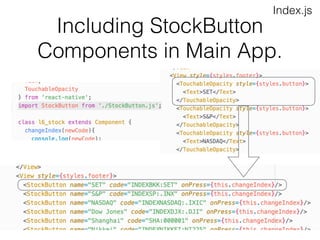

10. Including StockButton
Components in Main App.
Index.js

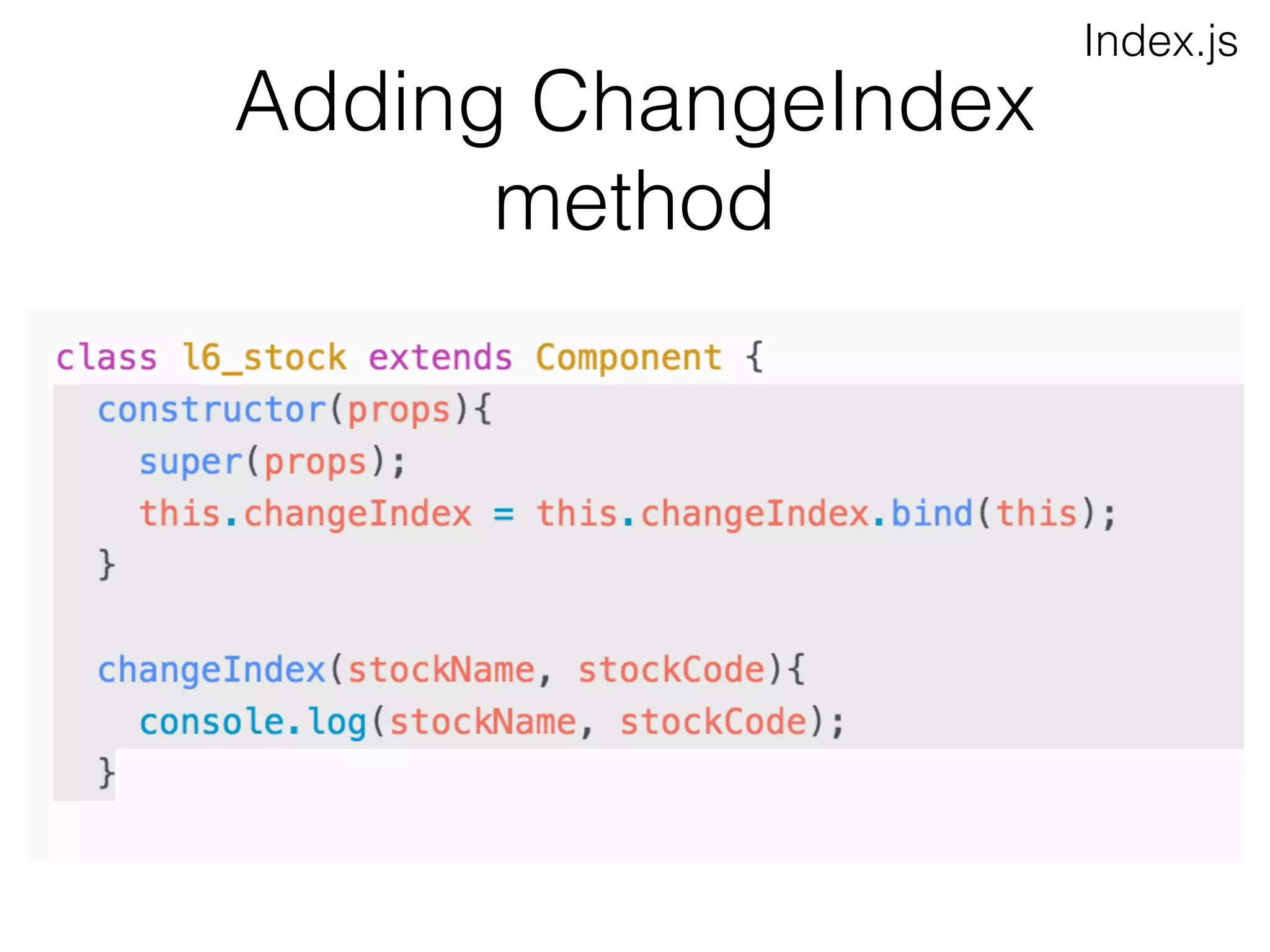

11. Adding ChangeIndex
method
Index.js

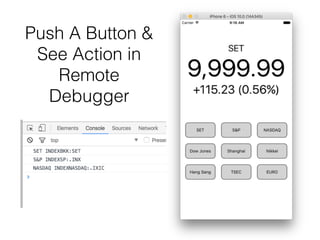

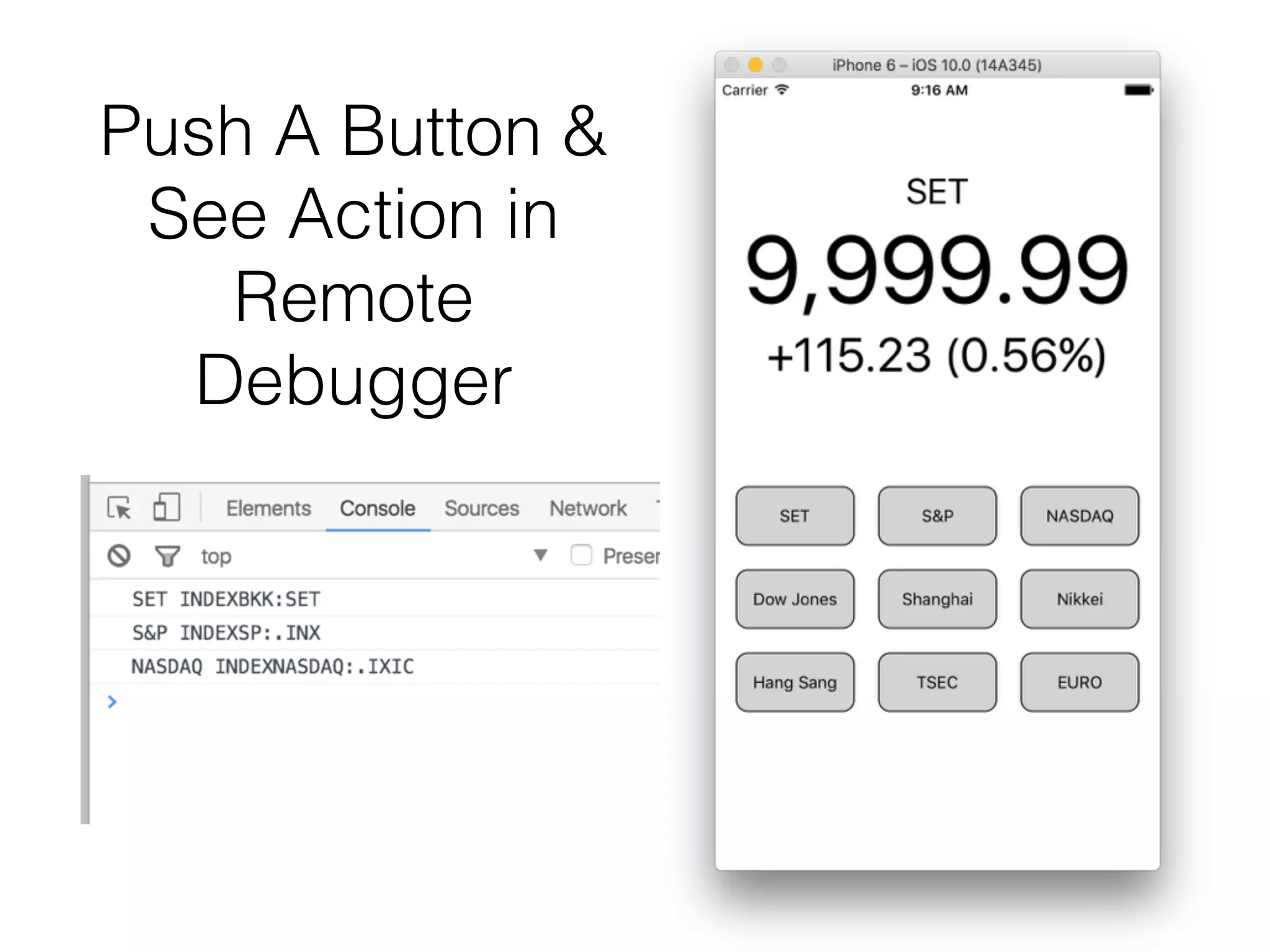

12. Push A Button &
See Action in
Remote
Debugger

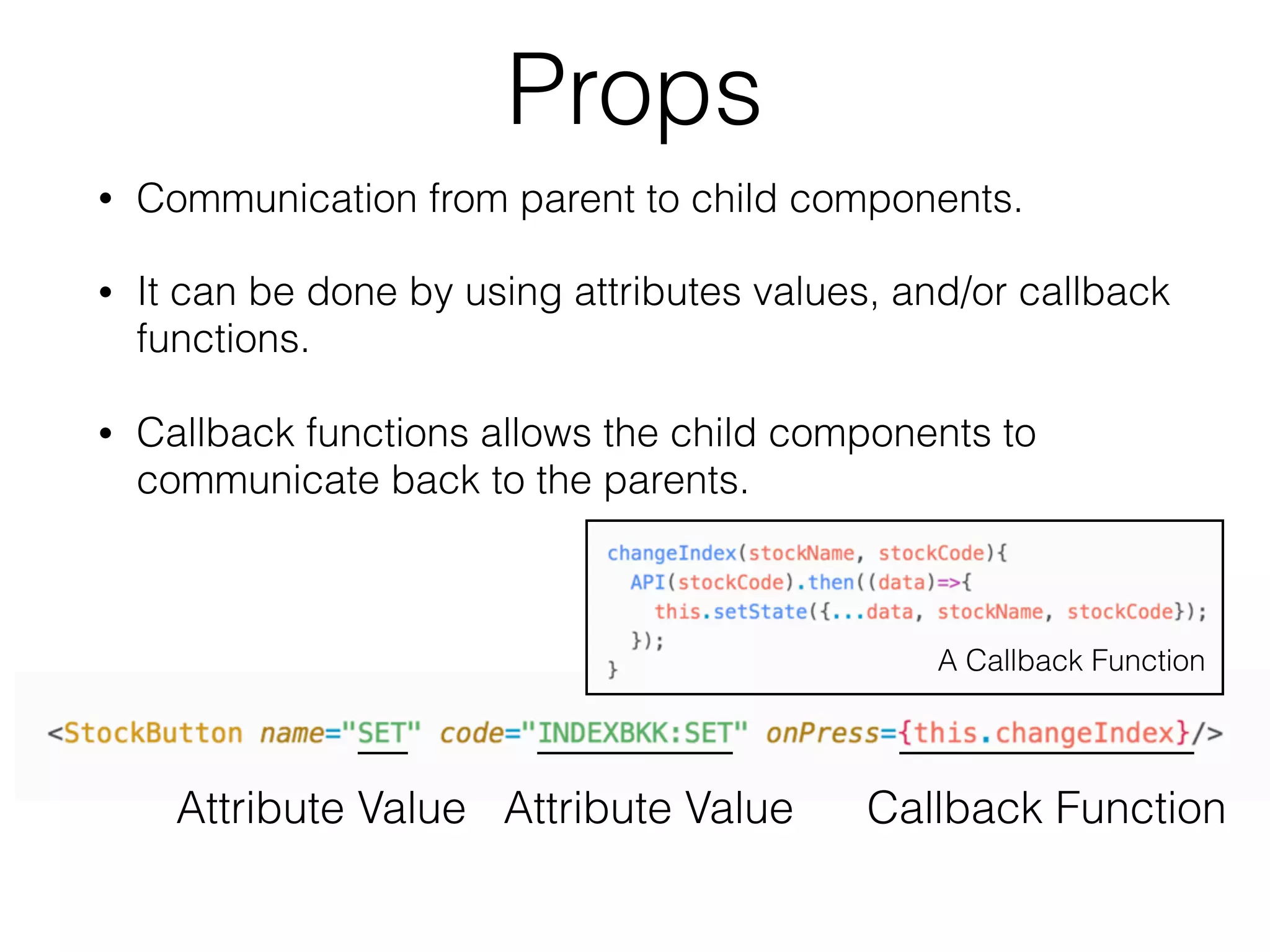

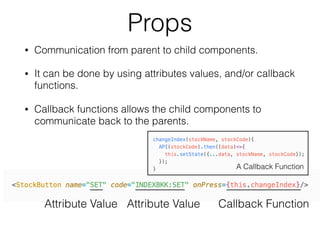

13. Props
• Communication from parent to child components.
• It can be done by using attributes values, and/or callback
functions.
• Callback functions allows the child components to
communicate back to the parents.
Attribute Value
A Callback Function
Callback FunctionAttribute Value

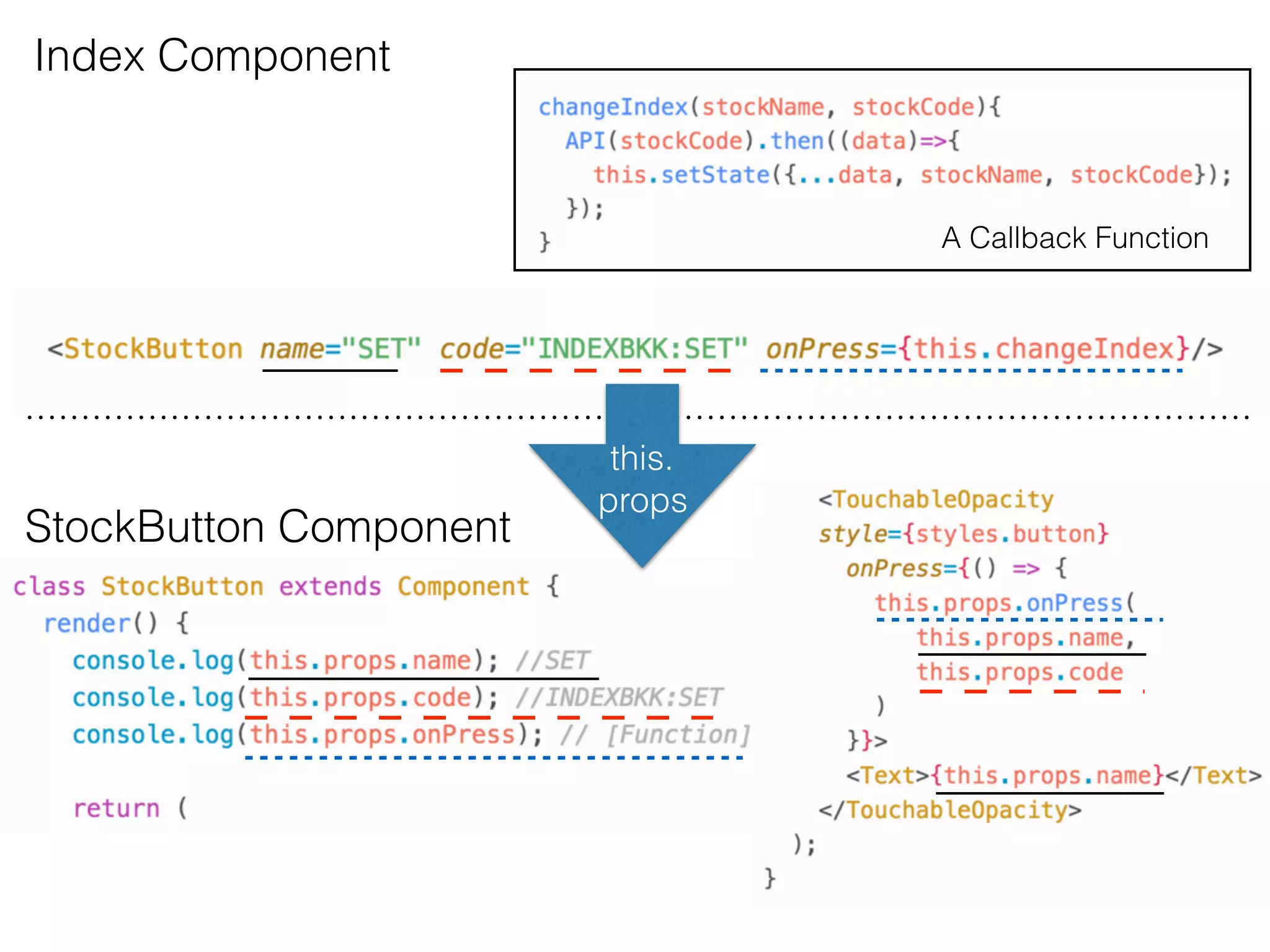

14. A Callback Function
Index Component
StockButton Component
this.
props

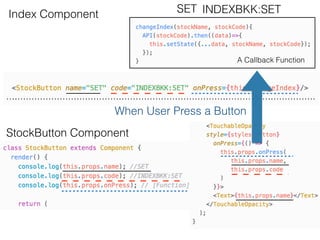

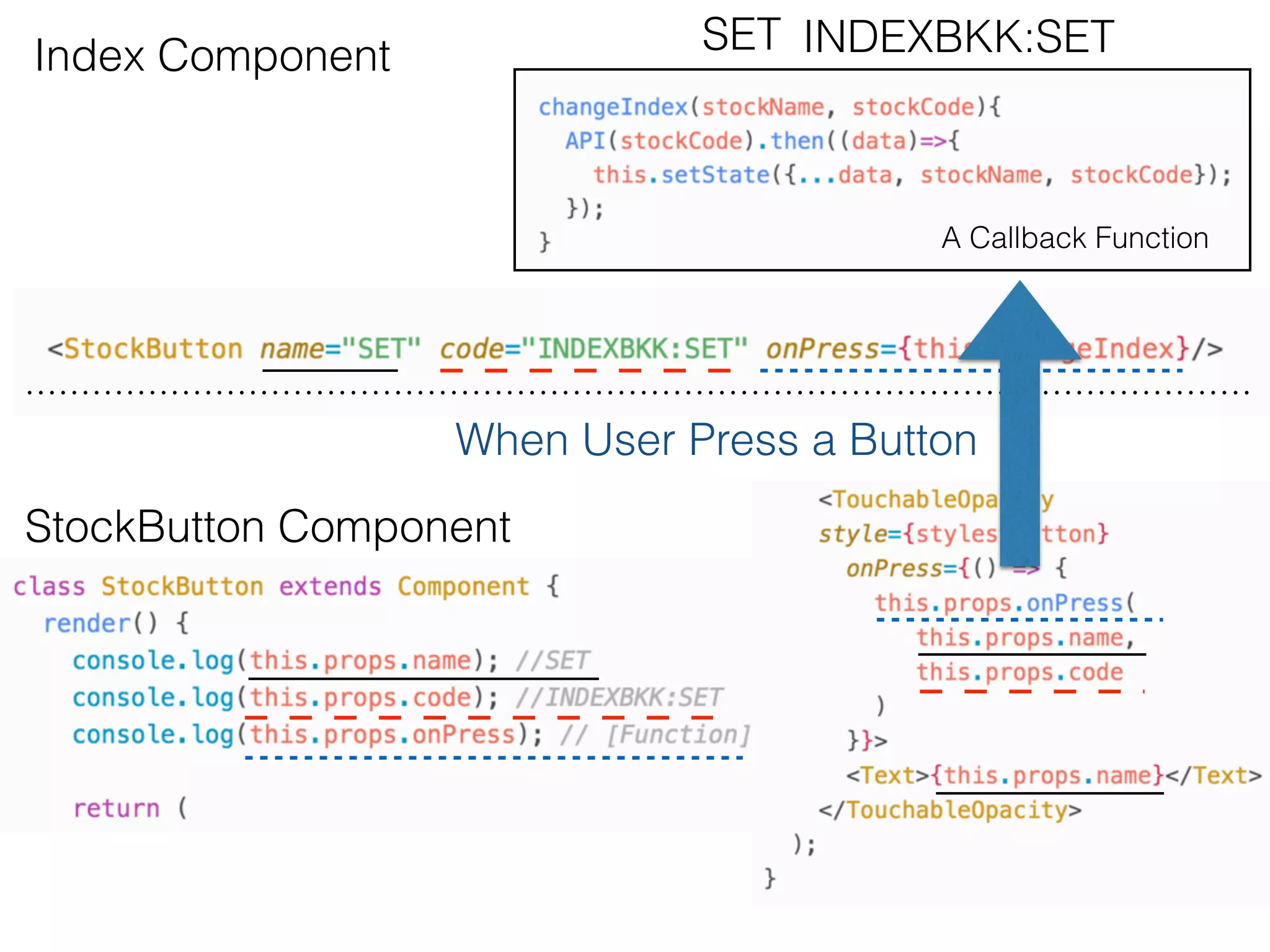

15. A Callback Function
Index Component
StockButton Component
When User Press a Button
SET INDEXBKK:SET

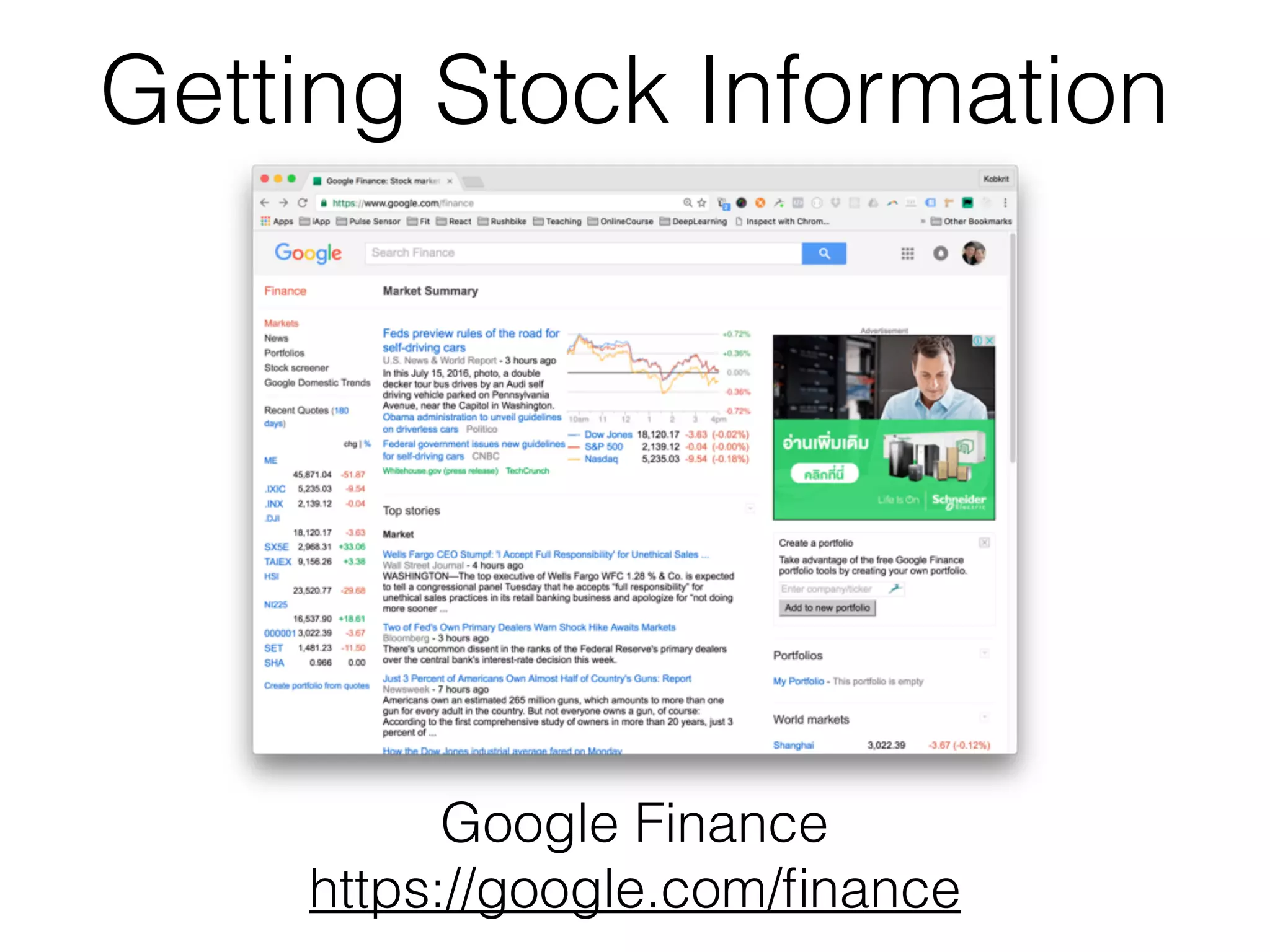

16. Getting Stock Information
Google Finance
https://google.com/finance

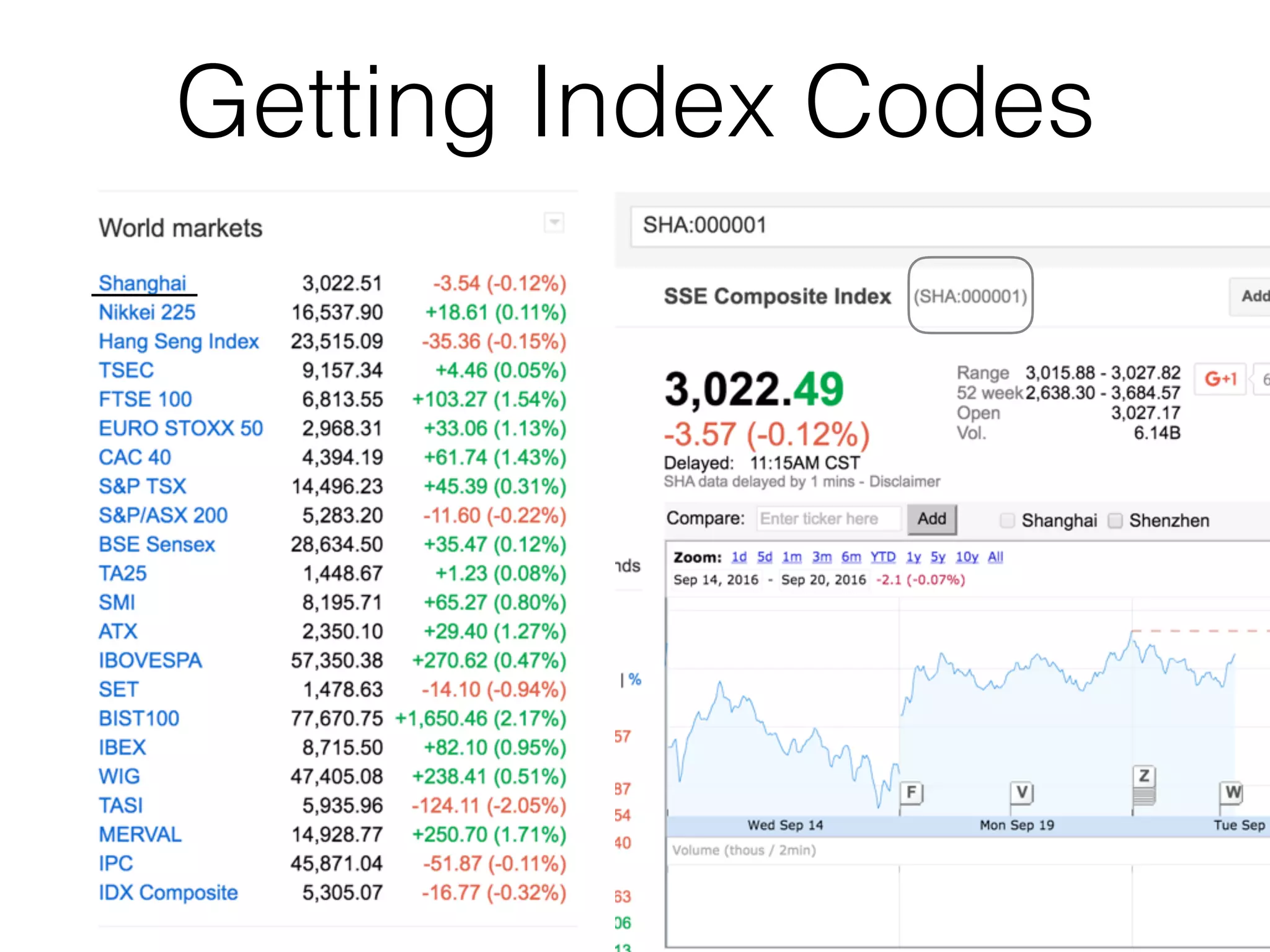

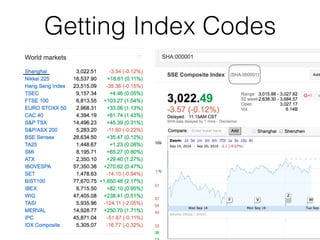

17. Getting Index Codes

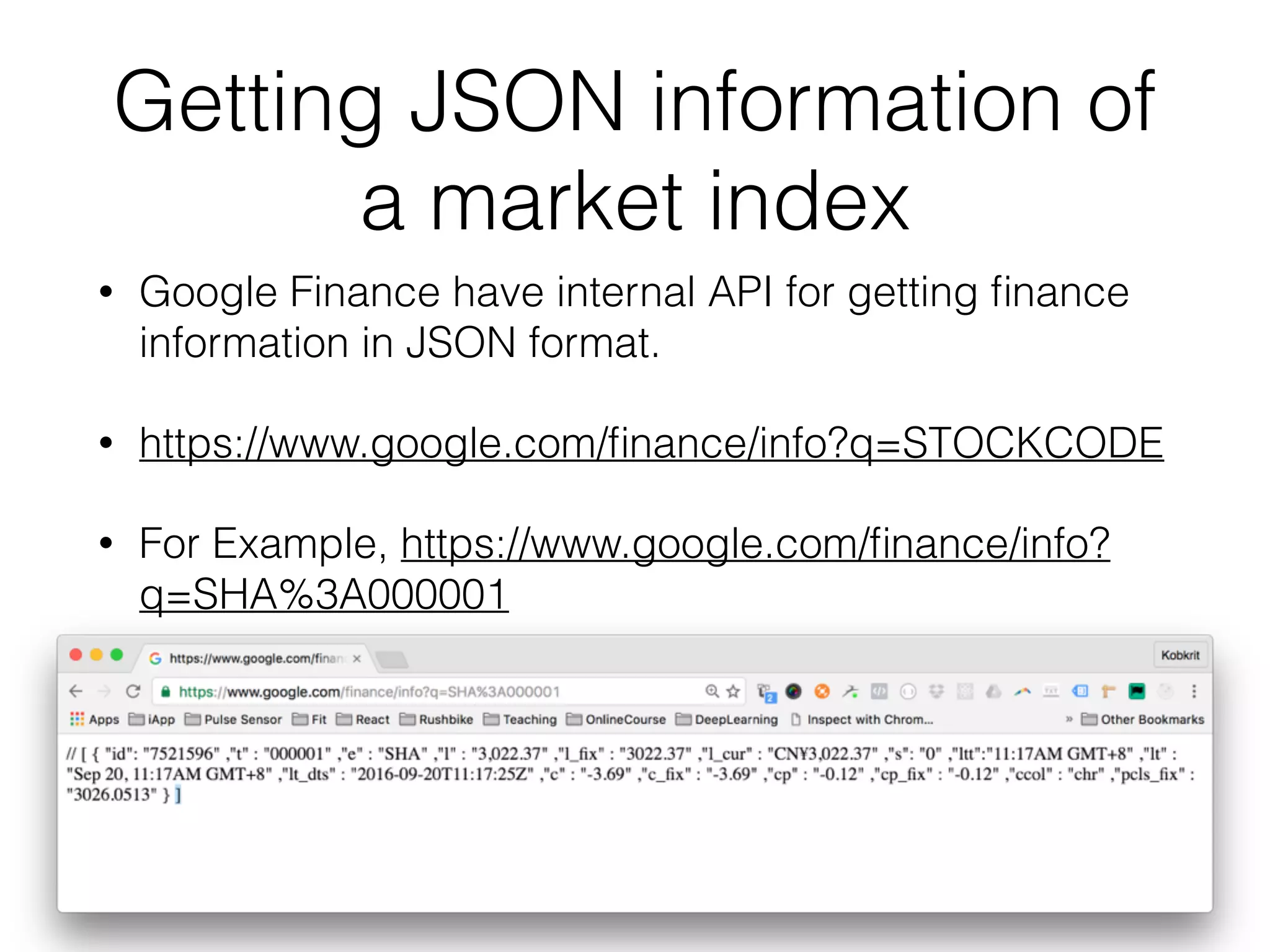

18. Getting JSON information of
a market index
• Google Finance have internal API for getting finance
information in JSON format.
• https://www.google.com/finance/info?q=STOCKCODE
• For Example, https://www.google.com/finance/info?
q=SHA%3A000001

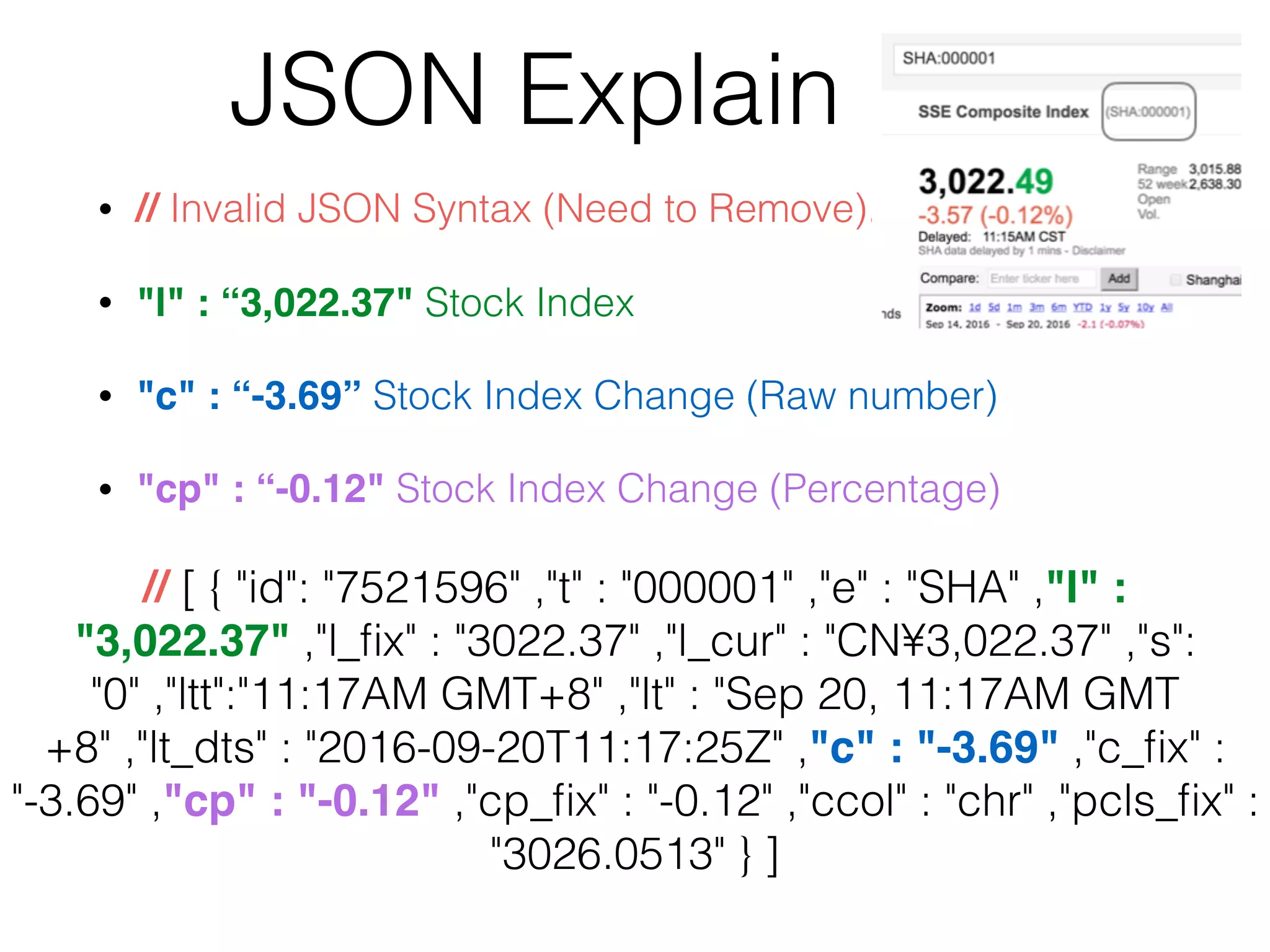

19. JSON Explain
• // Invalid JSON Syntax (Need to Remove).
• "l" : “3,022.37" Stock Index
• "c" : “-3.69” Stock Index Change (Raw number)
• "cp" : “-0.12" Stock Index Change (Percentage)
// [ { "id": "7521596" ,"t" : "000001" ,"e" : "SHA" ,"l" :
"3,022.37" ,"l_fix" : "3022.37" ,"l_cur" : "CN¥3,022.37" ,"s":
"0" ,"ltt":"11:17AM GMT+8" ,"lt" : "Sep 20, 11:17AM
GMT+8" ,"lt_dts" : "2016-09-20T11:17:25Z" ,"c" : "-3.69" ,"c_fix"
: "-3.69" ,"cp" : "-0.12" ,"cp_fix" : "-0.12" ,"ccol" : "chr" ,"pcls_fix"
: "3026.0513" } ]

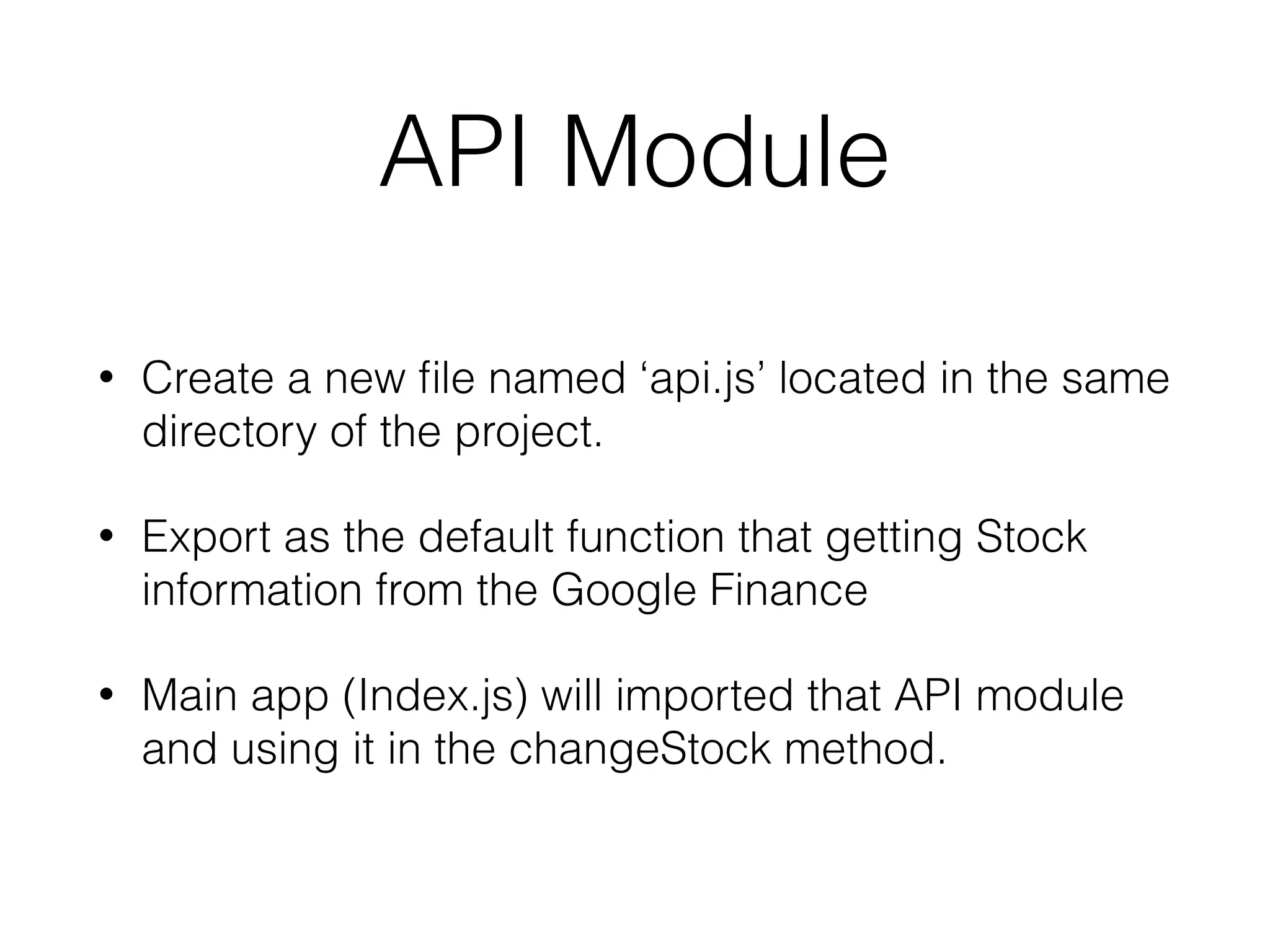

20. API Module
• Create a new file named ‘api.js’ located in the same
directory of the project.
• Export as the default function that getting Stock
information from the Google Finance
• Main app (Index.js) will imported that API module
and using it in the changeStock method.

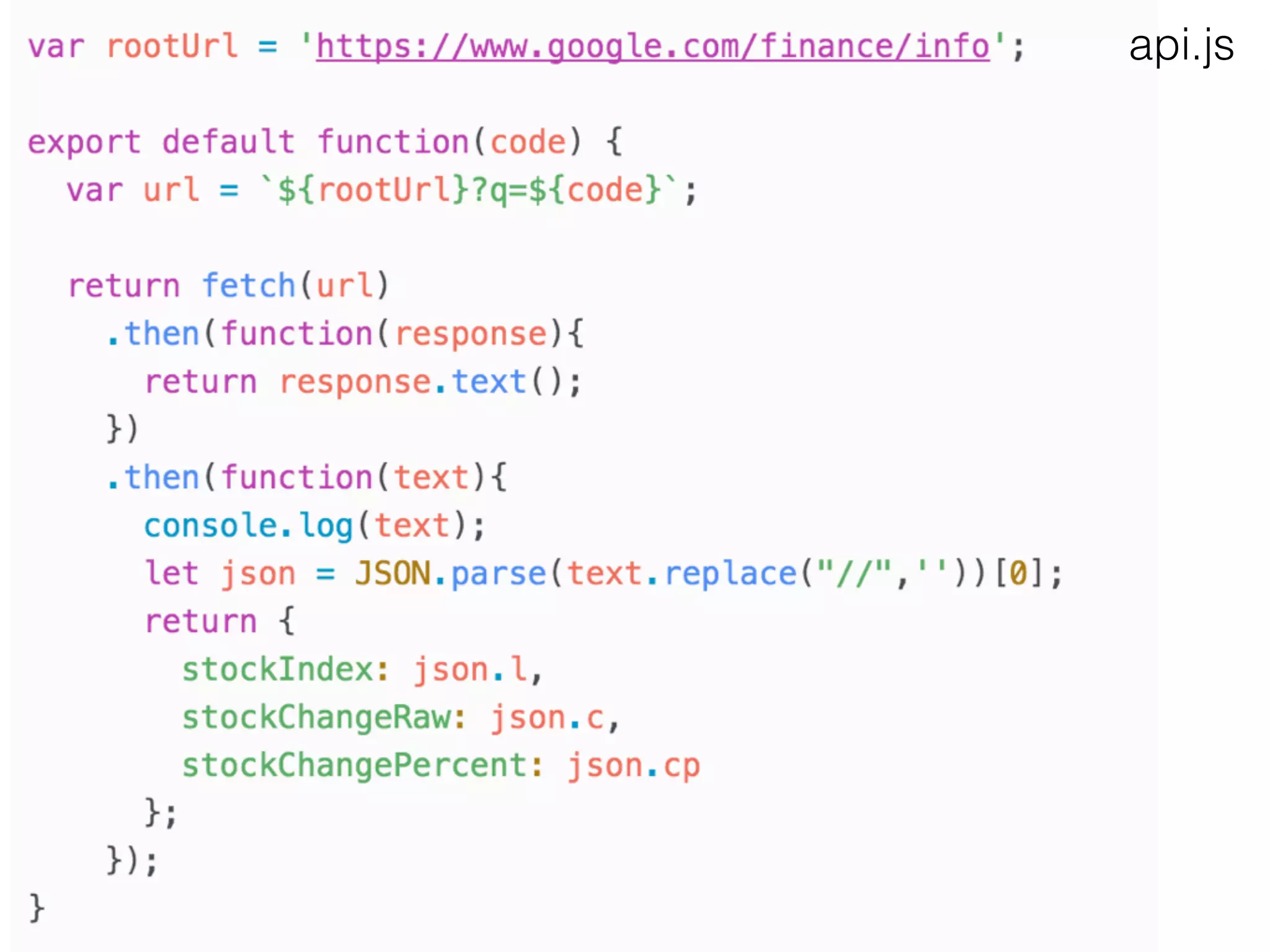

21. api.js

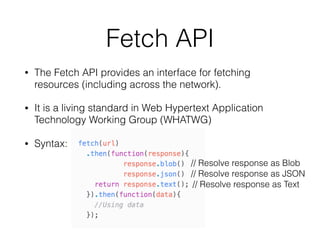

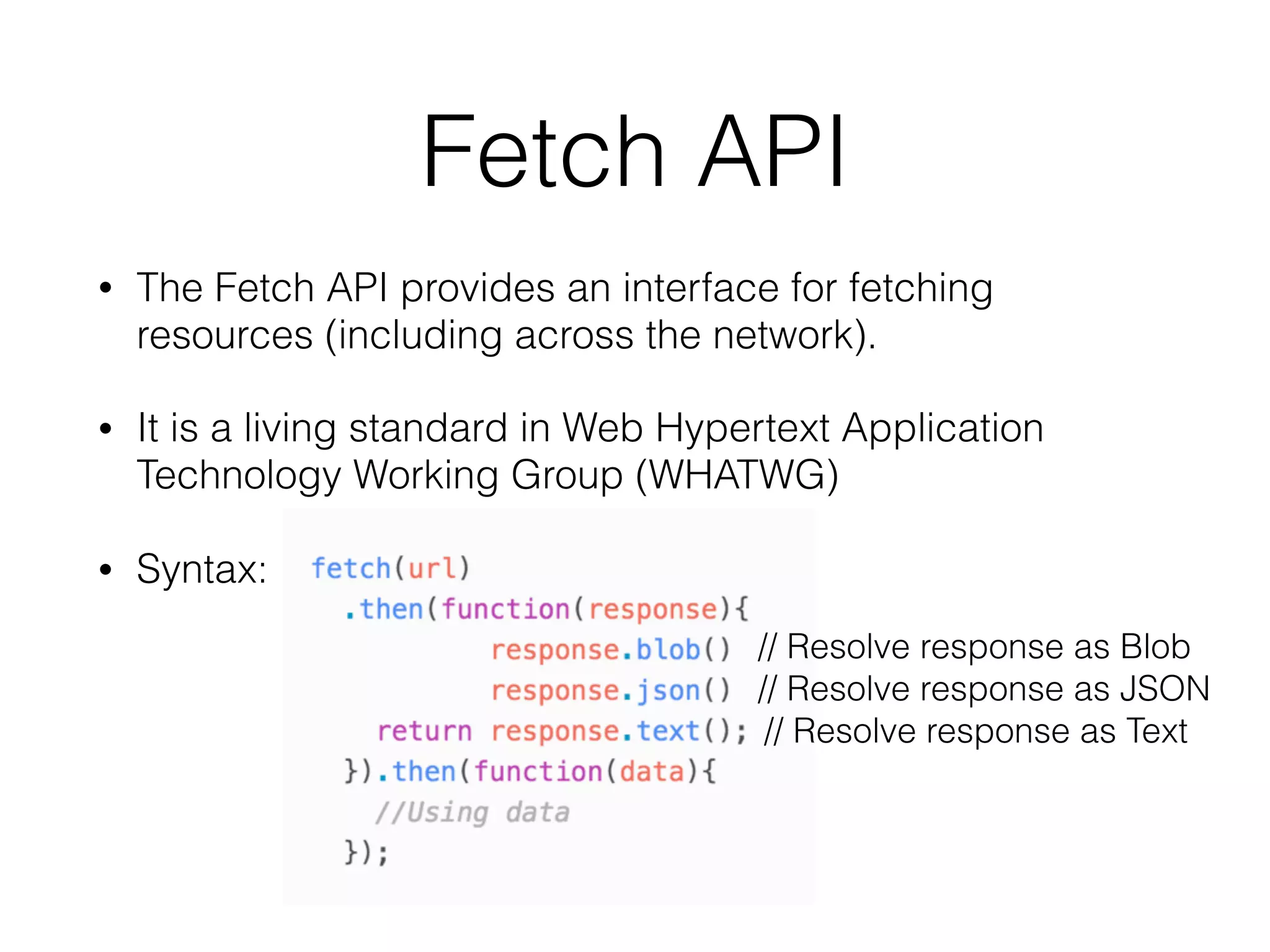

22. Fetch API
• The Fetch API provides an interface for fetching
resources (including across the network).
• It is a living standard in Web Hypertext Application
Technology Working Group (WHATWG)
• Syntax:
// Resolve response as Blob
// Resolve response as JSON
// Resolve response as Text

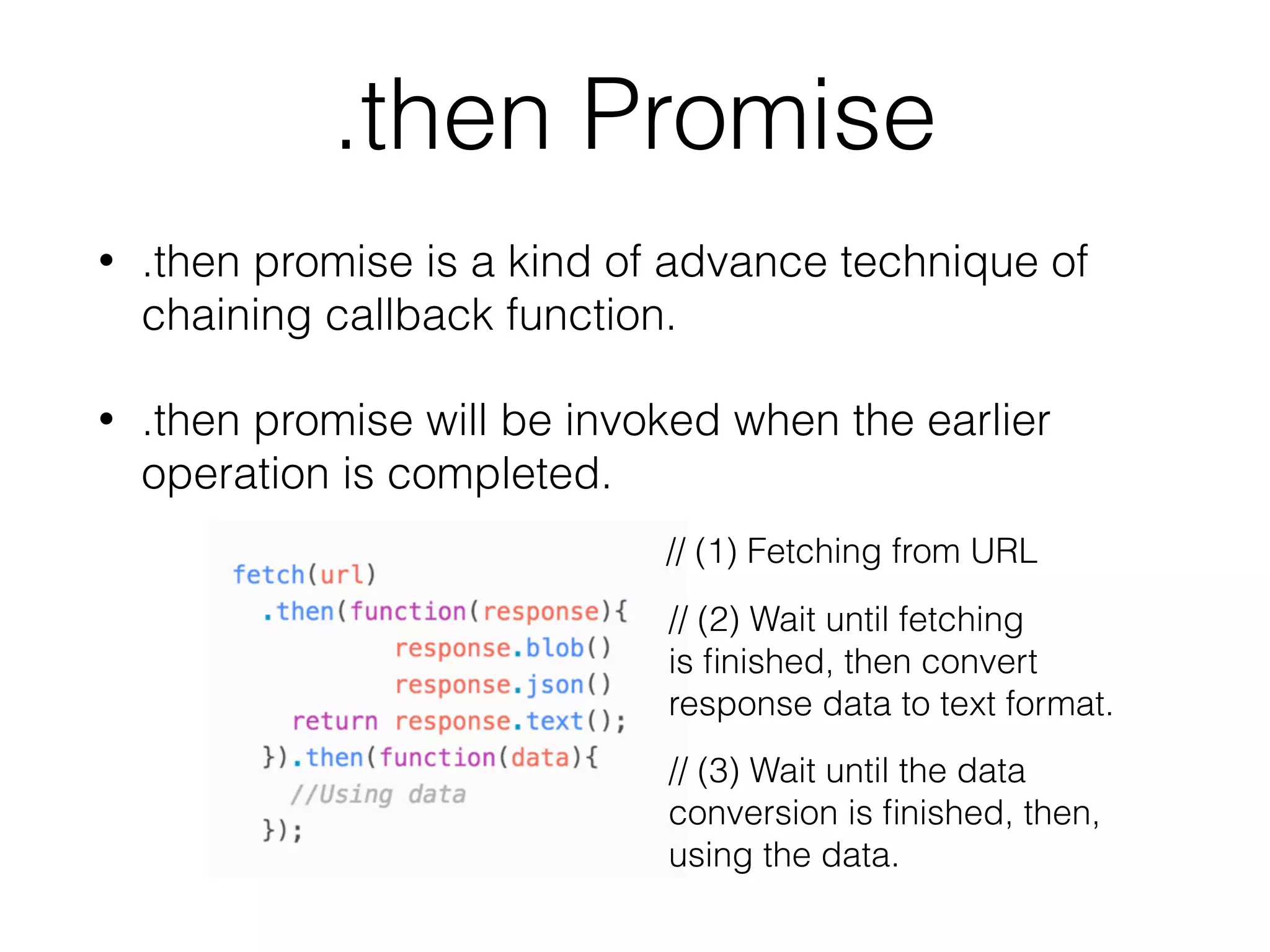

23. .then Promise
• .then promise is a kind of advance technique of
chaining callback function.
• .then promise will be invoked when the earlier
operation is completed.
// (1) Fetching from URL
// (2) Wait until fetching
is finished, then convert
response data to text format.
// (3) Wait until the data
conversion is finished, then,
using the data.

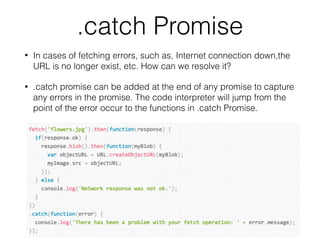

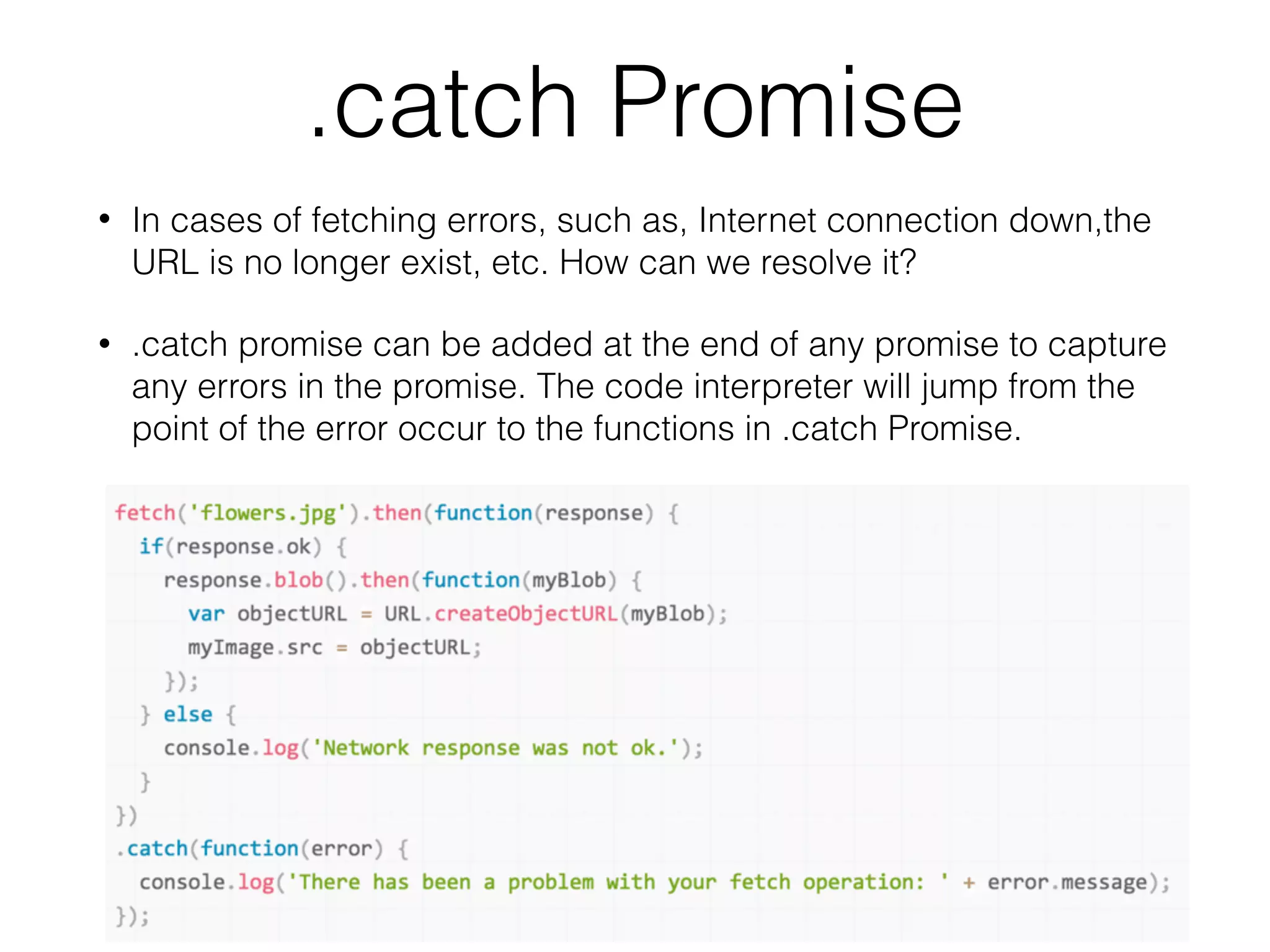

24. .catch Promise
• In cases of fetching errors, such as, Internet connection down,the
URL is no longer exist, etc. How can we resolve it?
• .catch promise can be added at the end of any promise to capture
any errors in the promise. The code interpreter will jump from the
point of the error occur to the functions in .catch Promise.

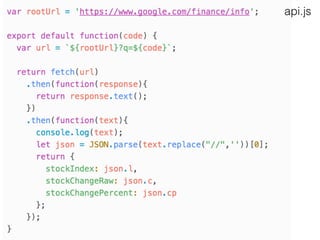

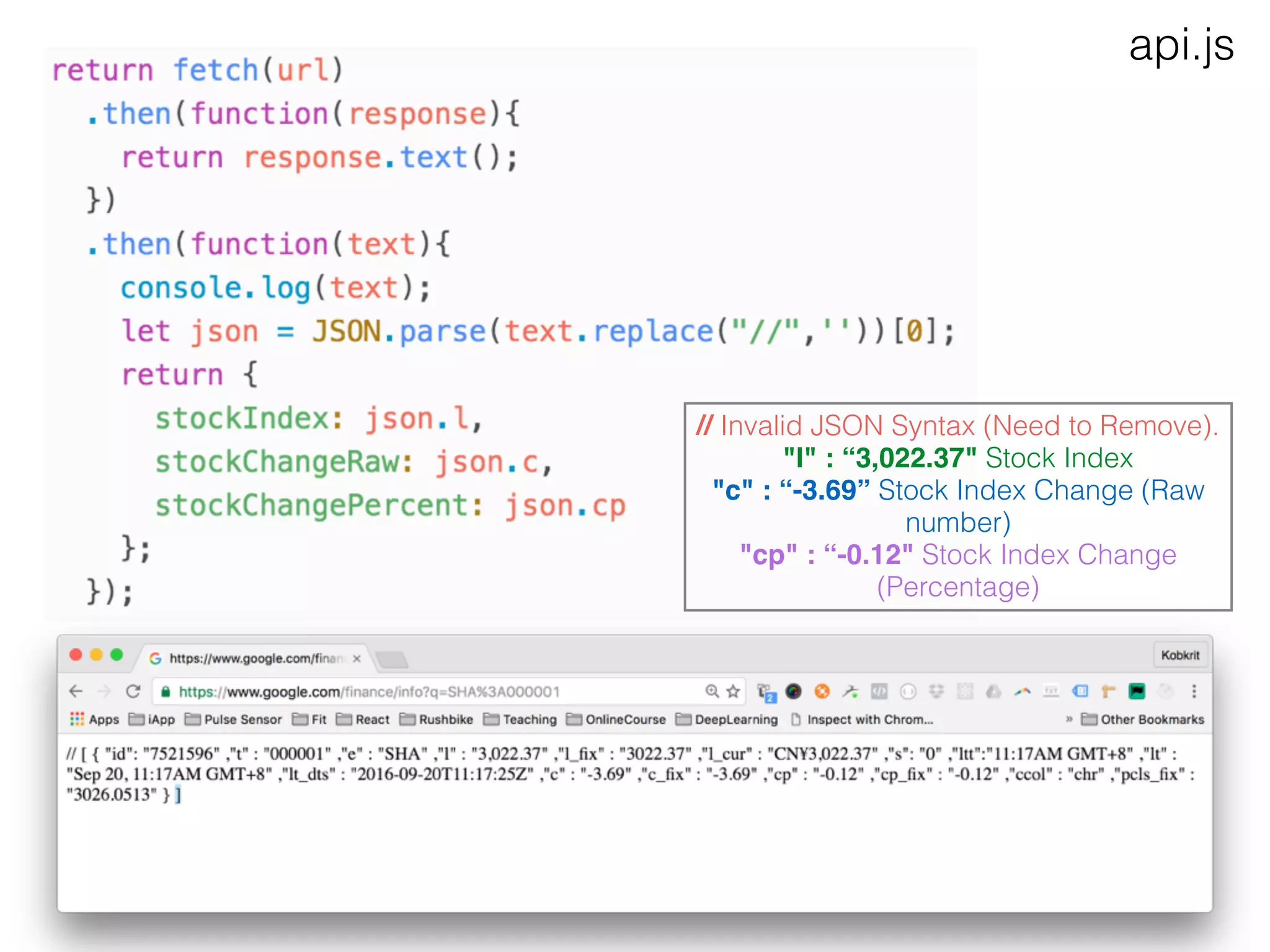

25. api.js
// Invalid JSON Syntax (Need to Remove).
"l" : “3,022.37" Stock Index
"c" : “-3.69” Stock Index Change (Raw
number)
"cp" : “-0.12" Stock Index Change
(Percentage)

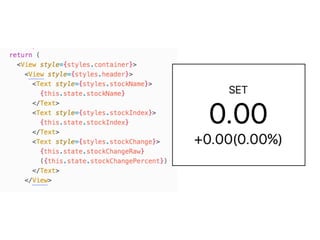

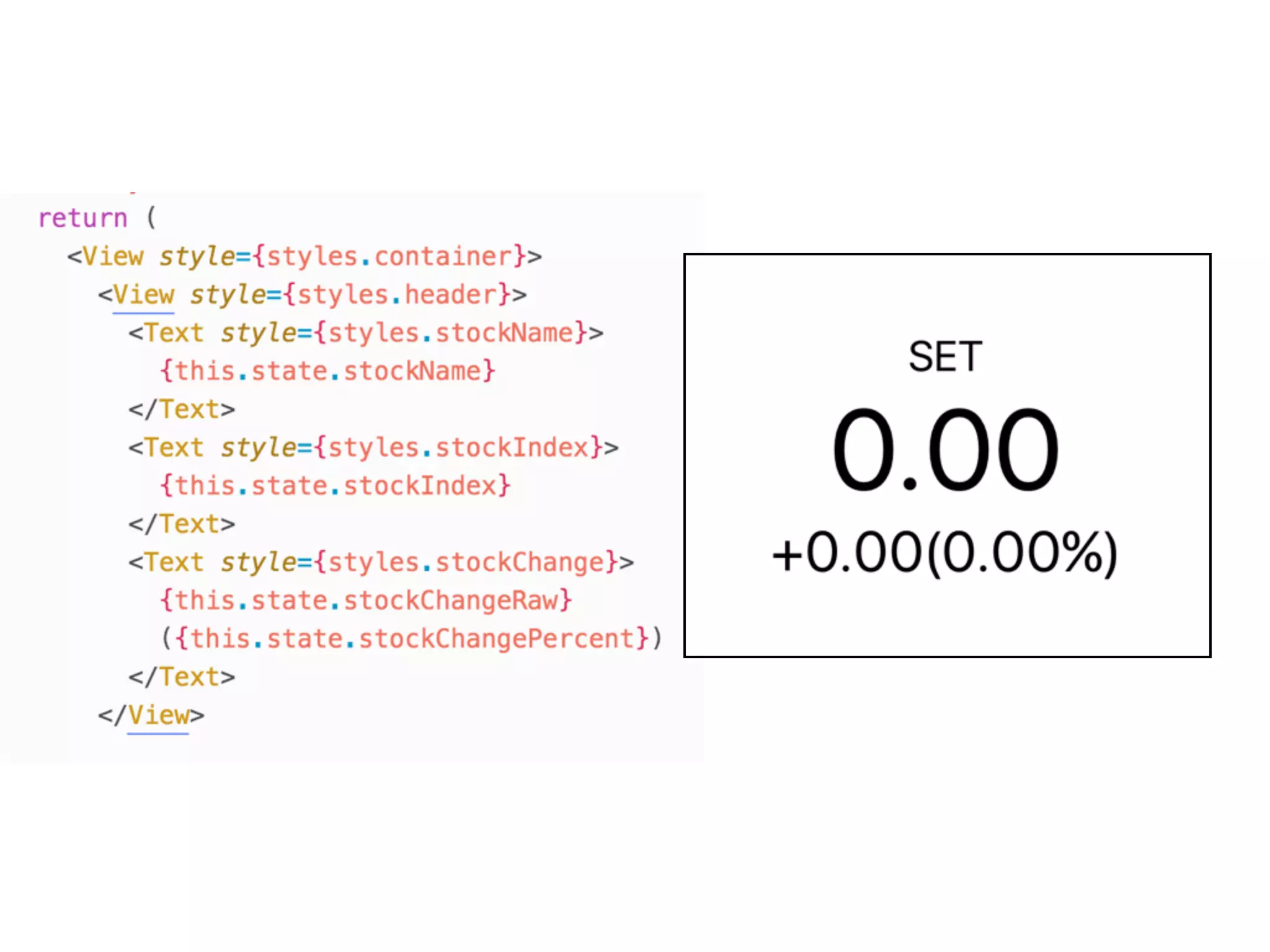

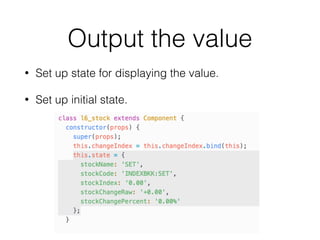

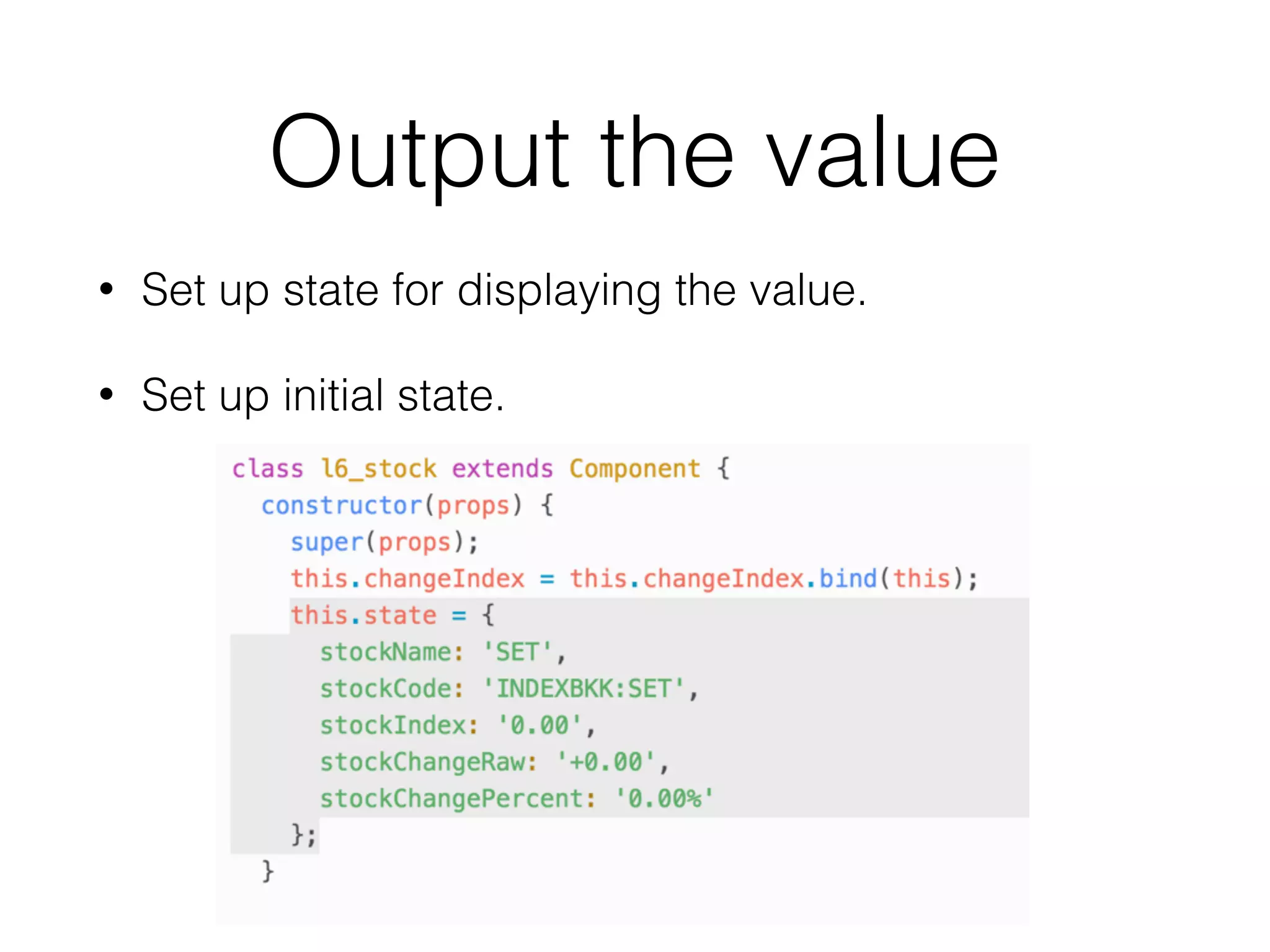

26. Output the value
• Set up state for displaying the value.
• Set up initial state.

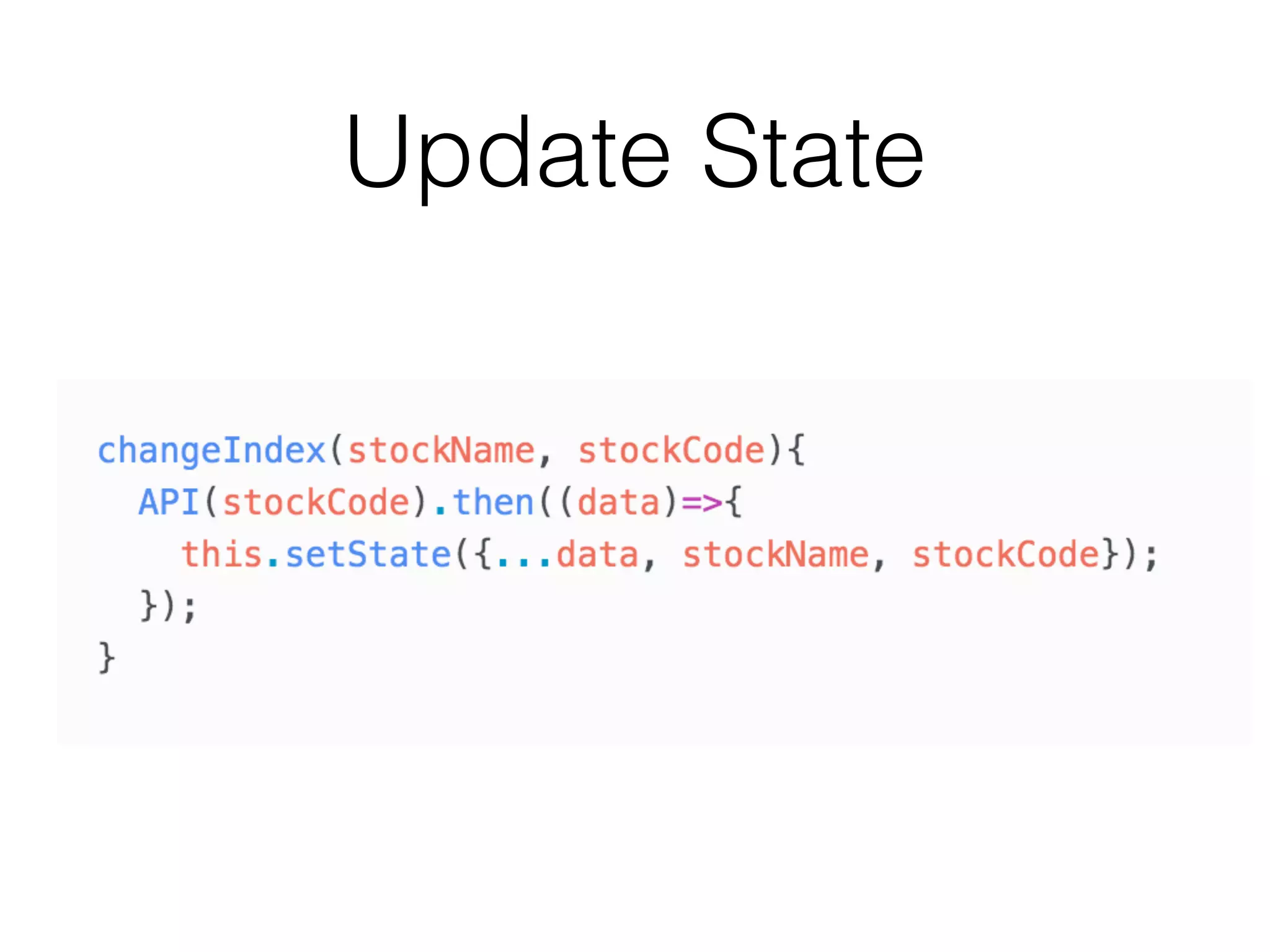

28. Update State

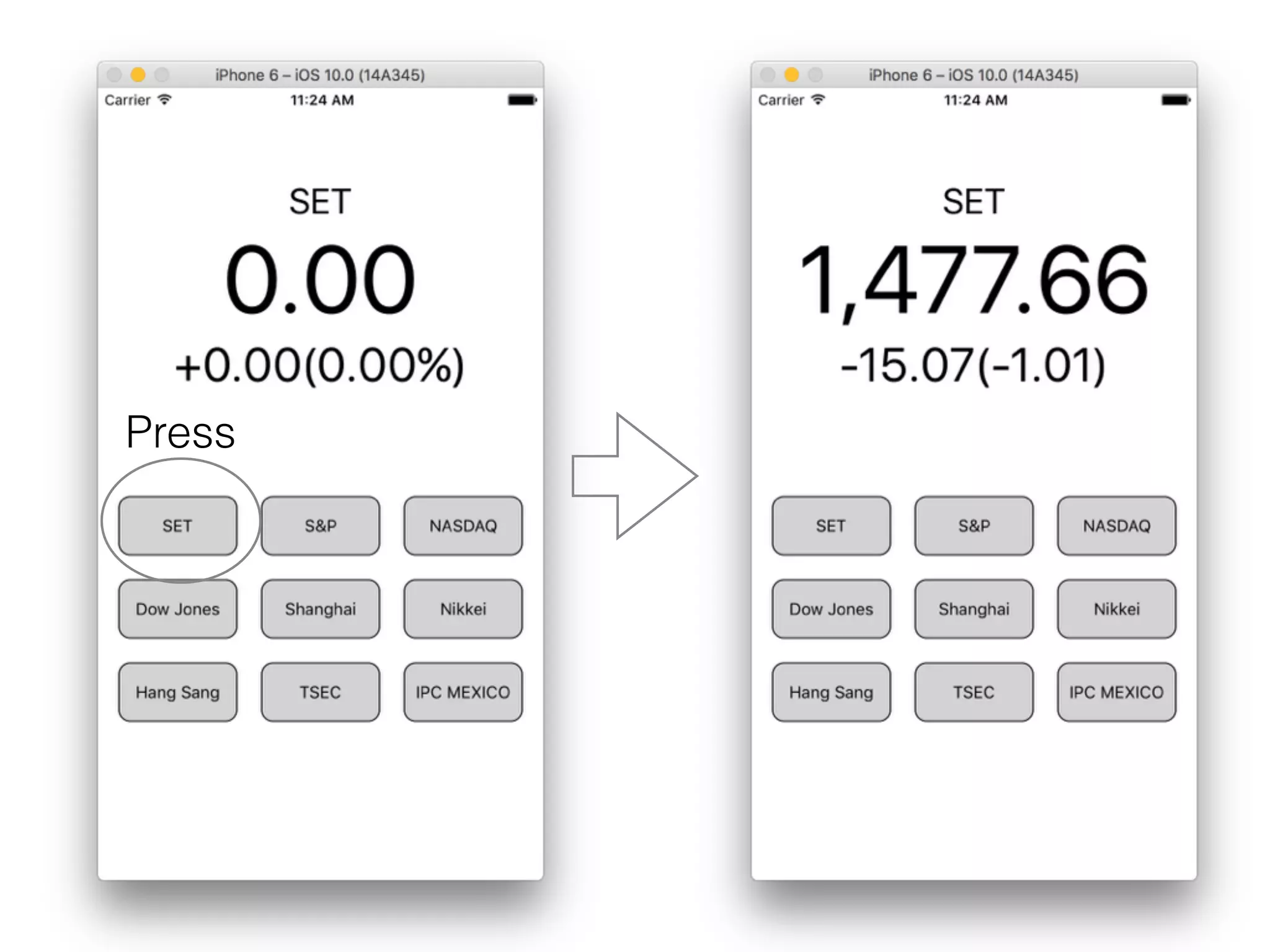

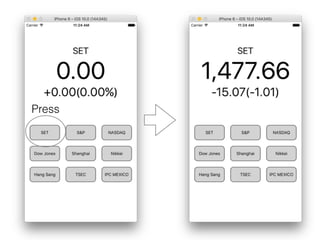

29. Press

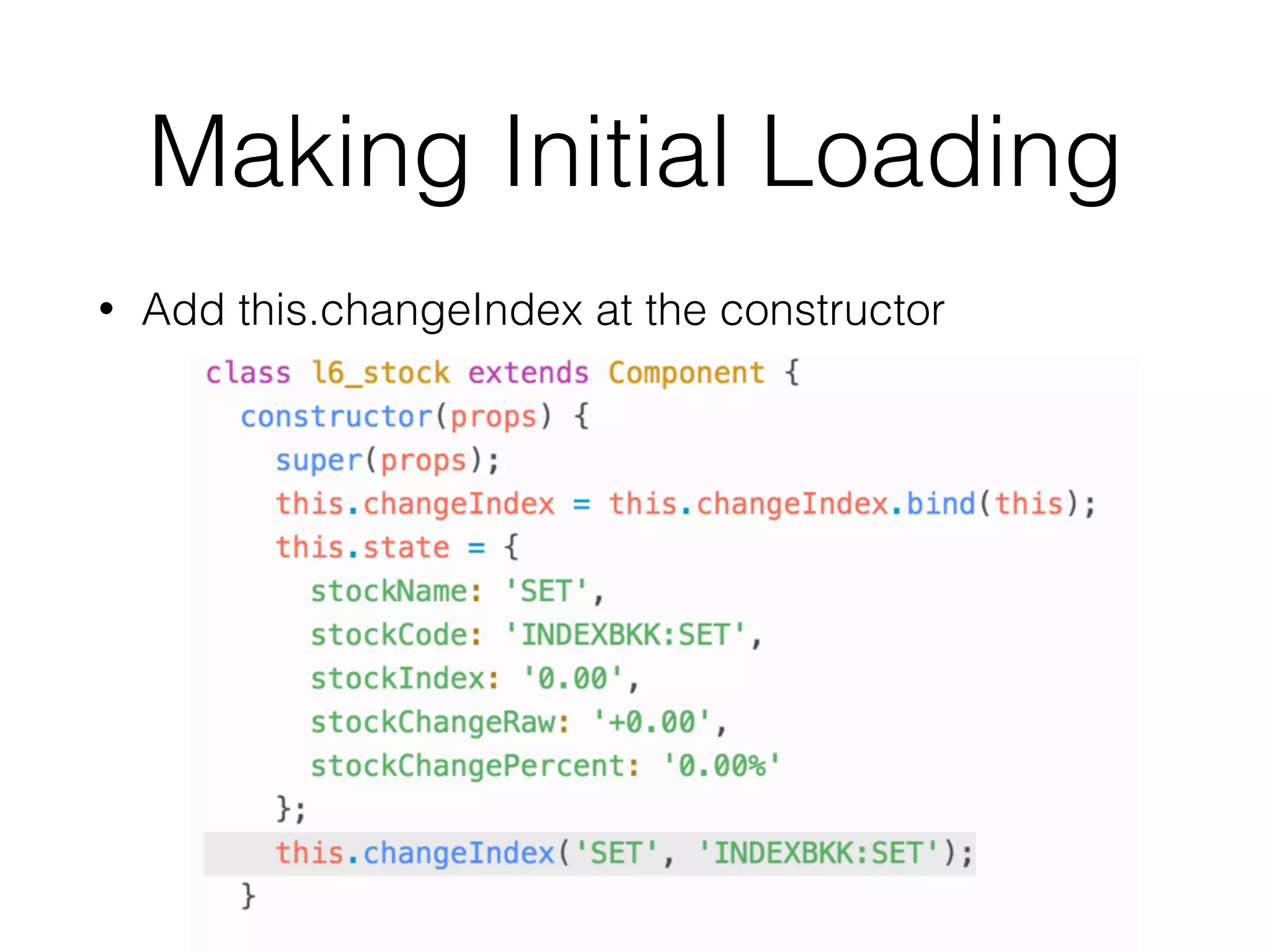

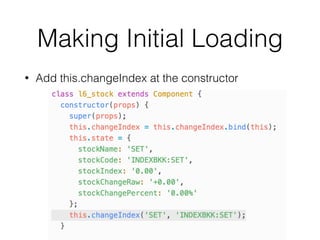

30. Making Initial Loading
• Add this.changeIndex at the constructor

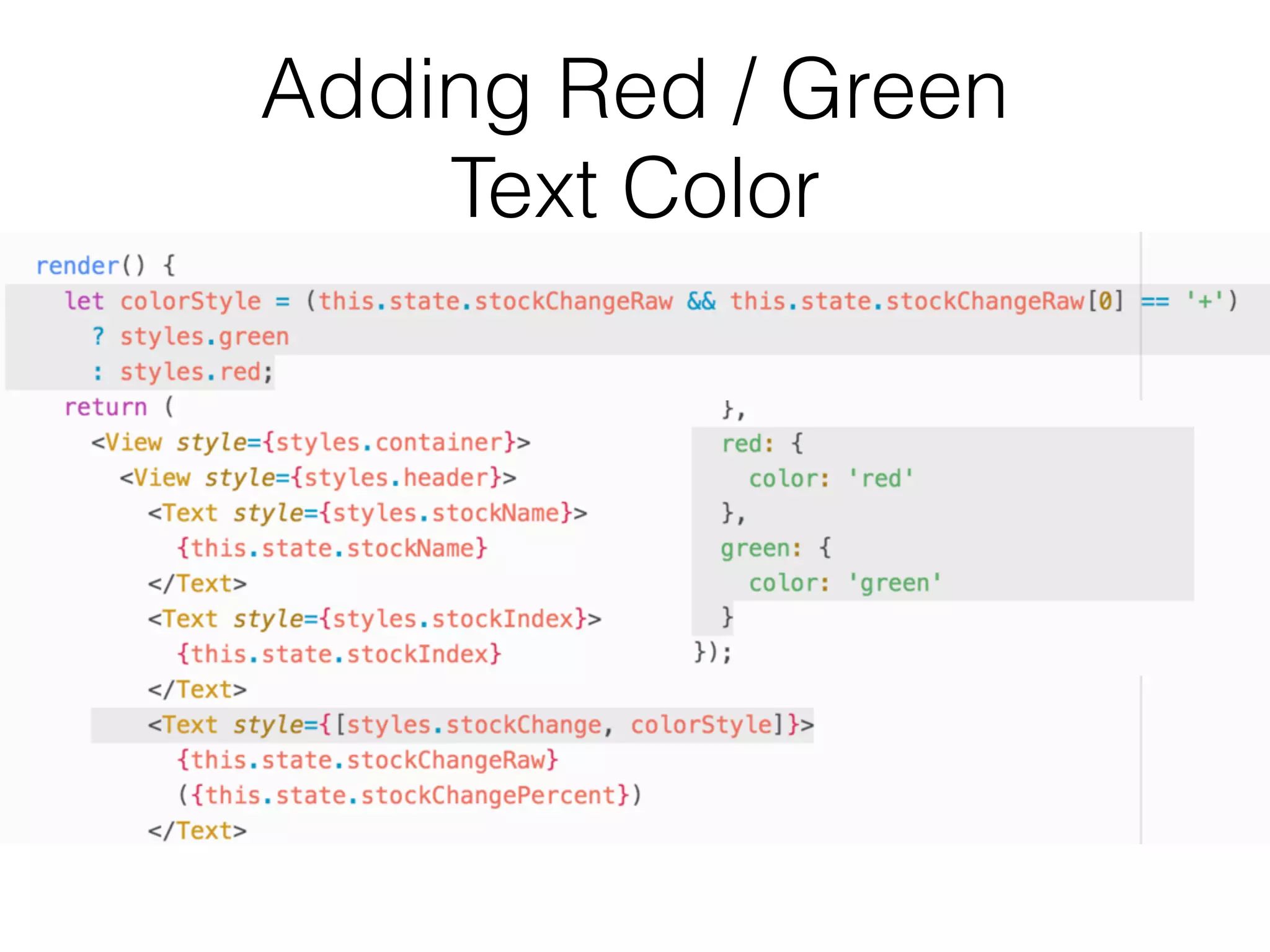

31. Adding Red / Green
Text Color

33. Homework
• Make the Stock application that can view the USA
Tech Stock Markets
• Apple: AAPL
• Google: GOOG
• Microsoft: MSFT
• Facebook: FB
• Alibaba: BABA
