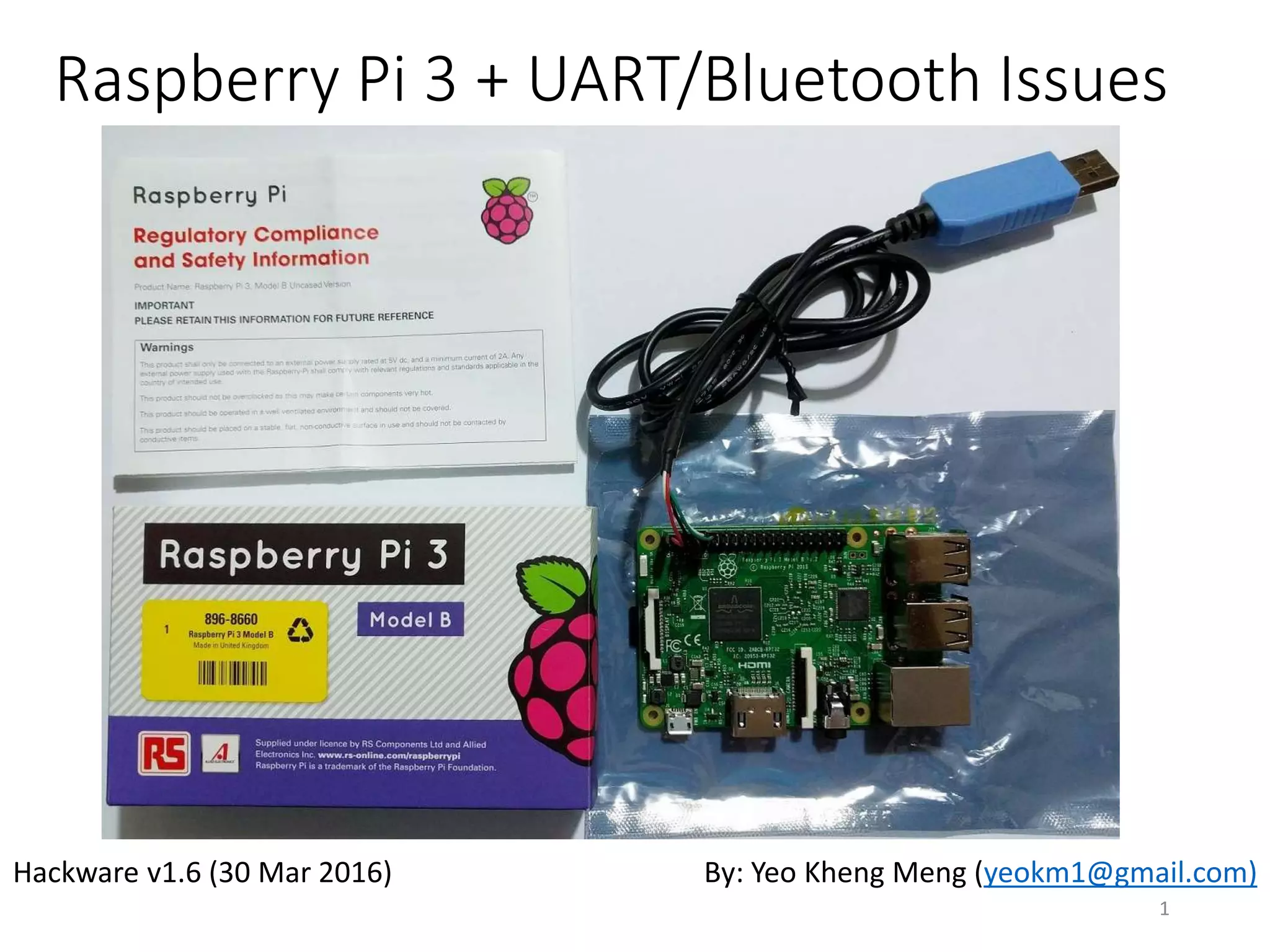

1. Raspberry Pi 3 + UART/Bluetooth Issues
By: Yeo Kheng Meng (yeokm1@gmail.com)Hackware v1.6 (30 Mar 2016)
1
Video of my presentation can be found here:
• https://engineers.sg/video/raspberry-pi-3-uart-bluetooth-issues--609

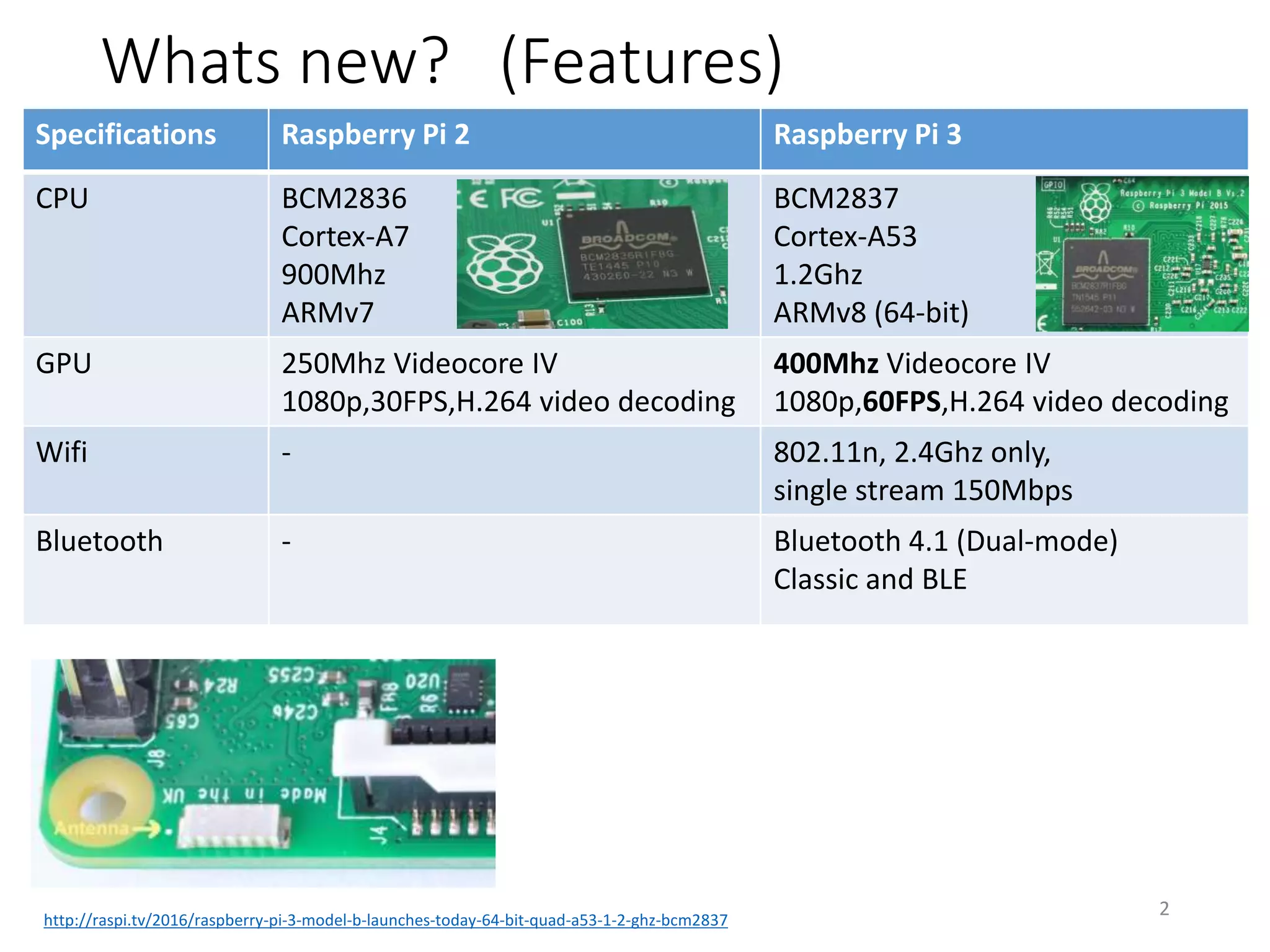

2. Whats new? (Features)
Specifications Raspberry Pi 2 Raspberry Pi 3
CPU BCM2836
Cortex-A7
900Mhz
ARMv7
BCM2837
Cortex-A53
1.2Ghz
ARMv8 (64-bit)
GPU 250Mhz Videocore IV
1080p,30FPS,H.264 video decoding
400Mhz Videocore IV
1080p,60FPS,H.264 video decoding
Wifi - 802.11n, 2.4Ghz only,
single stream 150Mbps
Bluetooth - Bluetooth 4.1 (Dual-mode)
Classic and BLE
2http://raspi.tv/2016/raspberry-pi-3-model-b-launches-today-64-bit-quad-a53-1-2-ghz-bcm2837

3. Whats new? (Board)
Specifications Raspberry Pi 2 Raspberry Pi 3
LED positions Top left Bottom left
microSD storage Spring No Spring
3

4. UART (Debug console) issues on RPi 3
4

5. UART Debug Console
+
USB-TTL cable
https://www.adafruit.com/product/954
• Universal asynchronous receiver/transmitter
5

6. UART (Serial Debug console) issue
Received output.
• Garbled or nothing
• Output is 72000 instead of 115200 baud
Expected output
6

7. Hardware architecture (≤ RPi 2)
System on Chip
BCM2835 (RPi 1 B/B+)
/ BCM2836 (RPi 2)
• BCM283x has 2 UARTs
• UART0: Full UART (/dev/ttyAMA0)
• Based on ARM Primecell PL011
• Larger FIFO buffers
• 16x8 transmit
• 16x12 receive
• High performance full feature serial port
• Older RPi models breaks out UART0 to the pin header
• Default use: Debug console
• UART1: “mini UART” (/dev/ttyS0)
UART0
UART1
BCM2835 datasheet: Page 10
https://www.raspberrypi.org/wp-content/uploads/2012/02/BCM2835-ARM-Peripherals.pdf
7

8. System on Chip
BCM2837 (RPi 3)
Hardware architecture (RPi 3)
SDIO
BCM43438 wireless chip
http://raspi.tv/2016/raspberry-pi-3-model-b-launches-today-64-bit-quad-a53-1-2-ghz-bcm2837
Bluetooth 4.1Wifi
8
• UART0: Full UART (/dev/ttyAMA0)
• UART1: “mini UART” (/dev/ttyS0)
UART1
UART0

9. Why is UART1 a problem?
BCM2835 datasheet: Page 10- 11
https://www.raspberrypi.org/wp-content/uploads/2012/02/BCM2835-ARM-Peripherals.pdf
9
Note:
I use BCM2835 datasheet as
datasheets of newer chips have not
been released by Broadcom.
Mini UART implementation should be
the same across BCM283x.
Problem Explanation
• 𝑏𝑎𝑢𝑑𝑟𝑎𝑡𝑒 =
𝑐𝑜𝑟𝑒𝐹𝑟𝑒𝑞
8 ∗(𝑏𝑎𝑢𝑑𝑅𝑎𝑡𝑒𝑅𝑒𝑔+1)
• RPi 3 boot time core frequency is 400Mhz
• RPI baud rate default 115200
• 115200 =
400 000 000
8 ∗ (𝑏𝑎𝑢𝑑𝑅𝑎𝑡𝑒𝑅𝑒𝑔+1)
• baudRateReg calculated on core
frequency retrieved at boot time
• Frequency scaling, may drop to 250Mhz to
save power under low load
• Fluctuating core frequency -> Fluctuating
baud rate

10. Who is affected?
Anyone who uses the TX/RX header pins
• People who use the serial debug console
• Headless systems
• RPi shields that uses the UART
• Eg. RS232, GPS/GSM
• Device-Device communication to other MCUs or MPUs
• Require high UART performance (aka full UART) and Bluetooth
10

11. How do we solve this? Part (1/2)
Lock a constant core frequency during boot time
• (For old firmware) Add “core_freq=250” XOR “force_turbo=1” to /boot/config.txt
• Lock core core_freq to minimum or maximum (400Mhz) respectively
• Minimum -> RPi 3 performance will be affected.
• Maximum -> Requires good cooling.
• Can still be throttled to 250 Mhz under low voltage or high temperature conditions
• (For new firmware) Add “enable_uart=1” to /boot/config.txt
• All RPi distributions will eventually support this option going forward
• Similar to “core_freq=250” with clearer intent
• Raspbian latest stable updates does not support this yet
• Need bleeding-edge firmware update: “sudo apt-get install rpi-update” & “sudo rpi-update”
• Arch Linux requires an update to use this option: Just use “pacman –Syu”
• Distros that support this option will disable debug console if “enable_uart=1” is not set
• “enable_uart=1” explanation Raspberry Pi Foundation Engineer Phil Elwell (pelwell)
• https://github.com/raspberrypi/firmware/issues/553#issuecomment-199486644
11

12. How do we solve this? Part (2/2)
Remap header pins to use Full UART with device
tree overlay (pin-crossbar)
• Add “dtoverlay=pi3-disable-bt” to /boot/config.txt
• Disables Bluetooth in the process as UART1 is unconnected
• Requires extra “sudo systemctl disable hciuart” for Raspbian
• Or add “dtoverlay=pi3-miniuart-bt” to /boot/config.txt
• Bluetooth now uses mini-UART
• Need to add “core_freq=250” or “force_turbo=1” to
/boot/config.txt so Bluetooth via mini UART is usable
• Edit “/lib/systemd/system/hciuart.service” and replace
“ttyAMA0” with “ttyS0” for Raspbian
• Bluetooth’s performance will be affected. Only low-
throughput BLE may be effectively usable.
• If any of these options are used, the serial console will
be enabled unless “enable_uart=0”
12
System on Chip
BCM2837 (RPi 3)
SDIO
BCM43438 wireless chip
Bluetooth 4.1Wifi
• UART0: Full UART (/dev/ttyAMA0)
• UART1: “mini UART” (/dev/ttyS0)
UART0
UART1

13. Solution summary
Set in /boot/config.txt
• Serial console and normal Bluetooth
• Lock frequency
• Old: “core_freq=250” XOR “force_turbo=1”
• New: ”enable_uart=1”. Add “force_turbo=1” to lock at high frequency.
• High performance Serial
• Switch UART0 and UART1 pins
• No Bluetooth
• “dtoverlay=pi3-disable-bt”
• (Raspbian) Run “sudo systemctl disable hciuart”
• Slow Bluetooth Classic or BLE
• “dtoverlay=pi3-miniuart-bt” AND (“core_freq=250” XOR “force_turbo=1”)
• (Raspbian) Edit “/lib/systemd/system/hciuart.service” and replace “ttyAMA0” with “ttyS0”
• Add “enable_uart=0” to disable debug console
• The use of the mini UART will always require locking of Core frequency
13

14. Arch Linux Bluetooth’s issues
• Raspbian uses “pi-bluetooth” to provide Bluetooth features
• “pi-bluetooth” has not been ported to Arch Linux
• Someone has posted a temporary package to AUR
• https://archlinuxarm.org/forum/viewtopic.php?f=67&t=10017s
• https://aur.archlinux.org/packages/pi-bluetooth/
• My setup instructions using that package
• https://gist.github.com/yeokm1/d6c3ca927919c61257cd
14

15. Useful links
1. BCM2835 datasheet: https://www.raspberrypi.org/wp-content/uploads/2012/02/BCM2835-ARM-Peripherals.pdf
2. Original Github issue: https://github.com/raspberrypi/firmware/issues/553
3. “enable_uart=1” explanation by Raspberry Pi Foundation Engineer Phil Elwell
https://github.com/raspberrypi/firmware/issues/553#issuecomment-199486644
4. UART DT overlays: http://www.briandorey.com/post/Raspberry-Pi-3-UART-Boot-Overlay-Part-Two
5. Detailed DT overlays: https://github.com/raspberrypi/linux/blob/rpi-4.1.y/arch/arm/boot/dts/overlays/README
6. Arch Linux ARM Bluetooth forum issue thread: https://archlinuxarm.org/forum/viewtopic.php?f=65&t=9961
7. Instructions to enable Arch Linux Bluetooth: https://gist.github.com/yeokm1/d6c3ca927919c61257cd
