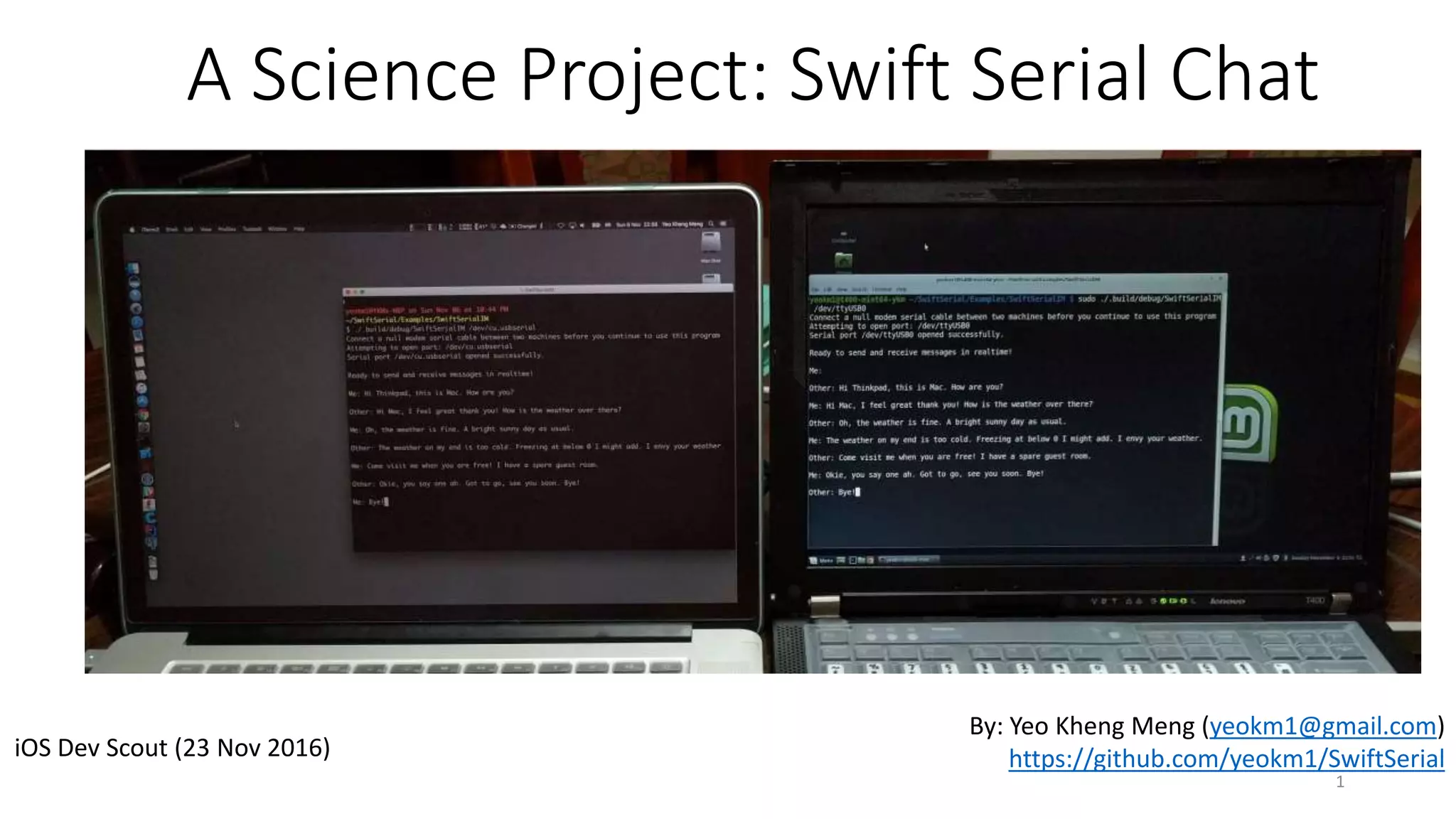

1. A Science Project: Swift Serial Chat
iOS Dev Scout (23 Nov 2016)
By: Yeo Kheng Meng (yeokm1@gmail.com)
https://github.com/yeokm1/SwiftSerial
1

2. Modern networking options for apps
2

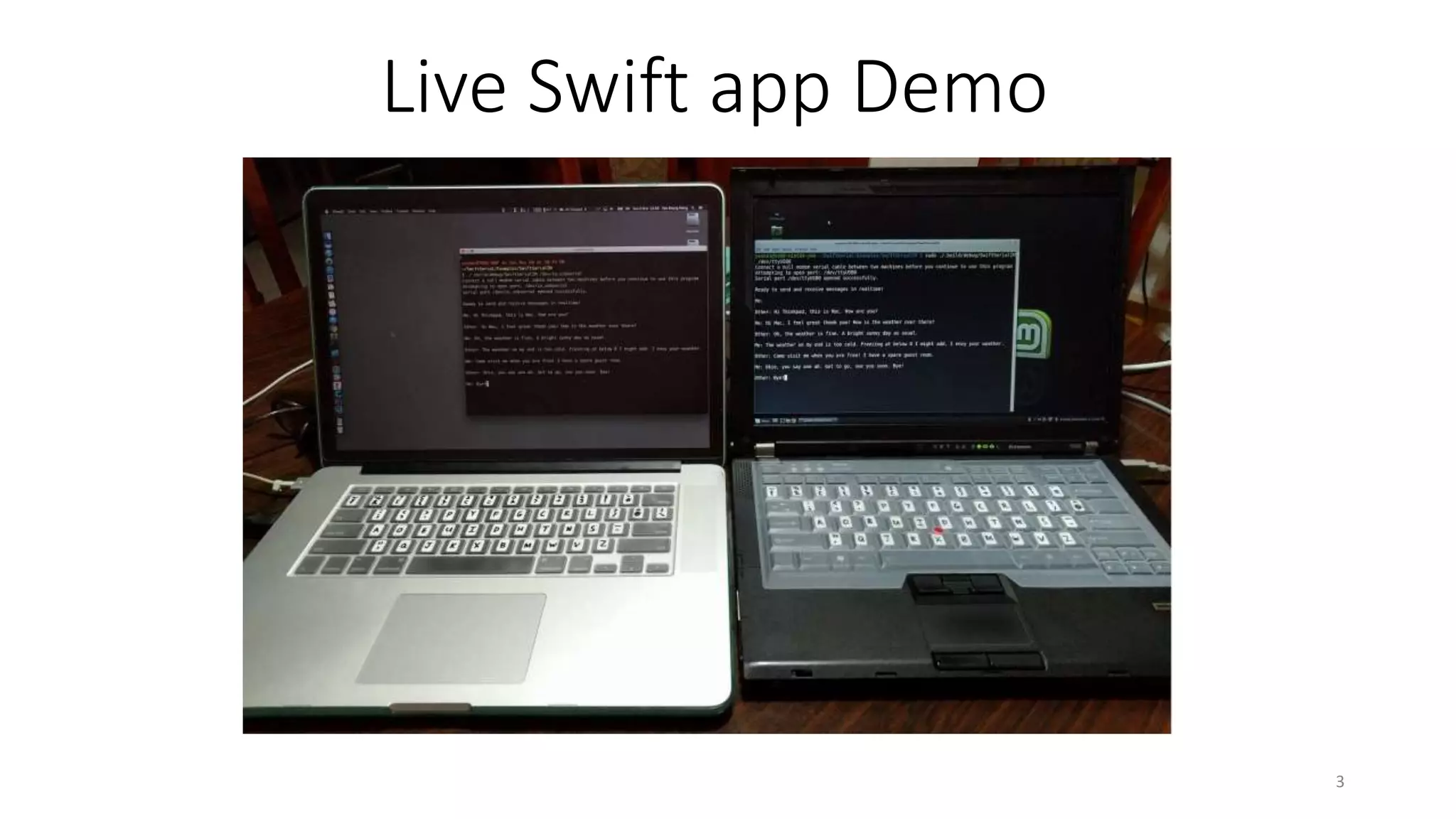

3. Live Swift app Demo
3

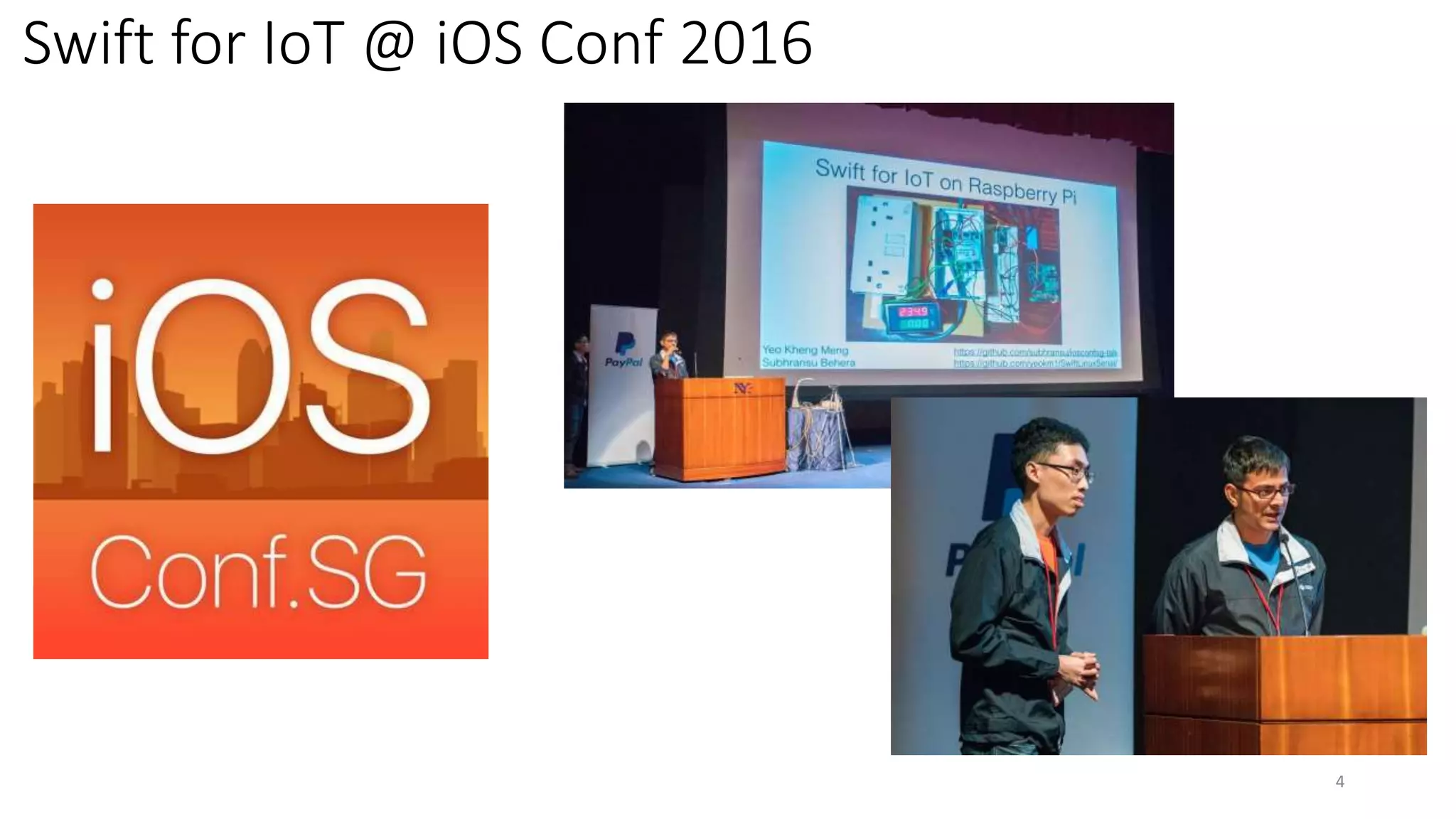

4. Swift for IoT @ iOS Conf 2016
4

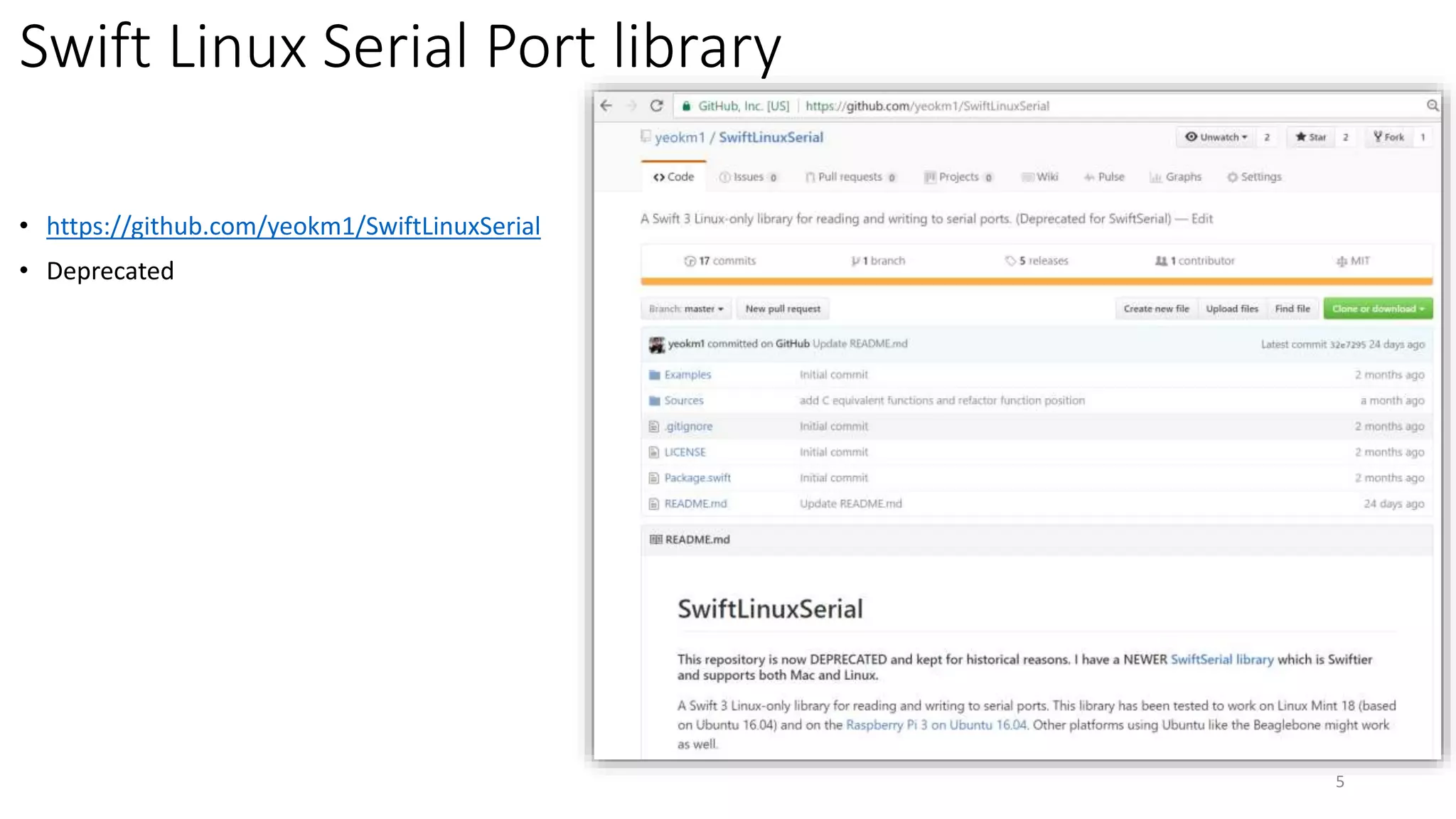

5. Swift Linux Serial Port library
• https://github.com/yeokm1/SwiftLinuxSerial
• Deprecated
5

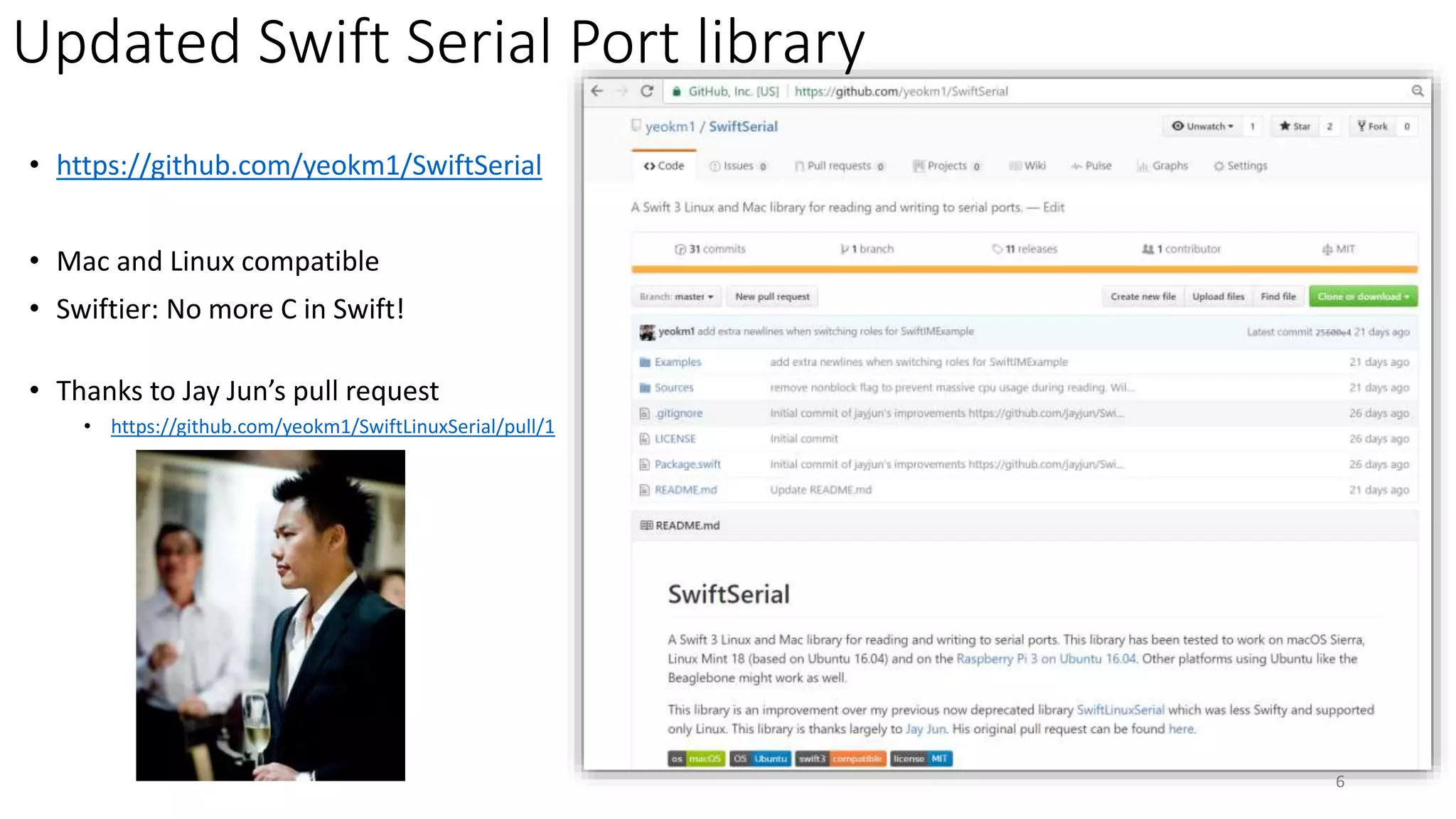

6. Updated Swift Serial Port library
• https://github.com/yeokm1/SwiftSerial
• Mac and Linux compatible
• Swiftier: No more C in Swift!
• Thanks to Jay Jun’s pull request
• https://github.com/yeokm1/SwiftLinuxSerial/pull/1
6

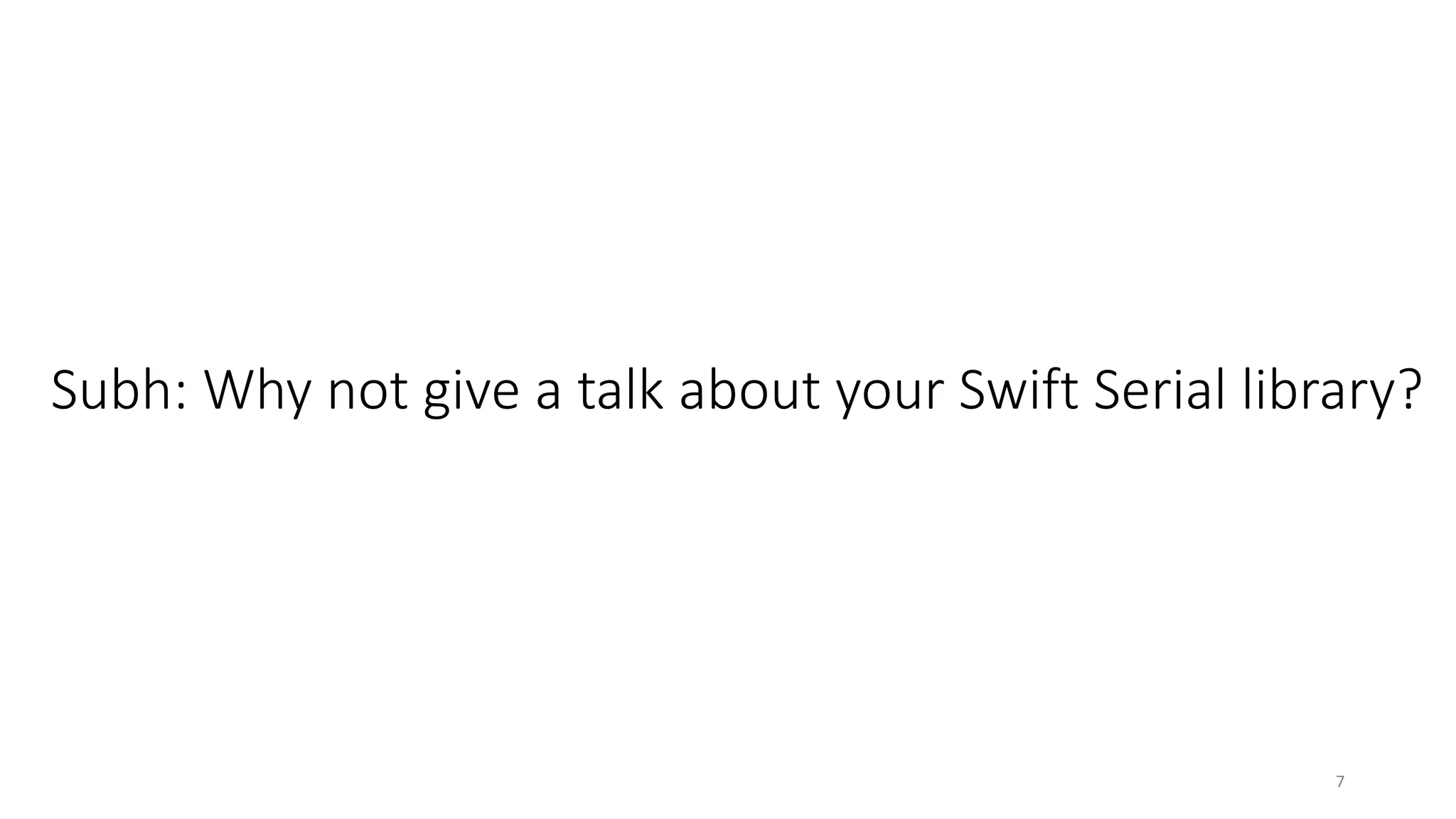

7. Subh: Why not give a talk about your Swift Serial library?
7

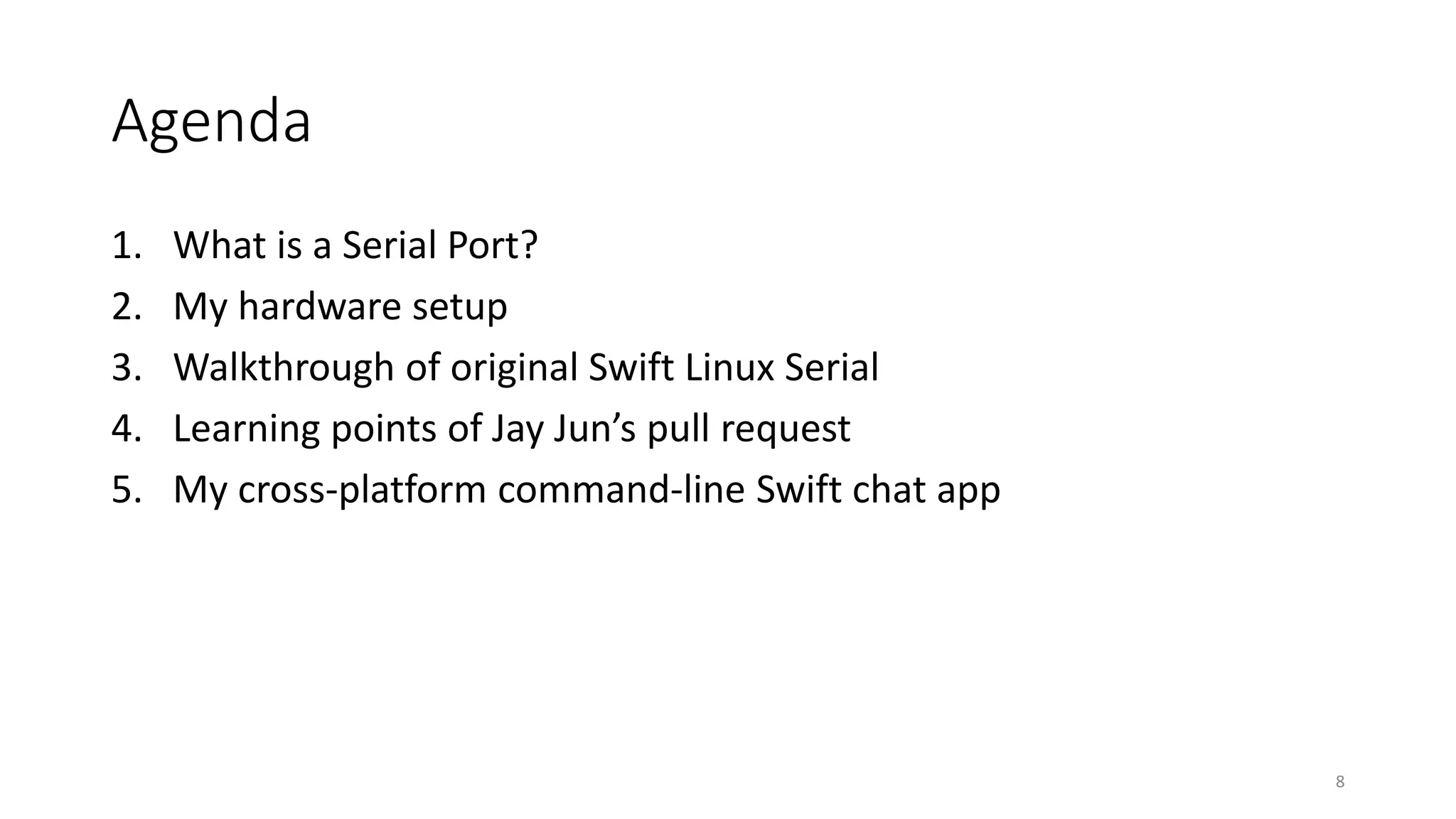

8. Agenda
1. What is a Serial Port?
2. My hardware setup
3. Walkthrough of original Swift Linux Serial
4. Learning points of Jay Jun’s pull request
5. My cross-platform command-line Swift chat app
8

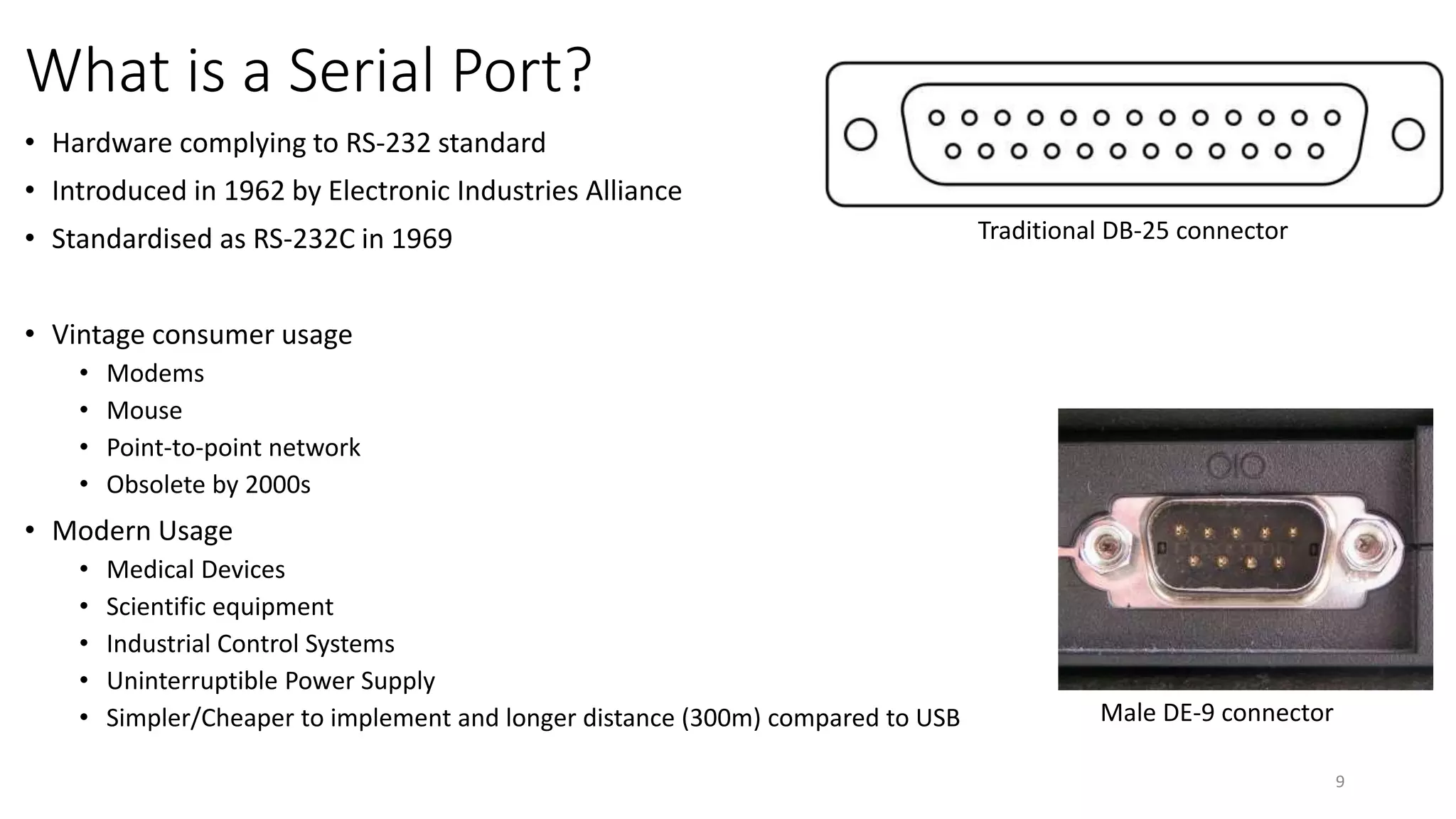

9. What is a Serial Port?
• Hardware complying to RS-232 standard
• Introduced in 1962 by Electronic Industries Alliance
• Standardised as RS-232C in 1969
• Vintage consumer usage
• Modems
• Mouse
• Point-to-point network
• Obsolete by 2000s
• Modern Usage
• Medical Devices
• Scientific equipment
• Industrial Control Systems
• Uninterruptible Power Supply
• Simpler/Cheaper to implement and longer distance (300m) compared to USB
9
Male DE-9 connector
Traditional DB-25 connector

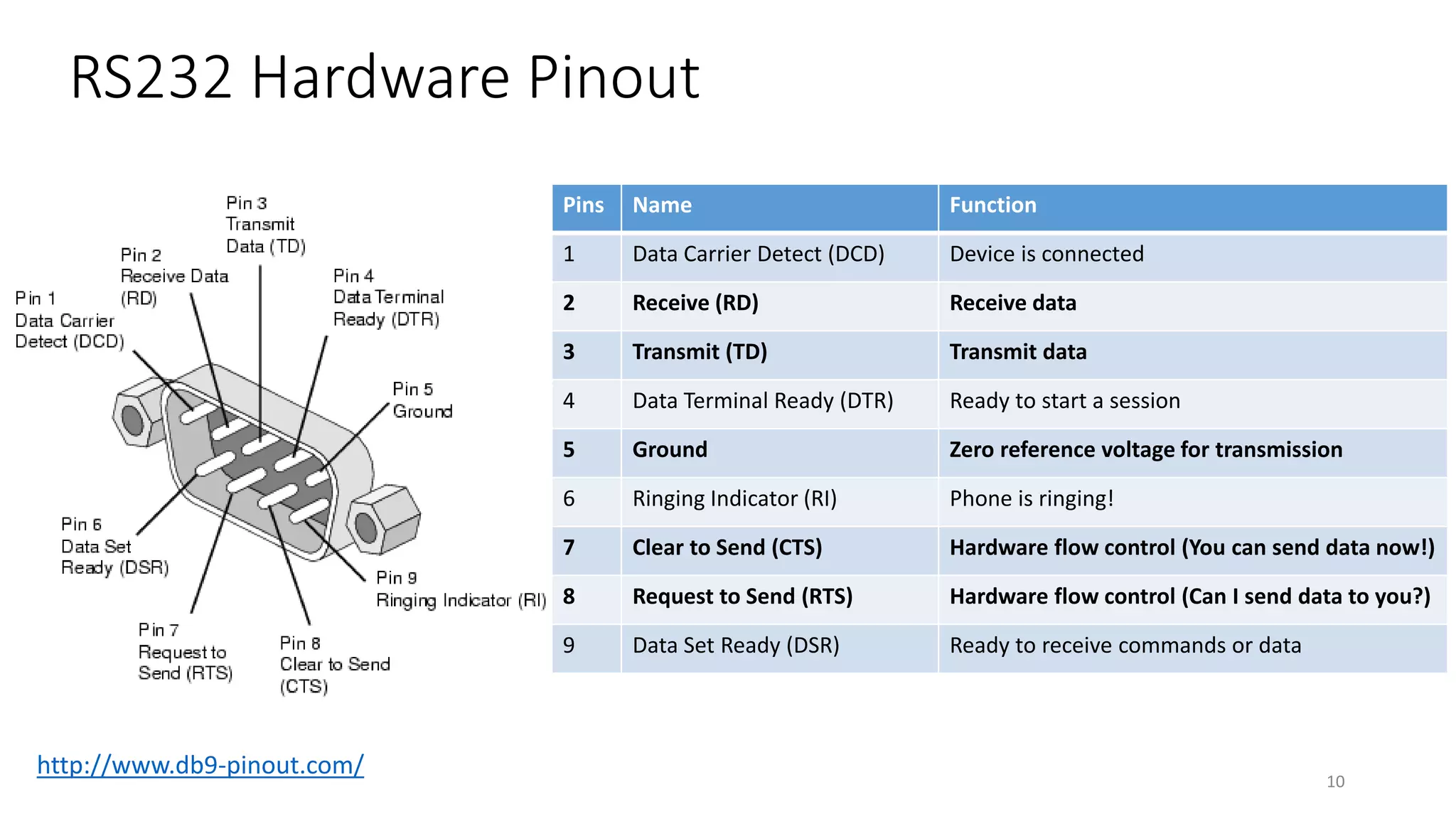

10. RS232 Hardware Pinout
10
Pins Name Function
1 Data Carrier Detect (DCD) Device is connected
2 Receive (RD) Receive data
3 Transmit (TD) Transmit data
4 Data Terminal Ready (DTR) Ready to start a session
5 Ground Zero reference voltage for transmission
6 Ringing Indicator (RI) Phone is ringing!
7 Clear to Send (CTS) Hardware flow control (You can send data now!)
8 Request to Send (RTS) Hardware flow control (Can I send data to you?)
9 Data Set Ready (DSR) Ready to receive commands or data
http://www.db9-pinout.com/

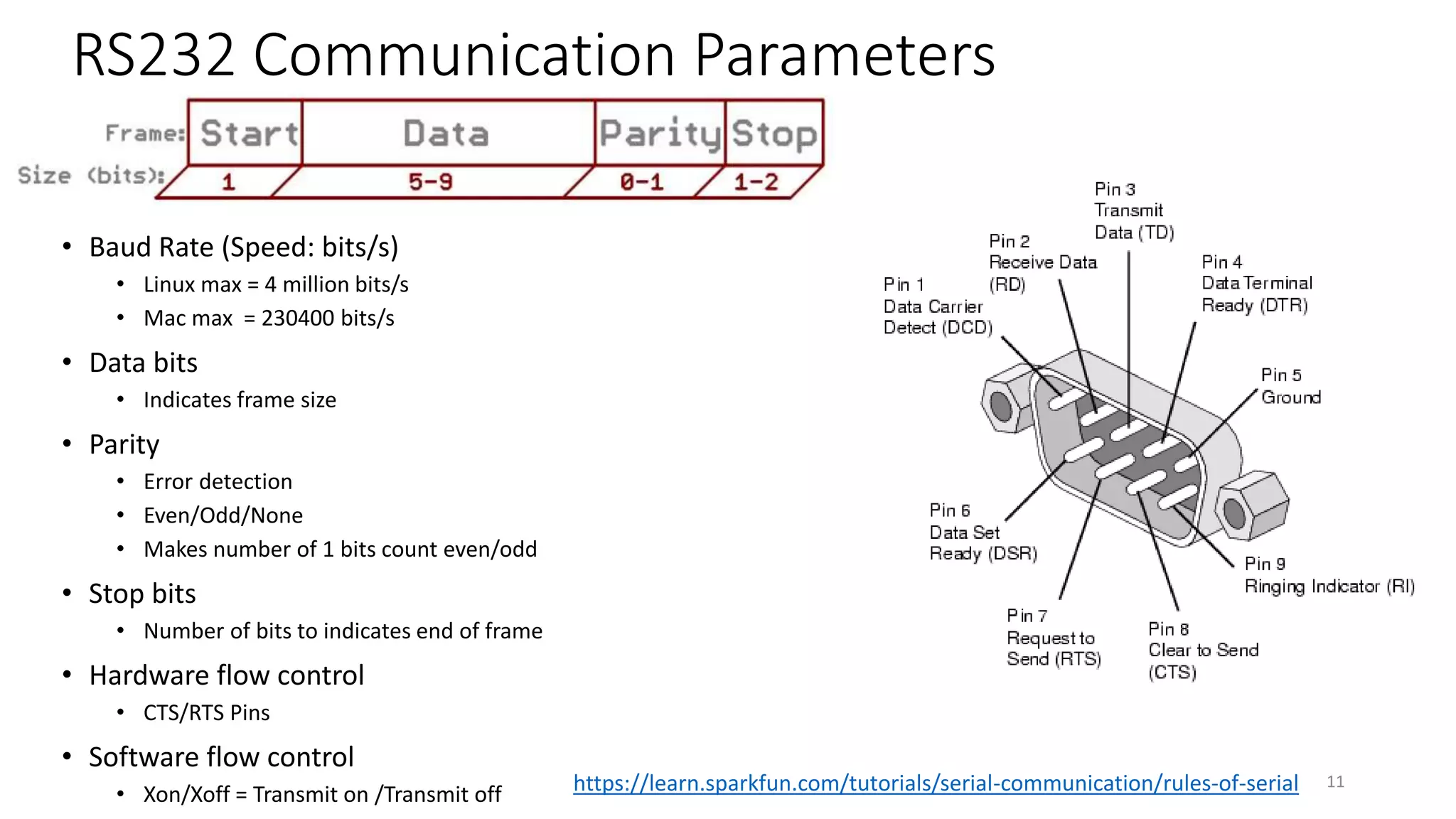

11. RS232 Communication Parameters
• Baud Rate (Speed: bits/s)
• Linux max = 4 million bits/s
• Mac max = 230400 bits/s
• Data bits
• Indicates frame size
• Parity
• Error detection
• Even/Odd/None
• Makes number of 1 bits count even/odd
• Stop bits
• Number of bits to indicates end of frame
• Hardware flow control
• CTS/RTS Pins
• Software flow control
• Xon/Xoff = Transmit on /Transmit off
11https://learn.sparkfun.com/tutorials/serial-communication/rules-of-serial

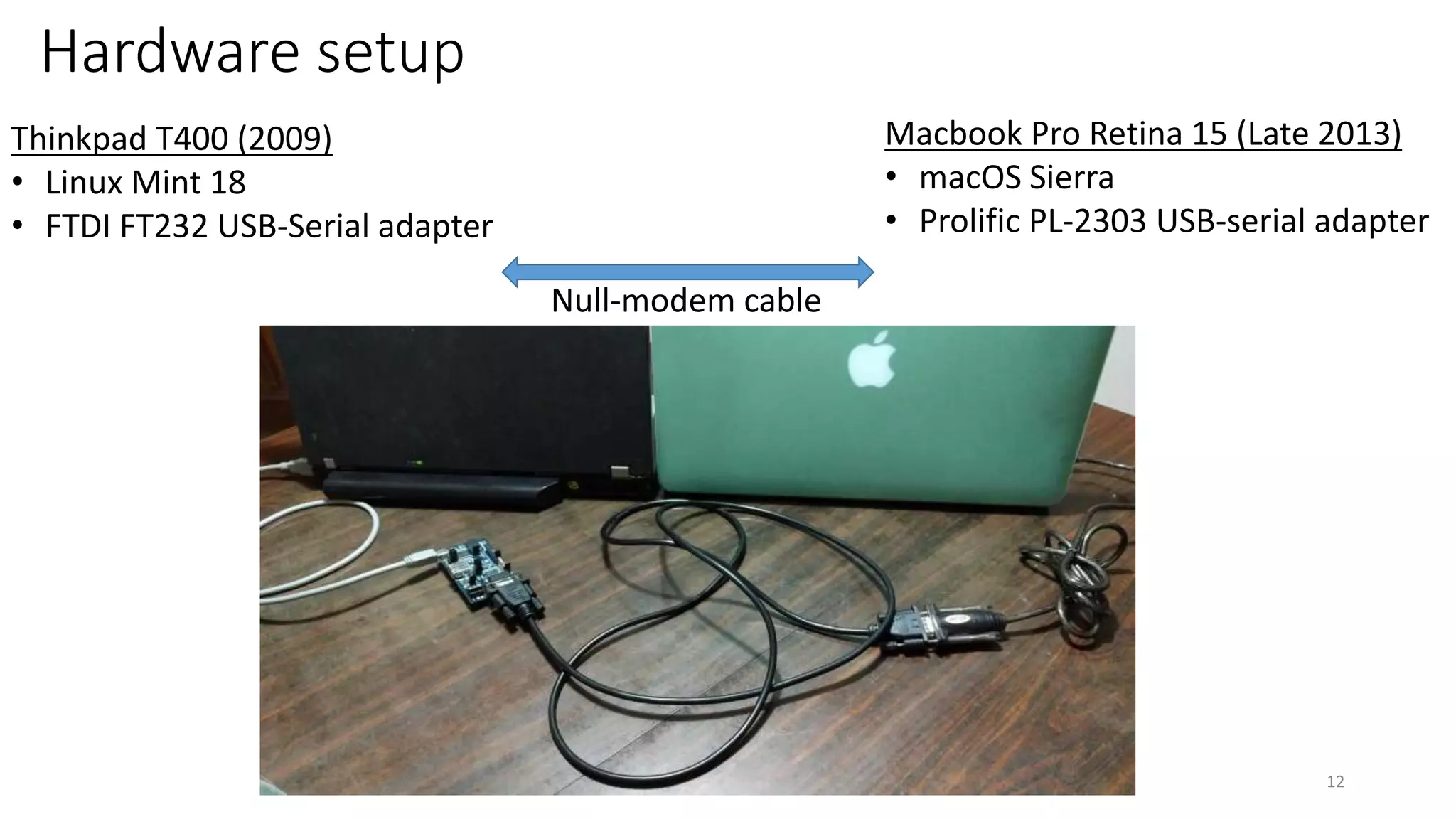

12. Hardware setup
12
Thinkpad T400 (2009)
• Linux Mint 18
• FTDI FT232 USB-Serial adapter
Macbook Pro Retina 15 (Late 2013)
• macOS Sierra
• Prolific PL-2303 USB-serial adapter
Null-modem cable

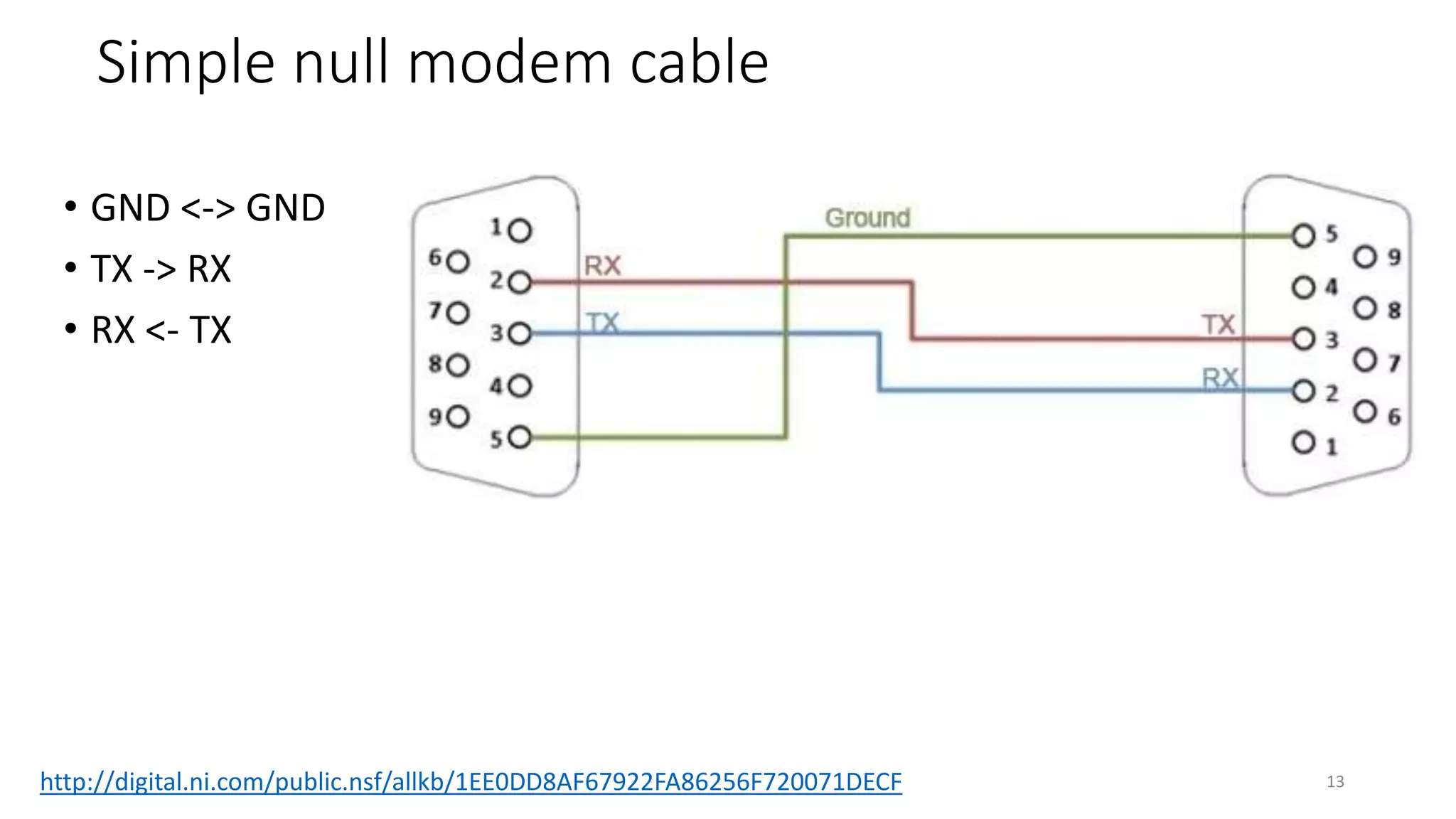

13. Simple null modem cable
• GND <-> GND
• TX -> RX
• RX <- TX
13http://digital.ni.com/public.nsf/allkb/1EE0DD8AF67922FA86256F720071DECF

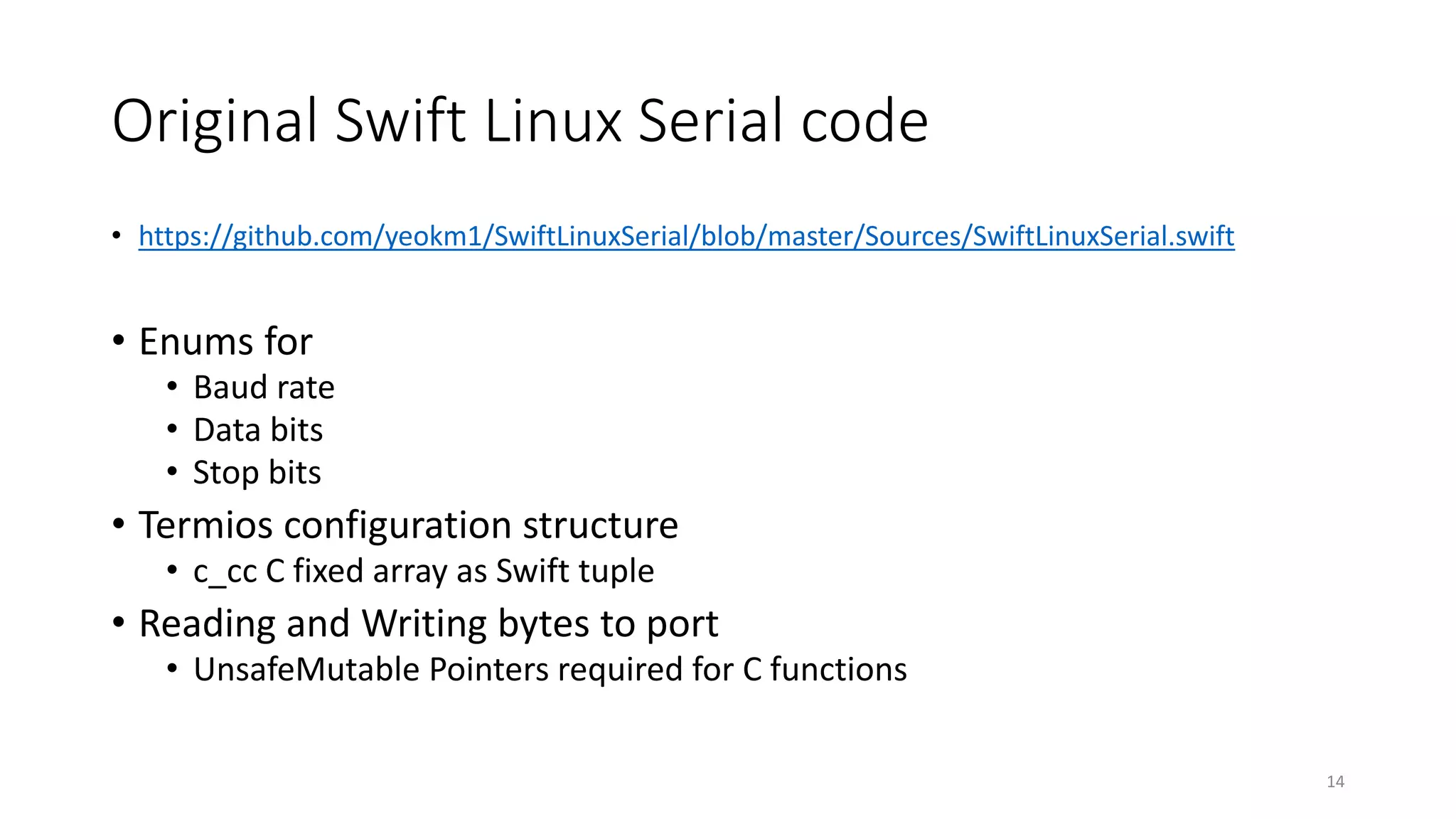

14. Original Swift Linux Serial code
• https://github.com/yeokm1/SwiftLinuxSerial/blob/master/Sources/SwiftLinuxSerial.swift
• Enums for
• Baud rate
• Data bits
• Stop bits
• Termios configuration structure
• c_cc C fixed array as Swift tuple
• Reading and Writing bytes to port
• UnsafeMutable Pointers required for C functions
14

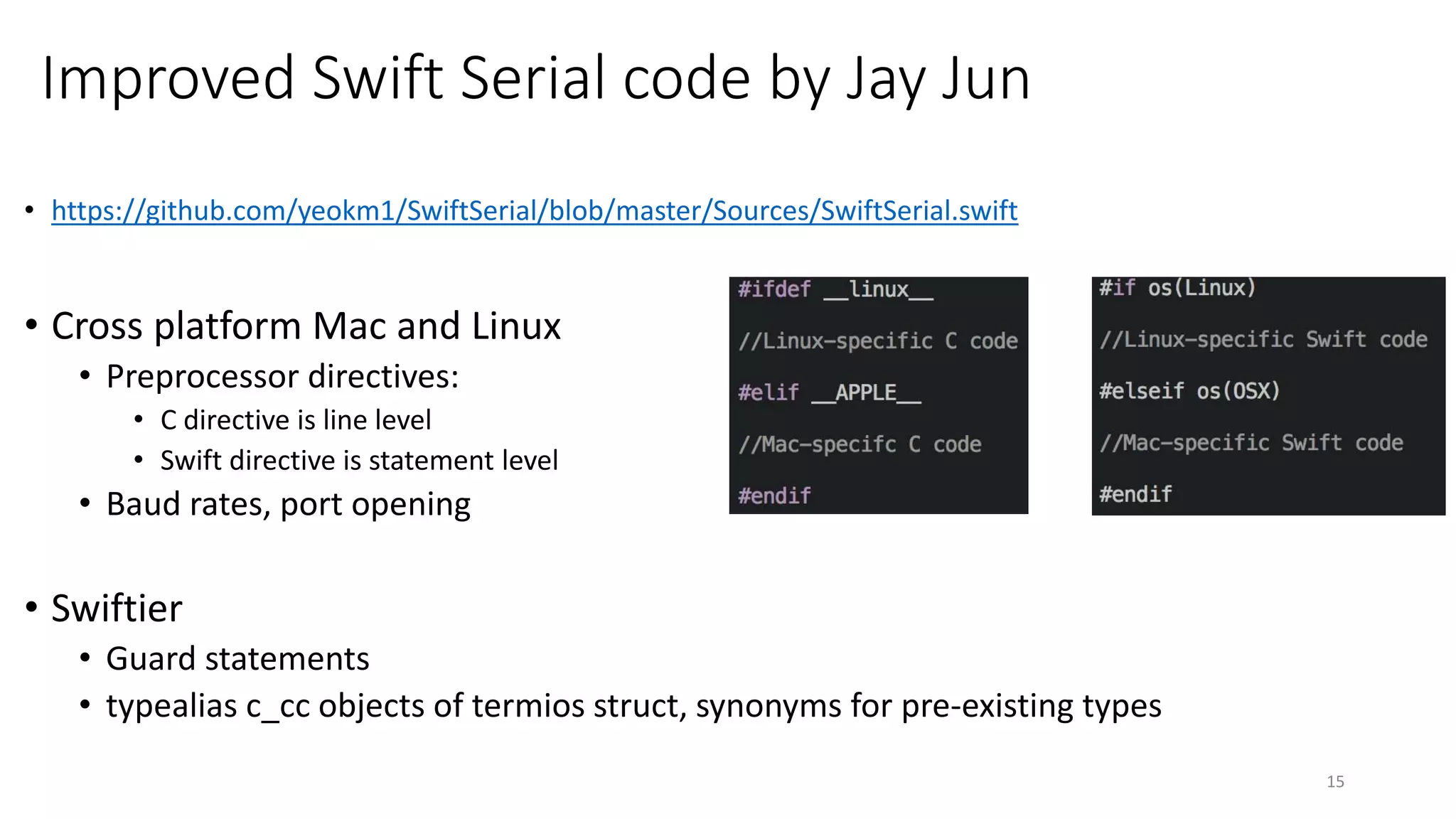

15. Improved Swift Serial code by Jay Jun
• https://github.com/yeokm1/SwiftSerial/blob/master/Sources/SwiftSerial.swift
• Cross platform Mac and Linux
• Preprocessor directives:
• C directive is line level
• Swift directive is statement level
• Baud rates, port opening
• Swiftier
• Guard statements
• typealias c_cc objects of termios struct, synonyms for pre-existing types
15

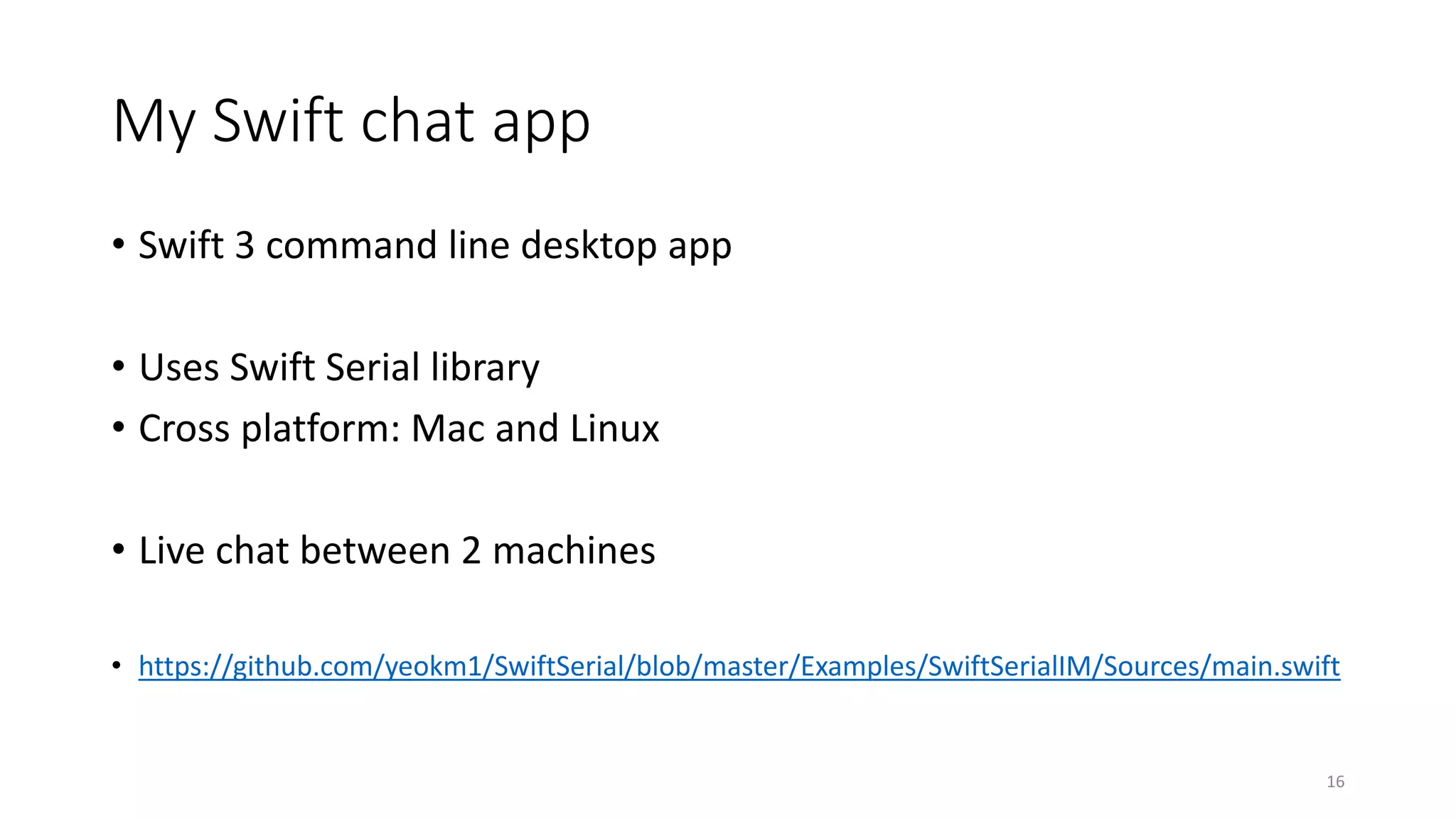

16. My Swift chat app
• Swift 3 command line desktop app
• Uses Swift Serial library
• Cross platform: Mac and Linux
• Live chat between 2 machines
• https://github.com/yeokm1/SwiftSerial/blob/master/Examples/SwiftSerialIM/Sources/main.swift
16

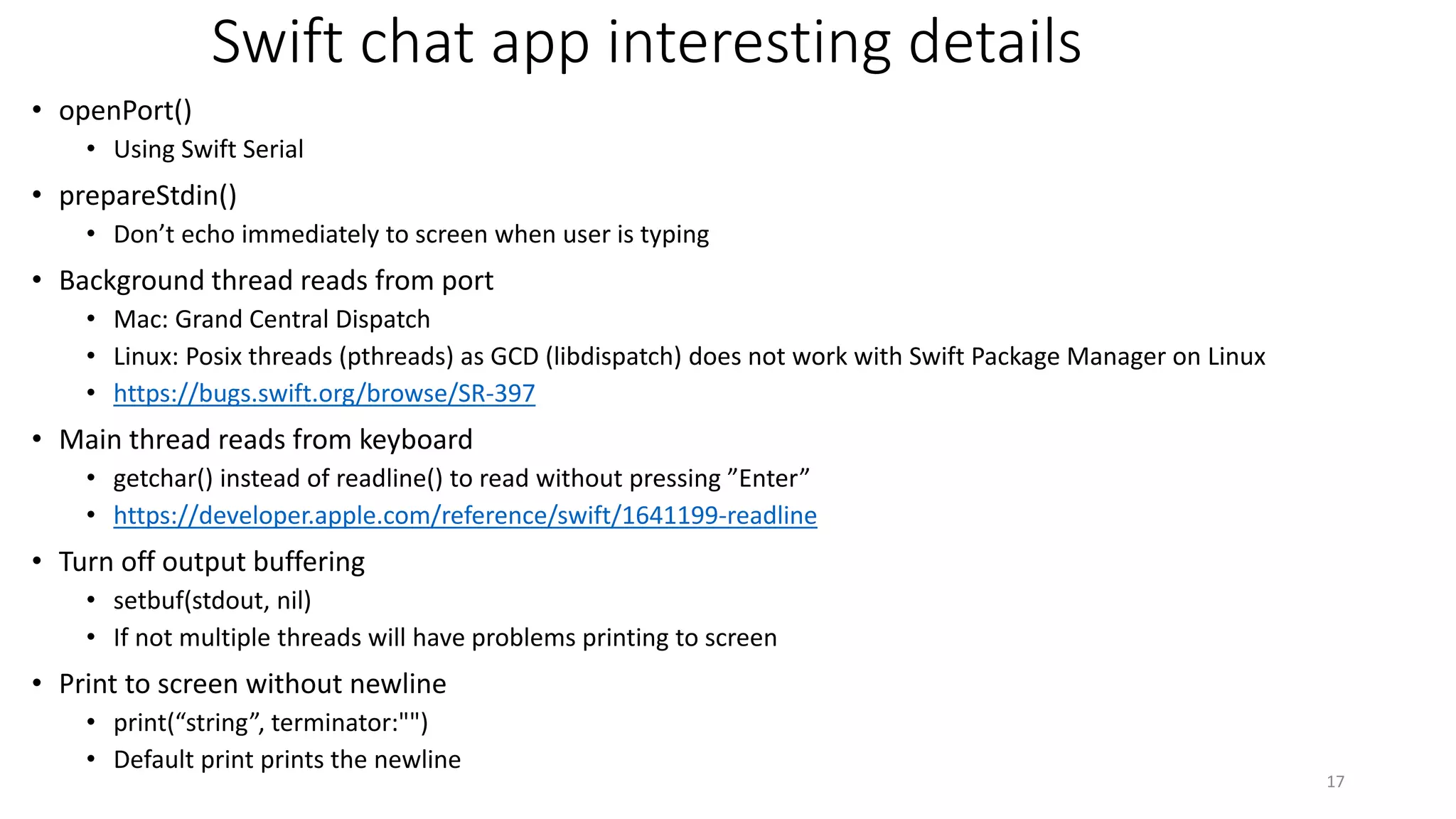

17. Swift chat app interesting details
• openPort()
• Using Swift Serial
• prepareStdin()
• Don’t echo immediately to screen when user is typing
• Background thread reads from port
• Mac: Grand Central Dispatch
• Linux: Posix threads (pthreads) as GCD (libdispatch) does not work with Swift Package Manager on Linux
• https://bugs.swift.org/browse/SR-397
• Main thread reads from keyboard
• getchar() instead of readline() to read without pressing ”Enter”
• https://developer.apple.com/reference/swift/1641199-readline
• Turn off output buffering
• setbuf(stdout, nil)
• If not multiple threads will have problems printing to screen
• Print to screen without newline
• print(“string”, terminator:"")
• Default print prints the newline
17

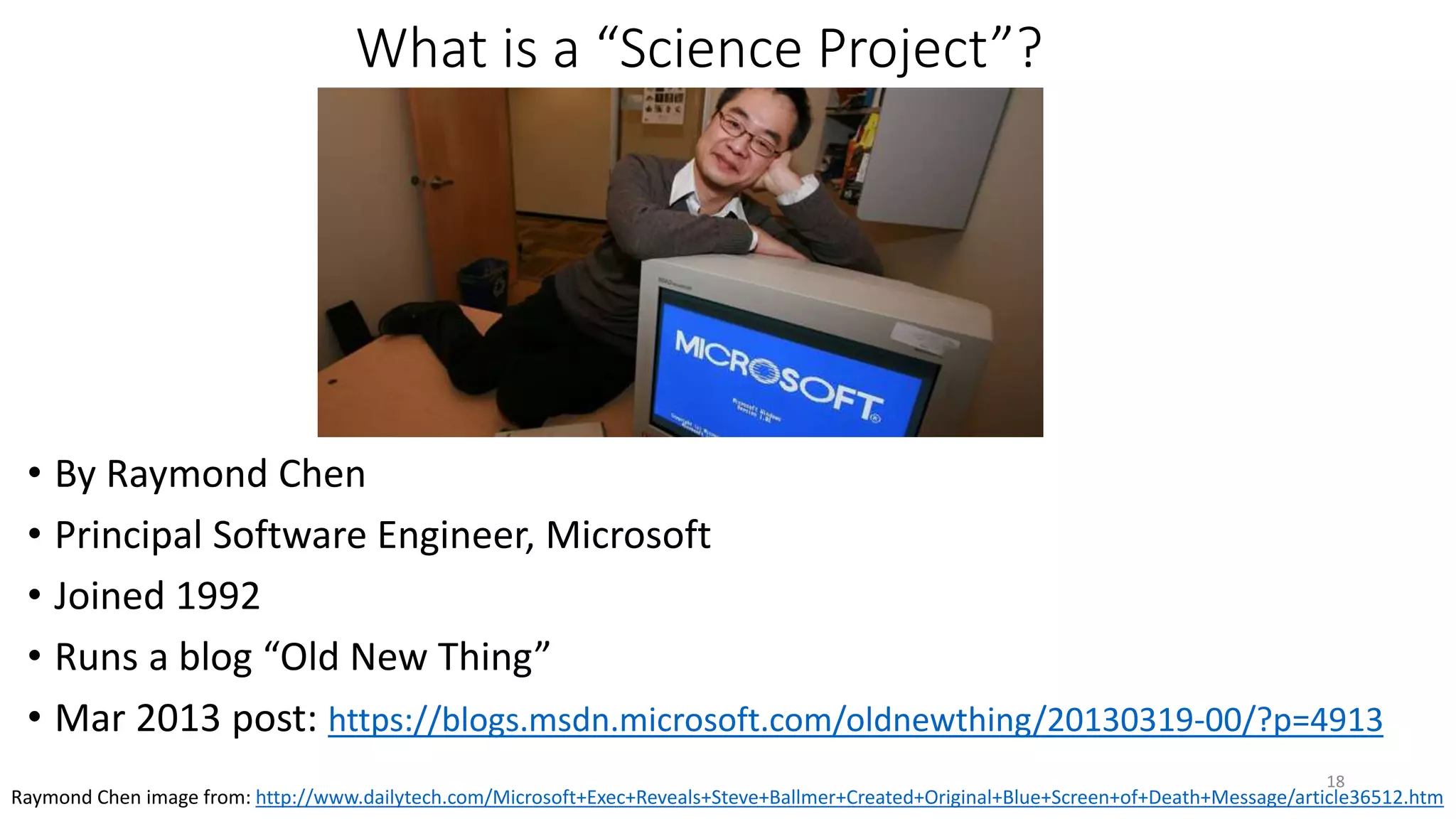

18. What is a “Science Project”?
• By Raymond Chen
• Principal Software Engineer, Microsoft
• Joined 1992
• Runs a blog “Old New Thing”
• Mar 2013 post: https://blogs.msdn.microsoft.com/oldnewthing/20130319-00/?p=4913
18
Raymond Chen image from: http://www.dailytech.com/Microsoft+Exec+Reveals+Steve+Ballmer+Created+Original+Blue+Screen+of+Death+Message/article36512.htm

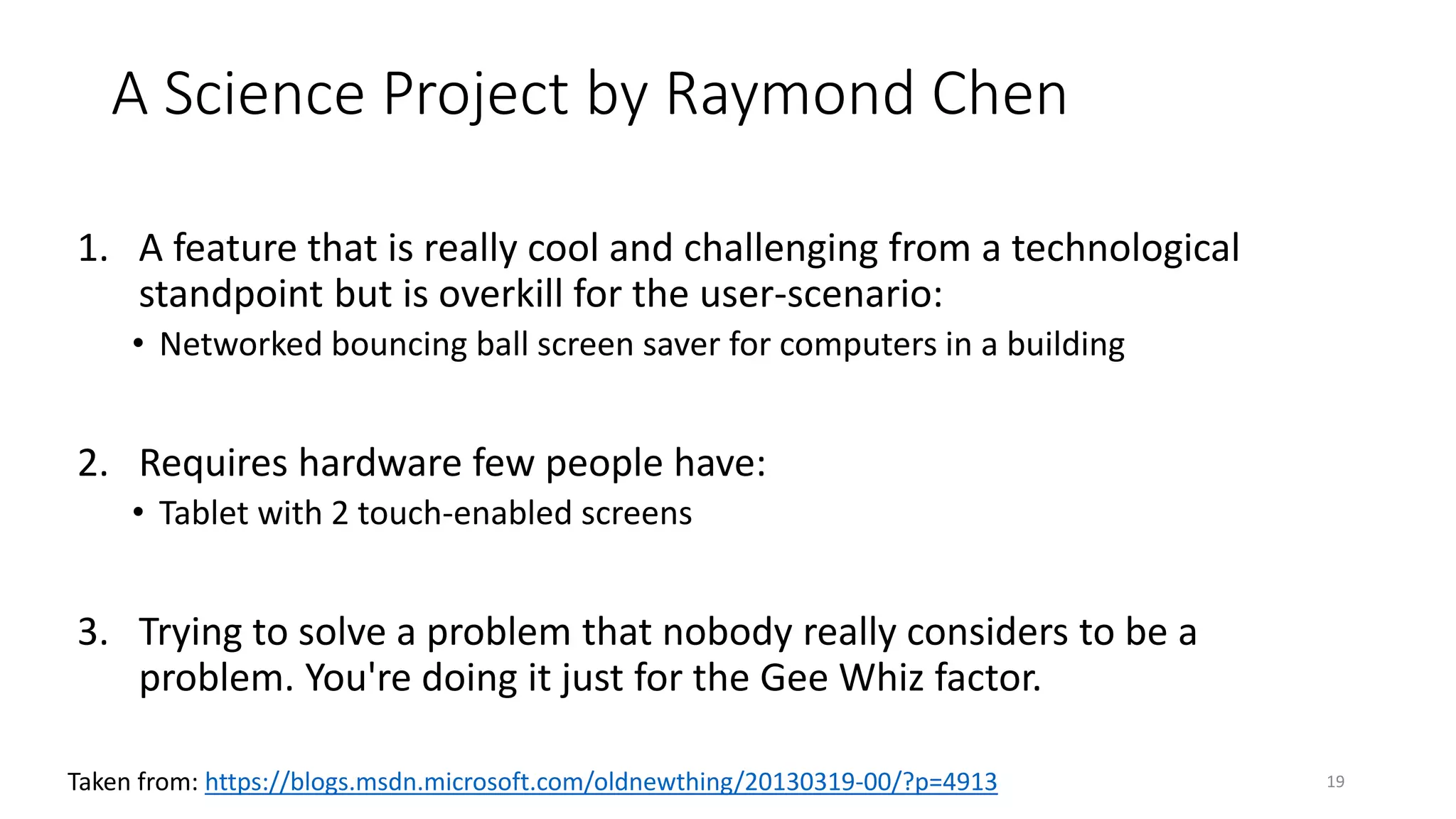

19. A Science Project by Raymond Chen
1. A feature that is really cool and challenging from a technological
standpoint but is overkill for the user-scenario:
• Networked bouncing ball screen saver for computers in a building
2. Requires hardware few people have:
• Tablet with 2 touch-enabled screens
3. Trying to solve a problem that nobody really considers to be a
problem. You're doing it just for the Gee Whiz factor.
19Taken from: https://blogs.msdn.microsoft.com/oldnewthing/20130319-00/?p=4913

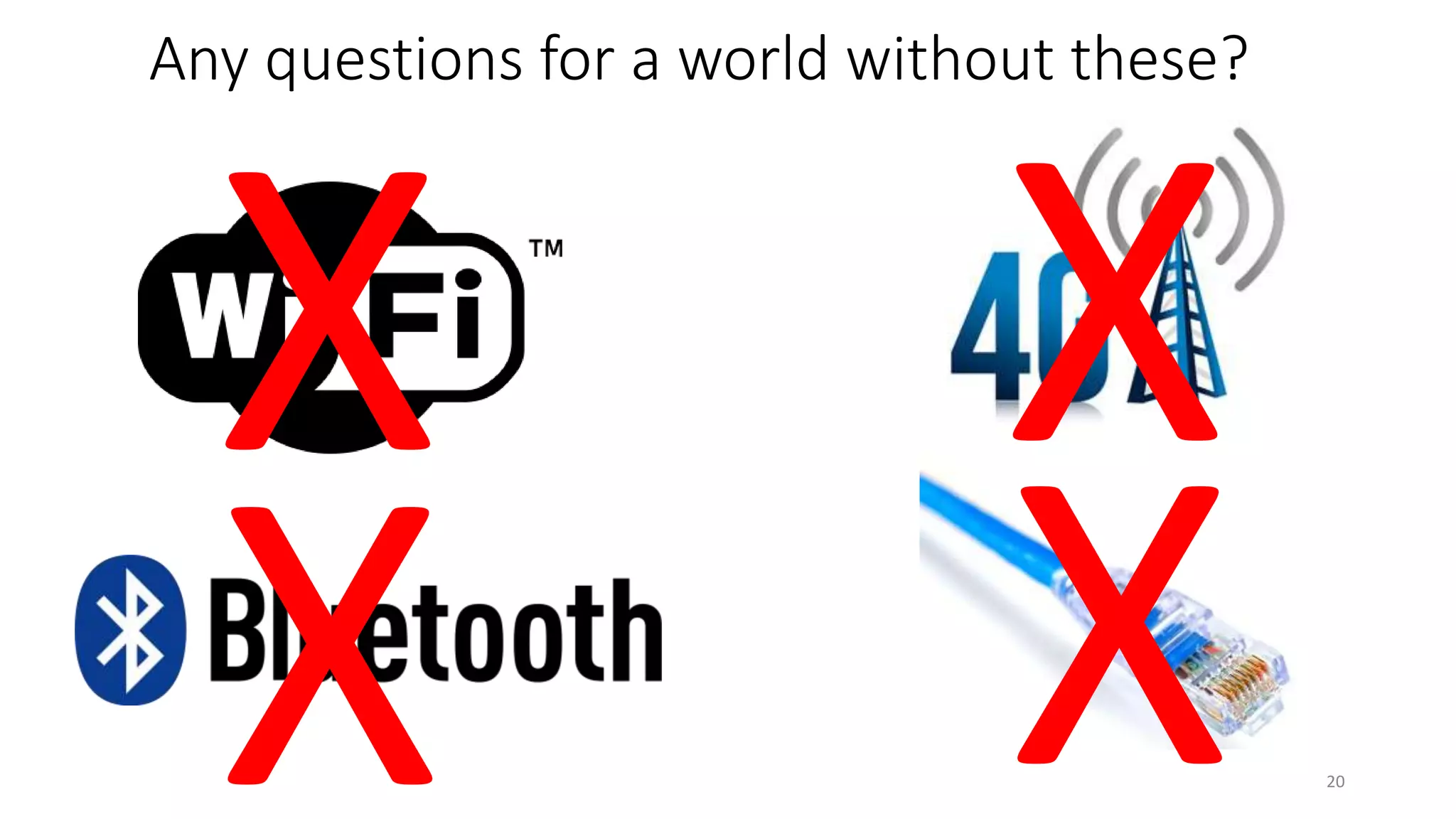

20. Any questions for a world without these?
20
