Session ID: SFO17-421 Session Name: The Linux Kernel Scheduler (For Beginners) - SFO17-421 Speaker: Viresh Kumar Track: Power Management ★ Session Summary ★ This talk will take you through the internals of the Linux Kernel scheduler. --------------------------------------------------- ★ Resources ★ Event Page: http://connect.linaro.org/resource/sfo17/sfo17-421/ Presentation: Video: https://www.youtube.com/watch?v=q283Wm__QQ0 --------------------------------------------------- ★ Event Details ★ Linaro Connect San Francisco 2017 (SFO17) 25-29 September 2017 Hyatt Regency San Francisco Airport --------------------------------------------------- Keyword: 'http://www.linaro.org' 'http://connect.linaro.org' --------------------------------------------------- Follow us on Social Media https://www.facebook.com/LinaroOrg https://twitter.com/linaroorg https://www.youtube.com/user/linaroorg?sub_confirmation=1 https://www.linkedin.com/company/1026961

1. SFO17- 421 The Linux Kernel
Scheduler
Viresh Kumar (PMWG)

2. ENGINEERS AND DEVICES
WORKING TOGETHER

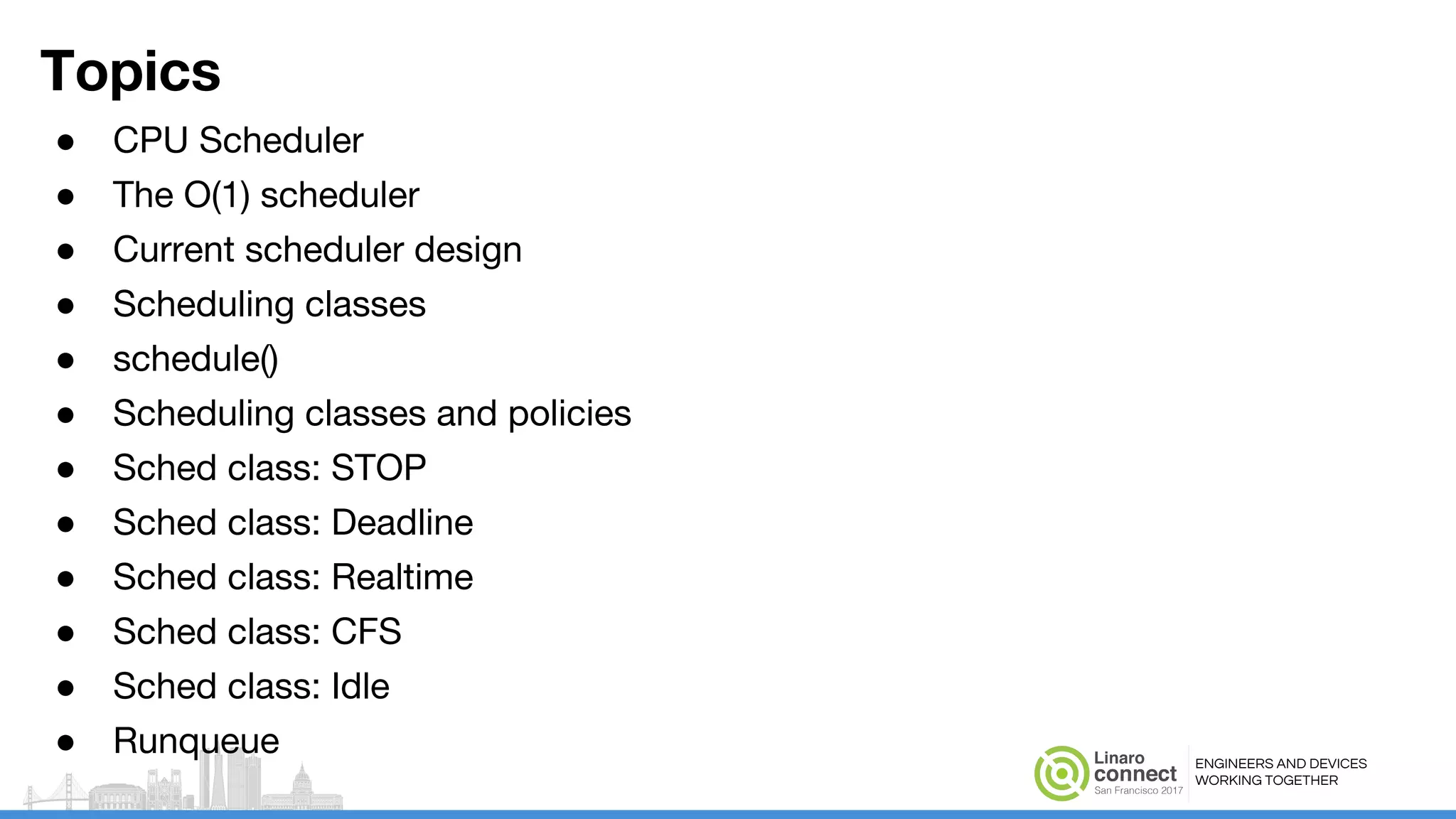

Topics
● CPU Scheduler
● The O(1) scheduler
● Current scheduler design
● Scheduling classes
● schedule()
● Scheduling classes and policies
● Sched class: STOP
● Sched class: Deadline
● Sched class: Realtime
● Sched class: CFS
● Sched class: Idle
● Runqueue

3. ENGINEERS AND DEVICES
WORKING TOGETHER
CPU Scheduler
● Shares CPU between tasks.
● Selects next task to run (on each CPU) when:
○ Running task terminates
○ Running task sleeps (waiting for an event)
○ A new task created or sleeping task wakes up
○ Running task’s timeslice is over
● Goals:
○ Be *fair*
○ Timeslice based on task priority
○ Low task response time
○ High (task completion) throughput
○ Balance load among CPUs
○ Power efficient
○ Low overhead of running scheduler’s code
● Work with mainframes, servers, desktops/laptops, embedded/phones.

4. ENGINEERS AND DEVICES
WORKING TOGETHER
The O(1) scheduler
● 140 priorities. 0-99: RT tasks and 100-139: User tasks.
● Each CPU’s runqueue had 2 arrays: Active and Expired.
● Each arrays had 140 entries, one per priority level.
● Each entry was a linked list serviced in FIFO order.
● Bitmap (of 140 bits) used to find which priority lists aren’t empty.
● Timeslices were assigned to tasks based on these priorities.
● Expired tasks moved from Active to Passive array.
● Once Active array was empty, the arrays were swapped.
● Enqueue and dequeue of tasks and next task selection done in constant time.
● Replaced by CFS in Linux 2.6.23 (2007).

5. ENGINEERS AND DEVICES
WORKING TOGETHER
The O(1) scheduler (Cont..)
Priority 0
Priority 1
Priority 139
...
Priority 99
...
CPU Active array
Priority 0
Priority 1
Priority 139
...
Priority 99
...
CPU Expired array
Real Time task priorities
User task priorities

6. ENGINEERS AND DEVICES
WORKING TOGETHER

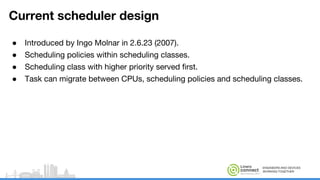

Current scheduler design
● Introduced by Ingo Molnar in 2.6.23 (2007).
● Scheduling policies within scheduling classes.
● Scheduling class with higher priority served first.
● Task can migrate between CPUs, scheduling policies and scheduling classes.

7. ENGINEERS AND DEVICES
WORKING TOGETHER
Scheduling Classes
● Represented by following structure:
struct sched_class {
const struct sched_class *next;
void (*enqueue_task) (struct rq *rq, struct task_struct *p, int flags);
void (*dequeue_task) (struct rq *rq, struct task_struct *p, int flags);
struct task_struct * (*pick_next_task) (struct rq *rq, struct task_struct *prev, struct rq_flags *rf);
…
};
STOP
next
DL RT CFS IDLE
nullnext next next next

8. ENGINEERS AND DEVICES
WORKING TOGETHER
Schedule()
● Picks the next runnable task to run on a CPU.
● Searches for a task starting from the highest priority class (stop).
● Helper: for_each_class().
● pick_next_task():
again:
for_each_class(class) {
p = class->pick_next_task(rq, prev, rf);
if (p) {
if (unlikely(p == RETRY_TASK))
goto again;
return p;
}
}
/* The idle class should always have a runnable task: */
BUG();

9. ENGINEERS AND DEVICES
WORKING TOGETHER

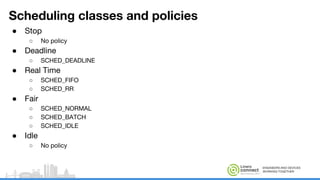

Scheduling classes and policies
● Stop
○ No policy
● Deadline
○ SCHED_DEADLINE
● Real Time
○ SCHED_FIFO
○ SCHED_RR
● Fair
○ SCHED_NORMAL
○ SCHED_BATCH
○ SCHED_IDLE
● Idle
○ No policy

10. ENGINEERS AND DEVICES
WORKING TOGETHER

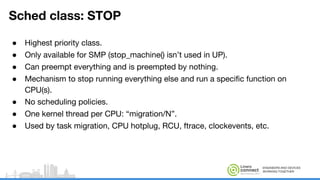

Sched class: STOP
● Highest priority class.
● Only available for SMP (stop_machine() isn’t used in UP).
● Can preempt everything and is preempted by nothing.
● Mechanism to stop running everything else and run a specific function on
CPU(s).
● No scheduling policies.
● One kernel thread per CPU: “migration/N”.
● Used by task migration, CPU hotplug, RCU, ftrace, clockevents, etc.

11. ENGINEERS AND DEVICES
WORKING TOGETHER

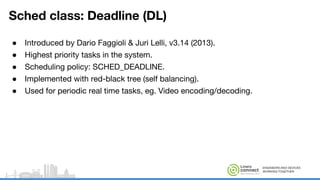

Sched class: Deadline (DL)
● Introduced by Dario Faggioli & Juri Lelli, v3.14 (2013).
● Highest priority tasks in the system.
● Scheduling policy: SCHED_DEADLINE.
● Implemented with red-black tree (self balancing).
● Used for periodic real time tasks, eg. Video encoding/decoding.

12. ENGINEERS AND DEVICES
WORKING TOGETHER
Sched class: Realtime (RT)
● POSIX “real-time” tasks.
● Task priorities: 0 - 99.
● Inverted priorities: 0 highest in kernel, lowest in user space.
● Scheduling policies for tasks at same priority:
○ SCHED_FIFO
○ SCHED_RR, 100ms timeslice by default.
● Implemented with Linked lists.
● Used for short latency sensitive tasks, eg. IRQ threads.

13. ENGINEERS AND DEVICES
WORKING TOGETHER
Sched class: CFS (Completely fair scheduler)
● Introduced by Ingo Molnar (motivated by Rotating Staircase Deadline
Scheduler by Con Kolivas).
● Scheduling policies:
○ SCHED_NORMAL: Normal Unix tasks
○ SCHED_BATCH: Batch (non-interactive) tasks
○ SCHED_IDLE: Low priority tasks
● Implemented with red-black tree (self balancing).
● Tracks Virtual runtime of tasks (amount of time task has run).
● Tasks with shortest vruntime runs first.
● Priority is used to set task’s weight, that affects vruntime.
● Higher the weight, slower will vruntime increase.
● Task’s priority is calculated by 120 + nice (-20 to +19).
● Used for all other system tasks, eg: shell.

14. ENGINEERS AND DEVICES
WORKING TOGETHER

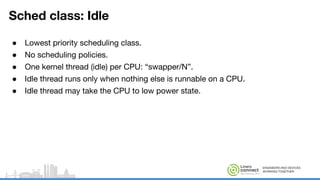

Sched class: Idle
● Lowest priority scheduling class.
● No scheduling policies.
● One kernel thread (idle) per CPU: “swapper/N”.
● Idle thread runs only when nothing else is runnable on a CPU.
● Idle thread may take the CPU to low power state.

15. ENGINEERS AND DEVICES
WORKING TOGETHER

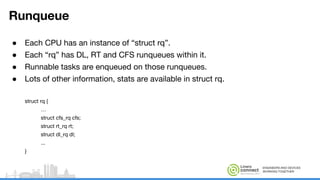

Runqueue
● Each CPU has an instance of “struct rq”.
● Each “rq” has DL, RT and CFS runqueues within it.
● Runnable tasks are enqueued on those runqueues.
● Lots of other information, stats are available in struct rq.
struct rq {
…
struct cfs_rq cfs;
struct rt_rq rt;
struct dl_rq dl;
...
}

16. ENGINEERS AND DEVICES
WORKING TOGETHER

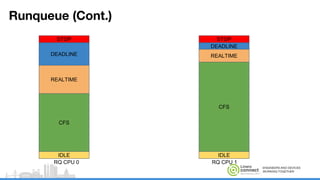

Runqueue (Cont.)
STOP
CFS
IDLE
DEADLINE
REALTIME
RQ CPU 0
STOP
CFS
IDLE
DEADLINE
REALTIME
RQ CPU 1

17. Thank You
