1. rapidgen.com
Decision Tables as a
Programming tool
Howard Rogers
Director Technical Support
howard.rogers@rapidgen.com

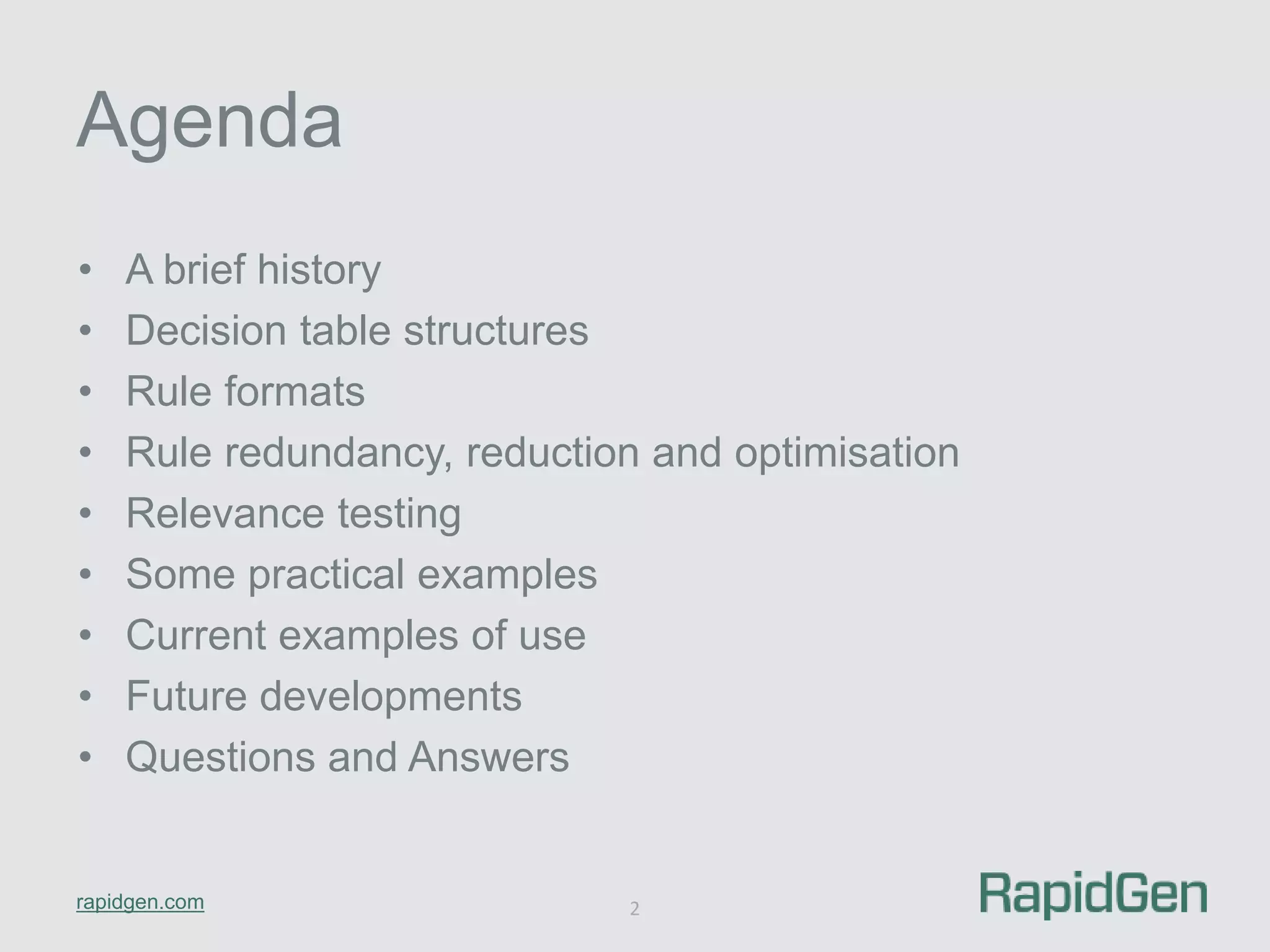

2. Agenda
• A brief history
• Decision table structures
• Rule formats
• Rule redundancy, reduction and optimisation
• Relevance testing
• Some practical examples
• Current examples of use
• Future developments
• Questions and Answers
rapidgen.com
2

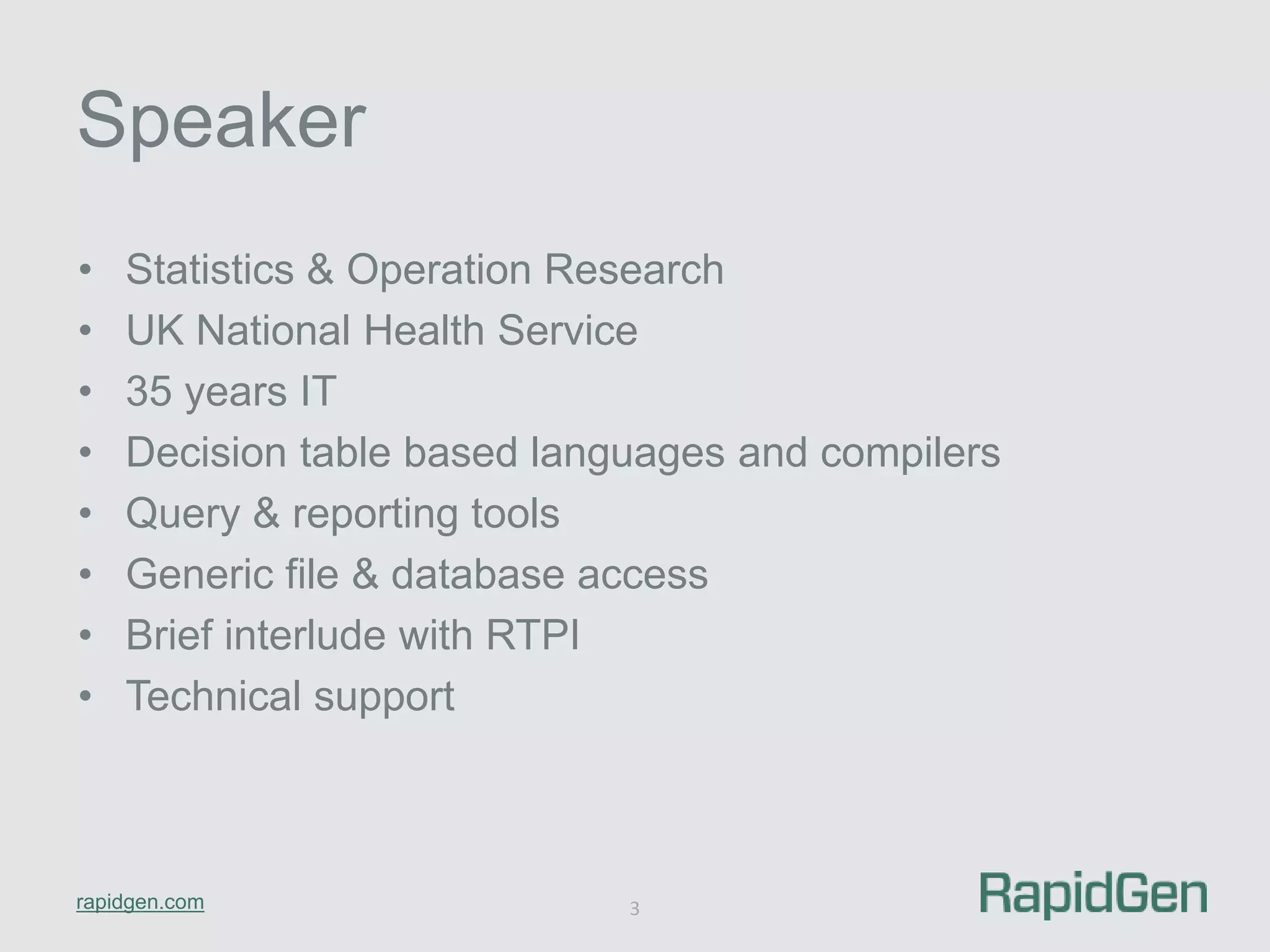

3. Speaker
• Statistics & Operation Research
• UK National Health Service
• 35 years IT
• Decision table based languages and compilers
• Query & reporting tools
• Generic file & database access
• Brief interlude with RTPI
• Technical support
rapidgen.com
3

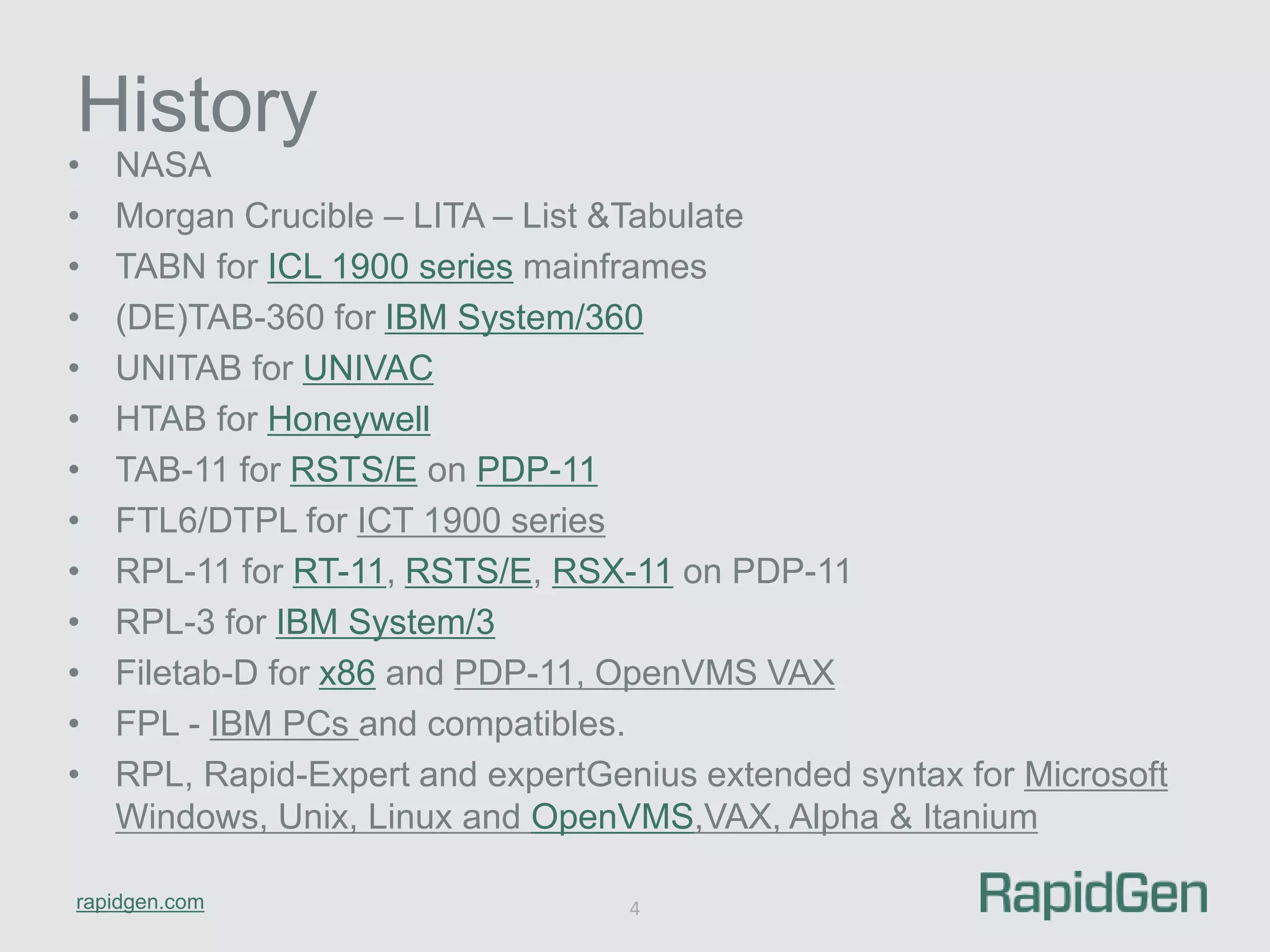

4. History
• NASA
• Morgan Crucible – LITA – List &Tabulate
• TABN for ICL 1900 series mainframes
• (DE)TAB-360 for IBM System/360
• UNITAB for UNIVAC
• HTAB for Honeywell
• TAB-11 for RSTS/E on PDP-11
• FTL6/DTPL for ICT 1900 series
• RPL-11 for RT-11, RSTS/E, RSX-11 on PDP-11
• RPL-3 for IBM System/3
• Filetab-D for x86 and PDP-11, OpenVMS VAX
• FPL - IBM PCs and compatibles.
• RPL, Rapid-Expert and expertGenius extended syntax for Microsoft
Windows, Unix, Linux and OpenVMS,VAX, Alpha & Itanium
rapidgen.com
4

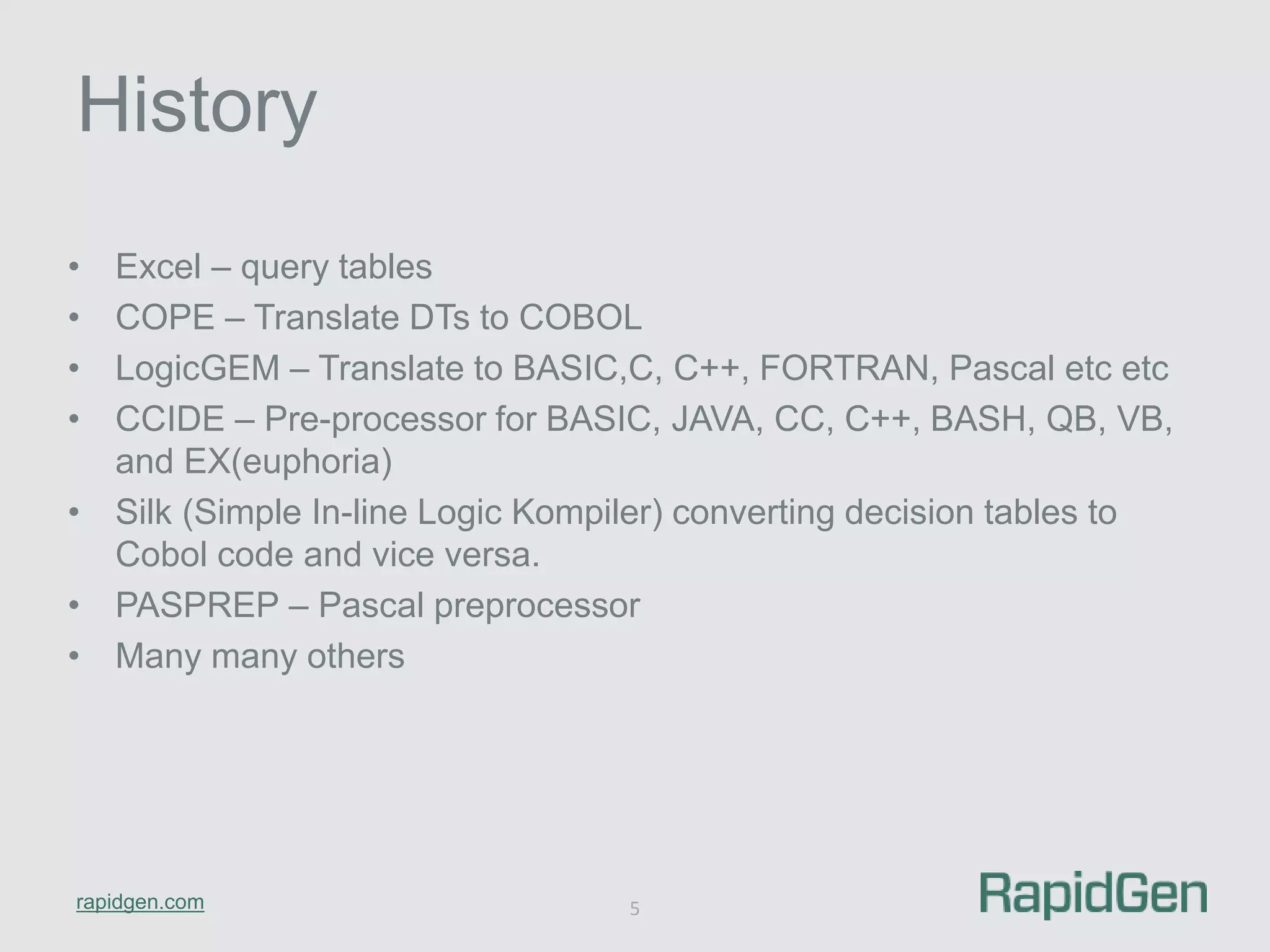

5. History
• Excel – query tables
• COPE – Translate DTs to COBOL
• LogicGEM – Translate to BASIC,C, C++, FORTRAN, Pascal etc etc
• CCIDE – Pre-processor for BASIC, JAVA, CC, C++, BASH, QB, VB,
and EX(euphoria)
• Silk (Simple In-line Logic Kompiler) converting decision tables to
Cobol code and vice versa.
• PASPREP – Pascal preprocessor
• Many many others
rapidgen.com
5

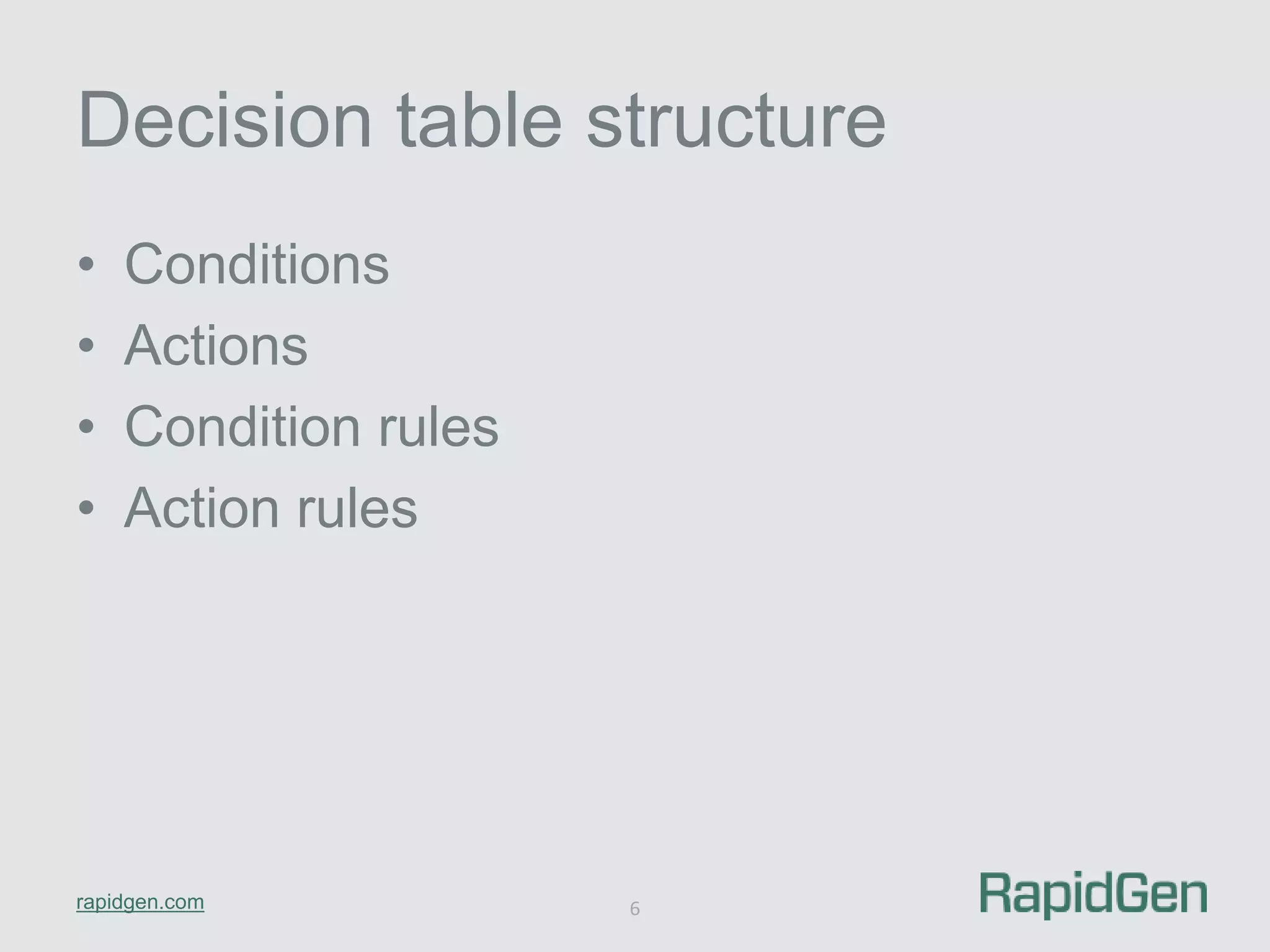

6. Decision table structure
• Conditions
• Actions
• Condition rules
• Action rules
rapidgen.com
6

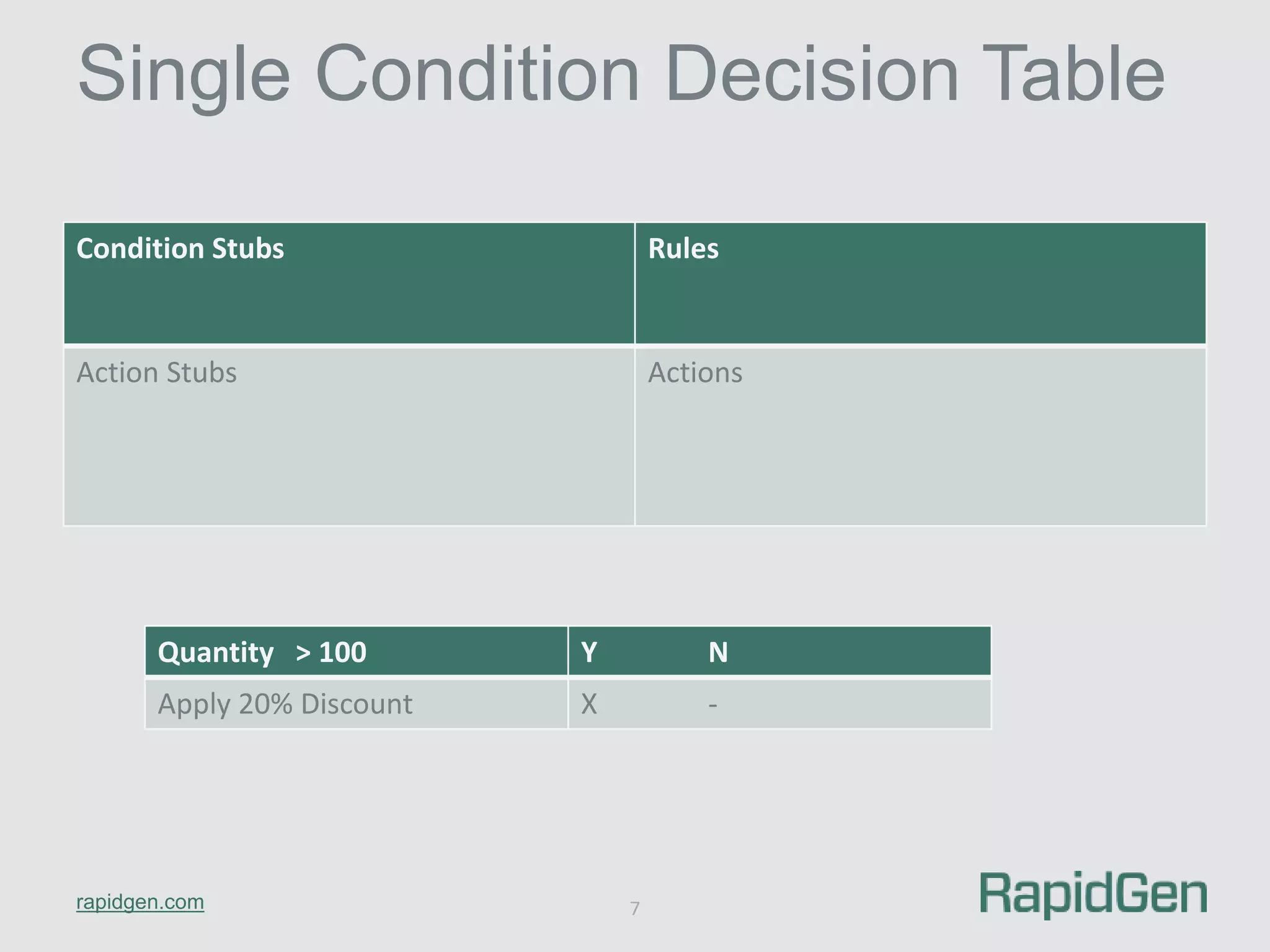

7. Single Condition Decision Table
Condition Stubs Rules
Action Stubs Actions
Quantity > 100 Y N
Apply 20% Discount X -
rapidgen.com
7

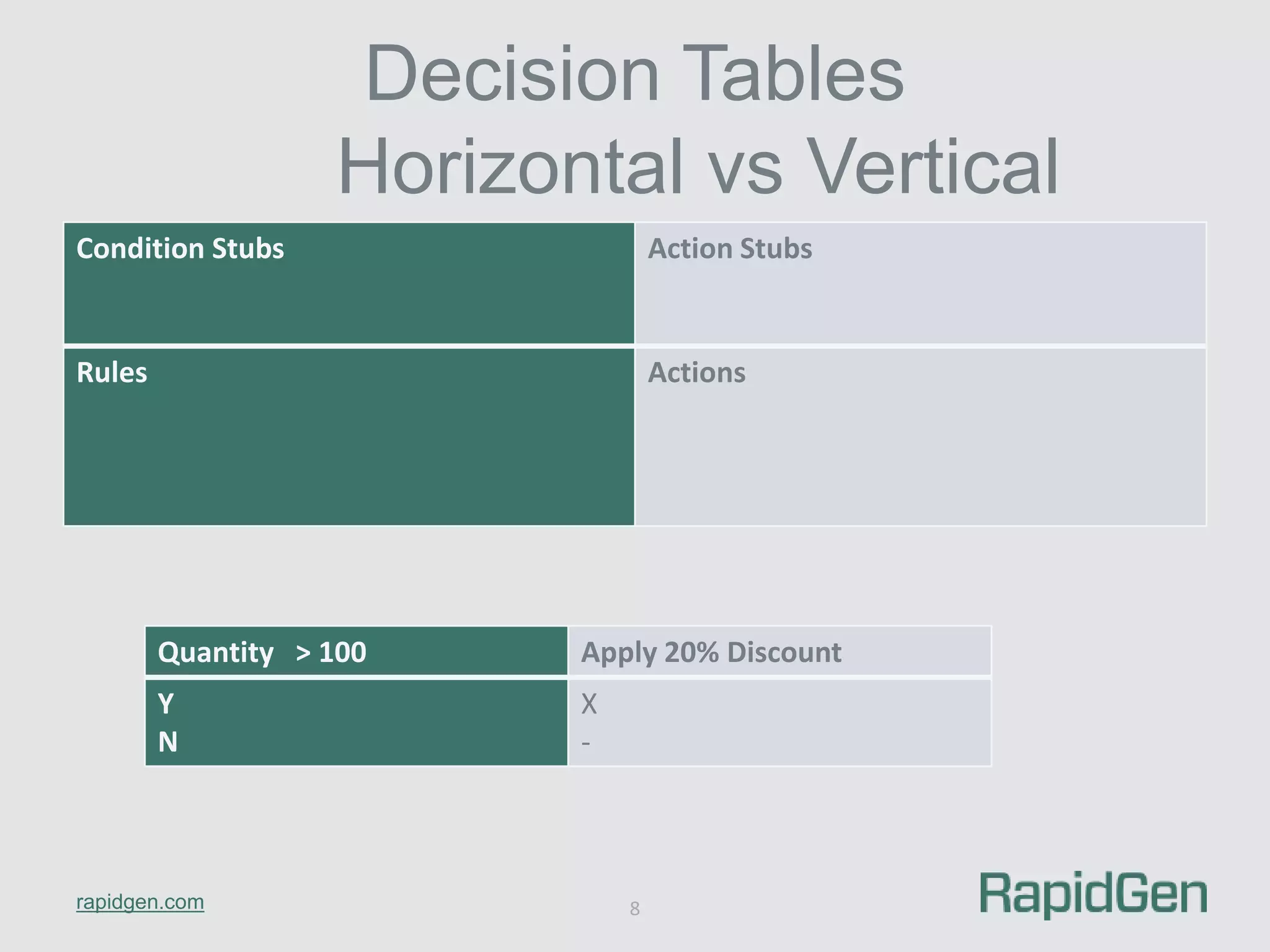

8. Quantity > 100 Apply 20% Discount
Y
N
rapidgen.com
Decision Tables
Horizontal vs Vertical
Condition Stubs Action Stubs
Rules Actions
8
X
-

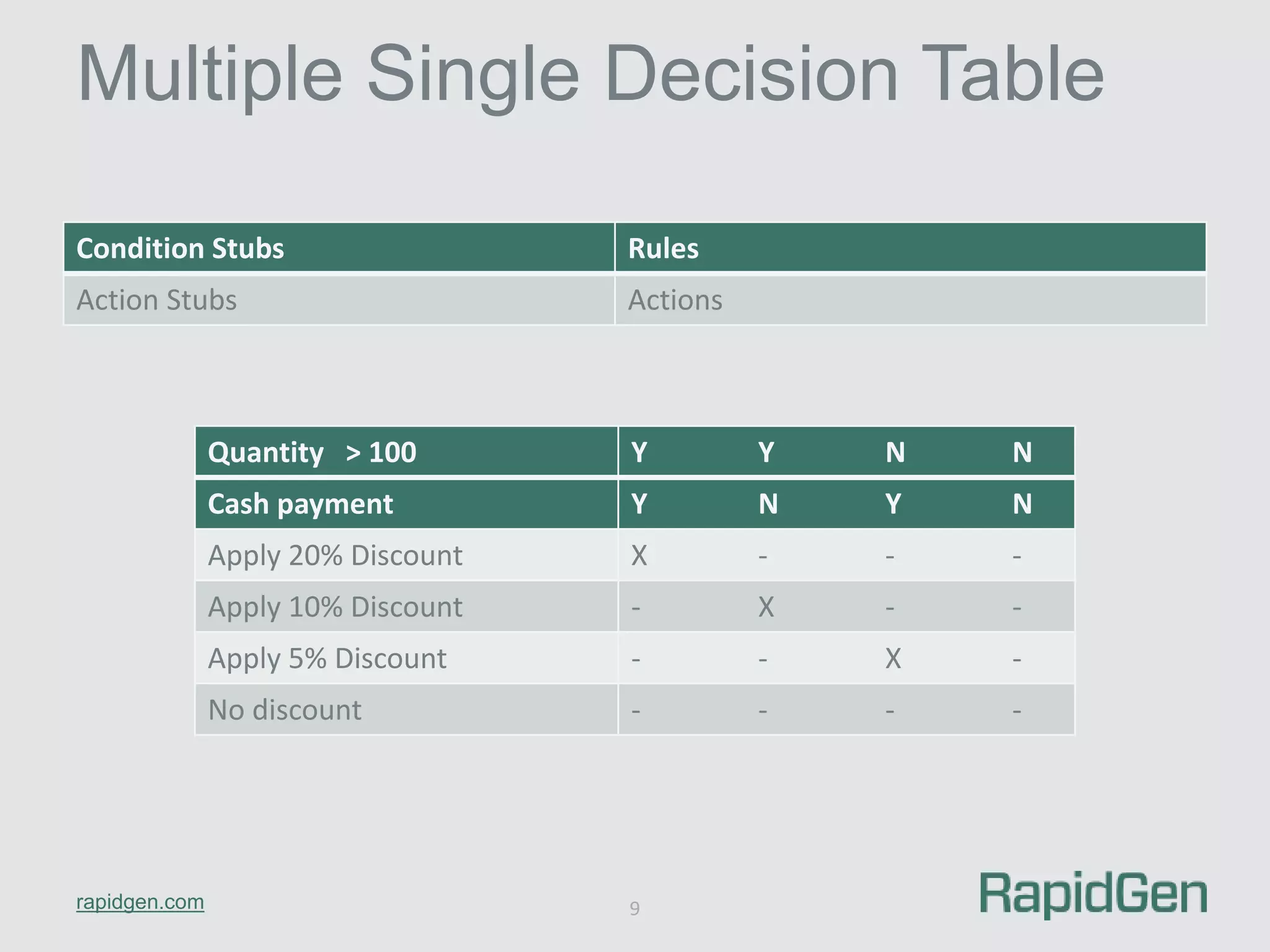

9. Multiple Single Decision Table
Condition Stubs Rules
Action Stubs Actions
rapidgen.com
Quantity > 100 Y Y N N
Cash payment Y N Y N
Apply 20% Discount X - - -
Apply 10% Discount - X - -
Apply 5% Discount - - X -
No discount - - - -
9

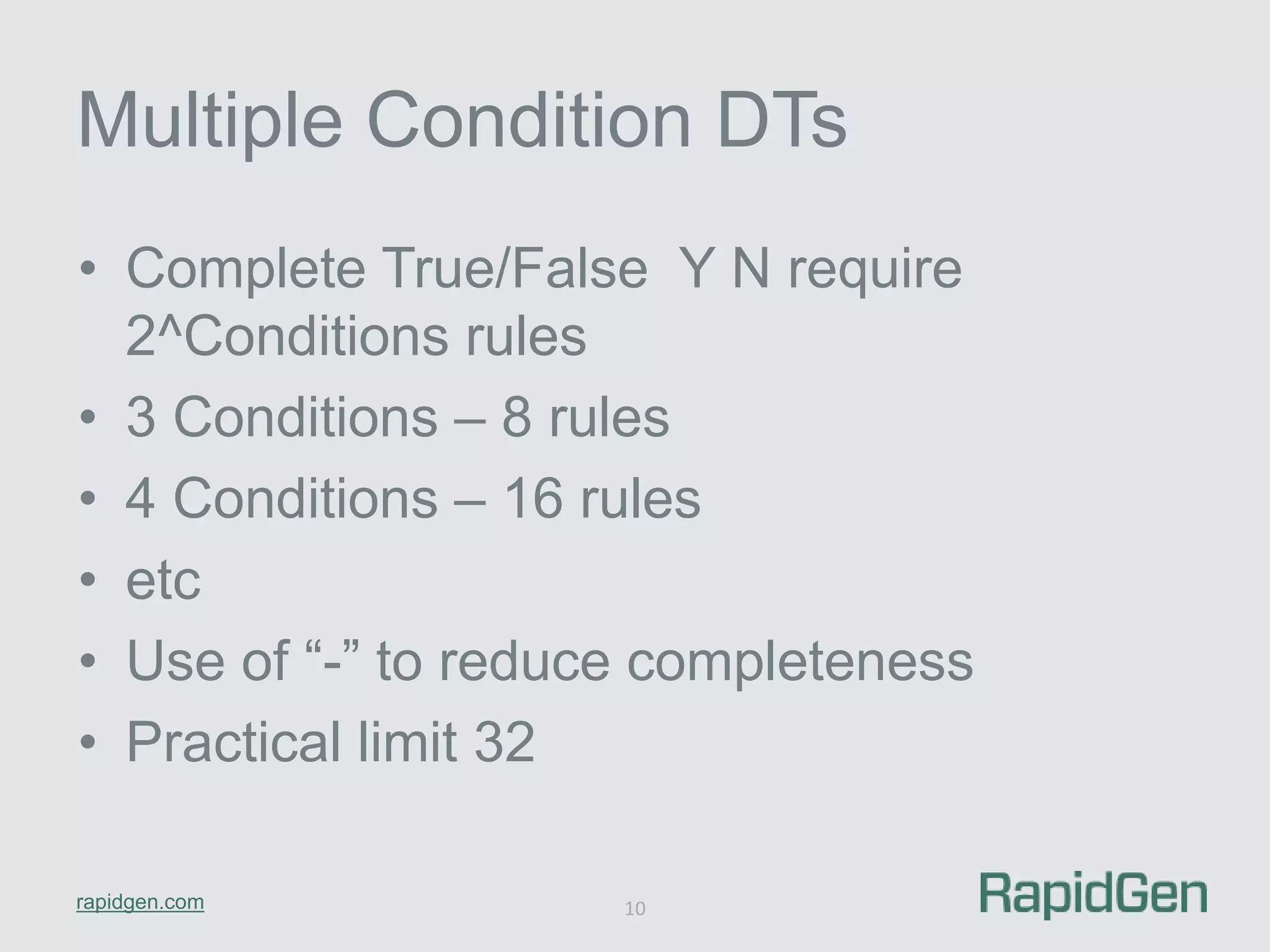

10. Multiple Condition DTs
• Complete True/False Y N require
2^Conditions rules
• 3 Conditions – 8 rules
• 4 Conditions – 16 rules
• etc
• Use of “-” to reduce completeness
• Practical limit 32
rapidgen.com
10

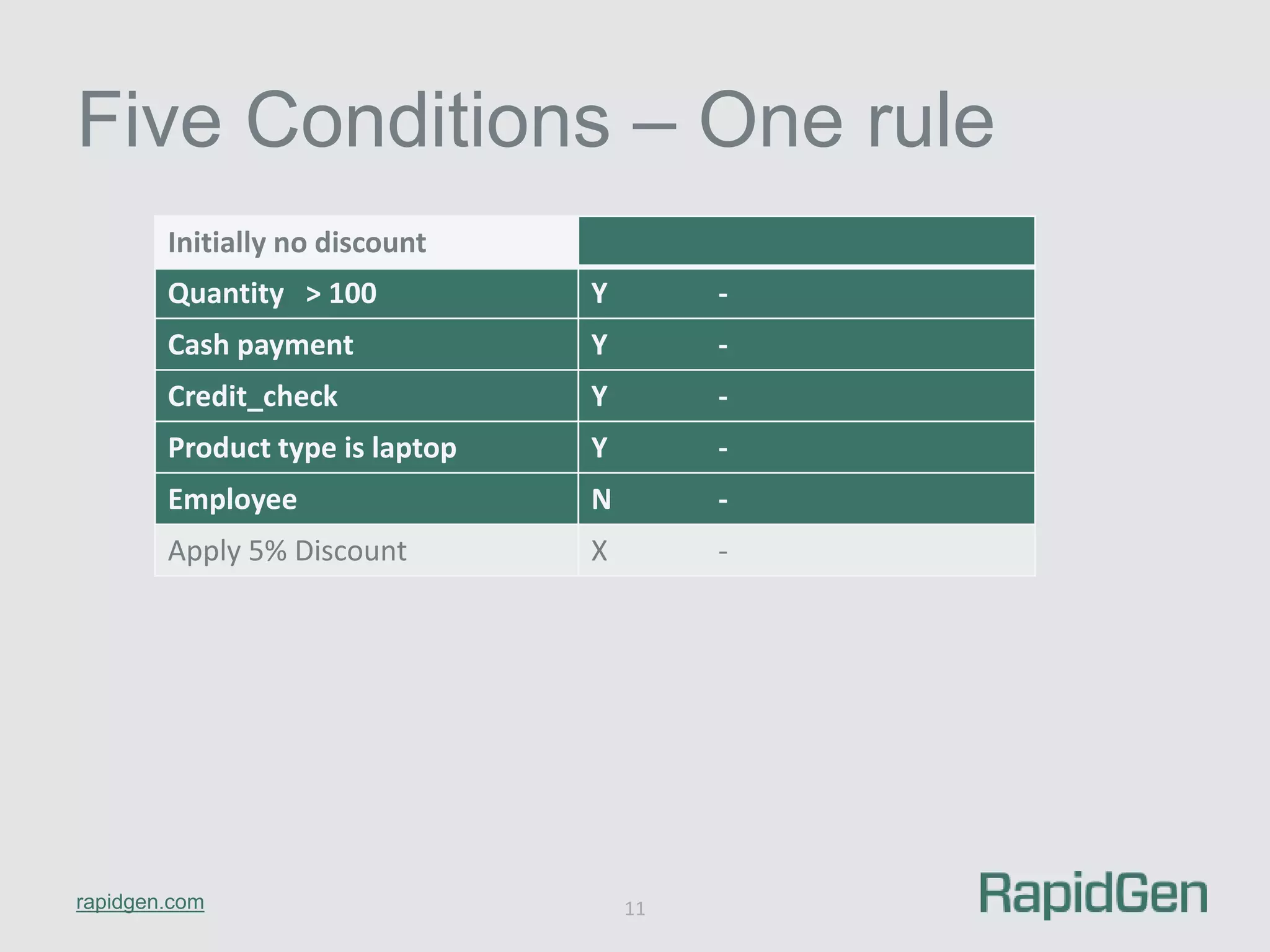

11. Five Conditions – One rule
Initially no discount
Quantity > 100 Y -
Cash payment Y -
Credit_check Y -
Product type is laptop Y -
Employee N -
Apply 5% Discount X -
rapidgen.com
11

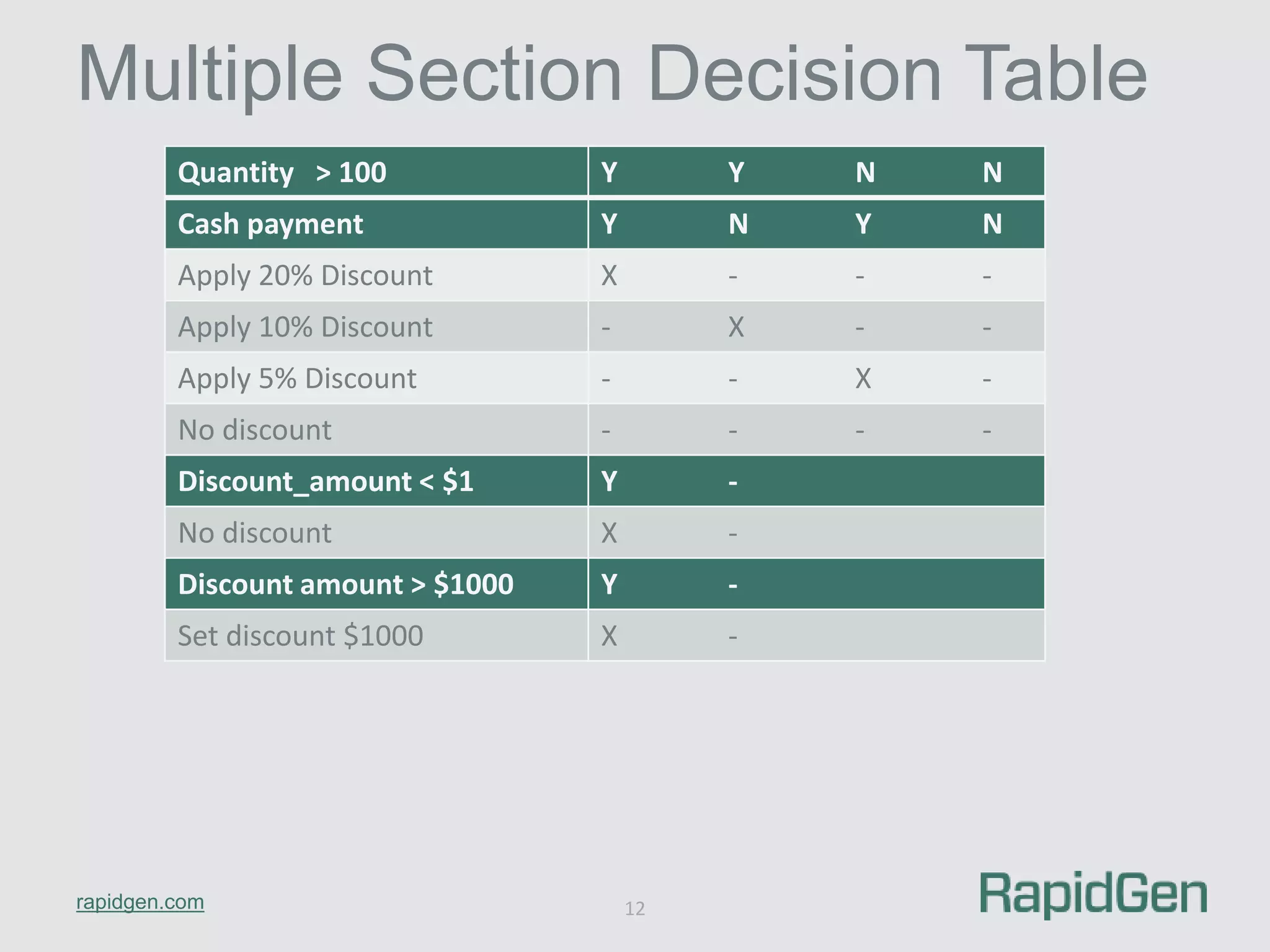

12. Multiple Section Decision Table
Quantity > 100 Y Y N N
Cash payment Y N Y N
Apply 20% Discount X - - -
Apply 10% Discount - X - -
Apply 5% Discount - - X -
No discount - - - -
Discount_amount < $1 Y -
No discount X -
Discount amount > $1000 Y -
Set discount $1000 X -
rapidgen.com
12

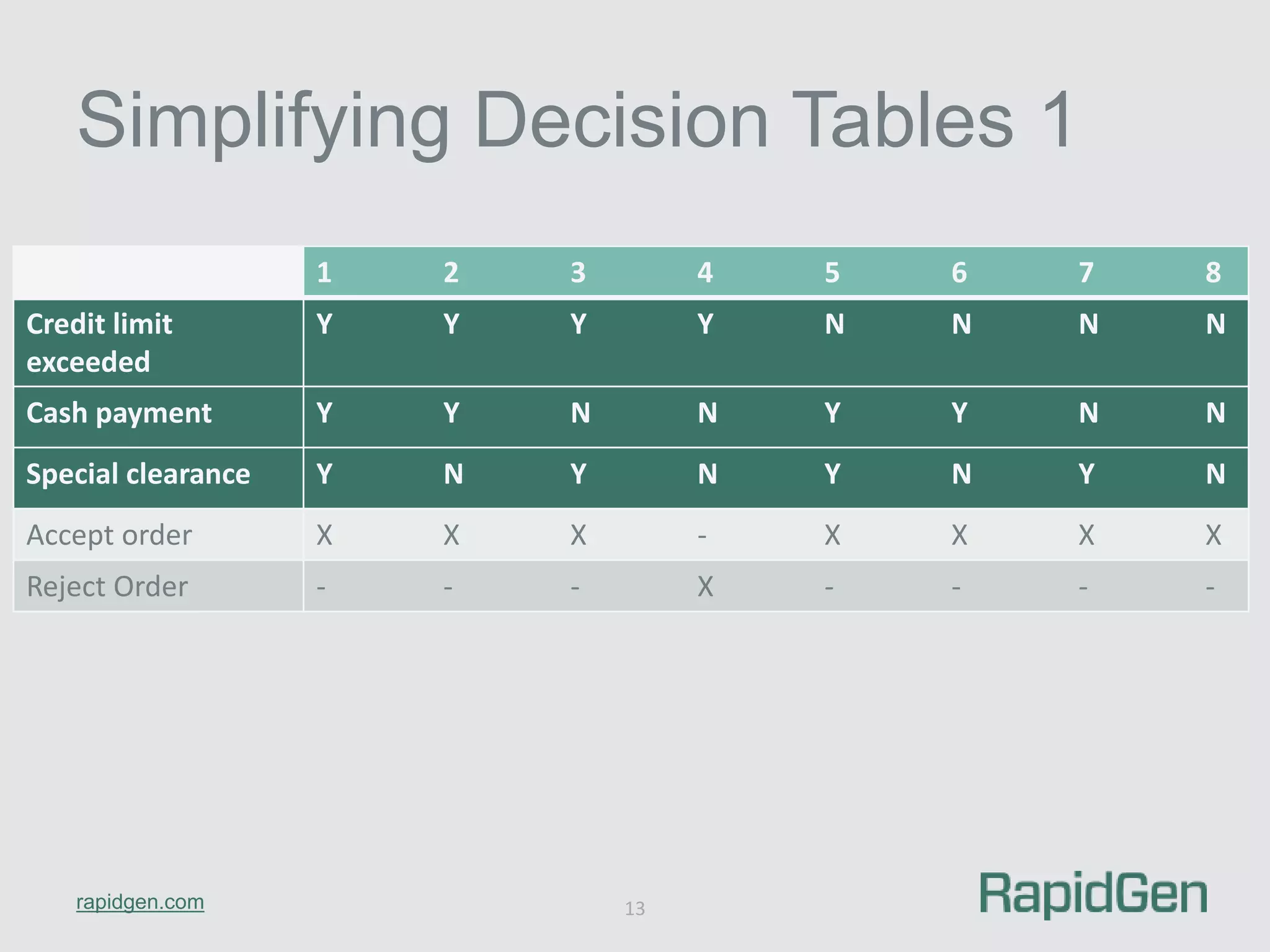

13. Simplifying Decision Tables 1
rapidgen.com
1 2 3 4 5 6 7 8
13
Credit limit
exceeded
Y Y Y Y N N N N
Cash payment Y Y N N Y Y N N
Special clearance Y N Y N Y N Y N
Accept order X X X - X X X X
Reject Order - - - X - - - -

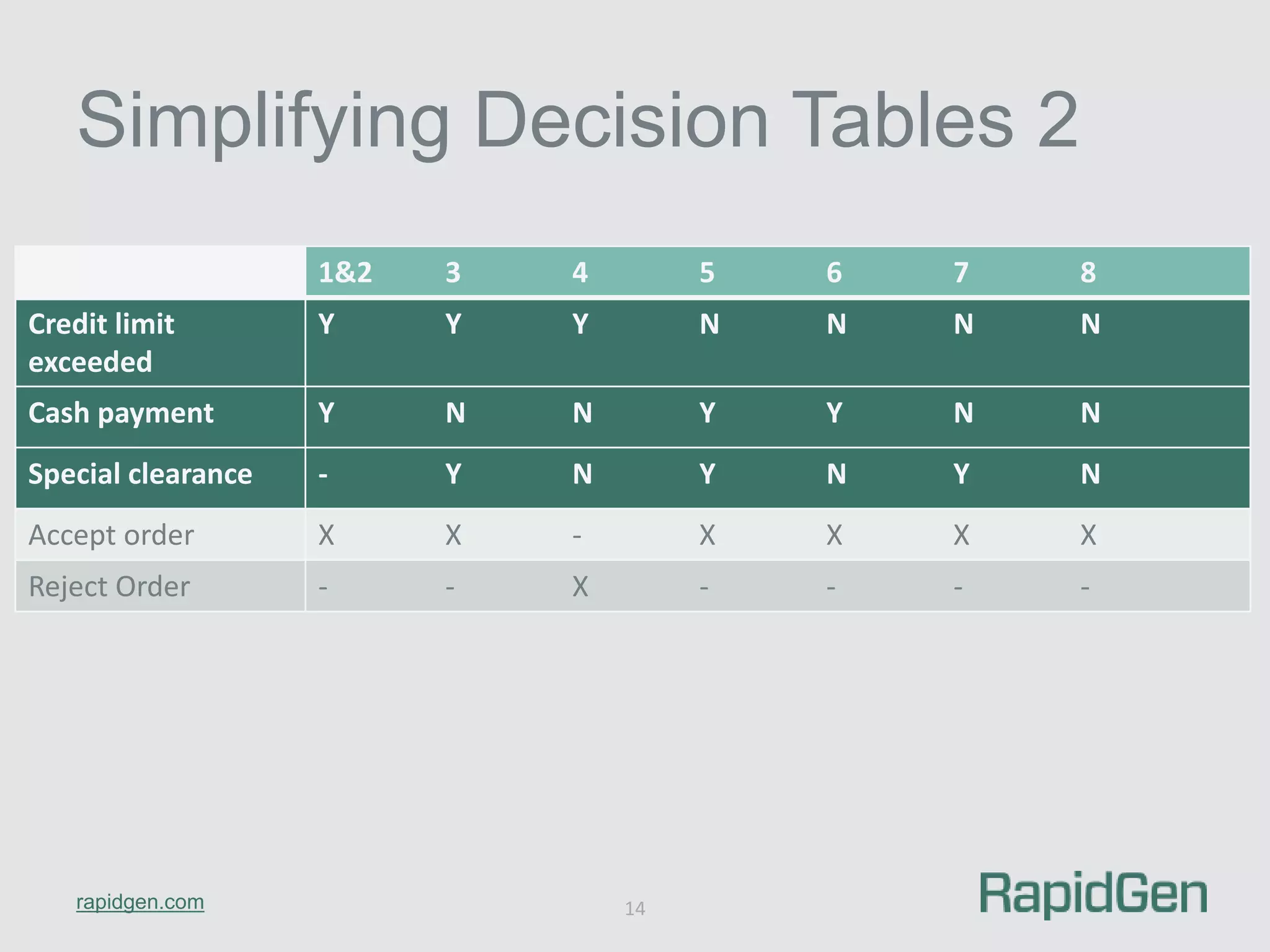

14. Simplifying Decision Tables 2
rapidgen.com
1&2 3 4 5 6 7 8
14
Credit limit
exceeded
Y Y Y N N N N
Cash payment Y N N Y Y N N
Special clearance - Y N Y N Y N
Accept order X X - X X X X
Reject Order - - X - - - -

15. Simplifying Decision Tables 3
rapidgen.com
1&2 3 4 5&6 7&8
15
Credit limit
exceeded
Y Y Y N N
Cash payment Y N N Y N
Special clearance - Y N - -
Accept order X X - X X
Reject Order - - X - -

16. Simplifying Decision Tables 4
rapidgen.com
1&2 3 4 567&8
16
Credit limit
exceeded
Y Y Y N
Cash payment Y N N -
Special clearance - Y N -
Accept order X X - X
Reject Order - - X -

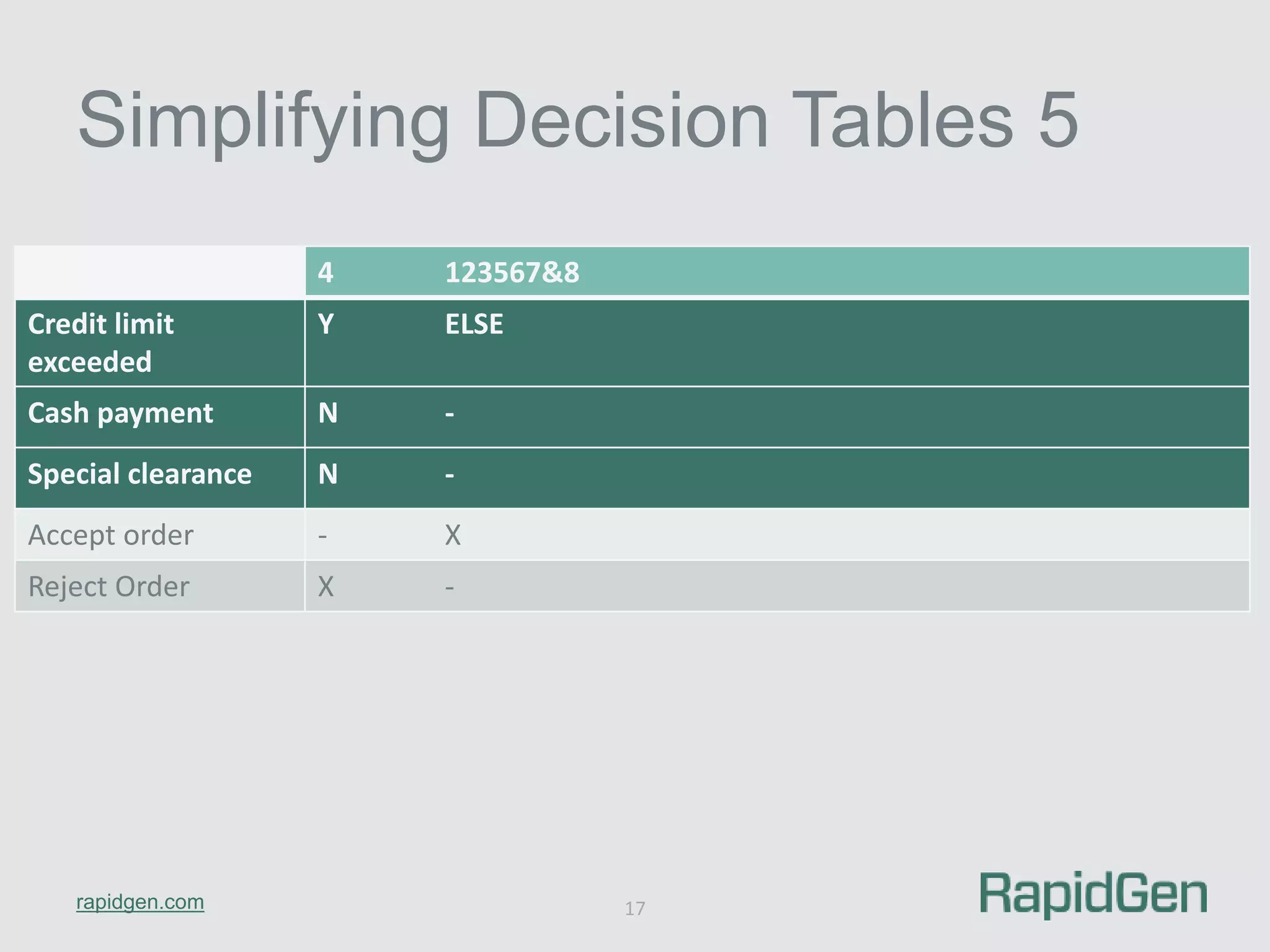

17. Simplifying Decision Tables 5
rapidgen.com
17
4 123567&8
Credit limit
exceeded
Y ELSE
Cash payment N -
Special clearance N -
Accept order - X
Reject Order X -

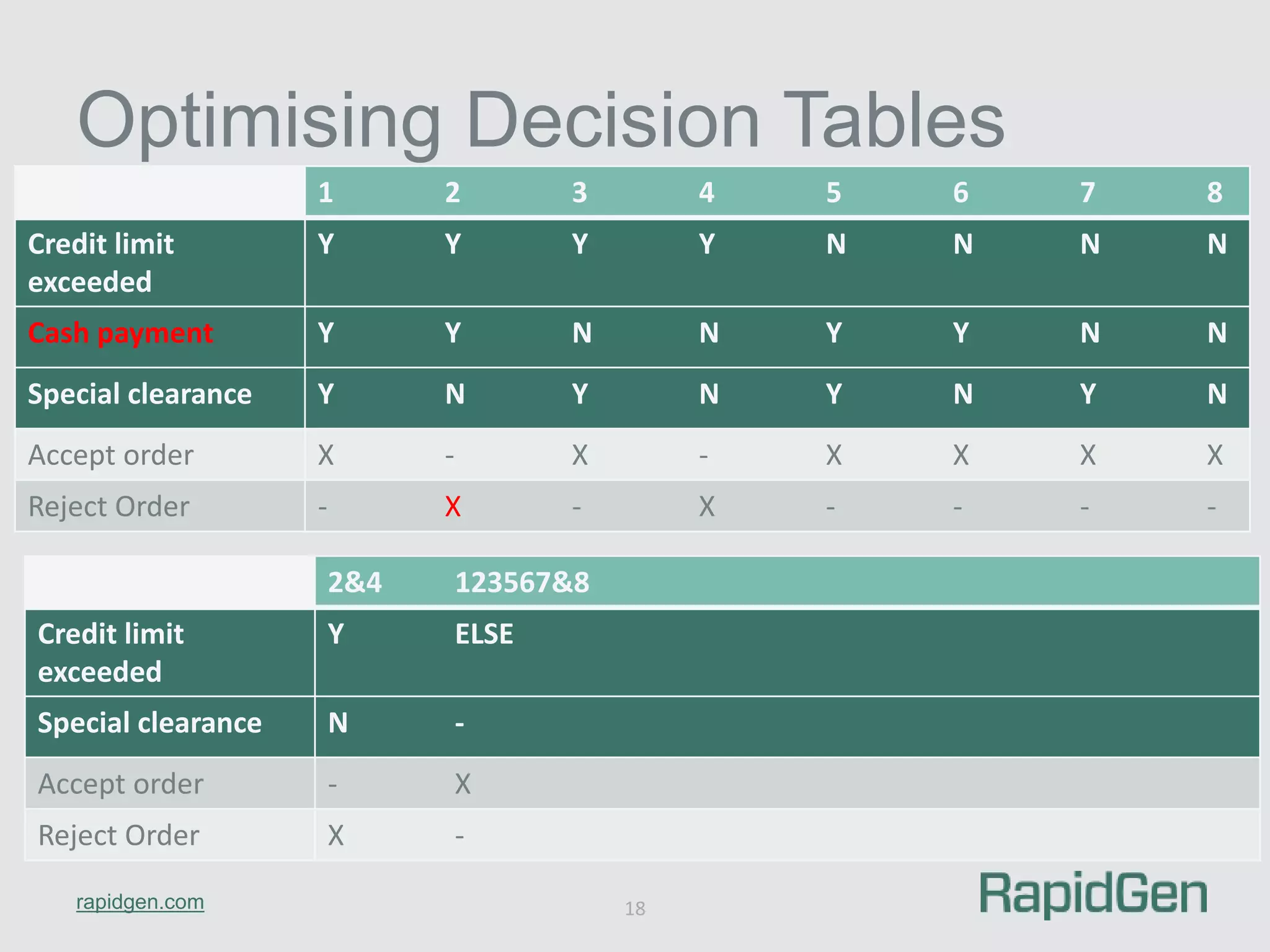

18. Optimising Decision Tables
rapidgen.com
1 2 3 4 5 6 7 8
18
Credit limit
exceeded
Y Y Y Y N N N N
Cash payment Y Y N N Y Y N N
Special clearance Y N Y N Y N Y N
Accept order X - X - X X X X
Reject Order - X - X - - - -
2&4 123567&8
Credit limit
exceeded
Y ELSE
Special clearance N -
Accept order - X
Reject Order X -

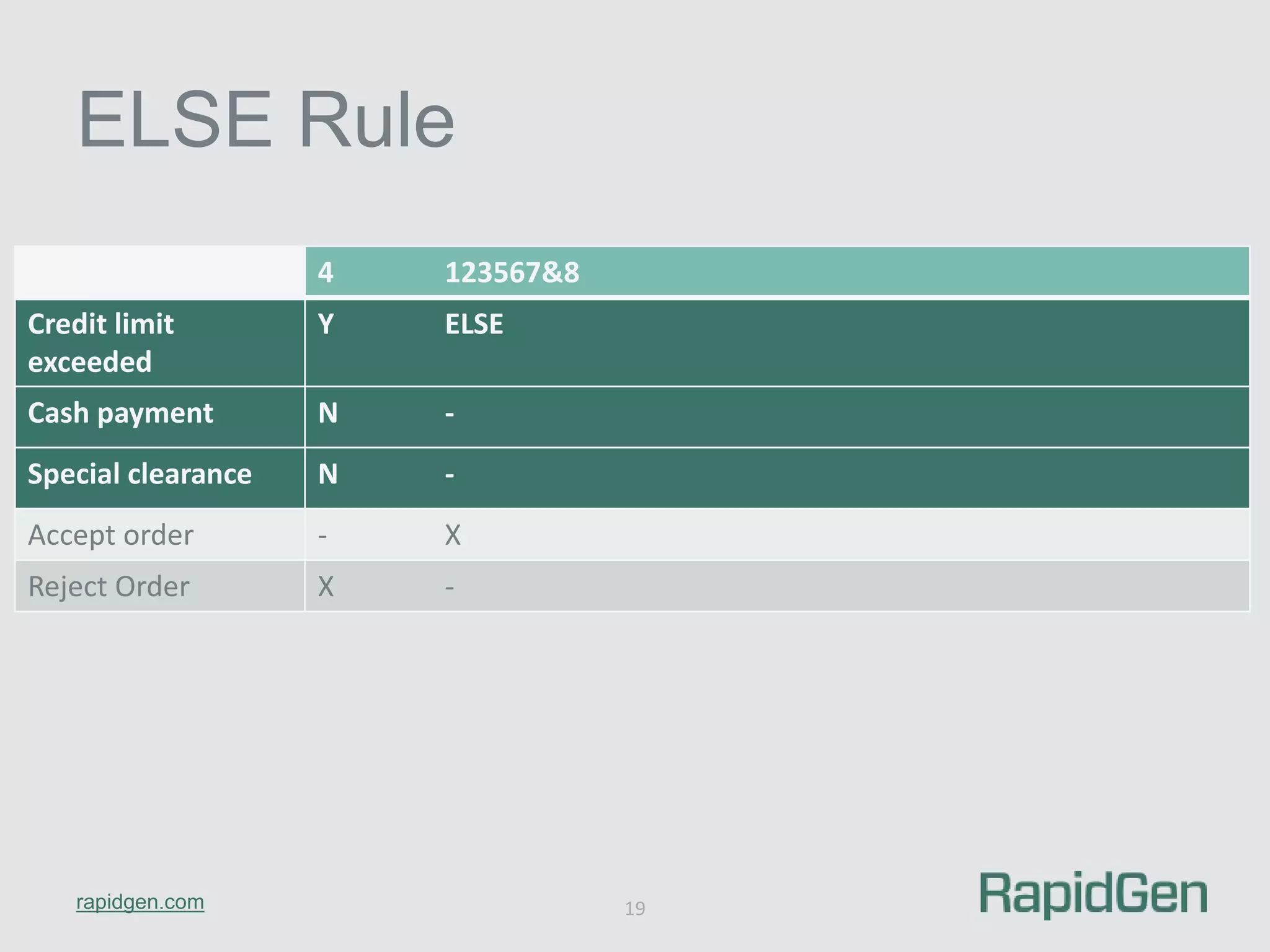

19. ELSE Rule
rapidgen.com
19
4 123567&8
Credit limit
exceeded
Y ELSE
Cash payment N -
Special clearance N -
Accept order - X
Reject Order X -

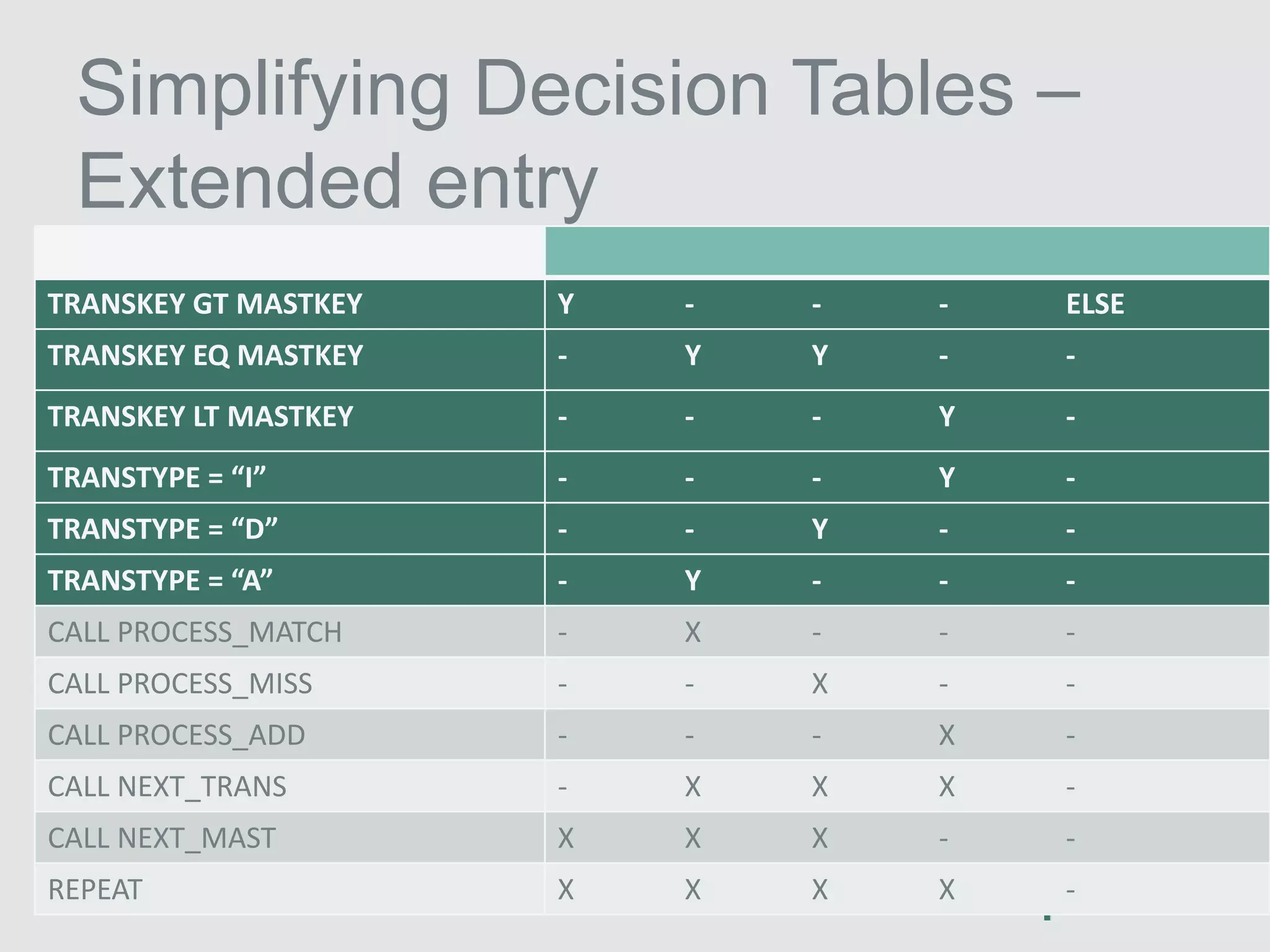

20. Simplifying Decision Tables –
Extended entry
TRANSKEY GT MASTKEY Y - - - ELSE
TRANSKEY EQ MASTKEY - Y Y - -
TRANSKEY LT MASTKEY - - - Y -
TRANSTYPE = “I” - - - Y -
TRANSTYPE = “D” - - Y - -
TRANSTYPE = “A” - Y - - -
CALL PROCESS_MATCH - X - - -
CALL PROCESS_MISS - - X - -
CALL PROCESS_ADD - - - X -
CALL NEXT_TRANS - X X X -
CALL NEXT_MAST X X X - -
REPEAT X X X X -
rapidgen.com
20

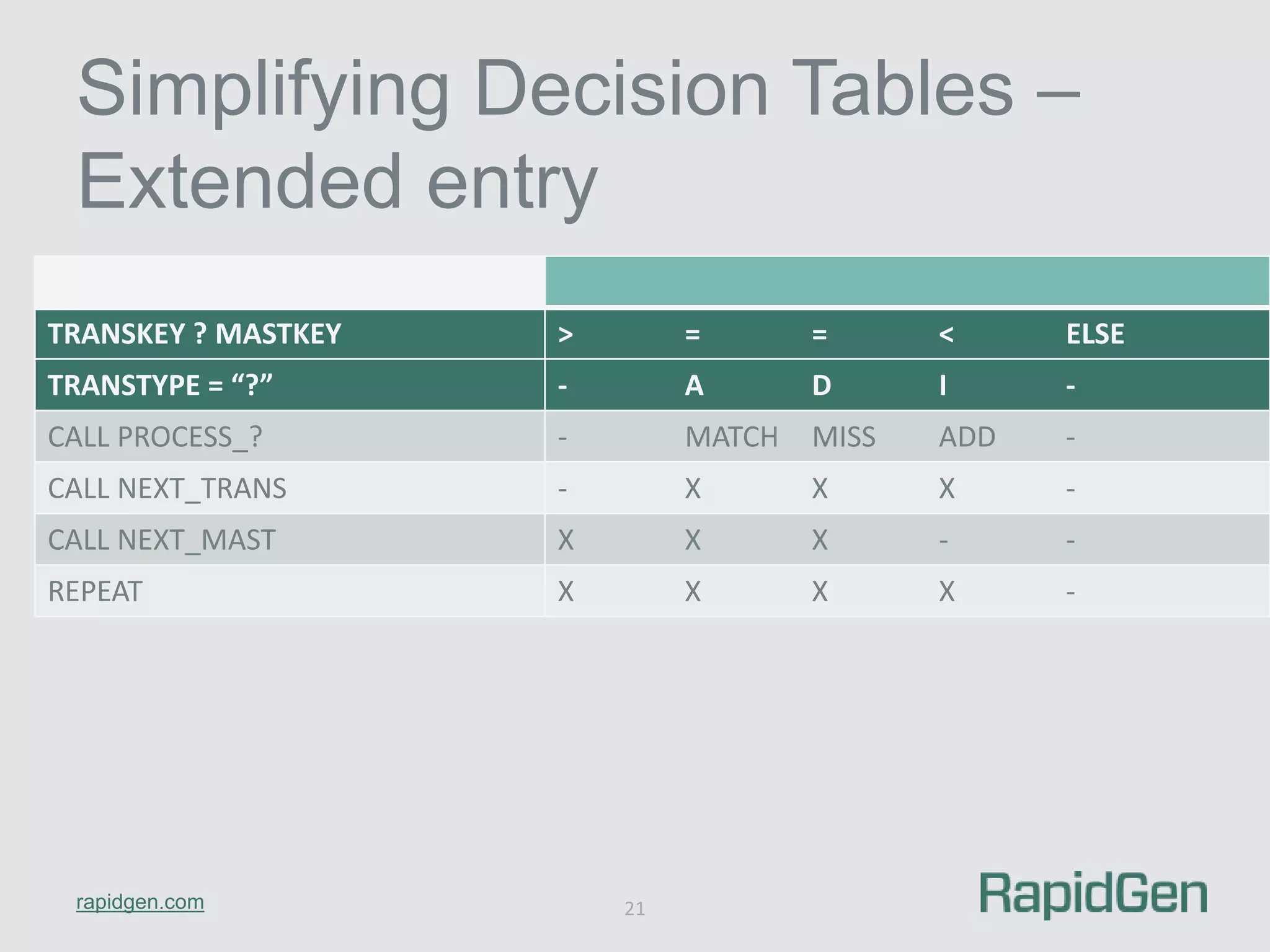

21. Simplifying Decision Tables –
Extended entry
TRANSKEY ? MASTKEY > = = < ELSE
TRANSTYPE = “?” - A D I -
CALL PROCESS_? - MATCH MISS ADD -
CALL NEXT_TRANS - X X X -
CALL NEXT_MAST X X X - -
REPEAT X X X X -
rapidgen.com
21

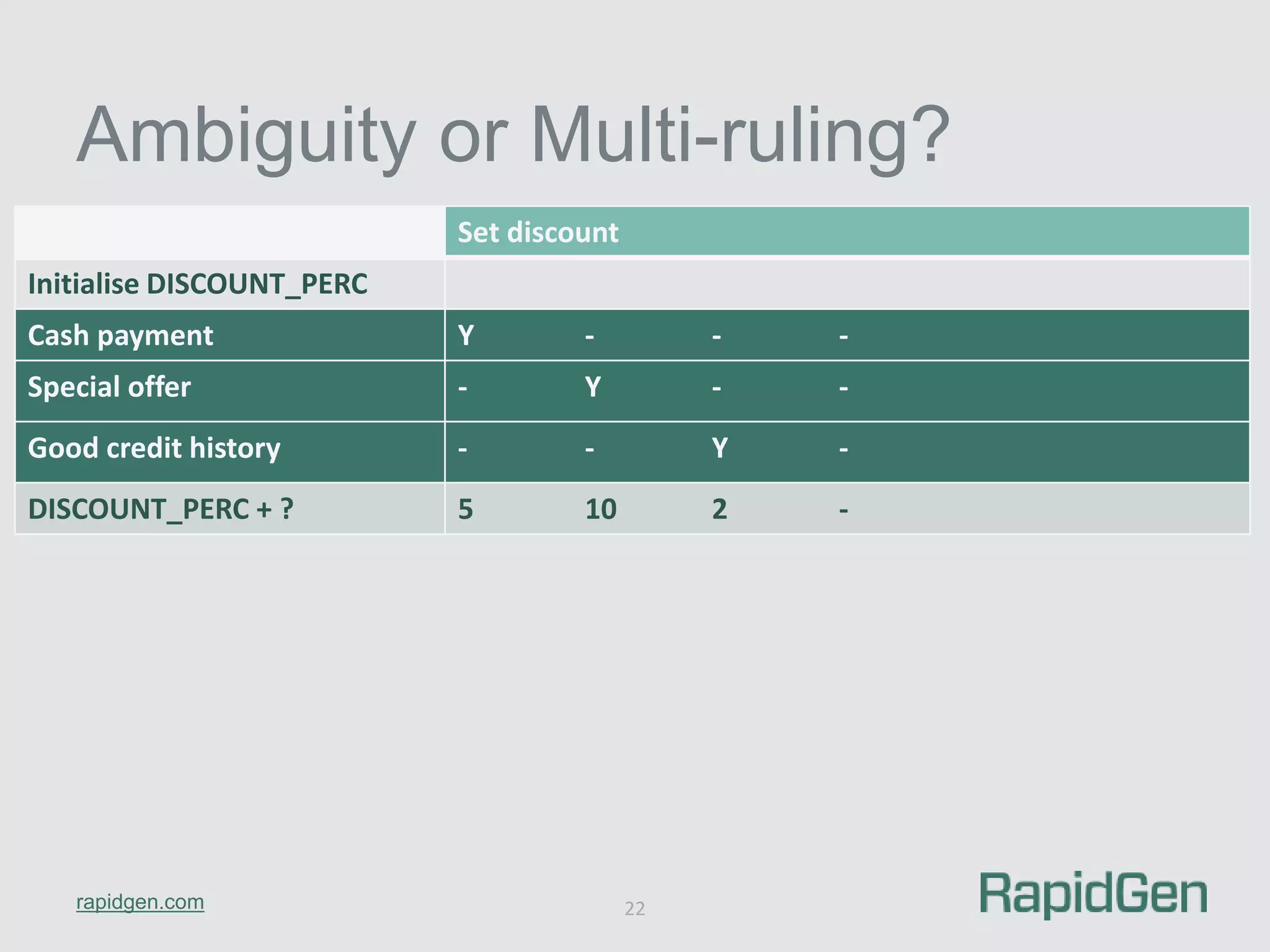

22. Ambiguity or Multi-ruling?
rapidgen.com
22
Set discount
Initialise DISCOUNT_PERC
Cash payment Y - - -
Special offer - Y - -
Good credit history - - Y -
DISCOUNT_PERC + ? 5 10 2 -

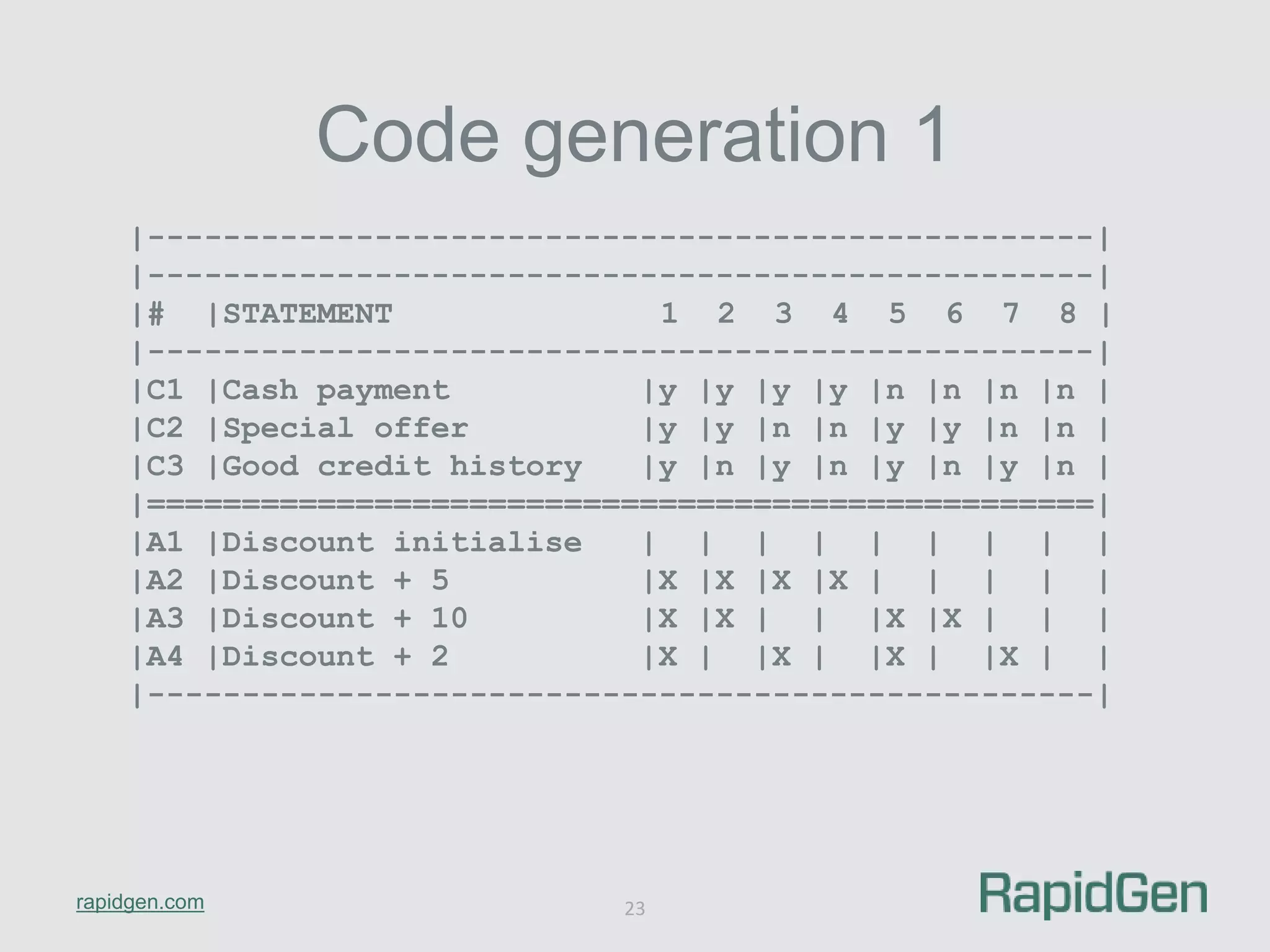

23. |--------------------------------------------------|
|--------------------------------------------------|
|# |STATEMENT 1 2 3 4 5 6 7 8 |
|--------------------------------------------------|
|C1 |Cash payment |y |y |y |y |n |n |n |n |
|C2 |Special offer |y |y |n |n |y |y |n |n |
|C3 |Good credit history |y |n |y |n |y |n |y |n |
|==================================================|
|A1 |Discount initialise | | | | | | | | |
|A2 |Discount + 5 |X |X |X |X | | | | |
|A3 |Discount + 10 |X |X | | |X |X | | |
|A4 |Discount + 2 |X | |X | |X | |X | |
|--------------------------------------------------|
rapidgen.com
Code generation 1
23

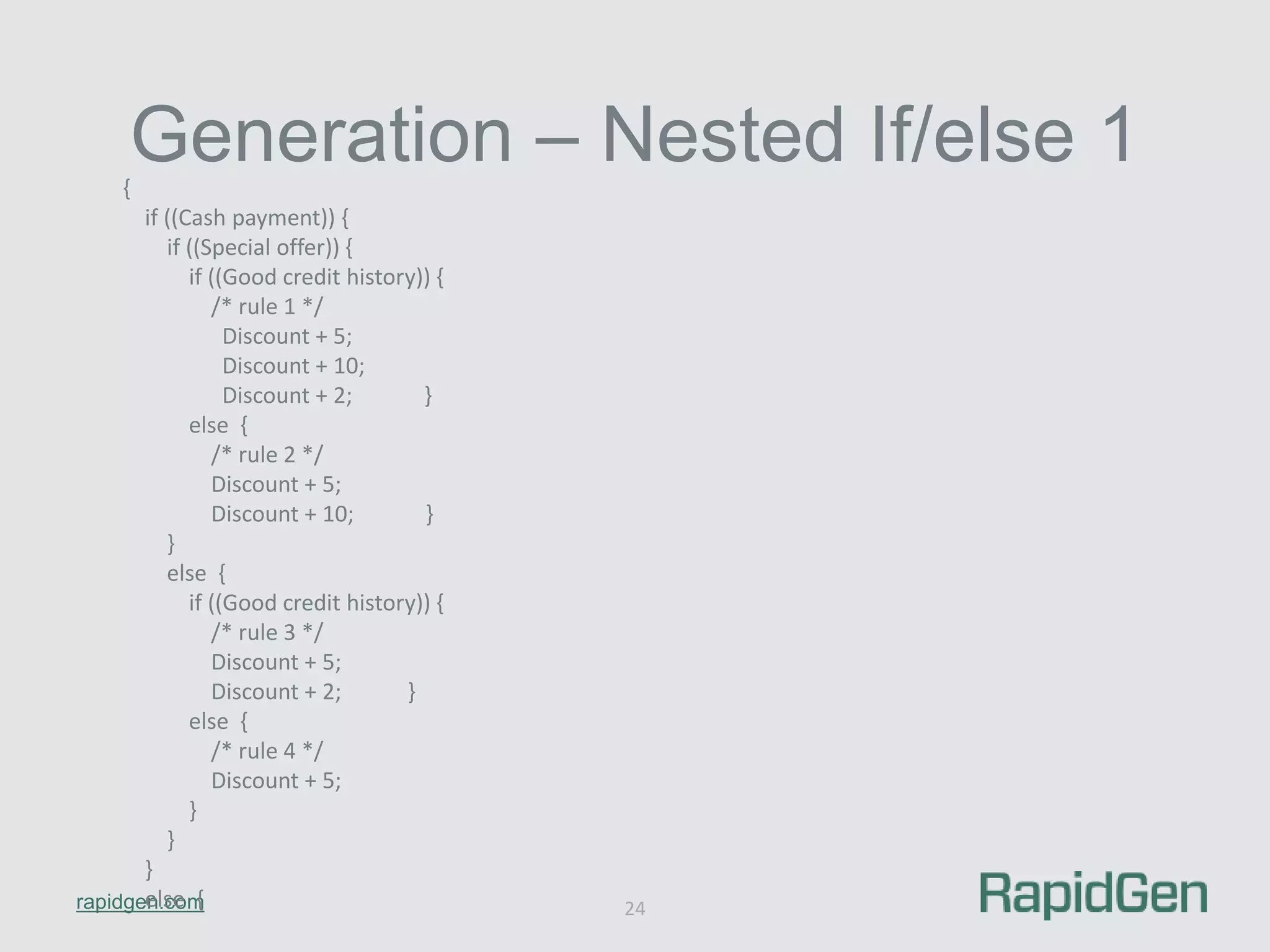

24. Generation – Nested If/else 1
rapidgen.com
24
{
if ((Cash payment)) {
if ((Special offer)) {
if ((Good credit history)) {
/* rule 1 */
Discount + 5;
Discount + 10;
Discount + 2; }
else {
/* rule 2 */
Discount + 5;
Discount + 10; }
}
else {
if ((Good credit history)) {
/* rule 3 */
Discount + 5;
Discount + 2; }
else {
/* rule 4 */
Discount + 5;
}
}
}
else {

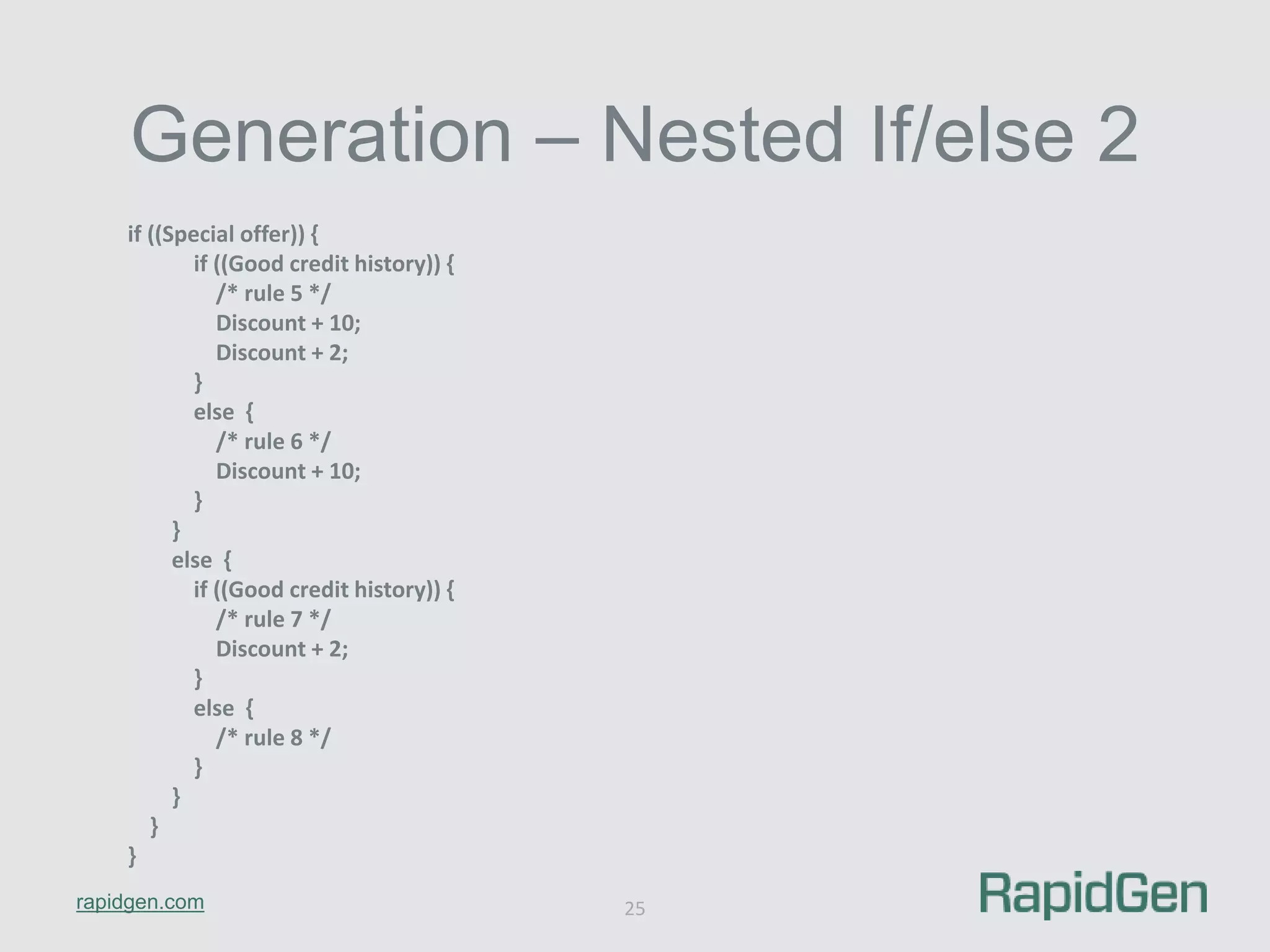

25. Generation – Nested If/else 2
rapidgen.com
25
if ((Special offer)) {
if ((Good credit history)) {
/* rule 5 */
Discount + 10;
Discount + 2;
}
else {
/* rule 6 */
Discount + 10;
}
}
else {
if ((Good credit history)) {
/* rule 7 */
Discount + 2;
}
else {
/* rule 8 */
}
}
}
}

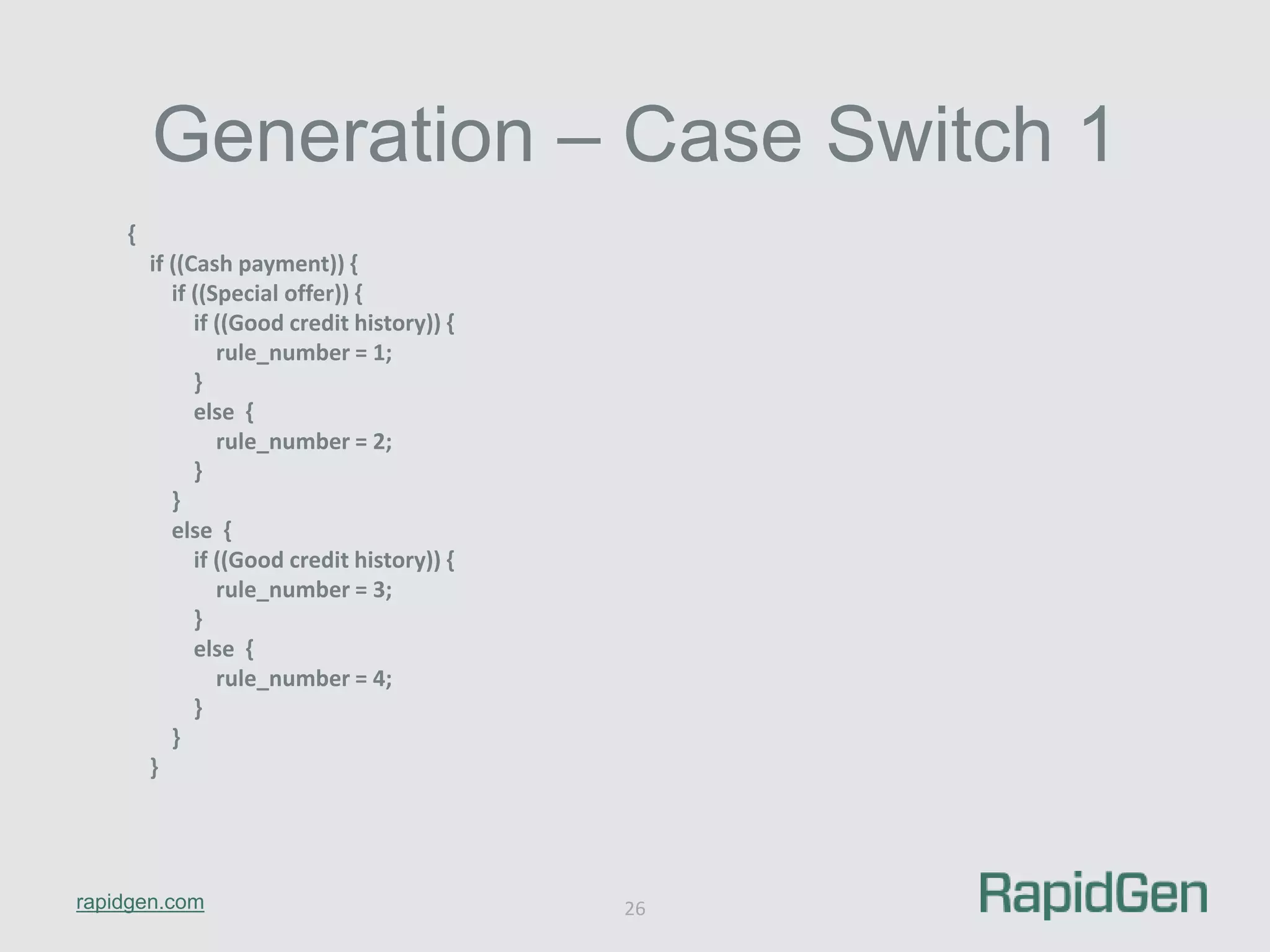

26. Generation – Case Switch 1
rapidgen.com
26
{
if ((Cash payment)) {
if ((Special offer)) {
if ((Good credit history)) {
rule_number = 1;
}
else {
rule_number = 2;
}
}
else {
if ((Good credit history)) {
rule_number = 3;
}
else {
rule_number = 4;
}
}
}

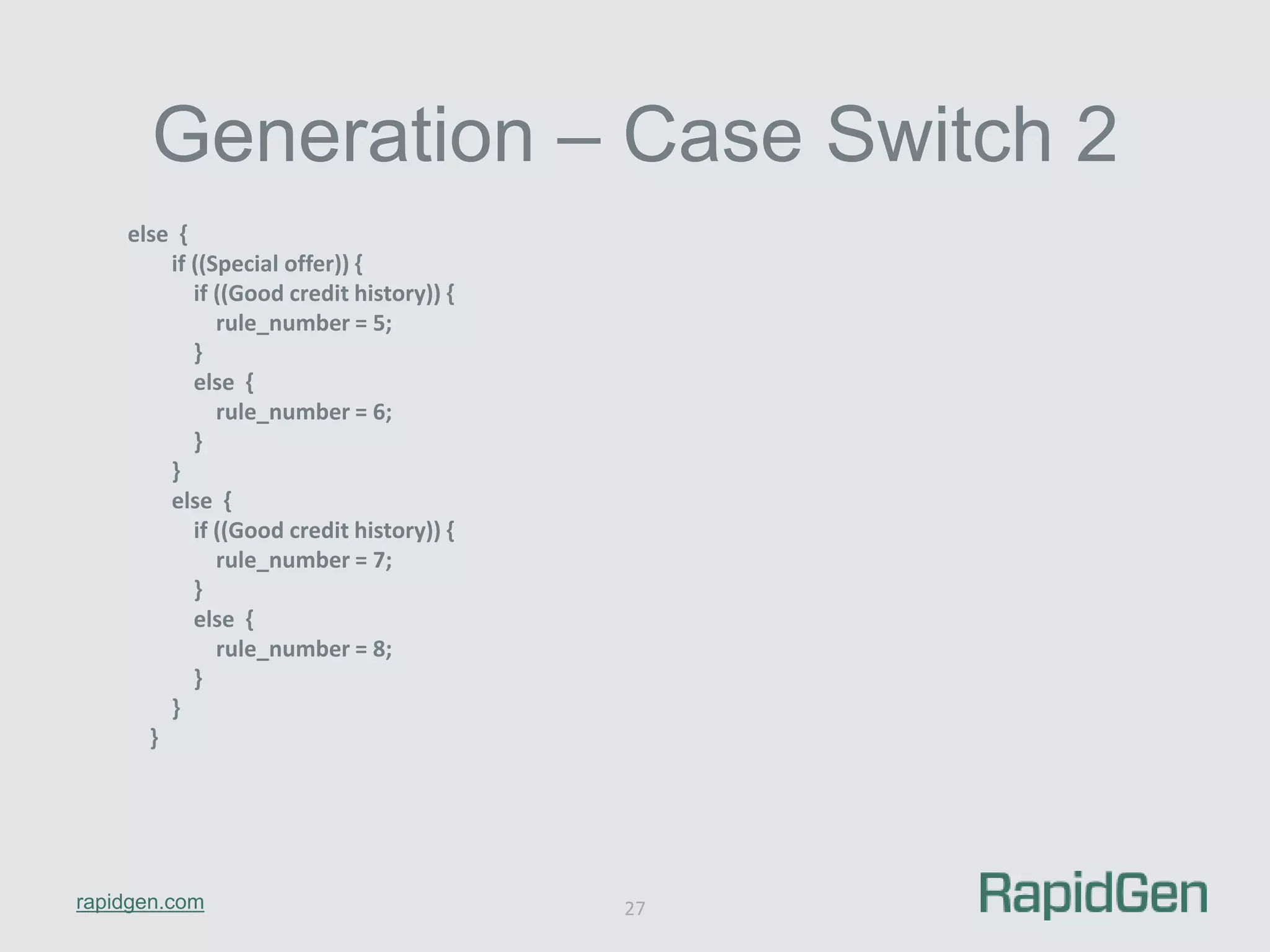

27. Generation – Case Switch 2
rapidgen.com
27
else {
if ((Special offer)) {
if ((Good credit history)) {
rule_number = 5;
}
else {
rule_number = 6;
}
}
else {
if ((Good credit history)) {
rule_number = 7;
}
else {
rule_number = 8;
}
}
}

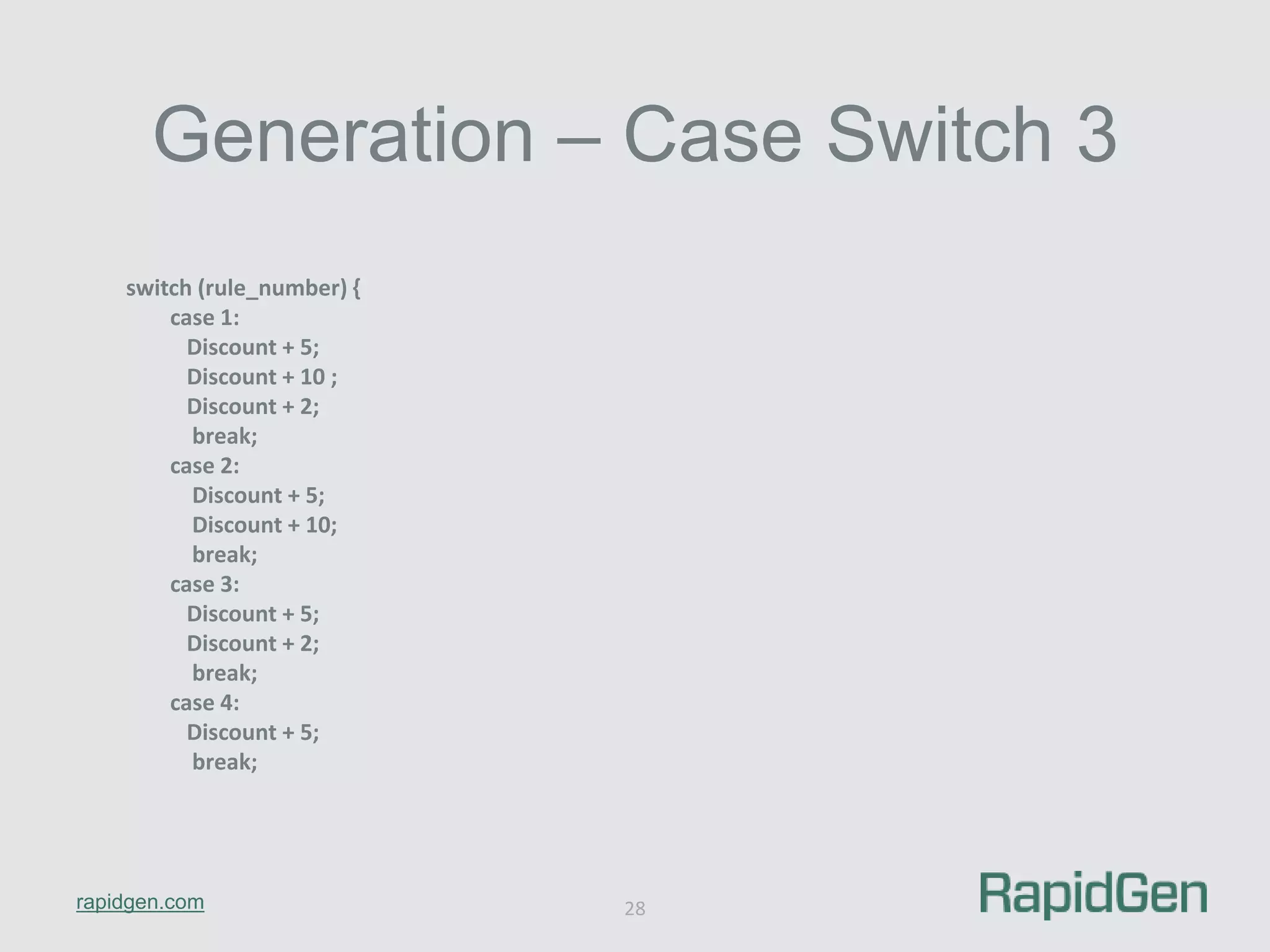

28. Generation – Case Switch 3
rapidgen.com
28
switch (rule_number) {
case 1:
Discount + 5;
Discount + 10 ;
Discount + 2;
break;
case 2:
Discount + 5;
Discount + 10;
break;
case 3:
Discount + 5;
Discount + 2;
break;
case 4:
Discount + 5;
break;

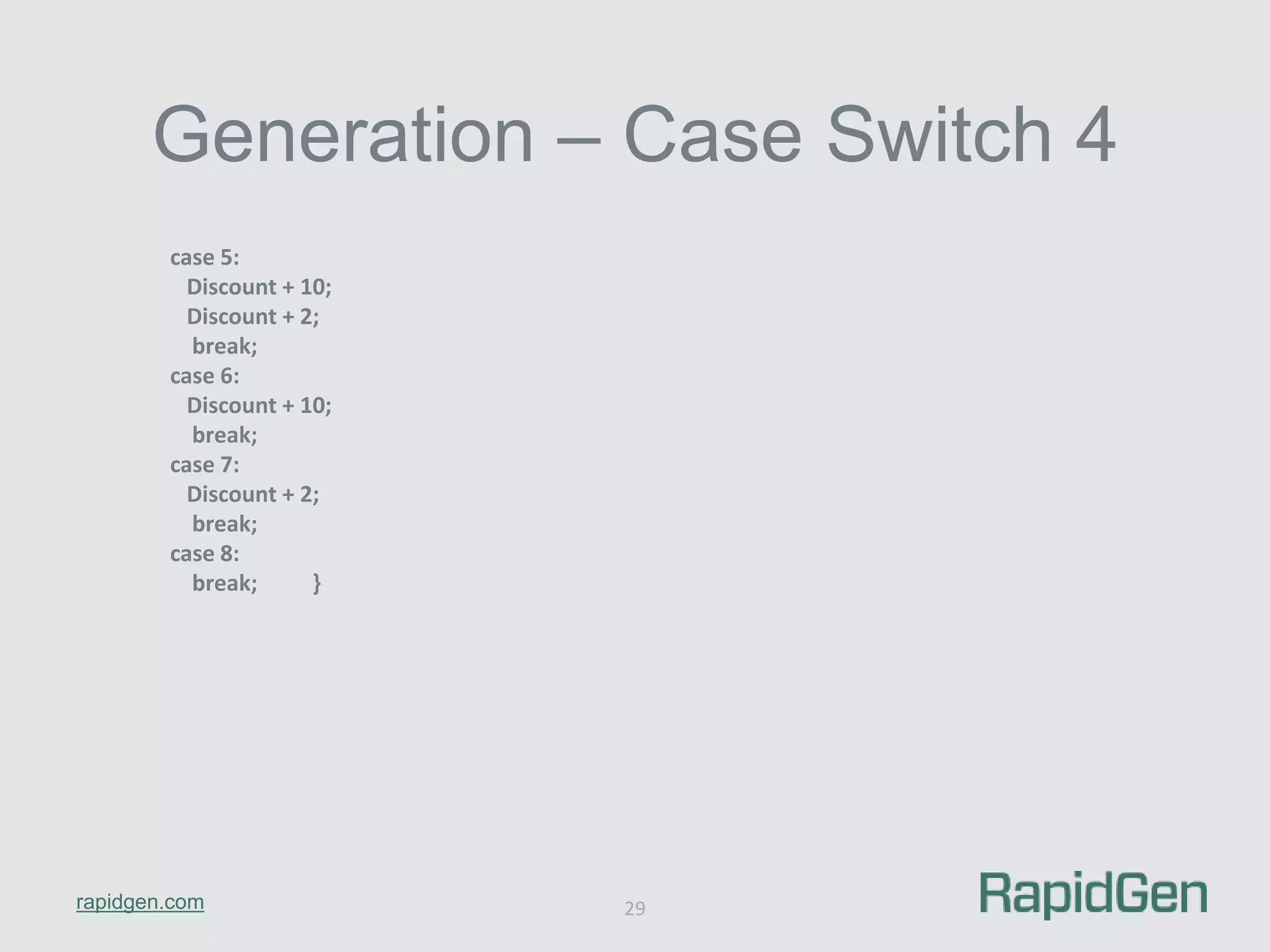

29. Generation – Case Switch 4
rapidgen.com
29
case 5:
Discount + 10;
Discount + 2;
break;
case 6:
Discount + 10;
break;
case 7:
Discount + 2;
break;
case 8:
break; }

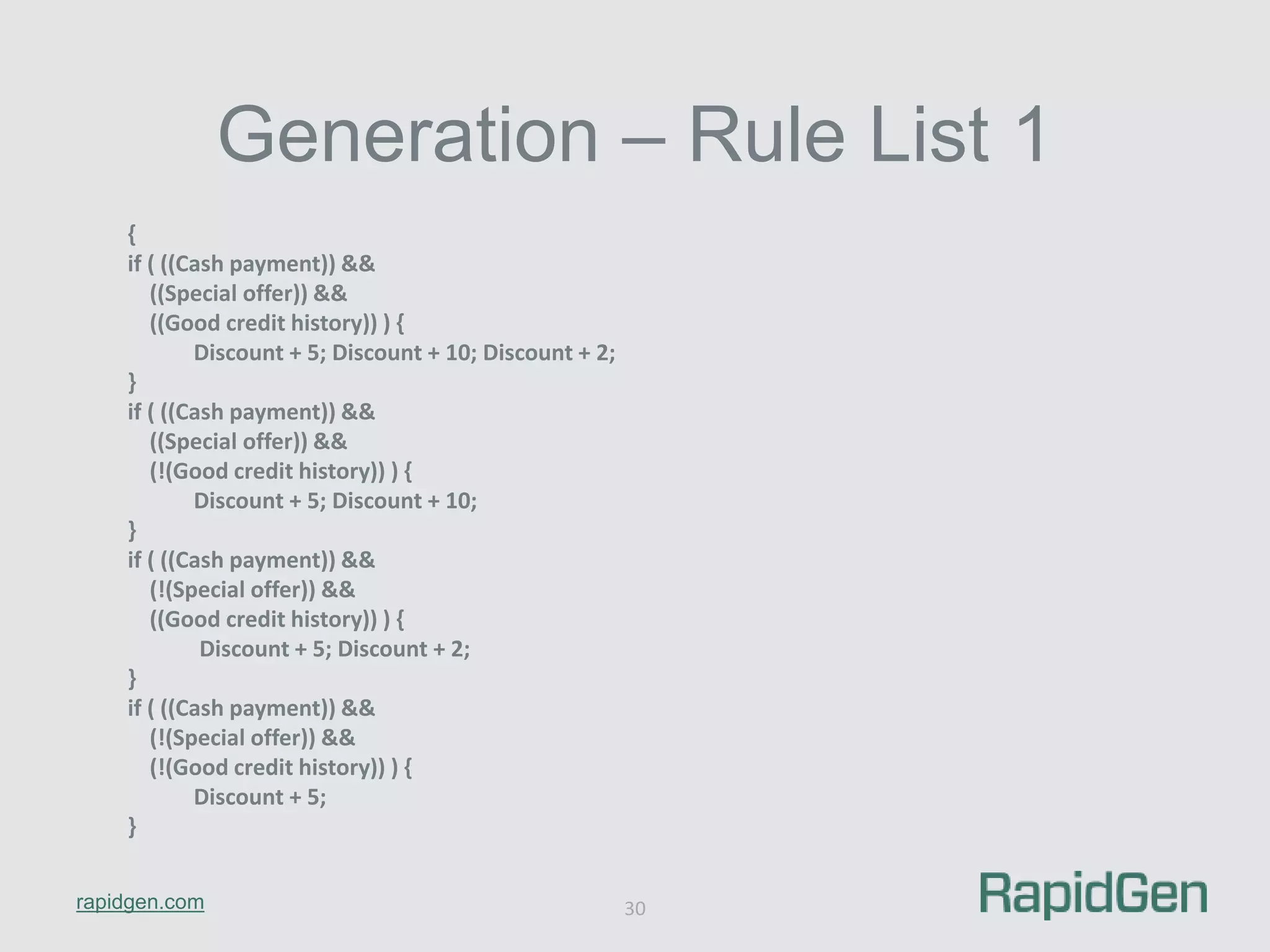

30. rapidgen.com
Generation – Rule List 1
30
{
if ( ((Cash payment)) &&
((Special offer)) &&
((Good credit history)) ) {
Discount + 5; Discount + 10; Discount + 2;
}
if ( ((Cash payment)) &&
((Special offer)) &&
(!(Good credit history)) ) {
Discount + 5; Discount + 10;
}
if ( ((Cash payment)) &&
(!(Special offer)) &&
((Good credit history)) ) {
Discount + 5; Discount + 2;
}
if ( ((Cash payment)) &&
(!(Special offer)) &&
(!(Good credit history)) ) {
Discount + 5;
}

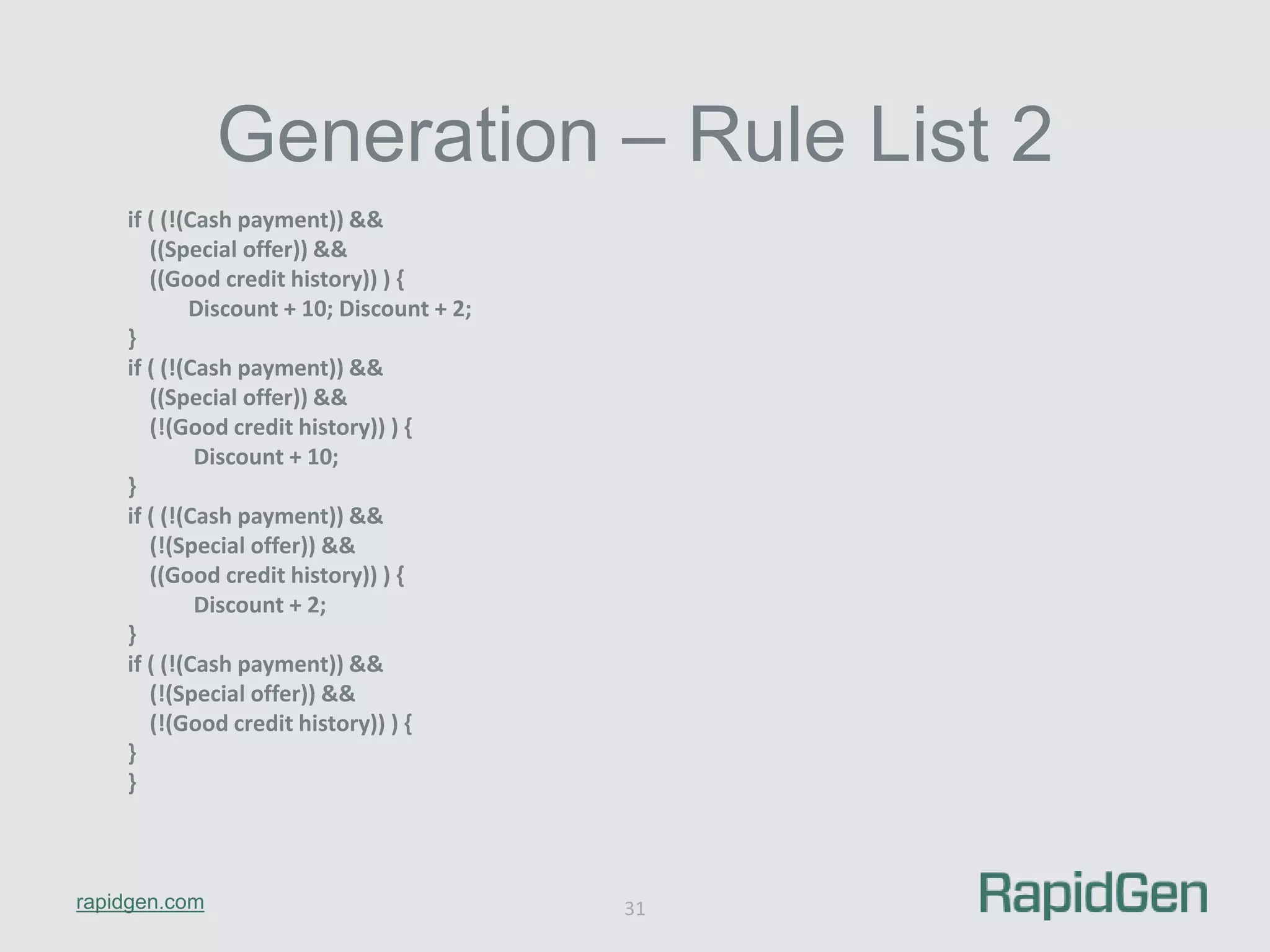

31. rapidgen.com
Generation – Rule List 2
31
if ( (!(Cash payment)) &&
((Special offer)) &&
((Good credit history)) ) {
Discount + 10; Discount + 2;
}
if ( (!(Cash payment)) &&
((Special offer)) &&
(!(Good credit history)) ) {
Discount + 10;
}
if ( (!(Cash payment)) &&
(!(Special offer)) &&
((Good credit history)) ) {
Discount + 2;
}
if ( (!(Cash payment)) &&
(!(Special offer)) &&
(!(Good credit history)) ) {
}
}

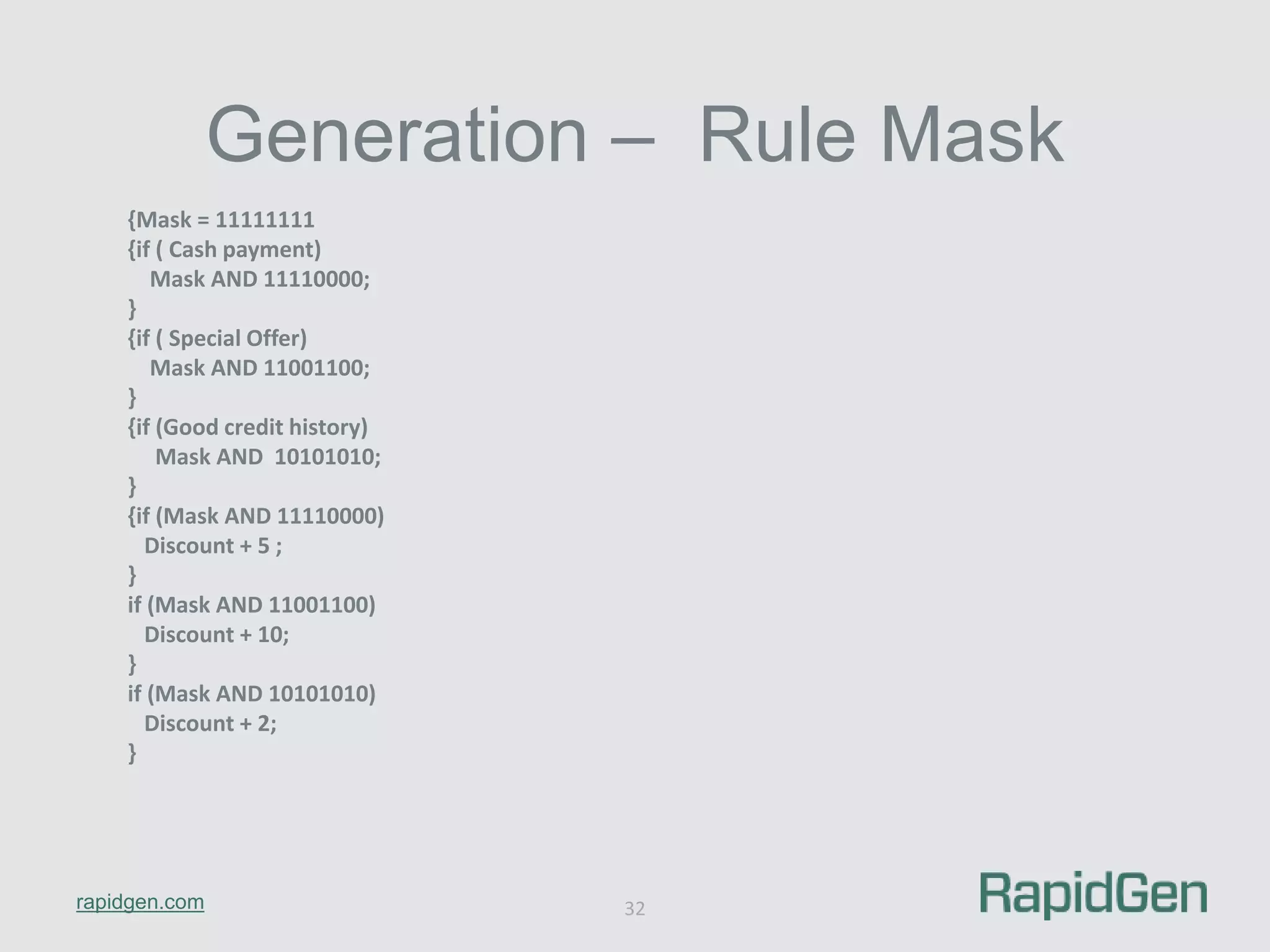

32. rapidgen.com
Generation – Rule Mask
32
{Mask = 11111111
{if ( Cash payment)
Mask AND 11110000;
}
{if ( Special Offer)
Mask AND 11001100;
}
{if (Good credit history)
Mask AND 10101010;
}
{if (Mask AND 11110000)
Discount + 5 ;
}
if (Mask AND 11001100)
Discount + 10;
}
if (Mask AND 10101010)
Discount + 2;
}

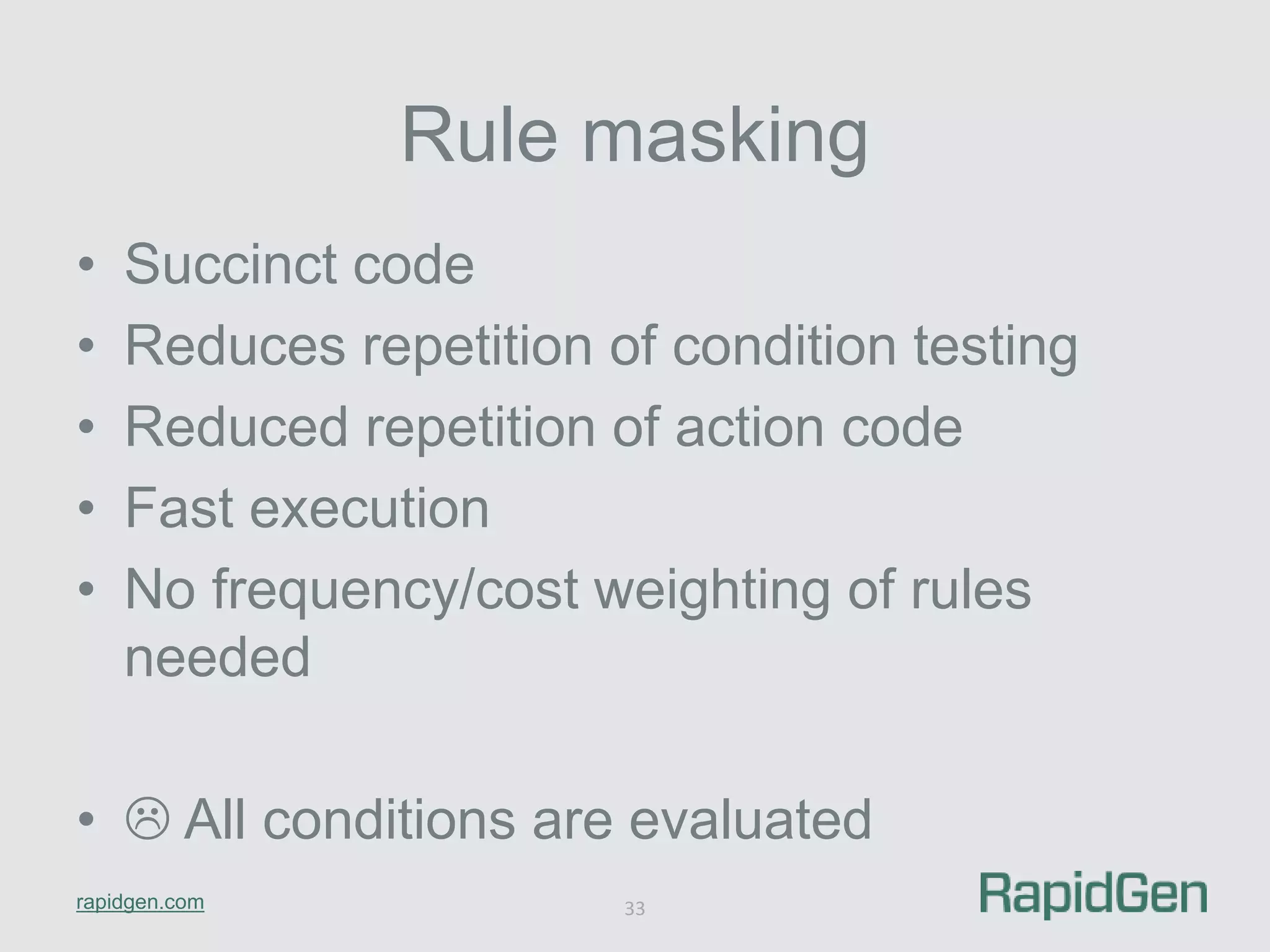

33. • Succinct code
• Reduces repetition of condition testing
• Reduced repetition of action code
• Fast execution
• No frequency/cost weighting of rules
needed
•  All conditions are evaluated
rapidgen.com
Rule masking
33

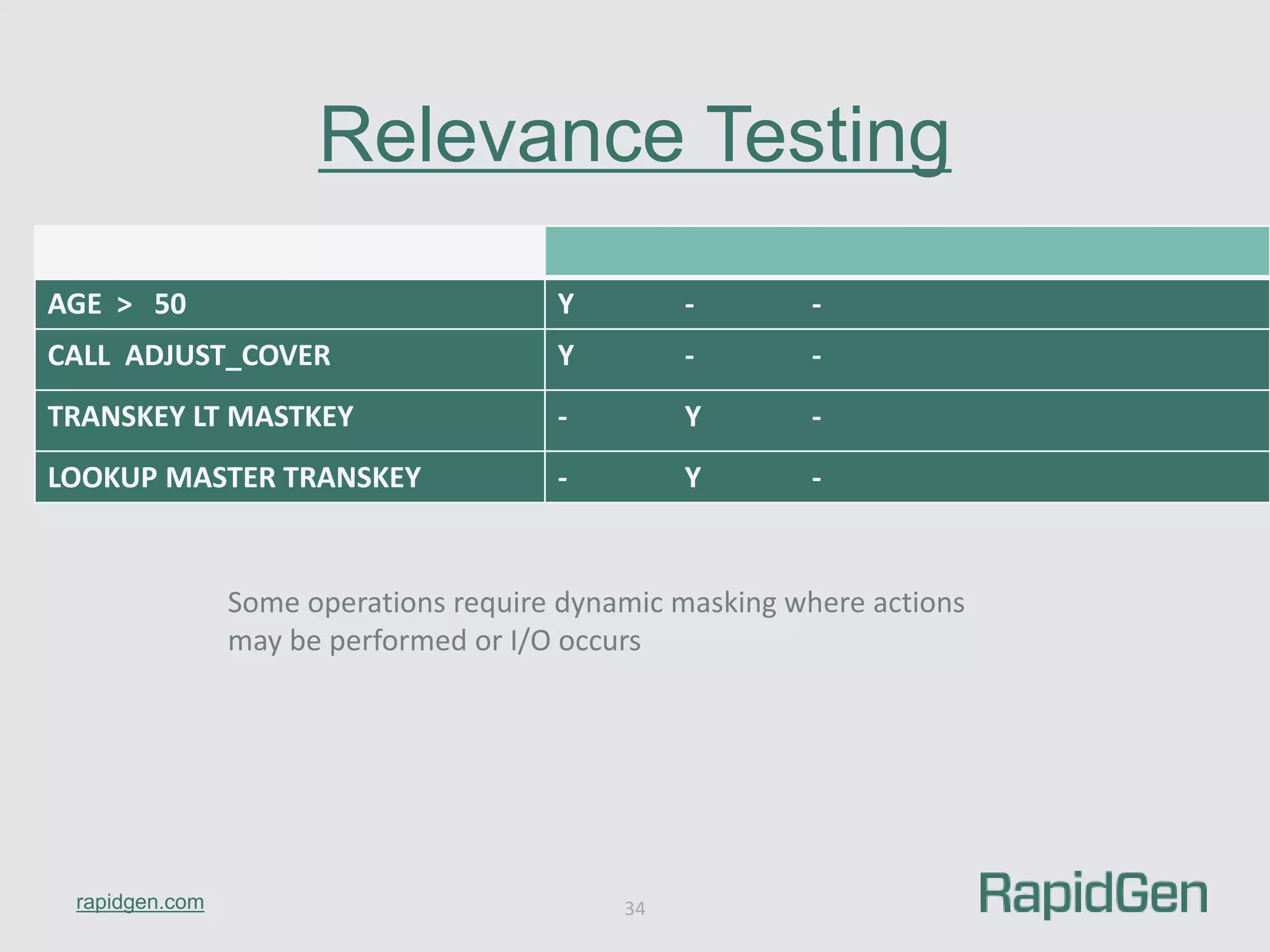

34. AGE > 50 Y - -
CALL ADJUST_COVER Y - -
TRANSKEY LT MASTKEY - Y -
LOOKUP MASTER TRANSKEY - Y -
rapidgen.com
Relevance Testing
Some operations require dynamic masking where actions
may be performed or I/O occurs
34

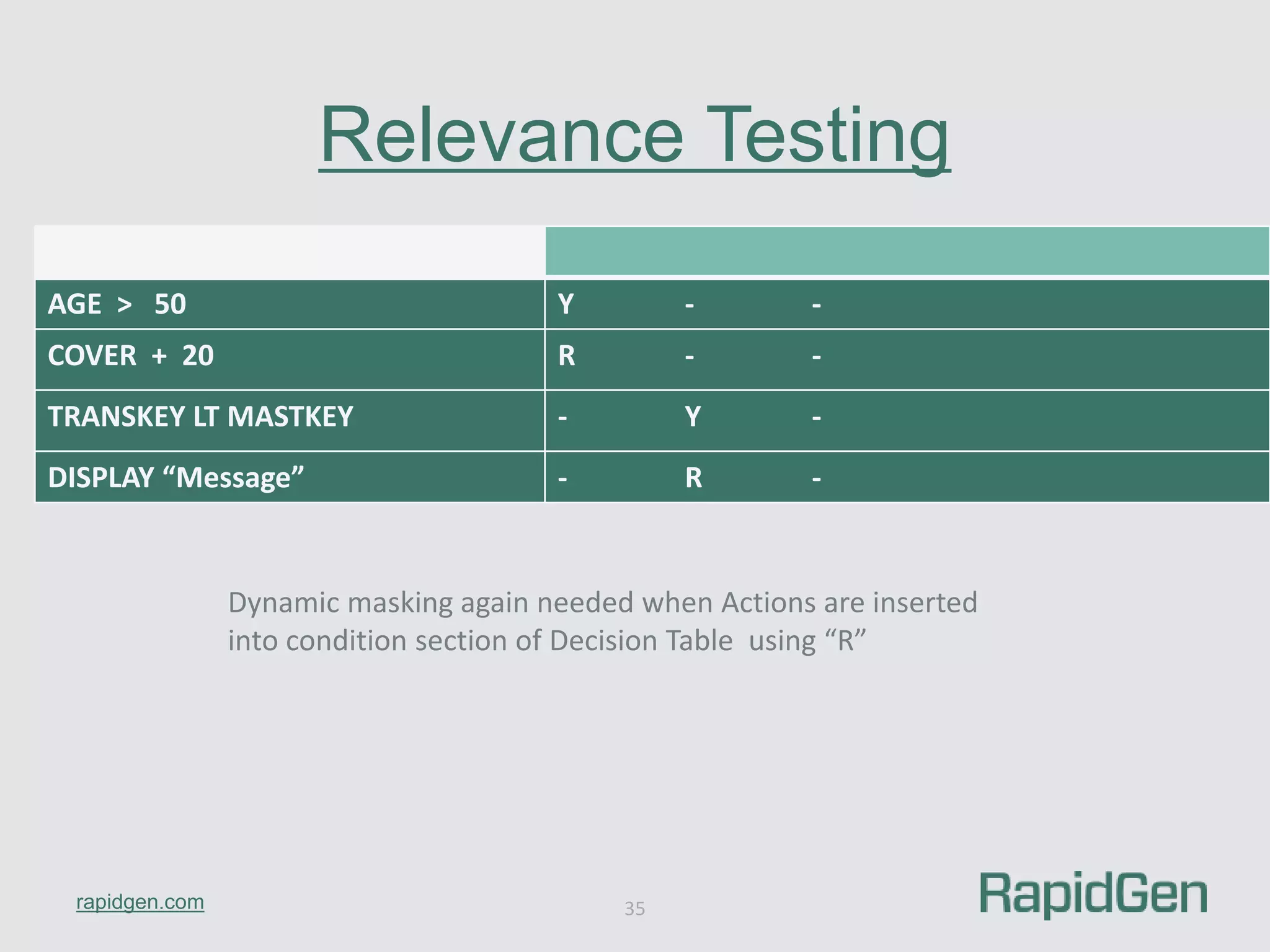

35. AGE > 50 Y - -
COVER + 20 R - -
TRANSKEY LT MASTKEY - Y -
DISPLAY “Message” - R -
rapidgen.com
Relevance Testing
Dynamic masking again needed when Actions are inserted
into condition section of Decision Table using “R”
35

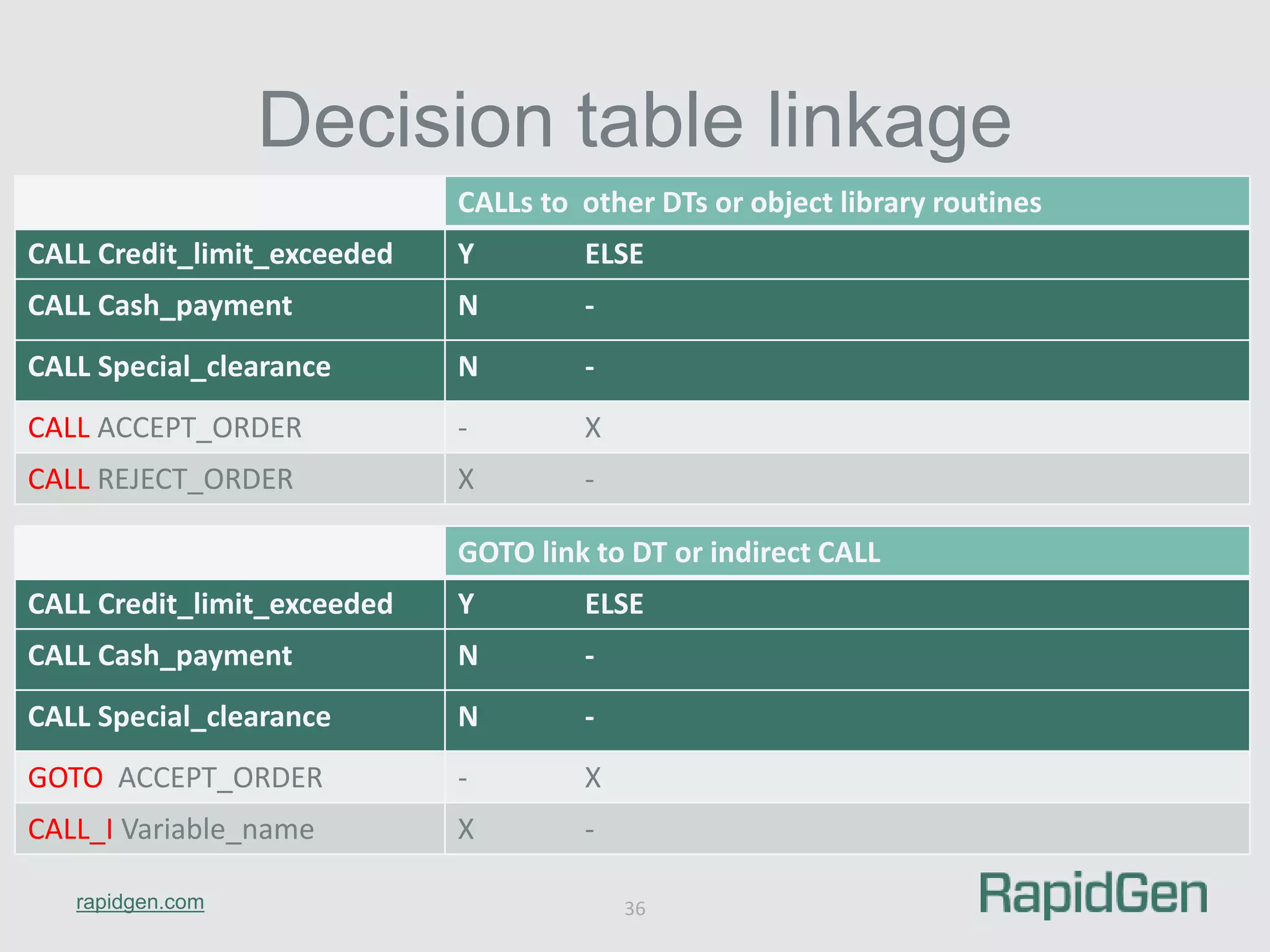

36. CALL Credit_limit_exceeded Y ELSE
CALL Cash_payment N -
CALL Special_clearance N -
CALL ACCEPT_ORDER - X
CALL REJECT_ORDER X -
CALL Credit_limit_exceeded Y ELSE
CALL Cash_payment N -
CALL Special_clearance N -
GOTO ACCEPT_ORDER - X
CALL_I Variable_name X -
rapidgen.com
Decision table linkage
CALLs to other DTs or object library routines
GOTO link to DT or indirect CALL
36

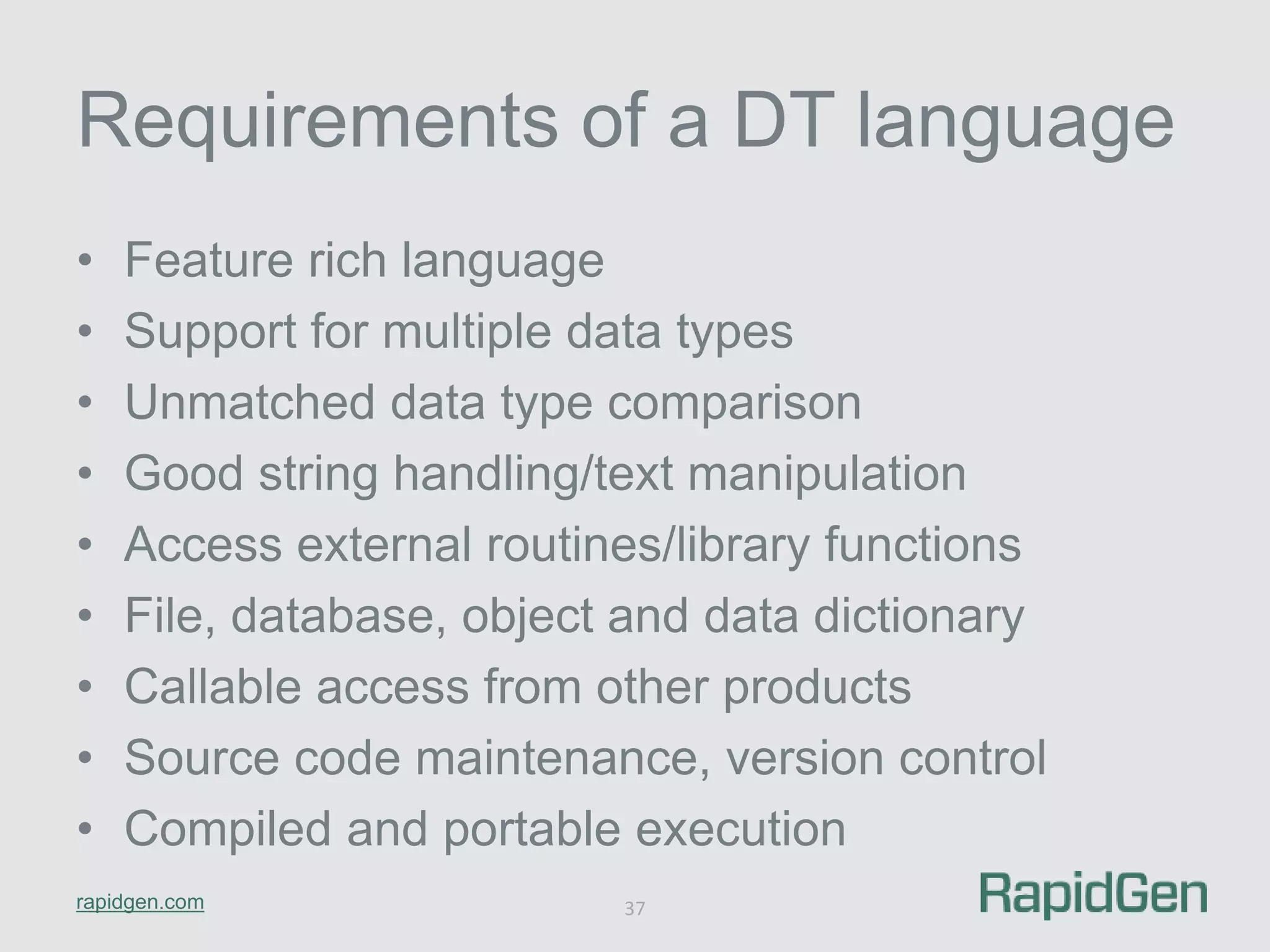

37. Requirements of a DT language
• Feature rich language
• Support for multiple data types
• Unmatched data type comparison
• Good string handling/text manipulation
• Access external routines/library functions
• File, database, object and data dictionary
• Callable access from other products
• Source code maintenance, version control
• Compiled and portable execution
rapidgen.com
37

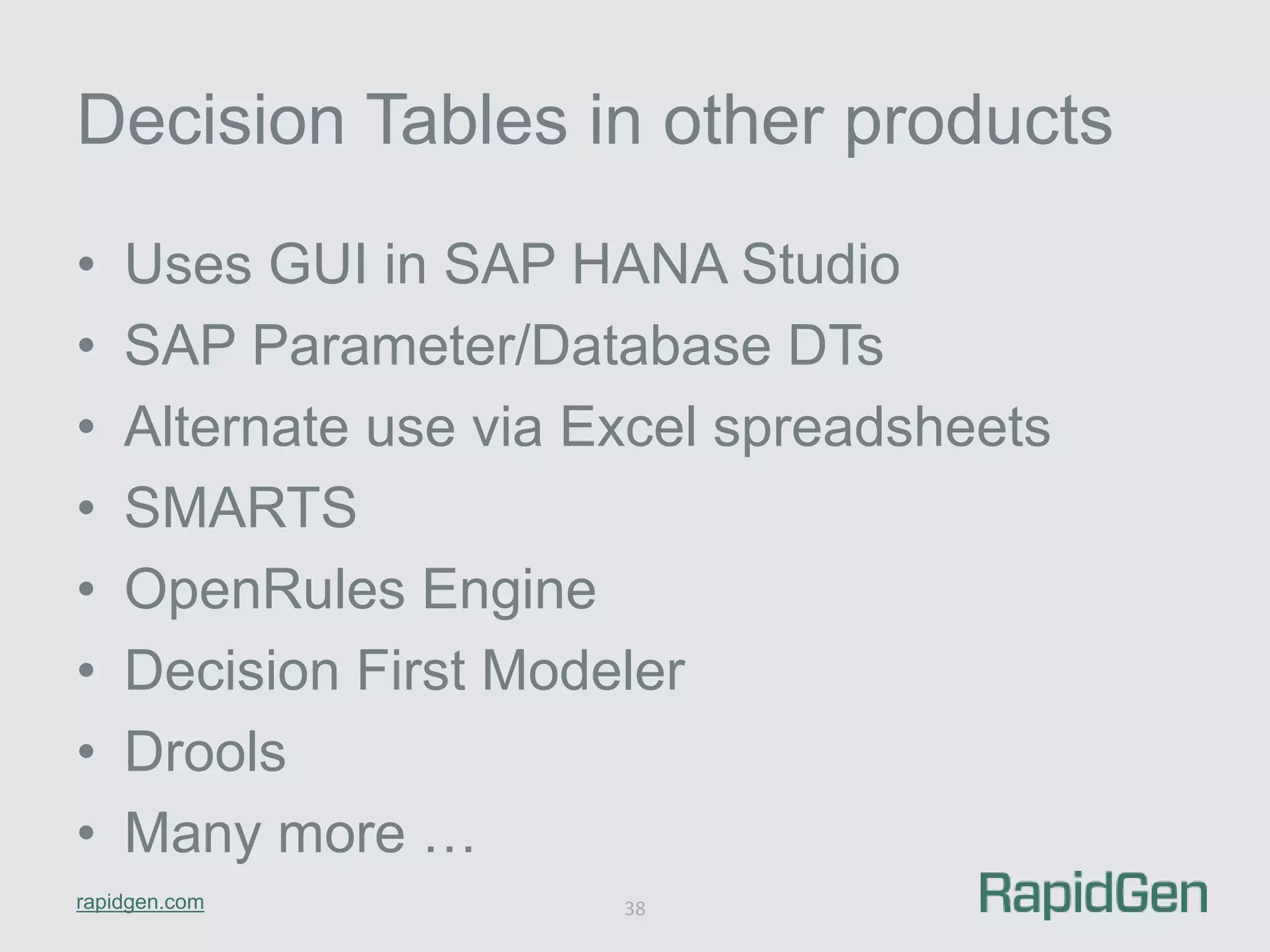

38. Decision Tables in other products
• Uses GUI in SAP HANA Studio
• SAP Parameter/Database DTs
• Alternate use via Excel spreadsheets
• SMARTS
• OpenRules Engine
• Decision First Modeler
• Drools
• Many more …
rapidgen.com
38

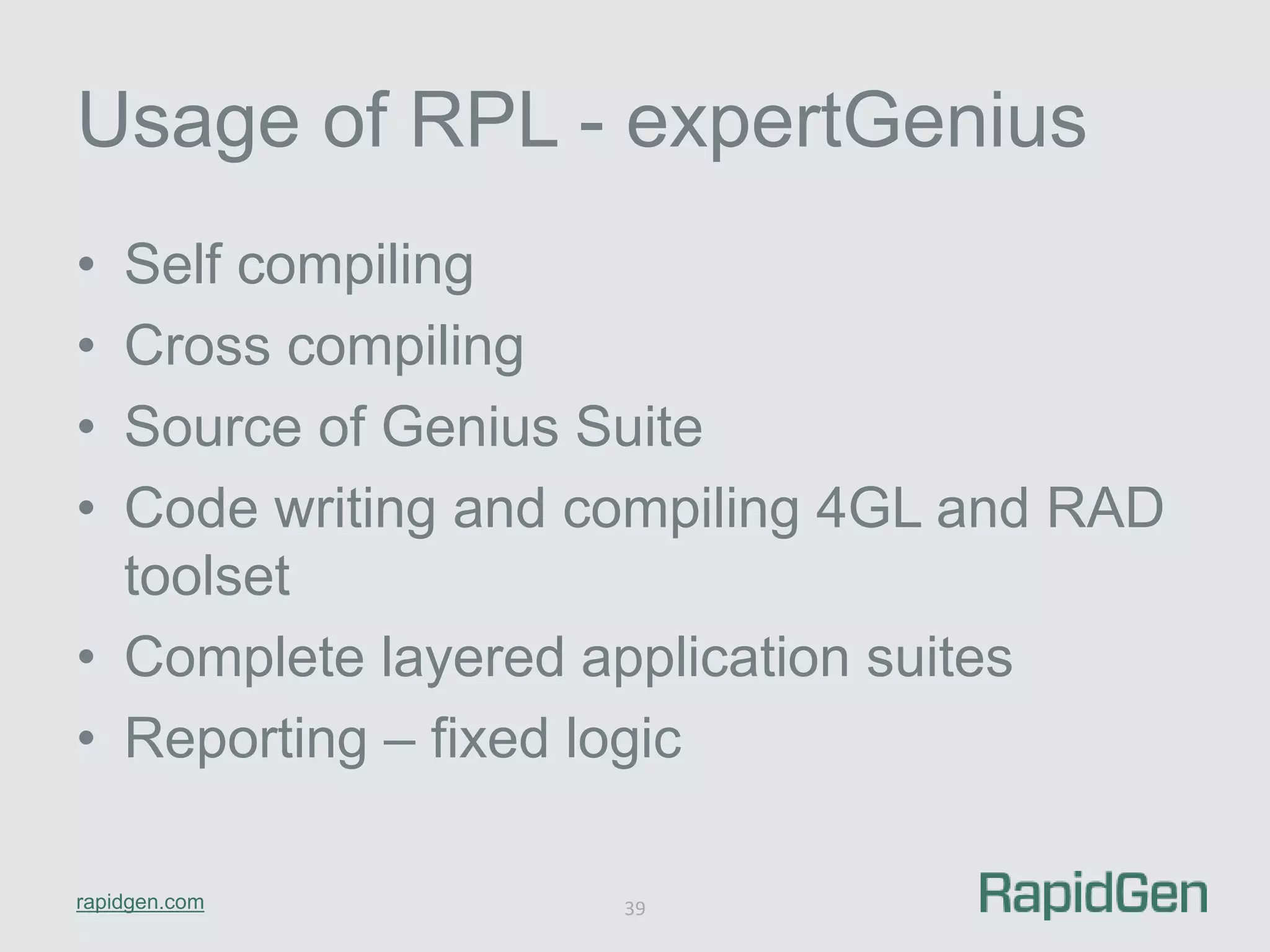

39. Usage of RPL - expertGenius
• Self compiling
• Cross compiling
• Source of Genius Suite
• Code writing and compiling 4GL and RAD
toolset
• Complete layered application suites
• Reporting – fixed logic
rapidgen.com
39

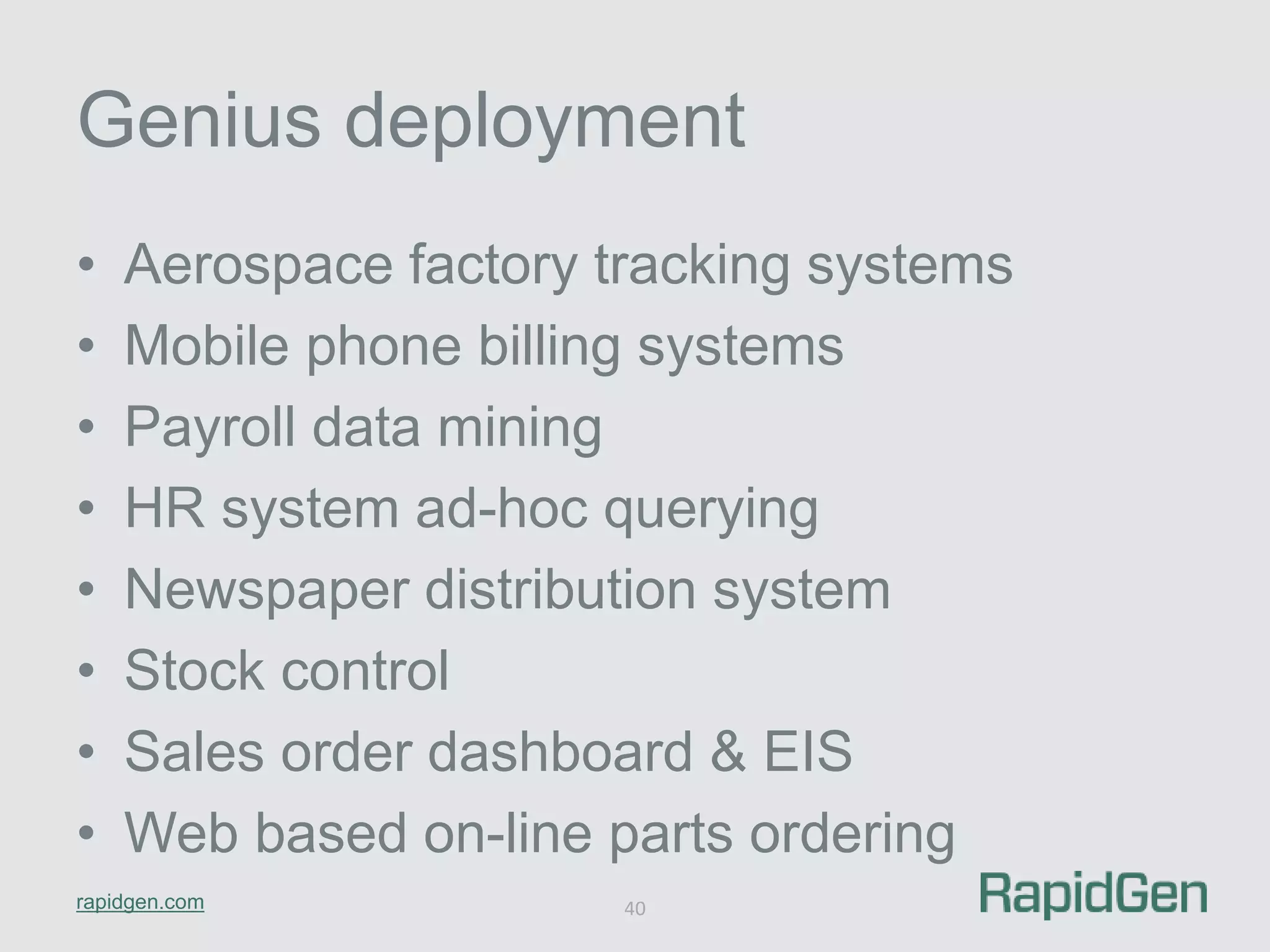

40. Genius deployment
• Aerospace factory tracking systems
• Mobile phone billing systems
• Payroll data mining
• HR system ad-hoc querying
• Newspaper distribution system
• Stock control
• Sales order dashboard & EIS
• Web based on-line parts ordering
rapidgen.com
40

41. CDT Callable Decision Tables
• Simple calculator
• Calculator code
• Tax formula (UK)
• Tax calculator
• Tax code
• CDT Callable access from other
languages and applications
rapidgen.com
41

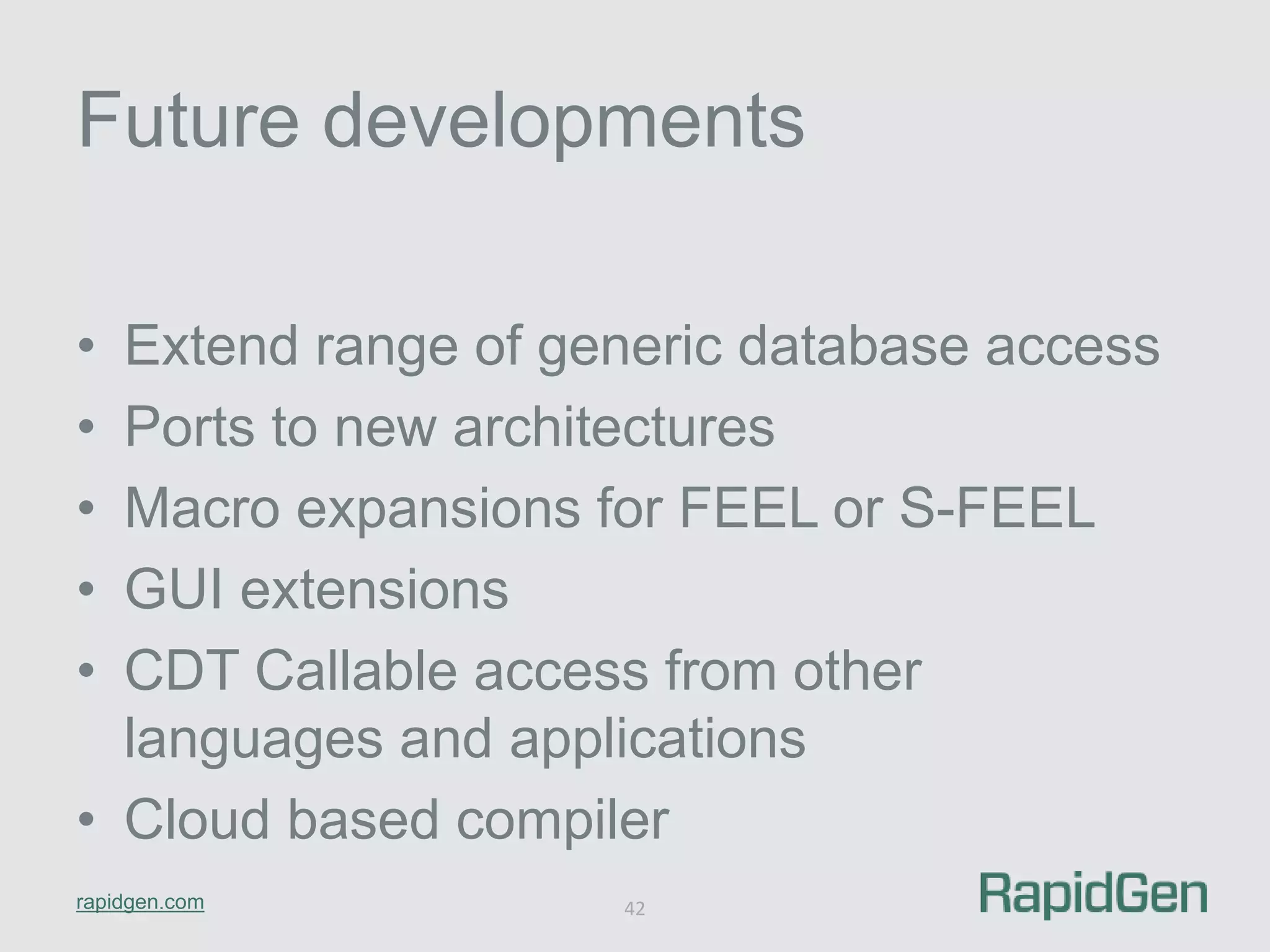

42. Future developments
• Extend range of generic database access
• Ports to new architectures
• Macro expansions for FEEL or S-FEEL
• GUI extensions
• CDT Callable access from other
languages and applications
• Cloud based compiler
rapidgen.com
42

43. rapidgen.com
Decision Tables as a
Programming tool
Howard Rogers
Director Technical Support
howard.rogers@rapidgen.com
howard.rogers@rapidgen.co.uk
