This document presents an overview of Query Builder, which is a service for building queries to search a Java Content Repository. It describes what Query Builder is, provides example usages, and explains why it is useful. It also outlines key concepts like predicates, standard predicates, ordering, grouping, facets, and includes sample queries and references for more information.

1. A Presentation by

2. Content :
 What Is Query Builder?
 Example usages
 Why Query Builder?
 Query Builder Debugger
 Anatomy of a query
 Predicate resolution & execution
 Standard predicates
 Ordering
 Grouping of predicates
 Facets
 Sample Queries
 Javadoc Links
 Query Builder Demo
 References
A Presentation by

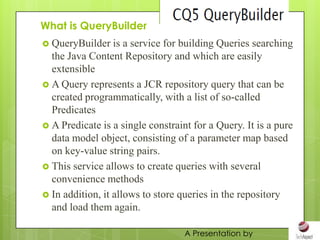

3. What is QueryBuilder
 QueryBuilder is a service for building Queries searching
the Java Content Repository and which are easily
extensible
 A Query represents a JCR repository query that can be
created programmatically, with a list of so-called
Predicates
 A Predicate is a single constraint for a Query. It is a pure
data model object, consisting of a parameter map based
on key-value string pairs.
 This service allows to create queries with several
convenience methods
 In addition, it allows to store queries in the repository
and load them again.
A Presentation by

4. Example usages
A Presentation by

5. Why Query Builder?
 Because QueryBuilder is...
 an API to build queries for a query engine (JCR XPath
underneath)
 especially via URL query parameters (GET & POSTs)
 compatible with HTML forms
 allowing to add/remove conditions (“predicates”)
individually
 allowing copy/paste of queries
 easily extensible
 providing some goodies (e.g. facets)
A Presentation by

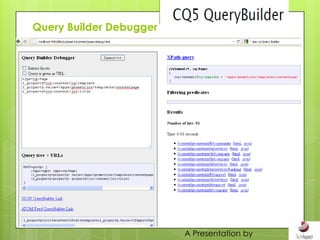

6. Query Builder Debugger
A Presentation by

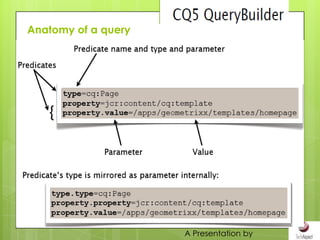

7. Anatomy of a query
A Presentation by

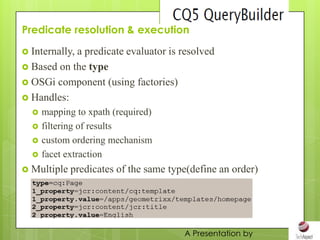

8. Predicate resolution & execution
 Internally,
a predicate evaluator is resolved
 Based on the type
 OSGi component (using factories)
 Handles:
 mapping to xpath (required)
 filtering of results
 custom ordering mechanism
 facet extraction
 Multiple predicates of the same type(define an order)
A Presentation by

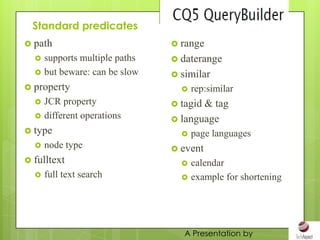

9. Standard predicates
 path  range
 supports multiple paths  daterange
 but beware: can be slow  similar
 property  rep:similar
 JCR property  tagid& tag
 different operations  language
 type  page languages
 node type  event
 fulltext  calendar
 full text search  example for shortening
A Presentation by

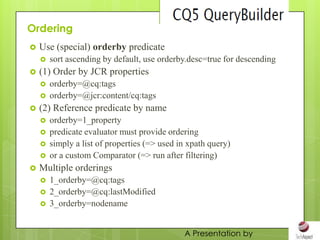

10. Ordering
 Use (special) orderby predicate
 sort ascending by default, use orderby.desc=true for descending
 (1) Order by JCR properties
 orderby=@cq:tags
 orderby=@jcr:content/cq:tags
 (2) Reference predicate by name
 orderby=1_property
 predicate evaluator must provide ordering
 simply a list of properties (=> used in xpath query)
 or a custom Comparator (=> run after filtering)
 Multiple orderings
 1_orderby=@cq:tags
 2_orderby=@cq:lastModified
 3_orderby=nodename
A Presentation by

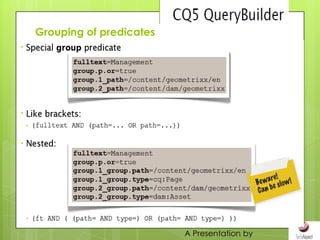

11. Grouping of predicates
A Presentation by

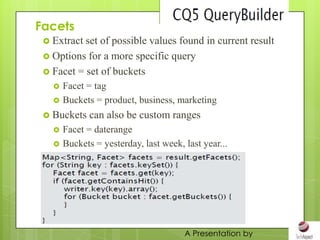

12. Facets
 Extract set of possible values found in current result
 Options for a more specific query
 Facet = set of buckets
 Facet = tag
 Buckets = product, business, marketing
 Buckets can also be custom ranges
 Facet = daterange
 Buckets = yesterday, last week, last year...
A Presentation by

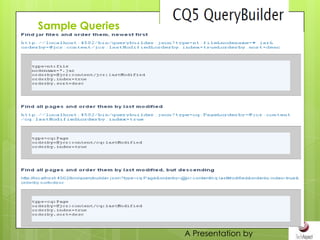

13. Sample Queries
A Presentation by

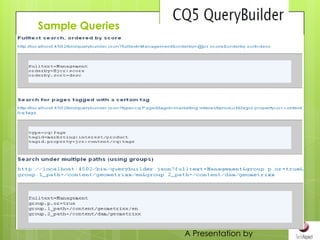

14. Sample Queries
A Presentation by

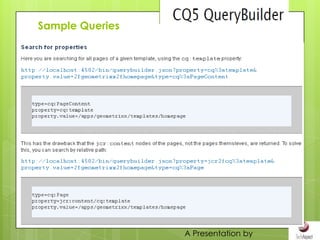

15. Sample Queries
A Presentation by

16. Sample Queries
A Presentation by

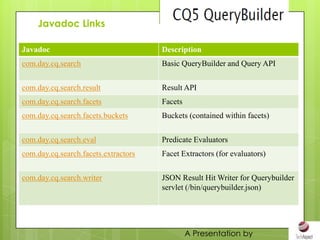

17. Javadoc Links
Javadoc Description
com.day.cq.search Basic QueryBuilder and Query API
com.day.cq.search.result Result API
com.day.cq.search.facets Facets
com.day.cq.search.facets.buckets Buckets (contained within facets)
com.day.cq.search.eval Predicate Evaluators
com.day.cq.search.facets.extractors Facet Extractors (for evaluators)
com.day.cq.search.writer JSON Result Hit Writer for Querybuilder
servlet (/bin/querybuilder.json)
A Presentation by

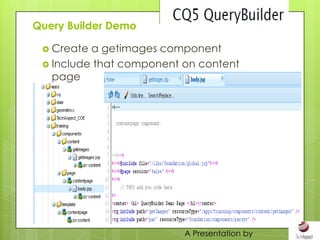

18. Query Builder Demo
 Create a getimages component
 Include that component on content
page
A Presentation by

19. Query Builder Demo
 getimages.jsp contains QueryBuilder API
A Presentation by

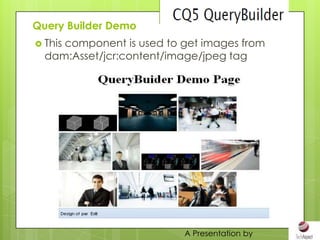

20. Query Builder Demo
 This
component is used to get images from
dam:Asset/jcr:content/image/jpeg tag
A Presentation by

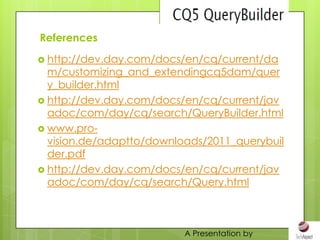

21. References
 http://dev.day.com/docs/en/cq/current/da
m/customizing_and_extendingcq5dam/quer
y_builder.html
 http://dev.day.com/docs/en/cq/current/jav
adoc/com/day/cq/search/QueryBuilder.html
 www.pro-
vision.de/adaptto/downloads/2011_querybuil
der.pdf
 http://dev.day.com/docs/en/cq/current/jav
adoc/com/day/cq/search/Query.html
