This document discusses data access with JDBC using the Spring Framework. It covers Spring's DAO support, exception handling, and approaches for database access including JdbcTemplate, NamedParameterJdbcTemplate, and controlling connections through a DataSource. The core classes provided by Spring simplify JDBC usage and handle common database tasks like opening/closing connections and transactions.

1. DATA ACCESS WITH JDBC
HARSHIT CHOUDHARY

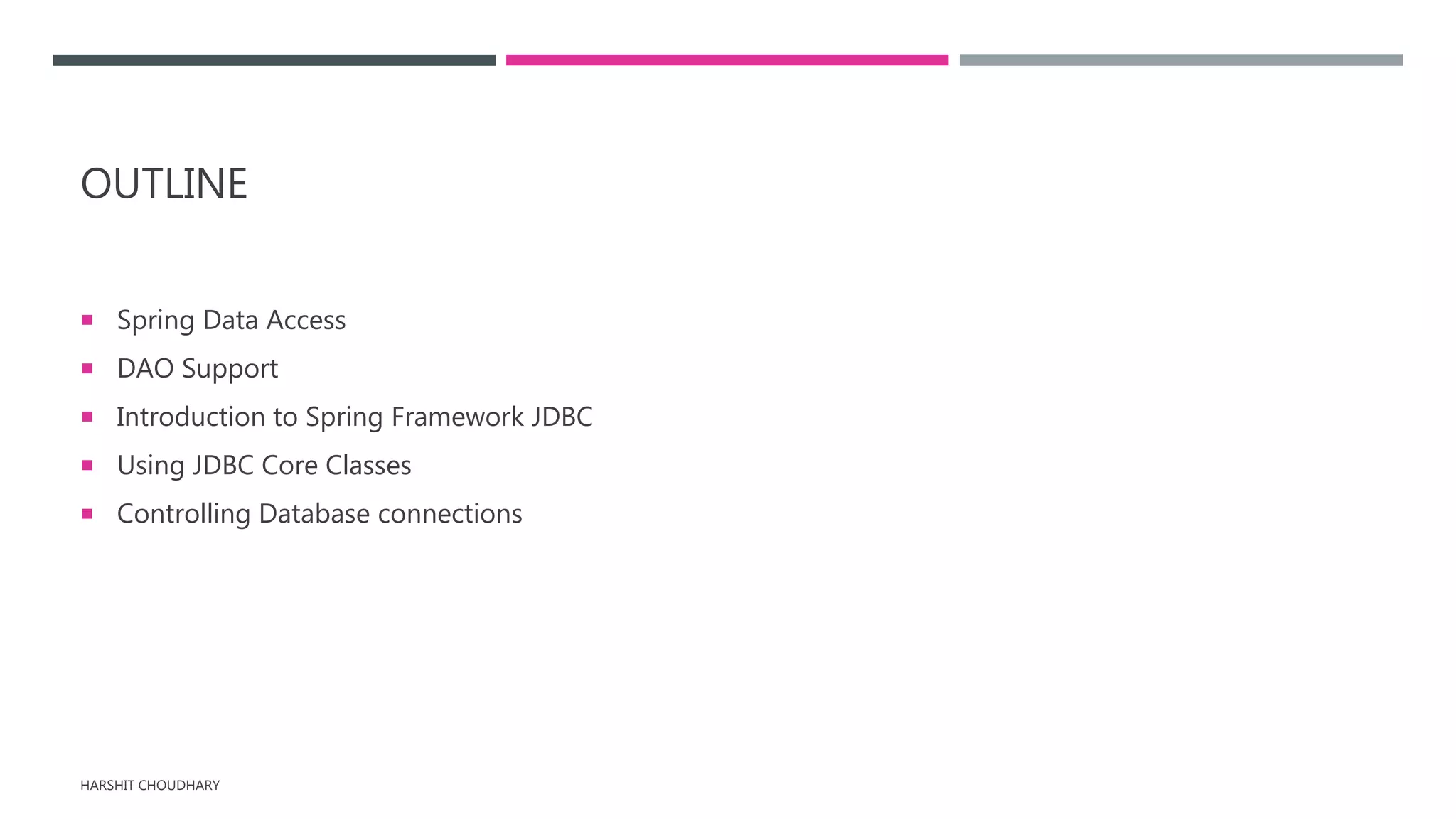

2. OUTLINE
 Spring Data Access
 DAO Support
 Introduction to Spring Framework JDBC
 Using JDBC Core Classes
 Controlling Database connections
HARSHIT CHOUDHARY

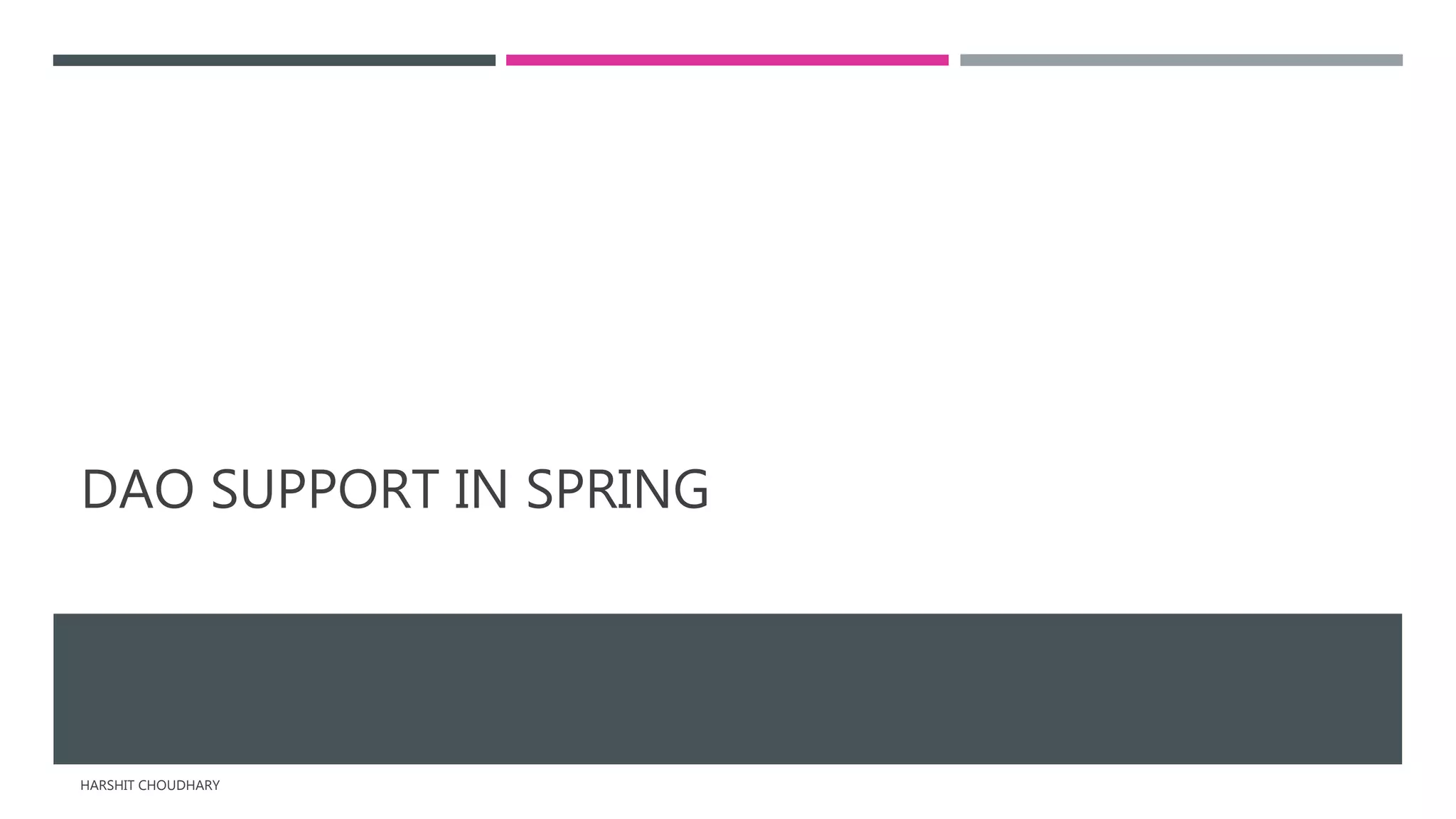

3. DAO SUPPORT IN SPRING
HARSHIT CHOUDHARY

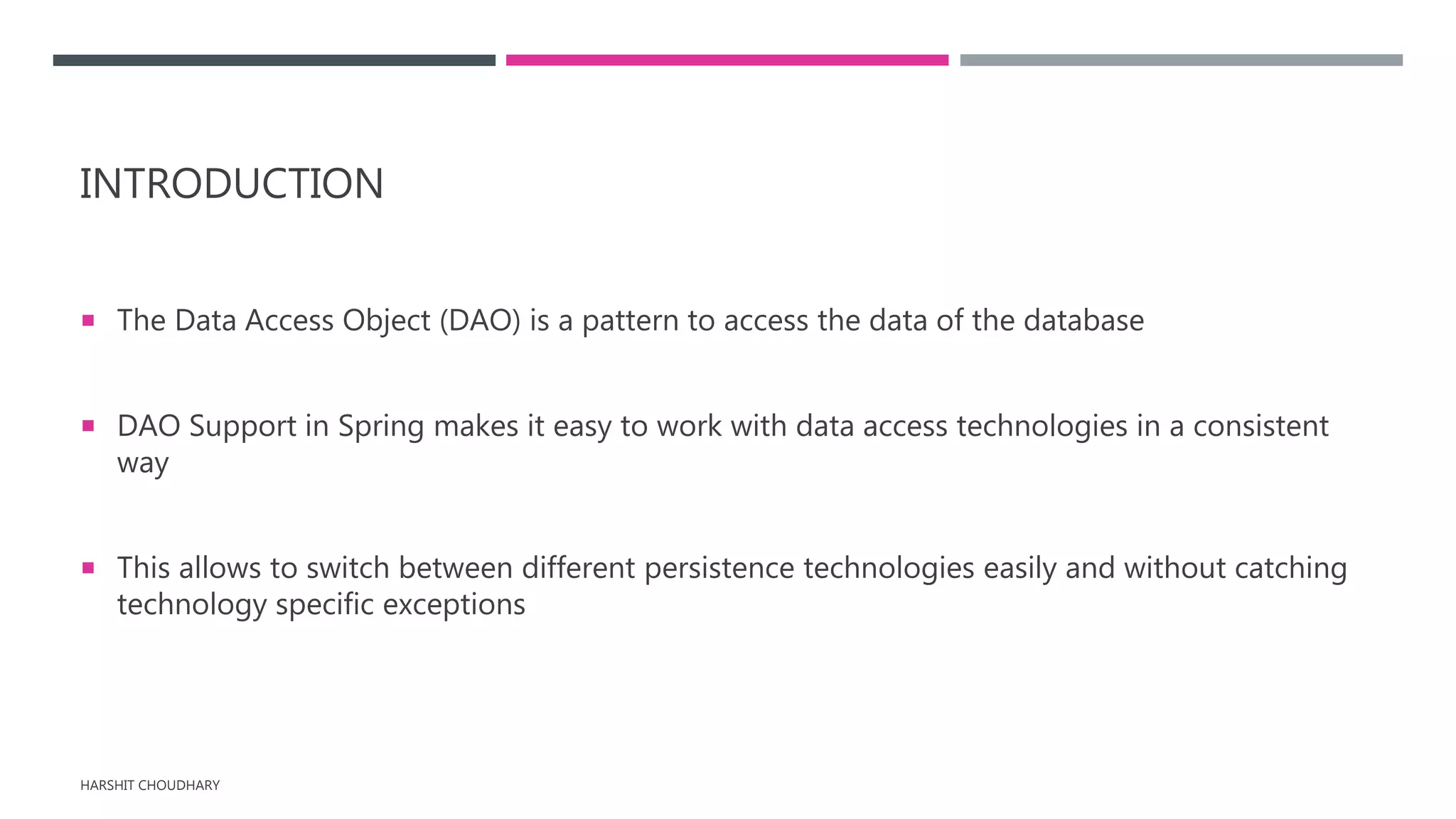

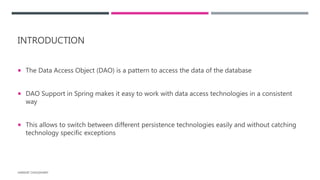

4. INTRODUCTION
 The Data Access Object (DAO) is a pattern to access the data of the database
 DAO Support in Spring makes it easy to work with data access technologies in a consistent
way
 This allows to switch between different persistence technologies easily and without catching
technology specific exceptions
HARSHIT CHOUDHARY

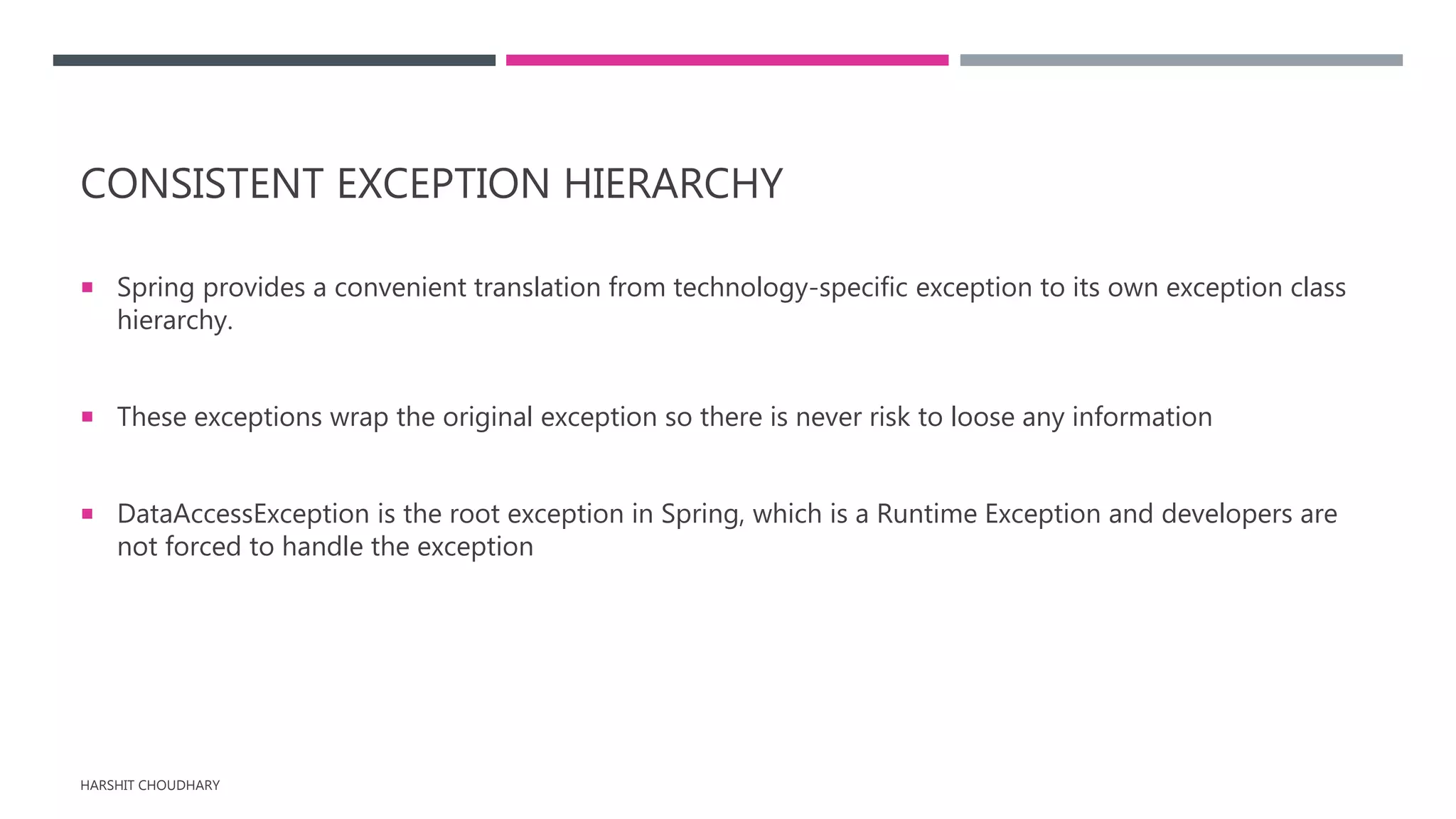

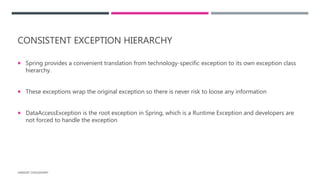

5. CONSISTENT EXCEPTION HIERARCHY
 Spring provides a convenient translation from technology-specific exception to its own exception class
hierarchy.
 These exceptions wrap the original exception so there is never risk to loose any information
 DataAccessException is the root exception in Spring, which is a Runtime Exception and developers are
not forced to handle the exception
HARSHIT CHOUDHARY

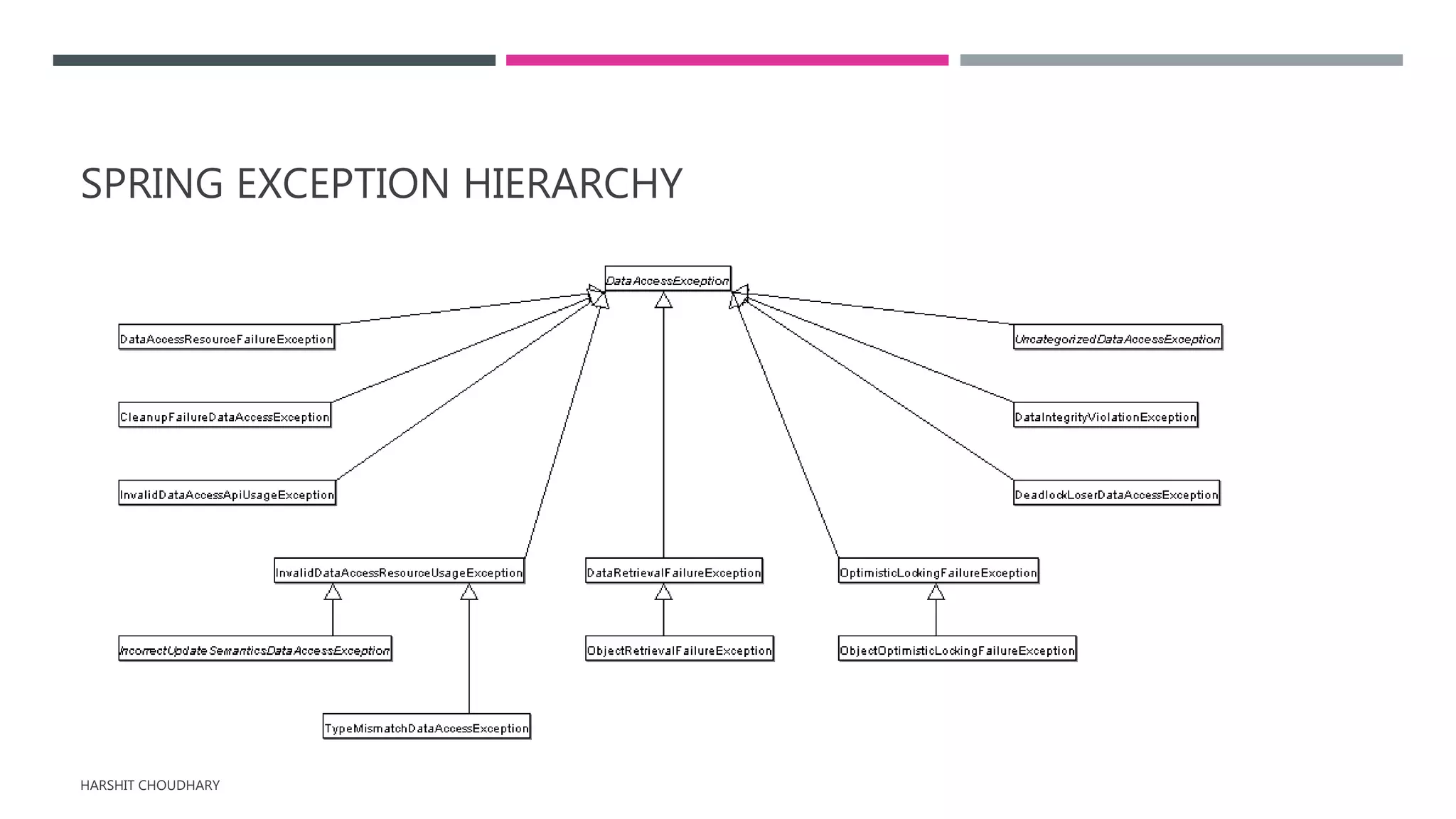

6. SPRING EXCEPTION HIERARCHY
HARSHIT CHOUDHARY

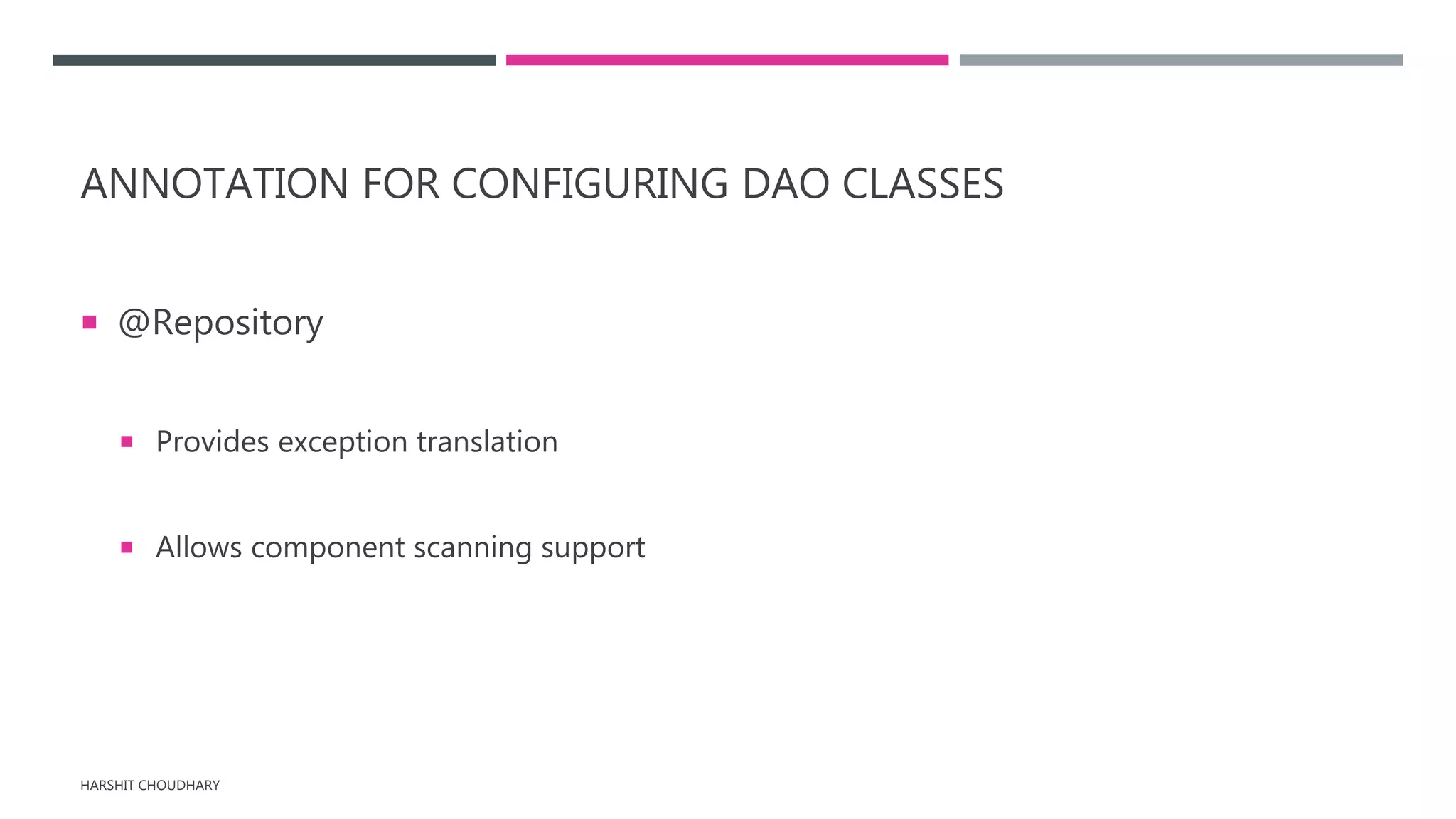

7. ANNOTATION FOR CONFIGURING DAO CLASSES
 @Repository
 Provides exception translation
 Allows component scanning support
HARSHIT CHOUDHARY

8. DATA ACCESS WITH JDBC
HARSHIT CHOUDHARY

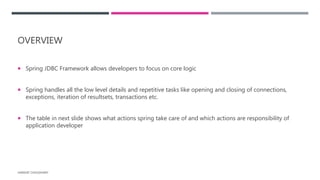

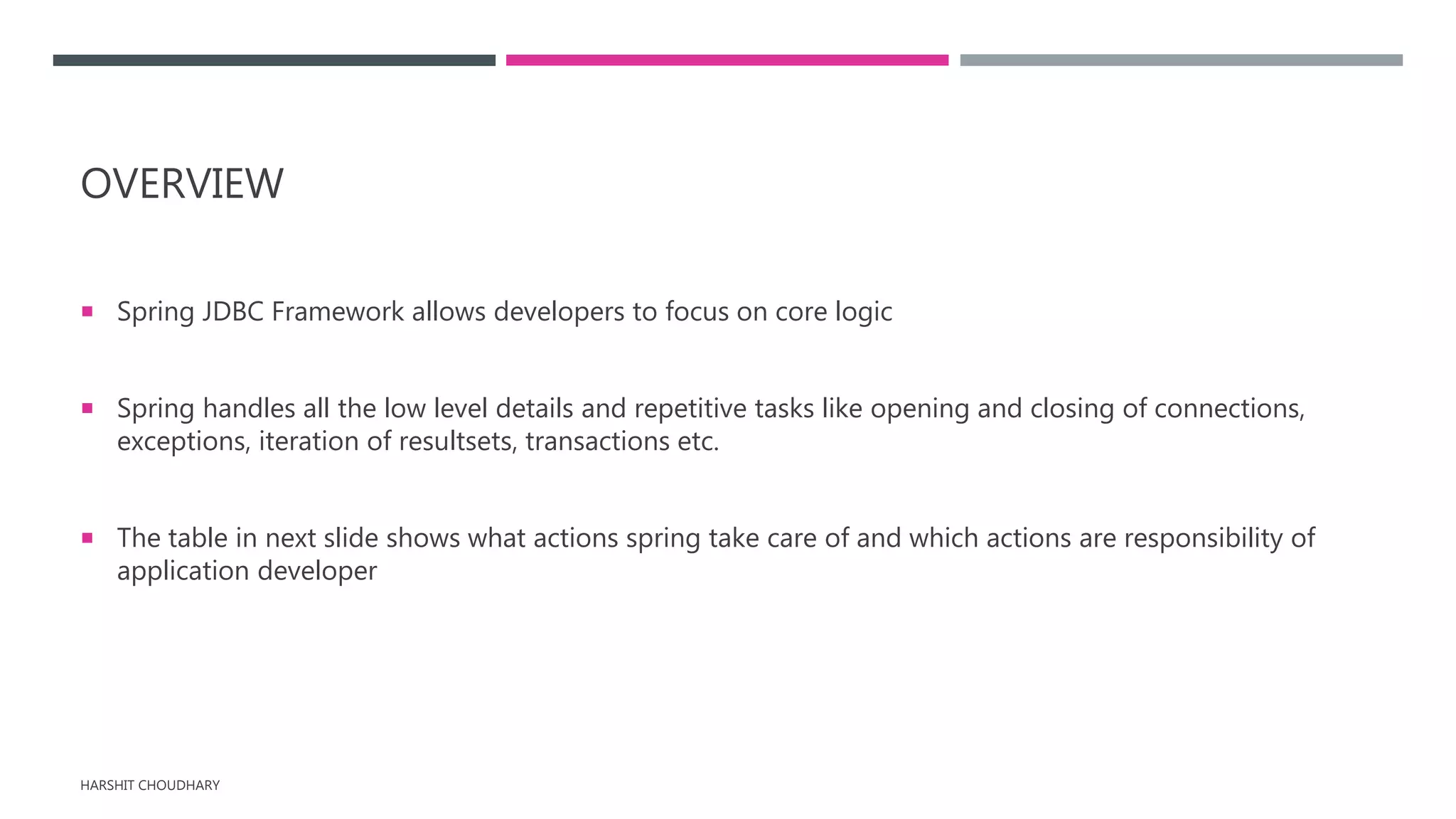

9. OVERVIEW
 Spring JDBC Framework allows developers to focus on core logic
 Spring handles all the low level details and repetitive tasks like opening and closing of connections,
exceptions, iteration of resultsets, transactions etc.
 The table in next slide shows what actions spring take care of and which actions are responsibility of
application developer
HARSHIT CHOUDHARY

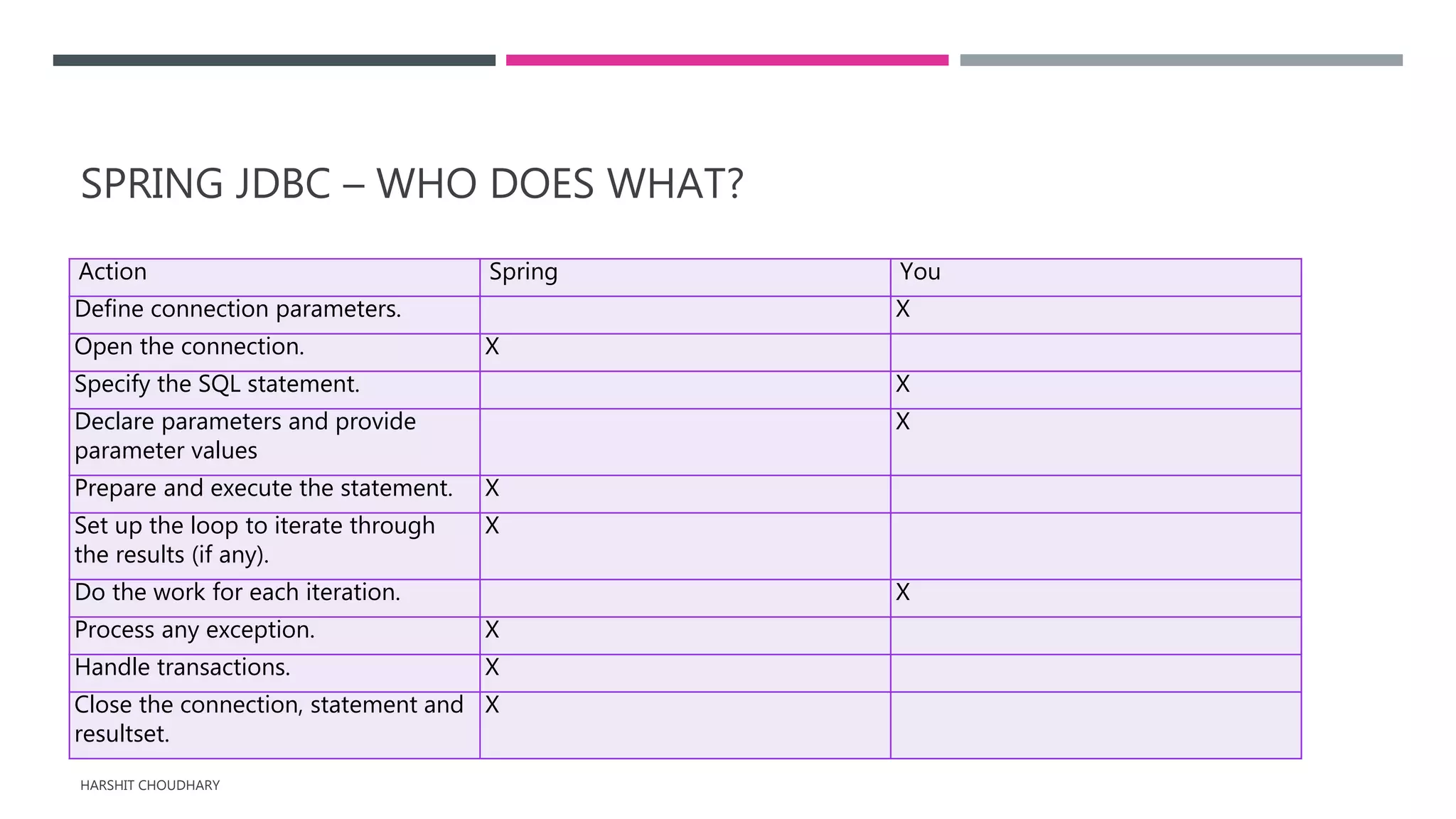

10. SPRING JDBC – WHO DOES WHAT?
HARSHIT CHOUDHARY
Action Spring You
Define connection parameters. X
Open the connection. X
Specify the SQL statement. X
Declare parameters and provide
parameter values
X
Prepare and execute the statement. X
Set up the loop to iterate through
the results (if any).
X
Do the work for each iteration. X
Process any exception. X
Handle transactions. X
Close the connection, statement and
resultset.
X

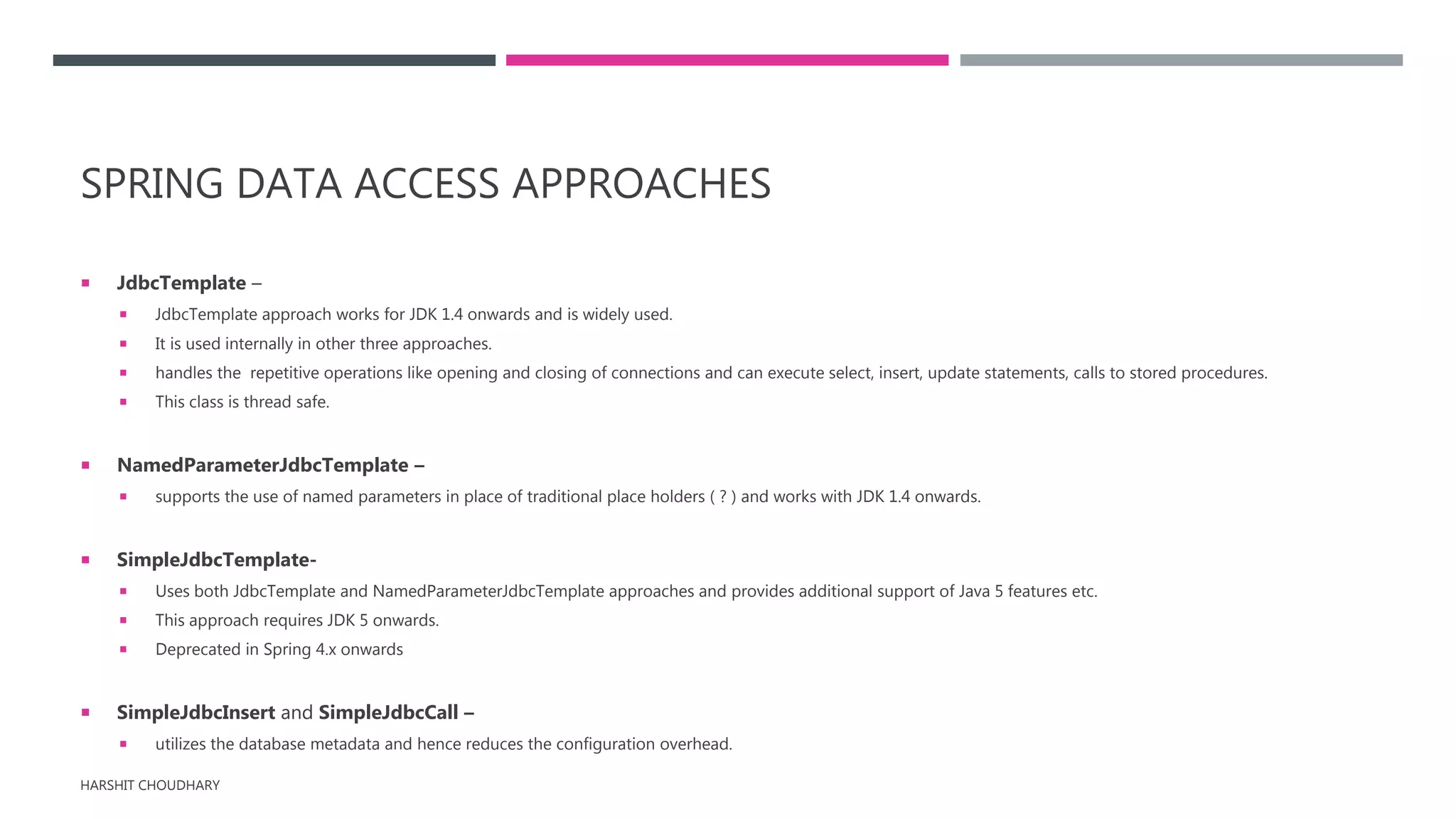

11. SPRING DATA ACCESS APPROACHES
 JdbcTemplate –
 JdbcTemplate approach works for JDK 1.4 onwards and is widely used.
 It is used internally in other three approaches.
 handles the repetitive operations like opening and closing of connections and can execute select, insert, update statements, calls to stored procedures.
 This class is thread safe.
 NamedParameterJdbcTemplate –
 supports the use of named parameters in place of traditional place holders ( ? ) and works with JDK 1.4 onwards.
 SimpleJdbcTemplate-
 Uses both JdbcTemplate and NamedParameterJdbcTemplate approaches and provides additional support of Java 5 features etc.
 This approach requires JDK 5 onwards.
 Deprecated in Spring 4.x onwards
 SimpleJdbcInsert and SimpleJdbcCall –
 utilizes the database metadata and hence reduces the configuration overhead.
HARSHIT CHOUDHARY

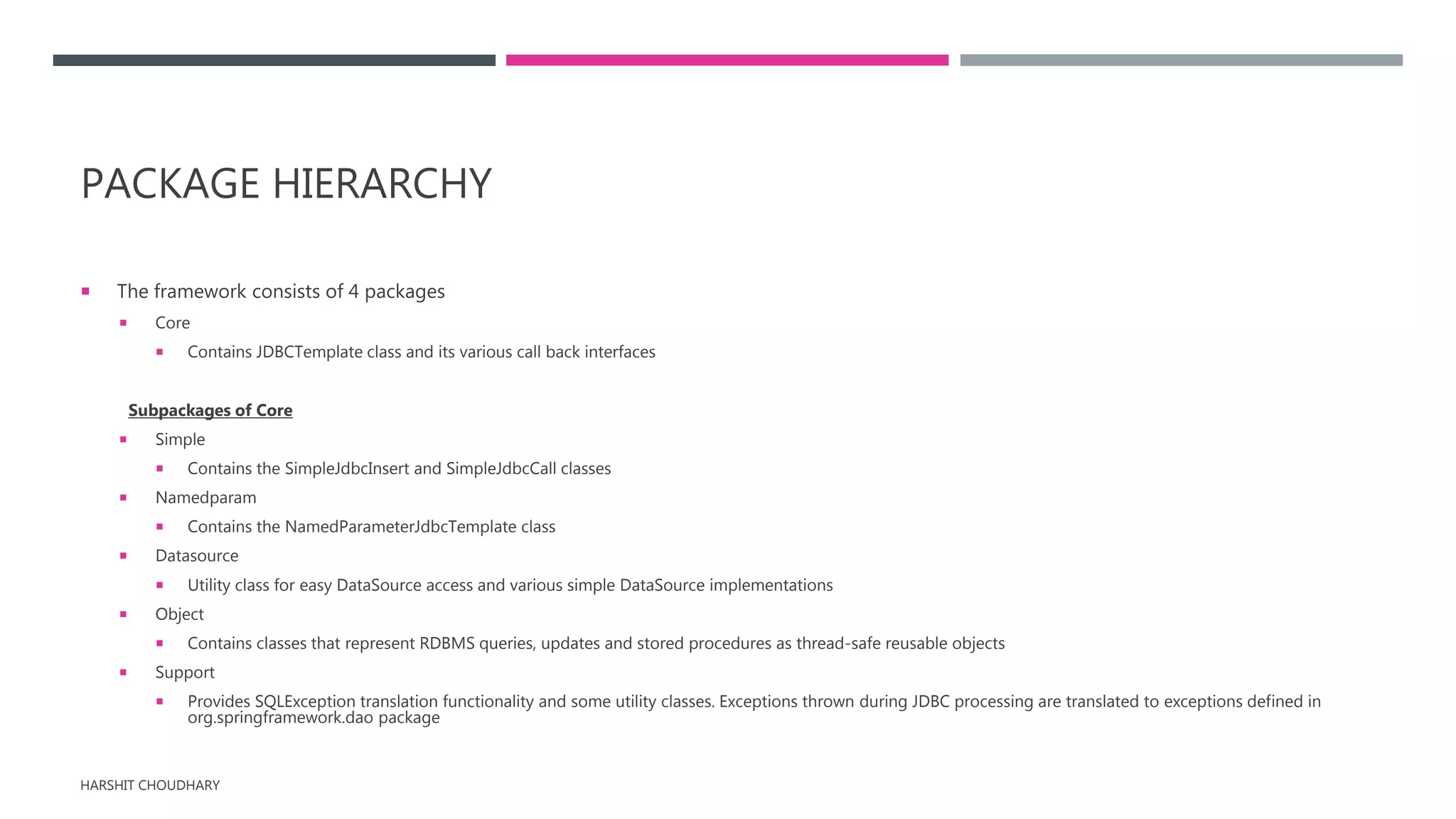

12. PACKAGE HIERARCHY
 The framework consists of 4 packages
 Core
 Contains JDBCTemplate class and its various call back interfaces
Subpackages of Core
 Simple
 Contains the SimpleJdbcInsert and SimpleJdbcCall classes
 Namedparam
 Contains the NamedParameterJdbcTemplate class
 Datasource
 Utility class for easy DataSource access and various simple DataSource implementations
 Object
 Contains classes that represent RDBMS queries, updates and stored procedures as thread-safe reusable objects
 Support
 Provides SQLException translation functionality and some utility classes. Exceptions thrown during JDBC processing are translated to exceptions defined in
org.springframework.dao package
HARSHIT CHOUDHARY

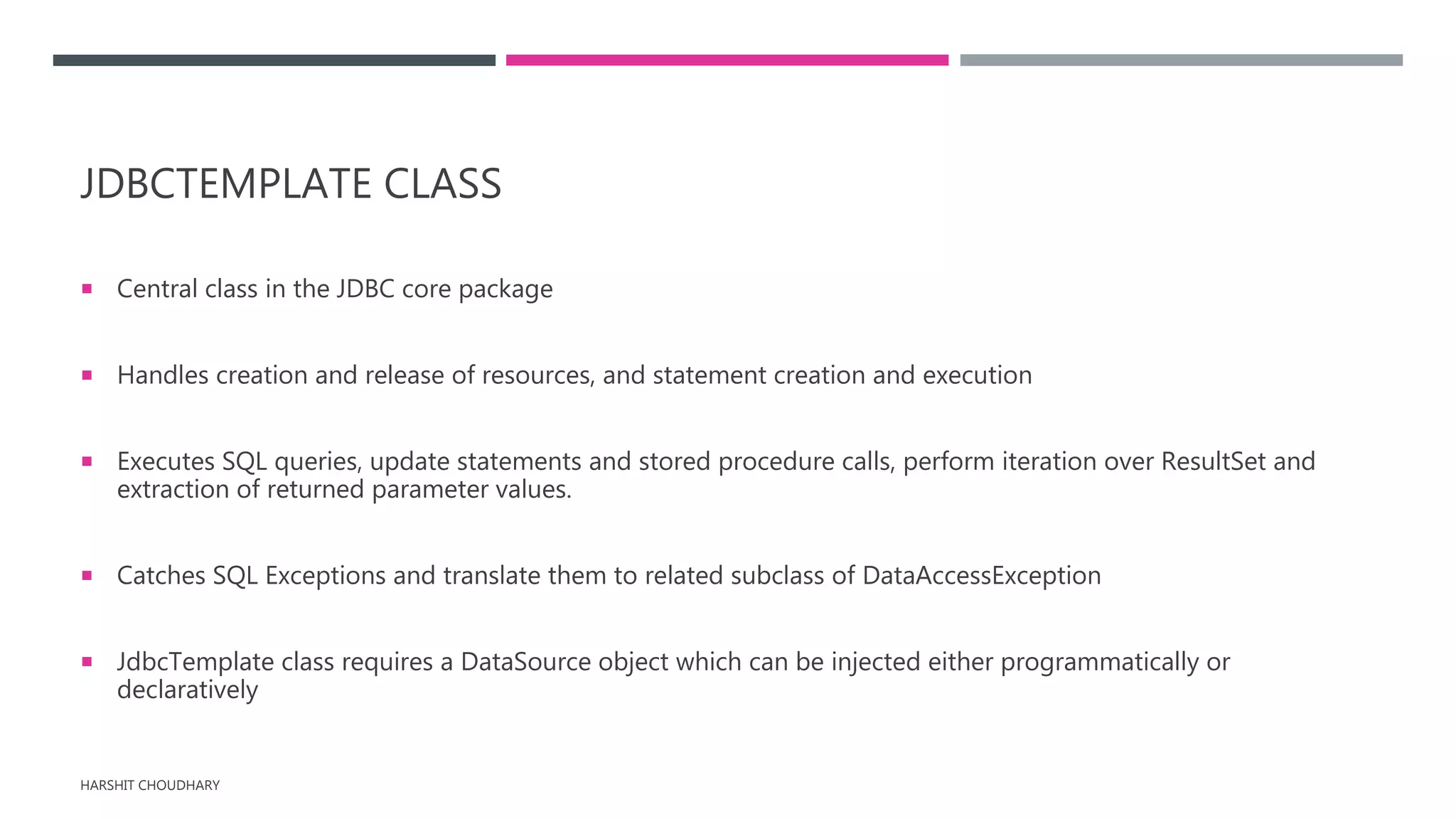

13. JDBCTEMPLATE CLASS
 Central class in the JDBC core package
 Handles creation and release of resources, and statement creation and execution
 Executes SQL queries, update statements and stored procedure calls, perform iteration over ResultSet and
extraction of returned parameter values.
 Catches SQL Exceptions and translate them to related subclass of DataAccessException
 JdbcTemplate class requires a DataSource object which can be injected either programmatically or
declaratively
HARSHIT CHOUDHARY

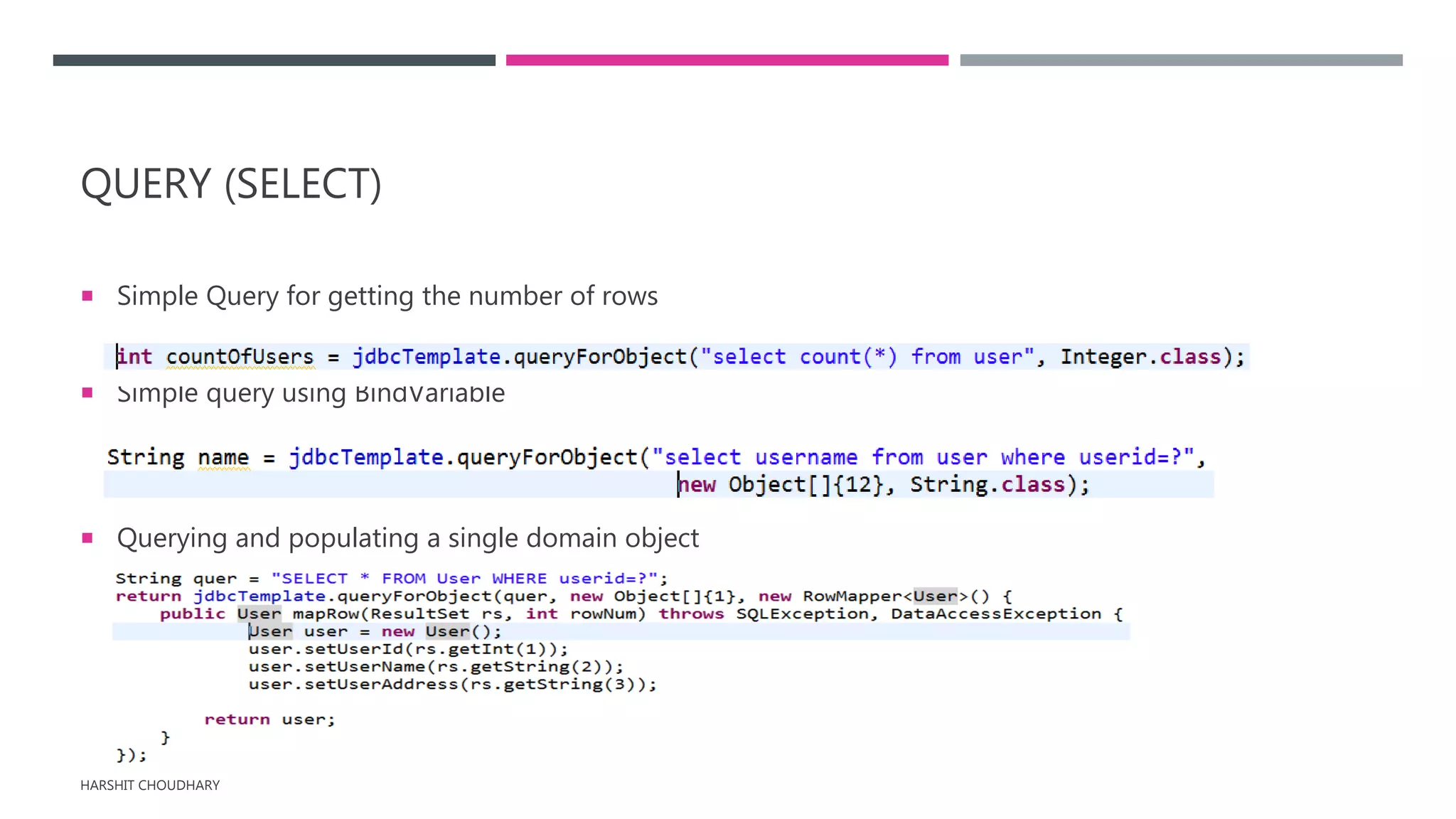

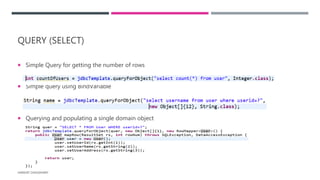

14. QUERY (SELECT)
 Simple Query for getting the number of rows
 Simple query using BindVariable
 Querying and populating a single domain object
HARSHIT CHOUDHARY

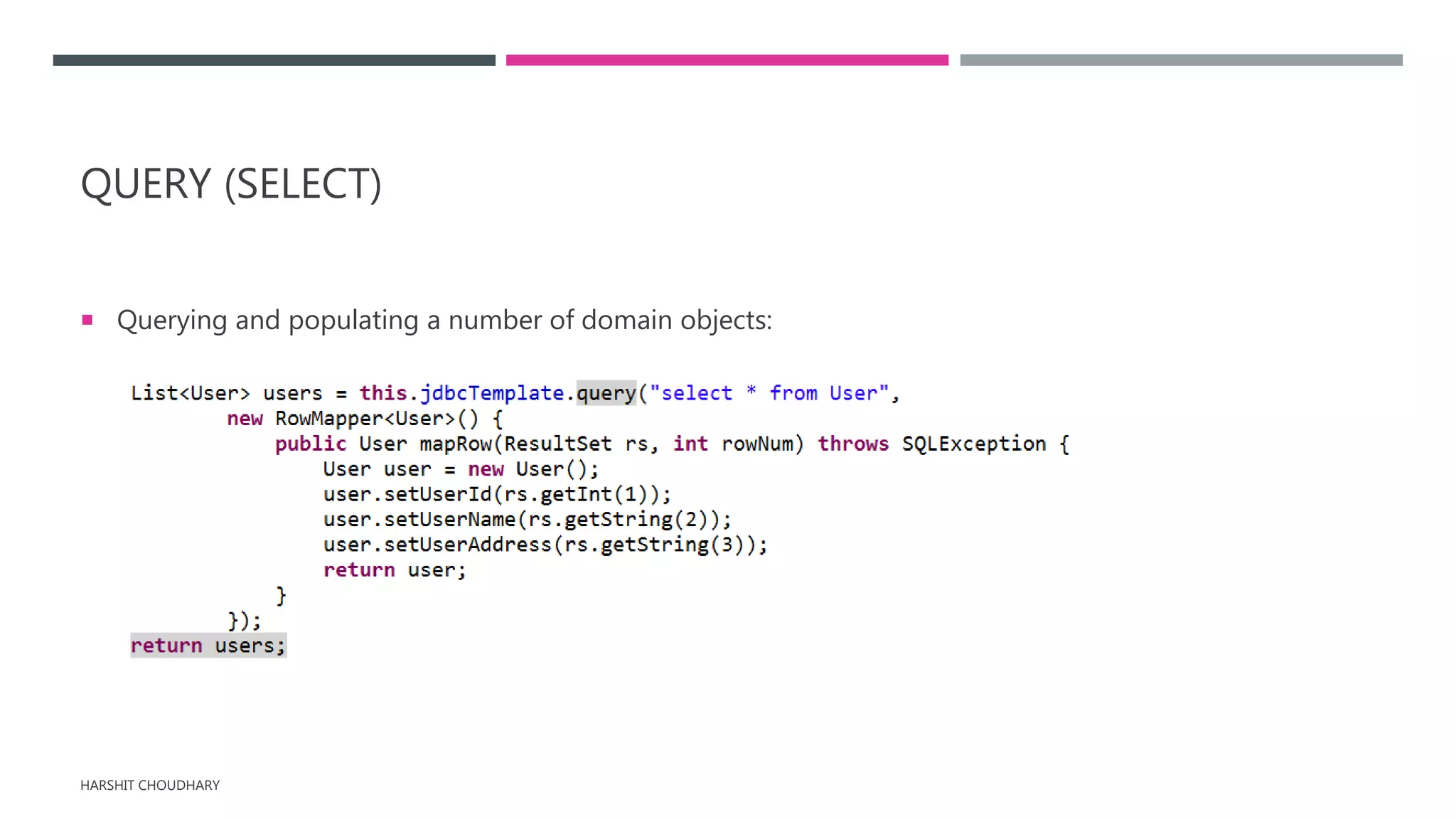

15. QUERY (SELECT)
 Querying and populating a number of domain objects:
HARSHIT CHOUDHARY

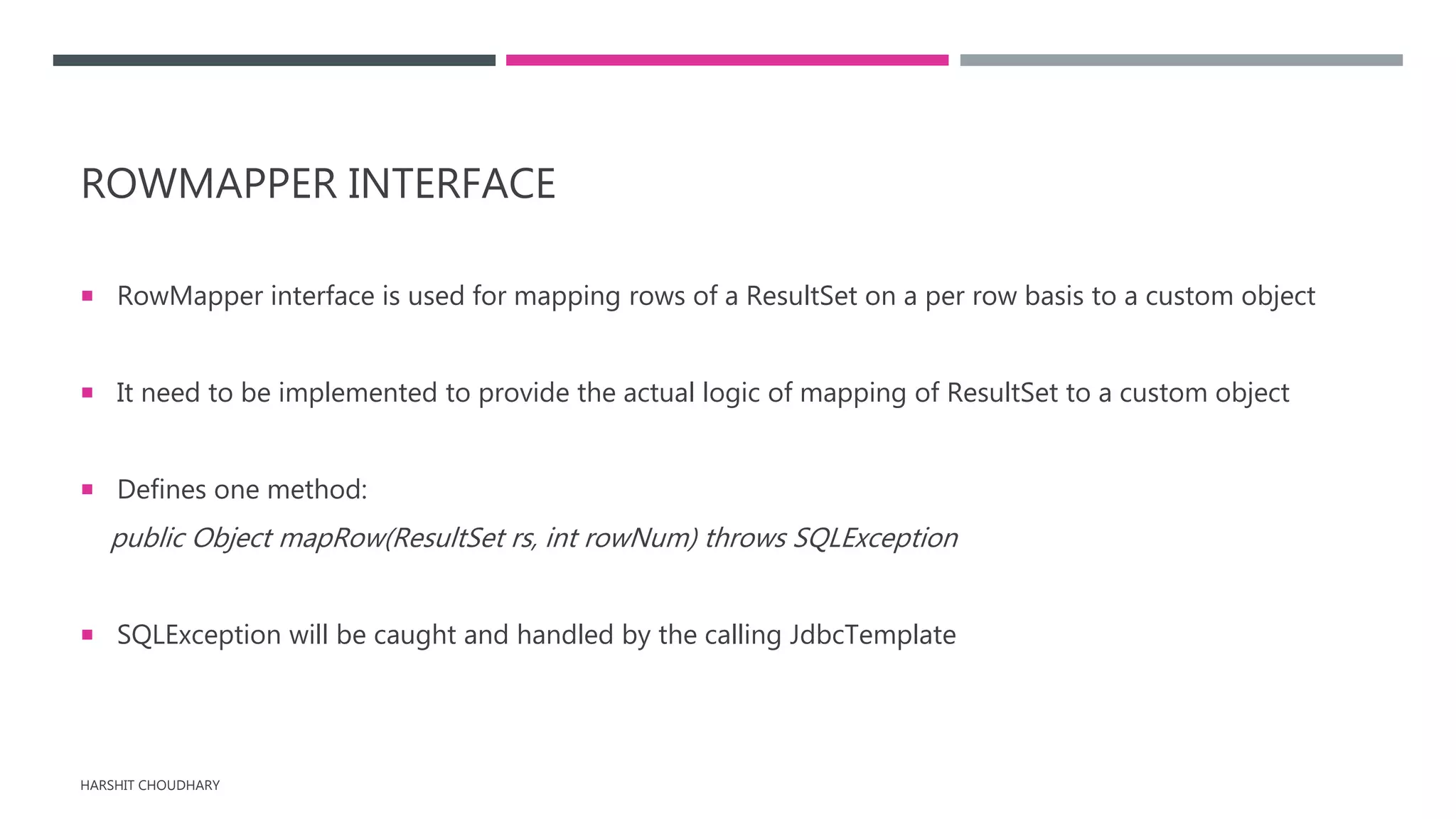

16. ROWMAPPER INTERFACE
 RowMapper interface is used for mapping rows of a ResultSet on a per row basis to a custom object
 It need to be implemented to provide the actual logic of mapping of ResultSet to a custom object
 Defines one method:
public Object mapRow(ResultSet rs, int rowNum) throws SQLException
 SQLException will be caught and handled by the calling JdbcTemplate
HARSHIT CHOUDHARY

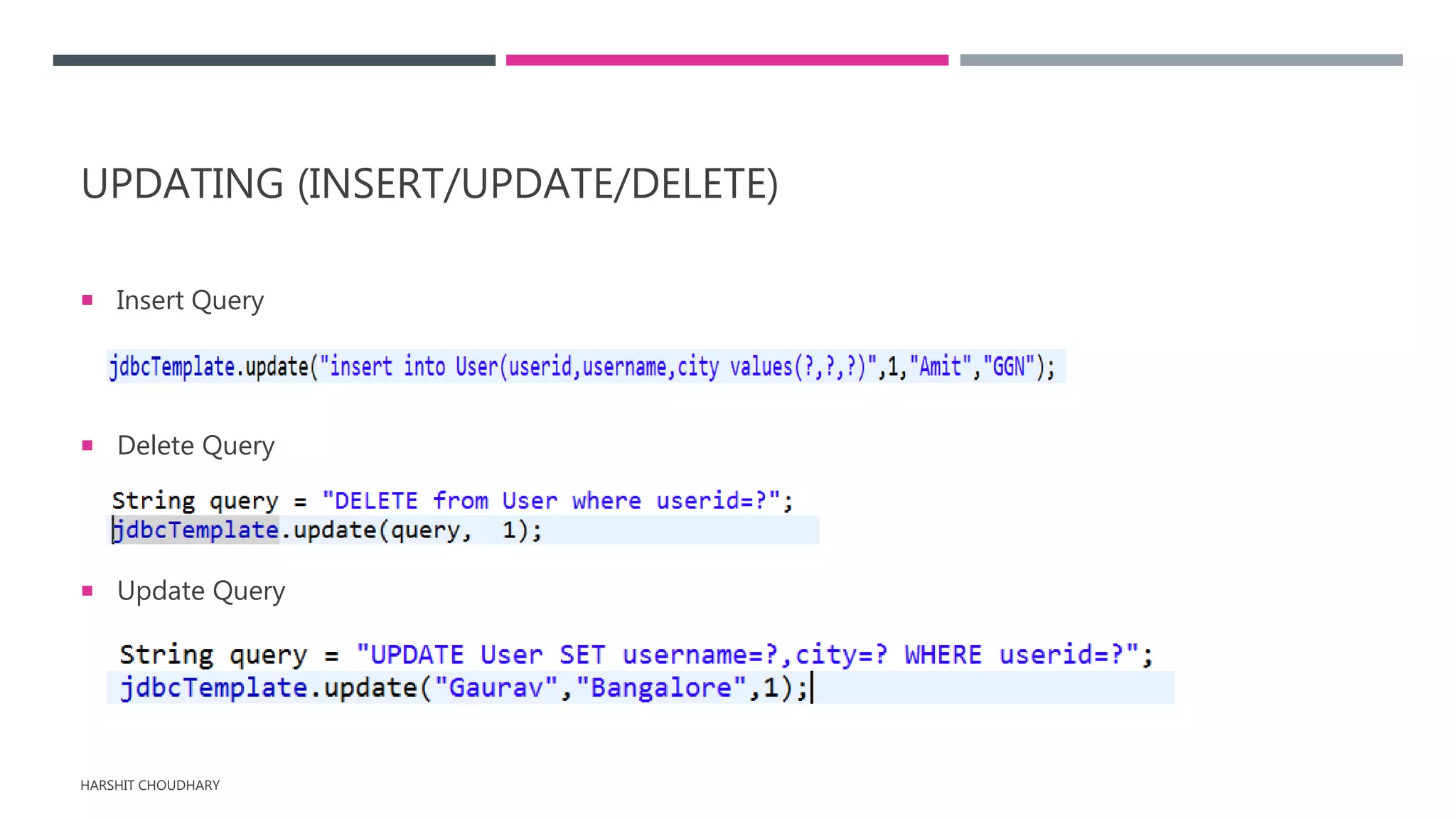

17. UPDATING (INSERT/UPDATE/DELETE)
 Insert Query
 Delete Query
 Update Query
HARSHIT CHOUDHARY

18. NAMEDPARAMETER JDBC TEMPLATE
HARSHIT CHOUDHARY

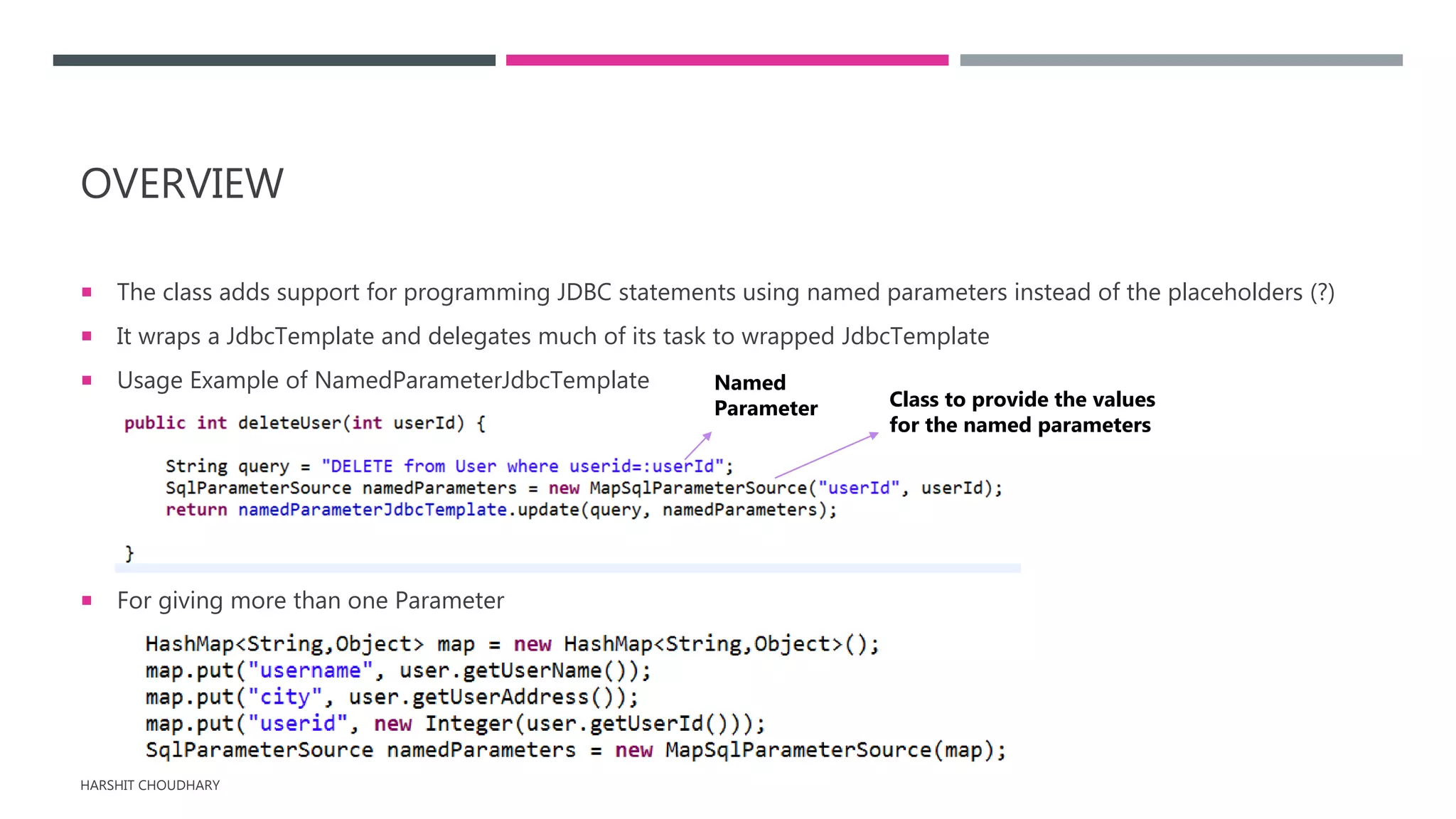

19. OVERVIEW
 The class adds support for programming JDBC statements using named parameters instead of the placeholders (?)
 It wraps a JdbcTemplate and delegates much of its task to wrapped JdbcTemplate
 Usage Example of NamedParameterJdbcTemplate
 For giving more than one Parameter
HARSHIT CHOUDHARY
Named
Parameter Class to provide the values
for the named parameters

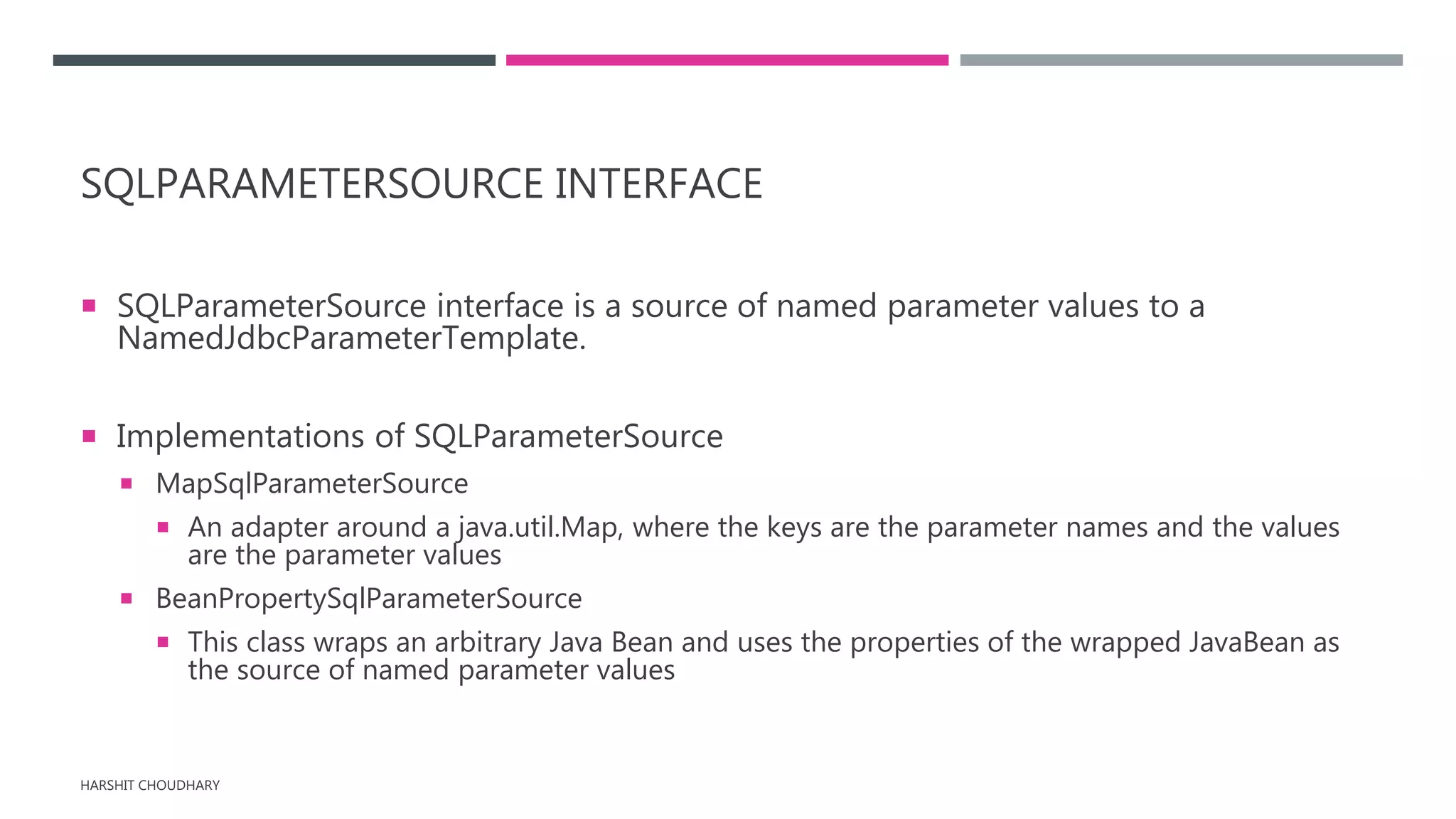

20. SQLPARAMETERSOURCE INTERFACE
 SQLParameterSource interface is a source of named parameter values to a
NamedJdbcParameterTemplate.
 Implementations of SQLParameterSource
 MapSqlParameterSource
 An adapter around a java.util.Map, where the keys are the parameter names and the values
are the parameter values
 BeanPropertySqlParameterSource
 This class wraps an arbitrary Java Bean and uses the properties of the wrapped JavaBean as
the source of named parameter values
HARSHIT CHOUDHARY

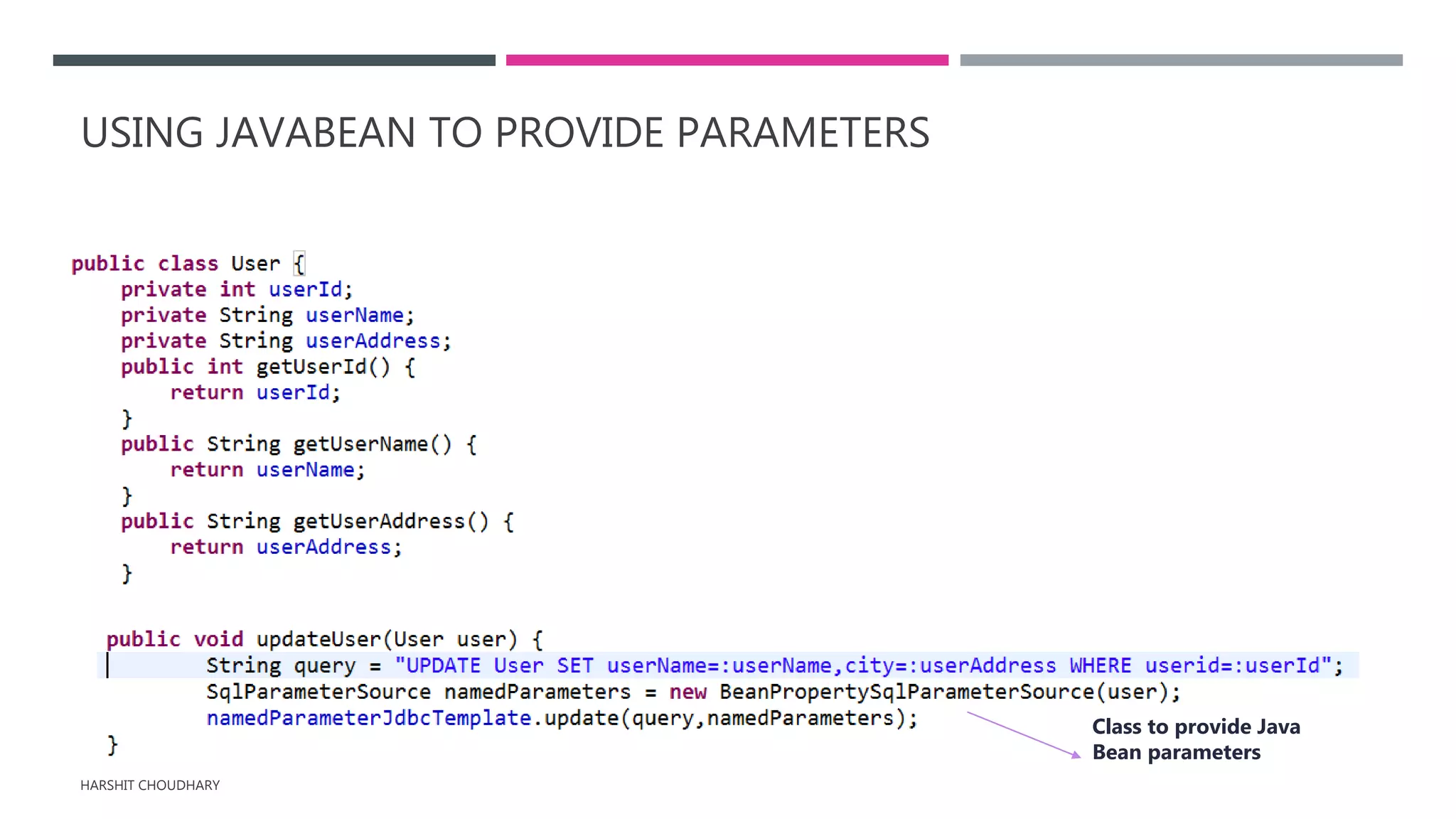

21. USING JAVABEAN TO PROVIDE PARAMETERS
HARSHIT CHOUDHARY
Class to provide Java
Bean parameters

22. CONTROLLING DATABASE CONNECTIONS
HARSHIT CHOUDHARY

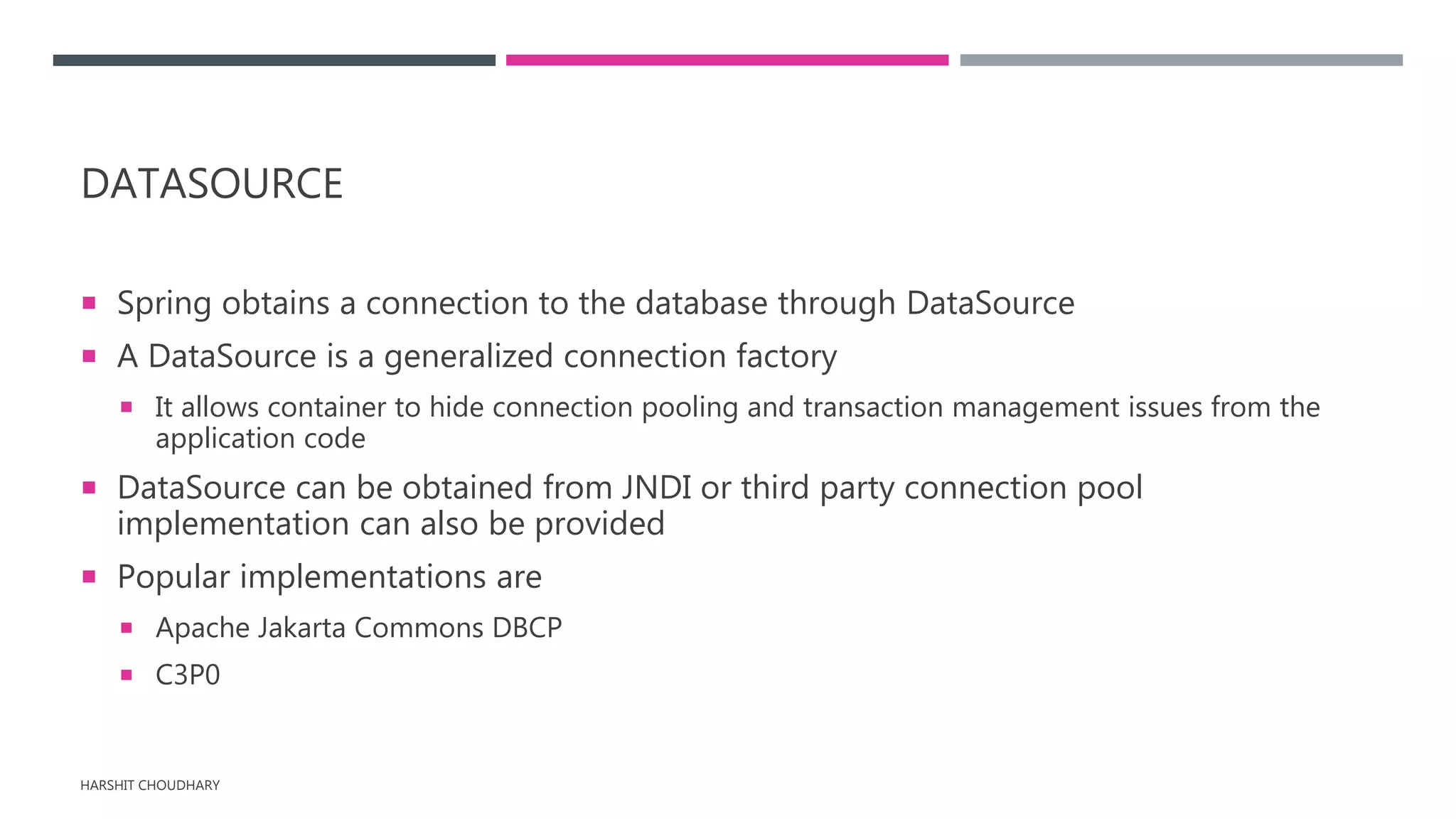

23. DATASOURCE
 Spring obtains a connection to the database through DataSource
 A DataSource is a generalized connection factory
 It allows container to hide connection pooling and transaction management issues from the
application code
 DataSource can be obtained from JNDI or third party connection pool
implementation can also be provided
 Popular implementations are
 Apache Jakarta Commons DBCP
 C3P0
HARSHIT CHOUDHARY

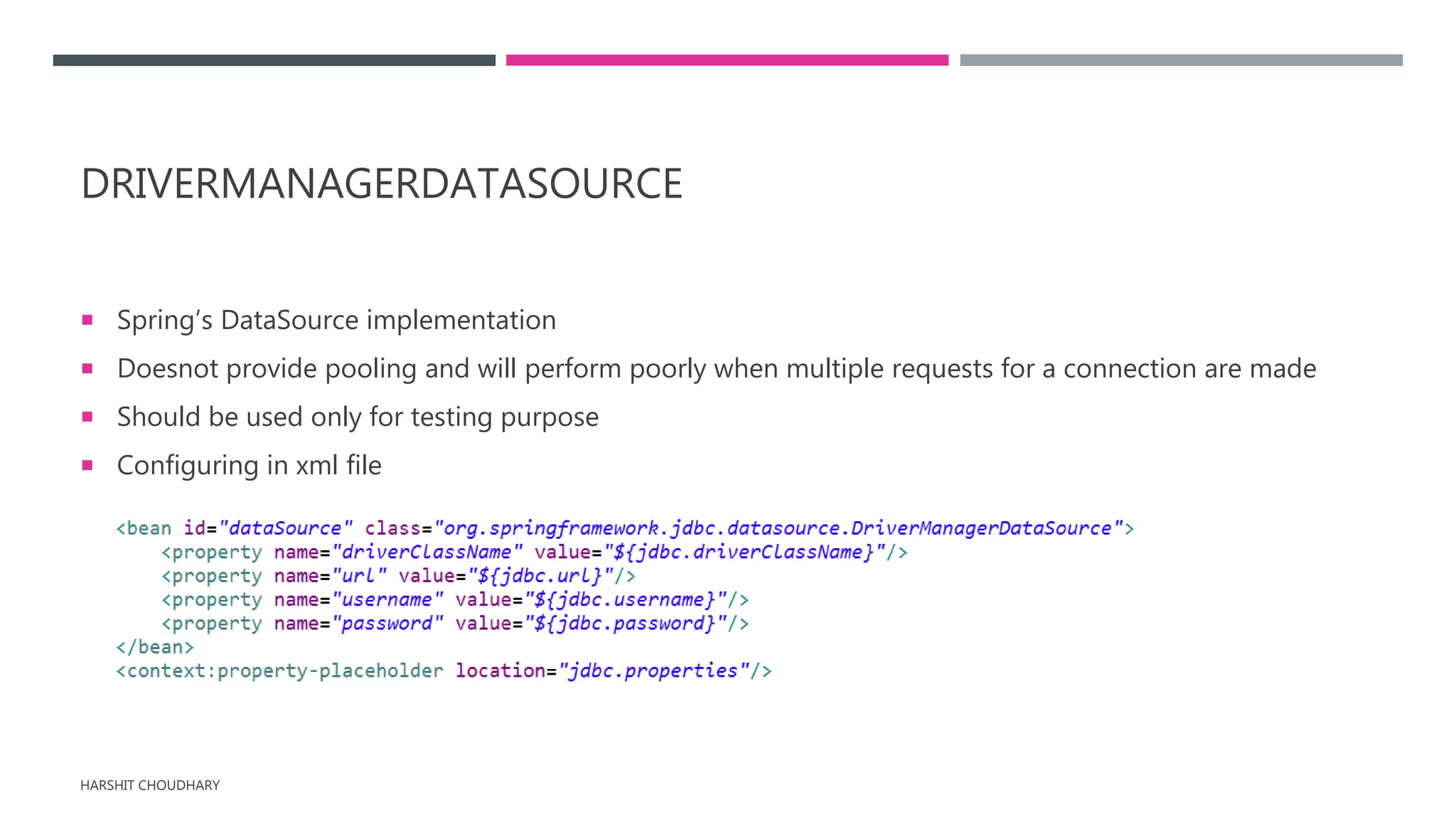

24. DRIVERMANAGERDATASOURCE
 Spring’s DataSource implementation
 Doesnot provide pooling and will perform poorly when multiple requests for a connection are made
 Should be used only for testing purpose
 Configuring in xml file
HARSHIT CHOUDHARY
