1. Quick dive into WebVR
Janne Aukia — 27 Oct 2016
Image: a french glass stereo-view depicting riverside natural swimming pool in the Seine
at Valvins, Fontainebleau. Taken in 1926. Scanned by James Morley. flic.kr/p/9dZuyB

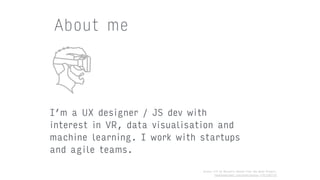

2. Oculus rift by Musavvir Ahmed from the Noun Project.
thenounproject.com/term/oculus-rift/165712
I’m a UX designer / JS dev with
interest in VR, data visualisation and
machine learning. I work with startups
and agile teams.
About me

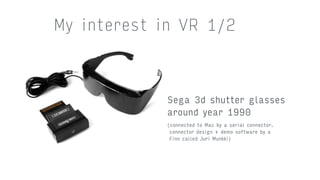

3. My interest in VR 1/2
Sega 3d shutter glasses
around year 1990
(connected to Mac by a serial connector.
connector design + demo software by a
Finn called Juri Munkki)

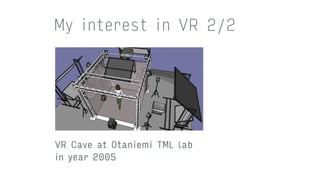

4. My interest in VR 2/2
VR Cave at Otaniemi TML lab
in year 2005

5. High-fi: HTC Vive, Oculus Rift,
Playstation VR
Low-fi: Google Daydream,
Samsung Gear VR, Google Cardboard
(AR: Microsoft Hololens)
VR Devices 1/2
Icons by Arthur Schmitt from the Noun Project.
thenounproject.com/tart2000/collection/virtual-reality-vr-headsets

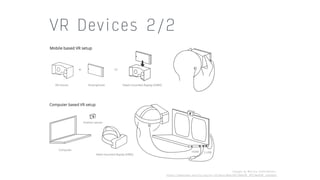

6. VR Devices 2/2
Images by Mozilla Contributors.
https://developer.mozilla.org/en-US/docs/Web/API/WebVR_API/WebVR_concepts

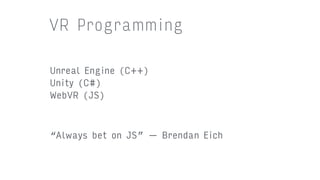

7. Unreal Engine (C++)
Unity (C#)
WebVR (JS)
VR Programming
“Always bet on JS” — Brendan Eich

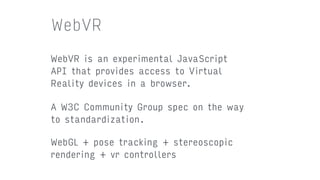

8. WebVR
WebVR is an experimental JavaScript
API that provides access to Virtual
Reality devices in a browser.
A W3C Community Group spec on the way
to standardization.
WebGL + pose tracking + stereoscopic
rendering + vr controllers

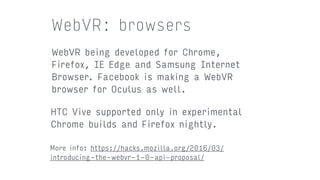

9. WebVR: browsers
WebVR being developed for Chrome,
Firefox, IE Edge and Samsung Internet
Browser. Facebook is making a WebVR
browser for Oculus as well.
HTC Vive supported only in experimental
Chrome builds and Firefox nightly.
More info: https://hacks.mozilla.org/2016/03/
introducing-the-webvr-1-0-api-proposal/

10. Exciting times: WebVR API, tools, browsers
and hardware are in a state of constant flux.
Photo by Michelle Tribe.
flic.kr/p/8onKq9

11. WebVR: how to start
Starting point: webvr.info
High-fi: Experimental Chrome + HTC
Vive + Windows
Low-fi: Samsung Gear VR or similar. Or
a mobile phone + WebVR polyfill. Or
build a native app with CocoonJS etc.

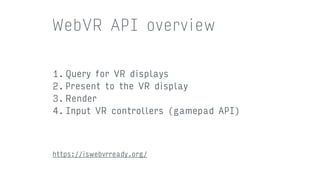

12. 1. Query for VR displays
2. Present to the VR display
3. Render
4. Input VR controllers (gamepad API)
WebVR API overview
https://iswebvrready.org/

13. WebVR API: rendering
navigator.getVRDisplays().then(function(displays) {
if (!displays.length) return;
vrDisplay = displays.length[0];
}).catch(function (err) {
console.error('Could not get VRDisplays', err.stack);
});
// WebVR introduces a special, over 60FPS version,
// of the requestAnimationFrame!
vrDisplay.requestAnimationFrame(loop);
function loop() {
// set up for the next frame
vrDisplay.requestAnimationFrame(loop);
// get HMD position/orientation
var pose = vrDisplay.getPose();
if(vrDisplay.isPresenting) {
// render scene for each eye
renderScene(pose, "left");
renderScene(pose, "right");
}
vrDisplay.submitFrame(pose);
}

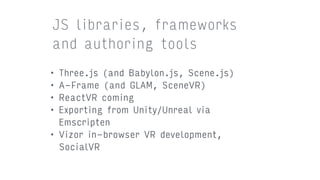

14. • Three.js (and Babylon.js, Scene.js)
• A-Frame (and GLAM, SceneVR)
• ReactVR coming
• Exporting from Unity/Unreal via
Emscripten
• Vizor in-browser VR development,
SocialVR
JS libraries, frameworks
and authoring tools

15. • Does a lot of things for you while
providing access to WebGL details
• Simple setup of VR scene and rendering
• Supports Vive controllers
• Examples at: threejs.org/examples/
• WebVR boilerplate at: github.com/
borismus/webvr-boilerplate
Three.js for WebVR

16. Three.js example 1/2
// Before these, setup manager and renderer, see:
// https://github.com/borismus/webvr-boilerplate/blob/master/index.html
var scene = new THREE.Scene();
var camera = new THREE.PerspectiveCamera(75,
window.innerWidth/window.innerHeight, 0.1, 100);
var controls = new THREE.VRControls(camera);
controls.standing = true;
// Apply VR stereo rendering to renderer.
var effect = new THREE.VREffect(renderer);
effect.setSize(window.innerWidth, window.innerHeight);
var geometry = new THREE.BoxGeometry(0.5, 0.5, 0.5);
var cube = new THREE.Mesh(geometry, new THREE.MeshNormalMaterial());
// Position cube mesh to be right in front of you.
cube.position.set(0, controls.userHeight, -1);
// Add cube mesh to your three.js scene
scene.add(cube);

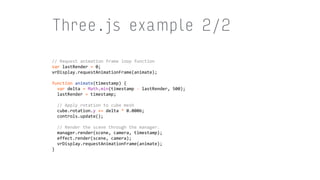

17. Three.js example 2/2
// Request animation frame loop function
var lastRender = 0;
vrDisplay.requestAnimationFrame(animate);
function animate(timestamp) {
var delta = Math.min(timestamp - lastRender, 500);
lastRender = timestamp;
// Apply rotation to cube mesh
cube.rotation.y += delta * 0.0006;
controls.update();
// Render the scene through the manager.
manager.render(scene, camera, timestamp);
effect.render(scene, camera);
vrDisplay.requestAnimationFrame(animate);
}

18. • WebVR emulator for Chrome might also come
in handy, find it at: https://webvr.info/
• Ray Input is a JavaScript library that
provides an input abstraction for interacting
with 3D VR content in the browser: https://
github.com/borismus/ray-input
• WebVR replayer for Vive controller
simulation/testing https://github.com/
mrdoob/webvr-replayer
Practical tools

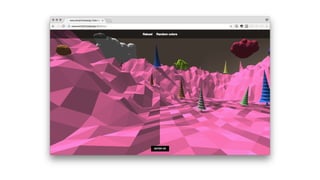

19. My toy project (coloring book)
Thanks to Paja @ the Iso Omena Library
for letting me use their Vive setup!

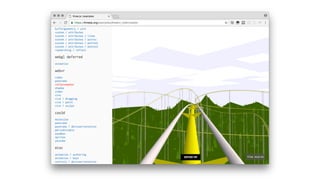

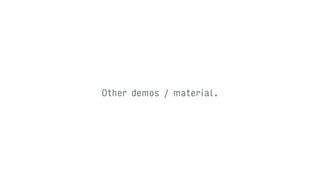

21. Other demos / material.

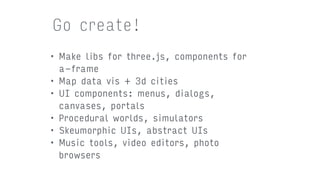

25. • Make libs for three.js, components for
a-frame
• Map data vis + 3d cities
• UI components: menus, dialogs,
canvases, portals
• Procedural worlds, simulators
• Skeumorphic UIs, abstract UIs
• Music tools, video editors, photo
browsers
Go create!
