This document provides an overview of WebRTC in 3 parts: 1) What is WebRTC? WebRTC offers real-time communication directly in web browsers using JavaScript APIs and supports media codecs like VP8. 2) Entities in WebRTC including the browser, signaling techniques like WebSocket and XMPP, and protocols like STUN and TURN for NAT traversal. 3) How to learn WebRTC including recommended books, websites, and weekly newsletters that provide tutorials, code samples, and discussions around advances in the technology.

1. Baby Steps:AWebRTC Tutorial
Your 101
27, June 2014
Tsahi Levent-Levi

2. Welcome!
6/29/2014 2
And thank you for
the opportunity
HikingArtist

3. 20 Minutes on WebRTC?
1. What is WebRTC?
2. Entities in WebRTC
3. How to Learn WebRTC?
6/29/2014 3

4. What is WebRTC?
6/29/2014 4
1

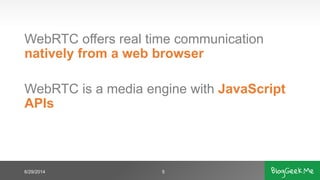

5. WebRTC offers real time communication
natively from a web browser
WebRTC is a media engine with JavaScript
APIs
6/29/2014 5

6. WebRTC is a Technology
not a Solution
TheBusyBrain

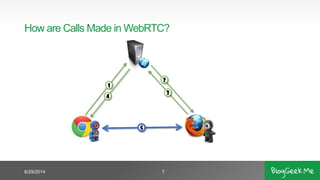

7. How are Calls Made in WebRTC?
6/29/2014 7
1
2
3
4
5

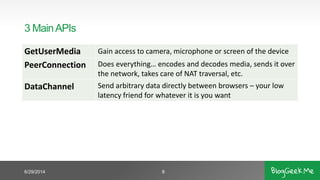

8. 3 MainAPIs
GetUserMedia Gain access to camera, microphone or screen of the device
PeerConnection Does everything… encodes and decodes media, sends it over
the network, takes care of NAT traversal, etc.
DataChannel Send arbitrary data directly between browsers – your low
latency friend for whatever it is you want
6/29/2014 8

9. Why all the fuss?
6/29/2014 9

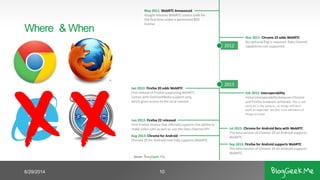

10. Where
6/29/2014 10
& When

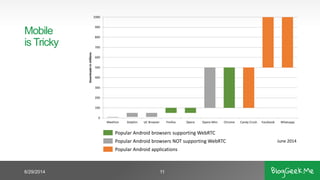

11. 6/29/2014 11
0
100
200
300
400
500
600
700
800
900
1000
Maxthon Dolphin UC Browser Firefox Opera Opera Mini Chrome Candy Crush Facebook Whatsapp
Downloadsinmillions
Mobile
is Tricky
Popular Android browsers supporting WebRTC
Popular Android browsers NOT supporting WebRTC
Popular Android applications
June 2014

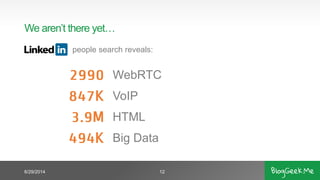

12. We aren’t there yet…
people search reveals:
6/29/2014 12
WebRTC
HTML
VoIP
Big Data

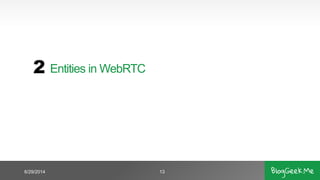

13. Entities in WebRTC
6/29/2014 13
2

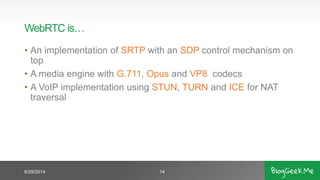

14. WebRTC is…
• An implementation of SRTP with an SDP control mechanism on
top
• A media engine with G.711, Opus and VP8 codecs
• A VoIP implementation using STUN, TURN and ICE for NAT
traversal
6/29/2014 14

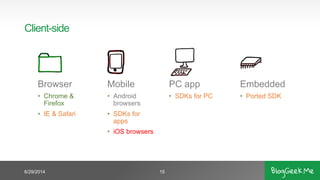

15. Client-side
6/29/2014 15
Browser
• Chrome &
Firefox
• IE & Safari
Mobile
• Android
browsers
• SDKs for
apps
• iOS browsers
PC app
• SDKs for PC
Embedded
• Ported SDK

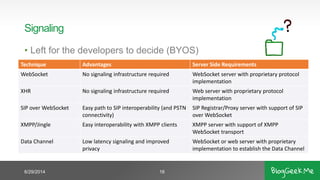

16. Signaling
• Left for the developers to decide (BYOS)
6/29/2014 16
Technique Advantages Server Side Requirements
WebSocket No signaling infrastructure required WebSocket server with proprietary protocol
implementation
XHR No signaling infrastructure required Web server with proprietary protocol
implementation
SIP over WebSocket Easy path to SIP interoperability (and PSTN
connectivity)
SIP Registrar/Proxy server with support of SIP
over WebSocket
XMPP/Jingle Easy interoperability with XMPP clients XMPP server with support of XMPP
WebSocket transport
Data Channel Low latency signaling and improved
privacy
WebSocket or web server with proprietary
implementation to establish the Data Channel

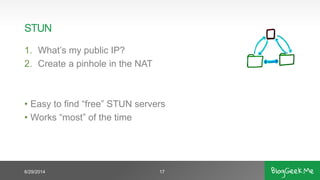

17. STUN
1. What’s my public IP?
2. Create a pinhole in the NAT
• Easy to find “free” STUN servers
• Works “most” of the time
6/29/2014 17

18. TURN
1. When STUN doesn’t work…
2. Relay all media through a TURN server
• Bandwidth hog
• Expect 10-20% of the sessions to require TURN*
6/29/2014 18

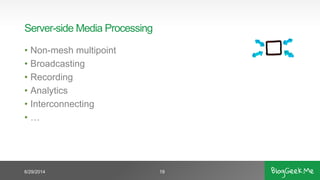

19. Server-side Media Processing
• Non-mesh multipoint
• Broadcasting
• Recording
• Analytics
• Interconnecting
• …
6/29/2014 19

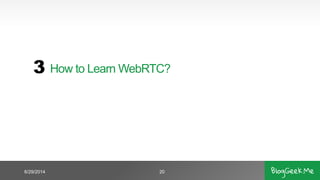

20. How to Learn WebRTC?
6/29/2014 20
3

21. The Bible
6/29/2014 21

22. The Step-by-step
6/29/2014 22

23. The Living-room Chat
6/29/2014 23

24. The Hard-Core
6/29/2014 24

25. The Websites
• HTML5 Rocks
http://www.html5rocks.com/en/search?q=webrtc
• WebRTC Hacks
http://webrtchacks.com/
• Google Groups (discuss-webrtc)
https://groups.google.com/forum/#!forum/discuss-webrtc
6/29/2014 25

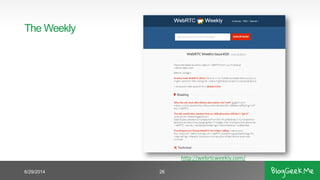

26. The Weekly
6/29/2014 26
http://webrtcweekly.com/

27. Thank You!
Tsahi Levent-Levi
http://bloggeek.me
tsahil@bloggeek.me
6/29/2014 27
