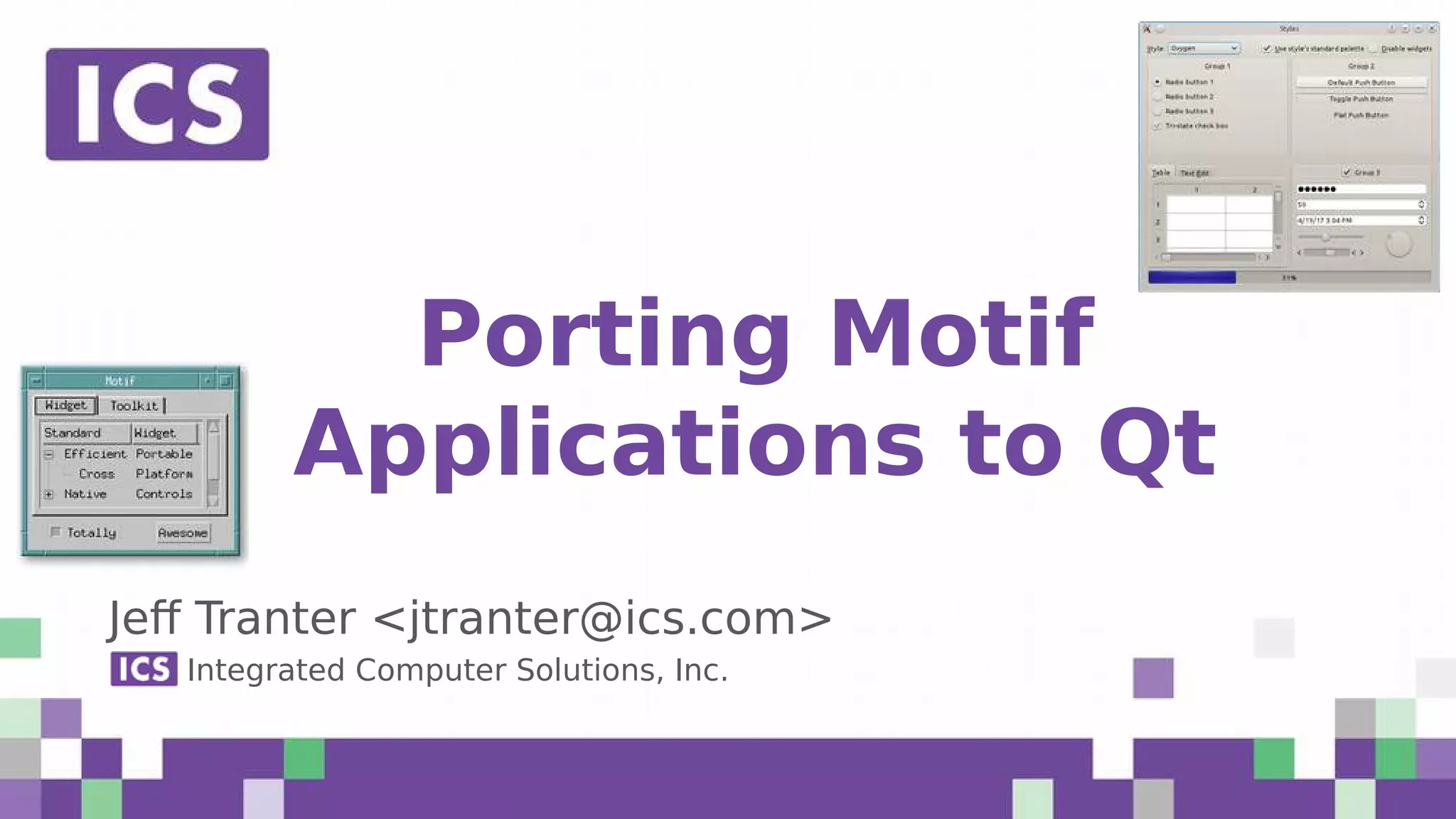

Porting Motif Applications to Qt

© Integrated Computer Solutions, Inc. All Rights Reserved

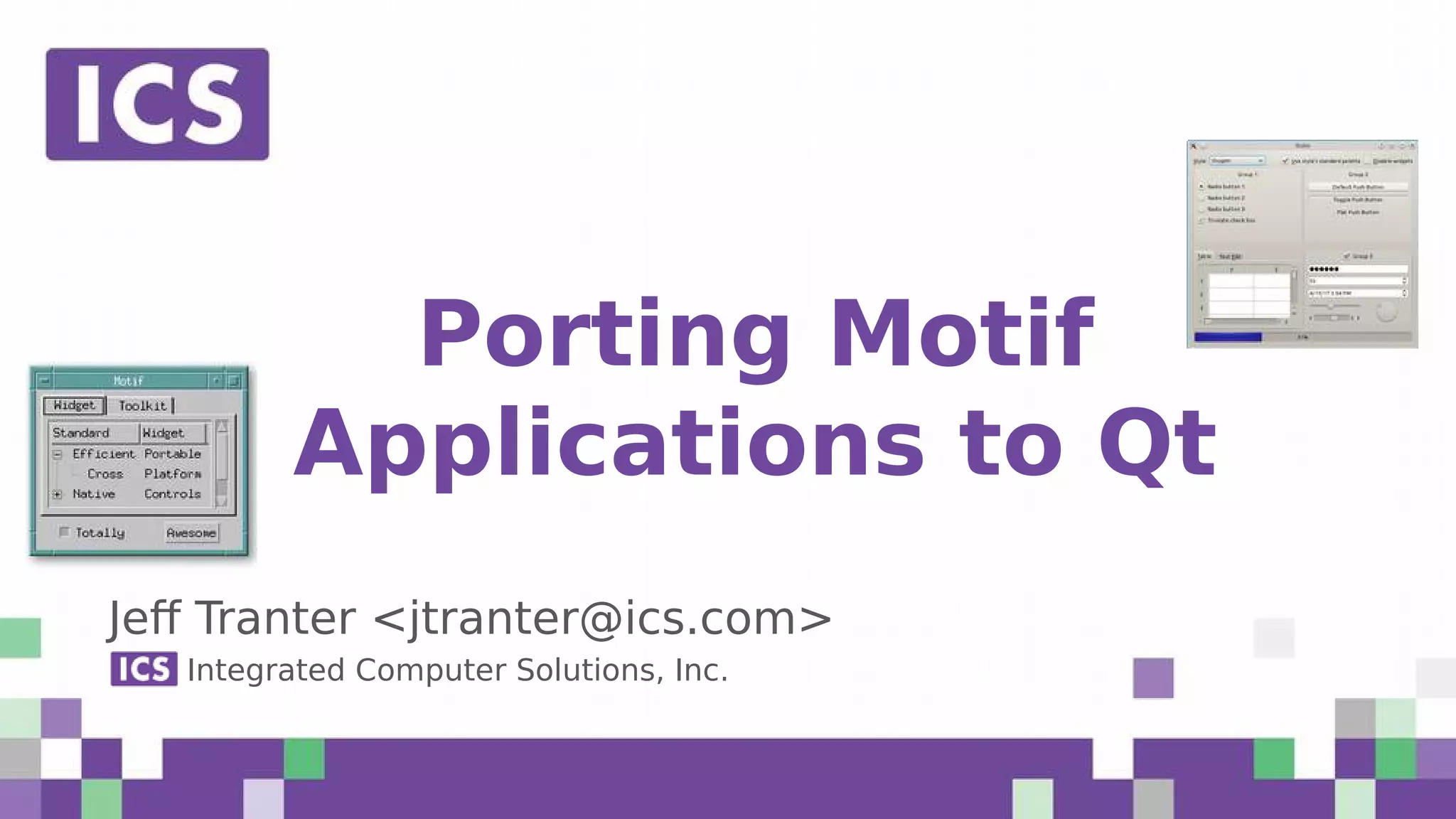

Porting Motif
Applications to Qt
Jeff Tranter <jtranter@ics.com>
Integrated Computer Solutions, Inc.

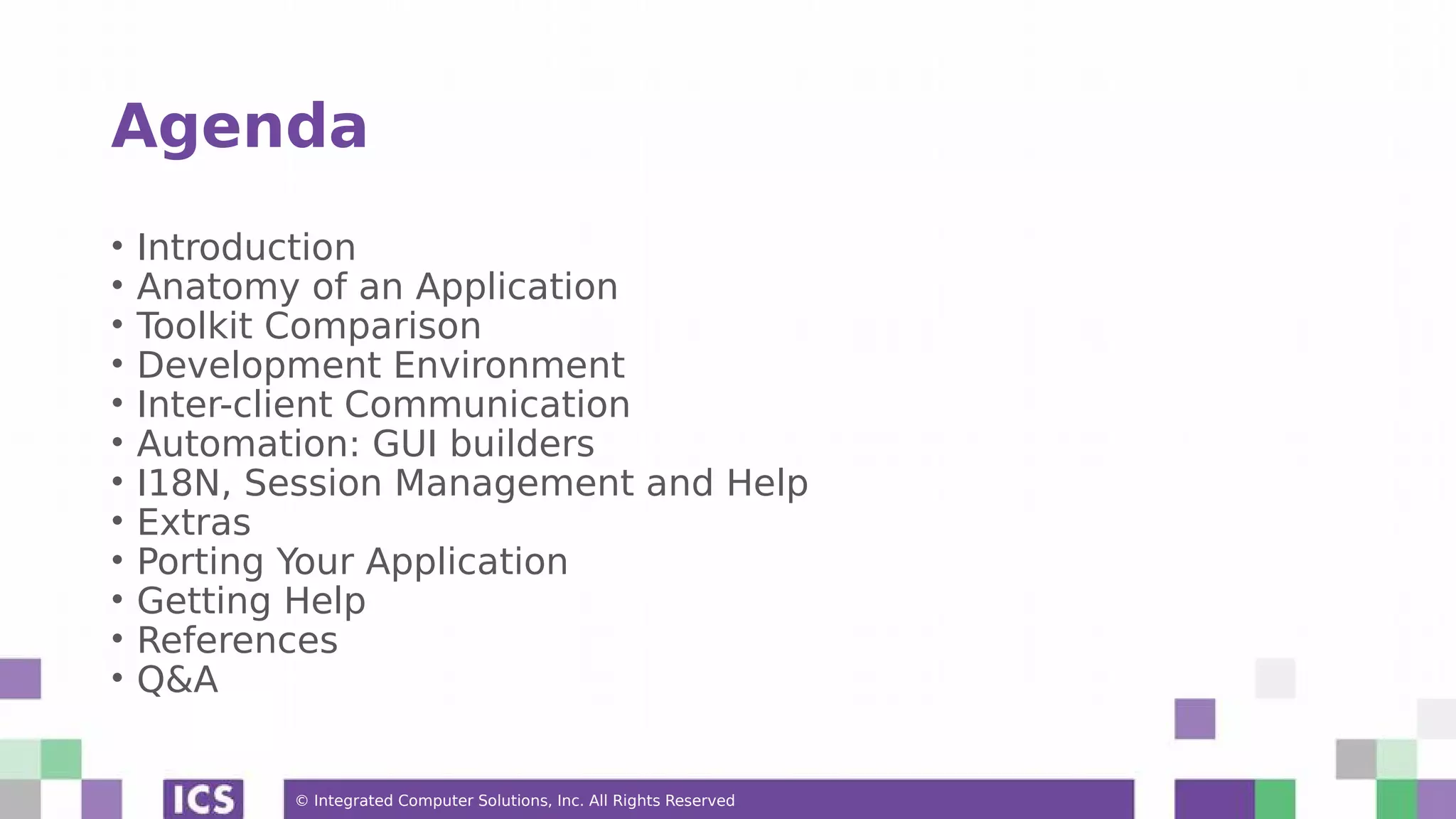

Agenda
• Introduction
• Anatomy of an Application
• Toolkit Comparison
• Development Environment

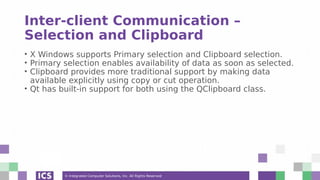

• Inter-client Communication

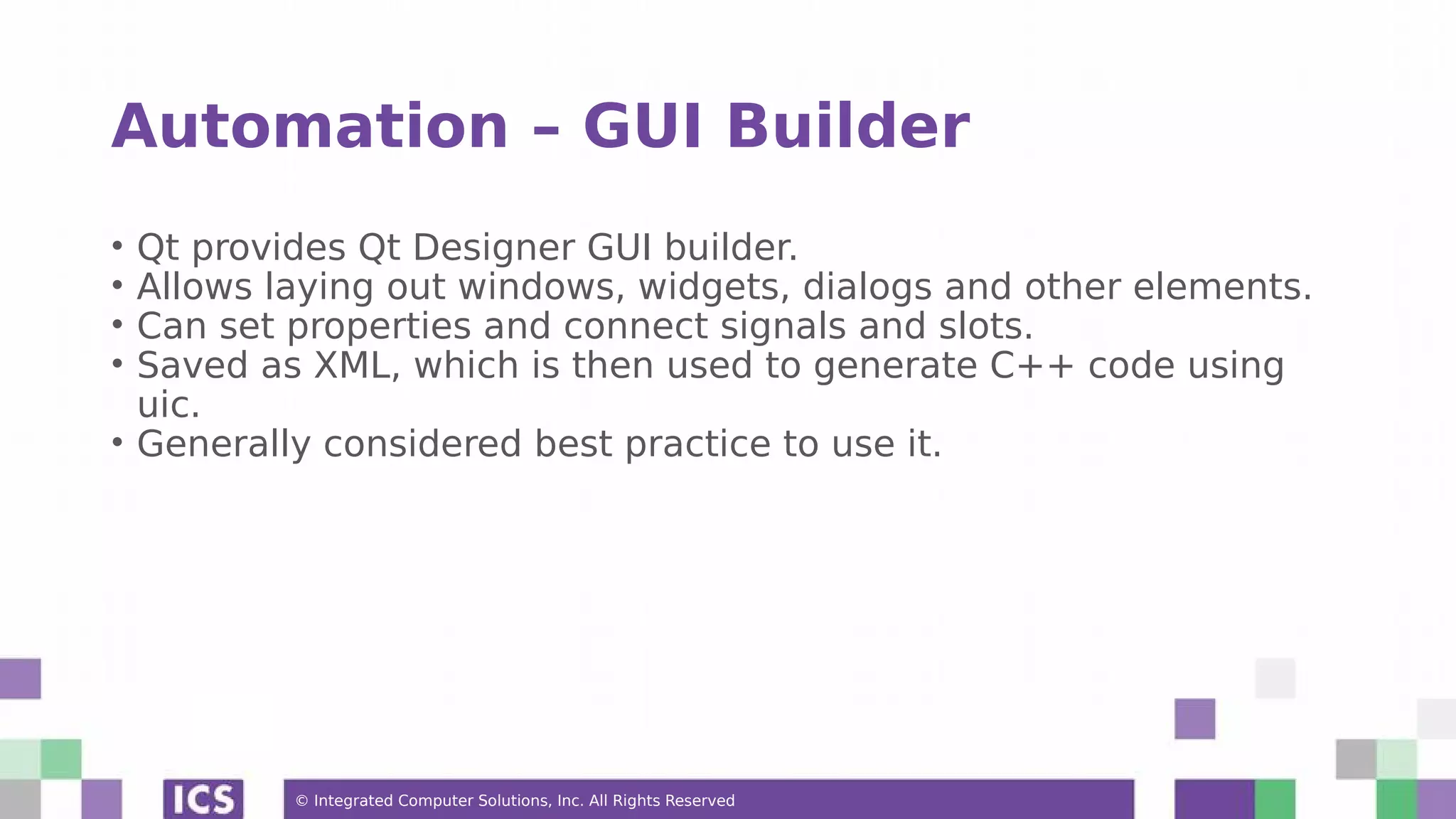

• Automation: GUI builders

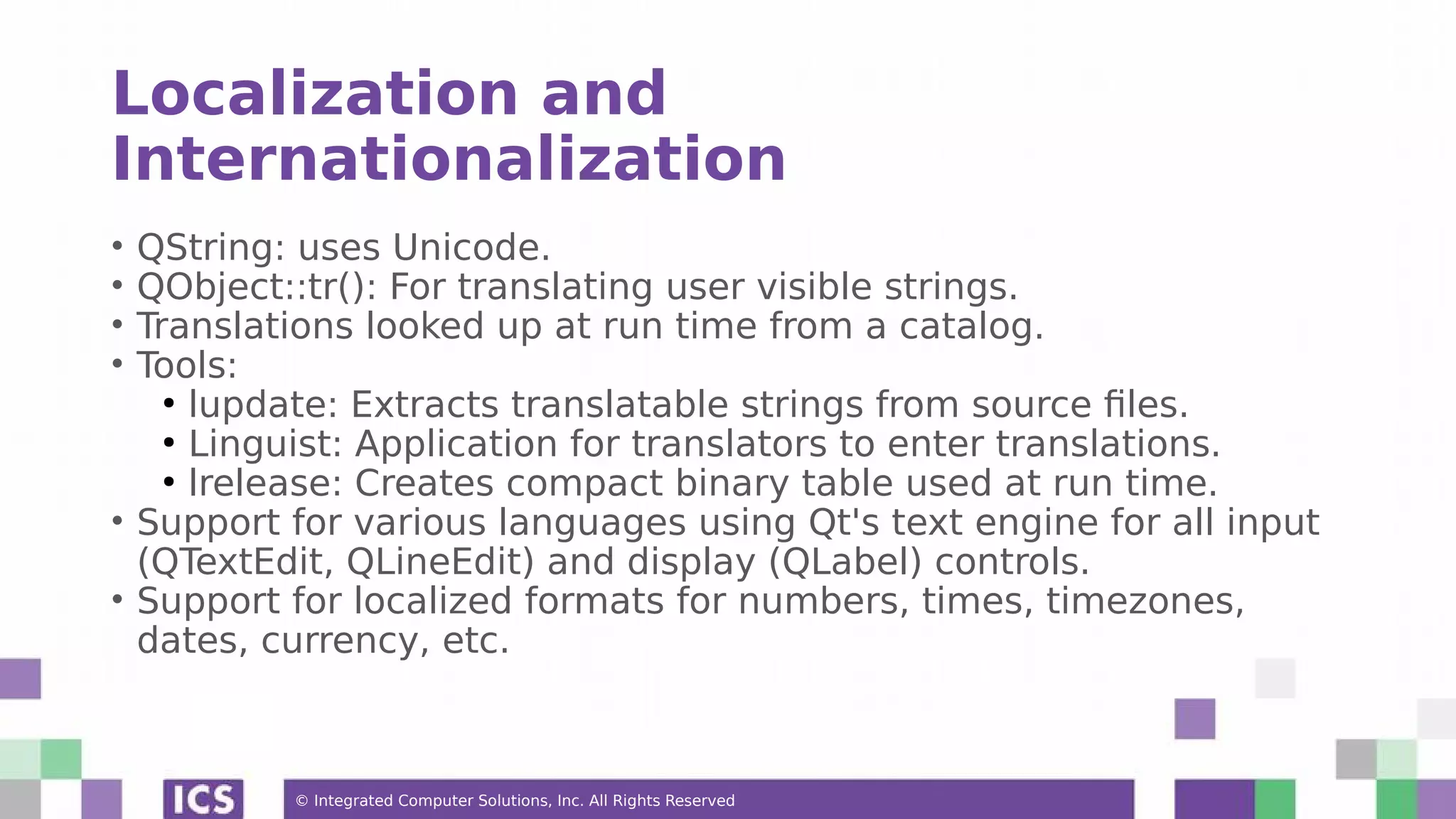

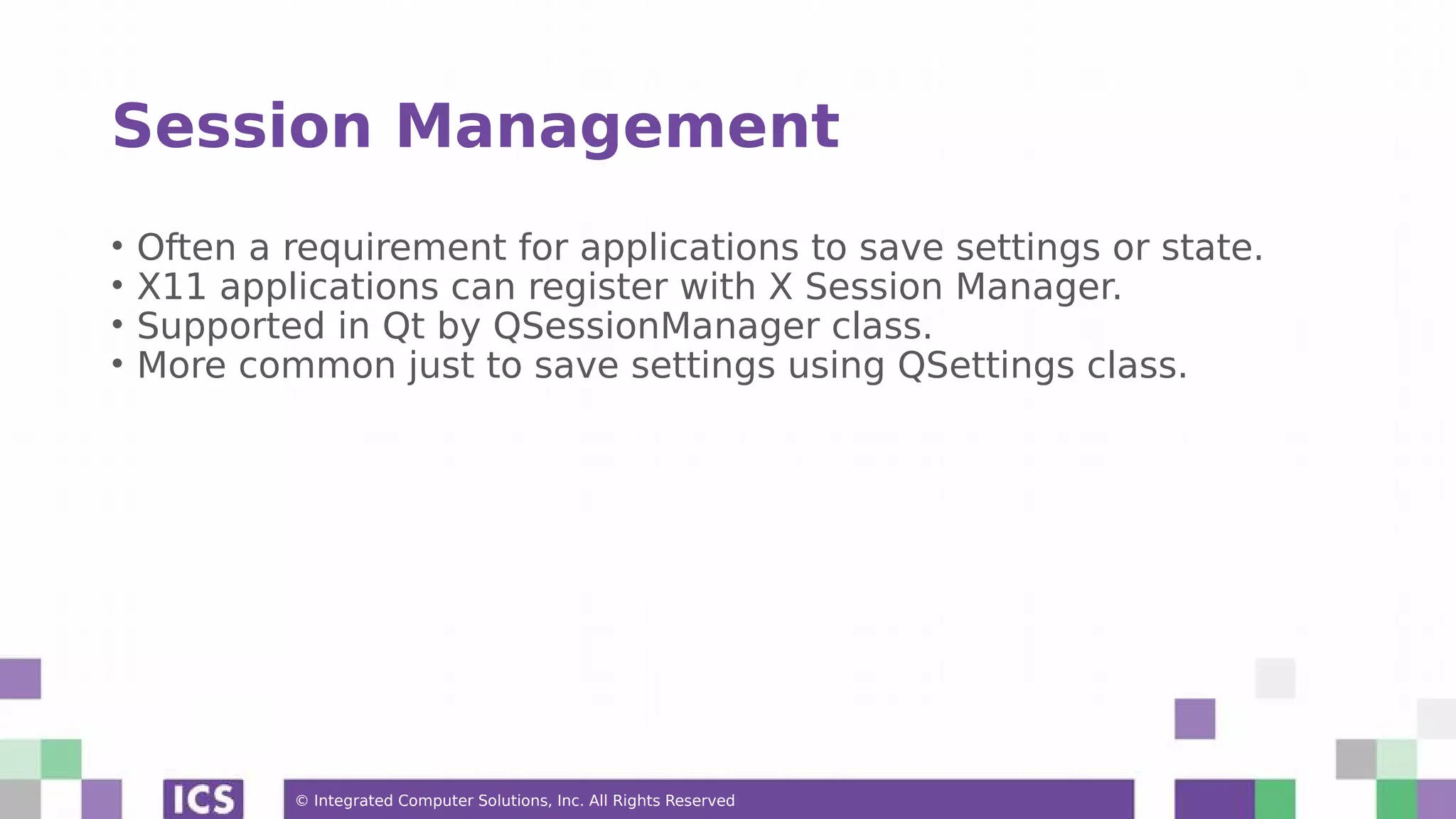

• I18N, Session Management and Help
• Extras
• Porting Your Application

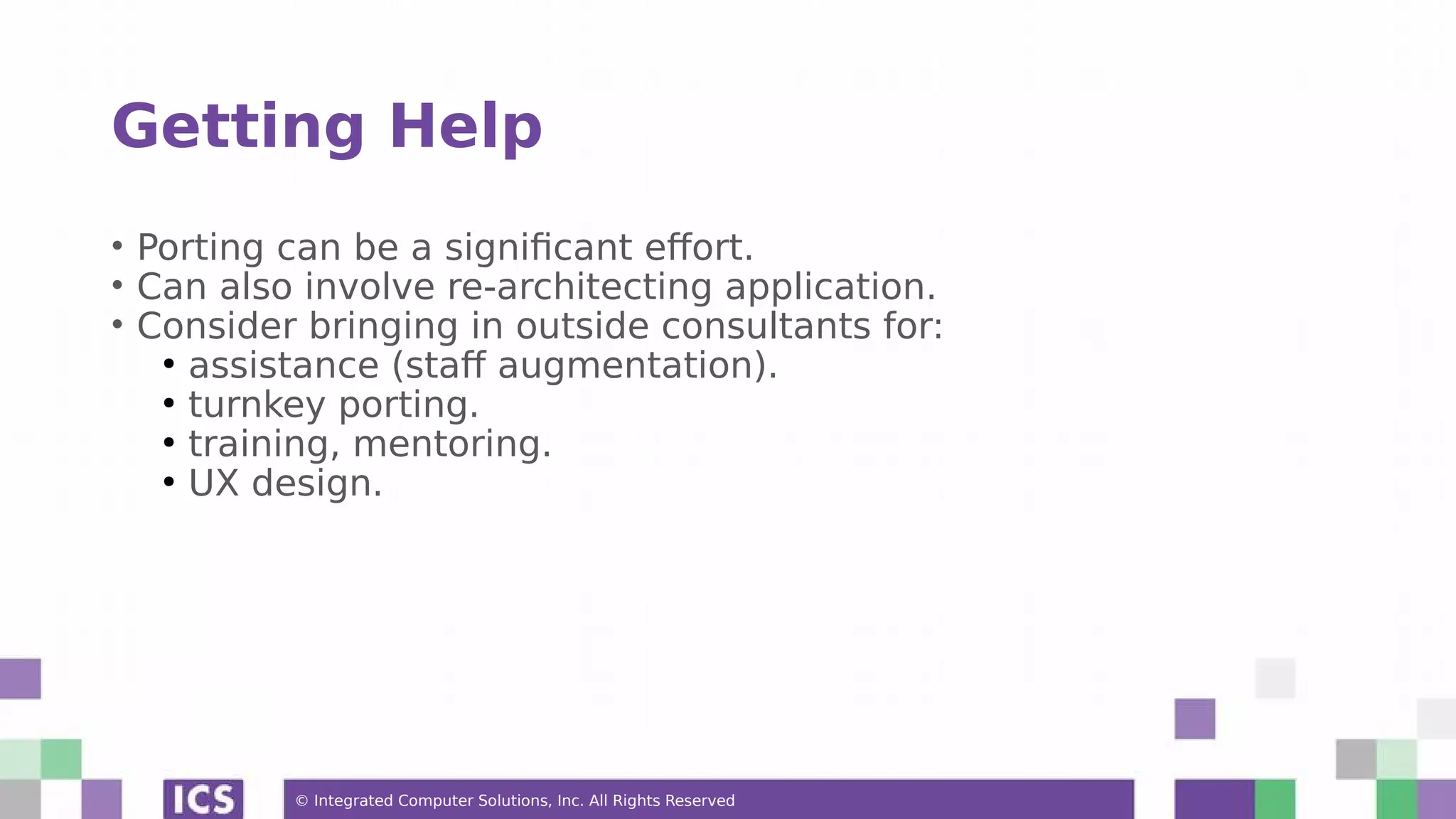

• Getting Help

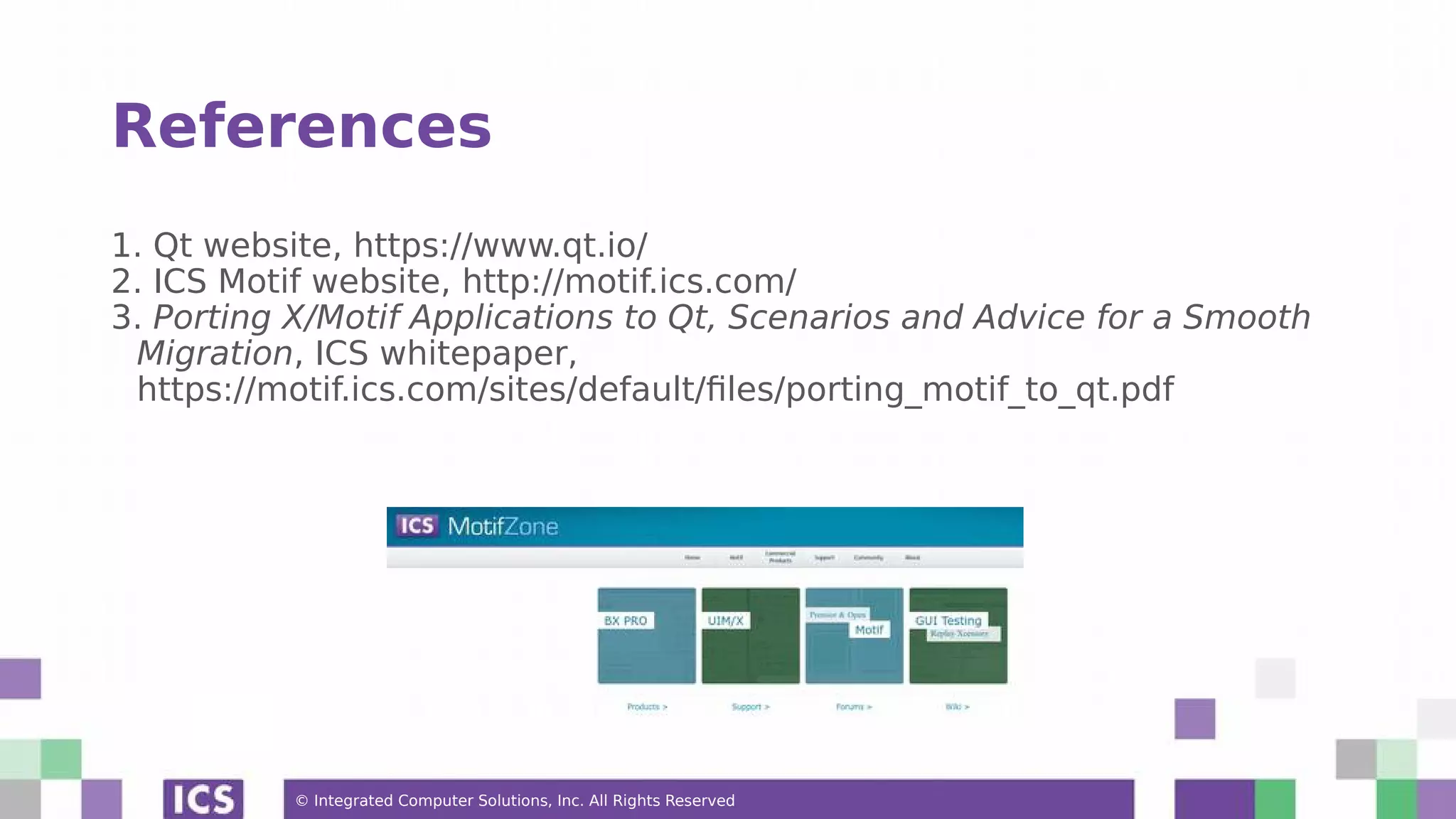

• References

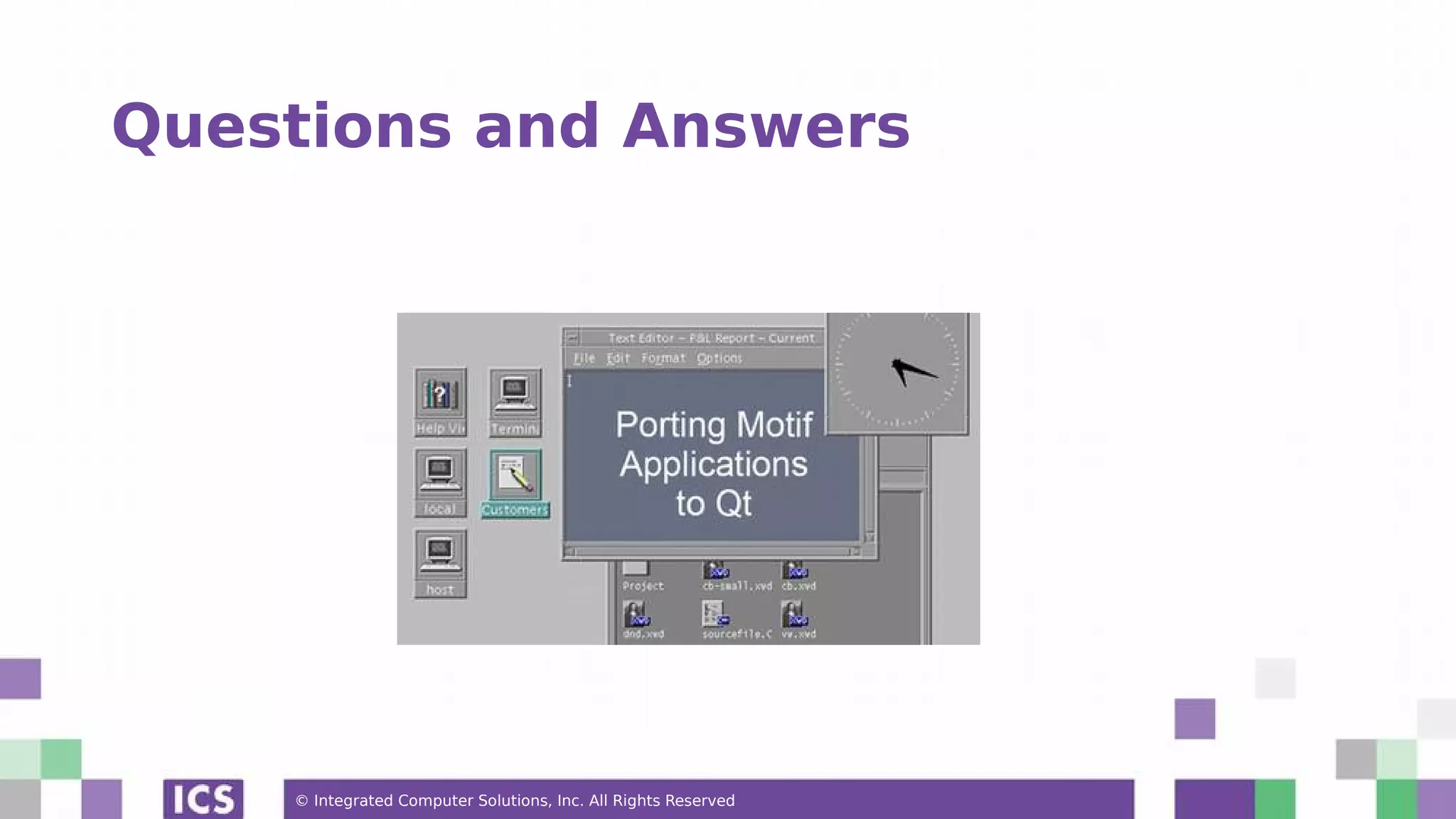

• Q&A

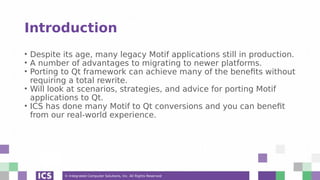

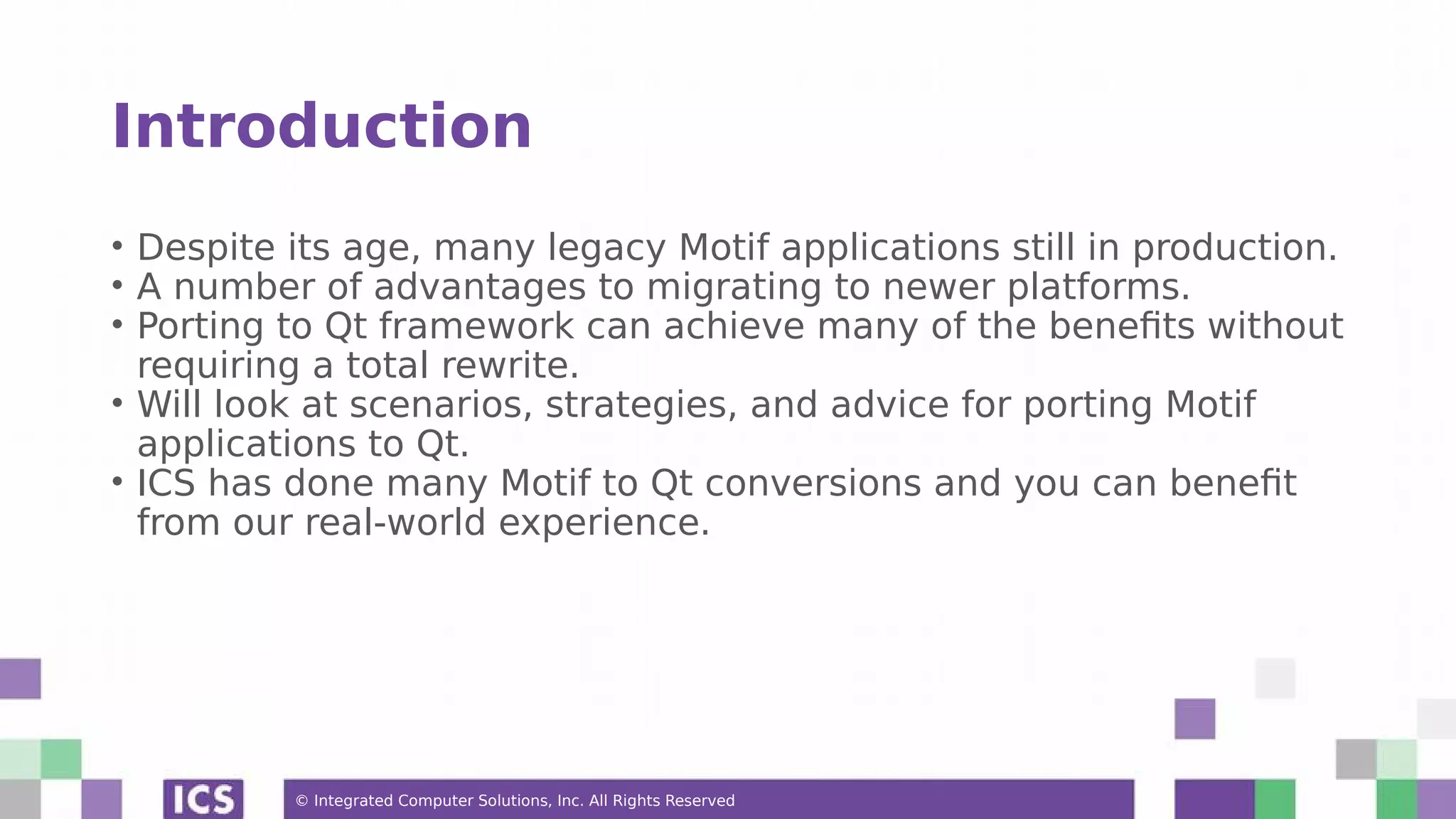

Introduction
• Despite its age, many legacy Motif applications still in production.
• A number of advantages to migrating to newer platforms.
• Porting to Qt framework can achieve many of the benefits without
requiring a total rewrite.
• Will look at scenarios, strategies, and advice for porting Motif
applications to Qt.
• ICS has done many Motif to Qt conversions and you can benefit
from our real-world experience.

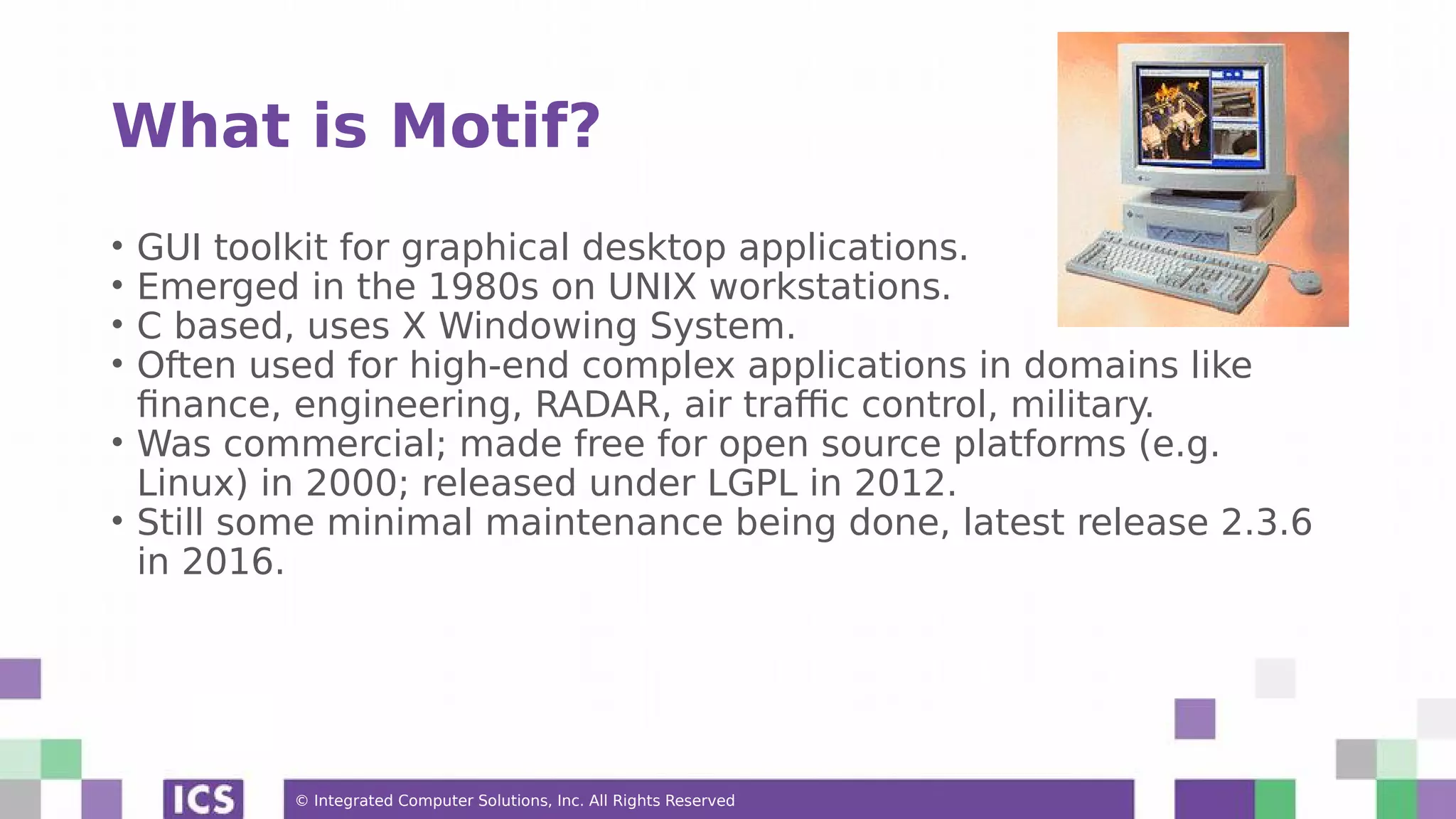

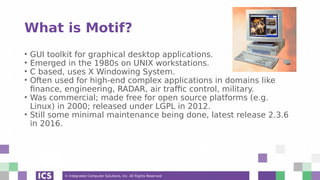

What is Motif?
• GUI toolkit for graphical desktop applications.
• Emerged in the 1980s on UNIX workstations.
• C based, uses X Windowing System.
• Often used for high-end complex applications in domains like
finance, engineering, RADAR, air traffic control, military.
• Was commercial; made free for open source platforms (e.g.
Linux) in 2000; released under LGPL in 2012.
• Still some minimal maintenance being done, latest release 2.3.6
in 2016.

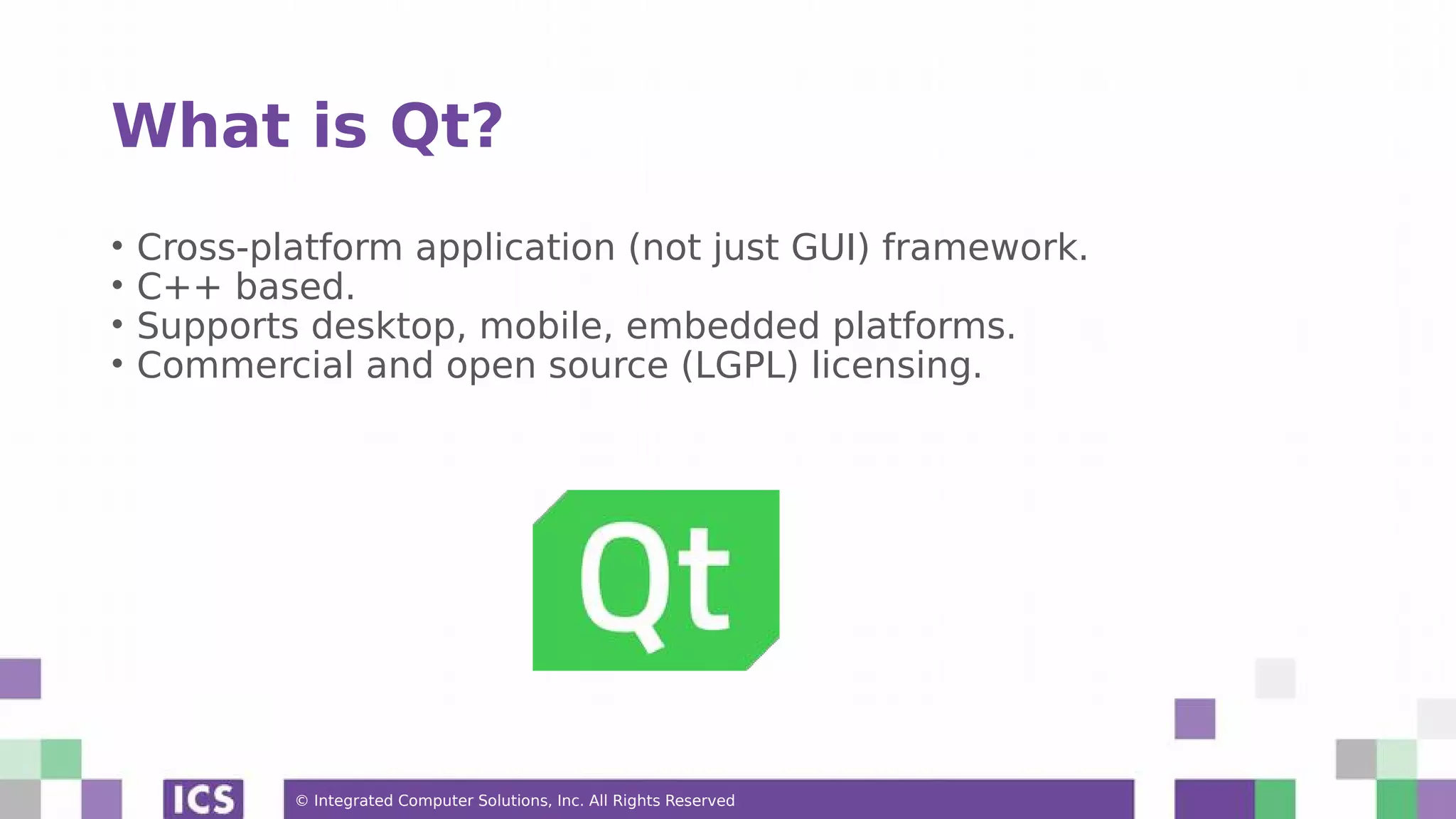

What is Qt?
• Cross-platform application (not just GUI) framework.
• C++ based.
• Supports desktop, mobile, embedded platforms.
• Commercial and open source (LGPL) licensing.

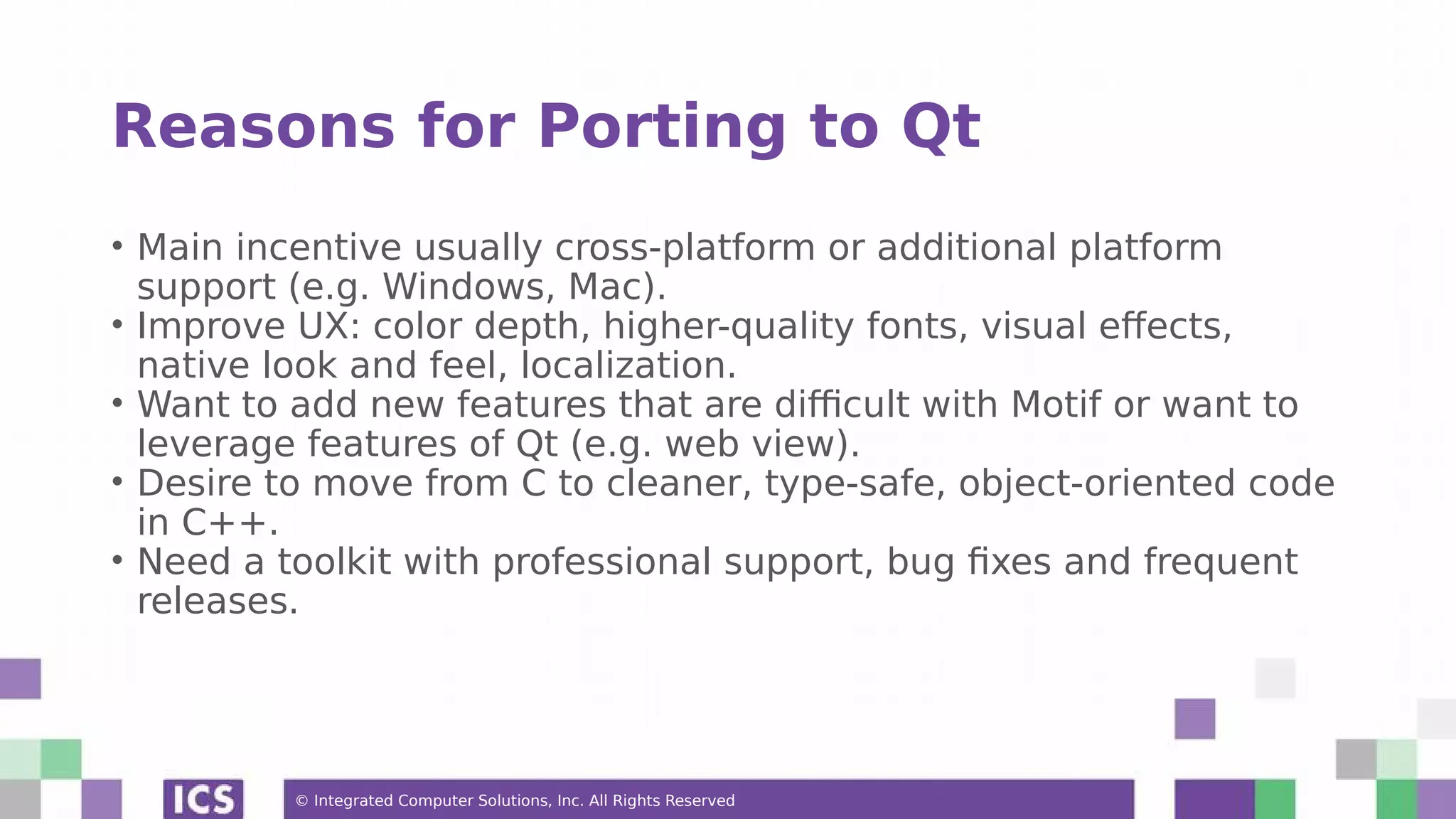

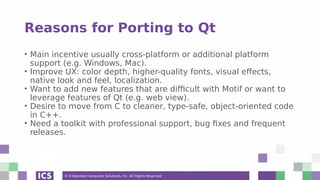

Reasons for Porting to Qt
• Main incentive usually cross-platform or additional platform
support (e.g. Windows, Mac).
• Improve UX: color depth, higher-quality fonts, visual effects,
native look and feel, localization.
• Want to add new features that are difficult with Motif or want to
leverage features of Qt (e.g. web view).
• Desire to move from C to cleaner, type-safe, object-oriented code
in C++.
• Need a toolkit with professional support, bug fixes and frequent
releases.

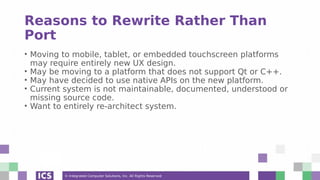

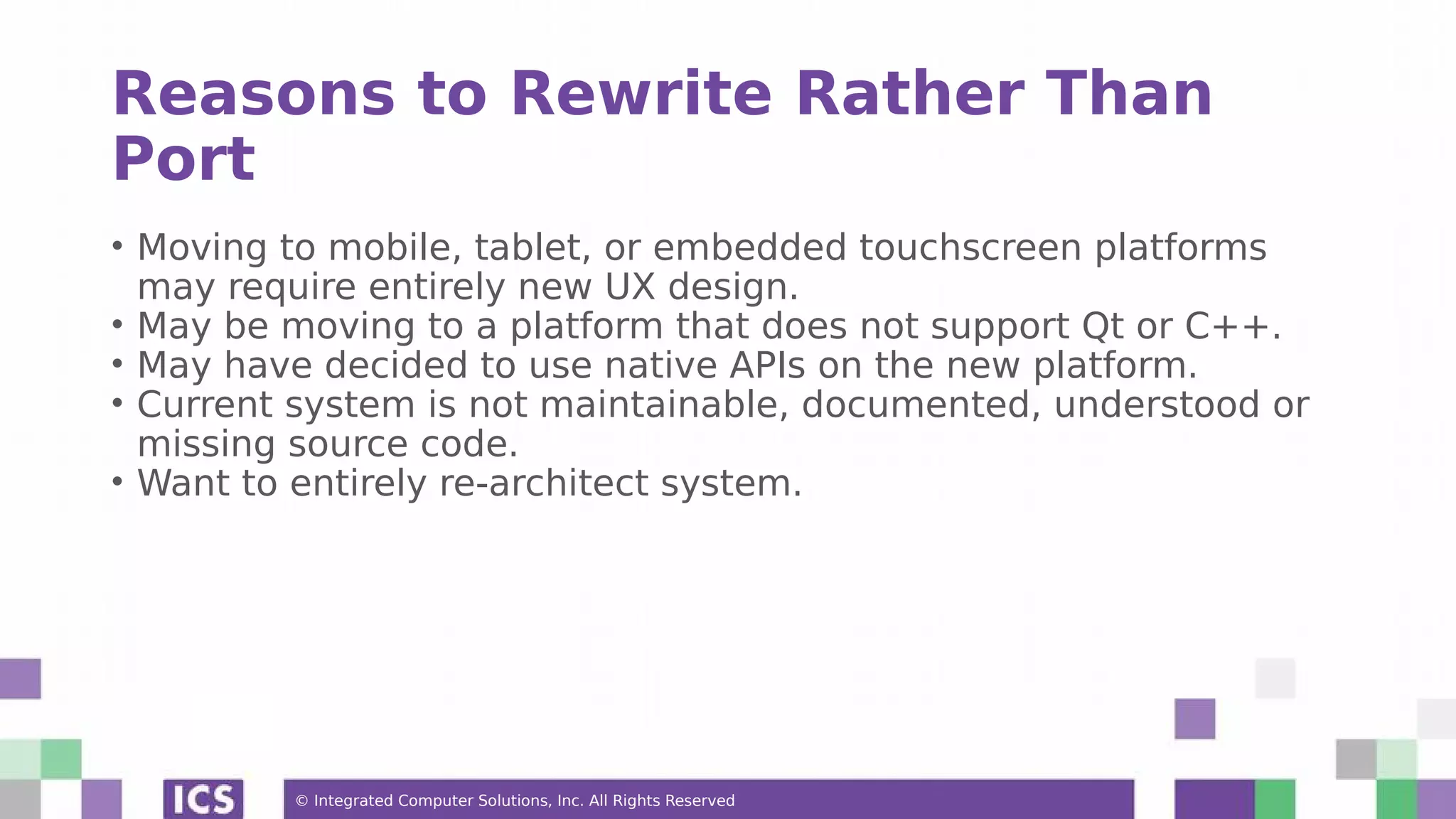

Reasons to Rewrite Rather Than
Port
• Moving to mobile, tablet, or embedded touchscreen platforms
may require entirely new UX design.
• May be moving to a platform that does not support Qt or C++.
• May have decided to use native APIs on the new platform.
• Current system is not maintainable, documented, understood or
missing source code.
• Want to entirely re-architect system.

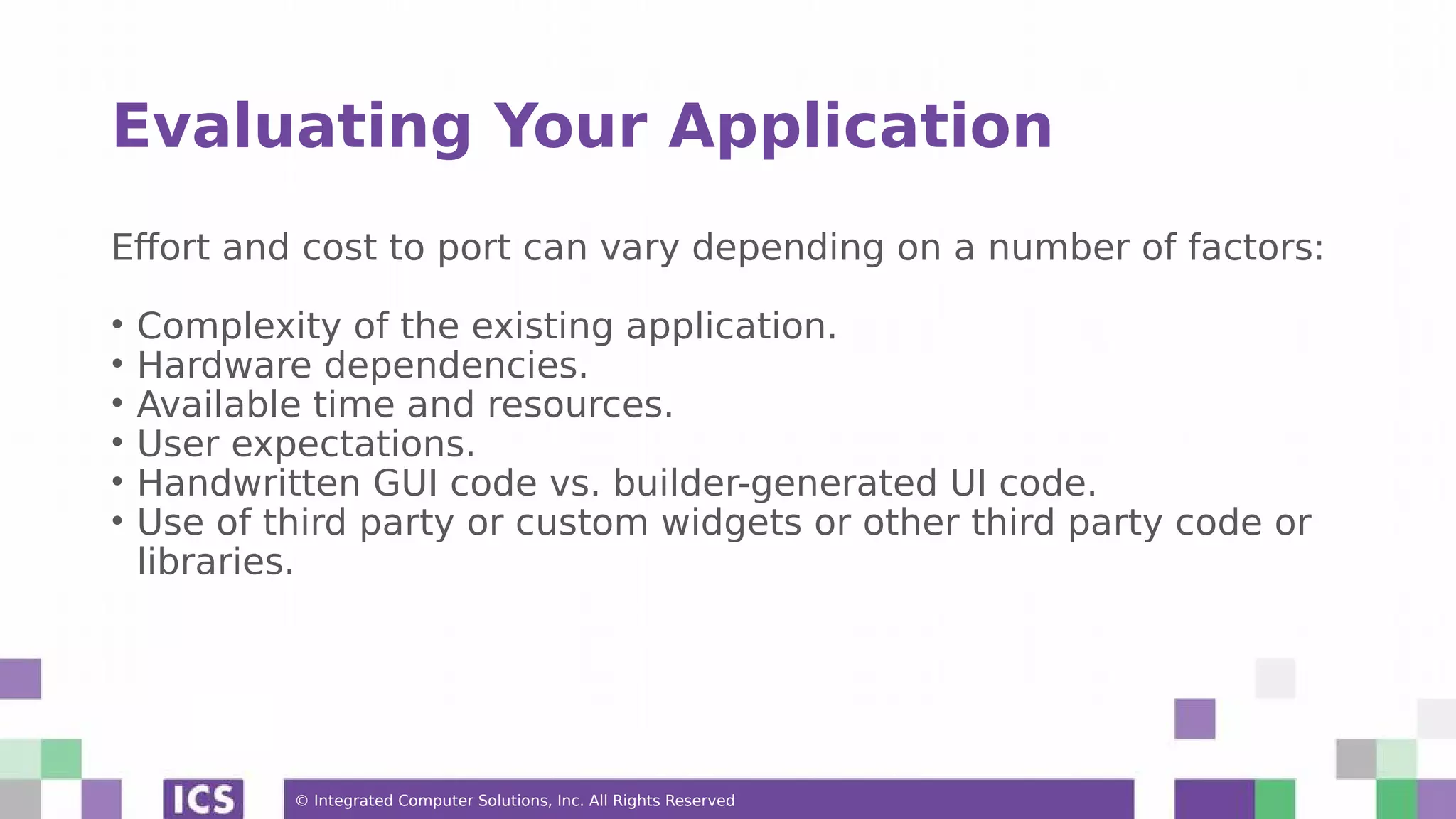

Evaluating Your Application
Effort and cost to port can vary depending on a number of factors:
• Complexity of the existing application.
• Hardware dependencies.
• Available time and resources.
• User expectations.
• Handwritten GUI code vs. builder-generated UI code.
• Use of third party or custom widgets or other third party code or
libraries.

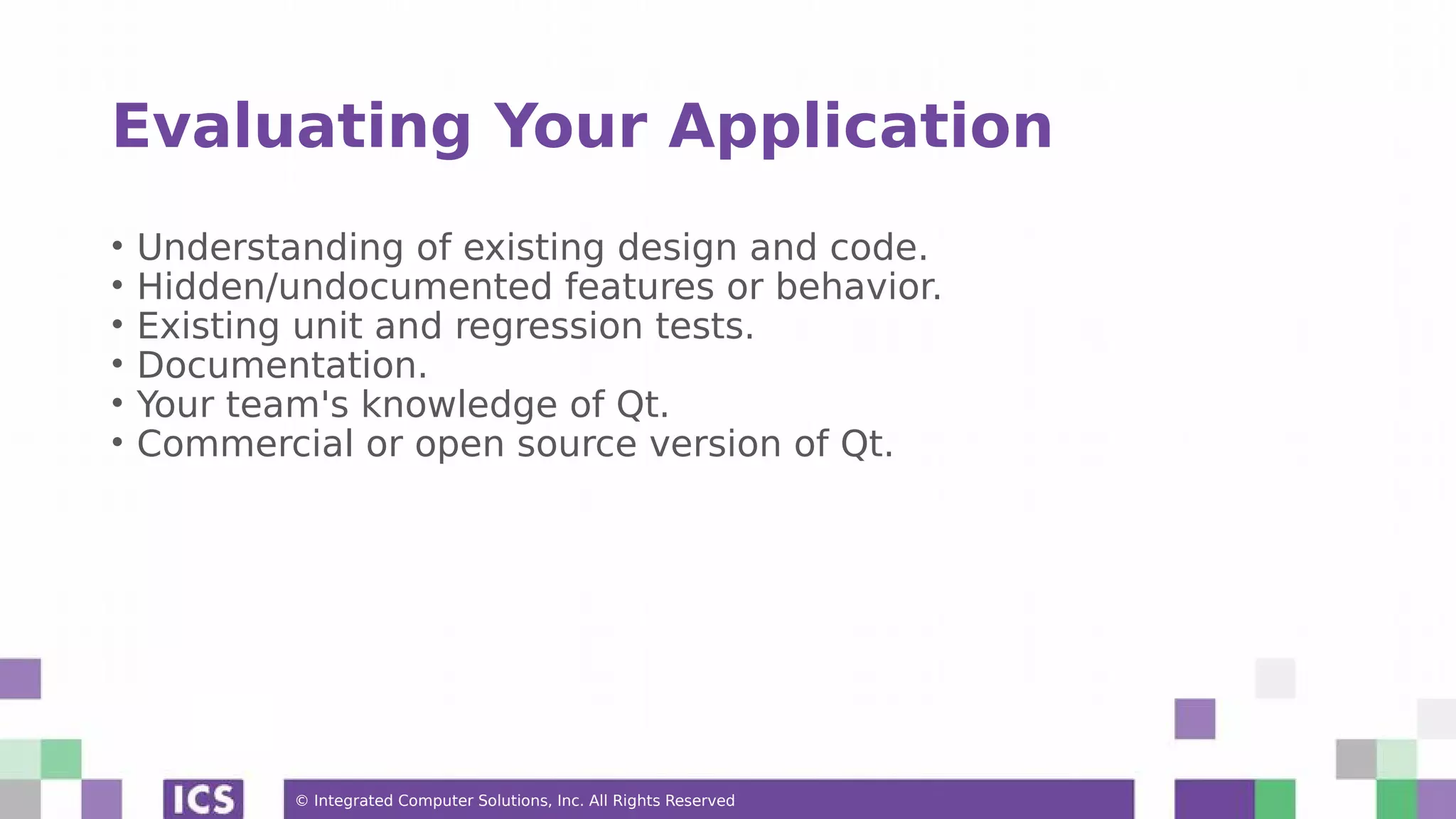

Evaluating Your Application
• Understanding of existing design and code.
• Hidden/undocumented features or behavior.
• Existing unit and regression tests.
• Documentation.
• Your team's knowledge of Qt.
• Commercial or open source version of Qt.

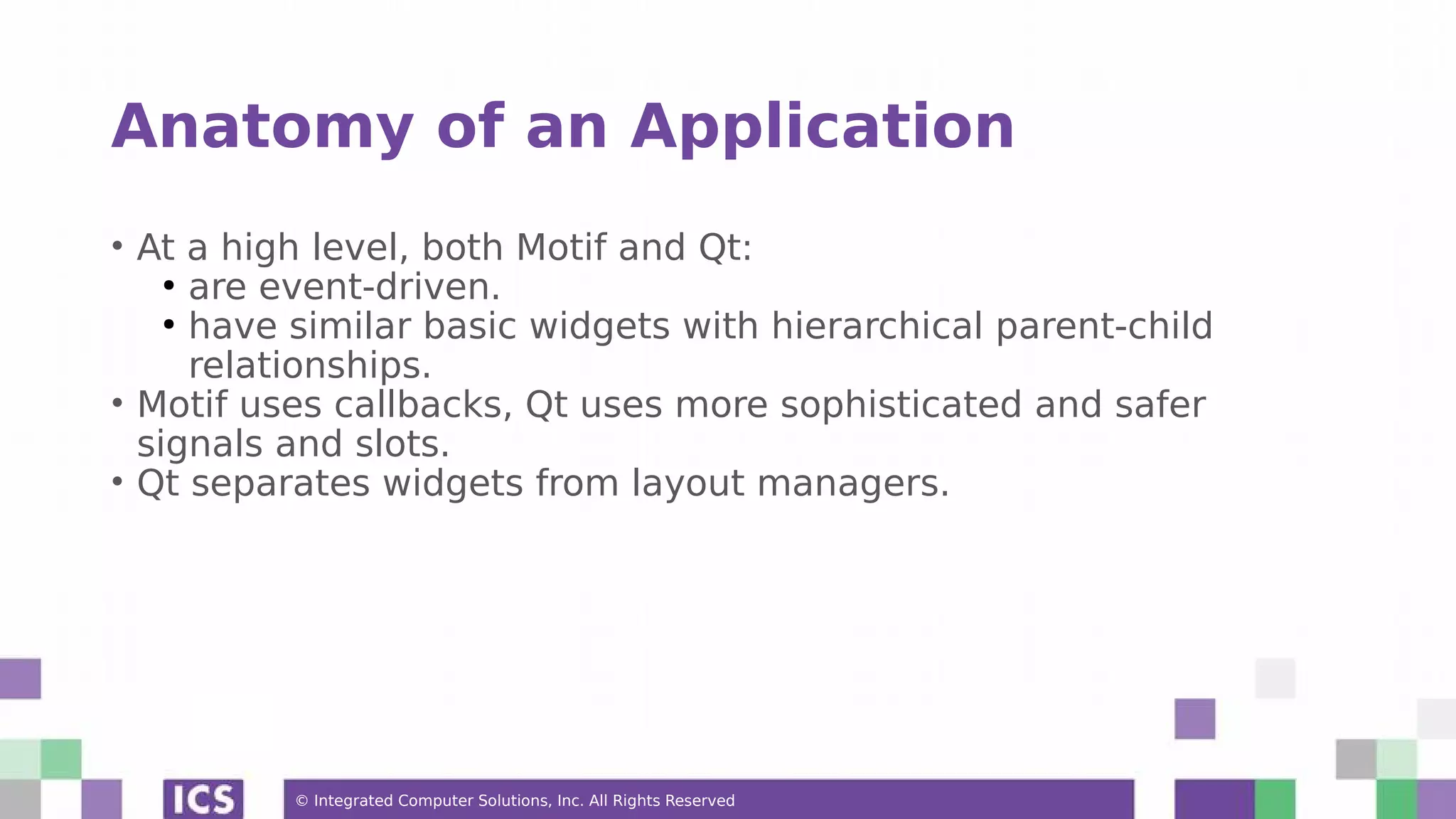

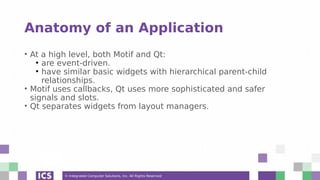

Anatomy of an Application
• At a high level, both Motif and Qt:
●
are event-driven.
●
have similar basic widgets with hierarchical parent-child
relationships.
• Motif uses callbacks, Qt uses more sophisticated and safer
signals and slots.
• Qt separates widgets from layout managers.

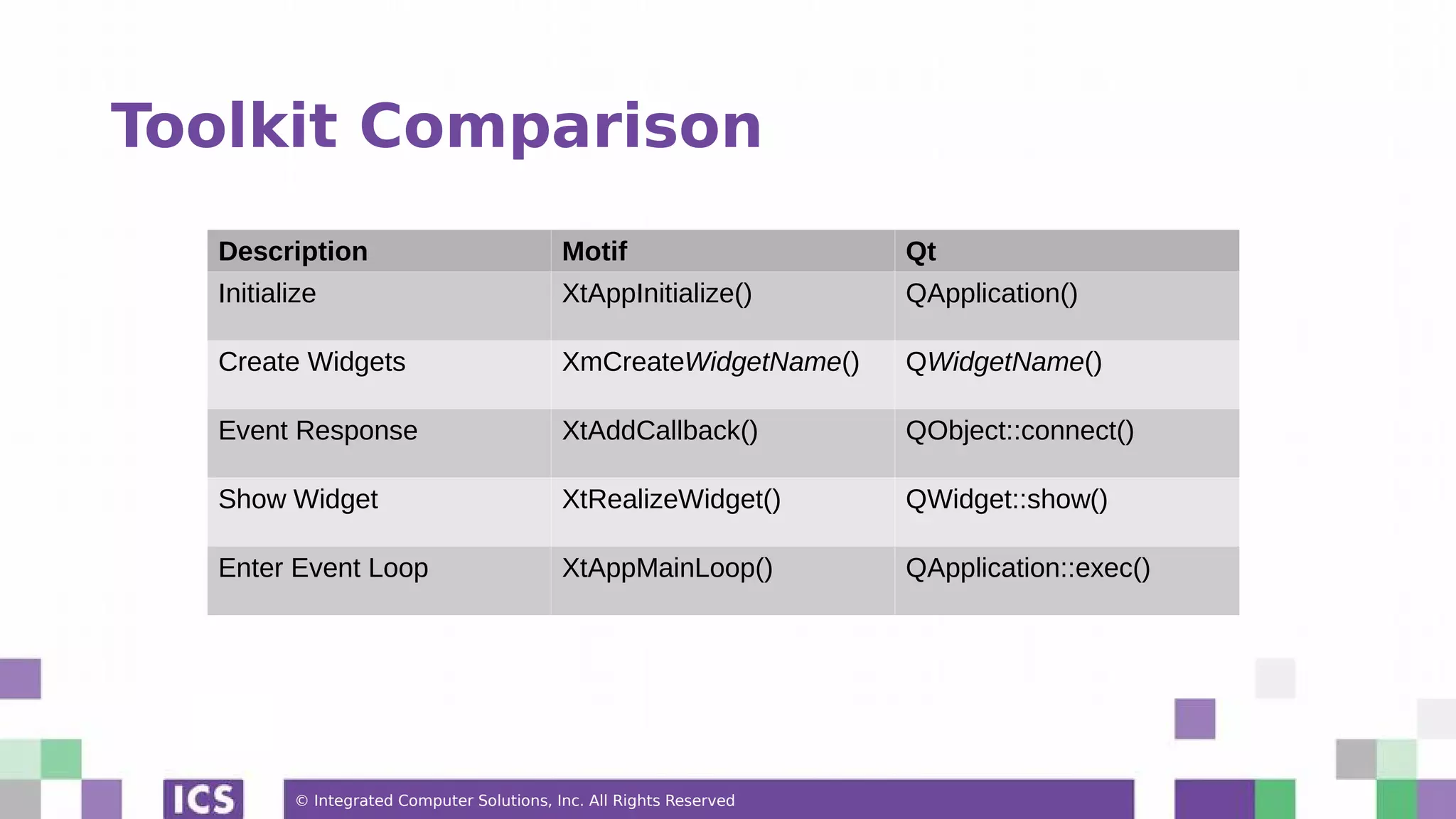

Toolkit Comparison
Description Motif Qt
Initialize XtAppInitialize() QApplication()
Create Widgets XmCreateWidgetName() QWidgetName()
Event Response XtAddCallback() QObject::connect()
Show Widget XtRealizeWidget() QWidget::show()
Enter Event Loop XtAppMainLoop() QApplication::exec()

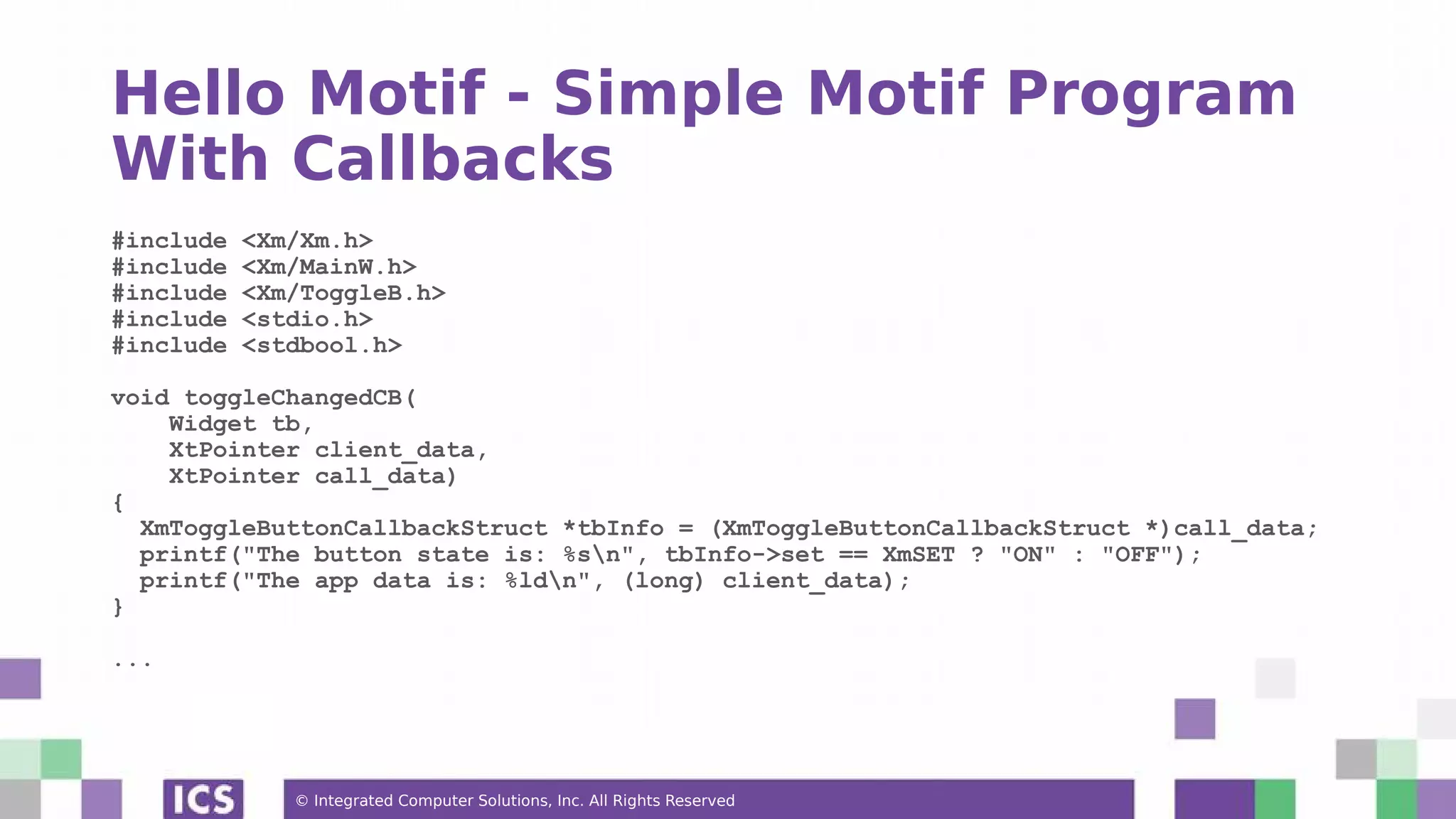

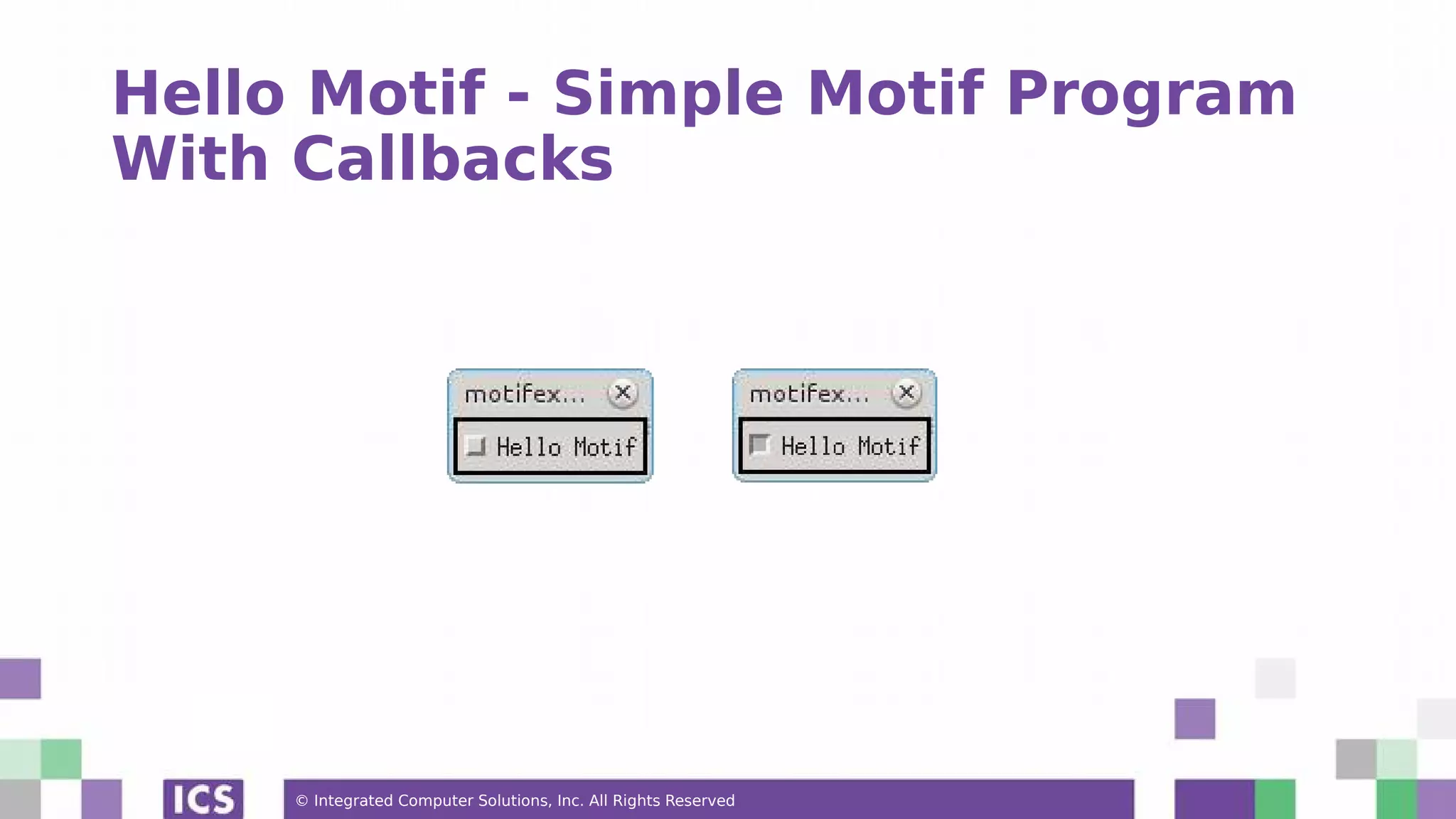

Hello Motif - Simple Motif Program
With Callbacks
#include <Xm/Xm.h>
#include <Xm/MainW.h>
#include <Xm/ToggleB.h>
#include <stdio.h>
#include <stdbool.h>
void toggleChangedCB(
Widget tb,
XtPointer client_data,
XtPointer call_data)
{
XmToggleButtonCallbackStruct *tbInfo = (XmToggleButtonCallbackStruct *)call_data;
printf("The button state is: %sn", tbInfo->set == XmSET ? "ON" : "OFF");
printf("The app data is: %ldn", (long) client_data);
}
...

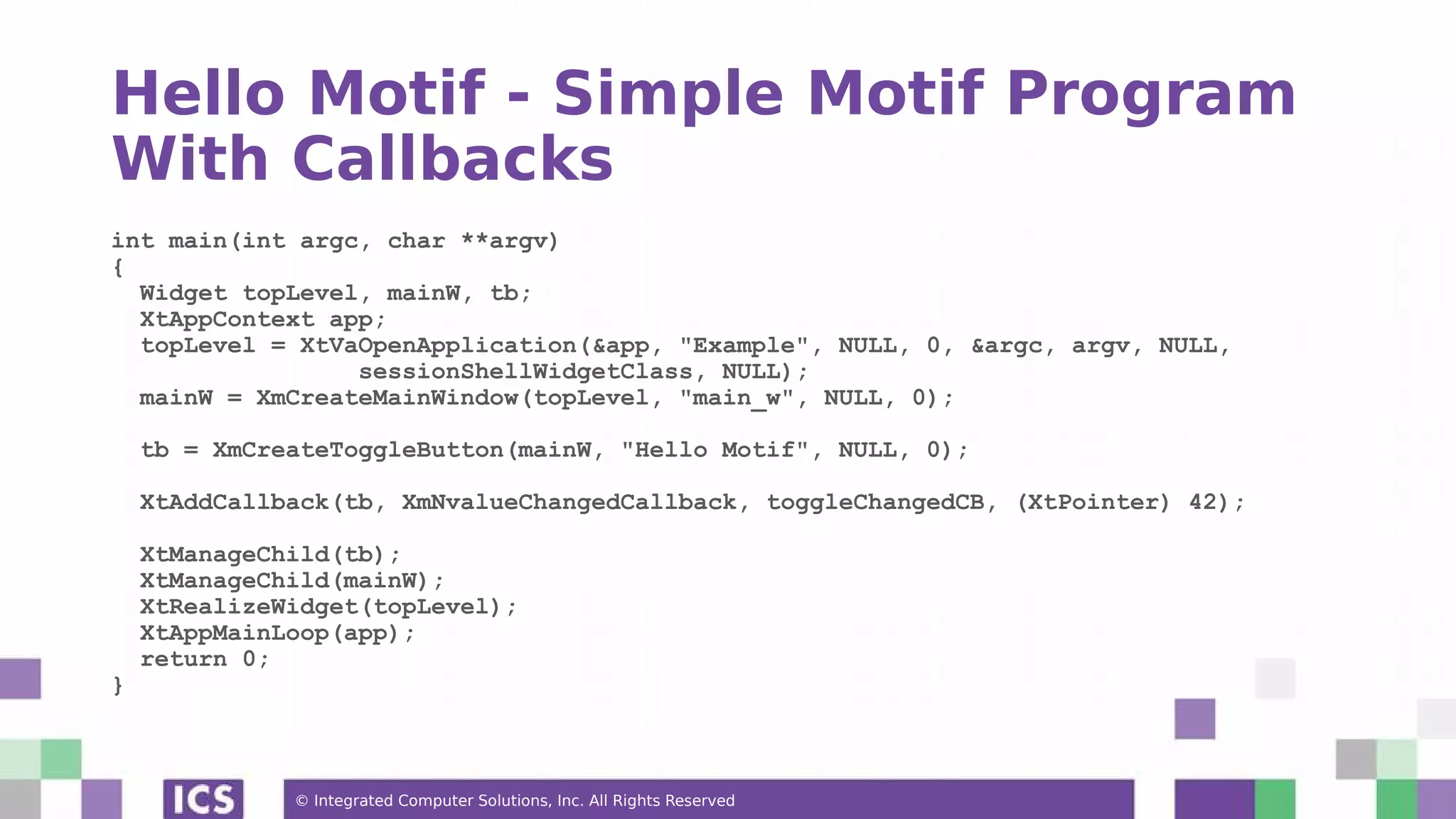

With Callbacks
int main(int argc, char **argv)
{
Widget topLevel, mainW, tb;
XtAppContext app;
topLevel = XtVaOpenApplication(&app, "Example", NULL, 0, &argc, argv, NULL,
sessionShellWidgetClass, NULL);
mainW = XmCreateMainWindow(topLevel, "main_w", NULL, 0);
tb = XmCreateToggleButton(mainW, "Hello Motif", NULL, 0);
XtAddCallback(tb, XmNvalueChangedCallback, toggleChangedCB, (XtPointer) 42);
XtManageChild(tb);
XtManageChild(mainW);
XtRealizeWidget(topLevel);
XtAppMainLoop(app);
return 0;
}

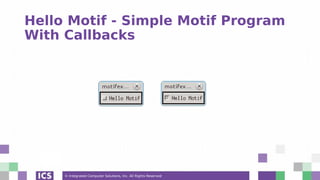

With Callbacks

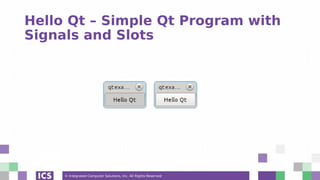

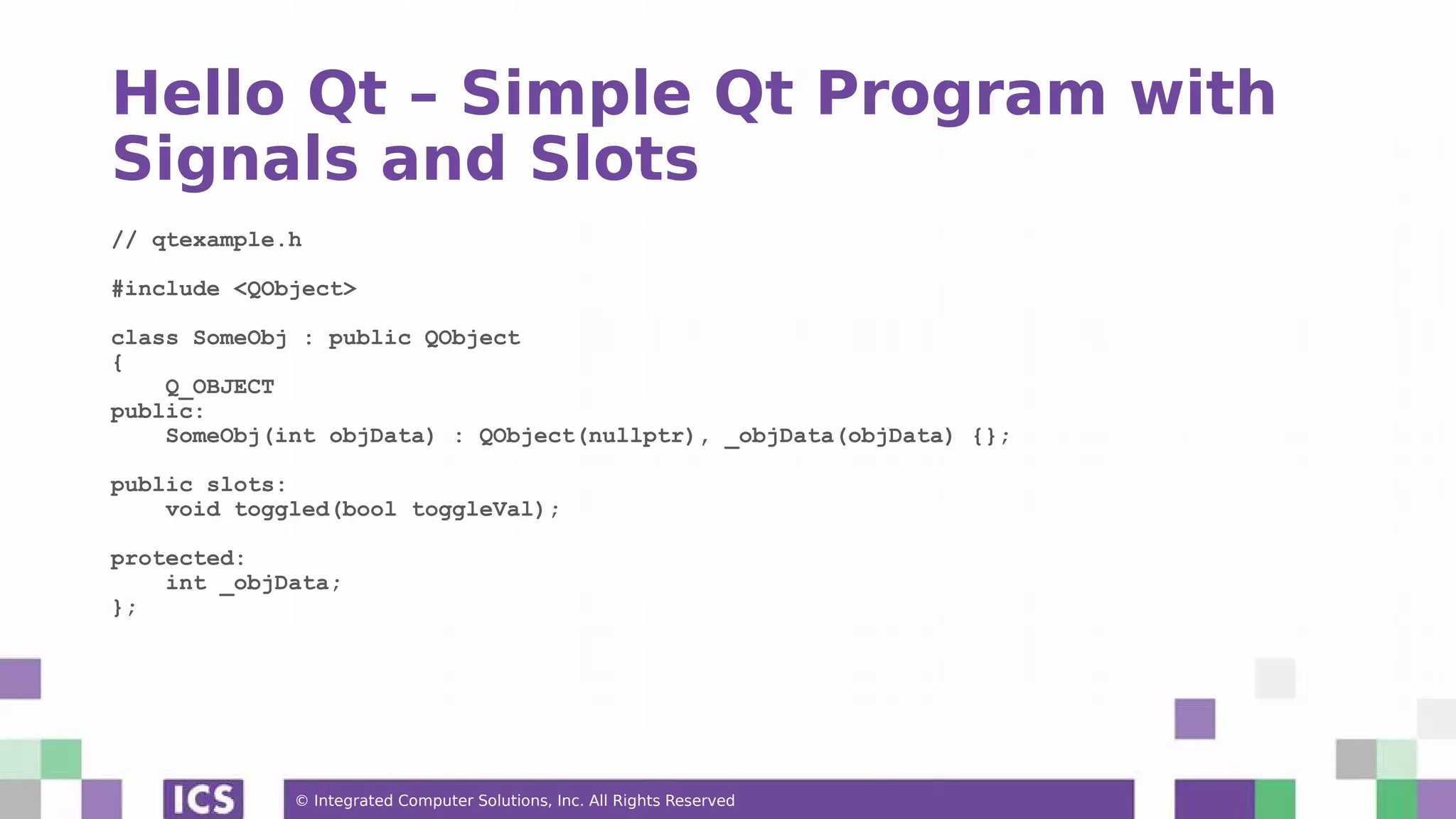

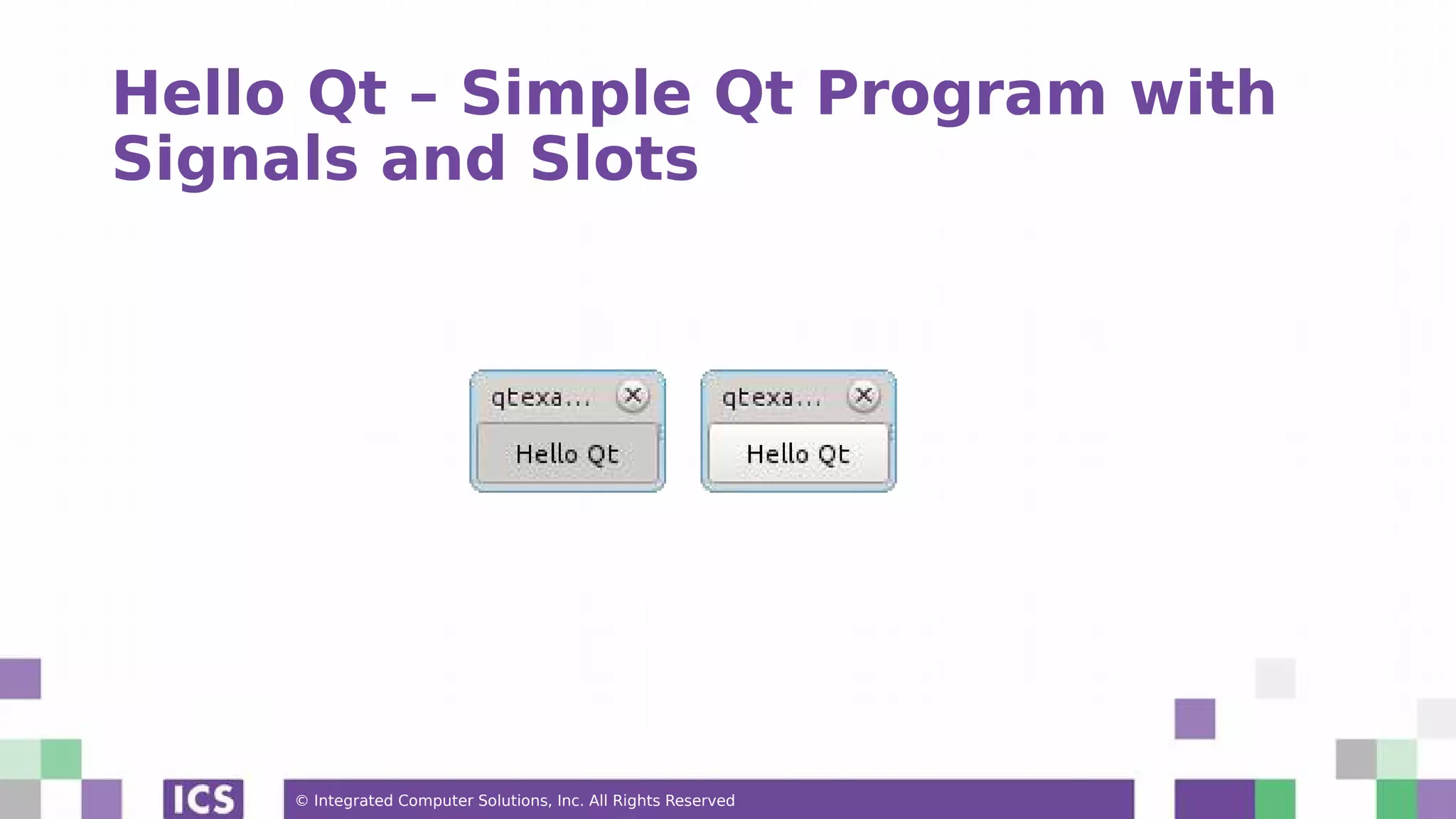

Hello Qt – Simple Qt Program with
Signals and Slots
// qtexample.h
#include <QObject>
class SomeObj : public QObject
{
Q_OBJECT
public:
SomeObj(int objData) : QObject(nullptr), _objData(objData) {};
public slots:
void toggled(bool toggleVal);
protected:
int _objData;
};

Signals and Slots

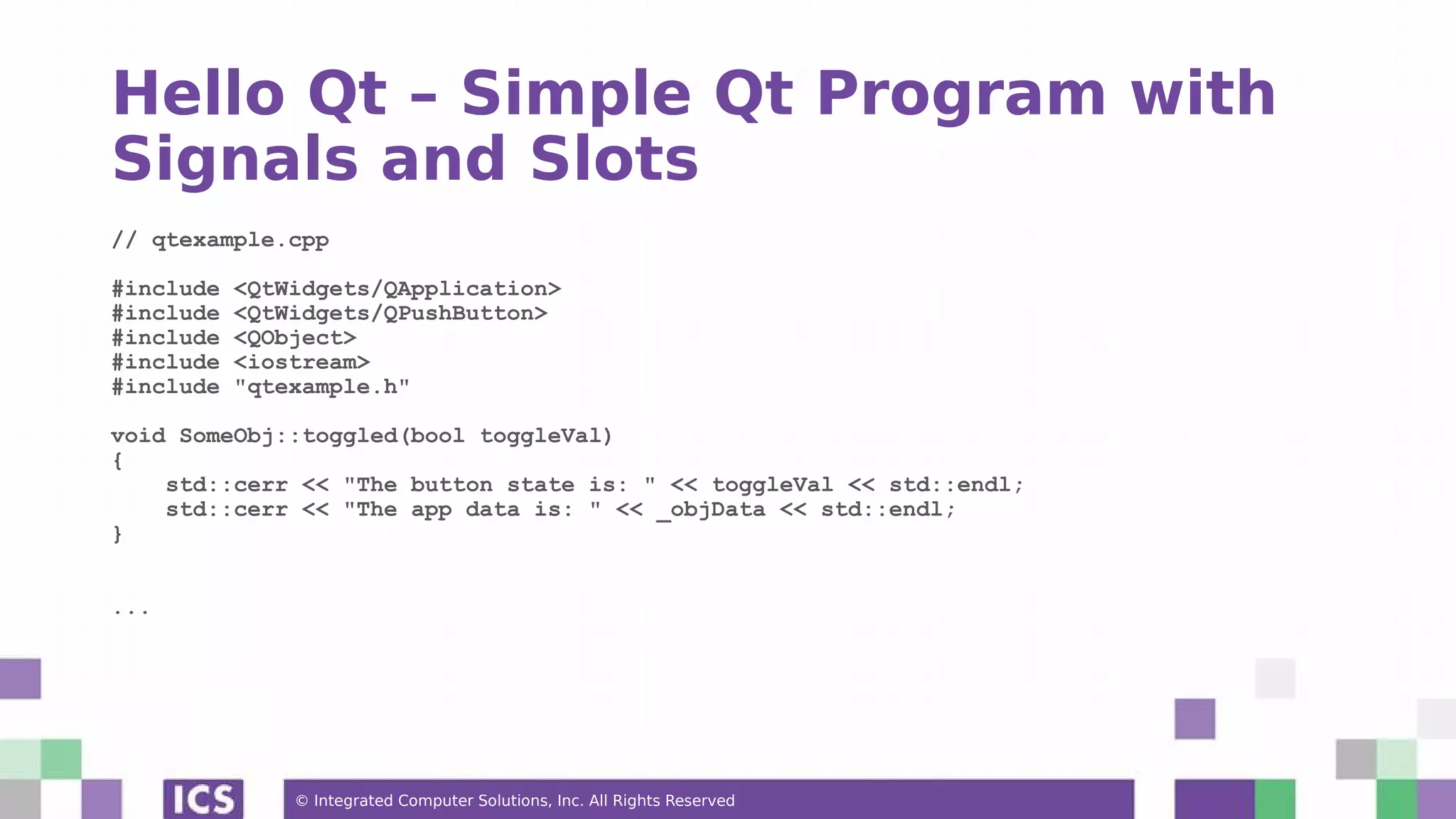

// qtexample.cpp
#include <QtWidgets/QApplication>
#include <QtWidgets/QPushButton>
#include <QObject>
#include <iostream>
#include "qtexample.h"
void SomeObj::toggled(bool toggleVal)
{
std::cerr << "The button state is: " << toggleVal << std::endl;
std::cerr << "The app data is: " << _objData << std::endl;
}
...

Signals and Slots

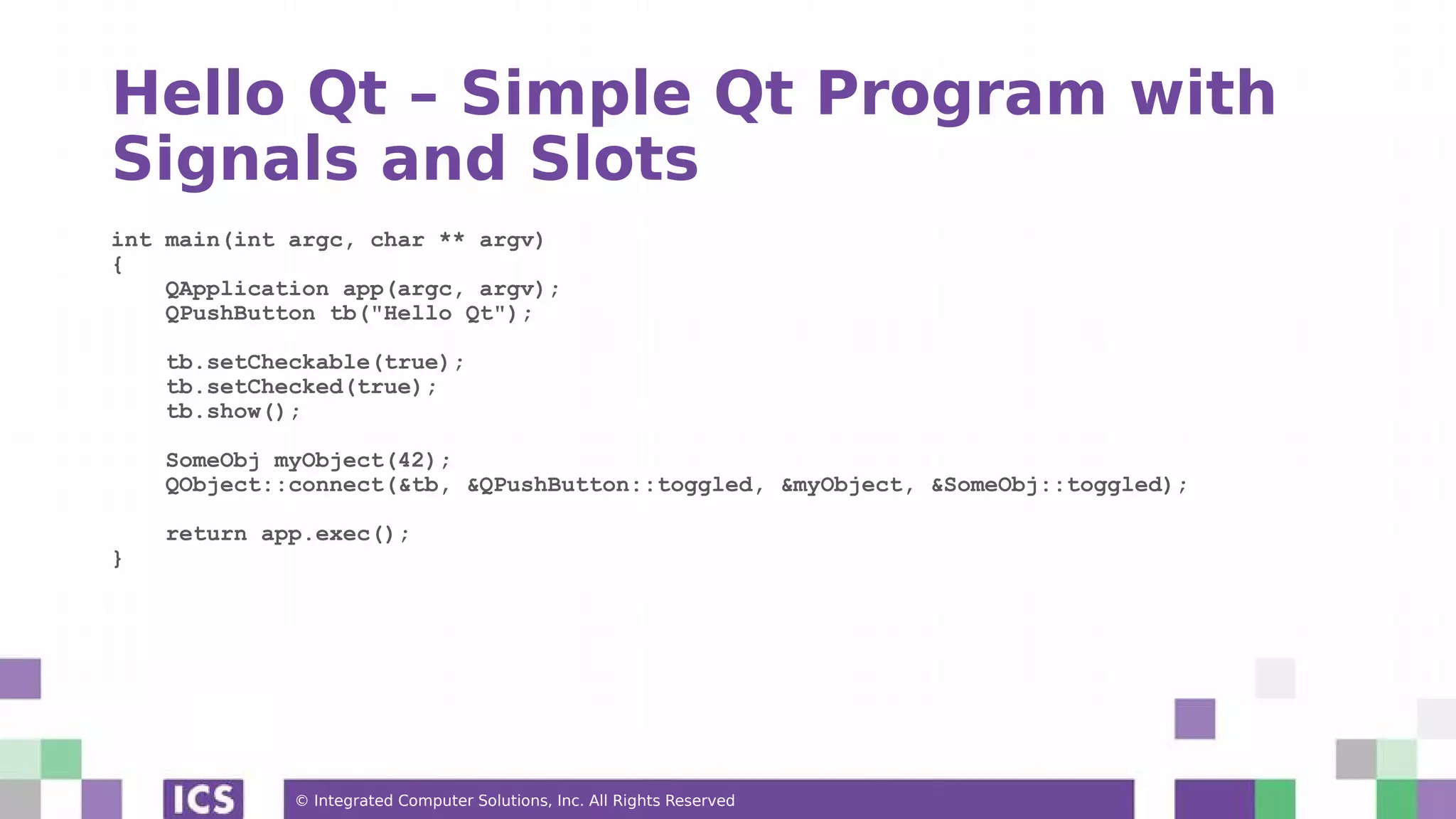

int main(int argc, char ** argv)
{
QApplication app(argc, argv);
QPushButton tb("Hello Qt");
tb.setCheckable(true);
tb.setChecked(true);
tb.show();
SomeObj myObject(42);
QObject::connect(&tb, &QPushButton::toggled, &myObject, &SomeObj::toggled);
return app.exec();
}

Signals and Slots

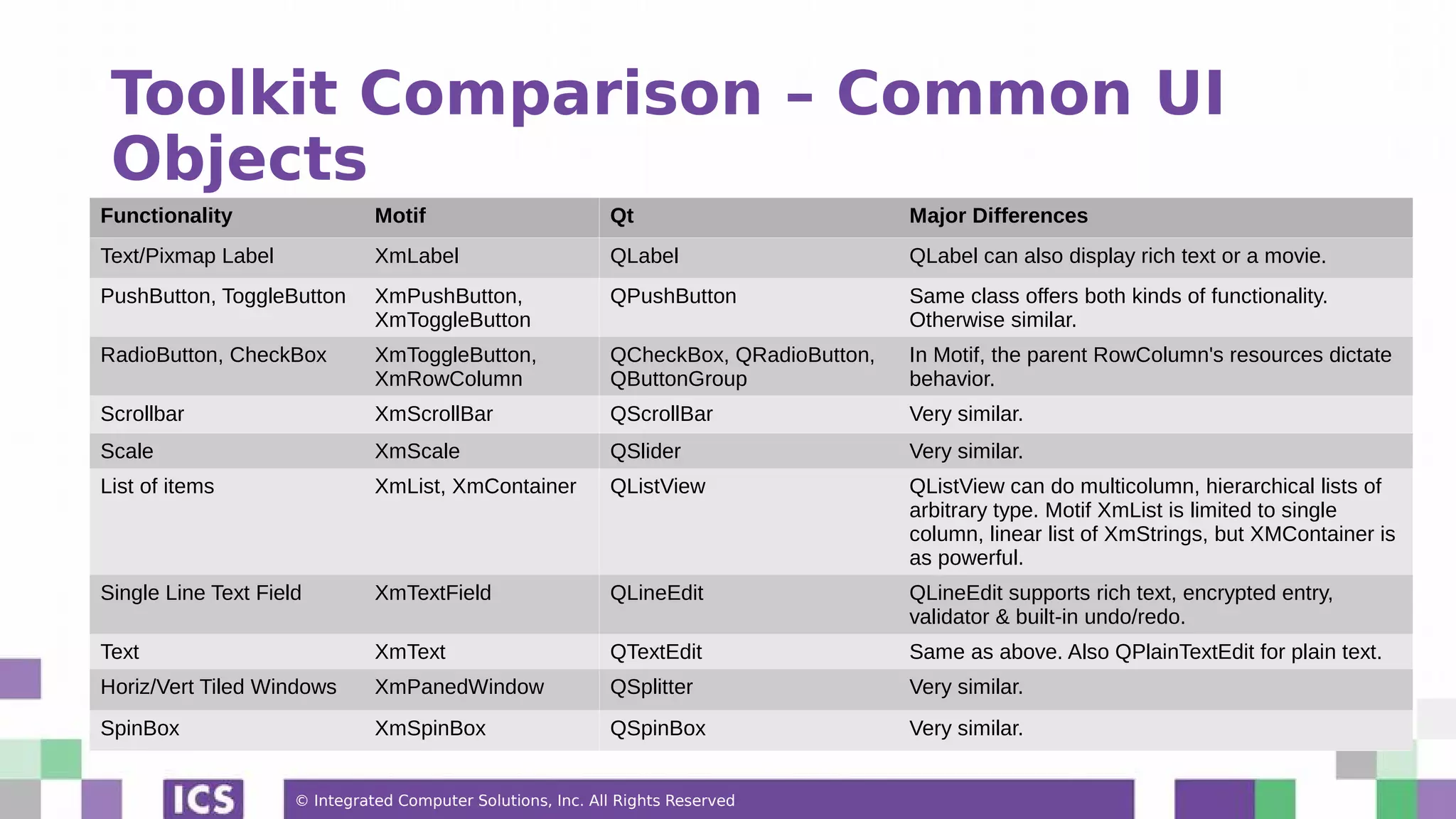

Toolkit Comparison – Common UI
Objects
Functionality Motif Qt Major Differences
Text/Pixmap Label XmLabel QLabel QLabel can also display rich text or a movie.
PushButton, ToggleButton XmPushButton,
XmToggleButton
QPushButton Same class offers both kinds of functionality.
Otherwise similar.
RadioButton, CheckBox XmToggleButton,
XmRowColumn
QCheckBox, QRadioButton,
QButtonGroup
In Motif, the parent RowColumn's resources dictate
behavior.
Scrollbar XmScrollBar QScrollBar Very similar.
Scale XmScale QSlider Very similar.
List of items XmList, XmContainer QListView QListView can do multicolumn, hierarchical lists of
arbitrary type. Motif XmList is limited to single
column, linear list of XmStrings, but XMContainer is
as powerful.
Single Line Text Field XmTextField QLineEdit QLineEdit supports rich text, encrypted entry,
validator & built-in undo/redo.
Text XmText QTextEdit Same as above. Also QPlainTextEdit for plain text.
Horiz/Vert Tiled Windows XmPanedWindow QSplitter Very similar.
SpinBox XmSpinBox QSpinBox Very similar.

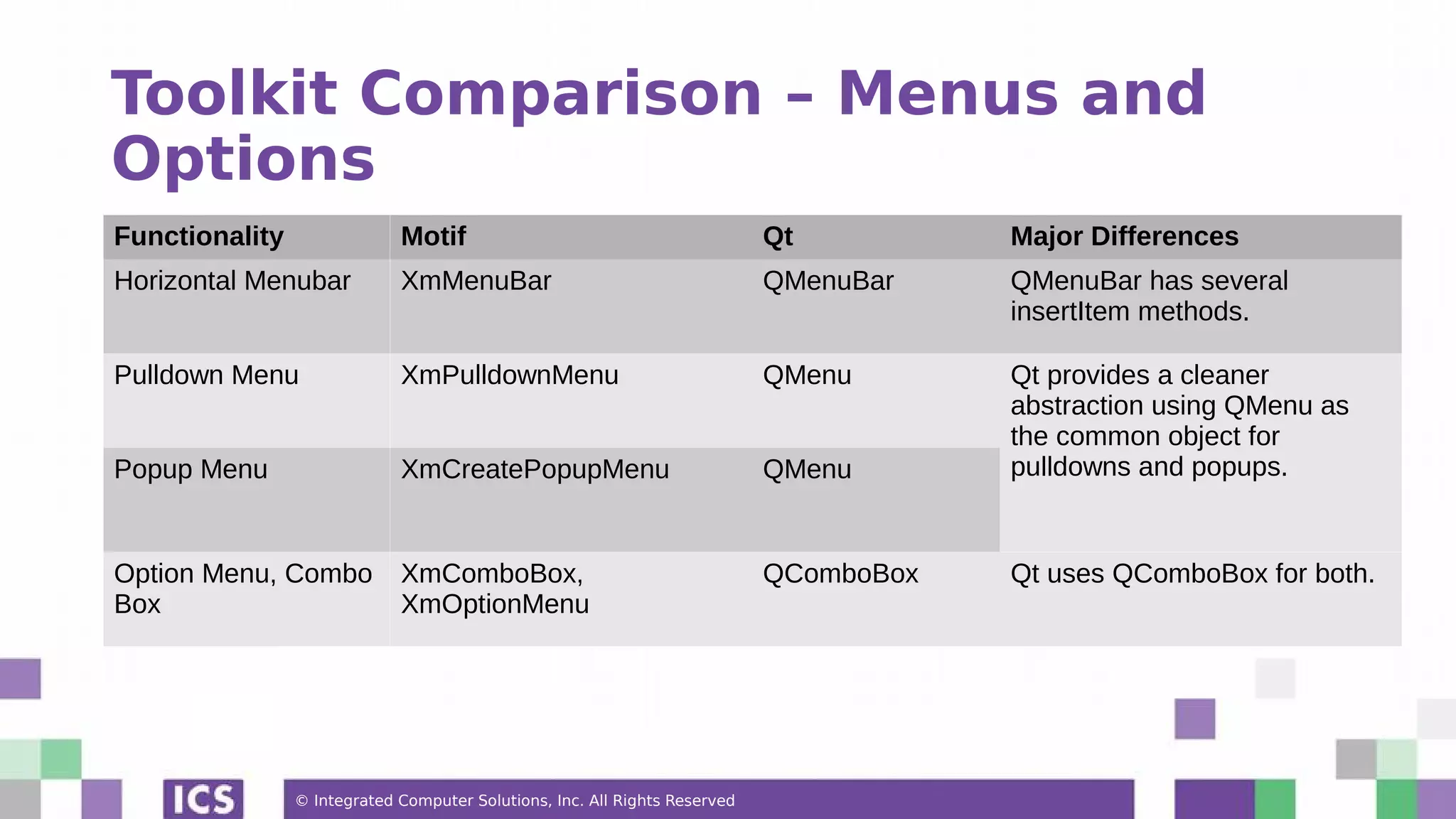

Toolkit Comparison – Menus and
Options
Functionality Motif Qt Major Differences
Horizontal Menubar XmMenuBar QMenuBar QMenuBar has several
insertItem methods.
Pulldown Menu XmPulldownMenu QMenu Qt provides a cleaner
abstraction using QMenu as
the common object for
pulldowns and popups.Popup Menu XmCreatePopupMenu QMenu
Option Menu, Combo
Box
XmComboBox,
XmOptionMenu
QComboBox Qt uses QComboBox for both.

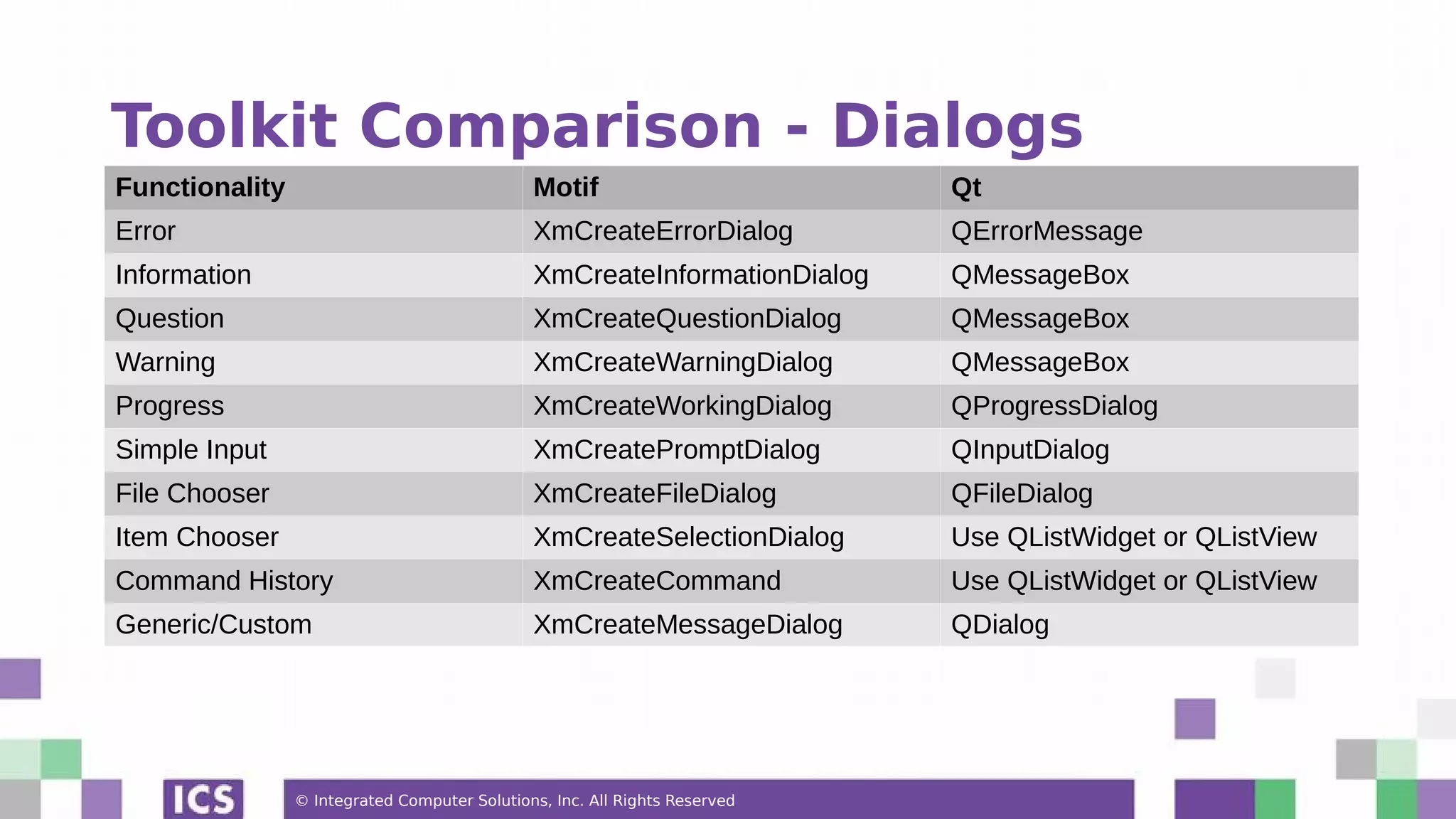

Toolkit Comparison - Dialogs
Functionality Motif Qt
Error XmCreateErrorDialog QErrorMessage
Information XmCreateInformationDialog QMessageBox
Question XmCreateQuestionDialog QMessageBox
Warning XmCreateWarningDialog QMessageBox
Progress XmCreateWorkingDialog QProgressDialog
Simple Input XmCreatePromptDialog QInputDialog
File Chooser XmCreateFileDialog QFileDialog
Item Chooser XmCreateSelectionDialog Use QListWidget or QListView
Command History XmCreateCommand Use QListWidget or QListView
Generic/Custom XmCreateMessageDialog QDialog

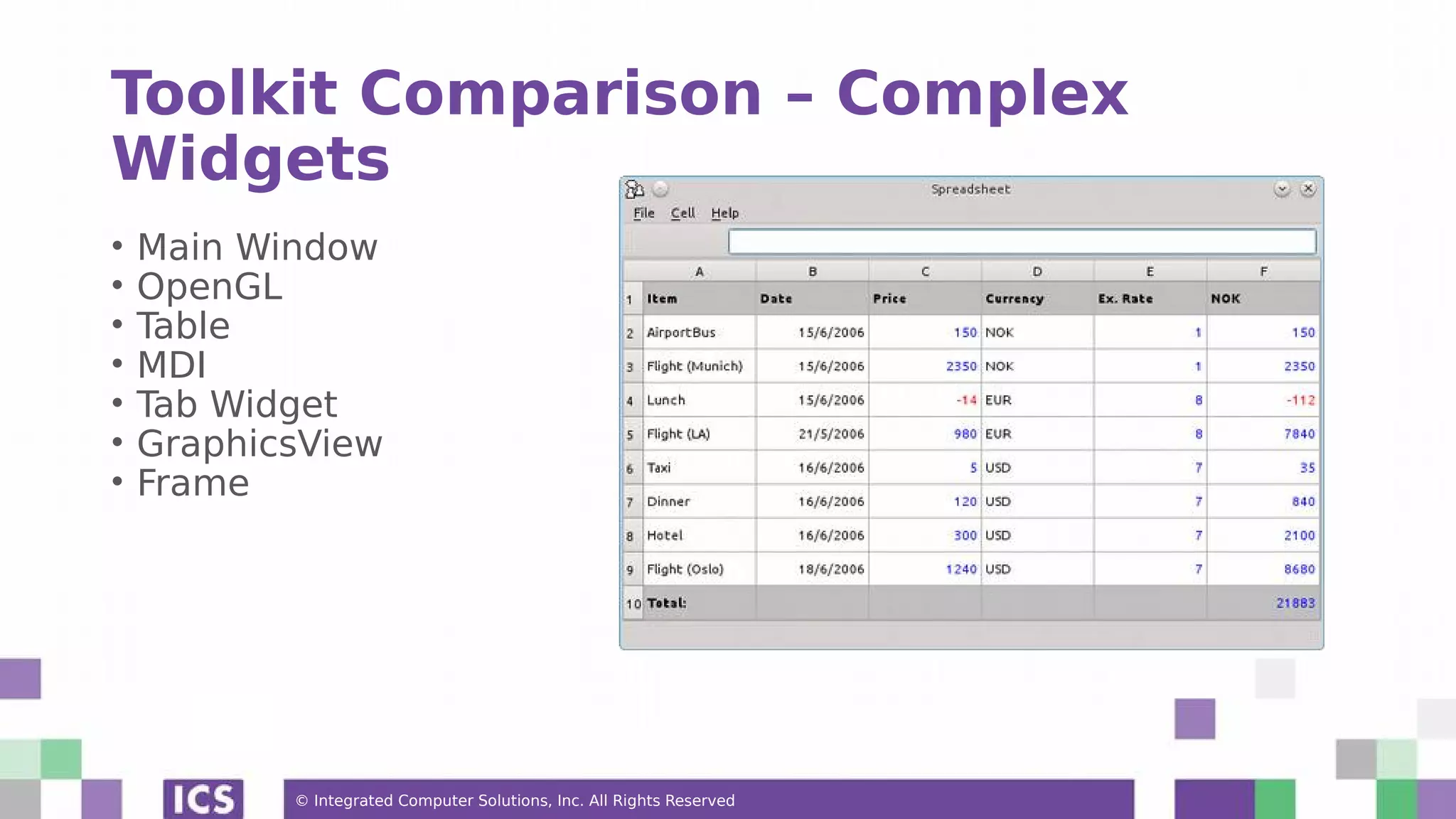

Toolkit Comparison – Complex
Widgets
• Main Window
• OpenGL
• Table
• MDI
• Tab Widget
• GraphicsView
• Frame

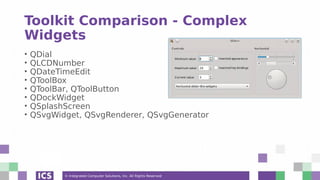

Toolkit Comparison - Complex
Widgets
• QDial
• QLCDNumber
• QDateTimeEdit
• QToolBox
• QToolBar, QToolButton
• QDockWidget
• QSplashScreen
• QSvgWidget, QSvgRenderer, QSvgGenerator

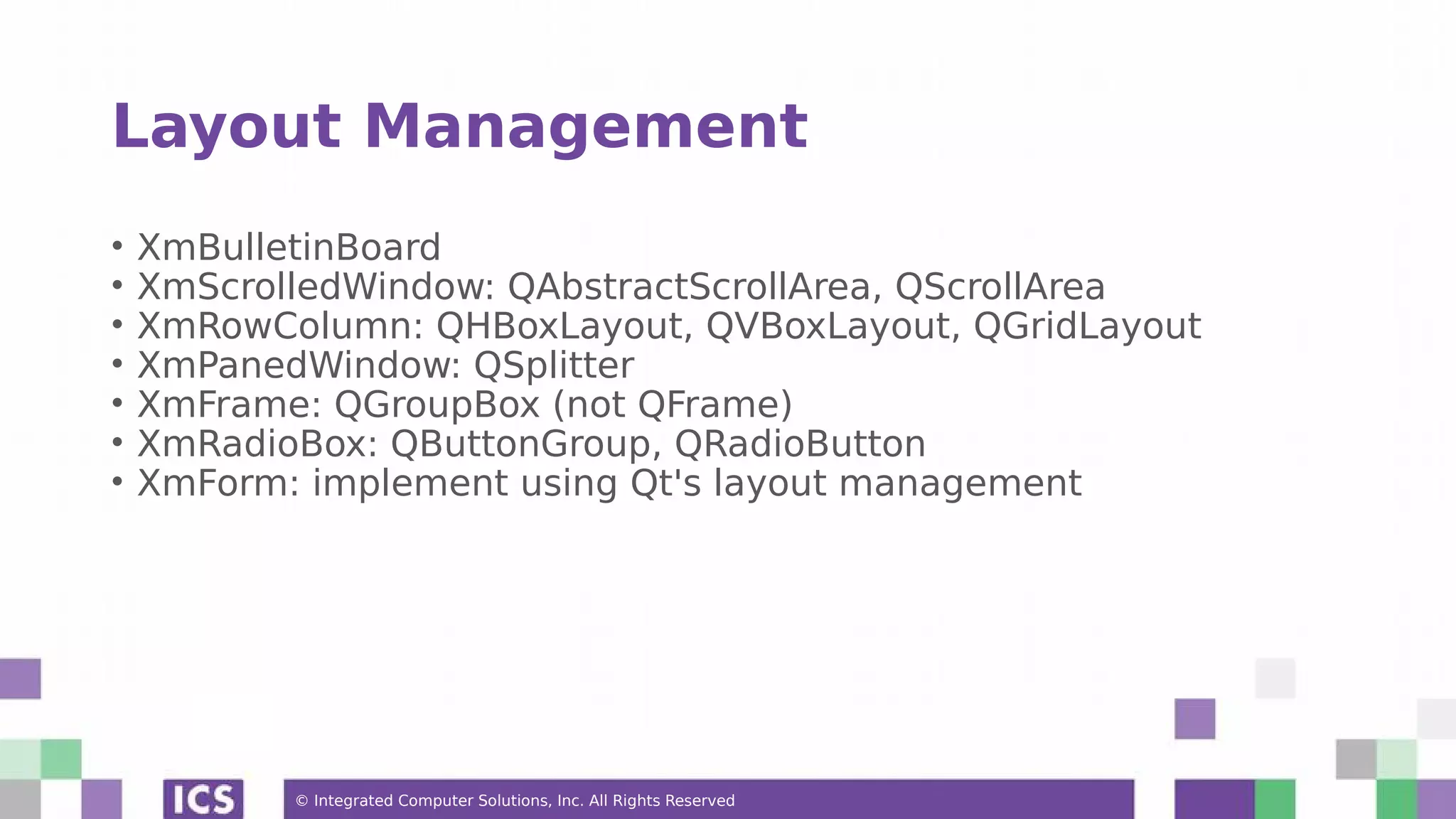

Layout Management
• XmBulletinBoard
• XmScrolledWindow: QAbstractScrollArea, QScrollArea
• XmRowColumn: QHBoxLayout, QVBoxLayout, QGridLayout
• XmPanedWindow: QSplitter
• XmFrame: QGroupBox (not QFrame)
• XmRadioBox: QButtonGroup, QRadioButton
• XmForm: implement using Qt's layout management

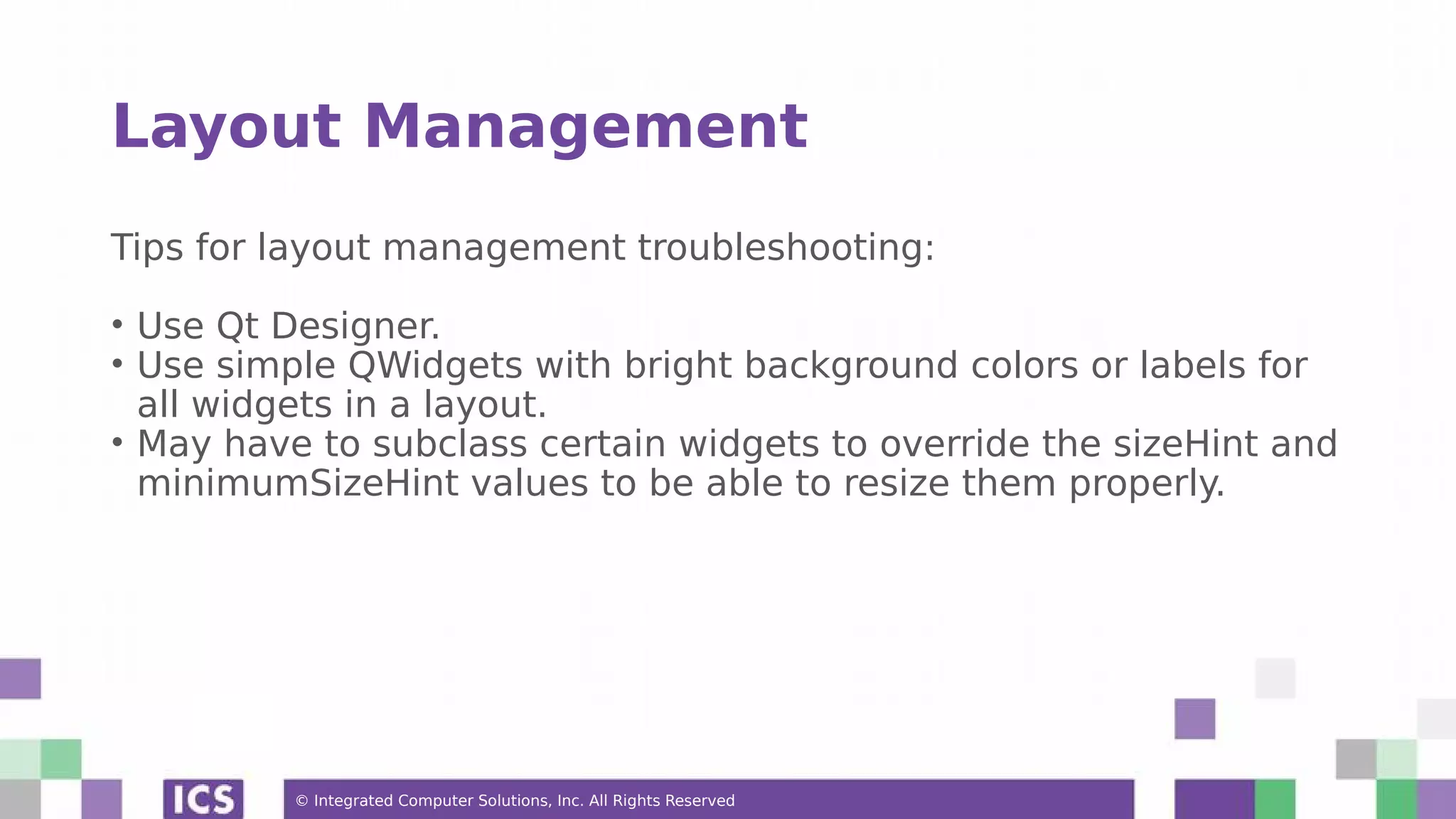

Layout Management
Tips for layout management troubleshooting:
• Use Qt Designer.
• Use simple QWidgets with bright background colors or labels for
all widgets in a layout.
• May have to subclass certain widgets to override the sizeHint and
minimumSizeHint values to be able to resize them properly.

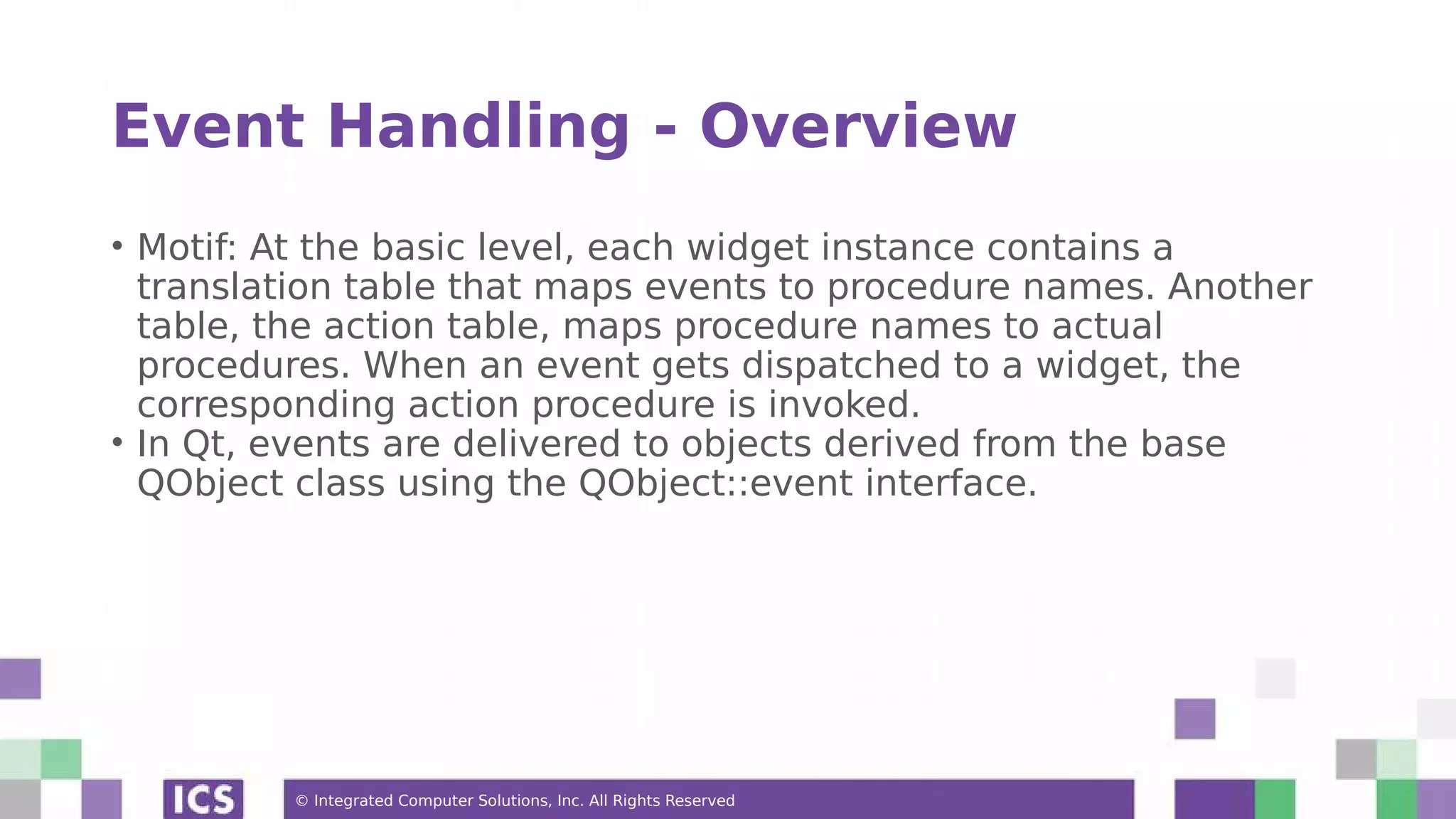

Event Handling - Overview
• Motif: At the basic level, each widget instance contains a
translation table that maps events to procedure names. Another
table, the action table, maps procedure names to actual
procedures. When an event gets dispatched to a widget, the
corresponding action procedure is invoked.
• In Qt, events are delivered to objects derived from the base
QObject class using the QObject::event interface.

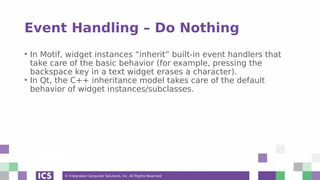

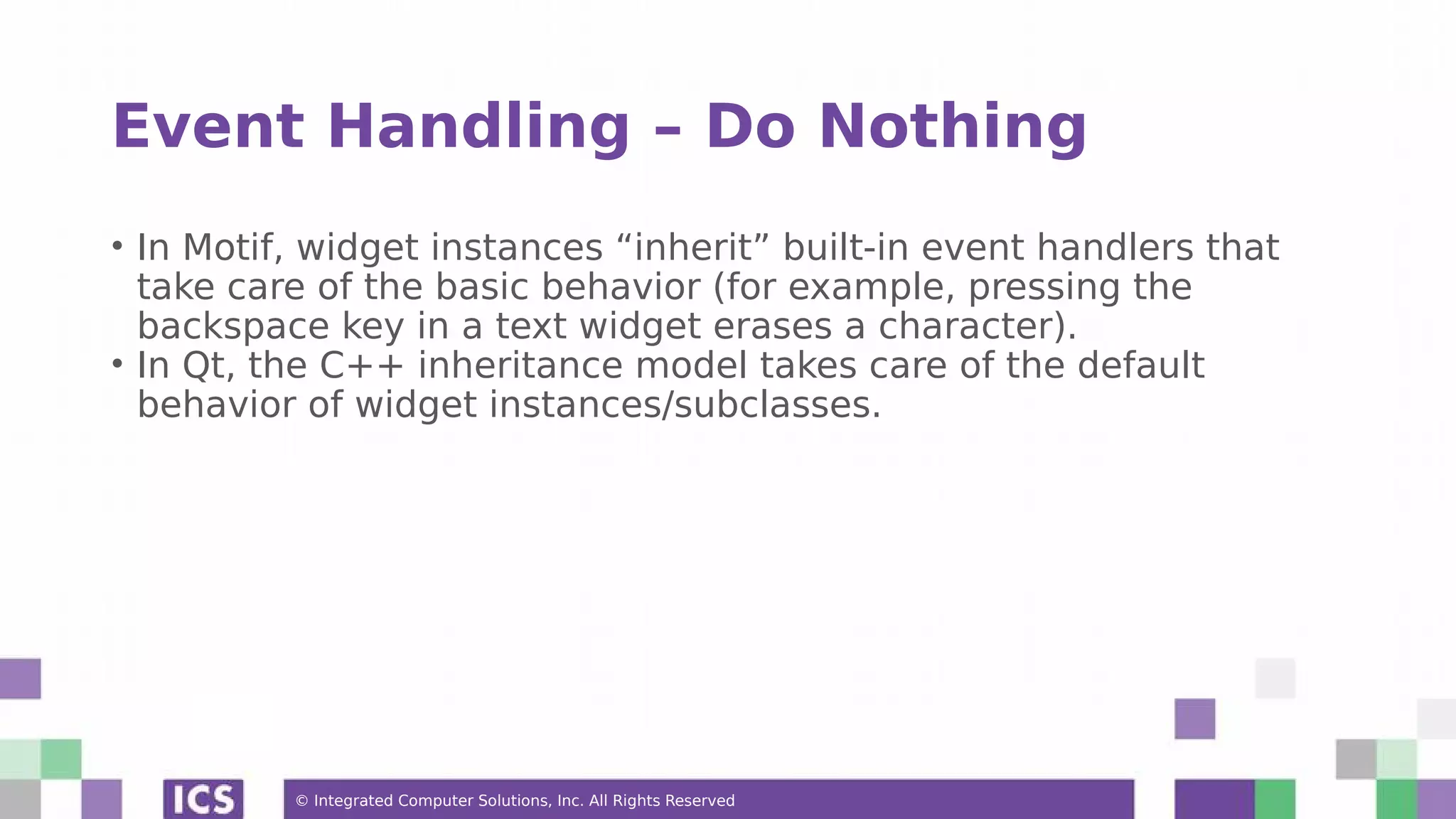

Event Handling – Do Nothing
• In Motif, widget instances “inherit” built-in event handlers that
take care of the basic behavior (for example, pressing the
backspace key in a text widget erases a character).
• In Qt, the C++ inheritance model takes care of the default
behavior of widget instances/subclasses.

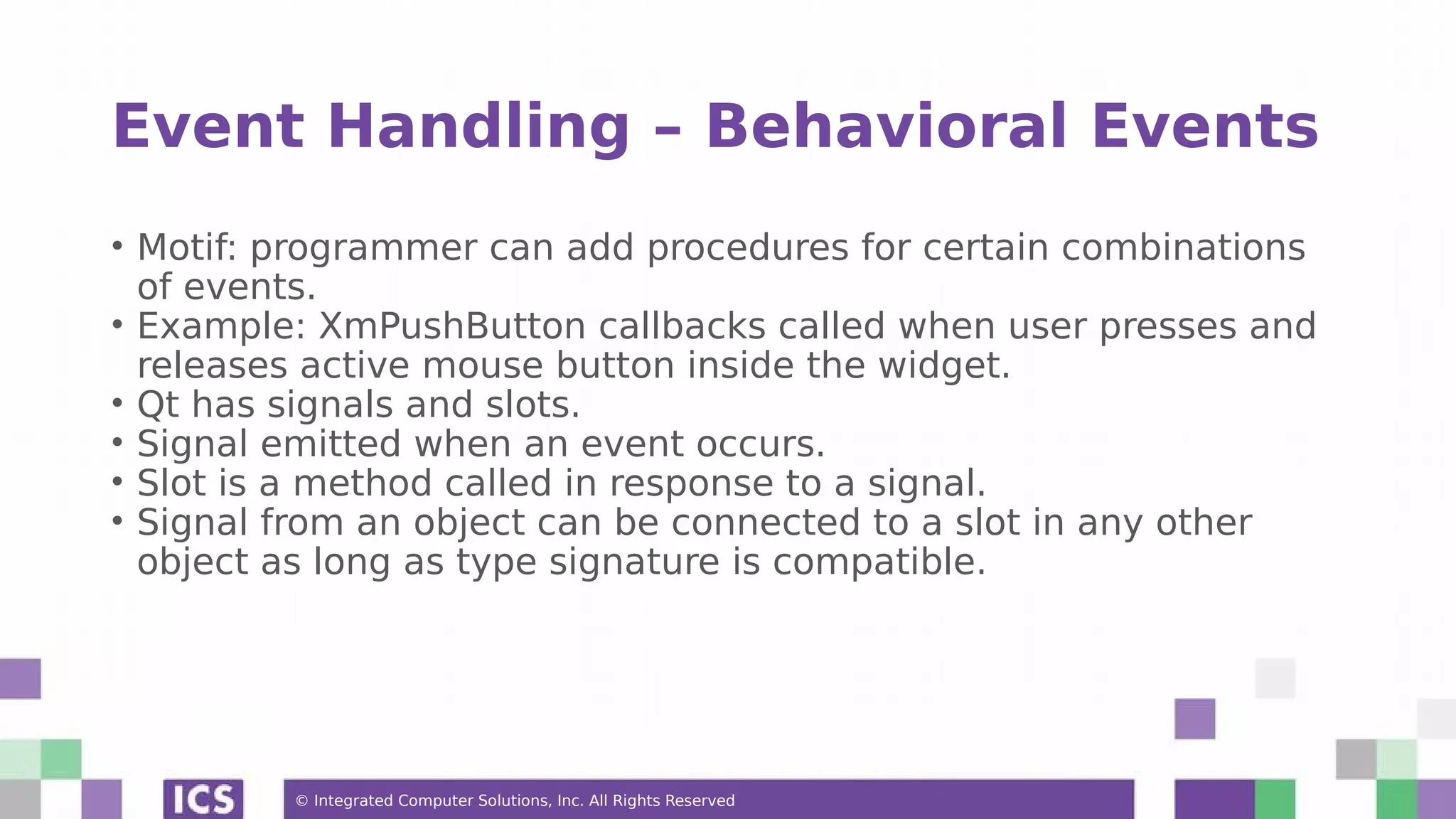

Event Handling – Behavioral Events
• Motif: programmer can add procedures for certain combinations
of events.
• Example: XmPushButton callbacks called when user presses and
releases active mouse button inside the widget.
• Qt has signals and slots.
• Signal emitted when an event occurs.
• Slot is a method called in response to a signal.
• Signal from an object can be connected to a slot in any other
object as long as type signature is compatible.

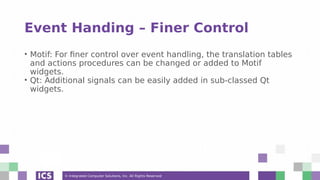

Event Handing – Finer Control
• Motif: For finer control over event handling, the translation tables
and actions procedures can be changed or added to Motif
widgets.
• Qt: Additional signals can be easily added in sub-classed Qt
widgets.

Event Handling – Direct Dispatch
• Motif: Application can register event handler procedures with the
Xt event dispatcher for a particular widget. Procedures are called
before the ones in the translation table.
• Qt: QObject::event virtual method can be overridden to bypass or
to add event handling for a widget.
• Most Qt widgets have several event handling methods that are at
a higher level of abstraction and can be overridden without
completely changing the behavior of a widget through the lower
level QObject::event method.
• Qt widget can observe another widget’s events using the
QObject::eventFilter, QObject::installEventFilter methods.

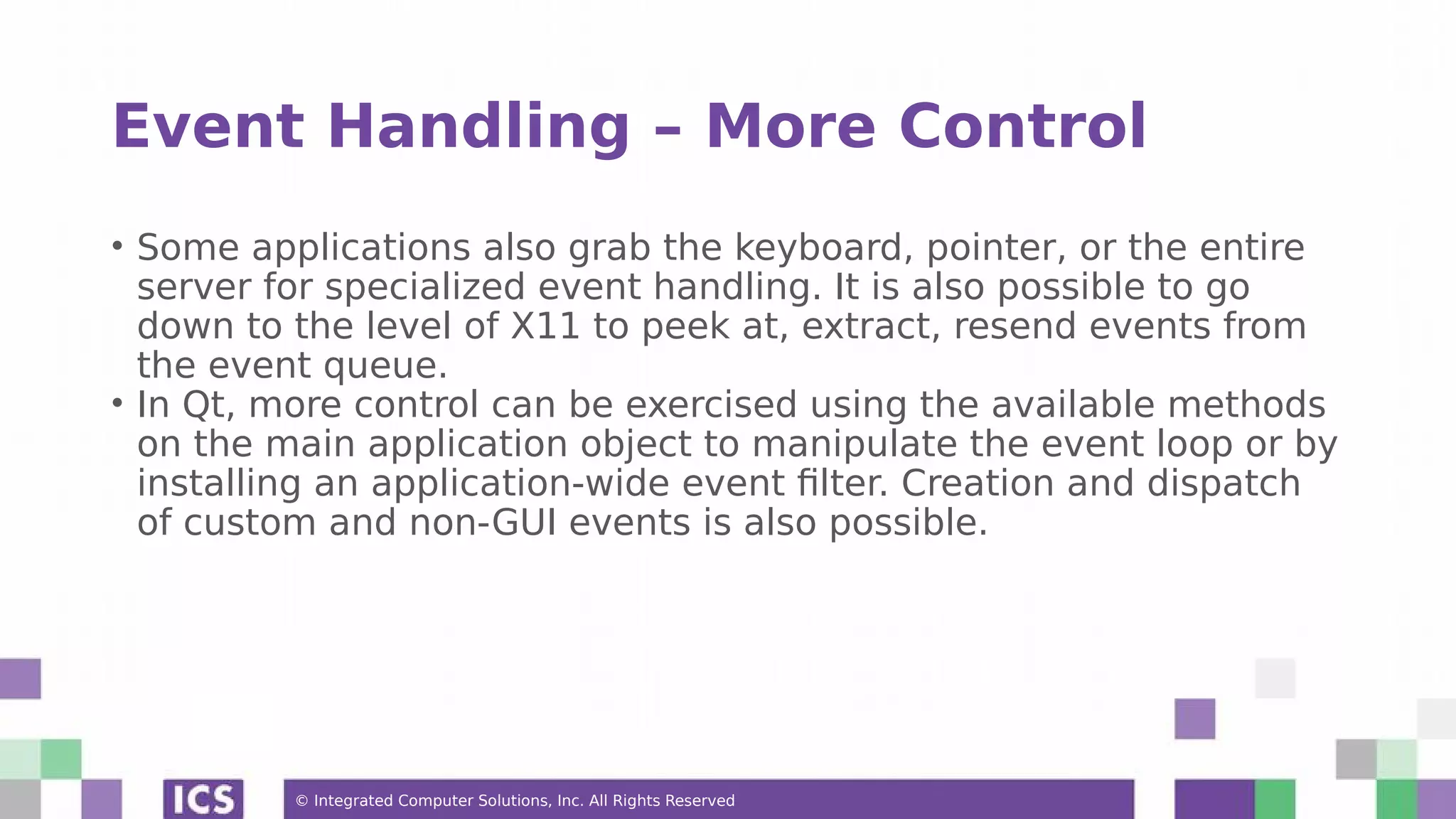

Event Handling – More Control
• Some applications also grab the keyboard, pointer, or the entire
server for specialized event handling. It is also possible to go
down to the level of X11 to peek at, extract, resend events from
the event queue.
• In Qt, more control can be exercised using the available methods
on the main application object to manipulate the event loop or by
installing an application-wide event filter. Creation and dispatch
of custom and non-GUI events is also possible.

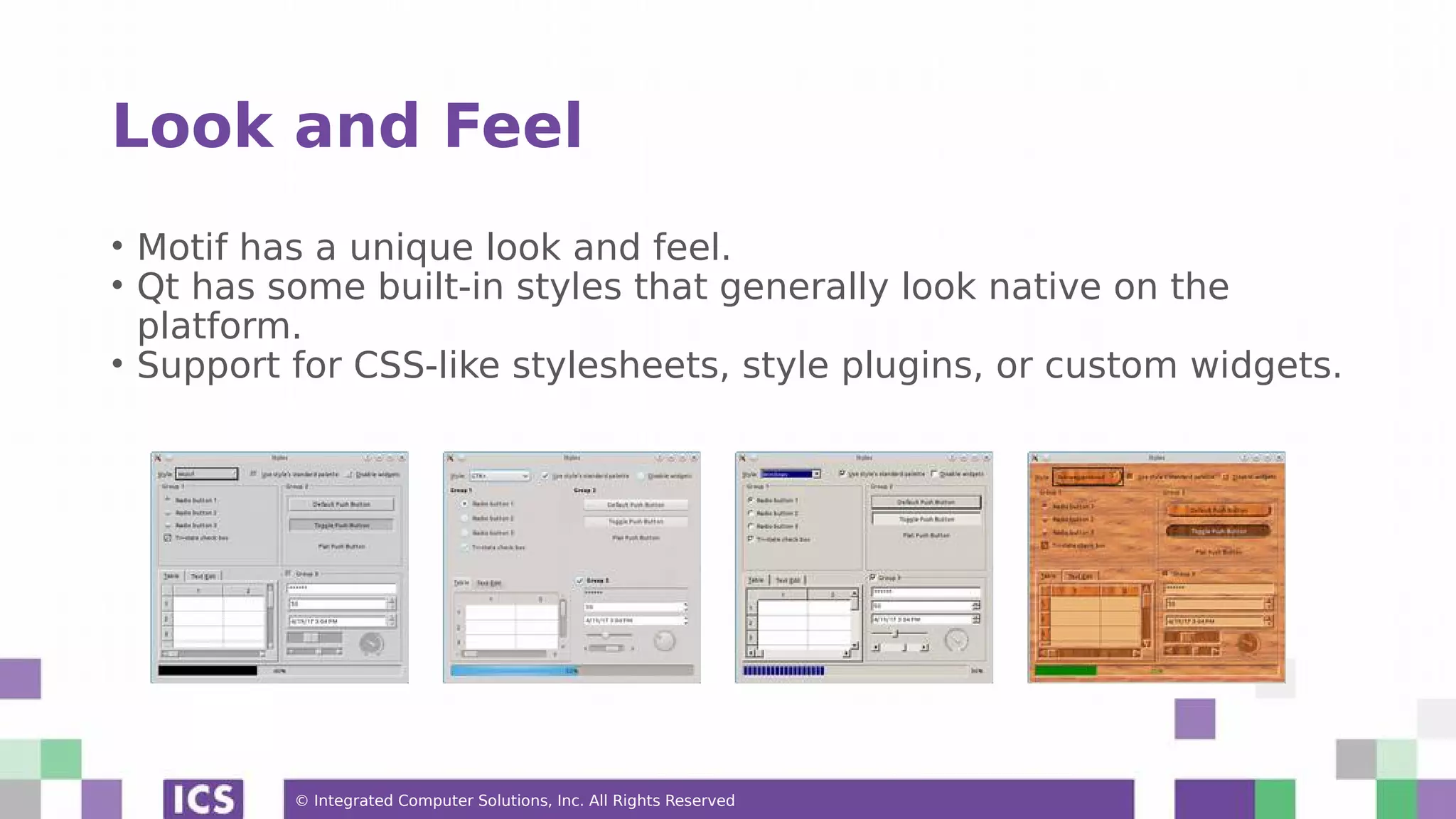

Look and Feel
• Motif has a unique look and feel.
• Qt has some built-in styles that generally look native on the
platform.
• Support for CSS-like stylesheets, style plugins, or custom widgets.

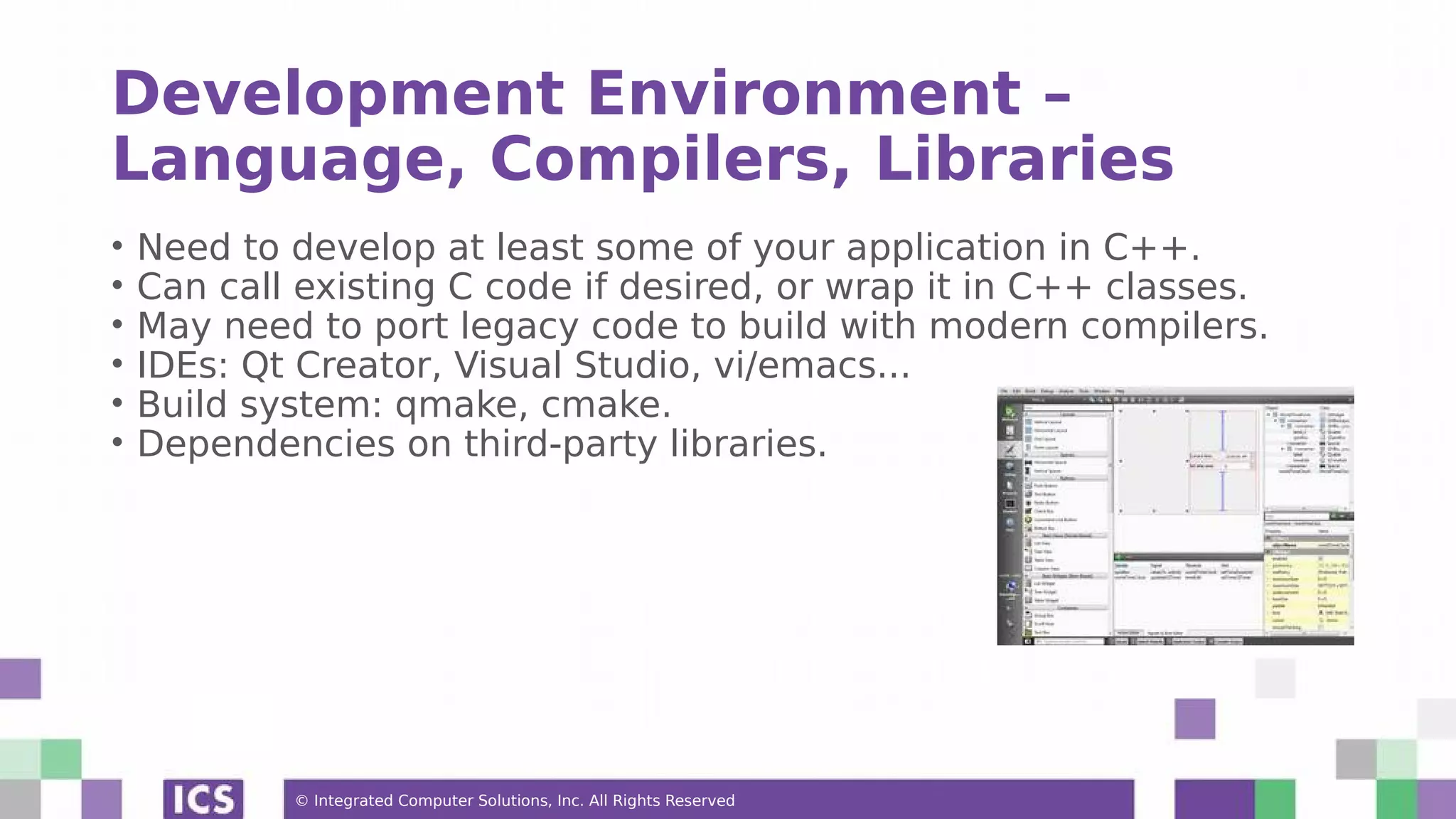

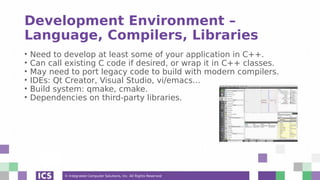

Development Environment –
Language, Compilers, Libraries
• Need to develop at least some of your application in C++.
• Can call existing C code if desired, or wrap it in C++ classes.
• May need to port legacy code to build with modern compilers.
• IDEs: Qt Creator, Visual Studio, vi/emacs...
• Build system: qmake, cmake.
• Dependencies on third-party libraries.

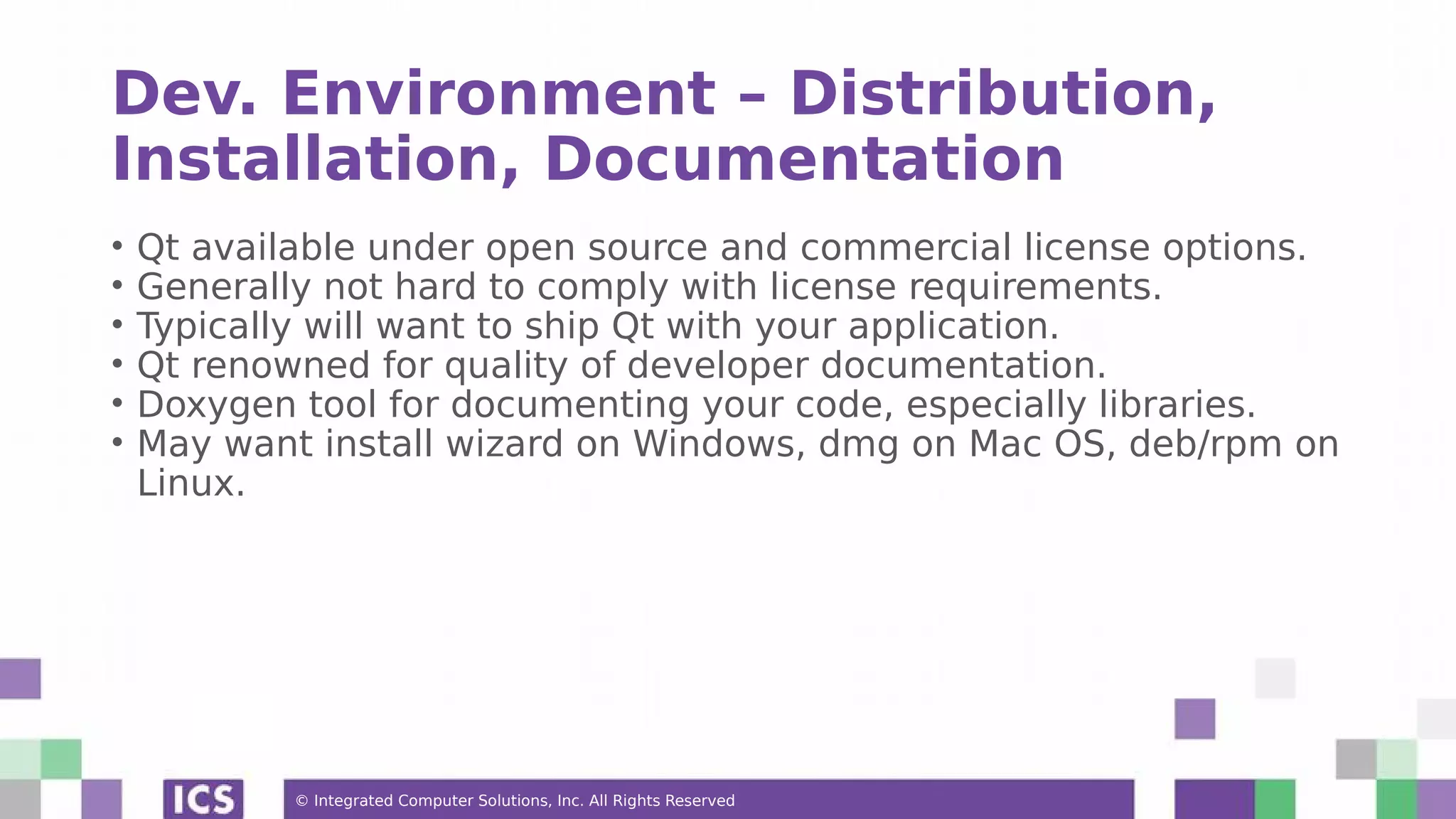

Dev. Environment – Distribution,
Installation, Documentation
• Qt available under open source and commercial license options.
• Generally not hard to comply with license requirements.
• Typically will want to ship Qt with your application.
• Qt renowned for quality of developer documentation.
• Doxygen tool for documenting your code, especially libraries.
• May want install wizard on Windows, dmg on Mac OS, deb/rpm on
Linux.

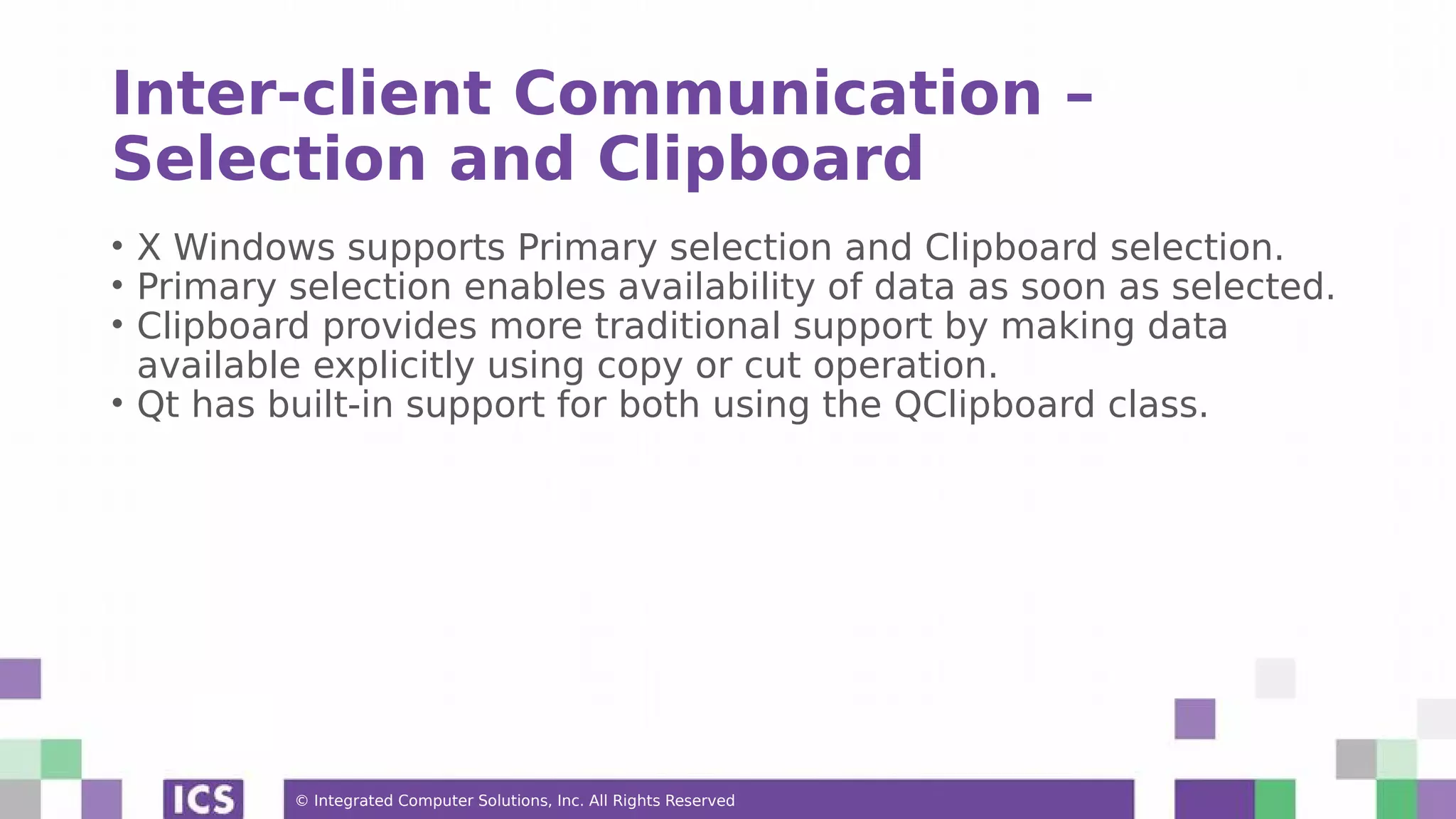

Inter-client Communication –
Selection and Clipboard
• X Windows supports Primary selection and Clipboard selection.
• Primary selection enables availability of data as soon as selected.
• Clipboard provides more traditional support by making data
available explicitly using copy or cut operation.
• Qt has built-in support for both using the QClipboard class.

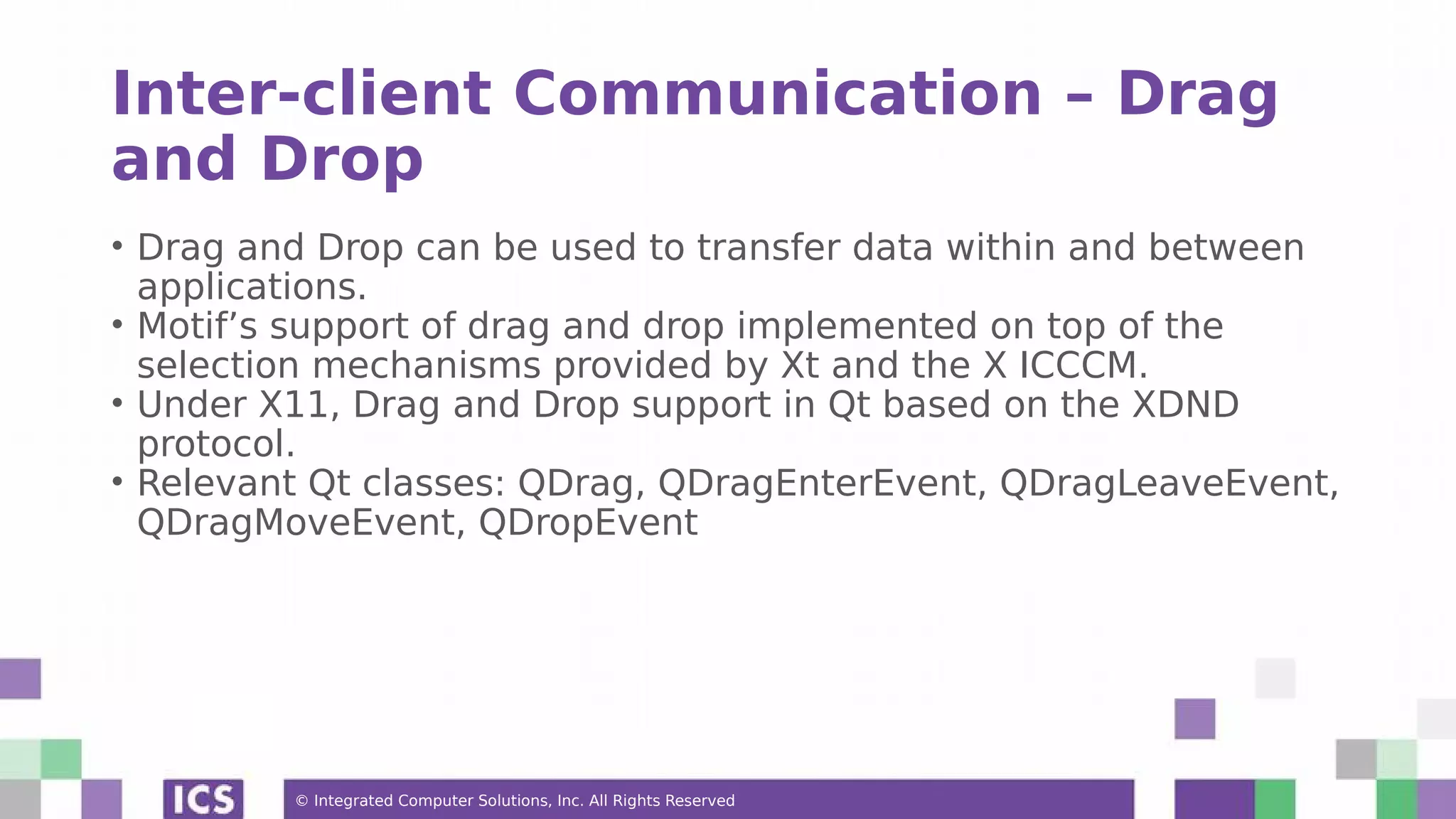

Inter-client Communication – Drag
and Drop
• Drag and Drop can be used to transfer data within and between
applications.
• Motif’s support of drag and drop implemented on top of the
selection mechanisms provided by Xt and the X ICCCM.
• Under X11, Drag and Drop support in Qt based on the XDND
protocol.
• Relevant Qt classes: QDrag, QDragEnterEvent, QDragLeaveEvent,
QDragMoveEvent, QDropEvent

Automation – GUI Builder
• Qt provides Qt Designer GUI builder.
• Allows laying out windows, widgets, dialogs and other elements.
• Can set properties and connect signals and slots.
• Saved as XML, which is then used to generate C++ code using
uic.
• Generally considered best practice to use it.

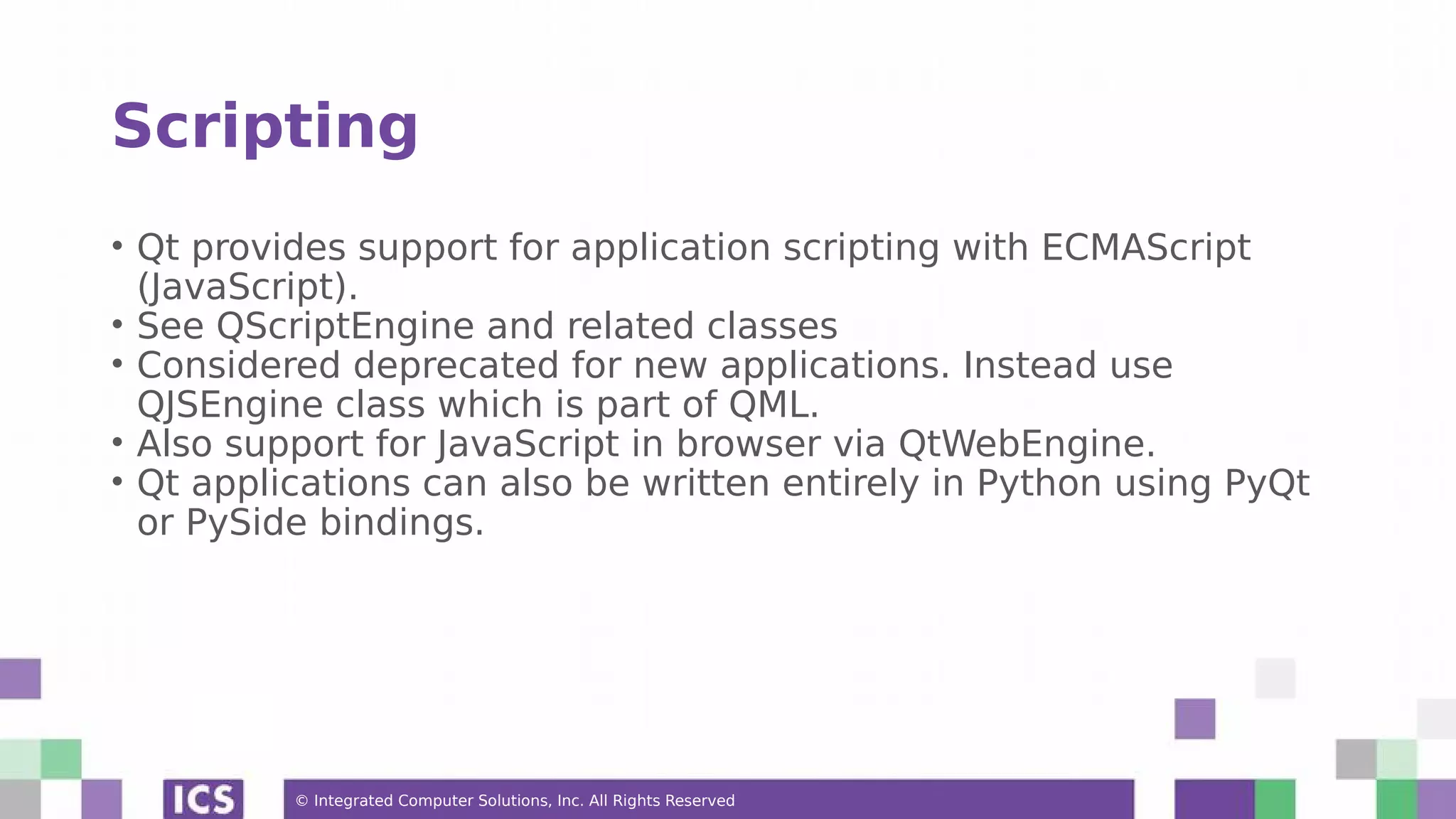

Scripting
• Qt provides support for application scripting with ECMAScript
(JavaScript).
• See QScriptEngine and related classes
• Considered deprecated for new applications. Instead use
QJSEngine class which is part of QML.
• Also support for JavaScript in browser via QtWebEngine.
• Qt applications can also be written entirely in Python using PyQt
or PySide bindings.

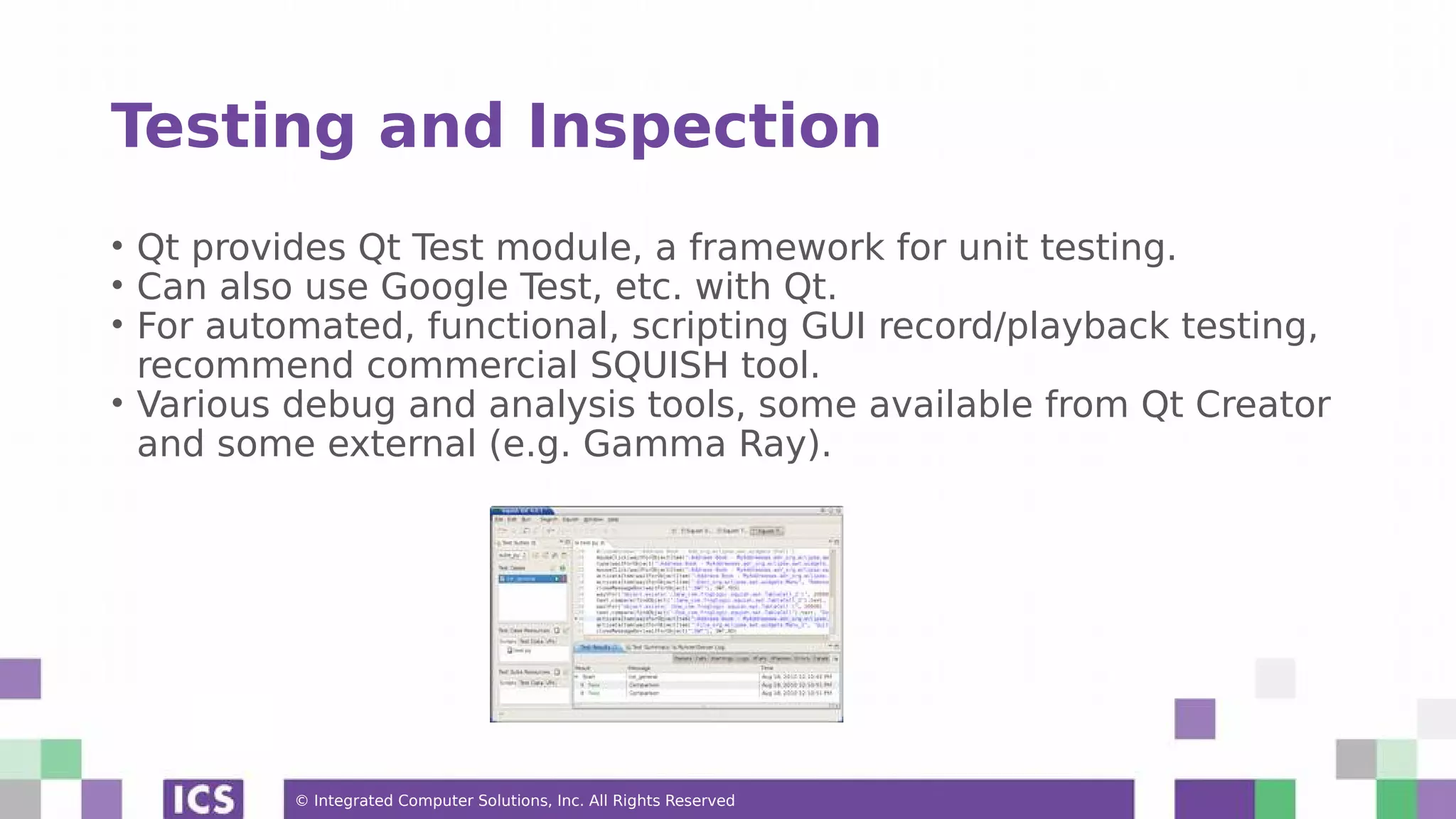

Testing and Inspection
• Qt provides Qt Test module, a framework for unit testing.
• Can also use Google Test, etc. with Qt.
• For automated, functional, scripting GUI record/playback testing,
recommend commercial SQUISH tool.
• Various debug and analysis tools, some available from Qt Creator
and some external (e.g. Gamma Ray).

Localization and
Internationalization
• QString: uses Unicode.
• QObject::tr(): For translating user visible strings.
• Translations looked up at run time from a catalog.
• Tools:
●
lupdate: Extracts translatable strings from source files.
●
Linguist: Application for translators to enter translations.
●
lrelease: Creates compact binary table used at run time.
• Support for various languages using Qt's text engine for all input
(QTextEdit, QLineEdit) and display (QLabel) controls.
• Support for localized formats for numbers, times, timezones,
dates, currency, etc.

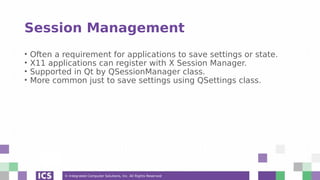

Session Management
• Often a requirement for applications to save settings or state.
• X11 applications can register with X Session Manager.
• Supported in Qt by QSessionManager class.
• More common just to save settings using QSettings class.

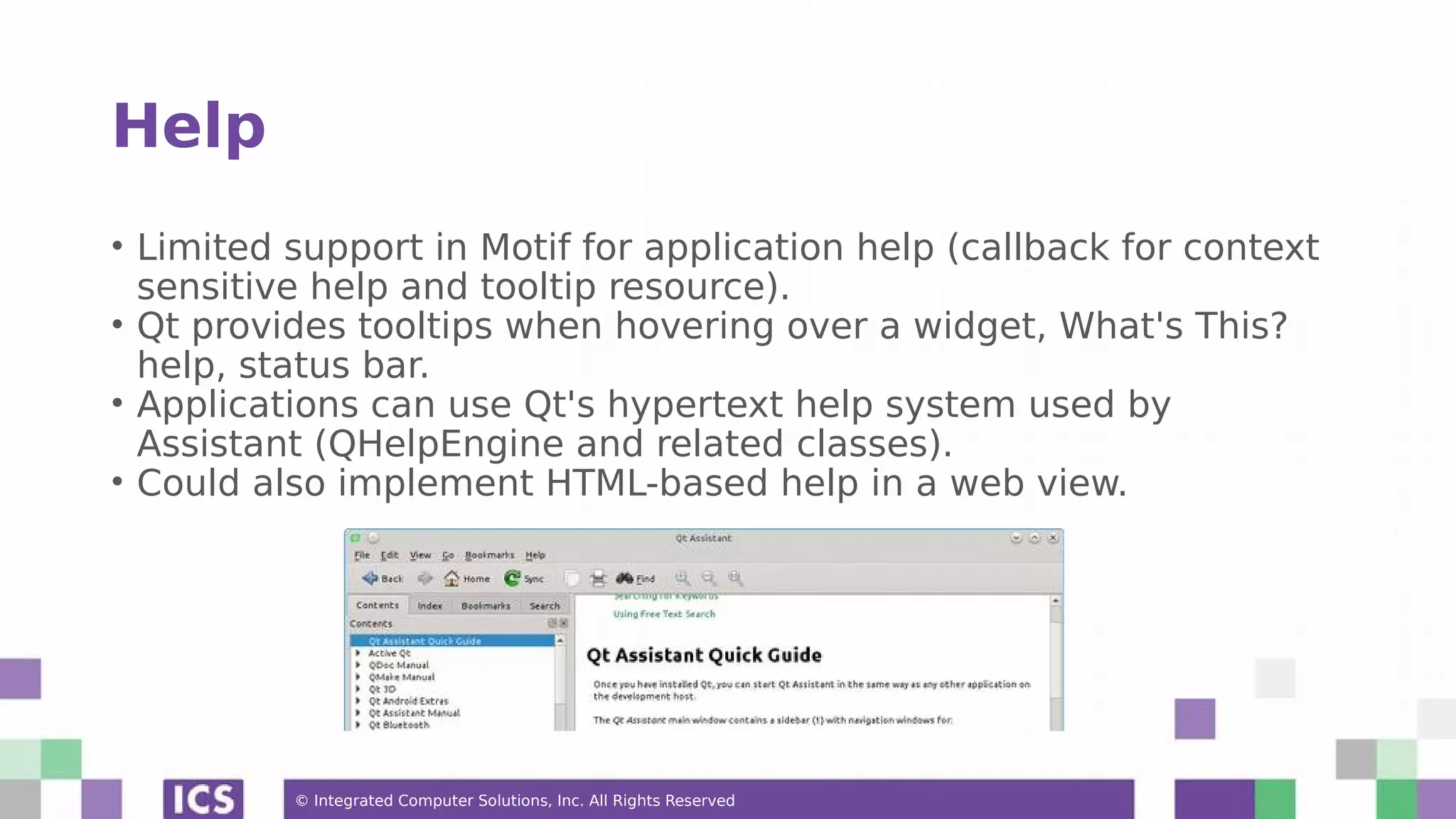

Help
• Limited support in Motif for application help (callback for context
sensitive help and tooltip resource).
• Qt provides tooltips when hovering over a widget, What's This?
help, status bar.
• Applications can use Qt's hypertext help system used by
Assistant (QHelpEngine and related classes).
• Could also implement HTML-based help in a web view.

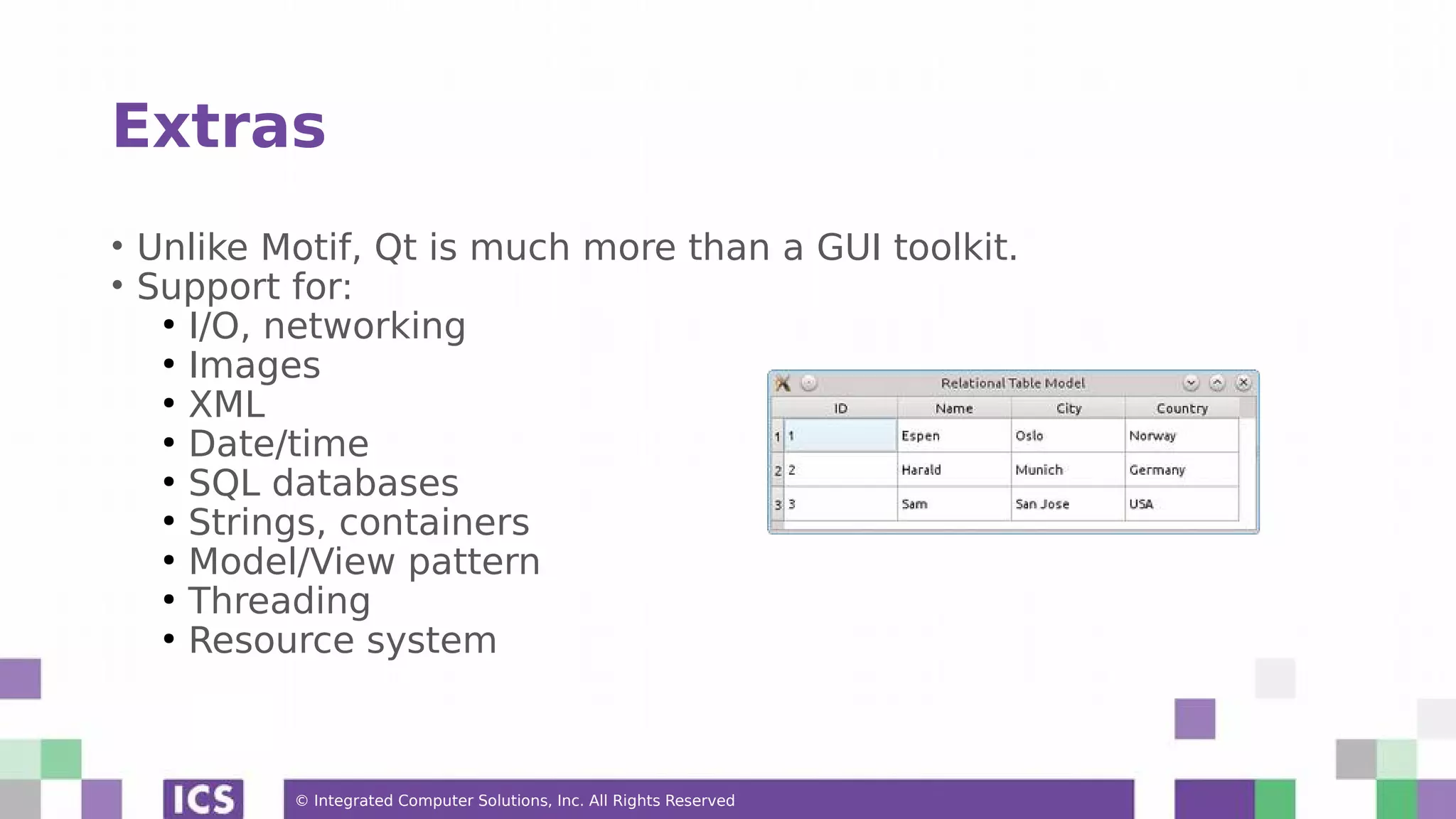

Extras
• Unlike Motif, Qt is much more than a GUI toolkit.
• Support for:
●
I/O, networking
●
Images
●
XML
●
Date/time
●
SQL databases
●
Strings, containers
●
Model/View pattern
●
Threading
●
Resource system

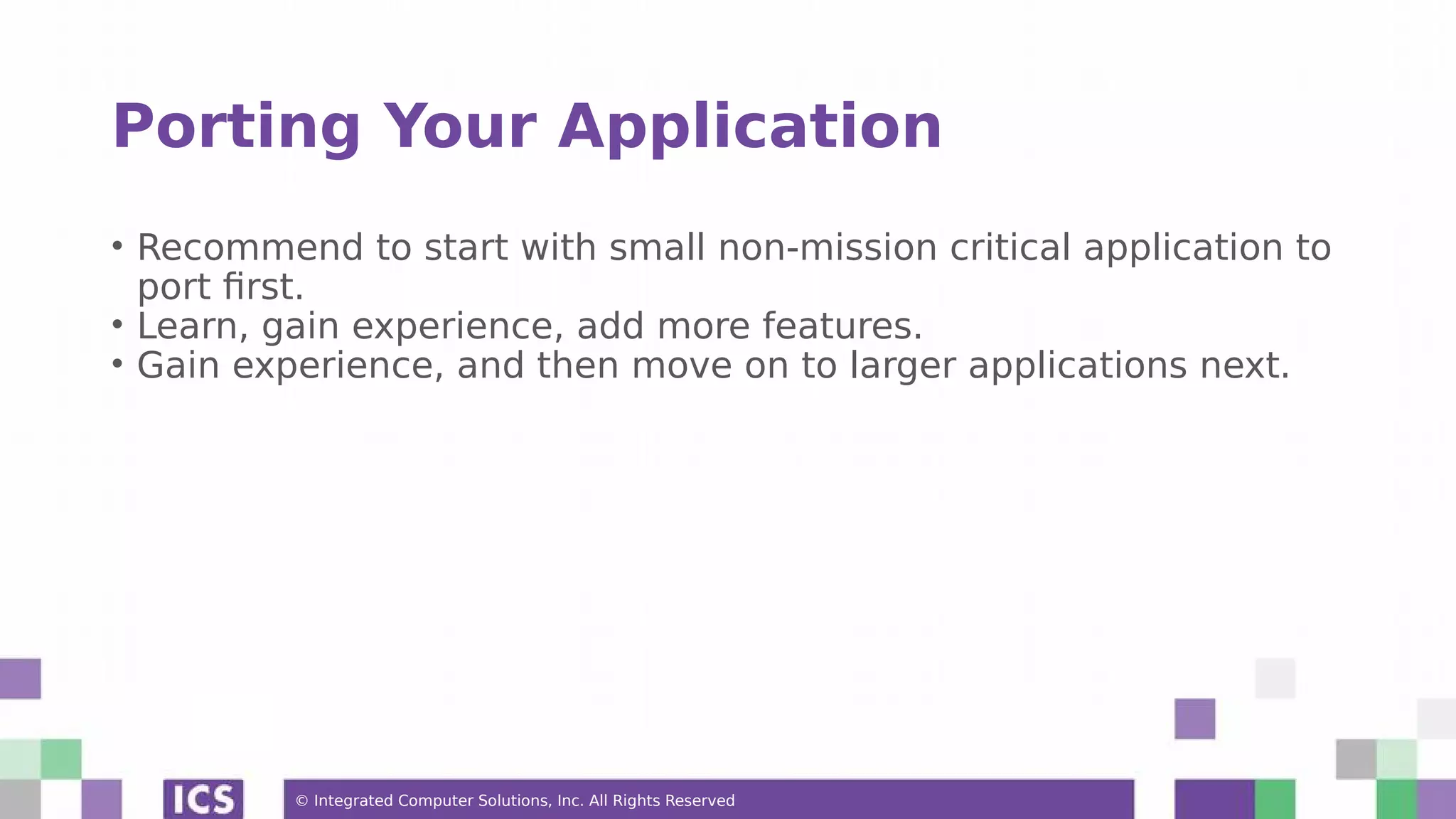

Porting Your Application
• Recommend to start with small non-mission critical application to
port first.
• Learn, gain experience, add more features.
• Gain experience, and then move on to larger applications next.

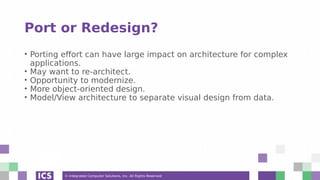

Port or Redesign?
• Porting effort can have large impact on architecture for complex
applications.
• May want to re-architect.
• Opportunity to modernize.
• More object-oriented design.
• Model/View architecture to separate visual design from data.

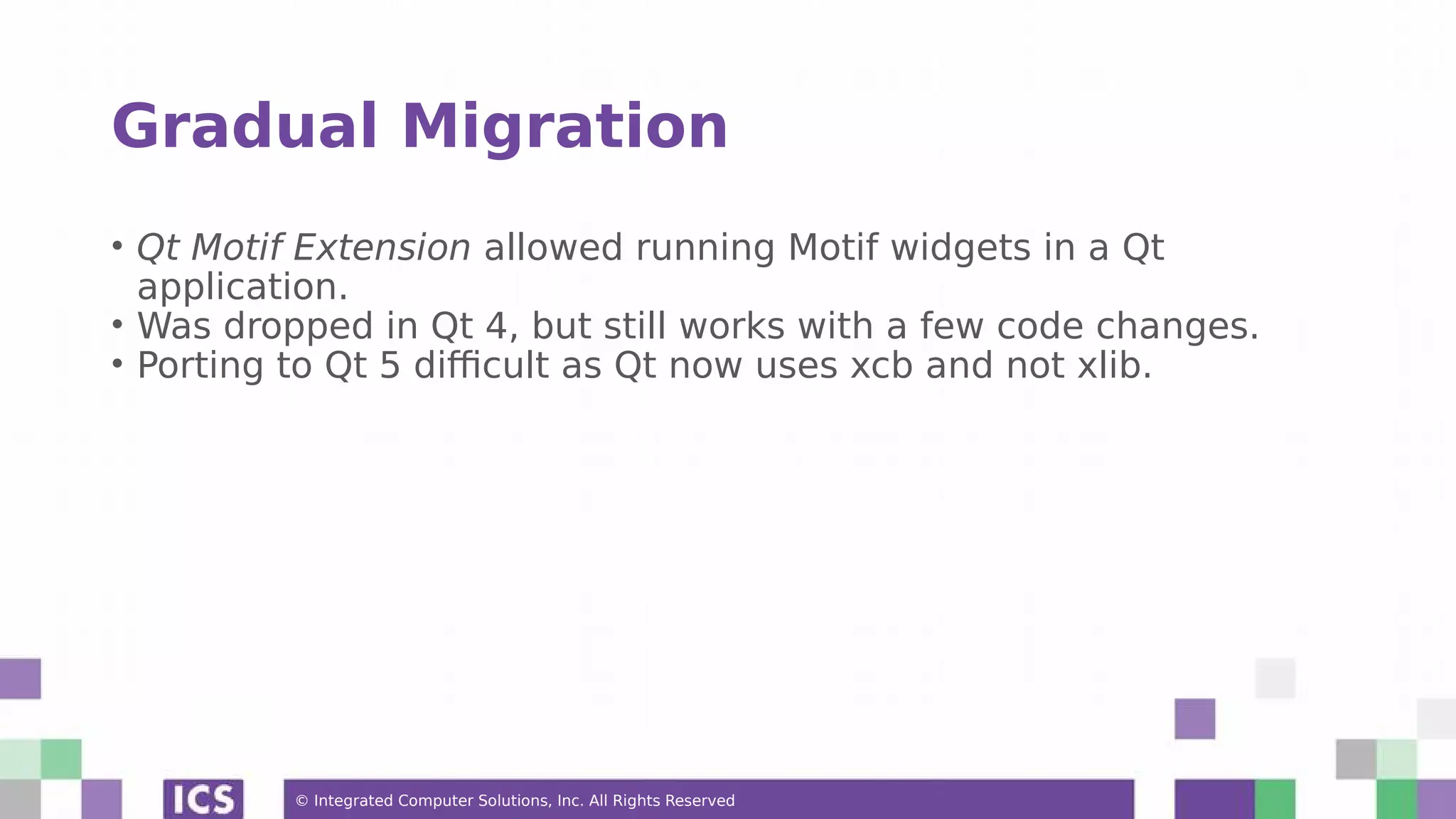

Gradual Migration
• Qt Motif Extension allowed running Motif widgets in a Qt
application.
• Was dropped in Qt 4, but still works with a few code changes.
• Porting to Qt 5 difficult as Qt now uses xcb and not xlib.

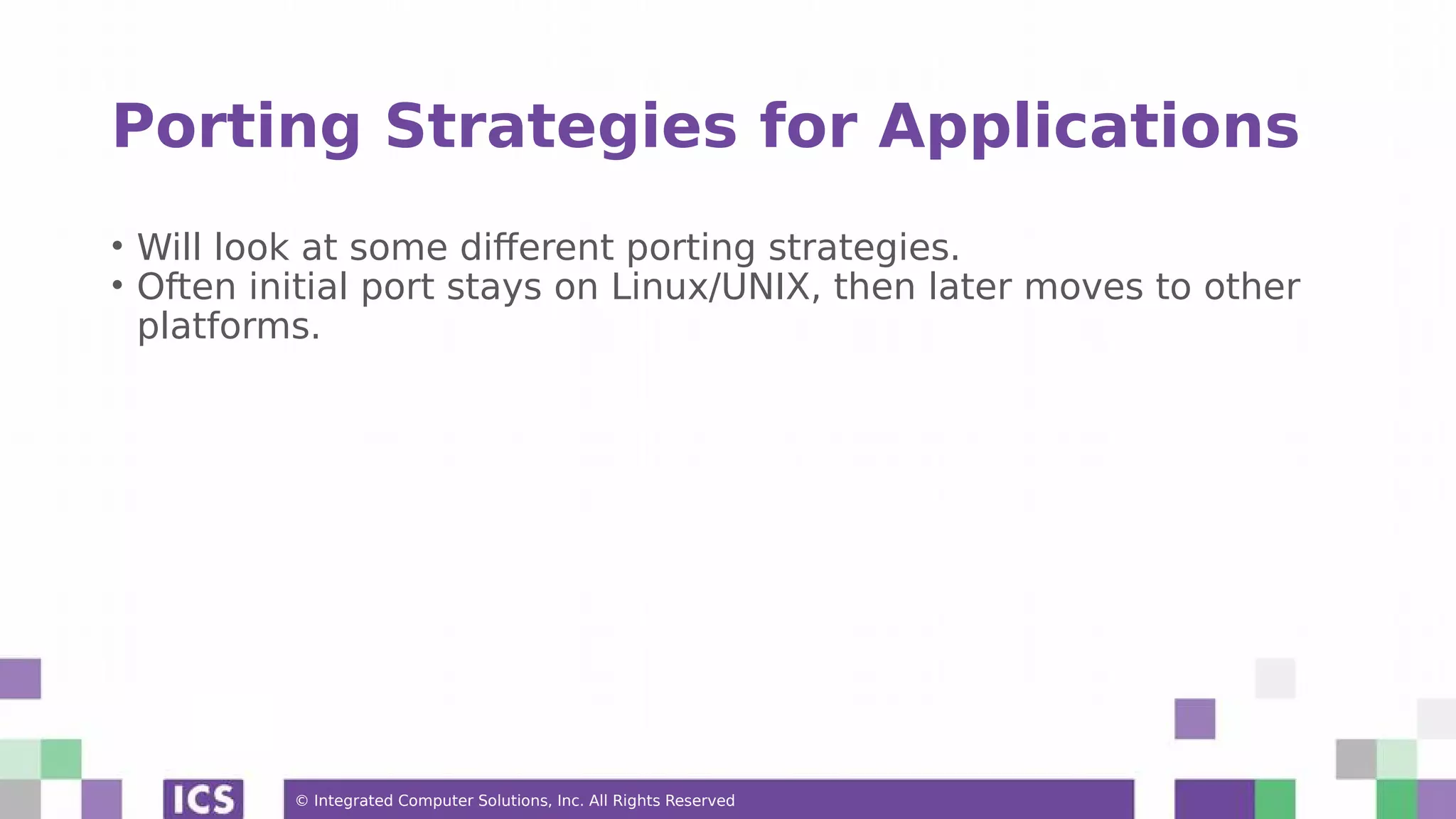

Porting Strategies for Applications
• Will look at some different porting strategies.
• Often initial port stays on Linux/UNIX, then later moves to other
platforms.

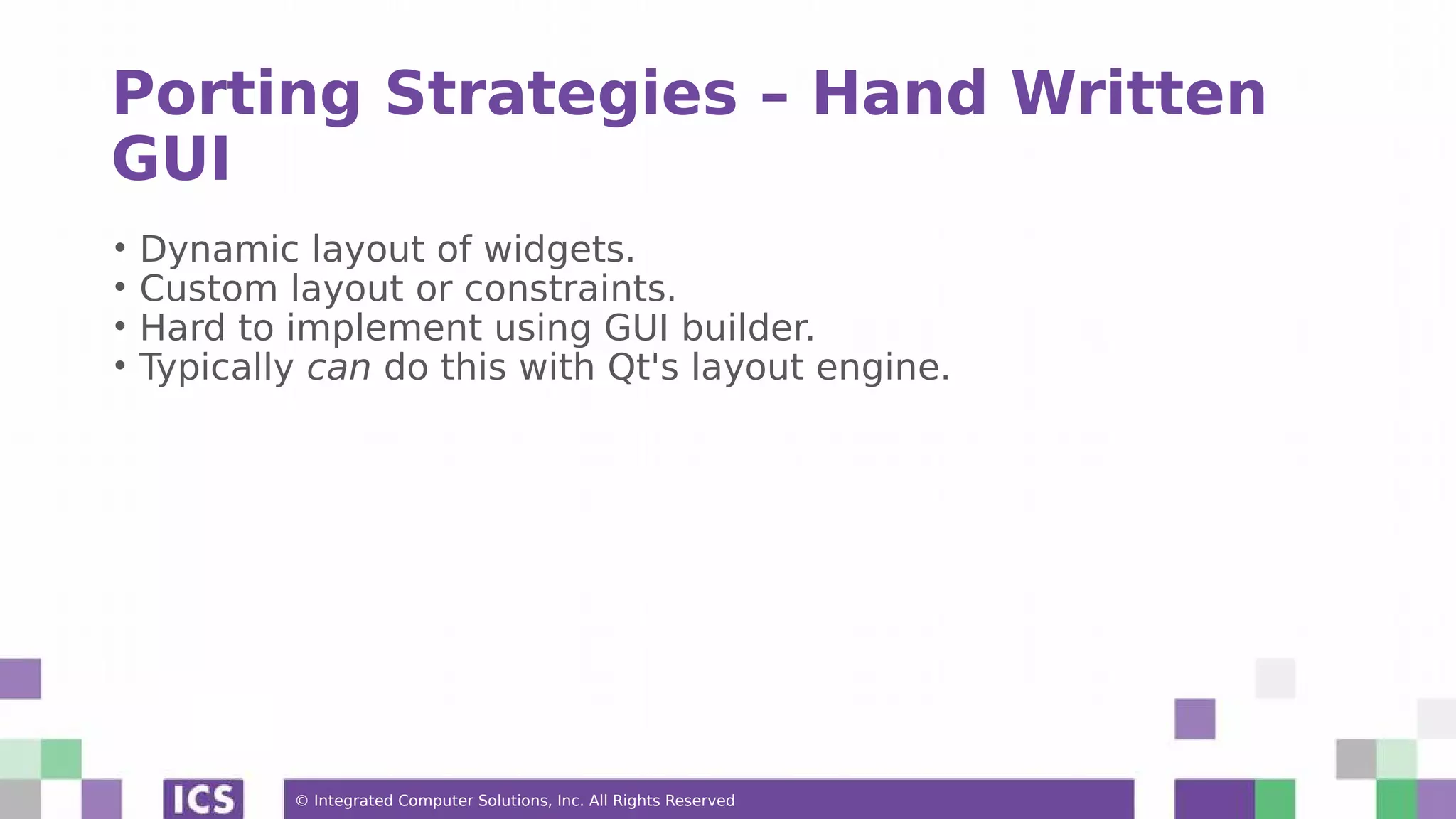

Porting Strategies – Hand Written
GUI
• Dynamic layout of widgets.
• Custom layout or constraints.
• Hard to implement using GUI builder.
• Typically can do this with Qt's layout engine.

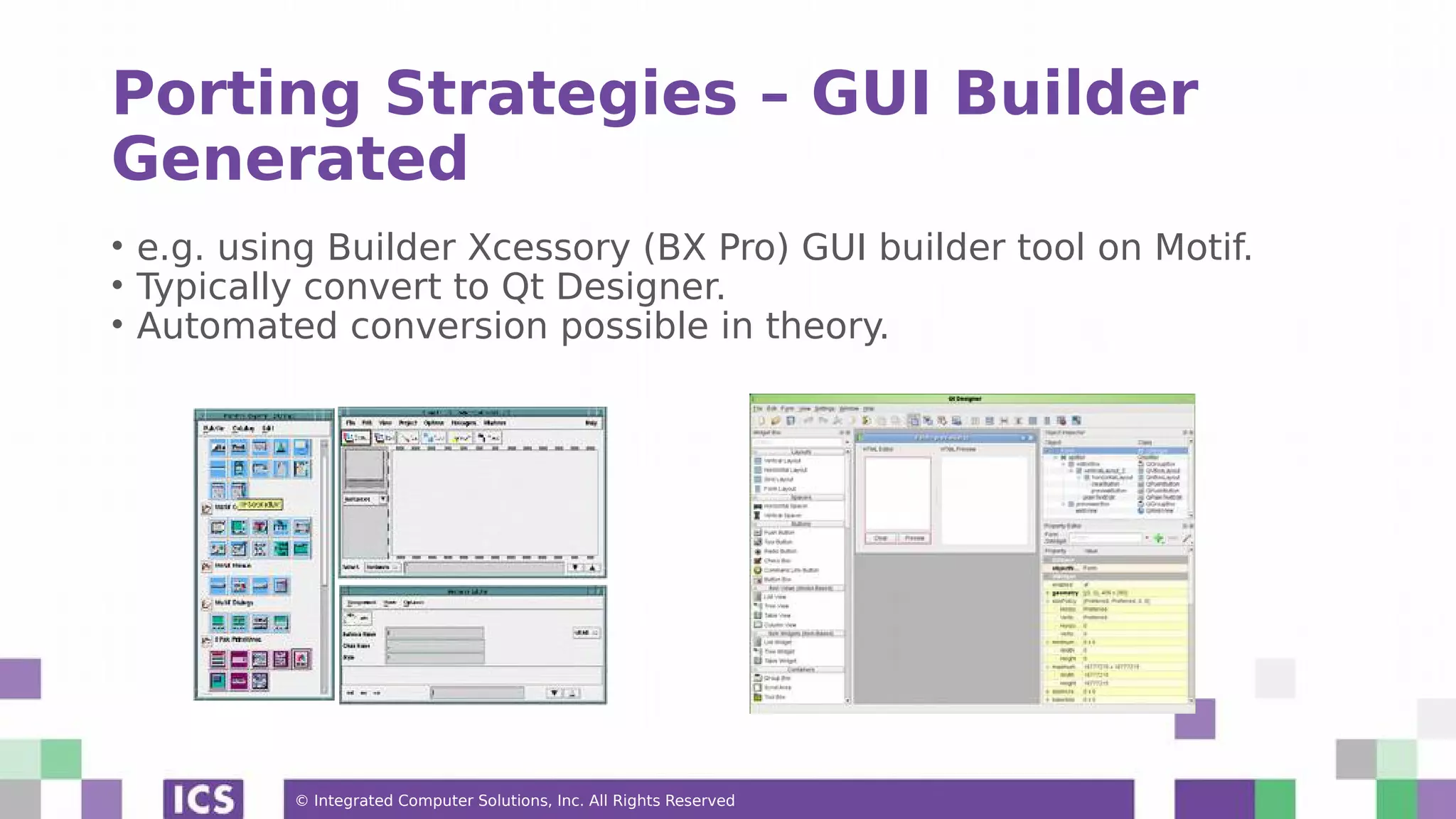

Porting Strategies – GUI Builder
Generated
• e.g. using Builder Xcessory (BX Pro) GUI builder tool on Motif.
• Typically convert to Qt Designer.
• Automated conversion possible in theory.

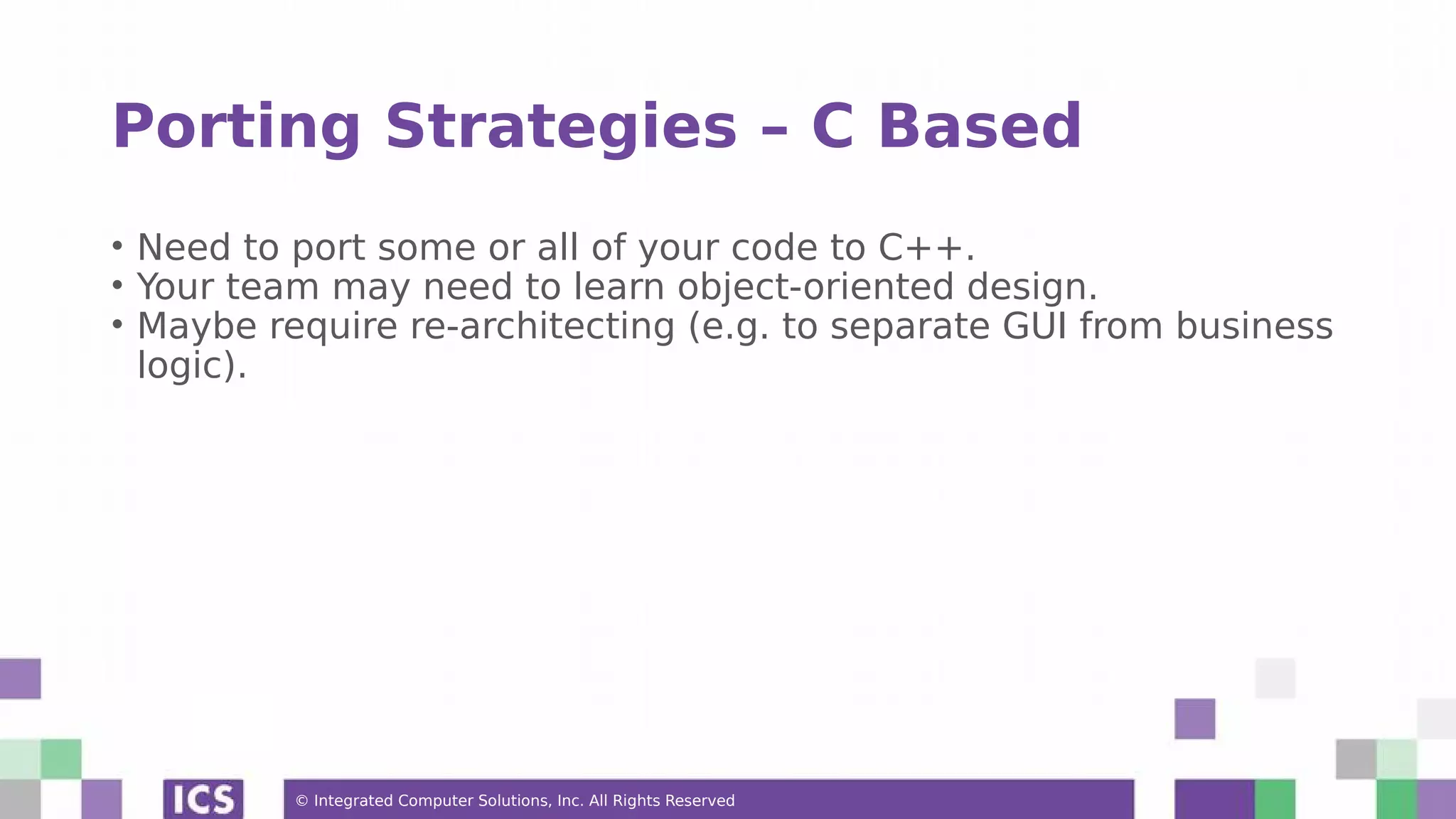

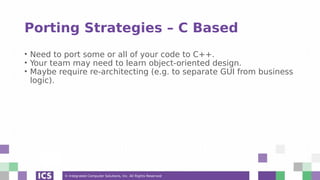

Porting Strategies – C Based
• Need to port some or all of your code to C++.
• Your team may need to learn object-oriented design.
• Maybe require re-architecting (e.g. to separate GUI from business
logic).

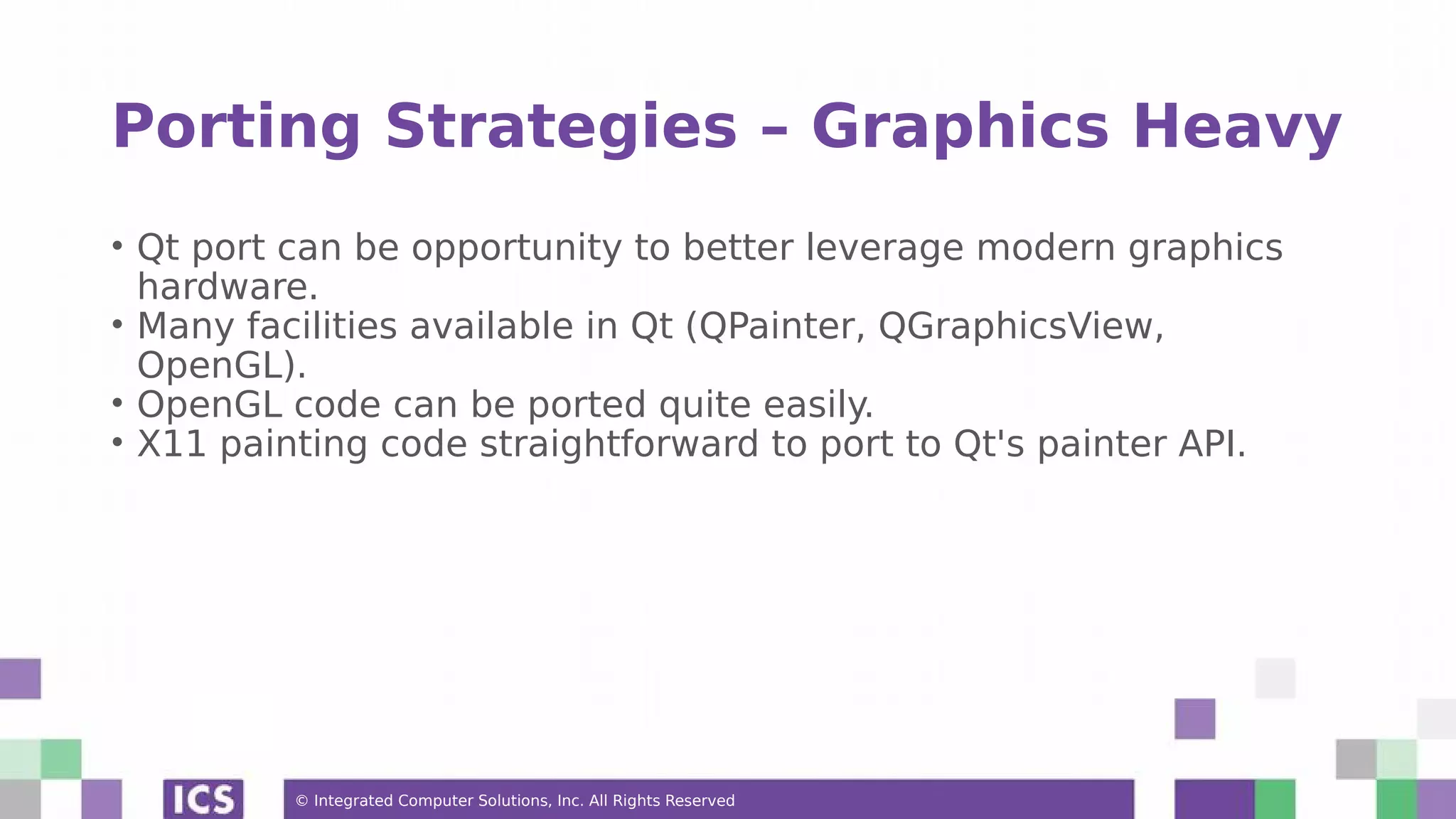

Porting Strategies – Graphics Heavy
• Qt port can be opportunity to better leverage modern graphics
hardware.
• Many facilities available in Qt (QPainter, QGraphicsView,
OpenGL).
• OpenGL code can be ported quite easily.
• X11 painting code straightforward to port to Qt's painter API.

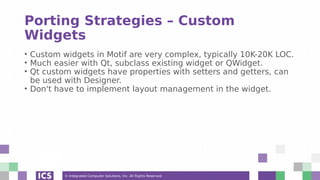

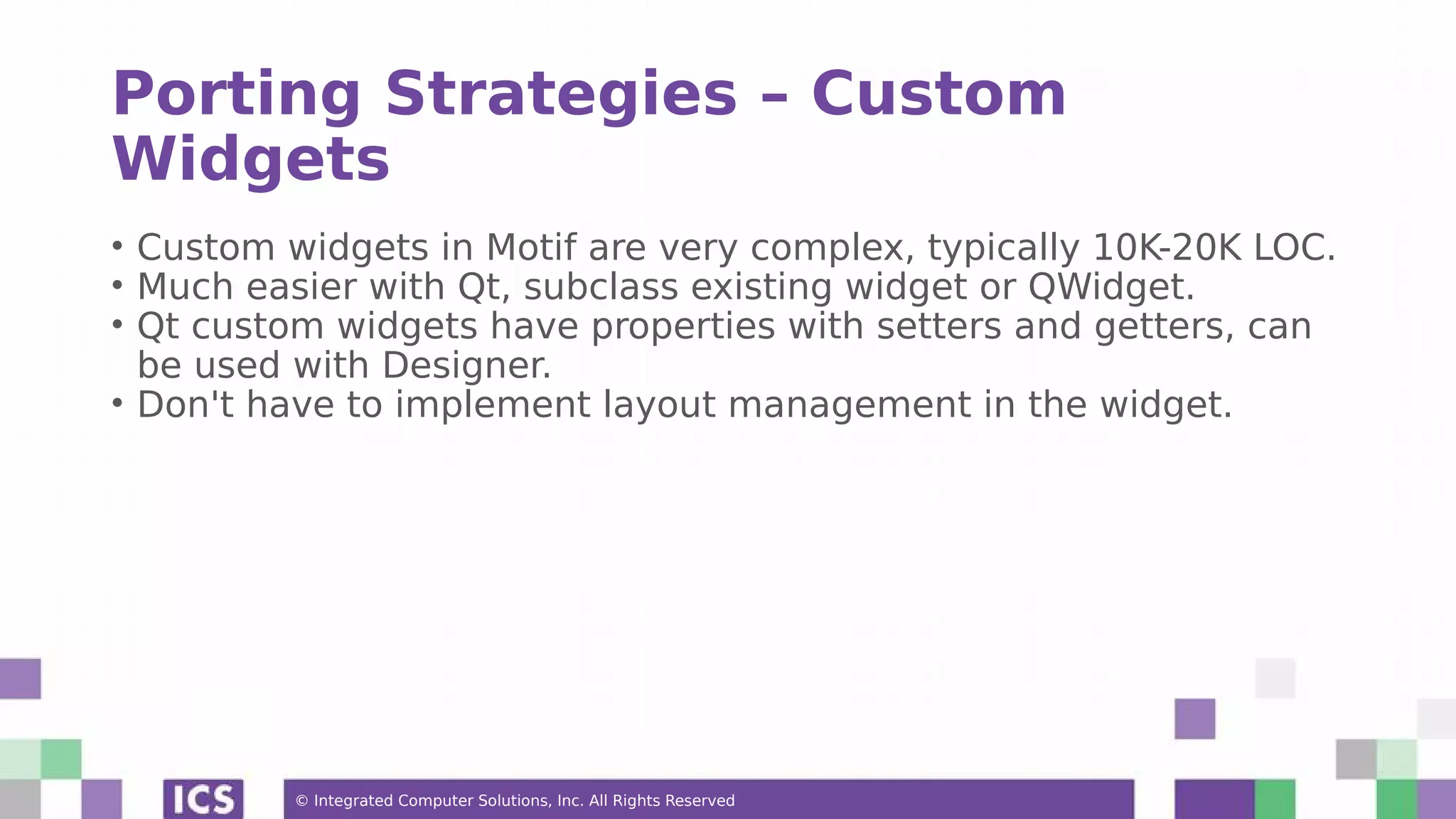

Porting Strategies – Custom
Widgets
• Custom widgets in Motif are very complex, typically 10K-20K LOC.
• Much easier with Qt, subclass existing widget or QWidget.
• Qt custom widgets have properties with setters and getters, can
be used with Designer.
• Don't have to implement layout management in the widget.

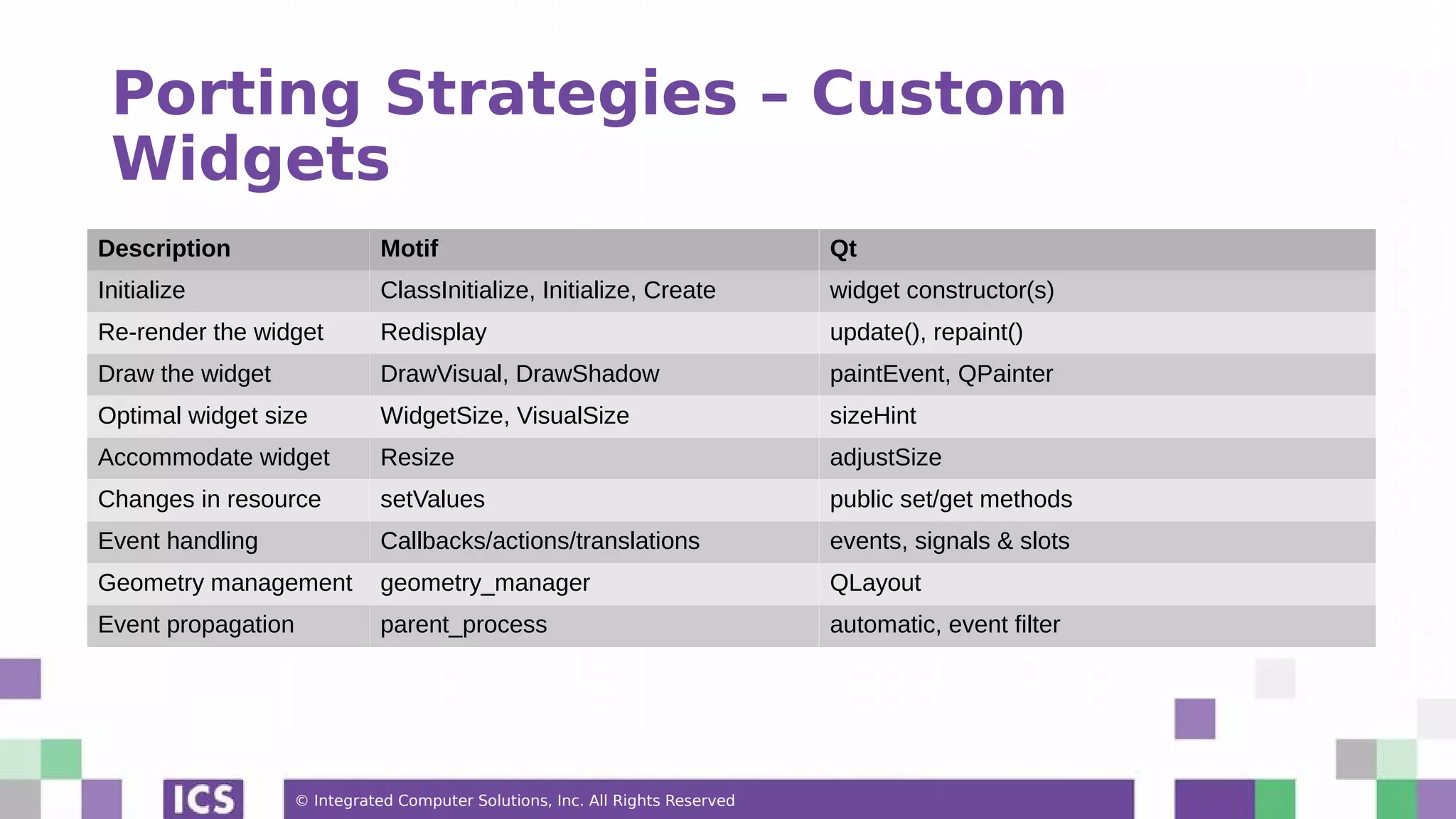

Porting Strategies – Custom
Widgets
Description Motif Qt
Initialize ClassInitialize, Initialize, Create widget constructor(s)
Re-render the widget Redisplay update(), repaint()
Draw the widget DrawVisual, DrawShadow paintEvent, QPainter
Optimal widget size WidgetSize, VisualSize sizeHint
Accommodate widget Resize adjustSize
Changes in resource setValues public set/get methods
Event handling Callbacks/actions/translations events, signals & slots
Geometry management geometry_manager QLayout
Event propagation parent_process automatic, event filter

Getting Help
• Porting can be a significant effort.
• Can also involve re-architecting application.
• Consider bringing in outside consultants for:
●
assistance (staff augmentation).
●
turnkey porting.
●
training, mentoring.
●
UX design.

References
1. Qt website, https://www.qt.io/
2. ICS Motif website, http://motif.ics.com/
3. Porting X/Motif Applications to Qt, Scenarios and Advice for a Smooth
Migration, ICS whitepaper,
https://motif.ics.com/sites/default/files/porting_motif_to_qt.pdf

Questions and Answers

Porting Motif Applications to Qt

Recommended

Recommended

More Related Content

What's hot

What's hot (13)

Similar to Porting Motif Applications to Qt

Similar to Porting Motif Applications to Qt (20)

Recently uploaded

Recently uploaded (20)

Porting Motif Applications to Qt
