Puppet Camp Melbourne 2014: Node Collaboration with PuppetDB
The document discusses how PuppetDB can help with infrastructure provisioning and configuration challenges by providing a centralized database for Puppet data. PuppetDB stores facts, catalogs, and other data produced by Puppet runs. This data can be queried using the PuppetDB API or modules like PuppetDBquery to dynamically configure systems based on the states of other nodes and share information between nodes. Examples provided include using PuppetDB to populate files, load balance systems, and allow services to discover each other.
More Related Content
![Anais Dotis-Georgiou [InfluxData] | Learn Flux by Example | InfluxDays NA 2021](https://cdn.slidesharecdn.com/ss_thumbnails/influxdays2021anais1-211026235204-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Puppet Camp Melbourne 2014: Node Collaboration with PuppetDB
Puppet Camp Melbourne 2014: Node Collaboration with PuppetDB
- 1. Node Collaboration with PuppetDB Michael Richardson @m_richo
- 2. Agenda 1. Whoam i 2. The challenges we face 3. What is PuppetDB 4. How can PuppetDB help 5. Examples
- 3. $ whoami •Michael Richardson @m_richo • engineer at Odecee • Solaris/Linux Sys Admin • currently battling Windows • coffee consumer • devops enthusiast • puppet certified
- 4.

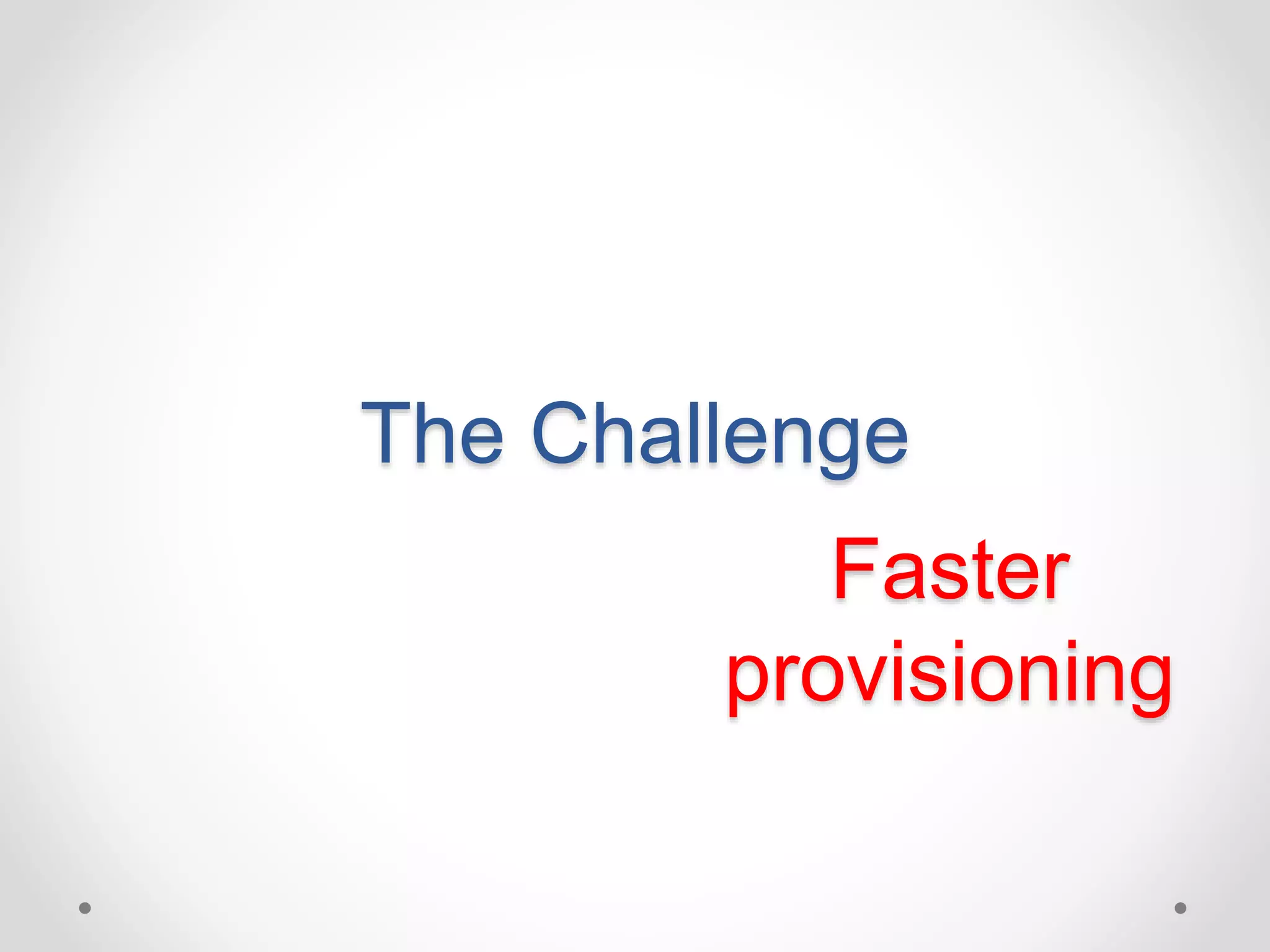

- 5. The Challenge Faster provisioning
- 6. The Challenge Faster provisioning
- 7. The Challenge Faster provisioning more environments
- 8. The Challenge Faster provisioning more environments
- 9. The Challenge Faster provisioning more environments
- 10. micro-services The Challenge Faster provisioning more environments
- 11. micro-services The Challenge Faster provisioning more environments
- 12. Tools like Puppethave become essential

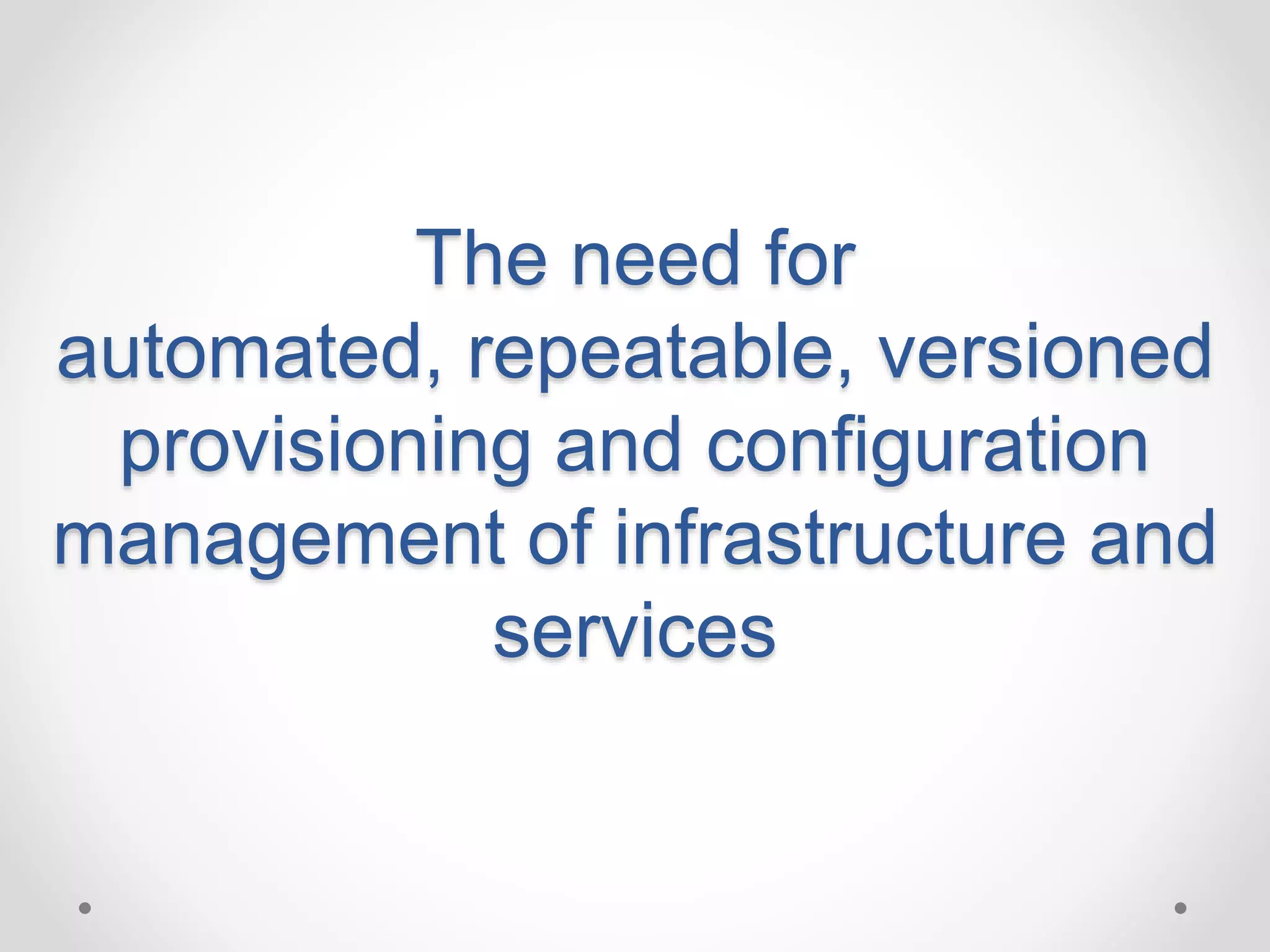

- 13. The need for automated, repeatable, versioned provisioning and configuration management of infrastructure and services

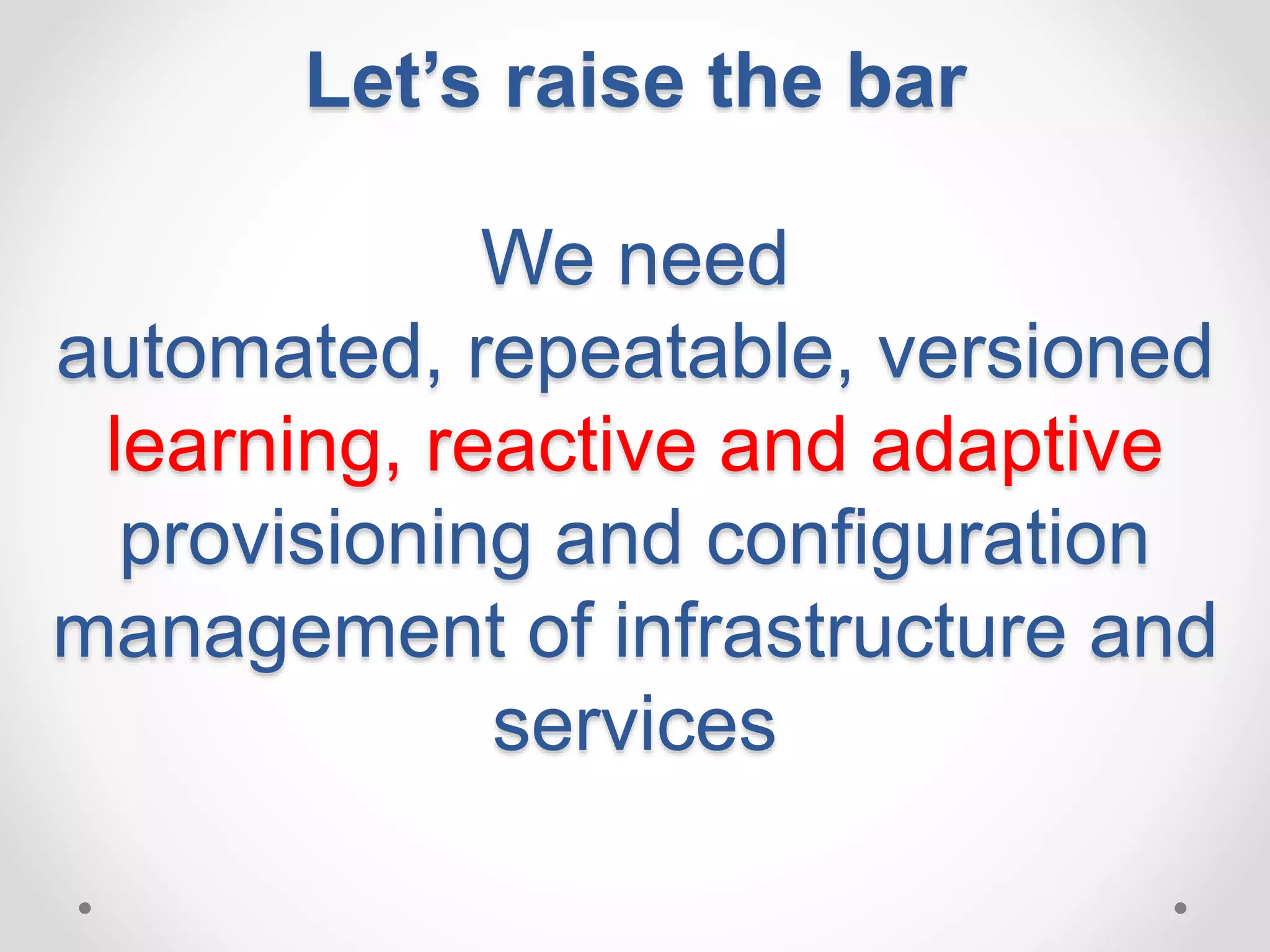

- 14. Let’s raise thebar We need automated, repeatable, versioned learning, reactive and adaptive provisioning and configuration management of infrastructure and services

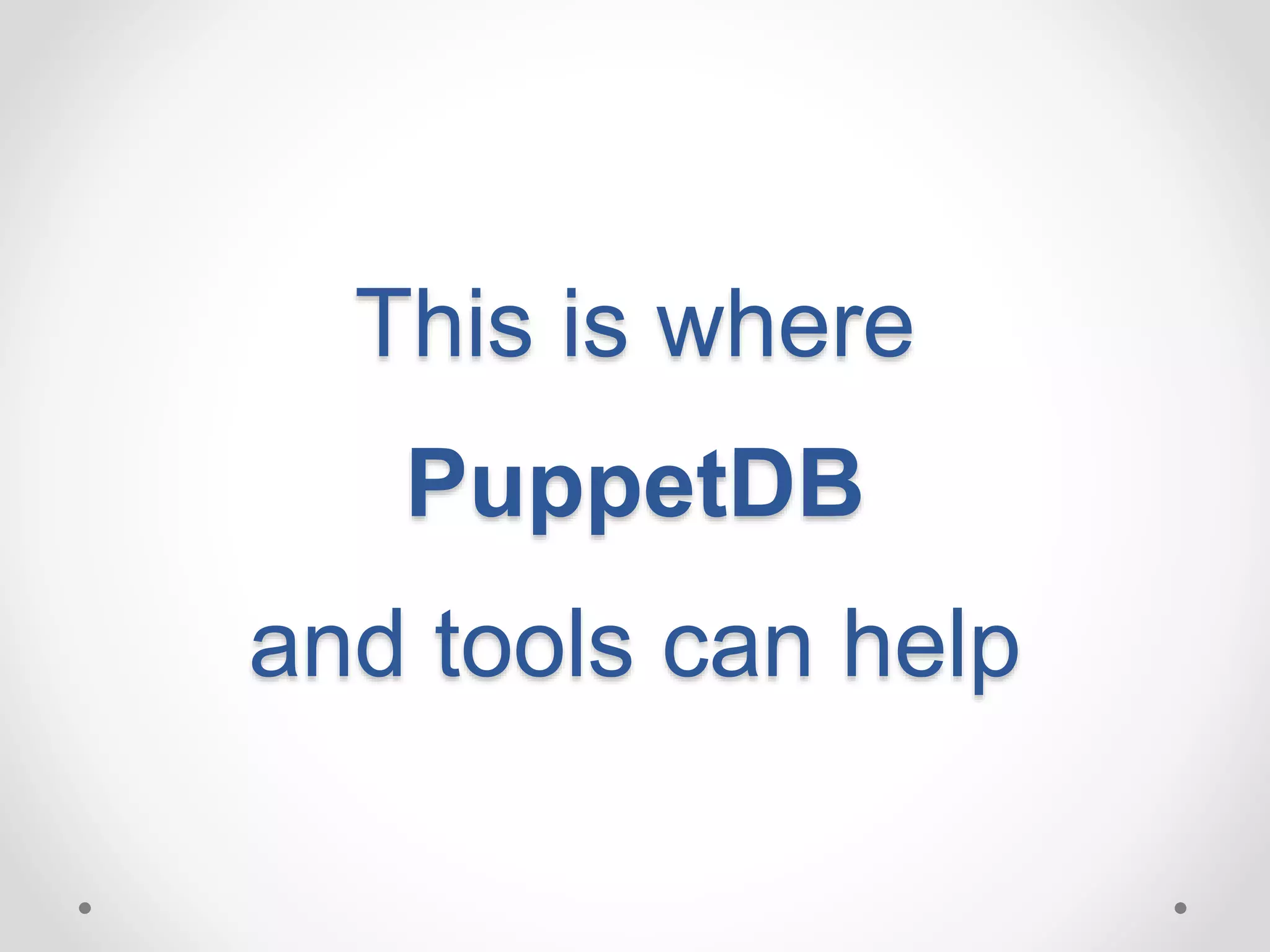

- 15. This is where PuppetDB and tools can help
- 16. So what isPuppetDB?

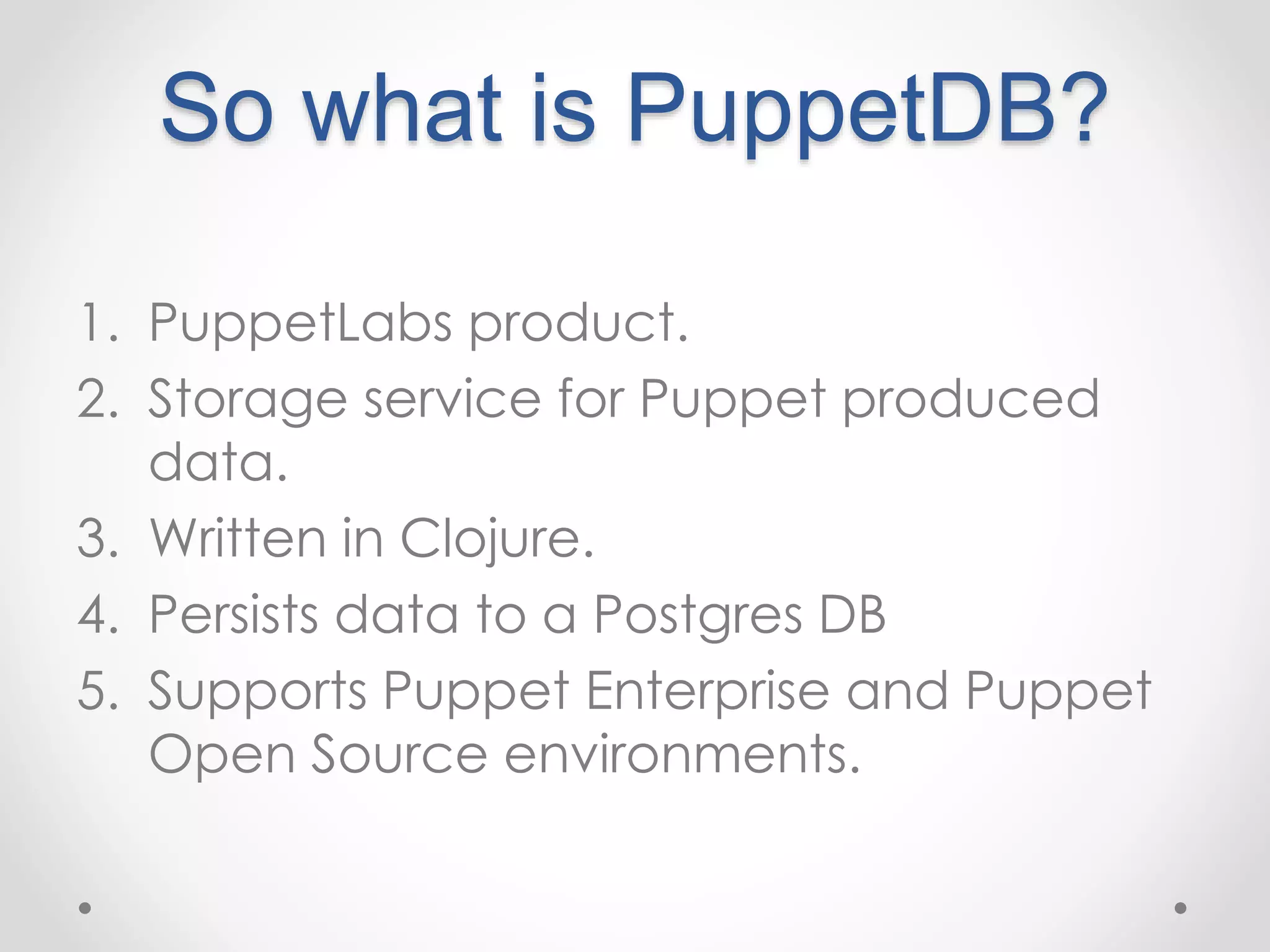

- 17. So what isPuppetDB? 1. PuppetLabs product. 2. Storage service for Puppet produced data. 3. Written in Clojure. 4. Persists data to a Postgres DB 5. Supports Puppet Enterprise and Puppet Open Source environments.

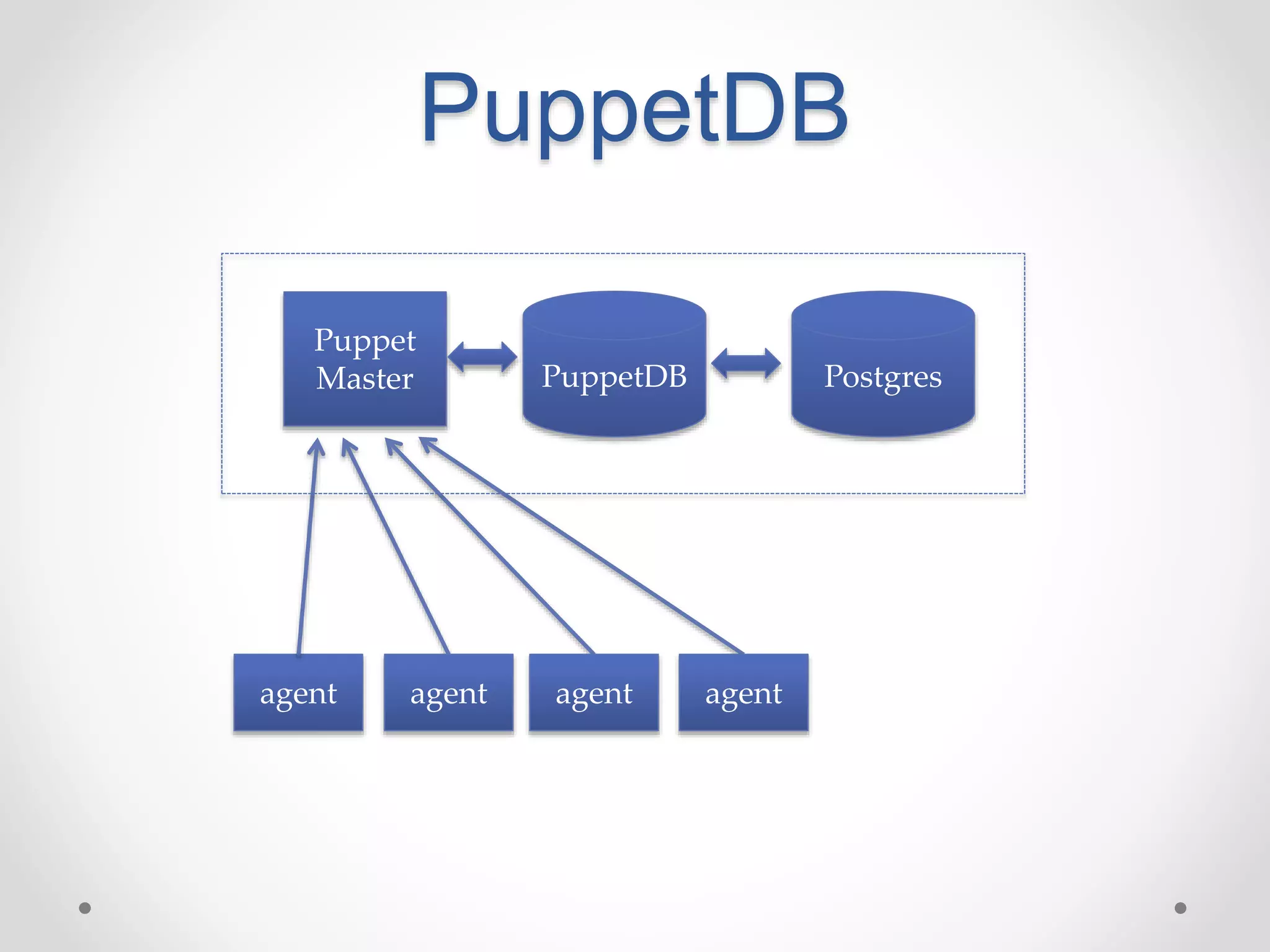

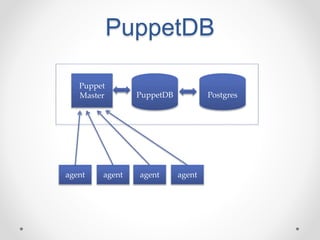

- 18. PuppetDB PuppetDB Puppet Master agent agent agent agent Postgres

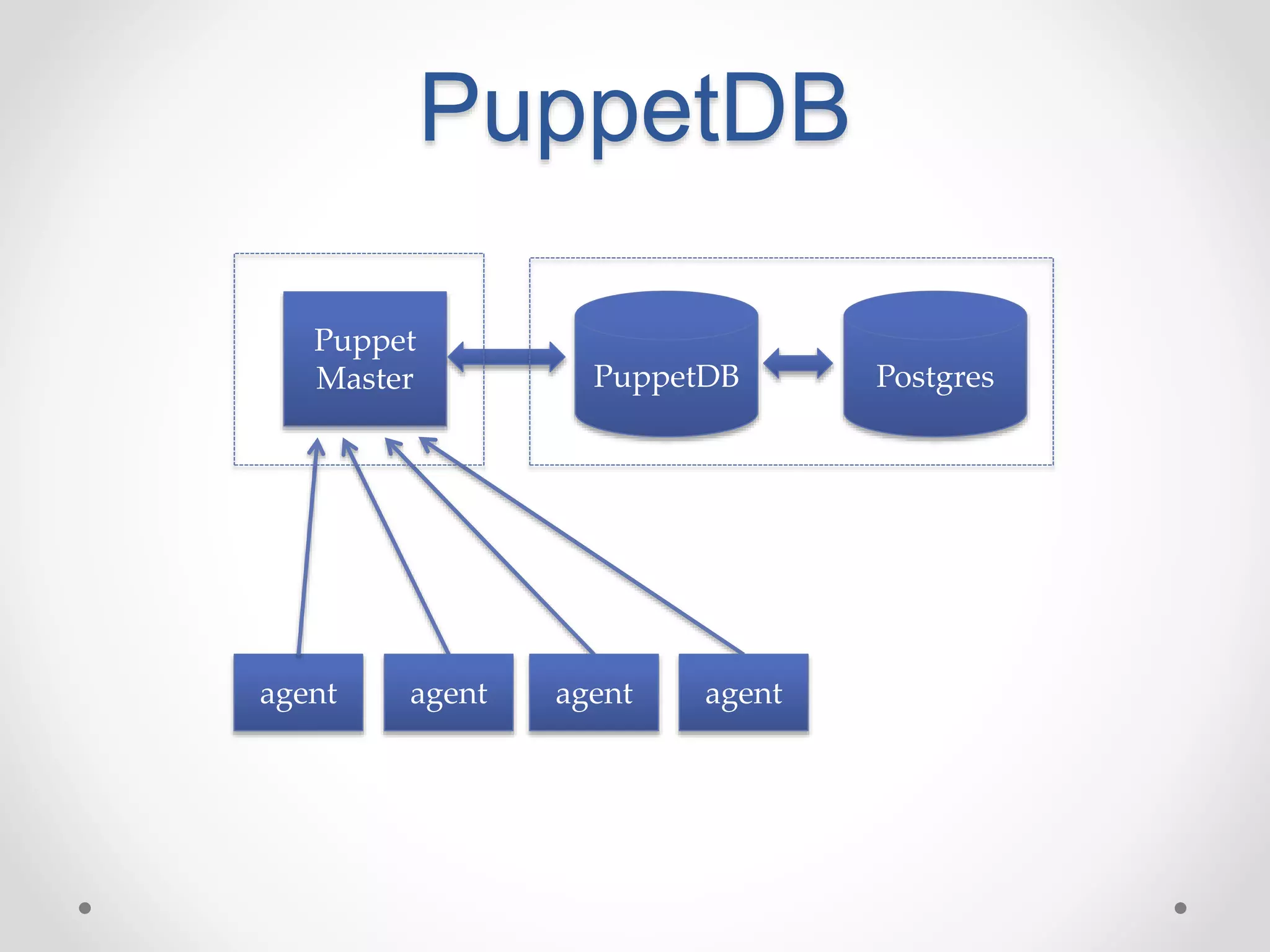

- 19. PuppetDB PuppetDB Puppet Master agent agent agent agent Postgres

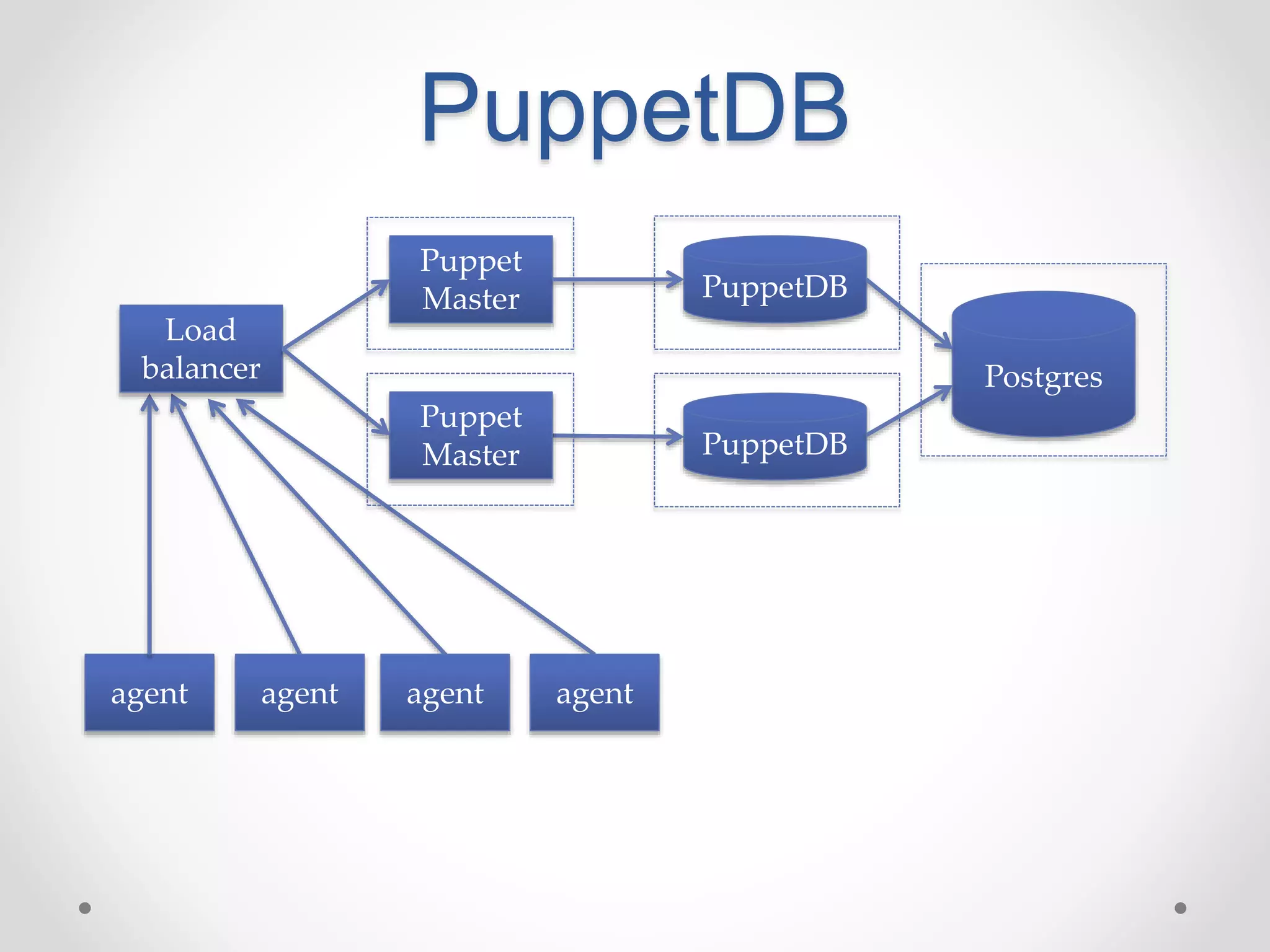

- 20. PuppetDB PuppetDB Puppet Master agent agent agent agent Postgres PuppetDB Puppet Master Load balancer
- 21. What data goesin PuppetDB
- 22.

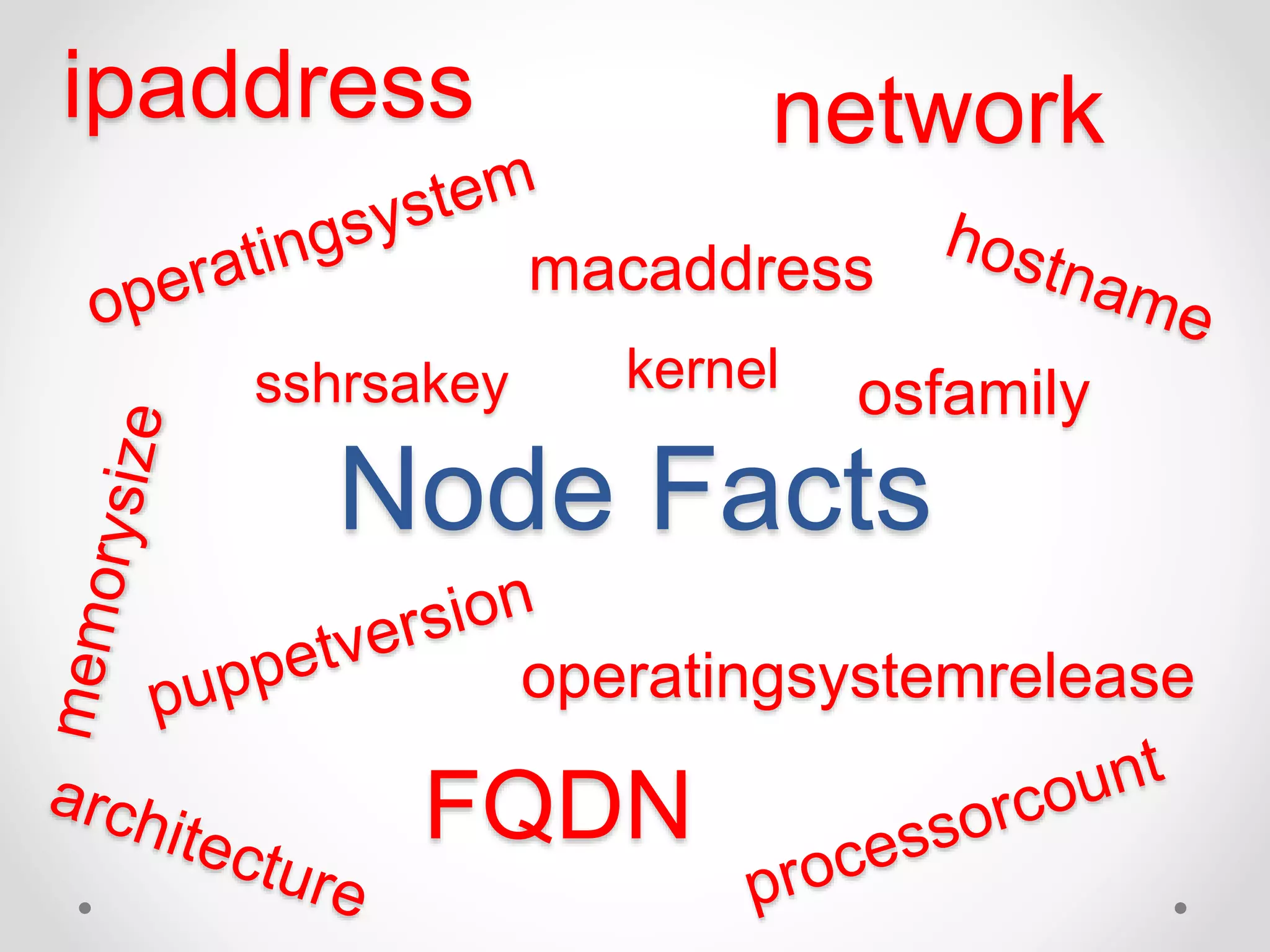

- 23. ipaddress network macaddress sshrsakey kernel osfamily Node Facts operatingsystemrelease FQDN
- 24.

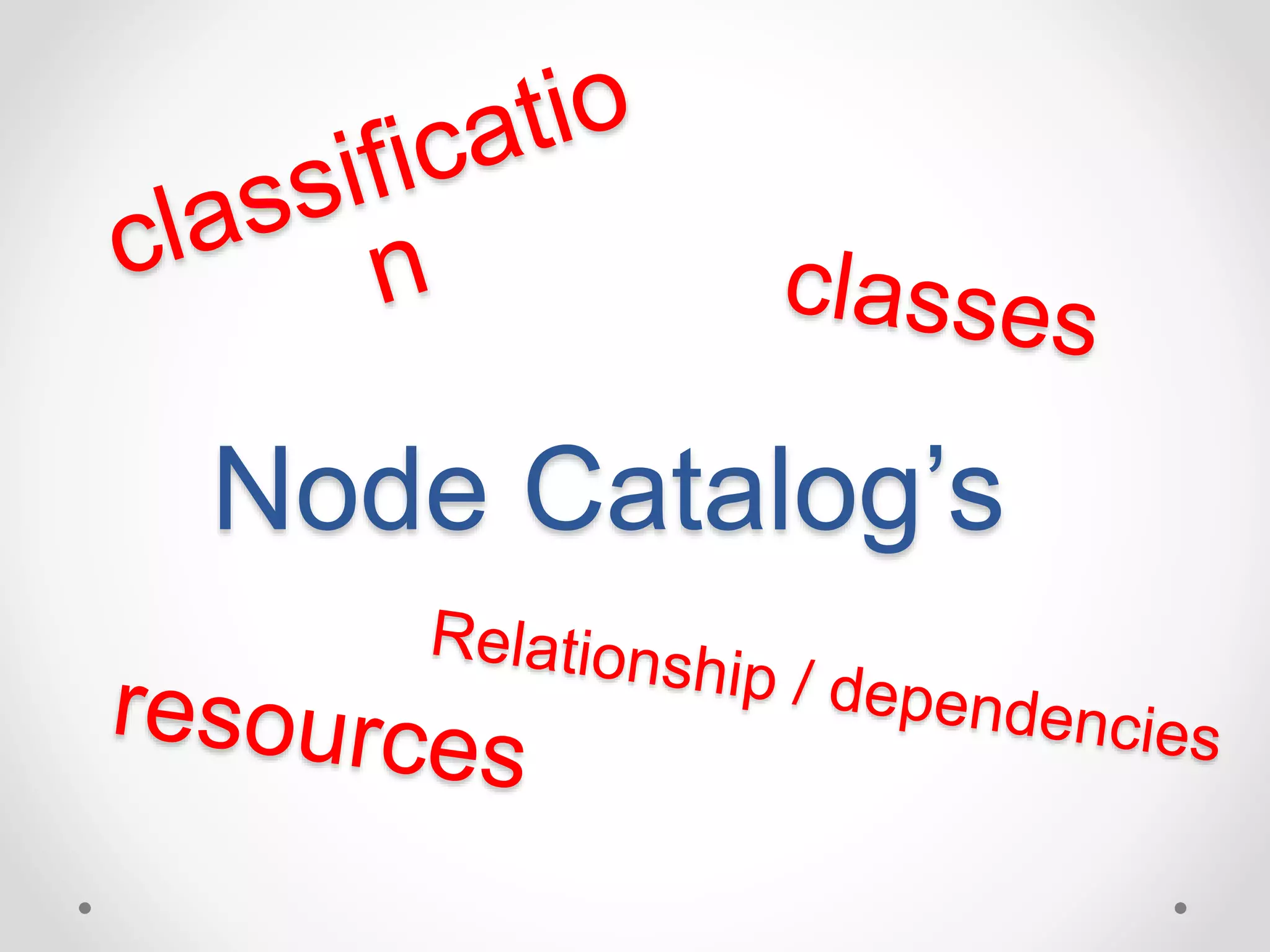

- 25.
- 26. Facts about everynode Catalog for every node CMDB?? So much useful data

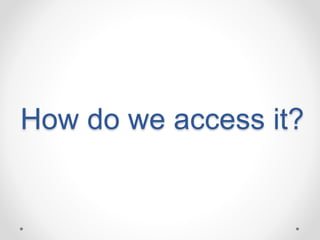

- 27. How do weaccess it?
- 28.

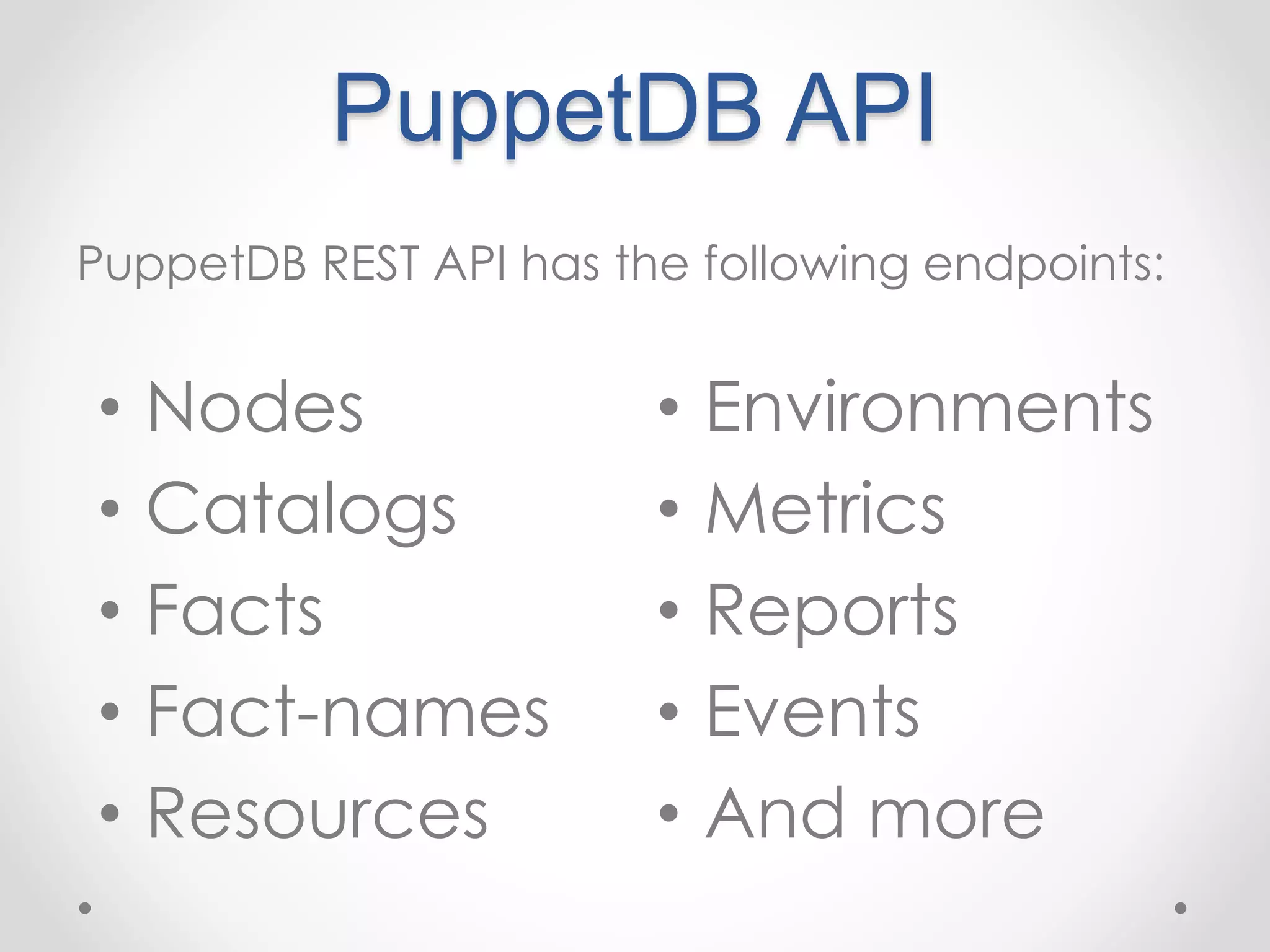

- 29. PuppetDB API PuppetDBREST API has the following endpoints: • Nodes • Catalogs • Facts • Fact-names • Resources • Environments • Metrics • Reports • Events • And more

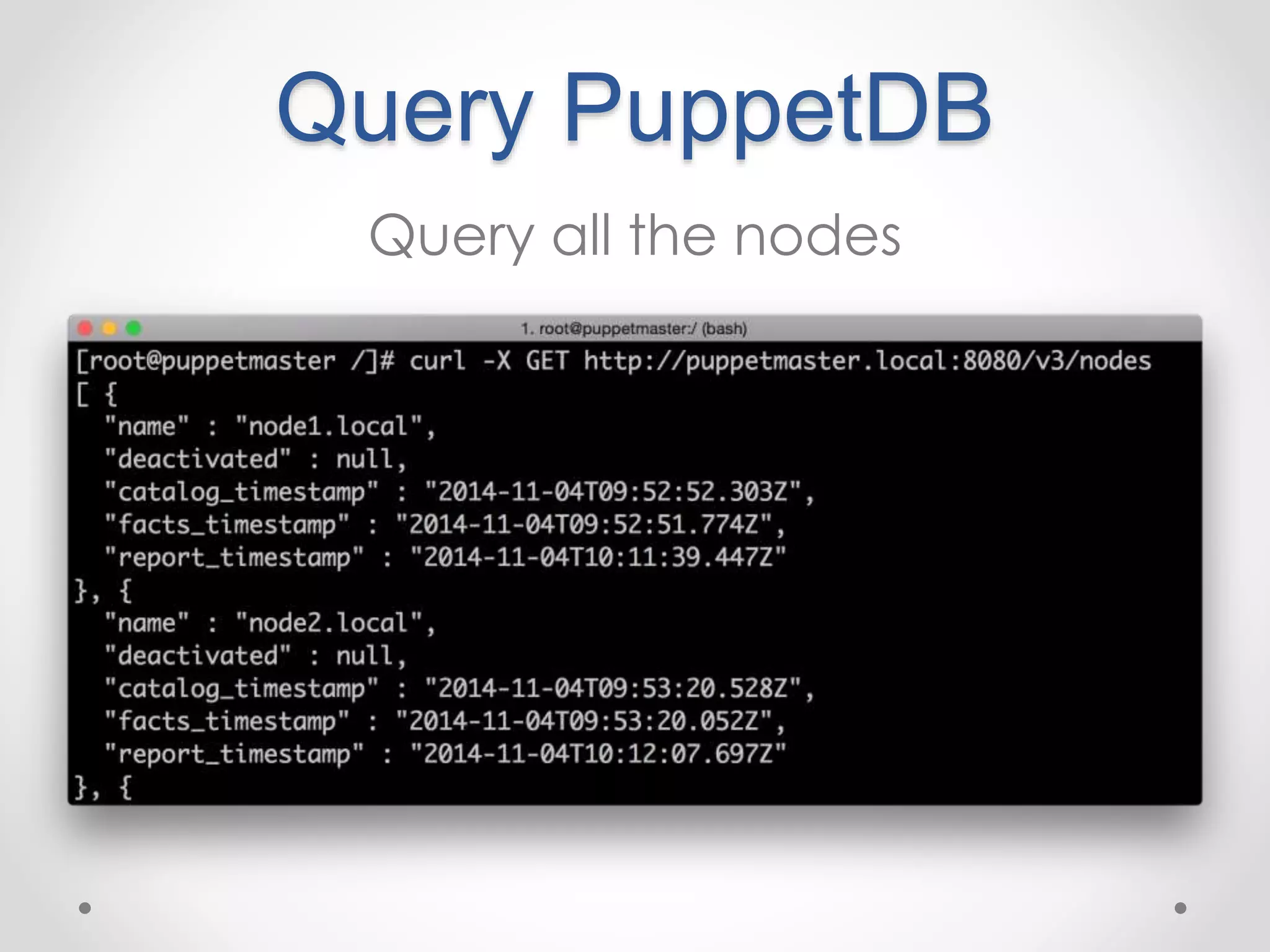

- 30. Query PuppetDB Queryall the nodes

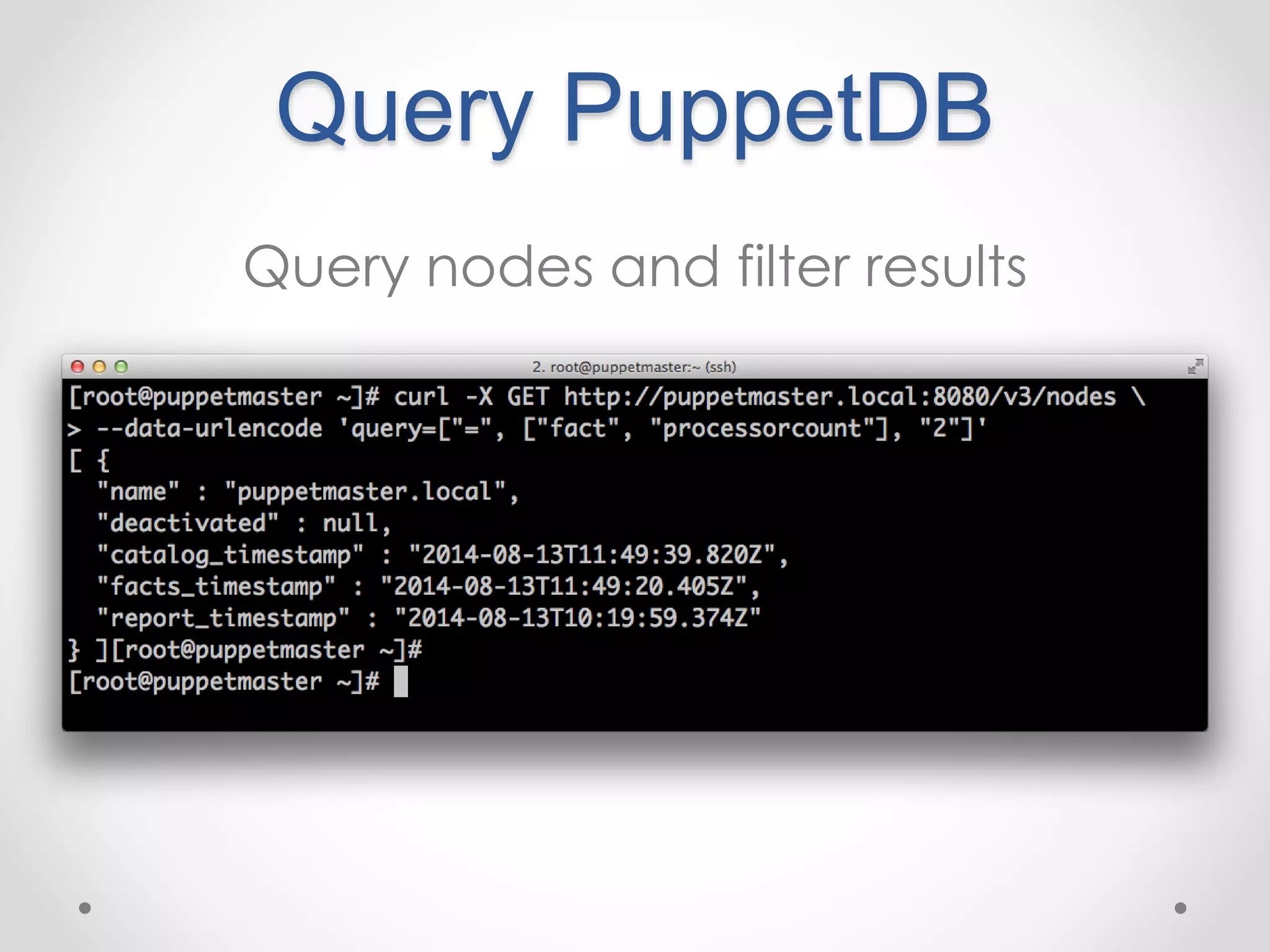

- 31. Query PuppetDB Querynodes and filter results

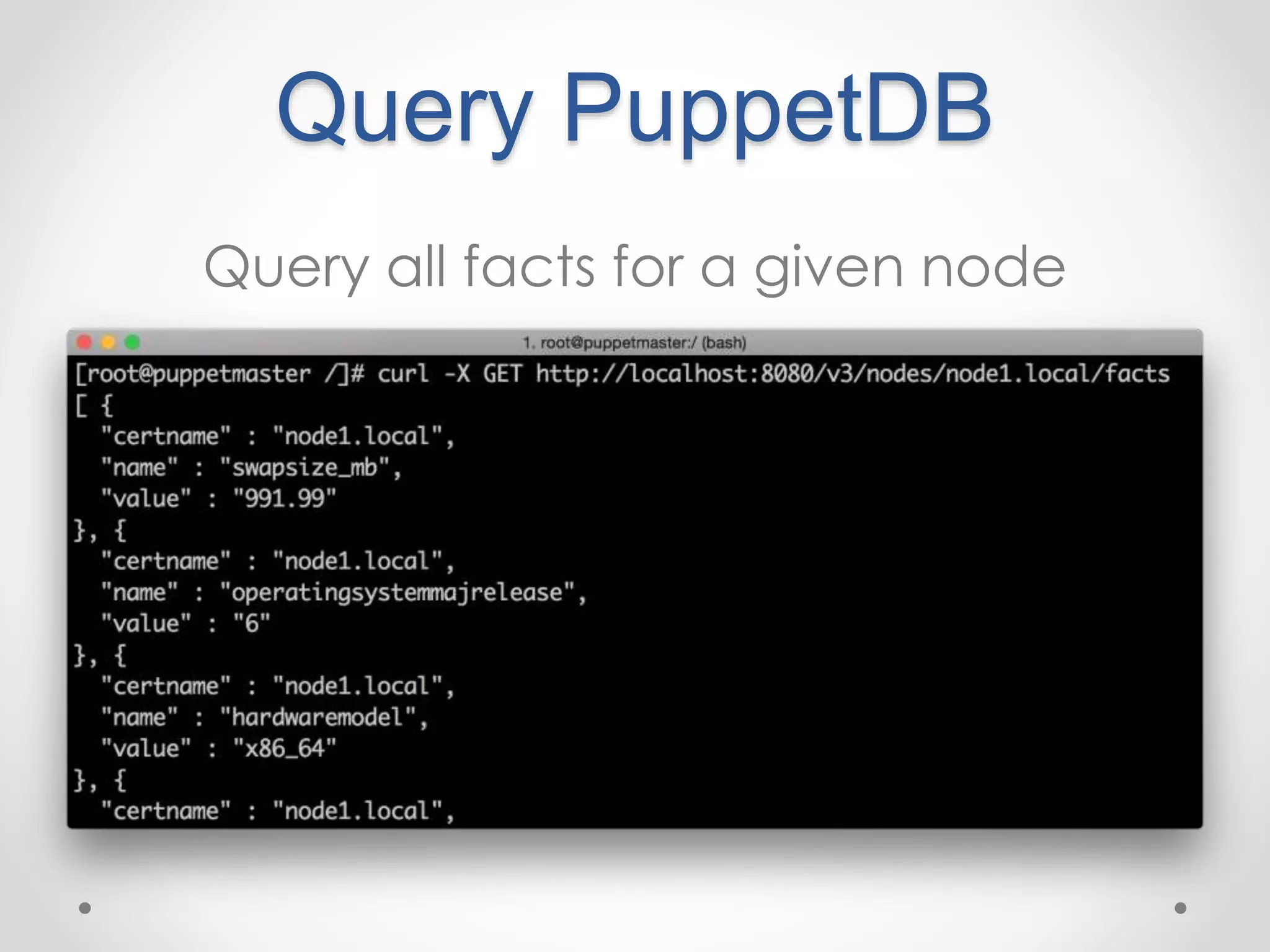

- 32. Query PuppetDB Queryall facts for a given node

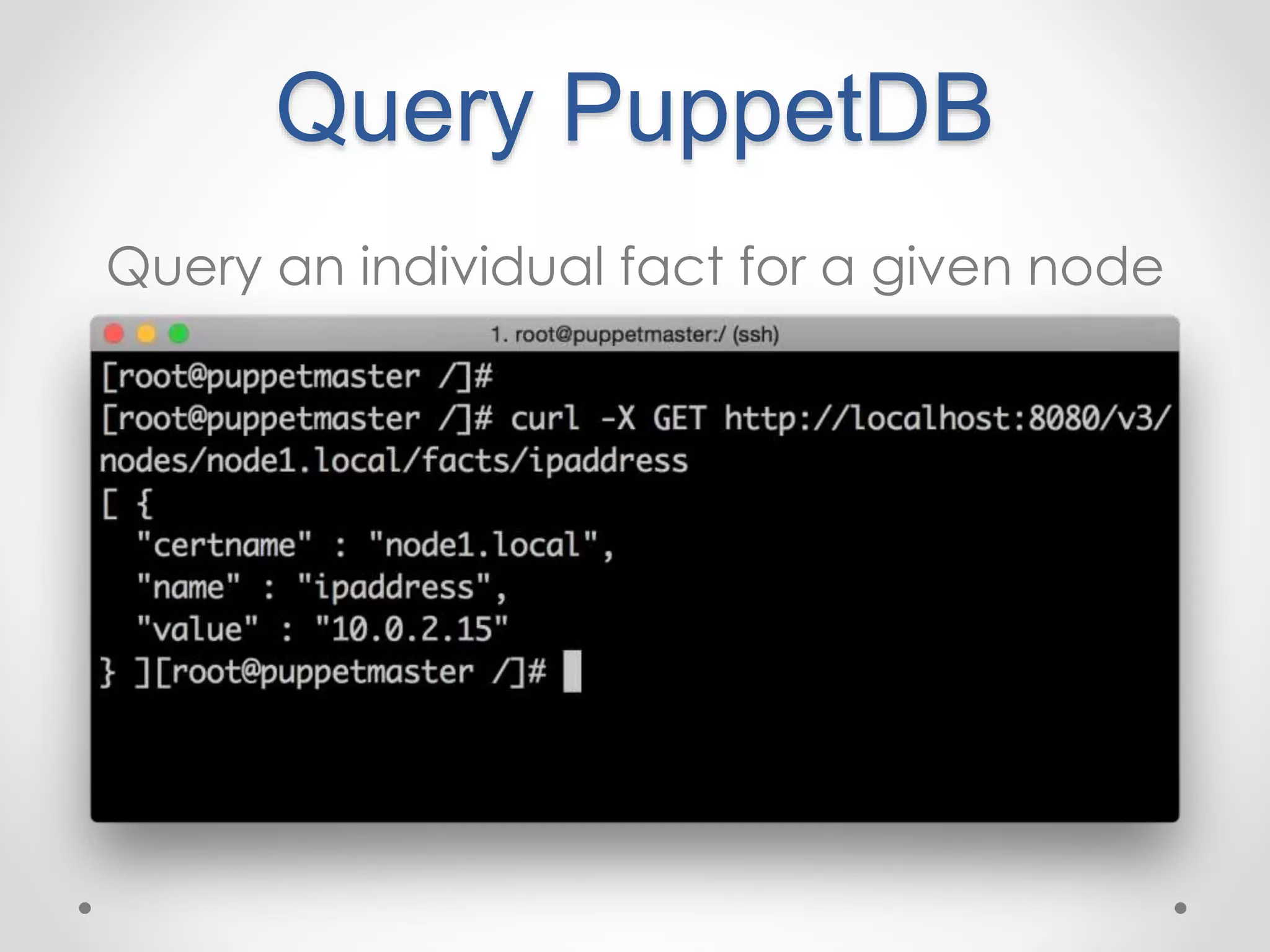

- 33. Query PuppetDB Queryan individual fact for a given node
- 34. Sick of runningcurl?

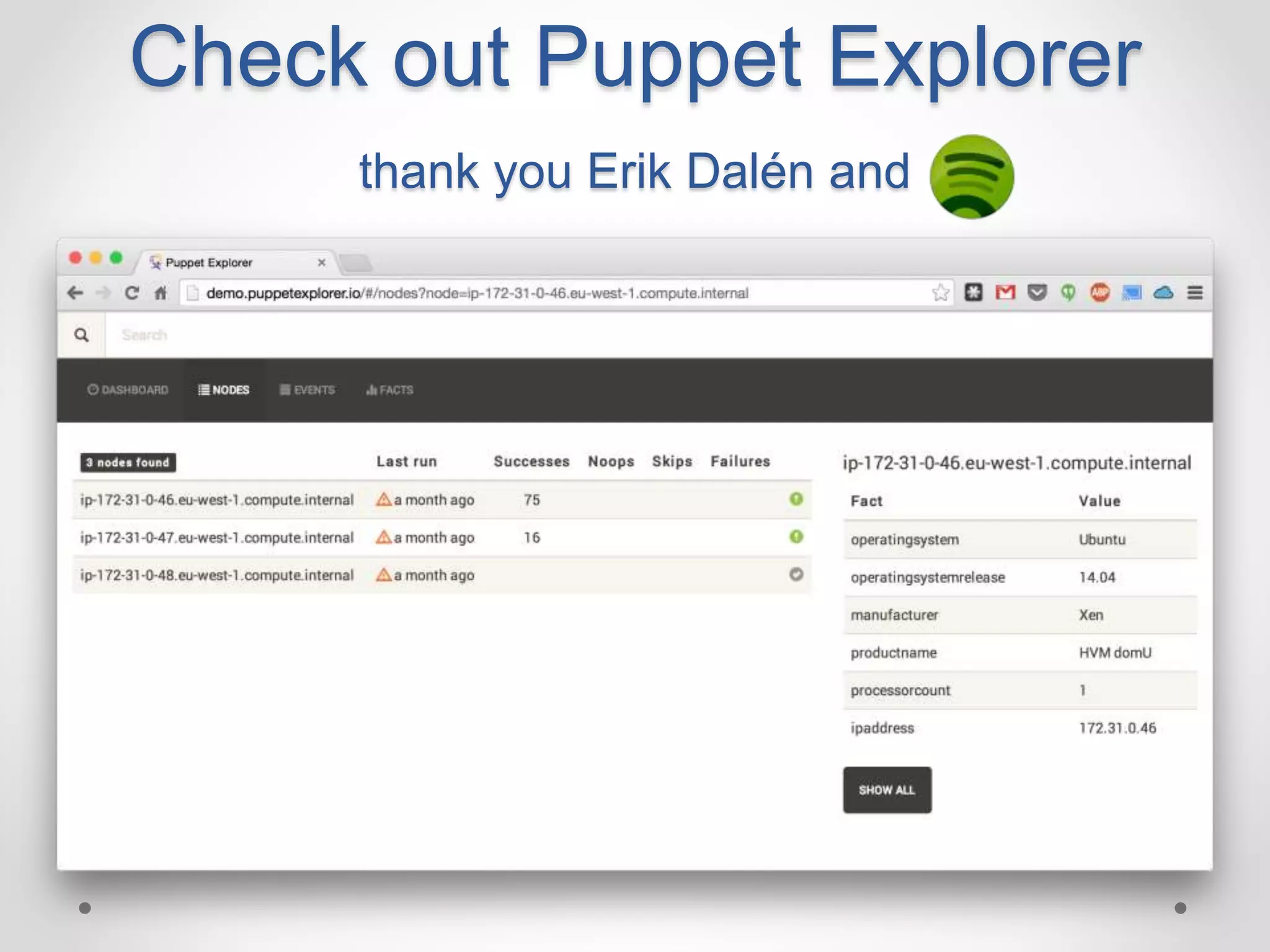

- 35. Check out PuppetExplorer thank you Erik Dalén and
- 36. Check out Puppetboard thank you Daniele Sluijters
- 37. Dashboards are lovely. But how can we use this data to allow node collaboration
- 38. Introducing PuppetDBquery module https://forge.puppetlabs.com/dalen/puppetdbquery Again, thank you Erik Dalén

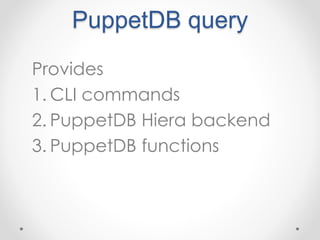

- 39. PuppetDB query Provides 1. CLI commands 2. PuppetDB Hiera backend 3. PuppetDB functions
- 40. PuppetDB query Provides 1. CLI commands 2. PuppetDB Hiera backend 3. PuppetDB functions

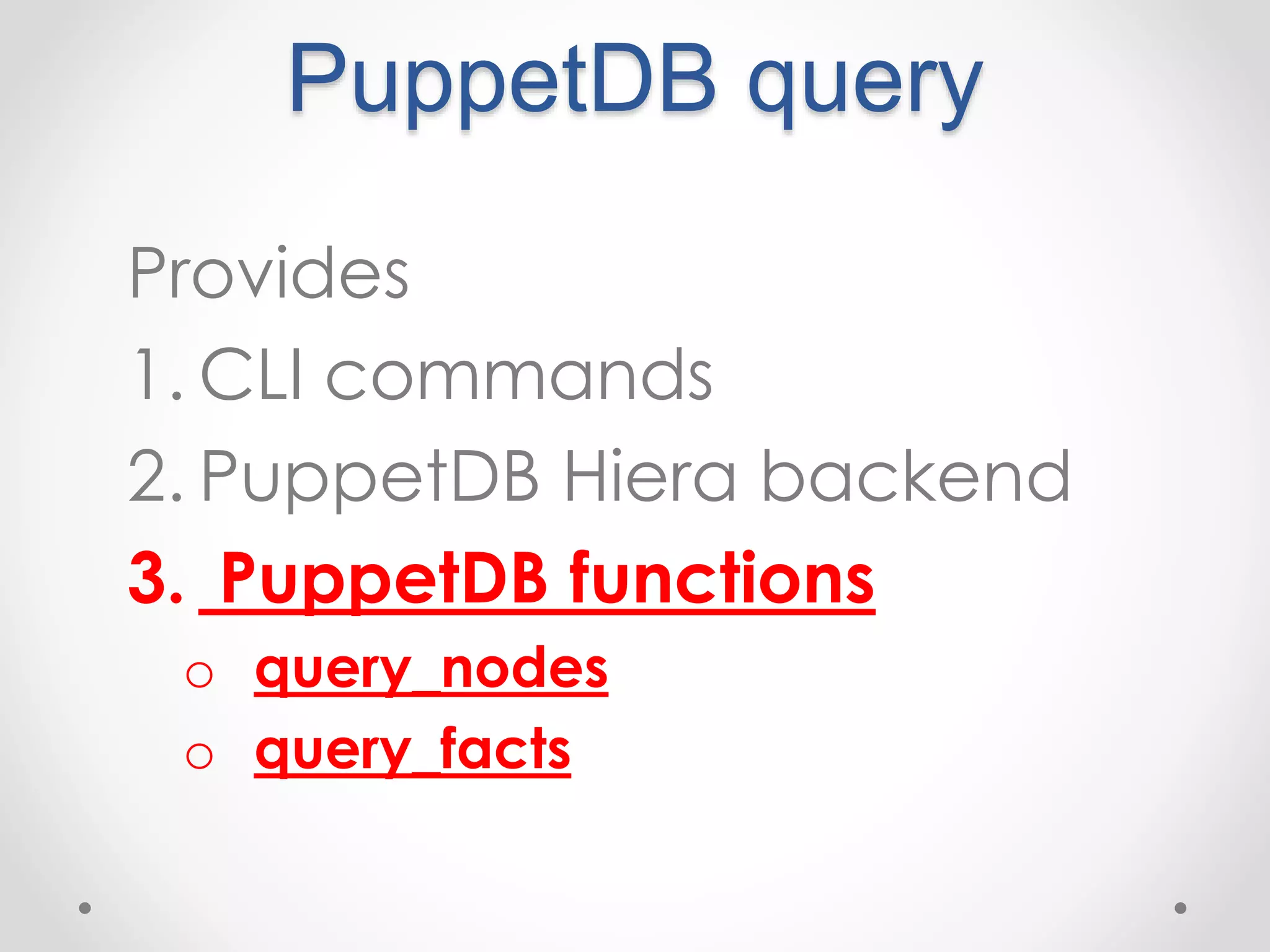

- 41. PuppetDB query Provides 1. CLI commands 2. PuppetDB Hiera backend 3. PuppetDB functions o query_nodes o query_facts

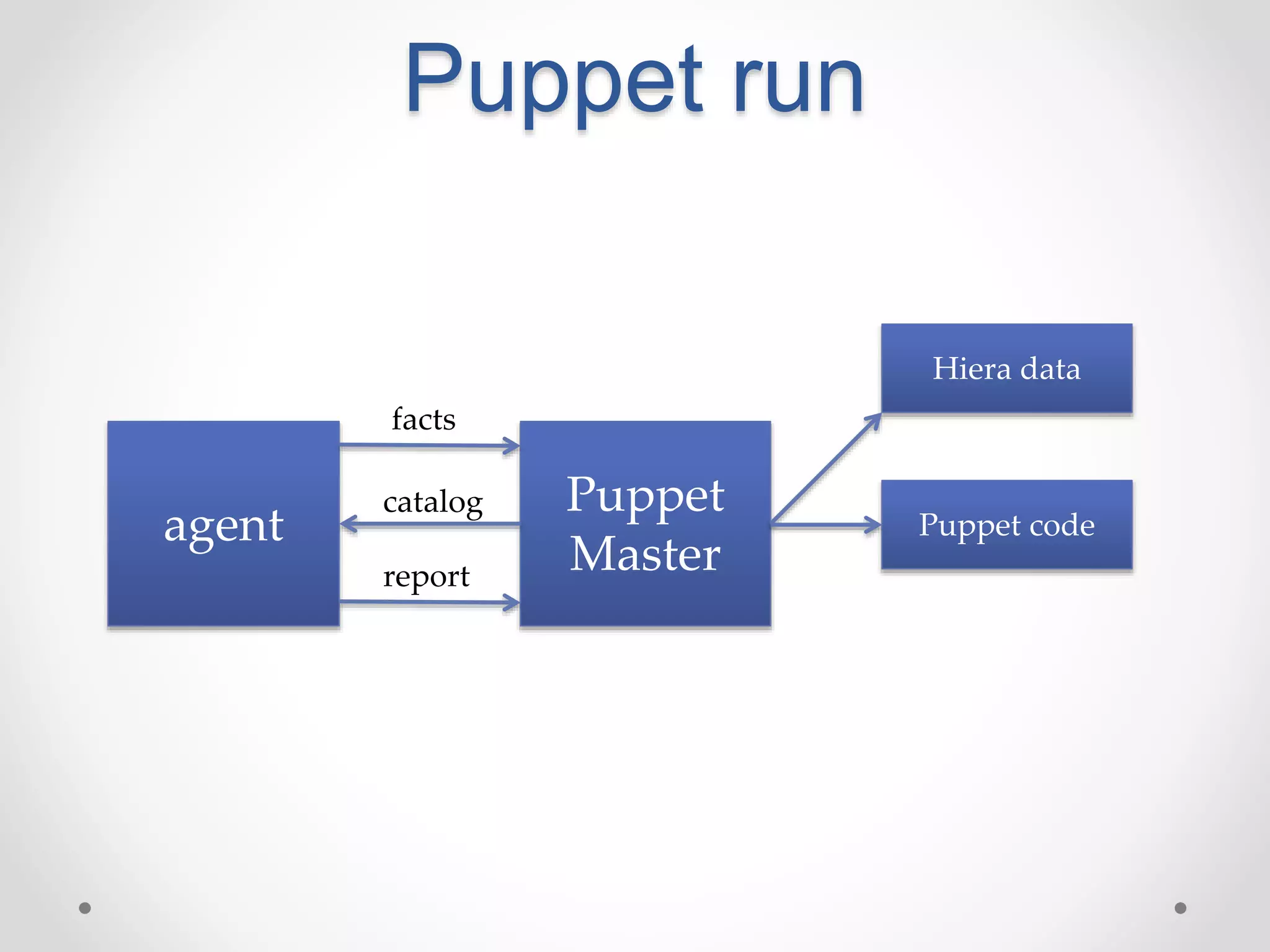

- 42. Puppet run Puppet Master agent facts Hiera data Puppet code catalog report

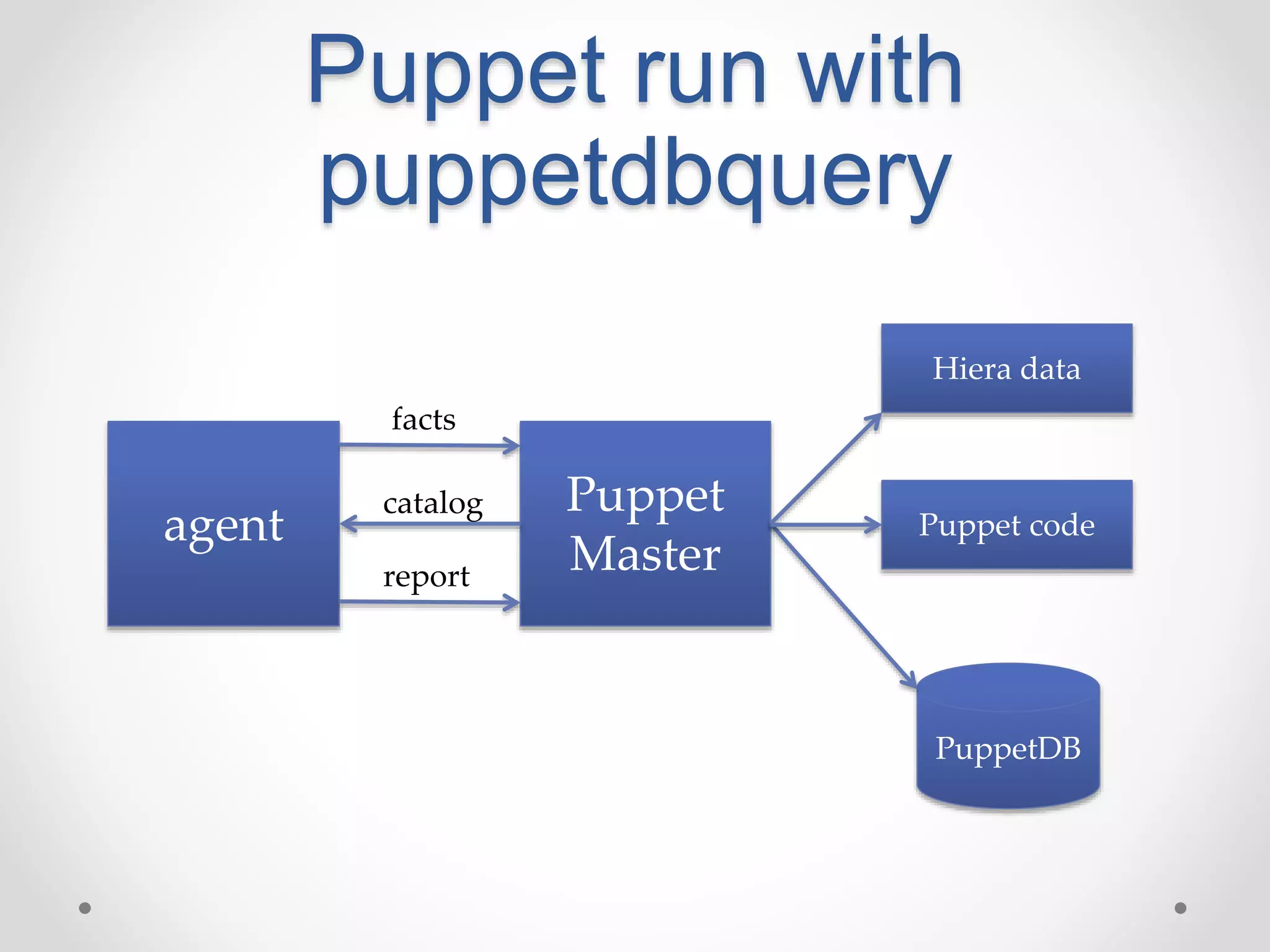

- 43. Puppet run with puppetdbquery Hiera data PuppetDB Puppet Master agent facts Puppet code catalog report

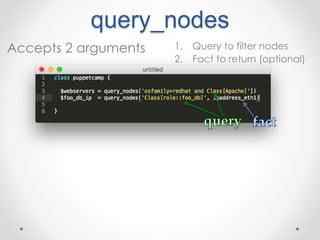

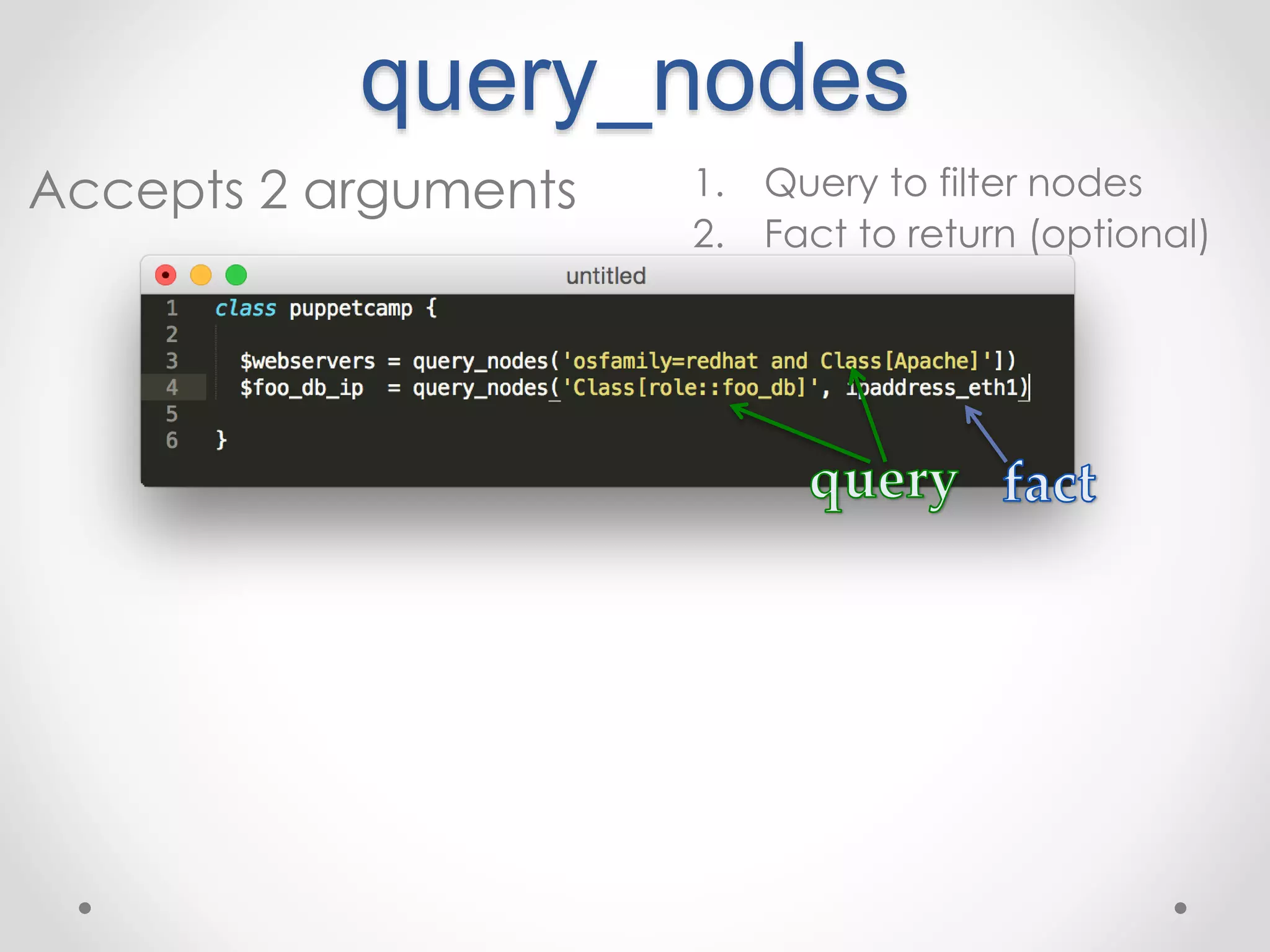

- 44. query_nodes Accepts 2arguments 1. Query to filter nodes 2. Fact to return (optional)

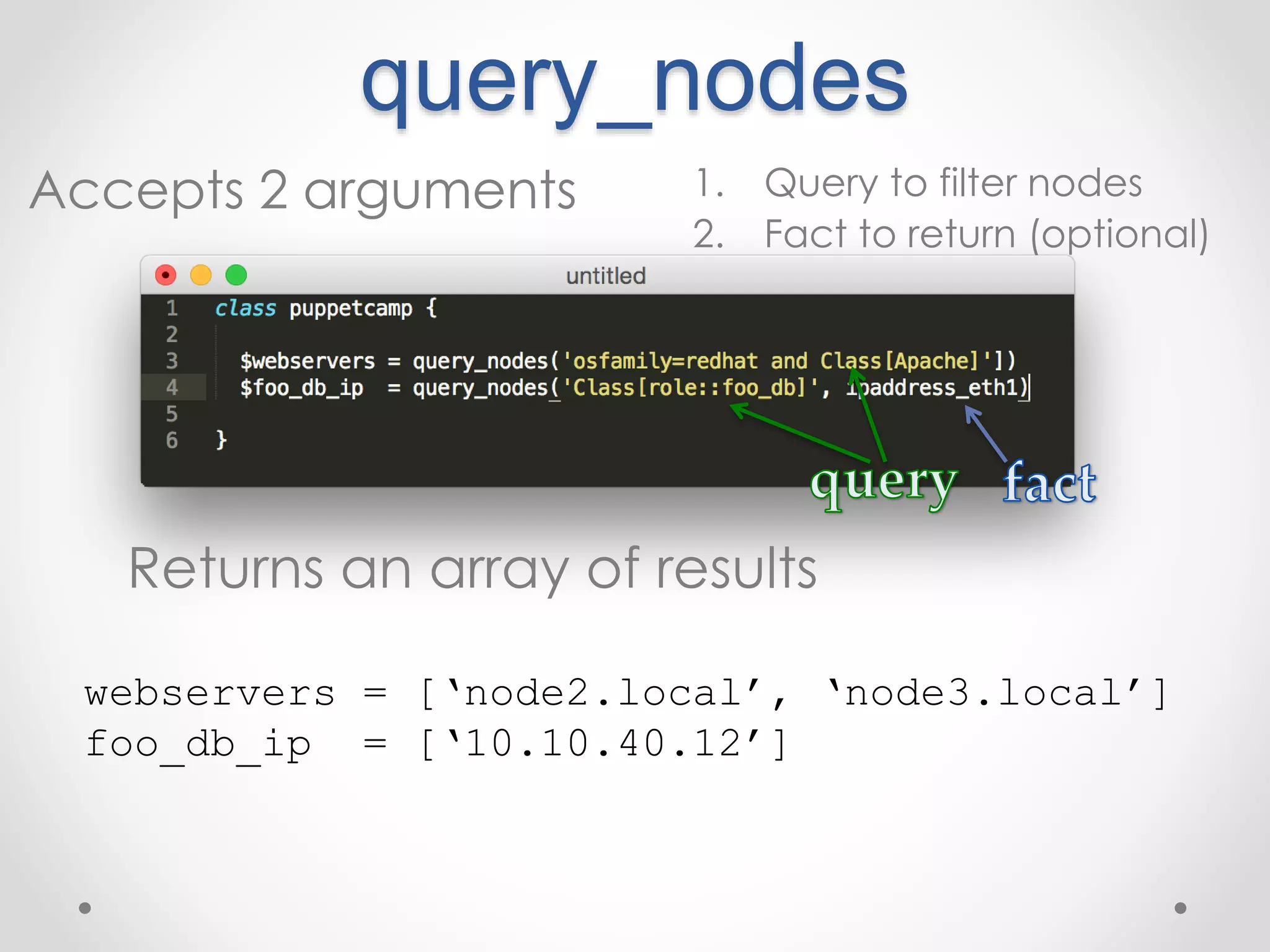

- 45. query_nodes Accepts 2arguments 1. Query to filter nodes 2. Fact to return (optional) Returns an array of results webservers = [‘node2.local’, ‘node3.local’] foo_db_ip = [‘10.10.40.12’]

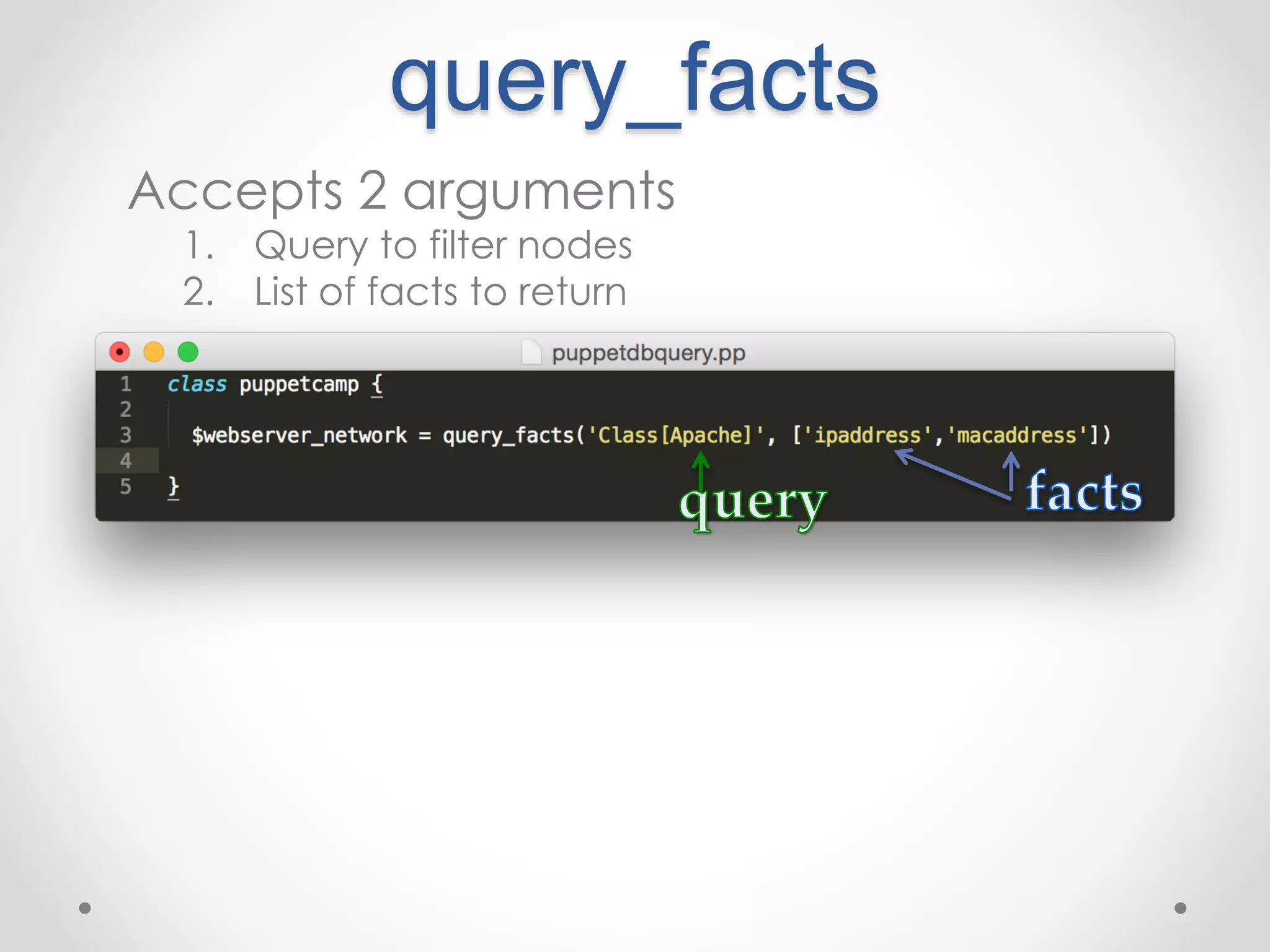

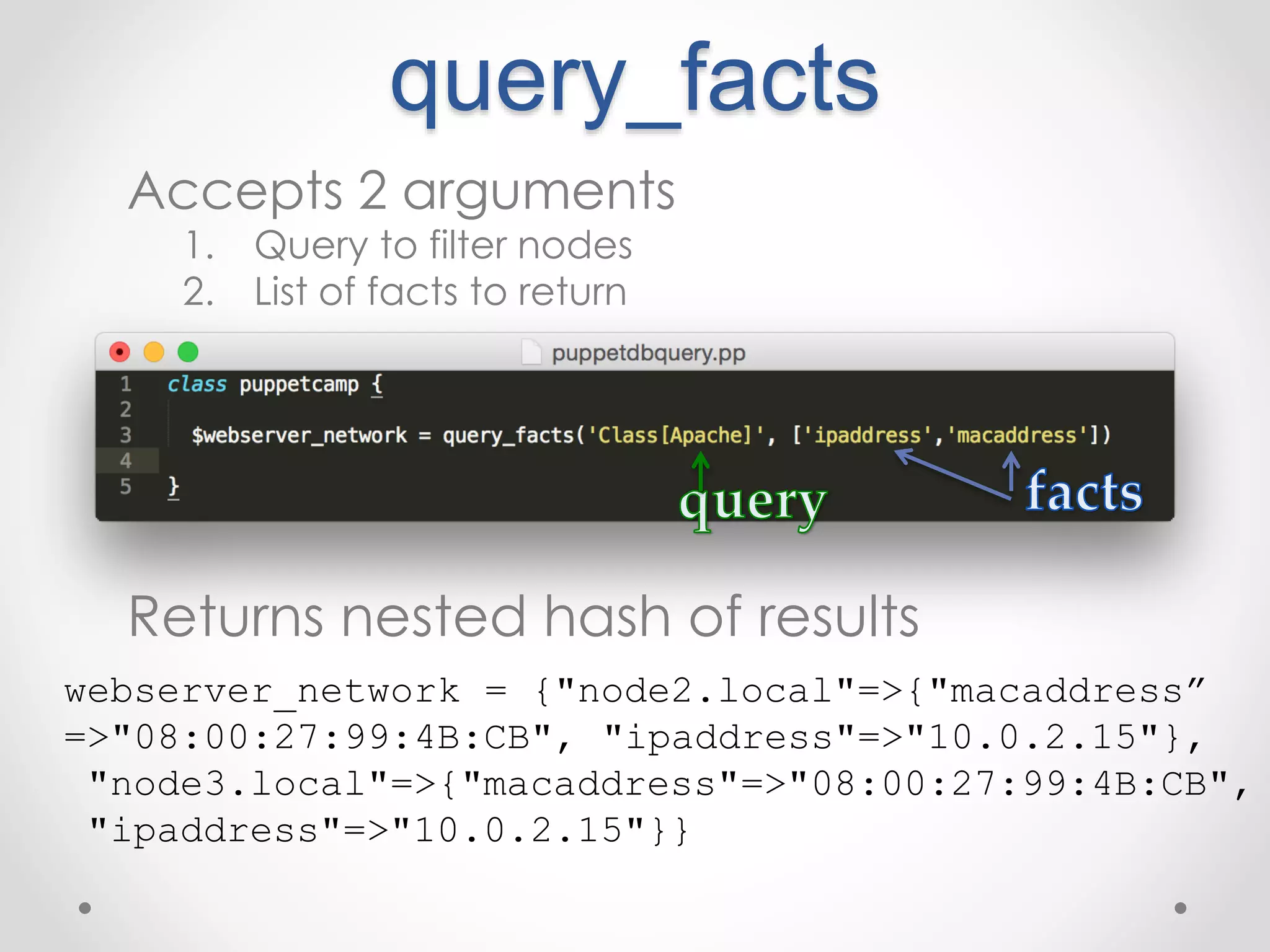

- 46. query_facts Accepts 2arguments 1. Query to filter nodes 2. List of facts to return

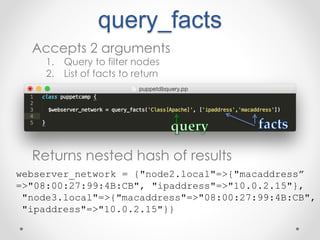

- 47. query_facts Accepts 2arguments 1. Query to filter nodes 2. List of facts to return Returns nested hash of results webserver_network = {"node2.local"=>{"macaddress” =>"08:00:27:99:4B:CB", "ipaddress"=>"10.0.2.15"}, "node3.local"=>{"macaddress"=>"08:00:27:99:4B:CB", "ipaddress"=>"10.0.2.15"}}
- 48.
- 49. What’s this giveus? The ability to dynamically configure a system based on the state of other systems in the infrastructure.

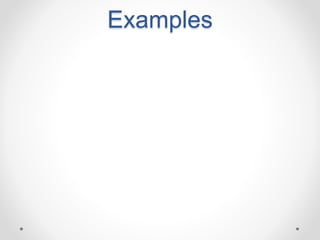

- 50.

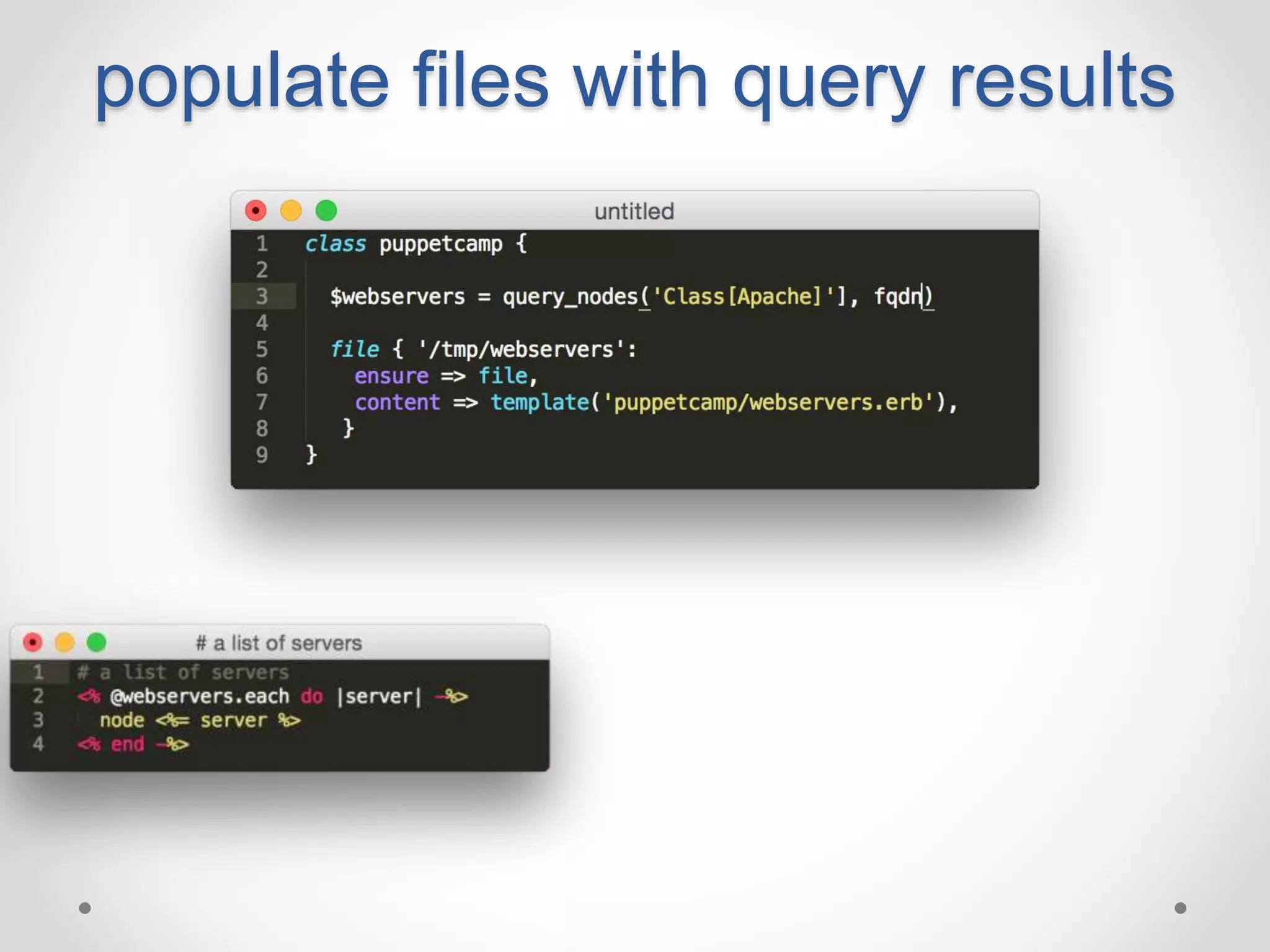

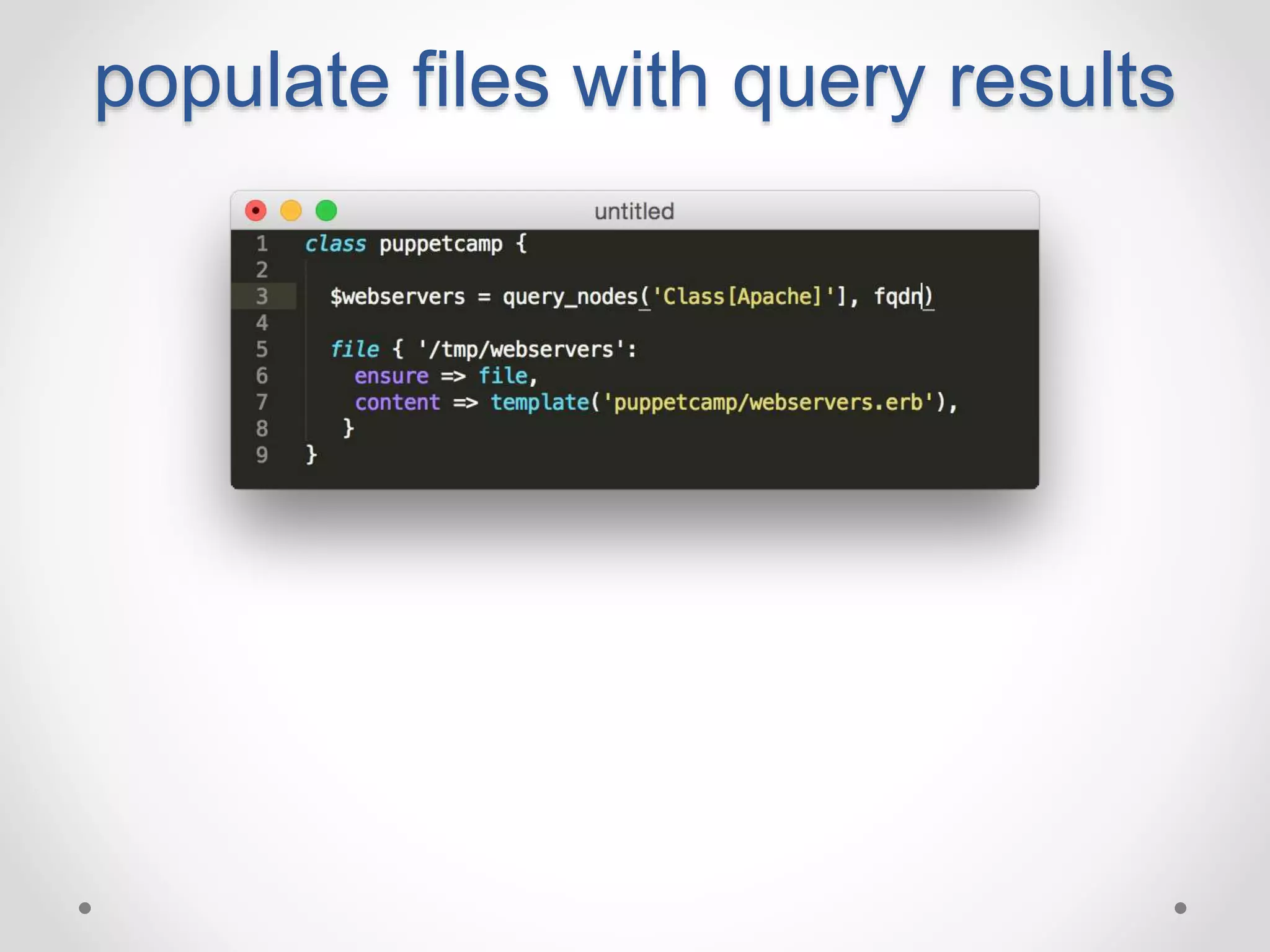

- 51. populate files withquery results
- 52. populate files withquery results

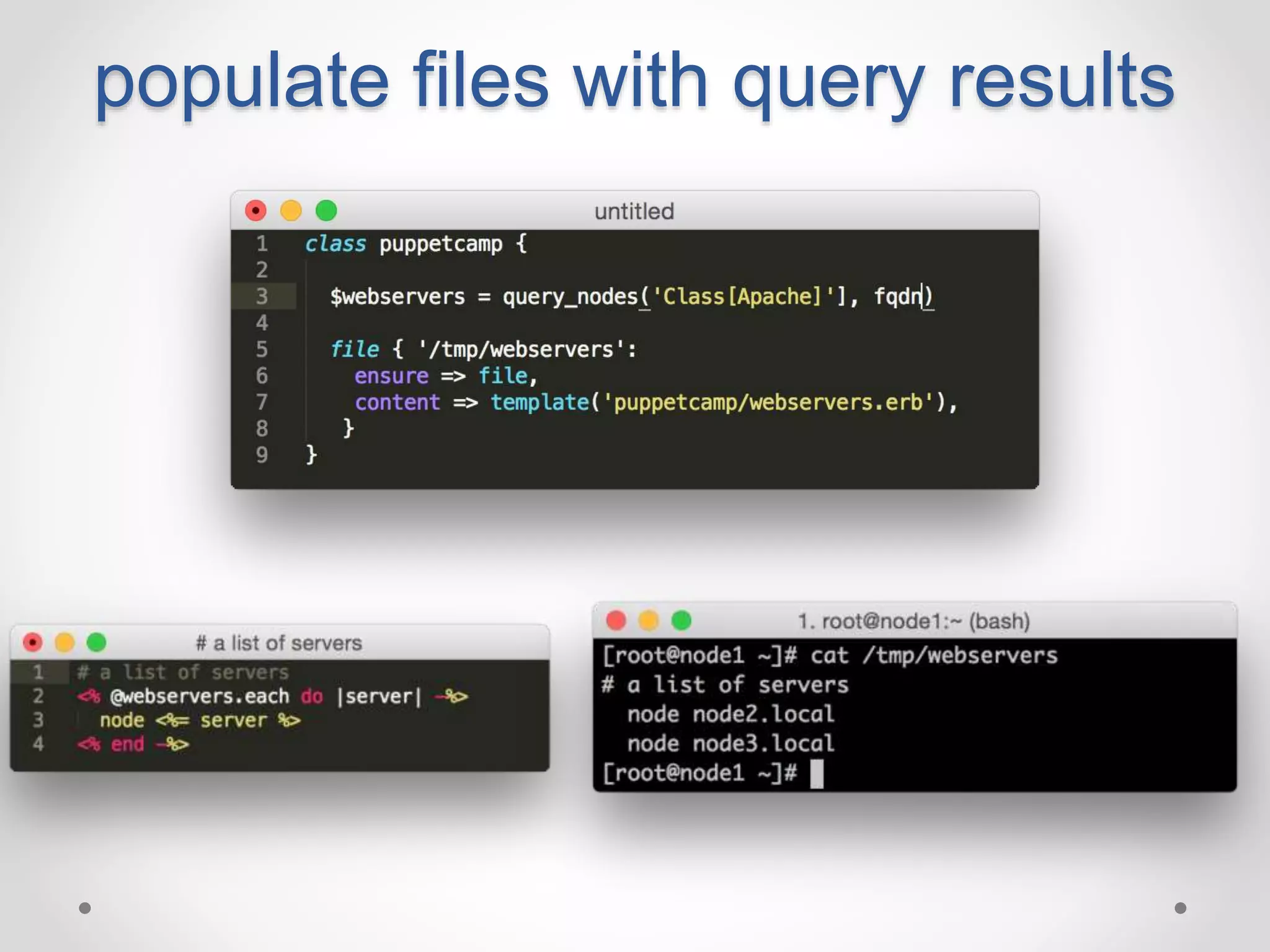

- 53. populate files withquery results

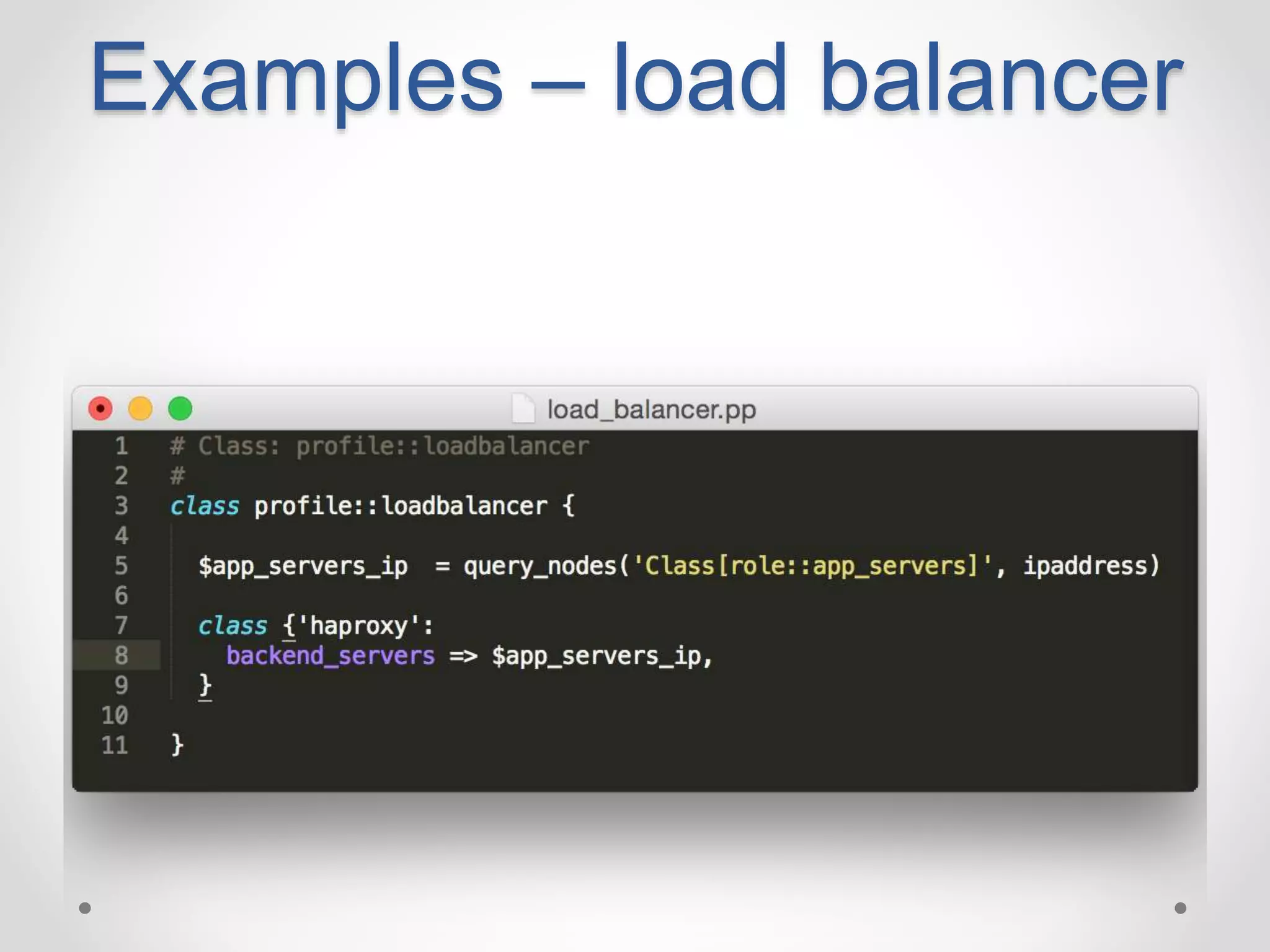

- 54. Examples – loadbalancer

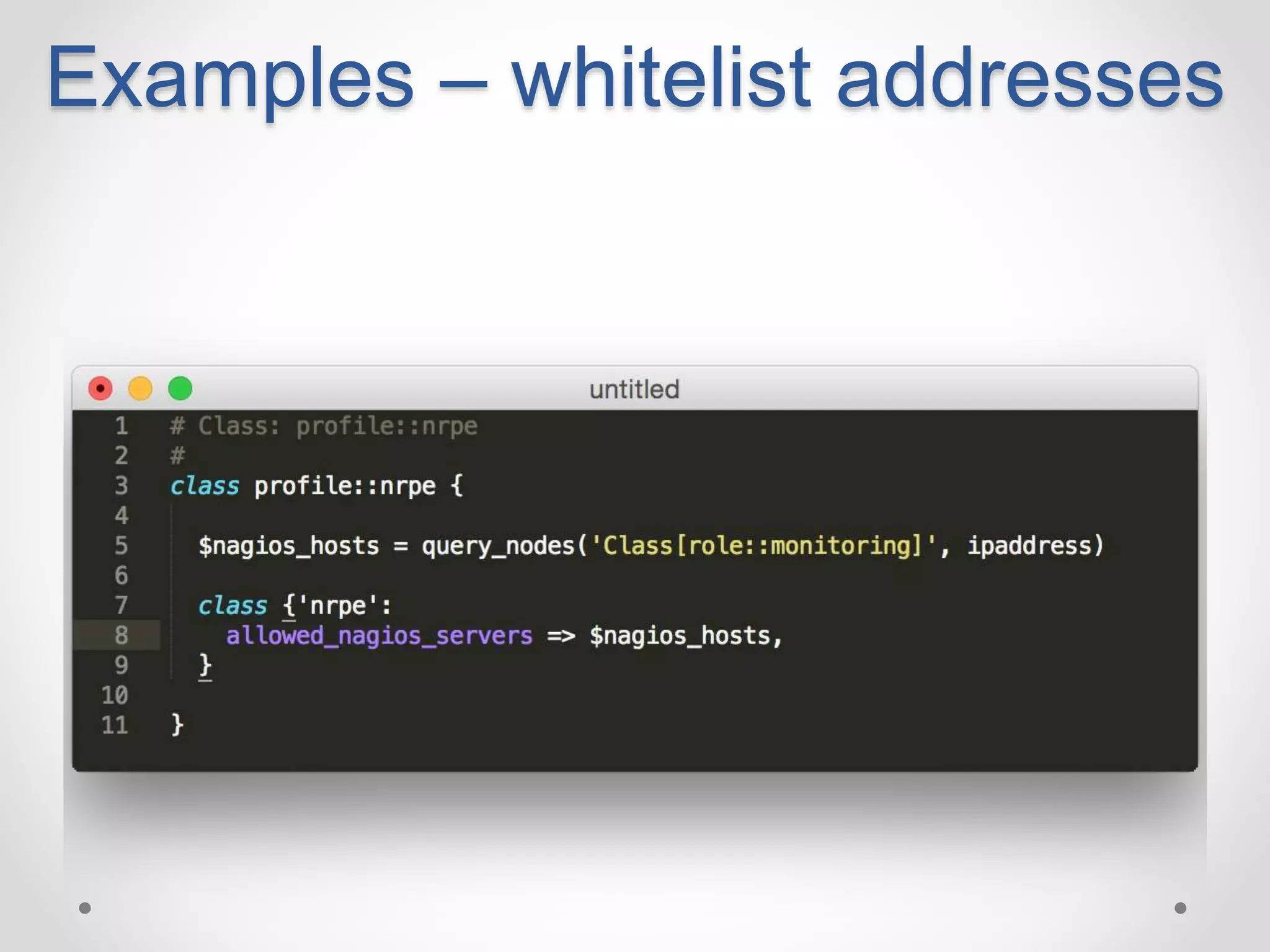

- 55. Examples – whitelistaddresses

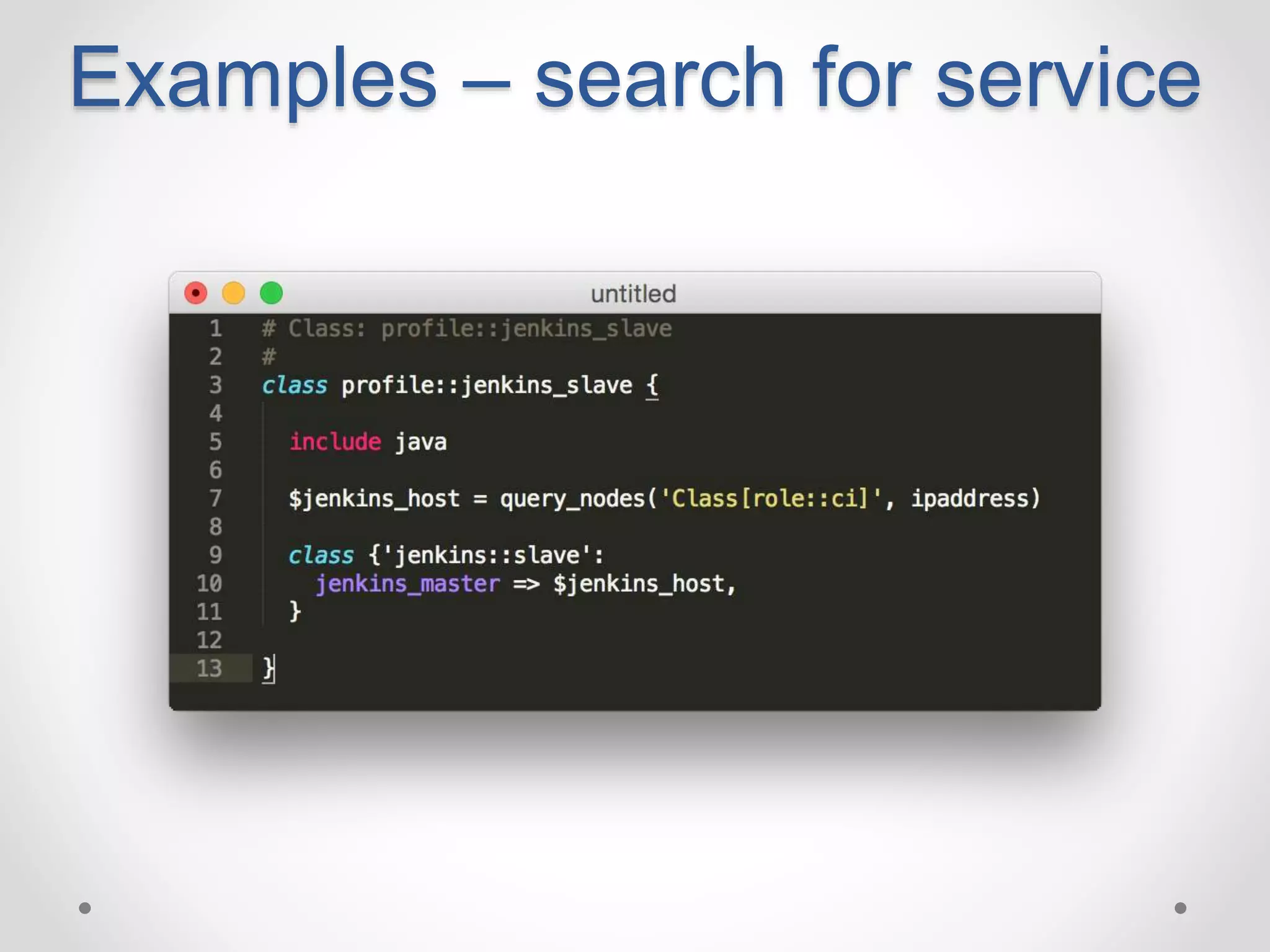

- 56. Examples – searchfor service

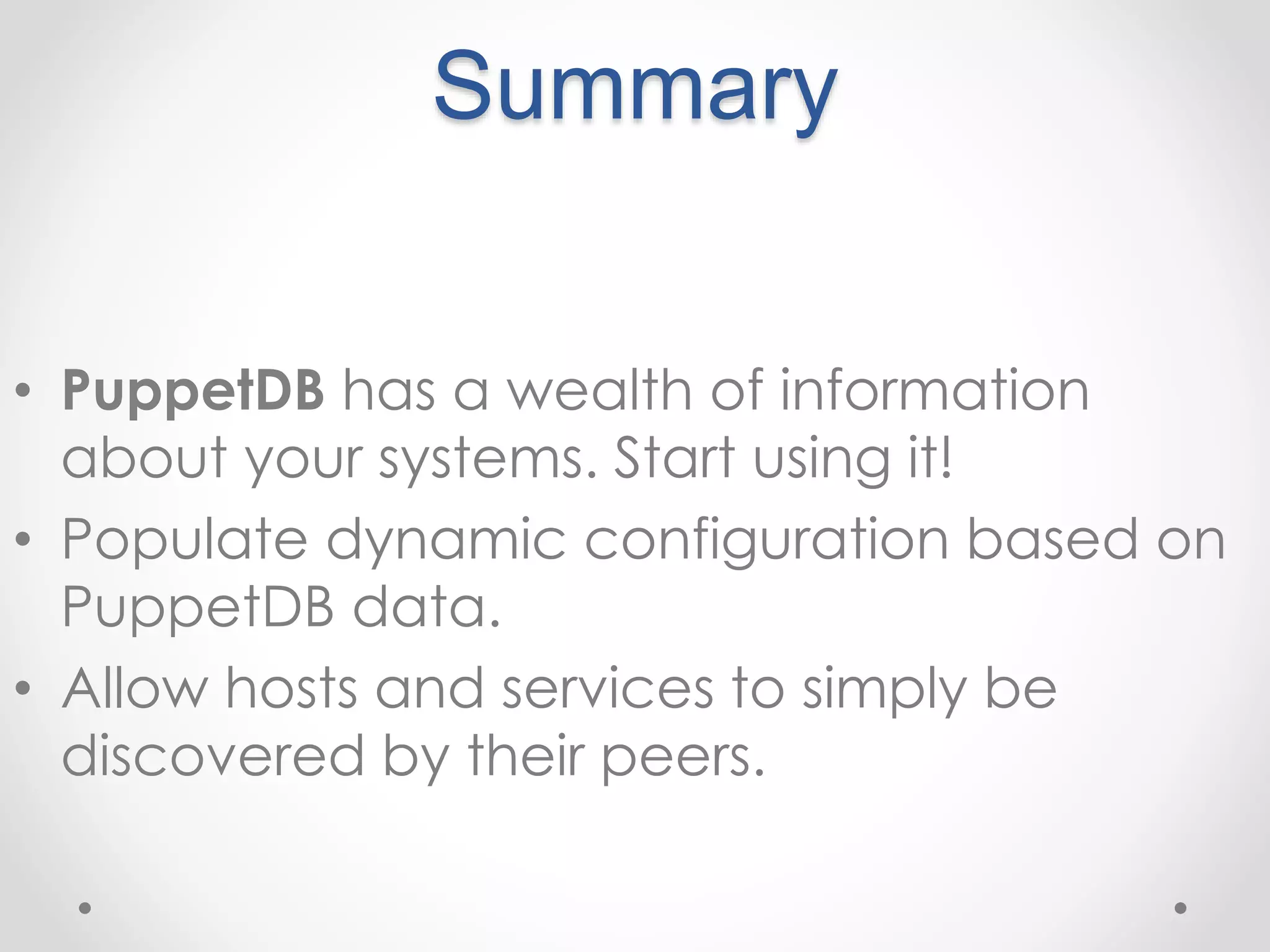

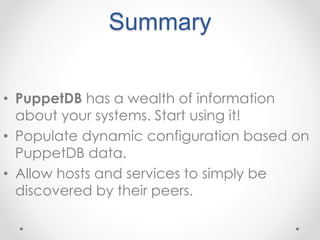

- 57. Summary • PuppetDBhas a wealth of information about your systems. Start using it! • Populate dynamic configuration based on PuppetDB data. • Allow hosts and services to simply be discovered by their peers.
- 58. Thank you. #protip Go buy this book now By Alessandro Franceschi It is EXCELLENT!
- 59. Thank you. Forfolks from Sydney Sydney Puppet User Group http://www.meetup.com/Sydney-Puppet-User-Group/ Come along
- 60. Thank you AnyQuestions? Michael Richardson @m_richo
Editor's Notes
- #12 Let’s not forget about people
- #13 You need automated, repeatable, versionable provisioning and management of infrastructure and services.
- #14 You need automated, repeatable, versionable provisioning and management of infrastructure and services.
- #15 Discuss adding and removing services, Multiple environments React to auto-scaling
- #23 Puppet agent includes facter Base install produces > 100 facts Custom facts
- #24 Base install produces > 100 facts Custom facts
