This document summarizes a performance test conducted on four cylinder and six cylinder diesel engines produced by Ashok Leyland. Key findings include:
- The four cylinder diesel engine had higher mechanical efficiency than the six cylinder engine, making it preferred for performance.
- Graphs show relationships between brake power, smoke, specific fuel consumption, and mechanical efficiency.
- Testing involved measuring time for fuel flow, speed, torque, smoke, specific fuel consumption, brake power, indicated power, and efficiencies.
- The conclusions could help the company save fuel and reduce emissions, while increasing engine production.
It was a presentation on Hybrid electric vehicles which is a combination of both Hybrid vehicles as well as Electric vehicles.
Due to raise in pollution Government is Encouraging these type of vehicles.
Mercedes benz service centre training reportPanchal Anand
Industrial training (Internship) Report.
Mercedes_benz Service centre.
Abstract: As a Mechanical Engineering Student I am very interested in automobile Engineering. I always keen to learn different mechanisms used in vehicles, I used to watch animated videos on YouTube about automobile mechanisms like Differential, Automatic transmission gearbox etc, but I never watched it in real. So, it was a great opportunity for me to do two weeks internship at Mercedes-benz Service centre, Ambli, Ahmedabad. The internship was concentrated on the car services. At the beginning of the internship I had several queries in my mind regarding the different technologies used in Mercedes-benz and what skills are needed in organization. During my internship several queries are cleared by doing some activities. The objective of this internship is to understand working of different mechanisms, to get knowledge of regular services and the major-minor problem that can be observed in day to day life. Apart from technical knowledge, I also learnt rules and safety instruction, Inventory management, Quality Control. I realize the responsibility of technicians working on the car. So, this internship was a great experience. I found out how much I am strong in automobile field. I gained new knowledge and skills and met many new people. Working together with people having different background and education was great experience. I also accompanied by other 2-3 students who were also on industrial training, so it was nice knowledge sharing. I achieved many of my learning goals. I got insight into the work of an organization. At last this internship has given me new insights and motivation to pursue a career in mechanical engineering.
This is a business plan for the newly developed electric motorcycle prototype. The PPT gives details about the idea, the motorcycle, the making, specs, advantages etc.
Four steering system is about the maneuvering of the wheel using all four wheel. Which allows the vehicle to take sharp turn at slow speed and decrease the rollover accident danger at higher speed.
Four-wheel steering (or all-wheel steering) is a system employed by some vehicles to improve steering response, increase vehicle stability while maneuvering at high speed, or to decrease turning radius at low speed.
It was a presentation on Hybrid electric vehicles which is a combination of both Hybrid vehicles as well as Electric vehicles.
Due to raise in pollution Government is Encouraging these type of vehicles.
Mercedes benz service centre training reportPanchal Anand
Industrial training (Internship) Report.
Mercedes_benz Service centre.
Abstract: As a Mechanical Engineering Student I am very interested in automobile Engineering. I always keen to learn different mechanisms used in vehicles, I used to watch animated videos on YouTube about automobile mechanisms like Differential, Automatic transmission gearbox etc, but I never watched it in real. So, it was a great opportunity for me to do two weeks internship at Mercedes-benz Service centre, Ambli, Ahmedabad. The internship was concentrated on the car services. At the beginning of the internship I had several queries in my mind regarding the different technologies used in Mercedes-benz and what skills are needed in organization. During my internship several queries are cleared by doing some activities. The objective of this internship is to understand working of different mechanisms, to get knowledge of regular services and the major-minor problem that can be observed in day to day life. Apart from technical knowledge, I also learnt rules and safety instruction, Inventory management, Quality Control. I realize the responsibility of technicians working on the car. So, this internship was a great experience. I found out how much I am strong in automobile field. I gained new knowledge and skills and met many new people. Working together with people having different background and education was great experience. I also accompanied by other 2-3 students who were also on industrial training, so it was nice knowledge sharing. I achieved many of my learning goals. I got insight into the work of an organization. At last this internship has given me new insights and motivation to pursue a career in mechanical engineering.
This is a business plan for the newly developed electric motorcycle prototype. The PPT gives details about the idea, the motorcycle, the making, specs, advantages etc.
Four steering system is about the maneuvering of the wheel using all four wheel. Which allows the vehicle to take sharp turn at slow speed and decrease the rollover accident danger at higher speed.
Four-wheel steering (or all-wheel steering) is a system employed by some vehicles to improve steering response, increase vehicle stability while maneuvering at high speed, or to decrease turning radius at low speed.
CYLINDER DEACTIVATION ON TWO DIFFERENT CUBIC CAPACITY ENGINEIAEME Publication
Cylinder deactivation is a fuel consumption reduction technology for throttled internal combustion engines and other engines with thermal efficiency loss at part cylinder. Dynamic skip firing, which in its ultimate form incorporates anytime, any-cylinder deactivation, continuously varies the number of firing cylinders, along with cylinder load, obtaining flexible control of acoustic and vibrational excitations from the engine, and allowing an expanded operational envelope with fewer drive ability/NVH issues. This project comprises of two different cubic capacity 4 stroke (150cc-pulsar and 100cc-kinetic) engines coupled with use of sprockets and chains.
Crdi technology is more efficient and advance technology in the field of automobile engineering. This technology is using at a large scale by a number of car companies. In this presentation you will find the basic principle, working, and component description of crdi technology.
The Automobile Industry and the many other various engine
manufacturers need improved engine performance in keeping up with the necessary changes to protect our wallets and environment. Both the Automobile and Engine Industries are now struggling to comply with Government requirements and are falling behind in keeping up with proposed future regulations and Government mandates that will provide the necessary advancement to protect us and the Earth’s environment. The Automotive Industry has requested that the US Government reduce the fuel economy and emission requirements for future vehicles because, by their own admission, they do not have the technology to meet such fuel
economy and pollution mandates for the foreseeable future. Yoke arm has changed all of this
Diesel locomotive shed is an industrial – technical setup, where repair & maintenance works of diesel of diesel locomotives is carried out, so as keep loco working properly.
HELLO FRINDS THIS REPORT IS OF INDUSTRIAL TRAINING ON DIESEL LOCOMOTIVE TECHNOLOGY.
IT IS VERY HELP FULL FOR YOU .
SO GO THROUGH IT .
**********************Best Of Luck ************************
INTRODUCTION OF INDIAN RAILWAY
DIESEL LOCOMOTIVE WORKSHOP .CHARBAGH
DIESEL ELECTRIC LOCOMOTIVE
WORKING MECHANISIM
IMPORTANT COMPONENTS OF LOCOMOTIVES
a) POWER PACK
b) FUEL SECTION
c) LUBE OIL CONTROL SECTION
i. FUEL INJECTION PUMP (FIP)
ii. INJECTORS
d) TURBO SUPER CHARGING (TSC)
e) BRAKES
f) COMPRESSOR / EXPRESSOR
g) GOVERNORS
h) TRACTION MOTER
i) BOGIE
j) GENERATOR
k) RADIATOR
l) ENGINE SECTION
m) CROSS HEAD
i. INLET AND EXHAUST VALVE
FAILURE ANALYSIS
a) MAGNAFLUX LAB
b) ULTRASONIC TEST
c) ZYGLO TEST
d) RDP TEST
Twin Turbocharging Inline Six Internal Combustion EngineRobertBeneteau
Design project to twin turbocharge an inline six BMW M3 engine using mathematical computations and engine simulations to increase the power output upwards of 500 horsepower.
Updated version of the technical paper on a revolutionary HCCI rotary engine with variable compression ratio control (US Patent Number 9,435,257). It now contains a chapter about "Notable differences compared to other engine designs".
Proulsion I - SOLVED QUESTION BANK - RAMJET ENGINESanjay Singh
The material is only for academic purpose and for preparation of exams. Contents are copied from reference books. Not for revenue generation of any kind.
2. PERFORMANCE TEST ON PRODUCTION SERIES
OF MULTI CYLINDER DIESEL ENGINE
COMPANY NAME:-
ASHOK LEYLAND,ENNORE
PROJECT DONE BY:-
MD KAUKAB IBRAHIM
Anna University
DEPARTMENT OF MECHANICAL
ENGINEERING
3. INTRODUCTION:-
ASHOK LEYLAND IS AN INDIAN AUTOMOBILE MANUFACTURING COMPANY BASED
IN CHENNAI , INDIA. FOUNDED IN 1948, THE COMPANY IS ONE OF INDIA'S LEADING
MANUFACTURERS OF COMMERCIAL VEHICLES, SUCH AS TRUCKS AND BUSES, AS WELL AS
EMERGENCY AND MILITARY VEHICLES. OPERATING SIX PLANTS, ASHOK LEYLAND ALSO
MAKES SPARE PARTS AND ENGINES FOR INDUSTRIAL AND MARINE APPLICATIONS. IT SELLS
ABOUT 60,000 VEHICLES AND ABOUT 7,000 ENGINES ANNUALLY. IT IS THE SECOND LARGEST
COMMERCIAL VEHICLE COMPANY IN INDIA IN THE MEDIUM AND HEAVY COMMERCIAL
VEHICLE (M&HCV) SEGMENT WITH A MARKET SHARE OF 28% (2007–08). WITH PASSENGER
TRANSPORTATION OPTIONS RANGING FROM 19 SEATERS TO 80 SEATERS, ASHOK LEYLAND IS
A MARKET LEADER IN THE BUS SEGMENT.THE COMPANY CLAIMS TO CARRY OVER 60
MILLION PASSENGERS A DAY, MORE PEOPLE THAN THE ENTIRE INDIAN RAIL NETWORK. IN
THE TRUCKS SEGMENT ASHOK LEYLAND PRIMARILY CONCENTRATES ON THE 16 TON TO 25
TON RANGE OF TRUCKS. HOWEVER ASHOK LEYLAND HAS PRESENCE IN THE ENTIRE TRUCK
RANGE STARTING FROM 7.5 TONS TO 49 TONS. THE JOINT VENTURE ANNOUNCED
WITH NISSAN MOTORS OF JAPAN WOULD IMPROVE ITS PRESENCE IN THE LIGHT
COMMERCIAL VEHICLE (LCV) SEGMENT (<7.5 TONS).
4. ENNORE IS THE MOTHER PLANT AND ACCOUNTS FOR OVER 40% OF THE
PRODUCTION. SPREAD OVER 135 ACRES OF WHICH 30 ACRES IS BUILT-UP,
THE PLANT MANUFACTURES VEHICLES PLUS IMPORTANT AGGREGATES LIKE
ENGINES, GEARBOXES, AXLES. IT HOUSES SOME ADVANCED FACILITIES LIKE
AUTOMATED TEST BEDS, TOOL MONITORING THROUGH RFID, MATERIAL
HANDLING THROUGH AGV, GANTRY, AEMS, ETC., CENTRALIZED CHIP
HANDLING AND A CENTRALIZED COOLING SYSTEM. OVER 5000 PEOPLE ARE
EMPLOYED AT THIS PLANT. ASHOK LEYLAND DEFENCE SYSTEMS [ALDS]IS A NEWLY
FLOATED COMPANY BY THE HINDUJA GROUP. ASHOK LEYLAND, THE FLAGSHIP
COMPANY OF HINDUJA GROUP,HOLDS 26 PERCENT IN THE NEWLY FORMED
ASHOK LEYLAND DEFENCE SYSTEMS (ALDS). THE NEWLY FLOATED COMPANY HAS
A MANDATE TO DESIGN AND DEVELOP DEFENCE LOGISTICS AND TACTICAL
VEHICLES, DEFENCE COMMUNICATION AND OTHER SYSTEMS.[ASHOK LEYLAND
IS THE LARGEST SUPPLIER OF LOGISTICS VEHICLES TO THE INDIAN ARMY. IT HAS
SUPPLIED OVER 60,000 OF ITS STALLION VEHICLES WHICH FORM THE ARMY'S
LOGISTICS BACKBONE.
A BRIEF OF ENNORE UNIT:-
5. ABSTRACT:-
THE METHOD OF MANUFACTURING DIESEL ENGINE HAS UNDERGONE MANY
DRAMATIC CHANGES AND ADVANCEMENTS. HOWEVER IT MAY BE, COOLANT AND
PERFORMANCE HAS BEEN ONE OF THE MAJOR PROBLEM RIGHT FROM THE ORIGIN OF I.C
ENGINES. ITS HIGHLY IMPOSSIBLE TO MANUFACTURE EVERY ENGINE WITHOUT EFFICIENCY
ISSUES. SO WE ARE IN NEED TO MOVE TOWARDS THE TECHNOLOGY THAT CAN ANALYZE
AND ENHANCE THE PERFORMANCE AND EFFICIENCY INSIDE OR OUTSIDE THE ENGINE.
IN THAT SENSE ASHOK LEYLAND INCLUDES AN IN LINE VERIFICATION EQUIPMENT (IPV) AT
H ENGINE SHOP FOR PERFORMANCE STUDY OF H ENGINE WHICH IS THE LATEST PRODUCT
OF ASHOK LEYLAND. SINCE THE PERFORMANCE TEST BEING THE NEW PROCESS IN THE
NEW ASSEMBLY IS NOT YET ESTABLISHED
IN PROCESS FLOW. H ENGINE NEEDS A SPECIFICATION FOR PERFORMANCE TEST ANALYSIS.
WE USED THE INSTRUMENT WITH THE PROPER GUIDANCE AND ARRIVED THE
SPECIFICATION SUCCESSFULLY. WITH THAT SPECIFICATION WE CAN IDENTIFY THE IDEA OF
INCREASING PERFORMANCE AND ABLE TO RECTIFY IT BEFORE THE ENGINE ENTERS THE
TEST CELL WHICH RESULTS IN THE REDUCTION OF FUEL AND TIME WASTAGE, POWER
WASTAGE AND SAVED ECONOMY.
6. OBJECTIVE OF THE PROJECT:-
TO CHECK THE PERFORMANCE OF THE FOUR CYLINDER DIESEL ENGINE AND
SIX CYLINDER DIESEL ENGINE .
TO COMPARE THE RESULTS TO CONCLUDE THE ENGINE WITH BETTER
EFFICIENCY AND LESS SMOKE VALUES.
7. FUEL INJECTION SYSTEM:-
A mechanical system to inject atomized fuel
directly into the cylinders of an internal-
combustion engine
This system avoids the need for a carburettor.
It consists of fuel pump, fuel pressure
regulator , fuel lines, fuel rail etc.
FUEL
INJECTION
SYSTEM
THROTTLE
BODY
INJECTION
ELECTRONIC
FUEL
INJECTION
MULTI POINT
FUEL
INJECTION
TUNED PORT
INJECTION
8. FUEL INJECTOR OR INJECTION PUMP:-
AN INJECTION PUMP IS THE DEVICE THAT PUMPS
FUEL IN TO THE CYLINDERS OF A DIESEL ENGINE.
TRADITIONALLY, THE INJECTION PUMP IS DRIVEN
INDIRECTLY FROM THE CRANKSHAFT BY GEARS,
CHAINS OR A TOOTHED BELT (OFTEN THE TIMING
BELT) THAT ALSO DRIVES THE CAMSHAFT.
IT ROTATES AT HALF CRANKSHAFT SPEED IN A
CONVENTIONAL FOUR-STROKE ENGINE. ITS TIMING
IS SUCH THAT THE FUEL IS INJECTED ONLY VERY
SLIGHTLY BEFORE TOP DEAD CENTRE OF THAT
CYLINDER'S COMPRESSION STROKE.
IT IS ALSO COMMON FOR THE PUMP BELT ON
GASOLINE ENGINES TO BE DRIVEN DIRECTLY FROM
THE CAMSHAFT. IN SOME SYSTEMS INJECTION
PRESSURES CAN BE AS HIGH AS 200 MPA.
9. FUEL INJECTION PUMP INSTALLATION:-
FUEL INJECTION IS A SYSTEM FOR ADMITTING FUEL INTO AN
INTERNAL COMBUSTION ENGINE. IT HAS BECOME THE PRIMARY
FUEL DELIVERY SYSTEM USED IN AUTOMOTIVE ENGINES, HAVING
REPLACED CARBURETTORS.
A VARIETY OF INJECTION SYSTEMS HAVE EXISTED SINCE THE
EARLIEST USAGE OF THE INTERNAL COMBUSTION ENGINE.
THE PRIMARY DIFFERENCE BETWEEN CARBURETORS AND FUEL
INJECTION IS THAT FUEL INJECTION ATOMIZES THE FUEL BY FORCIBLY
PUMPING IT THROUGH A SMALL NOZZLE UNDER HIGH PRESSURE.
WHILE A CARBURETOR RELIES ON SUCTION CREATED BY INTAKE AIR
ACCELERATED THROUGH A VENTURI TUBE TO DRAW THE FUEL INTO
THE AIRSTREAM.
10. WHAT IS H –SERIES ENGINE?
ENGINE SPECIFICATIONS:-
1.NO OF CYLINDERS -4
2.ASPIRATIONNATURALBORE (MM) -104
3.STROKE (MM) -118
4.CUBIC CAPACITY (LITRES) -4.009
5.COMPRESSION RATIO -17.9:1
6.WEIGHT OF ENGINE (KGS) -540
THE HINO-SERIES ENGINE IS DESIGNED FOR TRANSVERSE MOUNTING AND,IN THE
PRELUDE, IS AVAILABLE WITH EITHER A FIVE-SPEED MANUAL GEARBOX OR A
FOUR-SPEED AUTO.
DRIVE IS TO THE FRONT WHEELS.
11. THE H-FACTOR :-
THE ‘H’ FACTOR: SINCE ASHOK LEYLAND OBTAINED THE ENGINE TECHNOLOGY FROM
HINO IN THE 1980S, CONSIDERABLE IN-HOUSE WORK HAS BEEN DONE ON THIS HIGHLY
EFFICIENT AND MODERN ENGINE PLATFORM TO MAKE IT EURO 1 AND EURO 2
COMPLIANT. TO RECOGNISE THE VALUE ADDITION THAT HAS BEEN EFFECTED, IT HAS
BEEN RE-CHRISTENED THE ‘H’ SERIES.
WITH A LOW PARTS COUNT AND LOW LUBE OIL CONSUMPTION THE ENGINE CAN
LOG 5 LAKH KMS.
THE SECRET BEHIND THE HIGH FUEL EFFICIENCY OF THE H SERIES ENGINE IS THE
UNIQUE MICRO-MIXING SYSTEM WHICH MAKES FOR EFFICIENT COMBUSTION.
THE H SERIES CONSISTS OF 4 AND 6 CYLINDER ENGINES WITH NATURALLY ASPIRATED,
TURBO-CHARGED AND TURBO-CHARGED INTER-COOLED VARIANTS WITH POWER
OUTPUT RANGING FROM 80 TO 210 PS. THE SERIES IS CAPABLE OF UPGRADATION TO
EURO 3 STAGE.

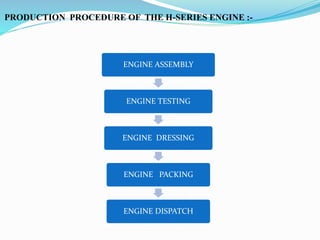

12. PRODUCTION PROCEDURE OF THE H-SERIES ENGINE :-

ENGINE ASSEMBLY
ENGINE TESTING
ENGINE DRESSING
ENGINE PACKING
ENGINE DISPATCH
13. ENGINE ASSEMBLY:-
TOTAL
ENGINE
ASSEMBLY
THE FINAL
WASH
SETTING
UP THE
ENGINE
RING END
GAP
CAMSHAFT
AND
BEARINGS
FITTING
WELSH
PLUGS
FITTING
CRANKSH
AFT
FITTING
RINGS TO
PISTONS
FITTING
PISTONS
TO BORE
FITTING
BIG-ENDS
PISTON
DECK
HEIGHT
. OIL PUMP
ASSEMBLY
CYLINDER
HEAD
ASSEMBLY
. TIMING
BELT OR
CHAIN
PAINT AND
PROTECTI
ON
14. ENGINE TESTING:-
STEP 1:- LOADING AND UNLOADING OF THE ENGINE TAKES PLACE
FROM THE ASSEMBLY AREA.
STEP 2:- RIGGING AND DERIGGING TAKES PLACE WHICH COMPRISES OF
FITMENT AND REMOVAL OF OIL PRESSURE GAUGE,DRIVE
ADAPTOR WITH BOLTS.
STEP 3:- FITMENT OF WATER PUMP ,COOLANT PUMP, THROTTLE LEVER
TAKES PLACE.
STEP 4:- ENGINE IS TESTED AND SENT FOR DERIGGING
STEP 5:- IF THE ENGINE SPECIFICATIONS MATCH THE GIVEN NORMS
ENGINE IS PASSED , IF ENGINE FAILS TO COMPETE THE
SPECIFICATIONS IT IS SENT TO RECTIFICATION CENTRE
AND CHECKED FOR FURTHER STEPS.
15. FORMULA USED :-
1) BRAKE POWER = 2πNT/60000 KW
2) MASS OF FUEL CONSUMPTION = a x 0.87/1000 x t kg/sec
3) INDICATED POWER = 100 KLAnPm/60 KW
4) BRAKE THERMAL EFFICIENCY = BP x 100/MFC x CU %
5) MECHANICAL THERMAL EFFICIENCY = BP x 100/IP %
6) INDICATED THERMAL EFFICIENCY = IP x 100/MFC x CV %
7) NUMBER OF CYCLE (n) = N/2 , N= SPEED [ FOR FOUR STROKE]
16. FINAL RESLUT OF THE PERFORMANCE TEST FOR SIX CYLINDER DIESEL ENGINE :-
S.N0 Time for
10 cc
flow of
fuel
(sec)
Speed
(rpm)
Torque
(N-m)
Smoke
(FSN)
SFC
(kg/KW
sec)
BP
(KW)
IP
(KW)
η
mech
(%)
η
bth
(%)
η
ith
(%)
MFC
(Kg/sec)
1 6 2400 485.2 1.80 0.00007 121.95 291.84 37.56 30.47 72.32 0.0087
2 7 1600 531.6 0.98 0.00006 89.07 194.56 45.78 26.17 57.15 0.0074
3 8 1800 433.2 2.97 0.00062 59.53 195.92 37.56 18.23 48.8 0.0065
17. FINAL RESLUT OF THE PERFORMANCE TEST FOR FOUR CYLINDER DIESEL ENGINE :-
S.N0 Time for
10 cc
flow of
fuel
(sec)
Speed
(rpm)
Torque
(N-m)
Smoke
(FSN)
SFC
(kg/KW
sec)
BP
(KW)
IP
(KW)
η
mech
(%)
η
bth
(%)
η
ith
(%)
MFC
(Kg/sec)
1 12 2400 475.2 1.53 0.00068 119.4 188.4 95.2 89.5 73.2 0.0029
2 10 1600 535.5 0.91 0.00006 89.7 125.6 71.38 57.3 80.3 0.0034
3 14 1200 430.1 2.54 0.00061 54.04 99.2 57.34 48.9 85.3 0.0024
18. GRAPHICAL REPRESENTATION :-
BRAKE POWER vs SMOKE BRAKE POWER vs SFC BRAKE POWER vs η mech
0
0.5
1
1.5
2
2.5
3
3.5
0 50 100 150
0
0.0001
0.0002
0.0003
0.0004
0.0005
0.0006
0.0007
0 50 100 150
0
5
10
15
20
25
30
35
40
45
50
0 50 100 150
FOR FOUR STROKE SIX CYLINDER DIESEL ENGINE : -
19. GRAPHICAL REPRESENTATION :-
BRAKE POWER vs SMOKE BRAKE POWER vs SFC BRAKE POWER vs η mech
FOR FOUR STROKE FOUR CYLINDER DIESEL ENGINE : -
0
0.5
1
1.5
2
2.5
3
0 50 100 150
0
10
20
30
40
50
60
70
80
90
100
0 50 100 150
0
10
20
30
40
50
60
70
80
90
100
0 50 100 150
20. CONCLUSION :-
S.No SPEED (rpm) η mech for six cylinder engine η mech for six cylinder engine
1 2400 41.78 95.20
2 1600 45.78 71.38
3 1200 37.36 57.34
The conclusion drawn from the above study is that the mechanical efficiency of the four cylinder diesel engine is greater
than the mechanical efficiency of the six cylinder diesel engine. Therfore four cylinder diesel engine is preferred over six
cylinder engine in context to performance.
η mech η mech
(FOUR CYLINDER) > (SIX CYLINDER)
The above suggested ideas will be beneficial not only to the company but also to the country as fuel is saved.
Since smoke is controlled, pollution is reduced, thus lowering the amount of emissions that causes global warming.
The number of engines that are rolled out from the assembly in a particular day can be increased as the time taken for
an engine to roll out is reduced.
Costs associated with spill cut marking are greatly reduced. This leads to considerable savings for the company.
