1. TEAM JASMI
A SITE ANALYSIS ON
TAMAN TASIK TITIWANGSA

2. HISTORY
“ A CITY WITHIN A PARK ”

3. | 1800s – The lake contributed to the Tin Mining industry.
| 1970s – Lake was filled up and left unattended.
Sourced from: (CHELLIAH and ABDULLAH, 2016)

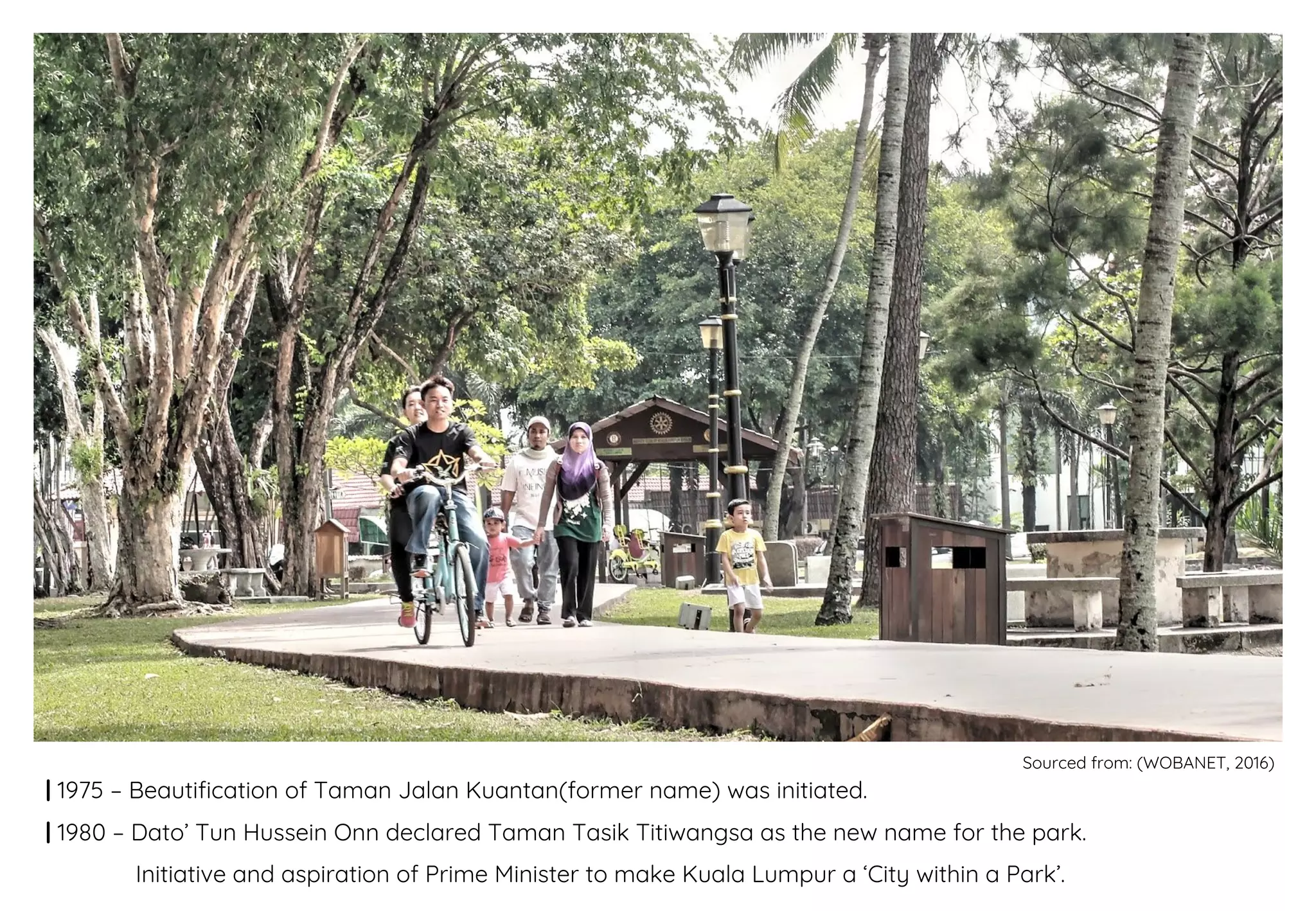

4. | 1975 – Beautification of Taman Jalan Kuantan(former name) was initiated.
| 1980 – Dato’ Tun Hussein Onn declared Taman Tasik Titiwangsa as the new name for the park.
Initiative and aspiration of Prime Minister to make Kuala Lumpur a ‘City within a Park’.
Sourced from: (WOBANET, 2016)

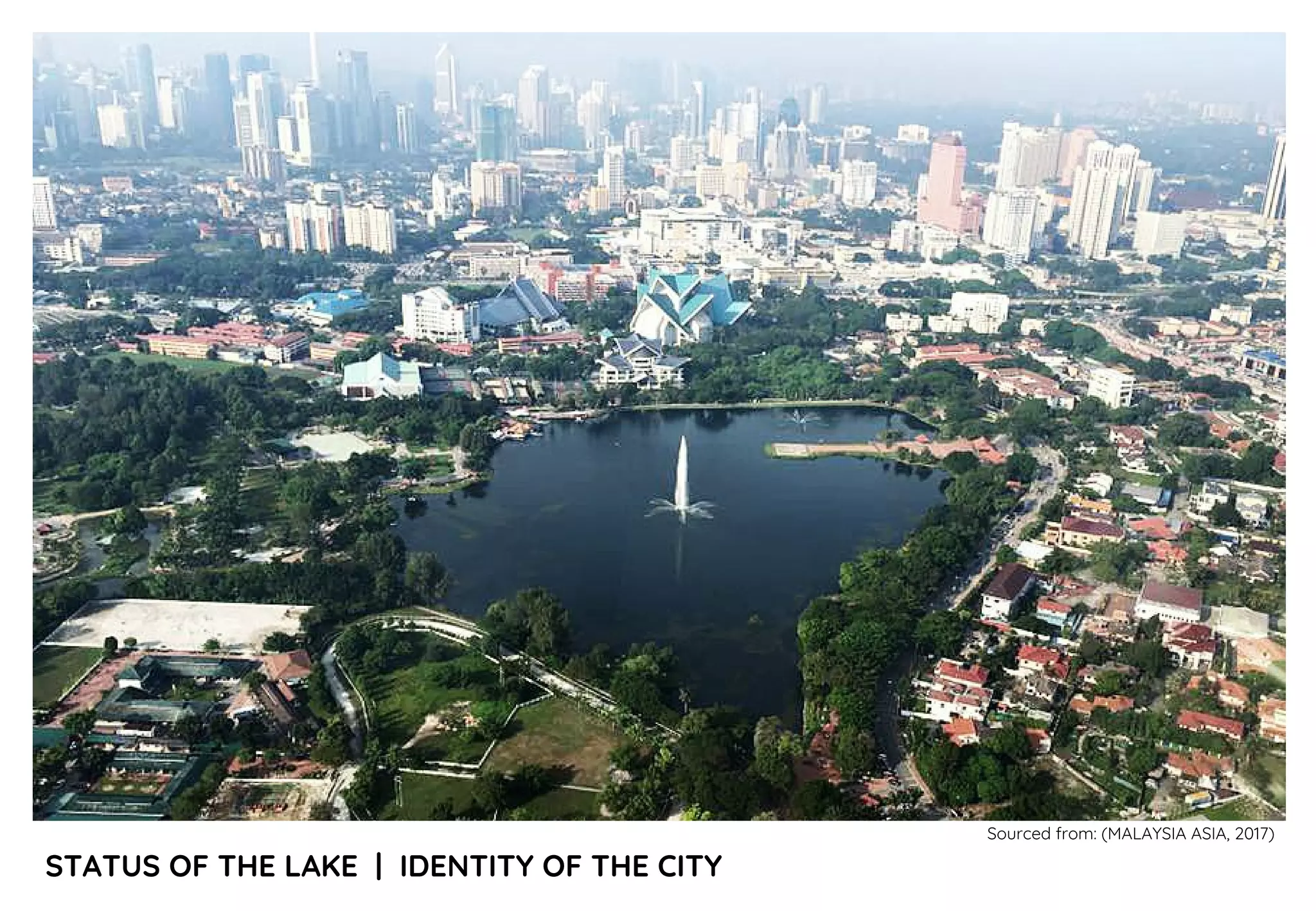

5. STATUS OF THE LAKE | IDENTITY OF THE CITY
Sourced from: (MALAYSIA ASIA, 2017)

6. “INDIVIDUALITY”
| The quality or character of a particular person/thing that distinguishes
them from others of the same kind, especially when strongly marked.

7. TMN TASIK TITIWANGSA
[ 1-2KM RADIUS FROM SITE ]

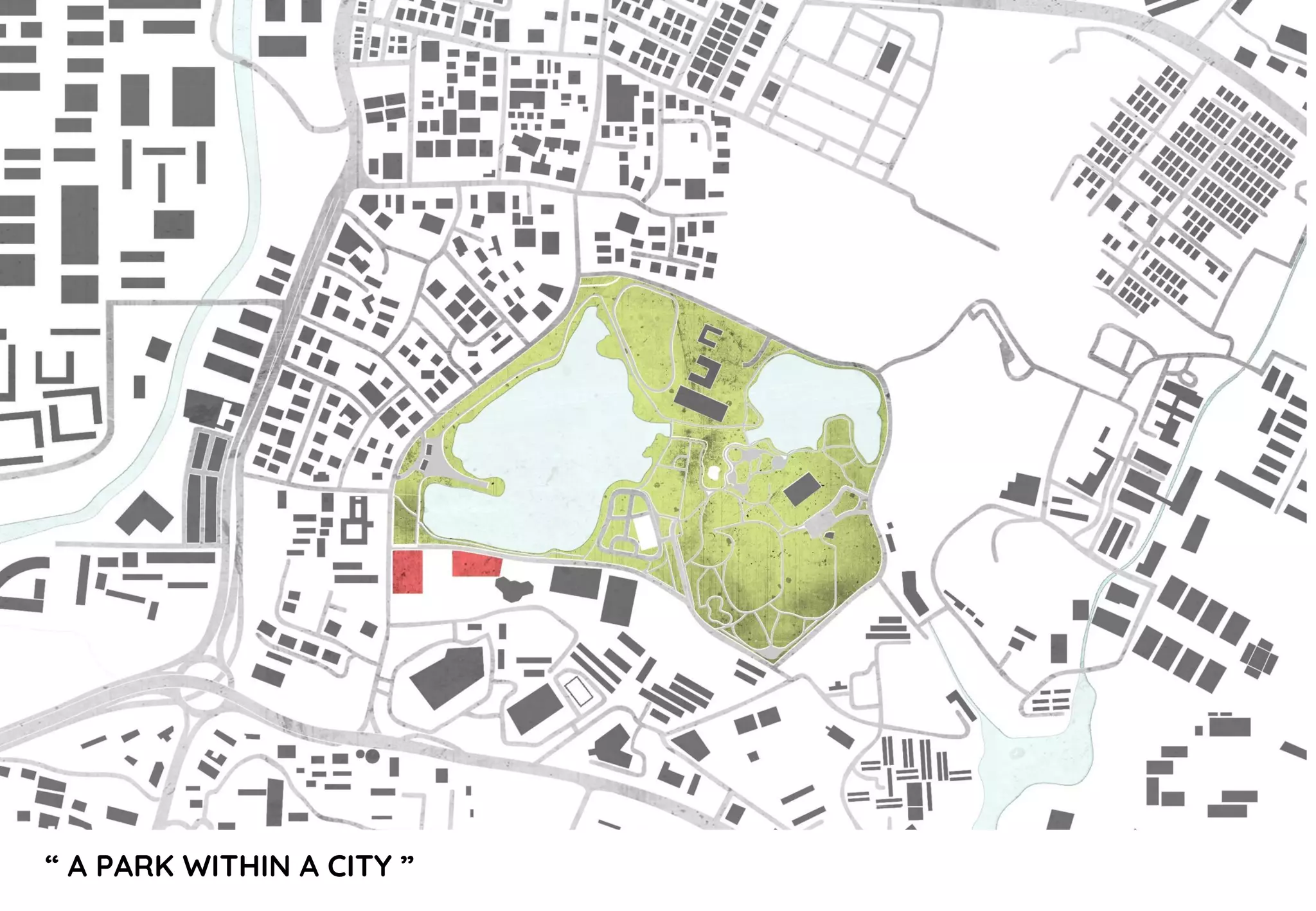

8. “ A PARK WITHIN A CITY ”

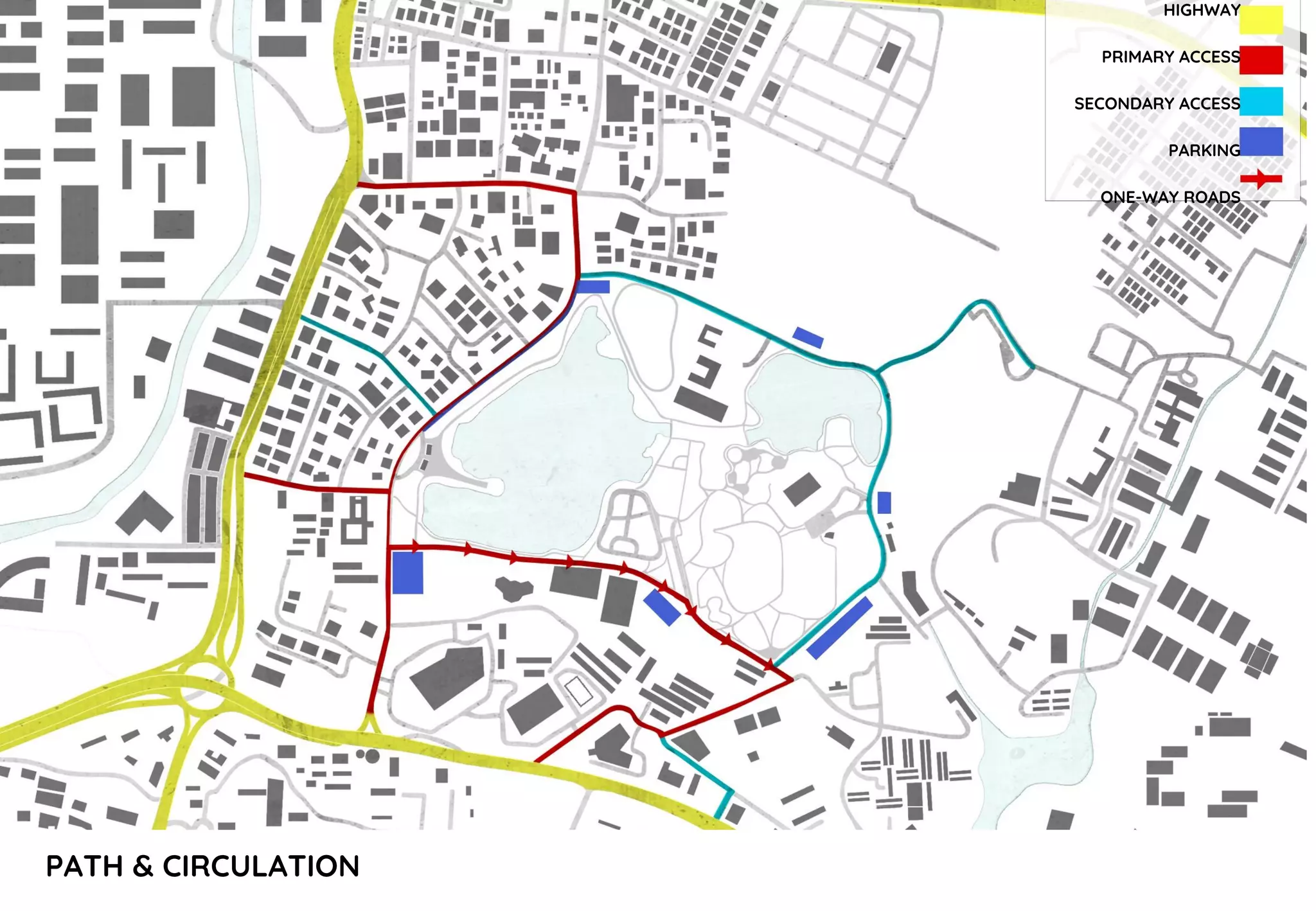

9. PATH & CIRCULATION
HIGHWAY
PRIMARY ACCESS
SECONDARY ACCESS
PARKING
ONE-WAY ROADS

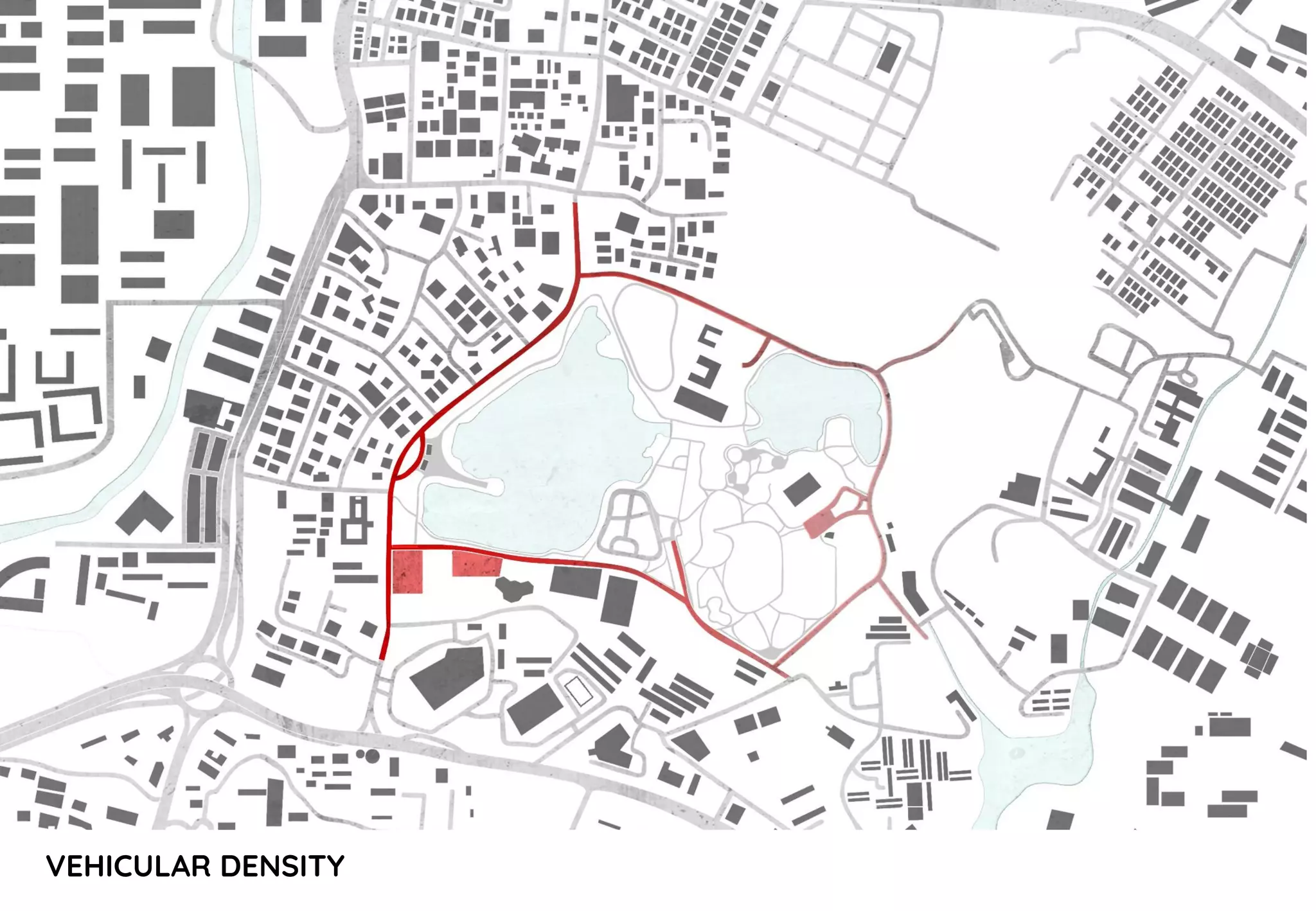

10. VEHICULAR DENSITY

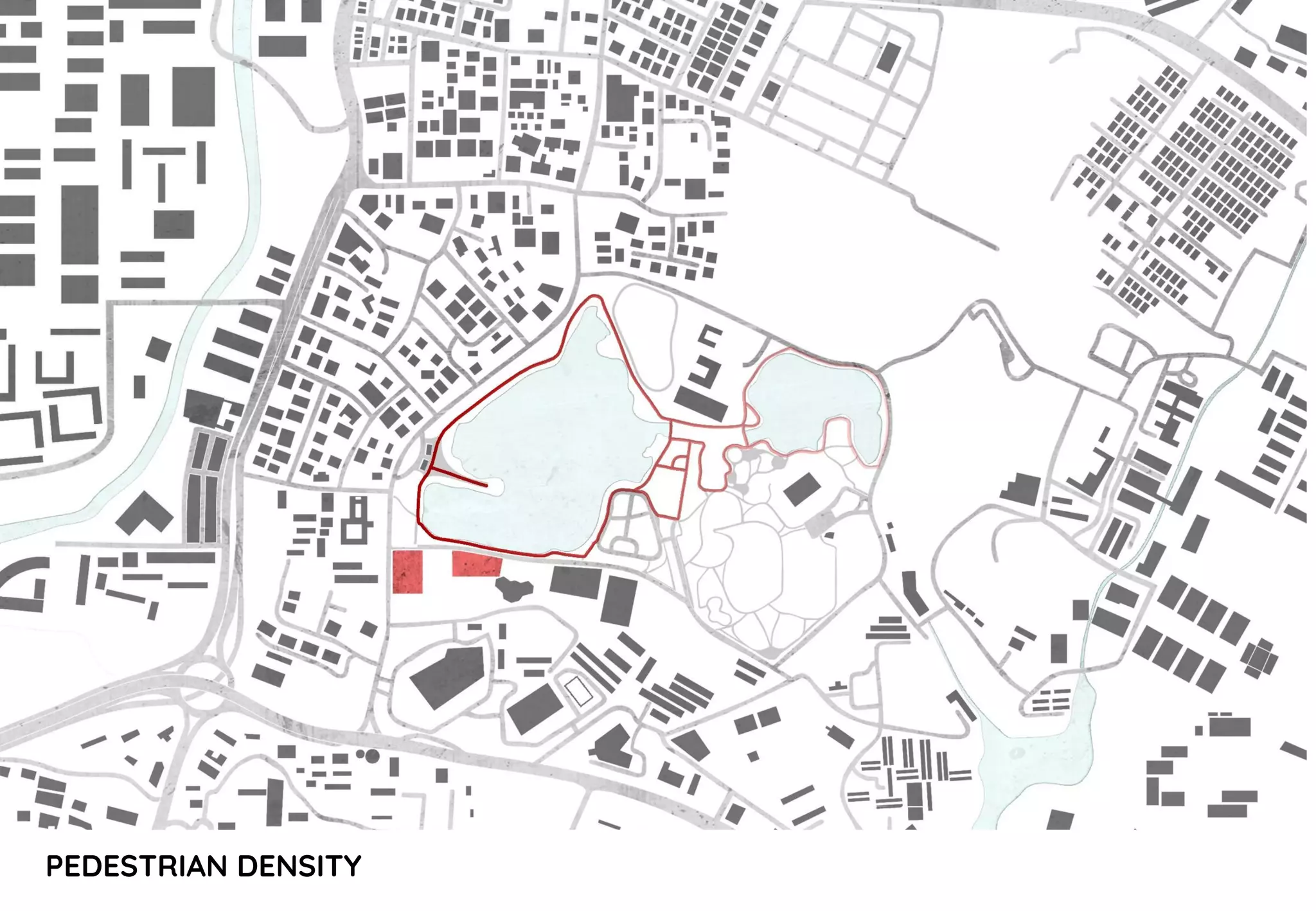

11. PEDESTRIAN DENSITY

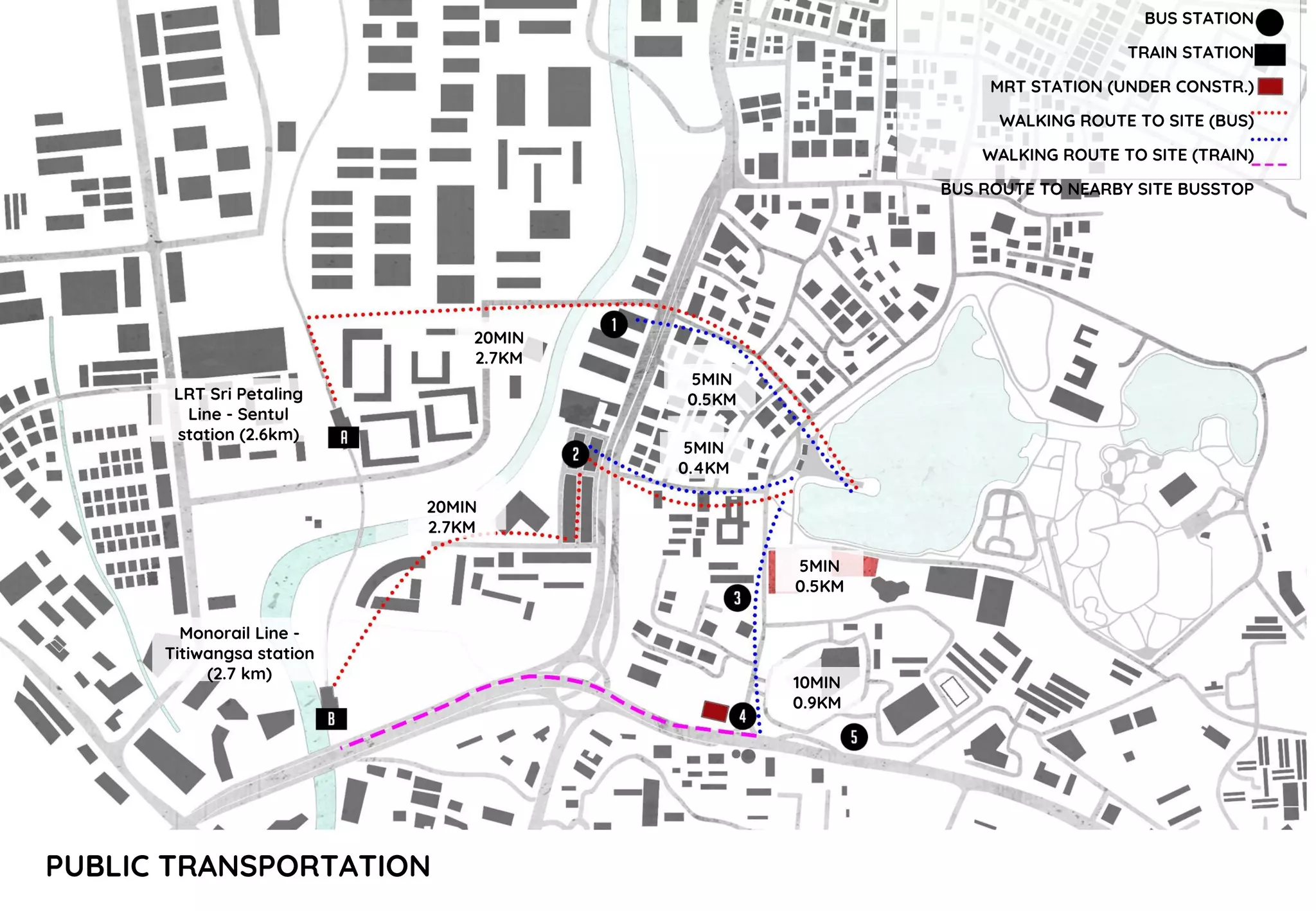

12. PUBLIC TRANSPORTATION
BUS STATION
TRAIN STATION
MRT STATION (UNDER CONSTR.)
WALKING ROUTE TO SITE (BUS)
WALKING ROUTE TO SITE (TRAIN)
BUS ROUTE TO NEARBY SITE BUSSTOP
20MIN
2.7KM
5MIN
0.5KM
5MIN
0.4KM
20MIN
2.7KM
5MIN
0.5KM
10MIN
0.9KM
LRT Sri Petaling
Line - Sentul
station (2.6km)
Monorail Line -
Titiwangsa station
(2.7 km)

13. INDIRECT ACCESS

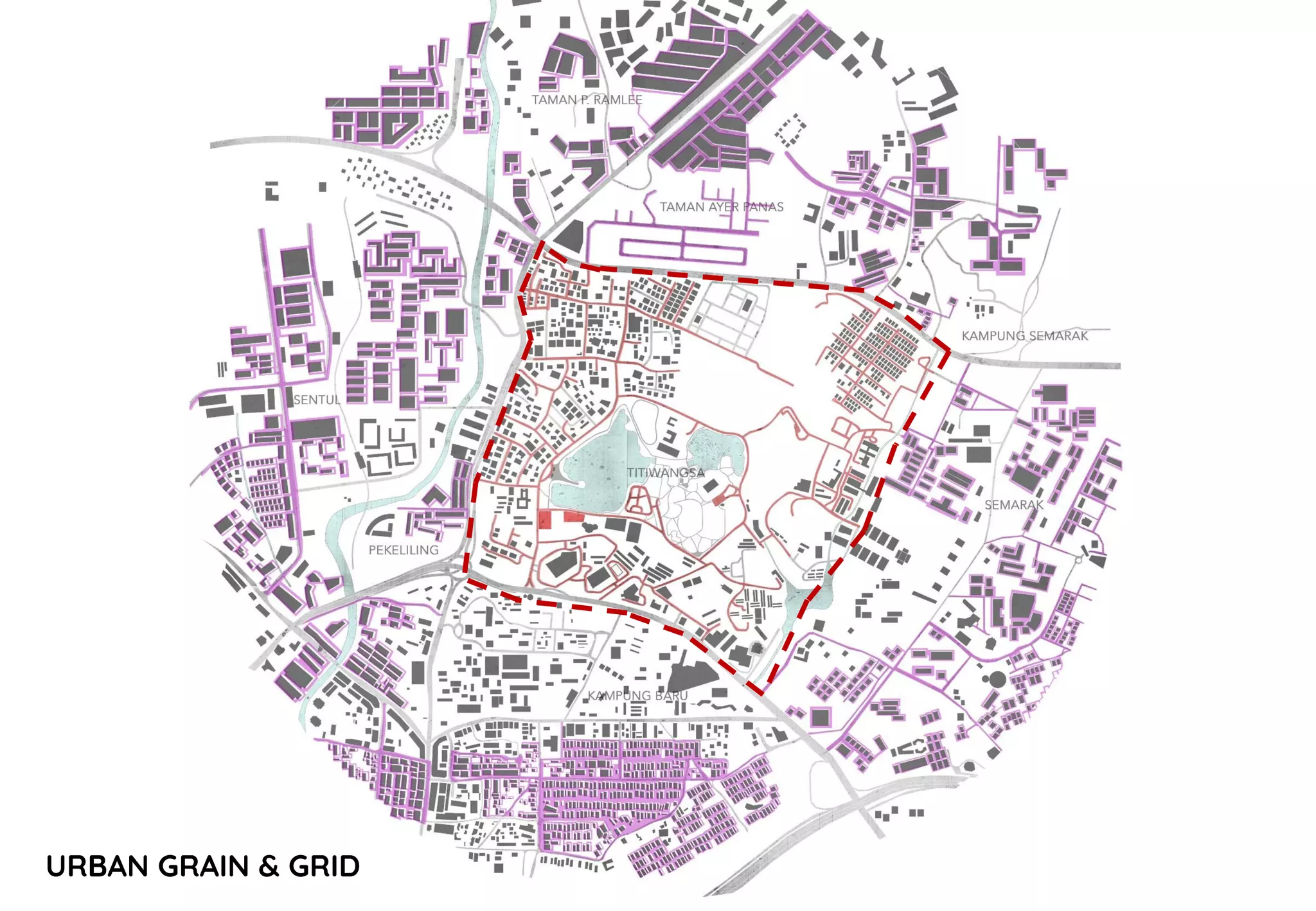

14. URBAN GRAIN & GRID

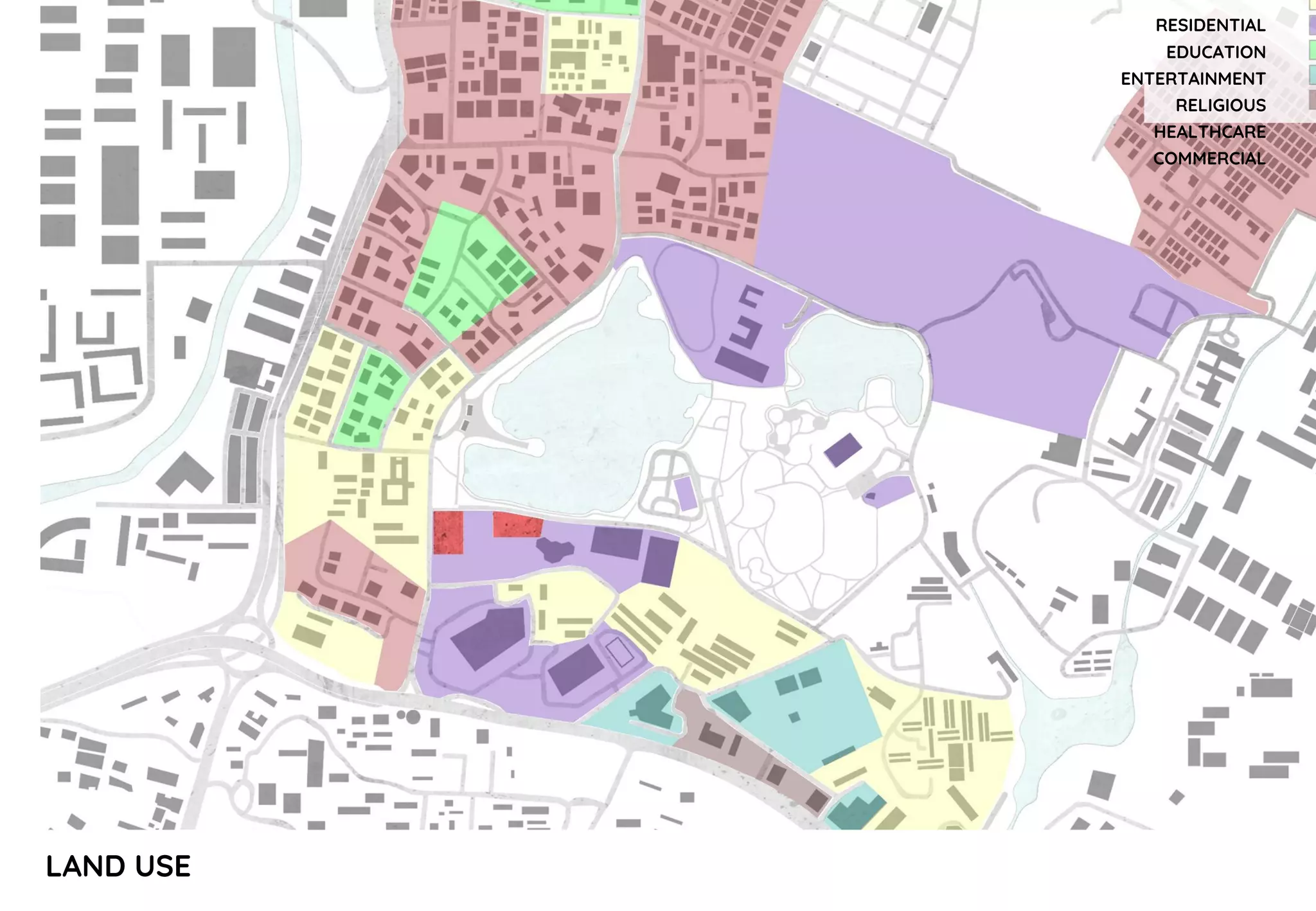

15. LAND USE
RESIDENTIAL
EDUCATION
ENTERTAINMENT
RELIGIOUS
HEALTHCARE
COMMERCIAL

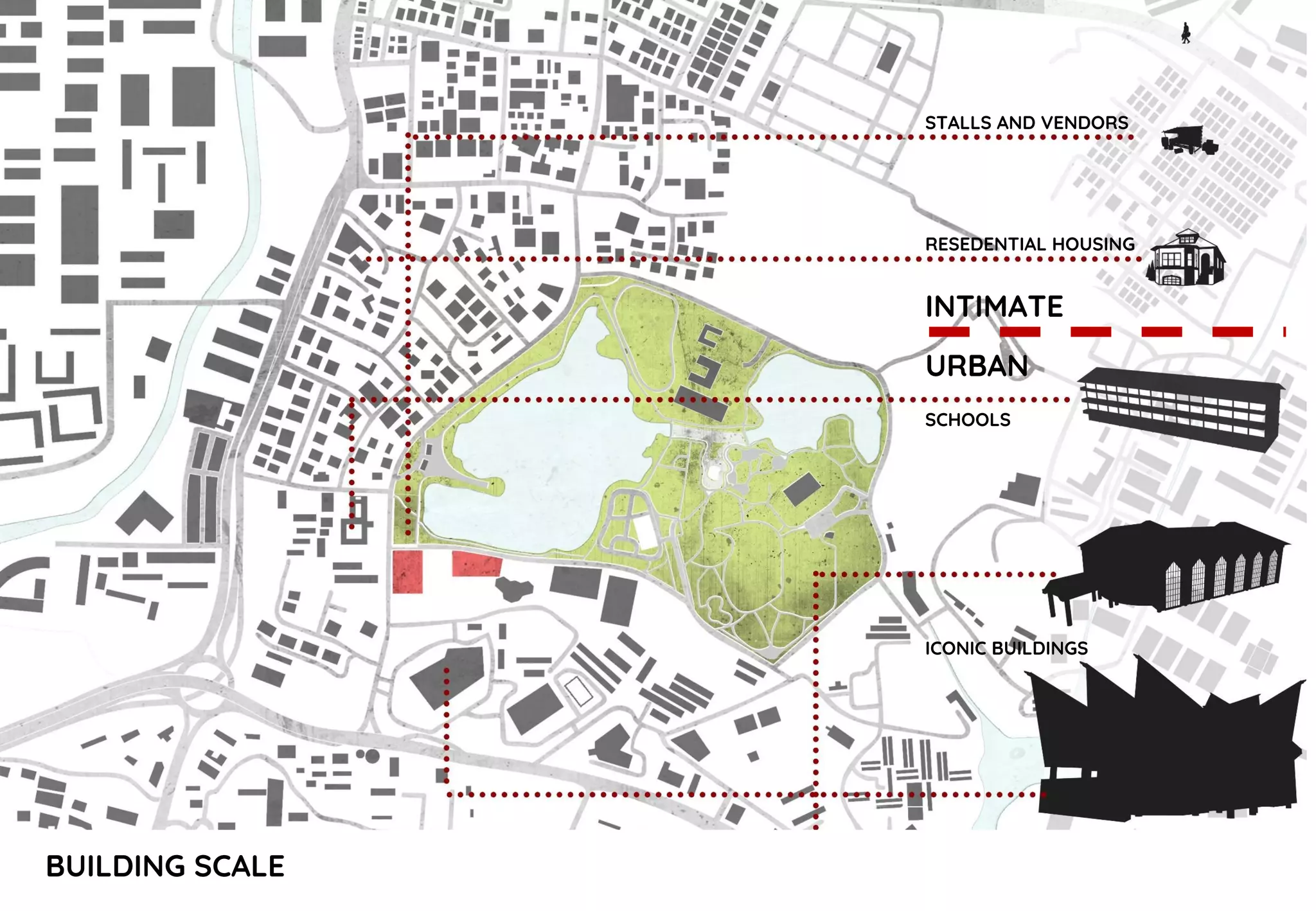

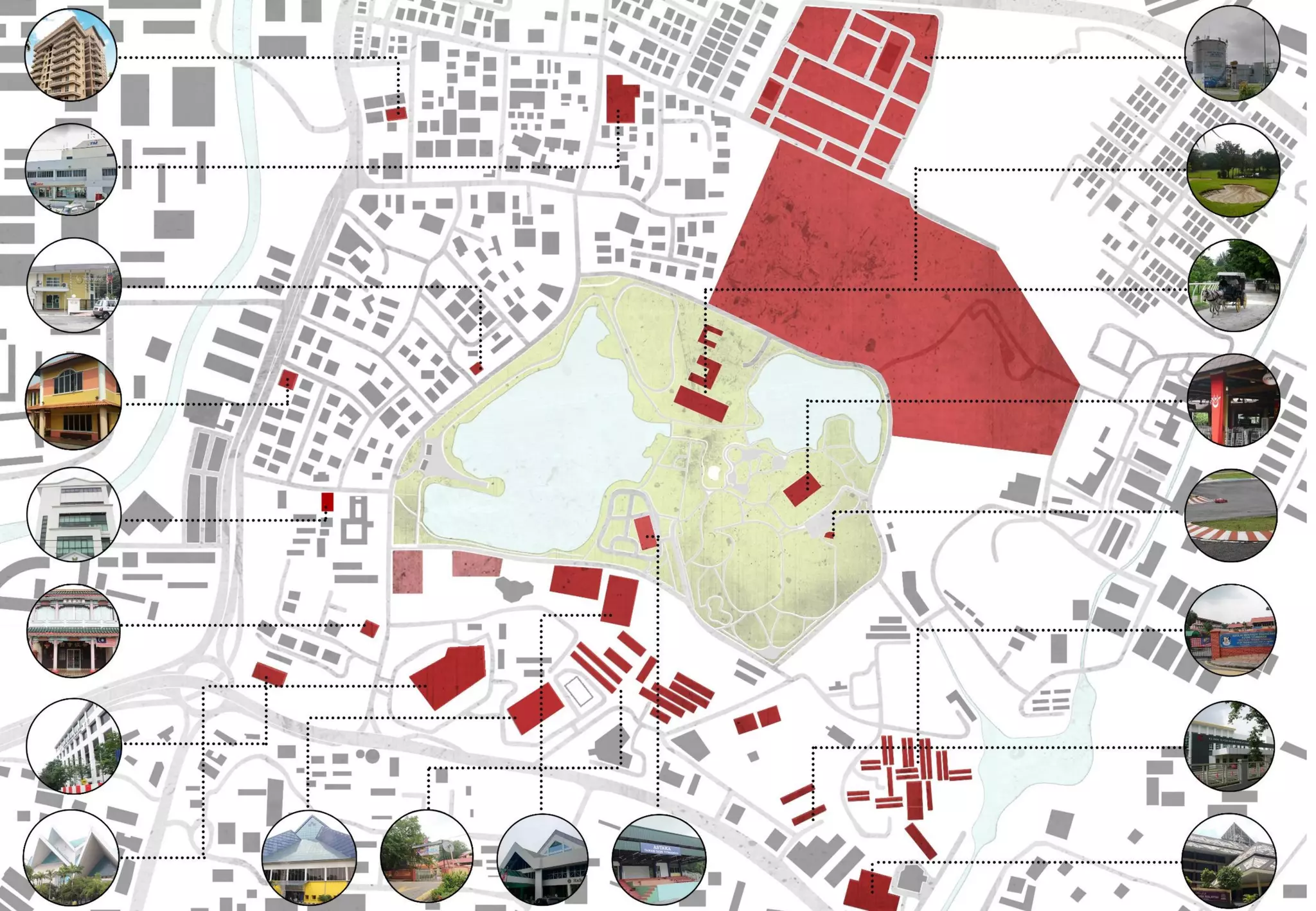

16. BUILDING SCALE
INTIMATE
URBAN
STALLS AND VENDORS
RESEDENTIAL HOUSING
SCHOOLS
ICONIC BUILDINGS

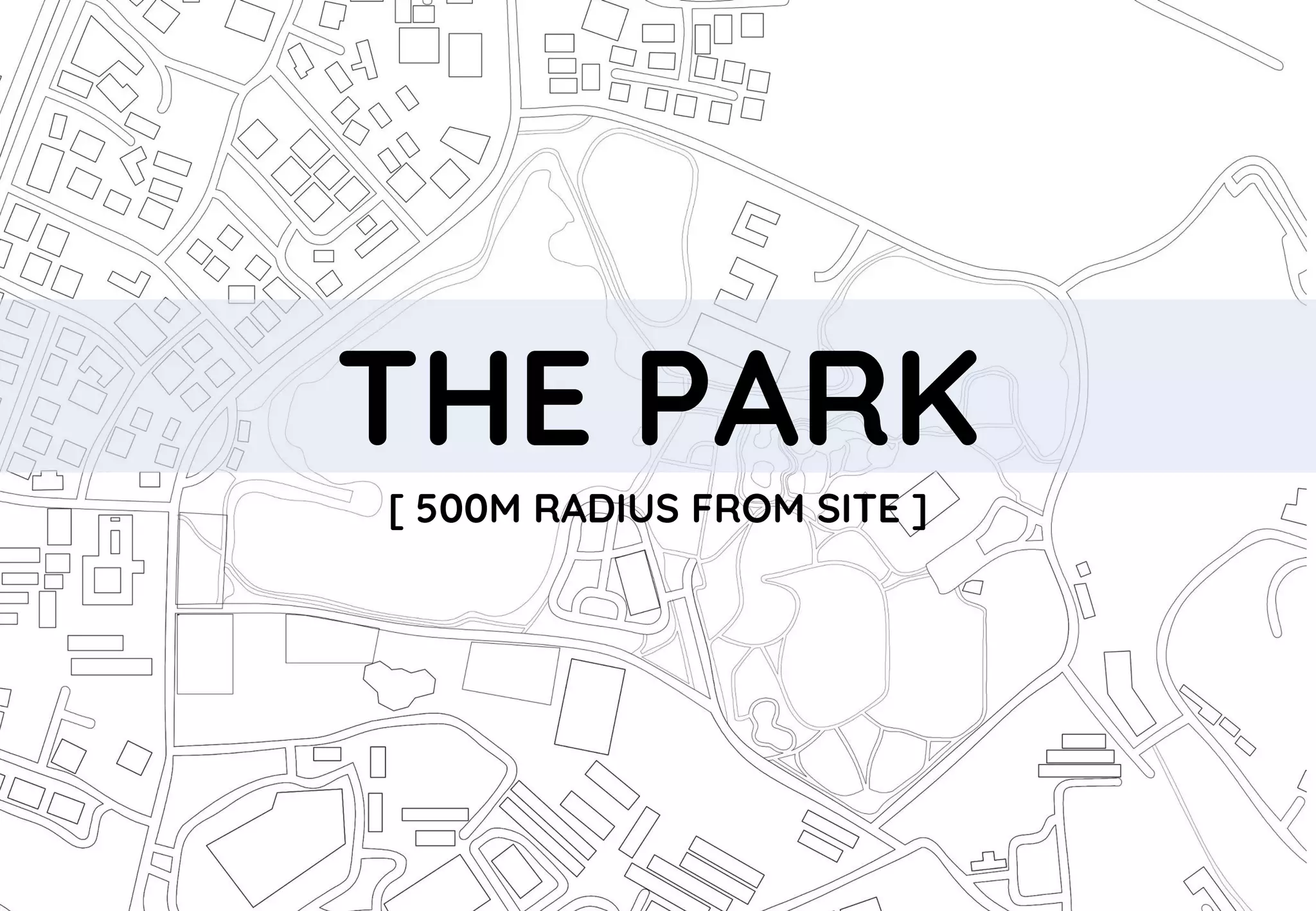

18. THE PARK
[ 500M RADIUS FROM SITE ]

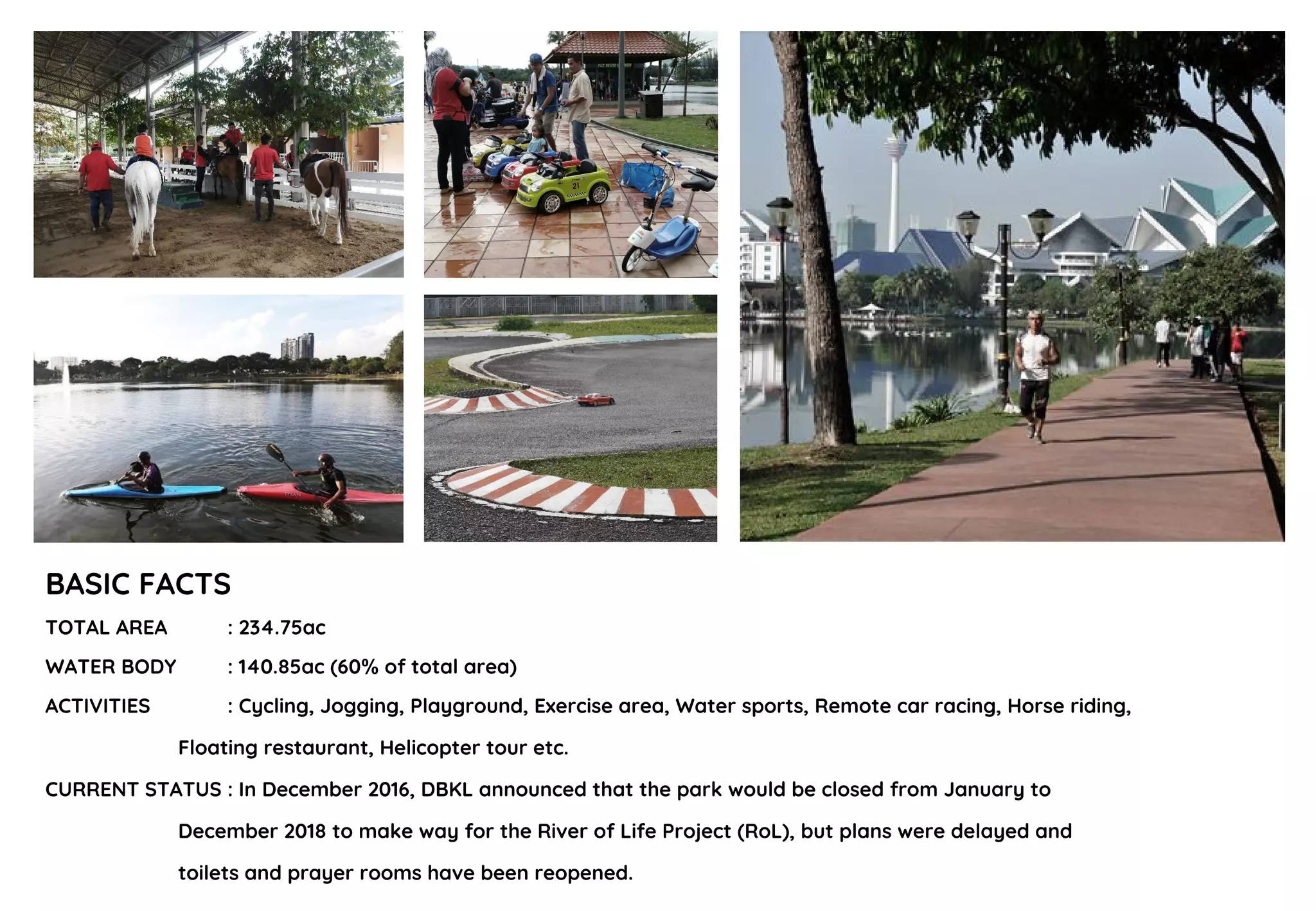

19. BASIC FACTS
TOTAL AREA : 234.75ac
WATER BODY : 140.85ac (60% of total area)
ACTIVITIES : Cycling, Jogging, Playground, Exercise area, Water sports, Remote car racing, Horse riding,
Floating restaurant, Helicopter tour etc.
CURRENT STATUS : In December 2016, DBKL announced that the park would be closed from January to
December 2018 to make way for the River of Life Project (RoL), but plans were delayed and
toilets and prayer rooms have been reopened.

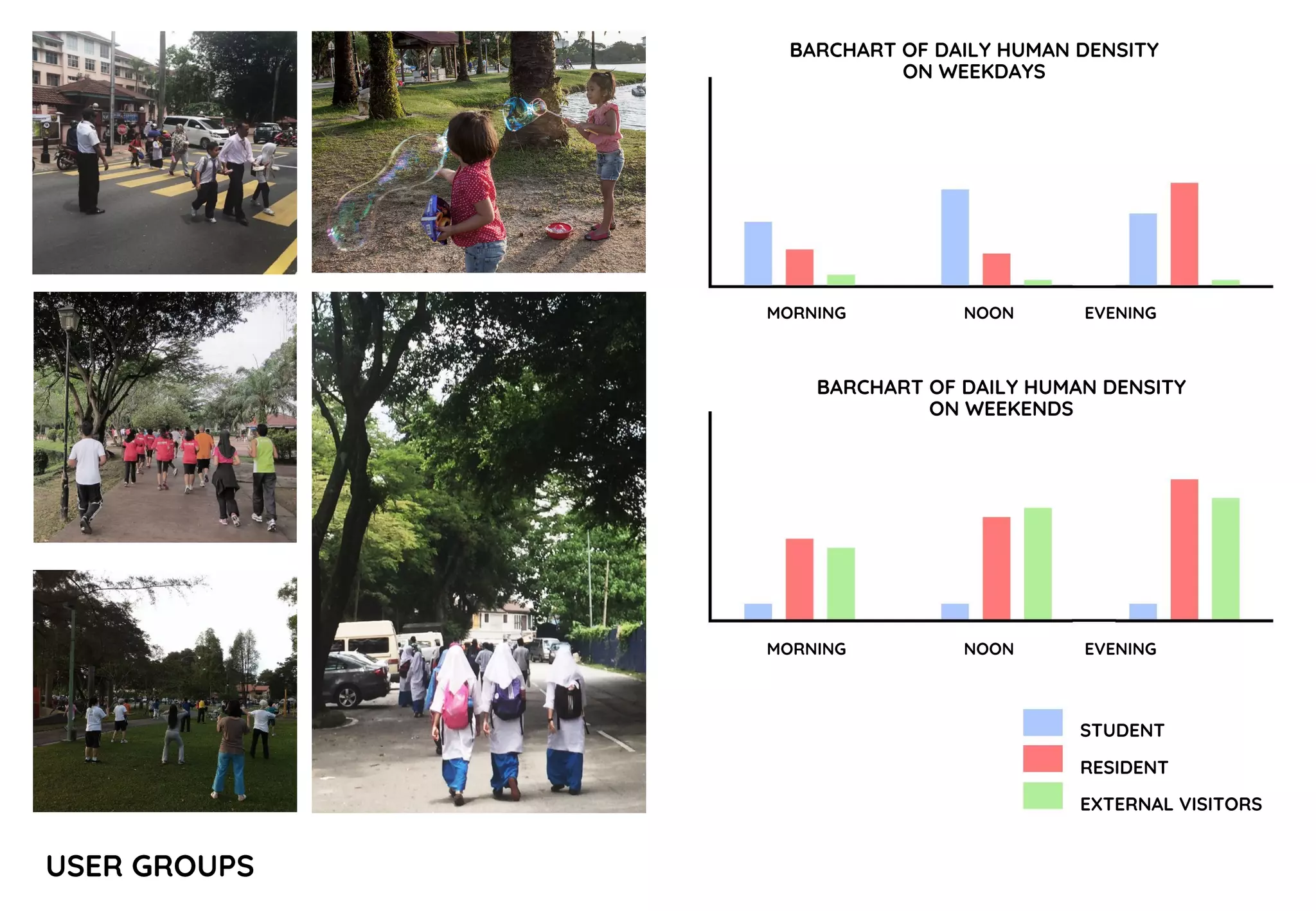

20. USER GROUPS
BARCHART OF DAILY HUMAN DENSITY
ON WEEKDAYS
STUDENT
RESIDENT
EXTERNAL VISITORS
BARCHART OF DAILY HUMAN DENSITY
ON WEEKENDS
MORNING NOON EVENING
MORNING NOON EVENING

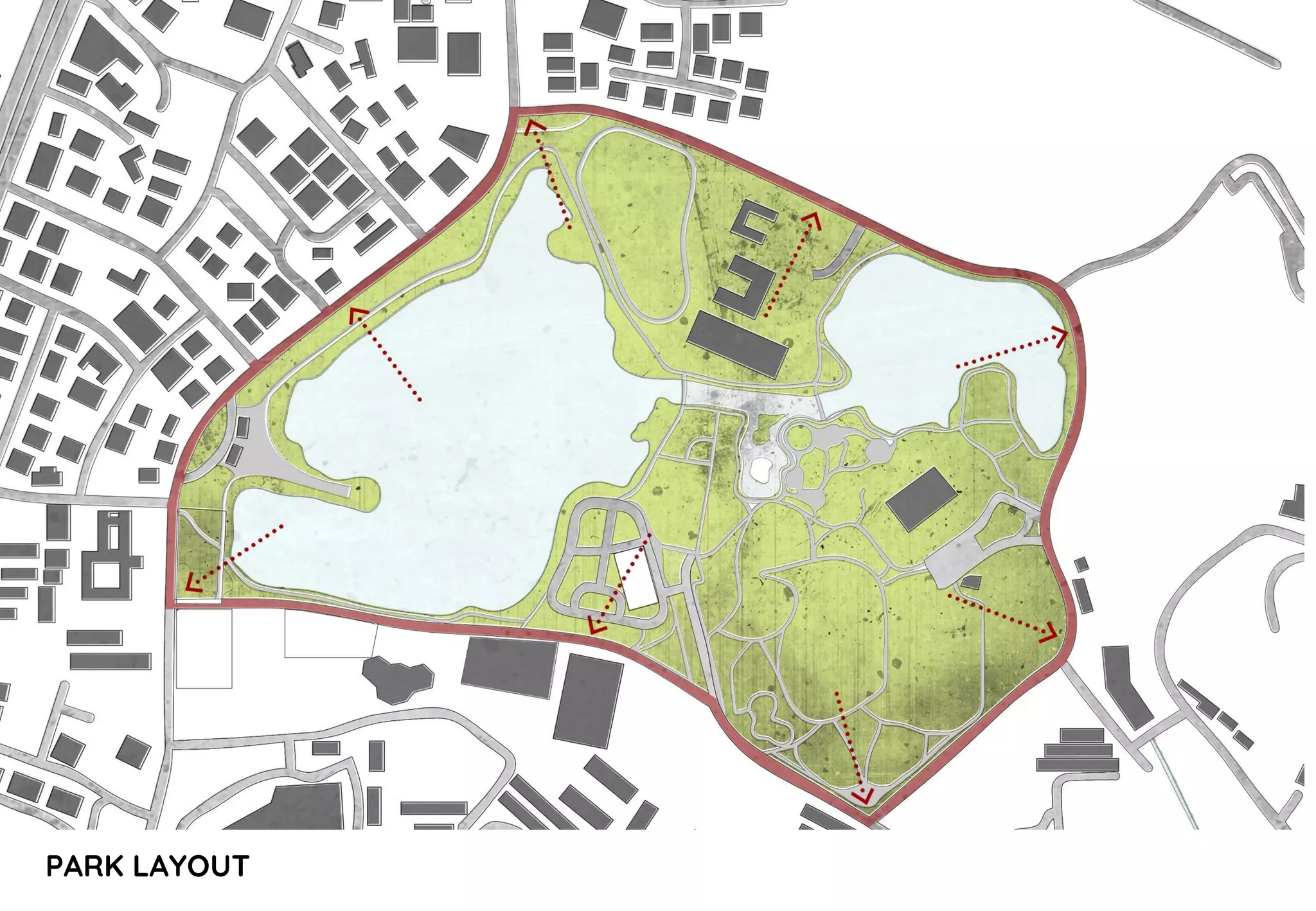

21. PARK LAYOUT

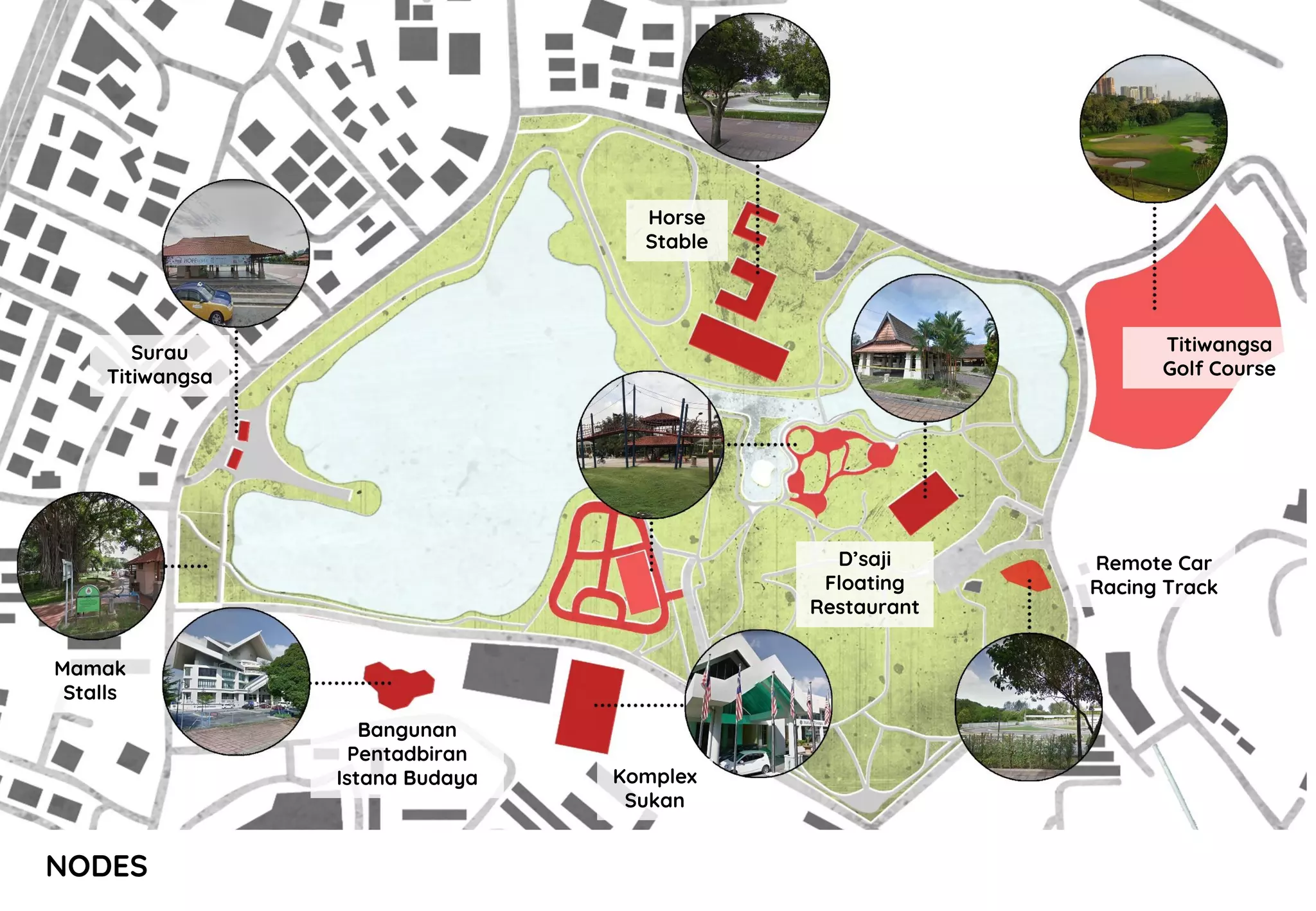

22. NODES
Surau
Titiwangsa
Mamak
Stalls
Bangunan
Pentadbiran
Istana Budaya Komplex
Sukan
Remote Car
Racing Track
Titiwangsa
Golf Course
Horse
Stable
D’saji
Floating
Restaurant

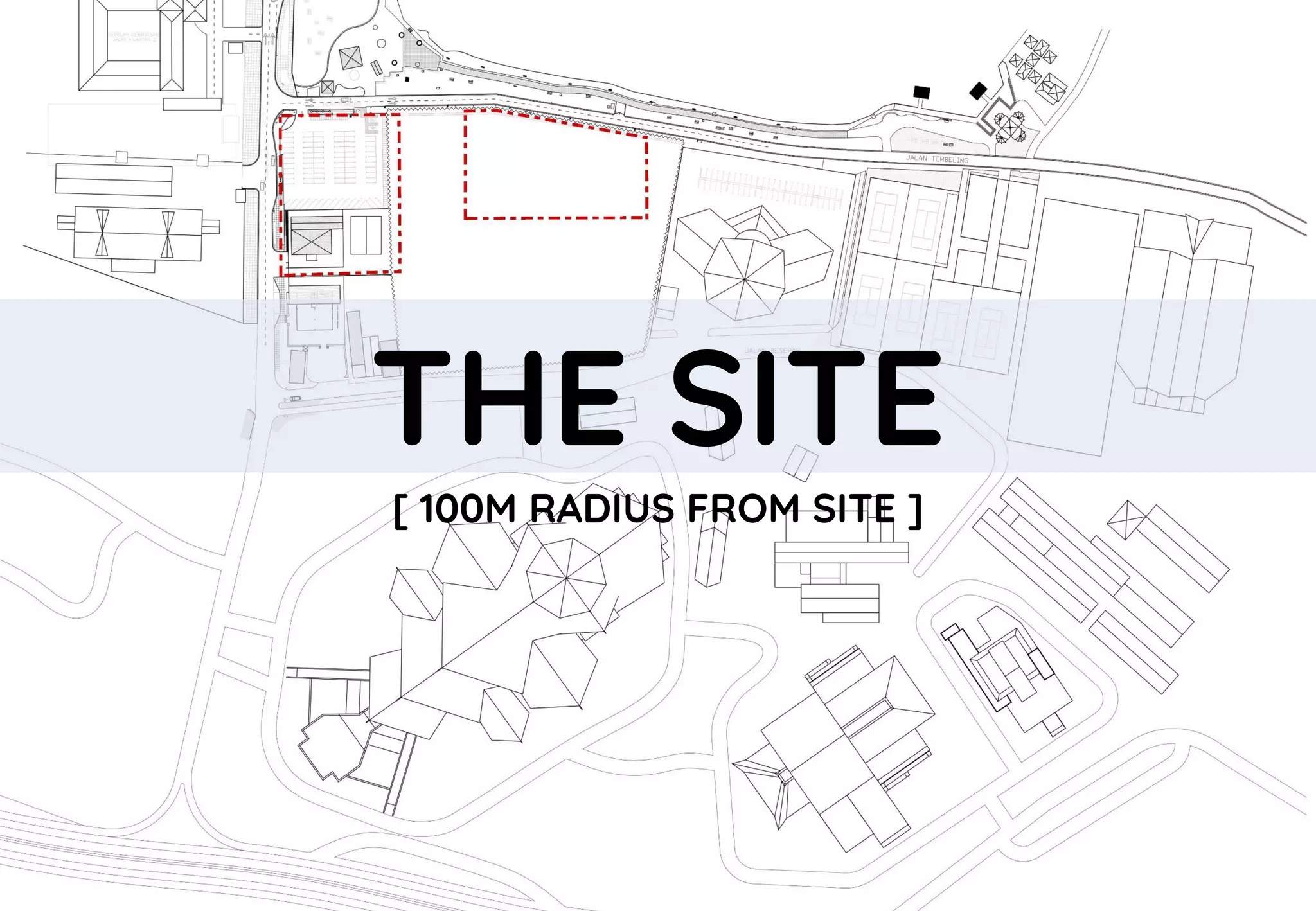

23. THE SITE
[ 100M RADIUS FROM SITE ]

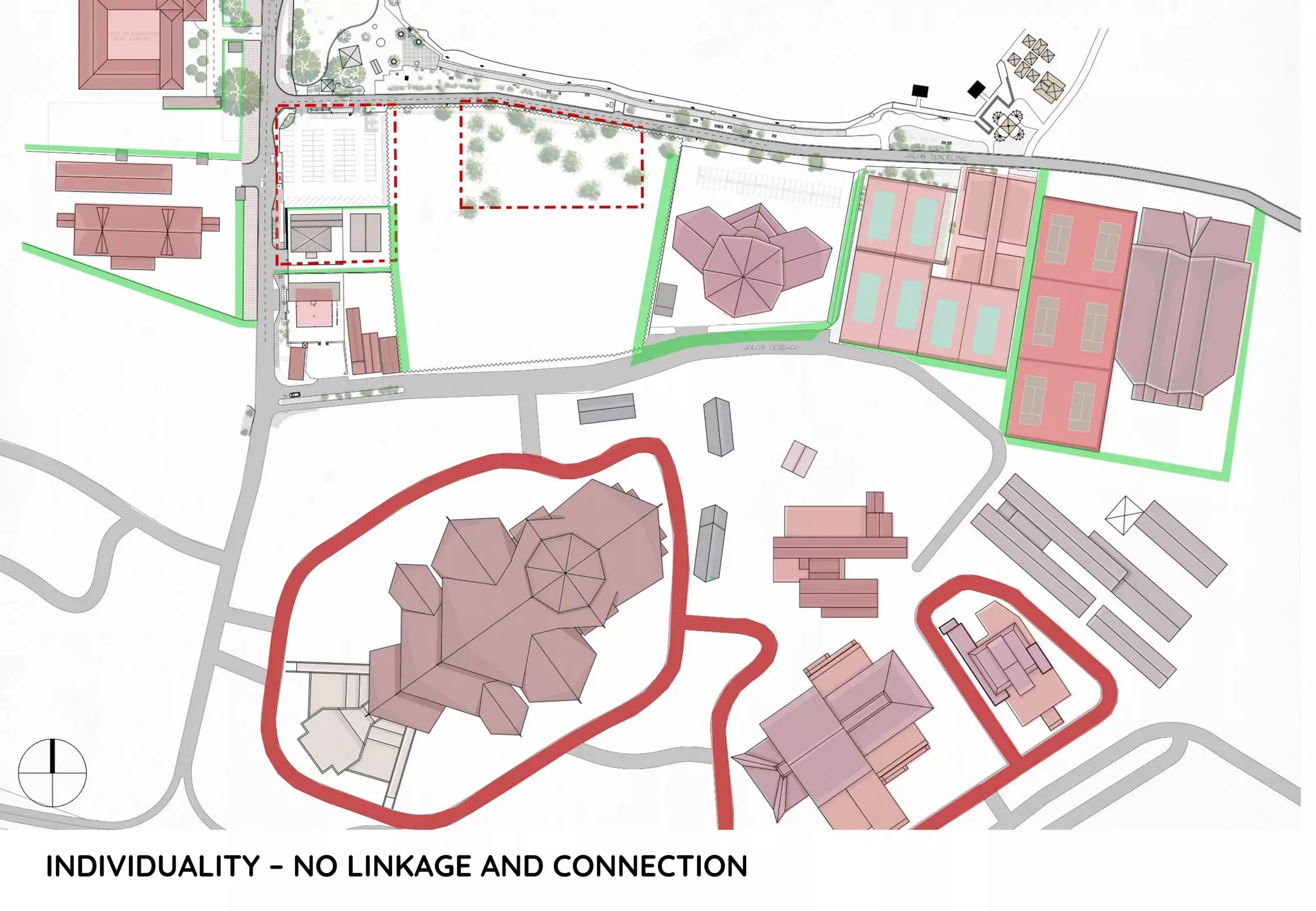

24. INDIVIDUALITY – NO LINKAGE AND CONNECTION

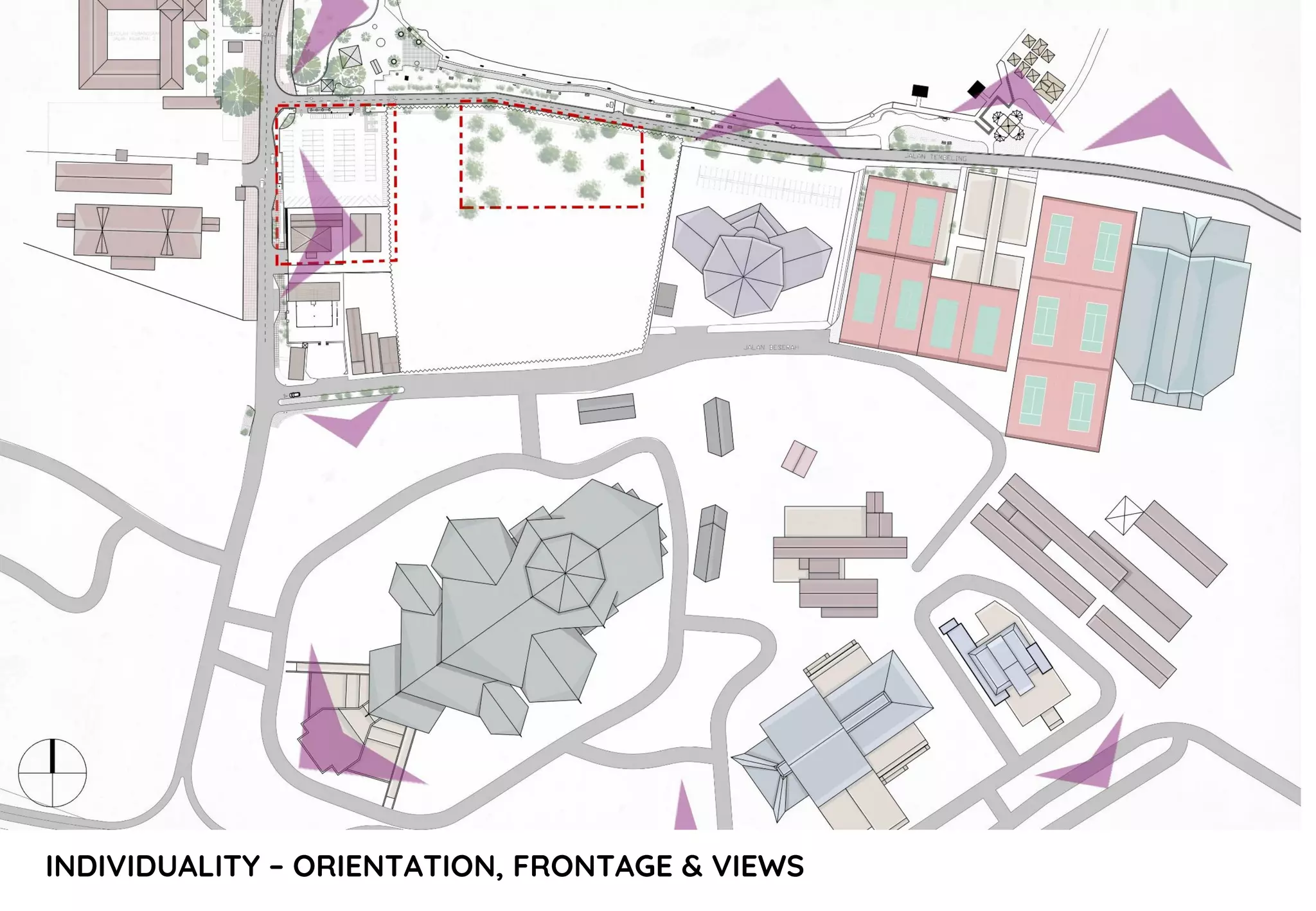

25. INDIVIDUALITY – ORIENTATION, FRONTAGE & VIEWS

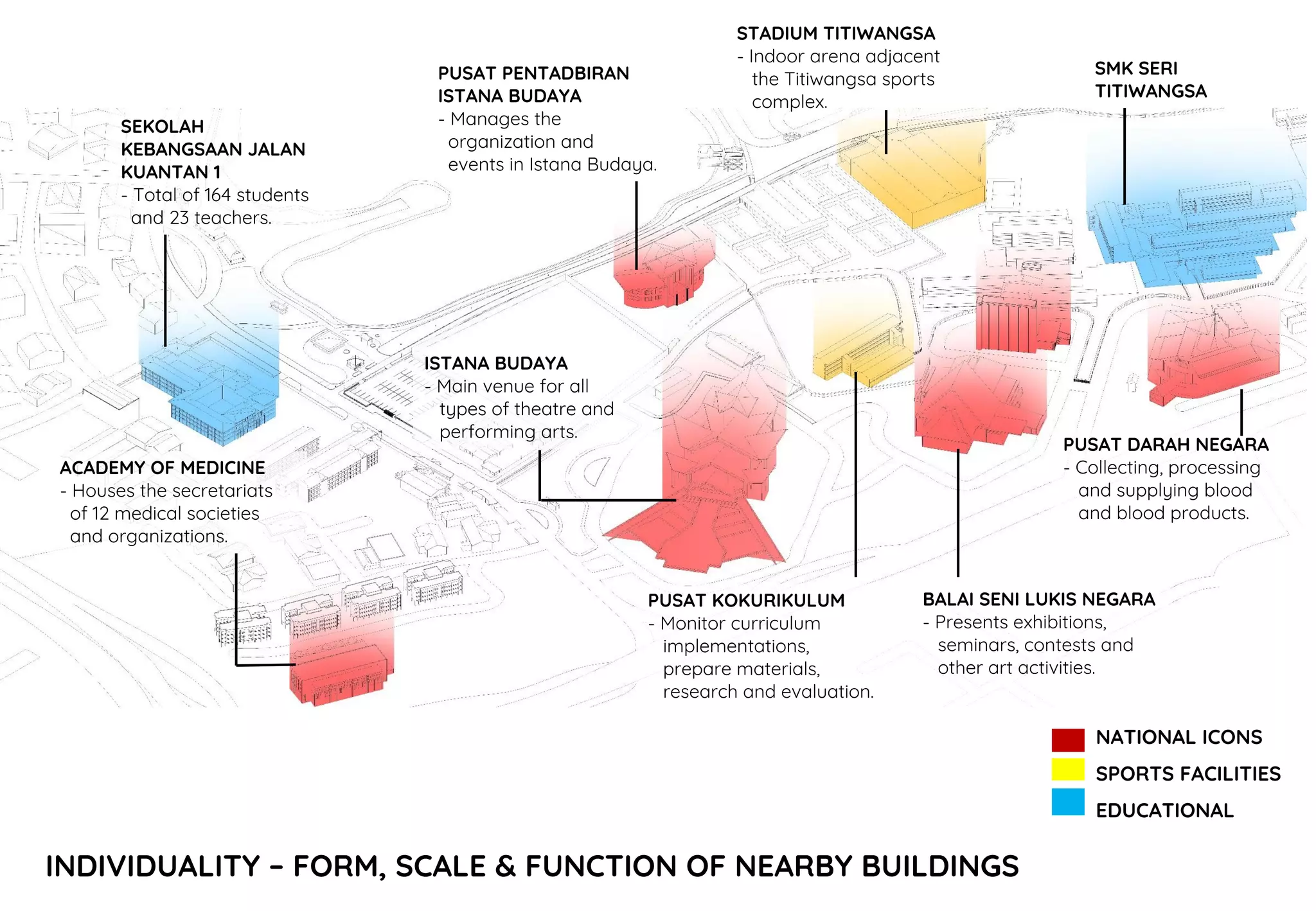

26. INDIVIDUALITY – FORM, SCALE & FUNCTION OF NEARBY BUILDINGS
SEKOLAH
KEBANGSAAN JALAN
KUANTAN 1
- Total of 164 students
and 23 teachers.
SMK SERI
TITIWANGSA
NATIONAL ICONS
SPORTS FACILITIES
EDUCATIONAL
PUSAT PENTADBIRAN
ISTANA BUDAYA
- Manages the
organization and
events in Istana Budaya.
ACADEMY OF MEDICINE
- Houses the secretariats
of 12 medical societies
and organizations.
ISTANA BUDAYA
- Main venue for all
types of theatre and
performing arts.
BALAI SENI LUKIS NEGARA
- Presents exhibitions,
seminars, contests and
other art activities.
PUSAT KOKURIKULUM
- Monitor curriculum
implementations,
prepare materials,
research and evaluation.
PUSAT DARAH NEGARA
- Collecting, processing
and supplying blood
and blood products.
STADIUM TITIWANGSA
- Indoor arena adjacent
the Titiwangsa sports
complex.

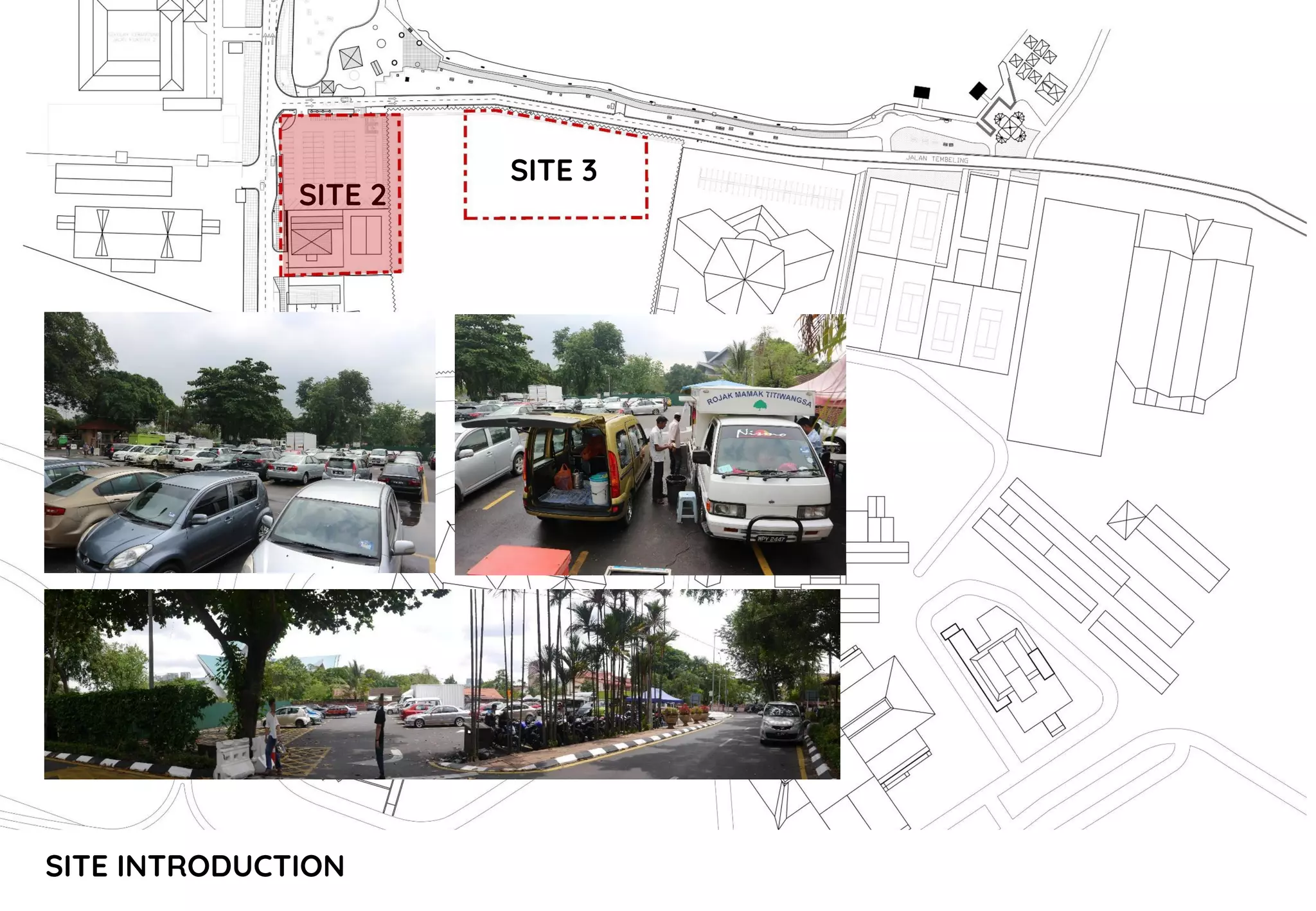

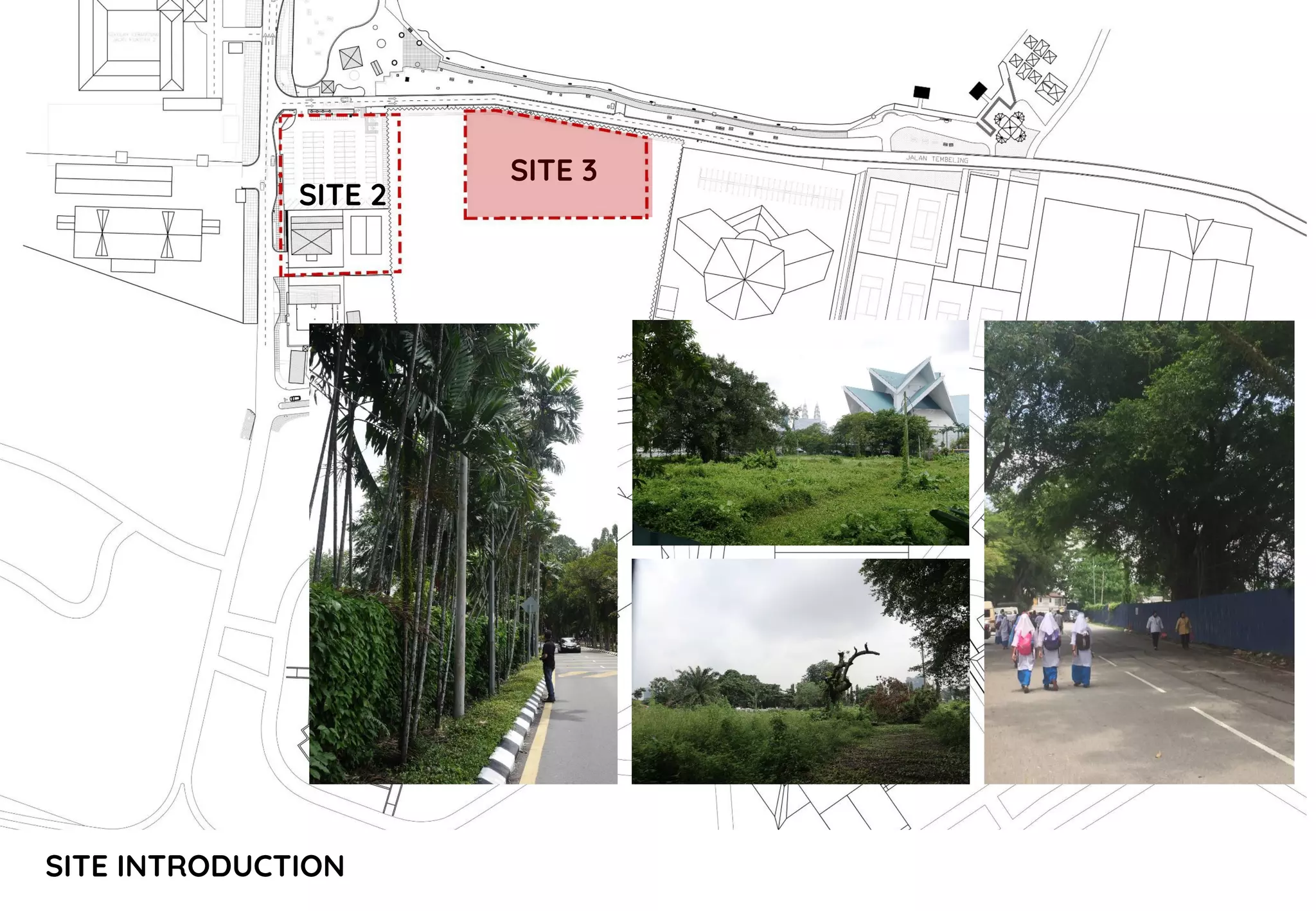

27. SITE INTRODUCTION
SITE 2
SITE 3

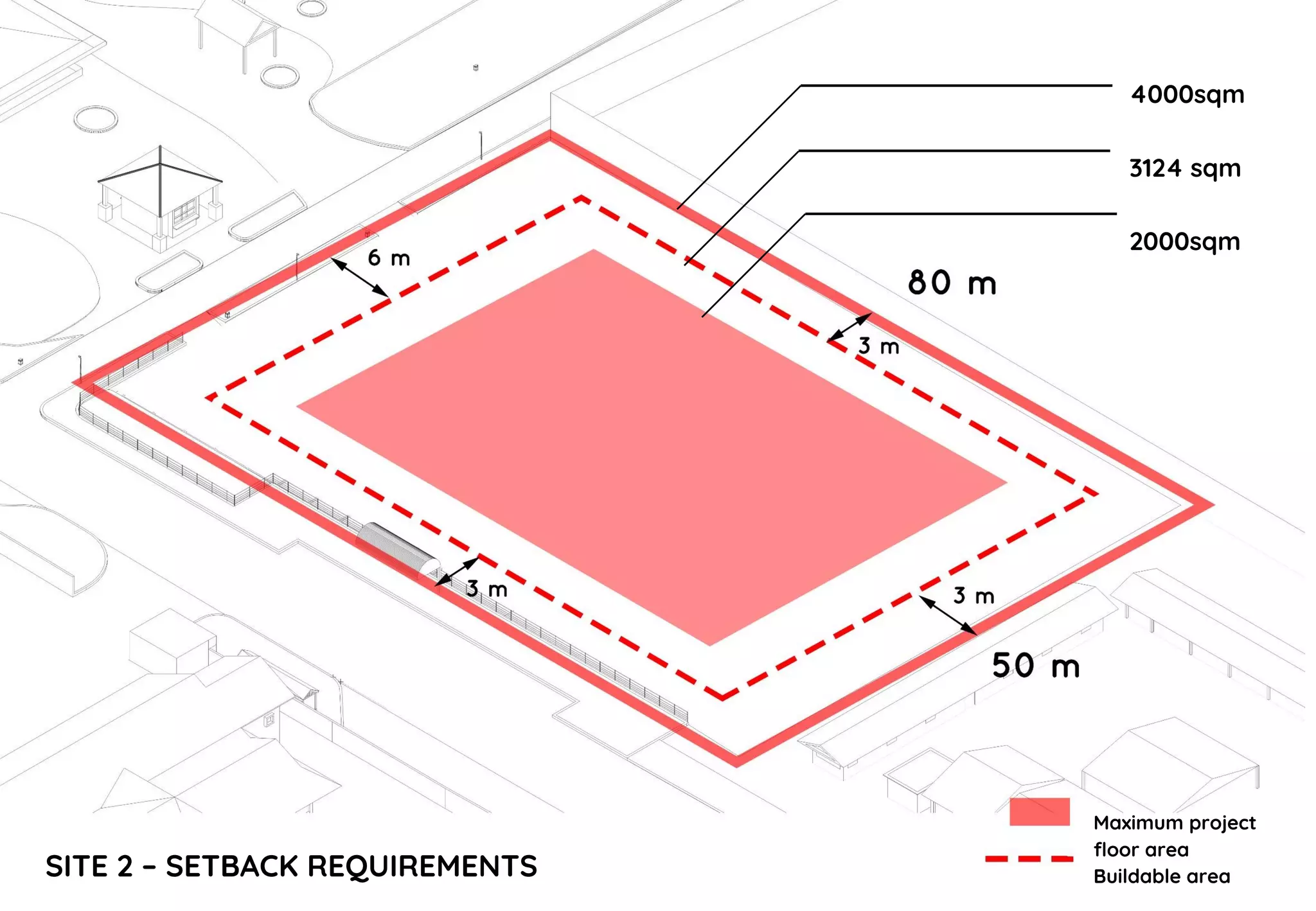

28. SITE 2 – SETBACK REQUIREMENTS
Maximum project
floor area
Buildable area
4000sqm
3124 sqm
2000sqm

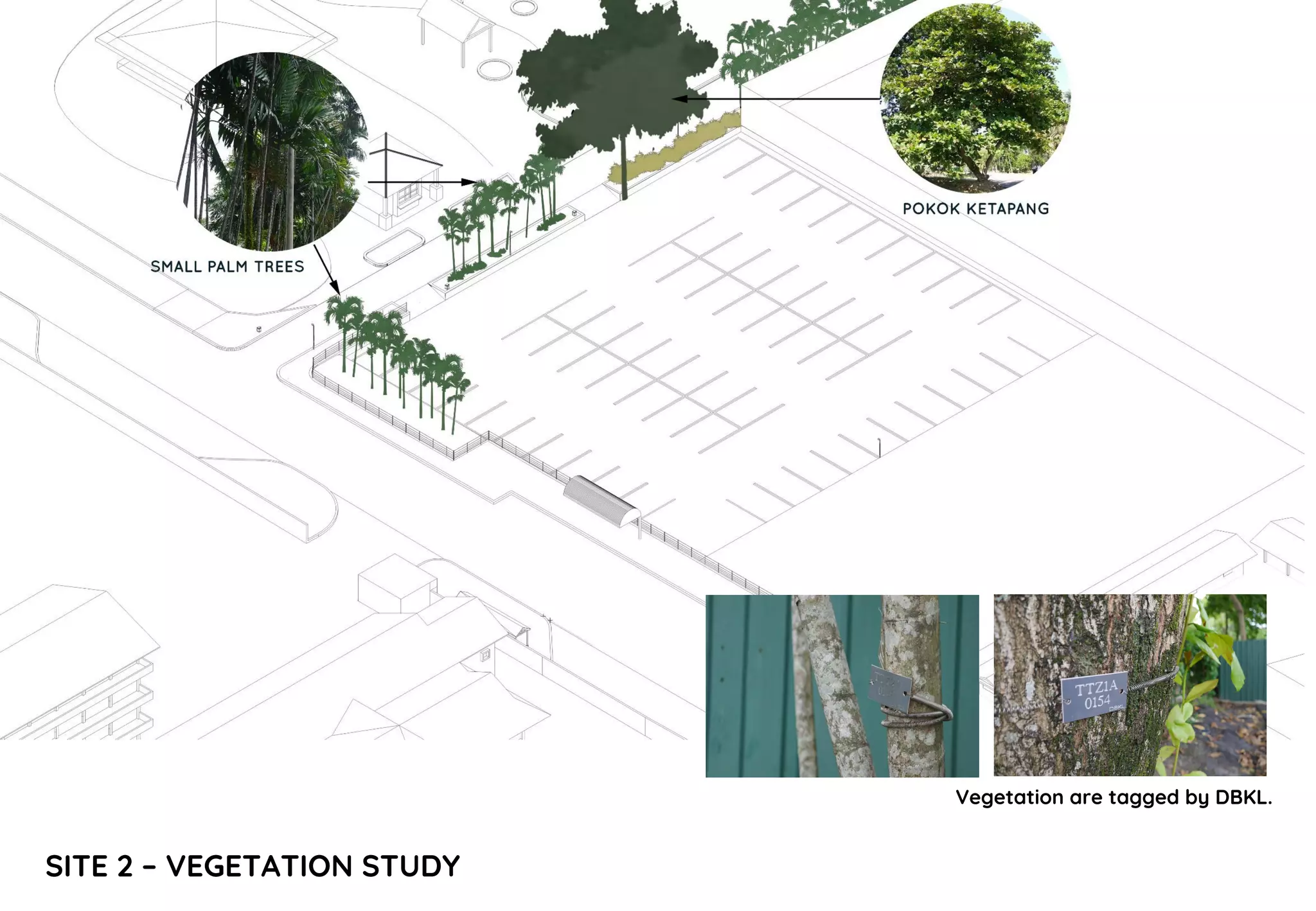

29. SITE 2 – VEGETATION STUDY
Vegetation are tagged by DBKL.

30. SITE INTRODUCTION
SITE 2
SITE 3

31. SITE 3 – SETBACK REQUIREMENTS
4000sqm
3124 sqm
2000sqm
Maximum project
floor area
Buildable area

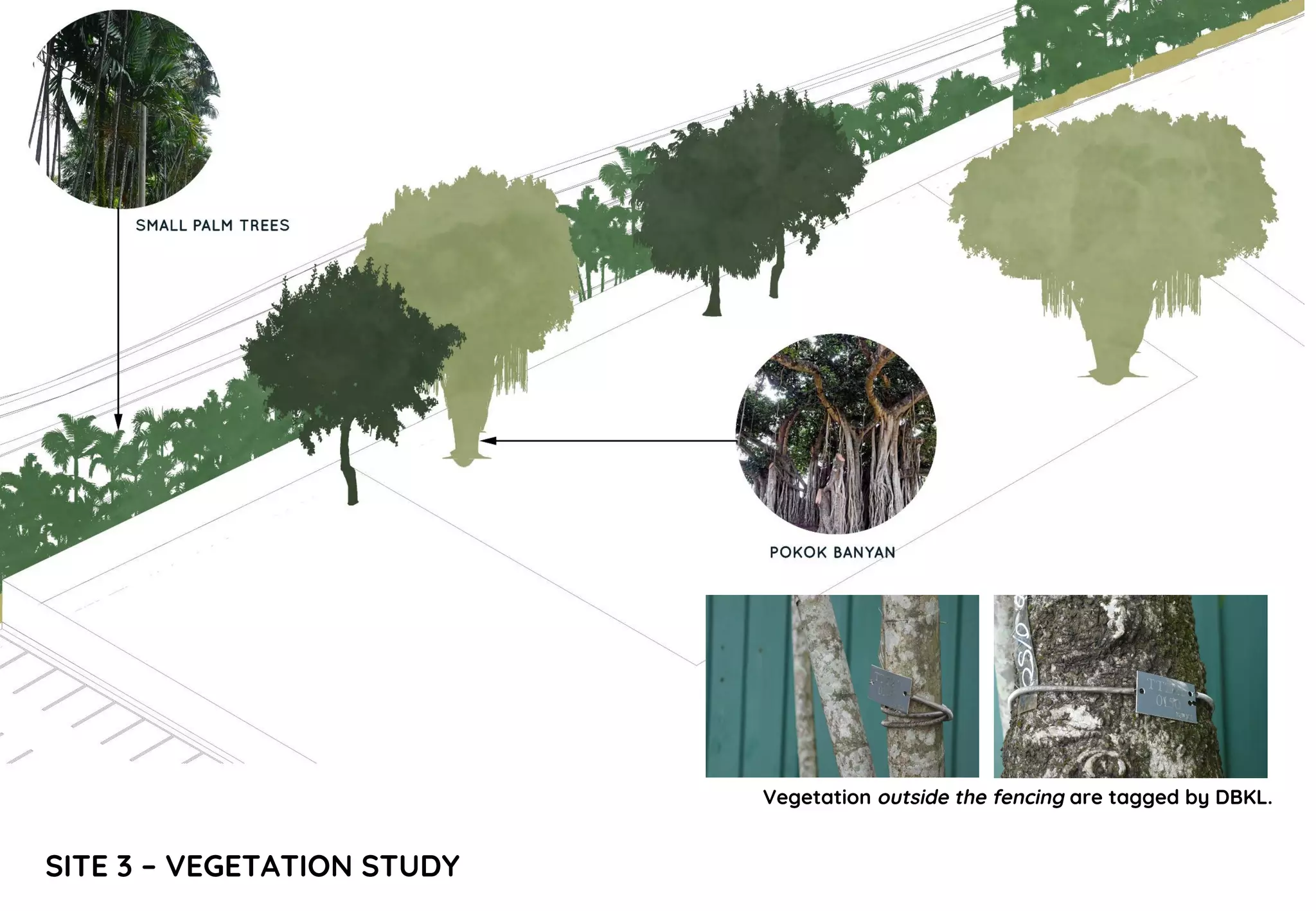

32. SITE 3 – VEGETATION STUDY
Vegetation outside the fencing are tagged by DBKL.

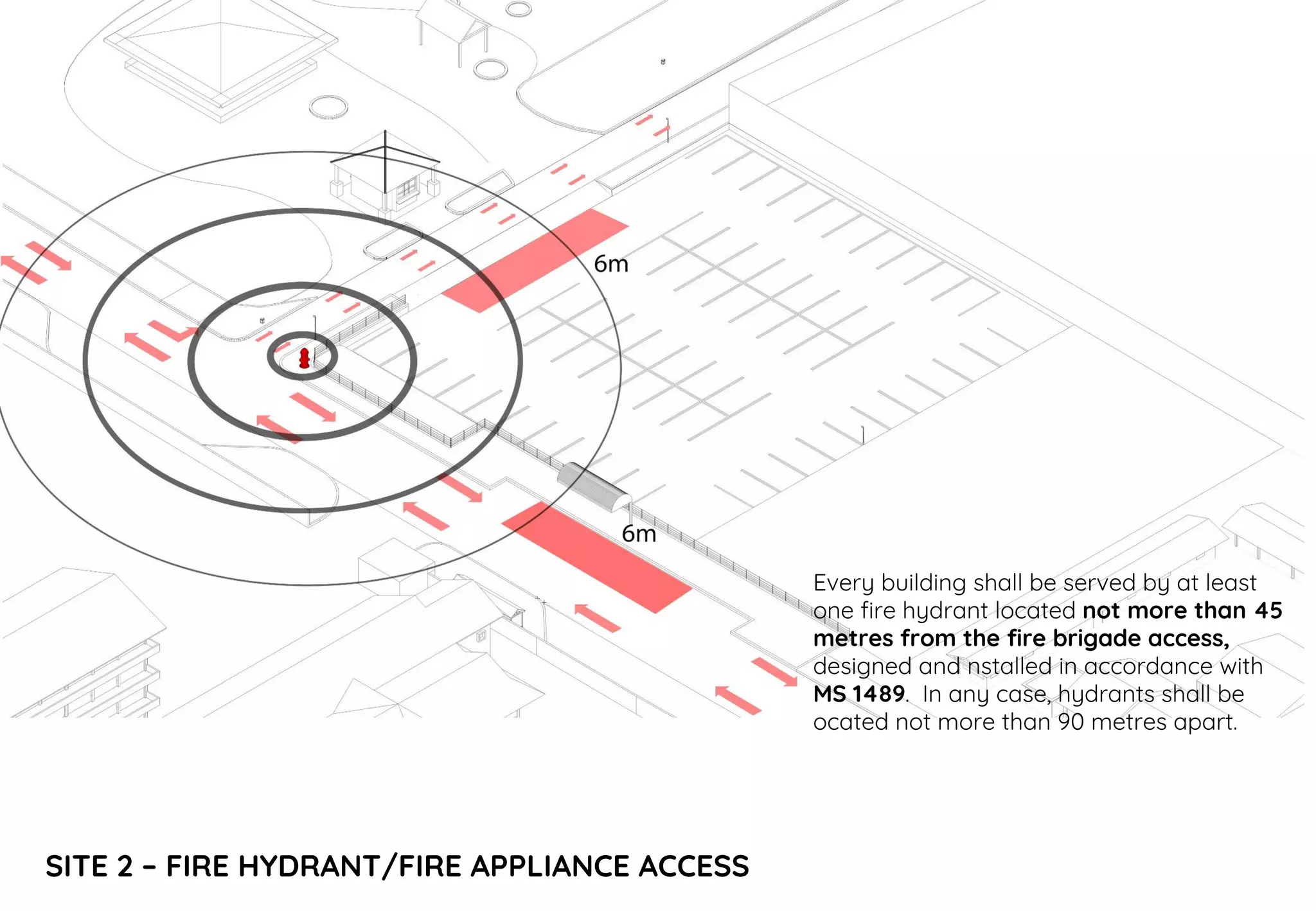

33. SITE 2 – FIRE HYDRANT/FIRE APPLIANCE ACCESS
Every building shall be served by at least
one fire hydrant located not more than 45
metres from the fire brigade access,
designed and nstalled in accordance with
MS 1489. In any case, hydrants shall be
ocated not more than 90 metres apart.

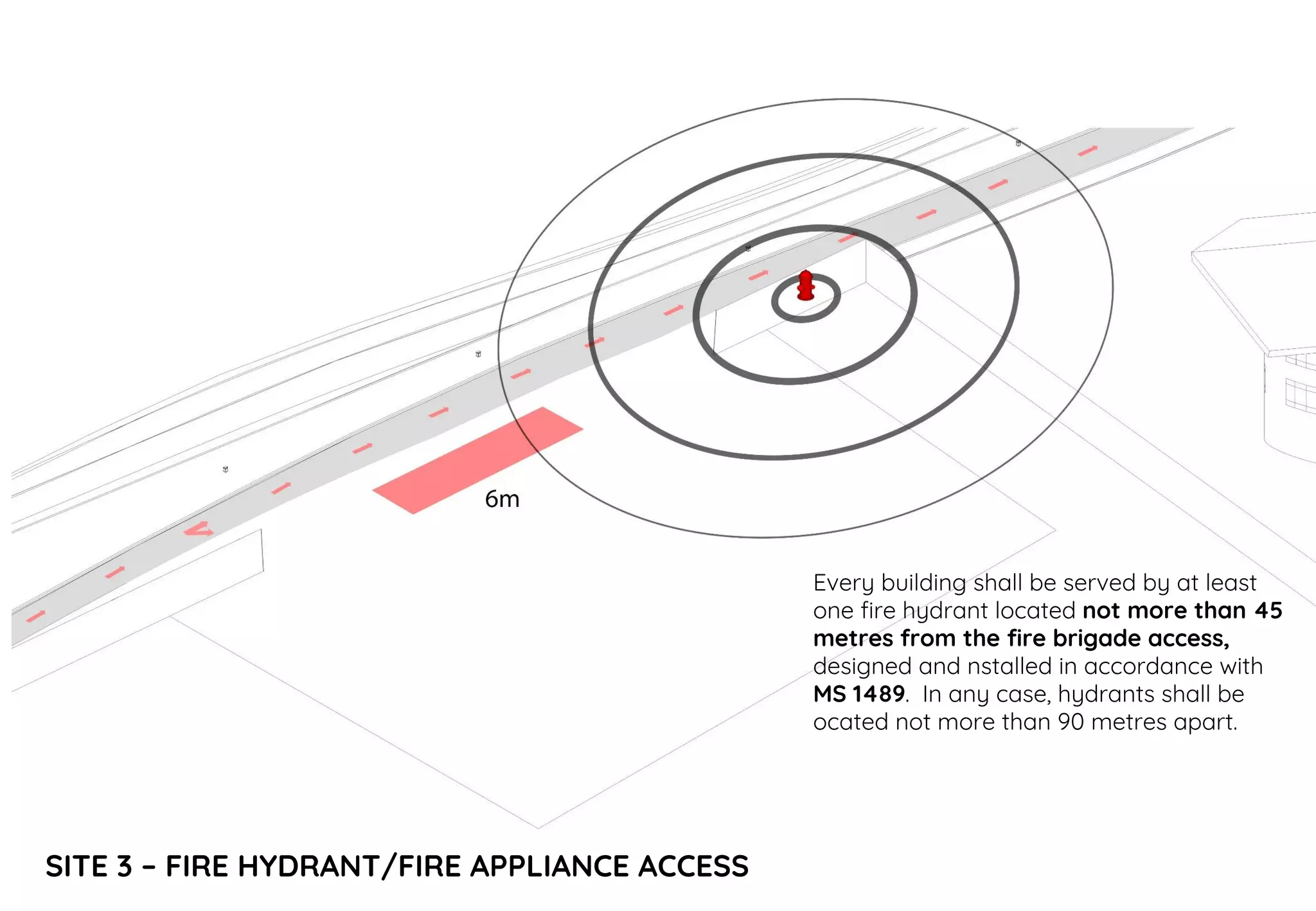

34. SITE 3 – FIRE HYDRANT/FIRE APPLIANCE ACCESS
Every building shall be served by at least
one fire hydrant located not more than 45
metres from the fire brigade access,
designed and nstalled in accordance with
MS 1489. In any case, hydrants shall be
ocated not more than 90 metres apart.

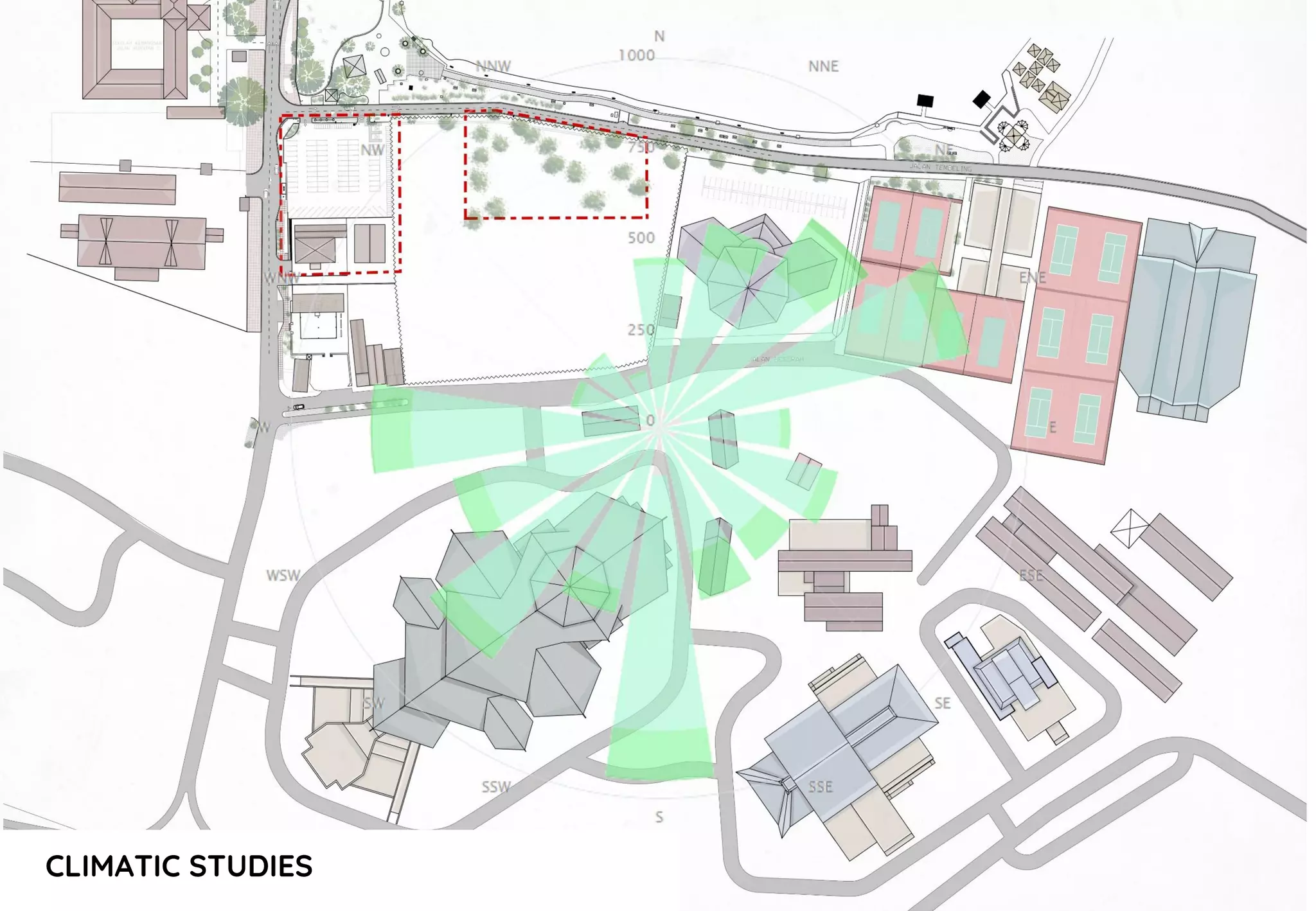

35. CLIMATIC STUDIES

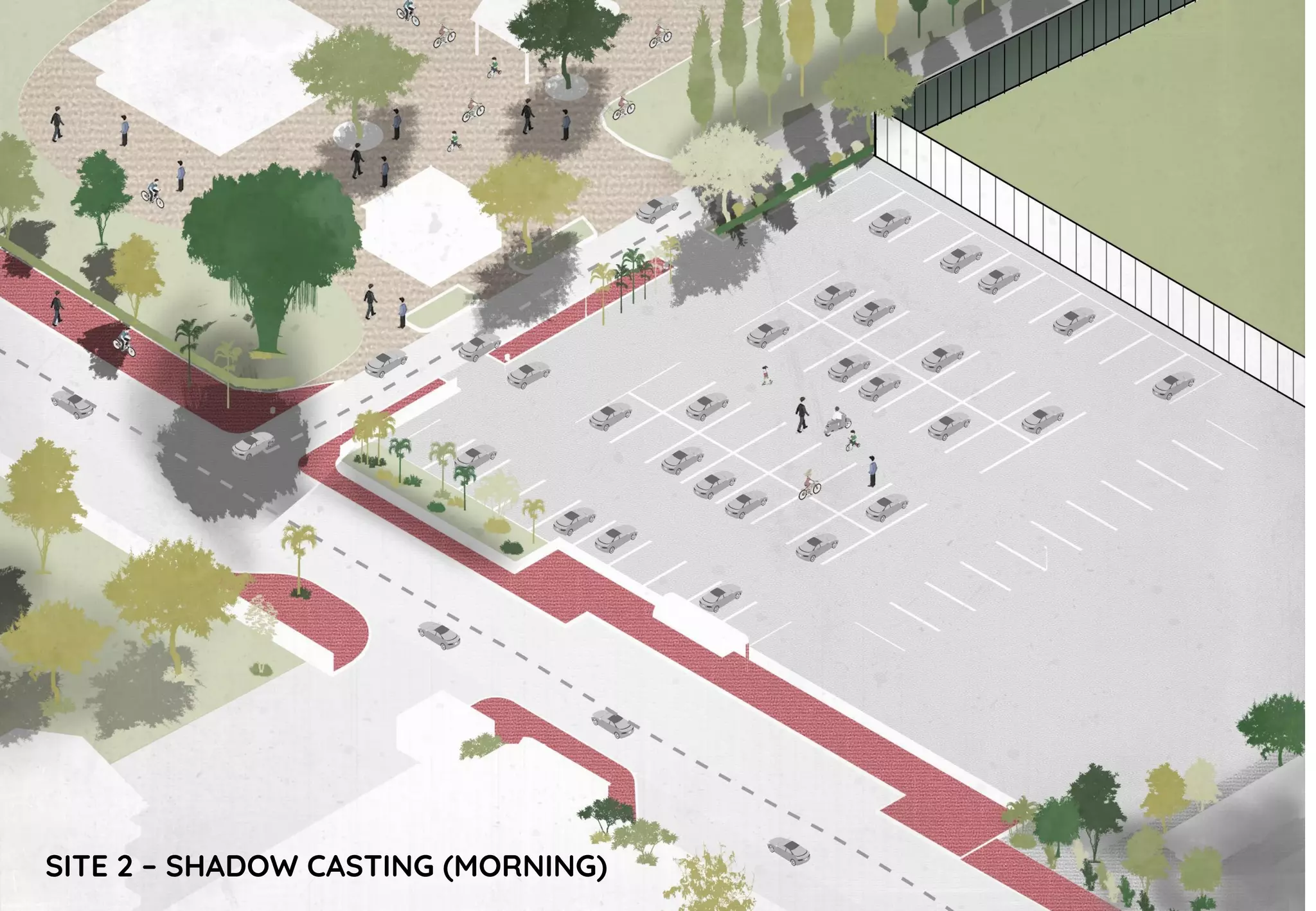

36. SITE 2 – SHADOW CASTING (MORNING)

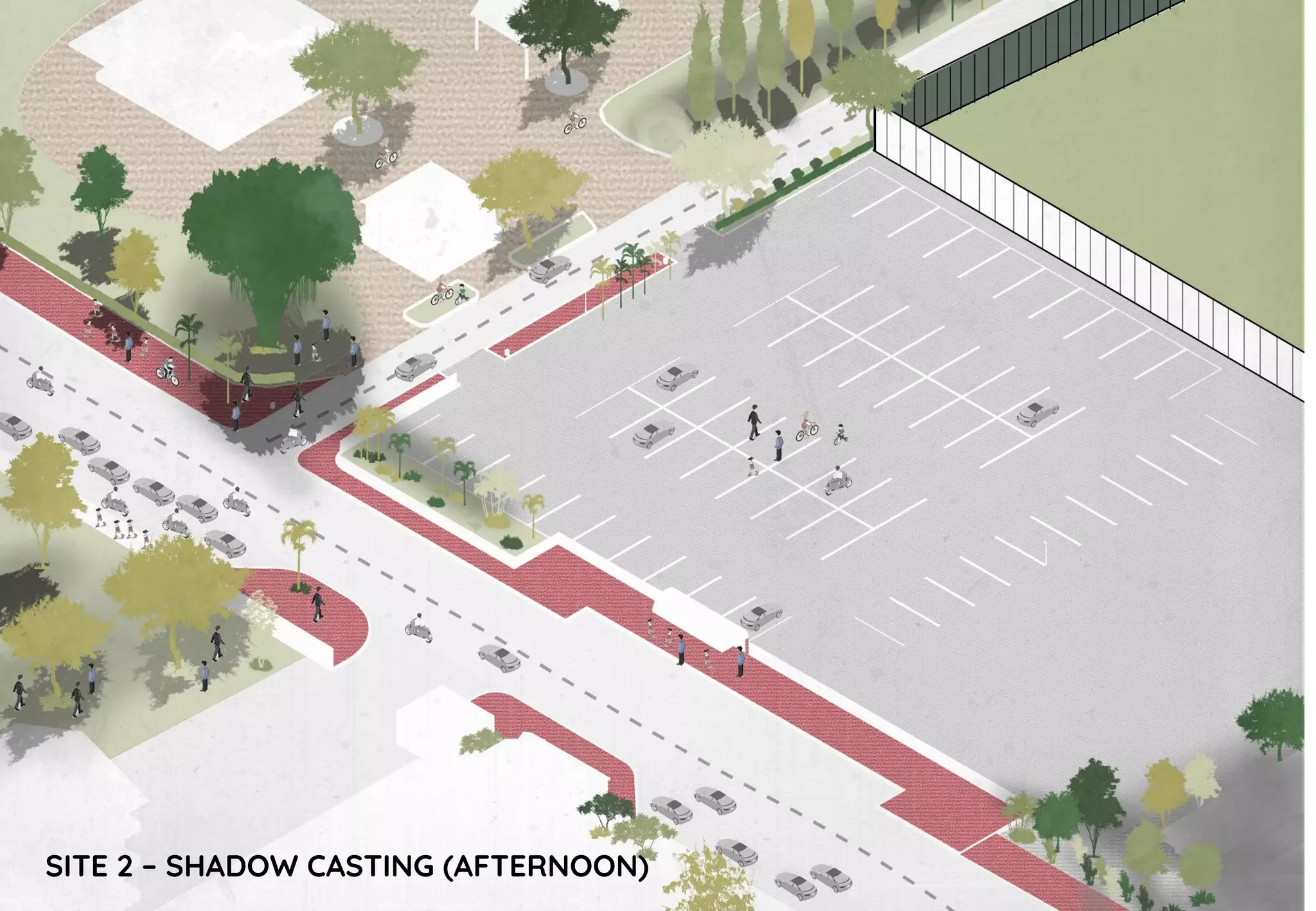

37. SITE 2 – SHADOW CASTING (AFTERNOON)

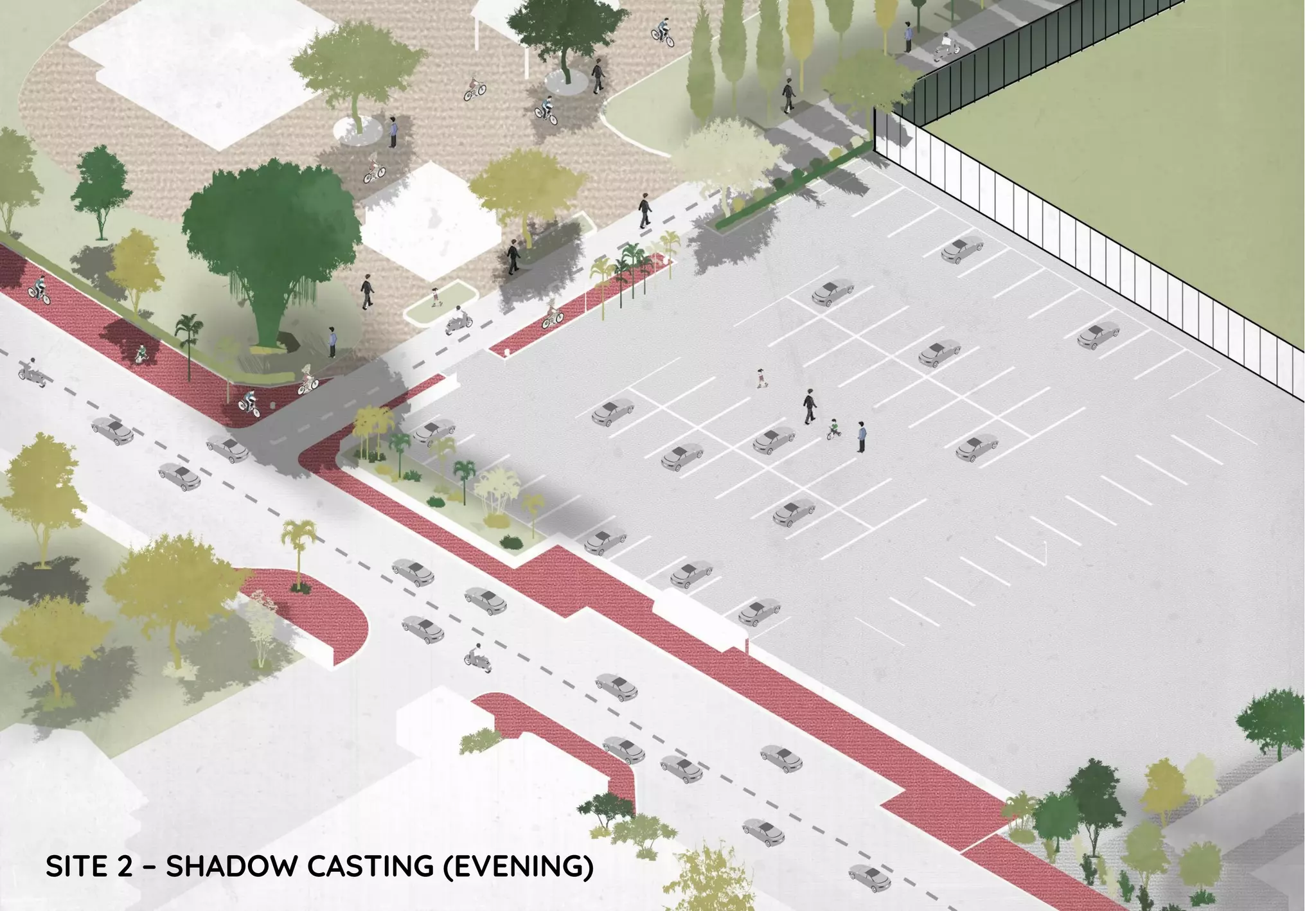

38. SITE 2 – SHADOW CASTING (EVENING)

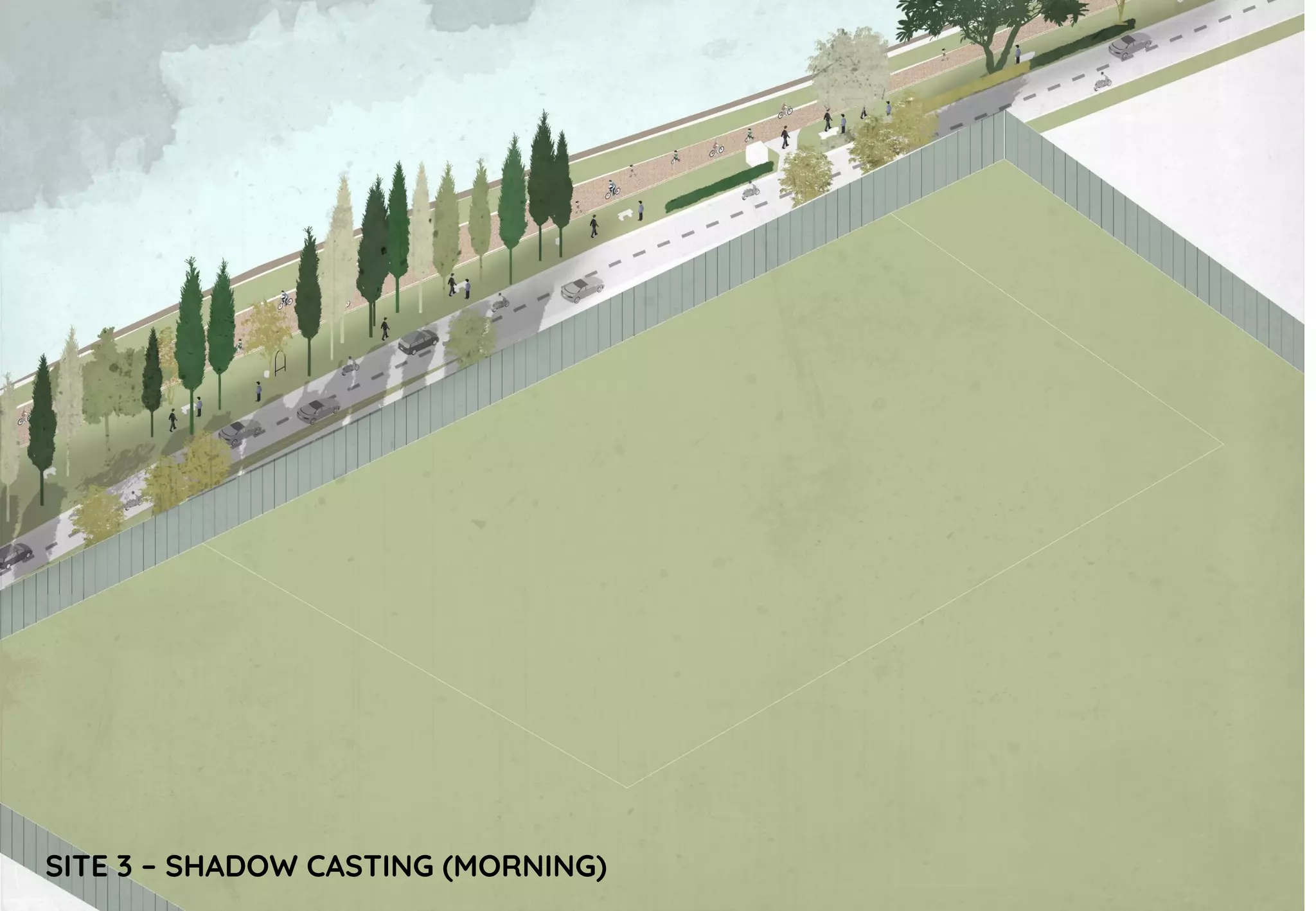

39. SITE 3 – SHADOW CASTING (MORNING)

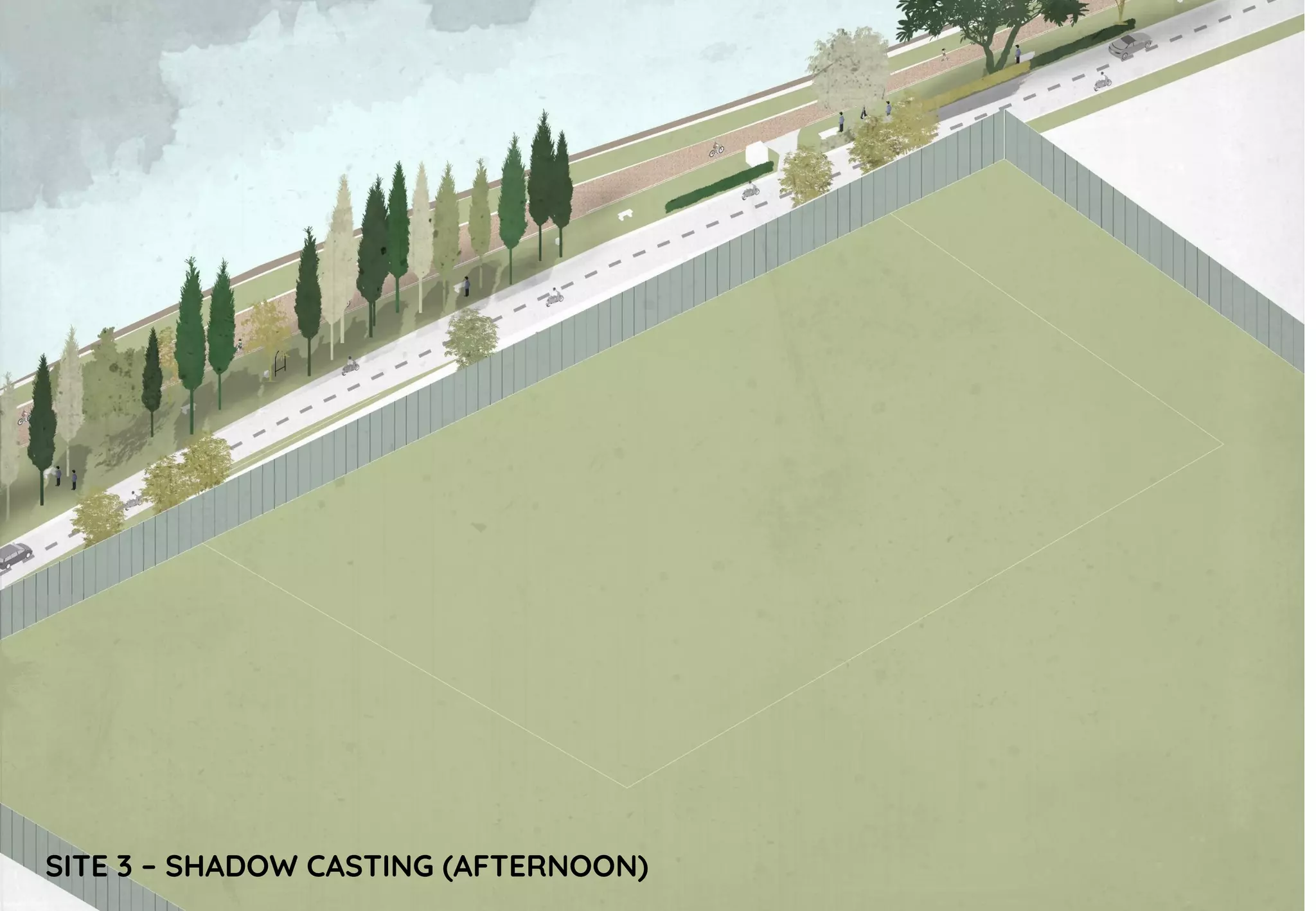

40. SITE 3 – SHADOW CASTING (AFTERNOON)

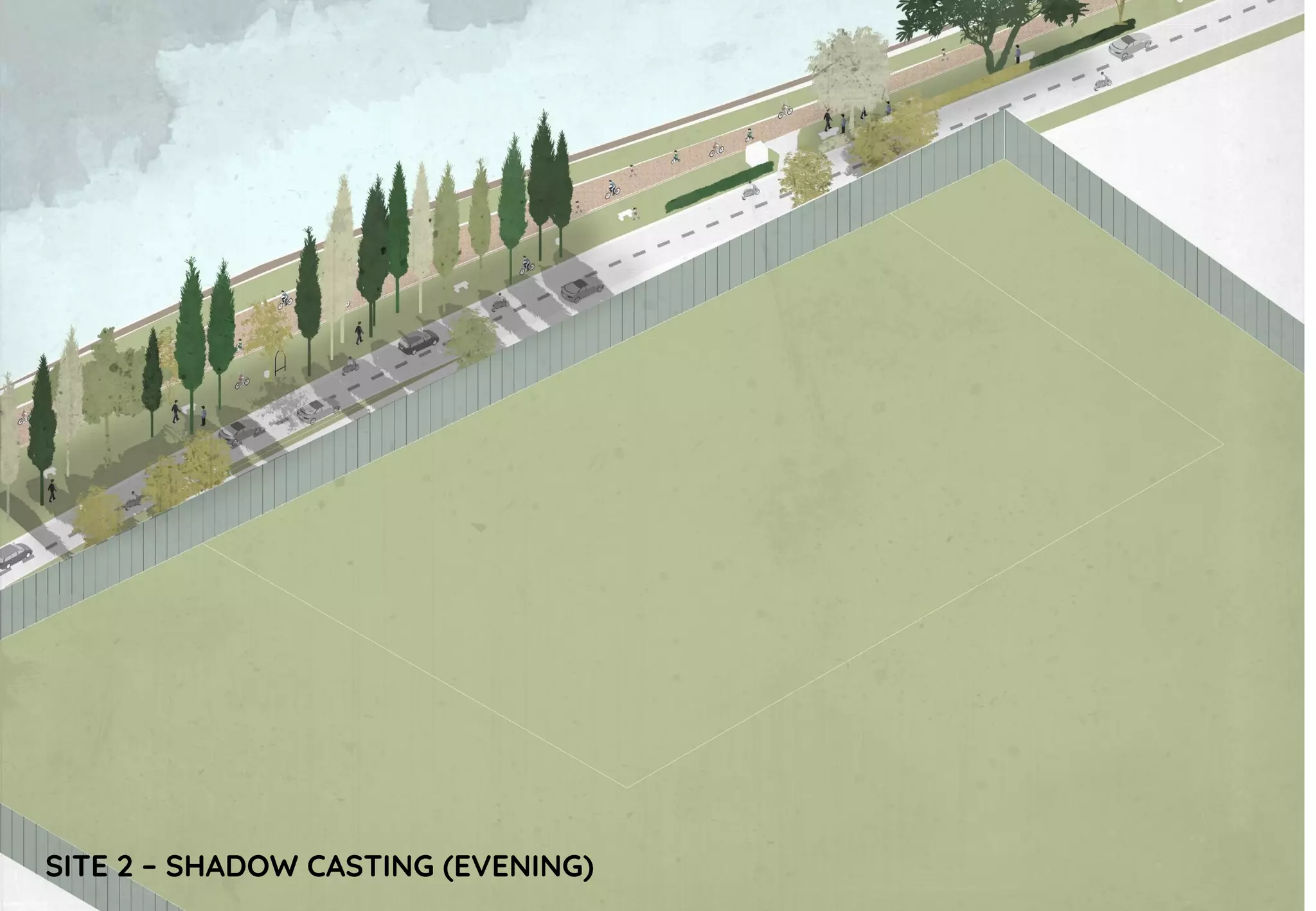

41. SITE 2 – SHADOW CASTING (EVENING)

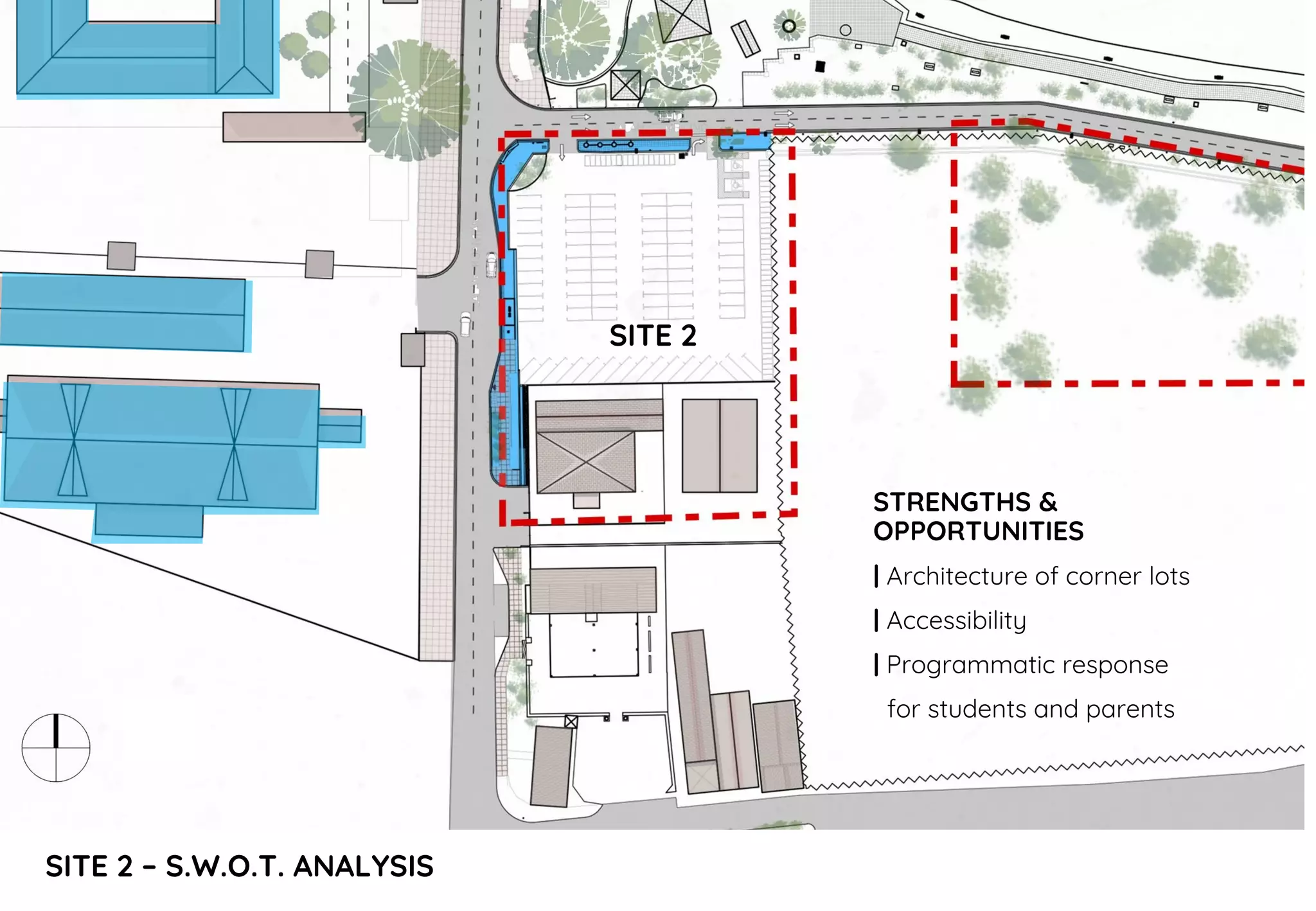

42. SITE 2 – S.W.O.T. ANALYSIS
STRENGTHS &
OPPORTUNITIES
| Architecture of corner lots
| Accessibility
| Programmatic response
for students and parents
SITE 2

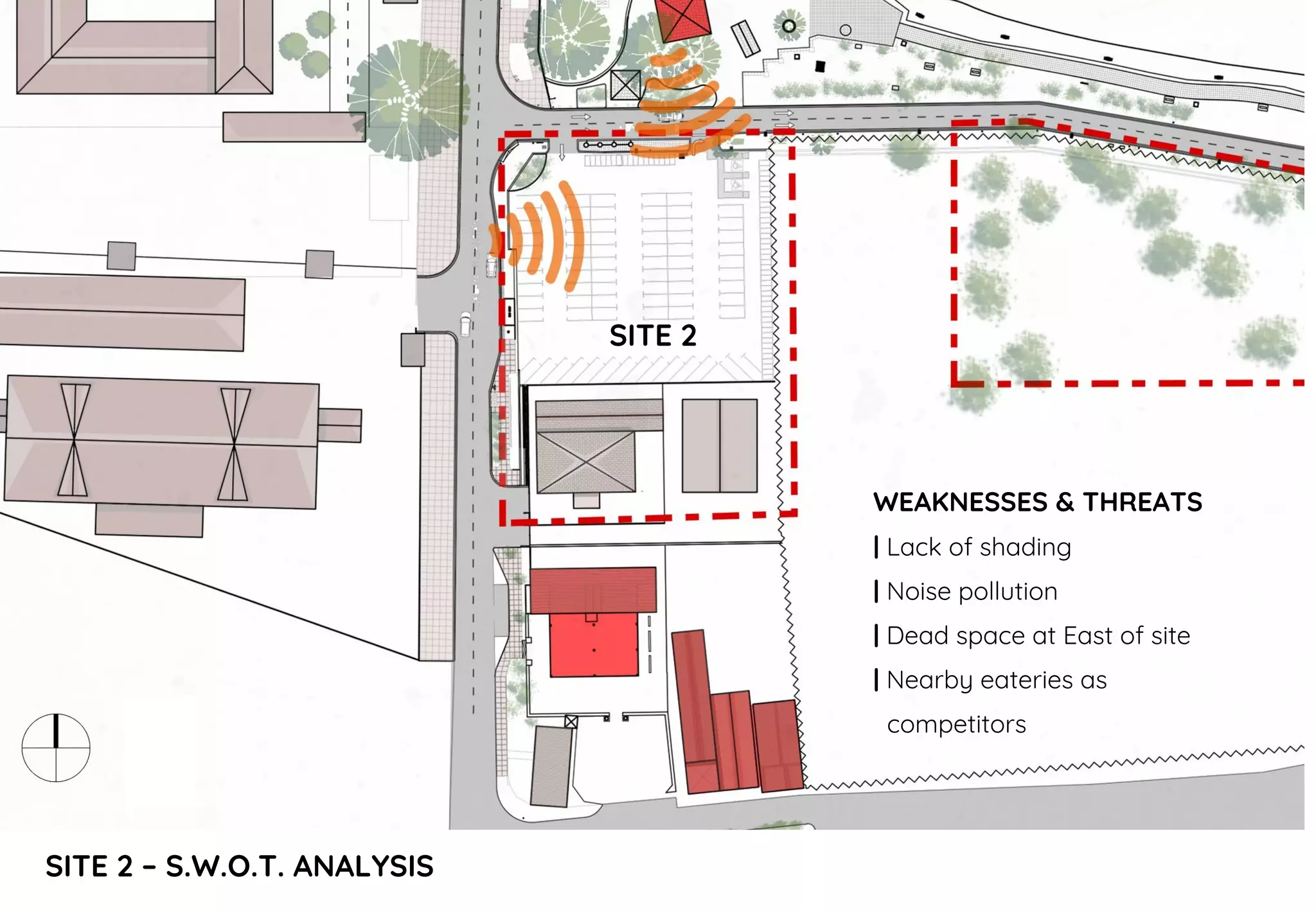

43. SITE 2 – S.W.O.T. ANALYSIS
WEAKNESSES & THREATS
| Lack of shading
| Noise pollution
| Dead space at East of site
| Nearby eateries as
competitors
SITE 2

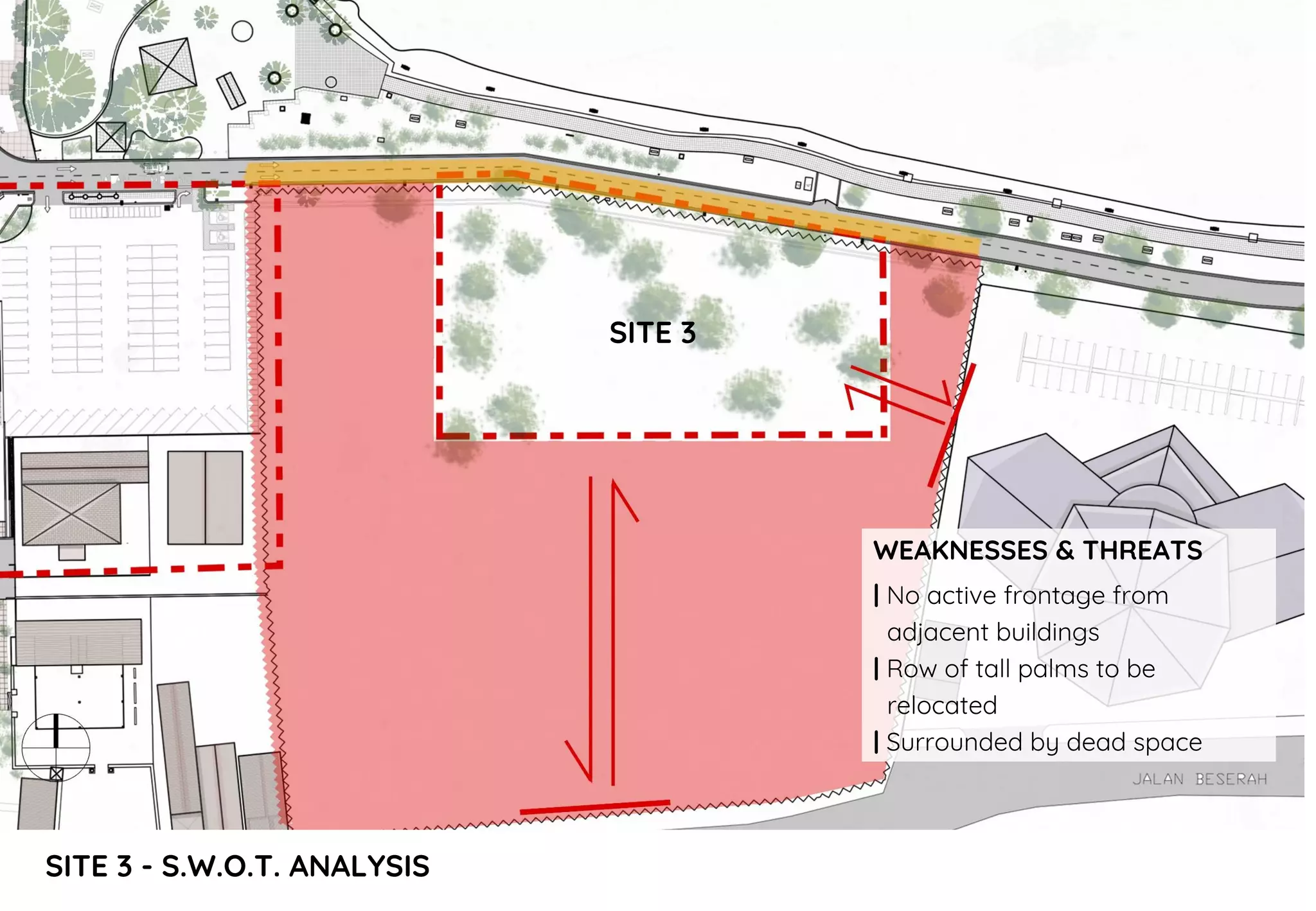

44. SITE 3 - S.W.O.T. ANALYSIS
SITE 3
WEAKNESSES & THREATS
| No active frontage from
adjacent buildings
| Row of tall palms to be
relocated
| Surrounded by dead space

45. DESIGN STRATEGIES
[ PROPOSAL TO CELEBRATE INDIVIDUALITY
WHILE RESPECTING SITE CONDITIONS ]

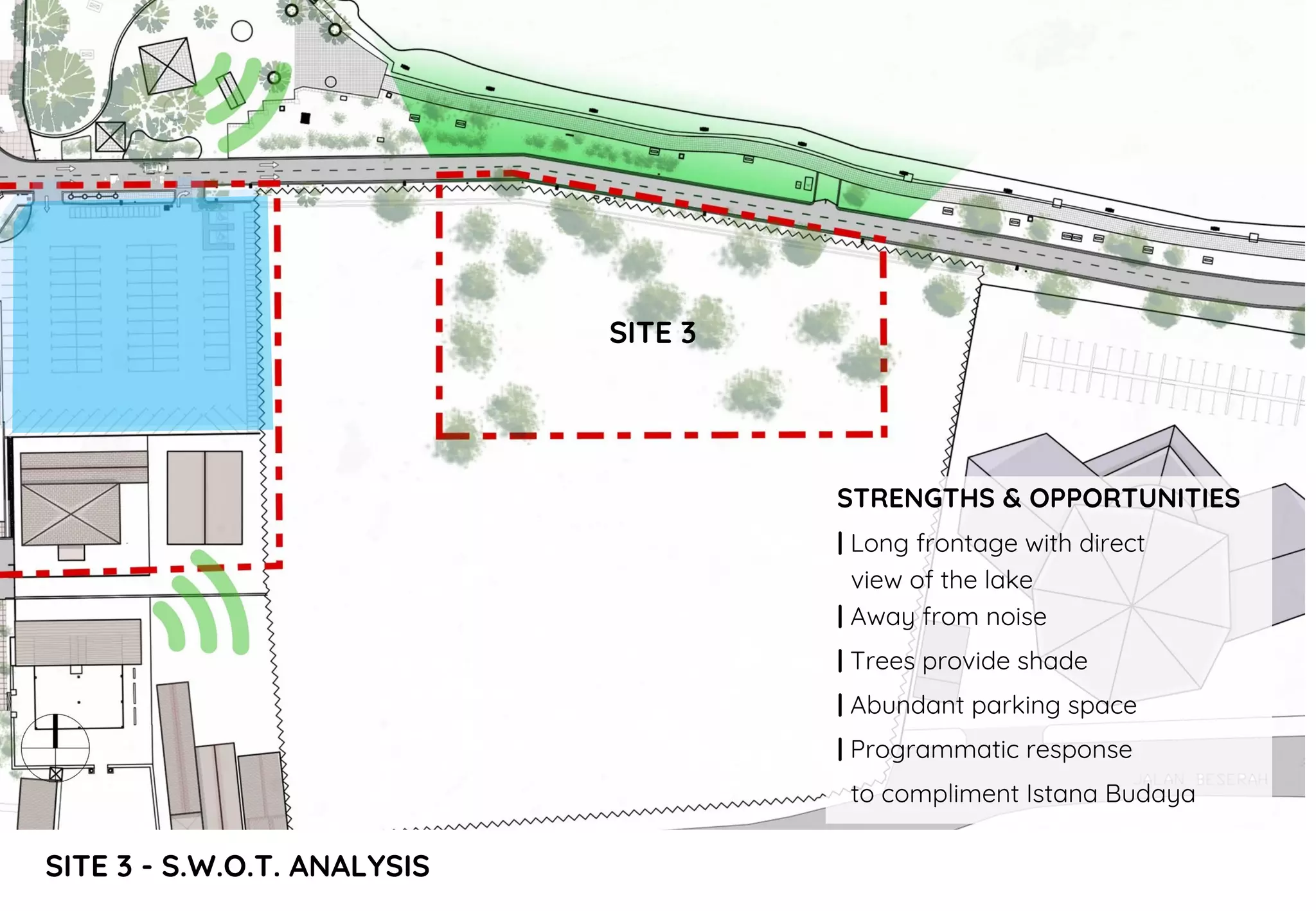

46. SITE 3 - S.W.O.T. ANALYSIS
STRENGTHS & OPPORTUNITIES
| Long frontage with direct
view of the lake
| Away from noise
| Trees provide shade
| Abundant parking space
| Programmatic response
to compliment Istana Budaya
SITE 3

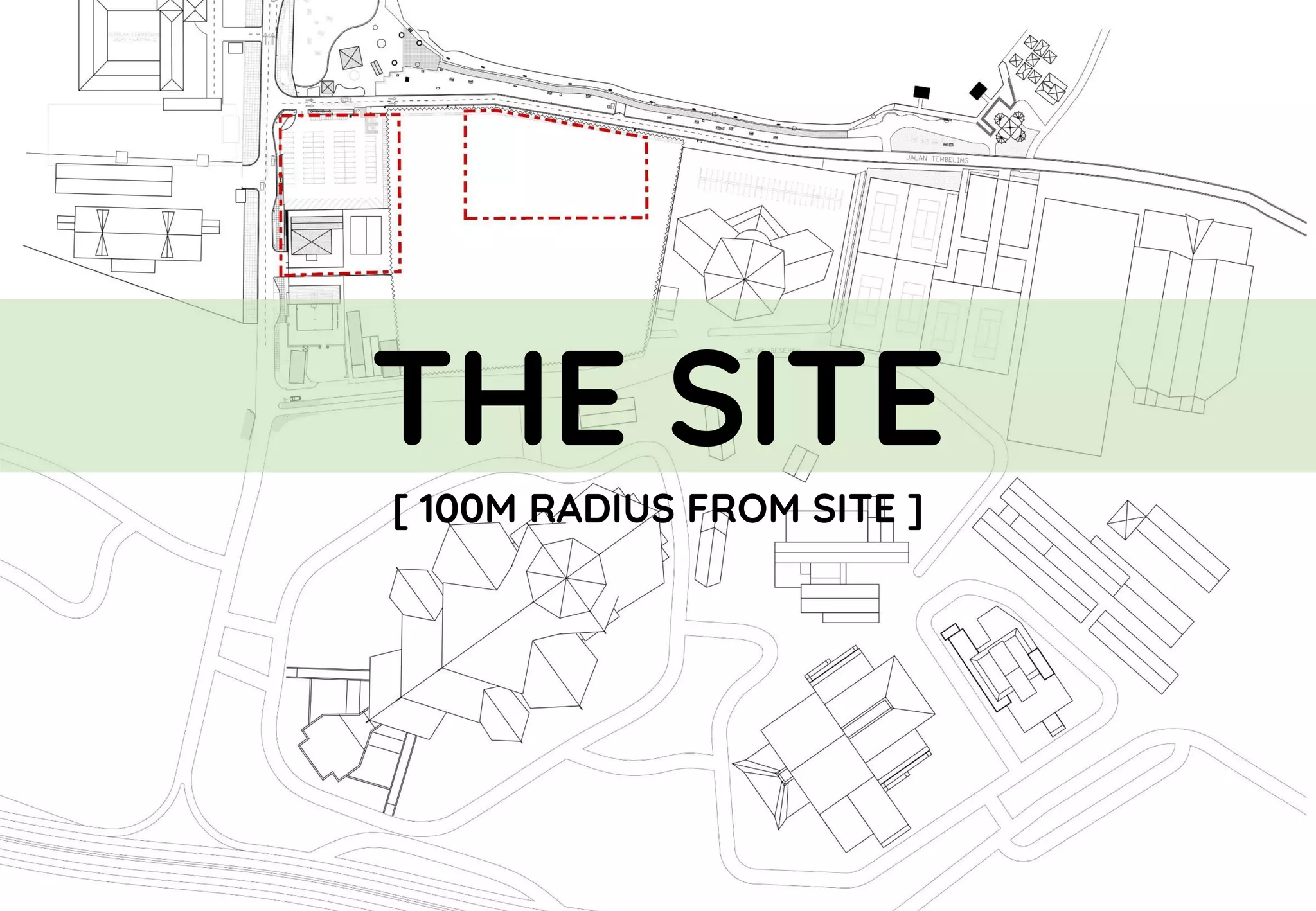

47. THE SITE
[ 100M RADIUS FROM SITE ]

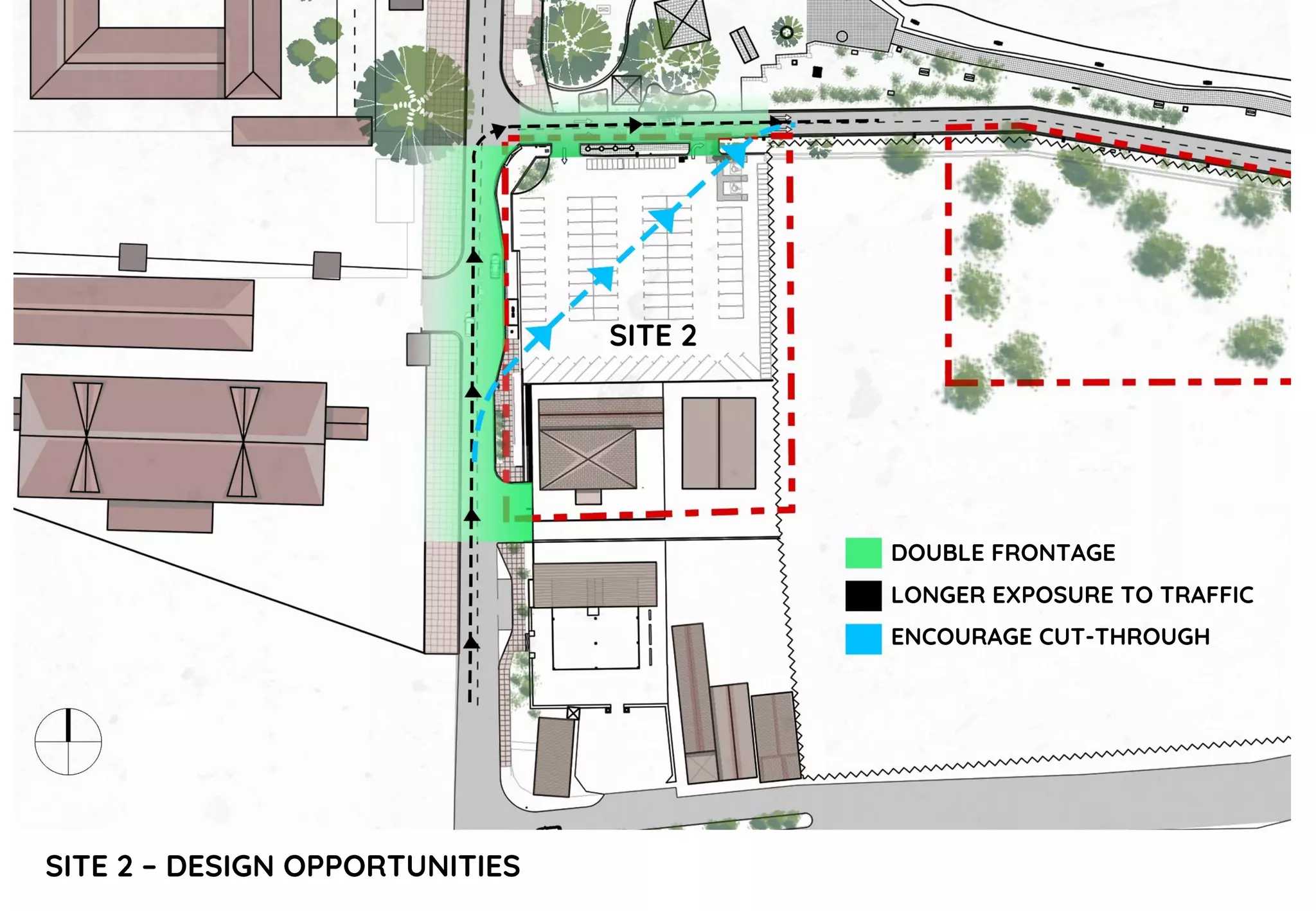

48. SITE 2 – DESIGN OPPORTUNITIES
DOUBLE FRONTAGE
LONGER EXPOSURE TO TRAFFIC
ENCOURAGE CUT-THROUGH
SITE 2

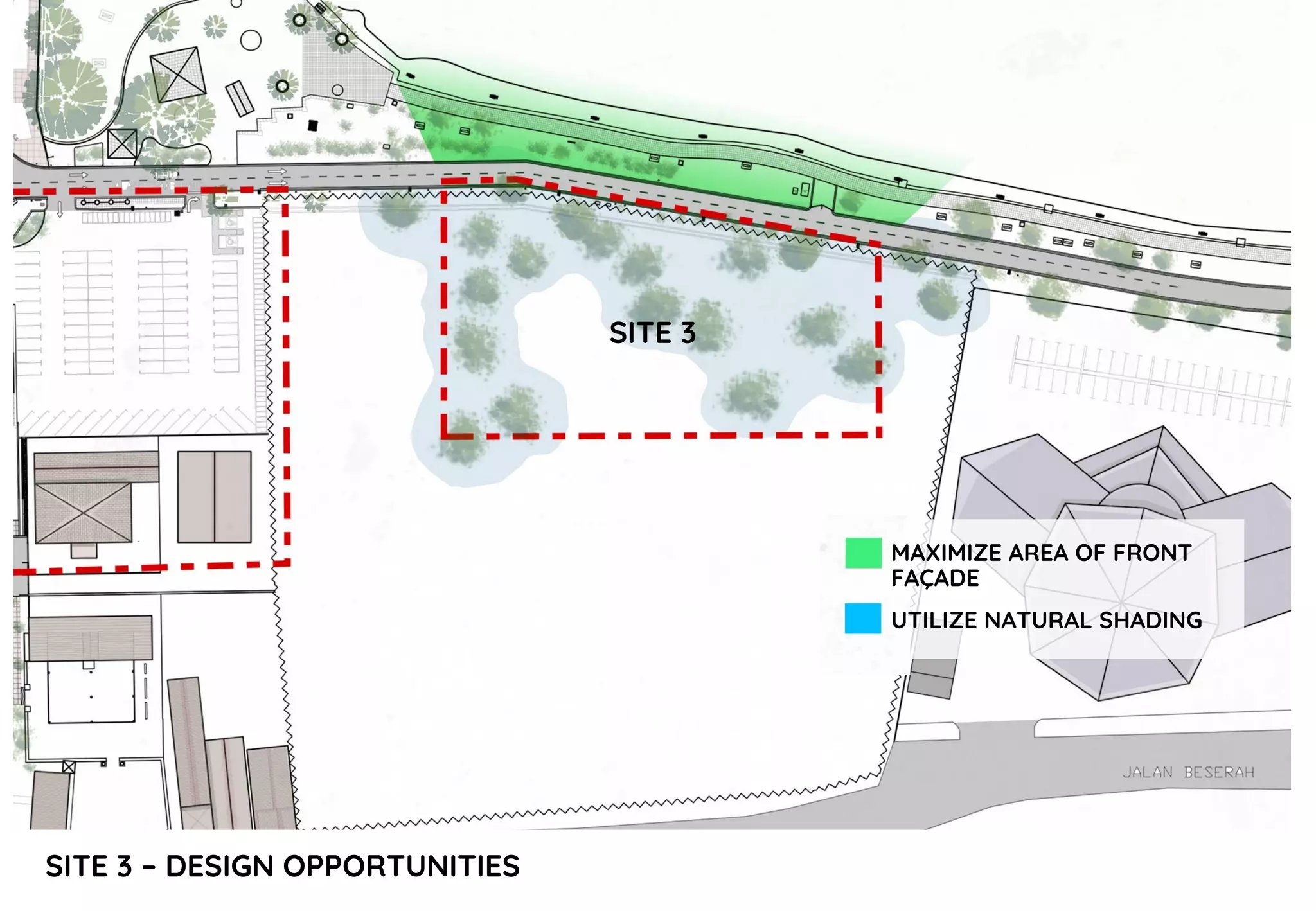

49. SITE 3 – DESIGN OPPORTUNITIES
MAXIMIZE AREA OF FRONT
FAÇADE
UTILIZE NATURAL SHADING
SITE 3

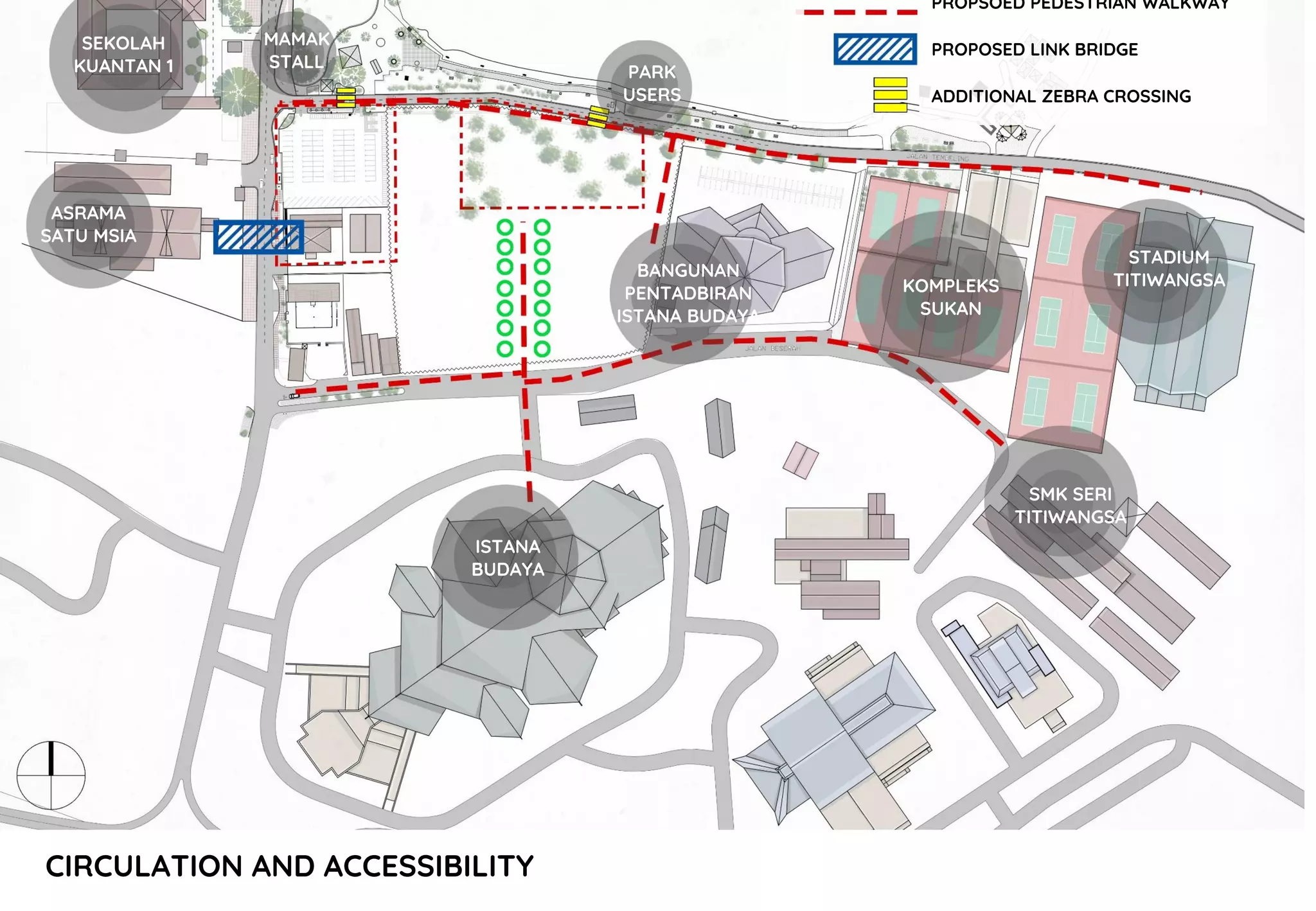

50. CIRCULATION AND ACCESSIBILITY
PROPSOED PEDESTRIAN WALKWAY
PROPOSED LINK BRIDGE
ADDITIONAL ZEBRA CROSSING
SEKOLAH
KUANTAN 1
ASRAMA
SATU MSIA
MAMAK
STALL
PARK
USERS
BANGUNAN
PENTADBIRAN
ISTANA BUDAYA
ISTANA
BUDAYA
SMK SERI
TITIWANGSA
STADIUM
TITIWANGSAKOMPLEKS
SUKAN

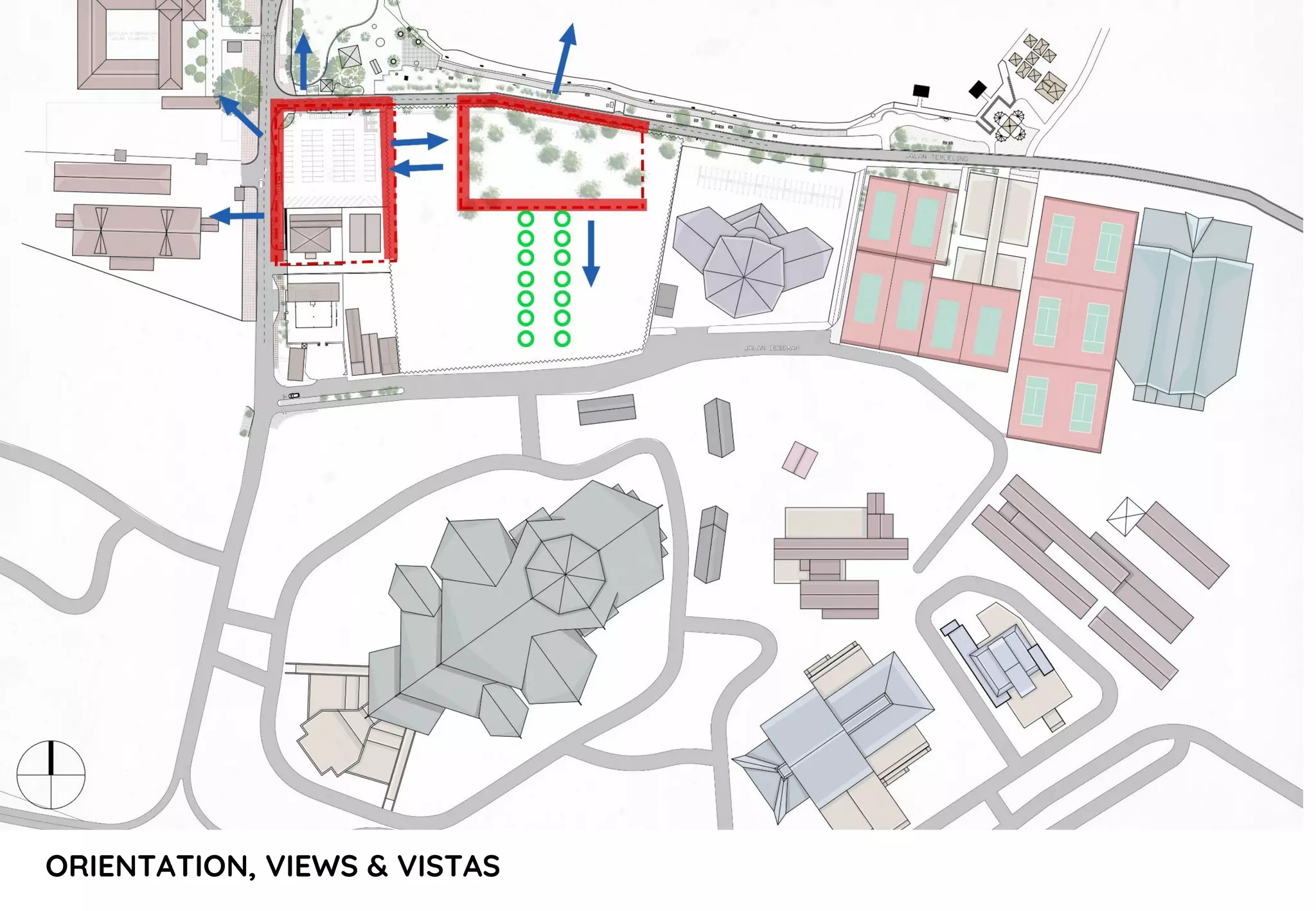

51. ORIENTATION, VIEWS & VISTAS

52. THE PARK
[ 500M RADIUS FROM SITE ]

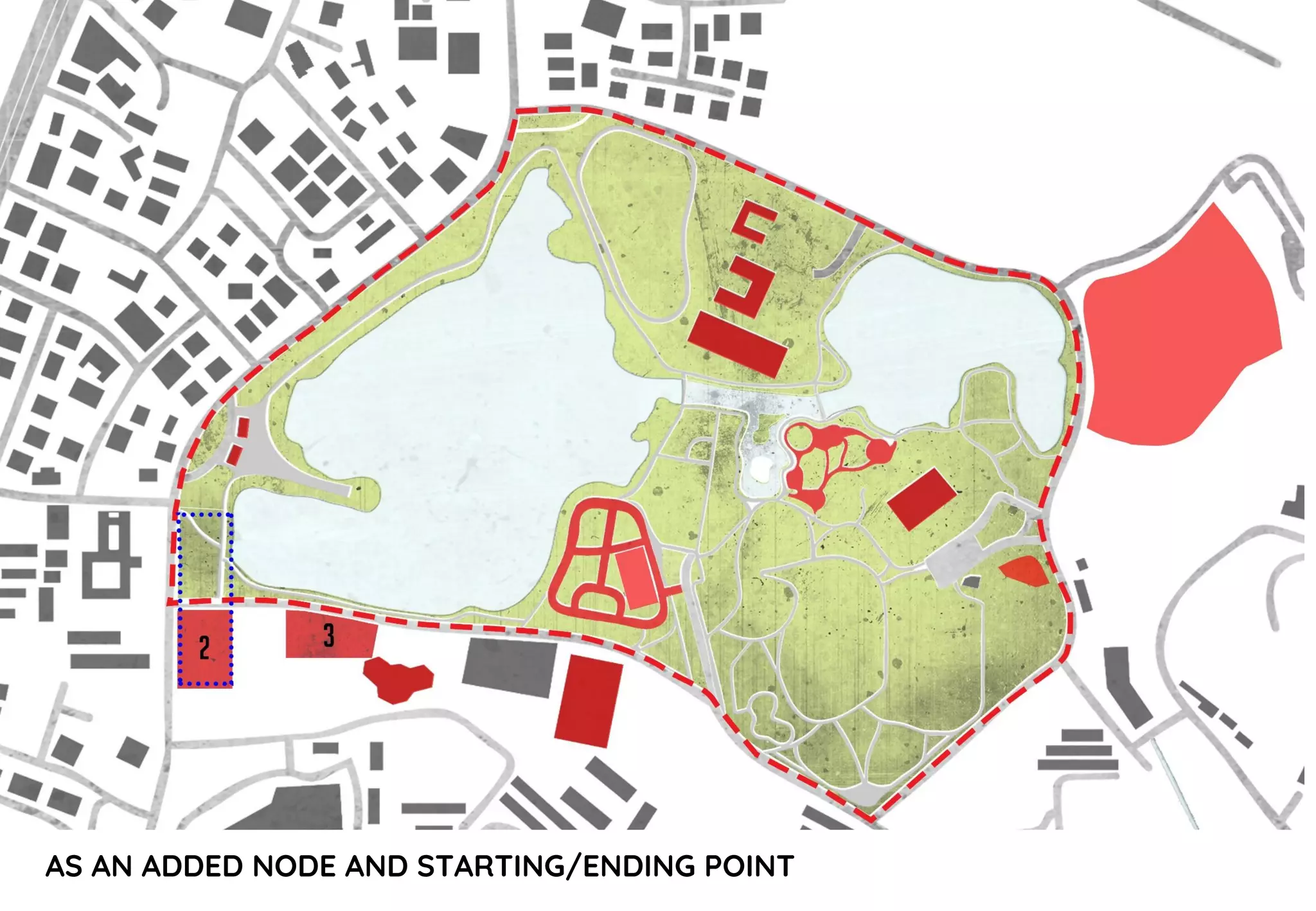

53. AS AN ADDED NODE AND STARTING/ENDING POINT

54. TMN TASIK TITIWANGSA
[ 1-2KM RADIUS FROM SITE ]

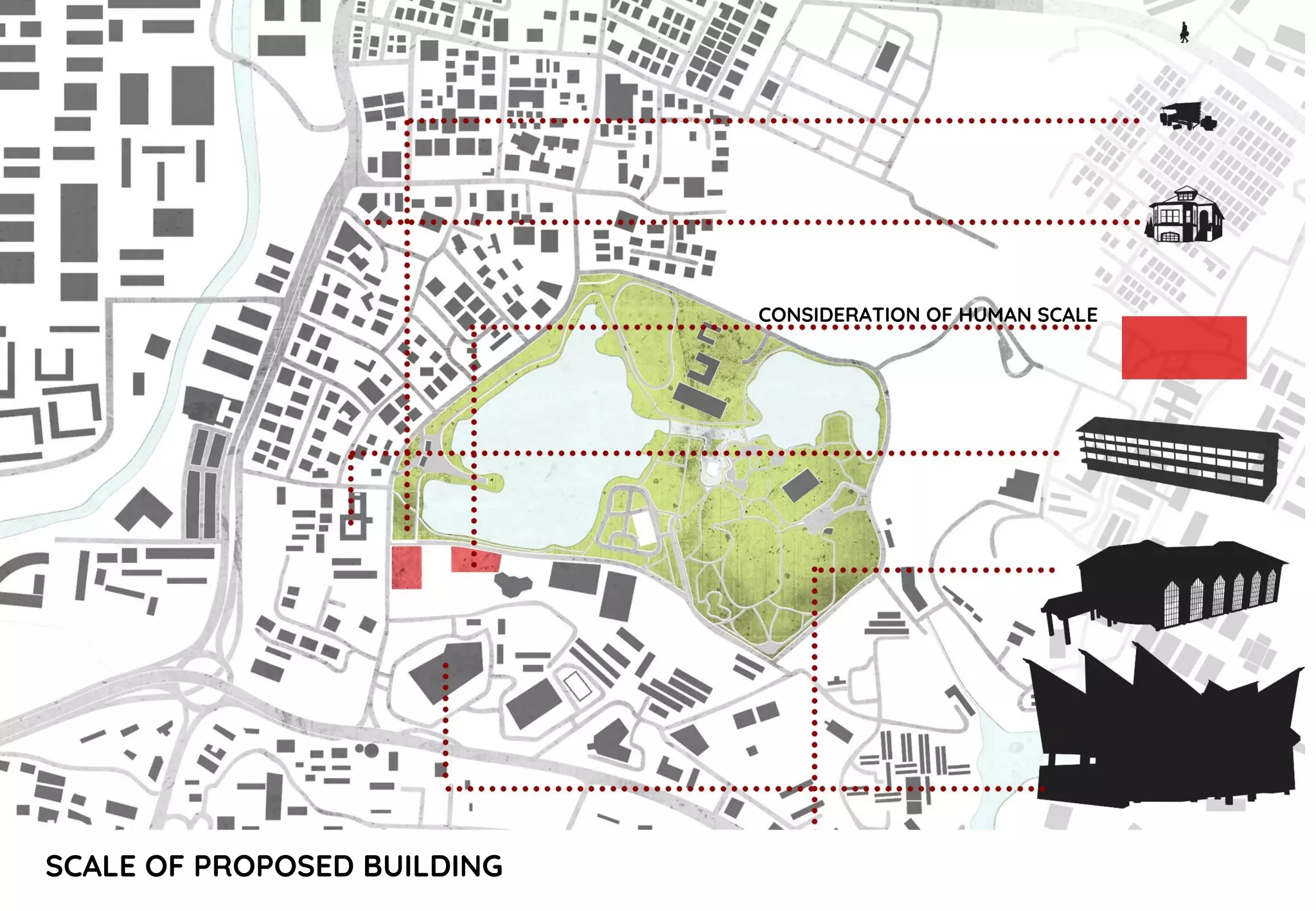

55. SCALE OF PROPOSED BUILDING
CONSIDERATION OF HUMAN SCALE

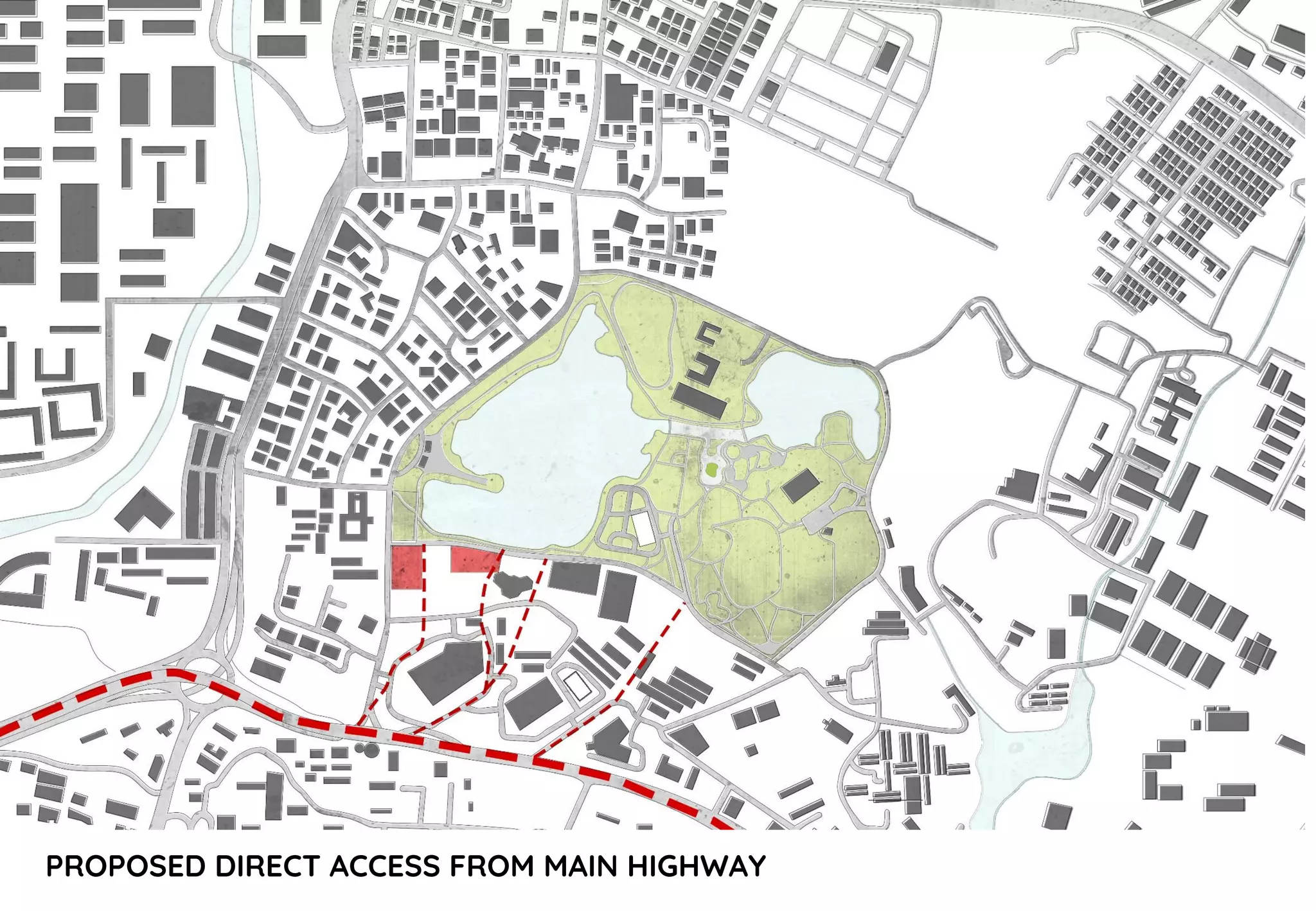

56. PROPOSED DIRECT ACCESS FROM MAIN HIGHWAY

57. PRECEDENT
STUDIES
[ ANALYSIS AND APPLICATION ]

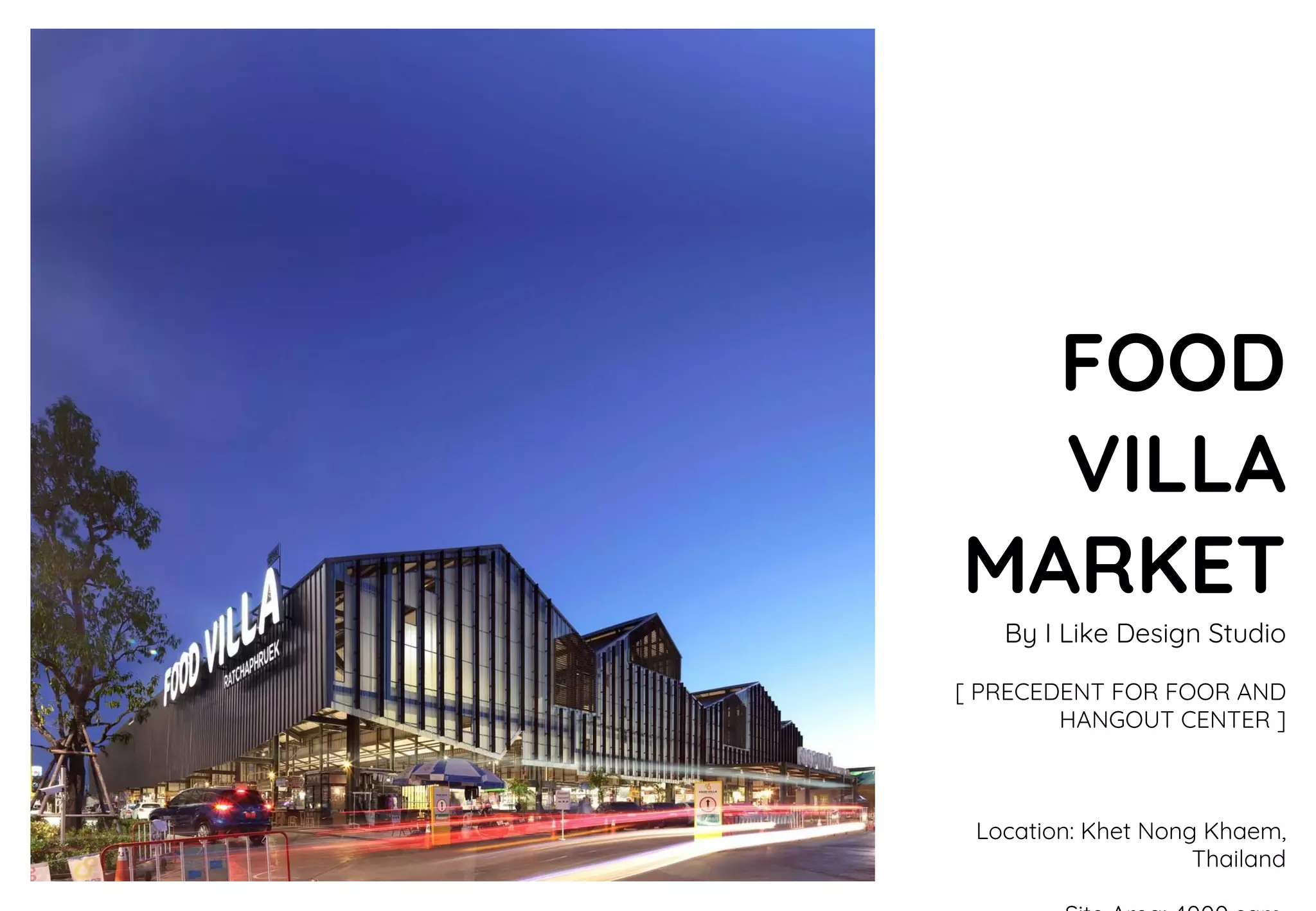

58. FOOD
VILLA
MARKET
By I Like Design Studio
[ PRECEDENT FOR FOOR AND
HANGOUT CENTER ]
Location: Khet Nong Khaem,
Thailand

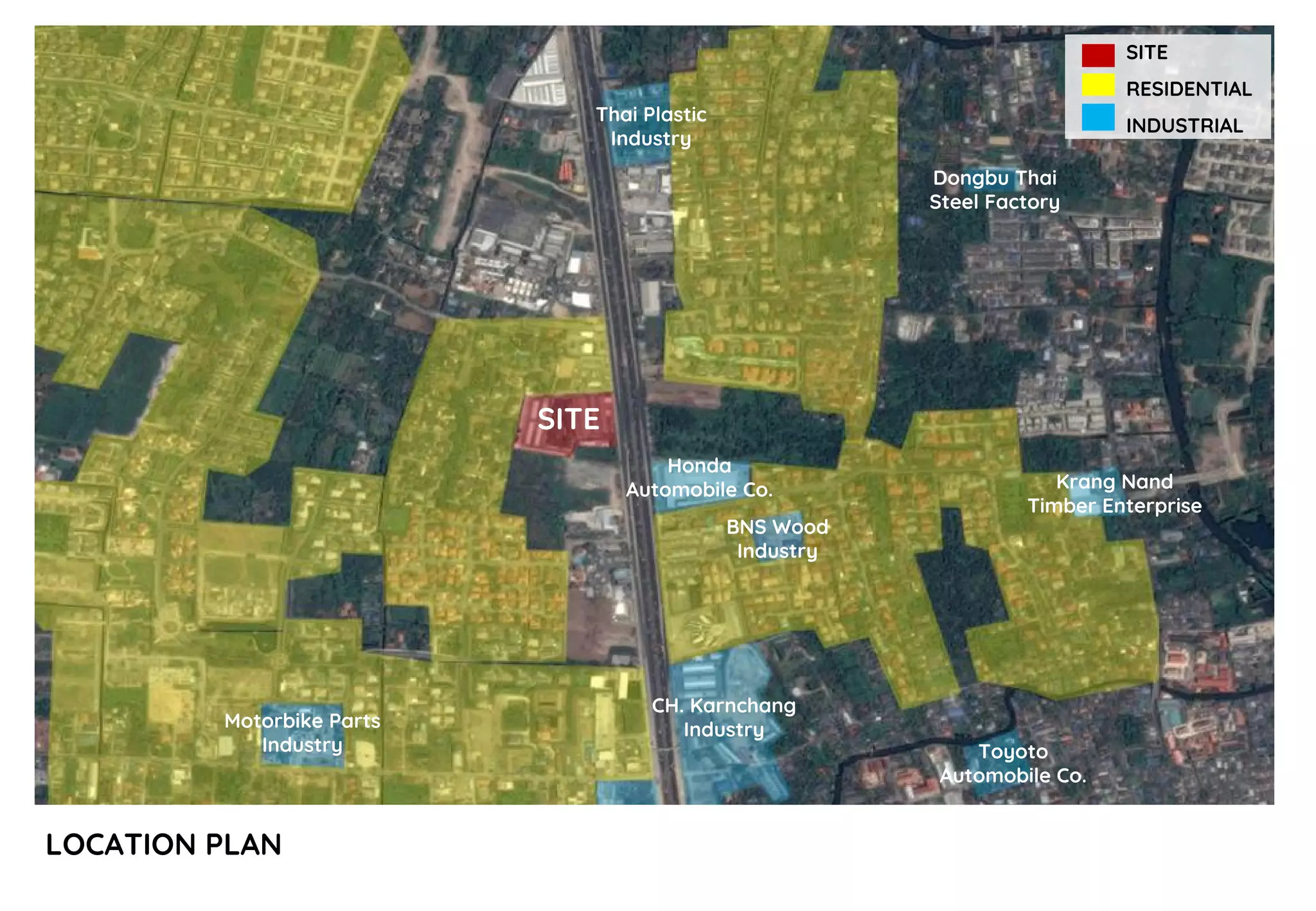

59. LOCATION PLAN
SITE
Honda
Automobile Co.
BNS Wood
Industry
CH. Karnchang
IndustryMotorbike Parts
Industry Toyoto
Automobile Co.
Krang Nand
Timber Enterprise
Dongbu Thai
Steel Factory
Thai Plastic
Industry
SITE
RESIDENTIAL
INDUSTRIAL

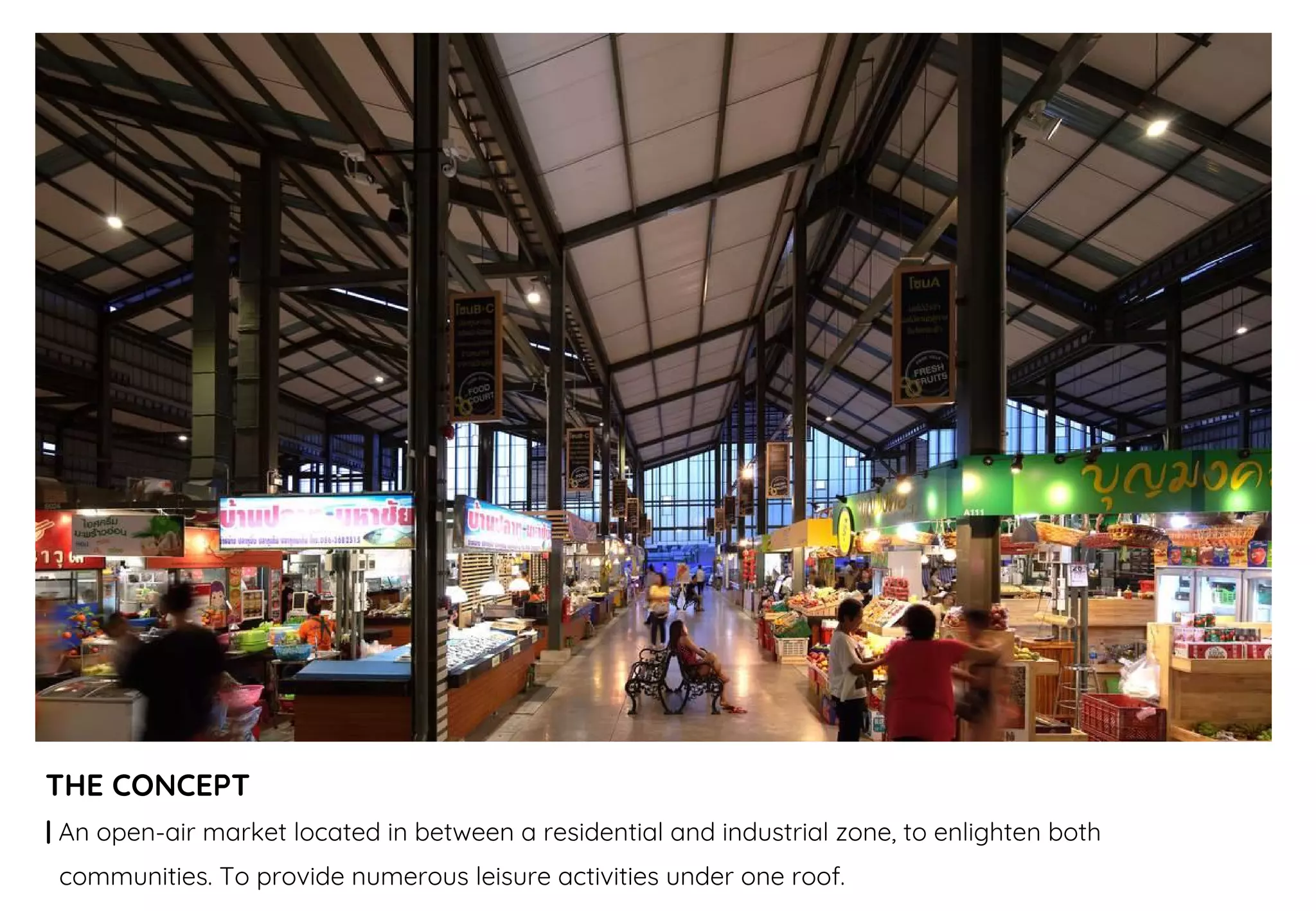

60. THE CONCEPT
| An open-air market located in between a residential and industrial zone, to enlighten both
communities. To provide numerous leisure activities under one roof.

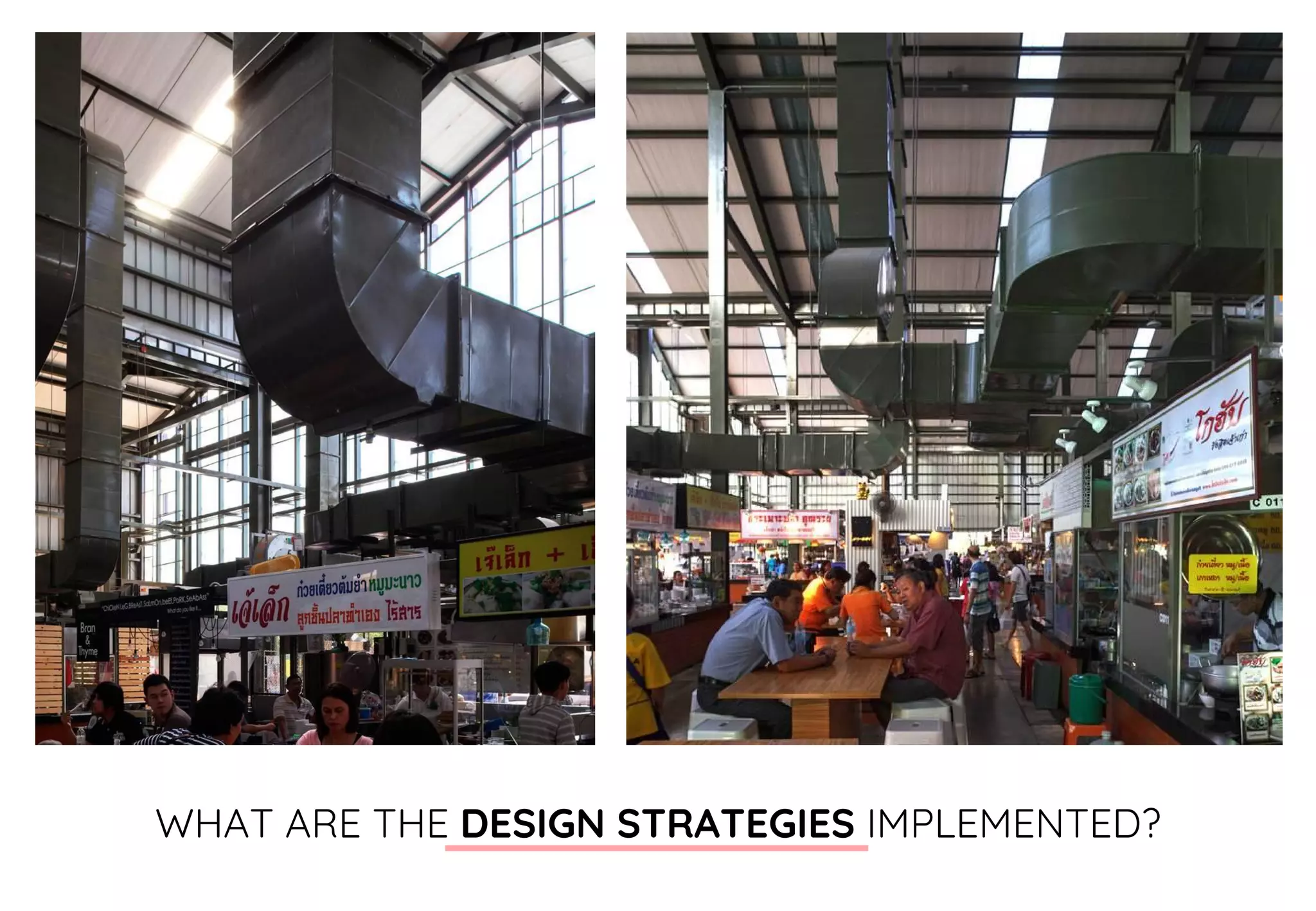

61. THE CONCEPT
| Disordered signs and arrangement on an open plan has been remained by an architect to
represent the ambience of local Thai market.
WHAT ARE THE DESIGN STRATEGIES IMPLEMENTED?

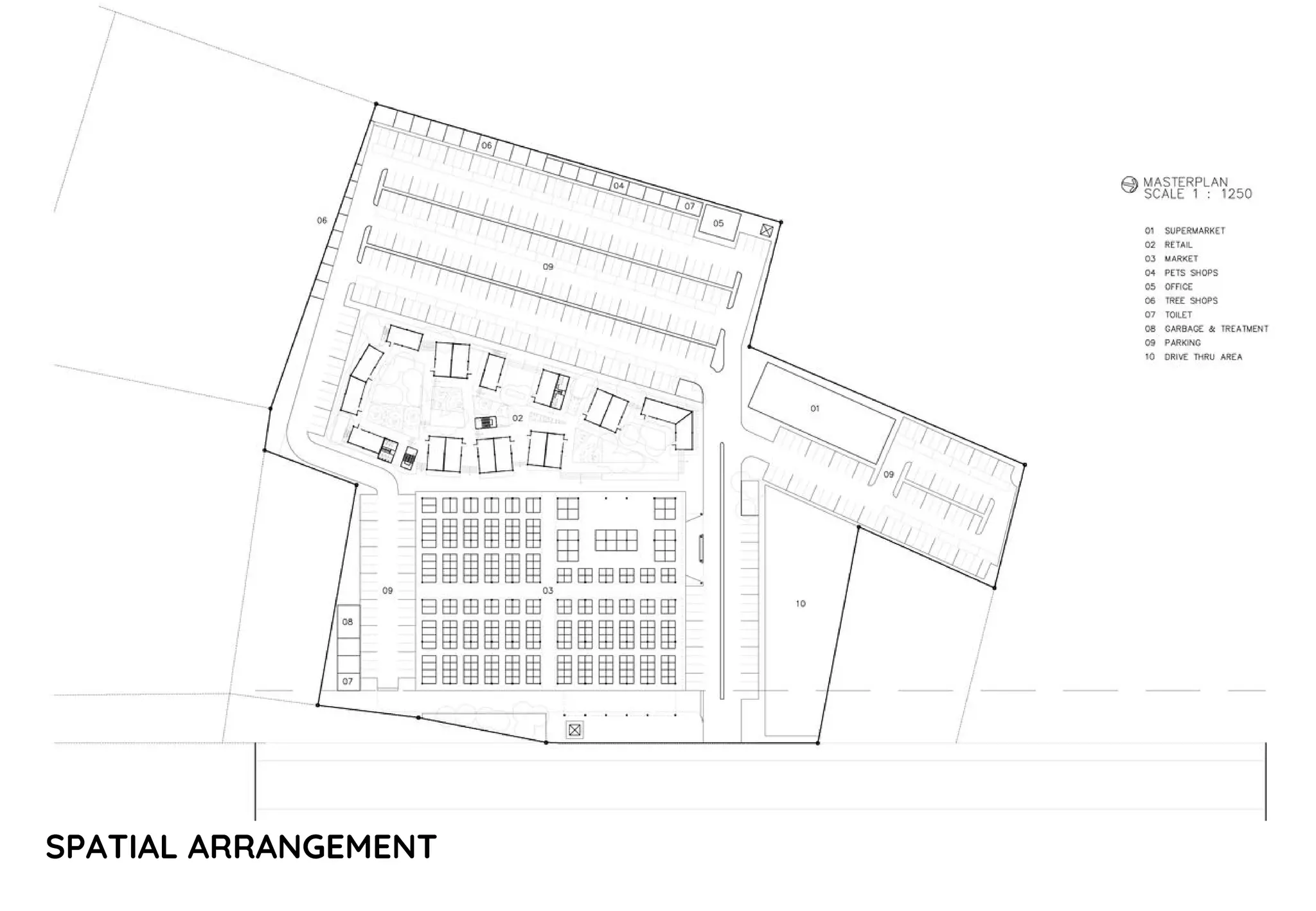

62. SPATIAL ARRANGEMENT

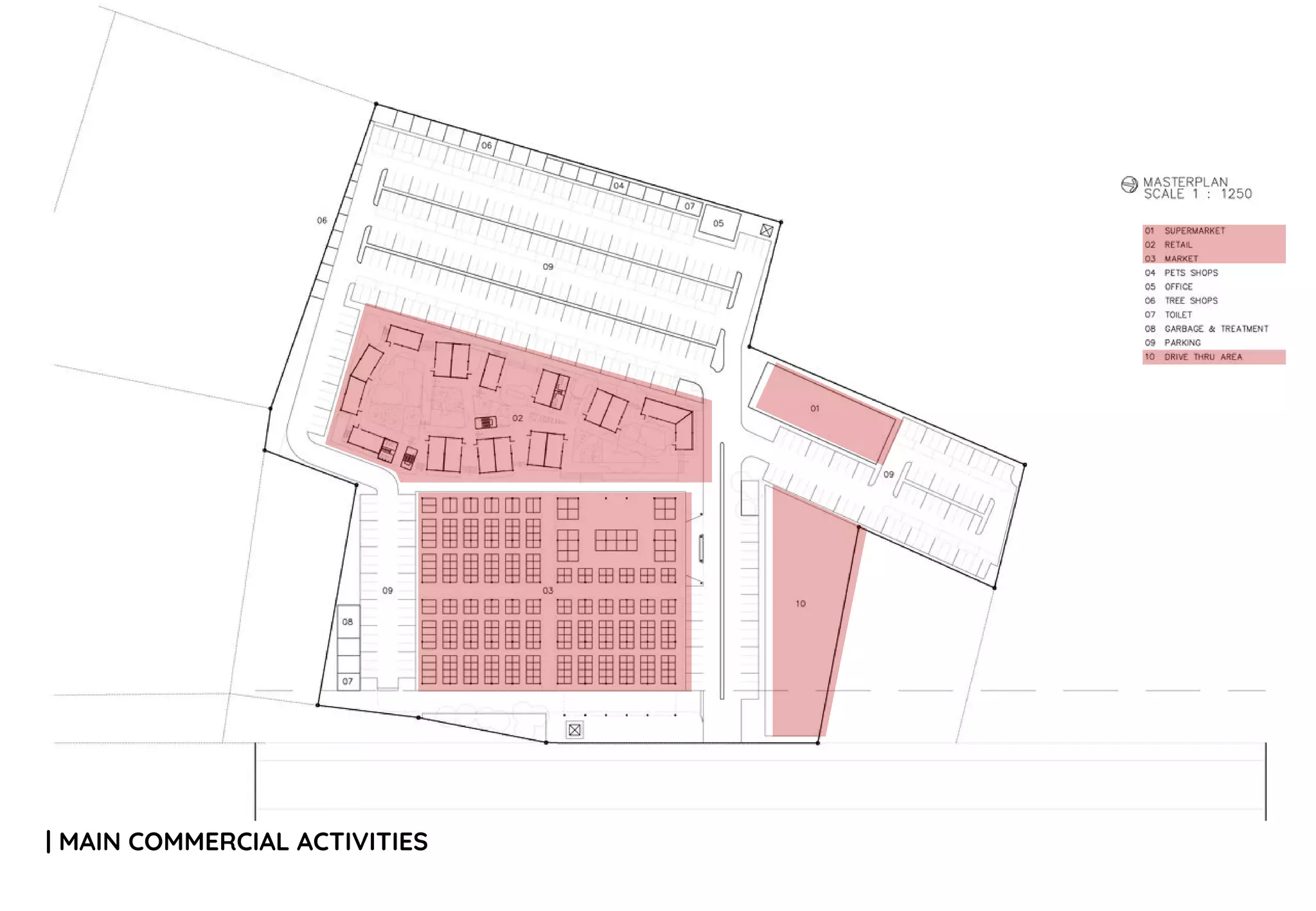

63. | MAIN COMMERCIAL ACTIVITIES

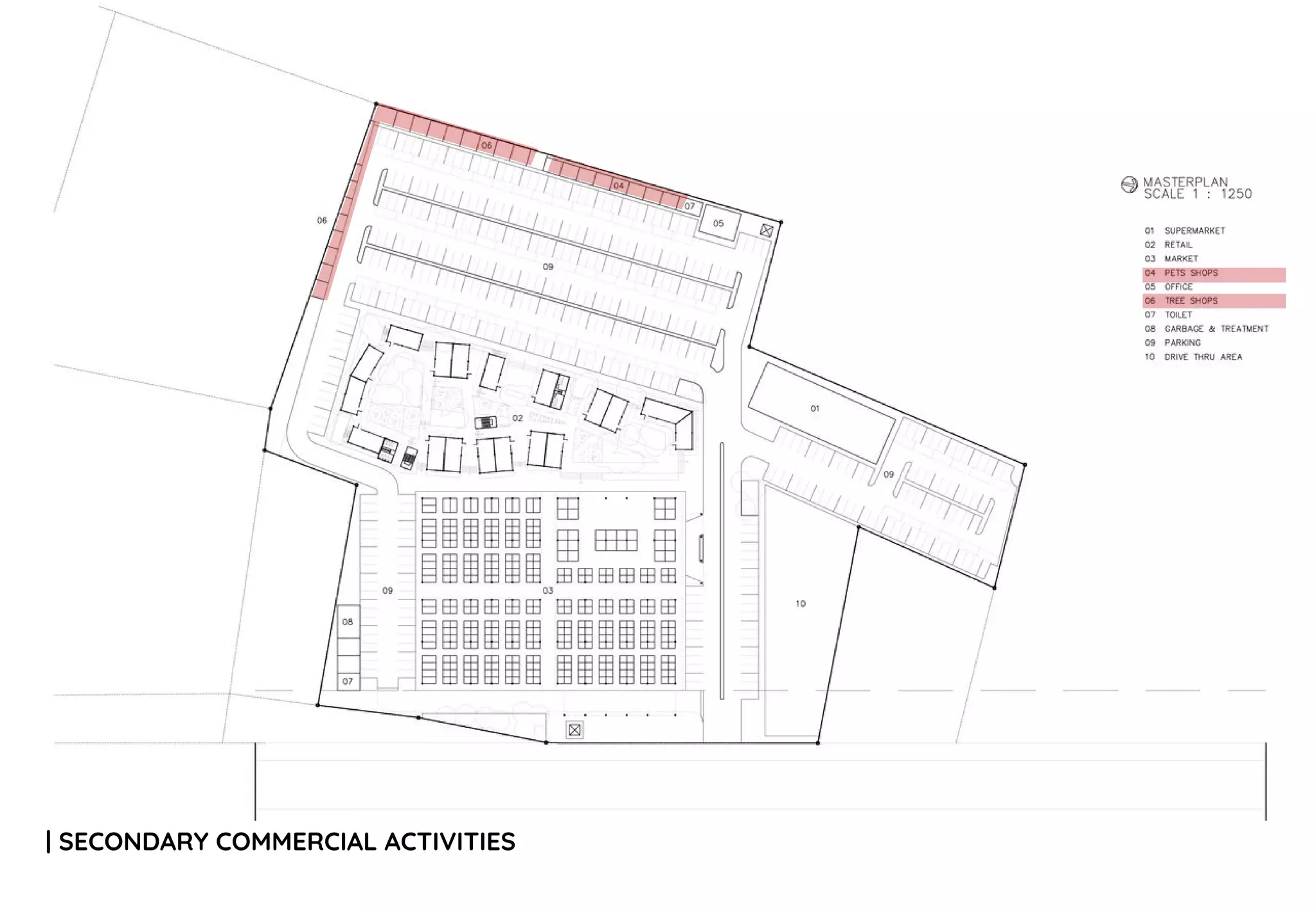

64. | SECONDARY COMMERCIAL ACTIVITIES

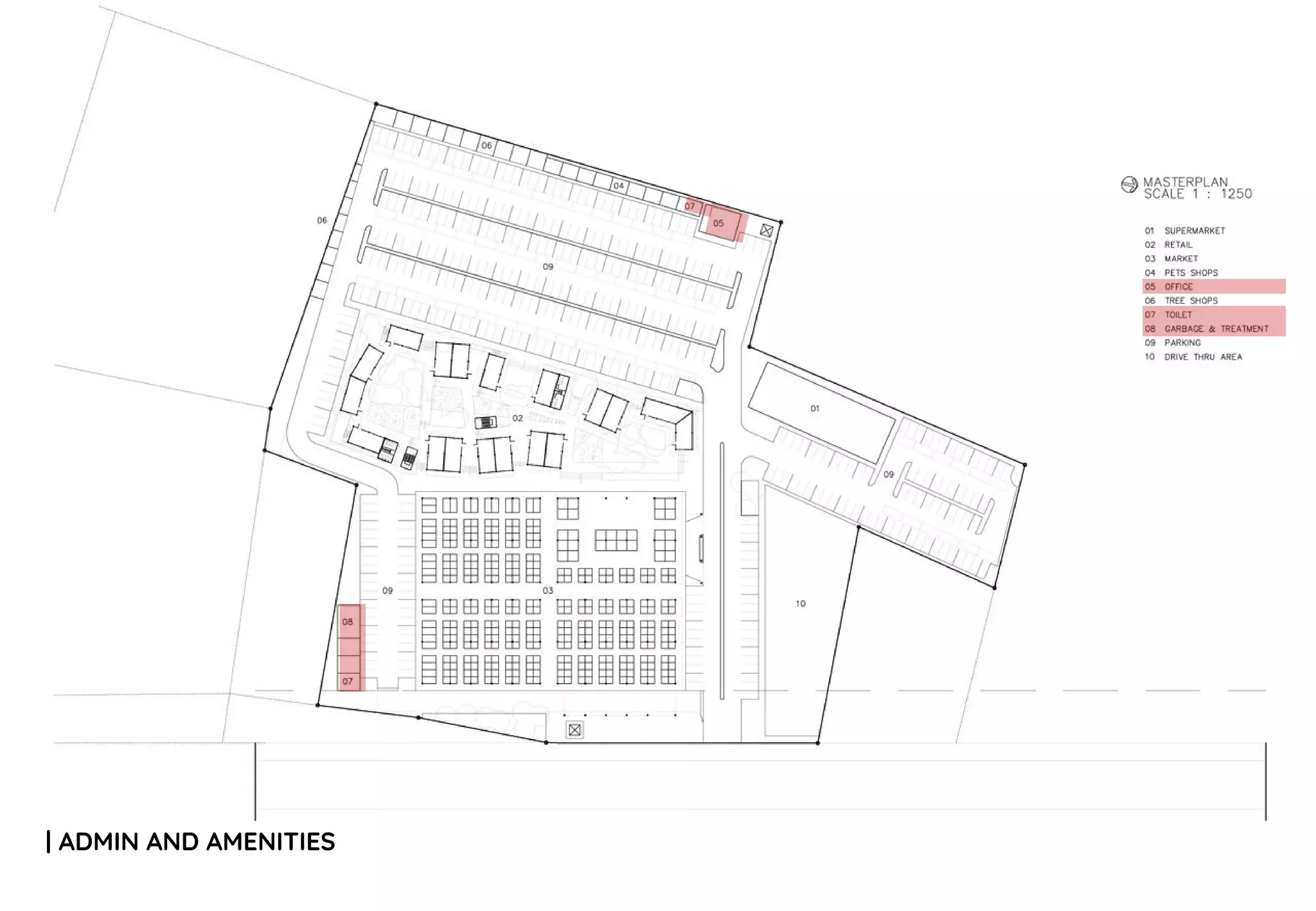

65. | ADMIN AND AMENITIES

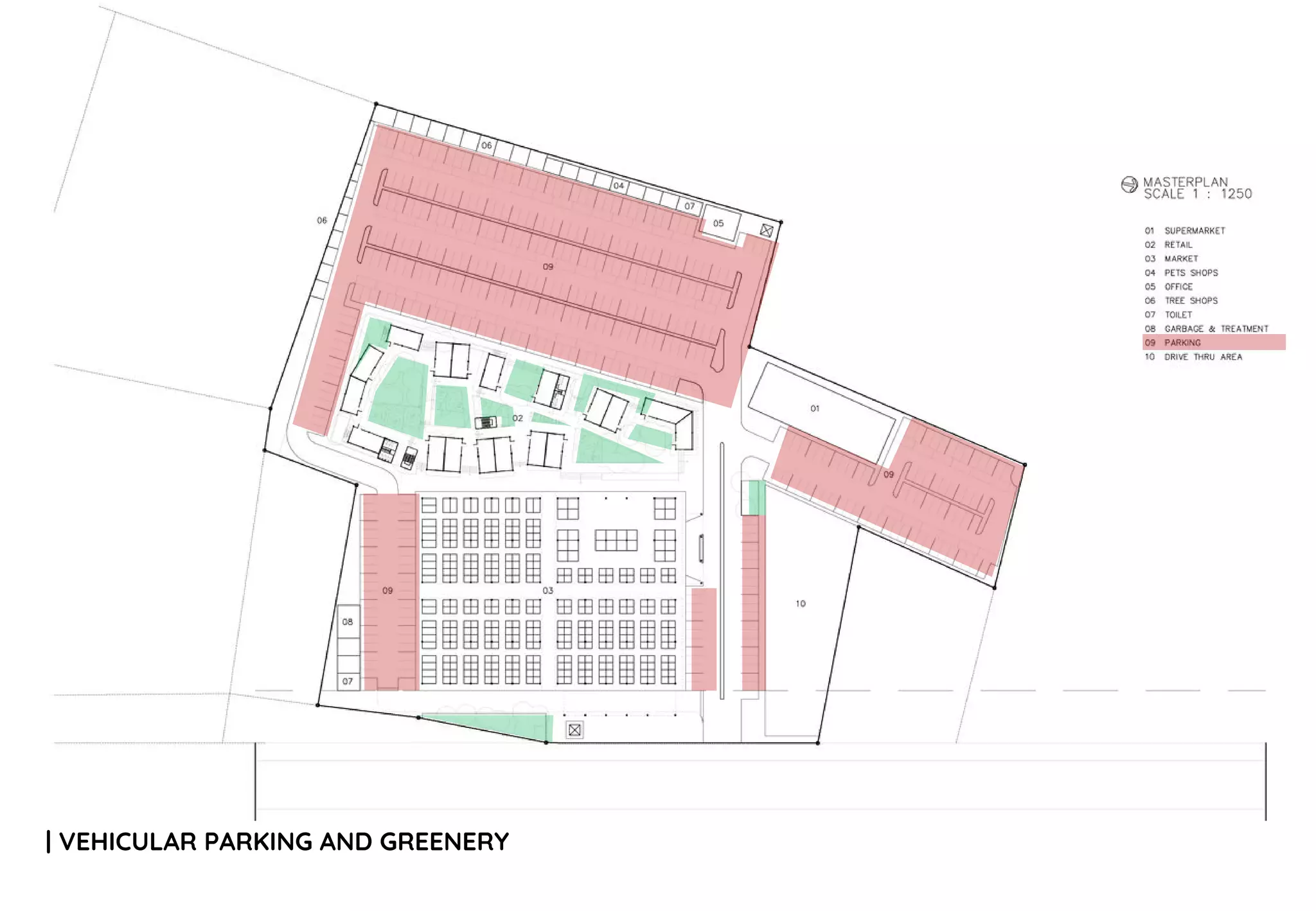

66. | VEHICULAR PARKING AND GREENERY

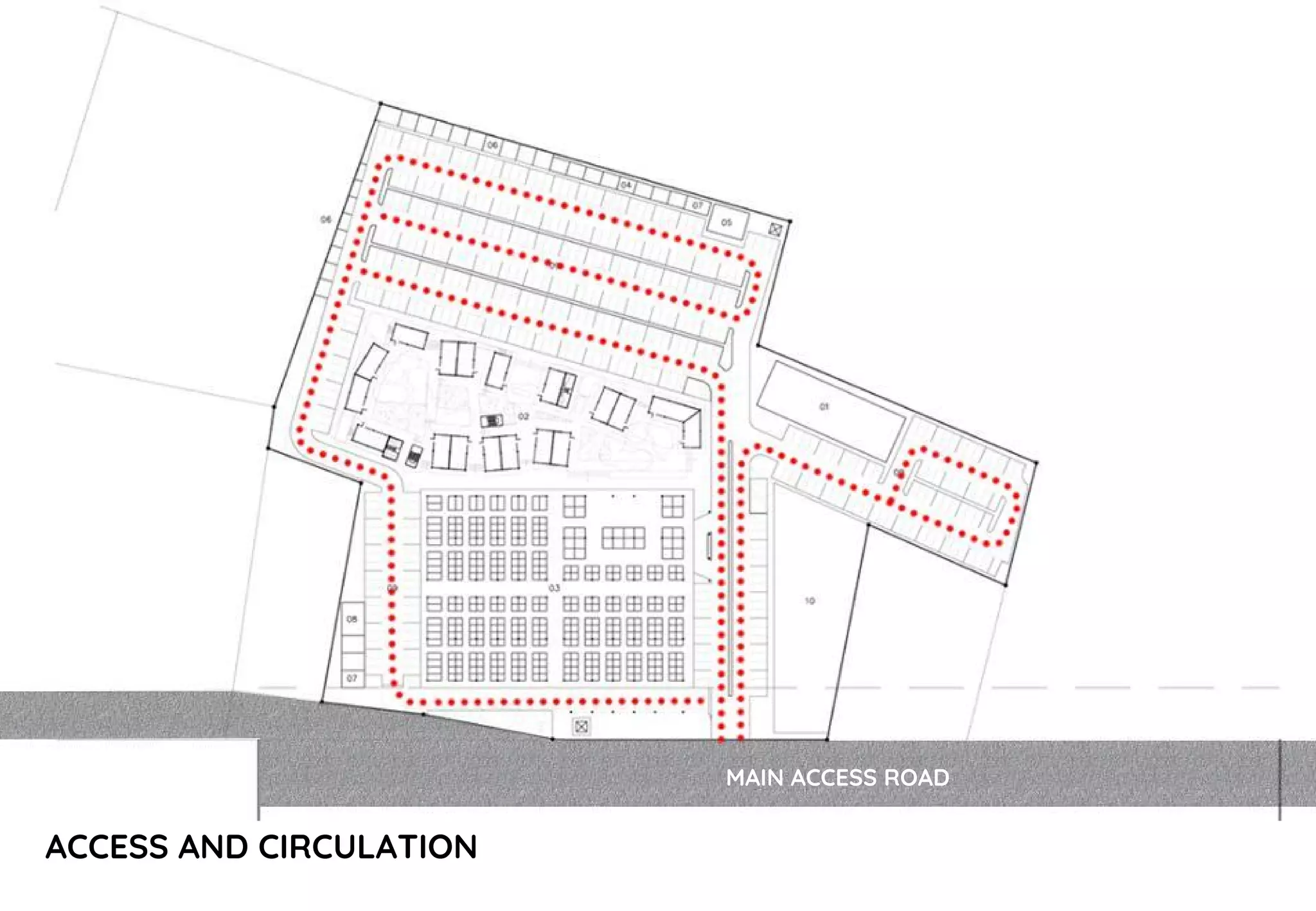

67. ACCESS AND CIRCULATION
MAIN ACCESS ROAD

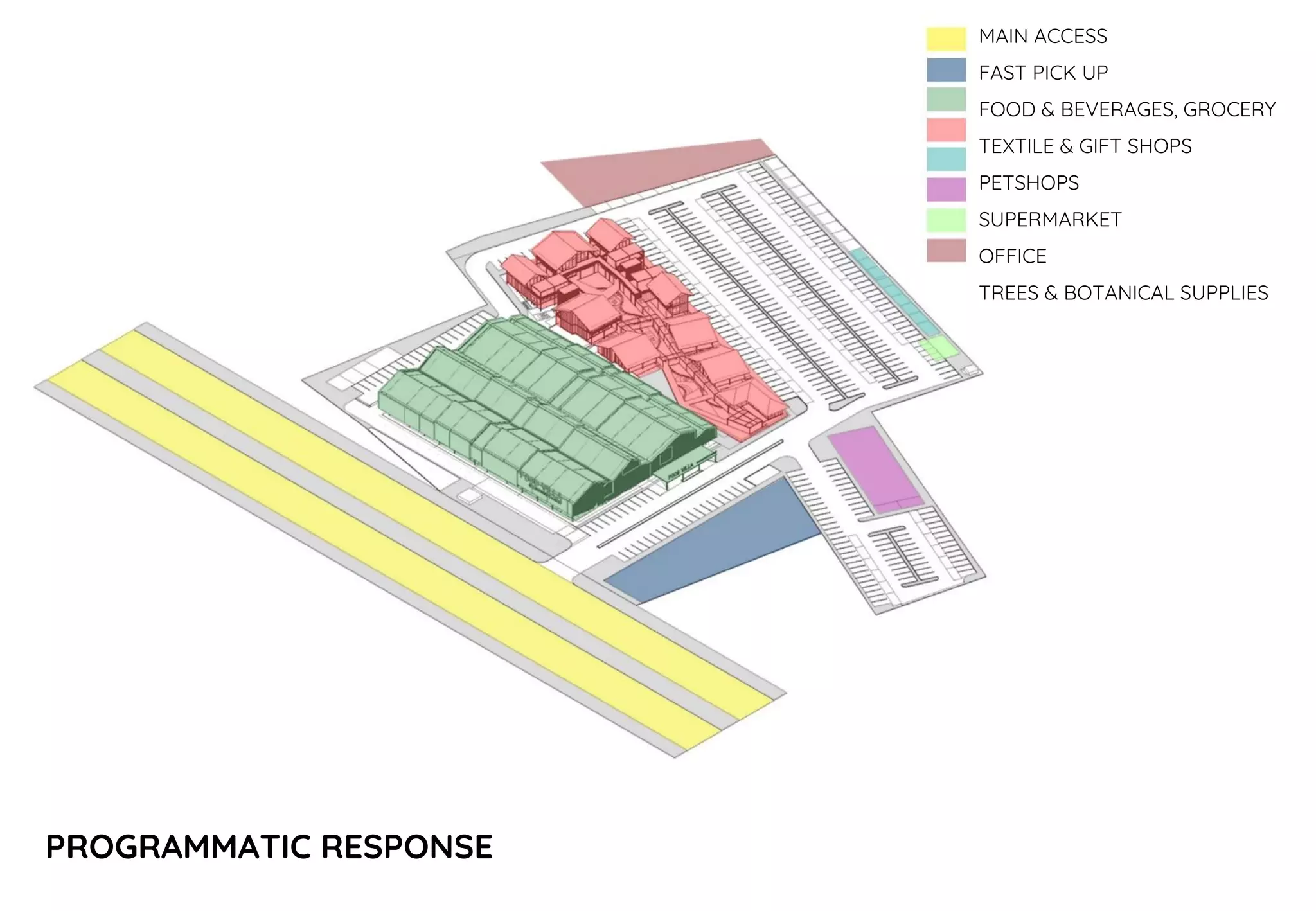

68. PROGRAMMATIC RESPONSE
MAIN ACCESS
FAST PICK UP
FOOD & BEVERAGES, GROCERY
TEXTILE & GIFT SHOPS
PETSHOPS
SUPERMARKET
OFFICE
TREES & BOTANICAL SUPPLIES

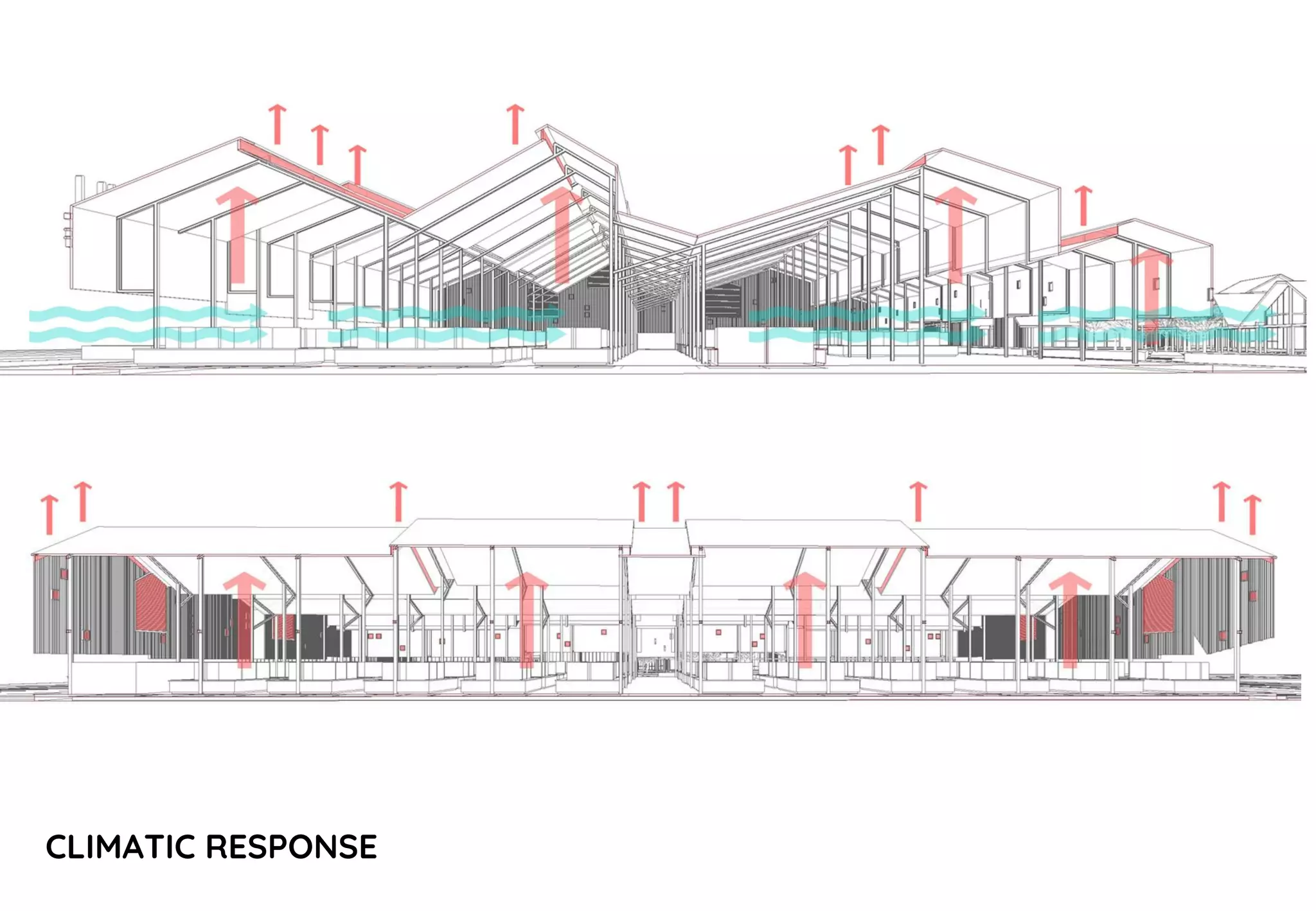

69. CLIMATIC RESPONSE

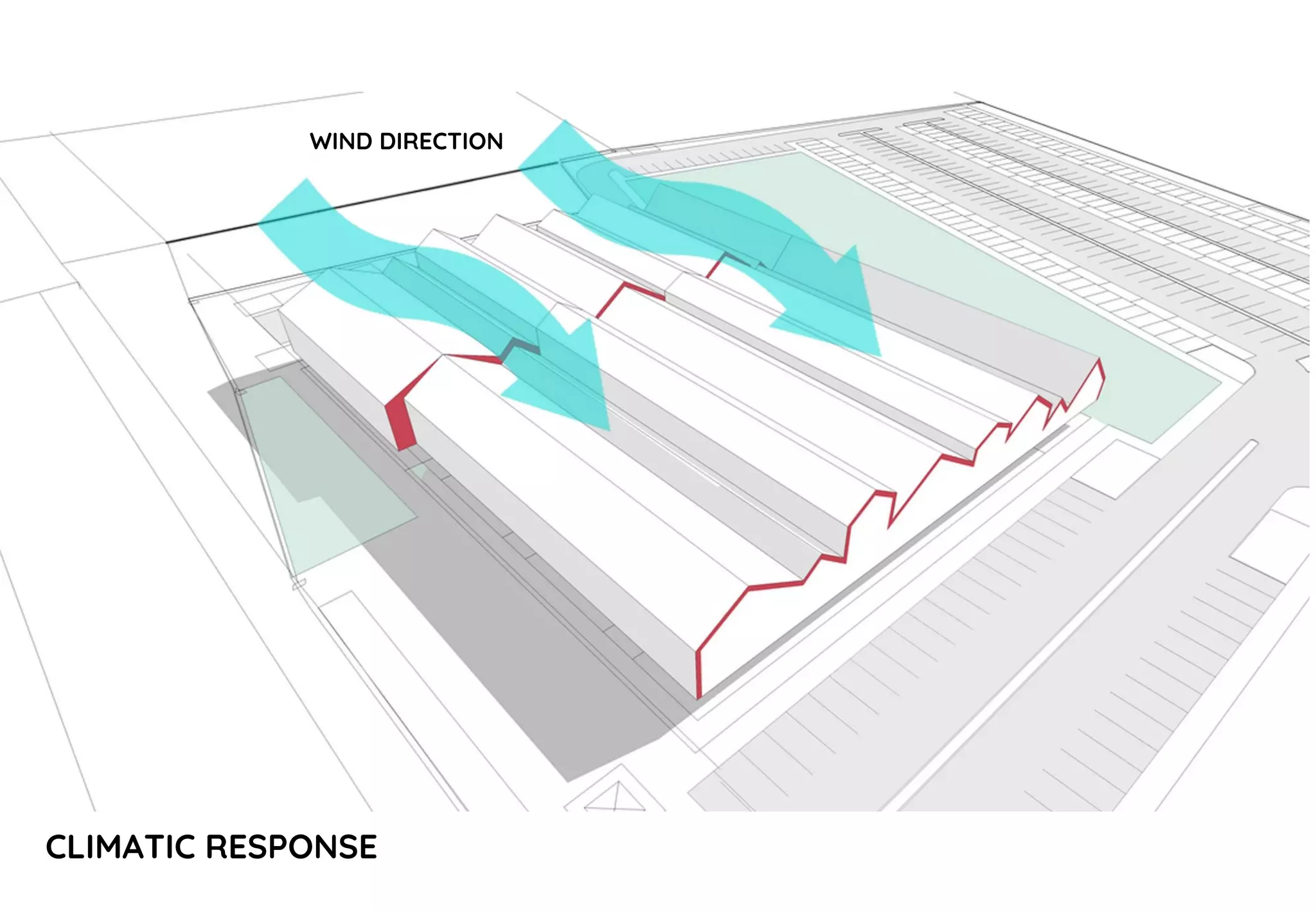

70. CLIMATIC RESPONSE
WIND DIRECTION

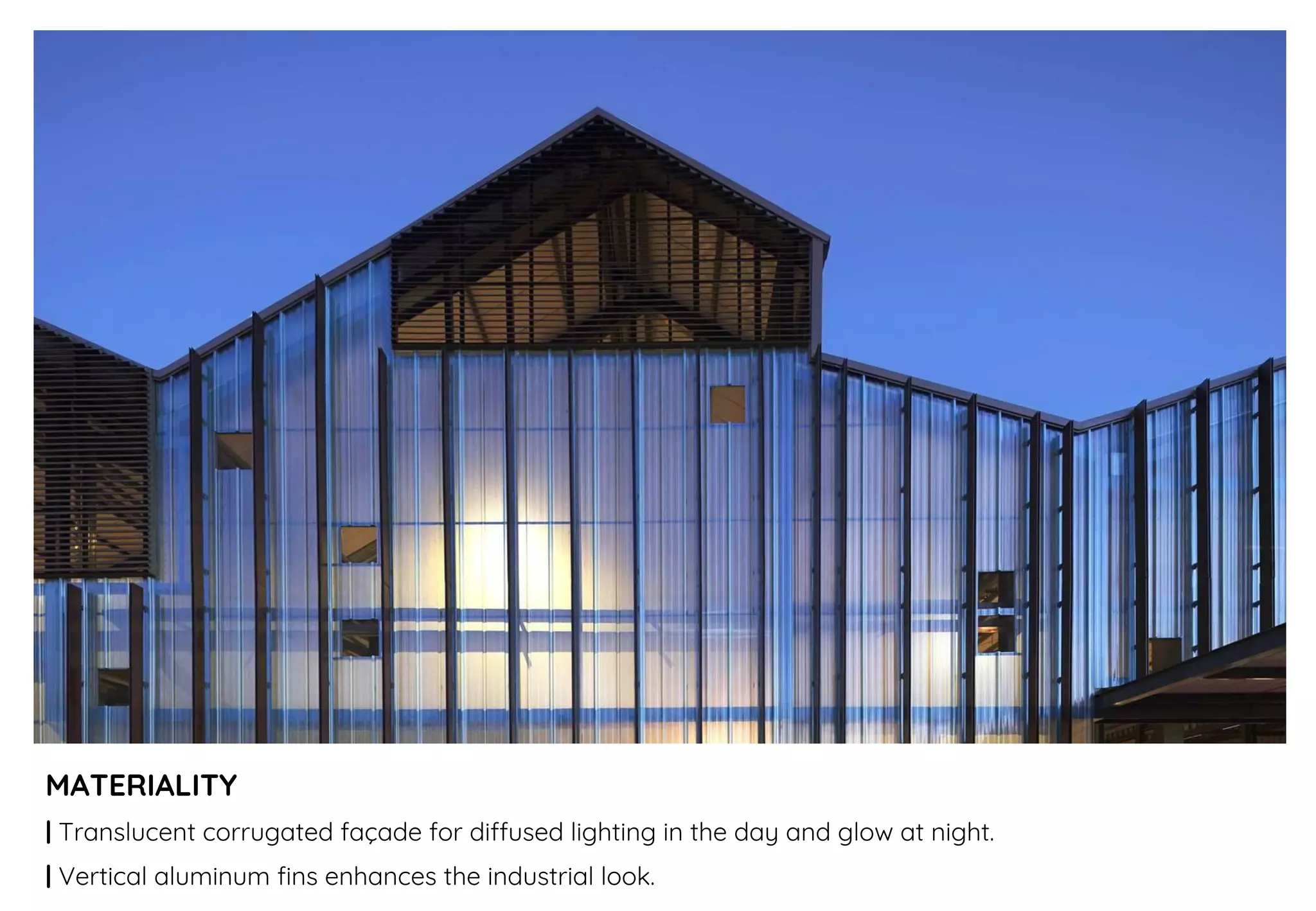

71. MATERIALITY
| Translucent corrugated façade for diffused lighting in the day and glow at night.
| Vertical aluminum fins enhances the industrial look.

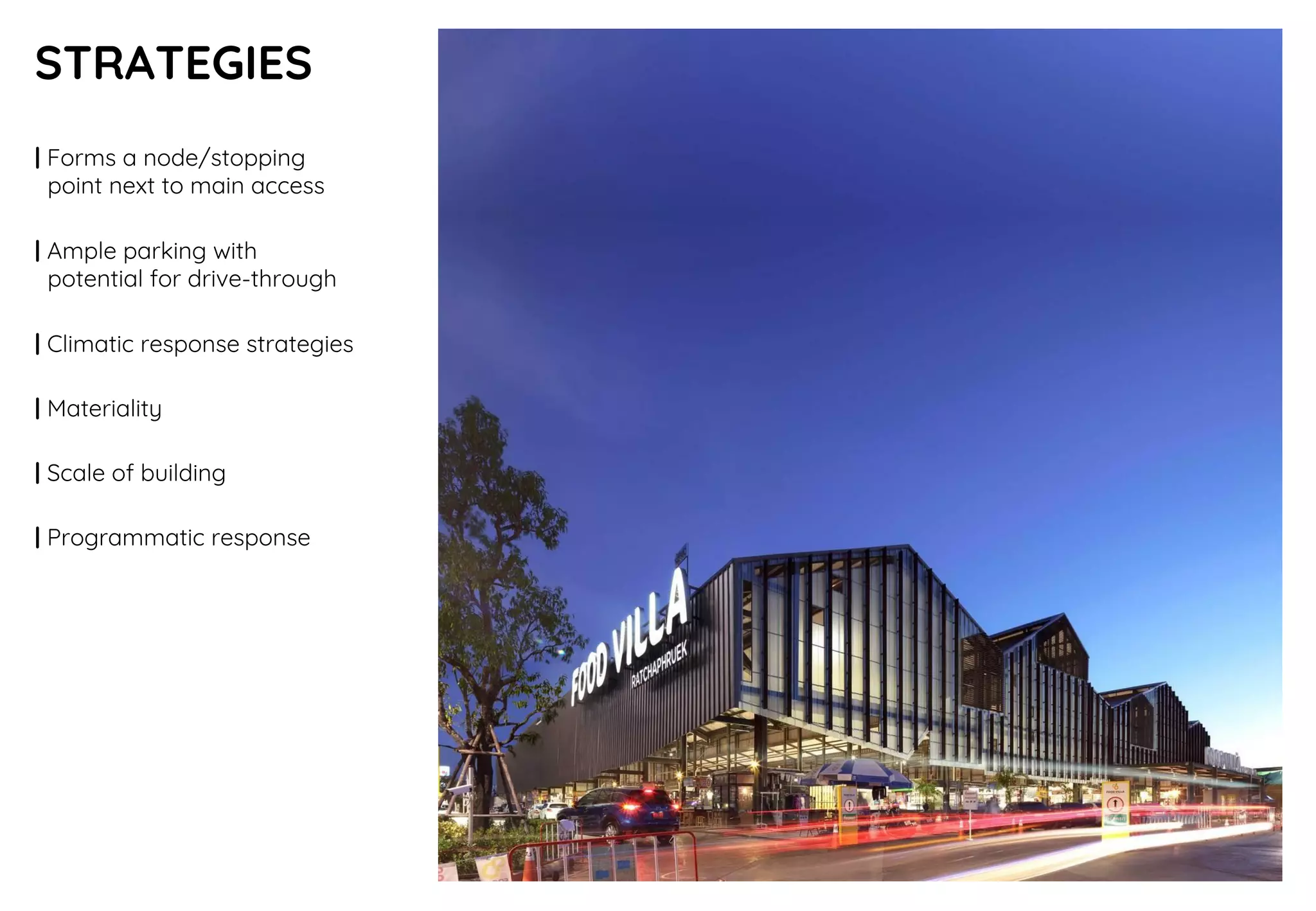

72. STRATEGIES
| Forms a node/stopping
point next to main access
| Ample parking with
potential for drive-through
| Climatic response strategies
| Materiality
| Scale of building
| Programmatic response

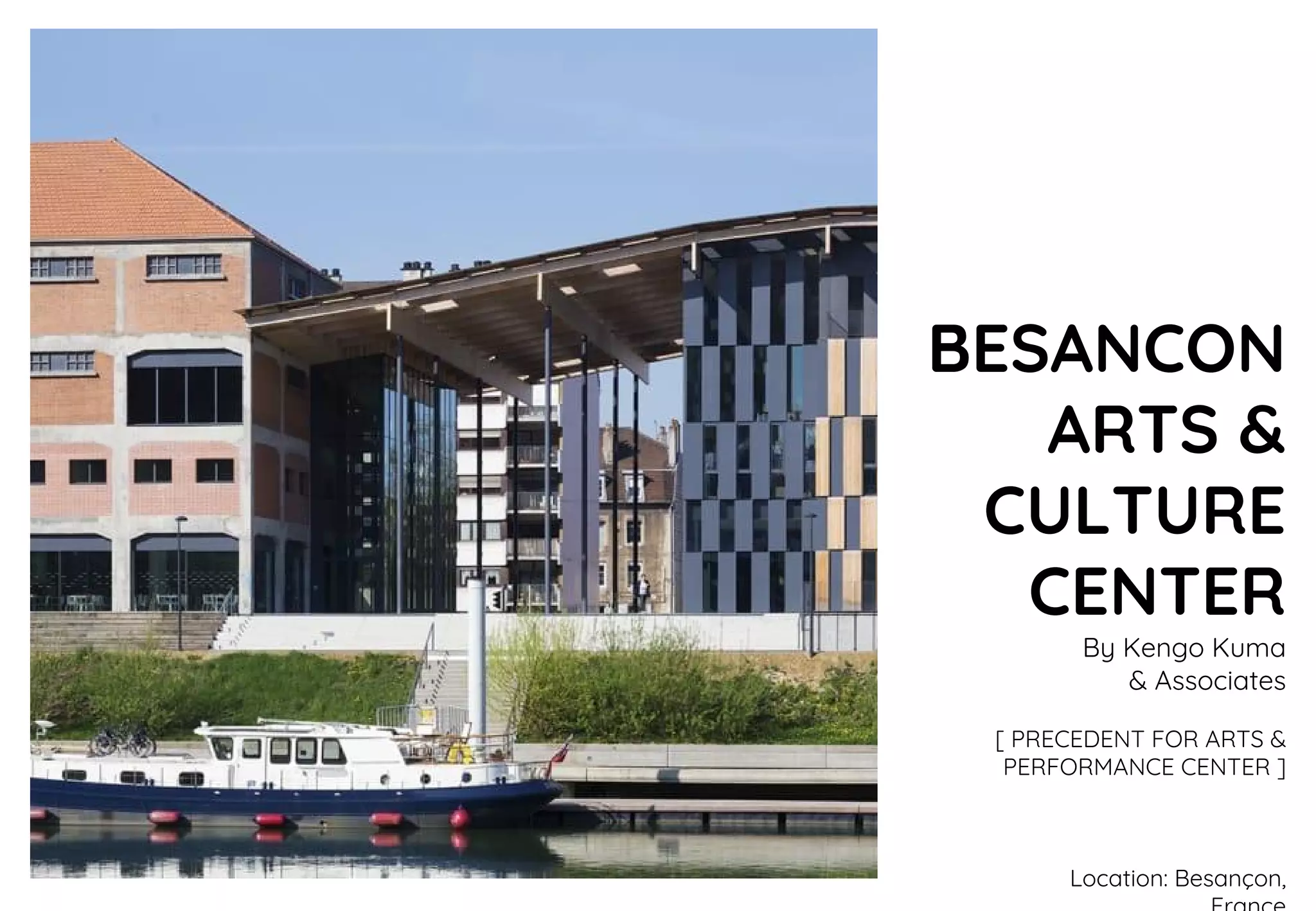

73. BESANCON
ARTS &
CULTURE
CENTER
By Kengo Kuma
& Associates
[ PRECEDENT FOR ARTS &
PERFORMANCE CENTER ]
Location: Besançon,

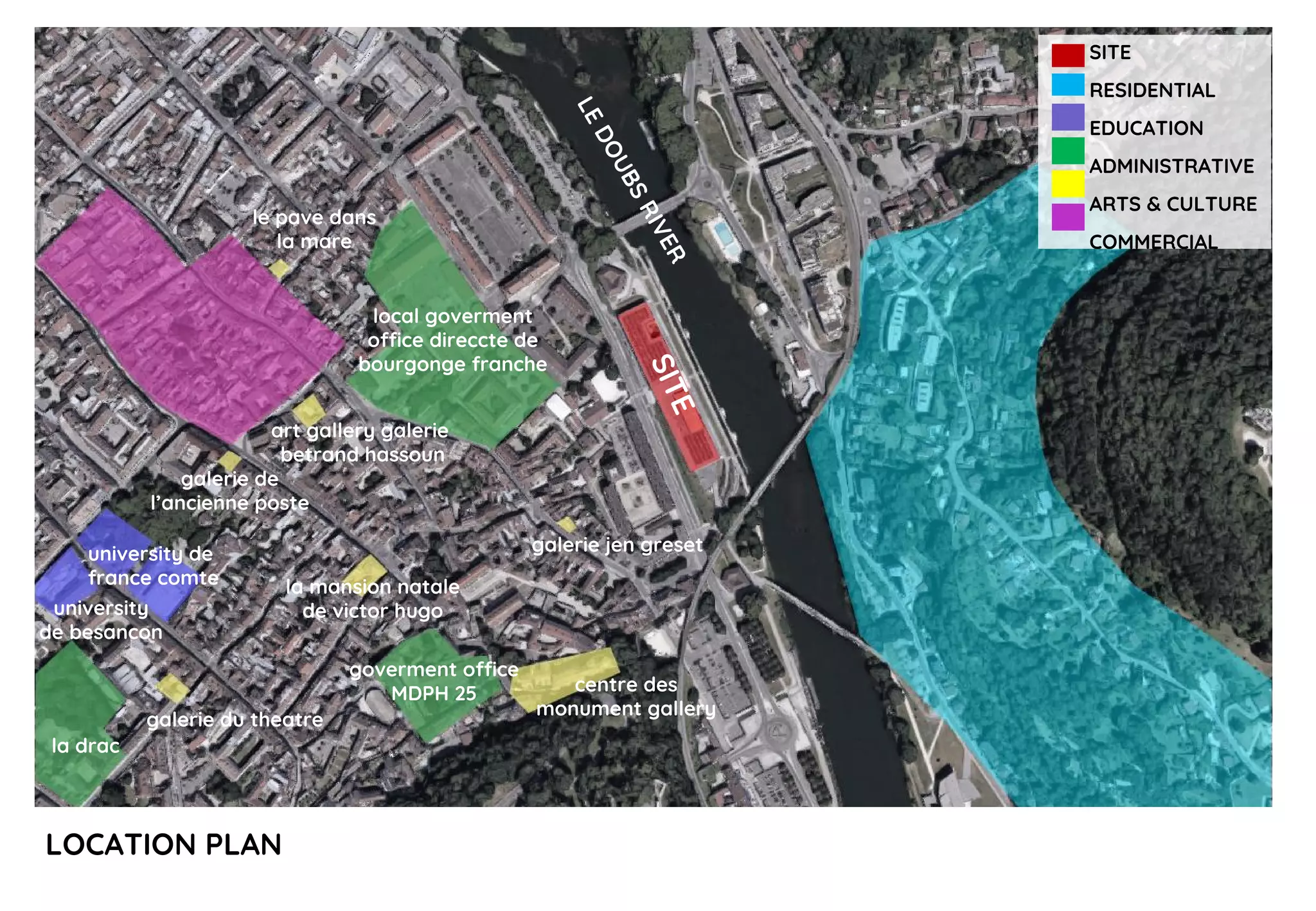

74. LOCATION PLAN
SITE
la drac
centre des
monument gallery
university de
france comte
university
de besancon
goverment office
MDPH 25
local goverment
office direccte de
bourgonge franche
SITE
RESIDENTIAL
EDUCATION
ADMINISTRATIVE
ARTS & CULTURE
COMMERCIAL
LEDOUBSRIVER
galerie jen greset
la mansion natale
de victor hugo
galerie du theatre
galerie de
l’ancienne poste
art gallery galerie
betrand hassoun
le pave dans
la mare

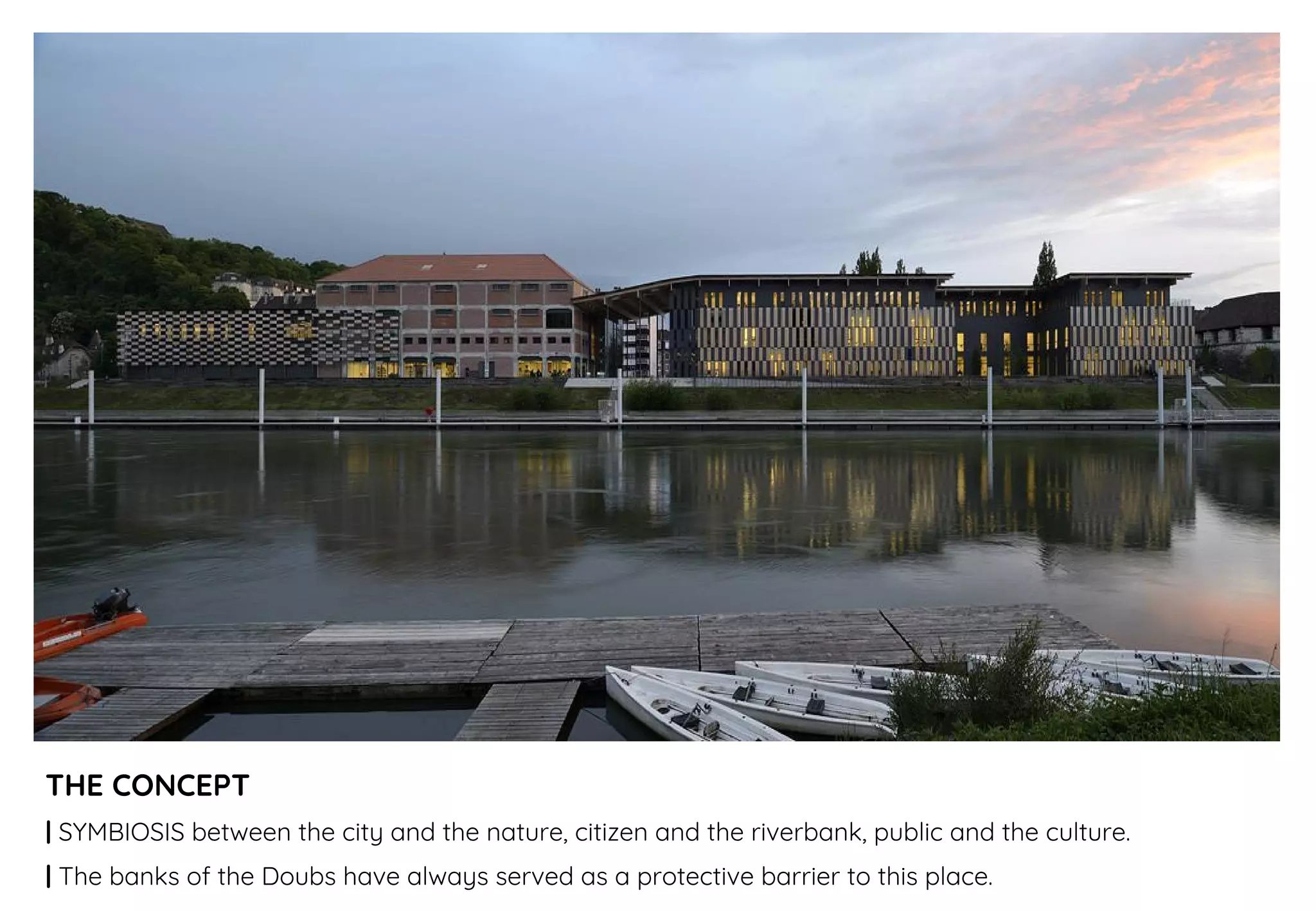

75. THE CONCEPT
| SYMBIOSIS between the city and the nature, citizen and the riverbank, public and the culture.
| The banks of the Doubs have always served as a protective barrier to this place.

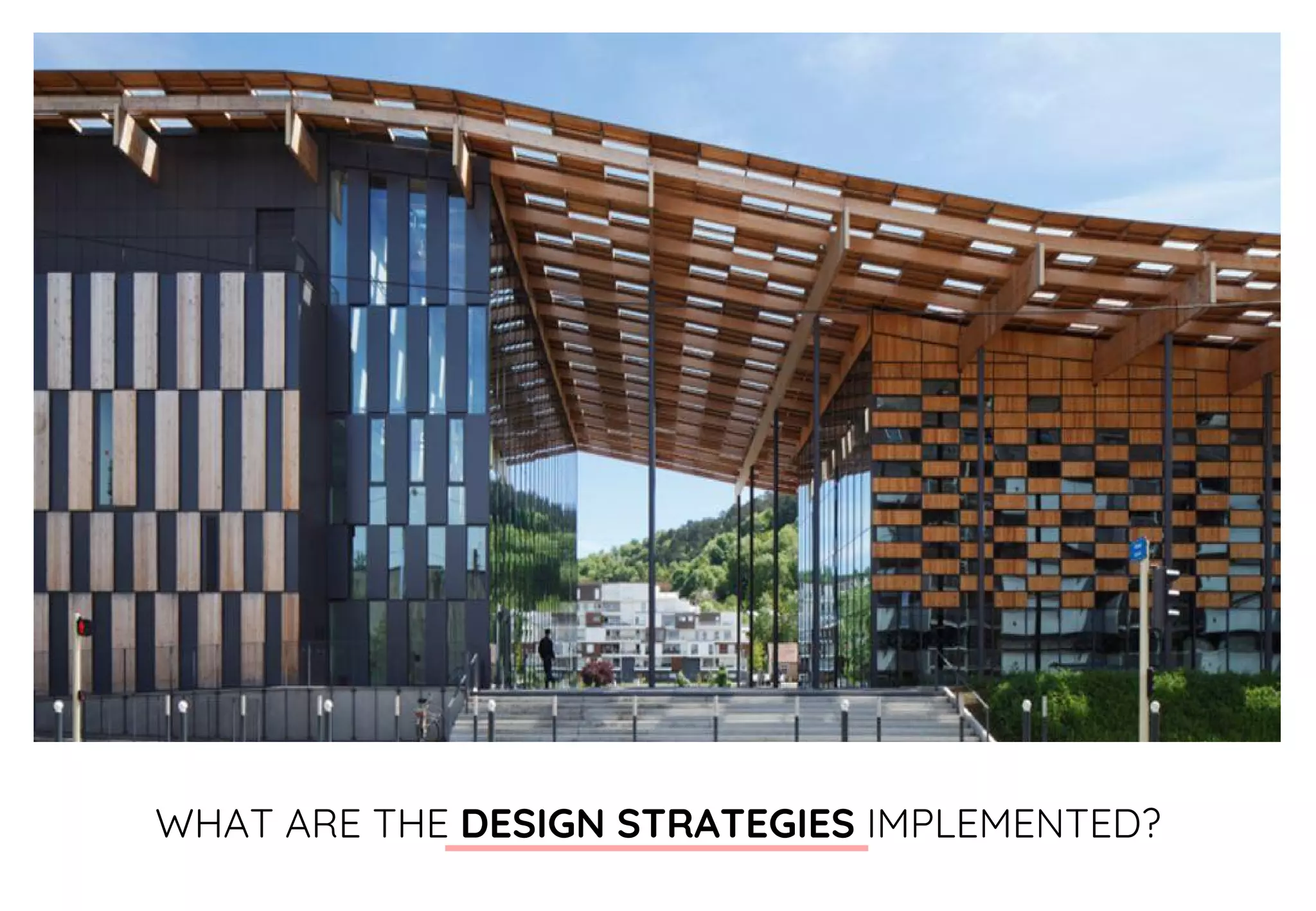

76. THE CONCEPT
| Perpetuate the notion of protection, but can be read as well as a monumental gate between the
city and the river, outstanding object and symbol of the unification.
WHAT ARE THE DESIGN STRATEGIES IMPLEMENTED?

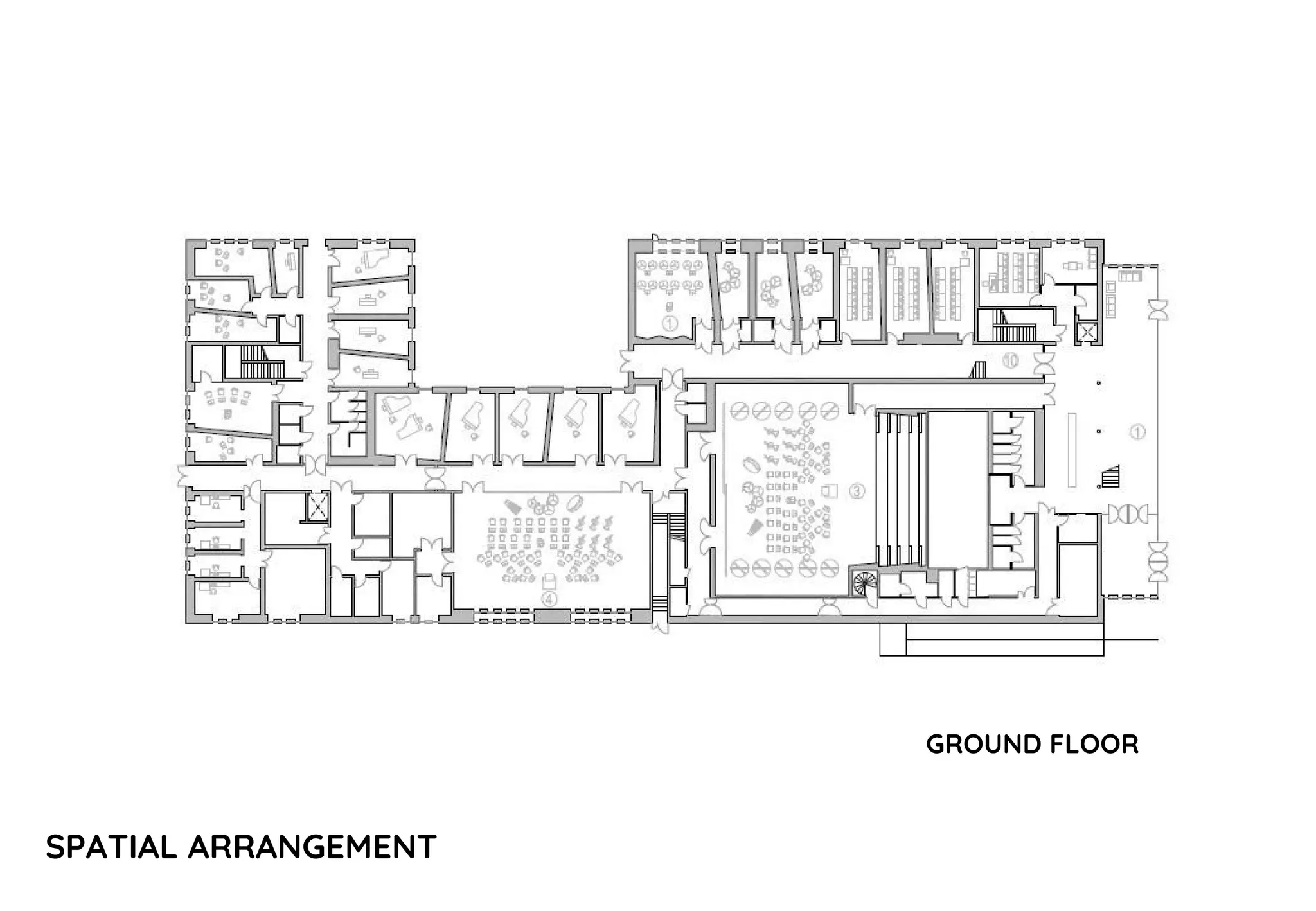

77. SPATIAL ARRANGEMENT
GROUND FLOOR

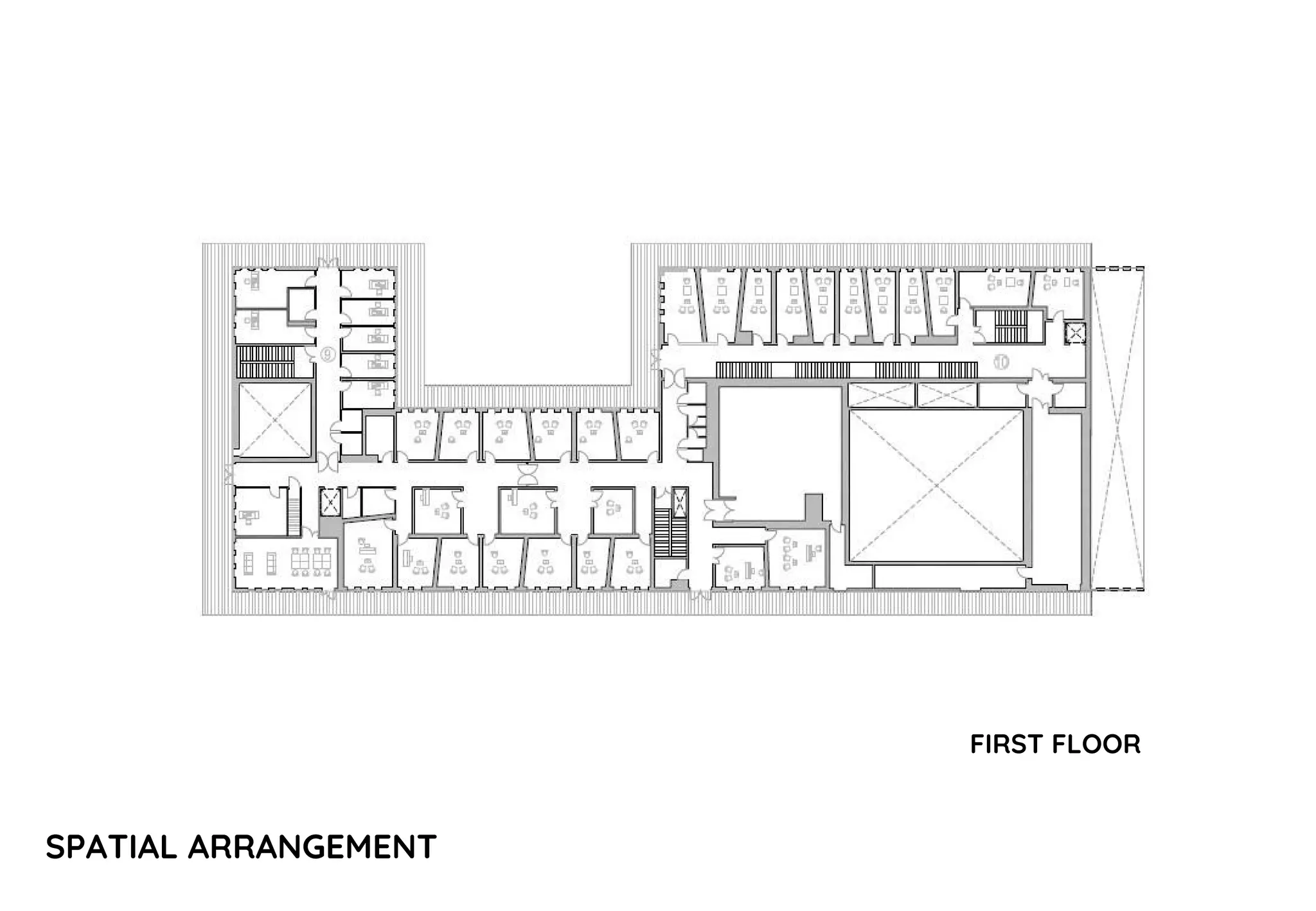

78. SPATIAL ARRANGEMENT
FIRST FLOOR

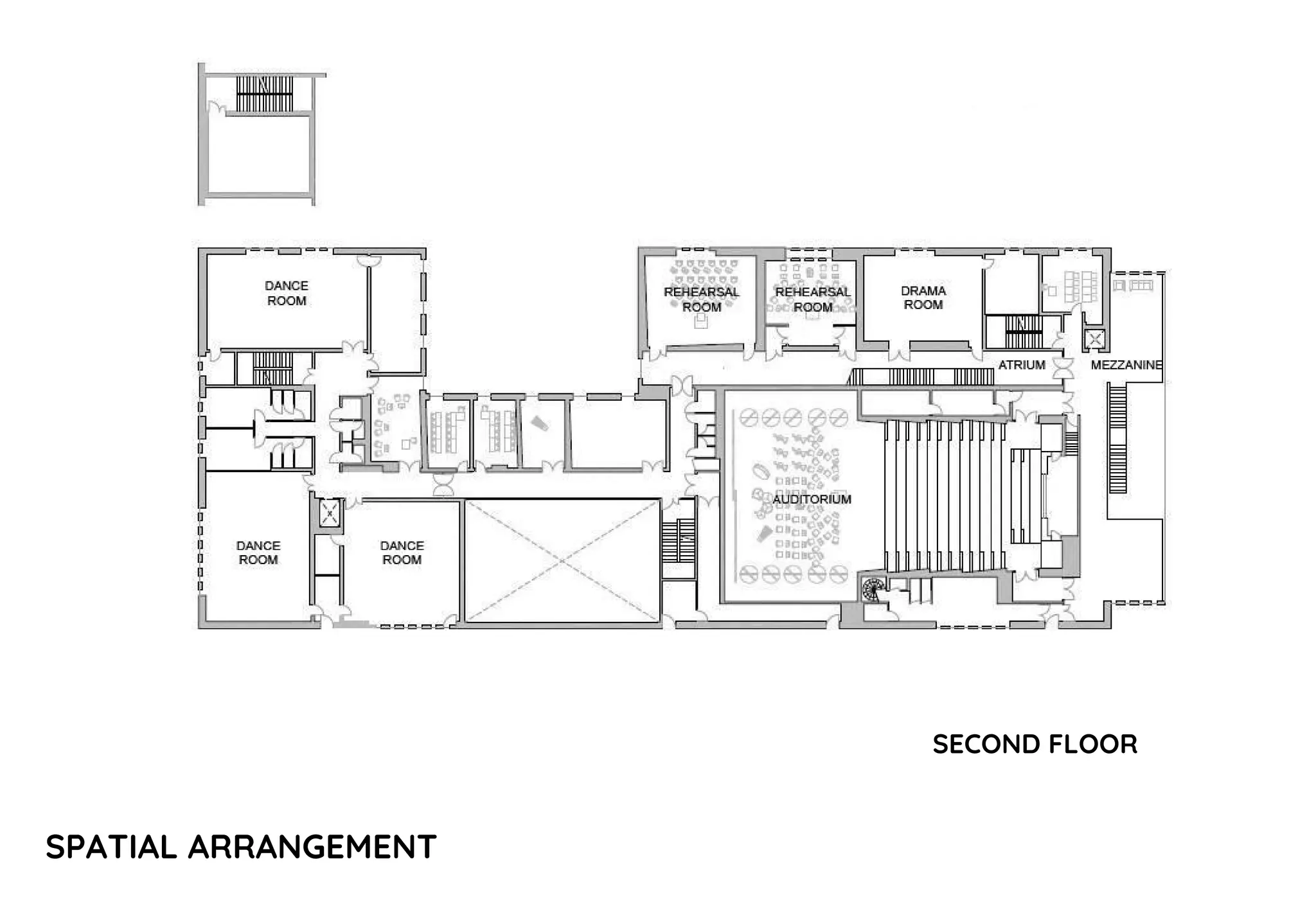

79. SPATIAL ARRANGEMENT
SECOND FLOOR

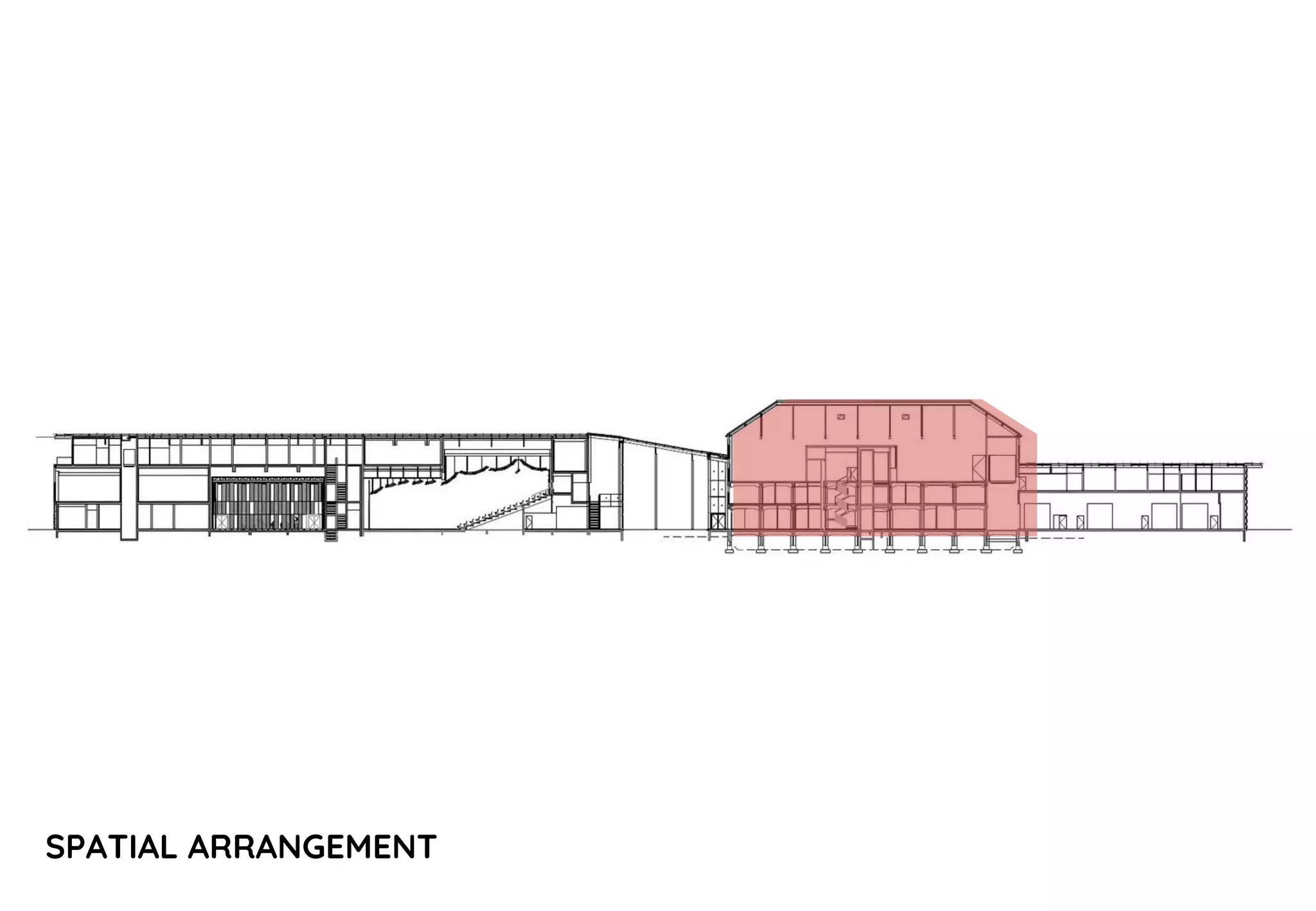

80. SPATIAL ARRANGEMENT

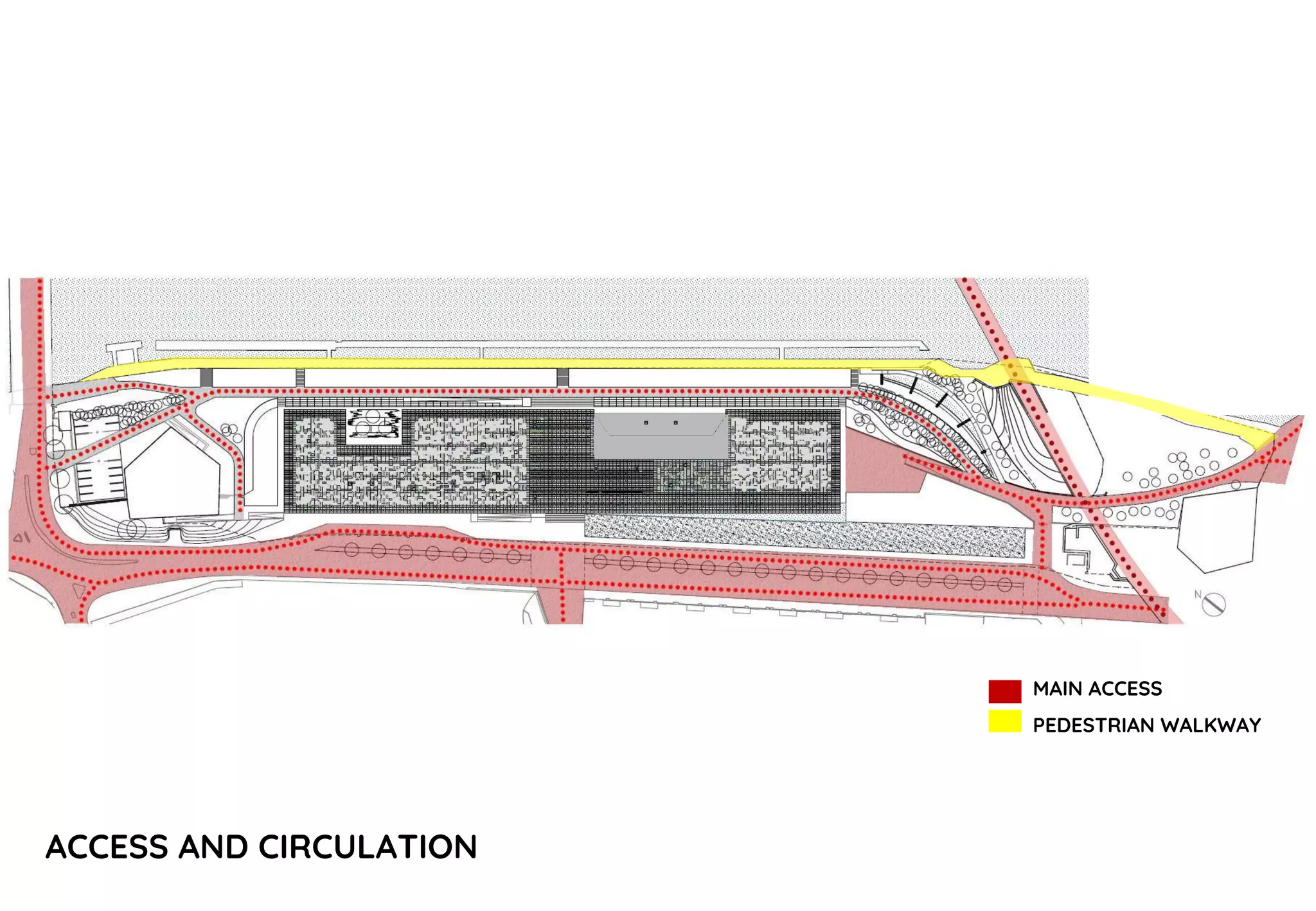

81. ACCESS AND CIRCULATION
MAIN ACCESS ROAD
MAIN ACCESS
PEDESTRIAN WALKWAY

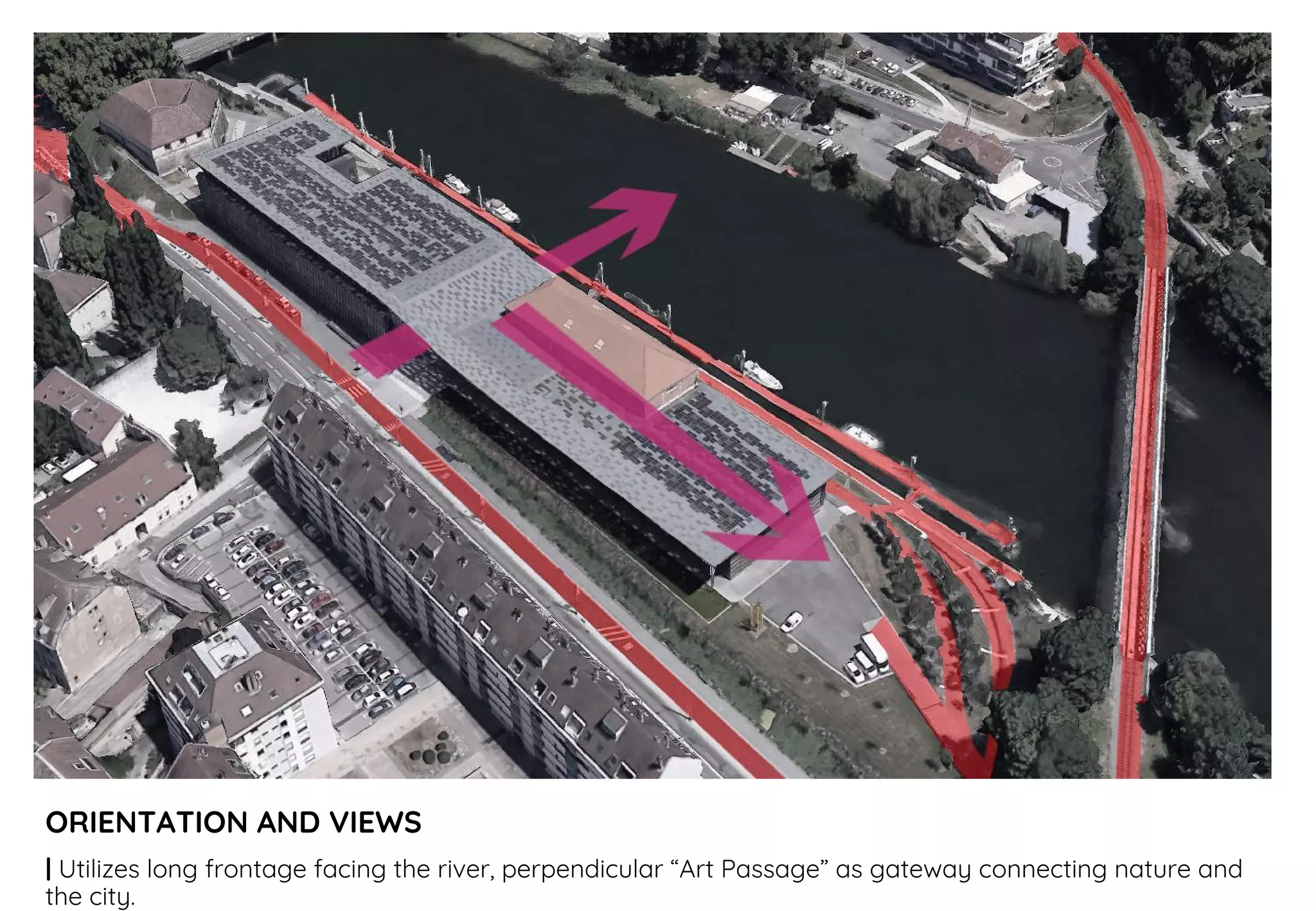

82. ORIENTATION AND VIEWS
| Utilizes long frontage facing the river, perpendicular “Art Passage” as gateway connecting nature and
the city.

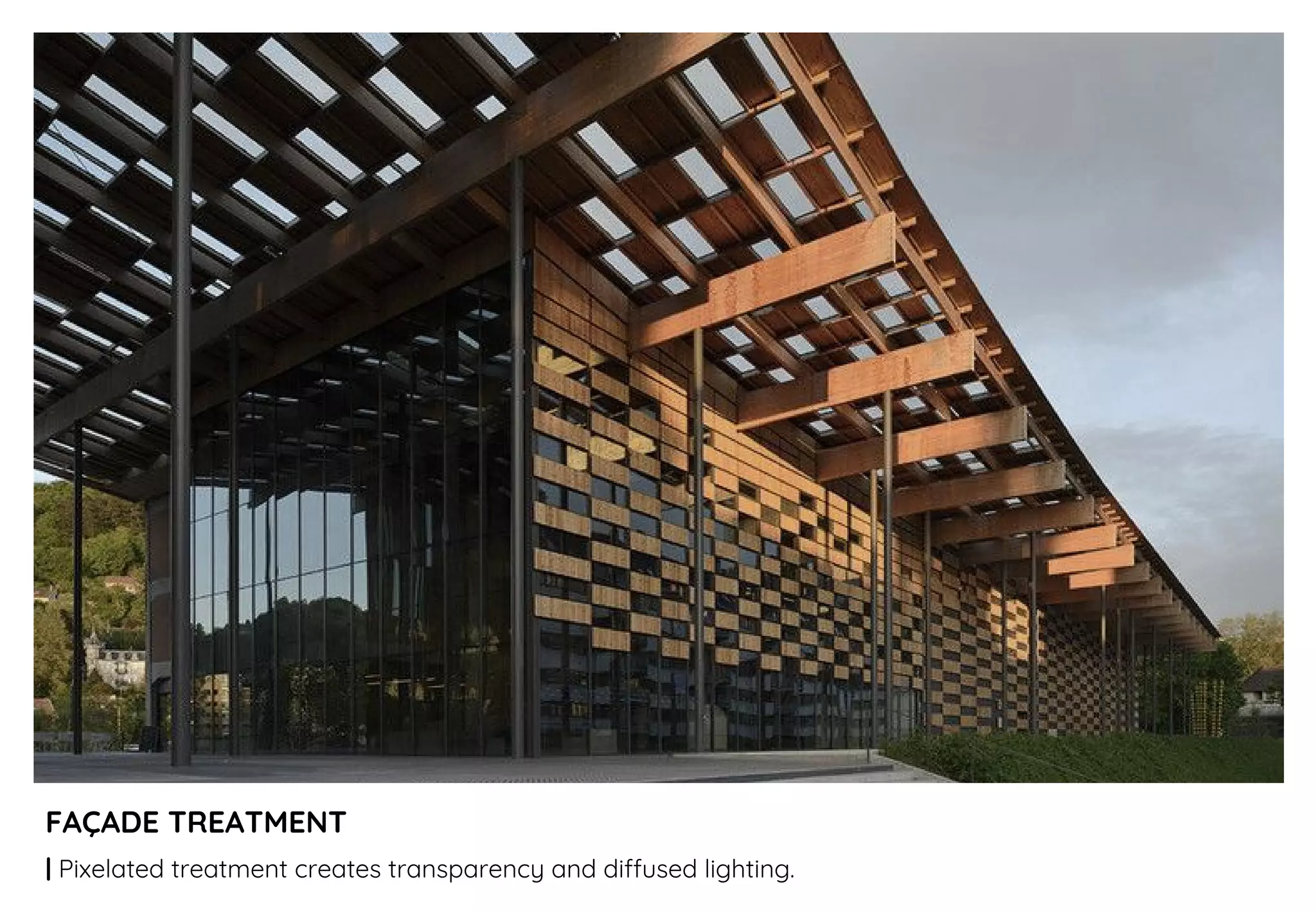

83. FAÇADE TREATMENT
| Pixelated treatment creates transparency and diffused lighting.

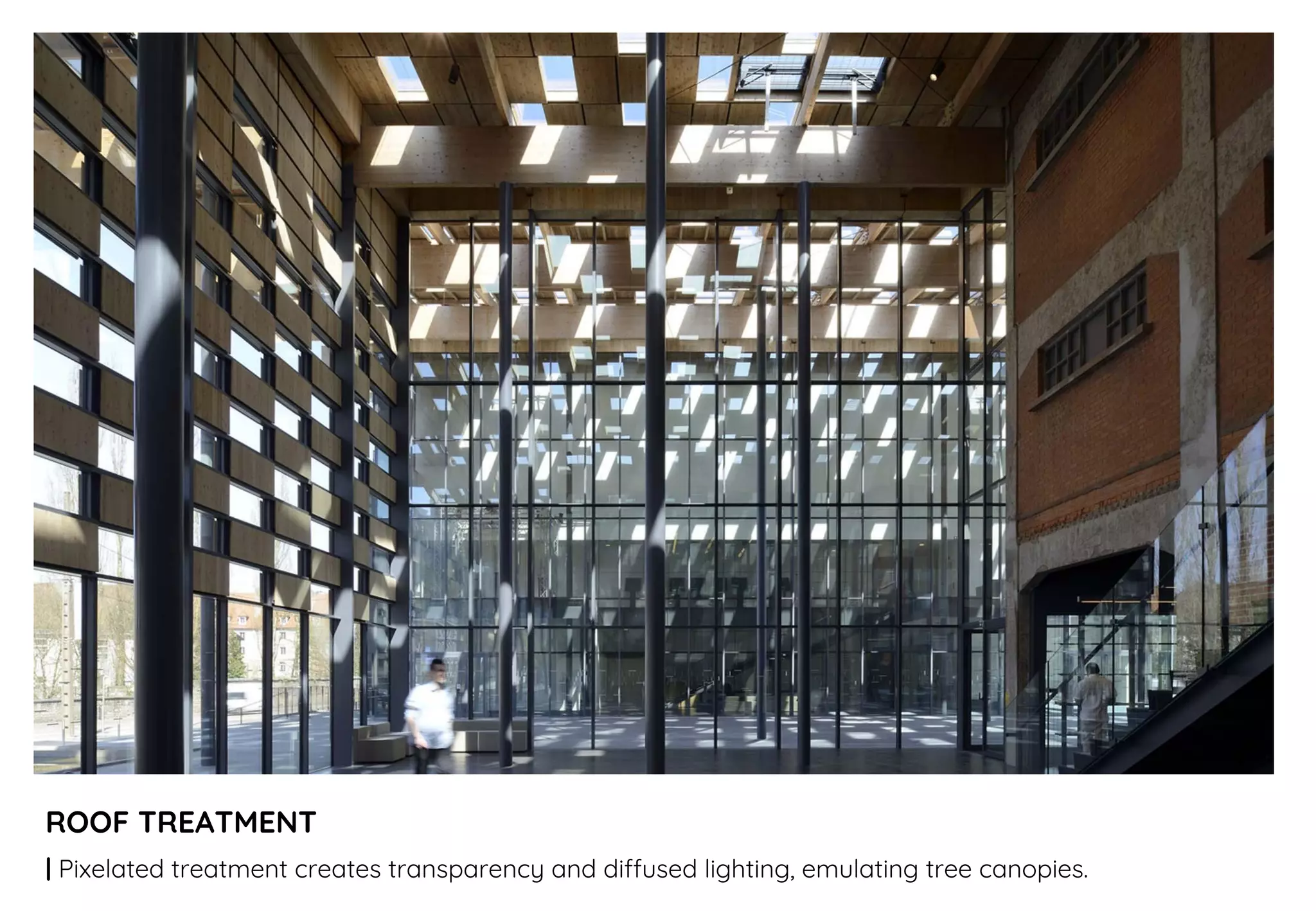

84. ROOF TREATMENT
| Pixelated treatment creates transparency and diffused lighting, emulating tree canopies.

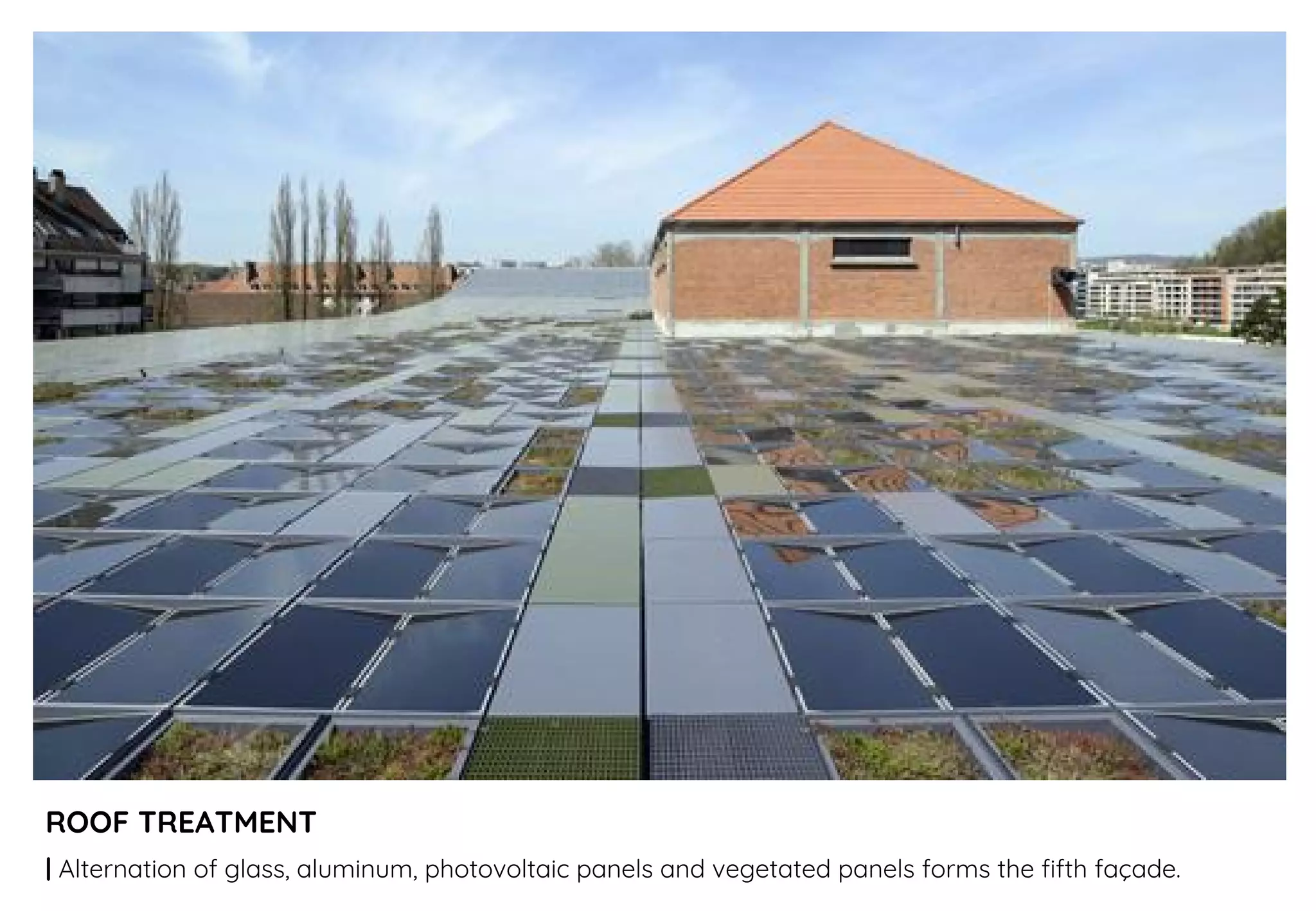

85. ROOF TREATMENT
| Alternation of glass, aluminum, photovoltaic panels and vegetated panels forms the fifth façade.

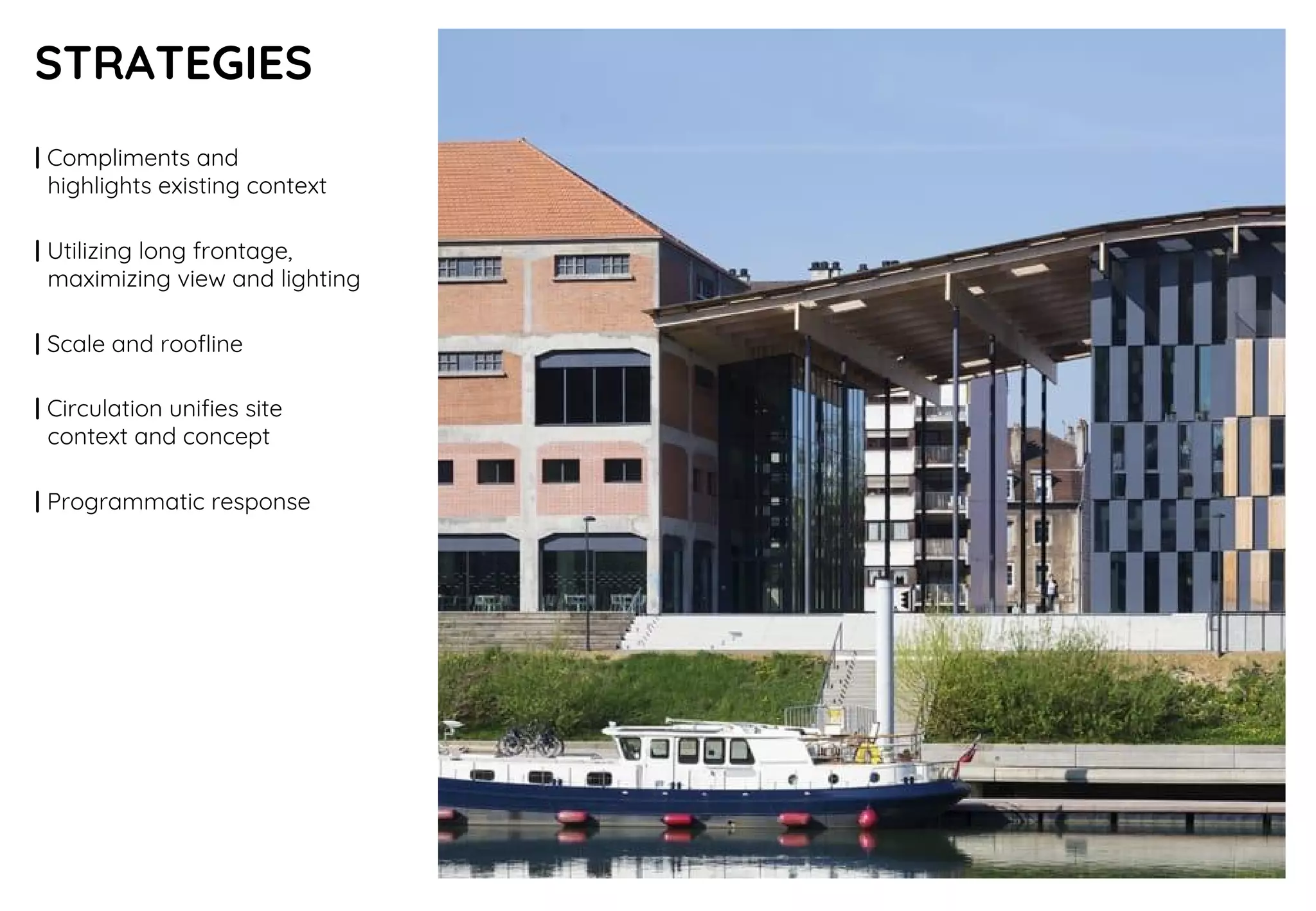

86. STRATEGIES
| Compliments and
highlights existing context
| Utilizing long frontage,
maximizing view and lighting
| Scale and roofline
| Circulation unifies site
context and concept
| Programmatic response

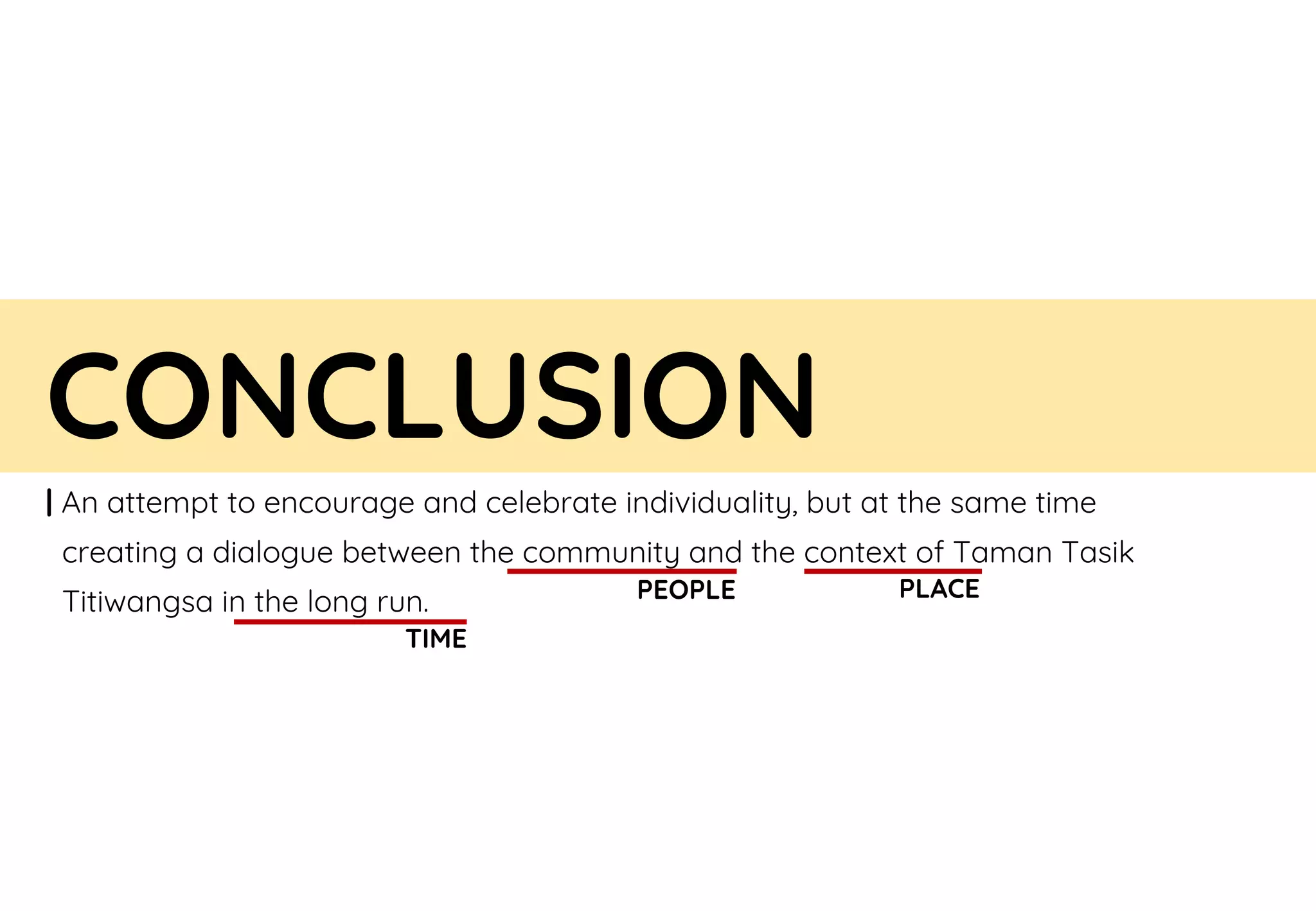

87. CONCLUSION
| An attempt to encourage and celebrate individuality, but at the same time
creating a dialogue between the community and the context of Taman Tasik
Titiwangsa in the long run. PEOPLE PLACE
TIME
