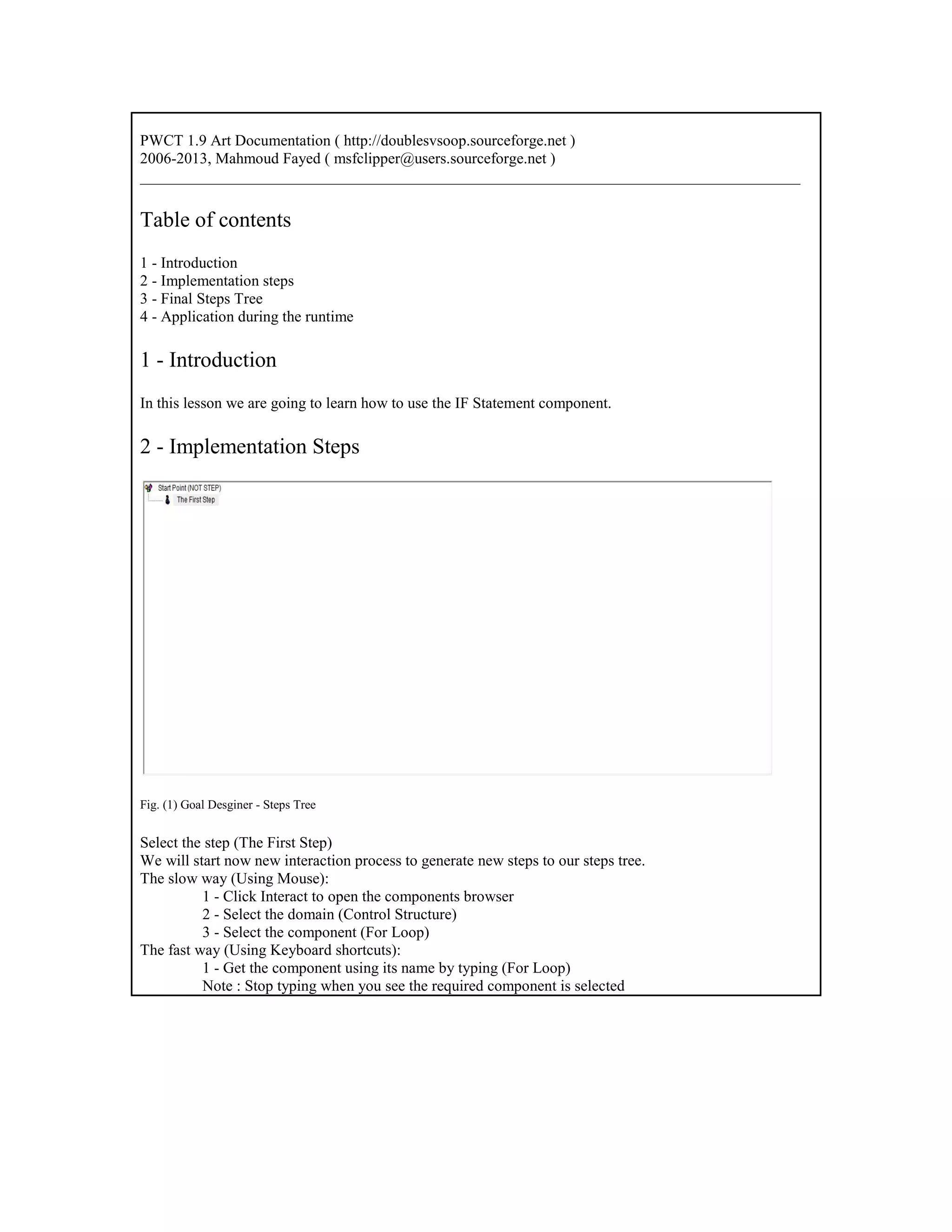

1 - Introduction
In this lesson we are going to learn how to use the IF Statement component.
2 - Implementation Steps

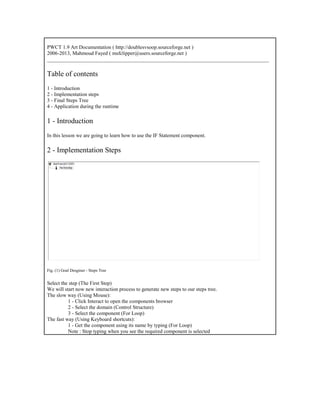

Fig. (1) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Control Structure)
3 - Select the component (For Loop)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (For Loop)
Note : Stop typing when you see the required component is selected

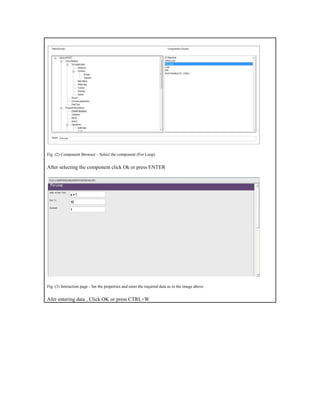

2. Fig. (2) Component Browser – Select the component (For Loop)
After selecting the component click Ok or press ENTER
Fig. (3) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W

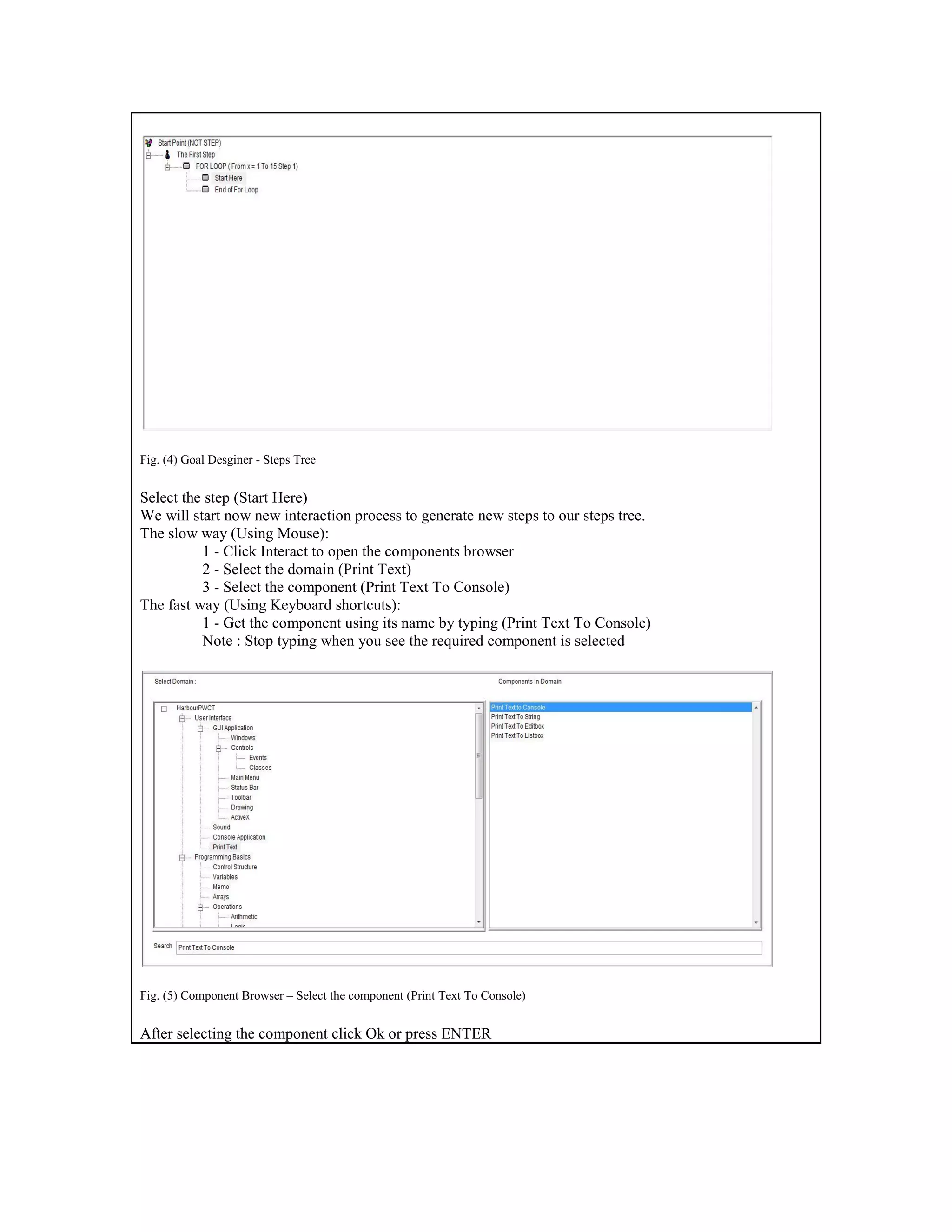

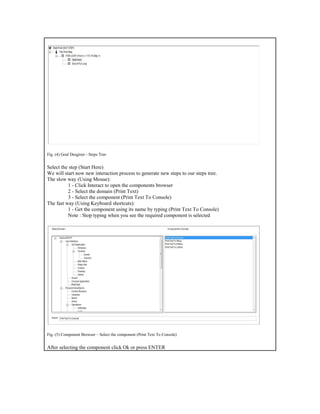

3. Fig. (4) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Print Text)
3 - Select the component (Print Text To Console)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Print Text To Console)
Note : Stop typing when you see the required component is selected
Fig. (5) Component Browser – Select the component (Print Text To Console)
After selecting the component click Ok or press ENTER

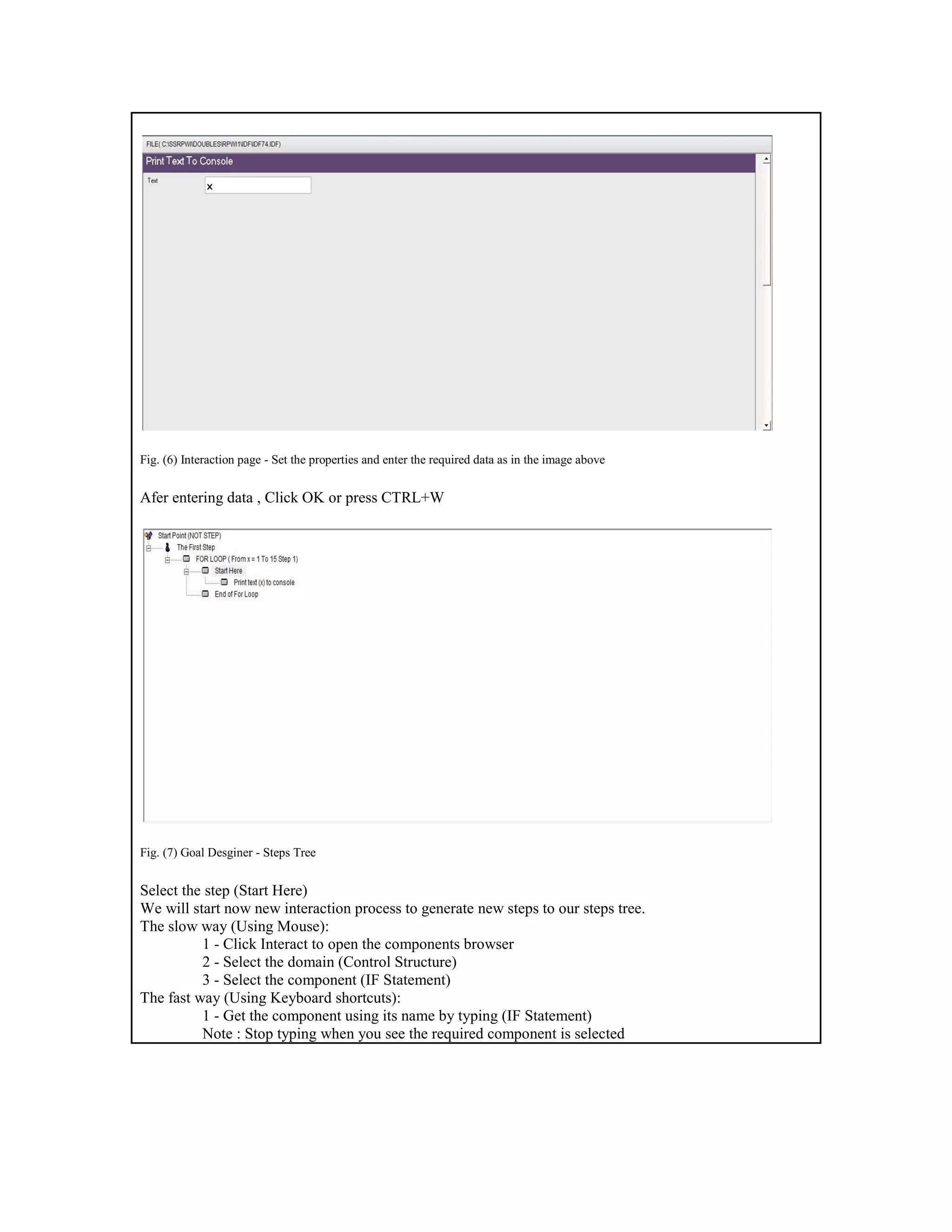

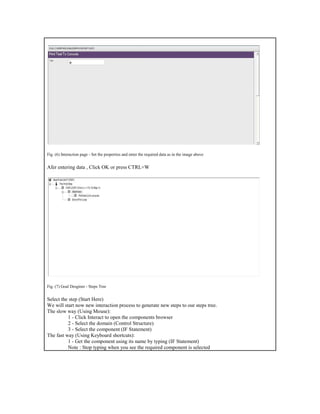

4. Fig. (6) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W
Fig. (7) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Control Structure)
3 - Select the component (IF Statement)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (IF Statement)
Note : Stop typing when you see the required component is selected

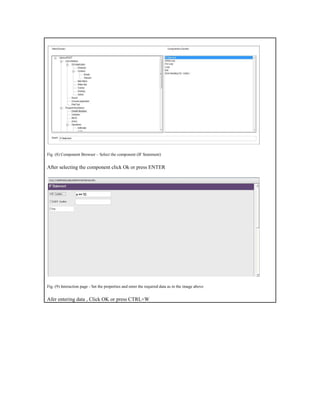

5. Fig. (8) Component Browser – Select the component (IF Statement)
After selecting the component click Ok or press ENTER
Fig. (9) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W

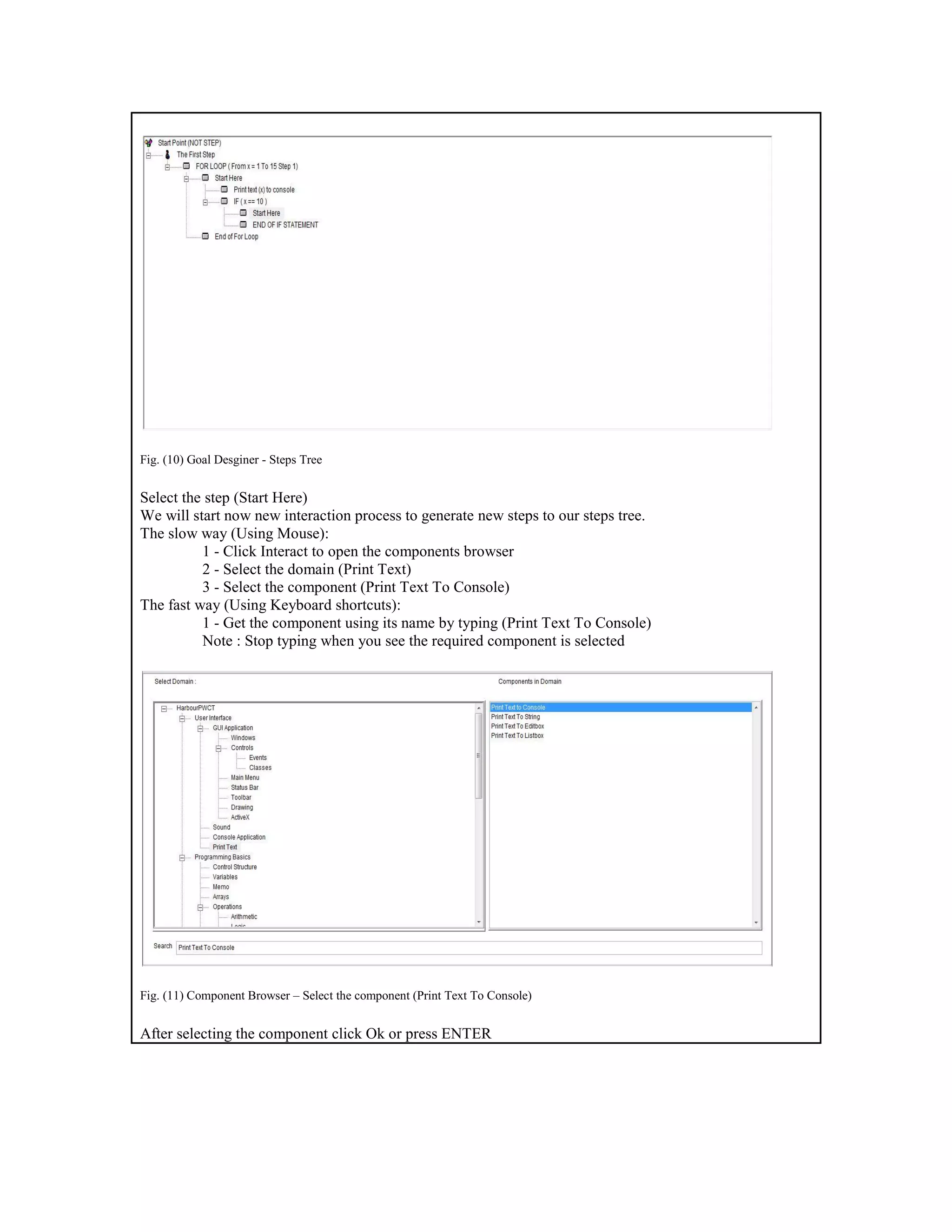

6. Fig. (10) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Print Text)
3 - Select the component (Print Text To Console)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Print Text To Console)
Note : Stop typing when you see the required component is selected
Fig. (11) Component Browser – Select the component (Print Text To Console)
After selecting the component click Ok or press ENTER

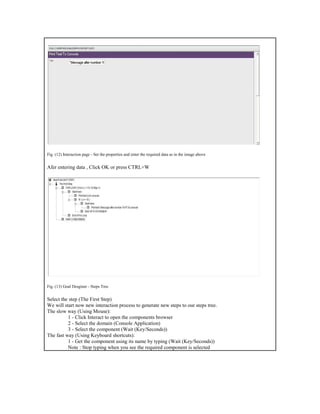

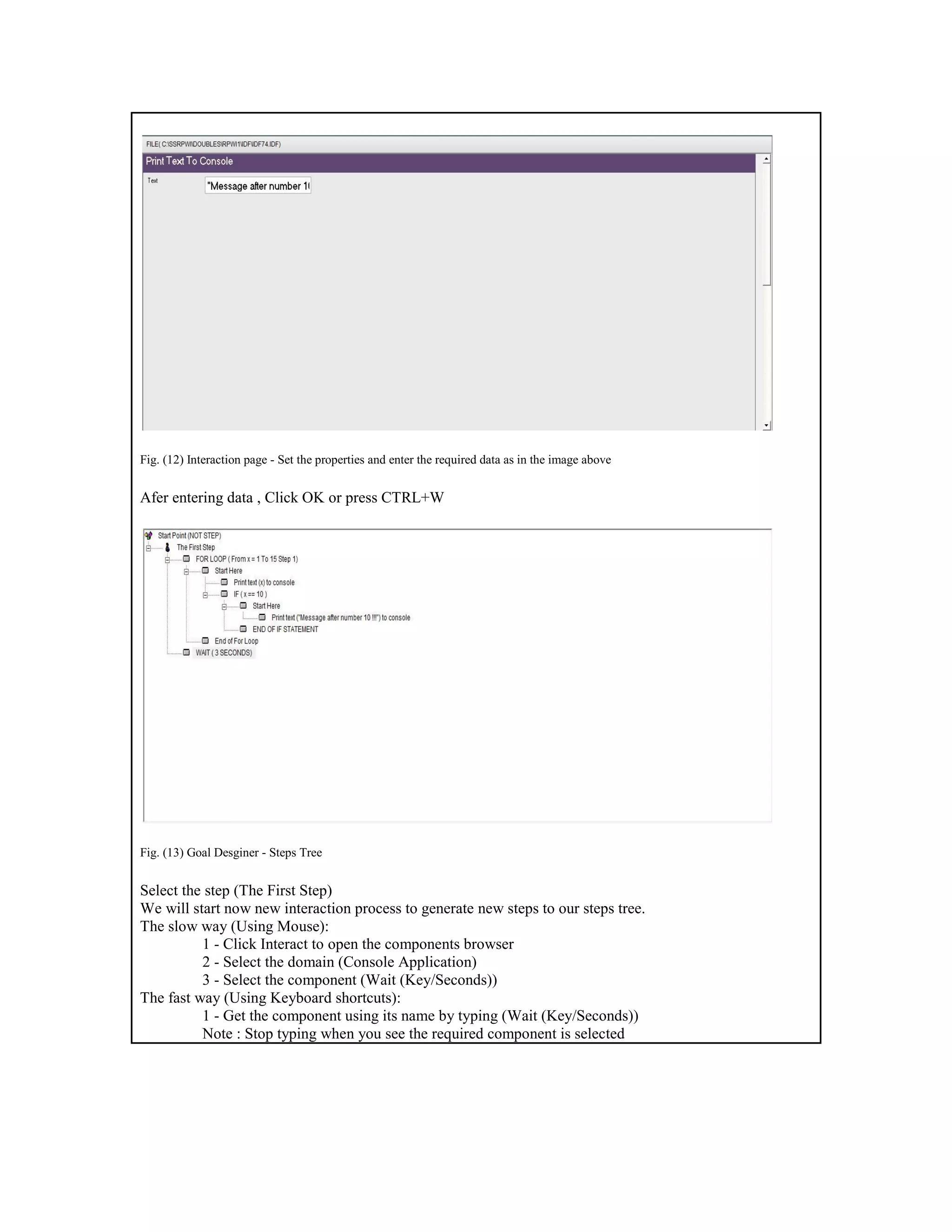

7. Fig. (12) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W
Fig. (13) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Console Application)
3 - Select the component (Wait (Key/Seconds))
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Wait (Key/Seconds))
Note : Stop typing when you see the required component is selected

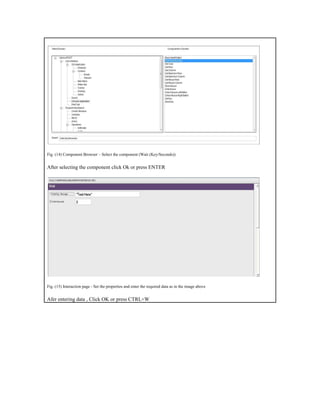

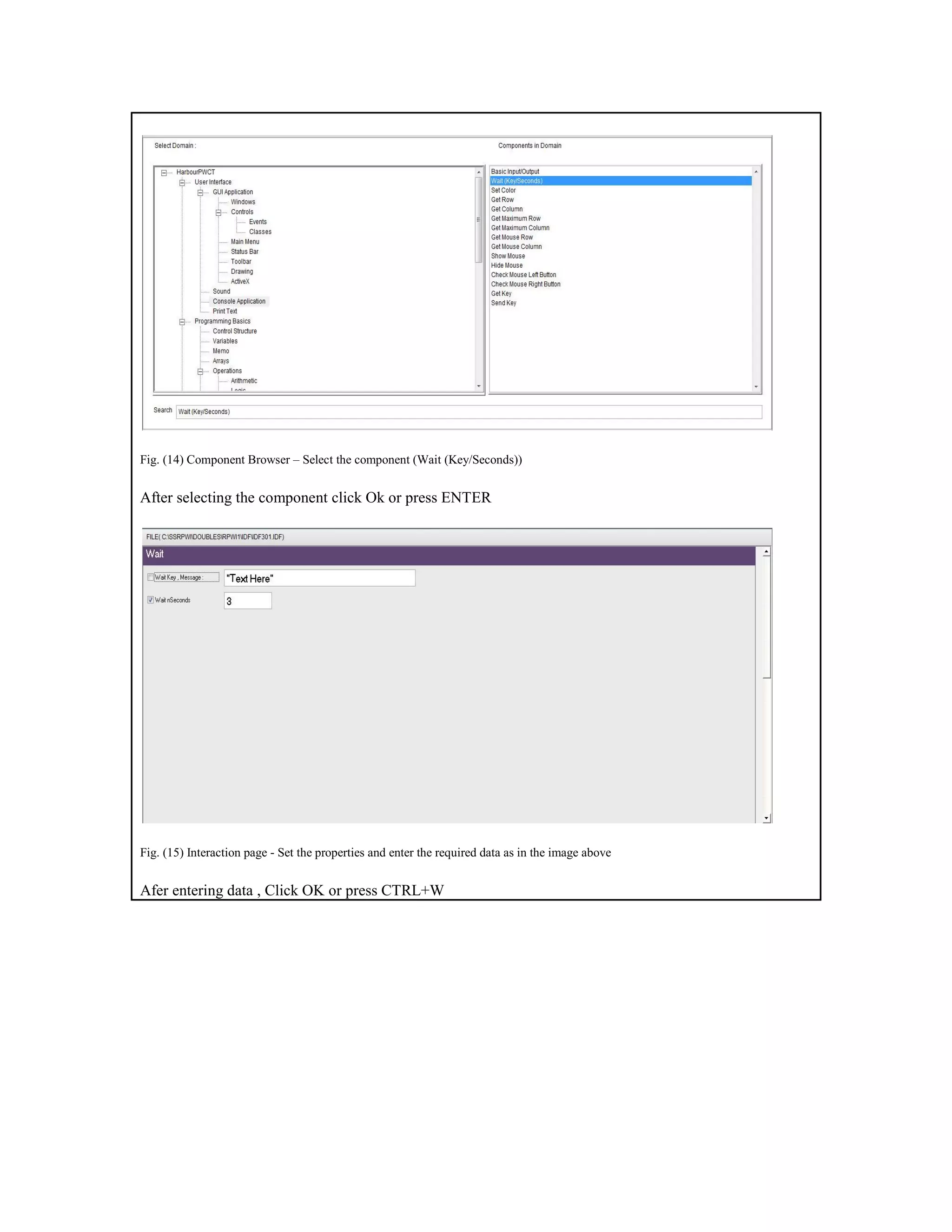

8. Fig. (14) Component Browser – Select the component (Wait (Key/Seconds))
After selecting the component click Ok or press ENTER
Fig. (15) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W

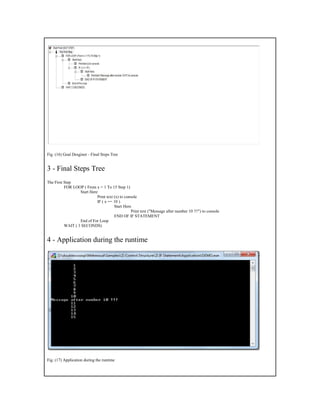

9. Fig. (16) Goal Desginer - Final Steps Tree
3 - Final Steps Tree
The First Step
FOR LOOP ( From x = 1 To 15 Step 1)
Start Here
Print text (x) to console
IF ( x == 10 )
Start Here
Print text ("Message after number 10 !!!") to console
END OF IF STATEMENT
End of For Loop
WAIT ( 3 SECONDS)
4 - Application during the runtime
Fig. (17) Application during the runtime
