This document describes the steps to create a Crystal Reports application using PWCT 1.9 Art Documentation software. It involves: 1. Creating a new window with title "Crystal Reports 10 Sample" 2. Adding controls like a button and activeX object to view reports 3. Defining procedures to open a sample report using Crystal Reports OLE automation and assign it to the activeX object for viewing.

1. PWCT 1.9 Art Documentation ( http://doublesvsoop.sourceforge.net )
2006-2013, Mahmoud Fayed ( msfclipper@users.sourceforge.net )
_____________________________________________________________________________________
Table of contents
1 - Introduction
2 - Implementation steps
3 - Final Steps Tree
4 - Application during the runtime
1 - Introduction
In this lesson we are going to learn how to use reports created using Crystal Reports 10.
2 - Implementation Steps

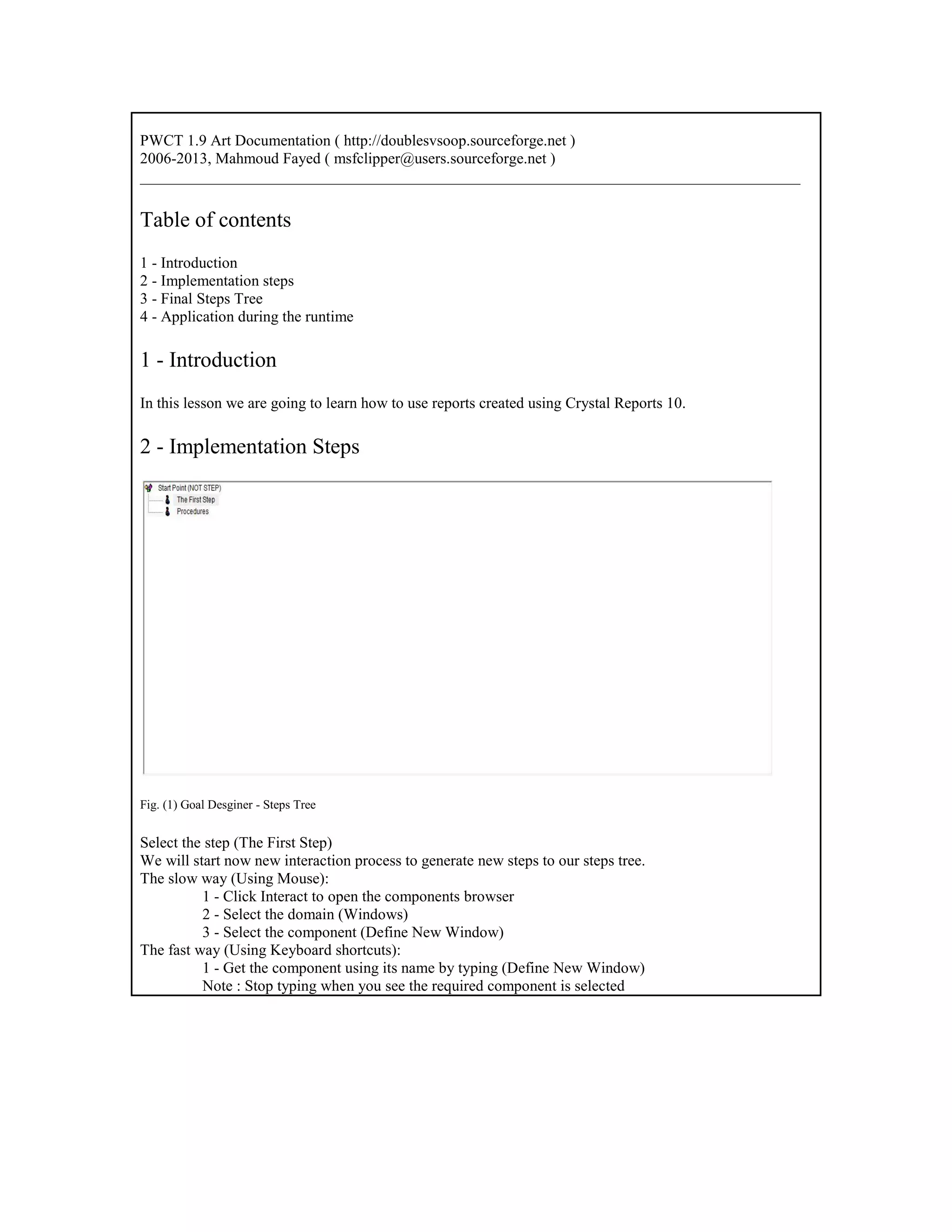

Fig. (1) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Windows)
3 - Select the component (Define New Window)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define New Window)
Note : Stop typing when you see the required component is selected

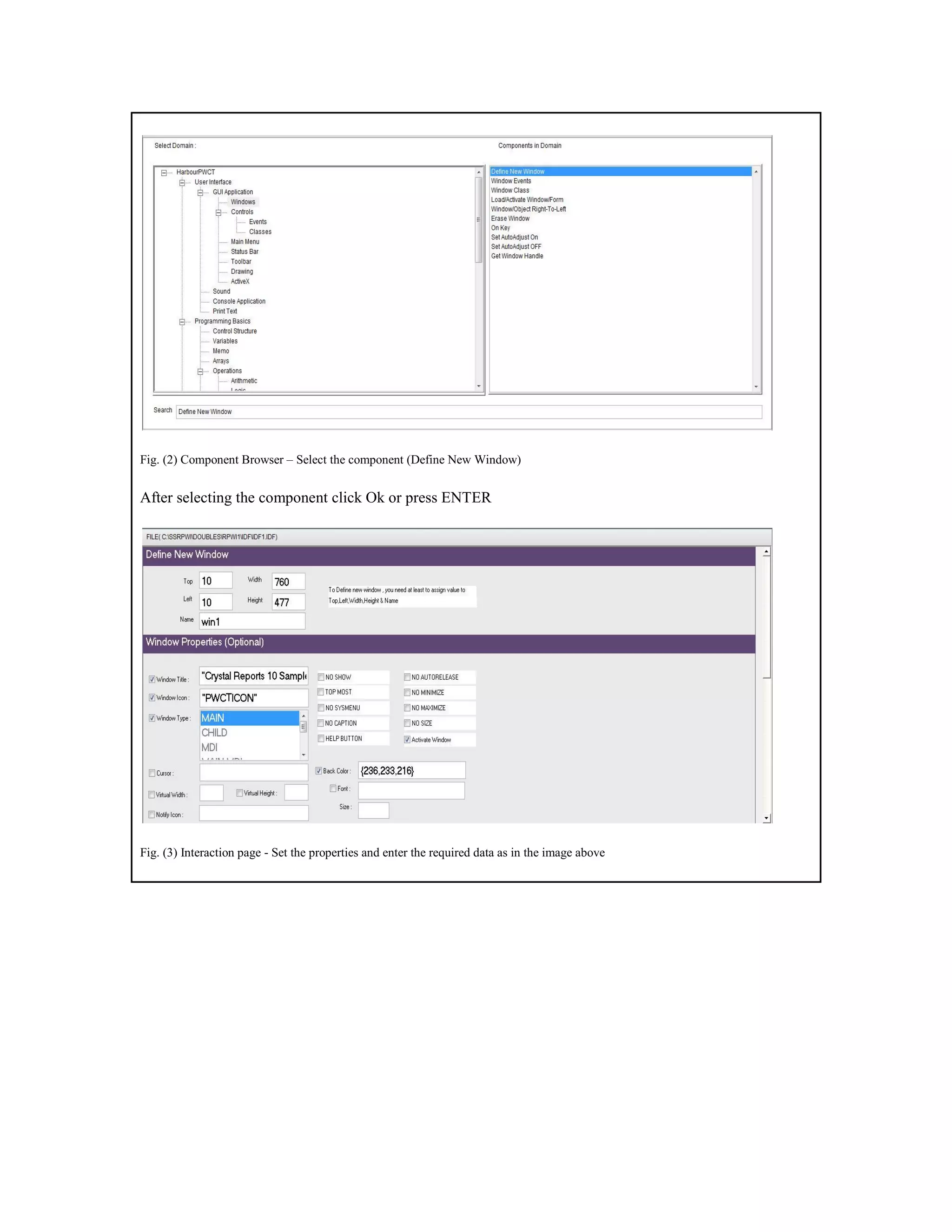

2. Fig. (2) Component Browser – Select the component (Define New Window)
After selecting the component click Ok or press ENTER
Fig. (3) Interaction page - Set the properties and enter the required data as in the image above

3. Fig. (4) Form Designer
Fig. (5) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (Define ActiveX control)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define ActiveX control)
Note : Stop typing when you see the required component is selected

4. Fig. (6) Component Browser – Select the component (Define ActiveX control)
After selecting the component click Ok or press ENTER
Fig. (7) Interaction page - Set the properties and enter the required data as in the image above

5. Fig. (8) Form Designer
Fig. (9) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (Button)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Button)
Note : Stop typing when you see the required component is selected

6. Fig. (10) Component Browser – Select the component (Button)
After selecting the component click Ok or press ENTER
Fig. (11) Interaction page - Set the properties and enter the required data as in the image above

7. Fig. (12) Form Designer
Fig. (13) Goal Desginer - Steps Tree
Select the step (Button Events)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Events)
3 - Select the component (Button Events)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Button Events)
Note : Stop typing when you see the required component is selected

8. Fig. (14) Component Browser – Select the component (Button Events)
After selecting the component click Ok or press ENTER
Fig. (15) Interaction page - Set the properties and enter the required data as in the image above

9. Fig. (16) Goal Desginer - Steps Tree
Select the step (Define New Window ( win1 ) , Title : "Crystal Reports 10 Sample")
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Windows)
3 - Select the component (Window Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Window Class)
Note : Stop typing when you see the required component is selected
Fig. (17) Component Browser – Select the component (Window Class)
After selecting the component click Ok or press ENTER

10. Fig. (18) Interaction page - Set the properties and enter the required data as in the image above
Fig. (19) Interaction page - Set the properties and enter the required data as in the image above

11. Fig. (20) Interaction page - Set the properties and enter the required data as in the image above
Fig. (21) Form Designer

12. Fig. (22) Goal Desginer - Steps Tree
Select the step (Procedures)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Structure Programming)
3 - Select the component (Define Procedure)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define Procedure)
Note : Stop typing when you see the required component is selected
Fig. (23) Component Browser – Select the component (Define Procedure)
After selecting the component click Ok or press ENTER

13. Fig. (24) Interaction page - Set the properties and enter the required data as in the image above
Fig. (25) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Structure Programming)
3 - Select the component (Scope of Variable)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Scope of Variable)
Note : Stop typing when you see the required component is selected

14. Fig. (26) Component Browser – Select the component (Scope of Variable)
After selecting the component click Ok or press ENTER
Fig. (27) Interaction page - Set the properties and enter the required data as in the image above

15. Fig. (28) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Tools & Extensions)
3 - Select the component (OLE Automation)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (OLE Automation)
Note : Stop typing when you see the required component is selected
Fig. (29) Component Browser – Select the component (OLE Automation)
After selecting the component click Ok or press ENTER

16. Fig. (30) Interaction page - Set the properties and enter the required data as in the image above
Fig. (31) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Tools & Extensions)
3 - Select the component (OLE Automation)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (OLE Automation)
Note : Stop typing when you see the required component is selected

17. Fig. (32) Component Browser – Select the component (OLE Automation)
After selecting the component click Ok or press ENTER
Fig. (33) Interaction page - Set the properties and enter the required data as in the image above

18. Fig. (34) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Tools & Extensions)
3 - Select the component (OLE Automation)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (OLE Automation)
Note : Stop typing when you see the required component is selected
Fig. (35) Component Browser – Select the component (OLE Automation)
After selecting the component click Ok or press ENTER

19. Fig. (36) Interaction page - Set the properties and enter the required data as in the image above
Fig. (37) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected

20. Fig. (38) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER
Fig. (39) Interaction page - Set the properties and enter the required data as in the image above

21. Fig. (40) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected
Fig. (41) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER

22. Fig. (42) Interaction page - Set the properties and enter the required data as in the image above
Fig. (43) Goal Desginer - Final Steps Tree
3 - Final Steps Tree
The First Step
Define New Window ( win1 ) , Title : "Crystal Reports 10 Sample"
Window Events
Window Properties
Window Controls
Active Control ( oActiveX )
Define New Button ( btn1 ) , Caption : "View Report"
Button Events
Event: ON CLICK : Action mywork()
Button Properties
End Of Window
win1.Center ( )
Activate window
Procedures
Define Procedure mywork
Start Here

23. Public myobj,myreport
Create OLE Object myobj of Type "CrystalDesignRuntime.Application"
Create OLE Object myreport of Type "CrystalDesignRuntime.Report"
myreport = myobj.openreport ( "Report1.rpt" )
oactivex.reportsource := myreport
oactivex.viewreport ( )
End of Procedure
4 - Application during the runtime
Fig. (44) Application during the runtime
