1 - Introduction
In this lesson we are going to learn how to get the ASCII code of a character.
2 - Implementation Steps

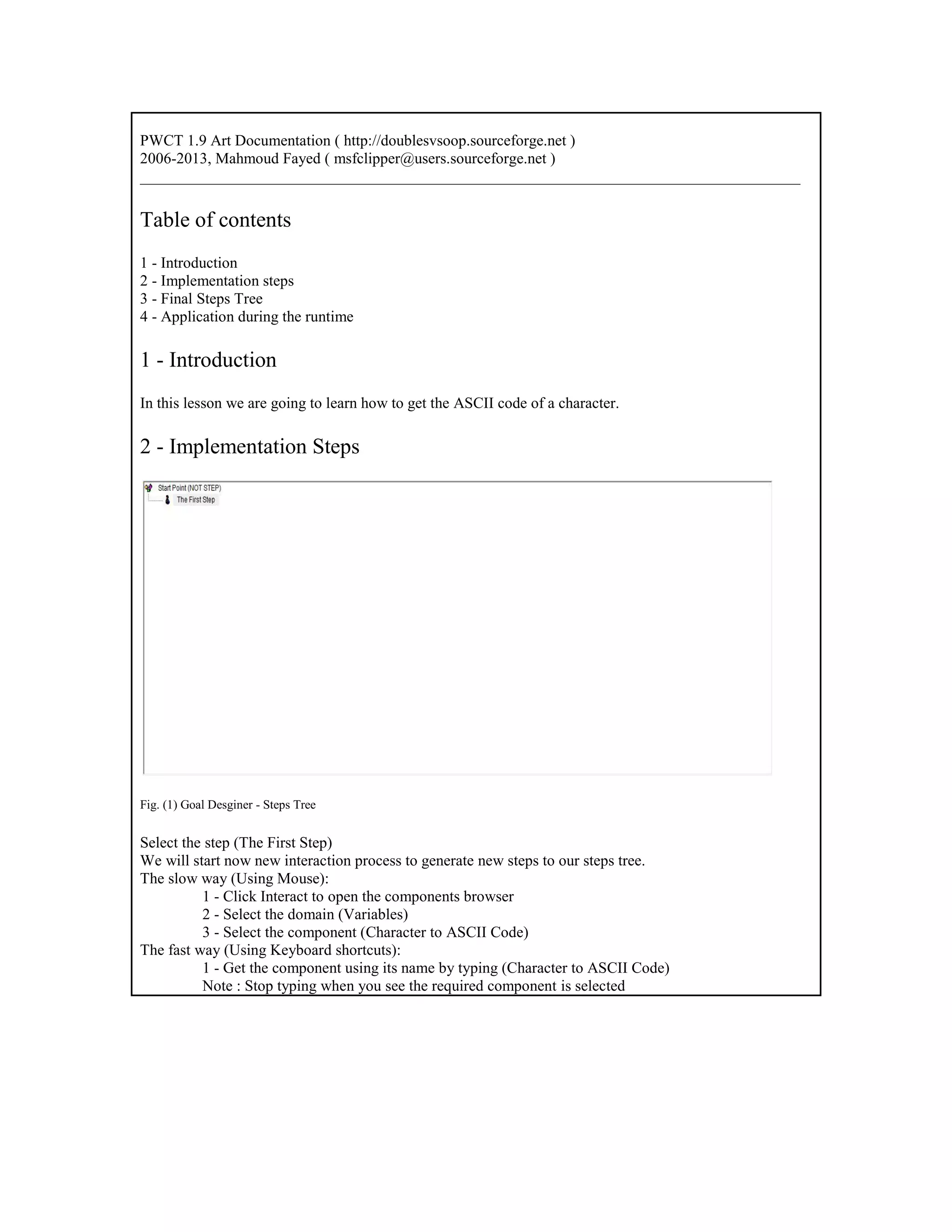

Fig. (1) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Variables)
3 - Select the component (Character to ASCII Code)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Character to ASCII Code)
Note : Stop typing when you see the required component is selected

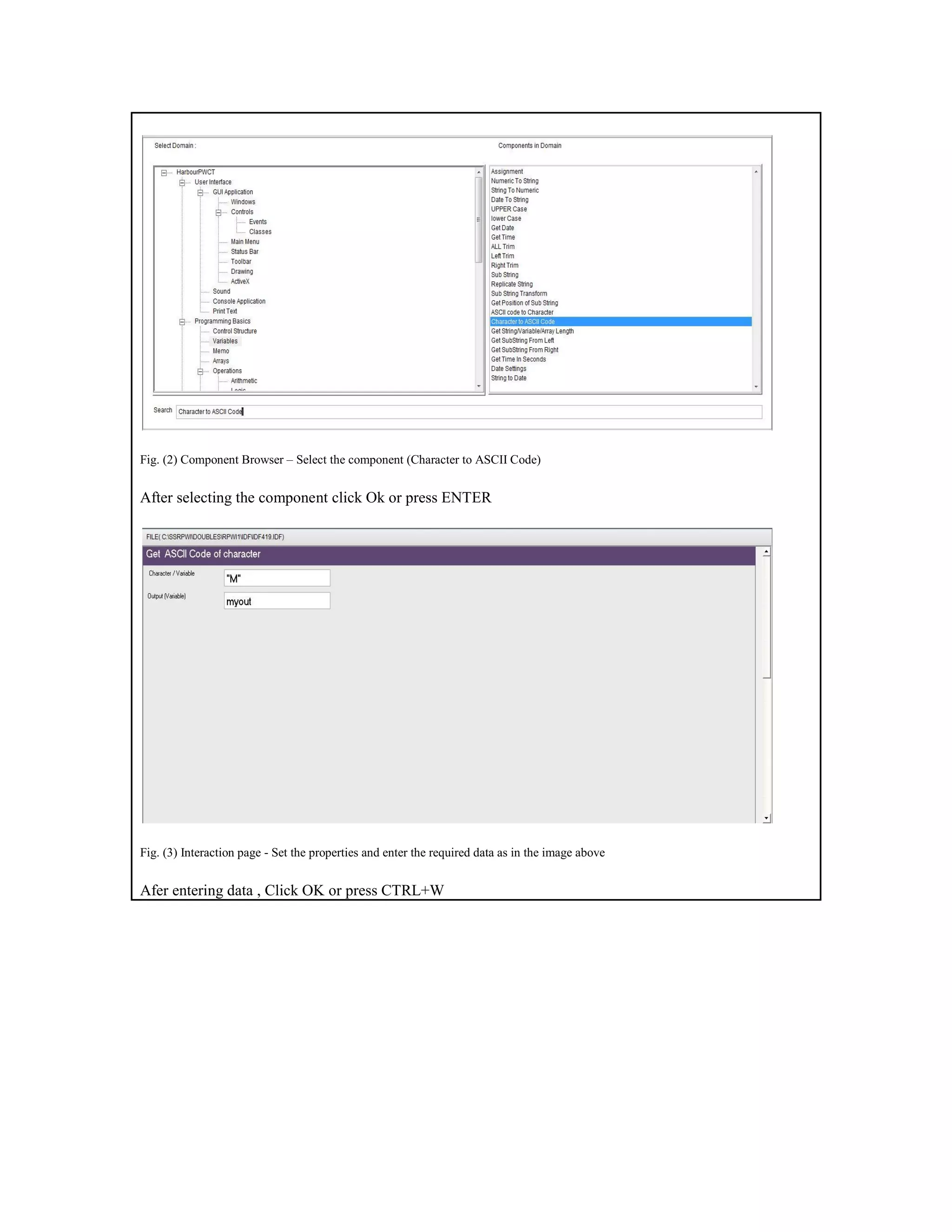

2. Fig. (2) Component Browser – Select the component (Character to ASCII Code)
After selecting the component click Ok or press ENTER
Fig. (3) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W

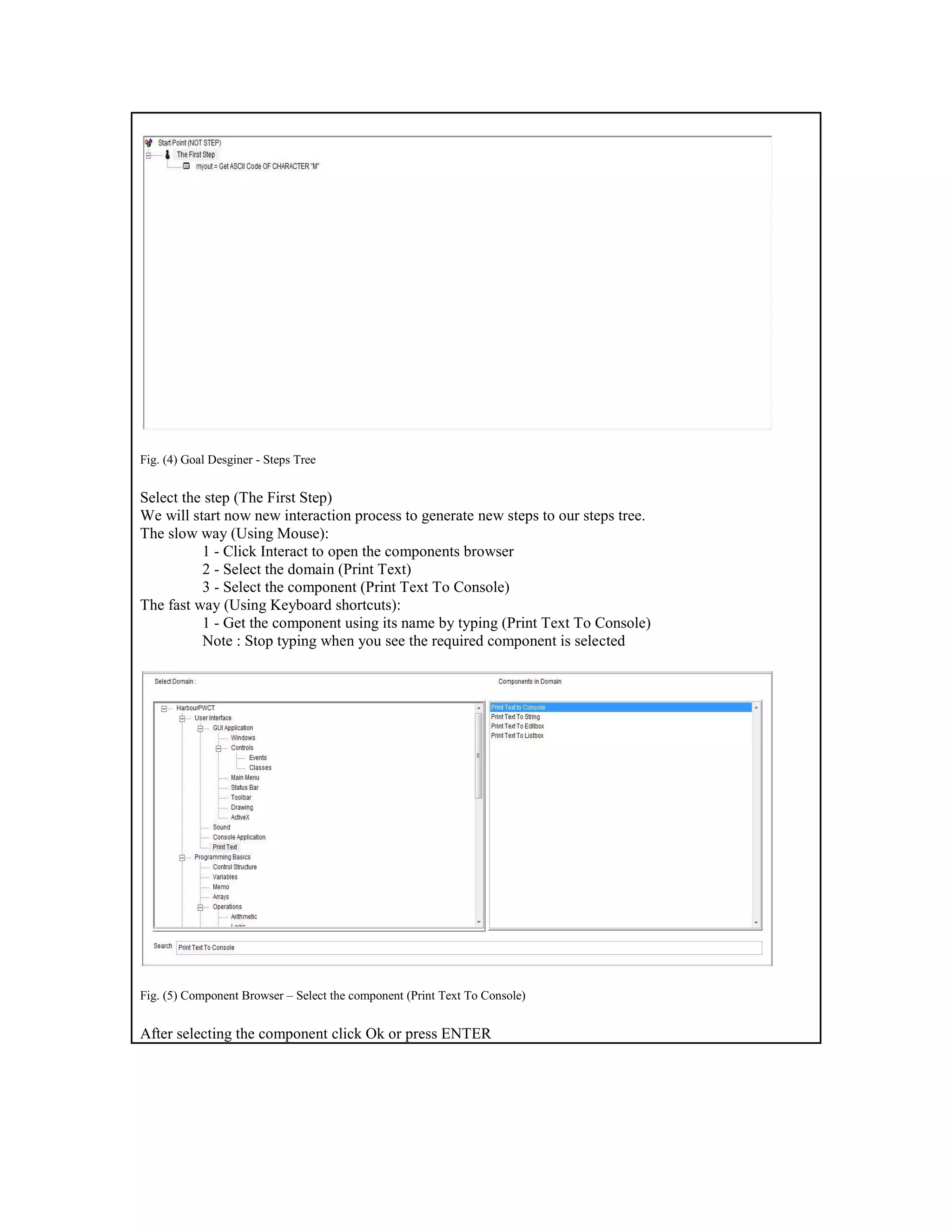

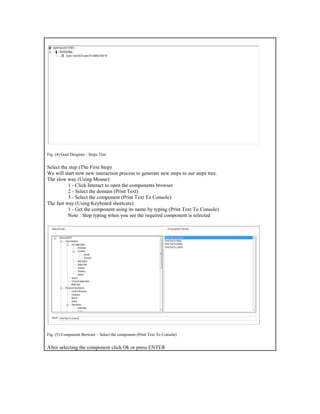

3. Fig. (4) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Print Text)
3 - Select the component (Print Text To Console)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Print Text To Console)
Note : Stop typing when you see the required component is selected
Fig. (5) Component Browser – Select the component (Print Text To Console)
After selecting the component click Ok or press ENTER

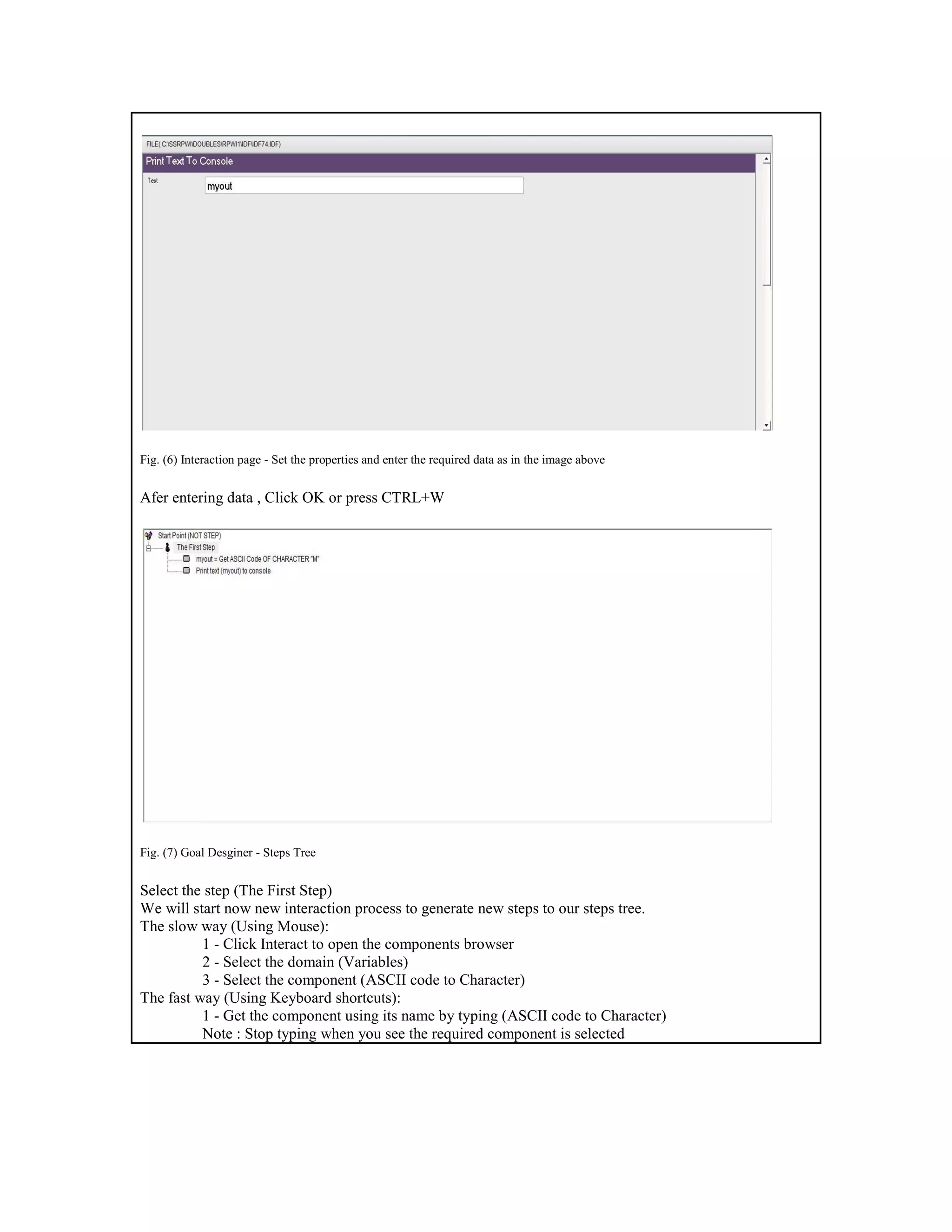

4. Fig. (6) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W
Fig. (7) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Variables)
3 - Select the component (ASCII code to Character)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ASCII code to Character)
Note : Stop typing when you see the required component is selected

5. Fig. (8) Component Browser – Select the component (ASCII code to Character)
After selecting the component click Ok or press ENTER
Fig. (9) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W

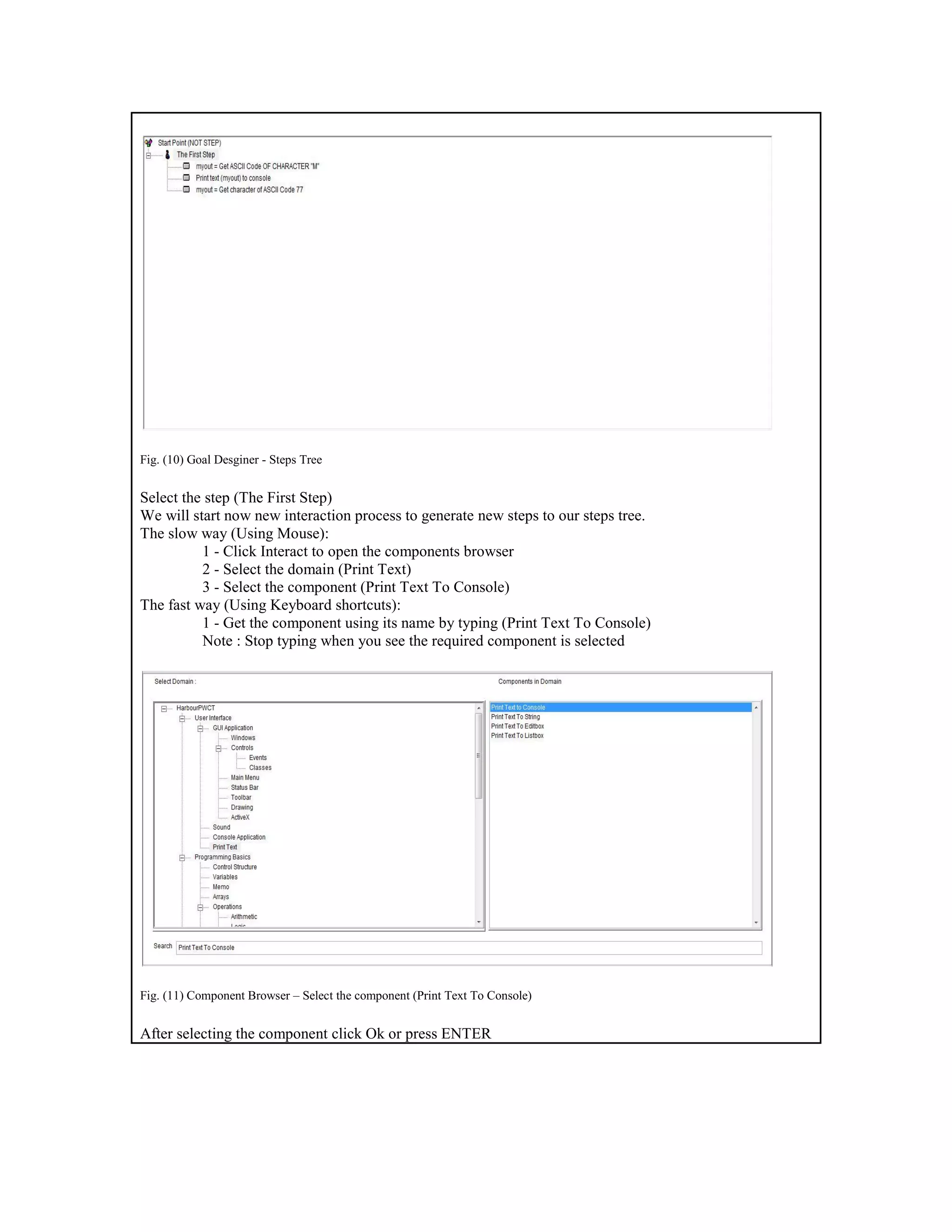

6. Fig. (10) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Print Text)
3 - Select the component (Print Text To Console)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Print Text To Console)
Note : Stop typing when you see the required component is selected
Fig. (11) Component Browser – Select the component (Print Text To Console)
After selecting the component click Ok or press ENTER

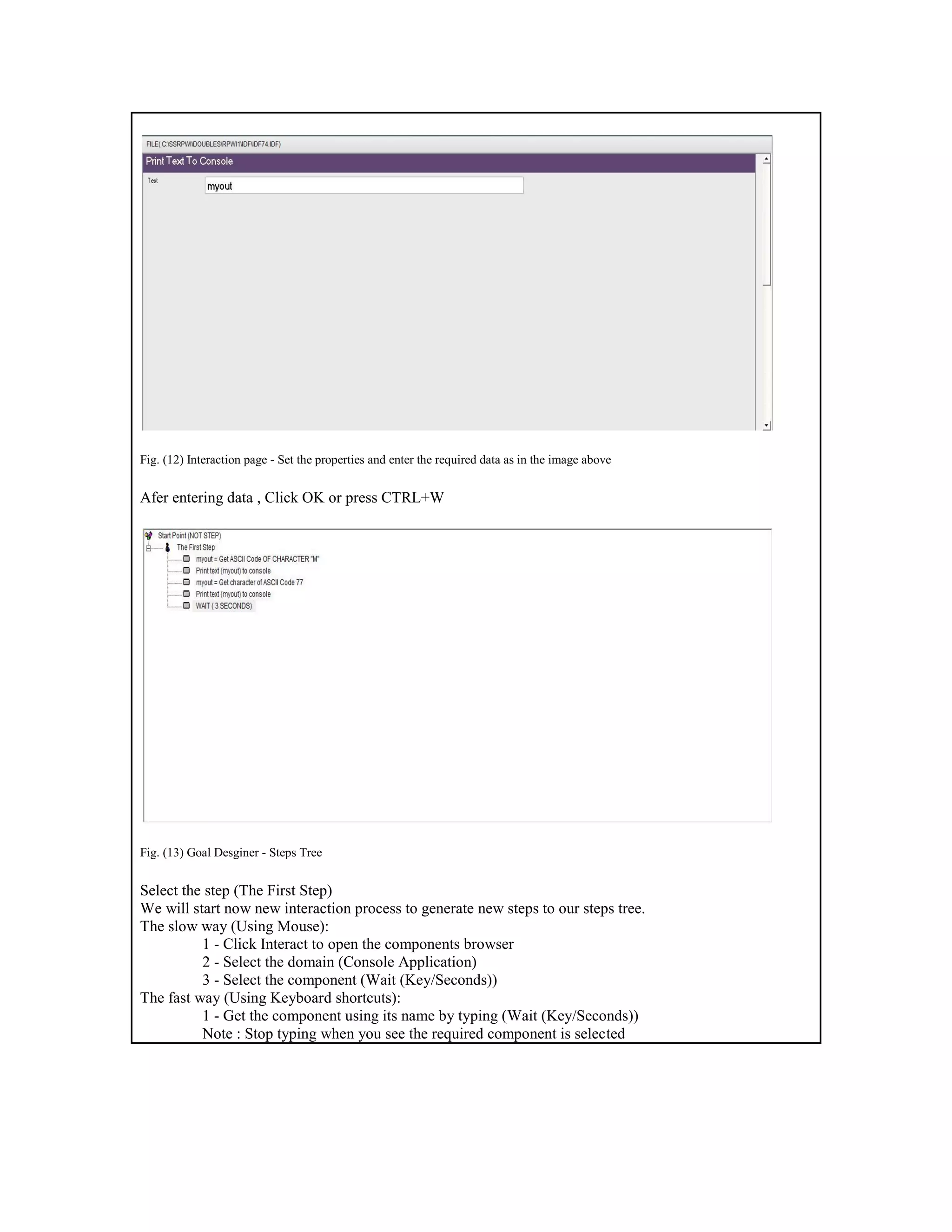

7. Fig. (12) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W
Fig. (13) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Console Application)
3 - Select the component (Wait (Key/Seconds))
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Wait (Key/Seconds))
Note : Stop typing when you see the required component is selected

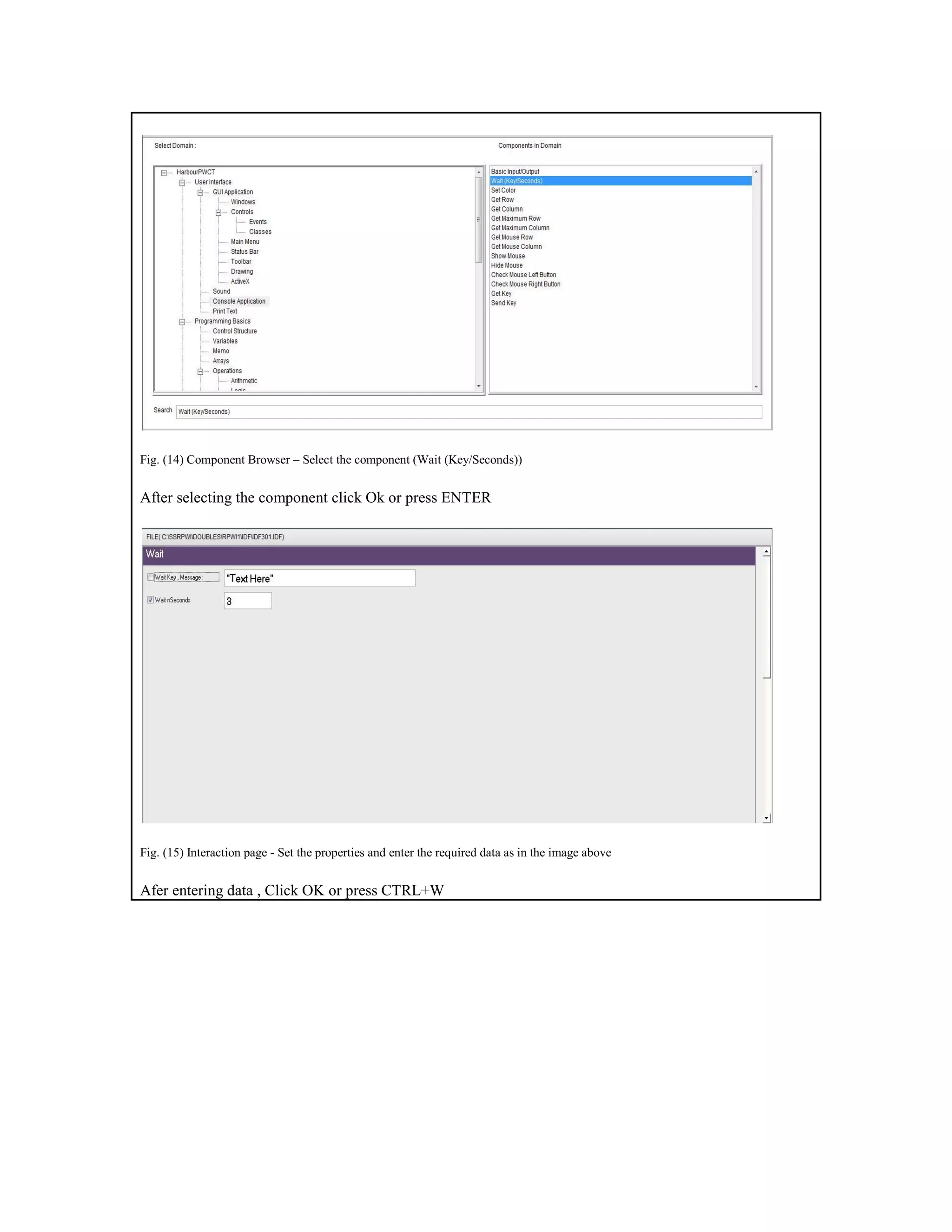

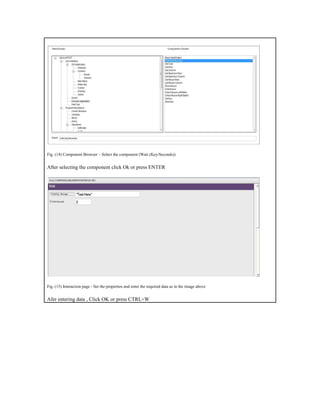

8. Fig. (14) Component Browser – Select the component (Wait (Key/Seconds))
After selecting the component click Ok or press ENTER
Fig. (15) Interaction page - Set the properties and enter the required data as in the image above
Afer entering data , Click OK or press CTRL+W

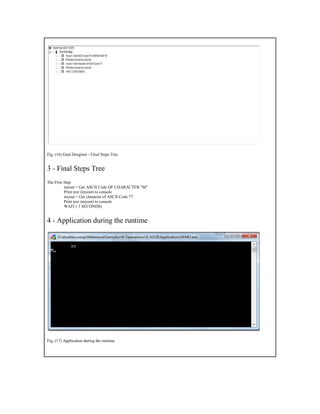

9. Fig. (16) Goal Desginer - Final Steps Tree
3 - Final Steps Tree
The First Step
myout = Get ASCII Code OF CHARACTER "M"
Print text (myout) to console
myout = Get character of ASCII Code 77
Print text (myout) to console
WAIT ( 3 SECONDS)
4 - Application during the runtime
Fig. (17) Application during the runtime
