ITC 101 Programming Module

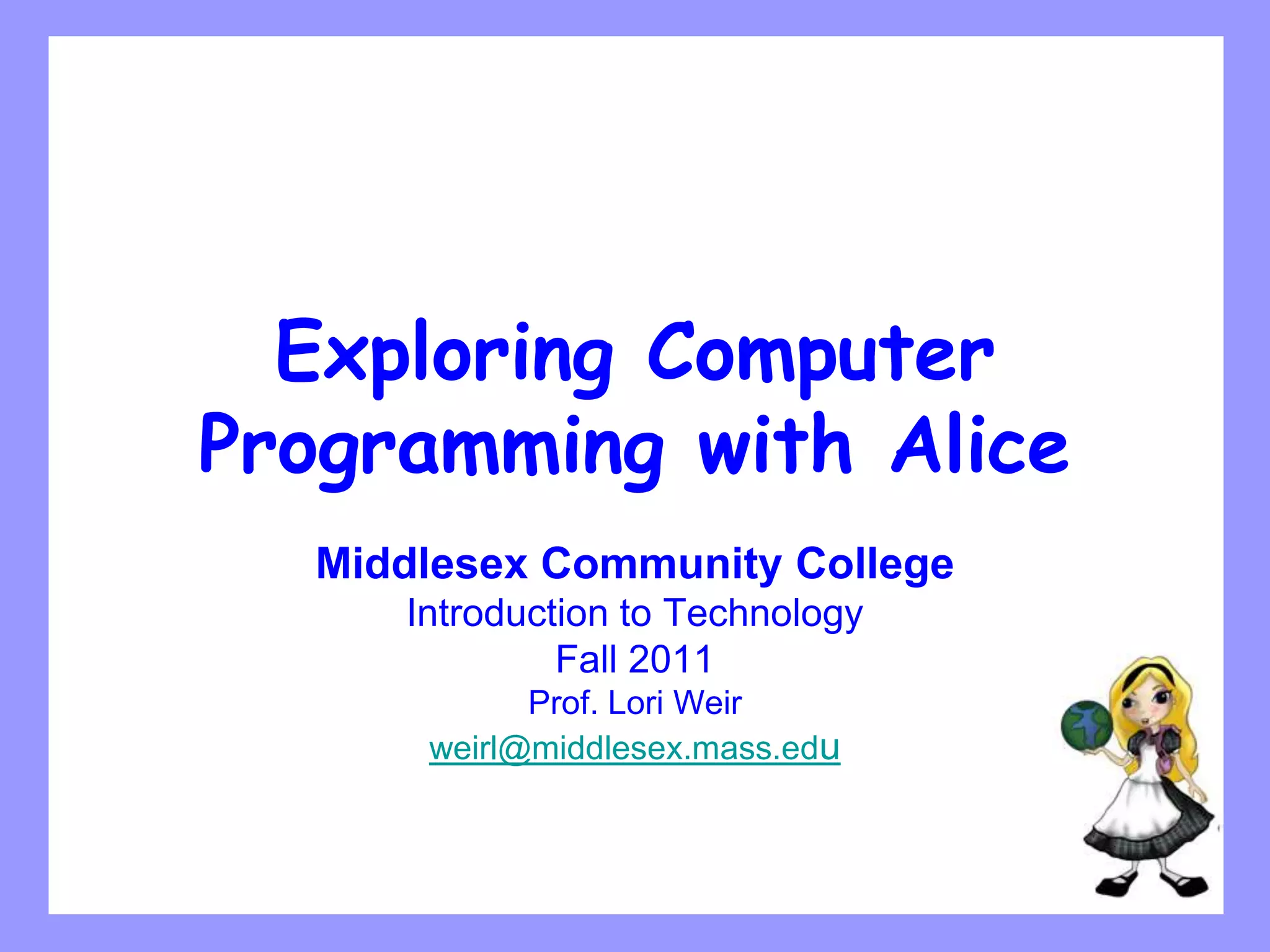

1. Exploring Computer
Programming with Alice
Middlesex Community College
Introduction to Technology
Fall 2011
Prof. Lori Weir
weirl@middlesex.mass.edu

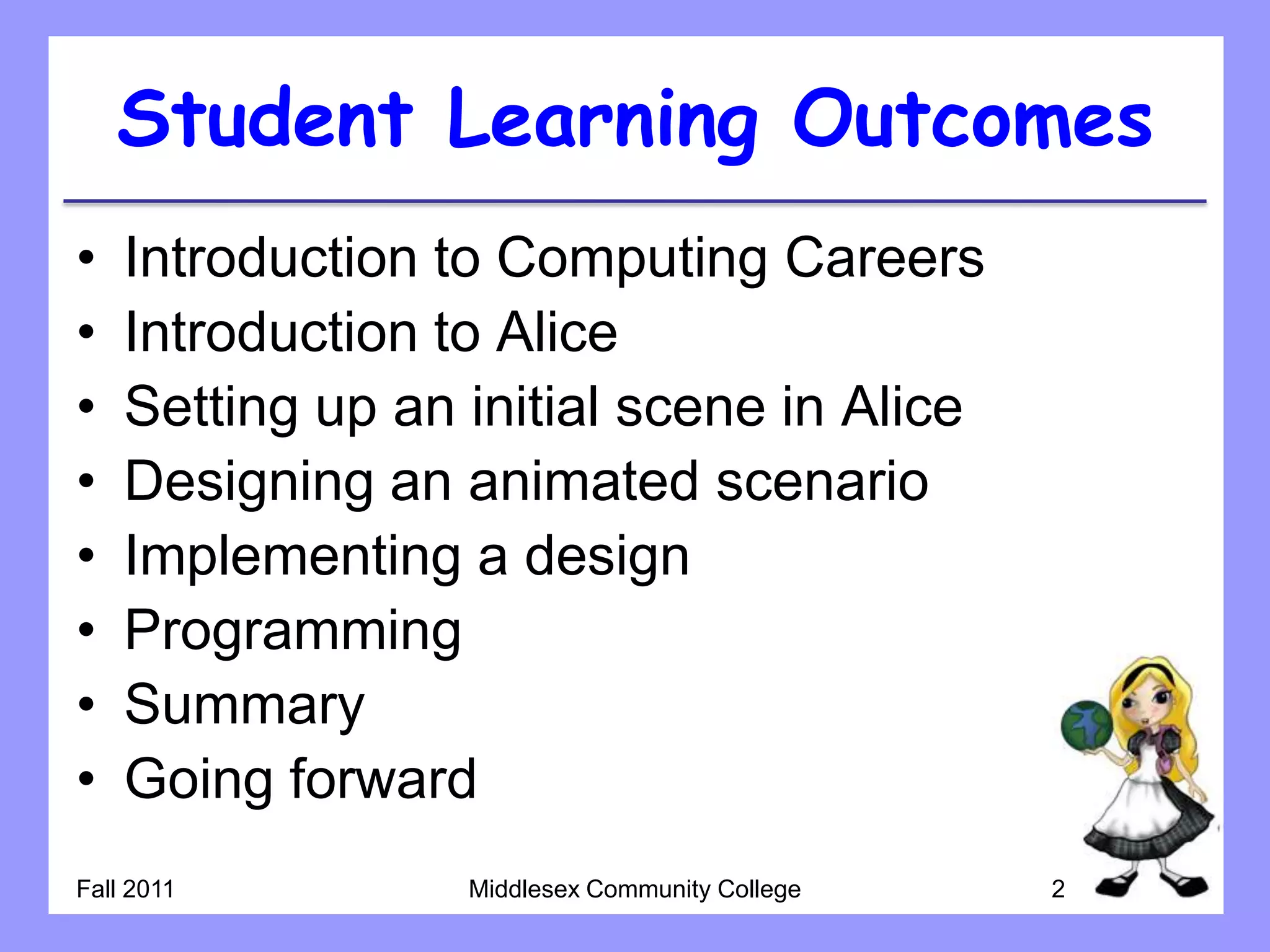

2. Student Learning Outcomes
• Introduction to Computing Careers
• Introduction to Alice
• Setting up an initial scene in Alice
• Designing an animated scenario
• Implementing a design
• Programming
• Summary
• Going forward
Fall 2011 Middlesex Community College 2
3. Getting Started with Visual Programming
INTRODUCING ALICE
Fall 2011 Middlesex Community College 3
<<DRAFT>>
4. What is Alice?
• Alice is a visual programming language.
• Alice is an object based language. The
objects in Alice are 3 dimensional models.
• The output of Alice programs is an
animation.
– Objects can be made to move around the
virtual world:
• A video game
• A simulation
Fall 2011 Middlesex Community College 4
<<DRAFT>>
5. The Alice Software
• A 3D interactive animation environment
• http://www.alice.org/
• A tool for teaching fundamental programming
concepts
– object based
• System developed at Carnegie Mellon
Fall 2011 Middlesex Community College 5
<<DRAFT>>
6. Visual Programming
• Programming tasks are performed in an
Integrated Development
Environment(IDE).
• Programming is done by pointing and
clicking, dragging and dropping, selecting
from menus, and some typing.
• Syntax errors removed from the equation
– no braces, no semi colons
Fall 2011 Middlesex Community College 6
<<DRAFT>>
7. Object Tree World View Event Editor
Details Panel
Code Editor College Control
Fall 2011 Middlesex Community
<<DRAFT>>
Primitives 7
8. Object-Based Programming
• Built in library of models.
• More available on the web.
• All objects have certain methods and
behaviors
– move, turn, say, roll, resize
• New methods can be added to an object
Fall 2011 Middlesex Community College 8
<<DRAFT>>
9. Alice Models
• Main programming data are 3d models
• Many built in and more on web
Fall 2011 Middlesex Community College 9
<<DRAFT>>
10. Output
• Output is a 3d movie
– run the program, play
a movie
– can also add sound to
programs
• Much easier to
recognize logic errors
– "Why do my
ninja's arms
keep flying
away?"
Fall 2011 Middlesex Community College 10
<<DRAFT>>
11. Downloading and Exploring Alice Worlds
ACTIVITY 1
Fall 2011 Middlesex Community College 11
<<DRAFT>>
12. Downloading Alice
• From your browser, navigate to the Alice
download page:
http://www.alice.org/index.php?page
=downloads/download_alice
• Follow the instructions for your platform
(Windows, Linux, or MAC).
Fall 2011 Middlesex Community College 12
<<DRAFT>>
13. Exploring Alice Worlds
• Open Alice from the DeskTop
• Load and run a world:
– Octopus (movie)
– Skater (interactive)
Fall 2011 Middlesex Community College 13
<<DRAFT>>
14. Types of Animation
Movie Interactive
• Passive • User clicks on
• User watches the mouse or types a
animation key on the
keyboard.
• Actions of user
are called events
Fall 2011 Middlesex Community College 14
<<DRAFT>>
15. Getting Started Programming in Alice
SETTING UP A SCENE IN
ALICE
Fall 2011 Middlesex Community College 15
<<DRAFT>>
16. Alice Programming
• Problem solving and programming in Alice
– given a scenario create program to enact the
story
• Example scenario:
– A bunny is hopping in a field of fern and one
tulip.
– The bunny notices the tulip.
– The bunny hops over to the tulip.
– Accidentally, the bunny knocks the tulip.
Fall 2011 Middlesex Community College 16
<<DRAFT>>
17. Creating a New World
Fall 2011 Middlesex Community College 17
<<DRAFT>>
19. Objects in The World
• An object is:
– Any thing that can be identified as unique
from other things.
• How is an object unique?
– Name
– Properties
• Width, height, color, location
– Can perform actions
• Referred to as methods
Fall 2011 Middlesex Community College 19
<<DRAFT>>
20. Adding Objects to the World
Fall 2011 Middlesex Community College 20
<<DRAFT>>
21. Adding Objects
• Two ways to
add objects:
– Drag and
Drop
– Click on
picture then
click on Add
Instance
Fall 2011 Middlesex Community College 21
<<DRAFT>>
22. Techniques and Tools
Camera Drop-down
Mouse is used Quadview is
navigation is menu methods
to used to
used to are used to:
Approximately Position one
Set the camera
position objects Resize objects object relative
point of view
in the scene. to another
Precisely
position objects
in the scene
Fall 2011 Middlesex Community College 22
<<DRAFT>>
23. Mouse Control Tools Kit
Default. Move selected
object left, right, forward, Copy objects.
backwards.
Move selected Resize objects.
object up and down.
Tumble objects.
Turn object forwards and
Turn object left and right.
backwards.
CTRL Z or Undo Button to undo mistakes!
Fall 2011 Middlesex Community College 23
<<DRAFT>>
25. Alternate Positioning Techniques
• Right click on
object in world on
object tree and
select method
• Drag and drop
method from the
details panel.
Fall 2011 Middlesex Community College 25
<<DRAFT>>
26. Quad View
• Use world's absolute frame of reference to
view relative position of objects
Fall 2011 Middlesex Community College 26
<<DRAFT>>
27. Objects Frame of Reference
• Objects in Alice
– Have their own frame of reference
– forward – backwards
– up – down
– left – right
Fall 2011 Middlesex Community College 27
<<DRAFT>>
28. Frame of Reference
• Clicking on object
brings up its
bounding box
• Can also see
center point
• .. and axes
Fall 2011 Middlesex Community College 28
<<DRAFT>>
29. Frame of Reference
UP
CENTER
POINT
RIGHT
Fall 2011
FORWARD
Middlesex Community College
<<DRAFT>>
29
30. Subparts
• Objects often have sub parts
– may have their own frame of
reference
• Clicking affect subparts box
allows selection and
movement of subparts
Fall 2011 Middlesex Community College 30
<<DRAFT>>
32. Finding Objects
• To reposition in a
quad view
– select zoom in and out
from mouse controls
– zoom way out
– select scroll from
mouse controls to
center objects
– zoom back in
Fall 2011 Middlesex Community College 32
<<DRAFT>>
33. Back to Programming View
• When setup complete
click the green done
button to go back to
the programming
view.
Fall 2011 Middlesex Community College 33
<<DRAFT>>
34. Saving a World
• Writing and testing an animation is an
intense load on the computing system – a
crash can occur.
• Best solution
– Save your world very 15 minutes (or at least
every half hour).
– Also, save to a backup device
• Zip drive
• Memory key
Fall 2011 Middlesex Community College 34
<<DRAFT>>
35. Creating a World
ACTIVITY 2
Fall 2011 Middlesex Community College 35
<<DRAFT>>
36. Setting Up the Initial Scene
• From the Alice
programming
environment:
1. create a new world.
2. Add bunny
3. Add fern and flower
• local gallery -> nature
– Fern
– Tulip
4. Resize bunny to make
her smaller
• Use the drop down menus
or drag and drop
October 16, 2011 Middlesex Community College 36
<<DRAFT>>
37. From a storyboard to a program
PROGRAMMING THE WORLD
October 16, 2011 Middlesex Community College 37
<<DRAFT>>
38. Step 1: Design
• A program is a solution to a problem.
• Determine the problem to be solved.
• Design a solution to the problem.
– We will use a storyboard design technique.
– Commonly used in the film and gaming
industries.
Fall 2011 Middlesex Community College 38
<<DRAFT>>
39. Example Story
• A bunny is sitting in a field of fern.
• The bunny notices a beautiful tulip.
• The bunny hops over to tulip.
• The bunny accidentally knocks over the
tulip.
• Let's add some detail at the start of the
movie.
– The bunny first turns to face the camera.
– Then the bunny hops up and down.
Fall 2011 Middlesex Community College 39
<<DRAFT>>
40. Options for Storyboards
• Sketches
• Screen shots from Alice
• Text
– A to-do list of steps
Fall 2011 Middlesex Community College 40
<<DRAFT>>
41. Step 2: Implementation
• To implement the storyboard, translate the
actions in the storyboard to a program.
• Program (a.k.a. script)
– A list of instructions to have the objects
perform certain actions in the animation.
Fall 2011 Middlesex Community College 41
<<DRAFT>>
42. Action Blocks in Alice
Sequential Action Block Simultaneous Action Block
Actions occur one after another Actions occur at the same time
Fall 2011 Middlesex Community College 42
<<DRAFT>>
43. Concepts in this First Program
• Program instructions may have arguments
– Example: for the move instruction, the
arguments we used where:
• Direction
• Distance
– Do Together and Do In Order blocks can be
nested one inside the other
Fall 2011 Middlesex Community College 43
<<DRAFT>>
44. Testing
• An important step in creating a program is
to run it – be sure it does what you expect
it to do.
• We recommend you use an incremental
development process:
– Write a few lines of code, then run it
– Write a few more lines of code, then run it
– Write a few more lines or code…
Fall 2011 Middlesex Community College 44
<<DRAFT>>
45. Comments
• While Alice instructions are easy to
understand, a particular combination of the
instructions may perform an action that is
not immediately obvious.
• Comments document the code – explain
the purpose of a particular segment of the
program to the human reader.
Fall 2011 Middlesex Community College 45
<<DRAFT>>
46. Methods
• Select the world object from
the object tree and the
methods tab in the details
panel.
• The world starts with a single
method, "my first method"
• Like main in a Java or C++
program.
Fall 2011 Middlesex Community College 46
<<DRAFT>>
47. Adding to „My First Method‟
ACTIVITY 3
October 16, 2011 Middlesex Community College 47
<<DRAFT>>
48. Adding Commands to a
Method
• If the "my first method" is not displayed in
the code editor click the edit button next to
the method in the detail panel.
• Commands are added by dragging and
dropping them into a method.
• Select the bunny from the object tree.
• Drag the turn to face command into the
code editor.
• TEST!
Fall 2011 Middlesex Community College 48
<<DRAFT>>
49. Adding Commands
• turn to face is a method
• When adding a method to
the code editor if any
parameters are required a
menu pops up to select the
arguments.
• Select the
camera.
Fall 2011 Middlesex Community College 49
<<DRAFT>>
50. More Parameters
• After adding the bunny.turn to face
command the "my first method" will look
like this:
• Click on the "more" option to see what
other parameters can be changed
– duration, style, asSeenBy
– change duration to 3 seconds
Fall 2011 Middlesex Community College 50
<<DRAFT>>
51. Test
• Click the play button to see the movie /
output of the program.
• "my first method" will execute.
Fall 2011 Middlesex Community College 51
<<DRAFT>>
52. Built-in Functions and Expressions
PROGRAMMING: PUTTING
TOGETHER THE PIECES
Fall 2011 Middlesex Community College 52
<<DRAFT>>
53. Adding Behaviors
• Next we want the bunny to hop.
• Methods can be world level or class
level.
– world level methods belong to the world.
• a method should be world level method if it
involves two or more objects
– class level methods belong to a particular
class / object.
• a method should be a class level method if it
involves only one object
Fall 2011 Middlesex Community College 53
<<DRAFT>>
54. Creating a Hop Method
• The bunny does not have a
hop method so we will
create one.
• Select the bunny from the
object tree and click on the
create new method button
in the details panel.
Fall 2011 Middlesex Community College 54
<<DRAFT>>
55. Creating a Hop Method
• A window pops up asking for the name
of the method
– try various names to see what is a legal
identifier and what is not
• After giving the new method a name a
new tab pops up in the code editor
• Should hop be one hop or
parameterized?
• Should parameter be time to hop or
number of hops to make?
• Any other way to make it more general?
Fall 2011 Middlesex Community College 55
<<DRAFT>>
56. Adding Parameters
• Let's add parameters for distance to hop
up and the time to do the hop
• Click the create new parameter
button in the code editor.
Fall 2011 Middlesex Community College 56
<<DRAFT>>
57. Adding Parameters
• Give the parameter a name
and pick the data type
– distance -> a Number
– time -> a Number
• When called the hop method
now requires two parameters
Fall 2011 Middlesex Community College 57
<<DRAFT>>
58. Adding Commands to Hop
• To hop the bunny will
move up and then
down.
• Drag the move
command into hop and
fill in the parameters.
• Drag another move
command into hop and
fill in the parameters.
Fall 2011 Middlesex Community College 58
<<DRAFT>>
59. Adding Commands to Hop
• To change the duration of moving up
select the more option from the move
command.
• Select duration then expressions then
time (or the name of your parameter for
time)
Fall 2011 Middlesex Community College 59
<<DRAFT>>
60. Adding Commands to Hop
• To change the duration of the move
to half of the time parameter click
on the triangle to open the drop
down menu.
• Select math and divide time by 2.
• Do the same for the move down.
Fall 2011 Middlesex Community College 60
<<DRAFT>>
62. Back to my first method
• Now that the bunny
can hop and the
broccoli can grow we
can complete the first
part of the story board
• After the bunny turns
to face the camera we
want the bunny to
hop.
Fall 2011 Middlesex Community College 62
<<DRAFT>>
63. Hopping
• We want the bunny to hop for 5 seconds.
• Back to my first method
• Have rabbit hop up and down .25 meters
at 0.5 seconds per hop
• How many hops?
Fall 2011 Middlesex Community College 63
<<DRAFT>>
64. Looping
• A counted loop is used when the number
of repetitions can be calculated
• Drag a Loop primitive into the Do
together block
• Number of times to loop is 10
Fall 2011 Middlesex Community College 64
<<DRAFT>>
65. Hopping
• After Loop is added to
Do together
• drag and drop the
bunny hop method
into the loop
• Select 0.25 meters for
distance to hop and
0.5 seconds for time
• Test!
Fall 2011 Middlesex Community College 65
<<DRAFT>>
66. Noticing the Tulip
• Now we want the rabbit to
– turn to face the tulip,
– Think “Pretty!”
– hop over to the tulip
– Accidentally knock over the tulip.
Fall 2011 Middlesex Community College 66
<<DRAFT>>
67. Test
• Test function by playing movie
• Test further by changing initial set up of
broccoli to change which broccoli is
closest
Fall 2011 Middlesex Community College 67
<<DRAFT>>
68. Noticing the Tulip
• Do together
• Bunny turn to face
tulip
• Bunny thinks “Pretty!”
• Tulip orients to bunny.
Fall 2011 Middlesex Community College 68
<<DRAFT>>
69. Hopping Forward
• Create a new method hopForward
• Parameters for total distance and distance
per hop
– lots of other ways to do this
Fall 2011 Middlesex Community College 69
<<DRAFT>>
70. Completing the Hopping
• Back in my first
method call the
hopForward method.
• Pick a dummy value
for totalDistance.
• Replace dummy value
with distance from
bunny to tulip minus
some offset. (no
collision detection)
Fall 2011 Middlesex Community College 70
<<DRAFT>>
72. Testing your Knowledge
• Working with a partner,
make the flower shake
and fall after the bunny
stops hopping.
• What programming
constructs do you
need?
• Which methods will you
use?
• What will the bunny
say?
• Experiment with your
closing camera position.
Fall 2011 Middlesex Community College 72
<<DRAFT>>
74. What Next?
• Expand by adding more flowers
– lists and variables to manage
• Add sounds
• Add scenery
• Add events
– Interactive programs can be created by
adding events that program responds to.
Fall
74 2011 Middlesex Community College
<<DRAFT>>
75. Summary
• Learning Alice helps prepare you for an
object-oriented language:
– C++
– Java
Fall 2011 Middlesex Community College 75
<<DRAFT>>
76. Adding Detail to the Hop
Method
Fall 2011 Middlesex Community College 76
<<DRAFT>>
77. Going Forward
• Questions about computer science
• Interest level?
• Help
– Example worlds
– Tutorial
– www.alice.org
Fall 2011 Middlesex Community College 77
<<DRAFT>>
Editor's Notes
The Alice Integrated Development Environment is named in honor of Lewis Carroll’s Alice in Wonderland.Introduce:MyselfWhat we plan to do today
EncapsulationExample: Class: animalDogPigPropertiesDescribe the objectcolorMethodsBehaviorsInteractionsExample: speakAsk the class how the object speaksDiscuss inheritance, encapsulation
In this first demo, we explore examples of the two different types of animation in Alice.Open and run the first world together.Students open 2nd world and play on their own.
In this first demo, we explore examples of the two different types of animation in Alice.Open and run the first world together.Students open 2nd world and play on their own.
Refer back to the examples:Which was a “Movie” and which was “Interactive”?
Follow along!
For this demonstration, select grass.
White board: class/objectClass is the cookie cutterObject is the cookie
Place the bunny on the grass.
We will experiment with each set of tools.
Experiment with the Mouse Controls.Copy bunny.Now have two bunnies.
Move camera:Up, down, left, rightBackward and forwardTiltExperiment with the camera controls
Position bunnies relative to one another.
Draw on white board.Emphasize the objects are 3 dimensional with 6 degrees of freedom fowr
Select bunny’s right ear.Tumble.
Have students work on this individually or in pairs to complete these instructions.Gallery->environmentsGroundHillSkys->happy sky
Ask the class what is a story board?Why is a story board a good design and documentation technique for this type of programming?
The problem we are solving is to animate this scenario.
Have 3 student volunteersHave each student stand up one after the otherDo in orderHave students stand up togetherDO TOGETHERDiscuss when to use each idea.
On the white board, demonstrate nested blocks.
Ask the students what the benefits of this approach might be?
// comment
Always start with “my first method”
Demonstrate program.
Distinguish world level and class level behaviors.Ask the students to looks at the Bunny’s methods.Is there a hop method?What to do?
Review the bunny’s methods.The bunny does NOT have a hop method!Let’s create this method.
Break down the idea of hopping…
Discuss data types.Note we are now in the bunny.hop method.Note we are no longer in the world.myfirstmethod method
