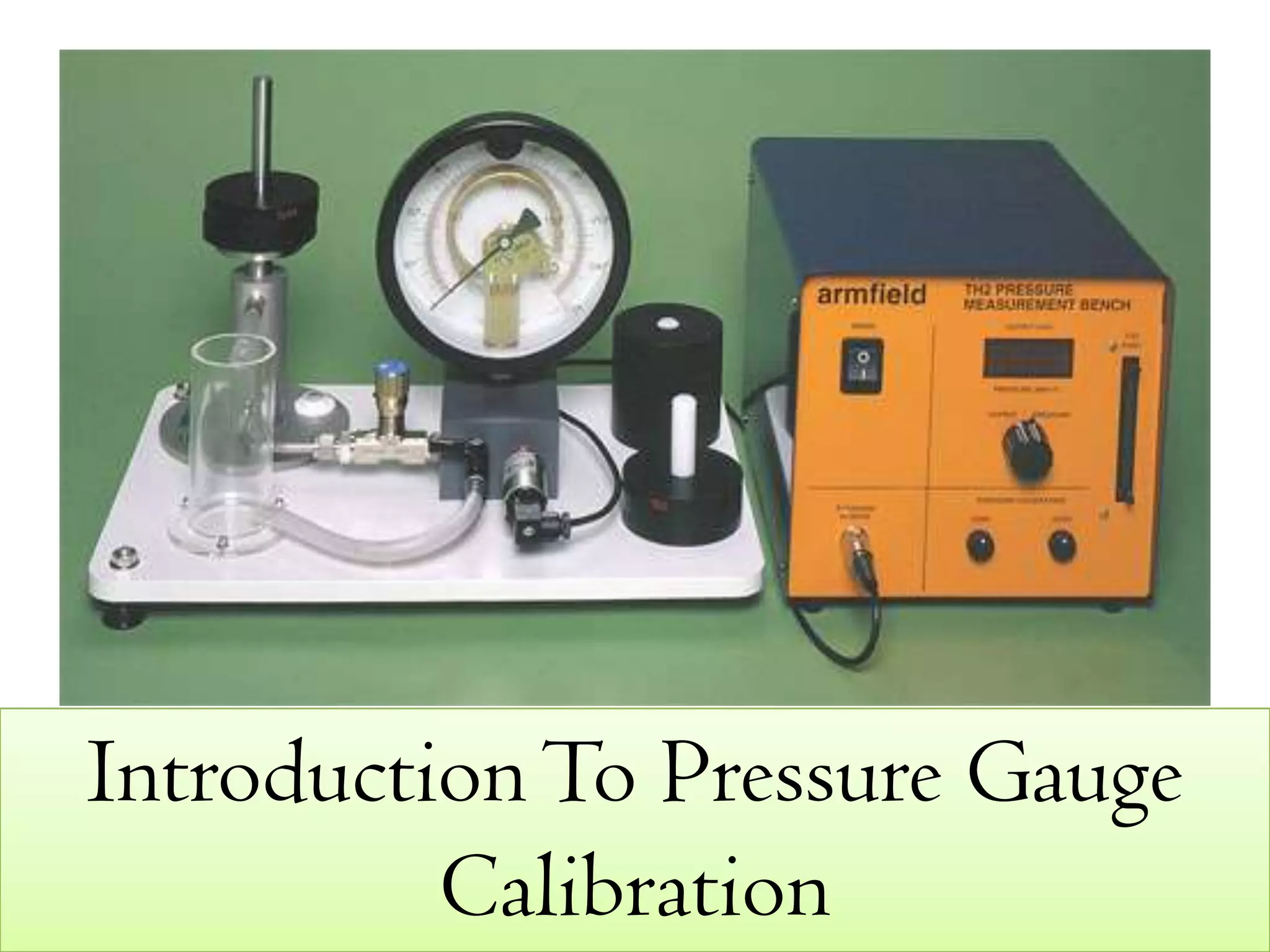

Introduction To Pressure Gauge
          Calibration
   A pressure gauge is a crucial tool used
    for monitoring pressure levels in a plant
    or a organization.. It is also used with
    switches and moreover other
    instruments.

   To keep the tool in working order, you'll
    have to calibrate it from time to time.

   Additionally it is important when there
    is questionable output after making use
    of the device.

   You may even calibrate the pressure
    gauge after it has suffered a shock or
    even adverse climate conditions. Every
    other instrument or equipment also
    needs calibration.

   There's always a test equipment
    calibration process meant for each
    instrument or equipment.
The way to perform Pressure Gauge
            Calibration
 You need to have
                                                           a pressure gauge
                                                           with known
                                                           precision.




                                  You as well need to
 It is important to check the     have the
  manual that comes with the       questionable gauge
  instrument to find out if it     you want to
  has particular calibration       calibrate at the
  period and method.               same time.

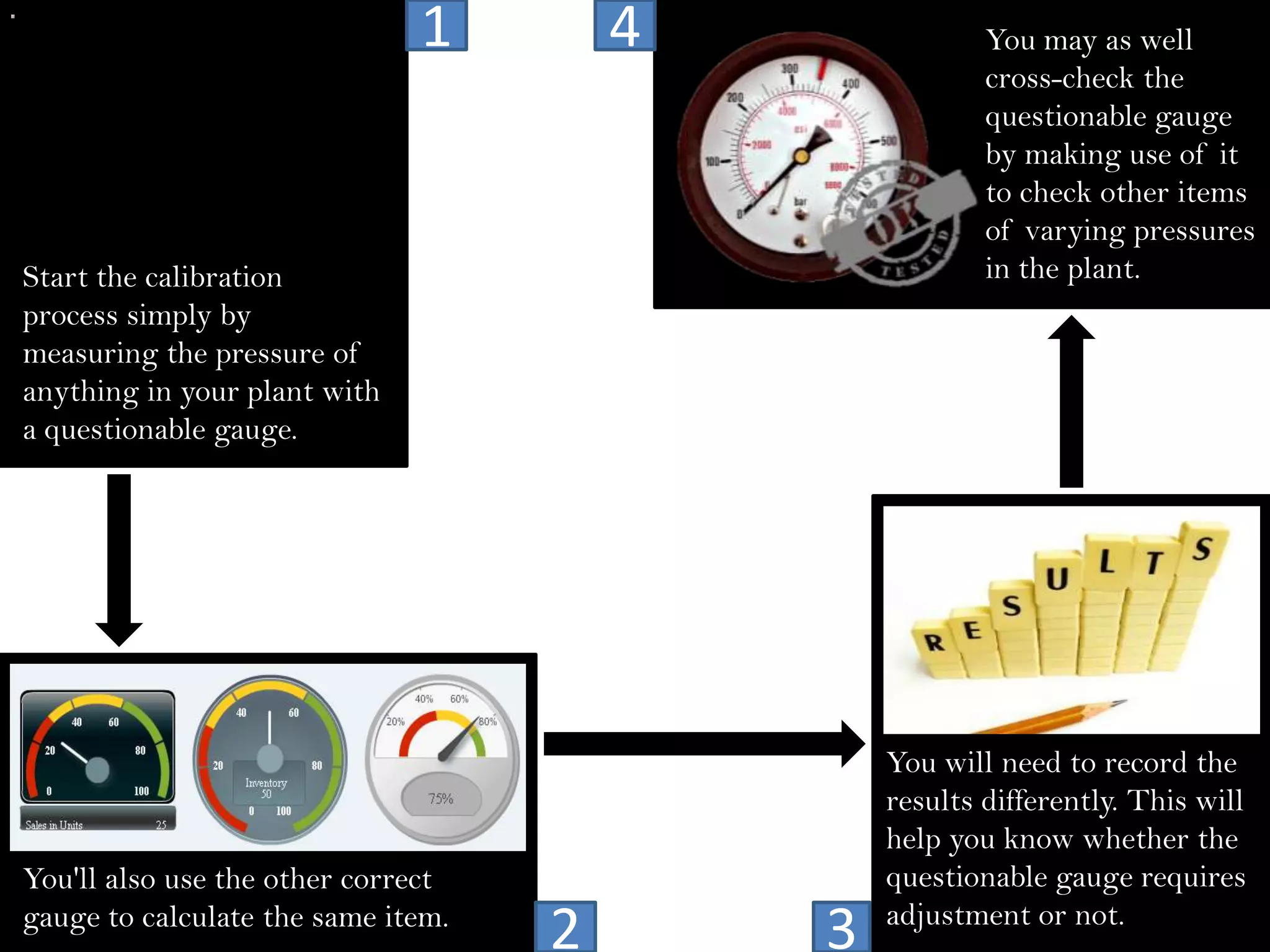

1         4               You may as well
                                                        cross-check the
                                                        questionable gauge
                                                        by making use of it
                                                        to check other items
                                                        of varying pressures
Start the calibration                                   in the plant.
process simply by
measuring the pressure of
anything in your plant with
a questionable gauge.




                                                You will need to record the
                                                results differently. This will
                                                help you know whether the
You'll also use the other correct               questionable gauge requires
gauge to calculate the same item.               adjustment or not.
                                    2       3
In case you have spotted certain differences between the two pressure
gauges, make necessary changes on the questionable one. You can alter its dial
  to perform the calibration. It is crucial you will know some pressure gauges
 don't allow dial change. You won't need to force them if they don't allow that.
You can simply make notes if your pressure gauge does not allow the change of
                                        dial.
