1. iOS Programming
Objective C + iOS

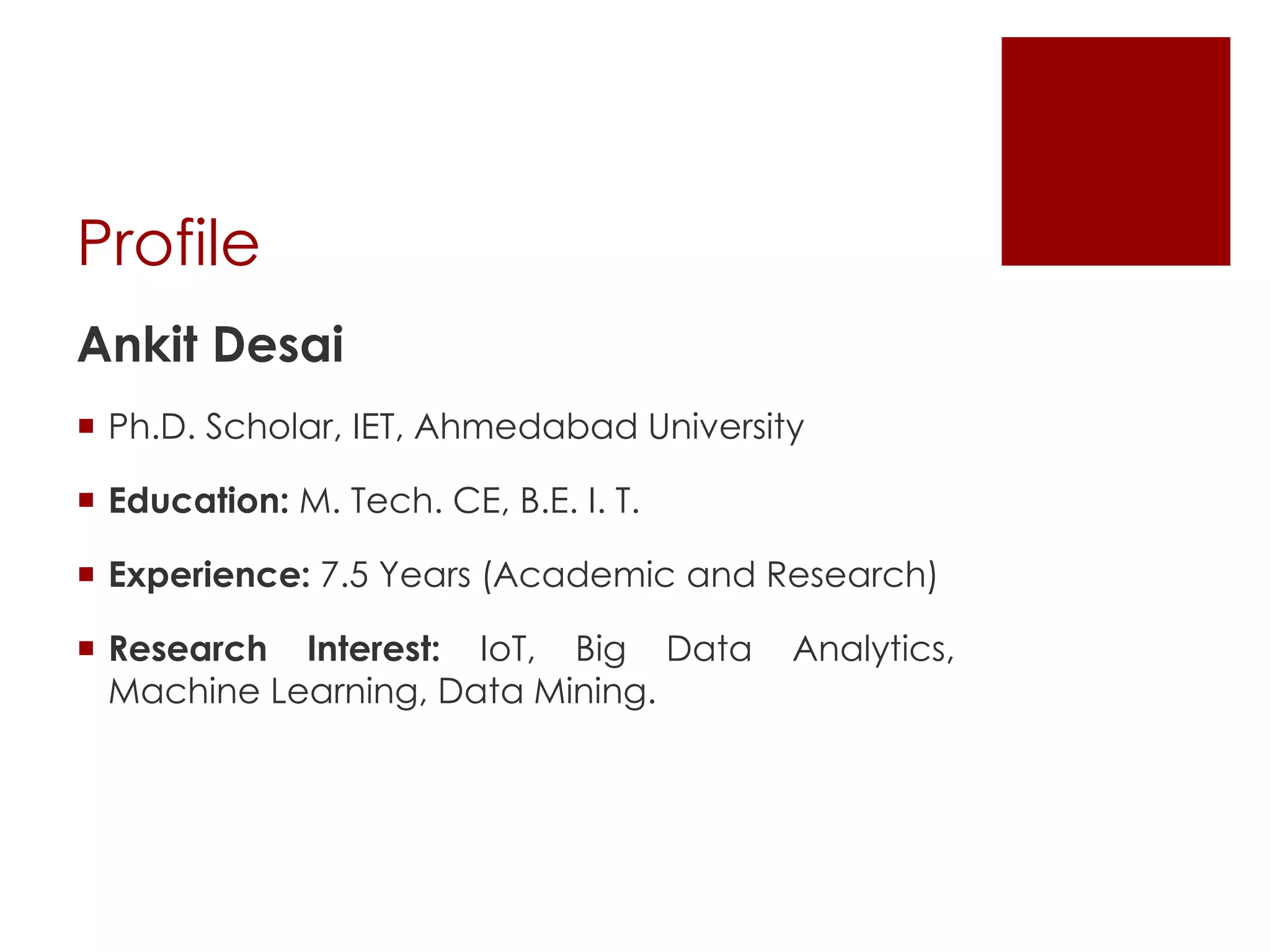

2. Profile
Ankit Desai
 Ph.D. Scholar, IET, Ahmedabad University
 Education: M. Tech. CE, B.E. I. T.
 Experience: 7.5 Years (Academic and Research)
 Research Interest: IoT, Big Data Analytics,
Machine Learning, Data Mining.

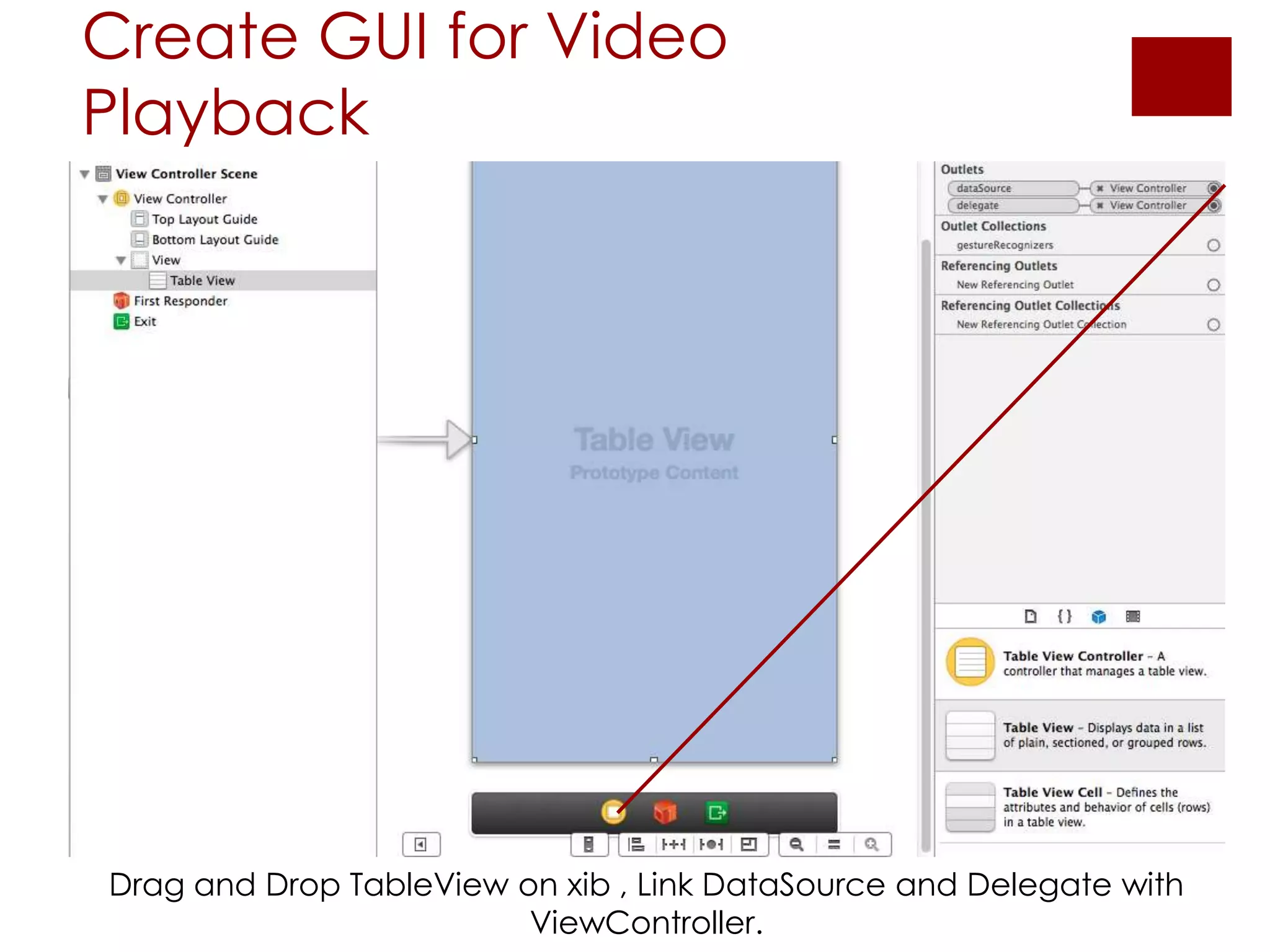

3. Create GUI for Video
Playback
Drag and Drop TableView on xib , Link DataSource and Delegate with
ViewController.

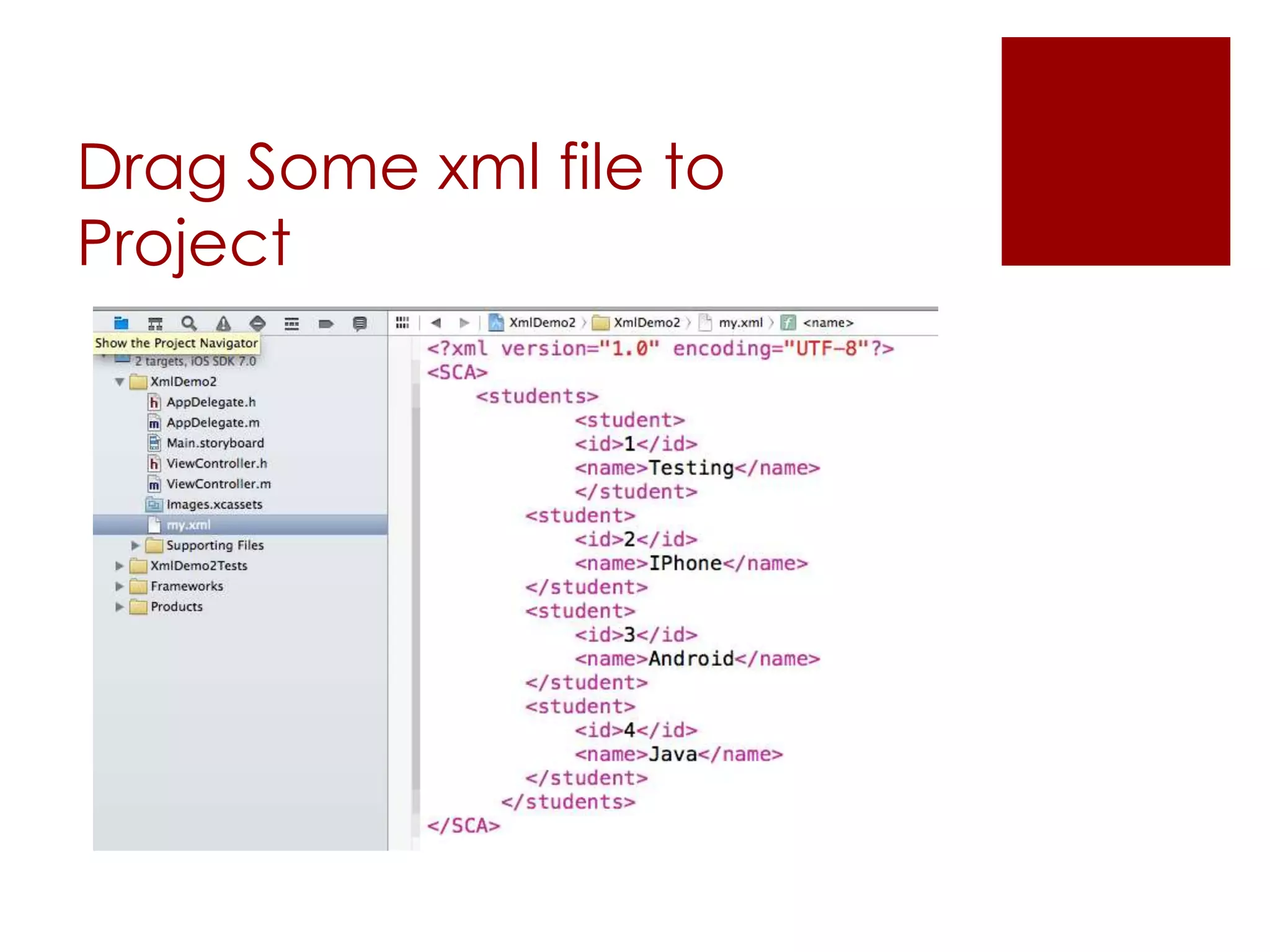

4. Drag Some xml file to
Project

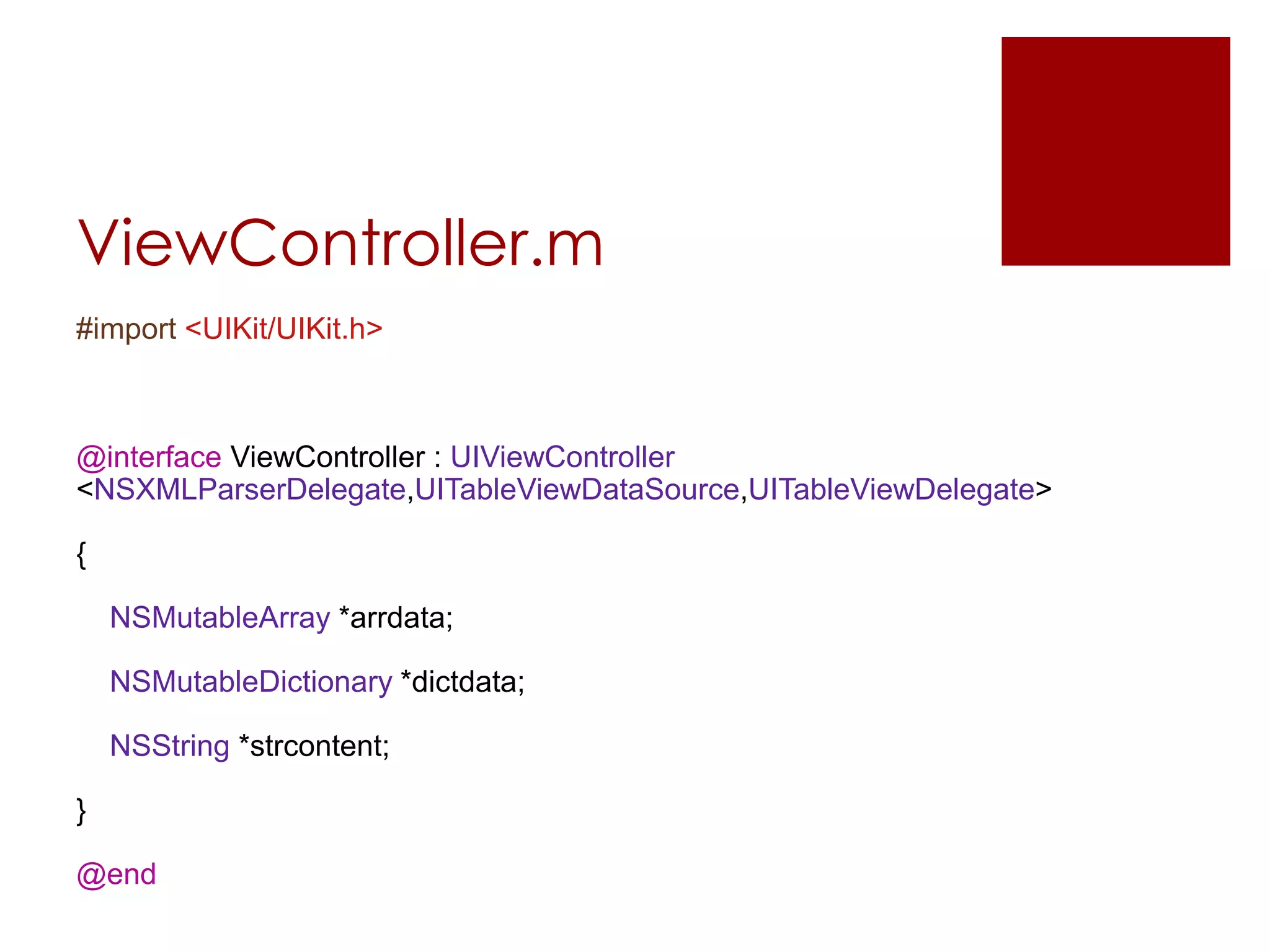

5. ViewController.m
#import <UIKit/UIKit.h>
@interface ViewController : UIViewController
<NSXMLParserDelegate,UITableViewDataSource,UITableViewDelegate>
{
NSMutableArray *arrdata;
NSMutableDictionary *dictdata;
NSString *strcontent;
}
@end

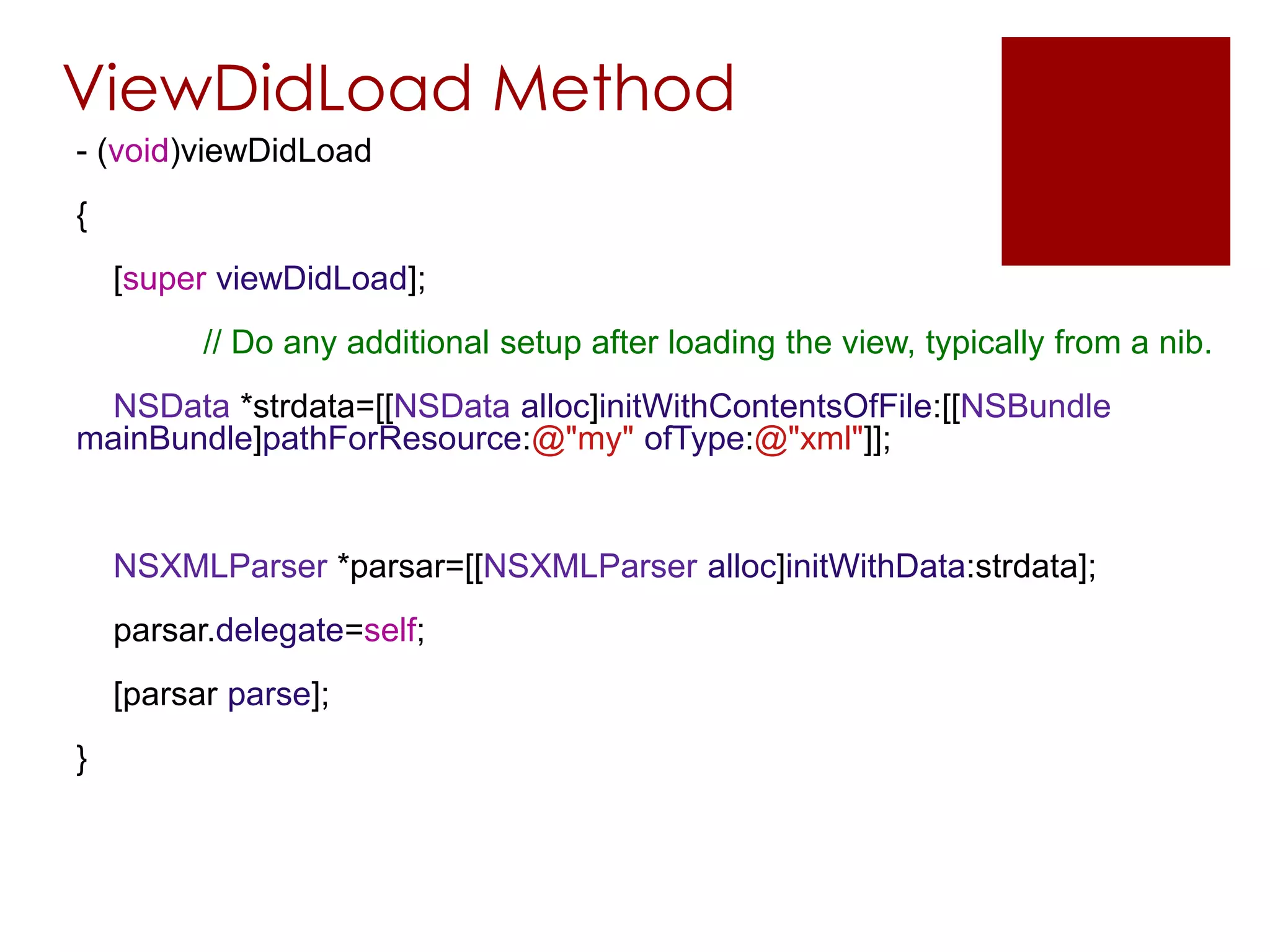

6. ViewDidLoad Method
- (void)viewDidLoad
{
[super viewDidLoad];
// Do any additional setup after loading the view, typically from a nib.
NSData *strdata=[[NSData alloc]initWithContentsOfFile:[[NSBundle
mainBundle]pathForResource:@"my" ofType:@"xml"]];
NSXMLParser *parsar=[[NSXMLParser alloc]initWithData:strdata];
parsar.delegate=self;
[parsar parse];
}

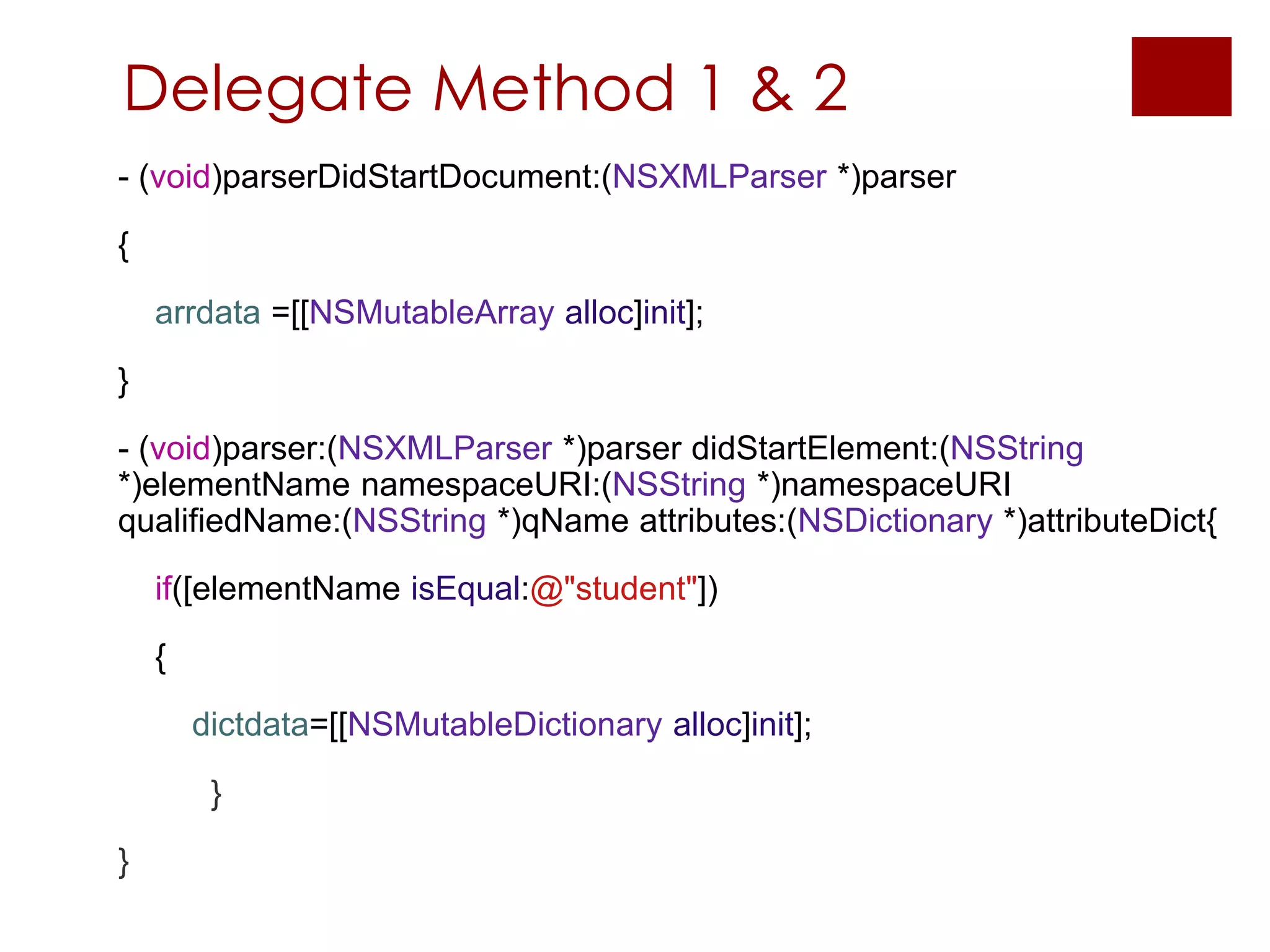

7. Delegate Method 1 & 2
- (void)parserDidStartDocument:(NSXMLParser *)parser
{
arrdata =[[NSMutableArray alloc]init];
}
- (void)parser:(NSXMLParser *)parser didStartElement:(NSString
*)elementName namespaceURI:(NSString *)namespaceURI
qualifiedName:(NSString *)qName attributes:(NSDictionary *)attributeDict{
if([elementName isEqual:@"student"])
{
dictdata=[[NSMutableDictionary alloc]init];
}
}

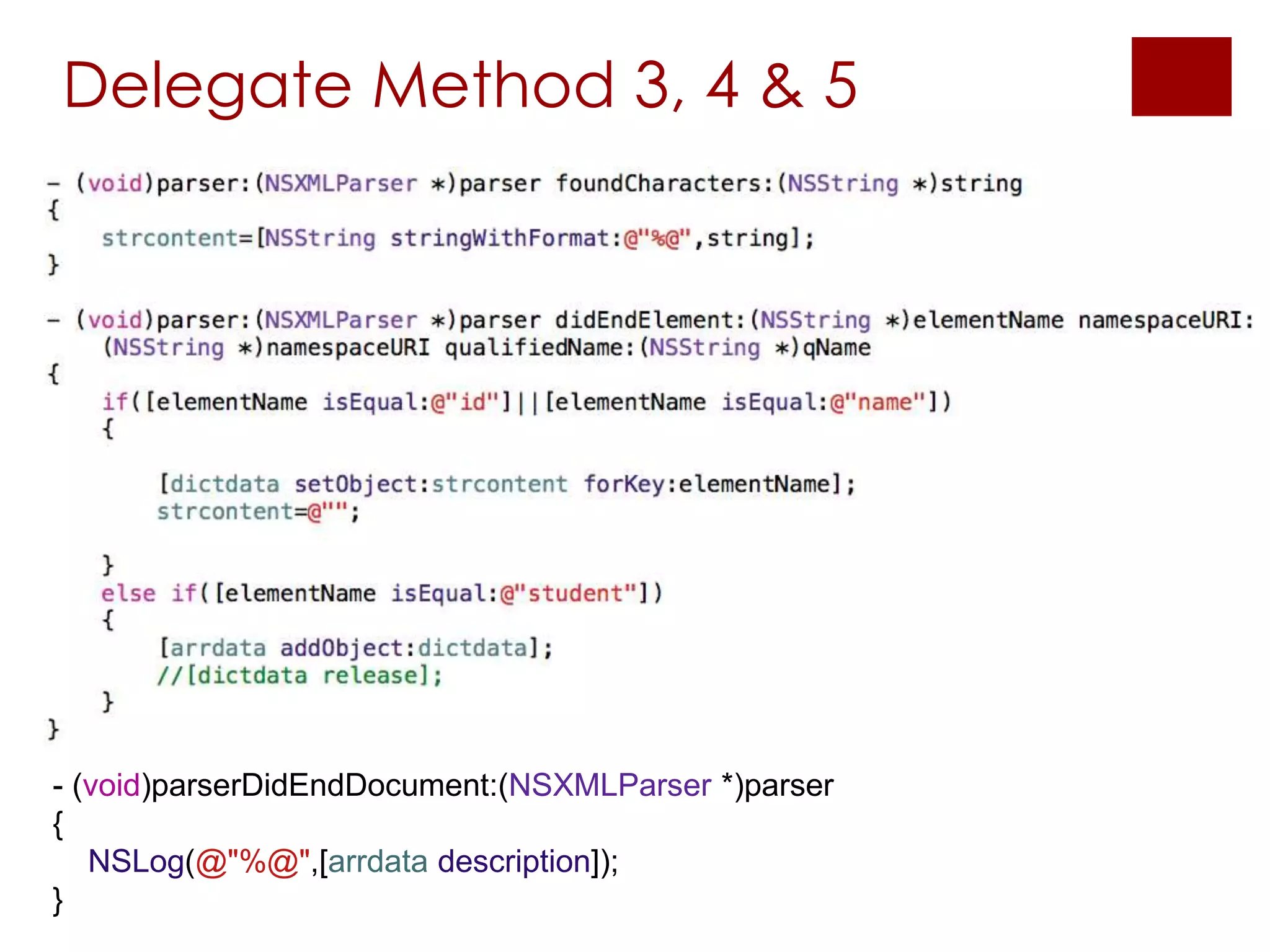

8. Delegate Method 3, 4 & 5
- (void)parserDidEndDocument:(NSXMLParser *)parser
{
NSLog(@"%@",[arrdata description]);
}

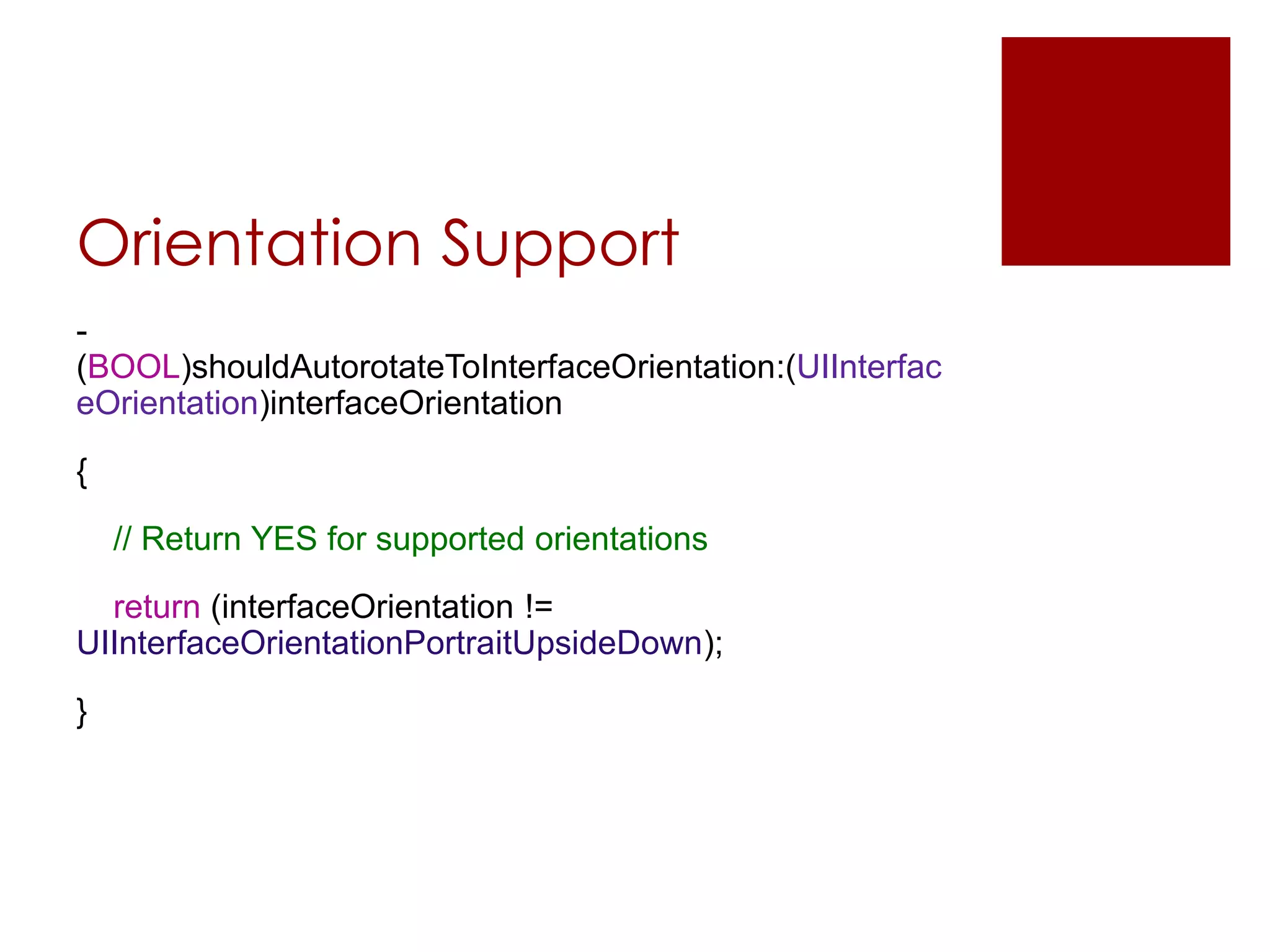

9. Orientation Support
-
(BOOL)shouldAutorotateToInterfaceOrientation:(UIInterfac
eOrientation)interfaceOrientation
{
// Return YES for supported orientations
return (interfaceOrientation !=
UIInterfaceOrientationPortraitUpsideDown);
}

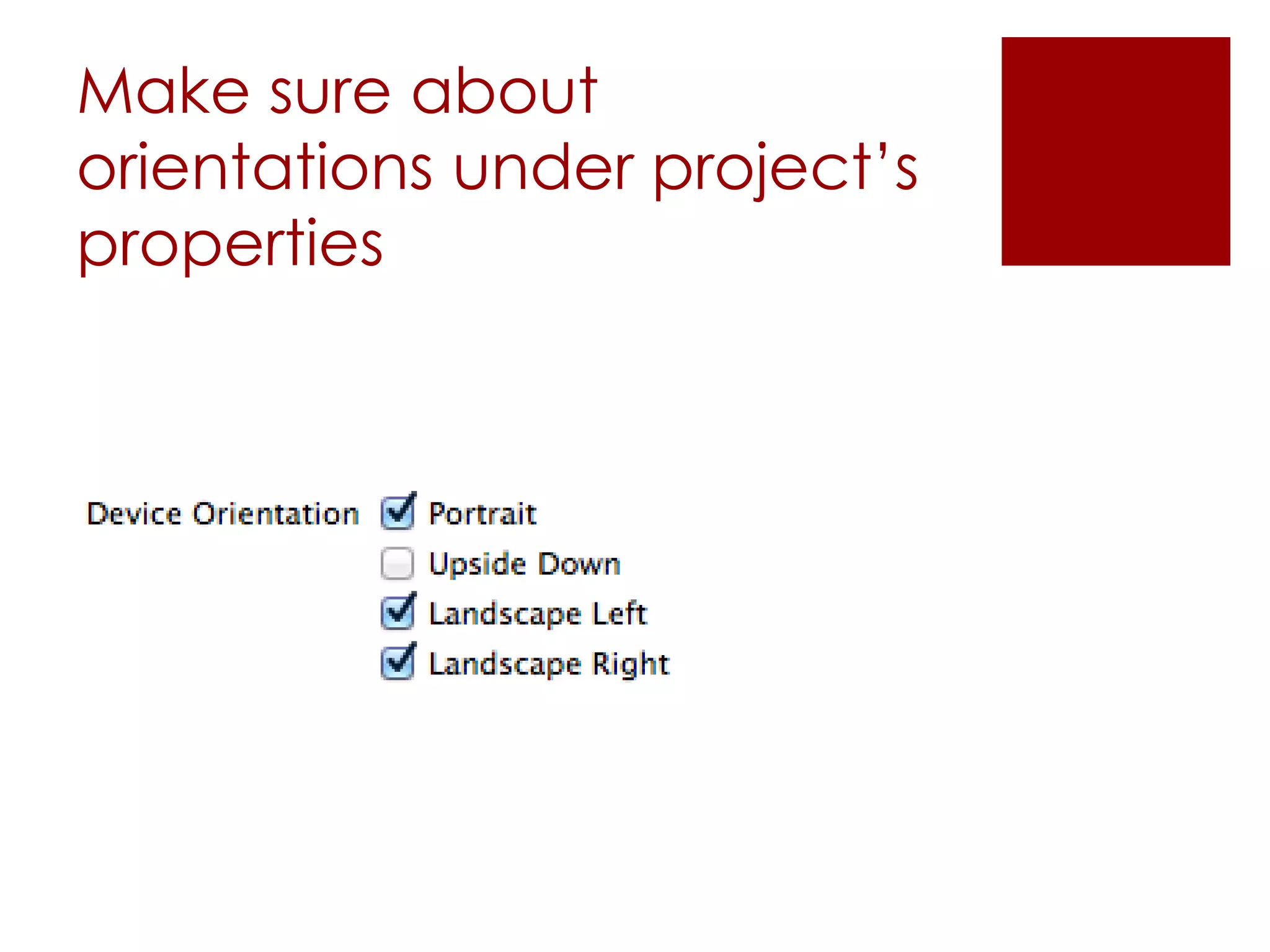

10. Make sure about
orientations under project’s
properties

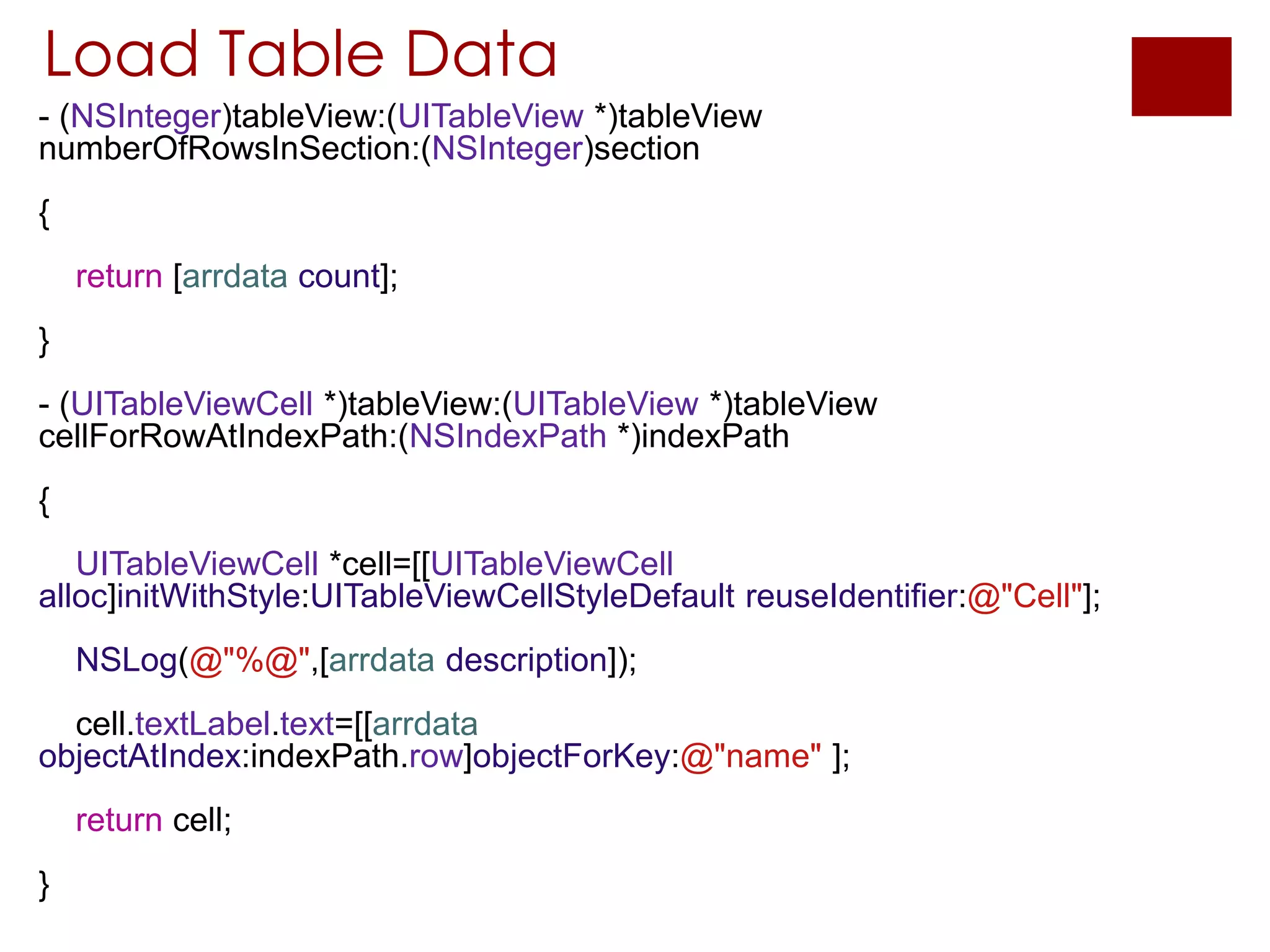

11. Load Table Data
- (NSInteger)tableView:(UITableView *)tableView
numberOfRowsInSection:(NSInteger)section
{
return [arrdata count];
}
- (UITableViewCell *)tableView:(UITableView *)tableView
cellForRowAtIndexPath:(NSIndexPath *)indexPath
{
UITableViewCell *cell=[[UITableViewCell
alloc]initWithStyle:UITableViewCellStyleDefault reuseIdentifier:@"Cell"];
NSLog(@"%@",[arrdata description]);
cell.textLabel.text=[[arrdata
objectAtIndex:indexPath.row]objectForKey:@"name" ];
return cell;
}

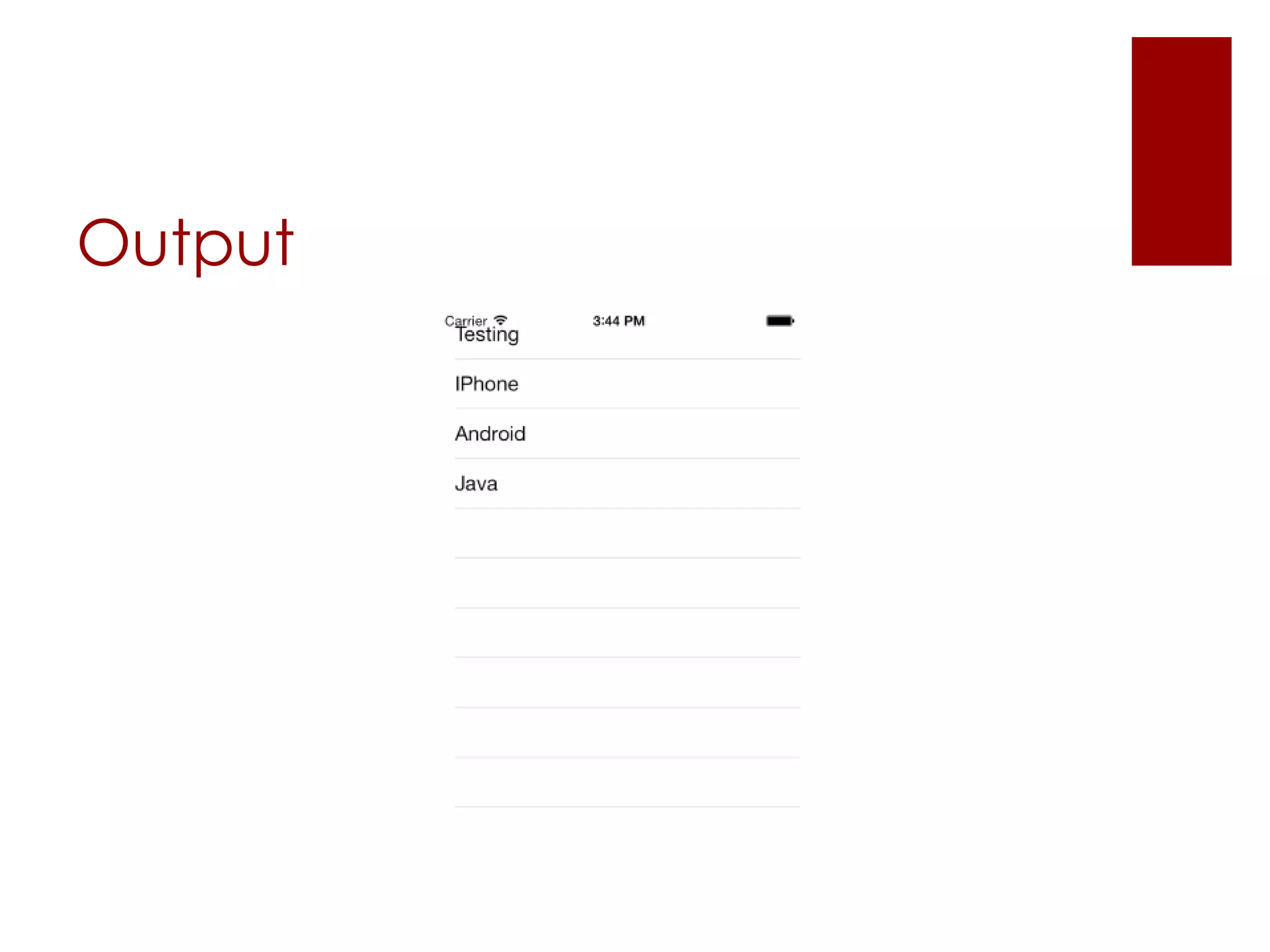

12. Output

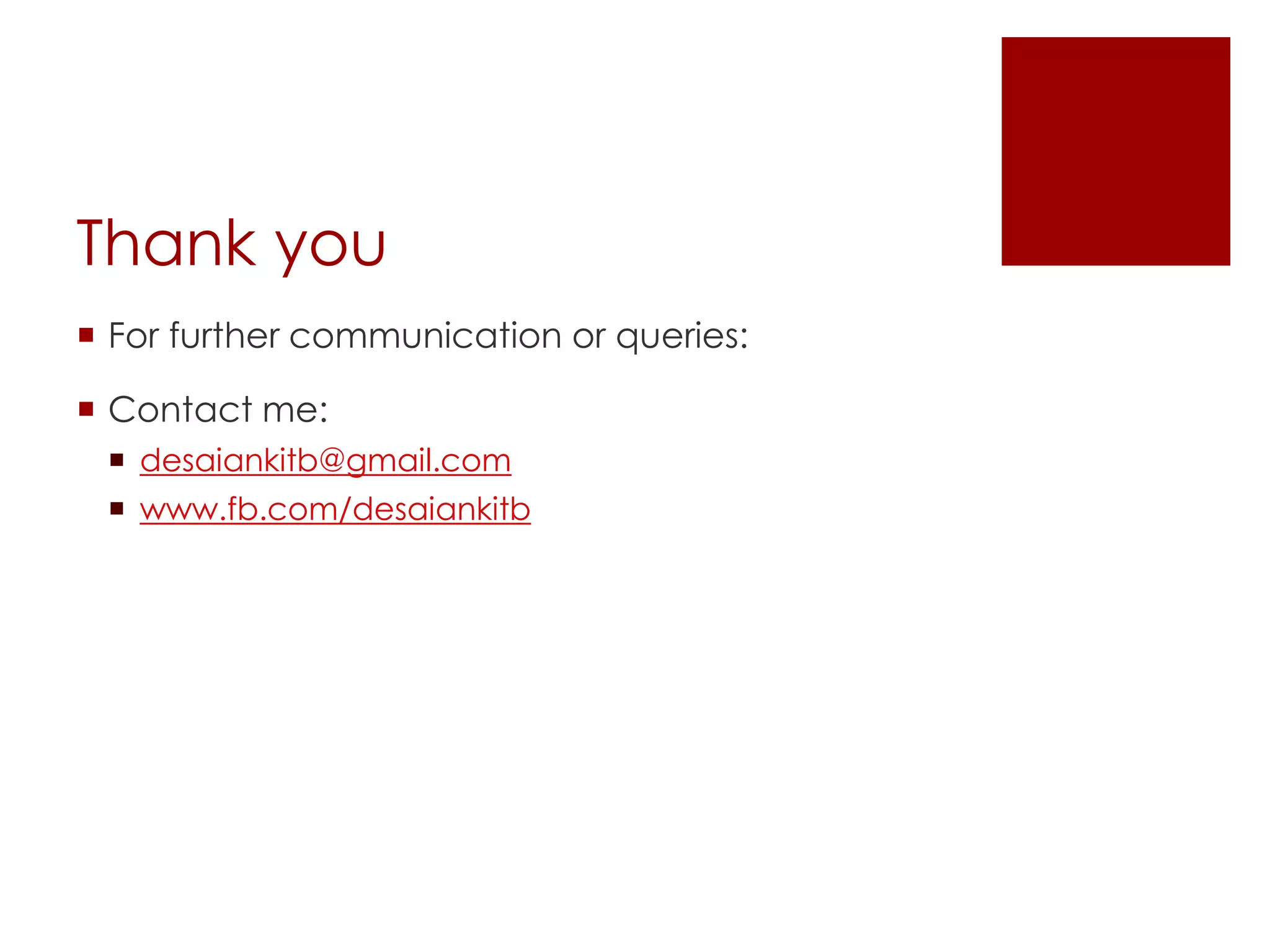

13. Thank you
