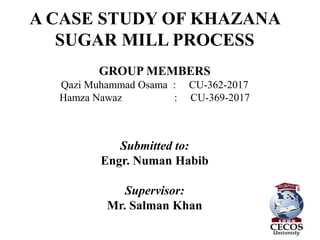

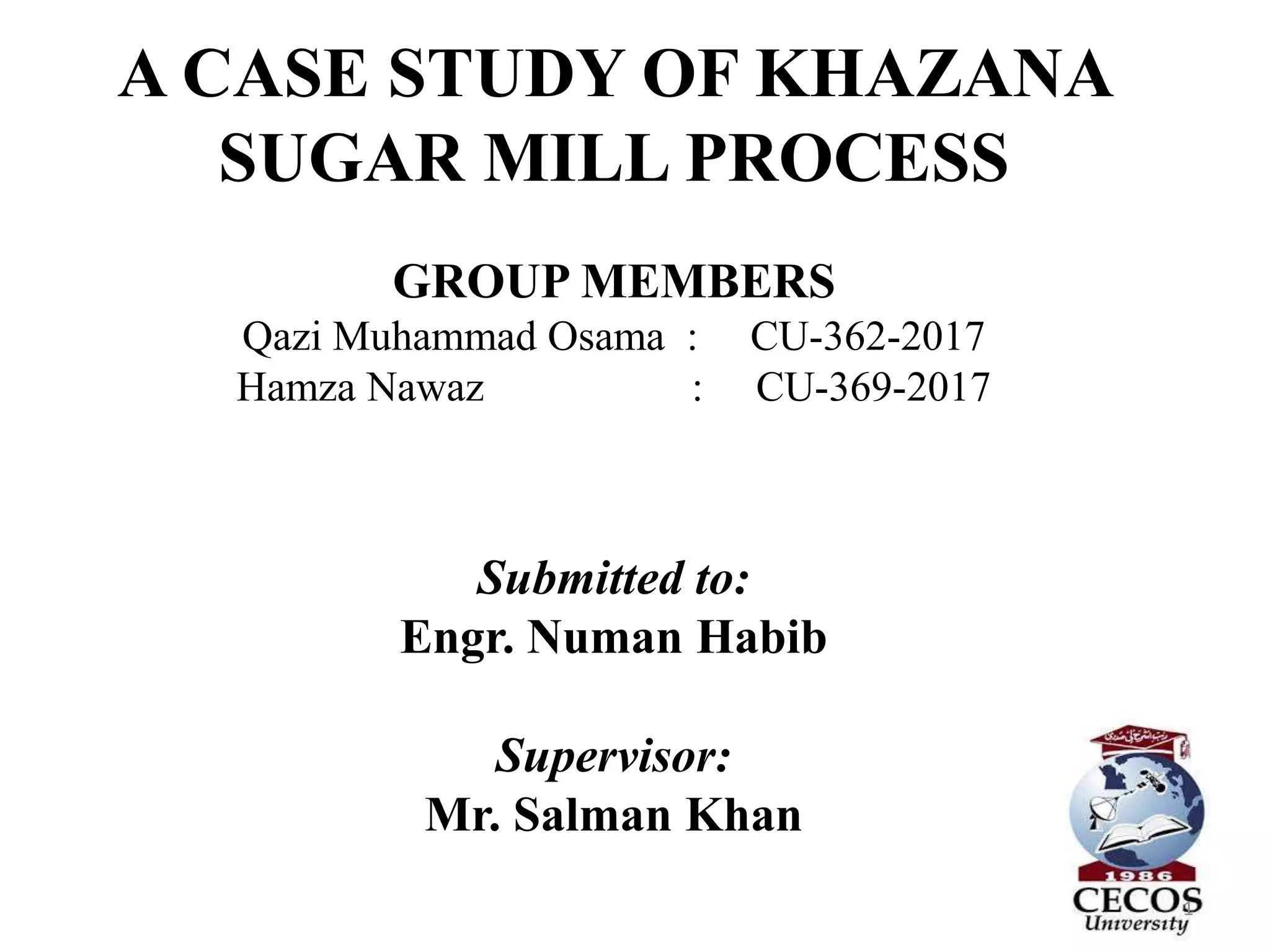

1. A CASE STUDY OF KHAZANA
SUGAR MILL PROCESS
GROUP MEMBERS
Qazi Muhammad Osama : CU-362-2017
Hamza Nawaz : CU-369-2017
Submitted to:
Engr. Numan Habib
Supervisor:
Mr. Salman Khan
1

2. Contents
• Introduction
o History of sugar cane
o Present situation of sugar industry
o Location and information of Khazana Sugar
Mill
o Power House
• Sugar production Procedure
2

3. Introduction
History of sugar cane
• Sugar cane and sugar beet have high sucrose.
• First cultivated Polynesia (Pacific Ocean.)
• To Subcontinent and became a popular in India.
• In 510 B.C the Iran’s king Dara Uoosh conquered
Hindustan and transferred it to Iran.
• In 642 A.C Arab’s got it by conquering Iran and
expanded it to Northern Africa and Spain.
3

4. Continued.......
• The Arabs also invented sugar making process.
• Indians also extracted sugar from it by
conventional methods.
• The western European countries found sugar in
11th century because of crusade.
• In 1499 Columbus cultivated it in the
Caribbean countries because of their hot
weather.
4

5. Present situation of sugar industry
• Sugar is made in 121 countries of the world.
• Total production of sugar is 120+ million tons per
year on Earth.
• Most of sugarcane is produced in India and
Brazil.
• Pakistan is ranked 5th for the production of sugar
cane and 15th for the production of sugar
• 80 sugar mills are running in Pakistan.
5

6. Location and Information of
Khazana Sugar Mill
• Khazana sugar mill is situated at Haryana
Payan, Khazana on Charsadda Road Peshawar.
It is 6 km away from Provincial Assembly.
• Founded on December 16th 1976.
• It’s value is 30 arab Rs.
• 350+ employees.
6

7. Khazana Sugar Mill
7

8. Power House
• The generator produces 4 MW of electric
power from which 2.4 MW is consumed to run
the mill.
8

9. Sugar production Procedure
Mill House
1. Harvesting
2. Shredding
3. Milling
Process House
4. Heating and adding milk of lime
5. Clarifying
6. Evaporating
7. Crystalizing
9

10. Continued…….
8. Separation of grains
9. Remelting
10. Tallo Clarifying
11. Filtration
12. Refine Pan
13. Drying and Sieving
14. Packing
10

11. Process Diagram
11

12. Machines used
1) Transportation of raw material (sugar cane)
2) The hydraulic jack
3) The belts
4) Rollers
5) Mills
6) Condensate heaters
7) Sulfation stations
8) Flash tanks
12

13. Continued…….
9) Accofloc filter
10) Mud mixer tank
11) Vacuum filter
12) Evaporators
13) Pans
14) Centrifugal station
15) Pan A
16) Re-melter
13

14. Continued…….
17) Tallo
18) Pressure filter
19) Pan B/ Refine pan
20) Filter
21) Grader
22) Sieve
23) Shoot
24) Laboratory
14

15. …….
Let us study/discuss
these processes in
detail…
15

16. Mill House
Harvesting and Shredding
• Sugar cane is harvested by workers and
transported to the mill.
• Sugar cane is passed through two cutters, so its
size become small.
• The small pieces are passed through a shredder
and is converted to fiber.
16

17. Shredder
17

18. Continued…….
Milling
• Fibered sugar cane enters into crusher where
juice and husk (called Bagasse) are separated.
• Bagasse serves as a fuel for power production.
• Sugar mill have its own electricity generator
and steam turbines.
18

19. Process House
Heating and Clarifying
• The juice is heated up to 103o Celsius.
• Lime water (calcium hydroxide) is mixed with
juice to maintain its pH.
• Than poured into clarifier where some food
grade chemicals e.g. Accofloc-215 are added.
• So the solid waste (filter cake) settle down.
19

20. Continued…….
Evaporating and Crystalizing
• Pure juice is boiled using steam, thus the water
is evaporated.
• The juice is thickened due to evaporation.
• The dense juice is heated using steam and is
converted to grains in pans.
20

21. Continued…….
Separation and Remelting
• Grains of sugar are separated from dense juice by
applying centrifugal force in centrifugal station.
• The separated juice is called Molasses.
• This molasses is further processed to make sugar
of different stages.
• The raw sugar (separated sugar) is remelted in hot
water.
• Different food grades are added to raw sugar to
maintain its white color.
21

22. Continued……..
Tallo Clarifier, Filtration and
Refining
• Raw sugar is filtered in tallo clarifier.
• Pressure filter removes any type of impurities.
• This is now called fine liquor.
• Liquor is treated with steam in refine pans and
refined sugar is made.
• The sugar and juice are made in a ratio of 1:1 and
this mixture is called refine mesquite.
• This refine mesquite is filtered in centrifugal
station and white sugar is separated from juice.
22

23. Pans
23

24. Continued…….
Drying, Sieving and Packing
• White sugar is dried by exposing it to hot air.
• It is than passed from sieves of different sizes.
• So sugar of different grain sizes is separated
from each other.
• The sugar of same (grain) size is packed and
stored.
24
