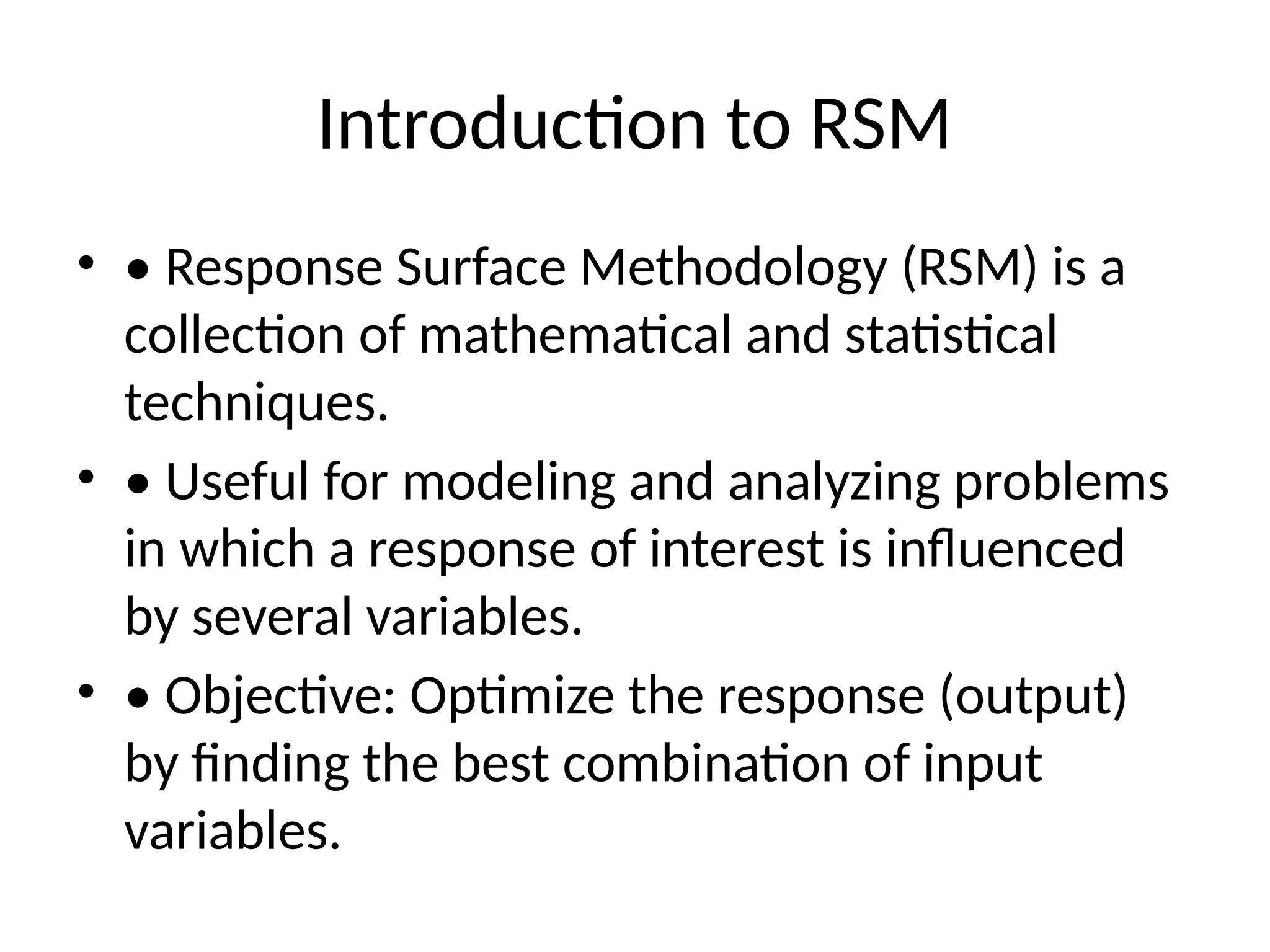

Introduction to RSM
•• Response Surface Methodology (RSM) is a
collection of mathematical and statistical
techniques.
• • Useful for modeling and analyzing problems
in which a response of interest is influenced
by several variables.
• • Objective: Optimize the response (output)
by finding the best combination of input
variables.
3.

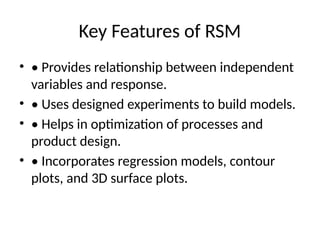

Key Features ofRSM
• • Provides relationship between independent
variables and response.
• • Uses designed experiments to build models.
• • Helps in optimization of processes and
product design.
• • Incorporates regression models, contour
plots, and 3D surface plots.
4.

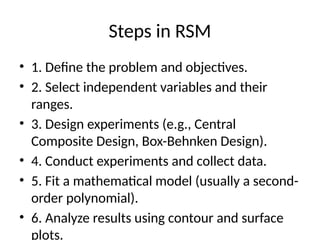

Steps in RSM
•1. Define the problem and objectives.
• 2. Select independent variables and their
ranges.
• 3. Design experiments (e.g., Central
Composite Design, Box-Behnken Design).
• 4. Conduct experiments and collect data.
• 5. Fit a mathematical model (usually a second-
order polynomial).
• 6. Analyze results using contour and surface
plots.
5.

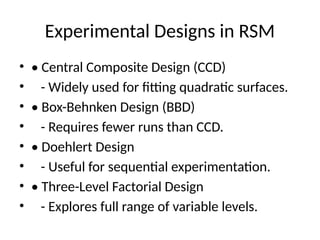

Experimental Designs inRSM
• • Central Composite Design (CCD)
• - Widely used for fitting quadratic surfaces.
• • Box-Behnken Design (BBD)
• - Requires fewer runs than CCD.
• • Doehlert Design
• - Useful for sequential experimentation.
• • Three-Level Factorial Design
• - Explores full range of variable levels.
6.

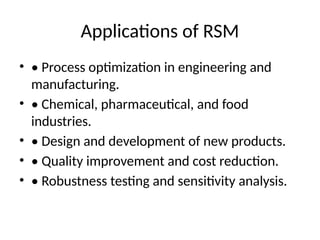

Applications of RSM
•• Process optimization in engineering and
manufacturing.
• • Chemical, pharmaceutical, and food
industries.
• • Design and development of new products.
• • Quality improvement and cost reduction.
• • Robustness testing and sensitivity analysis.
7.

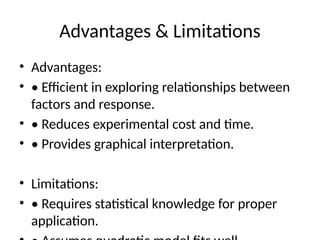

Advantages & Limitations
•Advantages:
• • Efficient in exploring relationships between
factors and response.
• • Reduces experimental cost and time.
• • Provides graphical interpretation.
• Limitations:
• • Requires statistical knowledge for proper
application.
8.

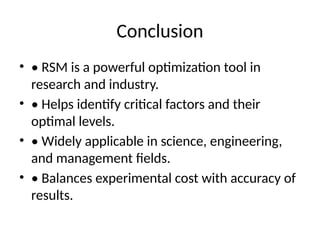

Conclusion
• • RSMis a powerful optimization tool in
research and industry.
• • Helps identify critical factors and their
optimal levels.
• • Widely applicable in science, engineering,
and management fields.
• • Balances experimental cost with accuracy of
results.
