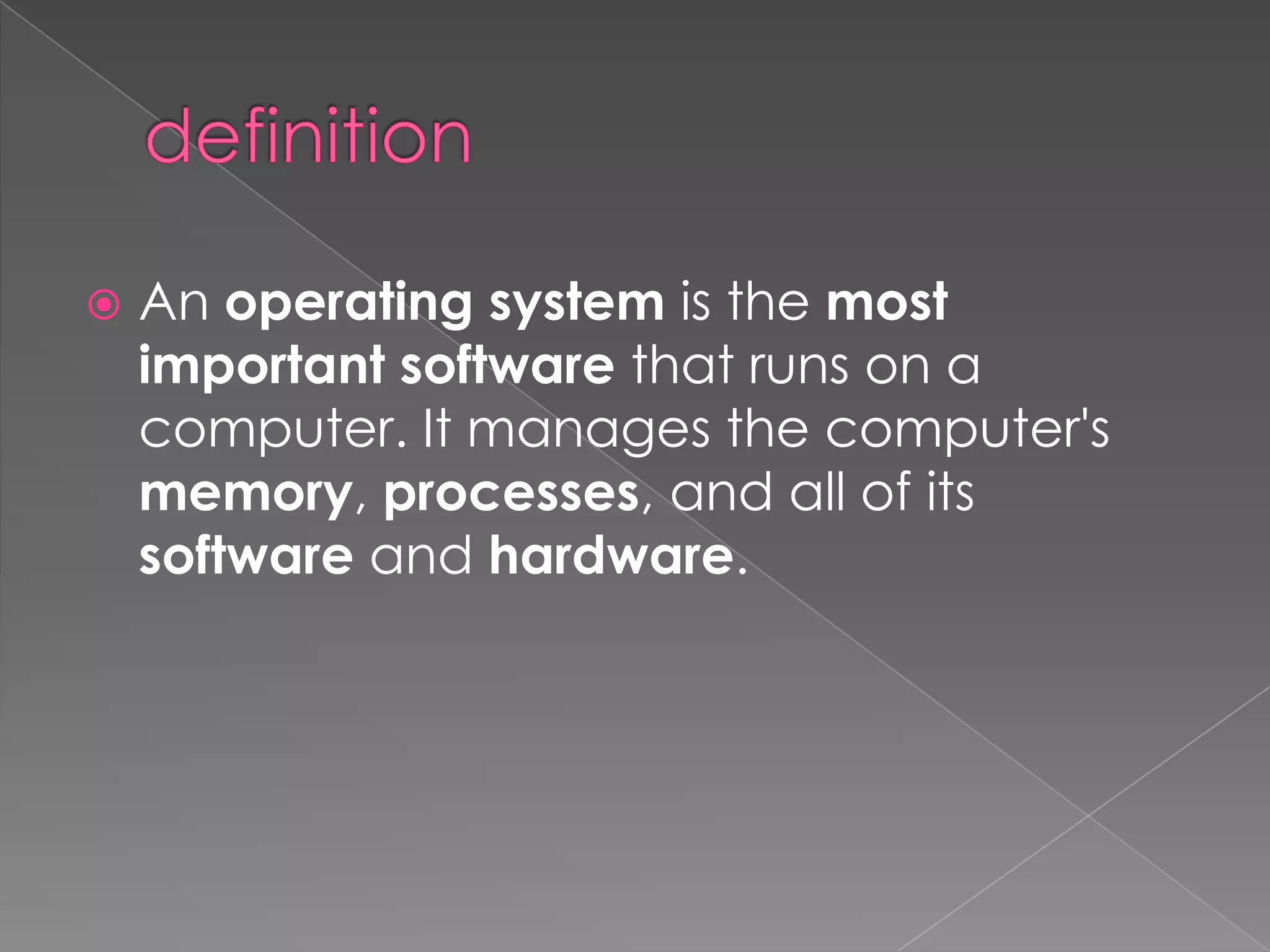

   An operating system is the most
    important software that runs on a
    computer. It manages the computer's
    memory, processes, and all of its
    software and hardware.

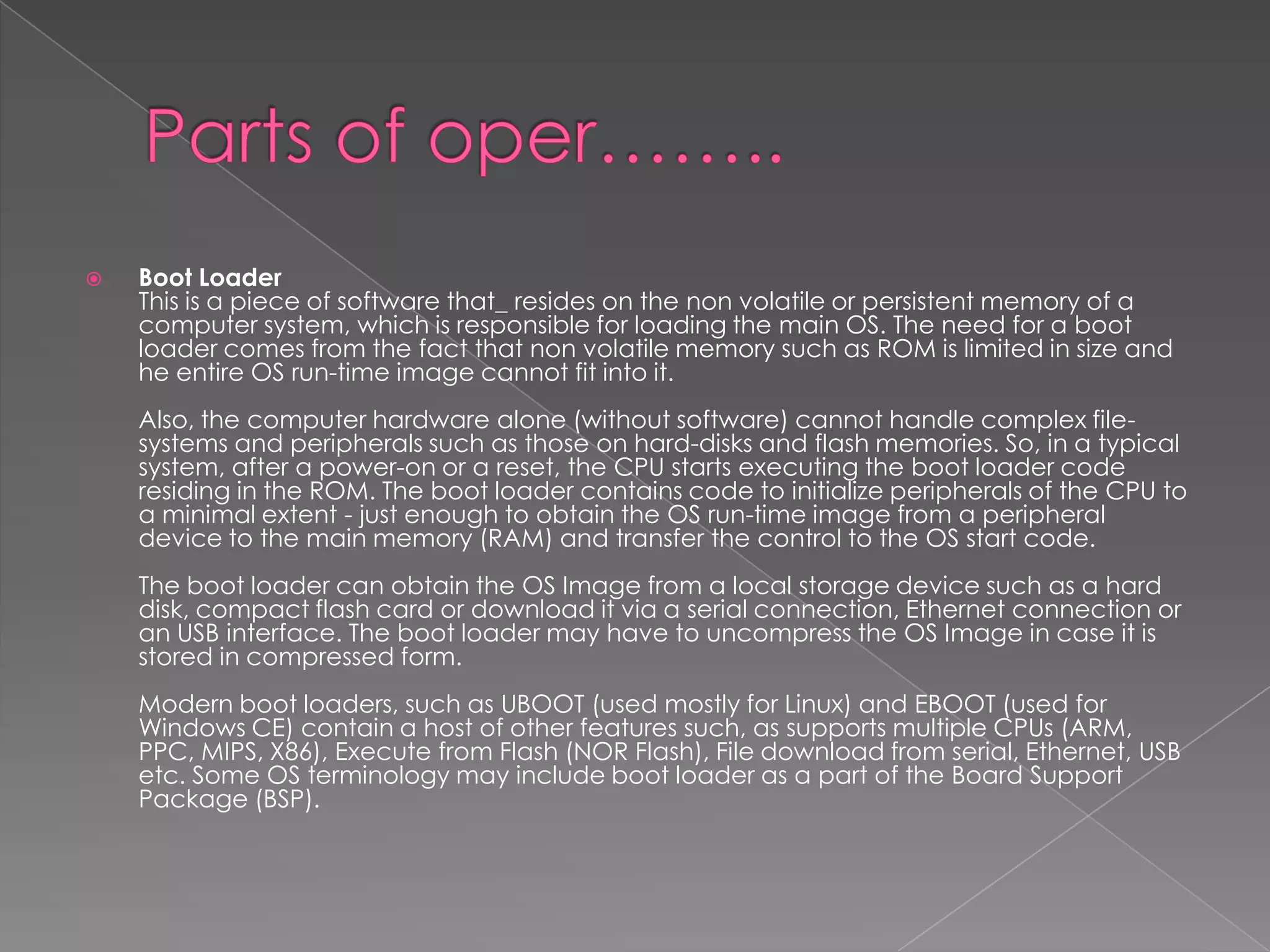

   Boot Loader
    This is a piece of software that_ resides on the non volatile or persistent memory of a
    computer system, which is responsible for loading the main OS. The need for a boot
    loader comes from the fact that non volatile memory such as ROM is limited in size and
    he entire OS run-time image cannot fit into it.
    Also, the computer hardware alone (without software) cannot handle complex file-
    systems and peripherals such as those on hard-disks and flash memories. So, in a typical
    system, after a power-on or a reset, the CPU starts executing the boot loader code
    residing in the ROM. The boot loader contains code to initialize peripherals of the CPU to
    a minimal extent - just enough to obtain the OS run-time image from a peripheral
    device to the main memory (RAM) and transfer the control to the OS start code.
    The boot loader can obtain the OS Image from a local storage device such as a hard
    disk, compact flash card or download it via a serial connection, Ethernet connection or
    an USB interface. The boot loader may have to uncompress the OS Image in case it is
    stored in compressed form.
    Modern boot loaders, such as UBOOT (used mostly for Linux) and EBOOT (used for
    Windows CE) contain a host of other features such, as supports multiple CPUs (ARM,
    PPC, MIPS, X86), Execute from Flash (NOR Flash), File download from serial, Ethernet, USB
    etc. Some OS terminology may include boot loader as a part of the Board Support
    Package (BSP).

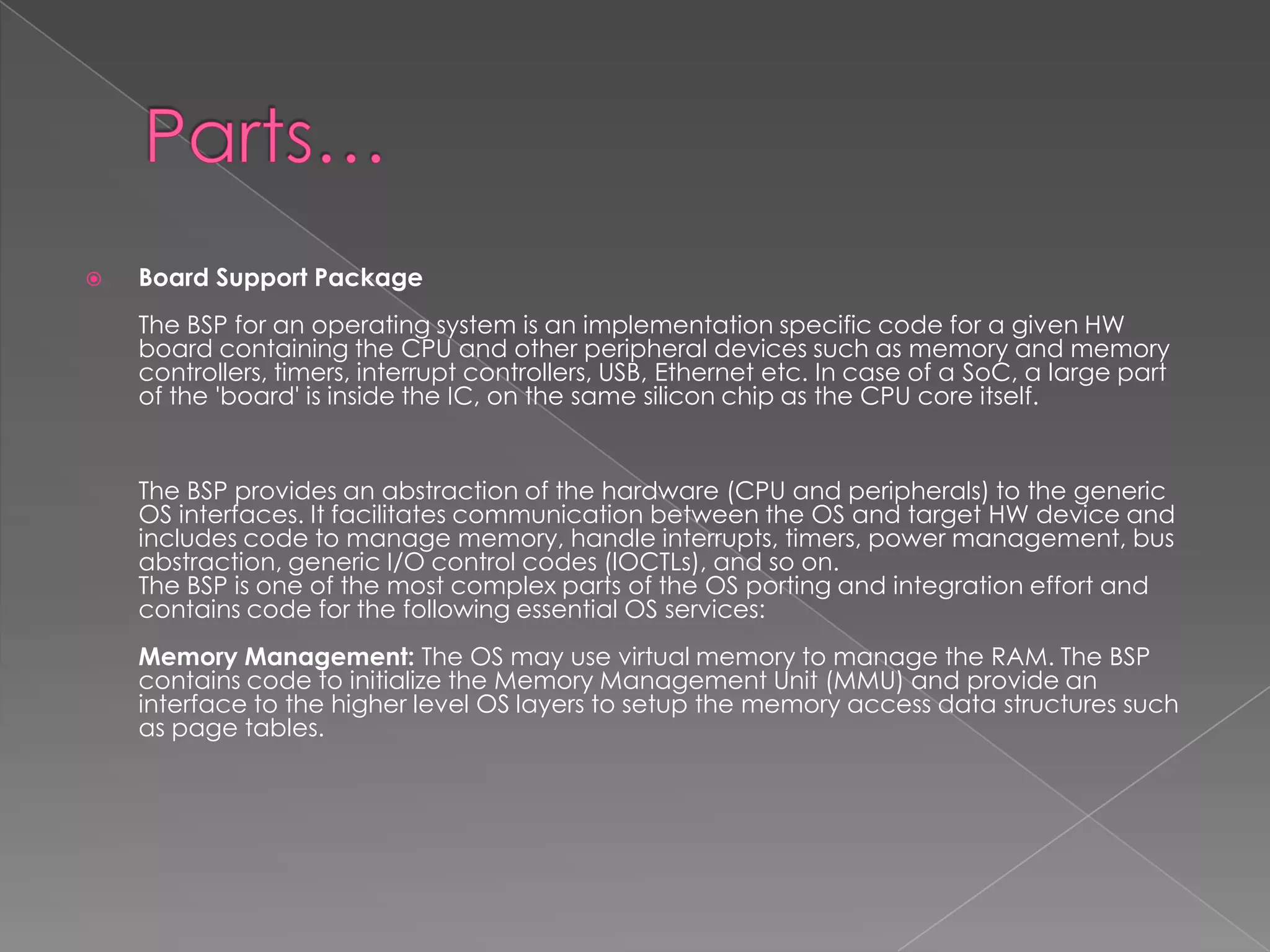

   Board Support Package
    The BSP for an operating system is an implementation specific code for a given HW
    board containing the CPU and other peripheral devices such as memory and memory
    controllers, timers, interrupt controllers, USB, Ethernet etc. In case of a SoC, a large part
    of the 'board' is inside the IC, on the same silicon chip as the CPU core itself.


    The BSP provides an abstraction of the hardware (CPU and peripherals) to the generic
    OS interfaces. It facilitates communication between the OS and target HW device and
    includes code to manage memory, handle interrupts, timers, power management, bus
    abstraction, generic I/O control codes (lOCTLs), and so on.
    The BSP is one of the most complex parts of the OS porting and integration effort and
    contains code for the following essential OS services:
    Memory Management: The OS may use virtual memory to manage the RAM. The BSP
    contains code to initialize the Memory Management Unit (MMU) and provide an
    interface to the higher level OS layers to setup the memory access data structures such
    as page tables.

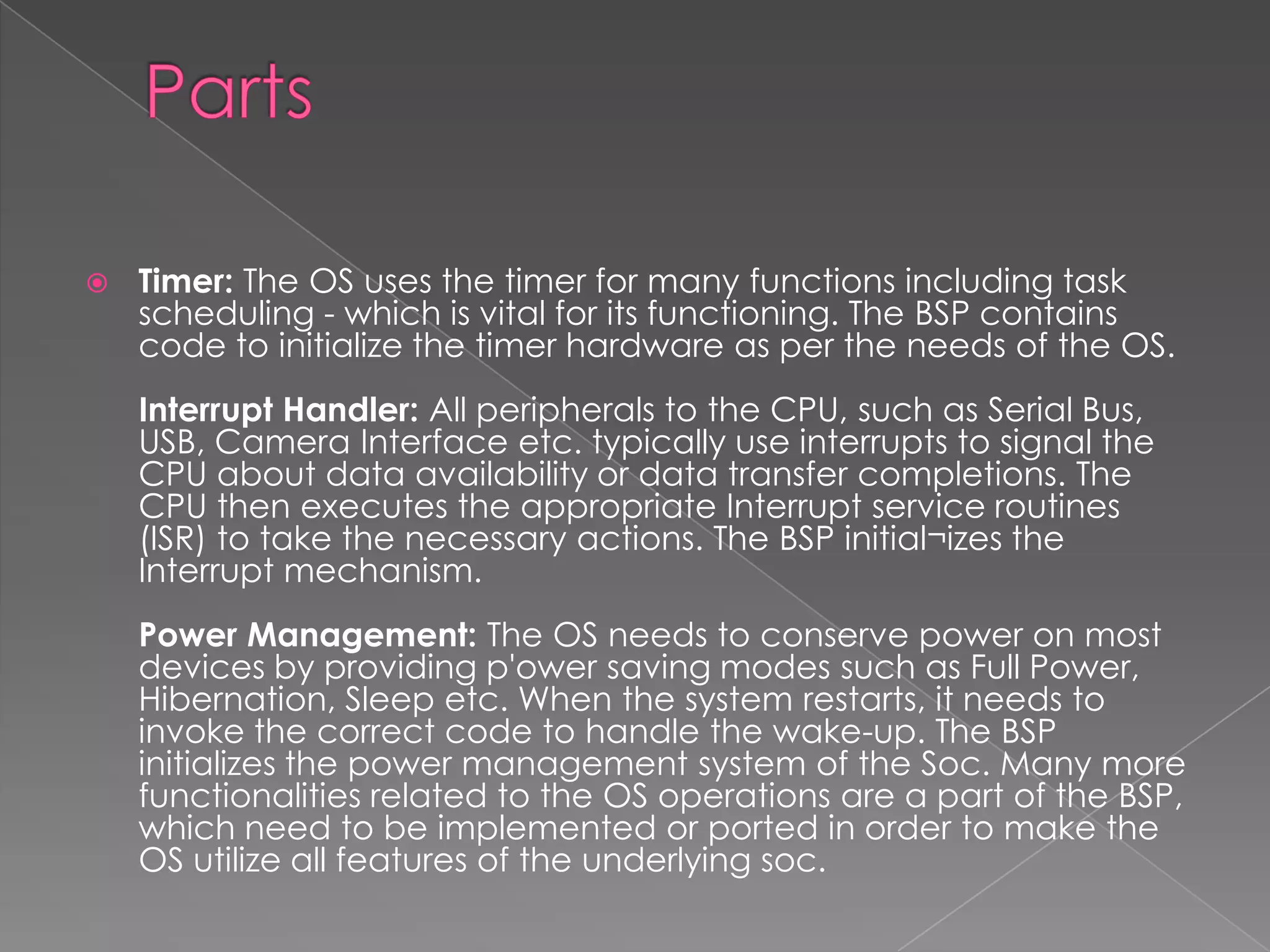

   Timer: The OS uses the timer for many functions including task
    scheduling - which is vital for its functioning. The BSP contains
    code to initialize the timer hardware as per the needs of the OS.
    Interrupt Handler: All peripherals to the CPU, such as Serial Bus,
    USB, Camera Interface etc. typically use interrupts to signal the
    CPU about data availability or data transfer completions. The
    CPU then executes the appropriate Interrupt service routines
    (ISR) to take the necessary actions. The BSP initial¬izes the
    Interrupt mechanism.
    Power Management: The OS needs to conserve power on most
    devices by providing p'ower saving modes such as Full Power,
    Hibernation, Sleep etc. When the system restarts, it needs to
    invoke the correct code to handle the wake-up. The BSP
    initializes the power management system of the Soc. Many more
    functionalities related to the OS operations are a part of the BSP,
    which need to be implemented or ported in order to make the
    OS utilize all features of the underlying soc.

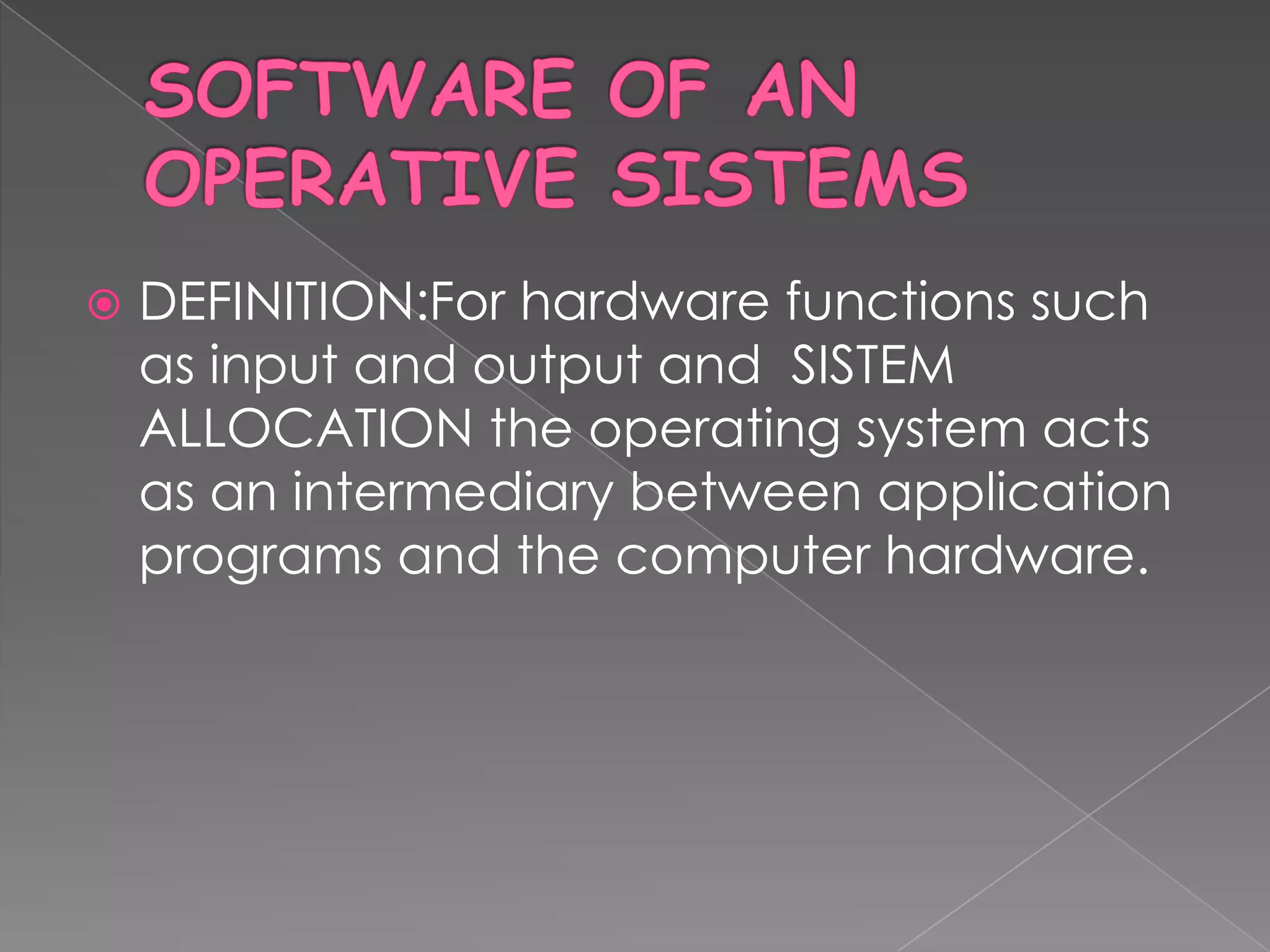

   DEFINITION:For hardware functions such
    as input and output and SISTEM
    ALLOCATION the operating system acts
    as an intermediary between application
    programs and the computer hardware.

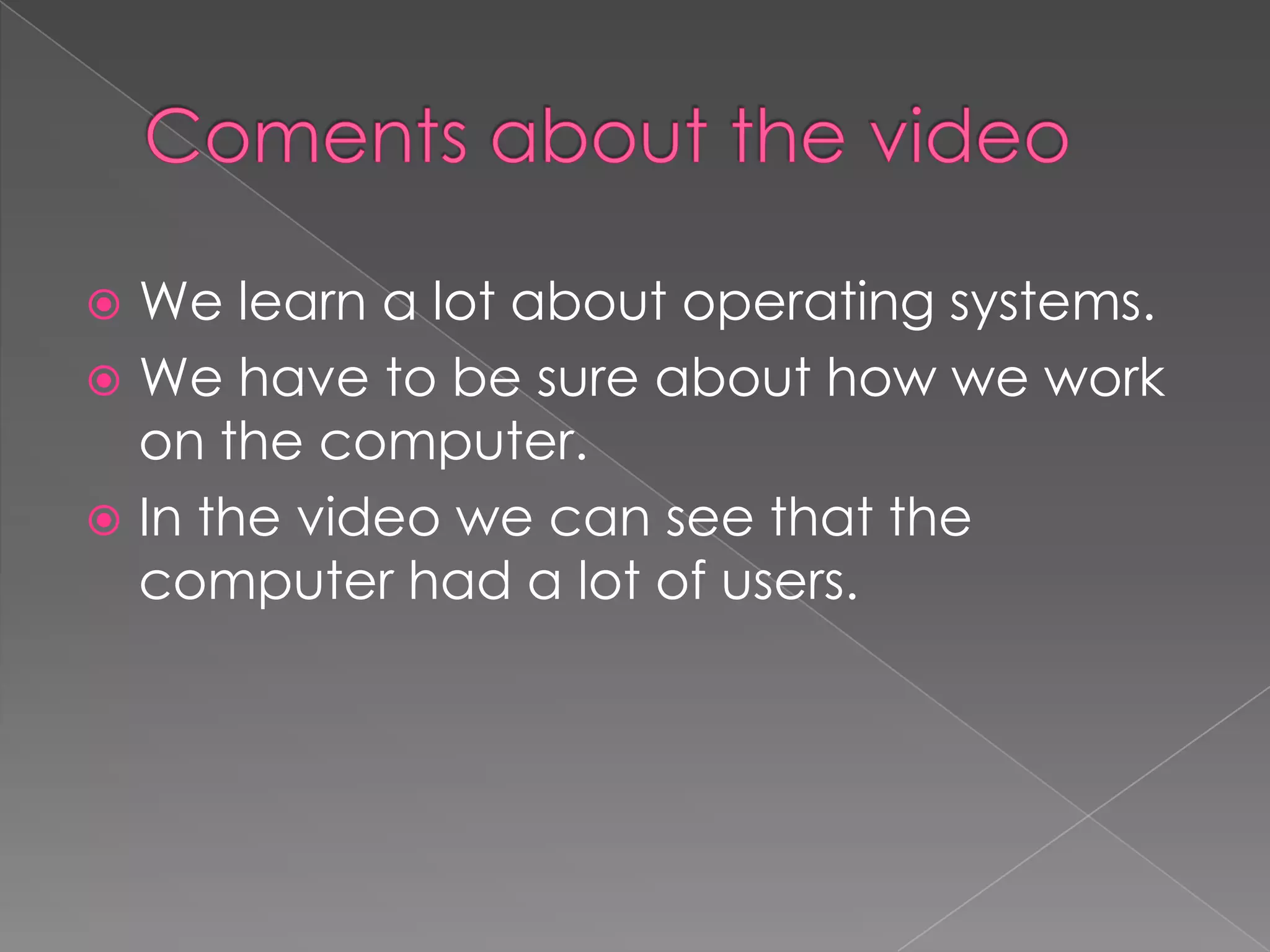

 We learn a lot about operating systems.
 We have to be sure about how we work
  on the computer.

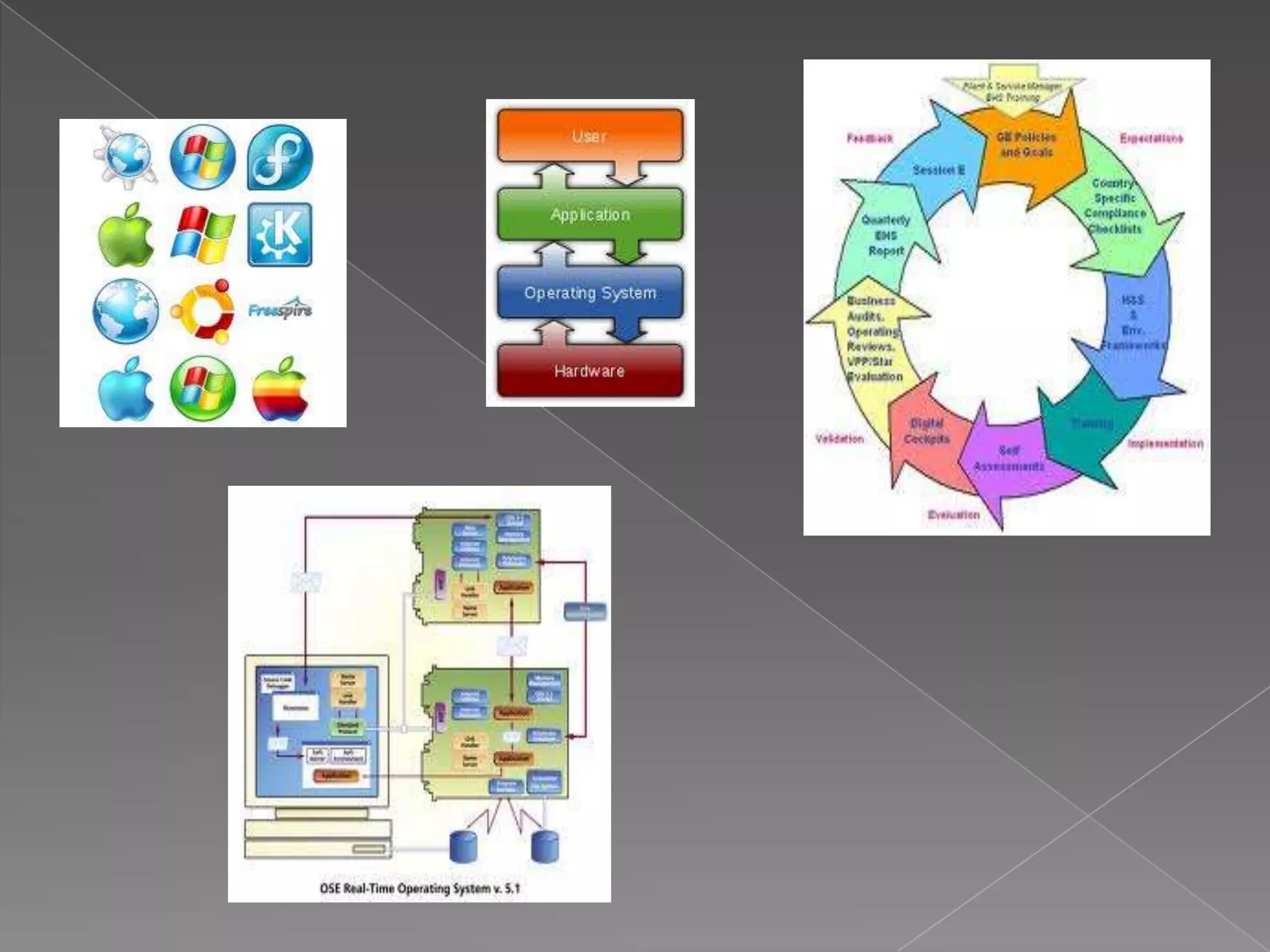

 In the video we can see that the
  computer had a lot of users.

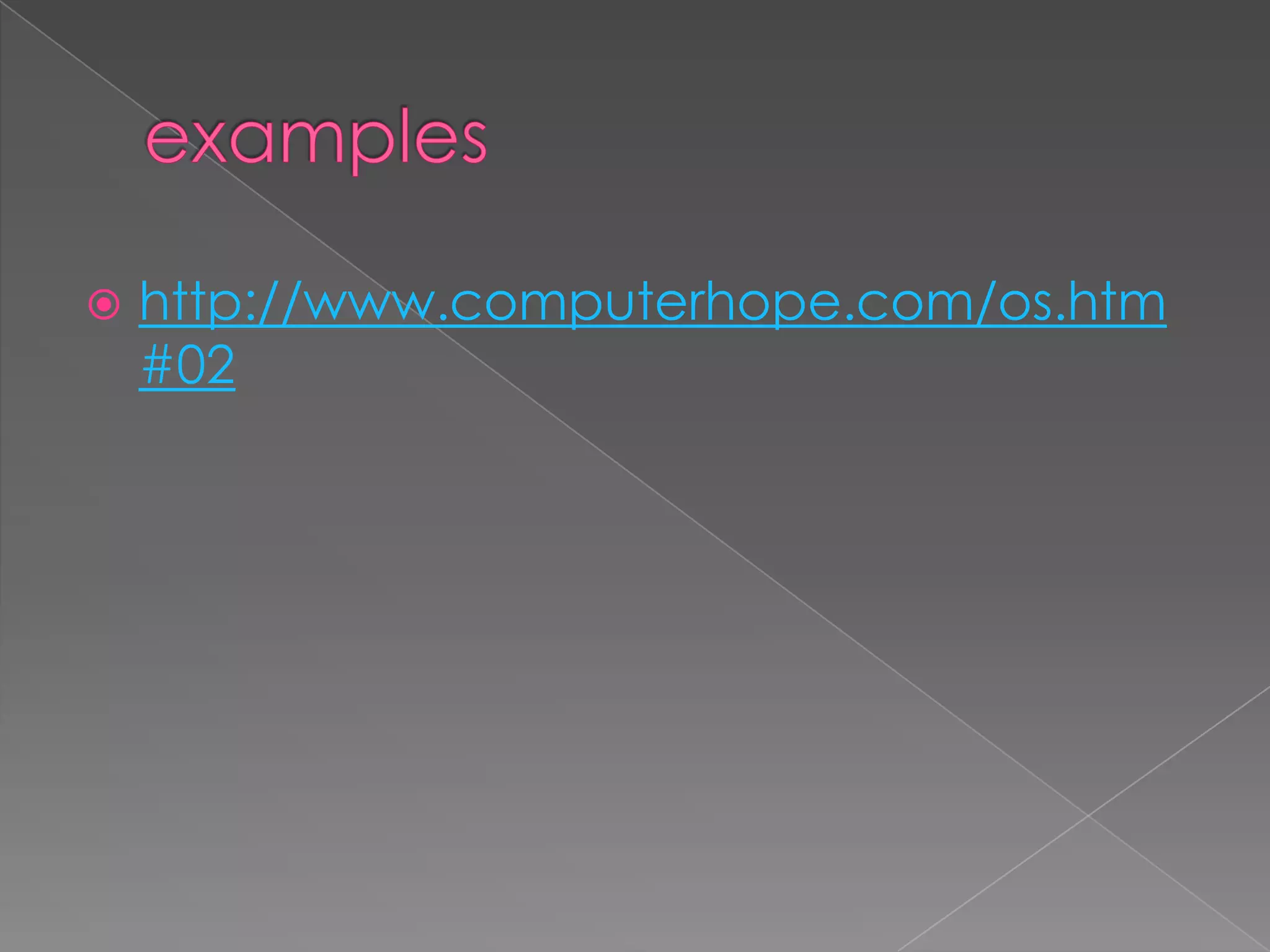

   http://www.computerhope.com/os.htm
    #02
presentation group 5

More Related Content

What's hot

computer & input devices
computer & input devicescomputer & input devices
computer & input devices
AJAL A J

Bios
BiosBios
Bios
BiosBios
Osup.f inal
Osup.f inalOsup.f inal
Osup.f inal
ssuser982c9a

Bios
BiosBios
Bios en ingles
Bios en inglesBios en ingles
Bios en ingles
gemanice06

Booting in Computer
Booting in Computer Booting in Computer
Booting in Computer
MaqdamYasir

Bios, processorand motherboard
Bios, processorand  motherboardBios, processorand  motherboard
Bios, processorand motherboard
ImranulHasan6

BIOS PRESENTATION
BIOS PRESENTATIONBIOS PRESENTATION
BIOS PRESENTATION
Rajput98k

boot
bootboot
Presentation1
Presentation1Presentation1
Presentation1
dthewryq4y

Bios configuration management
Bios configuration managementBios configuration management
Bios configuration management
1E: Software Lifecycle Automation

Computer system organisation
Computer system organisationComputer system organisation
Computer system organisation
RakshiyaRamya

Bios
BiosBios
BIOS AND OS
BIOS AND OSBIOS AND OS
BIOS AND OS
Alen Binu abraham

Chapter 3 Motherboard and BIOS
Chapter 3 Motherboard and BIOSChapter 3 Motherboard and BIOS
Chapter 3 Motherboard and BIOS
askme

Os lecture 5
Os lecture 5Os lecture 5
Os lecture 5
Dr. Ahmed J. Obaid

Bioscmos, post, boot
Bioscmos, post, bootBioscmos, post, boot
Bioscmos, post, boot
Prem Sahu


What's hot (18)

computer & input devices
computer & input devicescomputer & input devices
computer & input devices

Bios
BiosBios
Bios

Bios
BiosBios
Bios

Osup.f inal
Osup.f inalOsup.f inal
Osup.f inal

Bios
BiosBios
Bios

Bios en ingles
Bios en inglesBios en ingles
Bios en ingles

Booting in Computer
Booting in Computer Booting in Computer
Booting in Computer

Bios, processorand motherboard
Bios, processorand  motherboardBios, processorand  motherboard
Bios, processorand motherboard

BIOS PRESENTATION
BIOS PRESENTATIONBIOS PRESENTATION
BIOS PRESENTATION

boot
bootboot
boot

Presentation1
Presentation1Presentation1
Presentation1

Bios configuration management
Bios configuration managementBios configuration management
Bios configuration management

Computer system organisation
Computer system organisationComputer system organisation
Computer system organisation

Bios
BiosBios
Bios

BIOS AND OS
BIOS AND OSBIOS AND OS
BIOS AND OS

Chapter 3 Motherboard and BIOS
Chapter 3 Motherboard and BIOSChapter 3 Motherboard and BIOS
Chapter 3 Motherboard and BIOS

Os lecture 5
Os lecture 5Os lecture 5
Os lecture 5

Bioscmos, post, boot
Bioscmos, post, bootBioscmos, post, boot
Bioscmos, post, boot


Viewers also liked

Technology and Education
Technology and EducationTechnology and Education
Technology and Education
rogersc05

Master project vol i
Master project vol iMaster project vol i
Master project vol i
Sankha Pallab Chakrabarti

Изображения,доваемые линзой
Изображения,доваемые линзойИзображения,доваемые линзой
Изображения,доваемые линзойLevan Anchabadze

What's new in PHP 5.5
What's new in PHP 5.5What's new in PHP 5.5
What's new in PHP 5.5
Tom Corrigan

Barr cc slides
Barr cc slidesBarr cc slides
Barr cc slides
stephenjbarr

Are you a professional
Are you a professionalAre you a professional
Are you a professional
Sankha Pallab Chakrabarti

Lenox Advisors Corp Brochure
Lenox Advisors Corp BrochureLenox Advisors Corp Brochure
Lenox Advisors Corp Brochure
darrengblatt

Eng 204 sunumu
Eng 204 sunumuEng 204 sunumu
Eng 204 sunumu
Asiye Eraslan

QuickBooks Now Online Mkt Case Study
QuickBooks Now Online Mkt Case StudyQuickBooks Now Online Mkt Case Study
QuickBooks Now Online Mkt Case Study
pennylanecrull

Research Project Report
Research Project ReportResearch Project Report
Research Project Report
Joan Cahuich Perez

1 bgu pazmiño
1 bgu pazmiño1 bgu pazmiño
1 bgu pazmiño
gabycarli1

Cfo act of 1990 driving the transformation of federal financial management
Cfo act of 1990 driving the transformation of federal financial managementCfo act of 1990 driving the transformation of federal financial management
Cfo act of 1990 driving the transformation of federal financial management
xiguaatsumi

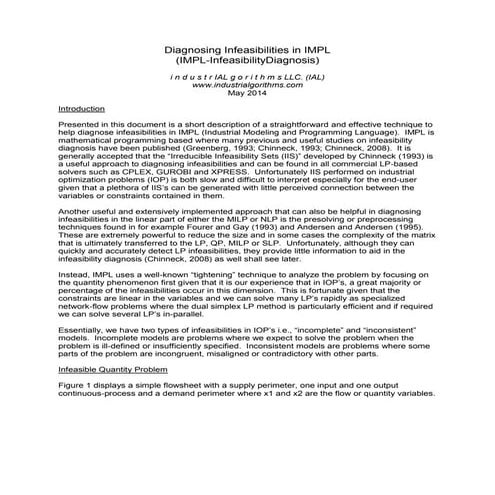

Diagnosing Infeasibilities in IMPL
