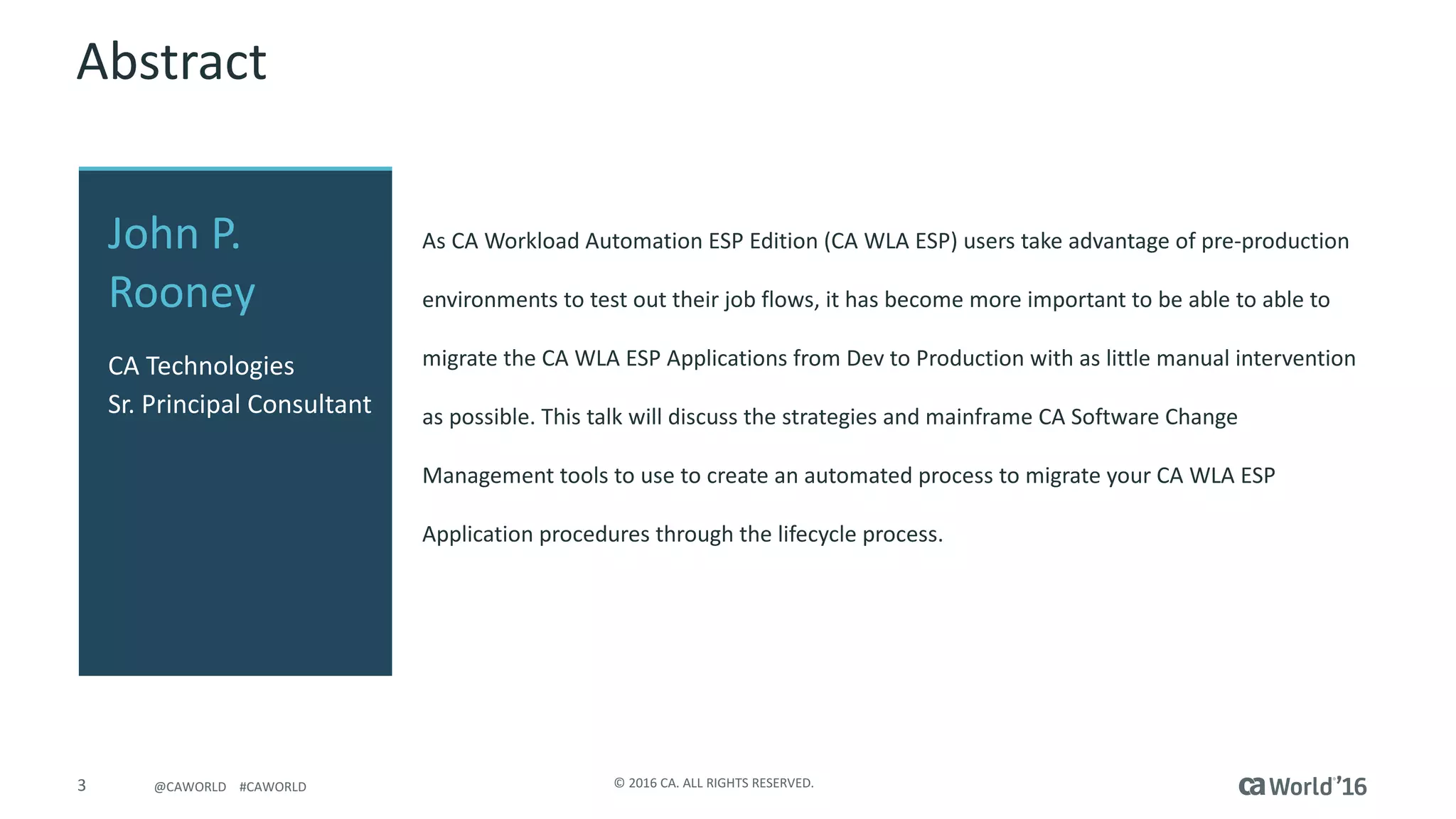

Abstract
As CA Workload Automation ESP Edition (CA WLA ESP) users take advantage of pre-production
environments to test out their job flows, it has become more important to be able to able to
migrate the CA WLA ESP Applications from Dev to Production with as little manual intervention
as possible. This talk will discuss the strategies and mainframe CA Software Change
Management tools to use to create an automated process to migrate your CA WLA ESP
Application procedures through the lifecycle process.
John P.
Rooney
CA Technologies
Sr. Principal Consultant

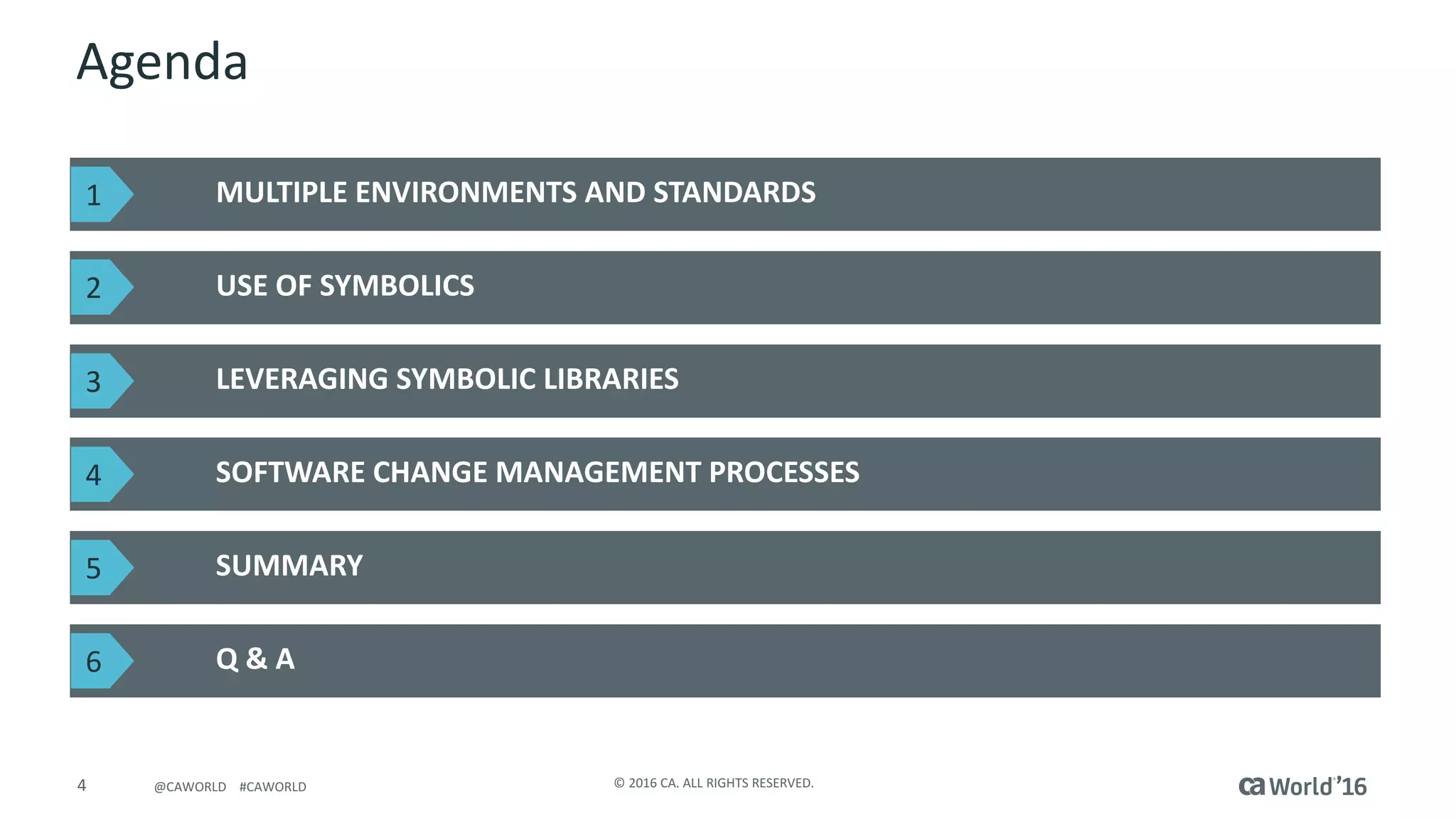

Agenda
MULTIPLE ENVIRONMENTS AND STANDARDS
USE OF SYMBOLICS
LEVERAGING SYMBOLIC LIBRARIES
SOFTWARE CHANGE MANAGEMENT PROCESSES
1
2
3
4
Q & A
SUMMARY5
6

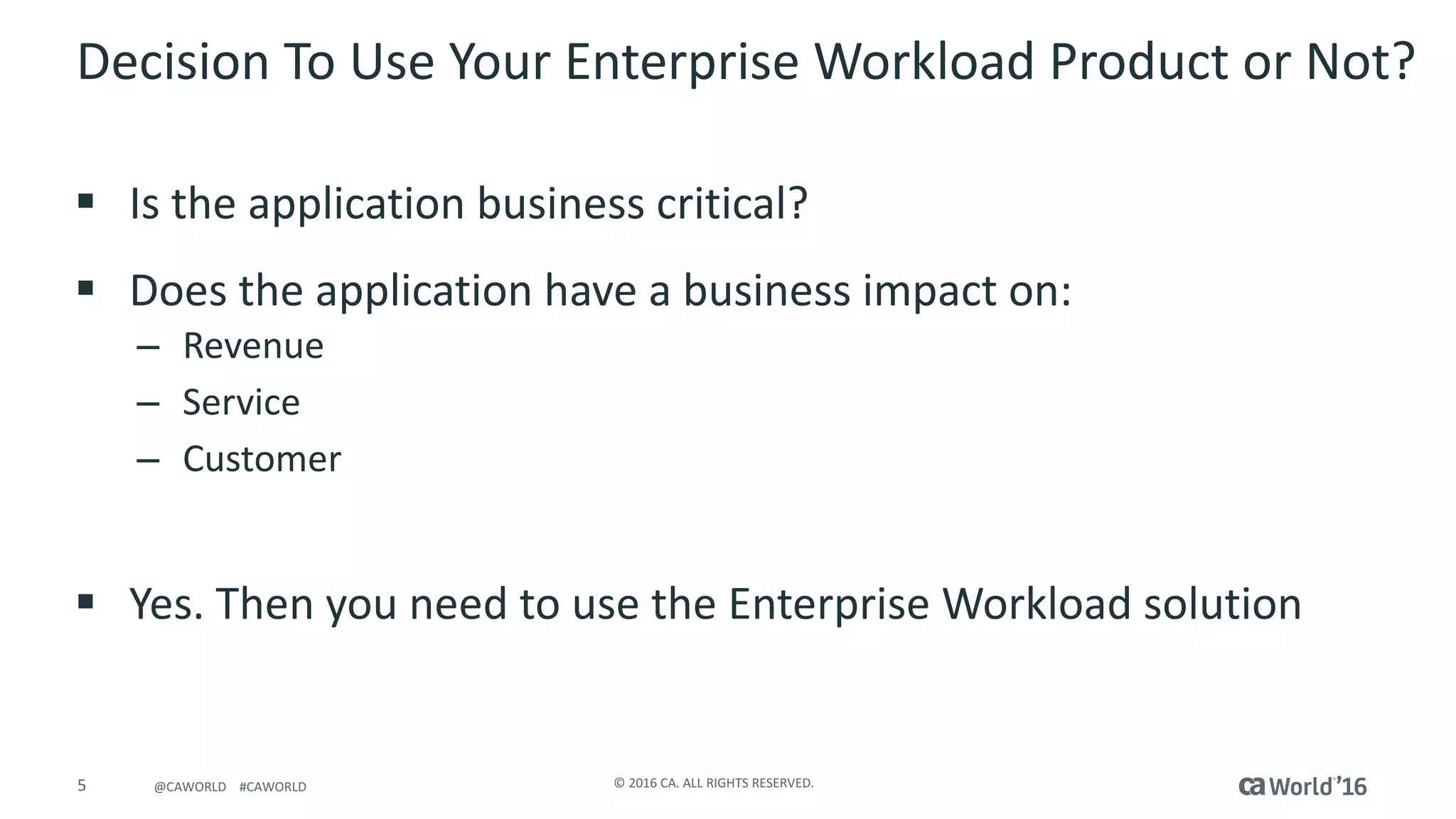

Decision To Use Your Enterprise Workload Product or Not?
§ Is the application business critical?
§ Does the application have a business impact on:
– Revenue
– Service
– Customer
§ Yes. Then you need to use the Enterprise Workload solution

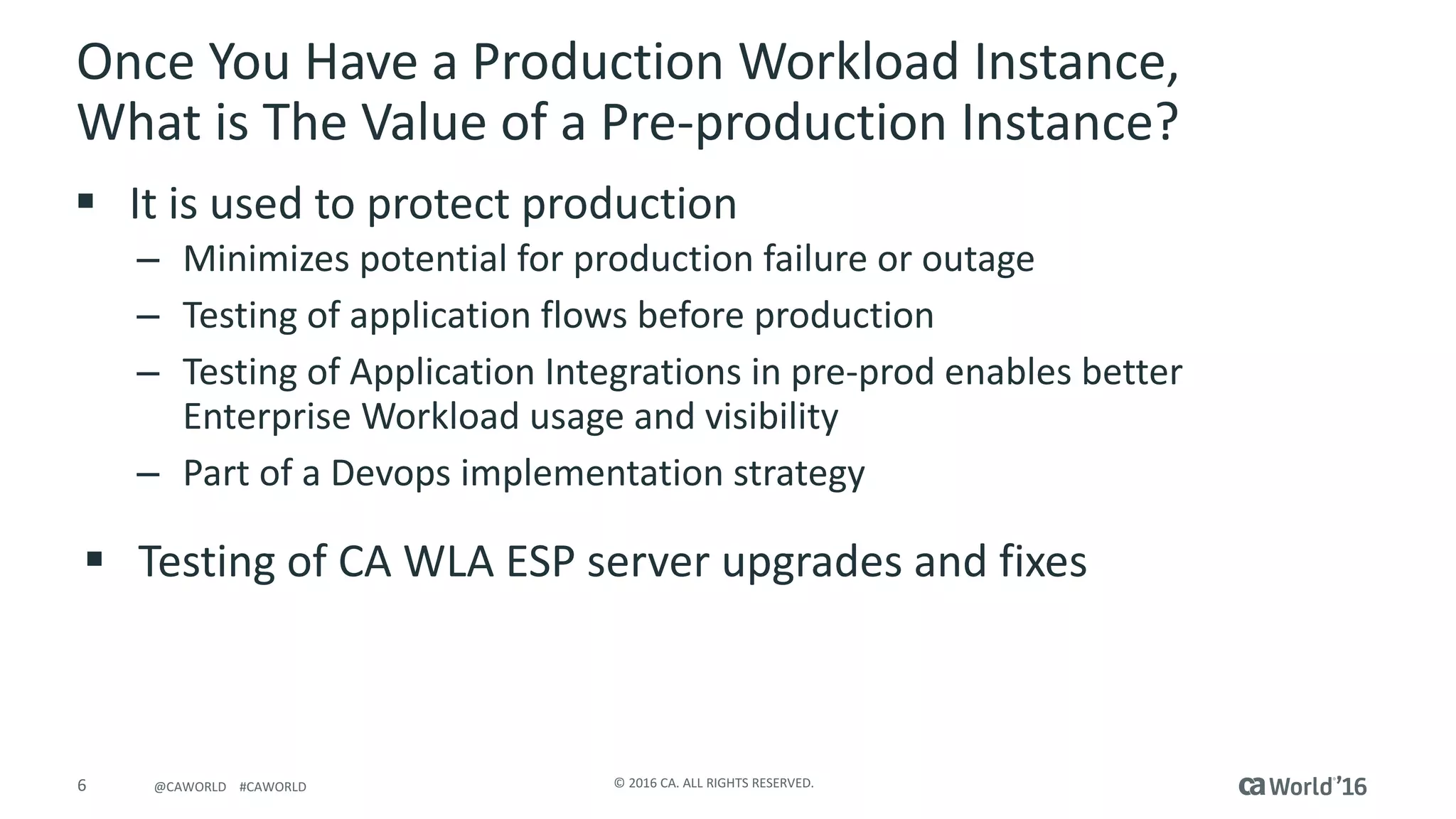

Once You Have a Production Workload Instance,
What is The Value of a Pre-production Instance?
§ It is used to protect production
– Minimizes potential for production failure or outage
– Testing of application flows before production
– Testing of Application Integrations in pre-prod enables better
Enterprise Workload usage and visibility
– Part of a Devops implementation strategy
§ Testing of CA WLA ESP server upgrades and fixes

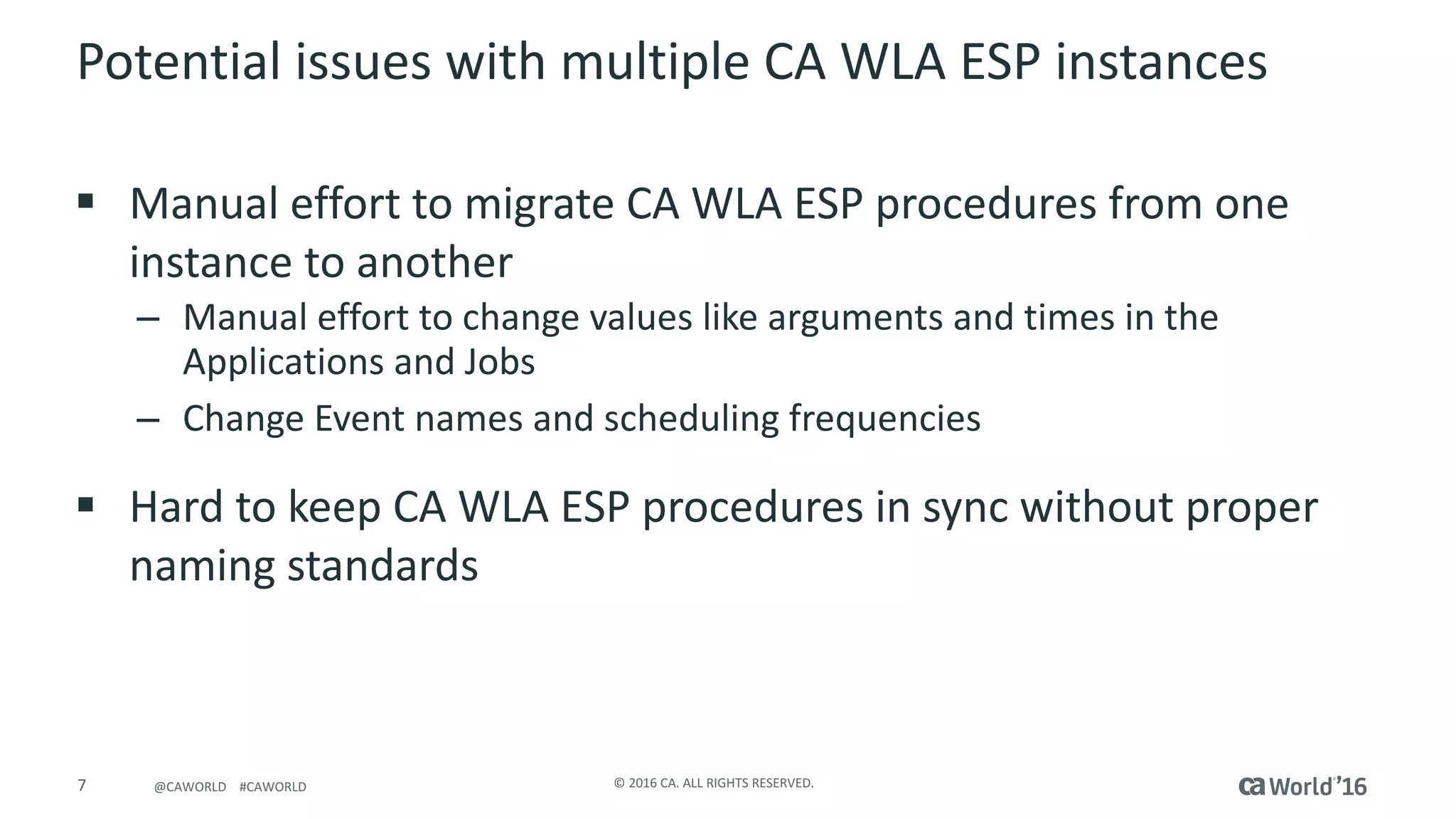

Potential issues with multiple CA WLA ESP instances
§ Manual effort to migrate CA WLA ESP procedures from one
instance to another
– Manual effort to change values like arguments and times in the
Applications and Jobs
– Change Event names and scheduling frequencies
§ Hard to keep CA WLA ESP procedures in sync without proper
naming standards

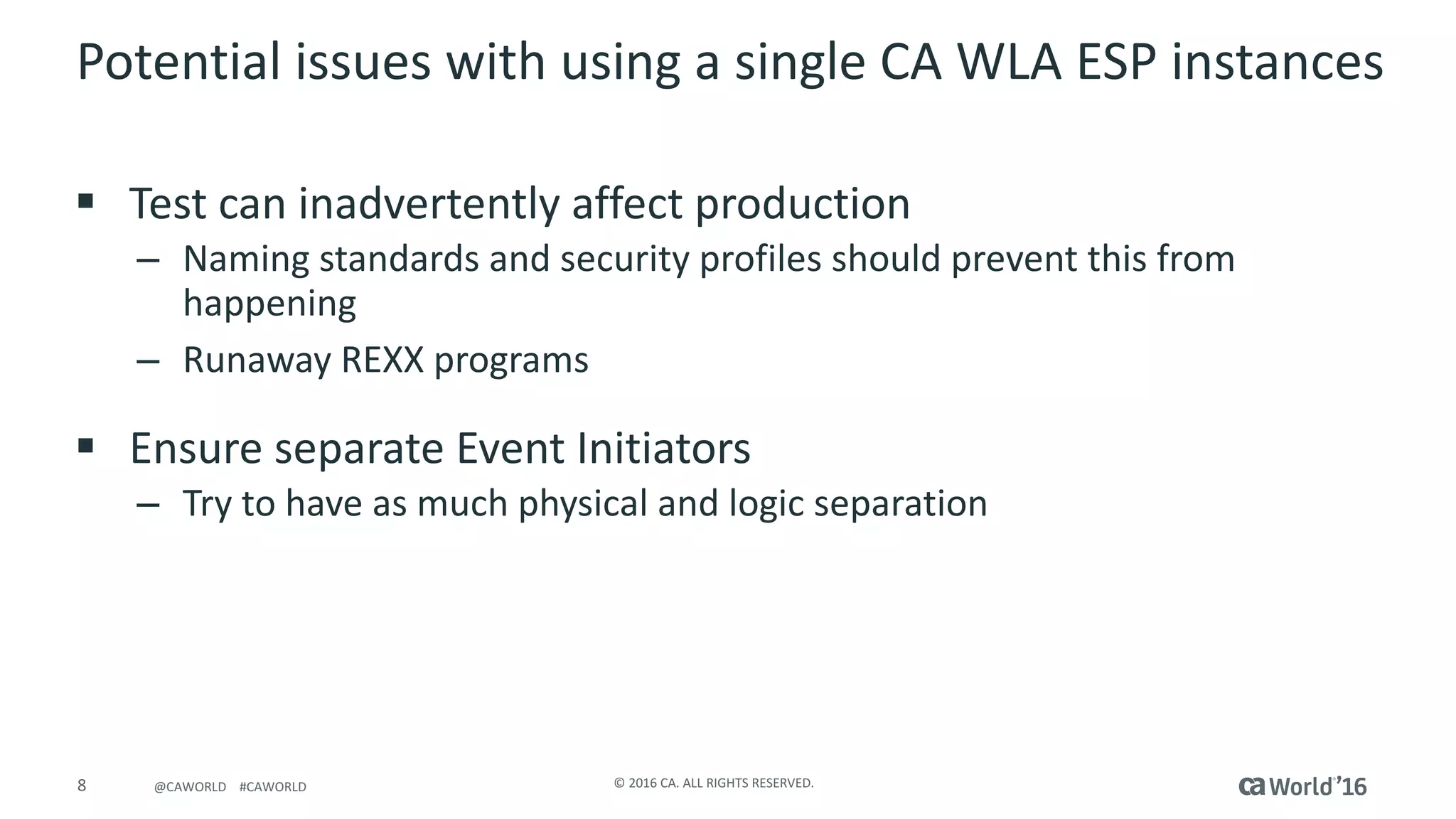

Potential issues with using a single CA WLA ESP instances
§ Test can inadvertently affect production
– Naming standards and security profiles should prevent this from
happening
– Runaway REXX programs
§ Ensure separate Event Initiators
– Try to have as much physical and logic separation

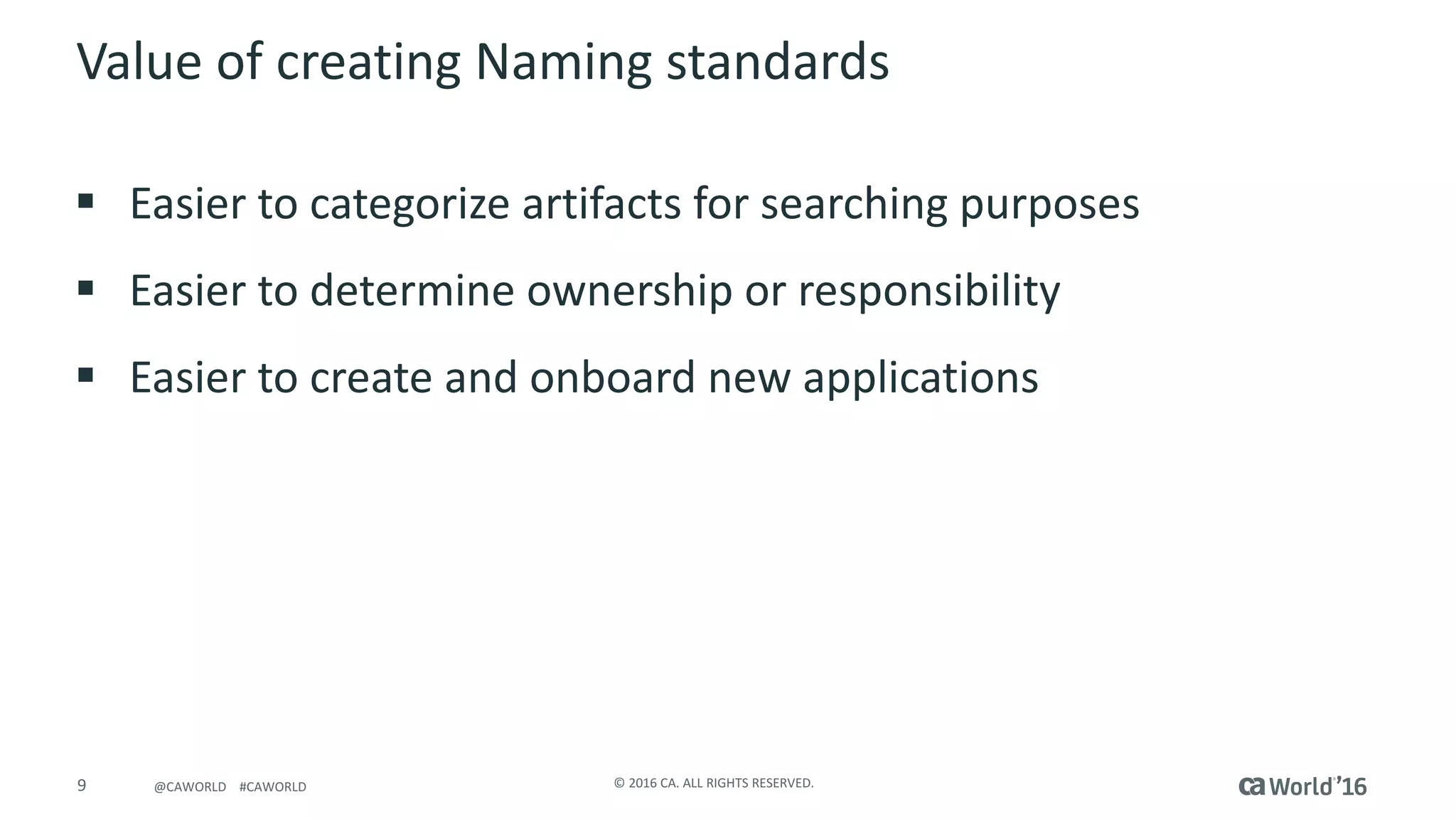

Value of creating Naming standards
§ Easier to categorize artifacts for searching purposes
§ Easier to determine ownership or responsibility
§ Easier to create and onboard new applications

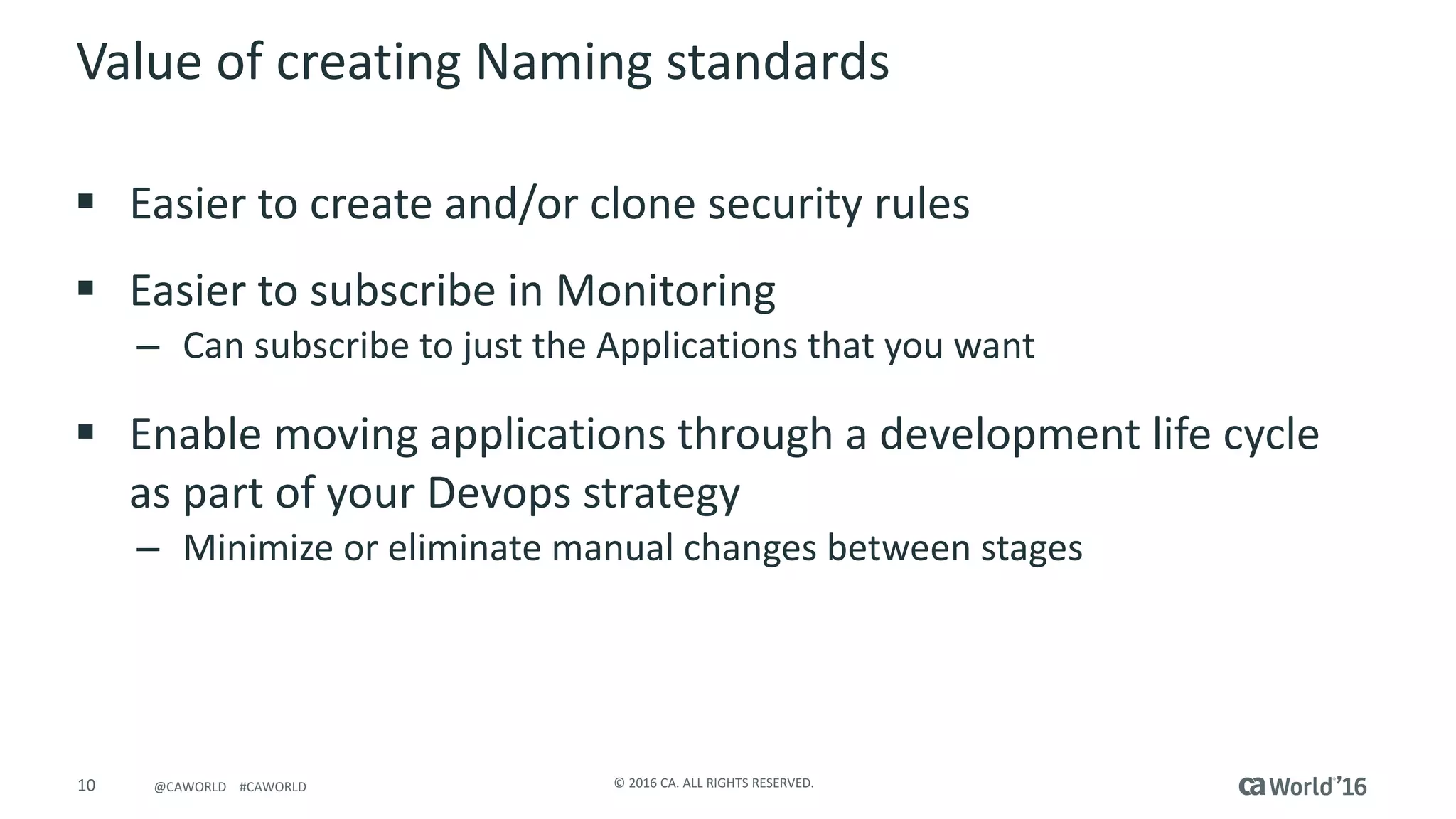

Value of creating Naming standards
§ Easier to create and/or clone security rules
§ Easier to subscribe in Monitoring
– Can subscribe to just the Applications that you want
§ Enable moving applications through a development life cycle
as part of your Devops strategy
– Minimize or eliminate manual changes between stages

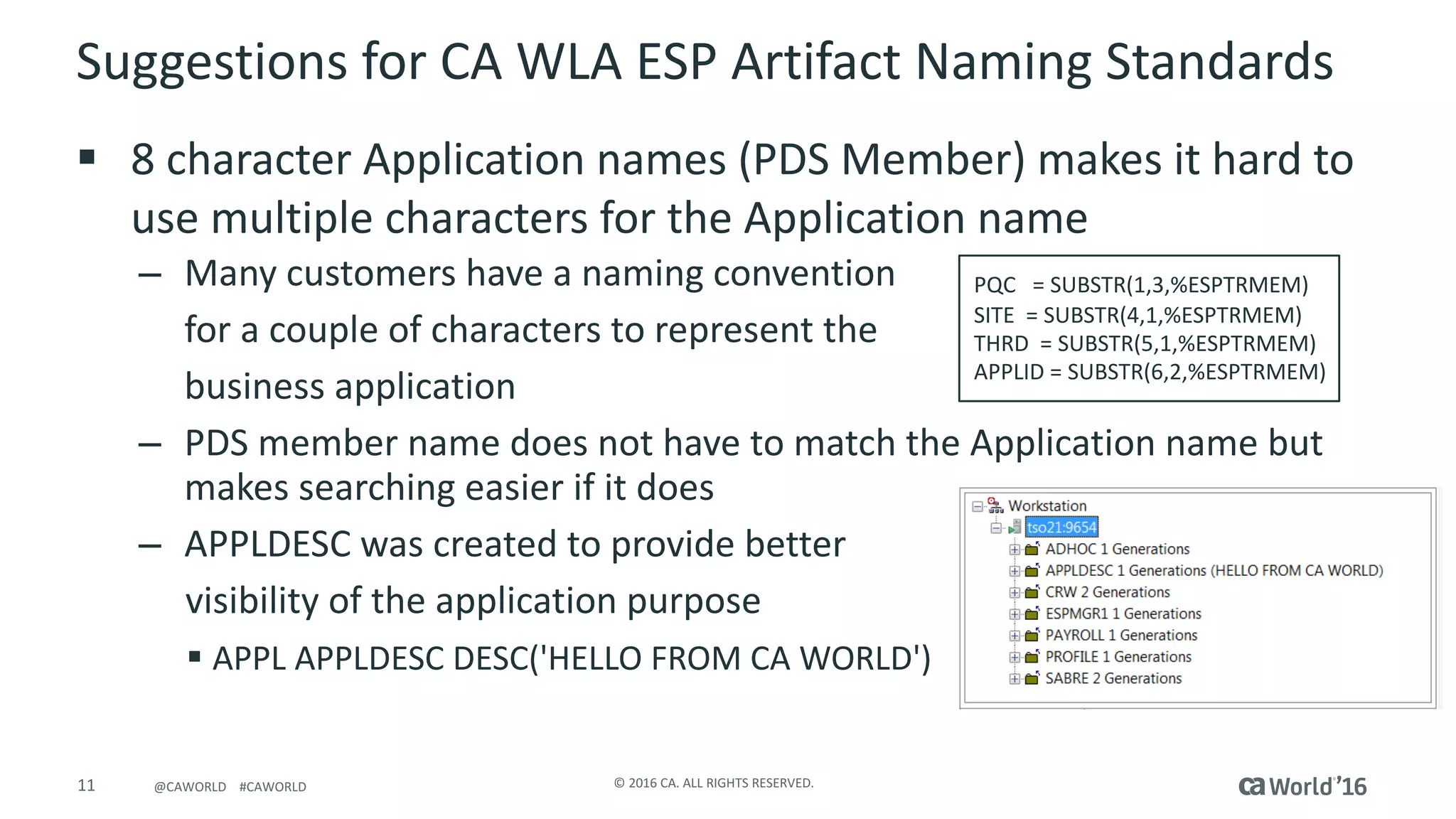

Suggestions for CA WLA ESP Artifact Naming Standards
§ 8 character Application names (PDS Member) makes it hard to
use multiple characters for the Application name
– Many customers have a naming convention
for a couple of characters to represent the
business application
– PDS member name does not have to match the Application name but
makes searching easier if it does
– APPLDESC was created to provide better
visibility of the application purpose
§ APPL APPLDESC DESC('HELLO FROM CA WORLD')
PQC = SUBSTR(1,3,%ESPTRMEM)
SITE = SUBSTR(4,1,%ESPTRMEM)
THRD = SUBSTR(5,1,%ESPTRMEM)
APPLID = SUBSTR(6,2,%ESPTRMEM)

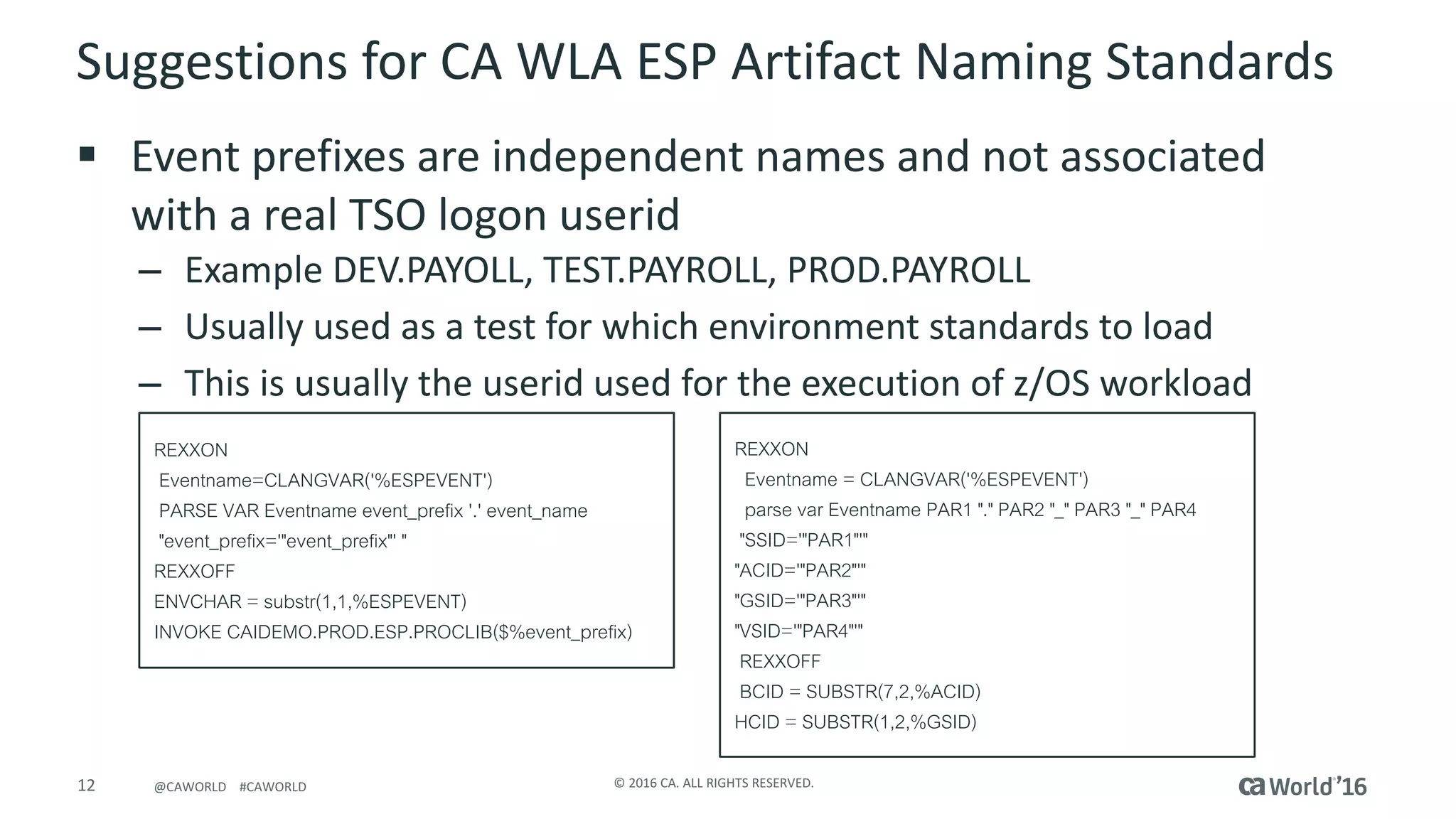

§ Event prefixes are independent names and not associated
with a real TSO logon userid
– Example DEV.PAYOLL, TEST.PAYROLL, PROD.PAYROLL
– Usually used as a test for which environment standards to load
– This is usually the userid used for the execution of z/OS workload
REXXON
Eventname=CLANGVAR('%ESPEVENT')
PARSE VAR Eventname event_prefix '.' event_name
"event_prefix='"event_prefix"' "
REXXOFF
ENVCHAR = substr(1,1,%ESPEVENT)
INVOKE CAIDEMO.PROD.ESP.PROCLIB($%event_prefix)
REXXON
Eventname = CLANGVAR('%ESPEVENT')
parse var Eventname PAR1 "." PAR2 "_" PAR3 "_" PAR4
"SSID='"PAR1"'"
"ACID='"PAR2"'"
"GSID='"PAR3"'"
"VSID='"PAR4"'"
REXXOFF
BCID = SUBSTR(7,2,%ACID)
HCID = SUBSTR(1,2,%GSID)

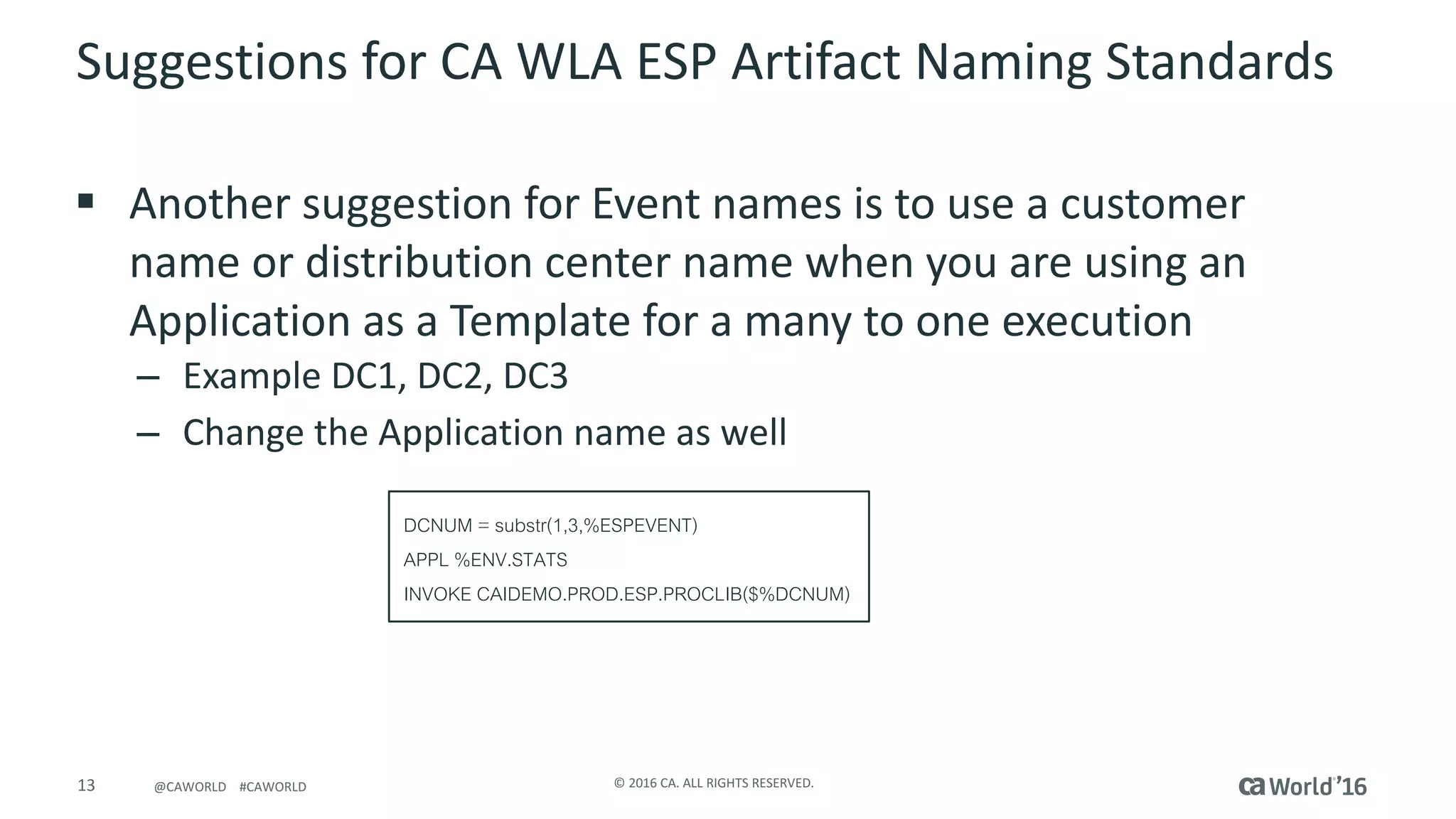

§ Another suggestion for Event names is to use a customer
name or distribution center name when you are using an
Application as a Template for a many to one execution
– Example DC1, DC2, DC3
– Change the Application name as well
DCNUM = substr(1,3,%ESPEVENT)
APPL %ENV.STATS
INVOKE CAIDEMO.PROD.ESP.PROCLIB($%DCNUM)

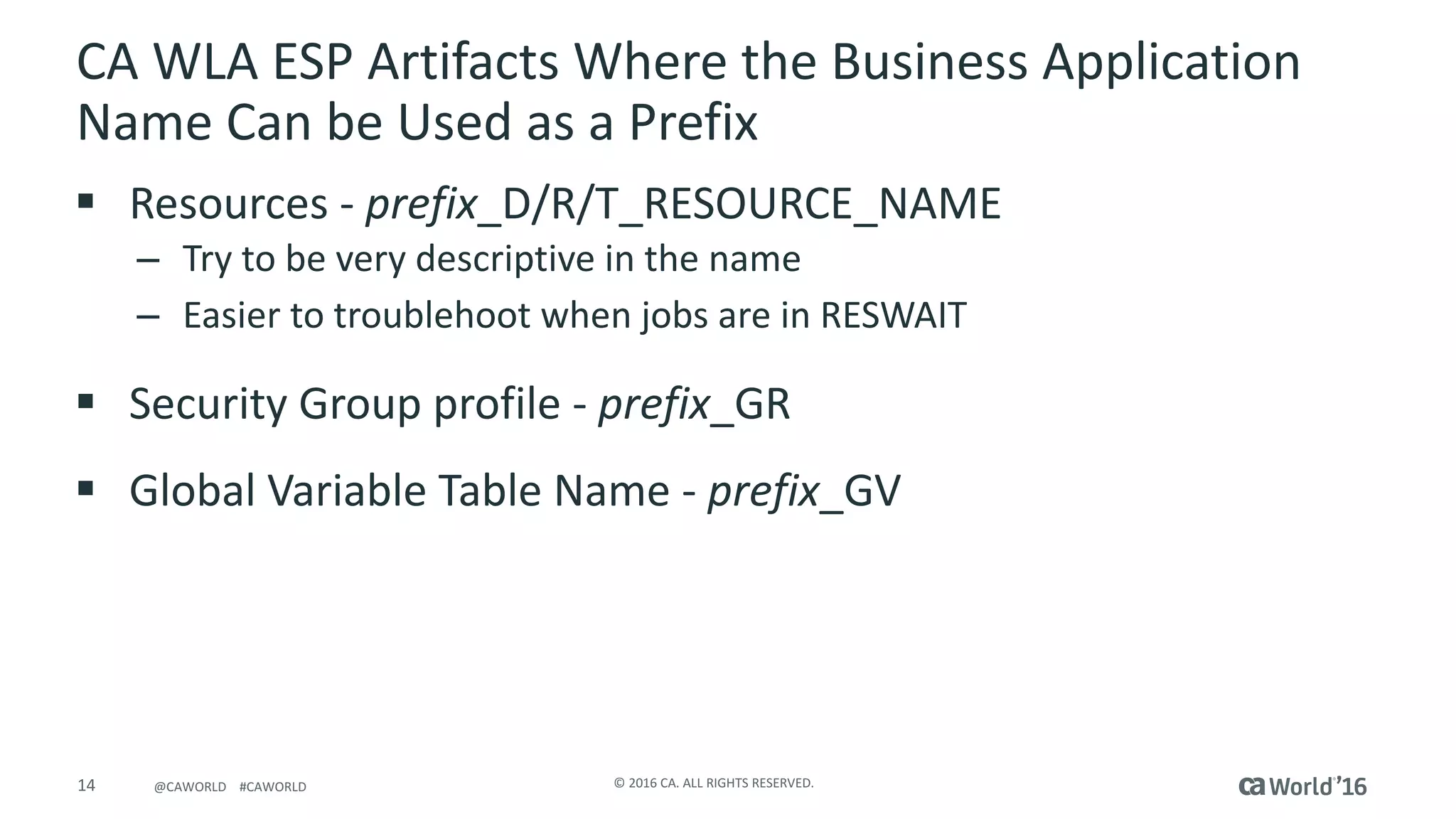

CA WLA ESP Artifacts Where the Business Application
Name Can be Used as a Prefix
§ Resources - prefix_D/R/T_RESOURCE_NAME
– Try to be very descriptive in the name
– Easier to troublehoot when jobs are in RESWAIT
§ Security Group profile - prefix_GR
§ Global Variable Table Name - prefix_GV

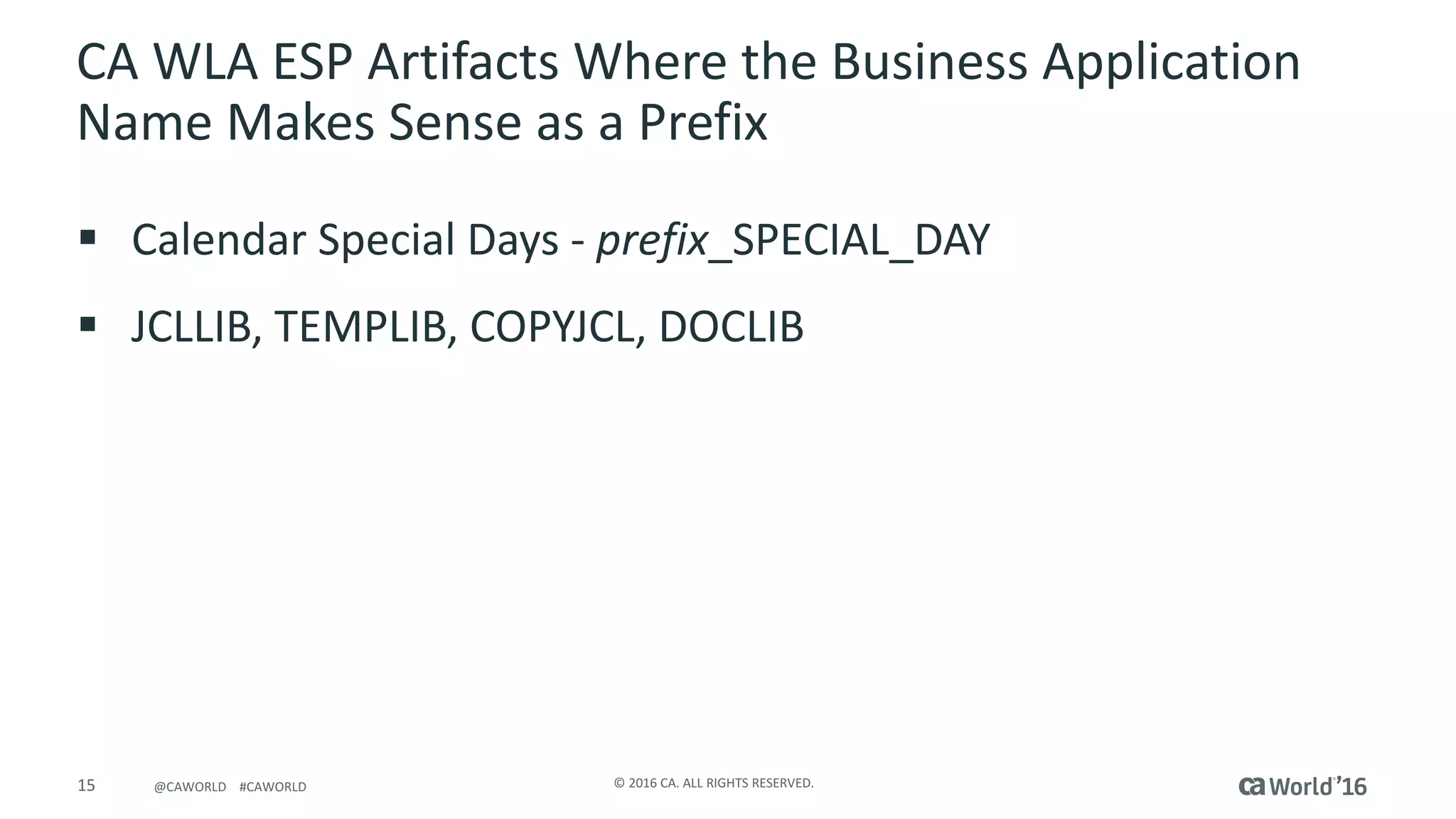

CA WLA ESP Artifacts Where the Business Application
Name Makes Sense as a Prefix
§ Calendar Special Days - prefix_SPECIAL_DAY
§ JCLLIB, TEMPLIB, COPYJCL, DOCLIB

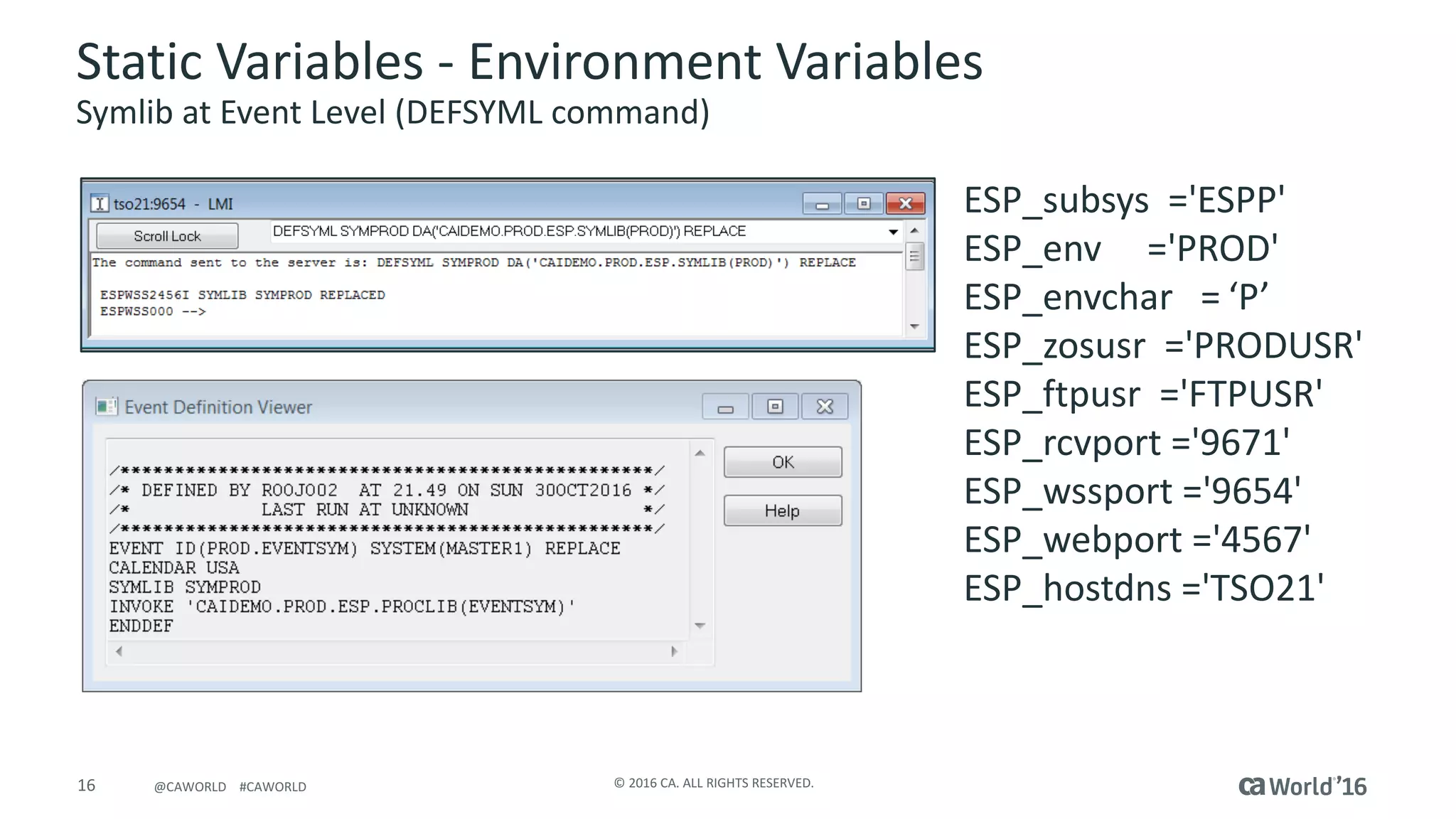

Static Variables - Environment Variables
Symlib at Event Level (DEFSYML command)
ESP_subsys ='ESPP'
ESP_env ='PROD'
ESP_envchar = ‘P’
ESP_zosusr ='PRODUSR'
ESP_ftpusr ='FTPUSR'
ESP_rcvport ='9671'
ESP_wssport ='9654'
ESP_webport ='4567'
ESP_hostdns ='TSO21'

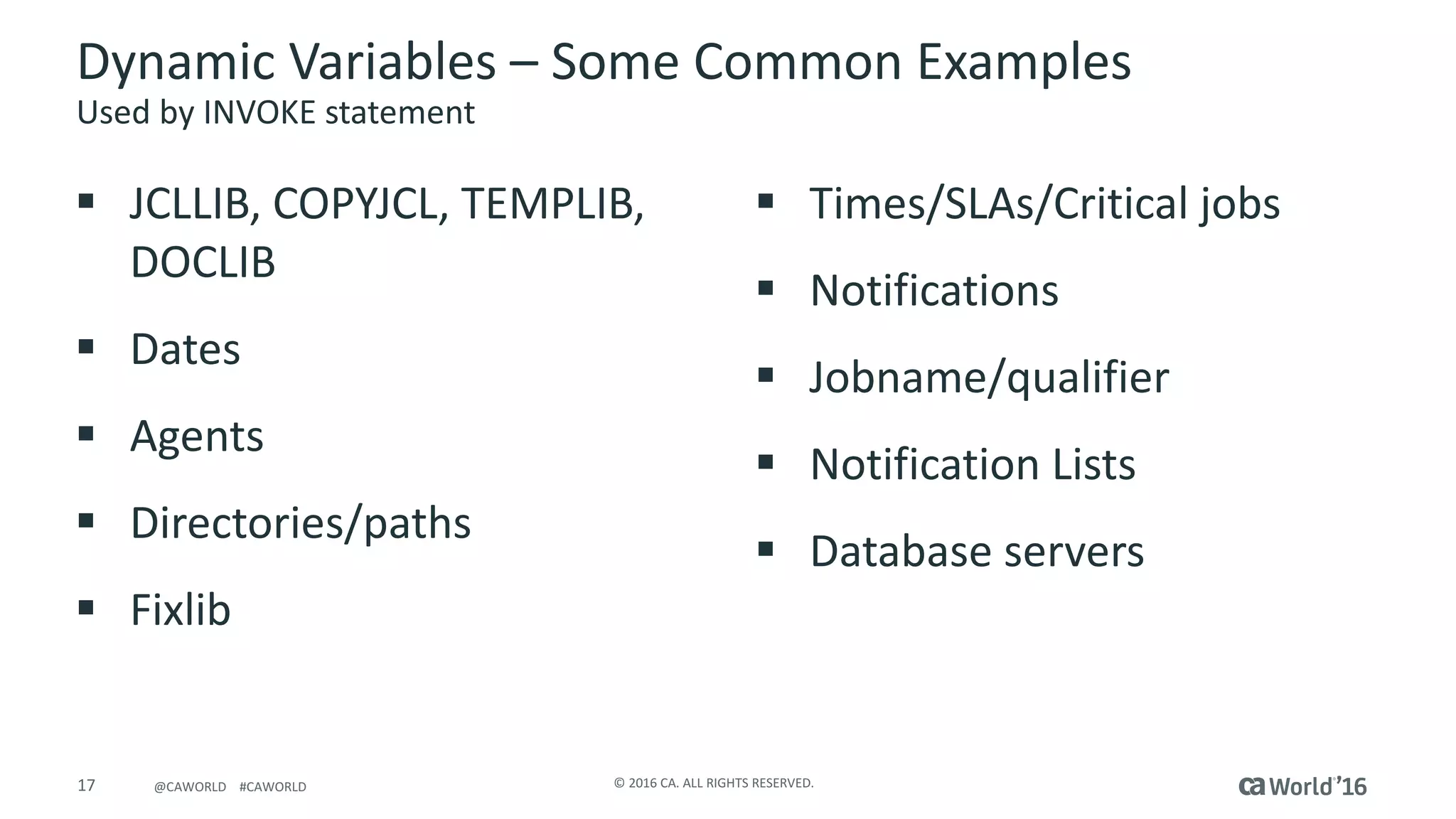

Dynamic Variables – Some Common Examples
Used by INVOKE statement
§ JCLLIB, COPYJCL, TEMPLIB,
DOCLIB
§ Dates
§ Agents
§ Directories/paths
§ Fixlib
§ Times/SLAs/Critical jobs
§ Notifications
§ Jobname/qualifier
§ Notification Lists
§ Database servers

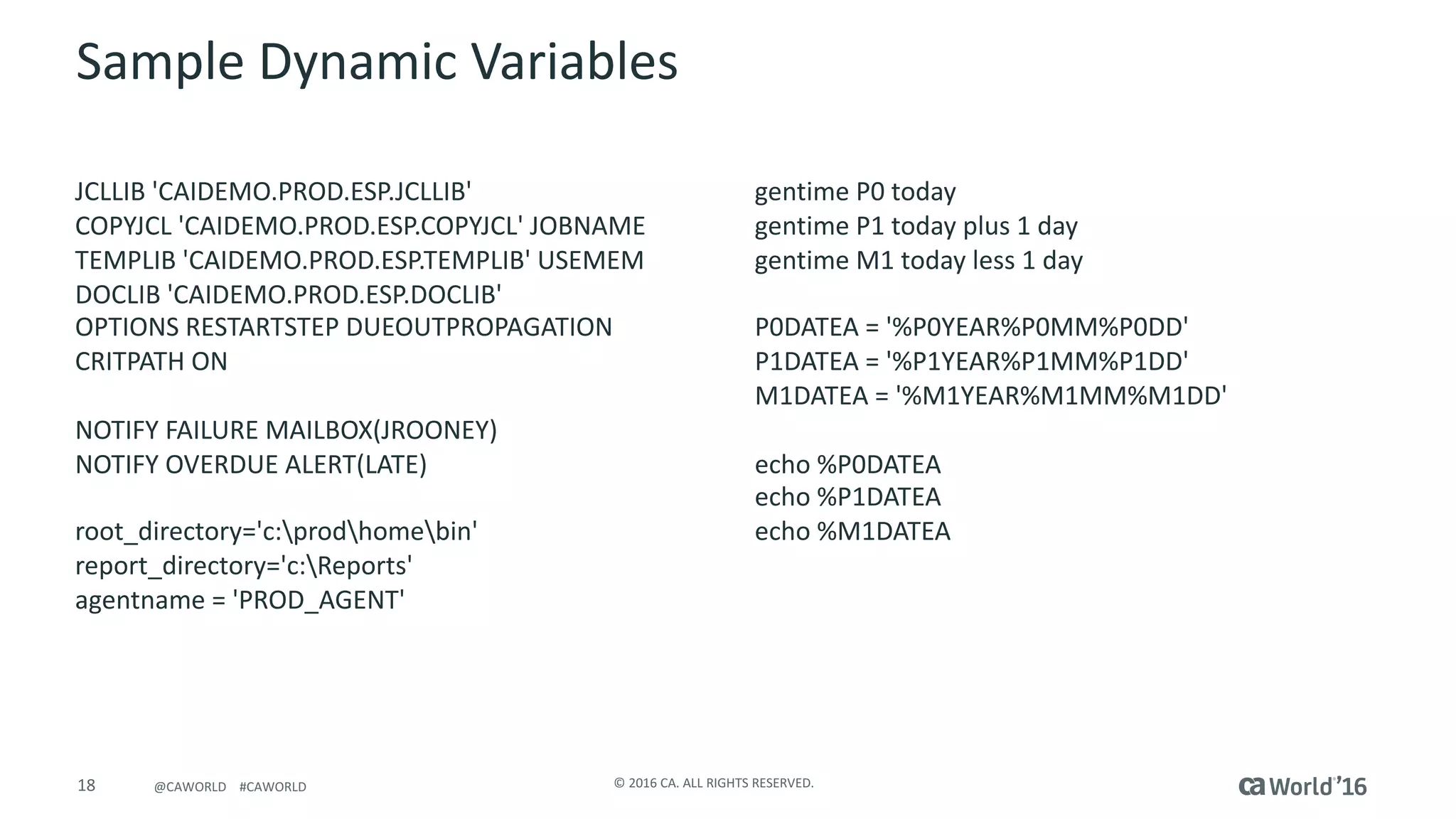

Sample Dynamic Variables
JCLLIB 'CAIDEMO.PROD.ESP.JCLLIB'
COPYJCL 'CAIDEMO.PROD.ESP.COPYJCL' JOBNAME
TEMPLIB 'CAIDEMO.PROD.ESP.TEMPLIB' USEMEM
DOCLIB 'CAIDEMO.PROD.ESP.DOCLIB'
OPTIONS RESTARTSTEP DUEOUTPROPAGATION
CRITPATH ON
NOTIFY FAILURE MAILBOX(JROONEY)
NOTIFY OVERDUE ALERT(LATE)
root_directory='c:prodhomebin'
report_directory='c:Reports'
agentname = 'PROD_AGENT'
gentime P0 today
gentime P1 today plus 1 day
gentime M1 today less 1 day
P0DATEA = '%P0YEAR%P0MM%P0DD'
P1DATEA = '%P1YEAR%P1MM%P1DD'
M1DATEA = '%M1YEAR%M1MM%M1DD'
echo %P0DATEA
echo %P1DATEA
echo %M1DATEA

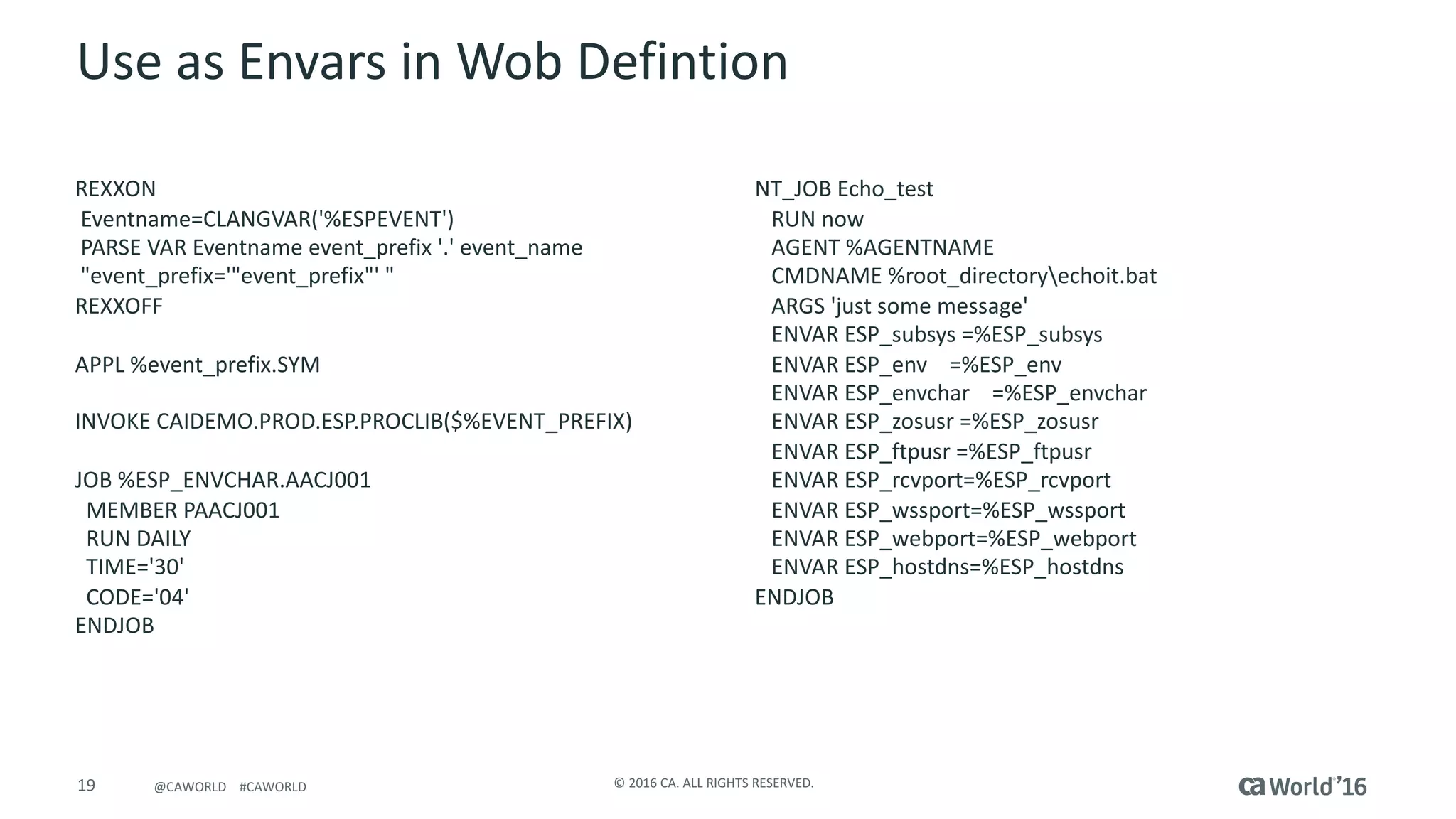

Use as Envars in Wob Defintion
REXXON
Eventname=CLANGVAR('%ESPEVENT')
PARSE VAR Eventname event_prefix '.' event_name
"event_prefix='"event_prefix"' "
REXXOFF
APPL %event_prefix.SYM
INVOKE CAIDEMO.PROD.ESP.PROCLIB($%EVENT_PREFIX)
JOB %ESP_ENVCHAR.AACJ001
MEMBER PAACJ001
RUN DAILY
TIME='30'
CODE='04'
ENDJOB
NT_JOB Echo_test
RUN now
AGENT %AGENTNAME
CMDNAME %root_directoryechoit.bat
ARGS 'just some message'
ENVAR ESP_subsys =%ESP_subsys
ENVAR ESP_env =%ESP_env
ENVAR ESP_envchar =%ESP_envchar
ENVAR ESP_zosusr =%ESP_zosusr
ENVAR ESP_ftpusr =%ESP_ftpusr
ENVAR ESP_rcvport=%ESP_rcvport
ENVAR ESP_wssport=%ESP_wssport
ENVAR ESP_webport=%ESP_webport
ENVAR ESP_hostdns=%ESP_hostdns
ENDJOB

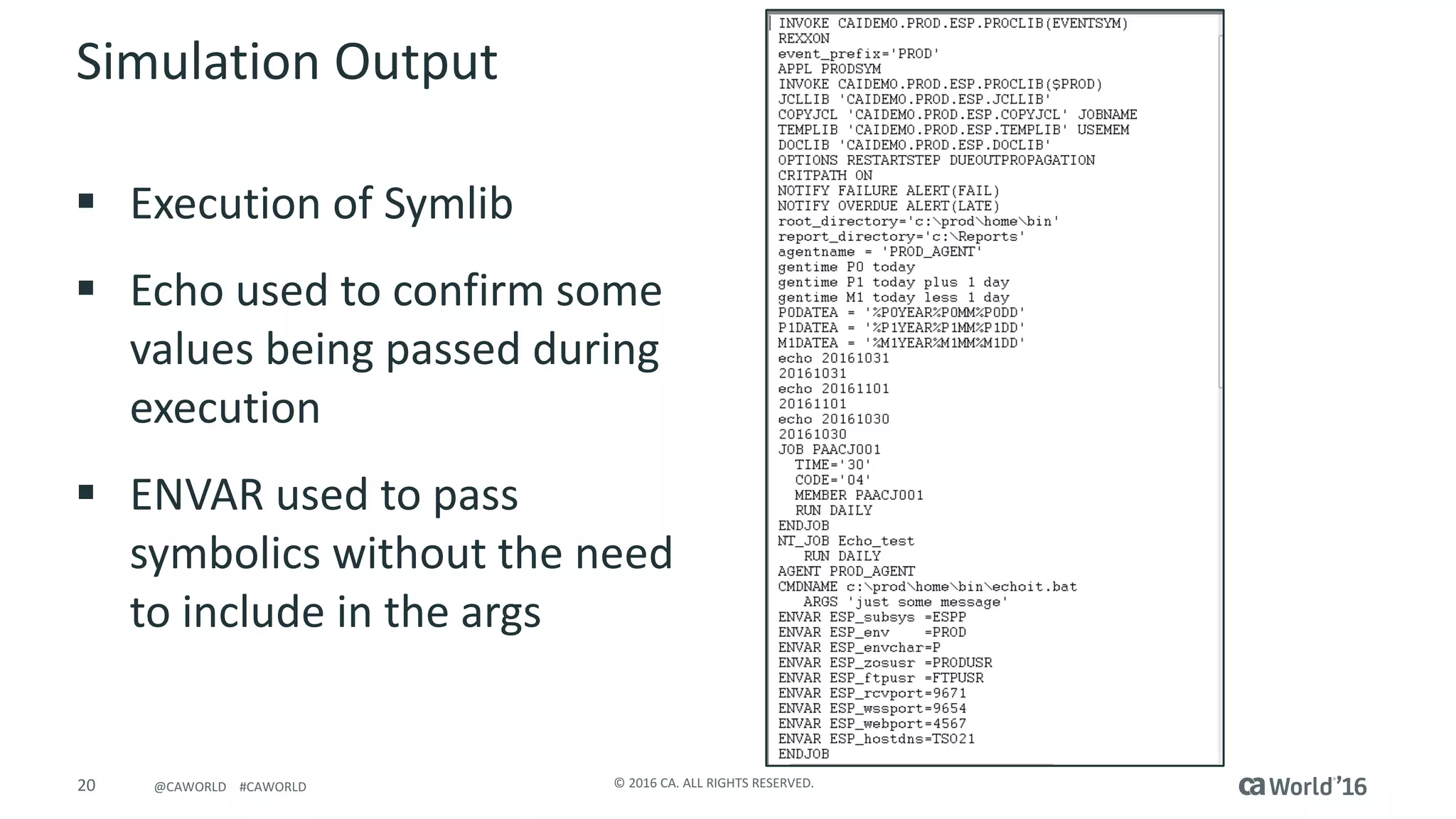

Simulation Output
§ Execution of Symlib
§ Echo used to confirm some
values being passed during
execution
§ ENVAR used to pass
symbolics without the need
to include in the args

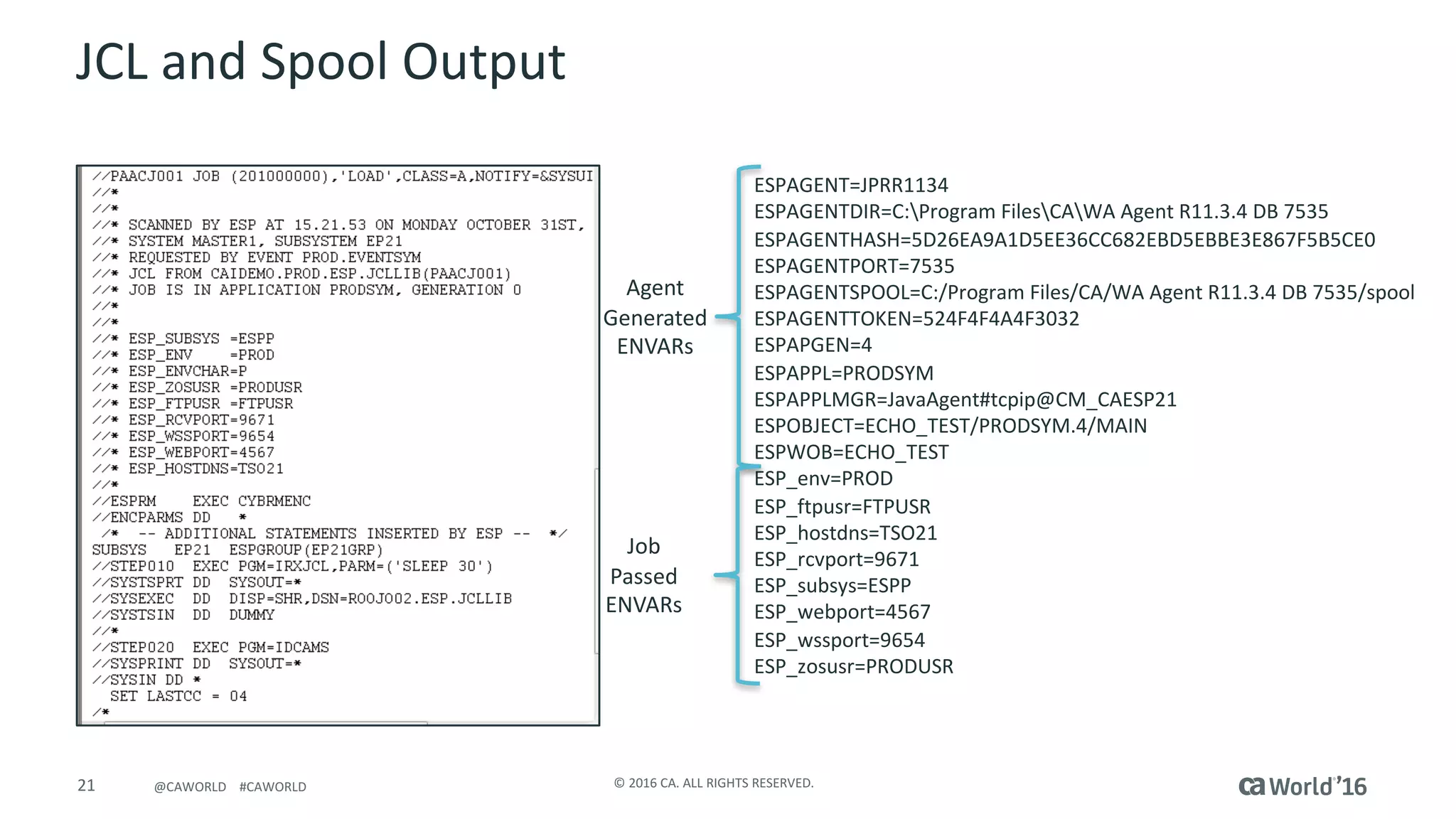

JCL and Spool Output
ESPAGENT=JPRR1134
ESPAGENTDIR=C:Program FilesCAWA Agent R11.3.4 DB 7535
ESPAGENTHASH=5D26EA9A1D5EE36CC682EBD5EBBE3E867F5B5CE0
ESPAGENTPORT=7535
ESPAGENTSPOOL=C:/Program Files/CA/WA Agent R11.3.4 DB 7535/spool
ESPAGENTTOKEN=524F4F4A4F3032
ESPAPGEN=4
ESPAPPL=PRODSYM
ESPAPPLMGR=JavaAgent#tcpip@CM_CAESP21
ESPOBJECT=ECHO_TEST/PRODSYM.4/MAIN
ESPWOB=ECHO_TEST
ESP_env=PROD
ESP_ftpusr=FTPUSR
ESP_hostdns=TSO21
ESP_rcvport=9671
ESP_subsys=ESPP
ESP_webport=4567
ESP_wssport=9654
ESP_zosusr=PRODUSR
Agent
Generated
ENVARs
Job
Passed
ENVARs

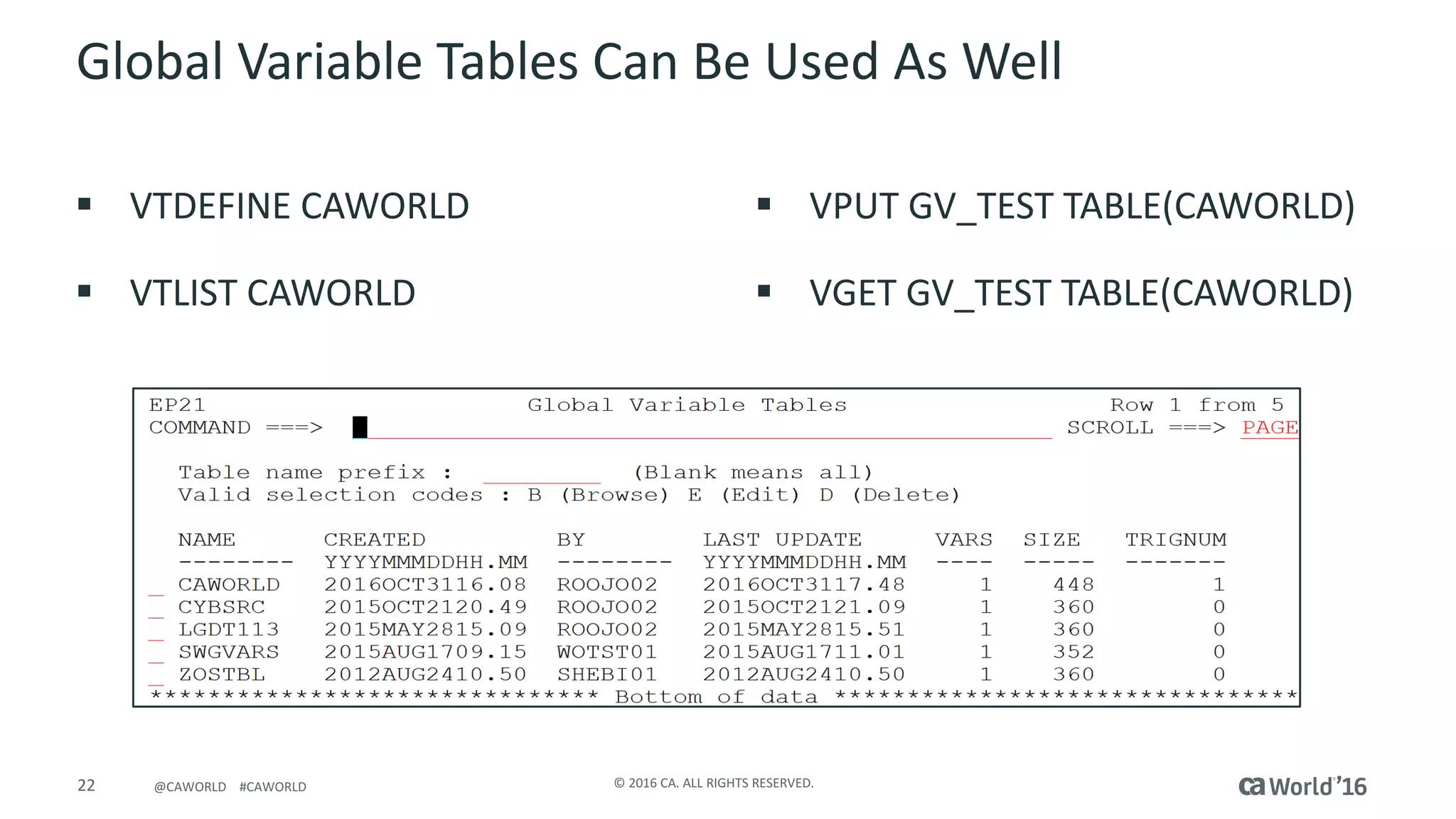

Global Variable Tables Can Be Used As Well
§ VTDEFINE CAWORLD
§ VTLIST CAWORLD
§ VPUT GV_TEST TABLE(CAWORLD)
§ VGET GV_TEST TABLE(CAWORLD)

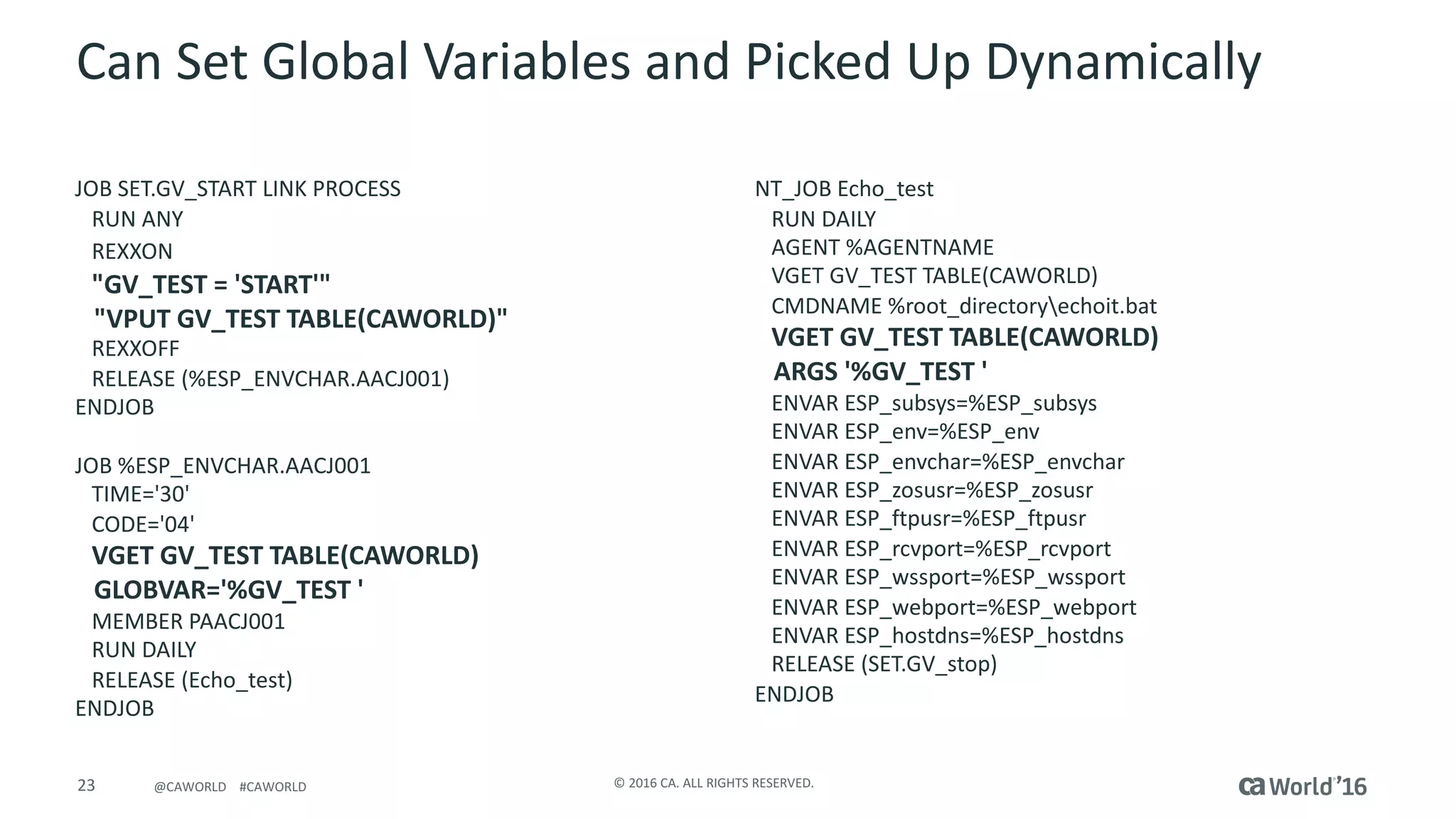

Can Set Global Variables and Picked Up Dynamically
JOB SET.GV_START LINK PROCESS
RUN ANY
REXXON
"GV_TEST = 'START'"
"VPUT GV_TEST TABLE(CAWORLD)"
REXXOFF
RELEASE (%ESP_ENVCHAR.AACJ001)
ENDJOB
JOB %ESP_ENVCHAR.AACJ001
TIME='30'
CODE='04'
VGET GV_TEST TABLE(CAWORLD)
GLOBVAR='%GV_TEST '
MEMBER PAACJ001
RUN DAILY
RELEASE (Echo_test)
ENDJOB
NT_JOB Echo_test
RUN DAILY
AGENT %AGENTNAME
CMDNAME %root_directoryechoit.bat
ARGS '%GV_TEST '
ENVAR ESP_subsys=%ESP_subsys
ENVAR ESP_env=%ESP_env
ENVAR ESP_envchar=%ESP_envchar
ENVAR ESP_zosusr=%ESP_zosusr
ENVAR ESP_ftpusr=%ESP_ftpusr
ENVAR ESP_rcvport=%ESP_rcvport
ENVAR ESP_wssport=%ESP_wssport
ENVAR ESP_webport=%ESP_webport
ENVAR ESP_hostdns=%ESP_hostdns
RELEASE (SET.GV_stop)
ENDJOB

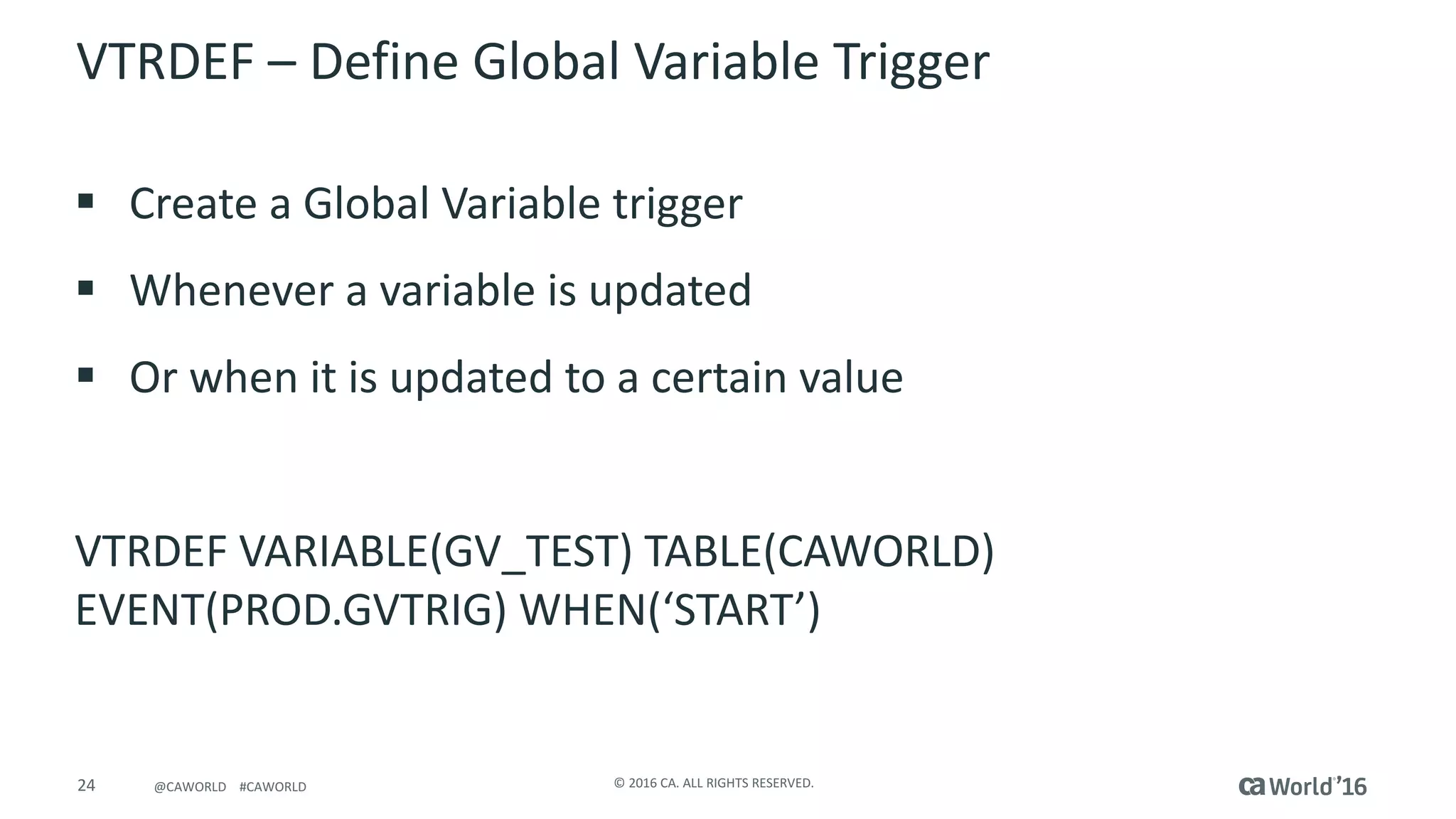

VTRDEF – Define Global Variable Trigger
§ Create a Global Variable trigger
§ Whenever a variable is updated
§ Or when it is updated to a certain value
VTRDEF VARIABLE(GV_TEST) TABLE(CAWORLD)
EVENT(PROD.GVTRIG) WHEN(‘START’)

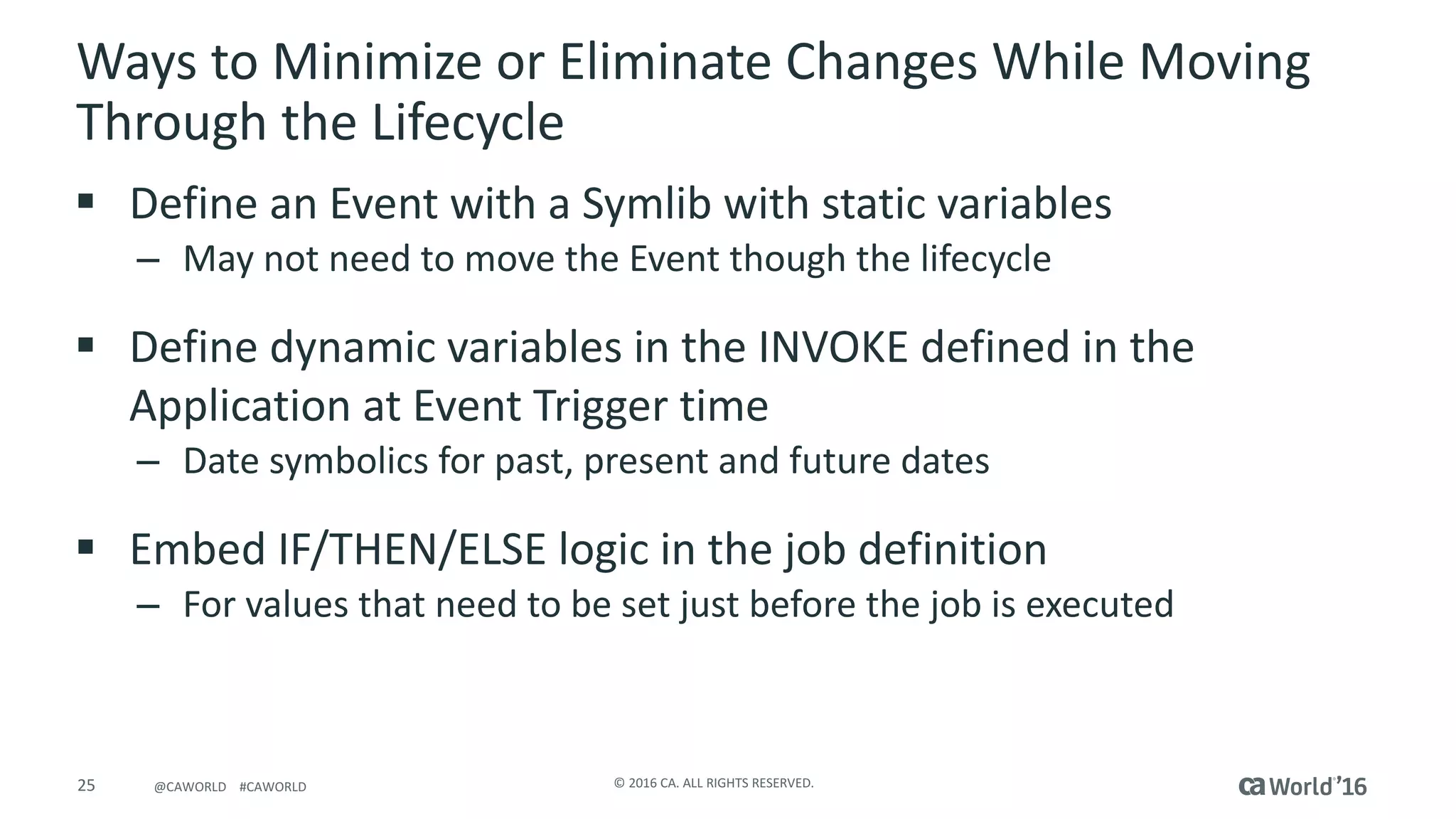

Ways to Minimize or Eliminate Changes While Moving
Through the Lifecycle
§ Define an Event with a Symlib with static variables
– May not need to move the Event though the lifecycle
§ Define dynamic variables in the INVOKE defined in the
Application at Event Trigger time
– Date symbolics for past, present and future dates
§ Embed IF/THEN/ELSE logic in the job definition
– For values that need to be set just before the job is executed

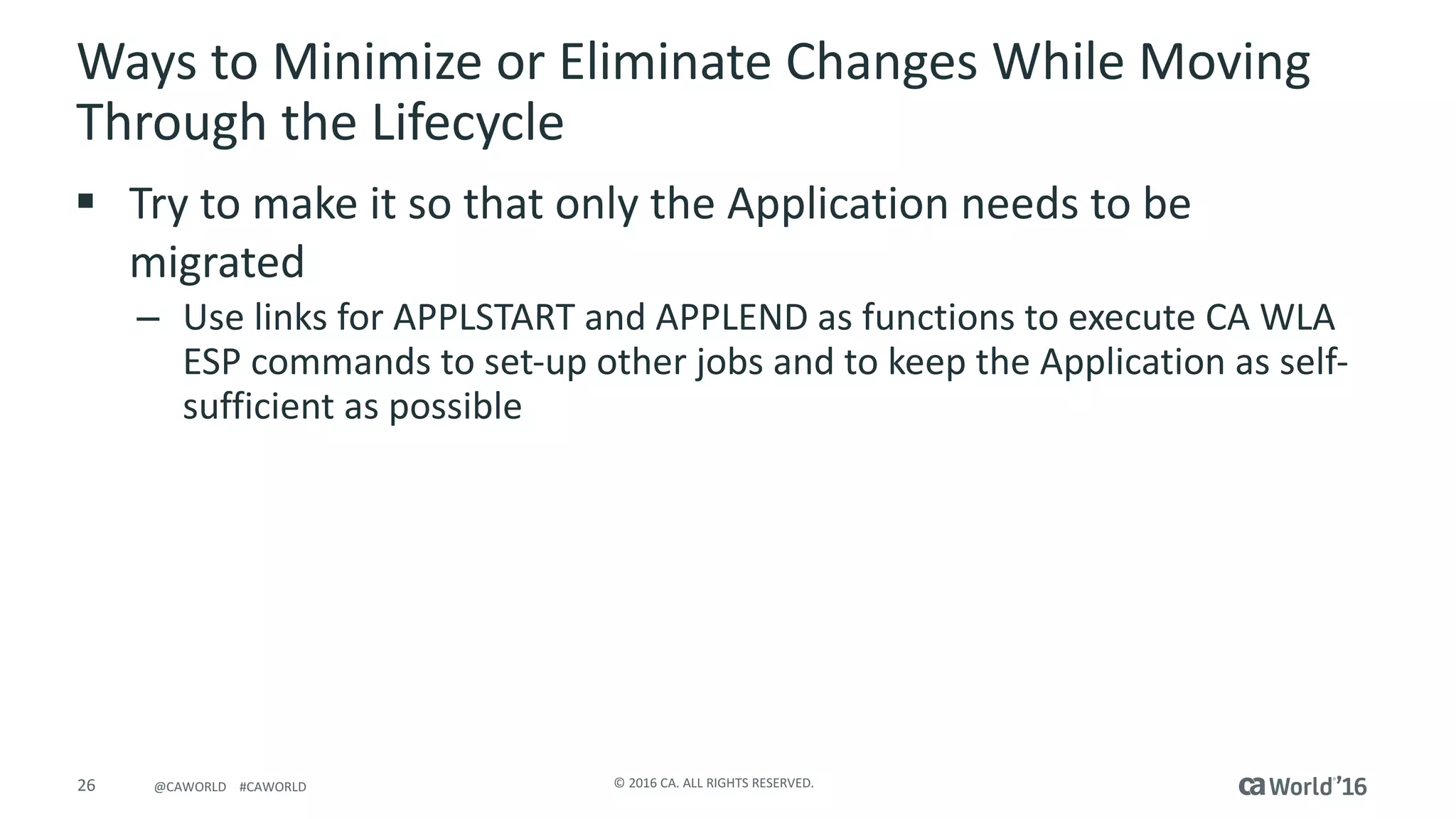

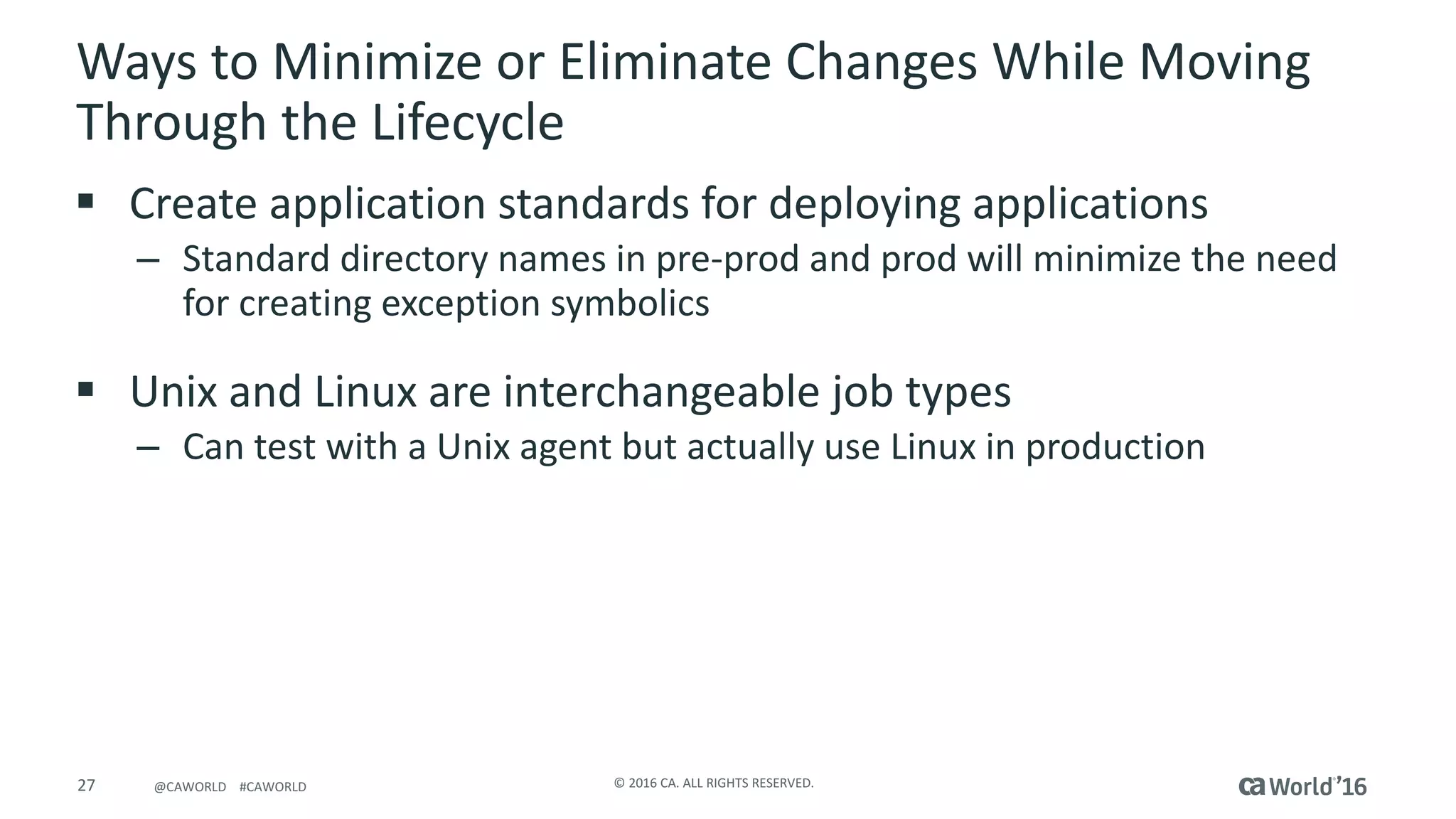

§ Try to make it so that only the Application needs to be
migrated
– Use links for APPLSTART and APPLEND as functions to execute CA WLA
ESP commands to set-up other jobs and to keep the Application as self-
sufficient as possible

§ Create application standards for deploying applications
– Standard directory names in pre-prod and prod will minimize the need
for creating exception symbolics
§ Unix and Linux are interchangeable job types
– Can test with a Unix agent but actually use Linux in production

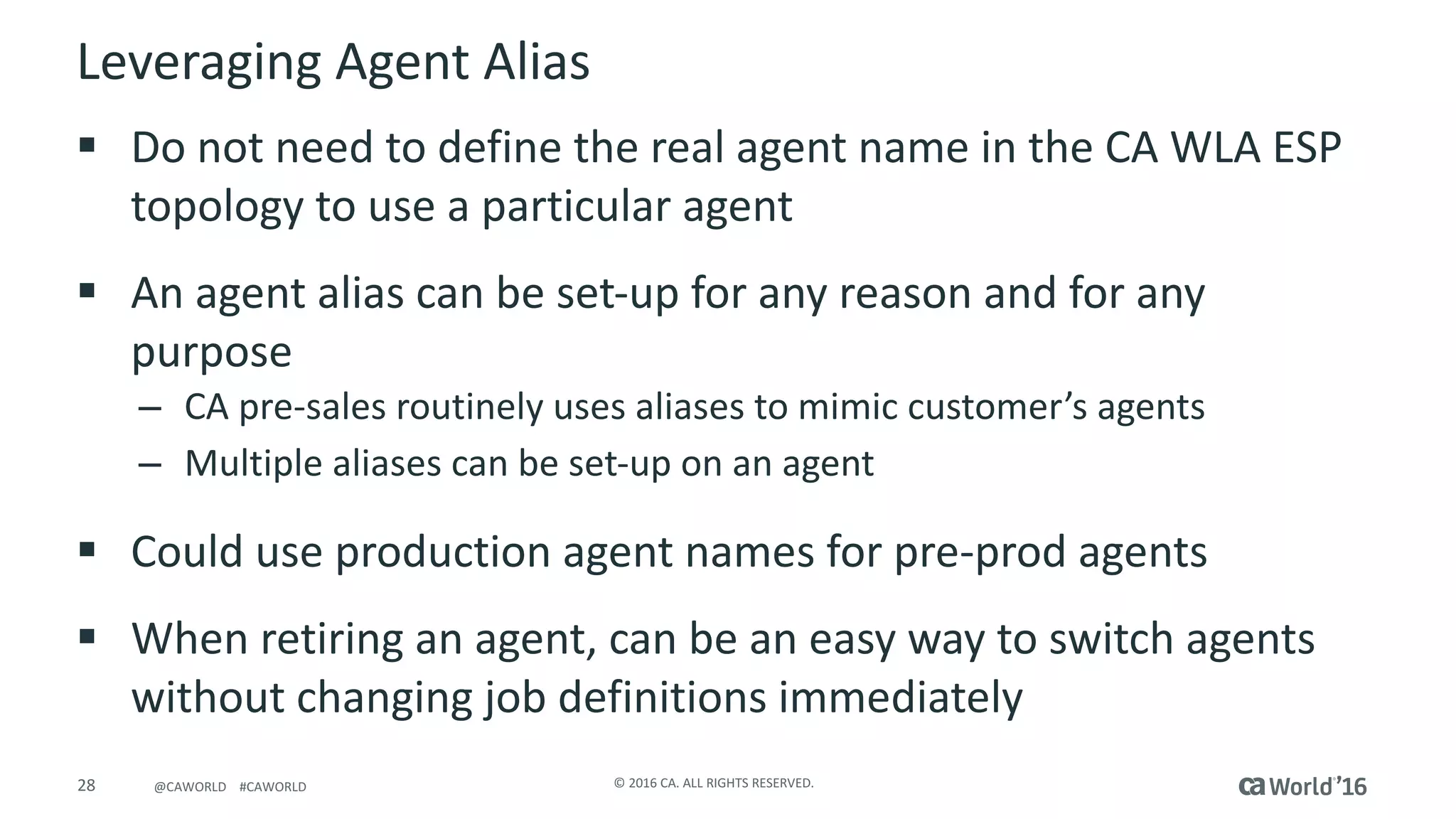

Leveraging Agent Alias
§ Do not need to define the real agent name in the CA WLA ESP
topology to use a particular agent
§ An agent alias can be set-up for any reason and for any
purpose
– CA pre-sales routinely uses aliases to mimic customer’s agents
– Multiple aliases can be set-up on an agent
§ Could use production agent names for pre-prod agents
§ When retiring an agent, can be an easy way to switch agents
without changing job definitions immediately

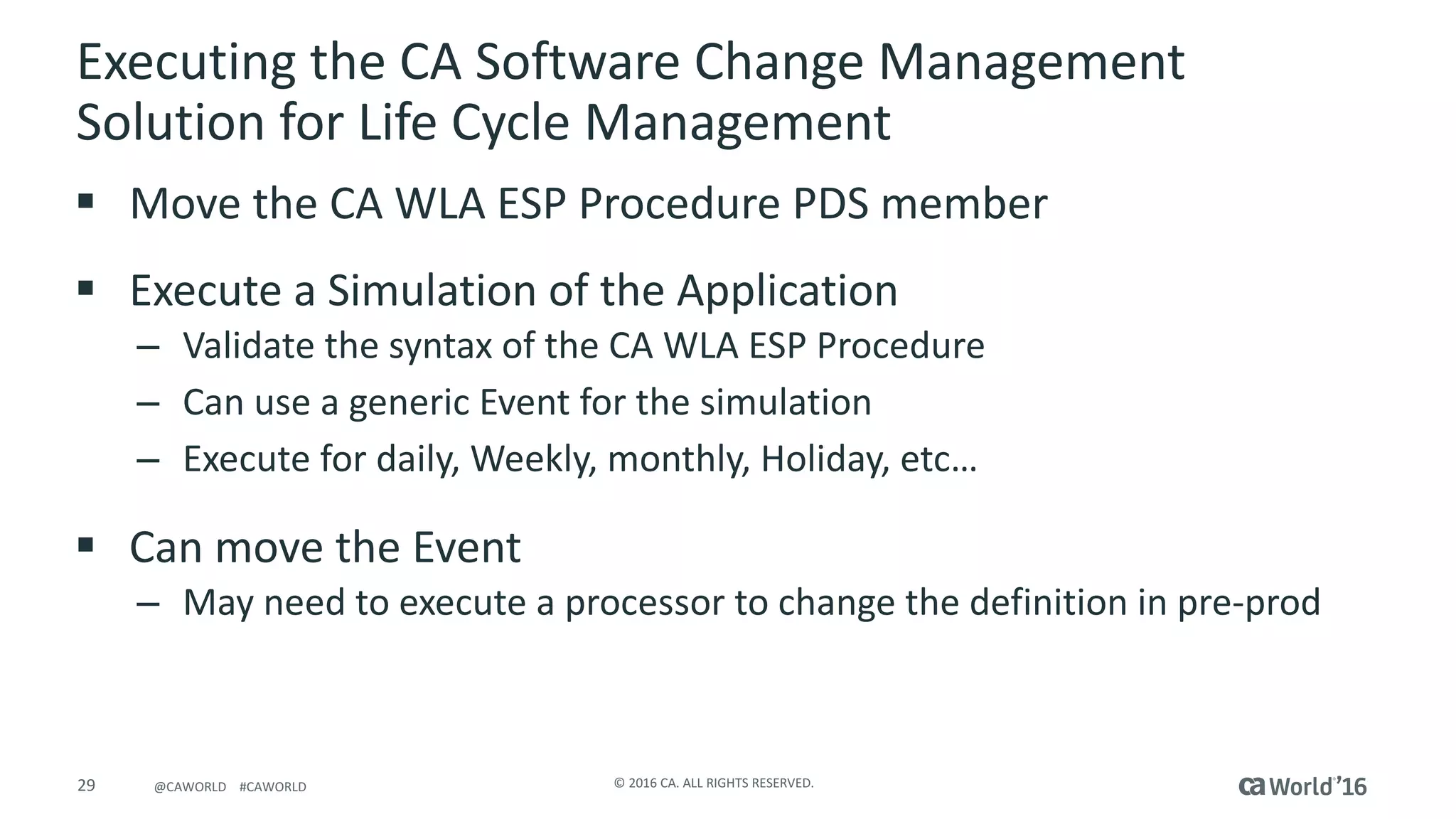

Executing the CA Software Change Management
Solution for Life Cycle Management
§ Move the CA WLA ESP Procedure PDS member
§ Execute a Simulation of the Application
– Validate the syntax of the CA WLA ESP Procedure
– Can use a generic Event for the simulation
– Execute for daily, Weekly, monthly, Holiday, etc…
§ Can move the Event
– May need to execute a processor to change the definition in pre-prod

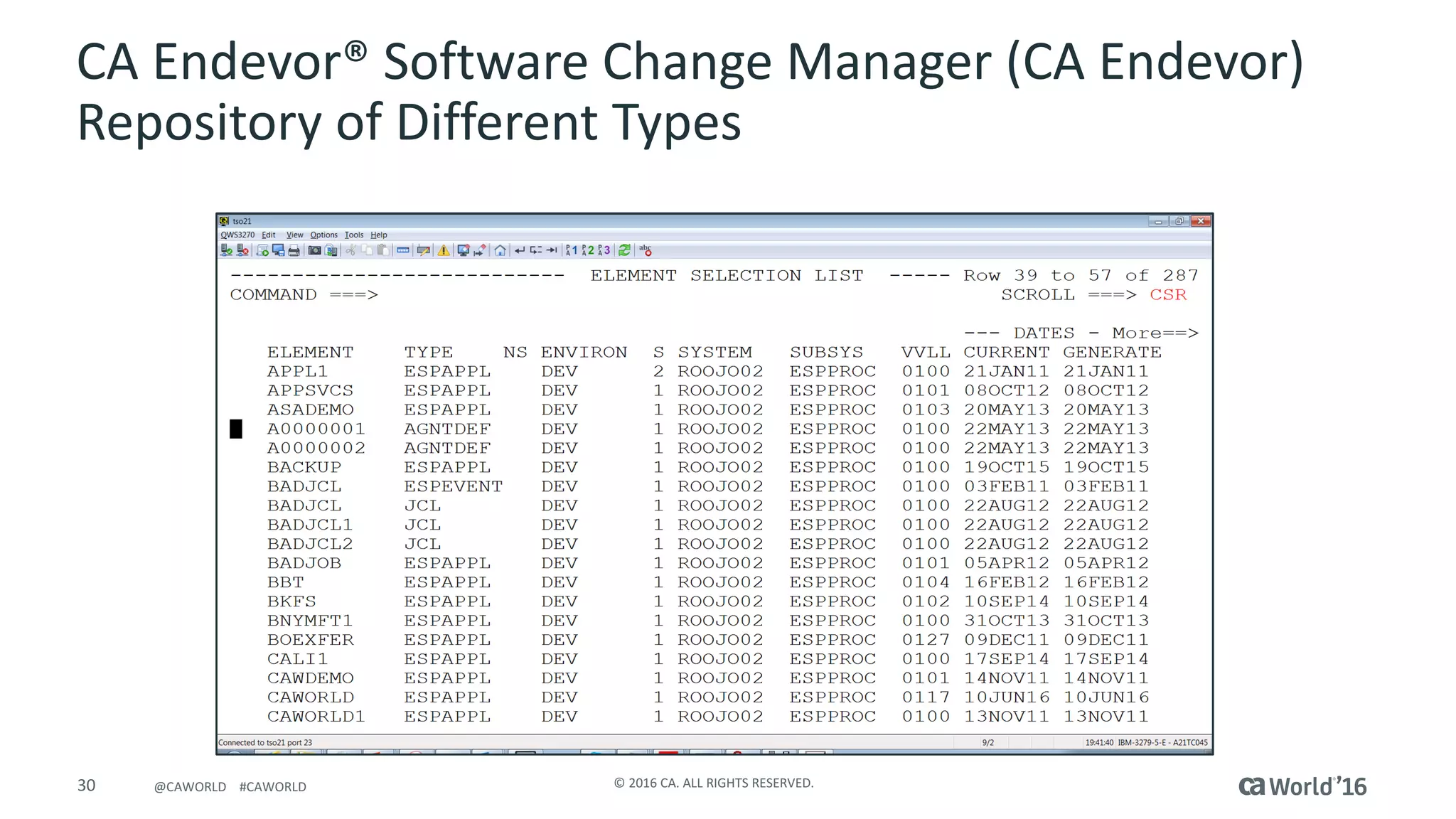

CA Endevor® Software Change Manager (CA Endevor)
Repository of Different Types

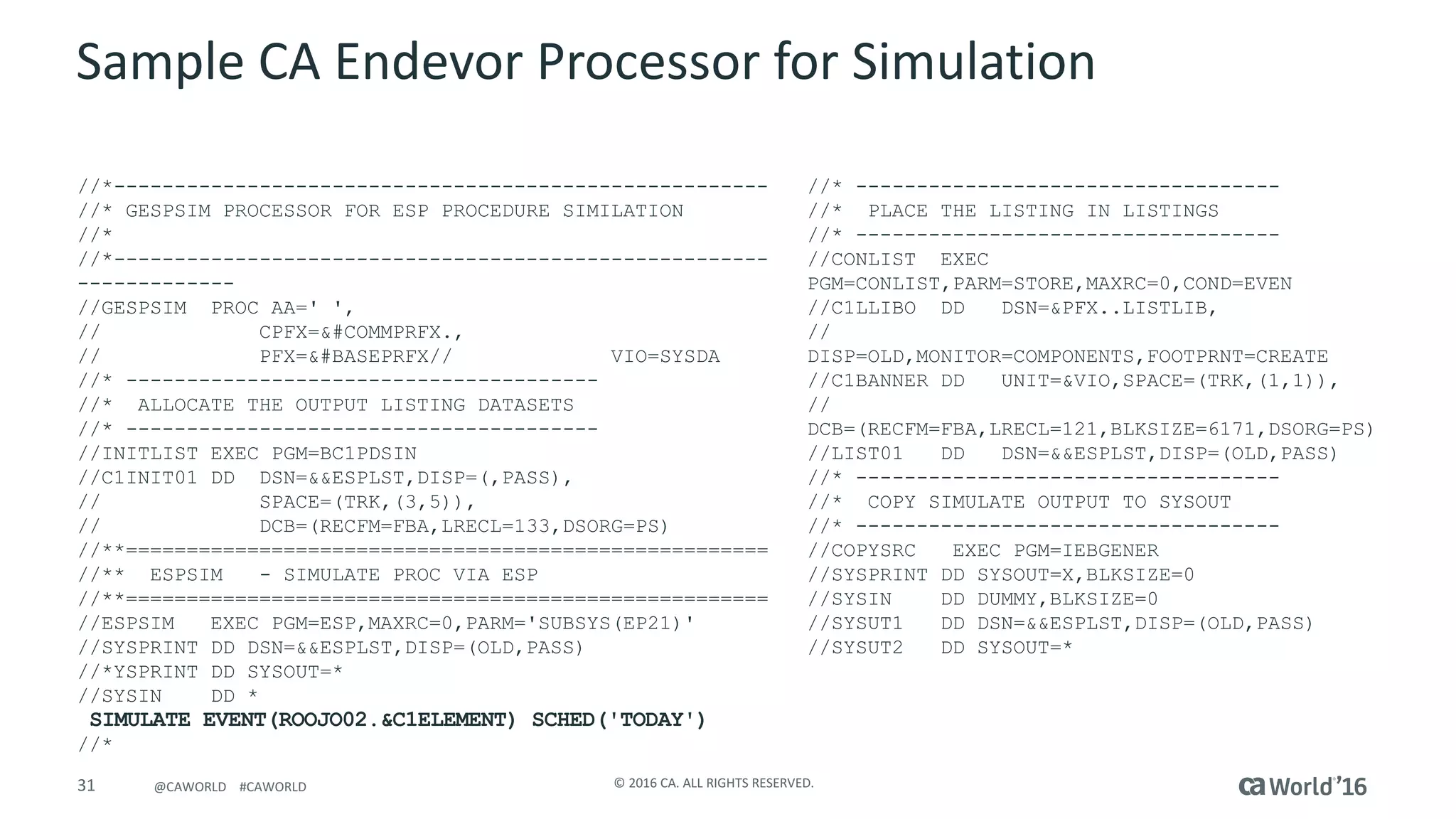

Sample CA Endevor Processor for Simulation
//*------------------------------------------------------
//* GESPSIM PROCESSOR FOR ESP PROCEDURE SIMILATION
//*
//*------------------------------------------------------
-------------
//GESPSIM PROC AA=' ',
// CPFX=&#COMMPRFX.,
// PFX=&#BASEPRFX// VIO=SYSDA
//* ---------------------------------------
//* ALLOCATE THE OUTPUT LISTING DATASETS
//* ---------------------------------------
//INITLIST EXEC PGM=BC1PDSIN
//C1INIT01 DD DSN=&&ESPLST,DISP=(,PASS),
// SPACE=(TRK,(3,5)),
// DCB=(RECFM=FBA,LRECL=133,DSORG=PS)
//**=====================================================
//** ESPSIM - SIMULATE PROC VIA ESP
//**=====================================================
//ESPSIM EXEC PGM=ESP,MAXRC=0,PARM='SUBSYS(EP21)'
//SYSPRINT DD DSN=&&ESPLST,DISP=(OLD,PASS)
//*YSPRINT DD SYSOUT=*
//SYSIN DD *
SIMULATE EVENT(ROOJO02.&C1ELEMENT) SCHED('TODAY')
//*
//* -----------------------------------
//* PLACE THE LISTING IN LISTINGS
//* -----------------------------------
//CONLIST EXEC
PGM=CONLIST,PARM=STORE,MAXRC=0,COND=EVEN
//C1LLIBO DD DSN=&PFX..LISTLIB,
//
DISP=OLD,MONITOR=COMPONENTS,FOOTPRNT=CREATE
//C1BANNER DD UNIT=&VIO,SPACE=(TRK,(1,1)),
//
DCB=(RECFM=FBA,LRECL=121,BLKSIZE=6171,DSORG=PS)
//LIST01 DD DSN=&&ESPLST,DISP=(OLD,PASS)
//* -----------------------------------
//* COPY SIMULATE OUTPUT TO SYSOUT
//* -----------------------------------
//COPYSRC EXEC PGM=IEBGENER
//SYSPRINT DD SYSOUT=X,BLKSIZE=0
//SYSIN DD DUMMY,BLKSIZE=0
//SYSUT1 DD DSN=&&ESPLST,DISP=(OLD,PASS)
//SYSUT2 DD SYSOUT=*

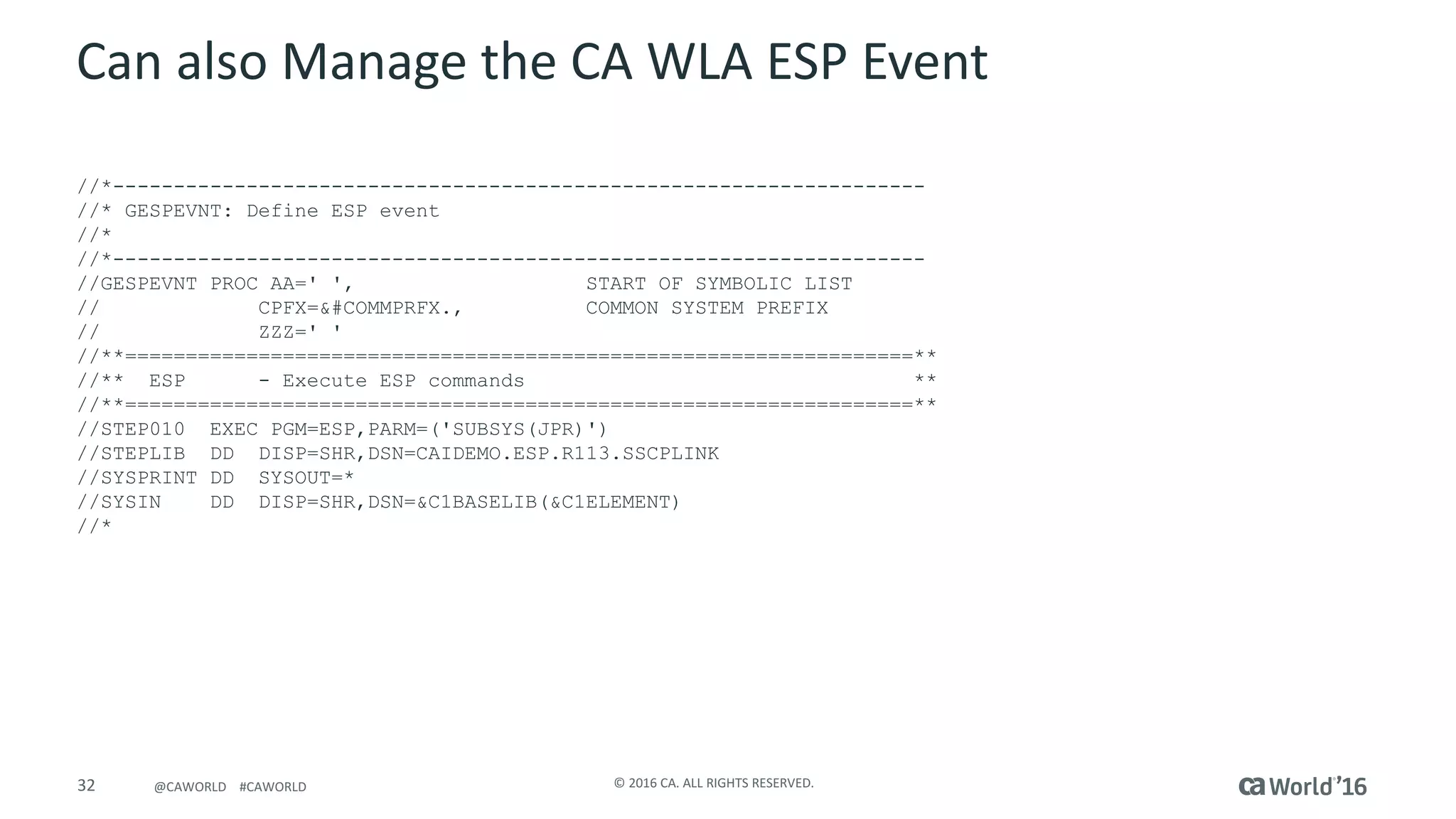

Can also Manage the CA WLA ESP Event
//*-------------------------------------------------------------------
//* GESPEVNT: Define ESP event
//*
//*-------------------------------------------------------------------
//GESPEVNT PROC AA=' ', START OF SYMBOLIC LIST
// CPFX=&#COMMPRFX., COMMON SYSTEM PREFIX
// ZZZ=' '
//**=================================================================**
//** ESP - Execute ESP commands **
//**=================================================================**
//STEP010 EXEC PGM=ESP,PARM=('SUBSYS(JPR)')
//STEPLIB DD DISP=SHR,DSN=CAIDEMO.ESP.R113.SSCPLINK
//SYSPRINT DD SYSOUT=*
//SYSIN DD DISP=SHR,DSN=&C1BASELIB(&C1ELEMENT)
//*

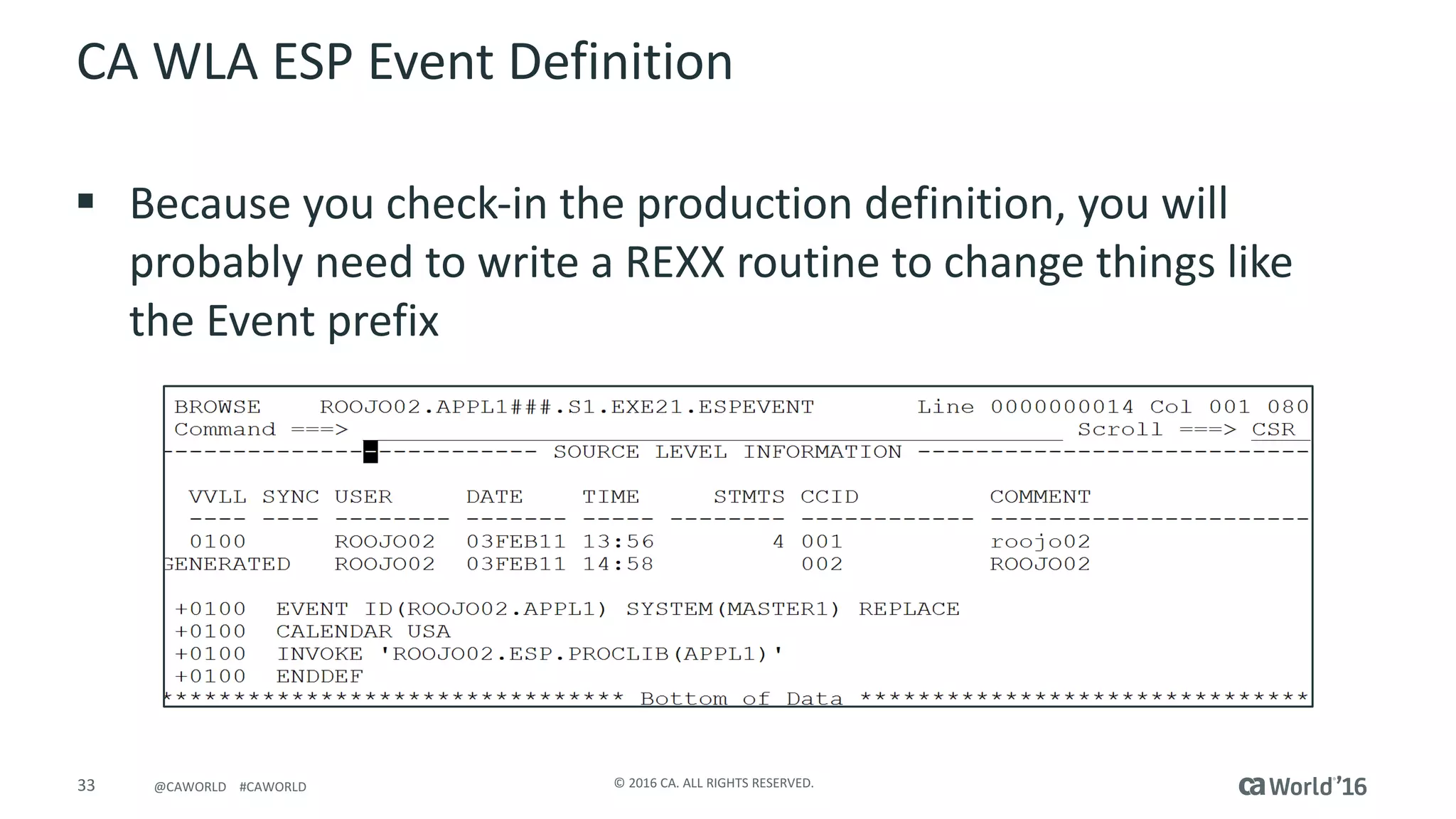

CA WLA ESP Event Definition
§ Because you check-in the production definition, you will
probably need to write a REXX routine to change things like
the Event prefix

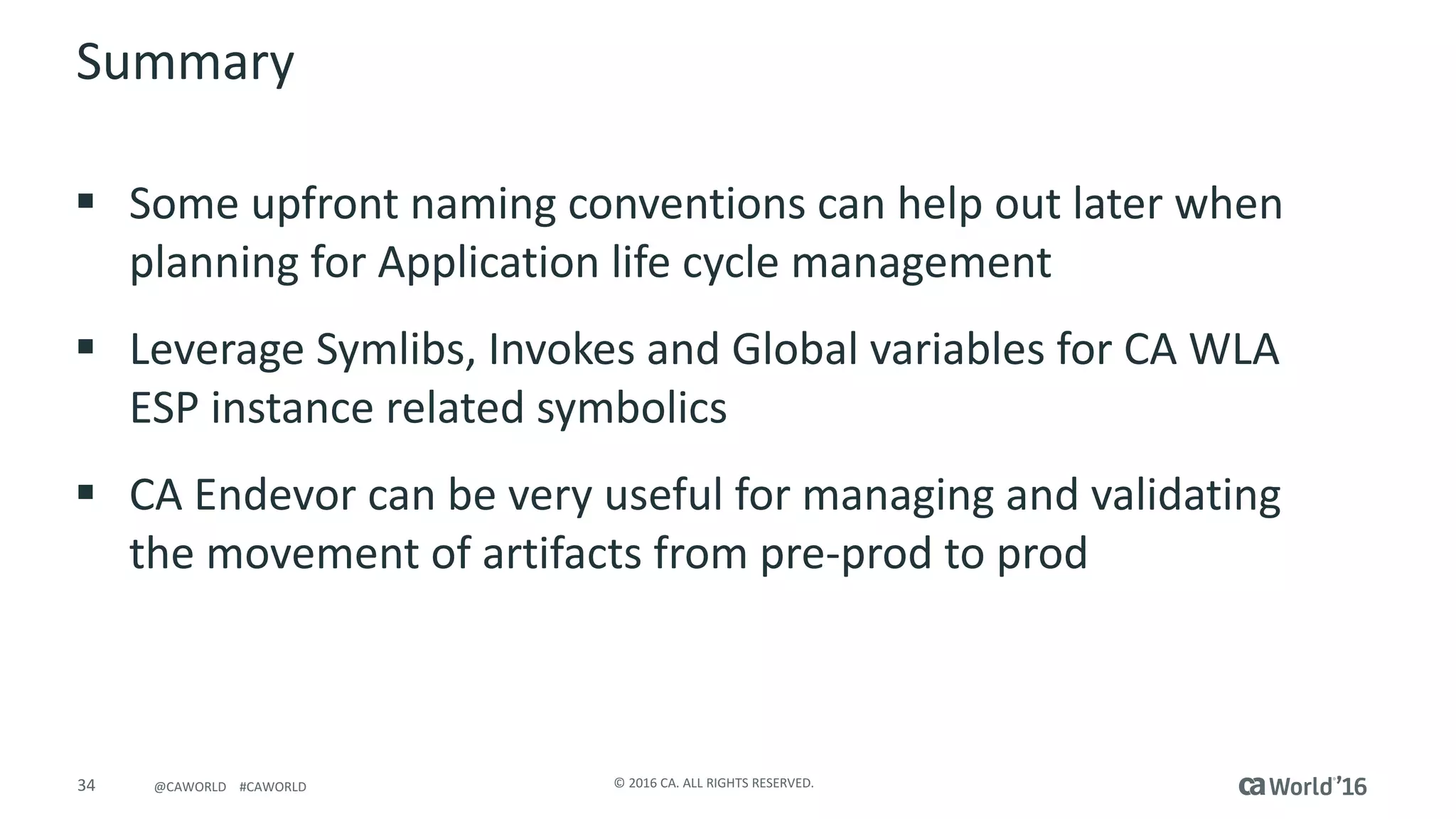

Summary
§ Some upfront naming conventions can help out later when
planning for Application life cycle management
§ Leverage Symlibs, Invokes and Global variables for CA WLA
ESP instance related symbolics
§ CA Endevor can be very useful for managing and validating
the movement of artifacts from pre-prod to prod

Recommended Sessions
SESSION # TITLE DATE/TIME
MFX129S
Vision and Roadmap: CA Workload Automation ESP
Edition
11/16/2016 at 12:45 pm
Jasmine C
MFX138S
Verizon Case Study: CA WLA ESP: Best Practices, DevOps,
Change Management Utilizing CA Endevor
11/16/2016 at 3:00 pm
Jasmine C
MFX123S
Case Study: UPS Enables Organizational Efficiencies
through the Use of CA Workload Automation
11/17/2016 at 12:45 pm
Jasmine C
MFT157P
Panel Discussion- Best Practices: High Volume
Transaction Processing and Analytics
11/17/2016 at 1:45 pm
Mainframe Theatre

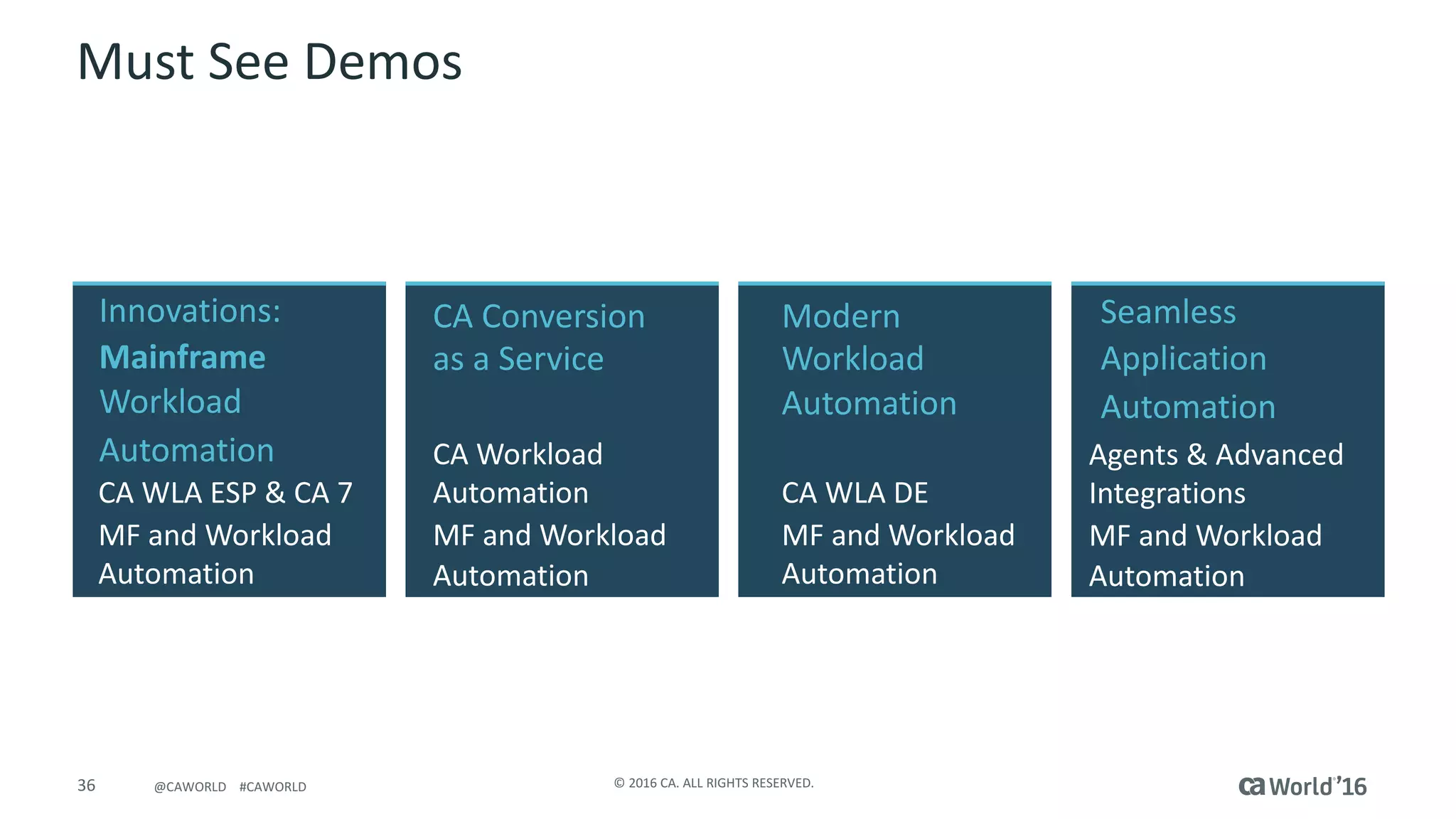

Must See Demos
Modern
Workload
Automation
CA WLA DE
MF and Workload
Automation
Seamless
Application
Automation
Agents & Advanced
Integrations
MF and Workload
Automation
CA Conversion
as a Service
CA Workload
Automation
MF and Workload
Automation
Innovations:
Mainframe
Workload
Automation
CA WLA ESP & CA 7
MF and Workload
Automation

Questions?

Thank you
Stay connected at communities.ca.com

Pre-Con Ed: Best practices for setting up CA Workload Automation ESP Application Procedures

More Related Content

What's hot

Similar to Pre-Con Ed: Best practices for setting up CA Workload Automation ESP Application Procedures

More from CA Technologies

Recently uploaded

Pre-Con Ed: Best practices for setting up CA Workload Automation ESP Application Procedures
