Power BI Streaming Datasets
The document discusses the introduction and functionalities of real-time streaming datasets in Power BI, which became generally available in January 2017. It describes how to create a streaming dataset, manage data input via a REST API, and highlights the differences in data refresh requirements between dashboards and reports. Additionally, it provides examples of practical applications and notes some challenges and improvements suggested by users.
More Related Content
Similar to Power BI Streaming Datasets
Power BI Streaming Datasets
- 1. Power BI Streaming Datasets GregMcMurray Utah Power BI Users Group, February 2017
- 2. Greg McMurray CurrentlyBusiness Solutions Developer at WECC Manager at Aritus Computer Services for 18 years Aerospace, Branding & Marketing, Energy, Healthcare, Software Active in many local user groups Find me online @goyuix https://www.linkedin.com/in/goyuix https://stackoverflow.com/cv/goyuix - top 3% of users
- 3. Western Electricity CoordinatingCouncil (WECC) Non-profit to ensure the reliability of the western interconnection Approved Regional Entity by Federal Energy Regulatory Commission Create, monitor & enforce reliability standards Publish various models and independent perspective Covers 14 western states, 2 Canadian provinces and Baja Mexico
- 4. Real-time Streaming Datasets Preview announced in August 2016 https://powerbi.microsoft.com/en-us/blog/real-time-in-no-time-with-power-bi/ Released to general availability in January 2017 https://powerbi.microsoft.com/en-us/blog/announcing-general-availability-of-power-bi- real-time-streaming-datasets/ Datasets available through REST API or via PubNub Example: Azure Stream Analytics pushes to REST API Optionally store historic values Important Note: Dashboards auto-refresh. Reports require manual refresh.

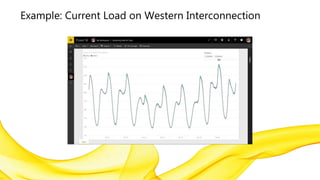

- 5. Example: Current Loadon Western Interconnection
- 6. Creating a StreamingDataset Login to powerbi.com portal Under your workspace create a new Streaming Dataset This is different than a regular dataset, and isn’t an option there We will create a sample for holding random numbers with the following schema Value : Number Min : Number Max : Number Stamp : DateTime Enable Historical Analysis

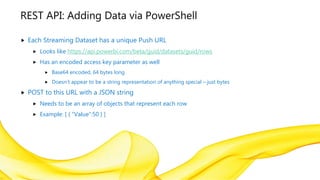

- 7. REST API: AddingData via PowerShell Each Streaming Dataset has a unique Push URL Looks like https://api.powerbi.com/beta/guid/datasets/guid/rows Has an encoded access key parameter as well Base64 encoded, 64 bytes long Doesn’t appear to be a string representation of anything special – just bytes POST to this URL with a JSON string Needs to be an array of objects that represent each row Example: [ { “Value”:50 } ]

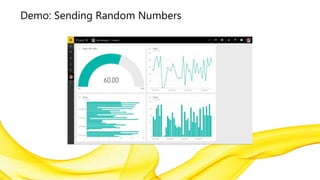

- 8. Demo: Sending RandomNumbers

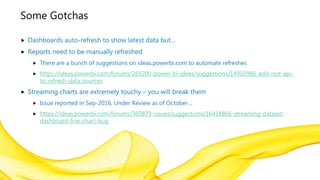

- 9. Some Gotchas Dashboardsauto-refresh to show latest data but… Reports need to be manually refreshed There are a bunch of suggestions on ideas.powerbi.com to automate refreshes https://ideas.powerbi.com/forums/265200-power-bi-ideas/suggestions/14950986-add-rest-api- to-refresh-data-sources Streaming charts are extremely touchy – you will break them Issue reported in Sep-2016, Under Review as of October… https://ideas.powerbi.com/forums/360879-issues/suggestions/16418866-streaming-dataset- dashboard-line-chart-bug
- 10. Discussion: What aregood examples? Some common examples: Bulk Electric System (of course!) Temperature Traffic Counters What do these all have in common? Similar values Steady values / changes They also can trigger actions: Change in generation, HVAC, traffic signals
