The document discusses polymer brushes and methods for their synthesis. It provides an overview of polymer brushes, including their general features and how their properties depend on grafting density. It also describes various types of polymer brushes and common methods for synthesizing them, including grafting onto, grafting from, and grafting through approaches. Finally, it discusses uses of responsive polymer brushes and their potential applications in areas like drug delivery and microfluidic devices.

1. In recent years, the synthesis of polymer brushes has received significant attention. In
this presentation we talked about several different aspects of polymer brushes and
synthetic strategies for the generation of polymer brushes . Finally, example is
provided that highlight some recent developments aimed at strategies for the
functionalization of surfaces with polymer brushes, at ways of realizing smart
surfaces with switchable properties.
1

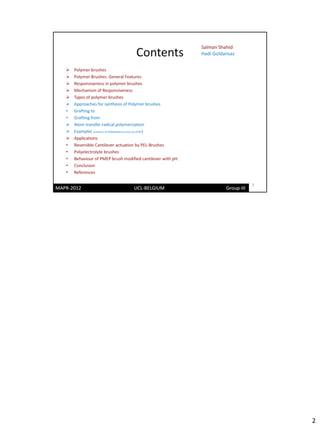

2. 2

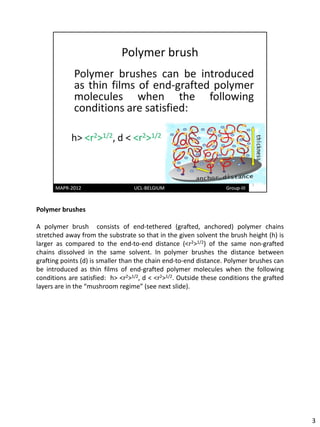

3. Polymer brushes
A polymer brush consists of end-tethered (grafted, anchored) polymer chains
stretched away from the substrate so that in the given solvent the brush height (h) is
larger as compared to the end-to-end distance (<r2>1/2) of the same non-grafted
chains dissolved in the same solvent. In polymer brushes the distance between
grafting points (d) is smaller than the chain end-to-end distance. Polymer brushes can
be introduced as thin films of end-grafted polymer molecules when the following
conditions are satisfied: h> <r2>1/2, d < <r2>1/2. Outside these conditions the grafted
layers are in the “mushroom regime” (see next slide).
3

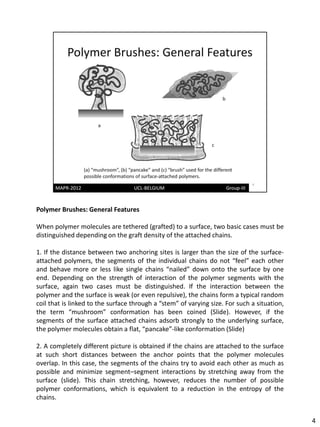

4. Polymer Brushes: General Features
When polymer molecules are tethered (grafted) to a surface, two basic cases must be
distinguished depending on the graft density of the attached chains.
1. If the distance between two anchoring sites is larger than the size of the surface-
attached polymers, the segments of the individual chains do not “feel” each other
and behave more or less like single chains “nailed” down onto the surface by one
end. Depending on the strength of interaction of the polymer segments with the
surface, again two cases must be distinguished. If the interaction between the
polymer and the surface is weak (or even repulsive), the chains form a typical random
coil that is linked to the surface through a “stem” of varying size. For such a situation,
the term “mushroom” conformation has been coined (Slide). However, if the
segments of the surface attached chains adsorb strongly to the underlying surface,
the polymer molecules obtain a flat, “pancake”-like conformation (Slide)
2. A completely different picture is obtained if the chains are attached to the surface
at such short distances between the anchor points that the polymer molecules
overlap. In this case, the segments of the chains try to avoid each other as much as
possible and minimize segment–segment interactions by stretching away from the
surface (slide). This chain stretching, however, reduces the number of possible
polymer conformations, which is equivalent to a reduction in the entropy of the
chains.
4

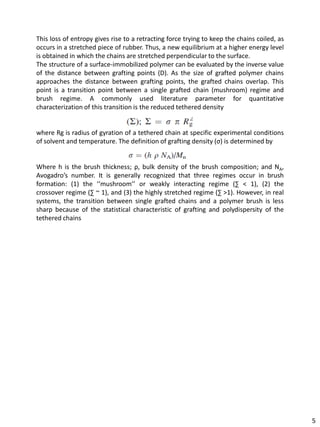

5. This loss of entropy gives rise to a retracting force trying to keep the chains coiled, as
occurs in a stretched piece of rubber. Thus, a new equilibrium at a higher energy level
is obtained in which the chains are stretched perpendicular to the surface.
The structure of a surface-immobilized polymer can be evaluated by the inverse value
of the distance between grafting points (D). As the size of grafted polymer chains
approaches the distance between grafting points, the grafted chains overlap. This
point is a transition point between a single grafted chain (mushroom) regime and
brush regime. A commonly used literature parameter for quantitative
characterization of this transition is the reduced tethered density
where Rg is radius of gyration of a tethered chain at specific experimental conditions
of solvent and temperature. The definition of grafting density (σ) is determined by
Where h is the brush thickness; ρ, bulk density of the brush composition; and NA,
Avogadro’s number. It is generally recognized that three regimes occur in brush
formation: (1) the ‘‘mushroom’’ or weakly interacting regime (∑ < 1), (2) the
crossover regime (∑ ~ 1), and (3) the highly stretched regime (∑ >1). However, in real
systems, the transition between single grafted chains and a polymer brush is less
sharp because of the statistical characteristic of grafting and polydispersity of the
tethered chains
5

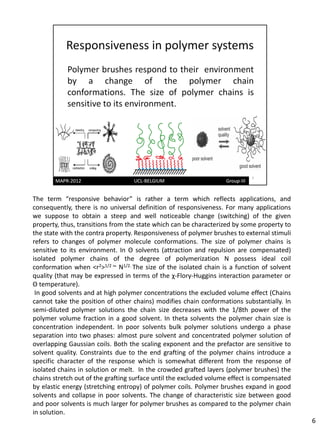

6. The term “responsive behavior” is rather a term which reflects applications, and
consequently, there is no universal definition of responsiveness. For many applications
we suppose to obtain a steep and well noticeable change (switching) of the given
property, thus, transitions from the state which can be characterized by some property to
the state with the contra property. Responsiveness of polymer brushes to external stimuli
refers to changes of polymer molecule conformations. The size of polymer chains is
sensitive to its environment. In Θ solvents (attraction and repulsion are compensated)
isolated polymer chains of the degree of polymerization N possess ideal coil
conformation when <r2>1/2 ~ N1/2. The size of the isolated chain is a function of solvent
quality (that may be expressed in terms of the χ-Flory-Huggins interaction parameter or
Θ temperature).
In good solvents and at high polymer concentrations the excluded volume effect (Chains
cannot take the position of other chains) modifies chain conformations substantially. In
semi-diluted polymer solutions the chain size decreases with the 1/8th power of the
polymer volume fraction in a good solvent. In theta solvents the polymer chain size is
concentration independent. In poor solvents bulk polymer solutions undergo a phase
separation into two phases: almost pure solvent and concentrated polymer solution of
overlapping Gaussian coils. Both the scaling exponent and the prefactor are sensitive to
solvent quality. Constraints due to the end grafting of the polymer chains introduce a
specific character of the response which is somewhat different from the response of
isolated chains in solution or melt. In the crowded grafted layers (polymer brushes) the
chains stretch out of the grafting surface until the excluded volume effect is compensated
by elastic energy (stretching entropy) of polymer coils. Polymer brushes expand in good
solvents and collapse in poor solvents. The change of characteristic size between good
and poor solvents is much larger for polymer brushes as compared to the polymer chain
in solution.
6

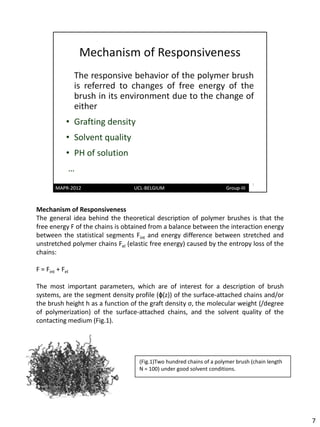

7. Mechanism of Responsiveness
The general idea behind the theoretical description of polymer brushes is that the
free energy F of the chains is obtained from a balance between the interaction energy
between the statistical segments Fint and energy difference between stretched and
unstretched polymer chains Fel (elastic free energy) caused by the entropy loss of the
chains:
F = Fint + Fel
The most important parameters, which are of interest for a description of brush
systems, are the segment density profile (ϕ(z)) of the surface-attached chains and/or
the brush height h as a function of the graft density σ, the molecular weight (/degree
of polymerization) of the surface-attached chains, and the solvent quality of the
contacting medium (Fig.1).
(Fig.1)Two hundred chains of a polymer brush (chain length
N = 100) under good solvent conditions.
7

8. The first description of such a brush system has been attempted by Alexander for
monodisperse chains consisting of N segments, which are attached to a flat, non-
adsorbing surface with an average distance of the anchor points d much smaller than
the radius of gyration of the same unperturbed chains not in contact with the surface
(Fig.2).
(Fig.2).Schematic illustration of the Alexander model for the
theoretic description of polymer brushes. The chain
segments with the “blobs” (indicated by the circles) behave
as random (“Gaussian”) coils. (d represents the average
distance between anchor points.)
If both the interaction energy resulting from binary monomer– monomer interactions
and the elastic energy of a Gaussian chain are calculated and minimized in respect to
the brush height h, the following equation is obtained for brushes in a good solvent:
In a poor solvent – that is, close to Θ conditions – the exponent describing the
influence of the grafting density is slightly different and is obtained.
It should be noted, that in both cases the brush height scales linearly with the degree
of polymerization/molecular weight of the polymer molecules, which is a much
stronger dependency than that of the size of a polymer coil in solution on the
molecular weight, where the radius of gyration Rg, scales with Rg ~ N0.59 for a
polymer in a good solvent and Rg ~ N0.50 for solutions close to Θ conditions.
In addition to these somewhat straightforward calculations, more complicated
situations have also been tackled where the polymer chains have a distinct
polydispersity, which exhibit a significant curvature also on the molecular scale, and
to brushes which carry charges along the polymer chain. In particular, the latter case
can become very complicated if the polymer chains interact specifically with ions in
the surrounding medium, as under these circumstances the situation can no longer
be described by simple mean field approaches, but specific complex formation and
(local) changes in the solubility of the polymer play a key role in describing the
swelling behavior of such brushes.
8

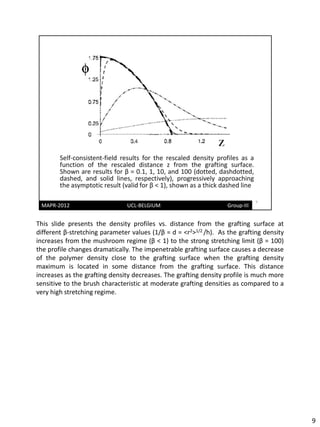

9. This slide presents the density profiles vs. distance from the grafting surface at
different β-stretching parameter values (1/β = d = <r2>1/2 /h). As the grafting density
increases from the mushroom regime (β < 1) to the strong stretching limit (β = 100)
the profile changes dramatically. The impenetrable grafting surface causes a decrease
of the polymer density close to the grafting surface when the grafting density
maximum is located in some distance from the grafting surface. This distance
increases as the grafting density decreases. The grafting density profile is much more
sensitive to the brush characteristic at moderate grafting densities as compared to a
very high stretching regime.
9

10. Types of polymer brushes
There are many different criteria to classify polymer brushes but based on the
constitution we have following types of polymer brushes:
Homopolymer brushes
Polyelectrolyte brushes
Block copolymer brushes
Molecular brushes
Reversible Self assembled brush
10

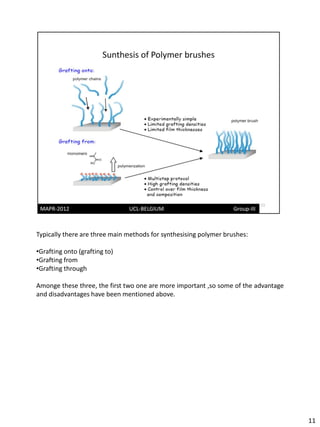

11. Typically there are three main methods for synthesising polymer brushes:
•Grafting onto (grafting to)
•Grafting from
•Grafting through
Amonge these three, the first two one are more important ,so some of the advantage
and disadvantages have been mentioned above.
11

12. In Grafting onto method a polymer chain which has a functional group at the end
diffuses through the surface, on the surface there are other functional groups , which
can react and therefore chain will graft to the surface.
It has to be metioned that due to the stereochemical hinderence , density of grafting
in this method is not high.
12

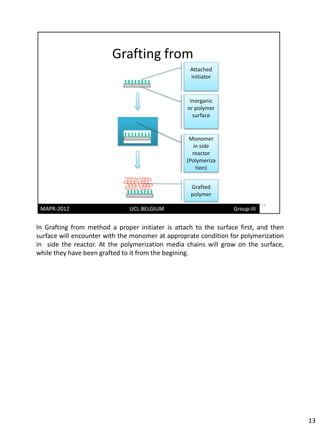

13. In Grafting from method a proper initiater is attach to the surface first, and then
surface will encounter with the monomer at approprate condition for polymerization
in side the reactor. At the polymerization media chains will grow on the surface,
while they have been grafted to it from the begining.
13

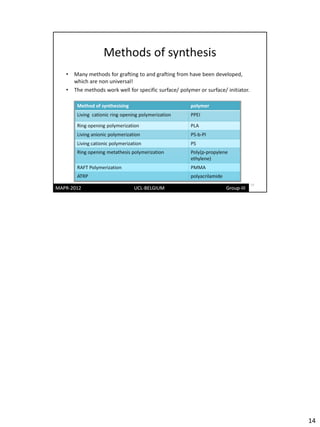

14. 14

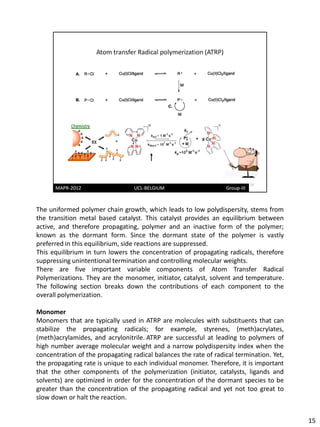

15. The uniformed polymer chain growth, which leads to low polydispersity, stems from
the transition metal based catalyst. This catalyst provides an equilibrium between
active, and therefore propagating, polymer and an inactive form of the polymer;
known as the dormant form. Since the dormant state of the polymer is vastly
preferred in this equilibrium, side reactions are suppressed.
This equilibrium in turn lowers the concentration of propagating radicals, therefore
suppressing unintentional termination and controlling molecular weights.
There are five important variable components of Atom Transfer Radical
Polymerizations. They are the monomer, initiator, catalyst, solvent and temperature.
The following section breaks down the contributions of each component to the
overall polymerization.
Monomer
Monomers that are typically used in ATRP are molecules with substituents that can
stabilize the propagating radicals; for example, styrenes, (meth)acrylates,
(meth)acrylamides, and acrylonitrile. ATRP are successful at leading to polymers of
high number average molecular weight and a narrow polydispersity index when the
concentration of the propagating radical balances the rate of radical termination. Yet,
the propagating rate is unique to each individual monomer. Therefore, it is important
that the other components of the polymerization (initiator, catalysts, ligands and
solvents) are optimized in order for the concentration of the dormant species to be
greater than the concentration of the propagating radical and yet not too great to
slow down or halt the reaction.
15

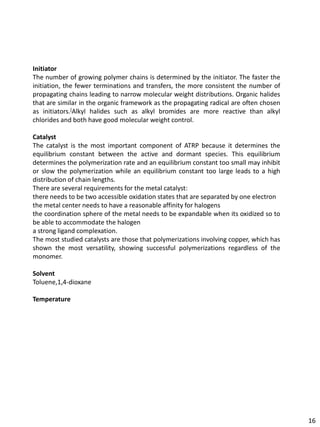

16. Initiator
The number of growing polymer chains is determined by the initiator. The faster the
initiation, the fewer terminations and transfers, the more consistent the number of
propagating chains leading to narrow molecular weight distributions. Organic halides
that are similar in the organic framework as the propagating radical are often chosen
as initiators.[Alkyl halides such as alkyl bromides are more reactive than alkyl
chlorides and both have good molecular weight control.
Catalyst
The catalyst is the most important component of ATRP because it determines the
equilibrium constant between the active and dormant species. This equilibrium
determines the polymerization rate and an equilibrium constant too small may inhibit
or slow the polymerization while an equilibrium constant too large leads to a high
distribution of chain lengths.
There are several requirements for the metal catalyst:
there needs to be two accessible oxidation states that are separated by one electron
the metal center needs to have a reasonable affinity for halogens
the coordination sphere of the metal needs to be expandable when its oxidized so to
be able to accommodate the halogen
a strong ligand complexation.
The most studied catalysts are those that polymerizations involving copper, which has
shown the most versatility, showing successful polymerizations regardless of the
monomer.
Solvent
Toluene,1,4-dioxane
Temperature
16

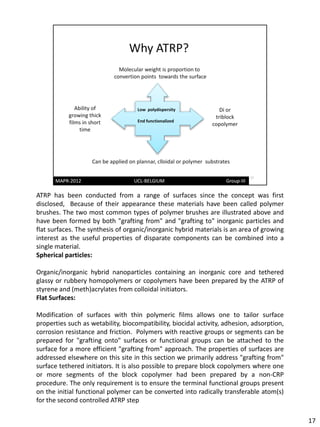

17. ATRP has been conducted from a range of surfaces since the concept was first
disclosed, Because of their appearance these materials have been called polymer
brushes. The two most common types of polymer brushes are illustrated above and
have been formed by both "grafting from" and "grafting to" inorganic particles and
flat surfaces. The synthesis of organic/inorganic hybrid materials is an area of growing
interest as the useful properties of disparate components can be combined into a
single material.
Spherical particles:
Organic/inorganic hybrid nanoparticles containing an inorganic core and tethered
glassy or rubbery homopolymers or copolymers have been prepared by the ATRP of
styrene and (meth)acrylates from colloidal initiators.
Flat Surfaces:
Modification of surfaces with thin polymeric films allows one to tailor surface
properties such as wetability, biocompatibility, biocidal activity, adhesion, adsorption,
corrosion resistance and friction. Polymers with reactive groups or segments can be
prepared for "grafting onto" surfaces or functional groups can be attached to the
surface for a more efficient "grafting from" approach. The properties of surfaces are
addressed elsewhere on this site in this section we primarily address "grafting from"
surface tethered initiators. It is also possible to prepare block copolymers where one
or more segments of the block copolymer had been prepared by a non-CRP
procedure. The only requirement is to ensure the terminal functional groups present
on the initial functional polymer can be converted into radically transferable atom(s)
for the second controlled ATRP step
17

18. 18

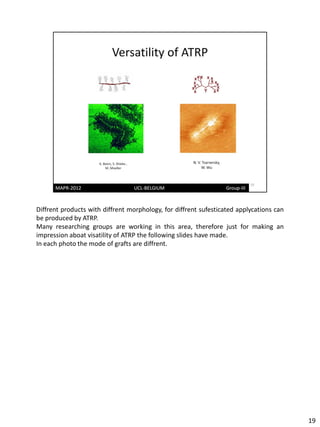

19. Diffrent products with diffrent morphology, for diffrent sufesticated applycations can
be produced by ATRP.
Many researching groups are working in this area, therefore just for making an
impression aboat visatility of ATRP the following slides have made.
In each photo the mode of grafts are diffrent.
19

20. 20

21. 21

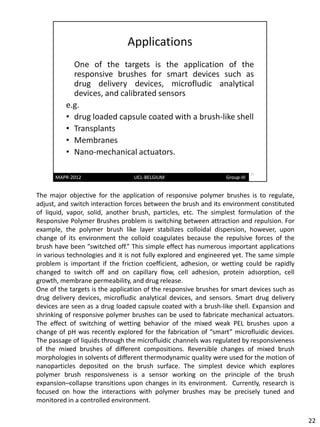

22. The major objective for the application of responsive polymer brushes is to regulate,
adjust, and switch interaction forces between the brush and its environment constituted
of liquid, vapor, solid, another brush, particles, etc. The simplest formulation of the
Responsive Polymer Brushes problem is switching between attraction and repulsion. For
example, the polymer brush like layer stabilizes colloidal dispersion, however, upon
change of its environment the colloid coagulates because the repulsive forces of the
brush have been “switched off.” This simple effect has numerous important applications
in various technologies and it is not fully explored and engineered yet. The same simple
problem is important if the friction coefficient, adhesion, or wetting could be rapidly
changed to switch off and on capillary flow, cell adhesion, protein adsorption, cell
growth, membrane permeability, and drug release.
One of the targets is the application of the responsive brushes for smart devices such as
drug delivery devices, microfludic analytical devices, and sensors. Smart drug delivery
devices are seen as a drug loaded capsule coated with a brush-like shell. Expansion and
shrinking of responsive polymer brushes can be used to fabricate mechanical actuators.
The effect of switching of wetting behavior of the mixed weak PEL brushes upon a
change of pH was recently explored for the fabrication of “smart” microfluidic devices.
The passage of liquids through the microfluidic channels was regulated by responsiveness
of the mixed brushes of different compositions. Reversible changes of mixed brush
morphologies in solvents of different thermodynamic quality were used for the motion of
nanoparticles deposited on the brush surface. The simplest device which explores
polymer brush responsiveness is a sensor working on the principle of the brush
expansion–collapse transitions upon changes in its environment. Currently, research is
focused on how the interactions with polymer brushes may be precisely tuned and
monitored in a controlled environment.
22

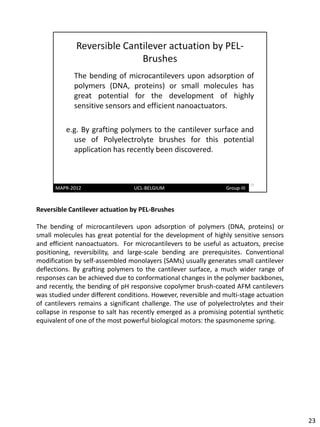

23. Reversible Cantilever actuation by PEL-Brushes
The bending of microcantilevers upon adsorption of polymers (DNA, proteins) or
small molecules has great potential for the development of highly sensitive sensors
and efficient nanoactuators. For microcantilevers to be useful as actuators, precise
positioning, reversibility, and large-scale bending are prerequisites. Conventional
modification by self-assembled monolayers (SAMs) usually generates small cantilever
deflections. By grafting polymers to the cantilever surface, a much wider range of
responses can be achieved due to conformational changes in the polymer backbones,
and recently, the bending of pH responsive copolymer brush-coated AFM cantilevers
was studied under different conditions. However, reversible and multi-stage actuation
of cantilevers remains a significant challenge. The use of polyelectrolytes and their
collapse in response to salt has recently emerged as a promising potential synthetic
equivalent of one of the most powerful biological motors: the spasmoneme spring.
23

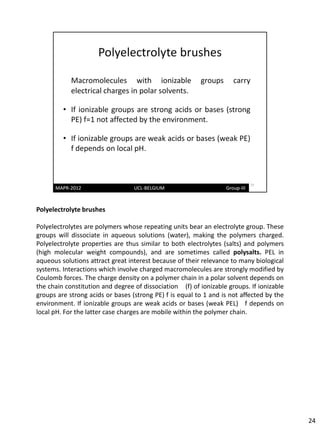

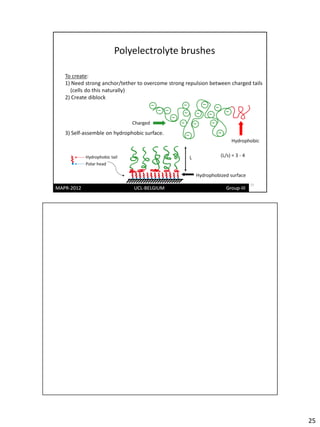

24. Polyelectrolyte brushes
Polyelectrolytes are polymers whose repeating units bear an electrolyte group. These
groups will dissociate in aqueous solutions (water), making the polymers charged.
Polyelectrolyte properties are thus similar to both electrolytes (salts) and polymers
(high molecular weight compounds), and are sometimes called polysalts. PEL in
aqueous solutions attract great interest because of their relevance to many biological
systems. Interactions which involve charged macromolecules are strongly modified by
Coulomb forces. The charge density on a polymer chain in a polar solvent depends on
the chain constitution and degree of dissociation (f) of ionizable groups. If ionizable
groups are strong acids or bases (strong PE) f is equal to 1 and is not affected by the
environment. If ionizable groups are weak acids or bases (weak PEL) f depends on
local pH. For the latter case charges are mobile within the polymer chain.
24

25. 25

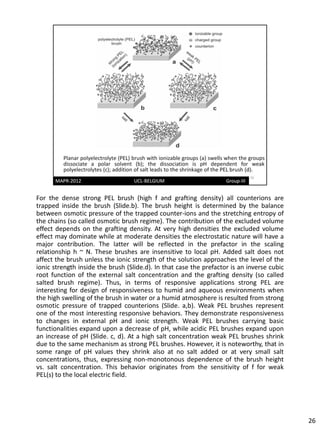

26. For the dense strong PEL brush (high f and grafting density) all counterions are
trapped inside the brush (Slide.b). The brush height is determined by the balance
between osmotic pressure of the trapped counter-ions and the stretching entropy of
the chains (so called osmotic brush regime). The contribution of the excluded volume
effect depends on the grafting density. At very high densities the excluded volume
effect may dominate while at moderate densities the electrostatic nature will have a
major contribution. The latter will be reflected in the prefactor in the scaling
relationship h ~ N. These brushes are insensitive to local pH. Added salt does not
affect the brush unless the ionic strength of the solution approaches the level of the
ionic strength inside the brush (Slide.d). In that case the prefactor is an inverse cubic
root function of the external salt concentration and the grafting density (so called
salted brush regime). Thus, in terms of responsive applications strong PEL are
interesting for design of responsiveness to humid and aqueous environments when
the high swelling of the brush in water or a humid atmosphere is resulted from strong
osmotic pressure of trapped counterions (Slide. a,b). Weak PEL brushes represent
one of the most interesting responsive behaviors. They demonstrate responsiveness
to changes in external pH and ionic strength. Weak PEL brushes carrying basic
functionalities expand upon a decrease of pH, while acidic PEL brushes expand upon
an increase of pH (Slide. c, d). At a high salt concentration weak PEL brushes shrink
due to the same mechanism as strong PEL brushes. However, it is noteworthy, that in
some range of pH values they shrink also at no salt added or at very small salt
concentrations, thus, expressing non-monotonous dependence of the brush height
vs. salt concentration. This behavior originates from the sensitivity of f for weak
PEL(s) to the local electric field.
26

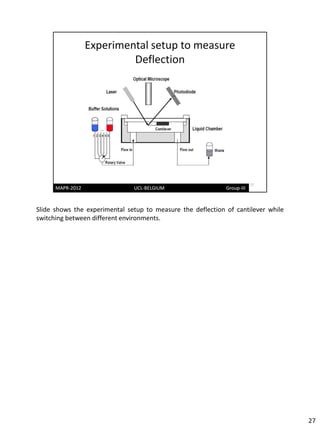

27. Slide shows the experimental setup to measure the deflection of cantilever while
switching between different environments.
27

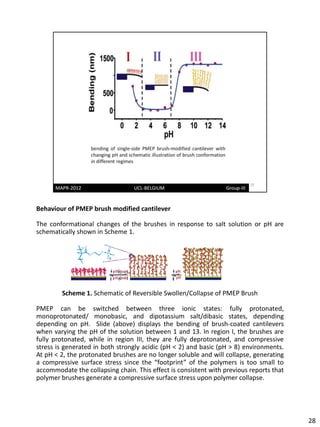

28. Behaviour of PMEP brush modified cantilever
The conformational changes of the brushes in response to salt solution or pH are
schematically shown in Scheme 1.
Scheme 1. Schematic of Reversible Swollen/Collapse of PMEP Brush
PMEP can be switched between three ionic states: fully protonated,
monoprotonated/ monobasic, and dipotassium salt/dibasic states, depending
depending on pH. Slide (above) displays the bending of brush-coated cantilevers
when varying the pH of the solution between 1 and 13. In region I, the brushes are
fully protonated, while in region III, they are fully deprotonated, and compressive
stress is generated in both strongly acidic (pH < 2) and basic (pH > 8) environments.
At pH < 2, the protonated brushes are no longer soluble and will collapse, generating
a compressive surface stress since the “footprint” of the polymers is too small to
accommodate the collapsing chain. This effect is consistent with previous reports that
polymer brushes generate a compressive surface stress upon polymer collapse.
28

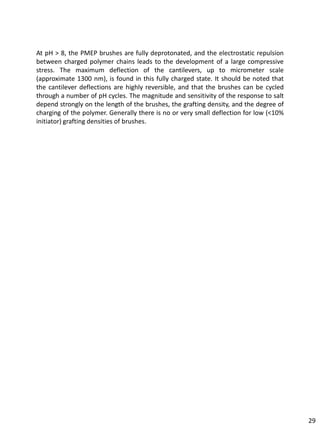

29. At pH > 8, the PMEP brushes are fully deprotonated, and the electrostatic repulsion
between charged polymer chains leads to the development of a large compressive
stress. The maximum deflection of the cantilevers, up to micrometer scale
(approximate 1300 nm), is found in this fully charged state. It should be noted that
the cantilever deflections are highly reversible, and that the brushes can be cycled
through a number of pH cycles. The magnitude and sensitivity of the response to salt
depend strongly on the length of the brushes, the grafting density, and the degree of
charging of the polymer. Generally there is no or very small deflection for low (<10%
initiator) grafting densities of brushes.
29

30. Slide shows the reversible bending and return to equilibrium position of the brush-
coated cantilever when switching between a 100 mM KCl solution and pure water,
respectively. The response of the cantilever to changes of solution is very fast (30 s).
The return to zero deflection upon addition of water is slow due to the slow diffusion
of excess salt away from the brush layer. The compressive stress is generated by the
brushes collapsing under the influence of the high salt environment; this situation is
similar to the compressive stress generated at low pH (see above). The control
experiments (black line) show that non-brush-modified cantilevers show no response
to changes in salt concentration.
30

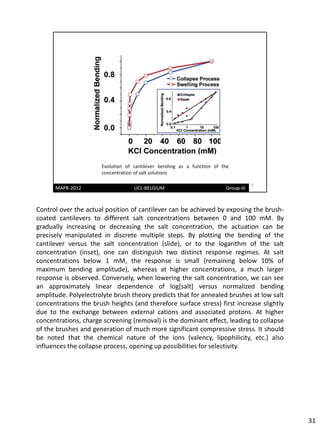

31. Control over the actual position of cantilever can be achieved by exposing the brush-
coated cantilevers to different salt concentrations between 0 and 100 mM. By
gradually increasing or decreasing the salt concentration, the actuation can be
precisely manipulated in discrete multiple steps. By plotting the bending of the
cantilever versus the salt concentration (slide), or to the logarithm of the salt
concentration (inset), one can distinguish two distinct response regimes. At salt
concentrations below 1 mM, the response is small (remaining below 10% of
maximum bending amplitude), whereas at higher concentrations, a much larger
response is observed. Conversely, when lowering the salt concentration, we can see
an approximately linear dependence of log[salt] versus normalized bending
amplitude. Polyelectrolyte brush theory predicts that for annealed brushes at low salt
concentrations the brush heights (and therefore surface stress) first increase slightly
due to the exchange between external cations and associated protons. At higher
concentrations, charge screening (removal) is the dominant effect, leading to collapse
of the brushes and generation of much more significant compressive stress. It should
be noted that the chemical nature of the ions (valency, lipophilicity, etc.) also
influences the collapse process, opening up possibilities for selectivity.
31

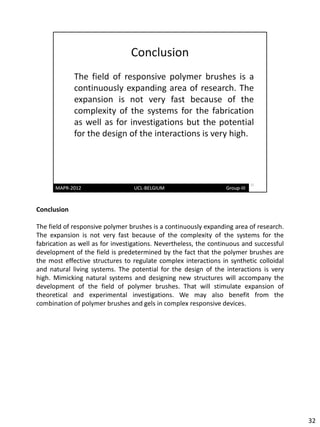

32. Conclusion
The field of responsive polymer brushes is a continuously expanding area of research.
The expansion is not very fast because of the complexity of the systems for the
fabrication as well as for investigations. Nevertheless, the continuous and successful
development of the field is predetermined by the fact that the polymer brushes are
the most effective structures to regulate complex interactions in synthetic colloidal
and natural living systems. The potential for the design of the interactions is very
high. Mimicking natural systems and designing new structures will accompany the
development of the field of polymer brushes. That will stimulate expansion of
theoretical and experimental investigations. We may also benefit from the
combination of polymer brushes and gels in complex responsive devices.
32

33. 33
