1. PLUG-INS UNPLUGGED
Christian Rokitta
Berlin 2016

3. Content
what context structure details exercise

4. APEX Versions vs Plug-in Features
5
4

5. APEX Page States

6. APEX Page States
Generate HTML
Templates, Definitions
Resources
CSS, JS, Images
Dynamic Actions
Inline JS
AJAX Calls (DB)
Submitting Form
Validating
Processing

7. Reasons for Using APEX
declarative: hiding complexity
behind properties; especially
HTML, CSS and JavaScript
catalogue of build-in
components

8. Limitations
common components
evolving standards
evolving browser/device capabilities
users expectations

9. APEX is an Extensible Framework
Add additional
declarative
functionality

10. Plug-in Types
Item
Region
Dynamic Action
Process
Authentication
Authorization

11. Plug-in Types vs Page States

12. Item Type Plug-in
validations

13. Region Type Plug-in
static vs dynamic

14. Dynamic Action Type Plug-in

15. Process Type Plug-in

16. Authorization Type Plug-in

17. Authentication Type Plug-in
Authentication schemes are used to determine if
the user can access the application. As such it is
not run on a page or component level.

18. When to use Plug-ins
not possible with standard
declarative APEX
hiding complexity
reusability (application,
instance, public)
maintainability

19. Skills to build APEX Plug-ins
SQL
PL/SQL

20. Declarative vs Extended Skills

21. Ideal APEX Team

22. Inspiration
write your own
cut-n-paste code
libraries/jQuery Plug-ins
Lots of well-know public available APEX plug-ins
are based on existing JS/jQ solutions

24. https://select2.github.io/

25. Inspiration

26. jQuery Plug-in Wishlist
• JS/CSS files/library
• Doc, HTML Example, how-to, …
• Options (Configuration)
• Methods (API)
• Events

27. http://felicegattuso.com/projects/timedropper/

29. $('#id').timeDropper({mousewheel:true,meridians:true,init_animation:'dropdown',setCurrentTime:false});

30. Common Plug-in Structure
Plugin PL/SQL function signature
• render
• AJAX-callback
PL/SQL Types
• configuration
• state
• parameter passing
APEX PL/SQL API helper
• include JS and CSS files
• …
APEX JavaScript API
• initiate AJAX calls
• …

31. Render Function
function <name of function> (
p_<type> in apex_plugin.t_<type>
, p_plugin in apex_plugin.t_plugin
[, p_...]
) return
apex_plugin.t_<type>_render_result

32. apex_plugin.t_<type>
type t_<type> is record (
<param n>
…
, <param n>
, attribute_01 varchar2(32767)
…
, attribute_NN varchar2(32767)
);
std. declarative
attributes
additional plug-in
specific attributes
(page component)
APEX Version dependencies

33. apex_plugin.t_plugin
type t_plugin is record (
name varchar2(45),
file_prefix varchar2(4000),
attribute_01 varchar2(32767),
… ,
attribute_15 varchar2(32767) );
APEX 4 max 10 attr.
additional plug-in
specific attributes
application level
(Component Settings)

34. Item Type Render Function
function <name of function> (
p_item in apex_plugin.t_item_item
, p_plugin in apex_plugin.t_plugin
, p_value in varchar2
, p_is_readonly in boolean
, p_is_printer_friendly in boolean
) return
apex_plugin.t_page_item_render_result

35. t_page_item
type t_page_item is record ( id number
, name varchar2(255)
, label varchar2(4000)
, plain_label varchar2(4000)
, label_id varchar2(255)
, placeholder varchar2(255)
, format_mask varchar2(255)
, is_required boolean
, lov_definition varchar2(4000)
, lov_display_extra boolean
, lov_display_null boolean
, lov_null_text varchar2(255)
, lov_null_value varchar2(255)
, lov_cascade_parent_items varchar2(255)
, ajax_items_to_submit varchar2(255)
, ajax_optimize_refresh boolean
, element_width number
, element_max_length number
, element_height number
, element_css_classes varchar2(255)
, element_attributes varchar2(2000)
, element_option_attributes varchar2(4000)
, escape_output boolean
, attribute_01 varchar2(32767)
, …
, attribute_15 varchar2(32767));

36. Coding the Render Function
generate HTML for object
include assets (JS, CSS, …)
generate JS snippets

37. Coding the 3 Simple Steps
sys.htp.p('<input type="text" id="'||p_page_item.id||
' name="'||p_page_item.name||'" />');
apex_javascript.add_onload_code (
p_code => '$( "#'||p_page_item.id||'" ).timeDropper();'
,p_key => null );
apex_javascript.add_library (p_name => 'timedropper'
, p_directory => p_plugin.file_prefix
, p_check_to_add_minified => true );
apex_css.add_file (p_name => 'timefropper'
, p_directory => p_plugin.file_prefix );

38. Basic Demo Render Function
function render_timedropper(p_item in apex_plugin.t_page_item
, p_plugin in apex_plugin.t_plugin
, p_value in varchar2
, p_is_readonly in boolean
, p_is_printer_friendly in boolean)
return apex_plugin.t_page_item_render_result
is
v_result apex_plugin.t_page_item_render_result;
begin
apex_javascript.add_library(p_name => 'timedropper‘
, p_directory => p_plugin.file_prefix, p_check_to_add_minified => true);
apex_css.add_file(p_name => 'timefropper', p_directory => p_plugin.file_prefix);
sys.htp.p('<input type="text" id="' || p_page_item.id || '" name="' || p_page_item || '" />');
apex_javascript.add_onload_code(p_code => '$( "#' || p_page_item.id || '" ).timeDropper();', p_key => null);
return v_result;
end;

40. Beyond Basic Render Function
item (component) std. attributes
validation (for item type plugin)
AJAX Callback

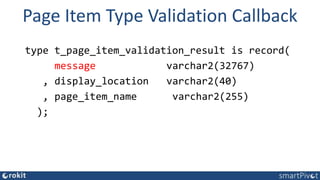

41. Page Item Type Validation Callback
type t_page_item_validation_result is record(
message varchar2(32767)
, display_location varchar2(40)
, page_item_name varchar2(255)
);

42. Plug-in AJAX Callback
function <name of function> (
p_<type> in apex_plugin.t_<type>,
p_plugin in apex_plugin.t_plugin )
return apex_plugin.t_<type>_ajax_result

43. Callin the AJAX Callback
apex.server.plugin ( pAjaxIdentifier, { /*apex_plugin.get_ajax_identifier*/
x01-10: "...",
pageItems: "#P1_DEPTNO,#P1_EMPNO"
}, {
refreshObject: "#P1_MY_LIST",
loadingIndicator: "#P1_MY_LIST",
success: function( pData ) { ... do something ... },
any jQuery.ajax option,
});

44. sponsered demo

46. Q&A
