Introduction to JavaScript for APEX Developers - Module 2: Adding JavaScript to APEX Apps

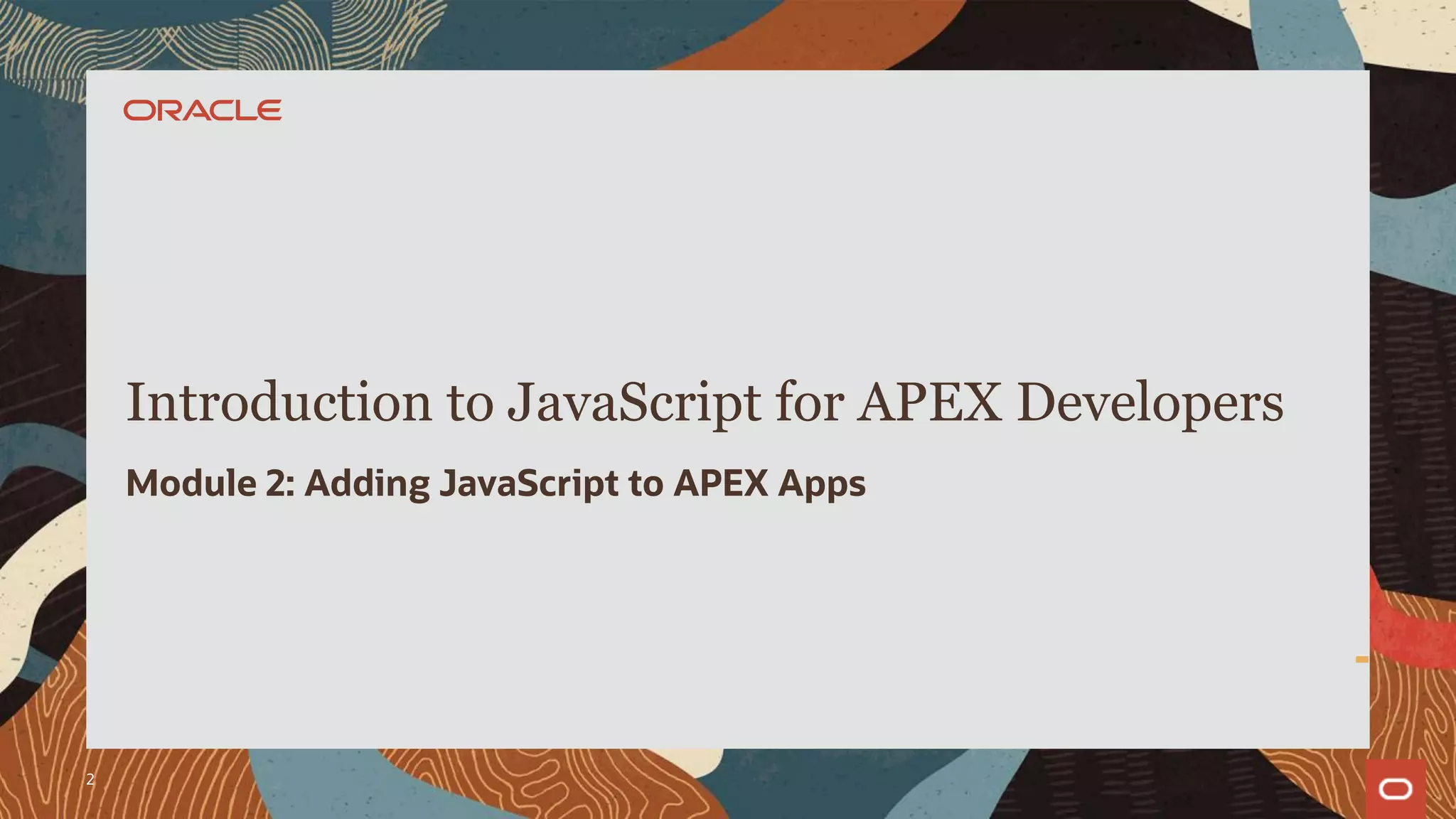

- 2. Introduction to JavaScriptfor APEX Developers Module 2: Adding JavaScript to APEX Apps 2
- 3. Dynamic Actions Agenda 1 2 3 4 Dynamic Actionswith JavaScript hooks Page and component level attributes Static files 3

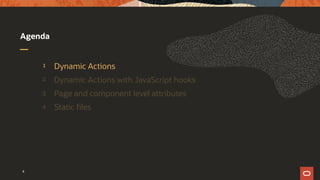

- 4.

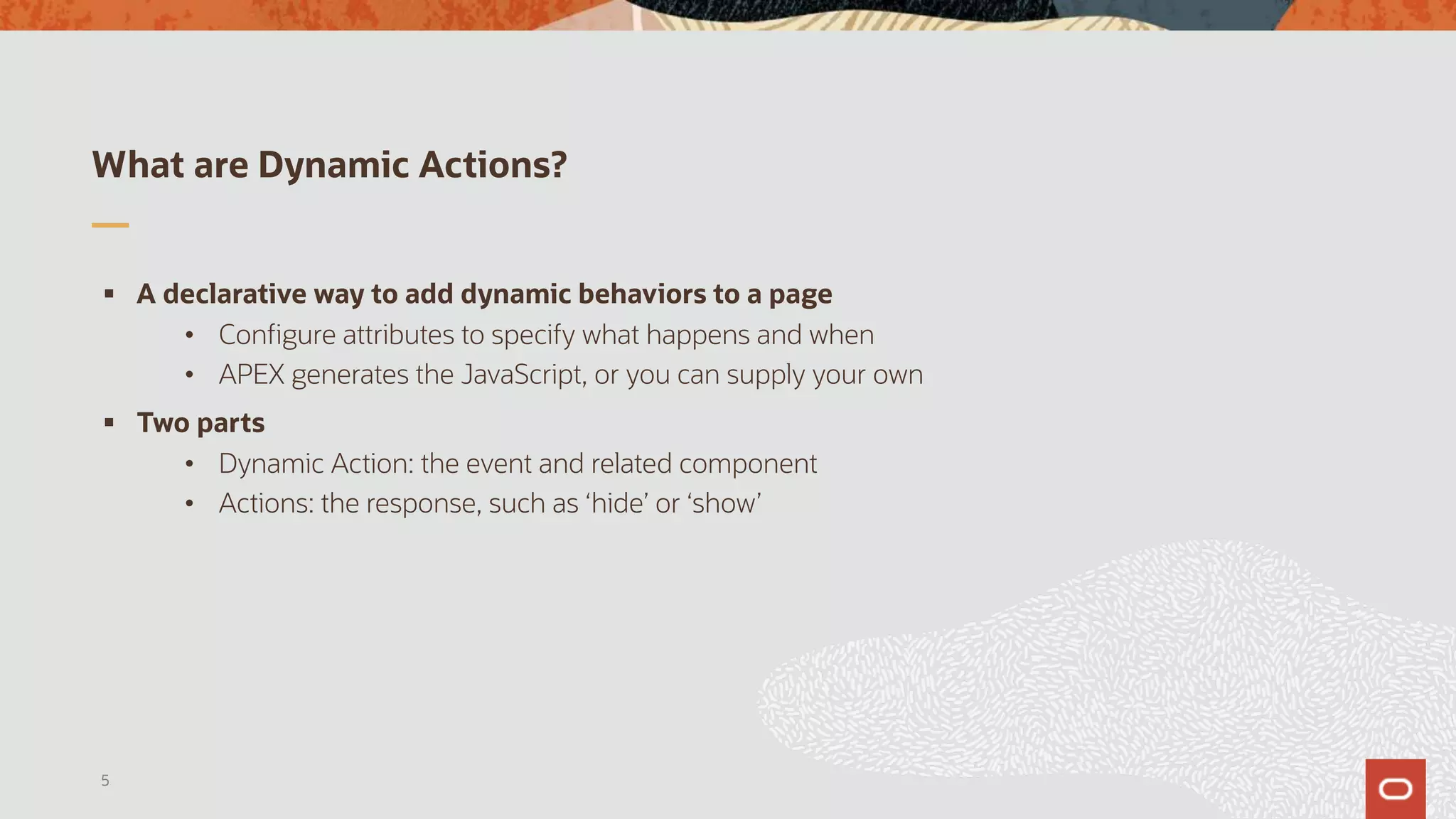

- 5. What are DynamicActions? § A declarative way to add dynamic behaviors to a page • Configure attributes to specify what happens and when • APEX generates the JavaScript, or you can supply your own § Two parts • Dynamic Action: the event and related component • Actions: the response, such as ‘hide’ or ‘show’ 5

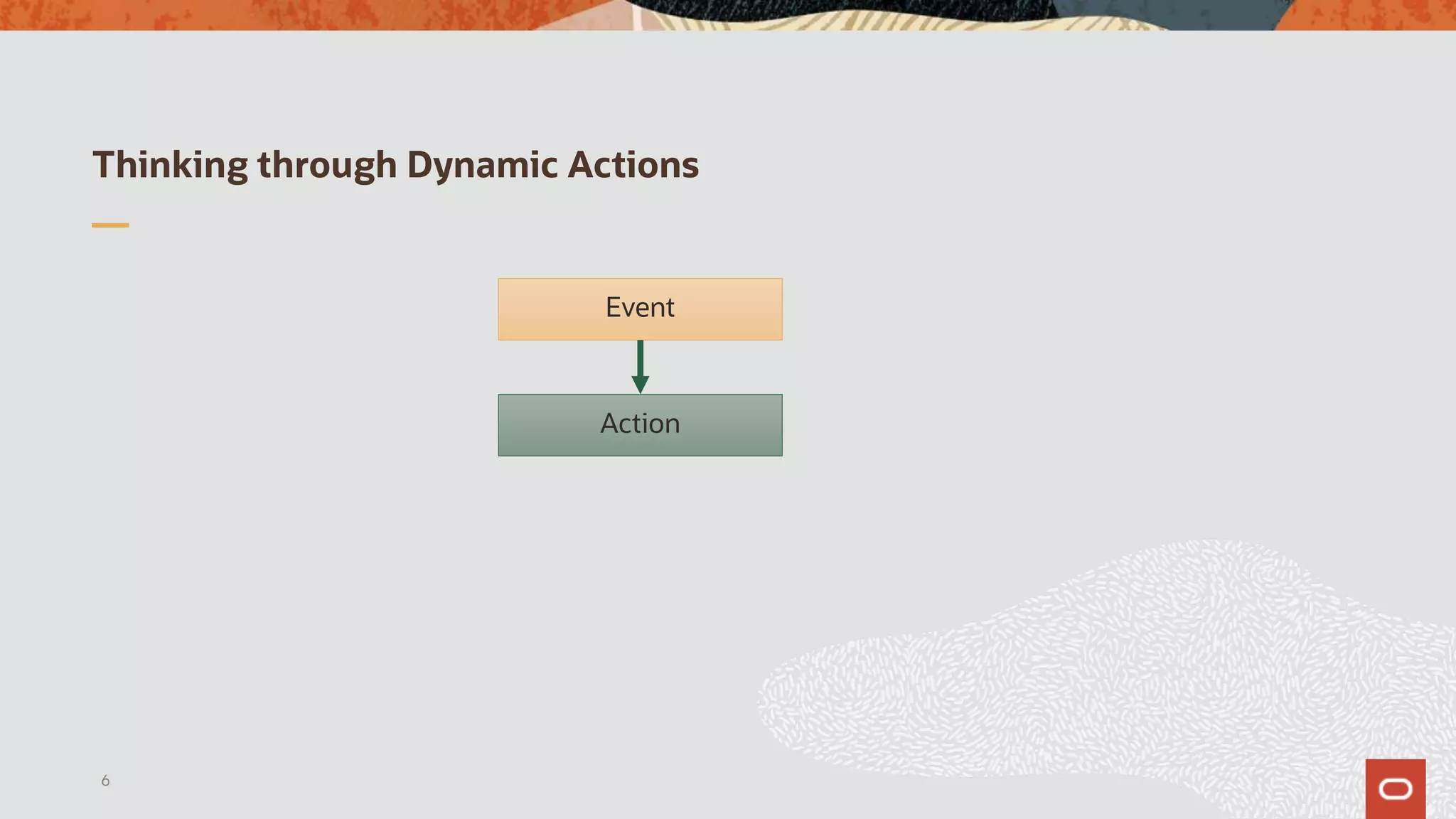

- 6. Thinking through DynamicActions 6 Action Event

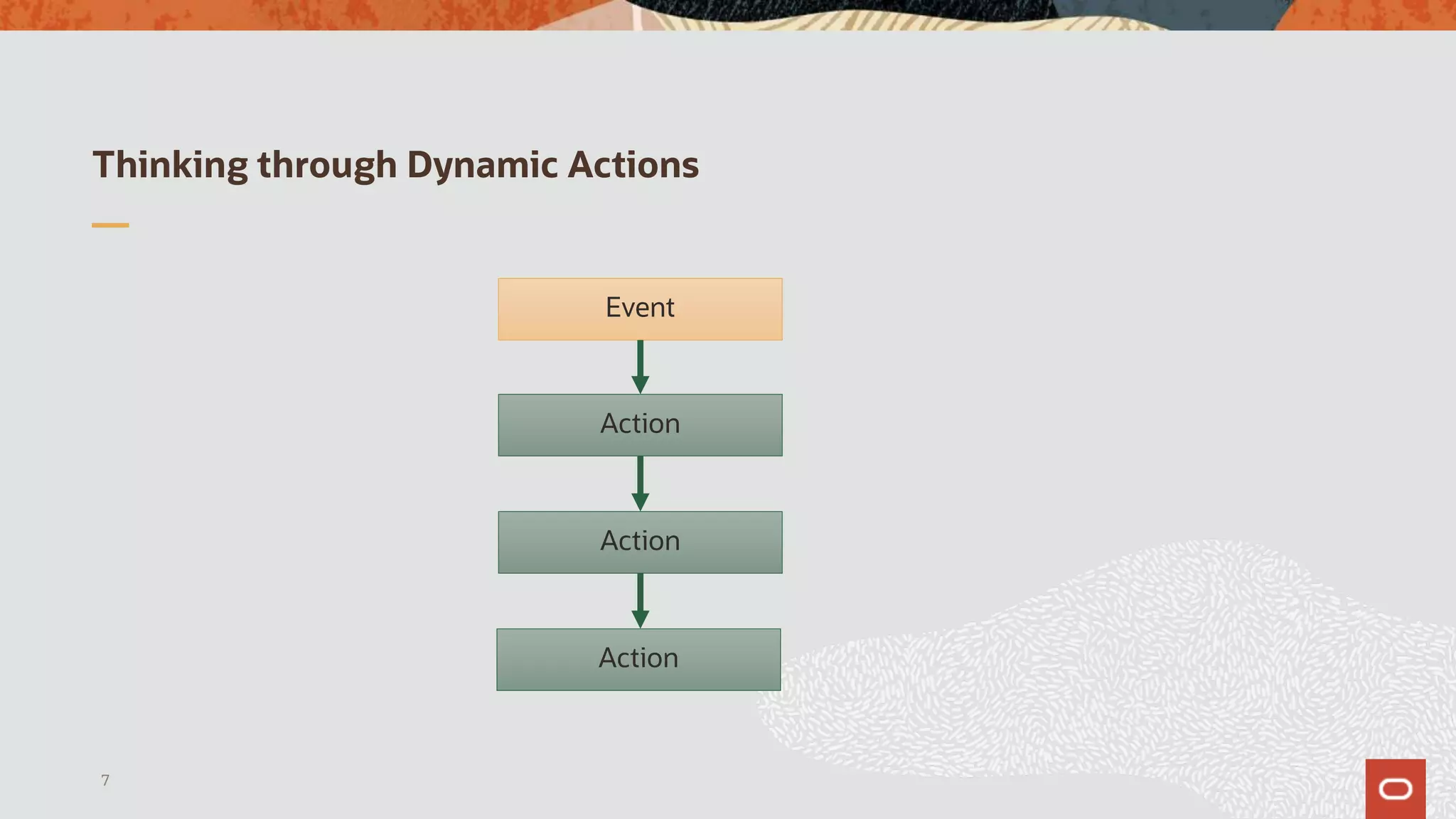

- 7. Thinking through DynamicActions 7 Action Event Action Action

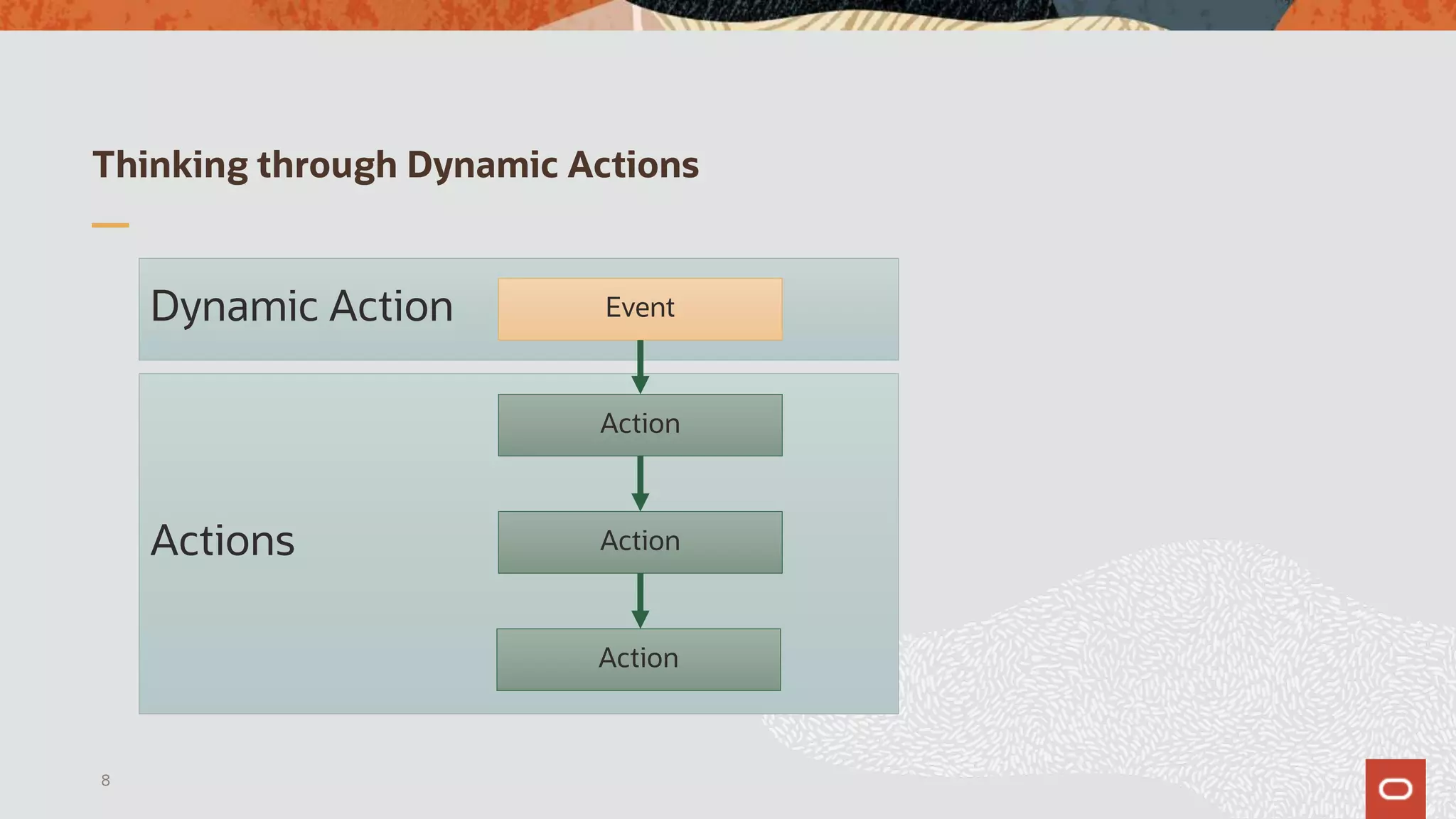

- 8. Thinking through DynamicActions 8 Actions Dynamic Action Action Event Action Action

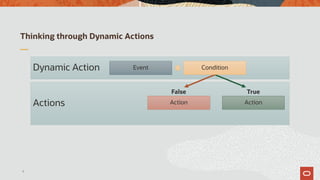

- 9. Thinking through DynamicActions 9 Actions Dynamic Action ActionAction ConditionEvent False True

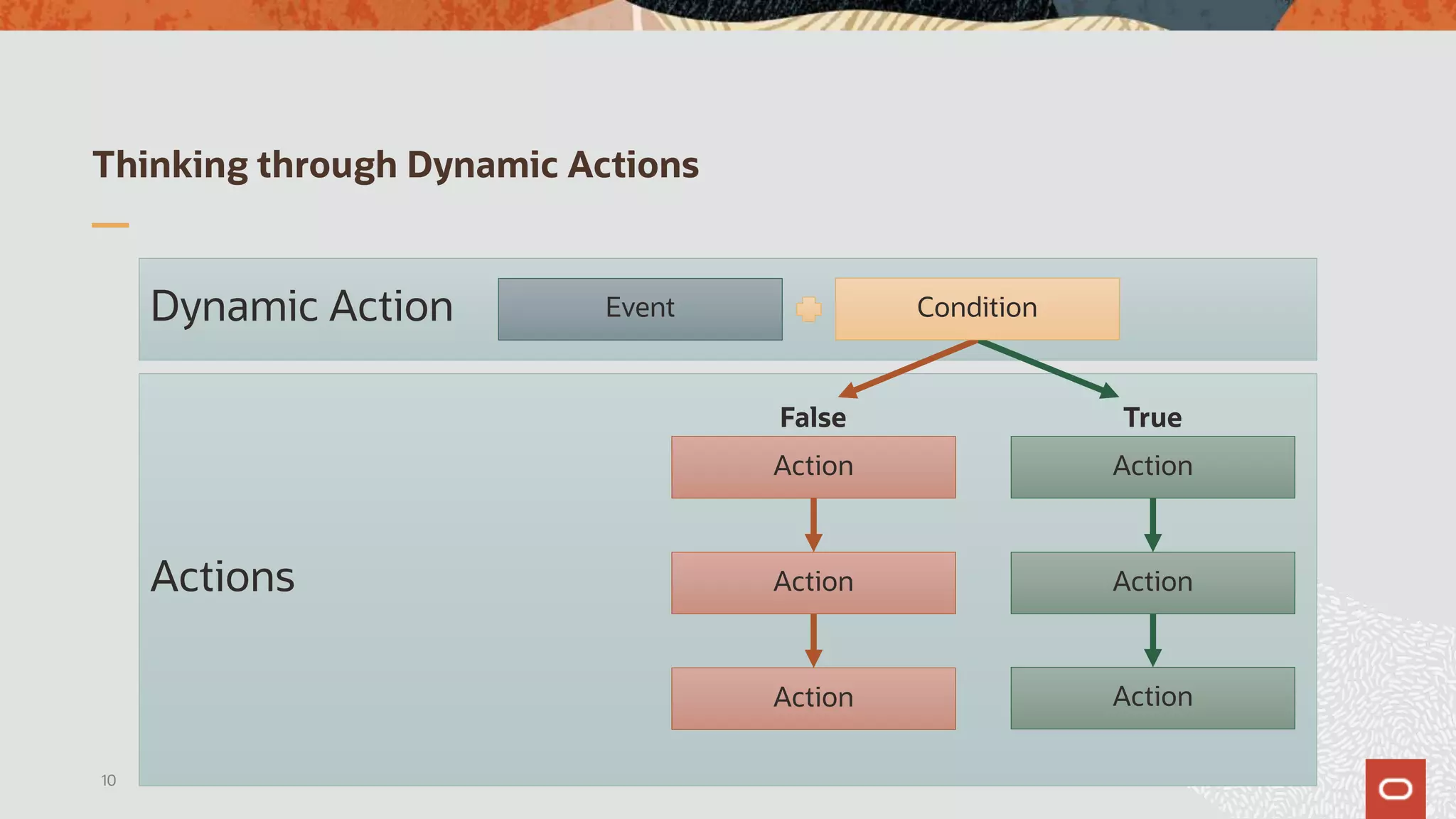

- 10. Thinking through DynamicActions 10 Actions Dynamic Action ActionAction ConditionEvent False True Action Action Action Action

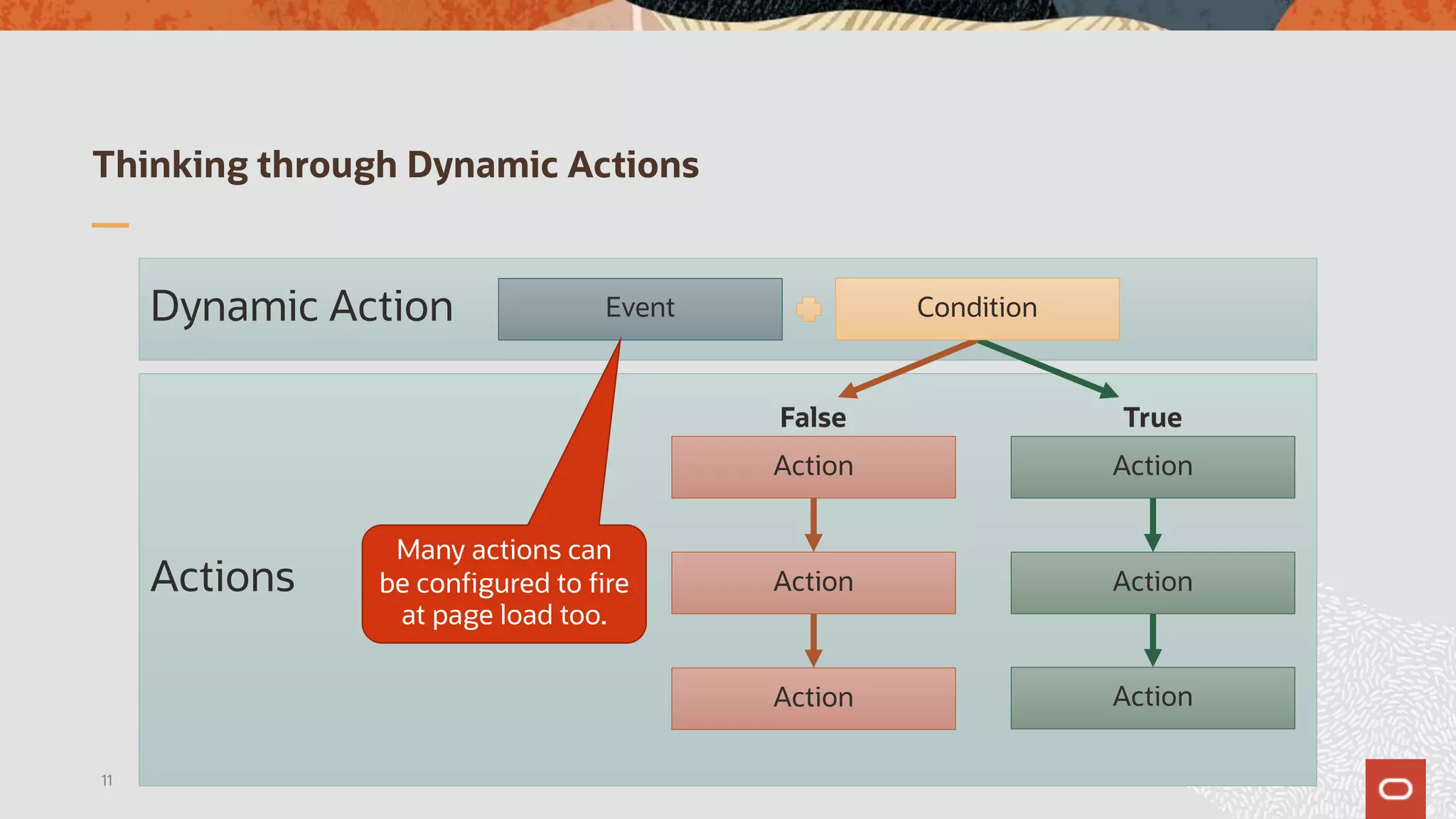

- 11. Thinking through DynamicActions 11 Actions Dynamic Action ActionAction ConditionEvent False True Action Action Action Action Many actions can be configured to fire at page load too.

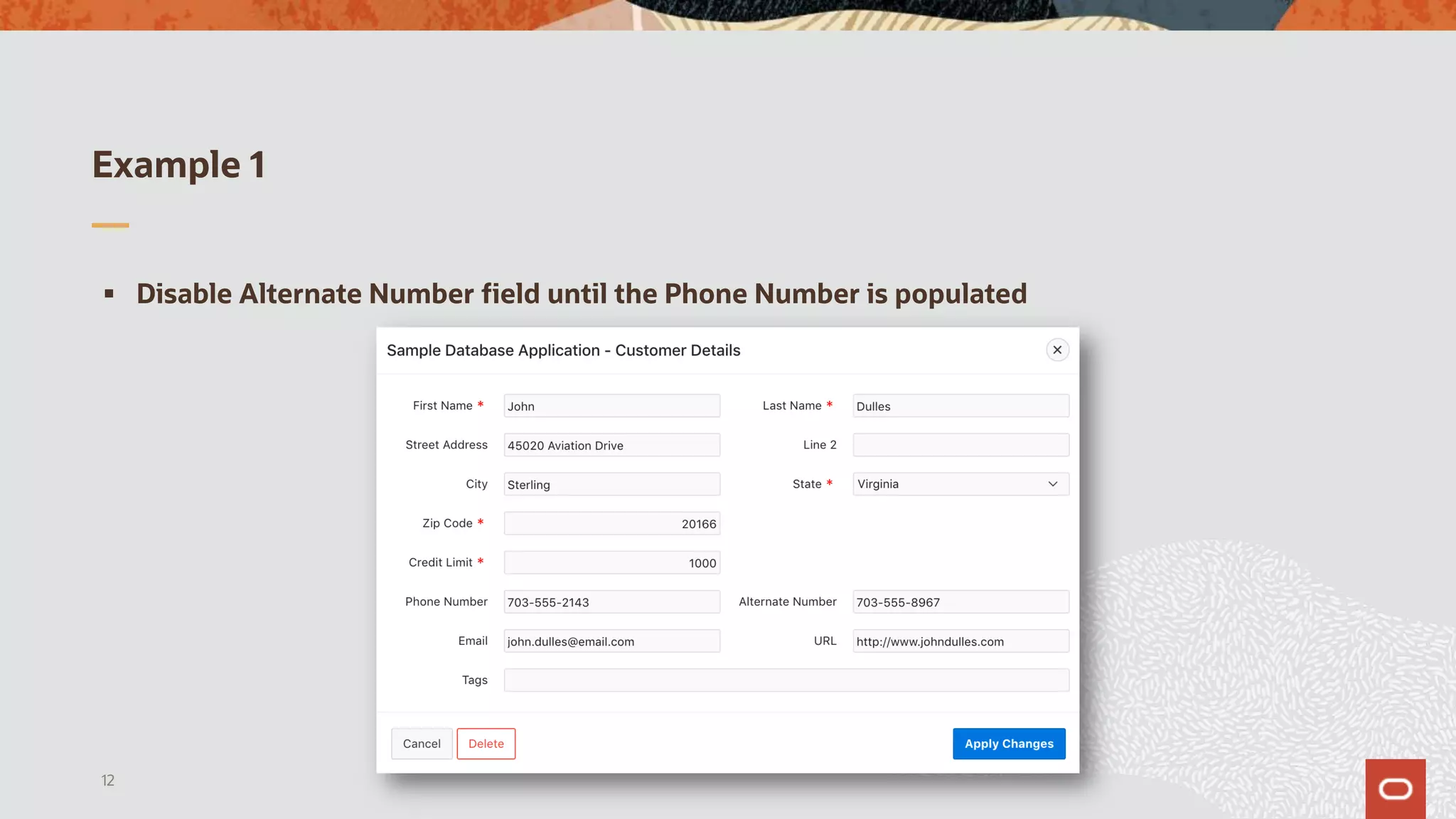

- 12. Example 1 § DisableAlternate Number field until the Phone Number is populated 12

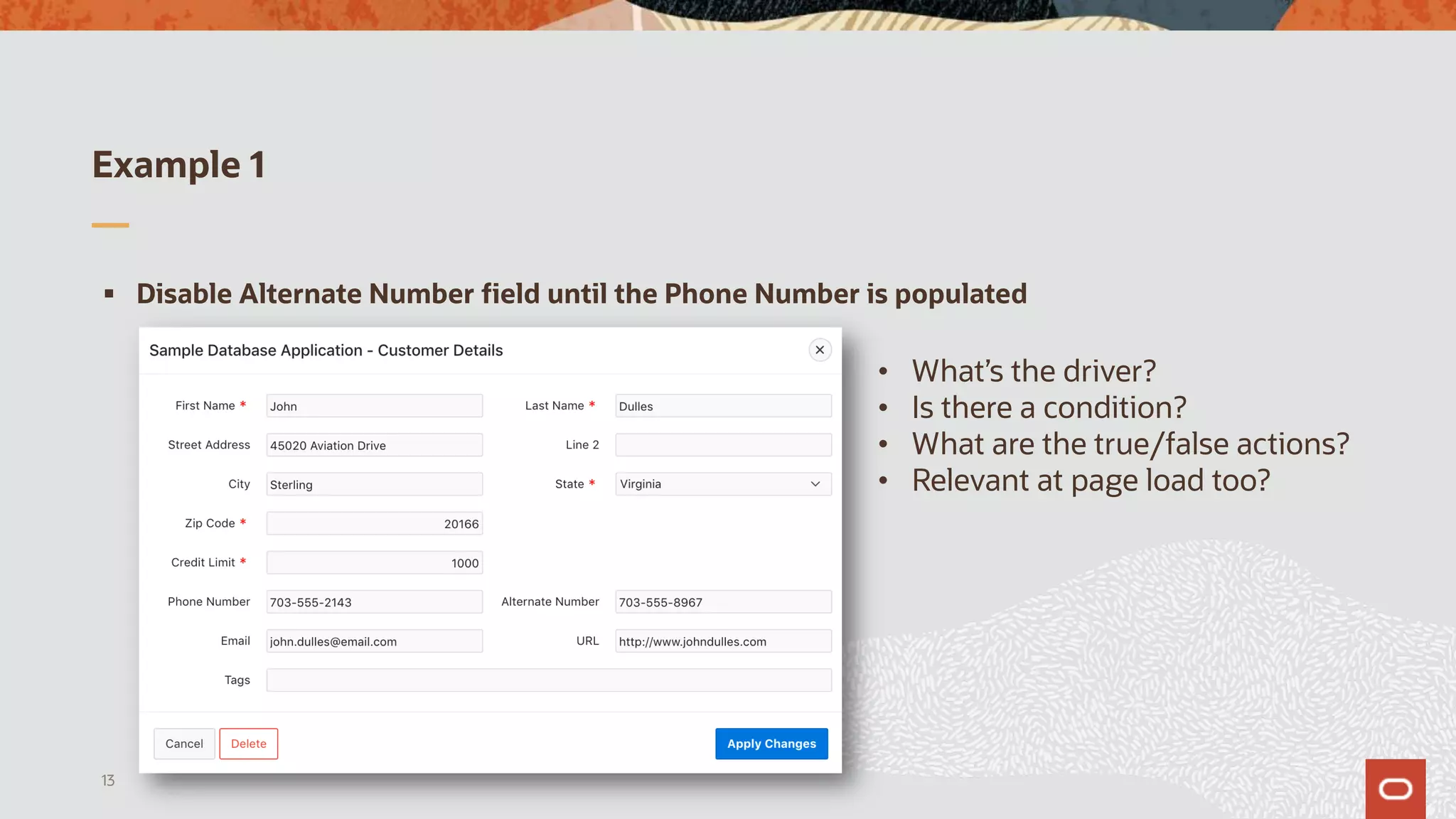

- 13. Example 1 § DisableAlternate Number field until the Phone Number is populated 13 • What’s the driver? • Is there a condition? • What are the true/false actions? • Relevant at page load too?

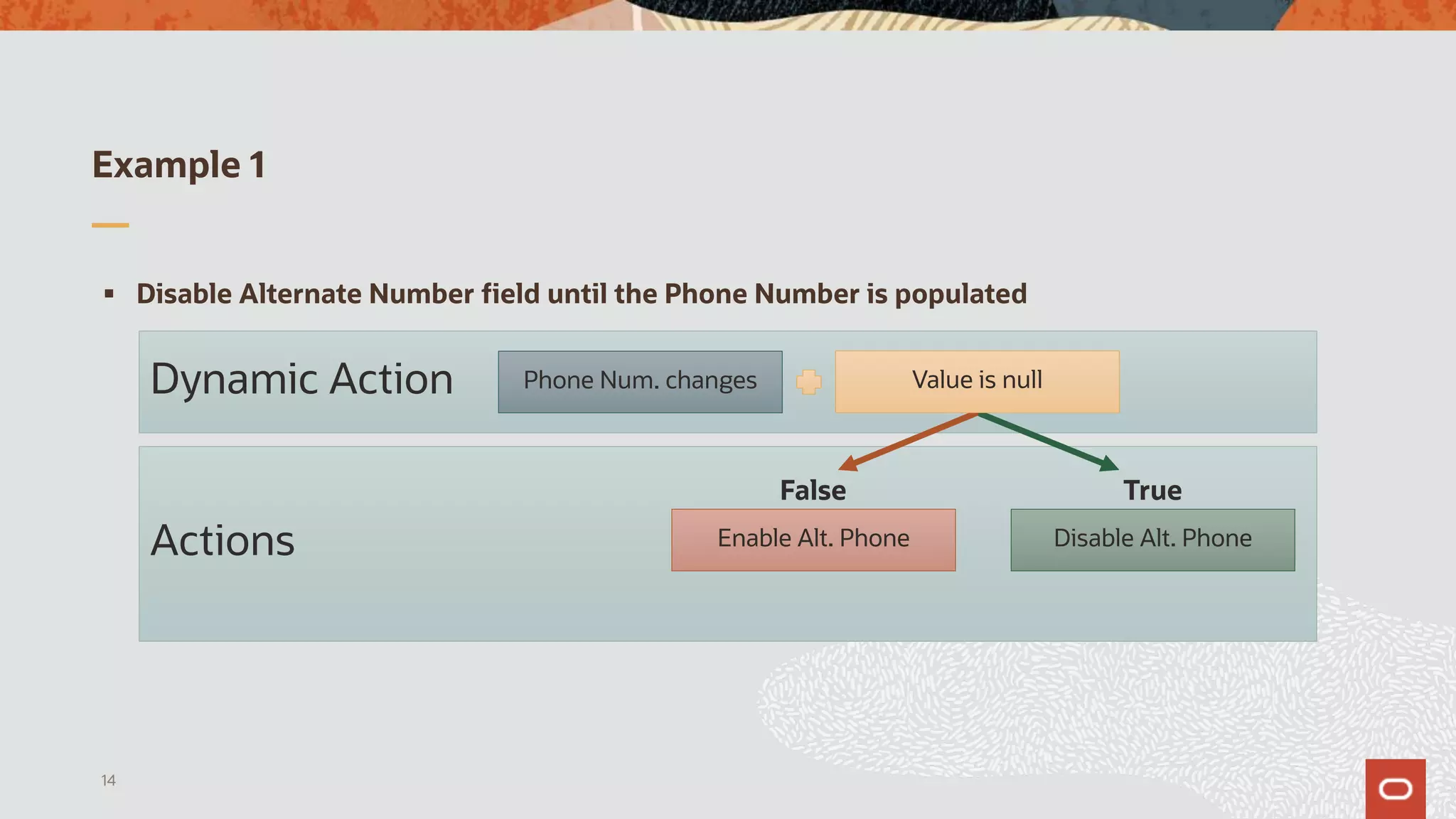

- 14. Example 1 § DisableAlternate Number field until the Phone Number is populated 14 Actions Dynamic Action Disable Alt. PhoneEnable Alt. Phone Value is nullPhone Num. changes False True

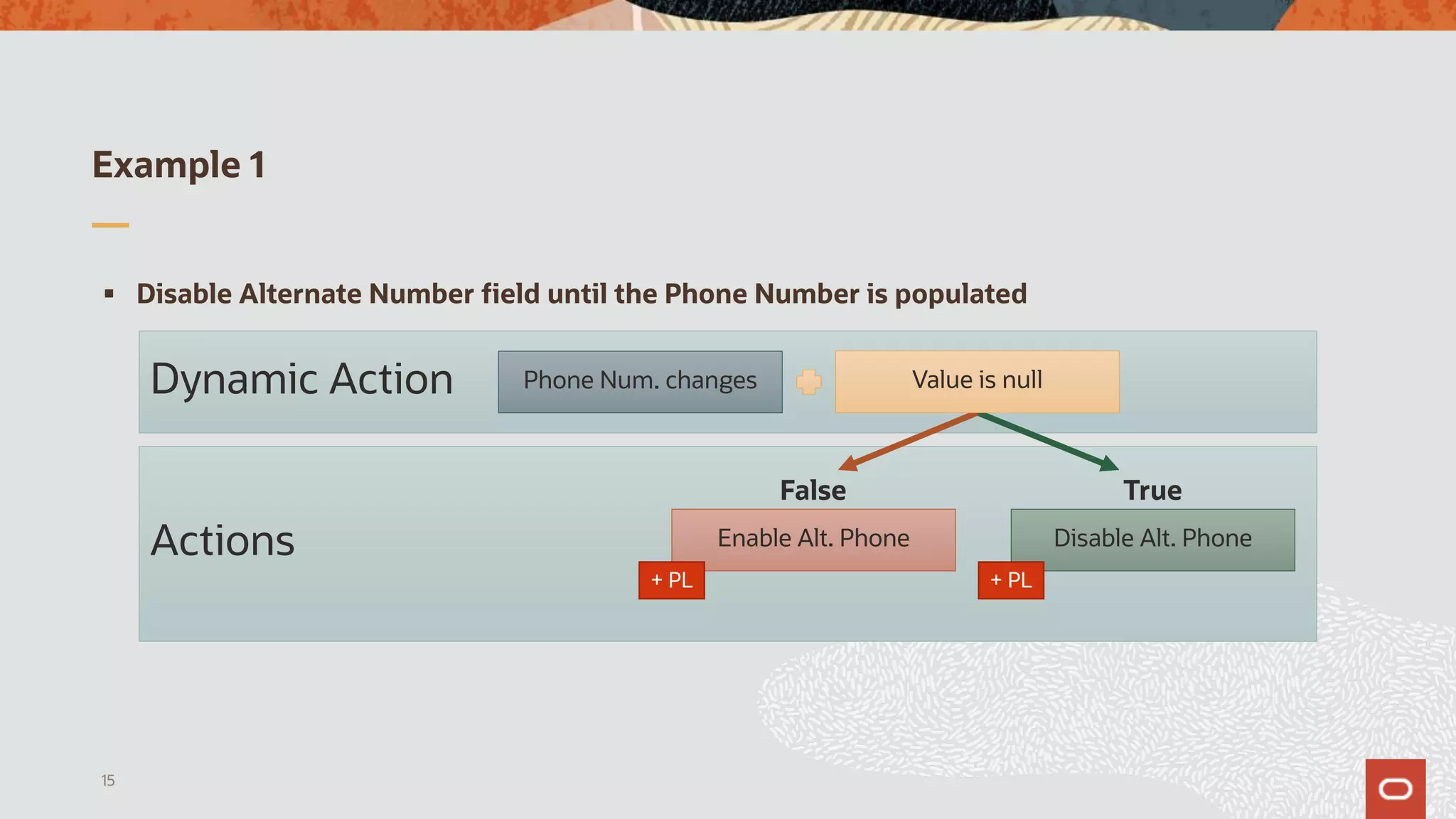

- 15. Example 1 § DisableAlternate Number field until the Phone Number is populated 15 Actions Dynamic Action Disable Alt. PhoneEnable Alt. Phone Value is nullPhone Num. changes False True + PL + PL

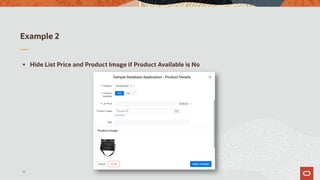

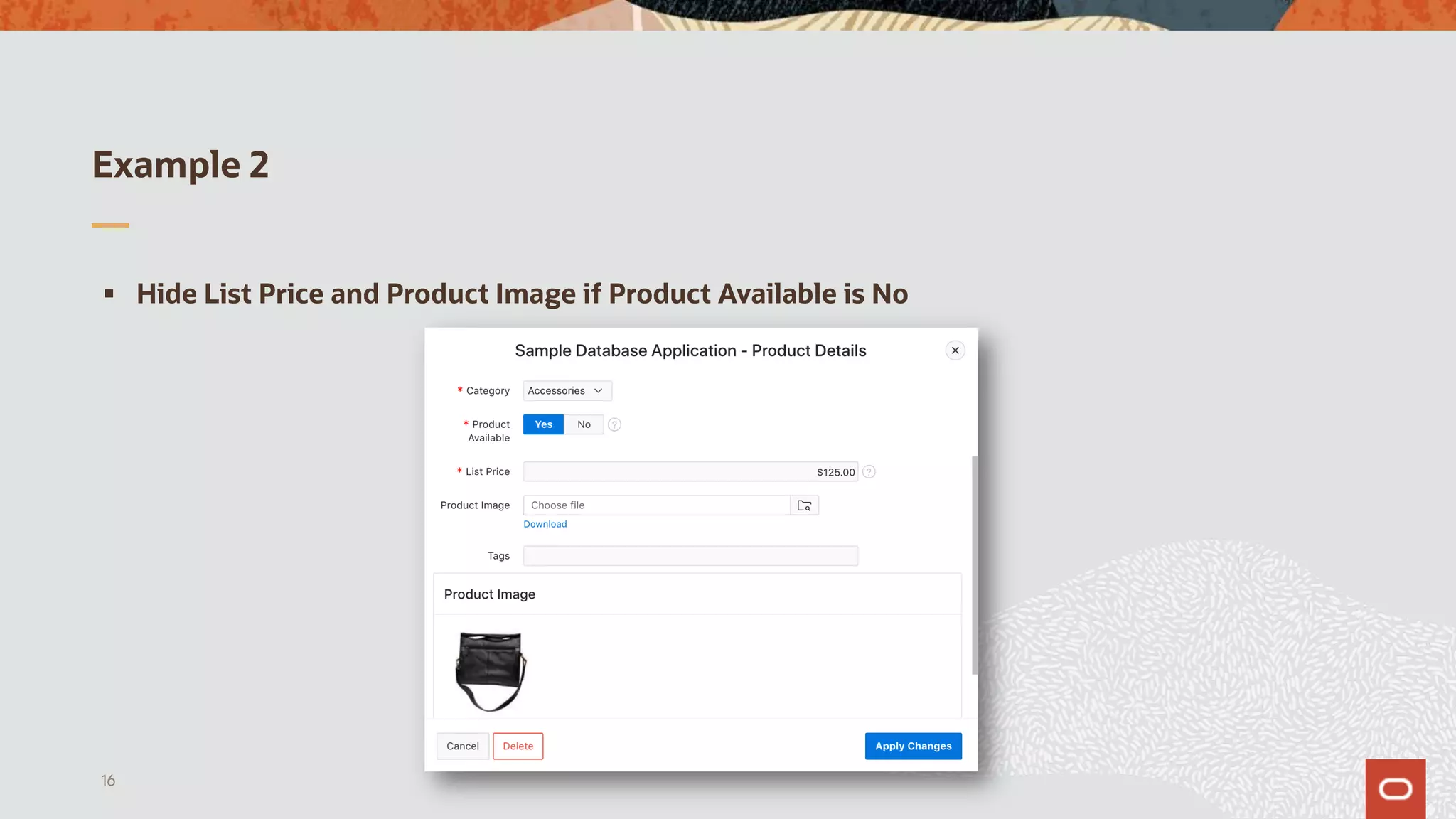

- 16. Example 2 § HideList Price and Product Image if Product Available is No 16

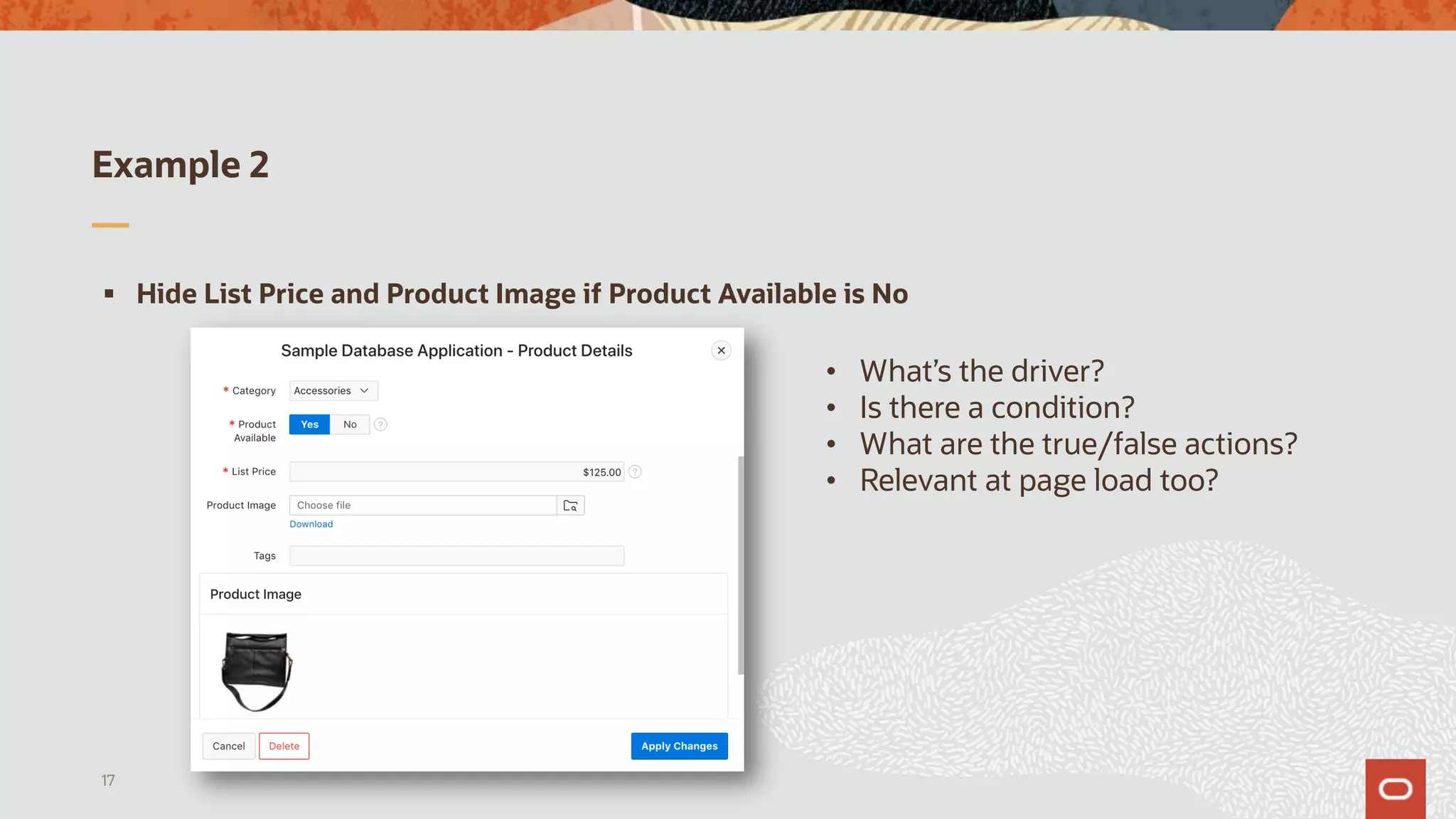

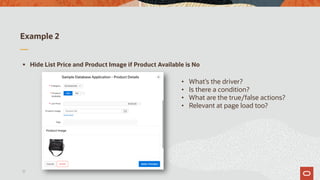

- 17. Example 2 § HideList Price and Product Image if Product Available is No 17 • What’s the driver? • Is there a condition? • What are the true/false actions? • Relevant at page load too?

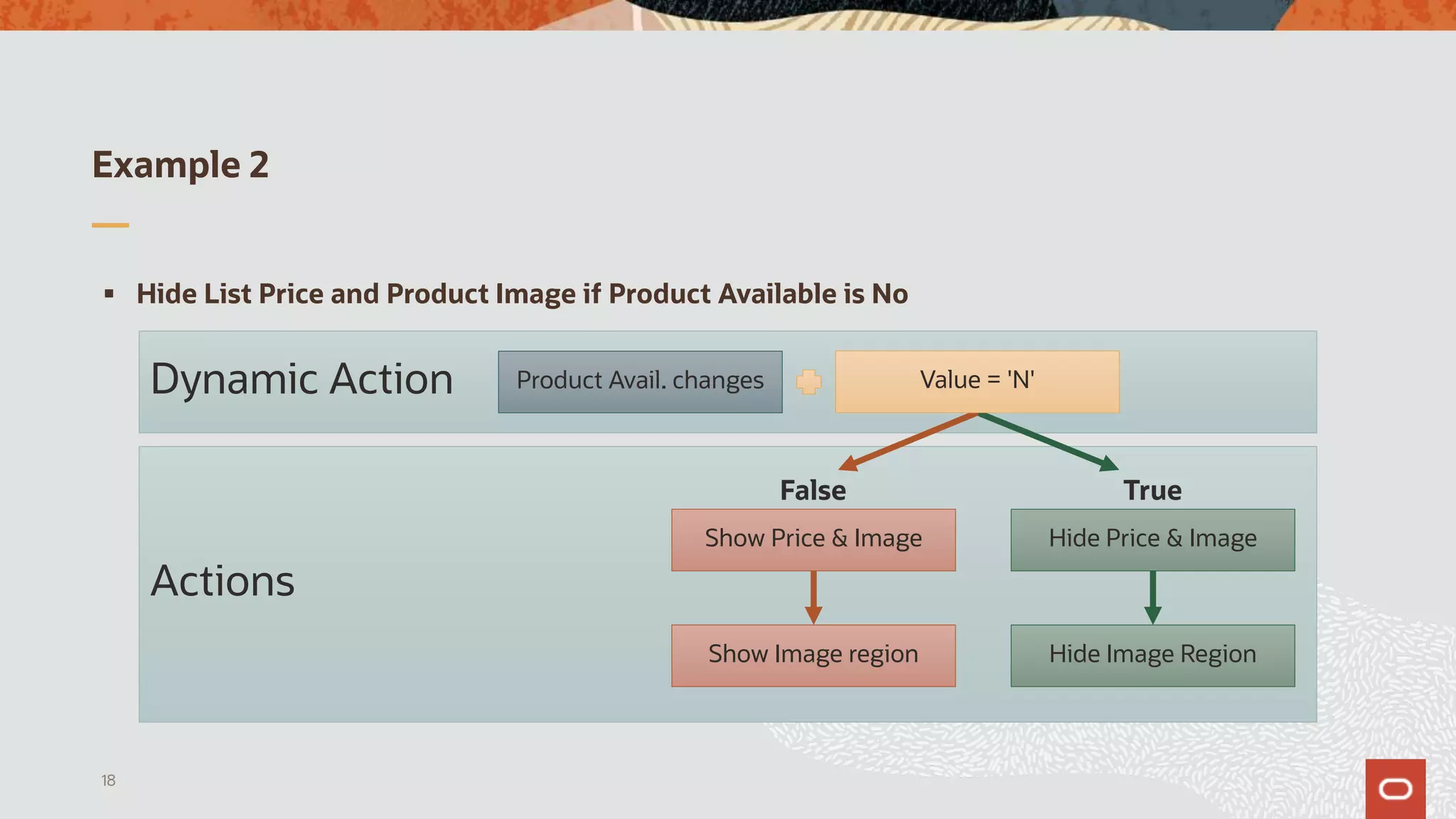

- 18. Example 2 § HideList Price and Product Image if Product Available is No 18 Actions Dynamic Action Hide Price & ImageShow Price & Image Value = 'N'Product Avail. changes False True Show Image region Hide Image Region

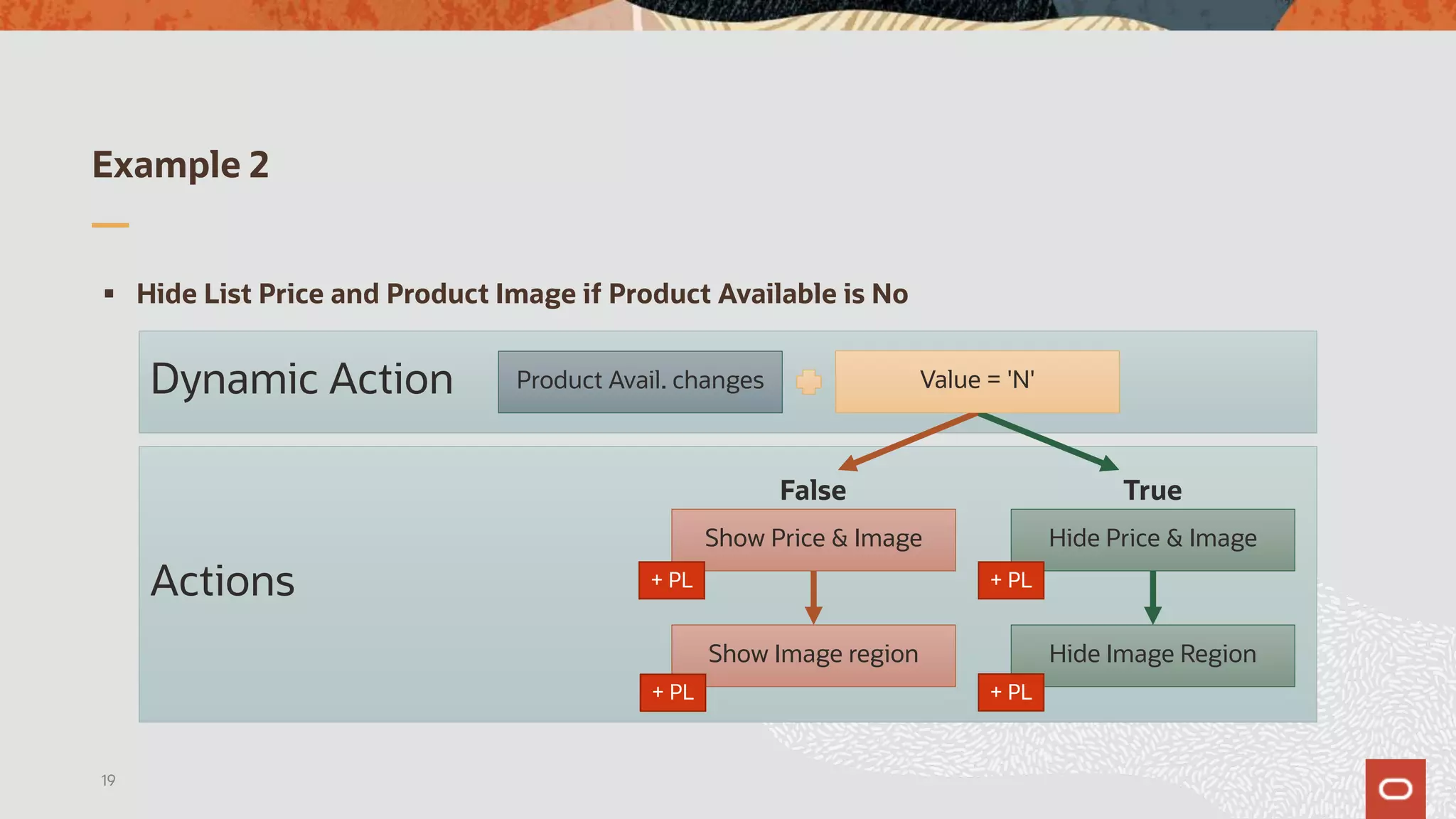

- 19. Example 2 § HideList Price and Product Image if Product Available is No 19 Actions Dynamic Action Hide Price & ImageShow Price & Image Value = 'N'Product Avail. changes False True Show Image region Hide Image Region + PL + PL + PL + PL

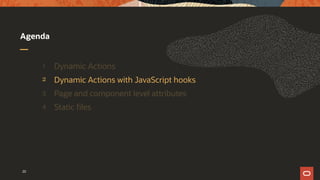

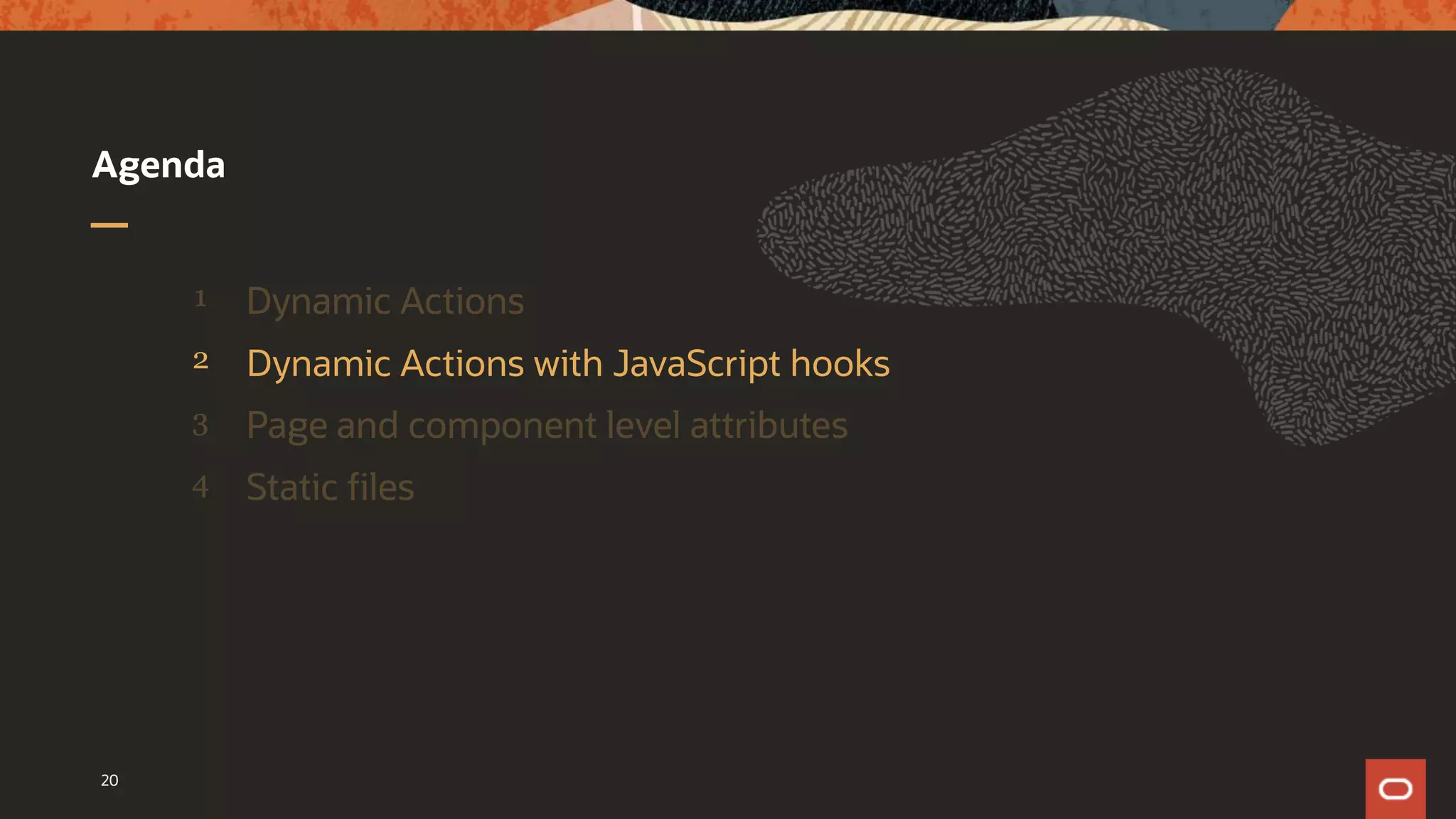

- 20. Agenda 2 Dynamic Actionswith JavaScript hooks 20
- 21. Dynamic Actions withJavaScript hooks § Dynamic Actions can’t cover everything • Hooks are provided to extend capabilities • Requires basic knowledge of JavaScript to use § Probably the sweet spot for most APEX developers 21

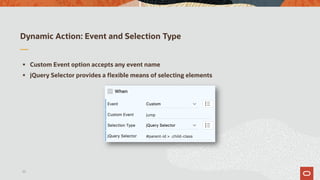

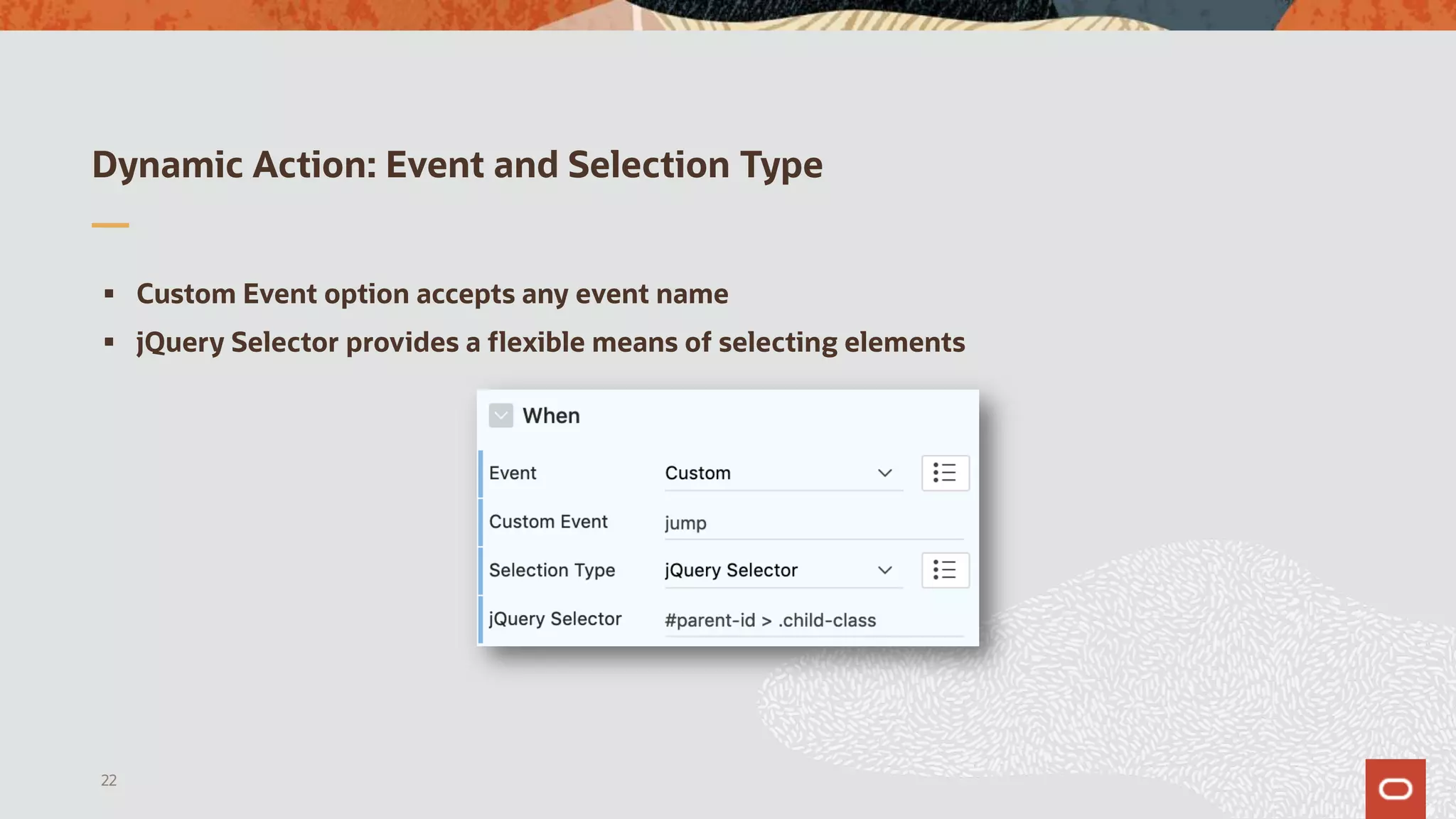

- 22. Dynamic Action: Eventand Selection Type § Custom Event option accepts any event name § jQuery Selector provides a flexible means of selecting elements 22

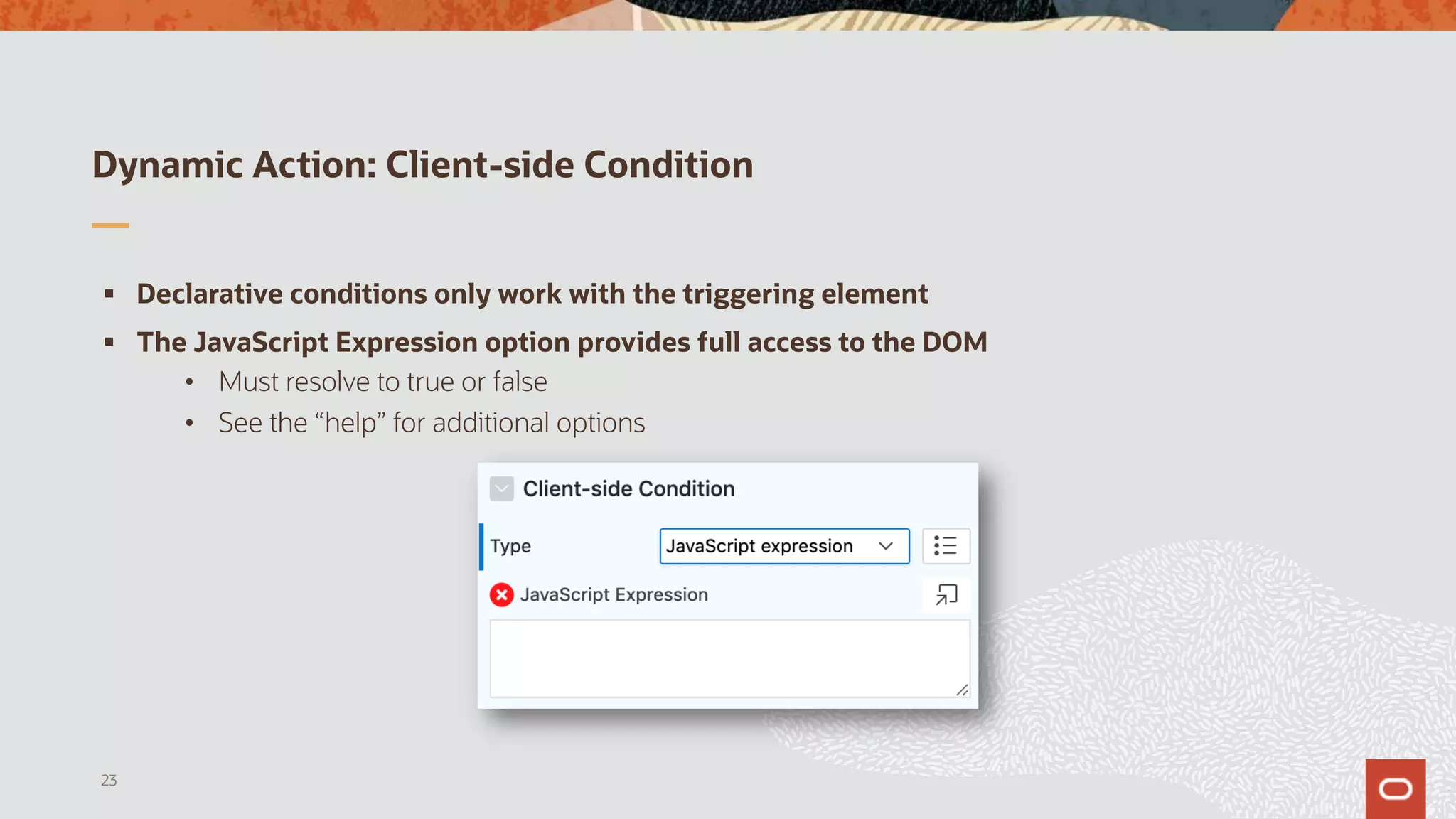

- 23. Dynamic Action: Client-sideCondition § Declarative conditions only work with the triggering element § The JavaScript Expression option provides full access to the DOM • Must resolve to true or false • See the “help” for additional options 23

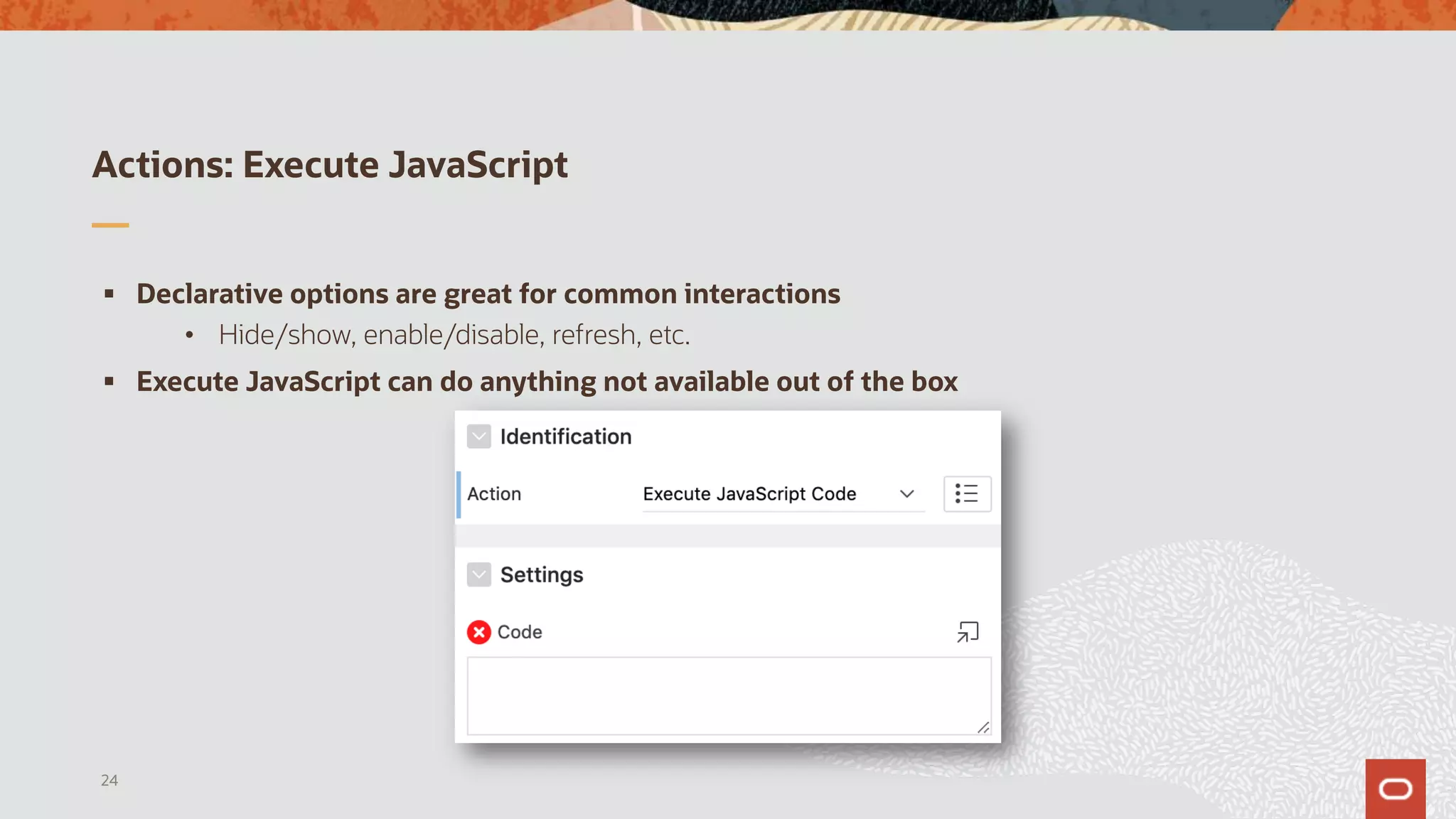

- 24. Actions: Execute JavaScript §Declarative options are great for common interactions • Hide/show, enable/disable, refresh, etc. § Execute JavaScript can do anything not available out of the box 24
- 25. Agenda 3 Page andcomponent level attributes 25

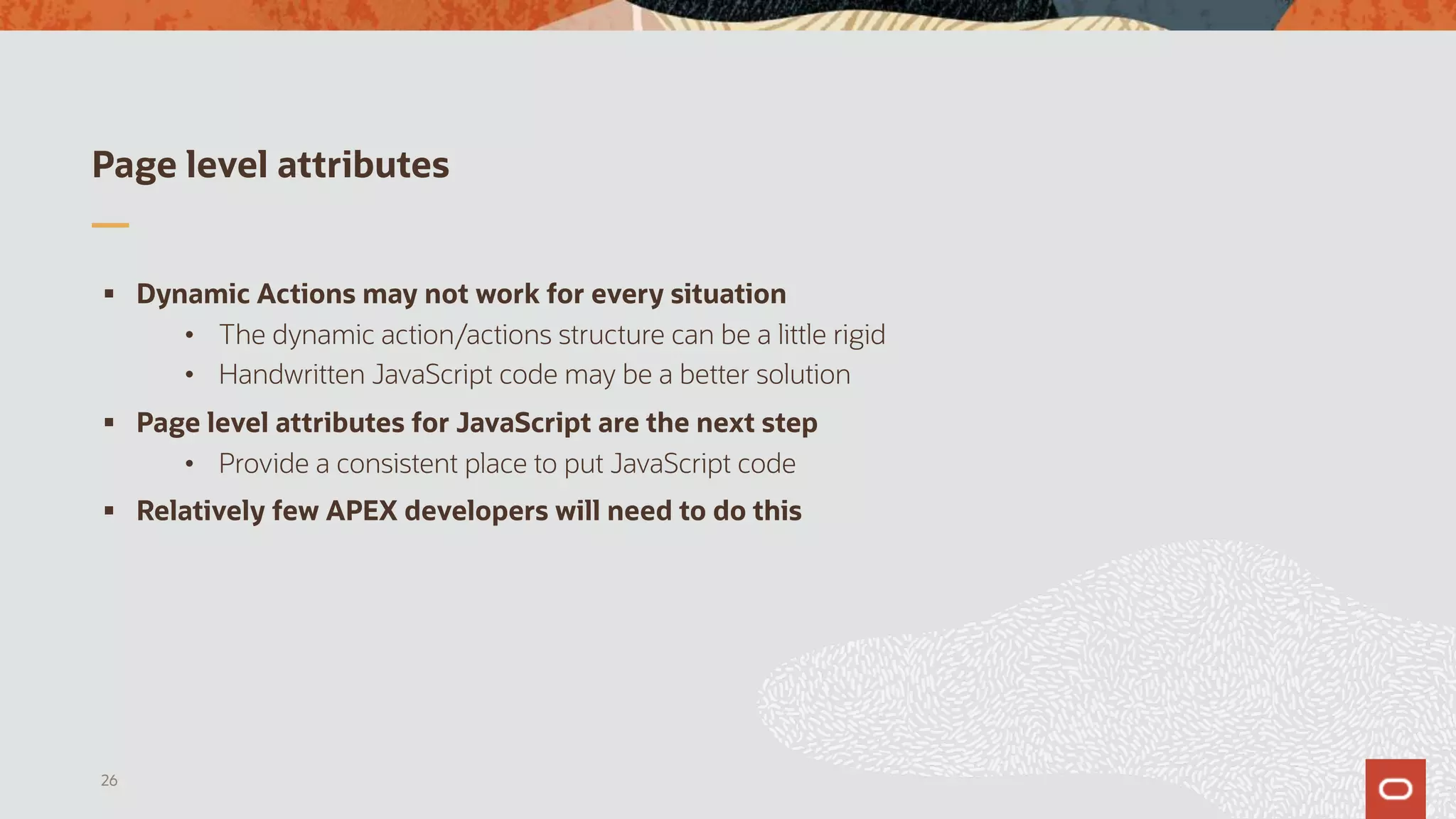

- 26. Page level attributes §Dynamic Actions may not work for every situation • The dynamic action/actions structure can be a little rigid • Handwritten JavaScript code may be a better solution § Page level attributes for JavaScript are the next step • Provide a consistent place to put JavaScript code § Relatively few APEX developers will need to do this 26

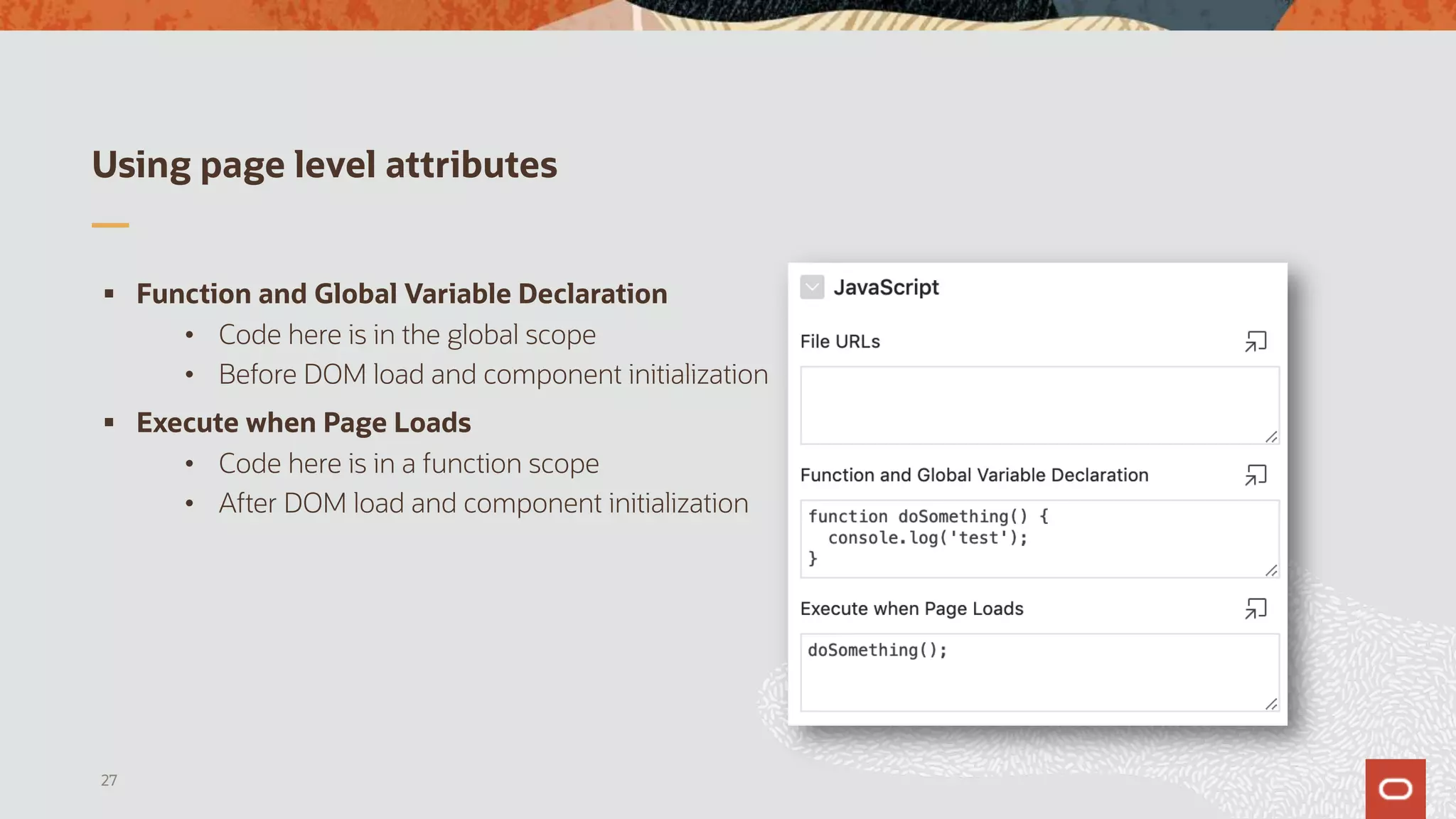

- 27. Using page levelattributes § Function and Global Variable Declaration • Code here is in the global scope • Before DOM load and component initialization § Execute when Page Loads • Code here is in a function scope • After DOM load and component initialization 27

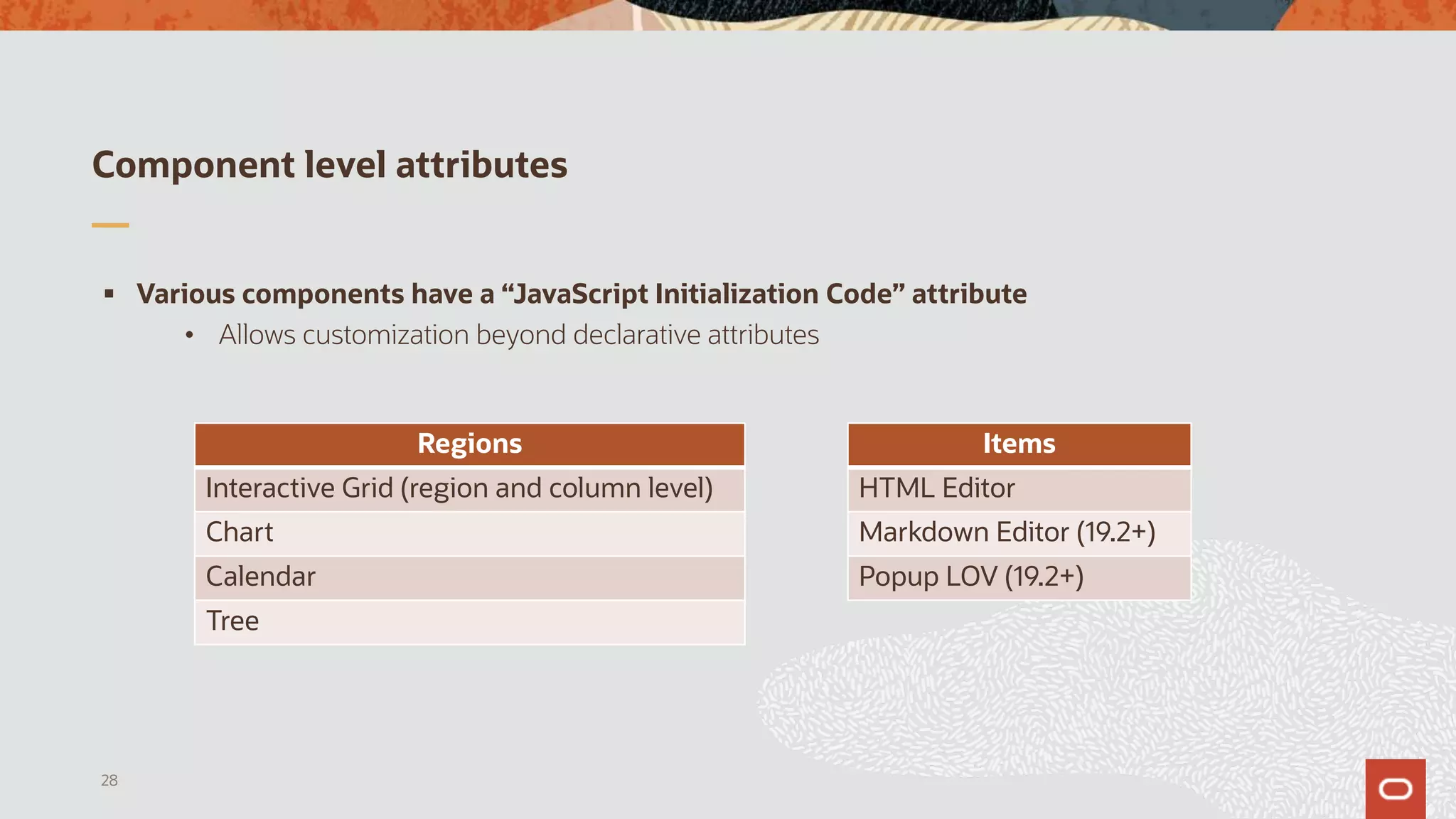

- 28. Component level attributes §Various components have a “JavaScript Initialization Code” attribute • Allows customization beyond declarative attributes 28 Regions Interactive Grid (region and column level) Chart Calendar Tree Items HTML Editor Markdown Editor (19.2+) Popup LOV (19.2+)

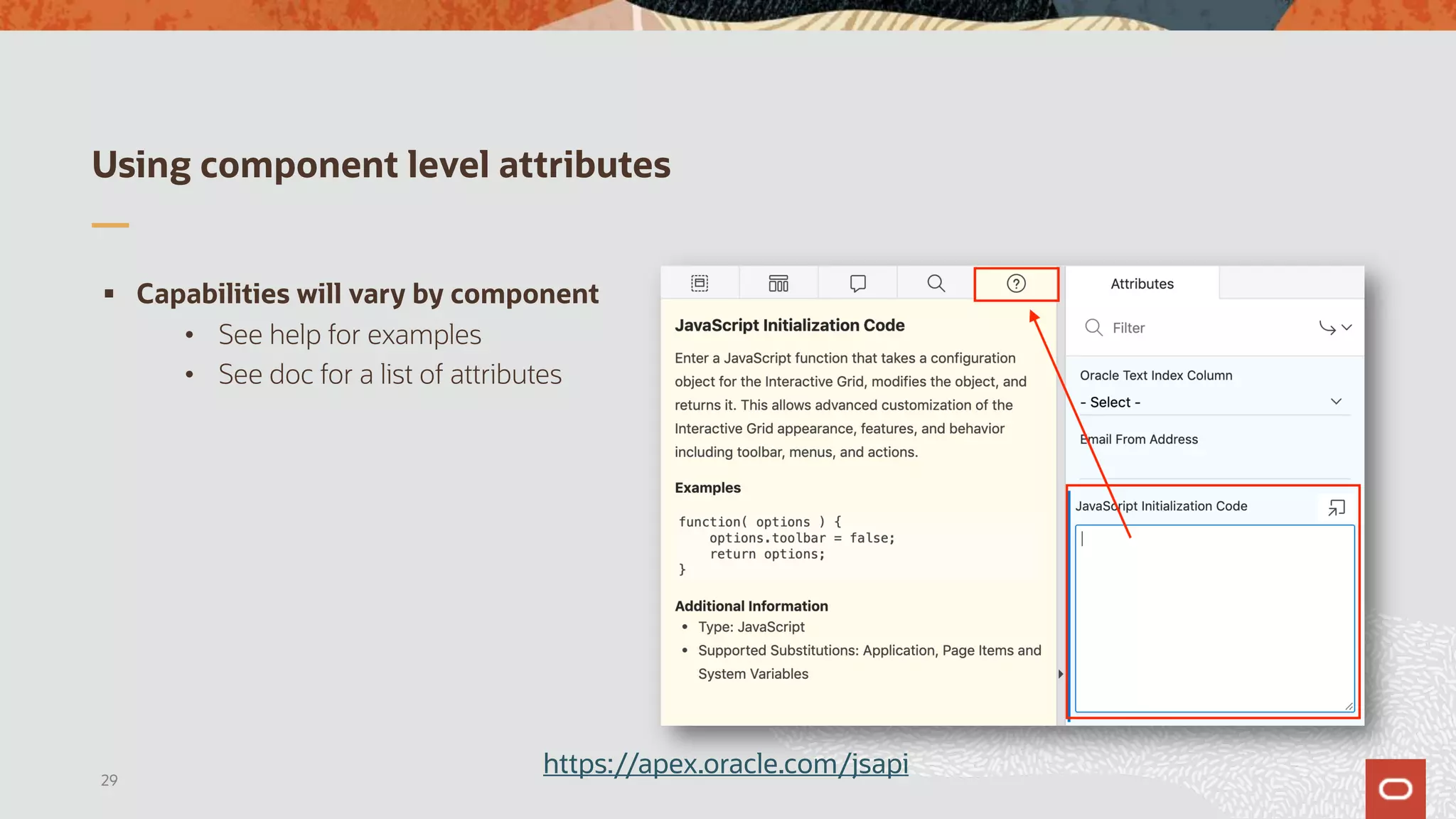

- 29. Using component levelattributes § Capabilities will vary by component • See help for examples • See doc for a list of attributes 29 https://apex.oracle.com/jsapi

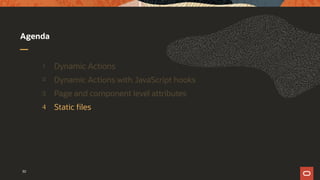

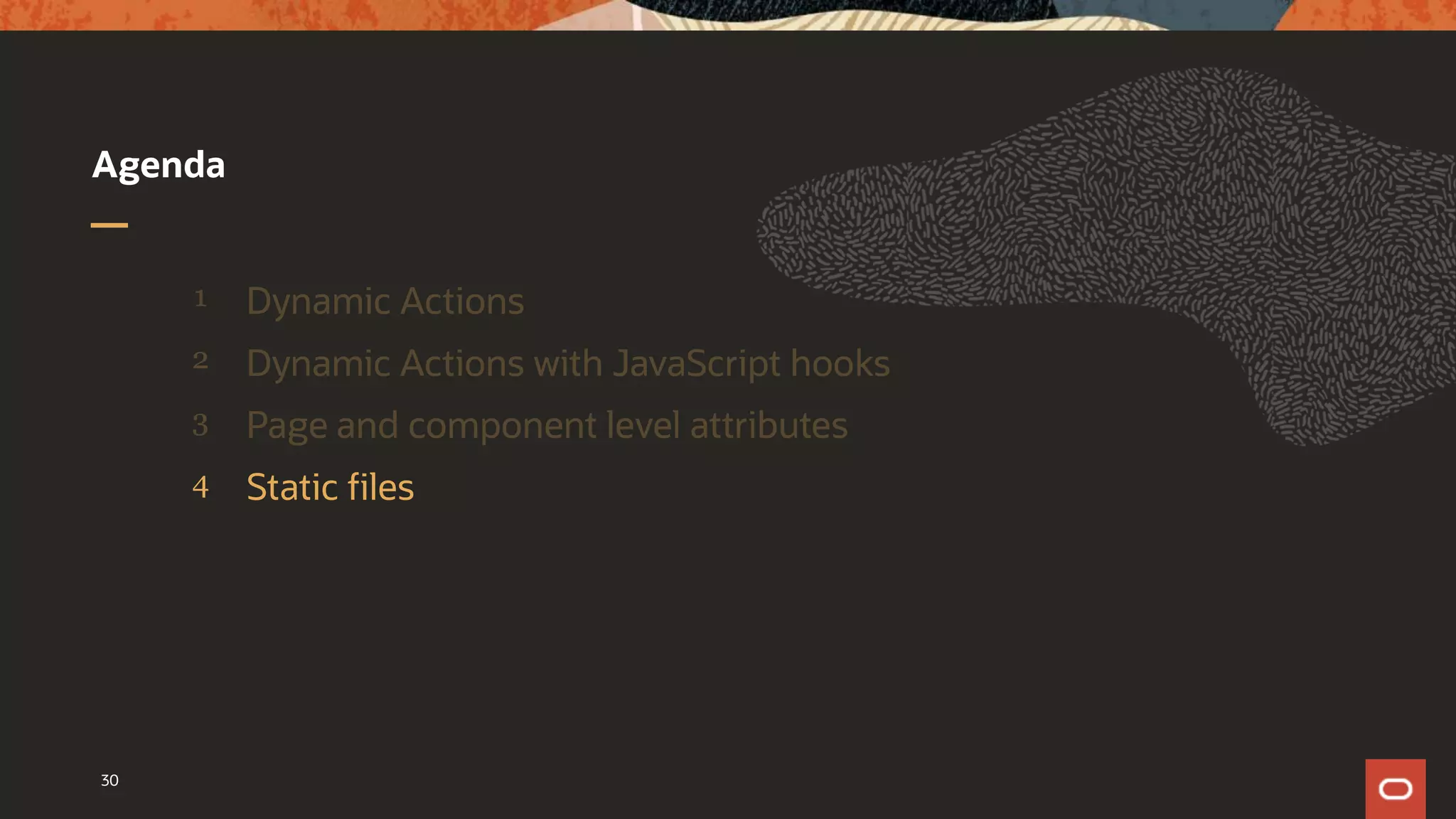

- 30.

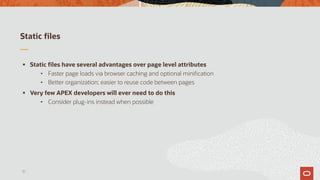

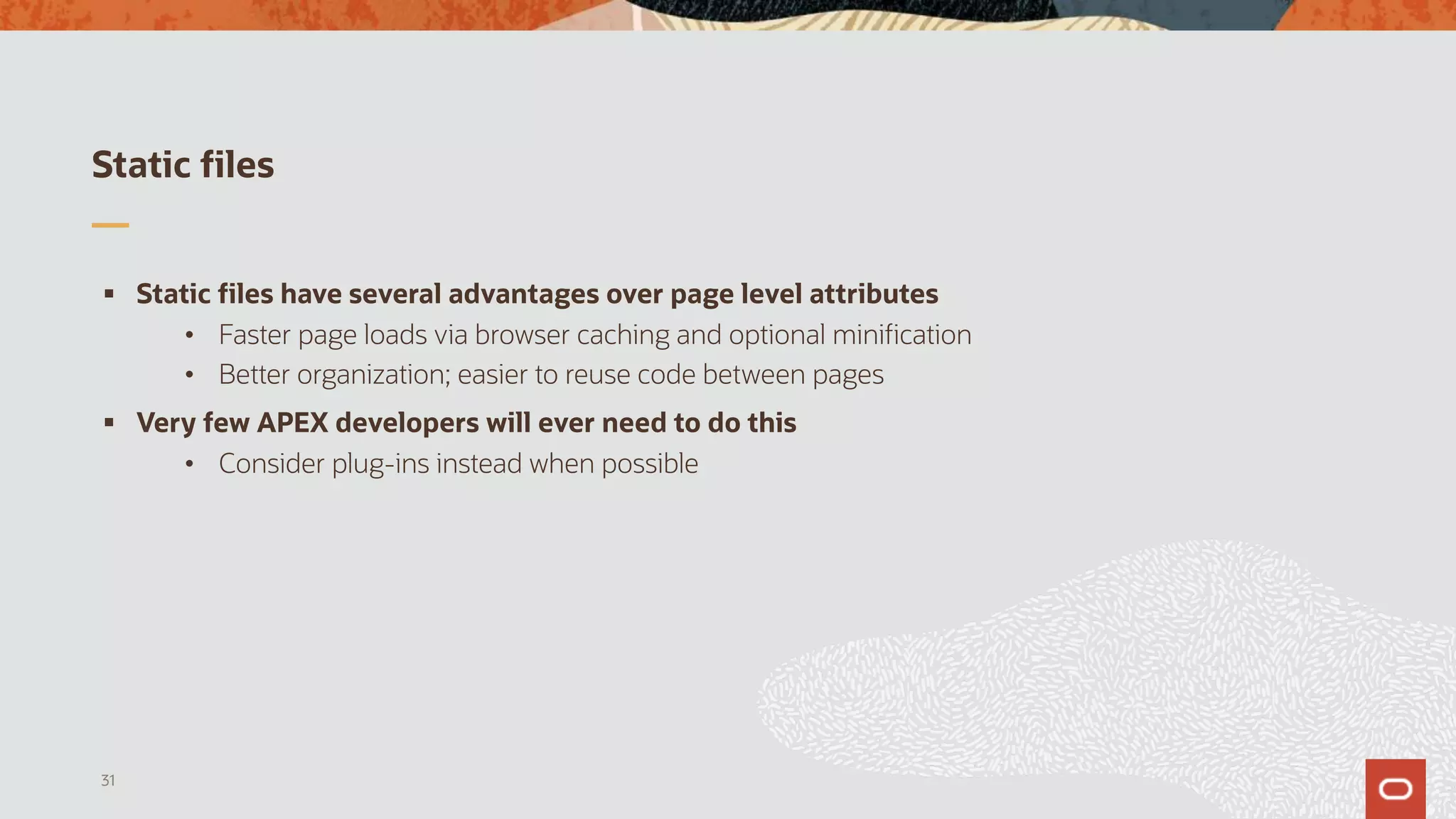

- 31. Static files § Staticfiles have several advantages over page level attributes • Faster page loads via browser caching and optional minification • Better organization; easier to reuse code between pages § Very few APEX developers will ever need to do this • Consider plug-ins instead when possible 31

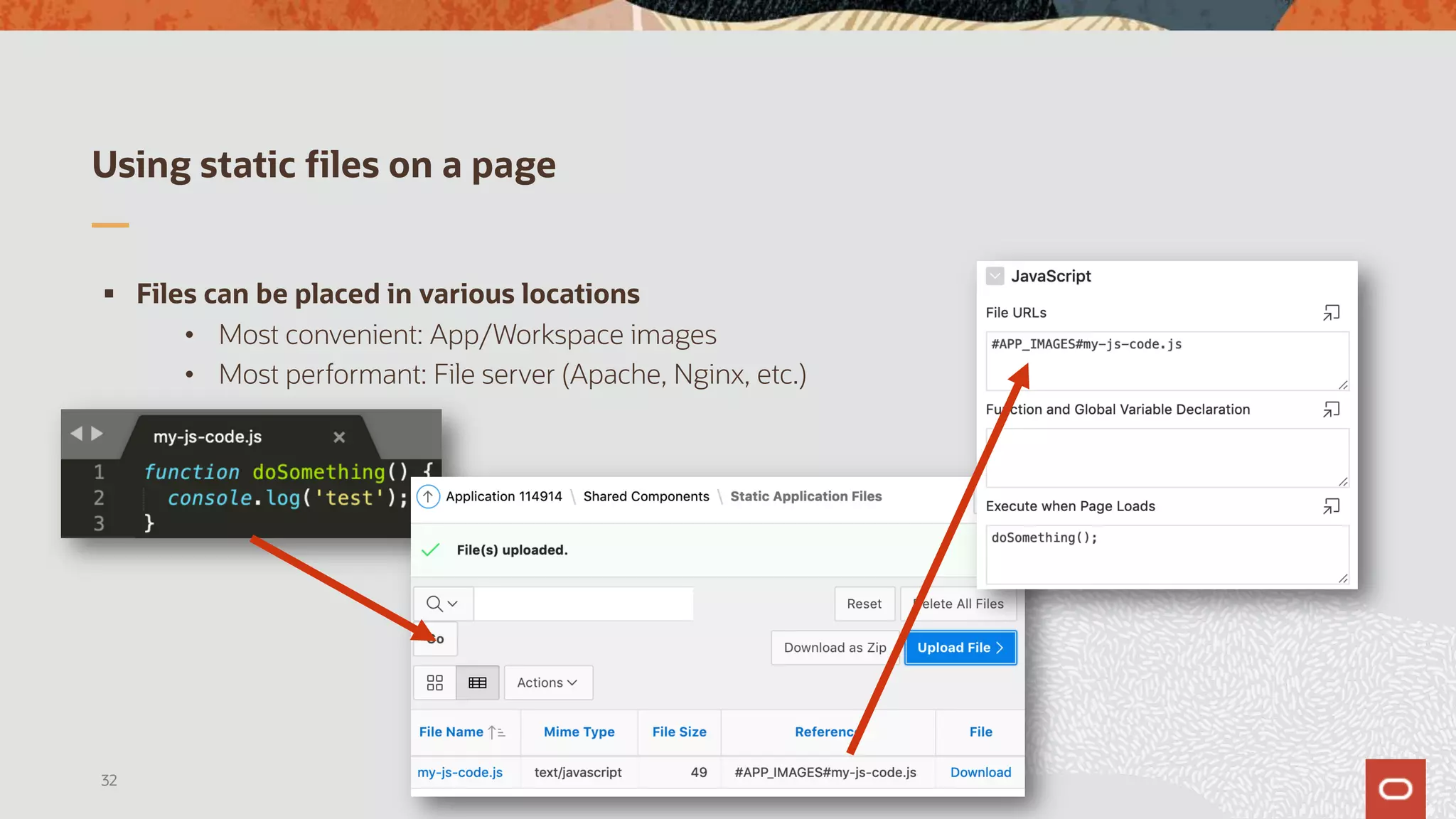

- 32. Using static fileson a page § Files can be placed in various locations • Most convenient: App/Workspace images • Most performant: File server (Apache, Nginx, etc.) 32

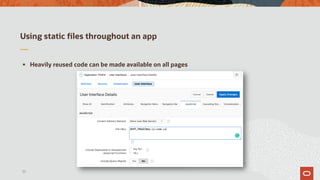

- 33. Using static filesthroughout an app § Heavily reused code can be made available on all pages 33

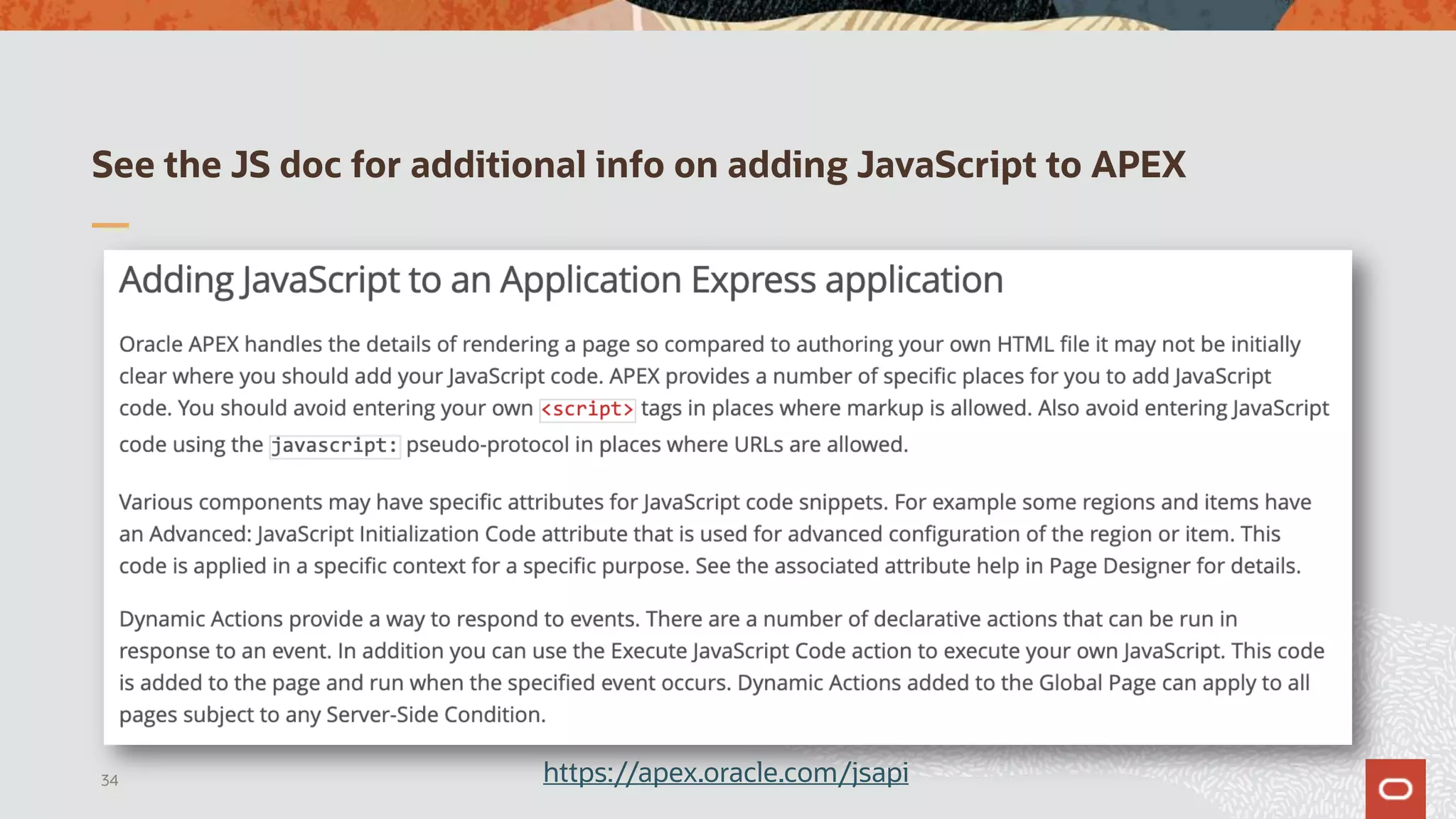

- 34. See the JSdoc for additional info on adding JavaScript to APEX 34 https://apex.oracle.com/jsapi
