Cities contribute significantly to global energy usage and CO2 emissions. Transforming cities into low-carbon settlements requires a holistic approach across sectors like transportation, energy, and buildings through measures like efficient infrastructure, renewable energy integration, and smart technologies. This allows optimization of resources and reduction of emissions from urban transport, energy production and consumption. The document outlines Siemens' approach to smart cities and low-emission transformation through sector coupling, mobility integration, digitalization, and infrastructure solutions already implemented in cities like Barcelona.

1. Transforming Today's
Cities into Low-carbon
Settlements
Jose Maria Pique Riera
Regional Director Siemens Catalunya
Smart City Expo World Congress
Barcelona, November 14, 2017Restricted © Siemens AG 2017

2. © Siemens AG 2017
November 14, 2017Page 2 Transforming Today's Cities into Low-carbon Settlements

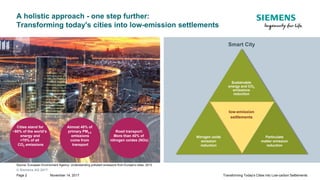

A holistic approach - one step further:
Transforming today's cities into low-emission settlements
Road transport:
More than 40% of
nitrogen oxides (NOx)
Almost 40% of
primary PM2.5
emissions
come from
transport
Cities stand for
~80% of the world’s
energy and
>70% of all
CO2 emissions
Source: European Environment Agency: Understanding pollutant emissions from Europe‘s cities; 2013
Smart City
Sustainable
energy and CO2
emissions
reduction
Particulate
matter emission
reduction
Nitrogen oxide
emission
reduction
low-emission
settlements
Road transport:
More than 40% of
nitrogen oxides (NOx)
Almost 40% of
primary PM2.5
emissions
come from
transport
Cities stand for
~80% of the world’s
energy and
>70% of all
CO2 emissions

3. © Siemens AG 2017
November 14, 2017Page 3 Transforming Today's Cities into Low-carbon Settlements

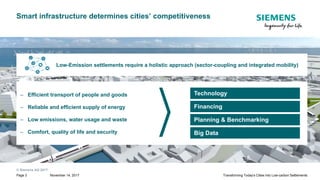

Smart infrastructure determines cities’ competitiveness
‒ Efficient transport of people and goods
‒ Reliable and efficient supply of energy
‒ Low emissions, water usage and waste
‒ Comfort, quality of life and security
Planning & Benchmarking
Financing
Technology
Big Data
Low-Emission settlements require a holistic approach (sector-coupling and integrated mobility)

4. © Siemens AG 2017
November 14, 2017Page 4 Transforming Today's Cities into Low-carbon Settlements

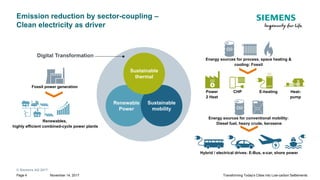

Emission reduction by sector-coupling –
Clean electricity as driver
Fossil
energy
Digital Transformation
Energy sources for process, space heating &
cooling: Fossil
E-heatingCHPPower
2 Heat
Heat-
pump
Renewable
Power
Conventional
mobility
Sustainable
mobility
Thermal
energy
Sustainable
thermal
Energy sources for conventional mobility:
Diesel fuel, heavy crude, kerosene
Hybrid / electrical drives: E-Bus, e-car, shore power
Fossil power generation
Renewables,
highly efficient combined-cycle power plants

5. © Siemens AG 2017
November 14, 2017Page 5 Transforming Today's Cities into Low-carbon Settlements
Municipality
as driver for the
low-emission
city

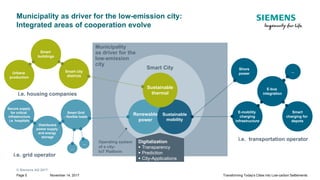

Municipality as driver for the low-emission city:
Integrated areas of cooperation evolve
Renewable
power
Sustainable
mobility
Sustainable
thermal
Digitalization
 Transparency
 Prediction
 City-Applications
Smart City
Operating system
of a city-
IoT Platform
...
E-bus
integration
E-mobility
charging
infrastructure
Smart
charging for
depots
Shore
power
i.e. transportation operator
Smart Grid
- flexible loads
Secure supply
for critical
infrastructure
i.e. hospitals
Distributed
power supply
and energy
storage
...
...
i.e. grid operator
Smart city
districts
Smart
buildings
Urbane
production
i.e. housing companies

6. © Siemens AG 2017
November 14, 2017Page 6 Transforming Today's Cities into Low-carbon Settlements
Intelligent Infrastructure –
Examples from Barcelona and around the world
Hamburg
SIHARBOR - Shore
connection system for
berthed ships reducing
ship emissions by up to -
97% (NOx).
London
20% less traffic, 17%
reduction in commuter
times, 150,000t less CO2
annually through
congestion charging.
Barcelona
Two joint research centers
(ICTA & ICP) with LEED
certification.
Active building control by
Siemens Desigo Insight
based on over 2.300 data
points.
Barcelona
First full automated metro
in Spain - GoA4 (max.
degree of automation).
Increased capacity
because trains can run at
shorter headways – for up
to 330,000 passengers
daily.
Shore powerRoad
and rail
BuildingsRolling
stock

7. © Siemens AG 2017
November 14, 2017Page 7 Transforming Today's Cities into Low-carbon Settlements

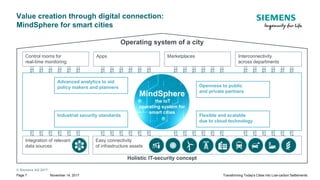

Operating system of a city
Value creation through digital connection:
MindSphere for smart cities
Holistic IT-security concept
AppsControl rooms for
real-time monitoring
Interconnectivity
across departments
Marketplaces
MindSphere
the IoT
operating system for
smart cities
Advanced analytics to aid
policy makers and planners Openness to public
and private partners
Industrial security standards Flexible and scalable
due to cloud technology
Integration of relevant
data sources
Easy connectivity
of infrastructure assets

8. © Siemens AG 2017
November 14, 2017Page 8 Transforming Today's Cities into Low-carbon Settlements

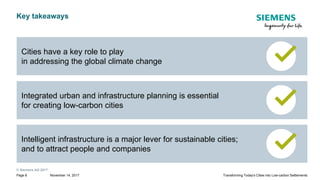

Cities have a key role to play
in addressing the global climate change
Integrated urban and infrastructure planning is essential
for creating low-carbon cities
Intelligent infrastructure is a major lever for sustainable cities;
and to attract people and companies
Key takeaways

9. © Siemens AG 2017
November 14, 2017Page 9 Transforming Today's Cities into Low-carbon Settlements
José-Maria Piqué
Regional Director Siemens Catalunya,
Aragón and Baleares
SIEMENS S.A.
Tel.: +34 934804343
jmaria.pique@siemens.com
Thank you for your attention.
Answers for energy management.
