The document discusses pile driving equipment from DELMAG served by SENNEBOGEN carriers. It provides specifications for various DELMAG pile hammers and SENNEBOGEN carriers that can be used together for pile driving projects. The equipment is designed for performance and efficiency in installing piles of different sizes and capacities into the ground. Proper pile installation is important for predicting the behavior and capacity of the piles once installed.

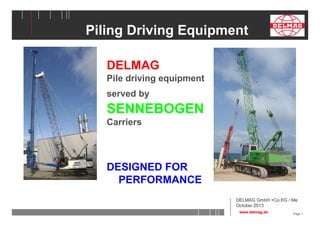

1. Page 1
Piling Driving Equipment
DELMAG
Pile driving equipment
served by
SENNEBOGEN
Carriers
DESIGNED FOR
PERFORMANCE
DELMAG GmbH +Co.KG / Me
October 2013
www.delmag.de

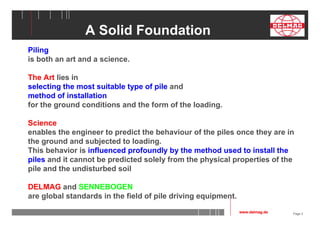

2. Page 2
A Solid Foundation
Piling
is both an art and a science.
The Art lies in
selecting the most suitable type of pile and
method of installation
for the ground conditions and the form of the loading.
Science
enables the engineer to predict the behaviour of the piles once they are in
the ground and subjected to loading.
This behavior is influenced profoundly by the method used to install the
piles and it cannot be predicted solely from the physical properties of the
pile and the undisturbed soil
DELMAG and SENNEBOGEN
are global standards in the field of pile driving equipment.
www.delmag.de

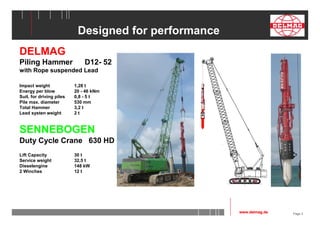

3. Page 3
Designed for performance
DELMAG
Piling Hammer D12- 52
with Rope suspended Lead
Impact weight 1,28 t
Energy per blow 20 - 46 kNm
Suit. for driving piles 0,8 - 5 t
Pile max. diameter 530 mm
Total Hammer 3,2 t
Lead systen weight 2 t
SENNEBOGEN
Duty Cycle Crane 630 HD
Lift Capacity 30 t
Service weight 32,5 t
Dieselengine 148 kW
2 Winches 12 t
www.delmag.de

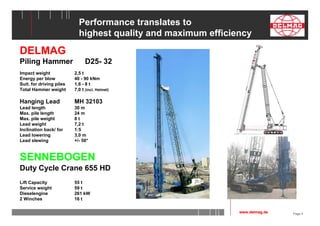

4. Page 4
Performance translates to
highest quality and maximum efficiency
DELMAG
Piling Hammer D25- 32
Impact weight 2,5 t
Energy per blow 40 - 90 kNm
Suit. for driving piles 1,6 - 8 t
Total Hammer weight 7,0 t (incl. Helmet)
Hanging Lead MH 32103
Lead length 30 m
Max. pile length 24 m
Max. pile weight 8 t
Lead weight 7,2 t
Inclination back/ for 1:5
Lead lowering 3,0 m
Lead slewing +/- 50°
SENNEBOGEN
Duty Cycle Crane 655 HD
Lift Capacity 55 t
Service weight 59 t
Dieselengine 261 kW
2 Winches 16 t
www.delmag.de

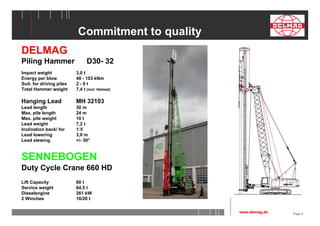

5. Page 5
Commitment to quality
DELMAG
Piling Hammer D30- 32
Impact weight 3,0 t
Energy per blow 48 - 103 kNm
Suit. for driving piles 2 - 9 t
Total Hammer weight 7,4 t (incl. Helmet)
Hanging Lead MH 32103
Lead length 30 m
Max. pile length 24 m
Max. pile weight 10 t
Lead weight 7,2 t
Inclination back/ for 1:5
Lead lowering 3,0 m
Lead slewing +/- 50°
SENNEBOGEN
Duty Cycle Crane 660 HD
Lift Capacity 60 t
Service weight 64,5 t
Dieselengine 261 kW
2 Winches 16/20 t
www.delmag.de

6. Page 6
Application – oriented products
DELMAG
Piling Hammer D46- 32
Impact weight 4,6 t
Energy per blow 70 - 166 kNm
Suit. for driving piles 3 - 16 t
Total Hammer weight 11 t (incl. Helmet)
Hanging Lead MH 35104
Lead length 35,5 m
Max. pile length 29 m
Max. pile weight 12 t
Lead weight 9,6 t
Inclination back/ for 1:5
Lead lowering 3,7 m
Lead slewing +/- 50°
SENNEBOGEN
Duty Cycle Crane 690 HD
Lift Capacity 88,5 t
Service weight 68,5 t
Dieselengine 447 kW
2 Winches 25 t
Here with Vibrator MS-32
Centrifugal force 1473 kN / Weight 8,3 t
www.delmag.de

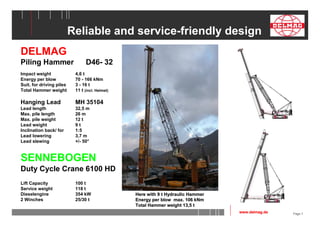

7. Page 7
Reliable and service-friendly design
DELMAG
Piling Hammer D46- 32
Impact weight 4,6 t
Energy per blow 70 - 166 kNm
Suit. for driving piles 3 - 16 t
Total Hammer weight 11 t (incl. Helmet)
Hanging Lead MH 35104
Lead length 32,5 m
Max. pile length 26 m
Max. pile weight 12 t
Lead weight 9 t
Inclination back/ for 1:5
Lead lowering 3,7 m
Lead slewing +/- 50°
SENNEBOGEN
Duty Cycle Crane 6100 HD
Lift Capacity 100 t
Service weight 118 t
Dieselengine 354 kW
2 Winches 25/30 t
Here with 9 t Hydraulic Hammer
Energy per blow max. 106 kNm
Total Hammer weight 13,5 t
www.delmag.de

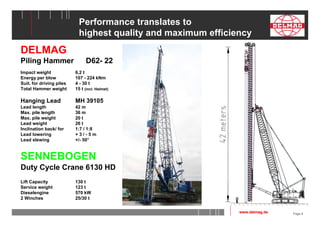

8. Page 8
Performance translates to
highest quality and maximum efficiency
DELMAG
Piling Hammer D62- 22
Impact weight 6,2 t
Energy per blow 107 - 224 kNm
Suit. for driving piles 4 - 30 t
Total Hammer weight 15 t (incl. Helmet)
Hanging Lead MH 39105
Lead length 42 m
Max. pile length 36 m
Max. pile weight 20 t
Lead weight 26 t
Inclination back/ for 1:7 / 1:8
Lead lowering + 3 / - 5 m
Lead slewing +/- 50°
SENNEBOGEN
Duty Cycle Crane 6130 HD
Lift Capacity 130 t
Service weight 123 t
Dieselengine 570 kW
2 Winches 25/30 t
www.delmag.de

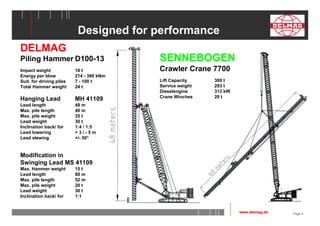

9. Page 9
DELMAG
Piling Hammer D100-13
Impact weight 10 t
Energy per blow 214 - 360 kNm
Suit. for driving piles 7 - 100 t
Total Hammer weight 24 t
Hanging Lead MH 41109
Lead length 48 m
Max. pile length 40 m
Max. pile weight 35 t
Lead weight 30 t
Inclination back/ for 1:4 / 1:5
Lead lowering + 3 / - 5 m
Lead slewing +/- 50°
Modification in
Swinging Lead MS 41109
Max. Hammer weight 15 t
Lead length 60 m
Max. pile length 52 m
Max. pile weight 20 t
Lead weight 30 t
Inclination back/ for 1:1
www.delmag.de
Designed for performance
SENNEBOGEN
Crawler Crane 7700
Lift Capacity 300 t
Service weight 293 t
Dieselengine 313 kW
Crane Winches 20 t

10. Page 10
DELMAG
Piling Hammer D46- 32
Impact weight 4,6 t
Energy per blow 70 - 166 kNm
Suit. for driving piles 3 - 16 t
Total Hammer weight 11 t (incl. Helmet)
Hanging Lead MH 35104
Lead length 32,5 m
Max. pile length 26 m
Max. pile weight 10 t
Lead weight 9 t
Inclination back/ for 1:5
Lead lowering 3,7 m
Lead slewing +/- 50°
SENNEBOGEN
Telescopic Crane 683 R
Lift Capacity 80 t
Service weight 85 t
Dieselengine 186 kW
2 Winches 72 t
Safe and Efficient
www.delmag.de

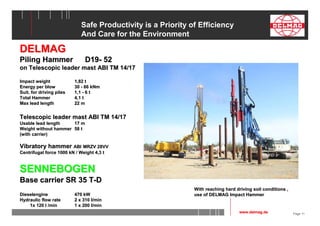

11. Page 11
Safe Productivity is a Priority of Efficiency
And Care for the Environment
DELMAG
Piling Hammer D19- 52
on Telescopic leader mast ABI TM 14/17
Impact weight 1,82 t
Energy per blow 30 - 66 kNm
Suit. for driving piles 1,1 - 6 t
Total Hammer 4,1 t
Max lead length 22 m
Telescopic leader mast ABI TM 14/17
Usable lead length 17 m
Weight without hammer 58 t
(with carrier)
Vibratory hammer ABI MRZV 28VV
Centrifugal force 1000 kN / Weight 4,3 t
SENNEBOGEN
Base carrier SR 35 T-D
Dieselengine 470 kW
Hydraulic flow rate 2 x 310 l/min
1x 120 l /min 1 x 200 l/min
With reaching hard driving soil conditions ,
use of DELMAG Impact Hammer
www.delmag.de

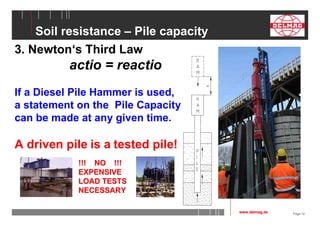

12. Page 12
Soil resistance – Pile capacity
3. Newton‘s Third Law
actio = reactio
If a Diesel Pile Hammer is used,
a statement on the Pile Capacity
can be made at any given time.
A driven pile is a tested pile!
www.delmag.de
!!! NO !!!
EXPENSIVE
LOAD TESTS
NECESSARY

13. Page 13
A driven pile is a tested pile!
The soil is represented by resistance forces acting at the pile soil interface
3. Newton‘s Third Law
actio = reactio
To every action there is always an equal reaction.
In other words: If a force acts to change the state of motion of a
body, the body offers a resistance equal and directly opposite to
the force.
In other words: If a ram (piston) of the Diesel Hammer acts to
change the state of motion of a pile, the pile soil interface offers a
driving resistance (PILE CAPACITY) equal and directly opposite to
the piston of the hammer.
www.delmag.de

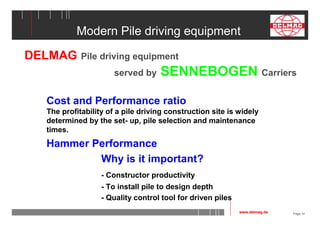

14. Page 14
Modern Pile driving equipment
DELMAG Pile driving equipment
served by SENNEBOGEN Carriers
Cost and Performance ratio
The profitability of a pile driving construction site is widely
determined by the set- up, pile selection and maintenance
times.
Hammer Performance
Why is it important?
- Constructor productivity
- To install pile to design depth
- Quality control tool for driven piles
www.delmag.de

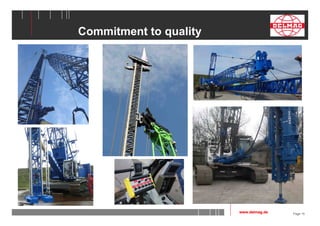

15. Page 15
Commitment to quality
www.delmag.de

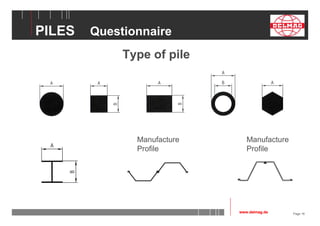

16. Page 16
PILES Questionnaire
Type of pile
Manufacture Manufacture
Profile Profile
www.delmag.de

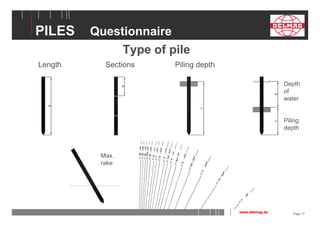

17. Page 17
PILES Questionnaire
Type of pile
Length Sections Piling depth
Depth
of
water
Piling
depth
Max.
rake
www.delmag.de

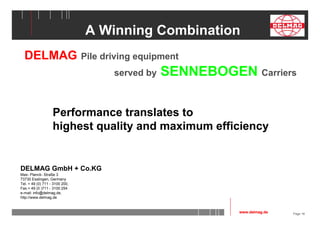

18. Page 18
A Winning Combination
DELMAG Pile driving equipment
Performance translates to
highest quality and maximum efficiency
DELMAG GmbH + Co.KG
Max- Planck- Straße 3
73730 Esslingen, Germany
Tel. + 49 (0) 711 - 3100 200,
Fax.+ 49 (0 )711 - 3100 254
e-mail: info@delmag.de,
http://www.delmag.de
served by SENNEBOGEN Carriers
www.delmag.de
