DEPARTMENT OF PHYICS
MOTHER TERESA SR. SEC. CO-ED SCHOOL
BHOPAL
MOTHER TERESA SR. SEC. CO-ED SCHOOL
KOLAR ROAD BHOAPL
DEPARTMENT OF PHYSICS
PROJECT REPORT
INVESTIGATORYPROJECT ON
PN JUNCTION AND
DIODES
PROJECT REPORT
Submitted by
Govind Patel
Submitted to
Mrs Ratna Hajela
RegisterationNo:

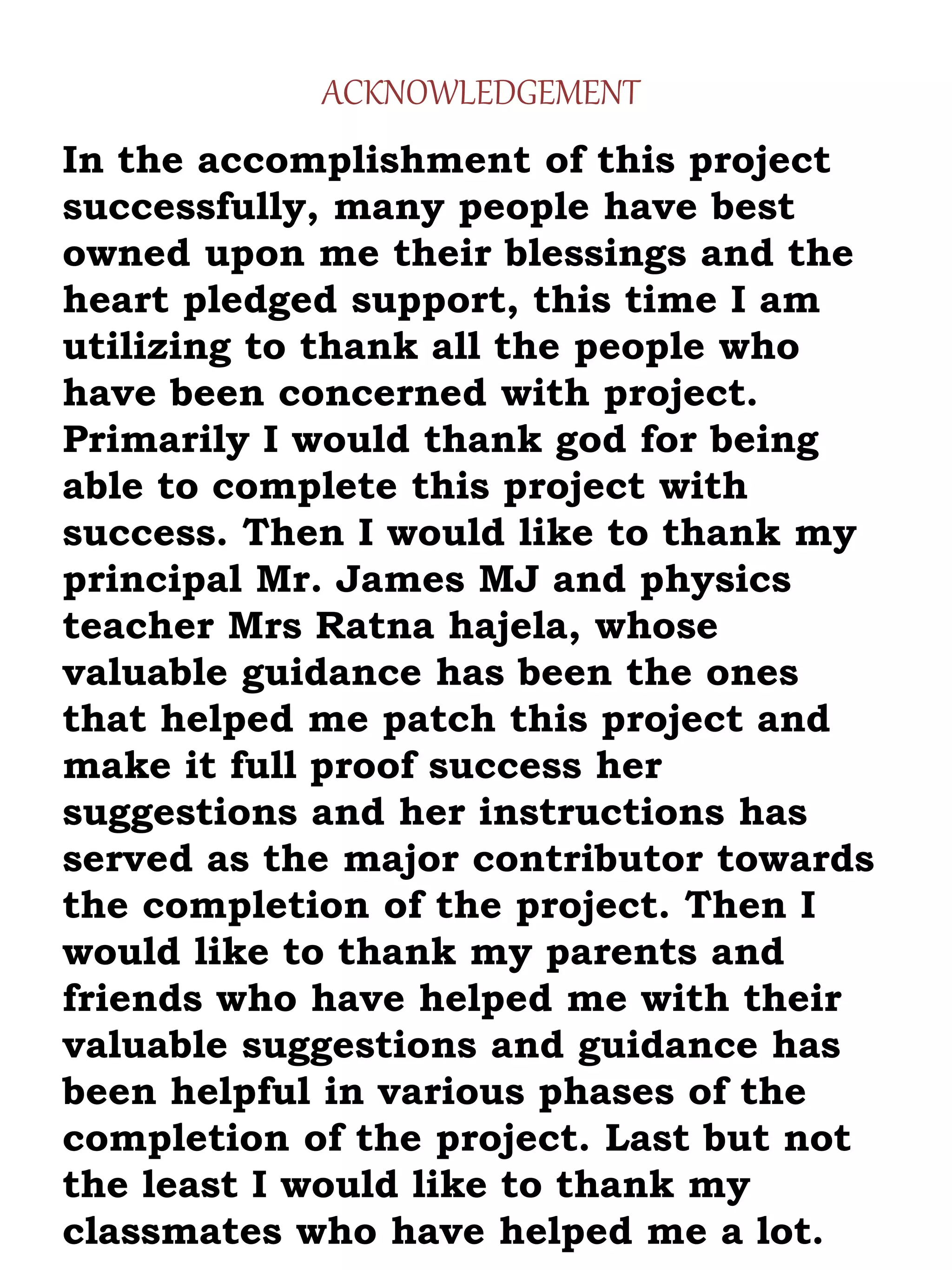

In the accomplishment of this project
successfully, many people have best
owned upon me their blessings and the
heart pledged support, this time I am
utilizing to thank all the people who
have been concerned with project.
Primarily I would thank god for being
able to complete this project with
success. Then I would like to thank my
principal Mr. James MJ and physics
teacher Mrs Ratna hajela, whose
valuable guidance has been the ones
that helped me patch this project and
make it full proof success her
suggestions and her instructions has
served as the major contributor towards
the completion of the project. Then I
would like to thank my parents and
friends who have helped me with their
valuable suggestions and guidance has
been helpful in various phases of the
completion of the project. Last but not
the least I would like to thank my
classmates who have helped me a lot.
ACKNOWLEDGEMENT

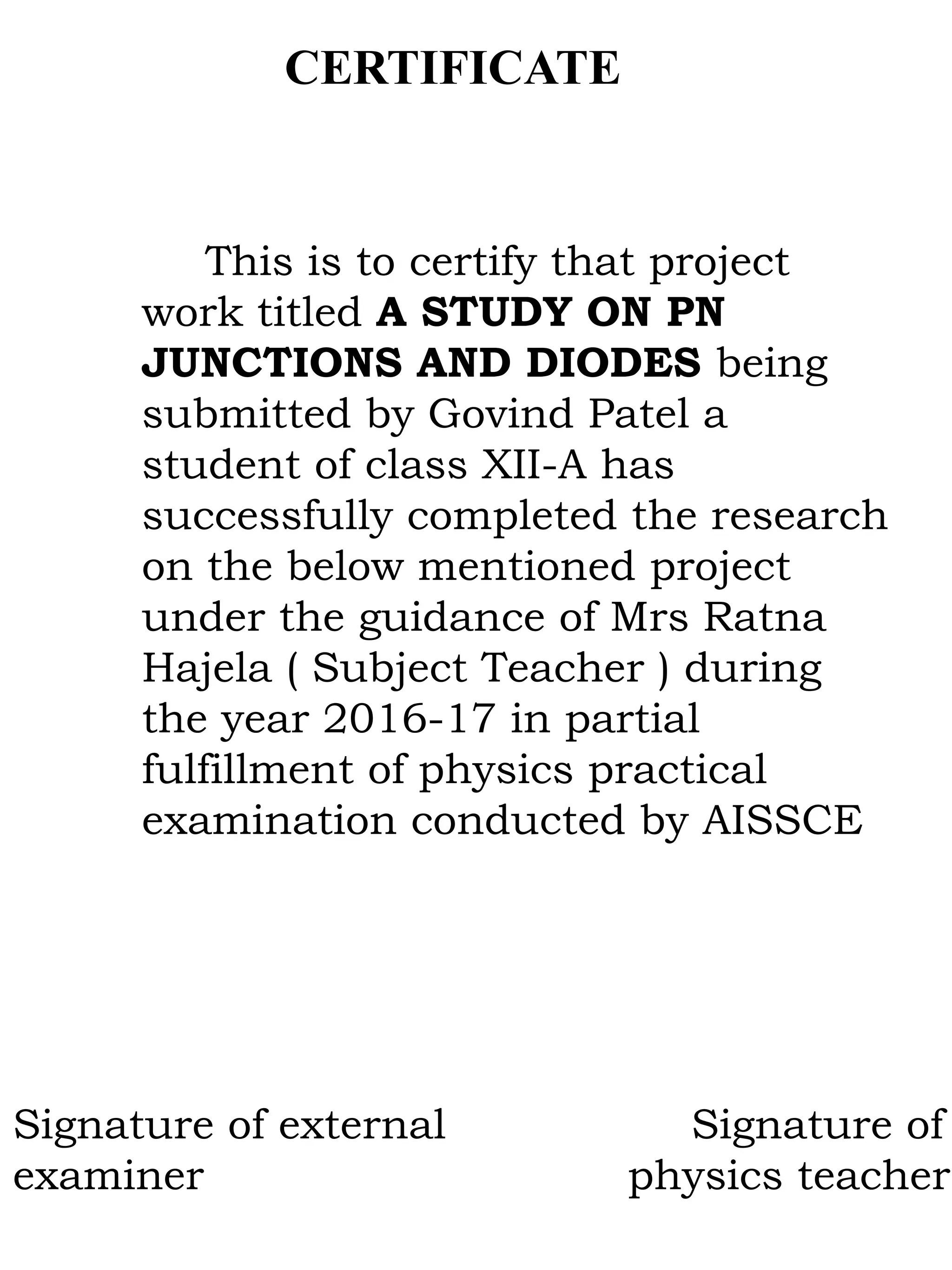

CERTIFICATE
This is to certify that project
work titled A STUDY ON PN
JUNCTIONS AND DIODES being
submitted by Govind Patel a
student of class XII-A has
successfully completed the research
on the below mentioned project
under the guidance of Mrs Ratna
Hajela ( Subject Teacher ) during
the year 2016-17 in partial
fulfillment of physics practical
examination conducted by AISSCE
Signature of external
examiner
Signature of
physics teacher

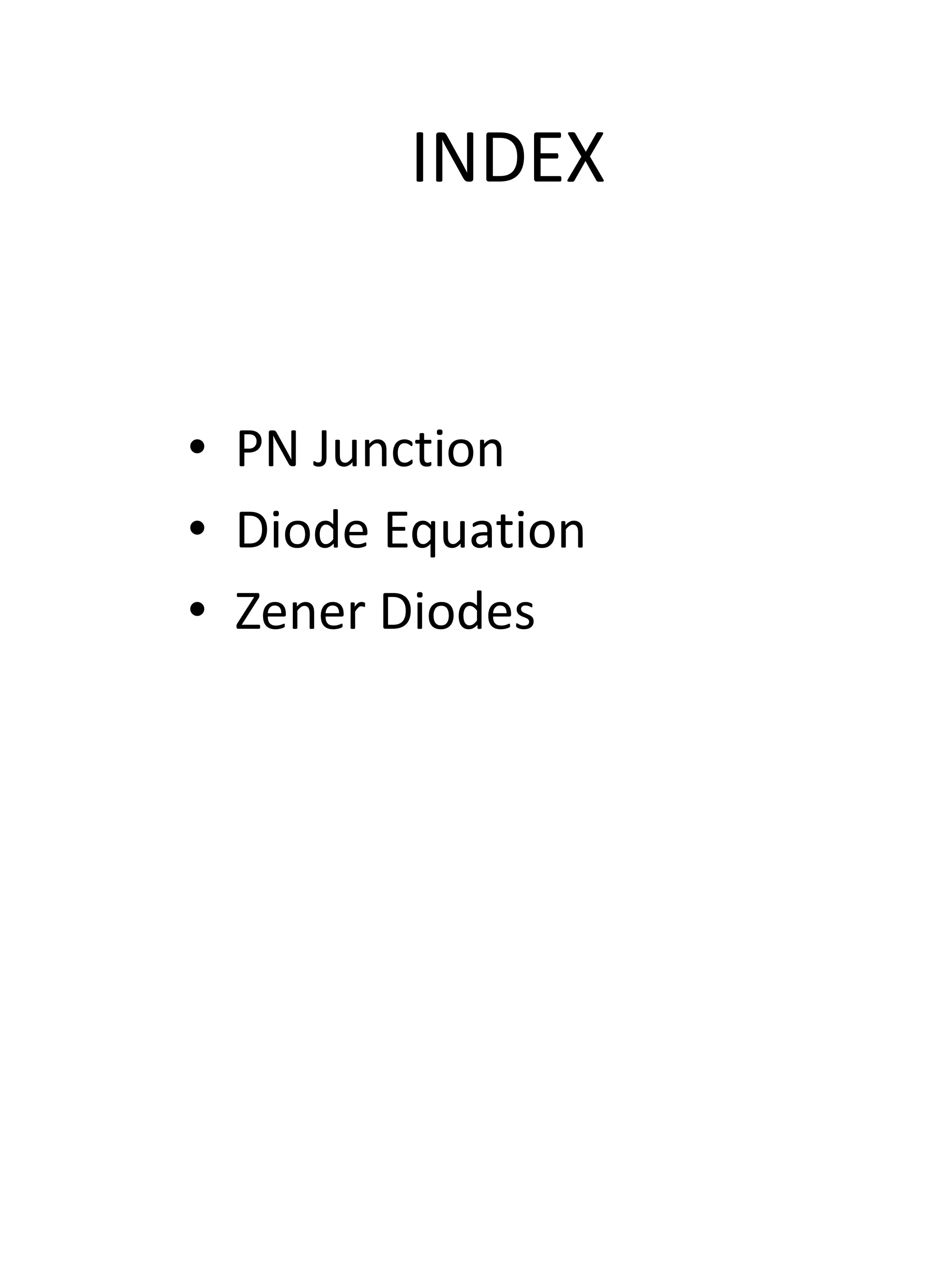

INDEX
• PN Junction
• Diode Equation
• Zener Diodes

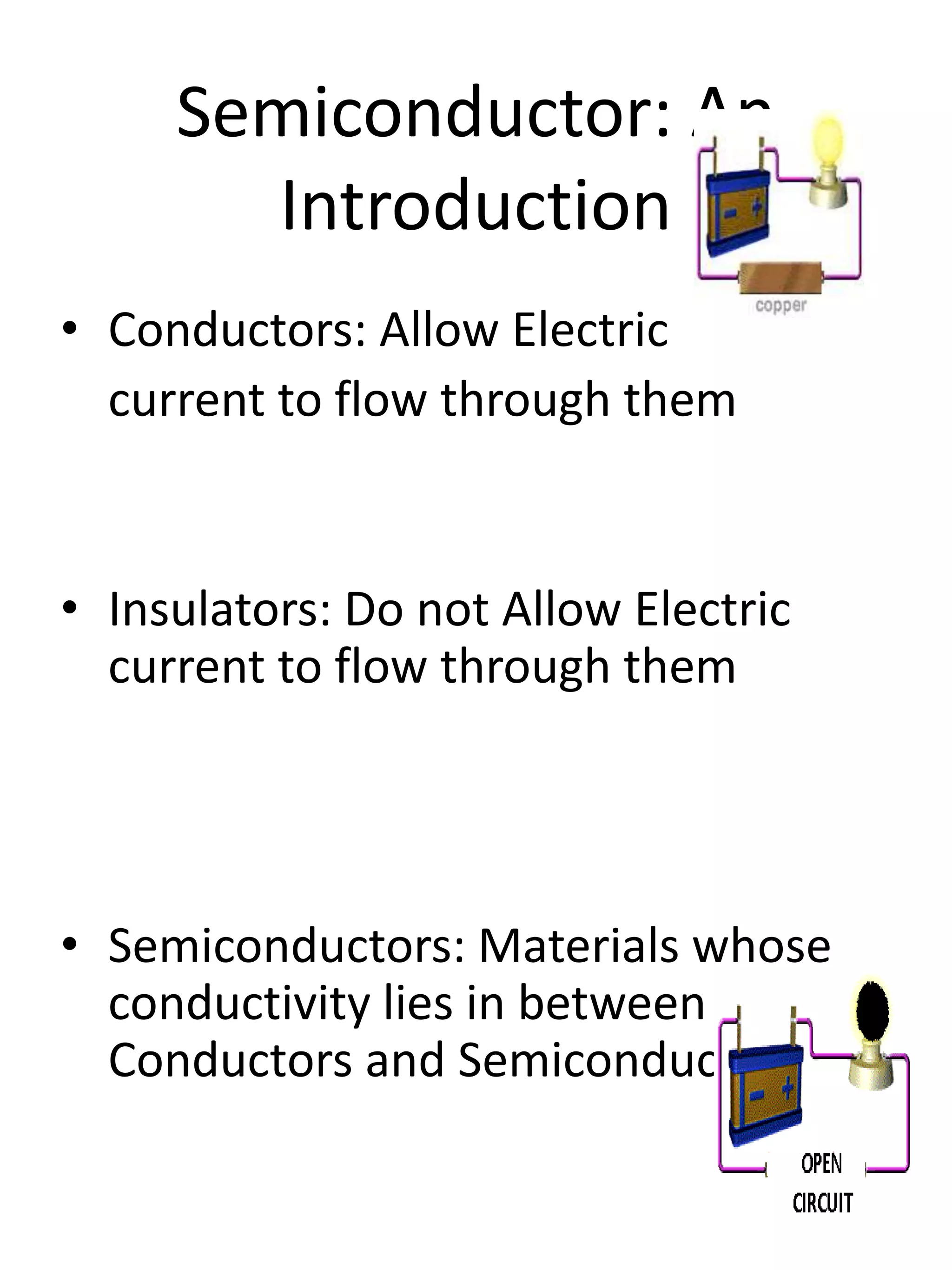

Semiconductor: An
Introduction
• Conductors: Allow Electric
current to flow through them
• Insulators: Do not Allow Electric
current to flow through them
• Semiconductors: Materials whose
conductivity lies in between of
Conductors and Semiconductor

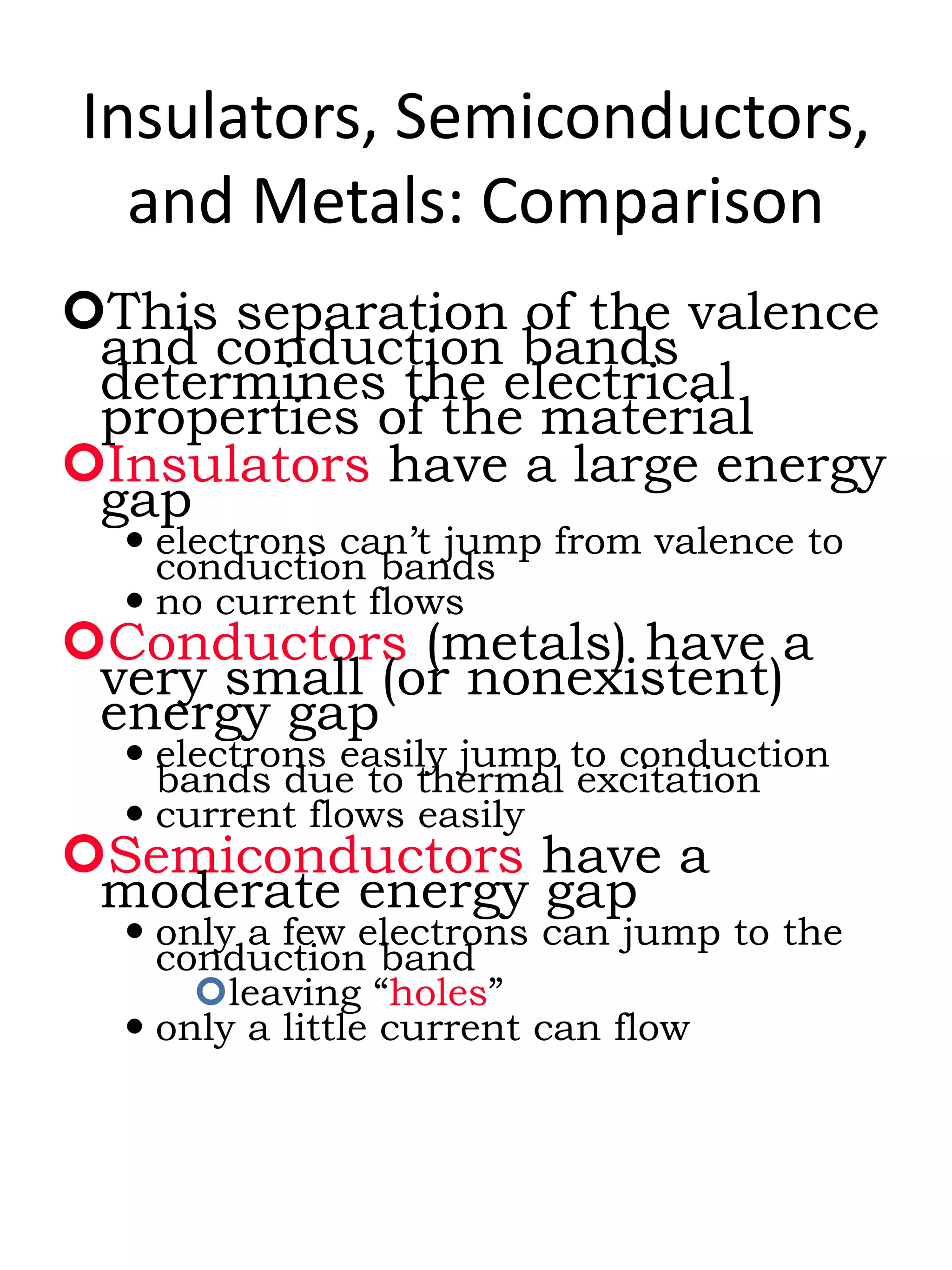

Insulators, Semiconductors,
and Metals: Comparison
This separation of the valence
and conduction bands
determines the electrical
properties of the material
Insulators have a large energy
gap
 electrons can’t jump from valence to
conduction bands
 no current flows
Conductors (metals) have a
very small (or nonexistent)
energy gap
 electrons easily jump to conduction
bands due to thermal excitation
 current flows easily
Semiconductors have a
moderate energy gap
 only a few electrons can jump to the
conduction band
leaving “holes”
 only a little current can flow

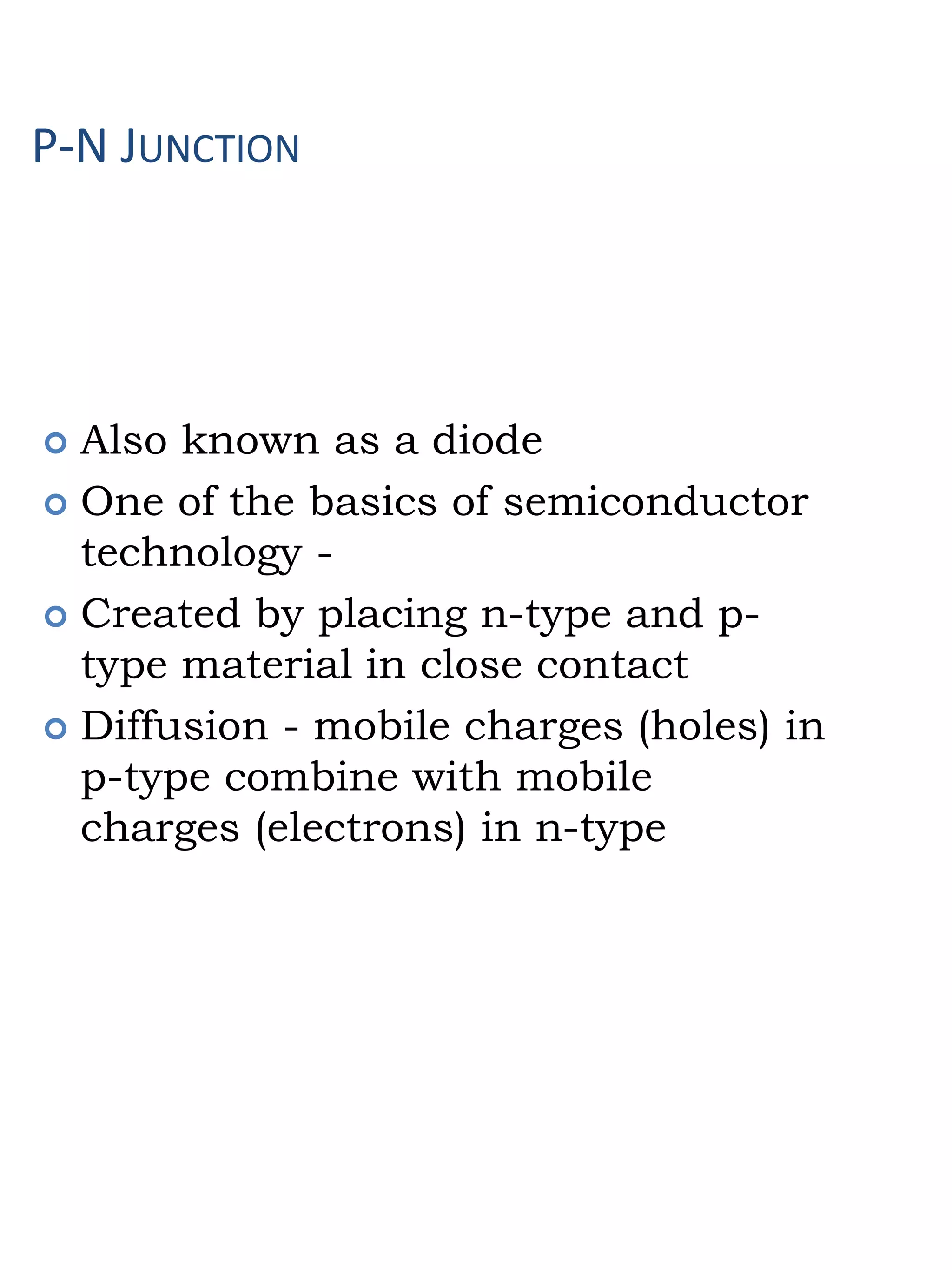

P-N JUNCTION
 Also known as a diode
 One of the basics of semiconductor
technology -
 Created by placing n-type and p-
type material in close contact
 Diffusion - mobile charges (holes) in
p-type combine with mobile
charges (electrons) in n-type

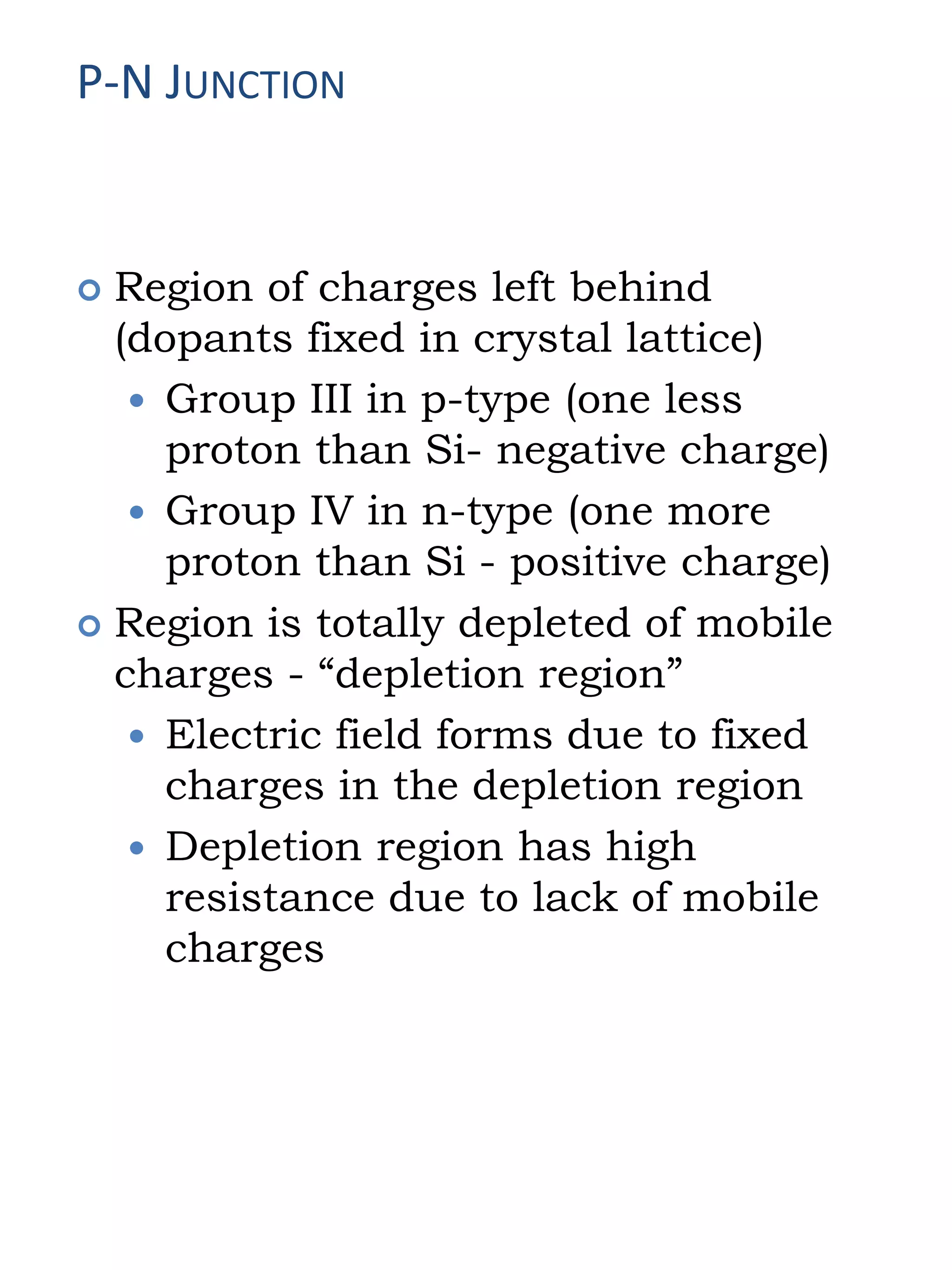

P-N JUNCTION
 Region of charges left behind
(dopants fixed in crystal lattice)
 Group III in p-type (one less
proton than Si- negative charge)
 Group IV in n-type (one more
proton than Si - positive charge)
 Region is totally depleted of mobile
charges - “depletion region”
 Electric field forms due to fixed
charges in the depletion region
 Depletion region has high
resistance due to lack of mobile
charges

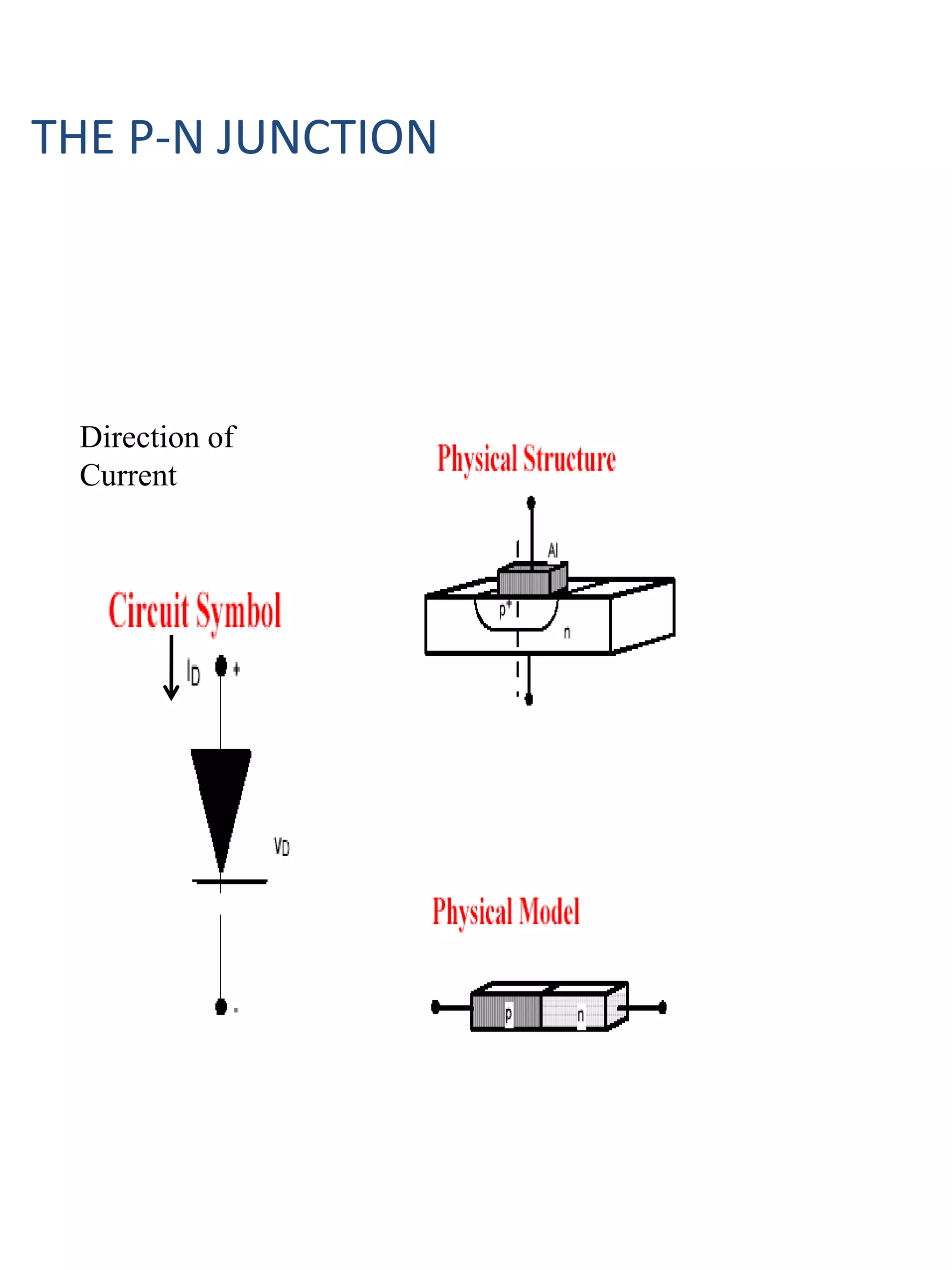

THE P-N JUNCTION
Direction of
Current

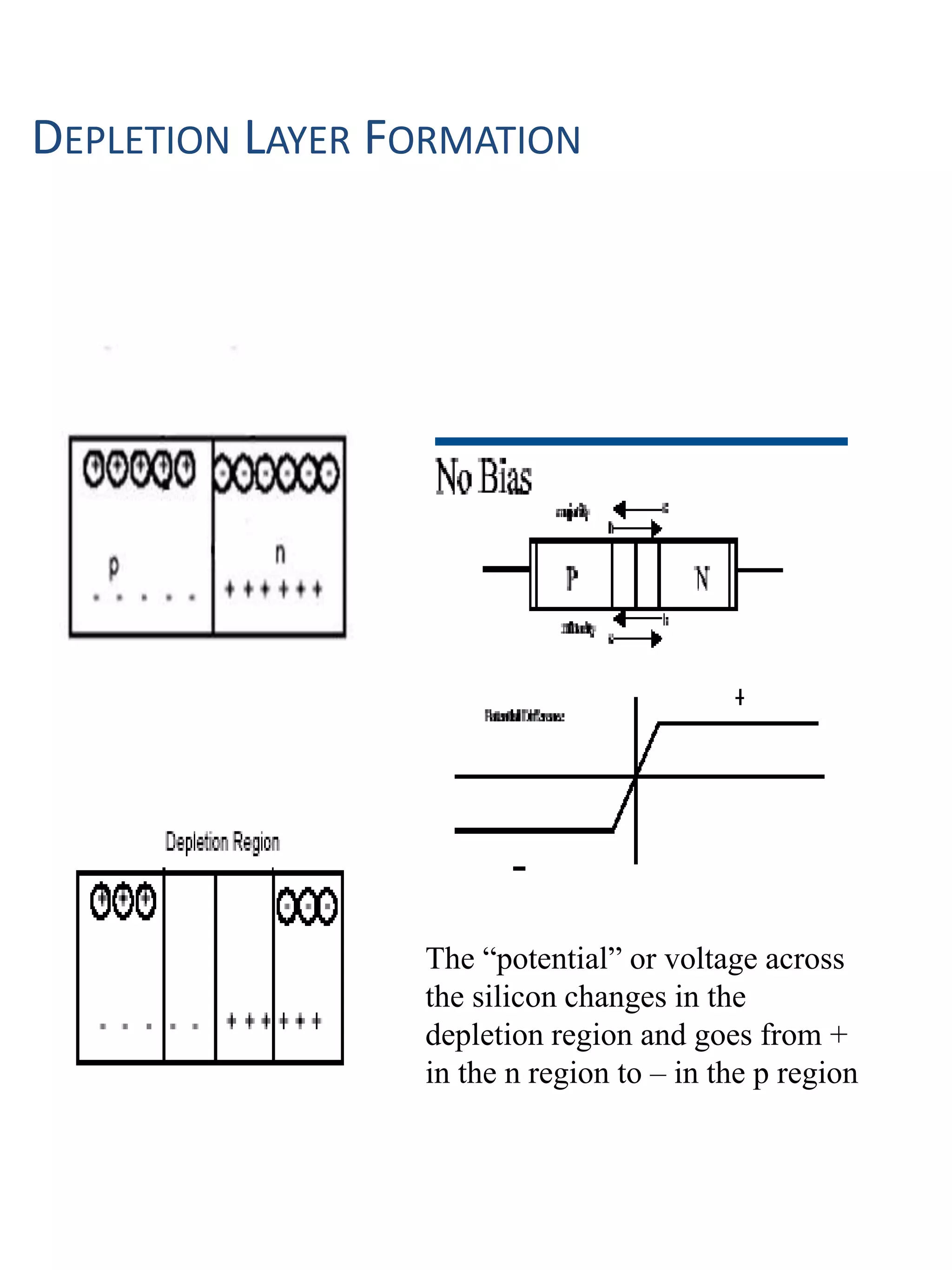

DEPLETION LAYER FORMATION

The “potential” or voltage across
the silicon changes in the
depletion region and goes from +
in the n region to – in the p region

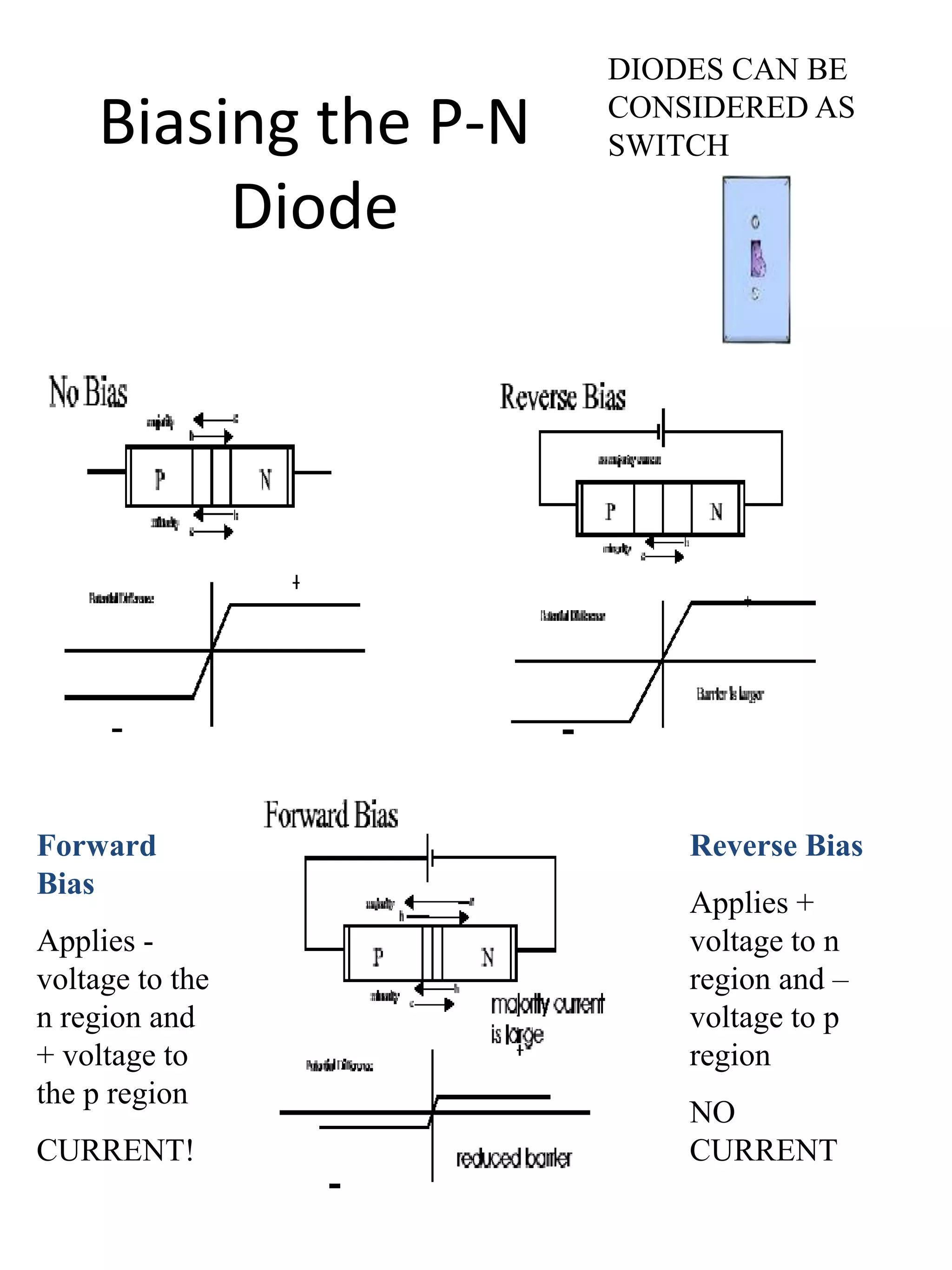

Biasing the P-N
Diode
Forward
Bias
Applies -
voltage to the
n region and
+ voltage to
the p region
CURRENT!
Reverse Bias
Applies +
voltage to n
region and –
voltage to p
region
NO
CURRENT
DIODES CAN BE
CONSIDERED AS
SWITCH

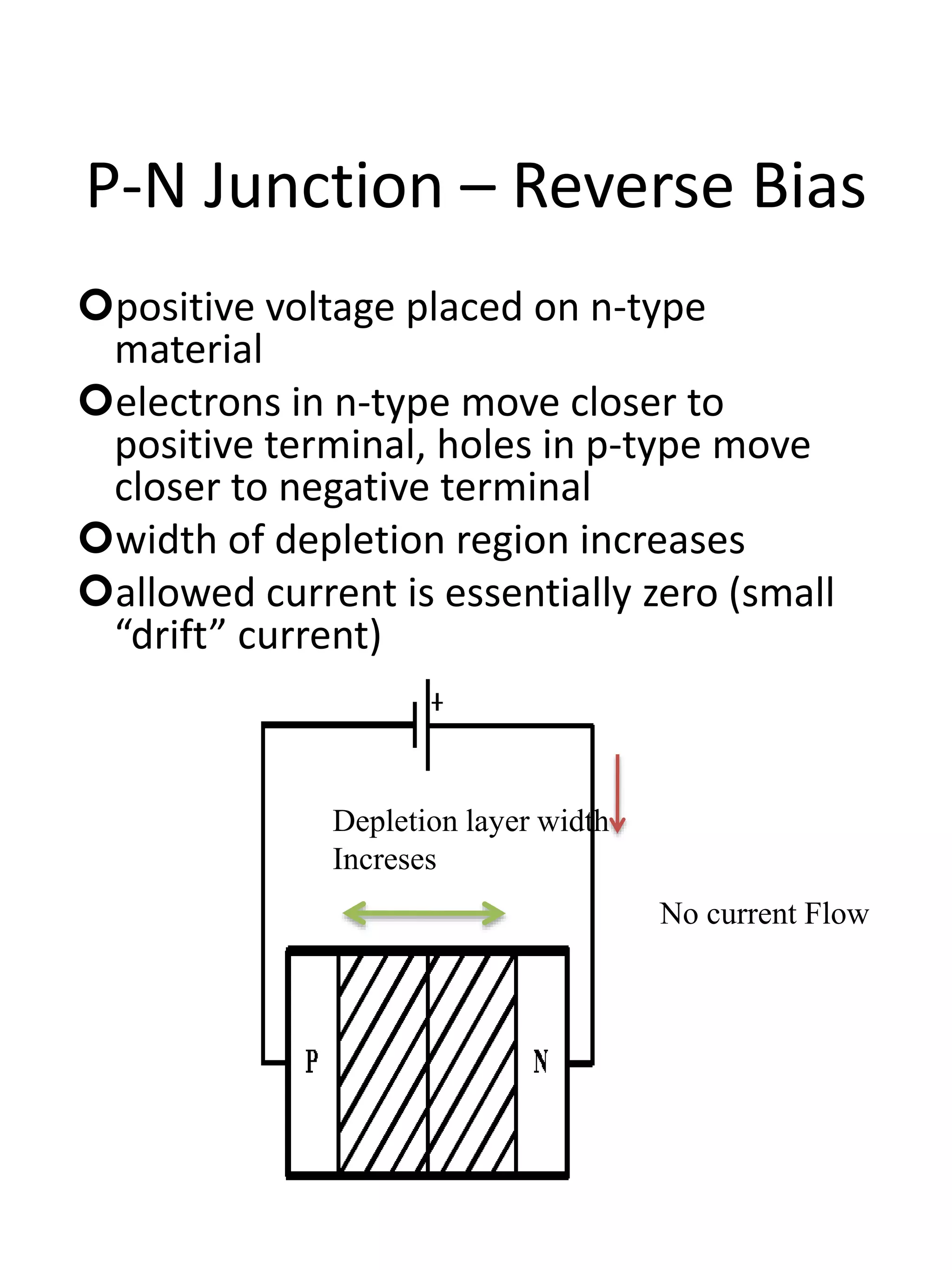

P-N Junction – Reverse Bias
positive voltage placed on n-type
material
electrons in n-type move closer to
positive terminal, holes in p-type move
closer to negative terminal
width of depletion region increases
allowed current is essentially zero (small
“drift” current)
No current Flow
Depletion layer width
Increses

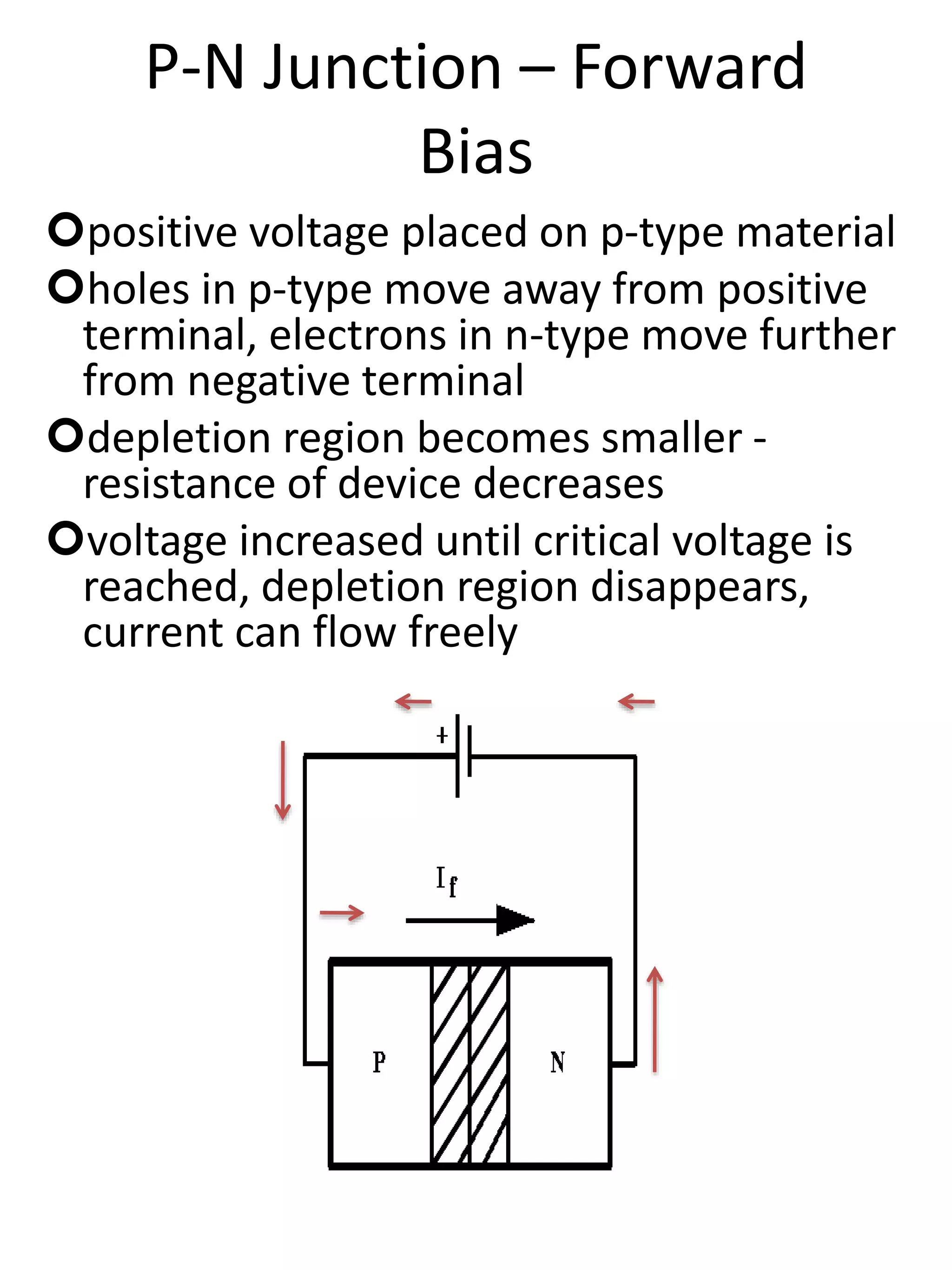

P-N Junction – Forward
Bias
positive voltage placed on p-type material
holes in p-type move away from positive
terminal, electrons in n-type move further
from negative terminal
depletion region becomes smaller -
resistance of device decreases
voltage increased until critical voltage is
reached, depletion region disappears,
current can flow freely

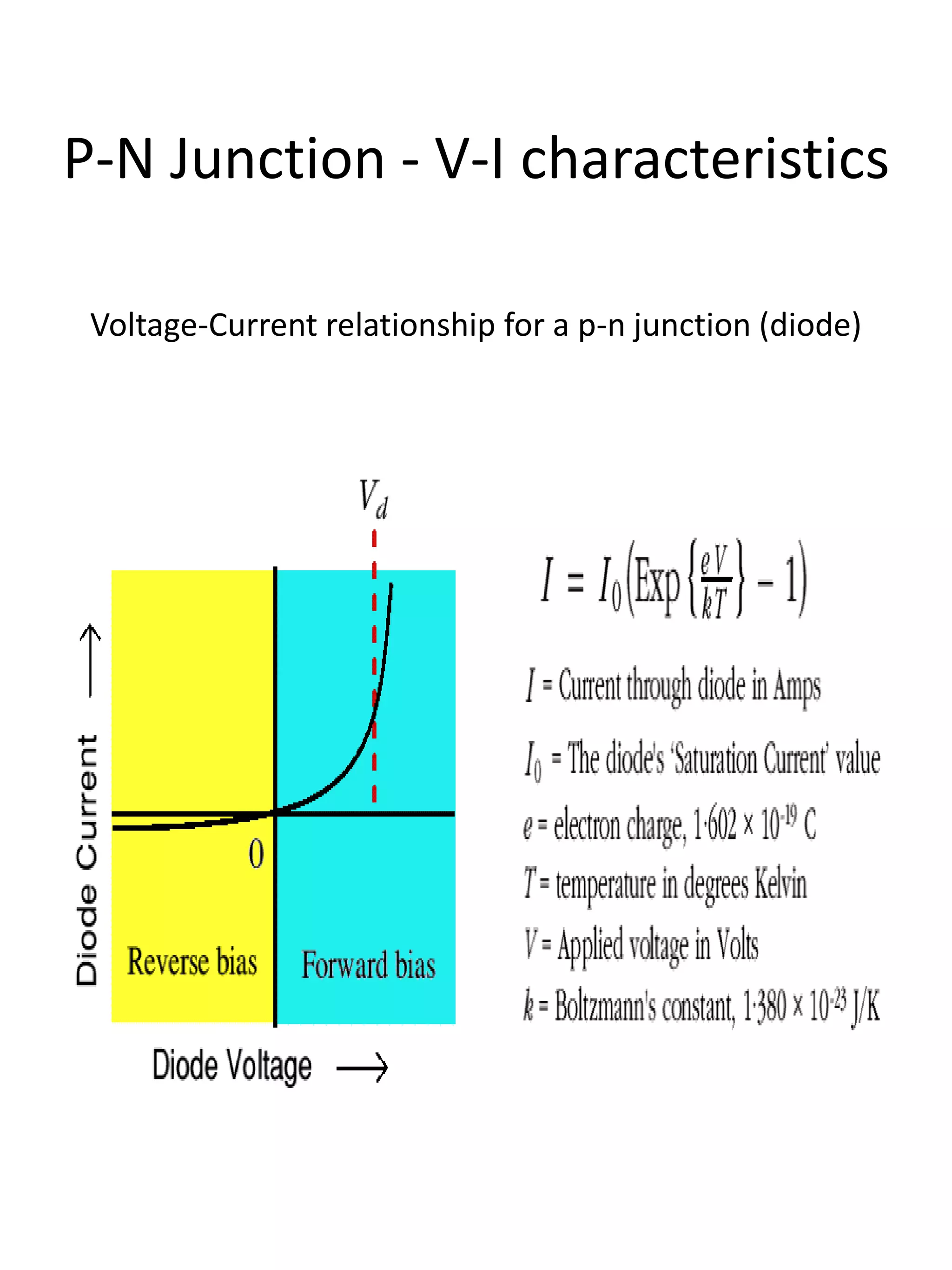

P-N Junction - V-I characteristics
Voltage-Current relationship for a p-n junction (diode)

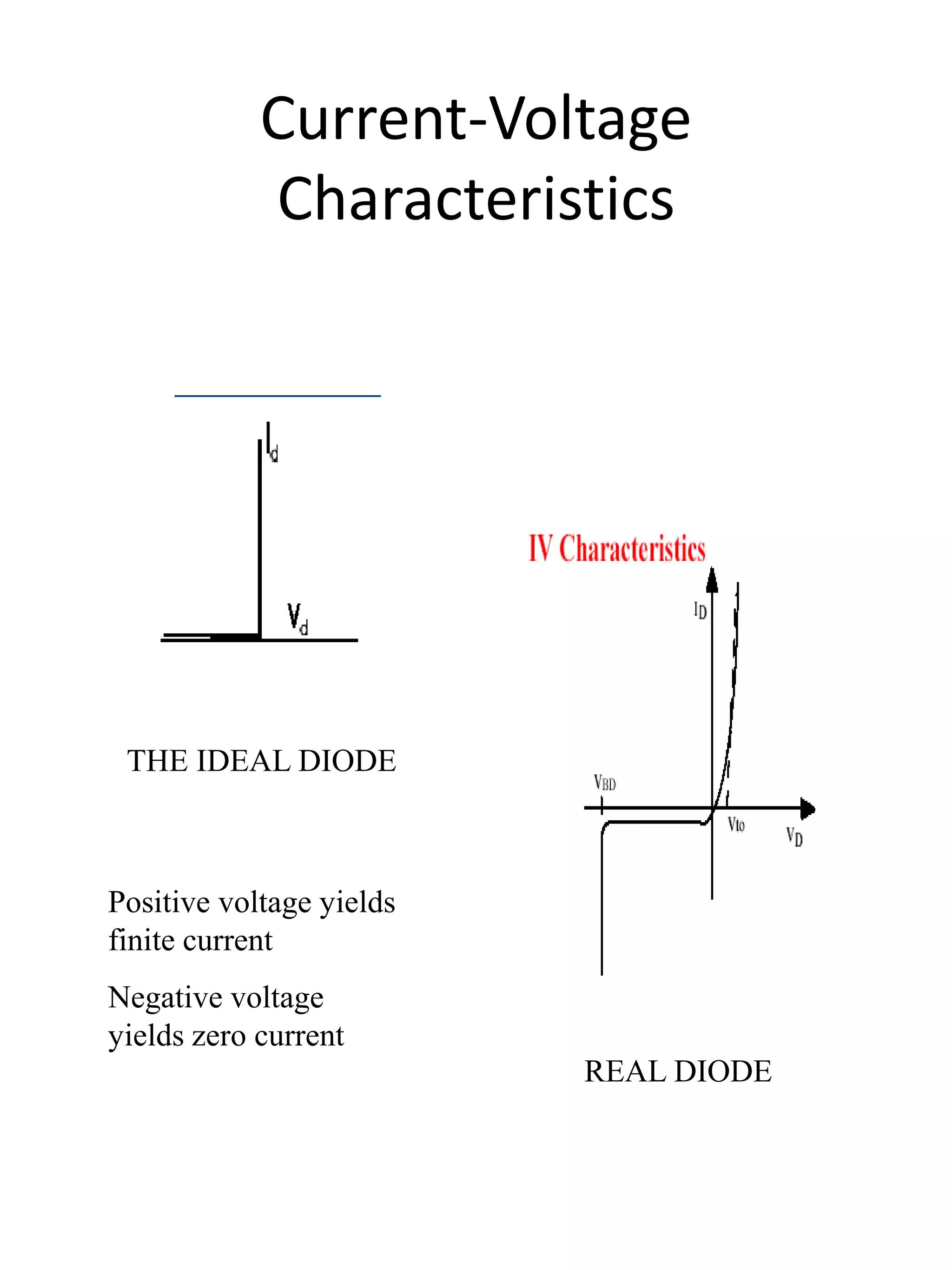

Current-Voltage
Characteristics
THE IDEAL DIODE
Positive voltage yields
finite current
Negative voltage
yields zero current
REAL DIODE

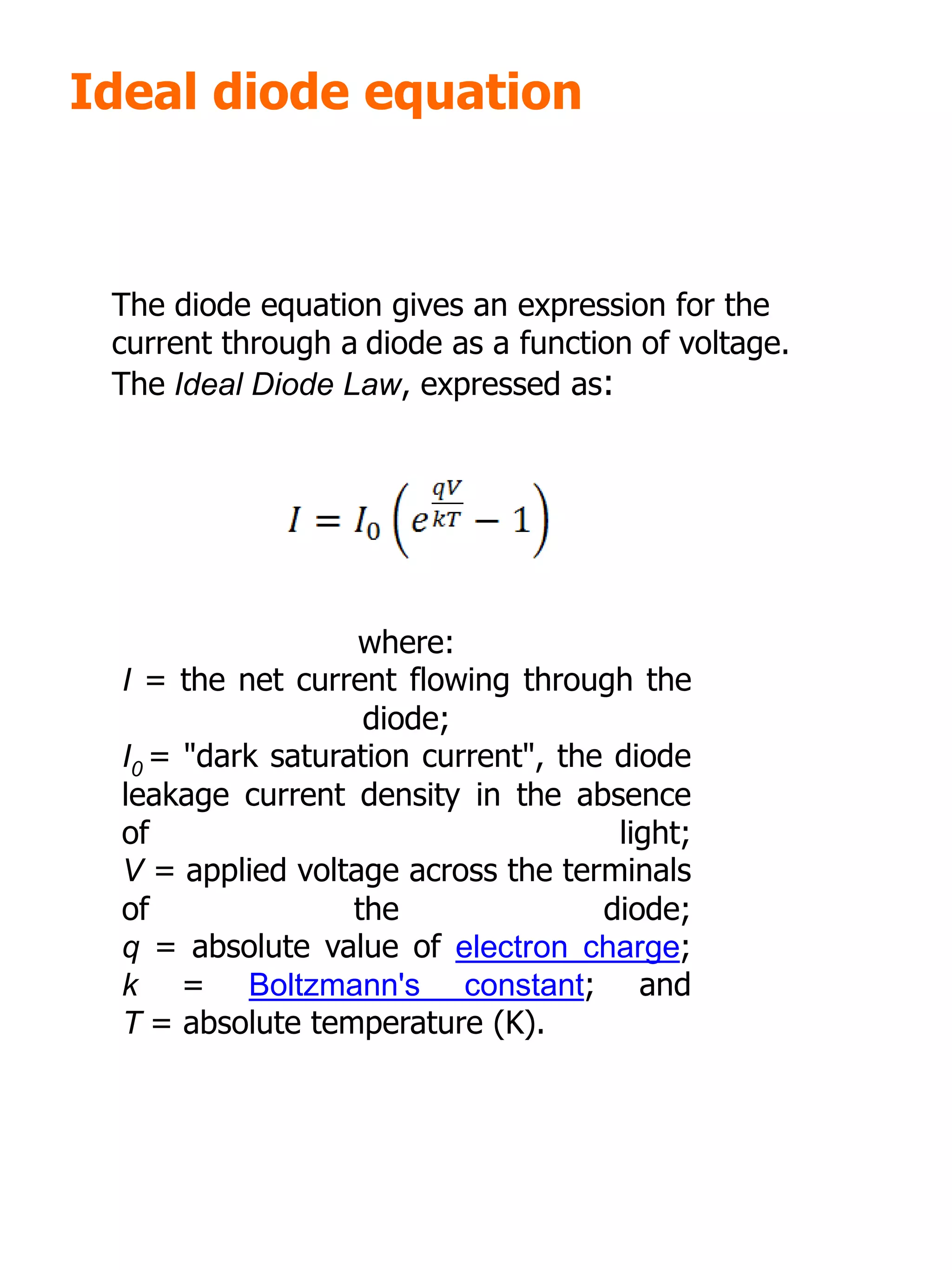

Ideal diode equation
where:
I = the net current flowing through the
diode;
I0 = "dark saturation current", the diode
leakage current density in the absence
of light;
V = applied voltage across the terminals
of the diode;
q = absolute value of electron charge;
k = Boltzmann's constant; and
T = absolute temperature (K).
The diode equation gives an expression for the
current through a diode as a function of voltage.
The Ideal Diode Law, expressed as:

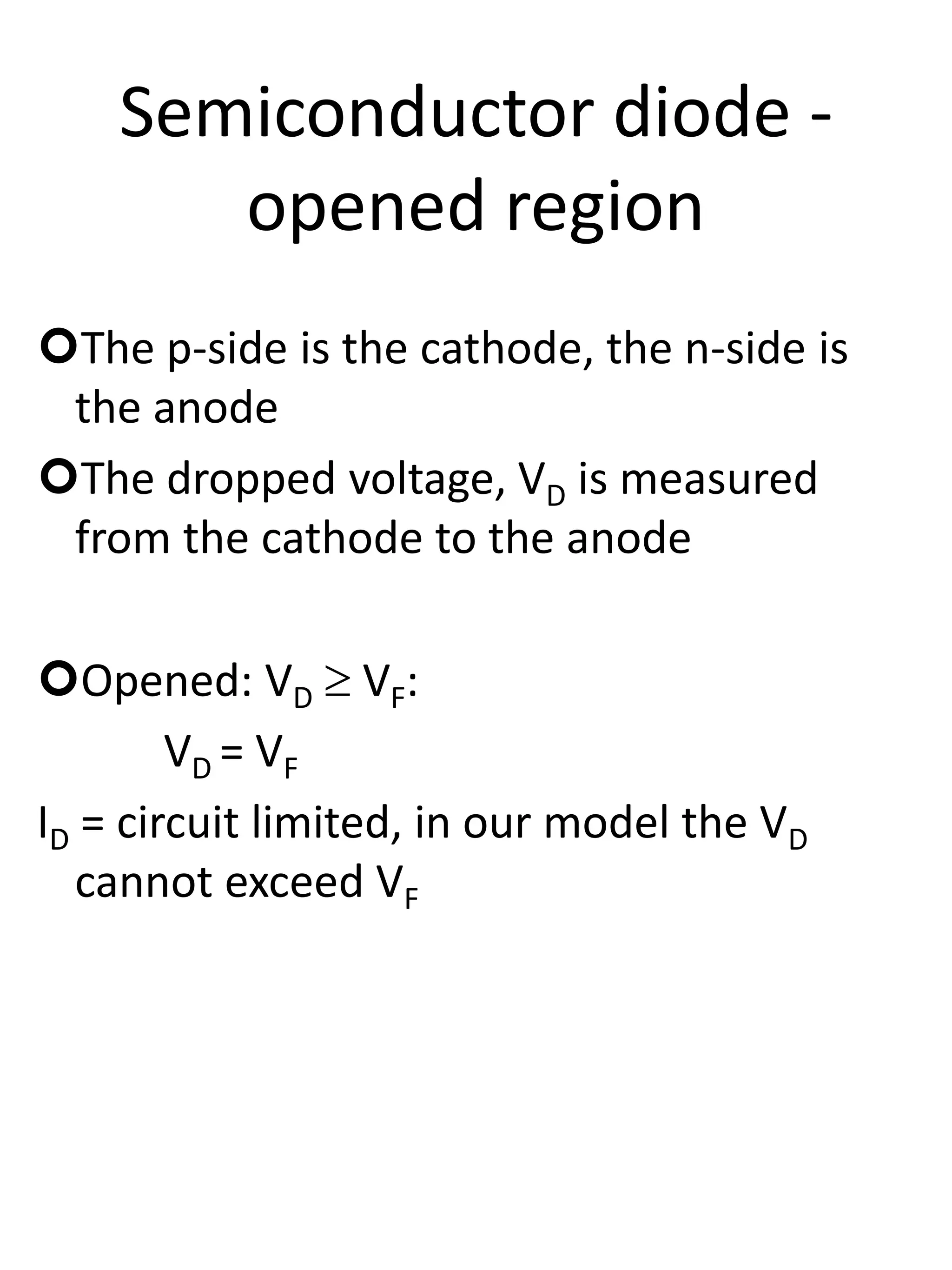

Semiconductor diode -
opened region
The p-side is the cathode, the n-side is
the anode
The dropped voltage, VD is measured
from the cathode to the anode
Opened: VD  VF:
VD = VF
ID = circuit limited, in our model the VD
cannot exceed VF

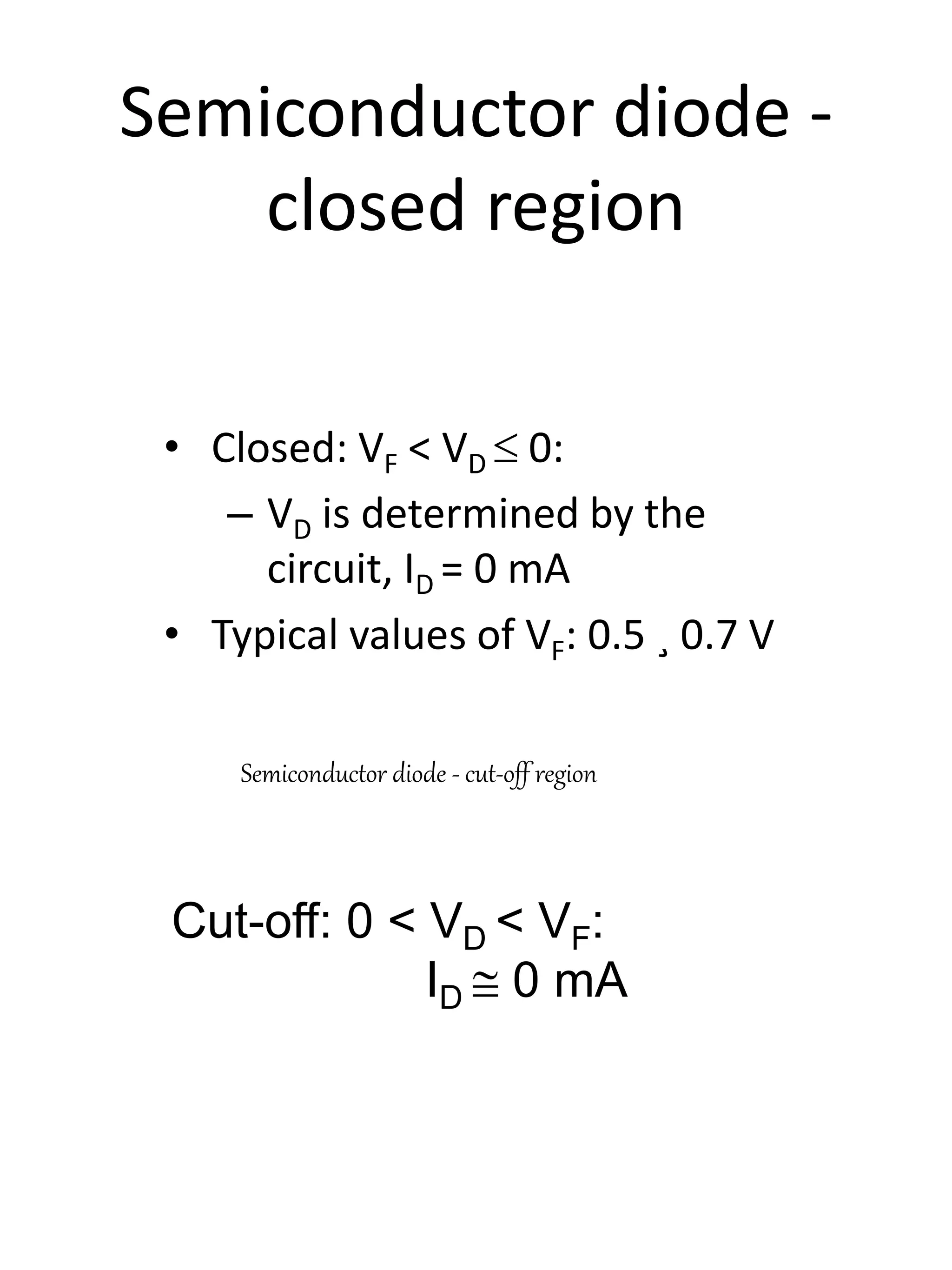

Semiconductor diode -
closed region
• Closed: VF < VD  0:
– VD is determined by the
circuit, ID = 0 mA
• Typical values of VF: 0.5 ¸ 0.7 V
Cut-off: 0 < VD < VF:
ID  0 mA
Semiconductor diode - cut-off region

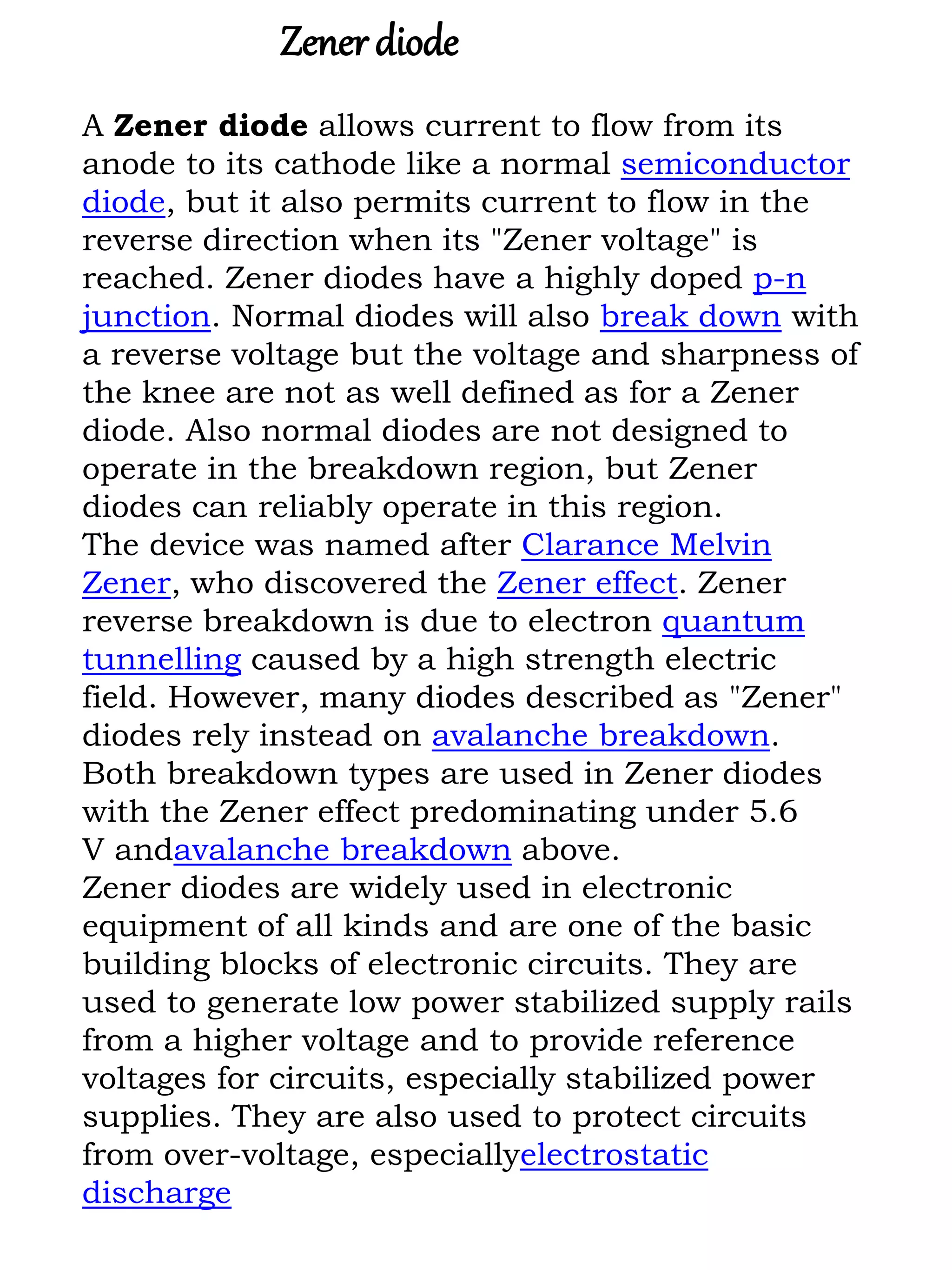

A Zener diode allows current to flow from its
anode to its cathode like a normal semiconductor
diode, but it also permits current to flow in the
reverse direction when its "Zener voltage" is
reached. Zener diodes have a highly doped p-n
junction. Normal diodes will also break down with
a reverse voltage but the voltage and sharpness of
the knee are not as well defined as for a Zener
diode. Also normal diodes are not designed to
operate in the breakdown region, but Zener
diodes can reliably operate in this region.
The device was named after Clarance Melvin
Zener, who discovered the Zener effect. Zener
reverse breakdown is due to electron quantum
tunnelling caused by a high strength electric
field. However, many diodes described as "Zener"
diodes rely instead on avalanche breakdown.
Both breakdown types are used in Zener diodes
with the Zener effect predominating under 5.6
V andavalanche breakdown above.
Zener diodes are widely used in electronic
equipment of all kinds and are one of the basic
building blocks of electronic circuits. They are
used to generate low power stabilized supply rails
from a higher voltage and to provide reference
voltages for circuits, especially stabilized power
supplies. They are also used to protect circuits
from over-voltage, especiallyelectrostatic
discharge
Zenerdiode

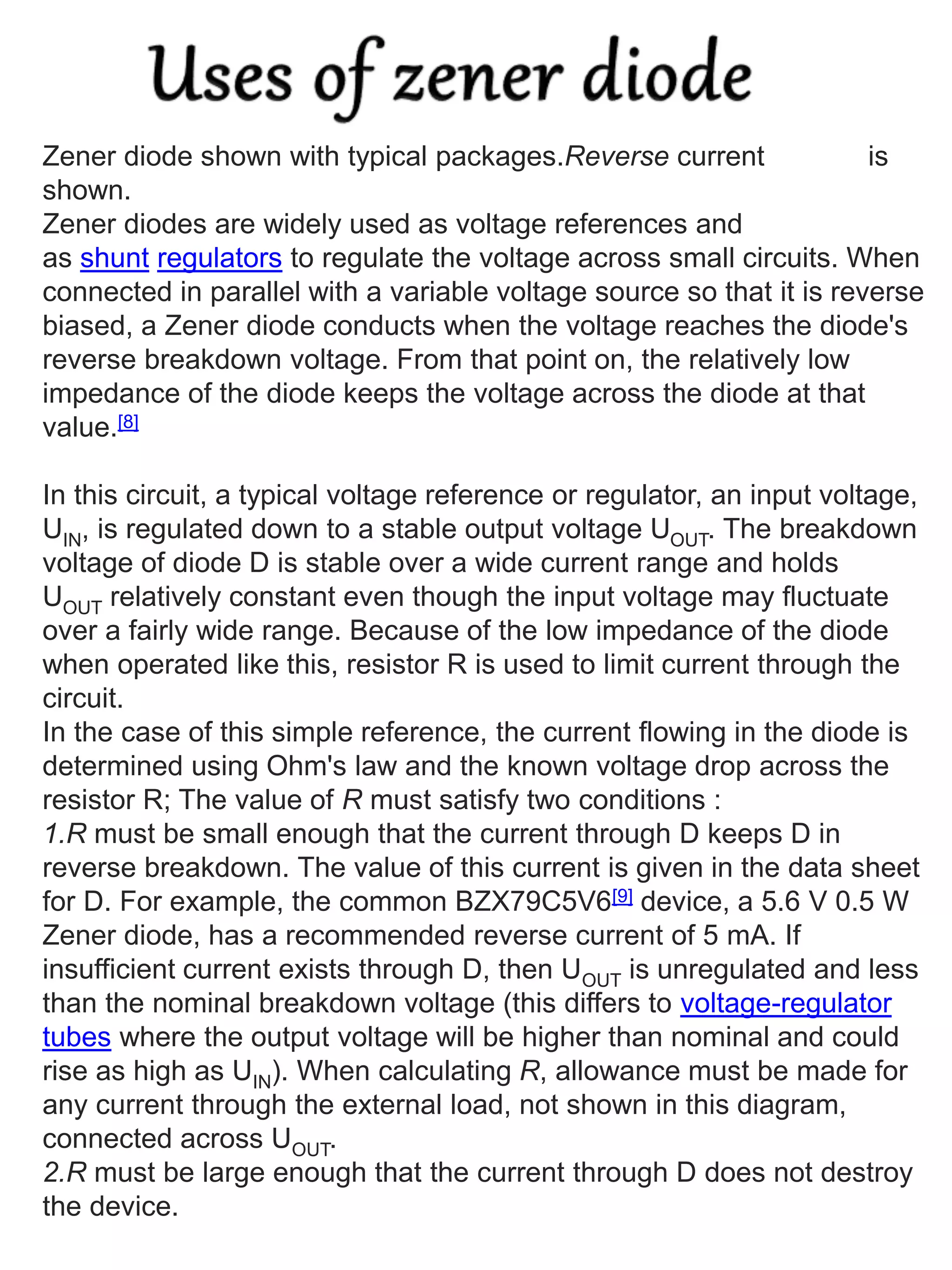

Zener diode shown with typical packages.Reverse current is
shown.
Zener diodes are widely used as voltage references and
as shunt regulators to regulate the voltage across small circuits. When
connected in parallel with a variable voltage source so that it is reverse
biased, a Zener diode conducts when the voltage reaches the diode's
reverse breakdown voltage. From that point on, the relatively low
impedance of the diode keeps the voltage across the diode at that
value.[8]
In this circuit, a typical voltage reference or regulator, an input voltage,
UIN, is regulated down to a stable output voltage UOUT. The breakdown
voltage of diode D is stable over a wide current range and holds
UOUT relatively constant even though the input voltage may fluctuate
over a fairly wide range. Because of the low impedance of the diode
when operated like this, resistor R is used to limit current through the
circuit.
In the case of this simple reference, the current flowing in the diode is
determined using Ohm's law and the known voltage drop across the
resistor R; The value of R must satisfy two conditions :
1.R must be small enough that the current through D keeps D in
reverse breakdown. The value of this current is given in the data sheet
for D. For example, the common BZX79C5V6[9] device, a 5.6 V 0.5 W
Zener diode, has a recommended reverse current of 5 mA. If
insufficient current exists through D, then UOUT is unregulated and less
than the nominal breakdown voltage (this differs to voltage-regulator
tubes where the output voltage will be higher than nominal and could
rise as high as UIN). When calculating R, allowance must be made for
any current through the external load, not shown in this diagram,
connected across UOUT.
2.R must be large enough that the current through D does not destroy
the device.
2.If the current through D is ID, its breakdown voltage VB and its
maximum power dissipation PMAX correlate as such: .
A load may be placed across the diode in this reference circuit,
and as long as the Zener stays in reverse breakdown, the diode
provides a stable voltage source to the load. Zener diodes in this
configuration are often used as stable references for more
advanced voltage regulator circuits.
Shunt regulators are simple, but the requirements that the ballast
resistor be small enough to avoid excessive voltage drop during
worst-case operation (low input voltage concurrent with high load
current) tends to leave a lot of current flowing in the diode much of
the time, making for a fairly wasteful regulator with high quiescent
power dissipation, only suitable for smaller loads.
These devices are also encountered, typically in series with a
base-emitter junction, in transistor stages where selective choice
of a device centered around the avalanche or Zener point can be
used to introduce compensating temperature co-efficient balancing
of the transistor p–n junction. An example of this kind of use would
be a DC error amplifier used in aregulated power supply circuit
feedback loop system.
Zener diodes are also used in surge protectors to limit transient
voltage spikes.
Another application of the Zener diode is the use of noise caused
by its avalan che breakdown in a random number generator.

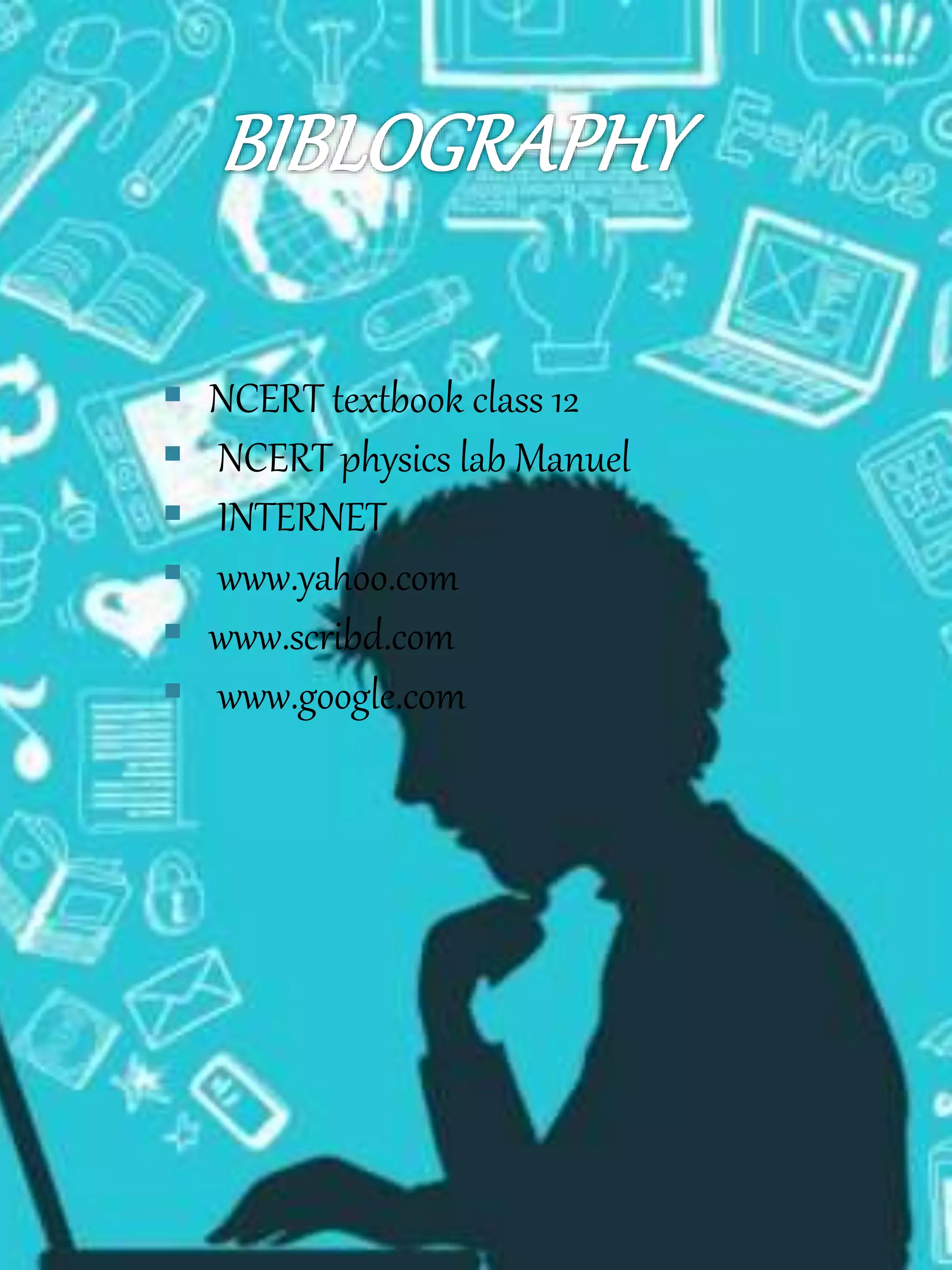

 NCERT textbook class 12
 NCERT physics lab Manuel
 INTERNET
 www.yahoo.com
 www.scribd.com
 www.google.com

More Related Content

What's hot

physics project on electromagnetic inducion
physics project on electromagnetic inducionphysics project on electromagnetic inducion
physics project on electromagnetic inducion
pranav1645

KV Physics investigatory project
KV Physics investigatory projectKV Physics investigatory project
KV Physics investigatory project
Khushal Mehta

SEMICONDUCTOR (project)
SEMICONDUCTOR (project)SEMICONDUCTOR (project)
SEMICONDUCTOR (project)
SUDHA BHUJEL

Transformer(Class 12 Investigatory Project)
Transformer(Class 12 Investigatory Project)Transformer(Class 12 Investigatory Project)
Transformer(Class 12 Investigatory Project)
अयशकांत मिश्र

Physics Investigatory Project - Transformer
Physics Investigatory Project - TransformerPhysics Investigatory Project - Transformer
Physics Investigatory Project - Transformer
Jishnu Rajan

Physics investigatory project on RECTIFIER
Physics investigatory project on RECTIFIERPhysics investigatory project on RECTIFIER
Physics investigatory project on RECTIFIER
Naveen R

Physics investigatory project
Physics investigatory projectPhysics investigatory project
Physics investigatory project
Monita Priyadarshini

Physics investigatory project ON MAGNETS CLASS 12
Physics investigatory project ON MAGNETS CLASS 12Physics investigatory project ON MAGNETS CLASS 12
Physics investigatory project ON MAGNETS CLASS 12
Vasu Yadav

physics investigatory project for class 12th students
 physics investigatory project for class 12th students physics investigatory project for class 12th students
physics investigatory project for class 12th students
Gaurav Jha

Physics investigatory project for class 12
Physics investigatory project for class 12Physics investigatory project for class 12
Physics investigatory project for class 12
Kavita Kulkarni

cbse 12th chemistry investigatory project
cbse 12th chemistry investigatory project cbse 12th chemistry investigatory project
cbse 12th chemistry investigatory project
NIKHIL DWIVEDI

Chemistry Investigatory Project of class 12th CBSE
Chemistry Investigatory Project  of class 12th CBSEChemistry Investigatory Project  of class 12th CBSE
Chemistry Investigatory Project of class 12th CBSE
Nagesh Agrawal

12th Physics Investigatory project (LDR)
12th Physics Investigatory project (LDR)12th Physics Investigatory project (LDR)
12th Physics Investigatory project (LDR)
ismail11112

Physics Project
Physics ProjectPhysics Project
Physics Project
Ashna Rajput

Step-down transformer Physics project Class 12 CBSE Final
Step-down transformer Physics project Class 12 CBSE FinalStep-down transformer Physics project Class 12 CBSE Final
Step-down transformer Physics project Class 12 CBSE Final
Muhammad Jassim

Study of common food adulterants in fat, oil, butter, sugar, turmeric power...
Study  of common food adulterants in fat, oil, butter,  sugar, turmeric power...Study  of common food adulterants in fat, oil, butter,  sugar, turmeric power...
Study of common food adulterants in fat, oil, butter, sugar, turmeric power...
ARSHGERA1

Chemistry Investigation Project (Daniel cell).
Chemistry Investigation Project (Daniel cell).Chemistry Investigation Project (Daniel cell).
Chemistry Investigation Project (Daniel cell).
sanjeebankrishna

Physics Investigatory Project Class XII
Physics Investigatory Project Class XIIPhysics Investigatory Project Class XII
Physics Investigatory Project Class XII
Ajit Singh

XII INVESTIGATORY PHYSICS PROJECT
XII INVESTIGATORY PHYSICS PROJECTXII INVESTIGATORY PHYSICS PROJECT
XII INVESTIGATORY PHYSICS PROJECT
Er Shambhu Chauhan

A.c. generator
A.c. generatorA.c. generator
A.c. generator
aditya singh


What's hot (20)

physics project on electromagnetic inducion
physics project on electromagnetic inducionphysics project on electromagnetic inducion
physics project on electromagnetic inducion

KV Physics investigatory project
KV Physics investigatory projectKV Physics investigatory project
KV Physics investigatory project

SEMICONDUCTOR (project)
SEMICONDUCTOR (project)SEMICONDUCTOR (project)
SEMICONDUCTOR (project)

Transformer(Class 12 Investigatory Project)
Transformer(Class 12 Investigatory Project)Transformer(Class 12 Investigatory Project)
Transformer(Class 12 Investigatory Project)

Physics Investigatory Project - Transformer
Physics Investigatory Project - TransformerPhysics Investigatory Project - Transformer
Physics Investigatory Project - Transformer

Physics investigatory project on RECTIFIER
Physics investigatory project on RECTIFIERPhysics investigatory project on RECTIFIER
Physics investigatory project on RECTIFIER

Physics investigatory project
Physics investigatory projectPhysics investigatory project
Physics investigatory project

Physics investigatory project ON MAGNETS CLASS 12
Physics investigatory project ON MAGNETS CLASS 12Physics investigatory project ON MAGNETS CLASS 12
Physics investigatory project ON MAGNETS CLASS 12

physics investigatory project for class 12th students
 physics investigatory project for class 12th students physics investigatory project for class 12th students
physics investigatory project for class 12th students

Physics investigatory project for class 12
Physics investigatory project for class 12Physics investigatory project for class 12
Physics investigatory project for class 12

cbse 12th chemistry investigatory project
cbse 12th chemistry investigatory project cbse 12th chemistry investigatory project
cbse 12th chemistry investigatory project

Chemistry Investigatory Project of class 12th CBSE
Chemistry Investigatory Project  of class 12th CBSEChemistry Investigatory Project  of class 12th CBSE
Chemistry Investigatory Project of class 12th CBSE

12th Physics Investigatory project (LDR)
12th Physics Investigatory project (LDR)12th Physics Investigatory project (LDR)
12th Physics Investigatory project (LDR)

Physics Project
Physics ProjectPhysics Project
Physics Project

Step-down transformer Physics project Class 12 CBSE Final
Step-down transformer Physics project Class 12 CBSE FinalStep-down transformer Physics project Class 12 CBSE Final
Step-down transformer Physics project Class 12 CBSE Final

Study of common food adulterants in fat, oil, butter, sugar, turmeric power...
Study  of common food adulterants in fat, oil, butter,  sugar, turmeric power...Study  of common food adulterants in fat, oil, butter,  sugar, turmeric power...
Study of common food adulterants in fat, oil, butter, sugar, turmeric power...

Chemistry Investigation Project (Daniel cell).
Chemistry Investigation Project (Daniel cell).Chemistry Investigation Project (Daniel cell).
Chemistry Investigation Project (Daniel cell).

Physics Investigatory Project Class XII
Physics Investigatory Project Class XIIPhysics Investigatory Project Class XII
Physics Investigatory Project Class XII

XII INVESTIGATORY PHYSICS PROJECT
XII INVESTIGATORY PHYSICS PROJECTXII INVESTIGATORY PHYSICS PROJECT
XII INVESTIGATORY PHYSICS PROJECT

A.c. generator
A.c. generatorA.c. generator
A.c. generator


Similar to Physics Project for class 12 isc Junction and diode

Lecture-2.pptx
Lecture-2.pptxLecture-2.pptx
Lecture-2.pptx
SulmanShahzad

Bsc 1 cbcs e1 unit 2
Bsc 1 cbcs e1 unit 2Bsc 1 cbcs e1 unit 2
Bsc 1 cbcs e1 unit 2
MahiboobAliMulla

Semiconductors
SemiconductorsSemiconductors
Semiconductors
HarshitParkar6677

Electronics.pptx
Electronics.pptxElectronics.pptx
Electronics.pptx
Dr.Prabu Mani

Diode
DiodeDiode
SpecialDiodes.pdf
SpecialDiodes.pdfSpecialDiodes.pdf
SpecialDiodes.pdf
KUMARS641064

Types of Diodes Advantages and disadvantages, LE
Types of Diodes Advantages and disadvantages, LETypes of Diodes Advantages and disadvantages, LE
Types of Diodes Advantages and disadvantages, LE
Musab Hussain

Type of pn junction & rectifiers plus Transistor
Type of pn junction & rectifiers plus TransistorType of pn junction & rectifiers plus Transistor
Type of pn junction & rectifiers plus Transistor
Muhammad Adeel Shakir

Electron Device Control
Electron Device ControlElectron Device Control
Electron Device Control
PRABHAHARAN429

V-i characteris (1).pdf
V-i characteris (1).pdfV-i characteris (1).pdf
V-i characteris (1).pdf
AditeeBasutkar

Introduction to Semiconductor Materials and devices
Introduction to Semiconductor Materials and devicesIntroduction to Semiconductor Materials and devices
Introduction to Semiconductor Materials and devices
Arunbhaarat S

Ece ass
Ece assEce ass
[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...
[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...
[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...
Pratik Nakrani

8. semiconductors.rr
8. semiconductors.rr8. semiconductors.rr
8. semiconductors.rr
Arriz San Juan

Basic Electronics UNIt1 PPT
Basic Electronics UNIt1 PPTBasic Electronics UNIt1 PPT
Basic Electronics UNIt1 PPT
Praveen Kunda

Theory of solids
Theory of solidsTheory of solids
Theory of solids
Sanket Lakhtriya

Difference between half wave and full wave rectifier
Difference between half wave and full wave rectifierDifference between half wave and full wave rectifier
Difference between half wave and full wave rectifier
AL- AMIN

Diode data sheet for alarm type project
Diode data sheet for alarm type projectDiode data sheet for alarm type project
Diode data sheet for alarm type project
megha agrawal

EC 8353 EDC
EC 8353 EDCEC 8353 EDC
EC 8353 EDC
rmkceteee

Electronic devices circuits
Electronic devices circuitsElectronic devices circuits
Electronic devices circuits
sudeep kumar


Similar to Physics Project for class 12 isc Junction and diode (20)

Lecture-2.pptx
Lecture-2.pptxLecture-2.pptx
Lecture-2.pptx

Bsc 1 cbcs e1 unit 2
Bsc 1 cbcs e1 unit 2Bsc 1 cbcs e1 unit 2
Bsc 1 cbcs e1 unit 2

Semiconductors
SemiconductorsSemiconductors
Semiconductors

Electronics.pptx
Electronics.pptxElectronics.pptx
Electronics.pptx

Diode
DiodeDiode
Diode

SpecialDiodes.pdf
SpecialDiodes.pdfSpecialDiodes.pdf
SpecialDiodes.pdf

Types of Diodes Advantages and disadvantages, LE
Types of Diodes Advantages and disadvantages, LETypes of Diodes Advantages and disadvantages, LE
Types of Diodes Advantages and disadvantages, LE

Type of pn junction & rectifiers plus Transistor
Type of pn junction & rectifiers plus TransistorType of pn junction & rectifiers plus Transistor
Type of pn junction & rectifiers plus Transistor

Electron Device Control
Electron Device ControlElectron Device Control
Electron Device Control

V-i characteris (1).pdf
V-i characteris (1).pdfV-i characteris (1).pdf
V-i characteris (1).pdf

Introduction to Semiconductor Materials and devices
Introduction to Semiconductor Materials and devicesIntroduction to Semiconductor Materials and devices
Introduction to Semiconductor Materials and devices

Ece ass
Ece assEce ass
Ece ass

[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...
[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...
[FULL ANIMATED(Download to view)] Unbiased diode, Forward biased , reverse bi...

8. semiconductors.rr
8. semiconductors.rr8. semiconductors.rr
8. semiconductors.rr

Basic Electronics UNIt1 PPT
Basic Electronics UNIt1 PPTBasic Electronics UNIt1 PPT
Basic Electronics UNIt1 PPT

Theory of solids
Theory of solidsTheory of solids
Theory of solids

Difference between half wave and full wave rectifier
Difference between half wave and full wave rectifierDifference between half wave and full wave rectifier
Difference between half wave and full wave rectifier

Diode data sheet for alarm type project
Diode data sheet for alarm type projectDiode data sheet for alarm type project
Diode data sheet for alarm type project

EC 8353 EDC
EC 8353 EDCEC 8353 EDC
EC 8353 EDC

Electronic devices circuits
Electronic devices circuitsElectronic devices circuits
Electronic devices circuits


Recently uploaded

The Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The AirThe Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The Air
Ashraf Ismail

the potential for the development of autonomous aircraft
the potential for the development of autonomous aircraftthe potential for the development of autonomous aircraft
the potential for the development of autonomous aircraft
huseindihon

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk
Evan Chan

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf
mdfkobir

EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagneEAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
idelewebmestre

Presentation python programming vtu 6th sem
Presentation python programming vtu 6th semPresentation python programming vtu 6th sem
Presentation python programming vtu 6th sem
ssuser8f6b1d1

Probability and Statistics by sheldon ross (8th edition).pdf
Probability and Statistics by sheldon ross (8th edition).pdfProbability and Statistics by sheldon ross (8th edition).pdf
Probability and Statistics by sheldon ross (8th edition).pdf
utkarshakusnake

readers writers Problem in operating system
readers writers Problem in operating systemreaders writers Problem in operating system
readers writers Problem in operating system
VADAPALLYPRAVEENKUMA1

Introduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptxIntroduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptx
SerendipityYoon

Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A SurveySecurity Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
pijans

Tutorial on MySQl and its basic concepts
Tutorial on MySQl and its basic conceptsTutorial on MySQl and its basic concepts
Tutorial on MySQl and its basic concepts
anishacotta2

IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptxIE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
BehairyAhmed2

Generative-AI-a-boost-for-operations-Presentation.pdf
Generative-AI-a-boost-for-operations-Presentation.pdfGenerative-AI-a-boost-for-operations-Presentation.pdf
Generative-AI-a-boost-for-operations-Presentation.pdf
Aries716858

FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATAFINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
kevig

charting the development of the autonomous train
charting the development of the autonomous traincharting the development of the autonomous train
charting the development of the autonomous train
huseindihon

Online airline reservation system project report.pdf
Online airline reservation system project report.pdfOnline airline reservation system project report.pdf
Online airline reservation system project report.pdf
Kamal Acharya

Metrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical EngineeringMetrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical Engineering
leakingvideo

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...
RohitGhulanavar2

Software Engineering and Project Management - Activity Planning
Software Engineering and Project Management - Activity PlanningSoftware Engineering and Project Management - Activity Planning
Software Engineering and Project Management - Activity Planning
Prakhyath Rai

Chapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdfChapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdf
MeghaGupta952452


Recently uploaded (20)

The Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The AirThe Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The Air

the potential for the development of autonomous aircraft
the potential for the development of autonomous aircraftthe potential for the development of autonomous aircraft
the potential for the development of autonomous aircraft

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf

EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagneEAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne
EAAP2023 : Durabilité et services écosystémiques de l'élevage ovin de montagne

Presentation python programming vtu 6th sem
Presentation python programming vtu 6th semPresentation python programming vtu 6th sem
Presentation python programming vtu 6th sem

Probability and Statistics by sheldon ross (8th edition).pdf
Probability and Statistics by sheldon ross (8th edition).pdfProbability and Statistics by sheldon ross (8th edition).pdf
Probability and Statistics by sheldon ross (8th edition).pdf

readers writers Problem in operating system
readers writers Problem in operating systemreaders writers Problem in operating system
readers writers Problem in operating system

Introduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptxIntroduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptx

Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A SurveySecurity Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey
Security Attacks and Solutions in Vehicular Ad Hoc Networks: A Survey

Tutorial on MySQl and its basic concepts
Tutorial on MySQl and its basic conceptsTutorial on MySQl and its basic concepts
Tutorial on MySQl and its basic concepts

IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptxIE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx

Generative-AI-a-boost-for-operations-Presentation.pdf
Generative-AI-a-boost-for-operations-Presentation.pdfGenerative-AI-a-boost-for-operations-Presentation.pdf
Generative-AI-a-boost-for-operations-Presentation.pdf

FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATAFINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA
FINE-TUNING OF SMALL/MEDIUM LLMS FOR BUSINESS QA ON STRUCTURED DATA

charting the development of the autonomous train
charting the development of the autonomous traincharting the development of the autonomous train
charting the development of the autonomous train

Online airline reservation system project report.pdf
Online airline reservation system project report.pdfOnline airline reservation system project report.pdf
Online airline reservation system project report.pdf

Metrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical EngineeringMetrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical Engineering

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...

Software Engineering and Project Management - Activity Planning
Software Engineering and Project Management - Activity PlanningSoftware Engineering and Project Management - Activity Planning
Software Engineering and Project Management - Activity Planning

Chapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdfChapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdf


Physics Project for class 12 isc Junction and diode

  • 1. in DEPARTMENT OF PHYICS MOTHER TERESA SR. SEC. CO-ED SCHOOL BHOPAL MOTHER TERESA SR. SEC. CO-ED SCHOOL KOLAR ROAD BHOAPL DEPARTMENT OF PHYSICS PROJECT REPORT INVESTIGATORYPROJECT ON PN JUNCTION AND DIODES PROJECT REPORT Submitted by Govind Patel Submitted to Mrs Ratna Hajela RegisterationNo:
  • 2. In the accomplishment of this project successfully, many people have best owned upon me their blessings and the heart pledged support, this time I am utilizing to thank all the people who have been concerned with project. Primarily I would thank god for being able to complete this project with success. Then I would like to thank my principal Mr. James MJ and physics teacher Mrs Ratna hajela, whose valuable guidance has been the ones that helped me patch this project and make it full proof success her suggestions and her instructions has served as the major contributor towards the completion of the project. Then I would like to thank my parents and friends who have helped me with their valuable suggestions and guidance has been helpful in various phases of the completion of the project. Last but not the least I would like to thank my classmates who have helped me a lot. ACKNOWLEDGEMENT
  • 3. CERTIFICATE This is to certify that project work titled A STUDY ON PN JUNCTIONS AND DIODES being submitted by Govind Patel a student of class XII-A has successfully completed the research on the below mentioned project under the guidance of Mrs Ratna Hajela ( Subject Teacher ) during the year 2016-17 in partial fulfillment of physics practical examination conducted by AISSCE Signature of external examiner Signature of physics teacher
  • 4. INDEX • PN Junction • Diode Equation • Zener Diodes
  • 5. Semiconductor: An Introduction • Conductors: Allow Electric current to flow through them • Insulators: Do not Allow Electric current to flow through them • Semiconductors: Materials whose conductivity lies in between of Conductors and Semiconductor
  • 6. Insulators, Semiconductors, and Metals: Comparison This separation of the valence and conduction bands determines the electrical properties of the material Insulators have a large energy gap  electrons can’t jump from valence to conduction bands  no current flows Conductors (metals) have a very small (or nonexistent) energy gap  electrons easily jump to conduction bands due to thermal excitation  current flows easily Semiconductors have a moderate energy gap  only a few electrons can jump to the conduction band leaving “holes”  only a little current can flow
  • 7. P-N JUNCTION  Also known as a diode  One of the basics of semiconductor technology -  Created by placing n-type and p- type material in close contact  Diffusion - mobile charges (holes) in p-type combine with mobile charges (electrons) in n-type
  • 8. P-N JUNCTION  Region of charges left behind (dopants fixed in crystal lattice)  Group III in p-type (one less proton than Si- negative charge)  Group IV in n-type (one more proton than Si - positive charge)  Region is totally depleted of mobile charges - “depletion region”  Electric field forms due to fixed charges in the depletion region  Depletion region has high resistance due to lack of mobile charges
  • 10. DEPLETION LAYER FORMATION  The “potential” or voltage across the silicon changes in the depletion region and goes from + in the n region to – in the p region
  • 11. Biasing the P-N Diode Forward Bias Applies - voltage to the n region and + voltage to the p region CURRENT! Reverse Bias Applies + voltage to n region and – voltage to p region NO CURRENT DIODES CAN BE CONSIDERED AS SWITCH
  • 12. P-N Junction – Reverse Bias positive voltage placed on n-type material electrons in n-type move closer to positive terminal, holes in p-type move closer to negative terminal width of depletion region increases allowed current is essentially zero (small “drift” current) No current Flow Depletion layer width Increses
  • 13. P-N Junction – Forward Bias positive voltage placed on p-type material holes in p-type move away from positive terminal, electrons in n-type move further from negative terminal depletion region becomes smaller - resistance of device decreases voltage increased until critical voltage is reached, depletion region disappears, current can flow freely
  • 14. P-N Junction - V-I characteristics Voltage-Current relationship for a p-n junction (diode)
  • 15. Current-Voltage Characteristics THE IDEAL DIODE Positive voltage yields finite current Negative voltage yields zero current REAL DIODE
  • 16. Ideal diode equation where: I = the net current flowing through the diode; I0 = "dark saturation current", the diode leakage current density in the absence of light; V = applied voltage across the terminals of the diode; q = absolute value of electron charge; k = Boltzmann's constant; and T = absolute temperature (K). The diode equation gives an expression for the current through a diode as a function of voltage. The Ideal Diode Law, expressed as:
  • 17. Semiconductor diode - opened region The p-side is the cathode, the n-side is the anode The dropped voltage, VD is measured from the cathode to the anode Opened: VD  VF: VD = VF ID = circuit limited, in our model the VD cannot exceed VF
  • 18. Semiconductor diode - closed region • Closed: VF < VD  0: – VD is determined by the circuit, ID = 0 mA • Typical values of VF: 0.5 ¸ 0.7 V Cut-off: 0 < VD < VF: ID  0 mA Semiconductor diode - cut-off region
  • 19. A Zener diode allows current to flow from its anode to its cathode like a normal semiconductor diode, but it also permits current to flow in the reverse direction when its "Zener voltage" is reached. Zener diodes have a highly doped p-n junction. Normal diodes will also break down with a reverse voltage but the voltage and sharpness of the knee are not as well defined as for a Zener diode. Also normal diodes are not designed to operate in the breakdown region, but Zener diodes can reliably operate in this region. The device was named after Clarance Melvin Zener, who discovered the Zener effect. Zener reverse breakdown is due to electron quantum tunnelling caused by a high strength electric field. However, many diodes described as "Zener" diodes rely instead on avalanche breakdown. Both breakdown types are used in Zener diodes with the Zener effect predominating under 5.6 V andavalanche breakdown above. Zener diodes are widely used in electronic equipment of all kinds and are one of the basic building blocks of electronic circuits. They are used to generate low power stabilized supply rails from a higher voltage and to provide reference voltages for circuits, especially stabilized power supplies. They are also used to protect circuits from over-voltage, especiallyelectrostatic discharge Zenerdiode
  • 20. Zener diode shown with typical packages.Reverse current is shown. Zener diodes are widely used as voltage references and as shunt regulators to regulate the voltage across small circuits. When connected in parallel with a variable voltage source so that it is reverse biased, a Zener diode conducts when the voltage reaches the diode's reverse breakdown voltage. From that point on, the relatively low impedance of the diode keeps the voltage across the diode at that value.[8] In this circuit, a typical voltage reference or regulator, an input voltage, UIN, is regulated down to a stable output voltage UOUT. The breakdown voltage of diode D is stable over a wide current range and holds UOUT relatively constant even though the input voltage may fluctuate over a fairly wide range. Because of the low impedance of the diode when operated like this, resistor R is used to limit current through the circuit. In the case of this simple reference, the current flowing in the diode is determined using Ohm's law and the known voltage drop across the resistor R; The value of R must satisfy two conditions : 1.R must be small enough that the current through D keeps D in reverse breakdown. The value of this current is given in the data sheet for D. For example, the common BZX79C5V6[9] device, a 5.6 V 0.5 W Zener diode, has a recommended reverse current of 5 mA. If insufficient current exists through D, then UOUT is unregulated and less than the nominal breakdown voltage (this differs to voltage-regulator tubes where the output voltage will be higher than nominal and could rise as high as UIN). When calculating R, allowance must be made for any current through the external load, not shown in this diagram, connected across UOUT. 2.R must be large enough that the current through D does not destroy the device.
  • 21. 2.If the current through D is ID, its breakdown voltage VB and its maximum power dissipation PMAX correlate as such: . A load may be placed across the diode in this reference circuit, and as long as the Zener stays in reverse breakdown, the diode provides a stable voltage source to the load. Zener diodes in this configuration are often used as stable references for more advanced voltage regulator circuits. Shunt regulators are simple, but the requirements that the ballast resistor be small enough to avoid excessive voltage drop during worst-case operation (low input voltage concurrent with high load current) tends to leave a lot of current flowing in the diode much of the time, making for a fairly wasteful regulator with high quiescent power dissipation, only suitable for smaller loads. These devices are also encountered, typically in series with a base-emitter junction, in transistor stages where selective choice of a device centered around the avalanche or Zener point can be used to introduce compensating temperature co-efficient balancing of the transistor p–n junction. An example of this kind of use would be a DC error amplifier used in aregulated power supply circuit feedback loop system. Zener diodes are also used in surge protectors to limit transient voltage spikes. Another application of the Zener diode is the use of noise caused by its avalan che breakdown in a random number generator.
  • 22.  NCERT textbook class 12  NCERT physics lab Manuel  INTERNET  www.yahoo.com  www.scribd.com  www.google.com
